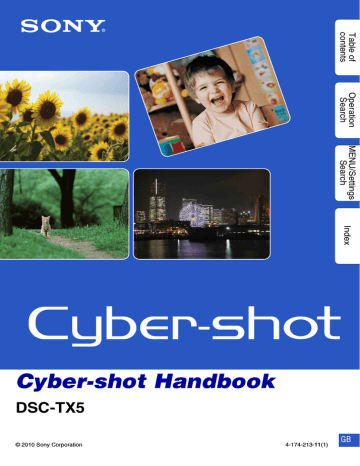

Cyber-shot Handbook
DSC-TX5
© 2010 Sony Corporation
4-174-213-11(1)
GB
Table of
contents
How to use this handbook
Click on a button at upper right to jump to the corresponding page.
This is convenient when searching for a function you want to view.
Operation
Search
Search for information by operation.
MENU/Settings
Search
Search for information in a listing of
MENU/Settings items.
Marks and notations used in this handbook
MENU/Settings
Search
Index
Search for information by keyword.
Operation
Search
Table of
contents
Search for information by function.
The default setting is indicated by
Index
In this handbook, the sequence of
operations is shown by arrows (t). You
should touch the items on the screen in the
order indicated. Marks are shown as they
appear in the camera’s default setting.
.
Indicates cautions and limitations relevant
to the correct operation of the camera.
z Indicates information that is useful to
know.
2GB
“Memory Stick Duo”
media Adaptor
Notes on the battery pack
• Charge the battery pack (supplied) before using
the camera for the first time.
• You can charge the battery pack even if it is not
completely discharged. In addition, even if the
battery pack is not fully charged, you can use the
partially charged capacity of the battery pack as
is.
• If you do not intend to use the battery pack for a
long time, use up the existing charge and
remove it from the camera, then store it in a
cool, dry place. This is to maintain the battery
pack functions.
• For details on the usable battery pack, see
page 145.
• The LCD screen is manufactured using
extremely high-precision technology so over
99.99% of the pixels are operational for
effective use. However, some tiny black and/or
bright dots (white, red, blue or green) may
appear on the LCD screen. These dots are a
normal result of the manufacturing process and
do not affect the recording.
Black, white, red, blue or
green dots
Index
When using a “Memory Stick Duo”
media with standard sized “Memory
Stick” media slot
You can use the “Memory Stick Duo” media
by inserting it into the “Memory Stick Duo”
media Adaptor (sold separately).
Notes on the LCD screen and lens
MENU/Settings
Search
• When recording movies, it is recommended that
you use the following memory cards:
–
(Mark2) (“Memory Stick
PRO Duo” (Mark2) media)
–
(“Memory Stick PROHG Duo” media)
– SD memory card or SDHC memory card
(Class 4 or faster)
Carl Zeiss lens
The camera is equipped with a Carl Zeiss lens
which is capable of reproducing sharp images
with excellent contrast. The lens for the
camera has been produced under a quality
assurance system certified by Carl Zeiss in
accordance with the quality standards of Carl
Zeiss in Germany.
Operation
Search
Notes on the types of memory cards
that you can use (sold separately)
The following memory cards are compatible
with this camera: “Memory Stick PRO Duo”
media, “Memory Stick PRO-HG Duo”
media, “Memory Stick Duo” media, SD
memory card and SDHC memory card.
MultiMediaCard cannot be used.
A memory card with a capacity up to 32 GB
has been confirmed to operate properly with
the camera.
In this manual, the term “Memory Stick Duo”
media is used to refer to “Memory Stick PRO
Duo” media, “Memory Stick PRO-HG Duo”
media and “Memory Stick Duo” media.
Table of
contents
Notes on using the camera
• Exposing the LCD screen or the lens to direct
sunlight for long periods may cause
malfunctions. Be careful when placing the
camera near a window or outdoors.
• Do not press against the LCD screen. The screen
may be discolored and that may cause a
malfunction.
• Images may trail across on the LCD screen in a
cold location. This is not a malfunction.
• Be careful not to bump the lens, and be careful
not to apply force to it.
On moisture condensation
• If the camera is brought directly from a cold to a
warm location, moisture may condense inside or
outside the camera. This moisture condensation
may cause a malfunction of the camera.
• If moisture condensation occurs, eject the
battery pack and the memory card, then leave
the camera in a dry place with the battery/
memory card cover open until the moisture
evaporates. Note that if you attempt to shoot
with moisture remaining inside the lens, you
will be unable to record clear images.
3GB
Continued r
Table of
contents
The images used in this Handbook
The images used as examples in this
Handbook are reproduced images, and are not
actual images shot using this camera.
Operation
Search
MENU/Settings
Search
Index
4GB
Notes on using the camera
Operation
Search
MENU/Settings
Search
How to use this handbook····································· 2
Notes on using the camera ··································· 3
Operation Search ·················································· 8
MENU/Settings Search ······································· 11
Names of parts···················································· 16
List of icons displayed on the screen ·················· 17
Using the touch panel ········································· 19
Customizing the MENU items ····························· 21
Using the internal memory ·································· 22
Table of
contents
Table of contents
Shooting
Index
REC Mode··························································· 23
Intelligent Auto Adjustment ································· 24
Program Auto ······················································ 25
Intelligent Sweep Panorama ······························· 26
Movie Mode························································· 28
Anti Motion Blur··················································· 29
Hand-held Twilight ·············································· 30
Backlight Correction HDR ··································· 31
Scene Selection ·················································· 32
Zoom ··································································· 34
Viewing
Viewing still images············································· 35
Playback Zoom ··················································· 36
Wide Zoom·························································· 37
Temporarily Rotated Display······························· 38
Viewing movies ··················································· 39
5GB
MENU items (Shooting) ······································ 11
Table of
contents
MENU (Shooting)
MENU (Viewing)
Operation
Search
MENU items (Viewing) ········································ 13
Settings
TV
Index
Viewing an image on a Standard Definition (SD)
TV······································································ 117
Viewing an image on a High Definition (HD)
TV······································································ 118
MENU/Settings
Search
Setting items ······················································· 14
Computer
Using with your computer·································· 120
Using the software ············································ 121
Connecting the camera to a computer··················123
Uploading images to a media service ··············· 125
Printing
Printing still images ··········································· 127
6GB
Troubleshooting ················································ 130
Warning indicators and messages ···················· 139
“Memory Stick Duo” media································ 143
Battery pack ······················································ 145
Battery charger·················································· 146
Index ································································· 147
MENU/Settings
Search
Index
Operation
Search
Others
Table of
contents
Troubleshooting
Index
7GB
Leaving the settings to Intelligent Auto Adjustment ······························· 24
the camera
Scene Selection ··················································· 32
Table of
contents
Operation Search
Scene Recognition ·············································· 62
Intelligent Sweep Panorama ···························· 26
Shooting best shots of
your pet
Pet ············································································ 32
Shooting close to
objects
Macro ······································································ 53
Close Focus ·························································· 53
Shooting moving
objects
Hi-Speed Shutter ················································· 33
Movie Mode··························································· 28
Burst ········································································ 52
Shooting without blur
High Sensitivity····················································· 32
Hi-Speed Shutter ················································· 33
Anti Motion Blur ···················································· 29
Hand-held Twilight ·············································· 30
2-second delay self-timer ·································· 46
ISO ··········································································· 55
Index
Shooting panoramic
images
MENU/Settings
Search
Soft Snap ······························································· 32
Twilight Portrait ···················································· 32
Smile Shutter ························································ 42
Scene Recognition ·············································· 62
Face Detection ····················································· 64
Anti Blink ································································ 66
Red Eye Reduction ············································· 93
Operation
Search
Shooting portraits
8GB
Shooting with backlight Forced Flash ························································· 44
Table of
contents
Scene Recognition ·············································· 62
Backlight Correction HDR ································· 31
Shooting in dark places High Sensitivity····················································· 32
Changing focus
position
Using the touch panel ········································ 19
Focus ······································································ 59
Face Detection ····················································· 64
Changing image size
Image Size····························································· 49
Deleting images
Delete ······································································ 74
Format ·································································· 109
Displaying enlarged
images
Playback Zoom ···················································· 36
Trimming (Resize) ··············································· 77
Displaying full-screen
images
Wide Zoom ···························································· 37
Temporarily Rotated Display ···························· 38
Image Size····························································· 49
Editing images
Retouch ·································································· 77
Paint ········································································ 76
Index
EV ············································································ 54
MENU/Settings
Search
Adjusting exposure
Operation
Search
Anti Motion Blur ···················································· 29
Slow Synchro ························································ 44
ISO ··········································································· 55
Playing back a series of Slideshow ······························································ 71
images in order
Using with easy-to-see Easy Mode······················································· 40, 68
indicators
9GB
Area Setting ························································ 115
Date & Time Setting·········································· 116
Initializing settings
Initialize··································································· 99
Printing images
Print ······································································· 127
Viewing on TVs
Viewing an image on a Standard Definition
(SD) TV································································· 117
Viewing an image on a High Definition
(HD) TV ································································ 118
MENU/Settings
Search
Changing date and
time settings
Operation
Search
“PMB (Picture Motion Browser)” ··················· 121
Table of
contents
Printing images with
the date
Index
10GB
Table of
contents
MENU/Settings Search
MENU items (Shooting)
You can easily select the various shooting functions from
.
1 Lower the lens cover to switch to shooting mode.
2 Touch
The four menu items displayed below
the MENU screen.
Operation
Search
to display the MENU screen.
do not appear in
3 Touch the menu item t desired mode.
MENU/Settings
Search
In the table below, indicates settings that can be changed, while – indicates settings that cannot
be changed. A setting may be fixed or restricted depending on the shooting mode. For details,
see the page for each item.
The icons below
and
indicate the available modes.
REC Mode
—
Easy Mode
—
—
—
—
Smile Shutter
—
—
—
—
Flash
—
—
—
Self-Timer
—
—
—
—
—
Movie shooting scene
Shooting Direction
—
—
—
—
—
Index
Menu items
—
—
—
—
Image Size
Burst
—
—
—
Macro
—
—
—
ISO
—
White Balance
—
Underwater White
Balance
—
Focus
—
Metering Mode
—
Face Detection
—
—
EV
Scene Recognition
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
11GB
Continued r
REC Mode
Anti Blink
—
—
—
—
—
—
Display Settings
—
Table of
contents
Menu items
Notes
• Only the items that are available for each mode are displayed on the screen.
• The four menu items displayed below
differ according to each mode.
Operation
Search
MENU/Settings
Search
Index
12GB
MENU items (Viewing)
Table of
contents
You can easily select the various viewing functions from
.
1 Press the
(Playback) button to switch to
playback mode.
2 Touch
to display the MENU screen.
do not appear in the
Operation
Search
The four menu items displayed below
MENU screen.
3 Touch the menu item t desired mode.
indicates settings that can be changed, while – indicates settings that cannot
View Mode
Internal
Memory
Memory card
Date View
Menu items
Folder view
(Movie)
Folder View
—
—
—
(Easy Mode)
(Calendar)
(Image Index)
Index
Folder view
(Still)
MENU/Settings
Search
In the table below,
be changed.
(Slideshow)
(Delete)
(Paint)
—
(Retouch)
—
(View Mode)
—
(Display Burst Group)
—
—
—
—
—
(Protect)
DPOF
(Print)
—
(Rotate)
—
(Volume Settings)
—
(Display Settings)
(Exposure data)
(Image index settings)
(Select Folder)
—
—
Notes
• Only the items that are available for each mode are displayed on the screen.
• The four menu items displayed below
differ according to each mode.
13GB
Setting items
1 Touch
Table of
contents
You can change the settings on the
(Settings) screen.
to display the MENU screen.
Operation
Search
2 Touch
(Settings) t desired category t
desired item t desired setting.
Shooting Settings
MENU/Settings
Search
Categories
Items
AF Illuminator
Grid Line
Digital Zoom
Auto Orientation
Scene Recog. Guide
Red Eye Reduction
Index
Blink Alert
Main Settings
Beep
LCD Brightness
Language Setting
Demo Mode
Initialize
COMPONENT
Video Out
Housing
USB Connect
LUN Settings
Download Music
Format Music
Power Save
Calibration
Memory Card Tool
Format
Create REC.Folder
Change REC.Folder
Delete REC.Folder
Copy
File Number
14GB
Continued r
Categories
Format
File Number
Clock Settings
Area Setting
Date & Time Setting
Table of
contents
Internal Memory Tool
Items
Notes
Operation
Search
• [Shooting Settings] appears only when settings have been entered from shooting mode.
• [Memory Card Tool] appears only when a memory card is inserted in the camera, while [Internal
Memory Tool] appears only when a memory card is not inserted.
MENU/Settings
Search
Index
15GB
Table of
contents
Names of parts
A Shutter button
B Microphone
C Lens cover
D ON/OFF (Power) button
E Flash
G Lens
H LCD screen/Touch panel
Operation
Search
F Self-timer lamp/Smile Shutter lamp/
AF illuminator
I Speaker
(Playback) button (35)
K Zoom (W/T) lever (34, 36)
L Hook for wrist strap*
M Memory card slot
N Battery eject lever
O Multi-connector
MENU/Settings
Search
J
P Tripod receptacle
Q Battery/Memory card cover
S Access lamp
T Multi-connector cover
Index
R Battery insertion slot
* Using the wrist strap
Place your hand through the loop to prevent the
camera from sinking or sustaining damage from
being dropped.
Hook
* Using the paint pen
The paint pen is used when operating the touch
panel. It attaches to the wrist strap. Do not carry
the camera by holding the paint pen. The camera
may fall off.
16GB
Icons are displayed on the screen to indicate the camera status. The displayed icon positions may
differ according to the shooting mode.
When shooting still images
Table of
contents
List of icons displayed on the
screen
1
Indication
Scene Recognition icon
Operation
Search
Display
White balance
Scene Recognition
Vibration warning
Movie shooting scene
Playback zoom
When shooting movies
MENU/Settings
Search
Destination
Recording/Playback Media
(Memory card, internal memory)
Image number/Number of
images recorded in selected date/
folder
Recording folder
Index
8/8
Playback folder
Image size
When playing back
Burst shooting images
Main image in the burst group
Changing folder
Protect
Print order (DPOF) mark
17GB
Continued r
2
Indication
Display
Battery remaining
Focus
Low battery warning
Red-eye reduction
AF illuminator
z
Recording folder
NR slow shutter
Shutter speed
F3.5
Aperture value
Zoom scaling
ISO400
ISO number
+2.0EV
Exposure Value
Close focus
Flash mode
Metering mode
Flash charging
Metering mode
White balance
REC
Standby
Recording a movie/Standby a
movie
0:12
Recording time (m:s)
N
Playback
Playback bar
3
Azimuth direction
Indication
GPS information
Temperature increase warning
Self-timer
96
Number of recordable images
100 Min
Recordable time
35° 37' 32" N Latitude and Longitude display
139° 44' 31" E
0:00:12
Counter
101-0012
Folder-file number
2010 1 1
9:30 AM
Recorded date/time of the
playback image
Index
Burst mode
Self-diagnosis display
MENU/Settings
Search
PictBridge connecting
Operation
Search
125
Flash
C:32:00
AE/AF lock
Recording/Playback Media
(Memory card, internal memory)
Database file full/Database file
error warning
Display
Indication
Table of
contents
Display
4
Face Detection
Database file full/Database file
error warning
Image size
AF range finder frame
Spot metering cross-hairs
ISO400
ISO number
+2.0EV
Exposure Value
125
Shutter speed
F3.5
Aperture value
18GB
The camera allows you to perform operations and make settings by touching the buttons or
dragging the LCD screen with your finger.
/
/
/
Table of
contents
Using the touch panel
Displays the hidden items so that the items
you want to set are shown on the screen.
Returns to the previous screen.
• To operate the touch panel, press it lightly with your finger or the supplied paint pen. Pressing hard or
using a pointed object other than the supplied paint pen could damage the touch panel.
• If you touch the top right of the screen during shooting, the buttons and icons will momentarily
disappear. The buttons and icons will reappear when you take your finger off the screen.
Operating by dragging the LCD screen
MENU/Settings
Search
Notes
Operation
Search
Describes the shooting functions when the
shooting mode or Scene Selection mode is
displayed.
Touch
t the items whose description
you want to view.
Index
Displays/hides the MENU screen
During
shooting/
playback
During
playback
Action
Operation method
Displays the MENU screen
Touch the left side of the LCD screen and
drag right
Hides the MENU screen
Touch the right side of the LCD screen and
drag left
Hides the operation buttons
Touch the left side of the LCD screen and
drag left
Displays the operation buttons
Touch the left side of the LCD screen and
drag right
Displays the next/previous image
Drag right or left
Continuously changes the image (next/
previous image)
Drag right or left, and continue pressing
that screen edge
Displays the image index screen during
playback
Drag up
Displays the next/previous page in index
mode
Drag down or up
Displays the calendar during playback in
Date View mode
Drag down
19GB
Touching the screen to set the focus
Button/Operation method
Touch the subject
Table of
contents
Touching the subject on the touch panel displays a frame, and then pressing the shutter button
halfway down brings the frame into focus. If there is a face in the frame, in addition to the focus,
the brightness and hue are also automatically optimized.
Action
Adjusts the focus.
Note
MENU/Settings
Search
• In the following situations, you cannot bring the frame into focus by touching the screen:
– In Intelligent Sweep Panorama mode
– In Movie Mode
– In Easy Mode
– When the Smile Shutter function is activated
– When
(Landscape), (Twilight), (Gourmet), (Fireworks) or
(Underwater) is selected in
the Scene Selection
– When [Self-Timer] is set to [Self-portrait One Person] or [Self-portrait Two People]
– When you use [Digital Zoom]
Operation
Search
Cancels the function.
Index
20GB
During shooting/playback, the four MENU items appear below
on the LCD screen. You
can customize these four buttons to the desired MENU items and layout, letting you
conveniently locate frequently used buttons.
These buttons can be customized and the settings saved for each recording mode during
shooting, and for internal memory and the memory card during playback.
2
to display the MENU screen.
Operation
Search
1 Touch
Table of
contents
Customizing the MENU items
MENU/Settings
Search
(Customize) t [OK]
3 Select a MENU icon and drag it to the desired
position on the left side of the LCD screen.
The MENU icon in the customization area is replaced.
4 To cancel, touch
.
Index
Customization area
Note
• You cannot customize the MENU icon when shooting in Easy Mode.
z Taking advantage of customization
Not only can you swap MENU icons, but you can also swap MENU icons inside the
customization area and reduce the number of MENU icons.
Swapping MENU icons inside the customization
area
While touching a MENU icon inside the customization
area, move it to the desired location.
Reducing the number of icons in the
customization area
While touching a MENU icon inside the customization
area, move it to the area on the right.
21GB
The camera has approximately 45 MB of internal memory. This memory is not removable. Even
when there is no memory card inserted in the camera, you can record images using this internal
memory.
B
Internal
memory
MENU/Settings
Search
B
When there is no memory card inserted
[Recording]: Images are recorded using the internal memory.
[Playback]: Images stored in the internal memory are played
back.
[Menu, Settings, etc.]: Various functions can be performed
on images in the internal memory.
Operation
Search
When a memory card is inserted
[Recording]: Images are recorded on the memory card.
[Playback]: Images on the memory card are played back.
[Menu, Settings, etc.]: Various functions can be performed
on images on the memory card.
Table of
contents
Using the internal memory
On image data stored in the internal memory
To copy (back up) data on a hard disk of your computer
Perform the procedure on page 123 without a memory card inserted in the camera.
Index
We recommend that you copy (back up) data without error using one of the following methods.
To copy (back up) data on a memory card
Prepare a memory card with sufficient free capacity, then perform the procedure explained in
[Copy] (page 113).
Notes
• You cannot import image data on a memory card to the internal memory.
• By making a USB connection between the camera and a computer with a cable, you can import data
stored in the internal memory to a computer. However you cannot export data on a computer to the
internal memory.
22GB
You can select the shooting mode based on condition and objective.
1 Lower the lens cover to switch to shooting mode.
2 Touch
Table of
contents
REC Mode
(REC Mode) t desired mode.
(Program Auto)
Allows you to shoot still images with the setting adjusted
automatically.
(iSweep Panorama)
Allows you to shoot a panoramic image after composing images.
(Movie Mode)
Allows you to record movies.
(Anti Motion Blur)
(Hand-held Twilight)
(Backlight
Correction HDR)
Allows you to shoot with reduced blur in low light scenes without
tripod when composing burst shots taken in high-speed.
Allows you to shoot a greater range of gradation by superimposing
two images having different exposures.
Allows you to shoot with preset settings according to the scene.
Index
(Scene Selection)
Allows you to shoot with reduced blur without using the flash when
composing burst shots taken in high-speed.
MENU/Settings
Search
Allows you to shoot with the exposure adjusted automatically (both
the shutter speed and the aperture value). Also you can select various
settings using the menu.
Operation
Search
(Intelligent Auto
Adjustment)
23GB
Allows you to shoot still images with the setting adjusted automatically.
1 Lower the lens cover to switch to shooting mode.
2
(REC Mode) t
Adjustment)
Table of
contents
Intelligent Auto Adjustment
(Intelligent Auto
Note
• Flash mode is set to [Auto] or [Off].
Operation
Search
3 Press the shutter button fully down.
zOn Scene Recognition
Scene Recognition icon and guide
Index
• The camera recognizes (Twilight),
(Twilight Portrait),
(Twilight using a tripod),
(Backlight),
(Backlight Portrait),
(Landscape),
(Macro),
(Close Focus) or
(Portrait), and displays the corresponding icon and guide on the screen when the scene is
recognized.
For details, see page 62.
MENU/Settings
Search
Scene Recognition operates in Intelligent Auto Adjustment mode. This function lets the
camera automatically recognize the shooting conditions and shoot the image.
zIf you shoot a still image of a subject that is difficult
to focus on
• The shortest shooting distance is approximately 8 cm (3 1/4 inches) (1 cm (13/32 inches) in
Intelligent Auto Adjustment or Easy Mode) (W), 50 cm (1 ft 7 3/4 inches) (T) (from the lens). Shoot
in the Close focus mode when you shoot a subject closer than the shooting distance.
• When the camera cannot focus on the subject automatically, the AE/AF lock indicator changes to
flash slowly and the beep does not sound. Either recompose the shot or change the focus setting
(page 59).
• Focusing may be difficult in the following situations:
– It is dark and the subject is distant.
– The contrast between the subject and the background is poor.
– The subject is seen through glass.
– The subject is moving quickly.
– There is reflective light or shiny surfaces.
– The subject is backlit or there is a flashing light.
24GB
Allows you to shoot with the exposure adjusted automatically (both the shutter speed and the
aperture value). Also you can select various settings using the menu.
Table of
contents
Program Auto
1 Lower the lens cover to switch to shooting mode.
2
(REC Mode) t
(Program Auto)
Operation
Search
3 Press the shutter button fully down.
MENU/Settings
Search
Index
25GB
The camera takes multiple shots during a sweep, and allows you to create a panoramic image
from composed images. The camera also automatically detects people’s faces or moving
subjects.
Operation
Search
1 Lower the lens cover to switch to shooting mode.
2
(REC Mode) t
Table of
contents
Intelligent Sweep Panorama
(iSweep Panorama)
MENU/Settings
Search
3 Align the camera with the end of the subject to be
shot and press the shutter button fully down.
This part will not be taken
Index
4 Pan the camera to the end of the guide,
following the indication on the LCD
screen.
Guidance
bar
Notes
• If you cannot pan the camera across the entire subject within the given time, a gray area occurs in the
composed image. If this happens, move the camera faster to record a full panoramic image.
• Since several images are stitched together, the stitched part will not be recorded smoothly.
• Under low light conditions, panoramic images may be blurred or the shooting may not be successful.
• Under lights that flicker such as fluorescent light, the brightness or color of the combined image is not
always the same.
• When the whole angle of panoramic shooting and the AE/AF locked angle are very different in
brightness, color and focus, the shooting will not be successful. If this happens, change AE/AF locked
angle and shoot again.
• Intelligent Sweep Panorama is not suitable for the following situations:
– When objects are too close to the camera
– An image with little contrast such as the sky, a sandy beach, lawn or underwater
– An image with constant change such as waves or waterfalls
– When many objects are moving, such as a school of fish
– When it is difficult to stay still such as underwater
• You cannot create panoramic images in the following situations:
– You pan the camera too fast or too slow
– There is too much camera shake
26GB
Continued r
panoramic image
Shooting Direction:
Image Size:
(Shooting Direction) t [Right], [Left], [Up] or [Down]
(Image Size) t [Standard] or [Wide]
Pan the camera in an arc at a constant velocity in the direction indicated on the LCD screen.
Subjects at rest are more suited for panorama shots than moving subjects.
Vertical direction
Horizontal direction
Index
• Determine the scene and press the shutter button halfway, so that you can lock the exposure and
white balance.
• If a section with greatly varied shapes or scenery is concentrated along a screen edge, the image
composition may fail. In such case, adjust the frame composition so that the section is in the center
of the image, then shoot again.
MENU/Settings
Search
Radius as short as possible
Operation
Search
zTips for shooting a panoramic image
Table of
contents
zChanging the shooting direction or image size of a
zScrolling the panoramic images for display
Scroll panoramic images by touching
while panoramic images are being displayed.
Touch the LCD screen during playback to display the operation buttons.
Shows the displayed area of
the whole panoramic image
Operation button/
Operation method
Action
Touch
screen
Plays back scrolling images/pauses
or the LCD
Touch
/ / /
or drag up/down/right/
left
Scrolls images
• Panoramic images can also be played back using the supplied software “PMB” (page 121).
• Panoramic images recorded using another camera may not scroll correctly when played.
27GB
Allows you to record movies.
1 Lower the lens cover to switch to shooting mode.
2
(REC Mode) t
Table of
contents
Movie Mode
(Movie Mode)
3 Press the shutter button fully down.
Operation
Search
4 To stop shooting, press the shutter button fully
down again.
MENU/Settings
Search
Index
28GB
This is suitable for indoor shots without using the flash to reduce the subject blur.
1 Lower the lens cover to switch to shooting mode.
2
(REC Mode) t
Table of
contents
Anti Motion Blur
(Anti Motion Blur)
3 Press the shutter button fully down.
Notes
MENU/Settings
Search
• The shutter beeps 6 times, however just one image is recorded.
• Noise is not effectively reduced in the following situations:
– Image with large-scale movement
– Image with a main subject too close to the camera
– Image with little contrast such as sky, sandy beach, or lawn
– Image with constant change such as waves or water falls
• Smile Shutter cannot be used.
• When using a light source that flickers, such as fluorescent lighting, block noise may occur. In such
cases, set Scene Selection to
(High Sensitivity).
Operation
Search
A burst of shots are taken, and image processing is applied to
reduce subject blur and noise.
Index
29GB
Although night scenes tend to blur by camera shake, this mode allows you to shoot night scenes
with less noise without using a tripod.
Table of
contents
Hand-held Twilight
1 Lower the lens cover to switch to shooting mode.
2
(REC Mode) t
(Hand-held Twilight)
A burst of shots are taken, and image processing is applied to
reduce subject blur and noise.
Notes
MENU/Settings
Search
• The shutter beeps 6 times, however just one image is recorded.
• Noise is not effectively reduced in the following situations:
– Image with large-scale movement
– Image with a main subject too close to the camera
– Image with little contrast such as sky, sandy beach, or lawn
– Image with constant change such as waves or water falls
• Smile Shutter cannot be used.
• When using a light source that flickers, such as fluorescent lighting, block noise may occur. In these
cases, set Scene Selection to
(High Sensitivity).
Operation
Search
3 Press the shutter button fully down.
Index
30GB
You can shoot two images having different exposures to create a single image with a greater
range of gradation by combining the dark parts of an image taken with a bright exposure setting
and the bright parts of an image taken with a dark exposure setting.
Table of
contents
Backlight Correction HDR
1 Lower the lens cover to switch to shooting mode.
(REC Mode) t
HDR)
(Backlight Correction
3 Press the shutter button fully down.
Notes
MENU/Settings
Search
• Although the shutter sound beeps twice, only one image is recorded.
• [Backlight Correction HDR] may not produce the effects in the following situations:
– When using the flash
– Image with large-scale movement
– There is too much camera shake
– Image whose surrounding light condition is extremely bright or dark
– Image with constant change such as waves or waterfalls
• Smile Shutter function is not available in [Backlight Correction HDR].
Operation
Search
2
Index
31GB
Table of
contents
Scene Selection
Allows you to shoot with preset settings according to the scene.
1 Lower the lens cover to switch to shooting mode.
2
(REC Mode) t
desired mode
(Scene Selection) t
Operation
Search
(High Sensitivity) Allows you to shoot images without a
flash under low light conditions,
reducing blur.
Allows you to shoot images with a softer atmosphere for
portraits and flowers, etc.
(Landscape)
Allows easy shooting of distant scenes by focusing in
the distance. Shoots the clear sky and trees and flowers
in vivid colors.
MENU/Settings
Search
(Soft Snap)
(Twilight Portrait) Allows you to shoot sharp images of people with the
(Twilight)
(Gourmet)
(Pet)
(Beach)
(Snow)
Index
night view in the background without compromising the
atmosphere.
Allows you to shoot night scenes at far distance without
losing the dark atmosphere of the surroundings.
Selects Macro mode, allowing you to shoot food
arrangements in delicious and bright colors.
Allows you to shoot images of your pet with the best
settings.
Allows you to shoot the blue of the water clearly when
shooting seaside or lakeside scenes.
Allows you to record clear images preventing sunken
colors in snowy scenes or other places where the whole
screen appears white.
32GB
Continued r
(Fireworks)
Table of
contents
(Underwater)
Allows you to record fireworks in all their splendor.
Allows you to shoot underwater in natural colors.
Operation
Search
(Hi-Speed Shutter) Allows you to capture fast moving subjects outdoors or
in other bright places.
• The shutter speed becomes faster, so images shot in
dark places become darker.
Note
Functions you can use in Scene Selection
For shooting an image appropriately according to the scene condition, a combination of
functions is determined by the camera. indicates settings that can be changed, while –
indicates settings that cannot be changed.
The icons indicated under “Flash” and “Self-Timer” indicate modes that are available. Some
functions are not available, depending on the Scene Selection mode.
Flash
Face
Detection/
Smile
Shutter
—
—
—
Burst
—
*2
White
Balance
*1
Anti Blink
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Self-Timer
—
—
—
—
—
—
—
—
—
—
Index
Close
Focus
MENU/Settings
Search
• When you shoot images using
(Twilight Portrait), (Twilight) or
(Fireworks) mode, the shutter
speed is slower and the images tend to blur. To prevent blurring, the use of a tripod is recommended.
—
—
—
3
*
—
—
—
*1 [Flash] for [White Balance] cannot be selected.
*2 [When touched] for [Face Detection] cannot be selected.
*3 You can use [Underwater White Balance] instead of [White Balance].
33GB
You can enlarge the image when shooting. The camera’s optical zoom function can enlarge
images up to 4×.
1 Lower the lens cover to switch to shooting mode.
Table of
contents
Zoom
T side
2 Move the zoom (W/T) lever.
• When the zoom scale exceeds 4×, see page 90.
W side
MENU/Settings
Search
Notes
Operation
Search
Move the zoom (W/T) lever to the T side to zoom in and move
to the W side to zoom out.
• The camera zooms slowly while shooting a movie.
• Zoom is locked to the W side when shooting in Intelligent Sweep Panorama mode.
Index
34GB
1 Press the
(Playback) button to switch to
playback mode.
2 Select an image with
/
Table of
contents
Viewing still images
.
Operation method
Displays the MENU screen
Touch the left side of the LCD screen and drag right
Hides the MENU screen
Touch the right side of the LCD screen and drag left
Hides the operation buttons
Touch the left side of the LCD screen and drag left
Displays the operation buttons
Touch the left side of the LCD screen and drag right
Displays the next/previous image
Drag right or left
Continuously changes the image (next/
previous image)
Drag right or left, and continue pressing that screen edge
Displays the image index screen during
playback
Drag up
Displays the next/previous page in index
mode
Drag down or up
Displays the calendar during playback in
Date View mode
Drag down
Index
Action
MENU/Settings
Search
Displays/hides the MENU screen
Operation
Search
zTips for dragging operations
zViewing images taken with a different camera
This camera creates an Image Database File on the memory card for recording and playing
images. If the camera detects images not registered in the Image Database File on the
memory card, a registration screen with the message “Files found which were not
recognized Import files” will be displayed. To view unregistered images, register them by
selecting [OK].
• Use a sufficiently charged battery to register images. If a battery with a low charge is used, it may
not be possible to register data or data may be corrupted if the battery charge runs out.
35GB
Table of
contents
Playback Zoom
Plays back the enlarged image.
1 Press the
(Playback) button to switch to
playback mode.
2 Touch the area you want to enlarge.
Shows the displayed area of
the whole image
3 Adjust the zoom scale and position.
Operation
Search
The image is enlarged to twice the previous size, with
the area you touched at the center. You can also enlarge
the image by moving the zoom (W/T) lever to the T
side.
The image is further enlarged each time you touch the screen.
Action
Drag up/down/right/left
Changes the zoom position.
/
MENU/Settings
Search
Button/Operation method
Changes the zoom scale.
Cancels playback zoom.
zTo save enlarged images
t [Retouch] t
Index
You can save an enlarged image by using the Trimming function (
[Trimming (Resize)]).
36GB
In single-image mode, still images at a 4:3 aspect ratio are played over the entire LCD screen. In
this case, the top and bottom of the image will be slightly cropped.
2 Touch
Operation
Search
1 Press the
(Playback) button to switch to
playback mode.
Table of
contents
Wide Zoom
(Wide Zoom).
(Wide Zoom)
Note
• Wide Zoom is not available for the following image files:
– Movies
– Panoramic images
– Images displayed in a burst group
– 16:9 images
MENU/Settings
Search
3 To cancel Wide Zoom, touch
again.
Index
37GB
This is used in the single-image mode to temporarily rotate an image and enlarge it on the screen.
Operation
Search
1 Press the
(Playback) button to switch to
playback mode.
Table of
contents
Temporarily Rotated Display
2 Select the vertical orientation image t touch
(Temporarily Rotated Display).
(Temporarily
Notes
• Temporarily Rotated Display is not available for the following images:
– Movies
– Panoramic images
– Horizontal orientation images
• Touching / cancels Temporarily Rotated Display.
MENU/Settings
Search
3 To cancel the display, touch
Rotated Display) again.
Index
38GB
Table of
contents
Viewing movies
1 Press the
(Playback) button to switch to
playback mode.
2 Select a movie with
3 Touch
/
.
on the LCD screen.
Button/Operation method
Action
Volume control
Adjust the volume with
/
.
Jumps to the start of the movie
m
Fast rewind
Touch u or the LCD screen
Normal playback/Pause
M
Fast forward
Note
• You may not be able to play back some images shot using other cameras.
MENU/Settings
Search
.
Operation
Search
When you touch the LCD screen during playback, the
playback is paused and operation buttons are displayed.
Index
39GB
Allows you to shoot still images using the minimum necessary functions.
The text size increases and indicators become easier to see.
Table of
contents
Easy Mode
1 Lower the lens cover to switch to shooting mode.
2
t
(Easy Mode) t [OK]
Operation
Search
Notes
• The battery power may decrease faster because the screen brightness increases automatically.
• The playback mode also changes to [Easy Mode].
Smile Shutter: Touch (Smile Shutter).
Image Size:
t [Image Size] t Select [Large] or
[Small]
Flash:
t [Flash] t Select [Auto] or [Off]
Self-Timer:
t [Self-Timer] t Select [Off] or [On]
Exit Easy Mode:
t [Exit Easy Mode] t [OK]
Index
zOn Scene Recognition
MENU/Settings
Search
zFunctions available in Easy Mode (Shooting)
Scene Recognition operates in Easy Mode. This function lets the camera automatically
recognize the shooting conditions and shoot the image.
Scene Recognition icon
• The camera recognizes (Twilight),
(Twilight Portrait),
(Twilight using a tripod),
(Backlight),
(Backlight Portrait),
(Landscape),
(Macro),
(Close Focus) or
(Portrait), and displays an icon on the LCD screen when the scene is recognized.
For details, see page 62.
40GB
Allows you to shoot with preset settings according to the scene when the camera is in Movie
Mode.
Table of
contents
Movie shooting scene
1 Lower the lens cover to switch to shooting mode.
2
(REC Mode) t
t
(Movie shooting scene) t desired
mode
4 Press the shutter button fully down.
5 To end recording the movie, press the shutter button fully down again.
Adjusts the setting automatically.
(Underwater) Allows you to shoot a movie underwater in natural colors.
MENU/Settings
Search
(Auto)
Operation
Search
3
(Movie Mode)
Index
41GB
Table of
contents
Smile Shutter
When the camera detects a smile, the shutter is released automatically.
1 Lower the lens cover to switch to shooting mode.
2 Touch
(Smile Shutter).
Operation
Search
When the buttons are not displayed on the left side of the LCD
screen, touch
.
3 Wait detecting a smile.
4 To end the Smile Shutter, touch
Shutter) again.
(Smile
Smile Detection
Sensitivity indicator
Face Detection frame
Notes
Index
• Shooting using the Smile Shutter ends automatically when either the memory card or internal memory
becomes full.
• Smiles may not be detected correctly depending on the conditions.
• You cannot use the Digital Zoom function.
• The Smile Shutter function is not available in the following situations:
– In Intelligent Sweep Panorama mode
– In Movie Mode
– In Anti Motion Blur mode
– In Hand-held Twilight mode
– In Backlight Correction HDR mode
MENU/Settings
Search
When the smile level exceeds the V point on the indicator, the
camera records images automatically.
If you press the shutter button during Smile Shutter, the
camera shoots the image, and then returns to Smile Shutter
mode.
zSetting the Smile Detection Sensitivity
In Smile Shutter mode, a button that sets the Smile Detection Sensitivity is displayed.
: Detects a big smile.
: Detects a normal smile.
: Detects even a slight smile.
• The Smile Detection Sensitivity is fixed to [Normal Smile] in Easy Mode.
• When [Display Settings] is set to [Off], the Smile Detection Sensitivity is not displayed.
42GB
Continued r
Do not cover the eyes with the bangs.
Do not obscure the face by hat, masks, sunglasses, etc.
2 Try to orient the face in front of the camera and be as
level as possible. Keep the eyes narrowed.
3 Give a clear smile with an open mouth. The smile is
easier to detect when the teeth are showing.
1
Operation
Search
• The shutter operates when any person whose face is being detected smiles.
• You can select or register the selected subject for face detection with [Face Detection]. When the
selected face is registered in the camera memory, Smile Detection is performed only for that face.
To perform smile detection for a different face, touch that face (page 64).
• If the camera does not detect a smile, set the Smile Detection Sensitivity.
Table of
contents
zHints for better capturing of smiles
MENU/Settings
Search
Index
43GB
1 Lower the lens cover to switch to shooting mode.
2
(Flash) t desired mode
Table of
contents
Flash
When the buttons are not displayed on the left side of the LCD
screen, touch
.
(On)
(Slow
Synchro)
Flash always operates.
Flash always operates.
The shutter speed is slow in a dark place to clearly shoot the
background that is out of flash light.
Flash does not operate.
Notes
•
•
•
•
•
•
Index
The flash strobes twice. The first flash adjusts the light quantity.
While charging the flash,
is displayed.
You cannot use the flash during burst shooting.
[On] or [Slow Synchro] is not available when the camera is in Intelligent Auto Adjustment mode.
[Auto] or [Slow Synchro] is not available when the camera is in Backlight Correction HDR mode.
[Flash] is set to [Off] in the following situations:
– In Intelligent Sweep Panorama mode
– In Anti Motion Blur mode
– In Hand-held Twilight mode
MENU/Settings
Search
(Off)
Flashes when shooting in low light or backlight conditions.
Operation
Search
(Auto)
zWhen “White circular spots” appear in flash photos
Such spots are caused by foreign particles (dust, pollen, etc.) floating close to the lens.
When they are accentuated by the camera’s flash, they appear as white circular spots.
Camera
Subject
Foreign particles (dust,
pollen, mist, etc.) in the air or
suspended particles in water
How can the “White circular spots” be reduced?
• Light the room and shoot the subject without a flash.
• Select
(High Sensitivity) mode in Scene Selection. (The flash is set to [Off].)
44GB
In Easy Mode, select the Flash setting from
.
1 Lower the lens cover to switch to shooting mode.
2
t
3
t [Flash] t desired mode
Table of
contents
Flash
(Easy Mode) t [OK]
Off
Flash does not operate.
MENU/Settings
Search
Flashes when shooting in low light or backlight conditions.
Operation
Search
Auto
Index
45GB
1 Lower the lens cover to switch to shooting mode.
2
(Self-Timer) t desired mode
Table of
contents
Self-Timer
When the buttons are not displayed on the left side of the LCD
screen, touch
.
Does not use the self-timer.
Sets the self-timer to a 10-second delay.
When you press the shutter button, the self-timer lamp flashes and a
beep sounds until the shutter operates.
To cancel, touch
.
(2sec)
Sets the self-timer to a 2-second delay.
(Self-portrait
One Person)
(Self-portrait
Two People)
Sets the self-timer to Self-portrait timer.
When the camera detects the specified number of faces, a beep
sounds, and the shutter operates 2 seconds later. Do not move the
camera during this while.
Notes
MENU/Settings
Search
(10sec)
Operation
Search
(Off)
• In Movie Mode, [Self-portrait One Person] or [Self-portrait Two People] is not available.
• The self-timer is not valid when shooting in Intelligent Sweep Panorama mode.
Index
z Automatic shooting with Self-portrait timer
Point the lens at yourself so your face is reflected in the LCD screen. The camera detects the
subjects, and then the shutter operates. The camera determines the optimal composition and
prevents faces from being cut out of the LCD screen.
• You can also shoot a image by pressing the shutter button during this
operation.
z Hints for preventing blur
If your hands or body moves while holding the camera and pressing the shutter button,
“Camera shake” occurs. Camera shake occurs frequently under low-light or slow shutter
speed conditions, such as those encountered in
(Twilight Portrait) or (Twilight) mode.
In such a case, shoot with the below tips in mind.
• Shoot with a 2-second delay self-timer and
stabilize the camera by holding your arms firmly at
your side after pressing the shutter button.
• Use a tripod or place the camera on a flat surface
to hold the camera steady.
46GB
In Easy Mode, select the Self-Timer setting from
.
1 Lower the lens cover to switch to shooting mode.
2
t
3
t [Self-Timer] t desired mode
Table of
contents
Self-Timer
(Easy Mode) t [OK]
On
Sets the self-timer to a 10-second delay.
When you press the shutter button, the self-timer lamp flashes and a
beep sounds until the shutter operates.
To cancel, touch
.
MENU/Settings
Search
Does not use the self-timer.
Operation
Search
Off
Index
47GB
Set the direction to pan the camera when you shoot Intelligent Sweep Panorama images.
1 Lower the lens cover to switch to shooting mode.
2
(iSweep Panorama)
(Shooting Direction) t desired direction
Pan from left to right.
(Left)
Pan from right to left.
(Up)
Pan from down to up.
(Down)
Pan from up to down.
MENU/Settings
Search
(Right)
Operation
Search
3
(REC Mode) t
Table of
contents
Shooting Direction
Index
48GB
The image size determines the size of the image file that is recorded when you take a image.
The larger the image size, the more detail will be reproduced when the image is printed on largeformat paper. The smaller the image size, the more images can be recorded.
Table of
contents
Image Size
1 Lower the lens cover to switch to shooting mode.
t
(Image Size) t desired size
Operation
Search
2
Depending on the REC mode, this is set using buttons
displayed on the left side of the screen.
When shooting still images
Usage guidelines
For prints up to A3+ size
(2592×1944)
For prints from 10 × 15 cm up to A4
size
(640×480)
For e-mail attachments
(3648×2056)
For viewing on a high-definition TV
and printing up to A4 size
(1920×1080)
For viewing on a high-definition TV
Images are displayed in 4:3
aspect ratio.
Index
(3648×2736)
LCD screen
MENU/Settings
Search
Image size
Images will fill the entire
screen.
Note
• When you print still images recorded with 16:9 aspect ratio, both edges may be cut off.
In Easy Mode
Large
Shoots images in [10M] size.
Small
Shoots images in [5M] size.
49GB
(Standard)
Shoots the images using standard size.
Table of
contents
When shooting Intelligent Sweep Panorama
images
(Horizontal: 4912×1080)
(Vertical: 3424×1920)
(Wide)
Shoots the images using wide size.
Operation
Search
(Horizontal: 7152×1080)
(Vertical: 4912×1920)
When shooting movies
Movie image size
Usage guidelines
1280×720(Fine)
9 Mbps
Shoots highest quality movies for
display on High Definition TV.
1280×720(Standard)
6 Mbps
Shoots standard quality movies for
display on High Definition TV.
VGA
3 Mbps
Shoots an image size suitable for WEB
upload.
Index
Average bit rate
MENU/Settings
Search
The larger the size of the movie image, the higher the image quality. The higher the amount of
data used per second (average bit-rate), the smoother the playback image.
The movies shot with this camera will be recorded in MPEG-4, Approx. 30 fps, Progressive,
AAC, mp4 format.
Note
• A telephoto image is produced when the [VGA] image size is selected for movies.
50GB
Continued r
A digital image is made up of a collection of small dots called pixels.
If it contains a large number of pixels, the image becomes large, it takes up more memory,
and the image is displayed in fine detail. “Image size” is shown by the number of pixels.
Although you cannot see the differences on the screen of the camera, the fine detail and data
processing time differ when the image is printed or displayed on a computer screen.
Image size: 10M
3648 pixels × 2736 pixels = 9,980,928 pixels
2 Image size: VGA
640 pixels × 480 pixels = 307,200 pixels
1
Pixels
Many pixels
(Fine image quality and large file size)
Few pixels
(Rough image quality but small file size)
MENU/Settings
Search
Pixel
Operation
Search
Description of the pixels and the image size
Table of
contents
zOn “image quality” and “image size”
Index
51GB
The camera shoots up to 10 continuous frames in one burst when you hold down the shutter
button.
Table of
contents
Burst
1 Lower the lens cover to switch to shooting mode.
2
(Burst) t desired mode
Records a single image.
(High)
Shoots up to 10 images per second in succession.
(Mid)
Shoots up to 5 images per second in succession.
(Low)
Shoots up to 2 images per second in succession.
Notes
Index
• Burst mode is not available in the following situations:
– In Intelligent Sweep Panorama mode
– In Movie Mode
– In Anti Motion Blur mode
– In Hand-held Twilight mode
– In Backlight Correction HDR mode
– When the Smile Shutter function is activated
– In Easy Mode
• The flash is set to [Off].
• When recording with the self-timer, a series of a maximum of five images is recorded.
• The recording interval becomes longer, depending on the setting for the image size.
• [Focus], [White Balance], and [EV] are adjusted for the first image, and these settings are also used for
the other images.
• [VGA] image size will be set while recording on internal memory.
• When the battery level is low, or when the internal memory or a memory card is full, the burst stops.
• In slow shutter speed conditions, the burst of shots per second may be decreased.
MENU/Settings
Search
(Off)
Operation
Search
When the buttons are not displayed on the left side of the LCD
screen, touch
.
zAbout the recording of burst shooting images
After shooting burst images, the shot images are displayed in frames on the LCD screen.
When all the images are fitted in the frames, recording is completed.
You can stop the recording by touching [Cancel recording] t [OK].
When stopped, the image displayed in index and images in the image processing are
recorded.
52GB
Use this setting to capture beautiful close-up images of small subjects such as insects or flowers.
1 Lower the lens cover to switch to shooting mode.
2
t
Table of
contents
Macro
(Macro) t desired mode
The camera adjusts the focus automatically from distant subjects to
close-up.
(Close
Focus)
Use this mode to shoot at close distances.
Locked to the W side: Approximately 1 cm to 20 cm (13/32 inches
to 7 7/8 inches)
Notes
Index
• [Macro] is set to [Auto] in the following situations:
– In Intelligent Sweep Panorama mode
– In Movie Mode
– In Anti Motion Blur mode
– In Hand-held Twilight mode
– When the Smile Shutter function is activated
– In Easy Mode
– When [Self-Timer] is set to [Self-portrait One Person] or [Self-portrait Two People]
• Note the following points when using the Close focus mode.
– You cannot use the Scene Recognition or Face Detection functions.
– This mode is cancelled if you turn off the power or switch the shooting mode to another one.
– The flash mode settings you can use in this mode are [On] or [Off] only.
– The focus speed becomes slower.
MENU/Settings
Search
(Auto)
Operation
Search
Depending on the REC mode, this is set using buttons
displayed on the left side of the screen.
53GB
You can adjust the exposure manually in 1/3 EV steps in a range of –2.0 EV to +2.0 EV.
1 Lower the lens cover to switch to shooting mode.
2
t
(EV)
/
to adjust exposure t [OK].
You can also adjust the exposure by touching z of the
adjustment bar and dragging to the right or left.
• [EV] is not available in Backlight Correction HDR mode or in Easy Mode.
• If you shoot a subject in extremely bright or dark conditions, or when you use the flash, the exposure
adjustment may not be effective.
zAdjusting the exposure for better looking images
Index
Overexposure = too much light
Whitish image
MENU/Settings
Search
Notes
Operation
Search
Depending on the REC mode, this is set using buttons
displayed on the left side of the screen.
3 Touch
Table of
contents
EV
Lower EV setting –
Correct exposure
Higher EV setting +
Underexposure = too little light
Darker image
54GB
Sets the luminous sensitivity when the camera is in Program Auto mode or when Scene
Selection is set to
(Underwater).
Table of
contents
ISO
1 Lower the lens cover to switch to shooting mode.
2
t
(ISO) t desired number
/
/
/
You can reduce image blurring in dark locations or moving subjects
by increasing ISO sensitivity (select a larger number).
Note
• You can select only from [ISO AUTO], [ISO 125] to [ISO 800] when the shooting mode is set to burst
mode.
zAdjusting ISO Sensitivity (Recommended Exposure
MENU/Settings
Search
/
/
Sets the ISO sensitivity automatically.
Operation
Search
(Auto)
Index)
Index
ISO sensitivity is a speed rating for recording media that incorporates an image sensor that
receives light. Even when the exposure is the same, images differ depending on the ISO
sensitivity.
High ISO sensitivity
Records a bright image even in dark locations while increasing shutter
speed to reduce blur.
However, the image tends to become noisy.
Low ISO sensitivity
Records a smoother image.
However, when the exposure is insufficient, the image may become
darker.
z Hints for preventing blur
Even though the camera is steady, the subject moves during the exposure and is captured
blurred when the shutter button is pressed. Camera shake is reduced automatically,
however, the function does not effectively reduce subject blur.
Subject blur occurs frequently under low-light or slow shutter speed conditions. In such a
case, shoot with the below tips in mind.
• Select a higher ISO sensitivity to make the shutter
speed faster, and press the shutter button before the
subject moves.
• Select
(High Sensitivity) mode in Scene
Selection.
55GB
Adjusts color tones according to the surrounding light conditions. Use this function if image
color appears unnatural.
Table of
contents
White Balance
1 Lower the lens cover to switch to shooting mode.
2
t
(White Balance)
Operation
Search
3 Touch the desired mode t [OK]
Adjusts the white balance automatically so that the colors appear
natural.
(Daylight)
Adjusts for outdoors conditions on a fine day, evening views, night
scenes, neon signs, fireworks, etc.
(Cloudy)
Adjusts for a cloudy sky or a shady location.
[Fluorescent White Balance 1]: Adjusts for white fluorescent
lighting.
[Fluorescent White Balance 2]: Adjusts for natural white
fluorescent lighting.
[Fluorescent White Balance 3]: Adjusts for day white fluorescent
lighting.
n
(Incandescent)
Adjusts for places under incandescent lamp, or under bright
lighting, such as in a photo studio.
(Flash)
Adjusts for the flash conditions.
(One Push)
Adjusts the white balance depending on the light source. The white
color memorized in [One Push Set] mode becomes the basic white
color. Use this mode when the color cannot be properly set in
[Auto] or other modes.
(One Push
Set)
Memorizes the basic white color which will be used in [One Push]
mode.
Index
(Fluorescent
White Balance 1)
(Fluorescent
White Balance 2)
(Fluorescent
White Balance 3)
MENU/Settings
Search
(Auto)
56GB
Continued r
Notes
2
t
MENU/Settings
Search
1 Frame a white object such as a piece of paper filling the screen under the
same lighting conditions as you will shoot the subject.
Operation
Search
To capture the basic white color in [One Push
Set] mode
Table of
contents
• [White Balance] is not available in the following situations:
– In Intelligent Auto Adjustment mode
– In Easy Mode
• When [Flash] is set to [On] in Backlight Correction HDR mode, [White Balance] is not available.
• [Flash] in [White Balance] is not available in the following situations:
– In Intelligent Sweep Panorama mode
– In Movie Mode
– In Anti Motion Blur mode
– In Hand-held Twilight mode
– When Scene Selection is set to
(High Sensitivity) mode
• Under fluorescent lights that flicker, the white balance function may not work correctly even though you
select [Fluorescent White Balance 1], [Fluorescent White Balance 2] or [Fluorescent White Balance 3].
• When shooting with a flash in other than [Flash] mode, [White Balance] is set to [Auto].
• When flash is [On] or [Slow Synchro], the white balance can only be adjusted to [Auto], [Flash], [One
Push], or [One Push Set].
• [One Push Set] cannot be selected while charging the flash.
(White Balance) t [One Push Set] t [Capture]
Notes
Index
The screen momentarily turns black, and when the white balance has been adjusted and stored
in the memory, the recording screen is displayed again.
• If the
indicator flashes while shooting, the white balance is either not set or cannot be set. Use
automatic white balance.
• Do not shake or strike the camera while [One Push Set] is in progress.
• When flash mode is set to [On] or [Slow Synchro], the white balance is adjusted to the condition with the
flash emitting.
• The white references loaded using [White Balance] and [Underwater White Balance] are stored
separately.
zEffects of lighting conditions
The apparent color of the subject is affected by the lighting conditions.
The color tones are adjusted automatically, but you can adjust color tones manually using
the White Balance function.
Weather/lighting
Daylight
Cloudy
Fluorescent
Incandescent
Characteristics of
light
White (standard)
Bluish
Green-tinged
Reddish
57GB
Adjusts the color tone when the camera is set to
(Underwater) mode in Scene Selection or
(Underwater) mode in [Movie shooting scene].
Table of
contents
Underwater White Balance
1 Lower the lens cover to switch to shooting mode.
2
t
(Underwater White Balance)
Automatically adjusts the color tones for underwater conditions to
make the colors appear natural.
(Underwater 1) Adjusts for underwater conditions where blue is strong.
(Underwater 2) Adjusts for underwater conditions where green is strong.
Adjusts the white balance depending on the light source. The white
color memorized in [One Push Set] mode becomes the basic white
color. Use this mode when the color cannot be properly set in
[Auto] or other modes.
(One Push
Set)
Memorizes the basic white color which will be used in [One Push]
mode (page 57).
Index
(One Push)
MENU/Settings
Search
(Auto)
Operation
Search
3 Desired mode t [OK]
Notes
• Depending on the color of the water, the Underwater White Balance may not work correctly even though
you select [Underwater 1] or [Underwater 2].
• When flash is [On], the underwater white balance can only be adjusted to [Auto], [One Push], or [One
Push Set].
• [One Push Set] is unable to be selected while charging the flash.
• The white references loaded using [White Balance] and [Underwater White Balance] are stored
separately.
58GB
You can change the focus method. Use the menu when it is difficult to get the proper focus in
auto focus mode.
AF stands for “Auto Focus,” a function that adjusts the focus automatically.
Table of
contents
Focus
1 Lower the lens cover to switch to shooting mode.
t
(Focus) t desired mode
(Multi AF)
AF range finder frame
• When the Face Detection function is active, AF
operates with priority on faces.
• When Scene Selection is set to
(Underwater), focus operation is
adjusted to underwater shooting. When focus is achieved by halfpressing the shutter button, a large frame is displayed in green.
(Center AF)
Index
Focuses on a subject in the center of the
finder frame automatically. Using the AF
lock function together, you can compose the
image the way you want.
MENU/Settings
Search
Focuses on a subject in all ranges of the
finder frame automatically.
When you press the shutter button halfway
down in still image shooting mode, a green
frame is displayed round the area that is in
focus.
Operation
Search
2
AF range finder frame
(Spot AF)
Focuses on an extremely small subject or a
narrow area automatically. Using the AF
lock function together, you can compose the
image the way you want. Hold the camera
steady so as not to misalign the subject and
the AF range finder frame.
AF range finder frame
Notes
• When you use [Digital Zoom] or [AF Illuminator], the AF range finder frame setting is disabled and AF
range finder frame is displayed as a dotted line instead. In this case, the camera works to focus on the
subjects at the center of the screen.
• If you set the focus mode to other than [Multi AF], [Face Detection] is fixed to [When touched].
• [Focus] is set to [Multi AF] in the following situations:
– In Intelligent Auto Adjustment mode
– In Movie Mode
– In Anti Motion Blur mode
– In Hand-held Twilight mode
– When the Smile Shutter function is activated
– In Easy Mode
– When [Self-Timer] is set to [Self-portrait One Person] or [Self-portrait Two People]
– When you adjust focus by touching the LCD screen
59GB
Continued r
Touching the screen displays a frame, and then pressing
the shutter button halfway down brings the frame into
focus.
Table of
contents
zQuickly choosing the priority subject
Operation
Search
MENU/Settings
Search
Index
60GB
Selects the metering mode that sets which part of the subject to measure to determine the
exposure.
Table of
contents
Metering Mode
1 Lower the lens cover to switch to shooting mode.
2
t
(Metering Mode) t desired mode
(Center)
Measures the center of the image, and determines the exposure
based on the brightness of the subject there (Center-weighted
metering).
(Spot)
Measures only a part of the subject
(Spot metering). This function is useful
when the subject is backlit or when
there is strong contrast between the
subject and the background.
Positions on the subject
Index
Spot metering crosshairs
MENU/Settings
Search
Divides into multiple regions and measures each region. The
camera determines a well-balanced exposure (Multi-pattern
metering).
Operation
Search
(Multi)
Notes
• In Movie Mode, [Spot] cannot be selected.
• [Metering Mode] is set to [Multi] in the following situations:
– In Intelligent Auto Adjustment mode
– In Backlight Correction HDR mode
– When the Smile Shutter function is activated
– In Easy Mode
– When [Self-Timer] is set to [Self-portrait One Person] or [Self-portrait Two People]
– When you touch the LCD screen to adjust focus
• If you set Metering mode to other than [Multi], [Face Detection] is fixed to [When touched].
61GB
The camera automatically detects shooting conditions, and then takes the shot.
When a motion is detected, the ISO sensitivity is increased according to the movement to reduce
subject blur (Motion Detection).
MENU/Settings
Search
1 Lower the lens cover to switch to shooting mode.
2
(REC Mode) t
Adjustment)
3
t
Operation
Search
Example of an image
when
(Backlight) is
activated.
Scene Recognition icon and guide
The camera recognizes the following types of
scenes. When the camera determines the
optimal scene, it displays the corresponding
icon and the guide.
(Twilight),
(Twilight Portrait),
(Twilight using a tripod),
(Backlight),
(Backlight Portrait),
(Landscape),
(Macro),
(Close Focus),
(Portrait)
Table of
contents
Scene Recognition
(Intelligent Auto
(Scene Recognition) t desired
mode
Index
(Auto)
When the camera recognizes the scene, it switches to the optimal
settings and shoots the image.
(Advanced) When the camera recognizes the scene, it switches to the optimal
settings. When the camera recognizes (Twilight), (Twilight
Portrait),
(Twilight using a tripod), (Backlight) or
(Backlight Portrait), it automatically changes the settings and
shoots another image.
• When you shoot two images consecutively, the + mark on the
icon
will turn green.
• When two frames are shot, the two images are displayed side by side
immediately after shooting.
• When [Anti Blink] is displayed, 2 images are taken automatically and
the image with the eyes open is selected automatically. For details on the
Anti Blink function, see “What is the Anti Blink function?”.
62GB
Continued r
Notes
Table of
contents
Operation
Search
• The Scene Recognition function does not operate when you shoot images using Digital Zoom.
• [Scene Recognition] is set to [Auto] in the following situations:
– During burst shooting
– When the Smile Shutter function is activated
– When [Self-Timer] is set to [Self-portrait One Person] or [Self-portrait Two People]
• The available flash settings are [Auto] and [Off].
•
(Twilight using a tripod) scenes sometimes cannot be recognized in an environment where vibrations
are transferred to the camera even though it is fixed on a tripod.
(Twilight using a tripod). Keep the
• Sometimes a slow shutter results when a scene is recognized as a
camera still during shooting.
• The Scene Recognition icon appears regardless of the [Display Settings].
• These scenes may not be recognized depending on the situation.
zShooting two images with different settings and
In [Advanced] mode, the camera shoots two images consecutively with the settings
differing as follows when it recognizes (Twilight), (Twilight Portrait),
(Twilight
using a tripod), (Backlight) or (Backlight Portrait) scenes, which tends to blur.
You can select the desired image from the two images shot.
Second Image
Shoots in Slow Synchro
Shoots with sensitivity increased and shake
reduced
Shoots in Slow Synchro with the face
which the flash strobes on as guide
Shoots with sensitivity increased with the face as
guide and shake reduced
Shoots in Slow Synchro
Shoots with even slower shutter speed without
increasing sensitivity
Shoots with the flash
Shoots with the brightness and contrast of the
background adjusted
Shoots with the face which the flash
strobes on as guide
Shoots with the brightness and contrast of the
face and the background adjusted
Index
First Image*
MENU/Settings
Search
selecting the one you like (Advanced mode)
* When flash is set to [Auto].
zWhat is the Anti Blink function?
When set to [Advanced], the camera automatically shoots two images consecutively* when
it recognizes
(Portrait). The camera will select, display, and record the image which the
eyes are not blinked automatically. If the eyes are closed in both images, the message
“Blinked eye detected” is displayed.
* except when the flash strobes/when the shutter speed is slow
63GB
Detects the faces of your subjects and adjusts the focus, flash, exposure, white balance and redeye reduction settings automatically.
Table of
contents
Face Detection
Face Detection frame (Orange)
Face Detection frame (White)
1 Lower the lens cover to switch to shooting mode.
2
(When
touched)
(Auto)
(Face Detection) t desired mode
Detects the face when an area with a face is touched on the screen.
Selects the face the camera is to automatically focus on.
Detects and shoots with priority on child’s face.
(Adult
Priority)
Detects and shoots with priority on adult’s face.
Index
(Child
Priority)
MENU/Settings
Search
t
Operation
Search
When the camera detects more than one subject, the camera will judge which is the main
subject and set focus by priority. The Face Detection frame for the main subject will turn
orange. The frame for which the focus is set will turn green when the shutter button is
pressed halfway down.
Notes
• [Face Detection] is not available in the following situations:
– In Intelligent Sweep Panorama mode
– In Movie Mode
– In Easy Mode
• [When touched] is not available when [Self-Timer] is set to [Self-portrait One Person] or [Self-portrait
Two People].
• You can select [Face Detection] only when the Focus mode is set to [Multi AF] or the Metering Mode is
set to [Multi].
• The Face Detection function does not work when using the Digital Zoom.
• Up to 8 faces of your subjects can be detected.
• Adults and children may not be recognized correctly depending on the conditions.
• During Smile Shutter shooting, [Face Detection] is automatically set to [Auto] even if it is set to [When
touched].
64GB
Continued r
Normally the camera automatically selects the face to focus on according to the [Face
Detection] setting, but you can also select and register a face to be given priority.
1Touch a face you want to register as the priority face during
Face Detection.
The selected face is registered as the priority face, and the
frame changes to an orange-colored
.
3To cancel face registration, touch
.
MENU/Settings
Search
• When you remove the battery from the camera, the face registration is reset.
• When the registered face disappears from the LCD screen, the camera returns to the setting selected
by [Face Detection]. When the registered face is shown on the LCD screen again, the camera
focuses on the registered face.
• It may not be possible to detect the registered face correctly depending on the surrounding
brightness, the subject’s hairstyle, etc. In this case, register the face again under the conditions
where the image will be shot.
• When the Smile Shutter function is used with the Face Detection frame registered, Smile Detection
is performed only on the registered face.
• In Easy Mode or when [Self-Timer] is set to [Self-portrait One Person] or [Self-portrait Two
People], the priority face cannot be registered.
Operation
Search
2Each time you touch a different face, that face is registered as
the priority face.
Table of
contents
zRegistering the priority face (Selected-face Memory)
Index
65GB
When Scene Selection is set to
(Soft Snap) while you are shooting an image, the camera
automatically shoots two images consecutively. The camera will select, display and record the
image which the eyes are not blinked automatically.
Table of
contents
Anti Blink
1 Lower the lens cover to switch to shooting mode.
3
(REC Mode) t
(Soft Snap)
t
(Scene Selection) t
(Anti Blink) t desired mode
When Face Detection is active, the Anti Blink function operates so
that images with the subject’s eyes open are recorded.
(Off)
Does not use the Anti Blink function.
MENU/Settings
Search
(Auto)
Operation
Search
2
Notes
Index
• Anti Blink does not function in the following situations.
– When using the flash
– During burst shooting
– When the Face Detection function does not work
– When the Smile Shutter function is activated
• Sometimes Anti Blink function does not work depending on the situation.
• When the Anti Blink function is set to [Auto] but only images with the subject’s eyes closed are
recorded, the message “Blinked eye detected” is displayed on the LCD screen. Shoot again as necessary.
66GB
Sets whether to display the operation buttons on the LCD screen in shooting mode.
1 Lower the lens cover to switch to shooting mode.
2
(On)
Displays the operation buttons.
(Off)
Does not display the operation
buttons.
Settings] is set to [Off]
Index
zTo display the operation buttons when [Display
MENU/Settings
Search
(Display Settings) t desired mode
Operation
Search
t
Table of
contents
Display Settings
Touch the left side of the LCD screen and drag right to
display the operation buttons.
67GB
When viewing still images in Easy Mode, the playback screen text becomes larger, indicators
become easier to see, and fewer functions can be used.
Table of
contents
Easy Mode
1 Press the
(Playback) button to switch to
playback mode.
t
(Easy Mode) t [OK]
Notes
Operation
Search
2
• The battery charge is used up more quickly because the screen brightness increases automatically.
• The shooting mode also changes to [Easy Mode].
Index
(Delete) : Deletes the currently displayed image.
(Zoom) : Enlarges the displayed image.
• Drag up, down, right or left, or touch / / / to
change the zoom position. Touch / to change the
zoom magnification.
:
Touch [Delete Single Image] to delete the currently
displayed image.
Touch [Delete All Images] to delete all images in that date
range or folder.
Touch [Exit Easy Mode] to exit Easy Mode.
MENU/Settings
Search
zFunctions available in Easy Mode (Viewing)
• When a memory card is inserted in the camera, [View Mode] is set to [Date View].
68GB
This feature selects the date to be played back on the calendar when using Date View.
Step 2 is unnecessary when [Date View] is already set.
Table of
contents
Calendar
1 Press the
(Playback) button to switch to
playback mode.
t
3 Touch
(View Mode) t
(Date View)
Operation
Search
2
(Calendar).
When the buttons are not displayed on the left side of the LCD
screen, touch
.
/
MENU/Settings
Search
4 Select the month you want to display with
then touch the desired date.
,
Drag the thumbnails of images for the selected date up or
down to change the page. Touch an image to return to the
single-image screen for that image.
Images for the selected date
• This item is not displayed when the internal memory is used to record images.
Index
Note
69GB
Displays multiple images at the same time.
1 Press the
(Playback) button to switch to
playback mode.
2 Touch
Table of
contents
Image Index
(Image Index).
3 Touch the screen and drag up or down to change
the page.
Operation
Search
When the buttons are not displayed on the left side of the LCD
screen, touch
.
Touch an image on the index screen to return to the singleimage screen for that image.
MENU/Settings
Search
Index
70GB
Images are automatically played back in succession.
1 Press the
(Playback) button to switch to
playback mode.
2 Touch
Table of
contents
Slideshow
(Slideshow) t desired mode.
Plays back all the images in succession from the displayed image to
the very last image.
(Slideshow with
music)
Plays back still images in succession along with effects and music.
Continuous Playback
1 Select the image to start playback.
2 Touch
(Slideshow) t [Continuous Playback].
MENU/Settings
Search
(Continuous
Playback)
Operation
Search
When the buttons are not displayed on the left side of the LCD
screen, touch
.
3 To end continuous playback, touch the LCD screen, and then touch [Exit
Continuous Playback].
/
on the LCD screen to adjust the movie volume.
Notes
• When [Display Burst Group] is [Display Main Image Only], only the main image is displayed.
• If you start [Continuous Playback] when the latest image is displayed on-screen, playback will stop after
displaying that image.
Index
• Touch
zViewing panoramic images during continuous
playback
The whole panoramic image is displayed for 3 seconds.
You can scroll a panoramic image by touching .
71GB
Slideshow with music
Table of
contents
1 Touch
(Slideshow) t [Slideshow with music].
2 Touch desired mode t [Start].
3 To exit slideshow, touch the screen, then touch [Exit Slideshow].
Note
Selects the group of images to be shown. This setting is fixed to [Folder] when the internal
memory is used to record images.
Plays a slideshow of all the still images in order.
This Date
Plays a slideshow of still images with the currently selected date
range when View Mode is
(Date View).
Folder
Plays a slideshow of still images in the currently selected folder in
Folder View.
Note
• [Image] is fixed to [Folder] when internal memory is used to record images.
Simple
A simple slideshow switching still images at a preset interval.
The playback interval is adjustable in [Interval] and you can
thoroughly enjoy your images.
Nostalgic
A moody slideshow reproducing the atmosphere of a movie scene.
Stylish
A stylish slideshow proceeding at a middle tempo.
Active
A high-tempo slideshow suitable for active scenes.
Index
Effects
Selects the playback speed and mood for slideshows.
MENU/Settings
Search
All
Operation
Search
• [Slideshow with music] is not available for panoramic images and movies.
Note
• When [Display Burst Group] is set to [Display Main Image Only], the burst images are displayed as
follows.
– When [Effects] is set to [Simple], only the main image is displayed.
– When [Effects] is set to other than [Simple] and there are two or fewer burst images, only the main
image is displayed.
– When [Effects] is set to other than [Simple] and there are three or more burst images, three images
including the main image are displayed.
72GB
Continued r
The default setting for a [Simple] slideshow.
Music2
The default setting for a [Nostalgic] slideshow.
Music3
The default setting for a [Stylish] slideshow.
Music4
The default setting for a [Active] slideshow.
Mute
Does not use BGM.
Interval
Sets the screen switching interval. The setting is fixed to [Auto] when [Simple] is not selected
as the [Effects].
Sets the display interval of images for a [Simple] slideshow.
3 sec
5 sec
10 sec
Auto
The interval is set to suit the selected [Effects] item.
MENU/Settings
Search
1 sec
Operation
Search
Music1
Table of
contents
Music
Specifies the music to be played during slideshows. You can select more than one background
music track. Touch
to listen to each BGM. Touch / to adjust the BGM volume.
Repeat
Turns slideshow repeat on or off.
Plays back images in a continuous loop.
Off
After all the images have been played back, the slideshow ends.
Index
On
zSelecting background music
You can transfer a desired music file from your CDs or MP3 files to the camera to play back
during slideshow. To transfer music, install the “Music Transfer” software (supplied) to
your computer. For details, see pages 121 and 122.
• You can record up to four pieces of music on the camera (The 4 preset pieces (Music1 – Music4)
can be replaced with the ones you transferred).
• The maximum length of each music file for music playback of the camera is about 5 minutes.
• If you cannot play back a music file due to damage or other malfunctions of the file, execute
[Format Music] (page 106) and transfer the music again.
73GB
Table of
contents
Delete
Allows you to select unwanted images for deletion.
1 Press the
(Playback) button to switch to
playback mode.
2
(Delete) t desired mode
(All In This Group)
Deletes all images in the selected burst group at once.
After step 2, touch [OK].
(This Image)
Deletes the currently displayed image in single-image
mode.
(Multiple Images)
Allows you to select and delete multiple images.
Do as the following after step 2.
1Touch the image you want to delete.
Repeat the above steps until there are no more images to
be deleted. Touch an image with a
mark again to
release the
mark.
(All in Date Range)
(All in This Folder)
Deletes all images in the selected date range or folder at
once.
After step 2, touch [OK].
Index
2Touch [OK] t [OK].
MENU/Settings
Search
Deletes burst group images other than the selected image in
Display Burst Group mode.
After step 2, touch [OK].
Operation
Search
(All but this image)
Note
• When using internal memory, the camera plays back images in Folder View, and their still images and
movies are displayed in the same folder.
In Easy Mode
Delete Single Image
Deletes the currently displayed image.
Delete All Images
Deletes all images in that date range or folder.
74GB
Continued r
mode when selecting images
Touch
to return to the single-image screen, and touch
on the single-image screen to return to the index screen.
Table of
contents
zYou can switch between index and single-image
• You can also switch between index and single-image mode in
[Protect], [DPOF] or [Print].
Operation
Search
MENU/Settings
Search
Index
75GB
Table of
contents
Paint
Paints or adds stamps to a still image and saves it as a new file.
Operation
Search
1 Press the
(Playback) button to switch to
playback mode.
2
t
(Paint)
(Paint) on the left
MENU/Settings
Search
When using the internal memory, touch
side of the LCD screen.
3 Draw on the image using the paint pen
(supplied).
4 Touch the
/
button t select the saved image size.
Index
Button
1
Save
Saves the image in VGA or 5M format in the
internal memory or on a memory card.
2
Pen
Paints characters or graphics.
3
Eraser
Makes corrections.
4
Stamp
Applies a stamp to the image.
Thickness/Stamps
Selects the pen or eraser thickness, or the stamp.
6
Color
Selects the color.
7
Exit
Exits paint mode.
8
Frame
Adds a frame.
Select the desired frame with
5
/
Action
/
9
Revert
Undoes the last action.
0
Clear all
Erases all painting.
/ .
Note
• You cannot paint or put stamps on panoramic images, images displayed in a burst group and movies.
76GB
Retouches a recorded image and records it as a new file.
The original image is retained.
Table of
contents
Retouch
1 Press the
(Playback) button to switch to
playback mode.
t
(Retouch) t desired mode
3 Perform retouching according to the operation
method in each mode.
(Trimming
(Resize))
Records the zoomed playback
image.
Corrects the red-eye phenomenon
caused by flash.
(Unsharp
masking)
Sharpens the image within a
chosen frame.
Index
After red eye correction is completed,
touch [OK].
• You may not be able to correct the
red-eye phenomenon depending on the image.
MENU/Settings
Search
Touch / t set the point with v/
V/b/B t
t select an image
size to save with / t
t
[OK]
• The quality of trimmed images may deteriorate.
• The image size that you can trim may vary depending on the image.
(Red Eye
Correction)
Operation
Search
2
Touch the area (frame) of the desired
image to retouch t
t [OK]
• Depending on the image, sufficient
correction may not be applied and
the image quality may deteriorate.
Note
• You cannot retouch panoramic images, images displayed in a burst group, and movies.
77GB
Allows you to select the display format for viewing images.
1 Press the
(Playback) button to switch to
playback mode.
2
t
Table of
contents
View Mode
(View Mode) t desired mode
Displays images by the date.
Displays still images.
(Folder view
(Movie))
Displays movies.
Notes
• When using internal memory, a Folder View is used with still images and movies displayed in the same
folder.
• Event View is not available on this camera.
MENU/Settings
Search
(Folder view
(Still))
Operation
Search
(Date View)
zViewing images taken with a different camera
Index
This camera creates an Image Database File on the memory card for recording and playing
images. If the camera detects images not registered in the Image Database File on the
memory card, a registration screen with the message “Files found which were not
recognized Import files” will be displayed. To view unregistered images, register them by
selecting [OK].
• Use a sufficiently charged battery to register images. If a battery with a low charge is used, it may
not be possible to register data or data may be corrupted if the battery charge runs out.
78GB
You can select to display burst images in groups or display all images during playback.
1 Press the
(Playback) button to switch to
playback mode.
2
t
(View Mode) t
3
t
(Display Burst Group) t desired
(Date View)
• When Face Detection is performed in burst mode, the camera
determines and displays the optimum image as the main image.
When Face Detection is not performed, the first image in the burst
group is displayed as the main image.
Plays back all burst images one at a time.
zDisplaying grouped burst images side by side
Only main images are displayed if [Display Main Image Only] has been set. You can
display a line-up of images by following the procedure below.
Thumbnail image display
Single image display
Index
Main image
MENU/Settings
Search
(Display All)
Groups burst images, then plays back the main images only.
Operation
Search
mode
(Display Main
Image Only)
Table of
contents
Display Burst Group
The image being displayed
above
1Display the main image in playback mode, then touch it.
The images are displayed in the index.
2Touch
/
to display the desired image.
• You can also display the image by touching the thumbnail image at the bottom of the LCD
screen.
3The display switches between single image display and thumbnail image display each
time you touch the screen.
4To cancel the display, touch
.
79GB
Protects recorded images against accidental erasure.
The
mark is displayed for registered images.
Table of
contents
Protect
1 Press the
(Playback) button to switch to
playback mode.
t
(Protect) t desired mode
(This Image)
(Multiple
Images)
Protects the currently displayed image in single-image mode.
You can select and protect multiple images.
After step 2, perform the following.
2Touch [OK] t [OK].
Protects all images in the date range or folder.
Touch [OK] after step 2.
(Remove All in
Date Range)
Unlocks all images in the date range or folder.
Touch [OK] after step 2.
Index
(Set All in This
Folder)
MENU/Settings
Search
1Select an image to be protected, then touch it.
Repeat the above steps until there are no more images to be
protected. Touch an image with a
mark again to release the
mark.
(Set All in Date
Range)
Operation
Search
2
(Remove All in
This Folder)
Note
• When using internal memory, a Folder View is used with still images and movies displayed in the same
folder.
80GB
DPOF (Digital Print Order Format) is a function that allows you to specify the images of the
memory card that you want to print out later.
The
(Print order) mark is displayed for registered images.
Table of
contents
DPOF
1 Press the
(Playback) button to switch to
playback mode.
t
t desired mode
(This Image)
Orders printing the currently displayed image in single-image
mode.
You can select and order printing multiple images.
After step 2, perform the following.
1Select an image to be printed, then touch it.
Repeat the above steps until there are no more images to be
printed. Touch an image with a
mark again to release the
mark.
2Touch [OK] t [OK].
(Set All in Date
Range)
Sets print order for all images in the date range or folder.
Touch [OK] after step 2.
Index
(Set All in This
Folder)
(Remove All in
Date Range)
MENU/Settings
Search
(Multiple
Images)
Operation
Search
2
Cancels print order for all images in the date range or folder.
Touch [OK] after step 2.
(Remove All in
This Folder)
Notes
• The
(Print order) mark cannot be added to movies or to images in the internal memory.
• You can add a
(Print order) mark to a maximum 999 images.
81GB
Rotates a still image. Use this function to display a horizontal orientation image in vertical
orientation.
2
/
(Rotate)
t [OK]
Notes
• You cannot rotate movies, images displayed in a burst group, and protected still images.
• You may not be able to rotate images shot with other cameras.
• When viewing images on a computer, the image rotation information may not be reflected depending on
the software.
MENU/Settings
Search
3
t
Operation
Search
1 Press the
(Playback) button to switch to
playback mode.
Table of
contents
Rotate
Index
82GB
Adjusts the volume for slideshow and movie playback.
1 Press the
(Playback) button to switch to
playback mode.
2
t
Table of
contents
Volume Settings
(Volume Settings)
/
t
You can also adjust the volume by touching z in the volume
adjustment bar and dragging to the right or left.
slideshow
Movie playback: Touch the LCD screen to display the operation buttons, then touch
and then / to adjust the volume.
Slideshow:
Touch the screen to display the volume control screen, then touch the
/ buttons to adjust the volume.
MENU/Settings
Search
zAdjusting the volume during playback of a movie or
Operation
Search
3 Adjust the volume by touching
Index
83GB
Sets whether to display the operation buttons on the LCD screen in viewing mode.
1 Press the
(Playback) button to switch to
playback mode.
2
t
Table of
contents
Display Settings
(Display Settings) t desired
Displays the operation buttons.
(Off)
Does not display the operation
buttons.
Settings] is set to [Off]
Index
zTo display the operation buttons when [Display
MENU/Settings
Search
(On)
Operation
Search
mode
Touch the left side of the LCD screen and drag right to
display the operation buttons.
84GB
This sets whether or not to display the shooting data of the currently displayed file.
Table of
contents
Exposure data
Exposure data
2
t
(Exposure data) t desired mode
Displays the shooting data on the LCD screen.
(Off)
Does not display the shooting data.
MENU/Settings
Search
(On)
Operation
Search
1 Press the
(Playback) button to switch to
playback mode.
Index
85GB
Sets the number of images displayed in the index screen.
1 Press the
(Playback) button to switch to
playback mode.
2
t
Table of
contents
Image index settings
(Image index settings) t desired
(12-up)
Displays 12-up images.
(28-up)
Displays 28-up images.
Operation
Search
mode
MENU/Settings
Search
Index
86GB
When multiple folders are created in a memory card, this function selects the folder containing
the image you want to play back.
Step 2 is unnecessary when [Folder View] is already set.
Table of
contents
Select Folder
1 Press the
(Playback) button to switch to
playback mode.
t
(View Mode) t [Folder view
(Still)] or [Folder view (Movie)]
3
with
t
(Select Folder) t select the folder
/ t [OK]
• This item is not displayed when the internal memory is used to record images.
zViewing images across multiple folders
Index
When multiple folders are created and the first or last image in the folder is displayed, the
following indicators appear.
: Moves to the previous folder
: Moves to the next folder
: Moves to either the previous or next folders
MENU/Settings
Search
Note
Operation
Search
2
87GB
The AF illuminator supplies fill light to focus more easily on a subject in dark surroundings.
The AF illuminator emits red light allowing the camera to focus easily when the shutter button is
pressed halfway, until the focus is locked. The
indicator appears at this time.
1
Table of
contents
AF Illuminator
t
(Settings) t
(Shooting
Settings) t [AF Illuminator] t desired mode
Operation
Search
Auto
Uses the AF illuminator.
Off
Does not use AF illuminator.
Index
• Focus is achieved as long as the AF illuminator light reaches the subject, regardless of whether light fails
to reach the center of the subject.
• You cannot use the AF illuminator when:
– Shooting in Intelligent Sweep Panorama mode.
–
(Landscape), (Twilight),
(Pet), (Fireworks) or (Hi-Speed Shutter) mode is selected in
Scene Selection.
– [Housing] is set to [On].
– [Self-Timer] is set to [Self-portrait One Person] or [Self-portrait Two People].
• When you use AF illuminator, the normal AF range finder frame is disabled and a new AF range finder
frame is displayed by a dotted line. AF operates with priority on subjects located near the center of the
frame.
• The AF illuminator emits very bright light. Although there is no health hazard, do not look directly into
the AF illuminator emitter at close range.
MENU/Settings
Search
Notes
88GB
With reference to the grid lines, you can easily set a subject in a horizontal/vertical position.
1
t
(Settings) t
(Shooting
Settings) t [Grid Line] t desired mode
Displays the grid lines. The grid lines are not recorded.
Off
Does not display the grid lines.
Operation
Search
On
Table of
contents
Grid Line
MENU/Settings
Search
Index
89GB
Selects the Digital Zoom mode. The camera enlarges the image using optical zoom (up to 4×).
When the zoom scale is exceeded, the camera uses either smart or precision Digital Zoom.
1
Table of
contents
Digital Zoom
t
(Settings) t
(Shooting
Settings) t [Digital Zoom] t desired mode
)
Precision (
)
Enlarges all image sizes by the total zoom scale of approximately
8×, including the optical zoom 4×. However, note that the image
quality deteriorates when the optical zoom scale is exceeded.
(Precision digital zoom)
Does not use the Digital Zoom.
Notes
Index
• The Digital Zoom function does not operate in the following situations:
– In Intelligent Sweep Panorama mode
– In Movie Mode
– In Backlight Correction HDR mode
– When the Smile Shutter function is activated
– When [Self-Timer] is set to [Self-portrait One Person] or [Self-portrait Two People]
• The smart zoom is not available when the image size is set to [10M] or [16:9(7M)].
• The Face Detection function does not work when using the Digital Zoom.
MENU/Settings
Search
Off
Enlarges the image digitally within the range where the image will
not be distorted, according to the image size. (Smart zoom)
Operation
Search
Smart (
Total zoom scale when using Smart zoom
(including optical zoom 4×)
The supported zoom ratio differs depending on the image size.
Size
Total zoom scale
5M
Approx. 5.6×
VGA
Approx. 22×
16:9(2M)
Approx. 7.6×
90GB
When the camera is rotated to shoot a portrait (vertical) image, the camera records its position
change and displays the image in the portrait position.
1
Table of
contents
Auto Orientation
t
(Settings) t
(Shooting
Settings) t [Auto Orientation] t desired mode
Records the image with the correct orientation.
Off
Does not use Auto Orientation.
• Black is displayed to the left and right of vertical orientation images.
• Depending on the shooting angle of the camera, the image orientation may be incorrectly recorded.
• You cannot use [Auto Orientation] when
(Underwater) is selected in the Scene Selection or when
shooting movies.
• When an image is shot underwater, the image orientation may be incorrectly displayed.
MENU/Settings
Search
Notes
Operation
Search
On
zRotating images after recording
Index
If the orientation of an image is incorrect, you can use the [Rotate] on the MENU screen to
display the image in portrait position.
91GB
You can select whether or not the guide is displayed next to the Scene Recognition icon when
Scene Recognition is activated.
Table of
contents
Scene Recog. Guide
Scene Recognition Guide
t
(Settings) t
(Shooting
Settings) t [Scene Recog. Guide] t desired
mode
Displays the Scene Recognition Guide.
Off
Does not display the Scene Recognition Guide.
MENU/Settings
Search
On
Operation
Search
1
Index
92GB
The flash strobes two or more times before shooting to reduce the red-eye phenomenon when
using the flash.
1
When the Face Detection function is activated, the flash strobes
automatically to reduce the red-eye phenomenon.
On
The flash always strobes to reduce the red-eye phenomenon.
Off
Does not use Red Eye Reduction.
Notes
Index
• To avoid blurring of images, hold the camera firmly until the shutter is released. It usually takes a second
until the shutter is released, and also be sure not to allow the subject to move during this period.
• Red Eye Reduction may not produce the desired effects. It depends on individual differences and
conditions, such as distance to the subject, or if the subject looked away from the pre-strobe.
• If you do not use the Face Detection function, Red Eye Reduction does not work, even when you select
[Auto].
• [Red Eye Reduction] is set to [Off] in the following situations:
– In Anti Motion Blur mode
– In Hand-held Twilight mode
– When Scene Selection is set to
(High Sensitivity) mode
– When the Smile Shutter function is activated
MENU/Settings
Search
Auto
Operation
Search
t
(Settings) t
(Shooting
Settings) t [Red Eye Reduction] t desired
mode
Table of
contents
Red Eye Reduction
zWhat causes the red-eye phenomenon?
Pupils become dilated in dark environments. Flash light is reflected off the blood vessels at
the back of the eye (retina), causing the “red-eye” phenomenon.
Camera
Eye
Retina
Other ways to reduce red-eye
• Select
(High Sensitivity) mode in Scene Selection. (The flash is automatically turned to [Off].)
• When the eyes of the subject turn out red, correct the image with [Retouch] t [Red Eye
Correction] on the viewing menu or with the supplied software “PMB”.
93GB
When an image with the subject’s eyes closed is recorded while Face Detection is activated, the
message “Blinked eye detected” is displayed on the LCD screen.
1
Table of
contents
Blink Alert
t
(Settings) t
(Shooting
Settings) t [Blink Alert] t desired mode
Displays the “Blinked eye detected” message.
Off
Does not display the message.
Operation
Search
Auto
MENU/Settings
Search
Index
94GB
Selects or turns off the sound produced when you operate the camera.
1
t
(Settings) t
[Beep] t desired mode
(Main Settings) t
High
Low
Turns on the beep/shutter sound when you operate the touch panel/
press the shutter button.
If you want to lower the beep volume, select [Low].
Off
Turns off the beep/shutter sound.
MENU/Settings
Search
Turns on the shutter sound when you press the shutter button.
Operation
Search
Shutter
Table of
contents
Beep
Index
95GB
This sets the brightness of the LCD screen.
1
t
(Settings) t
(Main Settings) t
[LCD Brightness] t desired mode
Sets the LCD screen to normal brightness.
Bright
Sets the LCD screen to high brightness.
Operation
Search
Normal
Table of
contents
LCD Brightness
• This function is useful when viewing images in bright outside light.
• In [Bright] mode, the battery power may decrease faster.
• If you do not operate the camera for a certain period of time while the power is on, the LCD screen
becomes dark.
MENU/Settings
Search
Notes
Index
96GB
Selects the language to be used in the menu items, warnings and messages.
1
t
(Settings) t
(Main Settings) t
[Language Setting] t desired mode
Table of
contents
Language Setting
Operation
Search
MENU/Settings
Search
Index
97GB
You can set whether to use a demonstration of the Scene Recognition and Smile Shutter. When
there is no need to view a demonstration, set to [Off].
t
(Settings) t
(Main Settings) t
[Demo Mode] t desired mode
2
(REC Mode) t
Adjustment)
(Intelligent Auto
Demonstrates Scene Recognition mode.
Demo Mode2
Automatically starts the Smile Shutter demonstration when no
operation is performed for 15 seconds.
Off
Does not perform a demonstration.
MENU/Settings
Search
Demo Mode1
Operation
Search
1
Table of
contents
Demo Mode
Note
Index
• Pressing the shutter button during the Smile Shutter demonstration operates the shutter, but no image is
recorded.
98GB
Initializes the setting to the default setting.
Even if you execute this function, the images are retained.
1
t
(Settings) t
[Initialize] t [OK]
Table of
contents
Initialize
(Main Settings) t
Operation
Search
Note
• Be sure not to turn off the camera while initializing.
MENU/Settings
Search
Index
99GB
Selects the video signal output type from either SD or HD (1080i) in accordance with the type of
TV you connect to the camera using an HD Output Adaptor Cable (sold separately).
Use a Type3-compliant HD Output Adaptor Cable (sold separately).
1
Table of
contents
COMPONENT
t
(Settings) t
(Main Settings) t
[COMPONENT] t desired mode
Operation
Search
Select this item to connect the camera to a 1080i-capable High
Definition TV.
SD
Select this item to connect the camera to a TV that is not
compatible with an HD(1080i) signal.
Note
• When you shoot movies in the condition where the camera and a TV are connected using an HD Output
Adaptor Cable (sold separately), the image being shot is not displayed at the TV side.
MENU/Settings
Search
HD(1080i)
Index
100GB
Sets the video signal output according to the TV color system of the connected video equipment.
The TV color systems differ depending on the country and region.
To view images on a TV screen, check the TV color system of the country or region of use
(page 119).
1
Sets the video output signal to NTSC mode (e.g., for the USA,
Japan).
PAL
Sets the video output signal to PAL mode (e.g., for Europe, China).
MENU/Settings
Search
NTSC
Operation
Search
t
(Settings) t
(Main Settings) t
[Video Out] t desired mode
Table of
contents
Video Out
Index
101GB
Displays the dedicated operation buttons when the camera is installed in the Housing (Marine
Pack). Refer also to the operating instructions supplied with the Housing.
1
t
(Settings) t
[Housing] t desired mode
Table of
contents
Housing
(Main Settings) t
Changes the function of the buttons.
Off
Does not change any functions.
• Objects cannot be brought into focus by touching the screen.
• Some functions are limited, and the icon positions on the LCD screen change.
• Select
(Underwater) to shoot underwater with less distortion.
MENU/Settings
Search
Notes
Operation
Search
On
Index
102GB
Sets the mode when the camera is connected to a computer or a PictBridge-compliant printer
using the cable for multi-use terminal.
1
Table of
contents
USB Connect
t
(Settings) t
(Main Settings) t
[USB Connect] t desired mode
PictBridge
Connects the camera to a PictBridge-compliant printer.
PTP/MTP
When you connect the camera to a computer, the AutoPlay Wizard
appears, and the still images in the recording folder on the camera
are imported to the computer (with Windows 7/Vista/XP,
Mac OS X).
Mass Storage
Establishes a Mass Storage connection between the camera and a
computer or other USB device.
MENU/Settings
Search
The camera recognizes automatically and sets up communication
with a computer or PictBridge-compliant printer.
Operation
Search
Auto
Notes
Index
• If you cannot connect the camera to a PictBridge-compliant printer with the [Auto] setting, select
[PictBridge].
• If you cannot connect the camera to a computer or a USB device with the [Auto] setting, select [Mass
Storage].
• You cannot import movies when [PTP/MTP] is selected. To import movies to the computer, select
[Auto] or [Mass Storage].
103GB
Sets the display method for the recording media displayed on a computer screen or other monitor
when the camera is connected with a computer or AV component using a USB connection.
1
Table of
contents
LUN Settings
t
(Settings) t
(Main Settings) t
[LUN Settings] t desired mode
Single
When the memory card is inserted into the camera, the images on
the memory card are displayed; when it is not inserted, the images
in the internal memory are displayed. Select this setting in cases
where the images of both the memory card and the internal memory
are not displayed when the camera is connected to a device other
than a computer.
MENU/Settings
Search
The images both on the memory card and in the internal memory
are displayed. Select this setting when you connect the camera to a
computer.
Operation
Search
Multi
Note
• Set [LUN Settings] to [Multi] when uploading images to a media service using “PMB Portable”.
Index
104GB
You can use “Music Transfer” in the CD-ROM (supplied) to change background music tracks.
1
t
(Settings) t
[Download Music]
(Main Settings) t
2 Make a USB connection between the camera
and a computer, then start “Music Transfer”.
3 Follow the instructions on the screen to change
music files.
Operation
Search
The message “Change slideshow music Connect to PC” is
displayed.
Table of
contents
Download Music
MENU/Settings
Search
Index
105GB
You can delete all the background music files stored in the camera. It can be used in cases such
as when the background music files are damaged and cannot be played.
1
t
(Settings) t
[Format Music] t [OK]
Table of
contents
Format Music
(Main Settings) t
Operation
Search
zRestoring the music preset at the factory to the
camera
1Execute [Download Music], then make a USB connection between the camera and a
computer.
2Start “Music Transfer”, then restore the default music.
• For details on using “Music Transfer”, see the help in “Music Transfer”.
MENU/Settings
Search
You can use “Music Transfer” in the CD-ROM (supplied) to reset music files to the preset
ones.
Index
106GB
Sets the length of time until the LCD screen goes dark and the time until the camera turns off. If
you do not operate the camera for a certain period of time while the power is on using the battery
pack, the screen goes dark and the camera later turns off automatically to prevent wearing down
the battery pack (Auto power-off function).
1
The LCD screen automatically goes dark if the camera is not
operated for about 30 seconds, and the power turns off if the
camera is not operated for about 30 seconds more.
Standard
The LCD screen automatically goes dark if the camera is not
operated for about 1 minute, and the power turns off if the camera
is not operated for about 1 minute more.
Off
The LCD screen does not darken and the camera does not turn off
automatically.
MENU/Settings
Search
Stamina
Operation
Search
t
(Settings) t
(Main Settings) t
[Power Save] t desired mode
Table of
contents
Power Save
Index
107GB
Enables you to perform calibration when the touch panel buttons do not react at the appropriate
points where you touch.
1
t
(Settings) t
[Calibration]
Table of
contents
Calibration
(Main Settings) t
MENU/Settings
Search
Notes
• To stop the calibration process mid-way, touch [Cancel]. The adjustments made up to that point are not
effected.
• If you fail to touch the right spot, the calibration is not performed. Touch the center of the × mark again.
Operation
Search
2 Using the paint pen, touch the center of the ×
mark displayed on the screen in order.
Index
108GB
Formats the memory card or the internal memory. To ensure stable operations of the memory
card, we recommend that you use this camera to format any memory card being used with this
camera for the first time. Note that formatting will erase all data recorded on the memory card.
This data cannot be restored. Be sure to back-up any important data to a PC or other storage
location.
t
Tool) or
t [OK]
(Settings) t
(Memory Card
(Internal Memory Tool) t [Format]
• Note that formatting permanently erases all data including even protected images.
MENU/Settings
Search
Note
Operation
Search
1
Table of
contents
Format
Index
109GB
Creates a folder in a memory card to store recorded images.
Images are recorded in the newly created folder until you create another folder or select another
recording folder.
1
Table of
contents
Create REC.Folder
t
(Settings) t
(Memory Card
Tool) t [Create REC.Folder] t [OK]
zOn the folders
MENU/Settings
Search
• This item is not displayed when the internal memory is used to record images.
• When you insert a memory card that was used with other equipment into the camera and shoot images, a
new folder may be automatically created.
• Up to 4,000 images can be stored in one folder. When the folder capacity is exceeded, a new folder is
automatically created.
Operation
Search
Notes
• After a new folder is created, you can change the storage destination folder (page 111) and select the
folder for viewing images (page 87).
Index
110GB
Changes the folder in the memory card that is currently used to store recorded images.
1
t
(Settings) t
(Memory Card
Tool) t [Change REC.Folder]
• This item is not displayed when the internal memory is used to record images.
• You cannot select the following folder as a recording folder.
– “100” folder
– A folder with a number that has either “sssMSDCF” or “sssMNV01” only.
• You cannot move recorded images to another folder.
MENU/Settings
Search
Notes
Operation
Search
2 Select the folder in which you want to store
images using / t [OK].
Table of
contents
Change REC.Folder
Index
111GB
Deletes the folder in a memory card that is used to store recorded images.
1
t
(Settings) t
(Memory Card
Tool) t [Delete REC.Folder]
/
MENU/Settings
Search
Notes
• This item is not displayed when the internal memory is used to record images.
• If you delete the folder set as the recording folder using [Delete REC.Folder], the folder that has the
largest folder number is selected as the next recording folder.
• You can delete only empty folders. If a folder contains images, or even files that cannot be played back
by the camera, first delete these images and files, and then delete the folder.
Operation
Search
2 Select the folder you want to delete using
t [OK].
Table of
contents
Delete REC.Folder
Index
112GB
Copies all images in the internal memory to a memory card.
1 Insert a memory card with sufficient free capacity
into the camera.
2
(Memory Card
Notes
MENU/Settings
Search
• Use a fully charged battery pack. If you attempt to copy image files using a battery pack with little
remaining charge, the battery pack may run out, causing copying to fail or possibly corrupting the data.
• You cannot copy images individually.
• The original images in the internal memory are retained even after copying. To delete the contents of the
internal memory, remove the memory card after copying, then format the internal memory ([Format] in
[Internal Memory Tool]).
• A new folder is created on the memory card and all the data will be copied to it. You cannot choose a
specific folder and copy images to it.
Operation
Search
t
(Settings) t
Tool) t [Copy] t [OK]
Table of
contents
Copy
Index
113GB
Selects the method used to assign file numbers to images.
1
t
(Settings) t
(Memory Card
Tool) or
(Internal Memory Tool) t [File
Number] t desired mode
Reset
Starts from 0001 each time the folder is changed. (When the
recording folder contains a file, a number one higher than the
largest number is assigned.)
MENU/Settings
Search
Assigns numbers to files in sequence even if the recording folder or
the memory card is changed. (When the replaced memory card
contains a file with a number higher than the last assigned number,
a number one higher than the largest number is assigned.)
Operation
Search
Series
Table of
contents
File Number
Index
114GB
Table of
contents
Area Setting
Adjusts the time to the local time of a selected area.
1
t
(Settings) t
(Clock Settings)
t [Area Setting] t desired mode
Destination
You use the camera set to the time at your destination.
Set the destination area.
zChanging Area Setting
Setting a frequently visited destination lets you easily adjust the time when you visit that
destination.
MENU/Settings
Search
You use the camera in your area.
When the currently set area differs from your home area, you must
make the Area Setting.
Operation
Search
Home
Index
Daylight Savings icon
1Touch the “Destination” area.
2Select the area using
/ .
3Touch Daylight Savings icon, then select Daylight Savings On/Off.
4Touch [OK].
115GB
Sets the date and time again.
1
t
(Settings) t
(Clock Settings)
t [Date & Time Setting] t desired mode
You can select the date and time display format.
Daylight Savings
You can select Daylight Savings [On]/[Off].
Date & Time
You can set the date and time.
• The camera does not have a feature for superimposing dates on images. By using “PMB” in the CDROM (supplied), you can print or save images with the date.
MENU/Settings
Search
Note
Operation
Search
Date & Time Format
Table of
contents
Date & Time Setting
Index
116GB
You can view images recorded on the camera in standard picture quality by connecting the
camera to a Standard Definition (SD) TV. Refer also to the operating instructions supplied with
the TV.
2 First, open the battery/memory card cover, then open the multi-connector
cover.
3 Connect the camera to the TV with the cable for multi-use terminal
(supplied).
1 To audio/video input jacks
MENU/Settings
Search
(Playback) button
Operation
Search
1 Turn off both the camera and the TV.
Table of
contents
Viewing an image on a Standard
Definition (SD) TV
2 To the multi-connector
Index
Cable for multi-use terminal
4 Turn on the TV and set the input.
5 Press
(Playback) button to turn on the camera.
Images shot with the camera appear on the TV. Touch
this camera to select the desired image.
/
displayed on the LCD screen of
Notes
• When using the camera abroad, it may be necessary to switch the video signal output to match that of
your TV system (page 101).
• When you play back a single image, no icons are displayed on the TV.
• You cannot play back images in [Easy Mode] during TV output.
• When you shoot movies while the camera and a TV are connected, the image being shot is not displayed
on the TV.
• When you disconnect the cable for multi-use terminal and close the cover of the camera, first close the
multi-connector cover, then close the battery/memory card cover.
117GB
You can view images recorded on the camera in high picture quality by connecting the camera to
a High Definition (HD) TV using the HD Output Adaptor Cable (sold separately). Use a Type3compliant HD Output Adaptor Cable. Refer also to the operating instructions supplied with the
TV.
2 First, open the battery/memory card cover, then open the multi-connector
cover.
MENU/Settings
Search
3 Attach a conversion adaptor to an HD Output Adaptor Cable (sold
separately) and connect the camera to a High Definition (HD) TV with the
appropriate cable.
Operation
Search
1 Turn off both the camera and the HD TV.
Table of
contents
Viewing an image on a High
Definition (HD) TV
COMPONENT AUDIO
VIDEO IN
Green/Blue/Red
Index
(Playback) button
White/
Red
1 To audio/video
input jacks
HD Output Adaptor Cable
(sold separately)
2 To the multi-connector
Conversion adaptor*
* The conversion adaptor is supplied with a Type3-compliant HD Output Adaptor Cable (sold separately).
4 Turn on the TV and set the input.
5 Press
(Playback) button to turn on the camera.
Images shot with the camera appear on the TV. Select the desired image by touching
the LCD screen.
/
on
Notes
• Set [COMPONENT] to [HD(1080i)] (page 100).
• Images shot in [VGA] image size cannot be played back in the HD format.
• When shooting movies in the condition with the camera and a TV connected using an HD Output
Adaptor Cable (sold separately), the image being shot is not displayed in the TV side.
• When using the camera abroad, it may be necessary to switch the video signal output to match that of
your TV system (page 101).
• When output to TV, Easy Viewing mode is invalid.
• When you disconnect the HD Output Adaptor Cable and close the cover of the camera, first close the
multi-connector cover, then close the battery/memory card cover.
118GB
Continued r
This camera is compatible with the “PhotoTV HD” standard.
By connecting Sony PhotoTV HD-compatible devices using an HD Output Adaptor Cable
(sold separately), whole new world of photos can be comfortably enjoyed in breathtaking
Full HD quality.
On TV color systems
NTSC system
Bahama Islands, Bolivia, Canada, Central America, Chile, Colombia, Ecuador, Jamaica, Japan,
Korea, Mexico, Peru, Surinam, Taiwan, the Philippines, the U.S.A., Venezuela, etc.
Index
PAL system
Australia, Austria, Belgium, China, Croatia, Czech Republic, Denmark, Finland, Germany,
Holland, Hong Kong, Hungary, Indonesia, Italy, Kuwait, Malaysia, New Zealand, Norway,
Poland, Portugal, Romania, Singapore, Slovak Republic, Spain, Sweden, Switzerland, Thailand,
Turkey, United Kingdom, Viet Nam, etc.
MENU/Settings
Search
If you want to view images on a TV screen, you need a TV with a video input jack and the cable
for multi-use terminal. The color system of the TV must match that of the digital still camera.
Check the following lists for the TV color system of the country or region where the camera is
used.
Operation
Search
• PhotoTV HD allows for a highly-detailed, photo-like expression of subtle textures and colors.
• The settings are also required to be made on the TV. For details, refer to the operating instruction of
the TV.
Table of
contents
z“PhotoTV HD”
PAL-M system
Brazil
PAL-N system
Argentina, Paraguay, Uruguay
SECAM system
Bulgaria, France, Greece, Guiana, Iran, Iraq, Monaco, Russia, Ukraine, etc.
119GB
“PMB” and other applications are contained on the CD-ROM (supplied) to allow more versatile
use of images shot with your Cyber-shot camera.
Table of
contents
Using with your computer
Recommended computer environment (Windows)
Microsoft Windows XP*1 SP3/Windows Vista*2 SP2/
Windows 7
Others
CPU: Intel Pentium III 800 MHz or faster (For playing/
editing the High Definition movies: Intel Core Duo
1.66 GHz or faster/ Intel Core 2 Duo 1.20 GHz or faster)
Memory: 512 MB or more (For playing/editing the High
Definition movies: 1 GB or more)
Hard Disk: Disk space required for installation—
approximately 500 MB
Display: Screen resolution: 1,024 × 768 dots or more
*1 64-bit editions and Starter (Edition) are not supported.
Recommended computer environment
(Macintosh)
Index
Windows Image Mastering API (IMAPI) Ver.2.0 or later is required to use the function for creating
discs.
*2 Starter (Edition) is not supported.
MENU/Settings
Search
OS (pre-installed)
Operation
Search
The following computer environment is recommended when using the supplied software
“PMB”, “Music Transfer” and “PMB Portable” or importing images via a USB connection.
The following computer environment is recommended when using the supplied software “Music
Transfer” and “PMB Portable” or importing images via a USB connection.
OS (pre-installed)
USB Connection: Mac OS X (v10.3 to v10.6)
Music Transfer/PMB Portable: Mac OS X (v10.4 to
v10.6)
Notes
• Operation is not assured in an environment based on an upgrade of the operating systems described
above or in a multi-boot environment.
• If you connect two or more USB devices to a single computer at the same time, some devices, including
the camera, may not operate, depending on the types of USB devices you are using.
• Connecting the camera using a USB interface that is compatible with Hi-Speed USB (USB 2.0
compliant) allows advanced transfer (high speed transfer), as the camera is compatible with Hi-Speed
USB (USB 2.0 compliant).
• When your computer resumes activity from suspend or sleep mode, communication between the camera
and your computer may not recover at the same time.
120GB
Installing “PMB (Picture Motion Browser)” and
“Music Transfer” (Windows)
The installation menu screen appears.
• If it does not appear, double-click [Computer] (in Windows XP, [My Computer]) t
(SONYPMB).
• If the AutoPlay screen appears, select “Run Install.exe” and follow the instructions that appear on the
screen to proceed with the installation.
Operation
Search
1 Turn on your computer and insert the CD-ROM (supplied) into the CDROM drive.
Table of
contents
Using the software
2 Click [Install].
3 Select the desired language, then proceed to the following screen.
The “License Agreement” screen appears.
4 Carefully read the agreement, click the radio button (
the terms of the agreement, and then click [Next].
t
) to accept
5 Follow the instructions on the screen to complete the installation.
6 Remove the CD-ROM after the installation is complete.
Index
• For the installation, connect the camera to the computer during the procedure (page 123).
• When the restarting confirmation message appears, restart the computer following the instructions on
the screen.
• DirectX may be installed depending on the system environment of your computer.
MENU/Settings
Search
The “Choose Setup Language” screen appears.
7 Start up the software.
• To start up “PMB,” click
(PMB) on the desktop.
For the detailed operation method, see PMB Support page below (English only) or click
(PMB
Help).
http://www.sony.co.jp/pmb-se/
• To start up “PMB” from the Start menu, select [Start] t [All Programs] t
(PMB).
• If “PMB” was installed on your computer and if you re-install “PMB” using the supplied CD-ROM,
you can start up all the applications from “PMB Launcher. ” To start up “PMB Launcher,” doubleclick
(PMB Launcher) on the desktop.
Notes
• Log on as Administrator.
• When “PMB” is started up for the first time, the confirmation message of the Information tool appears on
the screen. Select [Start].
121GB
Installing “Music Transfer” (Macintosh)
2 Double-click
(SONYPMB).
Table of
contents
1 Turn on your Macintosh computer, and insert the CD-ROM (supplied) into
the CD-ROM drive.
3 Double-click the [MusicTransfer.pkg] file in the [Mac] folder.
The installation of the software starts.
• “PMB” is not compatible with Macintosh computers.
• Shut down all other application software before you install “Music Transfer”.
• For installation, you need to log on as Administrator.
Index
• “PMB” allows you to import images shot with the camera to a computer for display.
Make a USB connection between the camera and your computer, and click [Import].
• Images on a computer can be exported to a memory card, and displayed on the camera.
Make a USB connection between the camera and your computer, click [Export] t [Easy
Export (PC Sync)] in the [Manipulate] menu, and click [Export].
• You can save and print images with the date.
• You can display images stored on a computer by shooting date in a calendar display.
• You can correct (Red Eye Reduction, etc.) still images, and change the shooting date and
time.
• You can create discs with CD or DVD disc-writing drive.
• You can upload images to a network service. (An internet connection environment is
required.)
• For other details, see
(PMB Help).
MENU/Settings
Search
zIntroduction to “PMB”
Operation
Search
Notes
zIntroduction to “Music Transfer”
“Music Transfer” allows you to replace the Music files provided in the camera at the factory
with your favorite tracks, and to delete and add Music files.
You can also restore the tracks stored at the factory to your camera.
• The following track types can be imported using “Music Transfer”.
– MP3 files stored on the hard disk of your computer
– Music CD tracks
– Preset-music saved on the camera
• Before starting up “Music Transfer,” perform
t
(Settings) t
(Main
Settings) t [Download Music], and connect the camera to the computer.
For other details, see the help in “Music Transfer”.
122GB
1 First, open the battery/memory card cover, then open the multi-connector
cover.
• Use a Type3-compliant USB/AV/DC IN Cable (sold separately).
3 Turn on the computer, then press
Operation
Search
2 Insert a sufficiently charged battery pack into the camera, or connect the
camera to a wall outlet (wall socket) using the AC-LS5 AC Adaptor (sold
separately) and the USB/AV/DC IN Cable for multi-use terminal (sold
separately).
Table of
contents
Connecting the camera to a
computer
(Playback) button.
• When a USB connection is established for the first time, your computer automatically runs a program
to recognize the camera. Wait for a while.
MENU/Settings
Search
4 Connect the camera to your computer.
1 To a USB jack of the computer
Index
2 To the multi-connector
Cable for multi-use terminal
Importing images to a computer (Windows)
“PMB” allows you to easily import images.
For details on “PMB” functions, see the “PMB Help”.
Importing images to a computer without using “PMB”
When the AutoPlay Wizard appears after making a USB connection between the camera and a
computer, click [Open folder to view files] t [OK] t [DCIM] or [MP_ROOT] t copy the
desired images to the computer.
123GB
Importing images to a computer (Macintosh)
Table of
contents
1 Connect the camera to your Macintosh computer first. Double-click the
newly recognized icon on the desktop t [DCIM] or [MP_ROOT] t the
folder where the images you want to import are stored.
2 Drag and drop the image files to the hard disk icon.
The image files are copied to the hard disk.
The image is displayed.
Operation
Search
3 Double-click the hard disk icon t the desired image file in the folder
containing the copied files.
Deleting the USB connection
•
•
•
•
Disconnecting the cable for multi-use terminal.
Removing a memory card.
Inserting a memory card into the camera after copying images from the internal memory.
Turning off the camera.
1 Double-click the disconnect icon on the
tasktray.
2 Click
Windows Vista
(USB Mass Storage Device) t [Stop].
Index
Windows XP
3 Confirm the device on the confirmation
window, then click [OK].
Notes
MENU/Settings
Search
Perform the procedures from step 1 to 3 below before:
Disconnect icon
• Drag and drop the icon of the memory card or the drive icon to the “Trash” icon beforehand when you
use a Macintosh computer, and the camera is disconnected from the computer.
• When you disconnect the cable for multi-use terminal and close the cover of the camera, first close the
multi-connector cover, then close the battery/memory card cover.
124GB
Operation
Search
This camera has a built-in application “PMB Portable”.
You can use this application to do the following:
• You can easily upload images to a blog or other media service.
• You can upload images from a computer connected to the Internet even when you are away
from home or the office.
• You can easily register the media services (such as blogs) you use frequently.
For details on “PMB Portable”, see the “PMB Portable” help.
Table of
contents
Uploading images to a media
service
Starting up “PMB Portable” (Windows)
1 Make a USB connection between the camera and a computer.
When you connect the camera and your computer, AutoPlay Wizard appears.
Click [×] to close the AutoPlay Wizard for any unnecessary drives.
MENU/Settings
Search
When using “PMB Portable” for the first time, you must select the language. Follow the
procedure below to make the selection. Once the language selection has been made, steps 3 to 5
are unnecessary the next time you use “PMB Portable”.
• If the desired AutoPlay Wizard does not appear, click [Computer] (in Windows XP, [My Computer])
t [PMBPORTABLE], then double-click “PMBP_Win.exe”.
• If “PMB Portable” is not displayed within the AutoPlay Wizard, click [Computer] t
[PMBPORTABLE], then double-click “PMBP_Win.exe”.
Index
2 Click “PMB Portable”.
(In Windows XP, click “PMB Portable” t [OK].)
The Language Selection screen appears.
3 Select the desired language, then click [OK].
The Region Selection screen appears.
4 Select the appropriate [Region] and [Country/Area], and then click [OK].
The User Agreement screen appears.
5 Read the agreement carefully. If you accept the terms of the agreement,
click [I Agree].
“PMB Portable” starts up.
125GB
Starting up “PMB Portable” (Macintosh)
When you connect the camera and your computer, [PMBPORTABLE] appears on the
desktop. Click [×] for any unnecessary drives.
Table of
contents
1 Make a USB connection between the camera and a computer.
2 Click [PMBP_Mac] in the [PMBPORTABLE] folder.
The Region Selection screen appears.
The User Agreement screen appears.
4 Read the agreement carefully. If you accept the terms of the agreement,
click [I Agree].
Operation
Search
3 Select the appropriate [Region] and [Country/Area], and then click [OK].
“PMB Portable” starts up.
• Set [LUN Settings] in [Main Settings] to [Multi].
• Always connect to a network when using “PMB Portable”.
• When uploading images over the Internet, the cache may remain in the computer being used depending
on the service provider. This is also true when this camera is used for this purpose.
• When a bug occurs in “PMB Portable” or you delete “PMB Portable” by mistake, you can repair “PMB
Portable” by downloading the PMB Portable installer from the web site.
MENU/Settings
Search
Notes
Notes on “PMB Portable”
Index
“PMB Portable” makes it possible to download the URLs of a number of websites from the
server administered by Sony (the “Sony server”).
In order to use “PMB Portable” to enjoy the benefits of the image uploading service or other
services (the “services”) provided by these and other websites, you must consent to the
following.
• Some websites require registration procedures and/or fees to use their services. In using such services,
you must comply with the terms and conditions established by the websites concerned.
• Services may be terminated or changed in accordance with the convenience of the website operators.
Sony will not be held responsible for any trouble occurring between the users and third parties or any
inconvenience caused to users relating to the utilization of the services inclusive of the termination of or
changes to such services.
• To view a website, you will be redirected to it by the Sony server. There may be times when you cannot
access the website because of server maintenance or for other reasons.
• If the operation of the Sony server is to be terminated, you will be notified of the termination ahead of
time on Sony website, etc.
• The URLs to which you are redirected by the Sony server and other information may be recorded for the
purposes of improving Sony future products and services. However, no personal data will be recorded on
such occasions.
126GB
Notes
Operation
Search
You can print still images using the following methods.
• Printing directly using a PictBridge-compliant printer
• Printing directly using a memory card-compliant printer
For details, see the operating instructions supplied with the printer.
• Printing using a computer
You can import images to a computer using the supplied “PMB” software and print the
images. You can insert the date on the image and print it.
For details, see the “PMB Help”.
• Printing at a shop (page 129)
Table of
contents
Printing still images
• When you print images shot in 16:9 mode, both edges may be cut off.
• You cannot print panoramic images depending on the printer.
Even if you do not have a computer, you can print images shot using the camera by connecting
the camera directly to a PictBridge-compliant printer.
MENU/Settings
Search
Printing images directly using a PictBridgecompliant printer
“PictBridge” is based on the CIPA standard. (CIPA: Camera & Imaging
Products Association)
Index
1 First, open the battery/memory card cover, then open the multi-connector
cover.
2 Insert a sufficiently charged battery pack into the camera.
3 Connect the camera to the printer.
1 To a USB jack of
the printer
2 To the multi-connector
Cable for multi-use terminal
4 Turn on the camera and the printer.
After the connection is made, the
indicator appears on the screen.
If the indicator flashes on the screen of the camera (error notification), check the connected
printer.
127GB
Continued r
5
t
(Print) t desired mode
Prints the currently displayed image in single-image mode.
Multiple Images
You can select and print multiple images.
After step 5, perform the following.
2Touch [OK] t [OK].
All in Date Range
All in This Folder
Prints all images in the selected date range and folder at
once.
Touch [OK] after step 5.
Quantity
Selects the number of copies of the specified image to be
printed.
• The designated number of images may not all fit onto a single
sheet depending on the quantity of images.
Selects the number of images you want to print side by side
on a sheet.
Size
Selects the size of the printing sheet.
Date
Selects [Date] or [Day&Time] to insert the date and time
on images.
• When you choose [Date], the date will be inserted in the order
you select using [Date & Time Setting] on the camera. This
function may not be available depending on the printer.
Index
Layout
MENU/Settings
Search
6 Desired setting item t [Start]
Operation
Search
1Touch the image to be printed.
Repeat the above steps until there are no more images to
be printed.
Touch an image with a mark again to release the
mark.
Table of
contents
This Image
Notes
• Movies cannot be printed.
• If the camera could not be connected to the printer, be sure to set [USB Connect] under [Main Settings]
to [PictBridge].
• Do not disconnect the cable for multi-use terminal while the
(PictBridge Connecting) indicator
appears on the screen.
• When you disconnect the cable for multi-use terminal and close the cover of the camera, first close the
multi-connector cover, then close the battery/memory card cover.
128GB
Printing at a shop
Table of
contents
You can take a memory card containing images shot with the camera to a photo printing service
shop. As long as the shop supports photo printing services conforming to DPOF, you can make a
(Print order) mark on images in advance on the viewing menu so that you do not have to
reselect them when you print them out at the shop.
Notes
Operation
Search
• You cannot print images stored in the internal memory at a print shop directly from the camera. Copy the
images to a memory card (page 113), then take the memory card to the print shop.
• Consult your photo printing service shop as to what types of memory card they can process.
• A memory card adaptor (sold separately) may be necessary. Consult your photo printing service shop.
• Before you take image data to a shop, always copy (back up) your data to a disk.
• You cannot set the number of prints.
• If you want to superimpose dates on images, consult your photo printing service shop.
MENU/Settings
Search
Index
129GB
If you experience trouble with the camera, try the following solutions.
1 Check the items on pages 130 to 138.
Table of
contents
Troubleshooting
If a code such as “C/E:ss:ss” appears on the screen, see
page 139.
4 Consult your Sony dealer or local authorized Sony service
facility.
MENU/Settings
Search
3 Initialize the settings (page 99).
Operation
Search
2 Remove the battery pack, wait for about one minute, re-insert
the battery pack, then turn on the power.
Be aware that by sending the camera for repair, you give consent that the contents of the internal
memory, music files may be checked.
Index
Additional information on this product and answers to frequently asked questions can
be found at our Customer Support Website.
http://www.sony.net/
Battery pack and power
Cannot insert the battery pack.
• Make sure the direction of the battery is correct, and insert it until the battery eject lever is locked.
Cannot turn on the camera.
• After inserting the battery pack into the camera, it may take a few moments for the camera to power
up.
• Insert the battery pack correctly.
• The battery pack is discharged. Insert a charged battery pack.
• The battery pack terminals are dirty. Gently wipe away any dirt with a soft cloth.
• Use a recommended battery pack.
The power turns off suddenly.
• Depending on the camera and battery temperature, the power may turn off automatically to protect
the camera. In this case, a message is displayed on the LCD screen before the power turns off.
• If you do not operate the camera for a certain period of time while the power is on and [Power Save]
is set to [Standard] or [Stamina], the camera turns off automatically to prevent wearing down the
battery pack. Turn on the camera again.
130GB
The remaining charge indicator is incorrect.
• You cannot charge the battery pack using the AC Adaptor (sold separately). Use the battery charger
to charge the battery.
The CHARGE lamp flashes while charging the battery.
Shooting still images/movies
Cannot record images.
Index
• When images cannot be recorded into a memory card but are recorded into the internal memory, even
though a memory card has been inserted into the camera, make sure that the memory card has been
fully inserted.
• Check the free capacity of the internal memory or the memory card. If it is full, do one of the
following:
– Delete unnecessary images (page 74).
– Change the memory card.
• You cannot record images while charging the flash.
• When recording movies, it is recommended that you use the following memory cards:
– “Memory Stick PRO Duo” (Mark2) media, “Memory Stick PRO-HG Duo” media
– SD memory card or SDHC memory card (Class 4 or faster)
• Set [Demo Mode] to [Off] (page 98).
MENU/Settings
Search
• Remove and reinsert the battery pack, making sure it is installed correctly.
• The temperature may be inappropriate for charging. Try charging the battery pack again within the
proper charging temperature range (10°C to 30°C (50°F to 86°F)).
• For details, see page 145.
Operation
Search
Cannot charge the battery pack.
Table of
contents
• This is caused when you use the camera in an extremely hot or cold location.
• A discrepancy arose between the remaining charge indicator and the actual remaining battery charge.
Fully discharge the battery pack once, then charge it to correct the indication. Depending on
conditions of use, the display may remain incorrect.
• Battery capacity decreases over time and through repeated use. When the operating time per charge
decreases markedly, the battery pack needs to be replaced. Purchase a new battery pack.
Smile Shutter function does not work.
• No image is shot if a smiling face is not detected.
• Set [Demo Mode] to [Off] (page 98).
Anti-blur function does not work.
• The anti-blur function may not work properly when shooting night scenes.
• Shoot after pressing the shutter button halfway down.
Recording takes a long time.
• When the shutter speed becomes slower than a certain speed, for example, when you shoot images in
dark locations, the camera automatically reduces the image noise. This function is called NR (noise
reduction) slow shutter and the shooting time takes longer.
• The Anti Blink function is working. When [Anti Blink] is set to [Auto], reset to [Off] (page 66).
131GB
The image is out of focus.
Cannot select the Face Detection function.
• You can select Face Detection only when the focus mode is set to [Multi AF] and the Metering Mode
is set to [Multi].
• You cannot select Face Detection when the Close focus mode is activated.
MENU/Settings
Search
• You cannot use the zoom during Intelligent Sweep Panorama shooting.
• You cannot use the Smart zoom depending on the image size (page 90).
• You cannot use the Digital Zoom in the following situations:
– In Movie Mode
– In Backlight Correction HDR mode
– When the Smile Shutter function is activated.
Operation
Search
Zoom does not work.
Table of
contents
• The subject is too close. When shooting, make sure to position the lens farther away from the subject
than the shortest shooting distance (approximately 1 cm (13/32 inches) (W)/50 cm (1 ft 7 3/4 inches)
(T) from the lens in Intelligent Auto Adjustment and Easy Mode, or approximately 8 cm (3 1/4
inches) (W)/50 cm (1 ft 7 3/4 inches) (T) from the lens in other recording modes). Or set to Close
focus mode and shoot about 1 cm to 20 cm (13/32 inches to 7 7/8 inches) from the W side distance.
•
(Landscape) mode or (Twilight) mode or (Fireworks) mode is selected in the Scene Selection
when shooting still images.
The flash does not work.
Index
• You cannot use the flash in the following situations:
– Shooting burst images (page 52).
– When (High Sensitivity) mode, (Twilight) mode or (Fireworks) mode is selected in the
Scene Selection.
– In Intelligent Sweep Panorama mode
– In Movie Mode
– In Anti Motion Blur mode
– In Hand-held Twilight mode
• Set the flash to [On] (page 44) in the following situations:
– In Backlight Correction HDR mode
– In Close focus mode
– When (Landscape), (Gourmet),
(Pet),
(Beach), (Snow),
(Underwater) or (HiSpeed Shutter) is selected in the Scene Selection.
Fuzzy white circular spots appear in images shot using the flash.
• Foreign particles (dust, pollen, mist, etc.) in the air or suspended particles in water reflected the flash
light and appeared in the image. This is not a malfunction.
132GB
The close-up shoot function (Macro/Close focus) does not work.
Table of
contents
Operation
Search
•
(Landscape) mode, (Twilight) mode or (Fireworks) mode is selected in the Scene Selection.
• When Close focus mode is selected, the shooting distance is approximately 1 cm to 20 cm (13/32
inches to 7 7/8 inches).
• [Macro] is set to [Auto] in the following situations:
– In Intelligent Sweep Panorama mode
– In Movie Mode
– In Anti Motion Blur mode
– In Hand-held Twilight mode
– When the Smile Shutter function is activated.
– In Easy Mode
– When [Self-Timer] is set to [Self-portrait One Person] or [Self-portrait Two People].
Macro shooting cannot be turned off.
The date and time are not displayed on the LCD screen.
• While shooting, the date and time are not displayed. They are displayed only during playback.
Cannot insert dates on images.
MENU/Settings
Search
• There is no function for forcibly turning off macro shooting. In [Auto] mode, you can even shoot a
distant subject.
• This camera does not have a feature for superimposing dates on images. By using “PMB”, you can
print or save images with the date (page 121).
• The exposure is incorrect. Correct the exposure (page 54).
Index
The F value and shutter speed flash when you press and hold the shutter button
halfway down.
The image colors are not correct.
• Adjust the [White Balance] (page 56).
Noise appears in the image when you view the screen in a dark place.
• The camera is attempting to increase the visibility of the screen by temporarily brightening the image
under conditions of low illumination. There is no effect on the recorded image.
The eyes of the subject come out red.
• Set [Red Eye Reduction] to [Auto] or [On] (page 93).
• Shoot the subject at a distance closer than the flash range using the flash.
• Light the room and shoot the subject.
• Retouch the image using [Retouch] t [Red Eye Correction] on the viewing menu, or correct using
“PMB”.
Dots appear and remain on the screen.
• This is not a malfunction. These dots are not recorded.
A distorted image is recorded.
•
(Underwater) is selected in Scene Selection. Set to another mode when you don’t shoot
underwater.
133GB
Cannot shoot images in succession.
Table of
contents
• You cannot shoot images in succession while the Smile Shutter function is activated.
• The internal memory or the memory card is full. Delete unnecessary images (page 74).
• The battery level is low. Insert charged battery pack.
The same image is shot several times.
• Set [Burst] to [Off] (page 52).
• [Scene Recognition] is set to [Advanced] (page 62).
Cannot play back images.
MENU/Settings
Search
• Make sure that the memory card is fully inserted into the camera.
• The folder/file name has been changed on your computer.
• No guarantees are made for playing back, on this camera, files containing images which were
processed on a computer or images which were shot using other cameras.
• The camera is in USB mode. Delete the USB connection (page 124).
• You have copied the images stored on a PC to a memory card without using “PMB” software.
Register the unregistered images following the Image Database registration screen (page 35), or
playback the images in [Folder view (Still)] or [Folder view (Movie)] (page 78).
Operation
Search
Viewing images
The date and time are not displayed.
• [Display Settings] is set to [Off].
• [Auto Orientation] is set to [On] (page 91).
Index
Left and right sides of the screen are shown in black.
The buttons and icons no longer appear.
• If you touch the top right of the screen during shooting, the buttons and icons will momentarily
disappear. The buttons and icons will reappear when you take your finger off the screen.
• [Display Settings] in shooting or viewing menu is set to [Off]. Touch the left side of the LCD screen
and drag to the right.
Cannot hear music during slideshow.
• Transfer music files to the camera with “Music Transfer” (pages 121, 122).
• Confirm that the volume setting and slideshow setting are correct (pages 72, 83).
• Slideshow is played back with [Continuous Playback]. Select [Slideshow with music] and play back.
The image does not appear on the TV.
• Check [Video Out] to see if the video output signal of the camera is set to the color system of your TV
(page 101).
• Check whether the connection is correct (pages 117, 118).
• If the cable for multi-use terminal is connected to the USB terminal, disconnect the cable (page 124).
• When you shoot movies where the camera and a TV are connected, the image being shot is not
displayed on the TV.
134GB
Deleting
• Cancel the protection (page 80).
Table of
contents
Cannot delete an image.
Computers
• Check that the computer and the “Memory Stick” media Reader/Writer support a “Memory Stick
PRO Duo” media. Users of computers and the “Memory Stick” media Readers/Writers made by
manufacturers other than Sony should contact those manufacturers.
• If a “Memory Stick PRO Duo” media is not supported, connect the camera to the computer
(page 123). The computer recognizes the “Memory Stick PRO Duo” media.
• When the battery level is low, insert the charged battery pack or use the AC adaptor (sold separately).
• Set [USB Connect] to [Auto] or [Mass Storage] (page 103).
• Use the cable for multi-use terminal for connection between the computer and the camera.
• Disconnect the cable for multi-use terminal from both the computer and the camera, and firmly
connect it again.
• Disconnect all equipment other than the camera, the keyboard and the mouse from the USB
connectors of your computer.
• Connect the camera directly to your computer without passing through a USB hub or other device.
Index
Cannot import images.
MENU/Settings
Search
Your computer does not recognize the camera.
Operation
Search
A “Memory Stick PRO Duo” media is not recognized by a computer with a
“Memory Stick” media slot.
• Connect the camera and your computer correctly making a USB connection (page 123).
• When you shoot images with a memory card formatted by a computer, you may not be able to import
the images to a computer. Shoot using a memory card formatted by the camera (page 109).
After making a USB connection, “PMB” does not start automatically.
• Make the USB connection after the computer is turned on.
After making a USB connection, “PMB Portable” does not start.
• Set [LUN Settings] to [Multi].
• Set [USB Connect] to [Auto] or [Mass Storage].
• Connect the computer to the network.
Cannot play back images on your computer.
• If you are using “PMB”, refer to “PMB Help” (page 121).
• Consult the computer or software manufacturer.
The image and sound are interrupted by noise when you view a movie on a
computer.
• You are playing back the movie directly from the internal memory or the memory card. Use “PMB”
and import the movie to your computer, then play back the movie (page 121).
135GB
Images once exported to a computer cannot be viewed on the camera.
Table of
contents
• Export them to a folder recognized by the camera, such as “101MSDCF”, then play back in [Folder
view (Still)] or [Folder view (Movie)] (page 78).
• Register the image in the Image Database File and play in [Date View] (page 78).
• Event View is not available on this camera.
Memory card
• Insert it in the correct direction.
You have formatted a memory card by mistake.
Operation
Search
Cannot insert a memory card.
• All the data on the memory card is deleted by formatting. You cannot restore it.
• Check that the memory card has been securely inserted as far as it will go.
Internal memory
MENU/Settings
Search
Data is being recorded to internal memory even though you inserted a memory
card.
Cannot playback or record images using the internal memory.
• There is a memory card inserted in the camera. Remove it.
• The memory card is full. Copy to a memory card with sufficient capacity.
Index
Cannot copy the data stored in the internal memory to a memory card.
Cannot copy the data on the memory card or the computer to the internal
memory.
• This feature is not available.
Printing
See “PictBridge-compliant printer” together with the following items.
Cannot print an image.
• Refer to the operation manual of the printer.
Images are printed with both edges cut off.
• Depending on your printer, all the edges of the image may be cut off. Especially when you print an
image shot with the image size set to [16:9], the lateral end of the image may be cut off.
• When printing images using your printer, cancel the trimming or borderless settings. Consult the
printer manufacturer as to whether the printer provides these functions or not.
• When having images printed at a digital print shop, ask the shop whether they can print the images
without cutting off both edges.
136GB
Cannot print images with the date.
A connection cannot be established.
Cannot print images.
Index
• Check that the camera and the printer are properly connected using the cable for multi-use terminal.
• Turn on the printer. For details, refer to the operating instructions supplied with the printer.
• If you select [Exit] during printing, images may not be printed. Disconnect the cable for multi-use
terminal and connect it again. If you still cannot print your images, disconnect the cable for multi-use
terminal once more, turn the printer off and then turn it on, and connect the cable again.
• Movies cannot be printed.
• Images shot using other cameras, or images modified with a computer may not be printed.
• Panoramic images may not be printed or may be printed with both edges cut off depending on the
printer.
MENU/Settings
Search
• The camera cannot be connected directly to a printer that is not compliant with the PictBridge
standard. Consult the printer manufacturer as to whether the printer is compliant with PictBridge or
not.
• Check that the printer is turned on and can be connected to the camera.
• Set [USB Connect] to [PictBridge] (page 103).
• Disconnect the cable for multi-use terminal and connect it again. If an error message is indicated on
the printer, refer to the operating instructions supplied with the printer.
Operation
Search
PictBridge-compliant printer
Table of
contents
• Using “PMB”, you can print images with date (page 121).
• The camera does not have a feature for superimposing dates on images. However, because the images
shot with the camera include information on the recording date, you can print images with the date
superimposed if the printer or the software can recognize Exif information. For compatibility with
Exif information, consult the manufacturer of the printer or the software.
• If you use a photo printing service, ask them to superimpose the dates on images.
Printing is canceled.
• Do not disconnect the cable for multi-use terminal before the
turned off.
(PictBridge Connecting) indicator
Cannot insert the date or print images in the index mode.
• The printer does not provide these functions. Consult the printer manufacturer as to whether the
printer provides these functions or not.
• The date may not be inserted in the index mode depending on the printer. Consult the printer
manufacturer.
“---- -- --” is printed on the date-inserted part of the image.
• The image does not have the recording data so the date cannot be inserted. Set [Date] to [Off] and
print the image again (page 127).
137GB
Cannot print the image at the size selected.
• Wait for a while as the printer is carrying out the cancellation. It may take some time depending on
the printer.
Touch panel
• Perform [Calibration] (page 108).
• [Housing] is set to [On] (page 102).
The paint pen operation reacts at inappropriate points.
• Perform [Calibration] (page 108).
MENU/Settings
Search
Cannot operate the touch panel buttons correctly or fully.
Operation
Search
Cannot operate the camera after canceling printing.
Table of
contents
• When you replace the printer paper with paper of a different size after connecting the printer to the
camera, disconnect the cable for multi-use terminal connected to the printer and then reconnect the
printer.
• The print setting of the camera differs from that of the printer. Change the setting of either the camera
(page 127) or the printer.
• Consult the printer manufacturer as to whether the printer can provide the desired size.
Others
• Moisture condensation has occurred. Eject the battery pack and the memory card, then leave the
camera in a dry place with the battery/memory card cover open until the moisture evaporates.
Index
The lens gets fogged.
The camera becomes warm when you use it for a long time.
• This is not a malfunction.
The Clock Set screen appears when you turn on the camera.
• Set the date and time again (page 116).
• The internal rechargeable backup battery has discharged. Insert a charged battery, and set aside for
24 hours or more with the power left off.
The date or time is incorrect.
• The Area Setting is set to a different location than your current location. Change the setting by
t
(Settings) t (Clock Settings) t [Area Setting].
138GB
Table of
contents
Warning indicators and
messages
Self-diagnosis display
Operation
Search
If a code starting with a letter of the alphabet appears, the self-diagnosis function on the camera
is working. The last two digits (indicated by ss) will differ depending on the state of the
camera.
If you cannot solve the problem even after trying the following corrective actions a few times,
the camera may need repair. Contact your Sony dealer or local authorized Sony service facility.
C:32:ss
C:13:ss
• The camera cannot read or write data on the memory card. Try turning off and on the camera again, or
taking out and inserting the memory card several times.
• The internal memory has experienced a format error, or an unformatted memory card is inserted.
Format the internal memory or the memory card (page 109).
• The inserted memory card cannot be used with the camera, or the data is damaged. Insert a new
memory card.
E:62:ss
Index
E:61:ss
MENU/Settings
Search
• There is trouble with the camera’s hardware. Turn the power off and on again.
E:91:ss
• A camera malfunction has occurred. Initialize the camera (page 99), then turn the power on again.
E:94:ss
• There is a malfunction when writing or deleting data. Repair is required. Contact your Sony dealer or
local authorized Sony service facility. Be prepared to give all numbers in the error code beginning
from the E.
Messages
If the following messages appear, follow the instructions.
• The battery level is low. Charge the battery pack immediately. Depending on the conditions of use or
the type of battery pack, the indicator may flash even though there are still 5 to 10 minutes of
remaining battery time left.
For use with compatible battery only
• The battery inserted is not an NP-BN1 (supplied) battery pack.
139GB
System error
Camera overheating
Allow it to cool
Table of
contents
• Turn the power off and then on again.
• The camera temperature has risen. The power may turn off automatically, or you may be unable to
record movies. Leave the camera in a cool location until the temperature goes down.
• Turn the power off and then on again.
Reinsert the memory card
Memory card type error
• The inserted memory card cannot be used in the camera (page 3).
This memory card may not record or play
MENU/Settings
Search
• The inserted memory card cannot be used in the camera (page 3).
• The terminal section of the memory card is dirty.
• The memory card is damaged.
Operation
Search
Internal memory error
• The inserted memory card cannot be used in the camera (page 3).
• Format the media again (page 109).
Index
Error formatting internal memory
Error formatting memory card
Memory card locked
• You are using the memory card with the write-protect switch, and the switch is set to the LOCK
position. Set the switch to the recording position.
Read only memory card
• The camera cannot record or delete images on this memory card.
No images
• No images that can be played back have been recorded in the internal memory.
• No images that can be played back have been recorded in the memory card.
No still images
• The selected folder or date does not contain a file that can be played back in a slideshow.
File found which was not recognized
• You tried to delete a folder containing a file that cannot be played on this camera. Delete the file on a
computer and then delete the folder.
Folder error
• A folder with the same first three digit number already exists on the memory card (for example:
123MSDCF and 123ABCDE). Select another folder, or create a new folder (pages 110, 111).
140GB
Cannot create more folders
Empty folder contents
Table of
contents
• The folder with a name beginning with “999” exists on the memory card. You cannot create any
folders if this is the case.
• You tried to delete a folder containing one or more files. Delete all of the files and then delete the
folder.
• You tried to delete a folder that is protected as read only on a computer.
File error
Read only folder
• You have selected a folder that cannot be set as a recording folder on the camera. Select another
folder (page 111).
File protected
MENU/Settings
Search
• An error occurred while the image was playing back.
No guarantees are made for playing back, on this camera, files containing images which were
processed on a computer or images which were shot using other cameras.
Operation
Search
Folder protected
• Release the protection (page 80).
• You are playing back an image with size that cannot be played back on the camera.
Index
Image size over limit
Unable to detect face for retouch
• You may not be able to retouch the image depending on the image.
(Vibration warning indicator)
• Camera shake may occur due to insufficient light. Use the flash, or mount the camera on a tripod to
secure the camera.
1280×720 (Fine) is not supported with this memory card
1280×720 (Standard) is not supported with this memory card
• For recording movies, it is recommended that you use a memory card of 1 GB or larger.
Maximum number of
images already selected
• Up to 100 files can be selected when using [Multiple Images].
• Up to 999 files can be selected when using [All in Date Range] or [All in This Folder] for DPOF,
Protect or Print.
• You can add
(Print order) marks to up to 999 files. Cancel the selection.
• The data transmission to the printer may not be completed yet. Do not disconnect the cable for multiuse terminal.
141GB
Processing...
Error Playing Music
Table of
contents
• The printer is canceling the current print job. You cannot print until it is finished. This may take time,
depending on the printer.
• Delete the Music file, or replace it with a normal Music file.
• Execute [Format Music], then download a new Music file.
• Execute [Format Music].
Operation cannot be executed
in unsupported files
Preparing Image Database File
• The camera restores the date information, etc., in cases where images have been deleted on a PC, etc.
• The necessary Image Database File is created after the memory card is formatted.
MENU/Settings
Search
• Processing and other editing functions of the camera cannot be performed on image files that have
been processed using a computer or images that were recorded with other cameras.
Operation
Search
Error Formatting Music
• The number of images exceeds that for which date management in a database file by the camera is
possible. To register additional images in the Image Database File, delete images in [Date View].
Index
• It is not possible to record to the camera’s Image Database File or play back using [Date View]. Use
“PMB” to back up all images to a PC and use it to restore a memory card or internal memory.
Image Database File error Cannot recover
• Import all of the images to the computer with “PMB”, and format the memory card or the internal
memory (page 109).
When you cannot import all of the images to the computer with “PMB”, import the images to the
computer without using “PMB” (page 123).
To view the images again with the camera, export the imported images to the camera with “PMB”.
Recording function unavailable
due to high internal temperature
• The camera temperature has risen. You cannot record images until the temperature has gone down.
Recording has stopped due to
increased camera temperature
• Recording has stopped due to a rise in temperature while recording a movie. Please wait until the
temperature goes down.
• When you record movies for a long time, the camera temperature rises. In this case, stop recording
movies.
142GB
A “Memory Stick Duo” media is a compact, portable IC recording medium. The types of
“Memory Stick Duo” media that can be used with the camera are listed in the table below.
However, proper operation cannot be guaranteed for all “Memory Stick Duo” media functions.
“Memory Stick” media type
Memory Stick Duo (without MagicGate)
Table of
contents
“Memory Stick Duo” media
Recording/Playback
a*1
a*2
a*1*2
Memory Stick PRO Duo
Memory Stick PRO-HG Duo
a*2*3
a*2*3*4
Notes
Index
• This product is compatible with “Memory Stick Micro” media (“M2”). “M2” is an abbreviation for
“Memory Stick Micro” media.
• A “Memory Stick Duo” media formatted with a computer is not guaranteed to operate with the camera.
• Data read/write speeds differ depending on the combination of the “Memory Stick Duo” media and the
equipment used.
• Do not remove the “Memory Stick Duo” media while reading or writing data.
• Data may be corrupted in the following cases:
– When the “Memory Stick Duo” media is removed or the camera is turned off during a read or write
operation
– When the “Memory Stick Duo” media is used in locations subject to static electricity or electrical noise
• We recommend backing up important data.
• Do not attach a label on the “Memory Stick Duo” media itself nor on a “Memory Stick Duo” media
Adaptor.
• Do not touch the terminal section of the “Memory Stick Duo” media with your hand or a metal object.
• Do not strike, bend or drop the “Memory Stick Duo” media.
• Do not disassemble or modify the “Memory Stick Duo” media.
• Do not expose the “Memory Stick Duo” media to water.
• Do not leave the “Memory Stick Duo” media within the reach of small children. They might accidentally
swallow it.
• Do not insert anything other than a “Memory Stick Duo” media into the “Memory Stick Duo” media slot.
Doing so will cause a malfunction.
• Do not use or store the “Memory Stick Duo” media under the following conditions:
– High temperature locations such as the hot interior of a car parked in direct sunlight
– Locations exposed to direct sunlight
– Humid locations or locations with corrosive substances present
MENU/Settings
Search
*1 High-speed data transfer using a parallel interface is not supported.
*2 “Memory Stick Duo” media, “MagicGate Memory Stick Duo” media, “Memory Stick PRO Duo” media
and “Memory Stick PRO-HG Duo” media are equipped with MagicGate functions. MagicGate is
copyright protection technology that uses encryption technology. Data recording/playback that requires
MagicGate functions cannot be performed with the camera.
*3 [1280×720] size movies cannot be recorded to internal memory or “Memory Stick” media other than
“Memory Stick PRO Duo” media and “Memory Stick PRO-HG Duo” media.
*4 This camera does not support 8-bit parallel data transfer. It performs the same 4-bit parallel data transfer
as the “Memory Stick PRO Duo” media.
Operation
Search
Memory Stick Duo (with MagicGate)
MagicGate Memory Stick Duo
143GB
Continued r
• To use a “Memory Stick Micro” media with the camera, be sure to insert the “Memory Stick Micro”
media into an “M2” Adaptor as large as of Duo size. If you insert a “Memory Stick Micro” media into the
camera without an “M2” Adaptor as large as of Duo size, you might not be able to remove it from the
camera.
• Do not leave the “Memory Stick Micro” media within the reach of small children. They might
accidentally swallow it.
MENU/Settings
Search
Notes on using a “Memory Stick Micro” media (sold
separately)
Operation
Search
• To use a “Memory Stick Duo” media with a “Memory Stick” media compliant device, be sure to insert
the “Memory Stick Duo” media into a “Memory Stick Duo” media Adaptor. If you insert a “Memory
Stick Duo” media into a “Memory Stick” media compliant device without a “Memory Stick Duo” media
Adaptor, you might not be able to remove it from the device.
• When inserting a “Memory Stick Duo” media into a “Memory Stick Duo” media Adaptor, make sure the
“Memory Stick Duo” media is inserted facing in the correct direction, then insert it all the way in.
Incorrect insertion may result in a malfunction.
• When using a “Memory Stick Duo” media inserted into a “Memory Stick Duo” media Adaptor with a
“Memory Stick” media compliant device, make sure that the “Memory Stick Duo” media Adaptor is
inserted facing the correct direction. Note that improper use may damage the equipment.
• Do not insert a “Memory Stick Duo” media Adaptor into a “Memory Stick” media compliant device
without a “Memory Stick Duo” media attached. Doing so may result in malfunction of the unit.
Table of
contents
Notes on using the “Memory Stick Duo” media Adaptor (sold
separately)
Index
144GB
On charging the battery pack
• We recommend charging the battery pack in an ambient temperature of between 10°C to 30°C (50°F to
86°F). The battery pack may not be fully charged in temperatures outside this range.
Table of
contents
Battery pack
Effective use of the battery pack
• Fully discharge the battery pack before storing and store it in a cool, dry place. To maintain the battery
pack’s function, fully charge the battery pack and then fully discharge it on the camera at least once a
year while storing.
• To use the battery pack up, leave the camera in slideshow (page 71) playback mode until the power goes
off.
• To keep clean battery pack terminal and prevent short-circuiting, place the battery pack in a plastic bag,
etc. when carrying and storing to isolate it from other metal objects, etc.
Index
On battery life
MENU/Settings
Search
How to store the battery pack
Operation
Search
• Battery performance decreases in low temperature surroundings. So in cold places, the operational time
of the battery pack is shorter.
• The battery pack will run out quickly if you use the flash or zoom frequently.
• We recommend having spare battery packs handy for two or three times the expected shooting time, and
making trial shots before taking the actual shots.
• Do not expose the battery pack to water. The battery pack is not water-resistant.
• Do not leave the battery pack in extremely hot places, such as in a car or under direct sunlight.
• When the battery pack terminals become dirty, the camera may not turn on, the battery pack may not
charge, or other symptoms may occur. In these cases, gently wipe away any dirt with a soft cloth.
• The battery life is limited. Battery capacity decreases over time and through repeated use. If decreased
usage time between charges becomes significant, it is probably time to replace it with a new one.
• The battery life varies according to how it is stored and the operating conditions and environment in
which each battery pack is used.
Compatible battery pack
• The NP-BN1 battery pack (supplied) can be used only in N type compatible Cyber-shot models.
145GB
Operation
Search
MENU/Settings
Search
• Only NP-BN-type battery packs (and no others) can be charged in the battery charger (supplied).
Batteries other than the specified kind may leak, overheat, or explode if you attempt to charge them,
posing a risk of injury from electrocution and burns.
• The CHARGE lamp on the supplied battery charger has the following two flash patterns.
Fast flash: The lamp repeatedly flashes on and off at approximately 0.15-second intervals.
Slow flash: The lamp repeatedly flashes on and off at approximately 1.5-second intervals.
• Remove the charged battery pack from the battery charger. If you leave the charged battery pack in the
charger, battery life may be shortened.
• When the CHARGE lamp flashes, remove the battery pack being charged, and then insert the same
battery pack into the battery charger again until it clicks. When the CHARGE lamp flashes again, this
may indicate a battery error or that a battery pack other than the specified type has been inserted. Check
that the battery pack is the specified type. If the battery pack is the specified type, remove the battery
pack, replace it with new one or another one and check if the battery charger operates correctly. If the
battery charger operates correctly, a battery error may have occurred.
• If the CHARGE lamp is flashing slowly, the charger is in standby mode and charging has temporarily
stopped. Charging stops temporarily and standby mode results when the temperature is outside the range
suitable for charging. Charging resumes and the CHARGE lamp lights when the temperature returns to
the range suitable for charging. We recommend charging the battery pack in an ambient temperature of
between 10°C to 30°C (50°F to 86°F).
Table of
contents
Battery charger
Index
146GB
D
AF Illuminator ...................................................................88
Date.......................................................................................128
AF range finder frame ....................................................59
Date & Time Setting .....................................................116
Anti Blink ............................................................................66
Delete .....................................................................................74
Anti Motion Blur ..............................................................29
Delete REC.Folder .........................................................112
Area Setting ......................................................................115
Demo Mode ........................................................................98
Auto Orientation ...............................................................91
Digital Zoom ......................................................................90
Display Burst Group .......................................................79
B
Display Settings
Backlight Correction HDR ...........................................31
Operation
Search
A
Table of
contents
Index
Shooting ........................................................................67
Viewing .........................................................................84
Battery pack ......................................................................145
Download Music .............................................................105
Beach .....................................................................................32
DPOF .....................................................................................81
Beep ........................................................................................95
Blink Alert ...........................................................................94
E
Burst .......................................................................................52
Easy Mode
Shooting ........................................................................40
C
MENU/Settings
Search
Battery charger ................................................................146
Viewing .........................................................................68
EV ...........................................................................................54
Calibration .........................................................................108
Exposure ...............................................................................54
Center AF .............................................................................59
Exposure data .....................................................................85
Center-weighted metering ............................................61
Change REC.Folder.......................................................111
F
Clock Settings ..................................................................116
Face Detection ...................................................................64
Close Focus .........................................................................53
File Number ......................................................................114
COMPONENT ................................................................100
Fireworks .............................................................................33
Computer
Flash .................................................................................44, 45
Importing images.............................................123, 124
Focus ......................................................................................59
Macintosh computer...............................................120
Folder
Recommended environment ...............................120
Changing .....................................................................111
Windows computer.................................................120
Creating .......................................................................110
Connecting
Deleting .......................................................................112
Computer ....................................................................123
Selecting ........................................................................87
Printer ...........................................................................127
Format Music ...................................................................106
TV ..................................................................................117
Format .................................................................................109
Copy .....................................................................................113
Index
Calendar ................................................................................69
Create REC.Folder .........................................................110
G
Customize ............................................................................21
Gourmet ................................................................................32
Grid Line ..............................................................................89
147GB
O
Hand-held Twilight..........................................................30
Optical zoom ................................................................34, 90
HD(1080i) ..........................................................................100
OS ..........................................................................................120
High Sensitivity .................................................................32
Hi-Speed Shutter ...............................................................33
P
Housing ...............................................................................102
Paint ........................................................................................76
Table of
contents
H
PAL.......................................................................................101
PC ..........................................................................................120
Image Index ........................................................................70
Pet ............................................................................................32
Image index settings ........................................................86
PictBridge ..................................................................103, 127
Image Size ...........................................................................49
Pixel ........................................................................................51
Initialize ................................................................................99
Playback
Movies............................................................................39
Intelligent Sweep Panorama ........................................26
Still images...................................................................35
Internal memory ................................................................22
Playback Zoom ..................................................................36
ISO ..........................................................................................55
PMB .....................................................................................121
PMB Portable ...................................................................125
L
Power Save ........................................................................107
Landscape ............................................................................32
Precision digital zoom ....................................................90
Language Setting ..............................................................97
Print ................................................................................81, 127
LCD Brightness .................................................................96
Print order mark ..............................................................129
LUN Settings ....................................................................104
Program Auto .....................................................................25
PTP .......................................................................................103
Macintosh computer ......................................................120
Macro .....................................................................................53
R
Mass Storage ....................................................................103
REC Mode ...........................................................................23
Memory card ........................................................................3
Red Eye Correction .........................................................77
“Memory Stick Duo” media ......................................143
Red Eye Reduction ..........................................................93
MENU screen ...............................................................11, 13
Retouch .................................................................................77
Metering Mode ..................................................................61
Rotate .....................................................................................82
Index
Protect ....................................................................................80
M
MENU/Settings
Search
Intelligent Auto Adjustment ........................................24
Operation
Search
I
Movie Mode
Shooting ........................................................................28
S
Viewing .........................................................................39
Scene Recog. Guide ........................................................92
Movie shooting scene .....................................................41
Scene Recognition............................................................62
MTP ......................................................................................103
Scene Selection..................................................................32
Multi AF ...............................................................................59
SD ..........................................................................................100
Multi-connector .......................................117, 118, 123, 127
Select Folder .......................................................................87
Multi-pattern metering ...................................................61
Selected-face Memory....................................................65
Music Transfer .................................................................121
Self-diagnosis display ...................................................139
Self-portrait .........................................................................46
N
Self-Timer ......................................................................46, 47
Names of parts ...................................................................16
Settings ..................................................................................14
NTSC ...................................................................................101
Shooting
Movies............................................................................28
Still images...................................................................24
148GB
Shooting Direction ...........................................................48
Slow Synchro .....................................................................44
Smart zoom .........................................................................90
Smile Shutter ......................................................................42
Table of
contents
Slideshow .............................................................................71
Snow.......................................................................................32
Soft Snap ..............................................................................32
Software ..............................................................................121
Spot metering .....................................................................61
T
Operation
Search
Spot AF .................................................................................59
Temporarily Rotated Display ......................................38
Touch panel .........................................................................19
Troubleshooting ..............................................................130
TV .................................................................................117, 118
Twilight.................................................................................32
Twilight Portrait ................................................................32
MENU/Settings
Search
Trimming (Resize) ...........................................................77
U
Underwater ..........................................................................33
Unsharp masking ..............................................................77
USB Connect ....................................................................103
Index
Underwater White Balance ..........................................58
USB jack ....................................................................123, 127
V
VGA .......................................................................................49
Video Out ...........................................................................101
View Mode ..........................................................................78
Volume Settings ................................................................83
W
Warning indicators and messages ...........................139
White Balance ....................................................................56
Wide Zoom..........................................................................37
Windows computer ........................................................120
Z
Zoom ......................................................................................34
149GB
Notes on the License
Index
The software that is eligible for the following GNU General Public License (hereinafter referred
to as “GPL”) or GNU Lesser General Public License (hereinafter referred to as “LGPL”) are
included in the camera.
This informs you that you have a right to have access to, modify, and redistribute source code for
these software programs under the conditions of the supplied GPL/LGPL.
Source code is provided on the web. Use the following URL to download it.
http://www.sony.net/Products/Linux/
We would prefer you do not contact us about the contents of source code.
MENU/Settings
Search
On GNU GPL/LGPL applied software
Operation
Search
THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO
LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR
(i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD
(“MPEG-4 VIDEO”)
AND/OR
(ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED
IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED
FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO.
NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE.
ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL,
INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM
MPEG LA, LLC. SEE
HTTP://WWW.MPEGLA.COM
Table of
contents
“C Library”, “Expat”, “zlib”, “dtoa”, “pcre” and “libjpeg” software are provided in the camera.
We provide this software based on license agreements with their owners of copyright. Based on
requests by the owners of copyright of these software applications, we have an obligation to
inform you of the following. Please read the following sections.
Read “license1.pdf” in the “License” folder on the CD-ROM. You will find licenses (in English)
of “C Library”, “Expat”, “zlib”, “dtoa”, “pcre” and “libjpeg” software.
Read “license2.pdf” in the “License” folder on the CD-ROM. You will find licenses (in English)
of “GPL”, and “LGPL” software.
To view the PDF, Adobe Reader is needed. If it is not installed on your computer, you can
download it from the Adobe Systems web page:
http://www.adobe.com/
On the license of “Music Transfer” in the CD-ROM (supplied)
MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and
Thomson.
150GB
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
