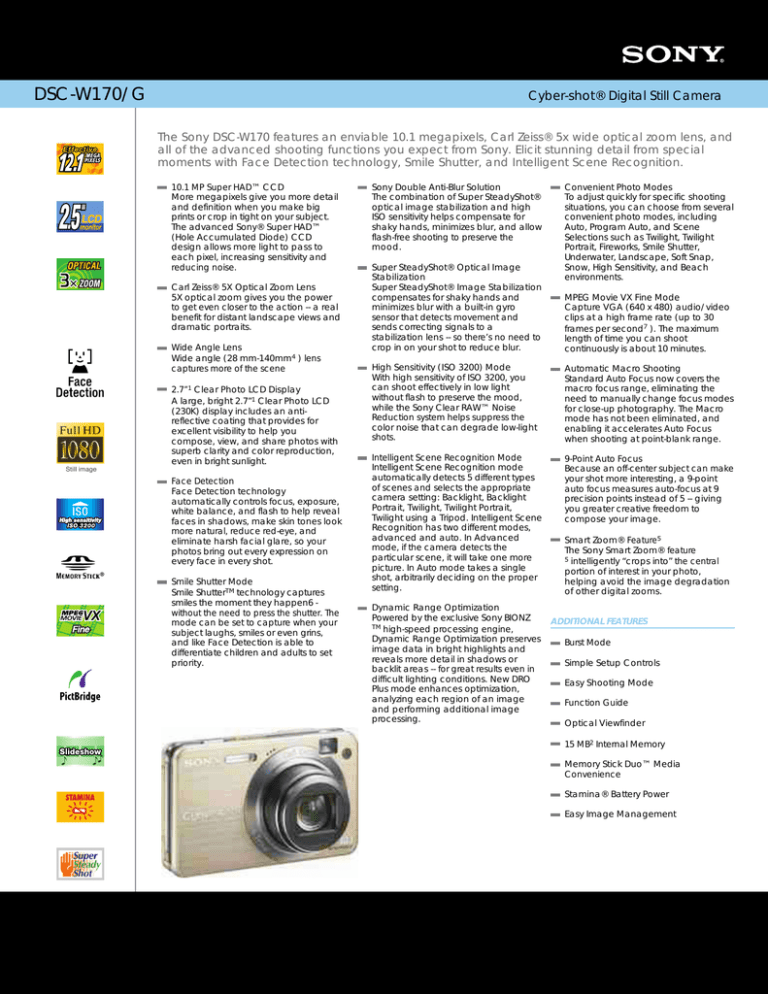

Sony DSC-W170/G Specification

Sony DSC-W170/G Specification
Cyber-shot® Digital Still Camera
The Sony DSC-W170 features an enviable 10.1 megapixels, Carl Zeiss® 5x wide optical zoom lens, and
all of the advanced shooting functions you expect from Sony. Elicit stunning detail from special
moments with Face Detection technology, Smile Shutter, and Intelligent Scene Recognition.
10.1 MP Super HAD™ CCD
More megapixels give you more detail
and definition when you make big
prints or crop in tight on your subject.
The advanced Sony® Super HAD™
(Hole Accumulated Diode) CCD
design allows more light to pass to
each pixel, increasing sensitivity and
reducing noise.
Carl Zeiss® 5X Optical Zoom Lens
5X optical zoom gives you the power
to get even closer to the action -- a real
benefit for distant landscape views and
dramatic portraits.
Wide Angle Lens
Wide angle (28 mm-140mm4 ) lens
captures more of the scene
Clear Photo LCD Display
A large, bright 2.7”1 Clear Photo LCD
(230K) display includes an antireflective coating that provides for
excellent visibility to help you
compose, view, and share photos with
superb clarity and color reproduction,
even in bright sunlight.
Face Detection
Face Detection technology
automatically controls focus, exposure,
white balance, and flash to help reveal
faces in shadows, make skin tones look
more natural, reduce red-eye, and
eliminate harsh facial glare, so your
photos bring out every expression on
every face in every shot.
Smile Shutter Mode
Smile ShutterTM technology captures
smiles the moment they happen6 without the need to press the shutter. The
mode can be set to capture when your
subject laughs, smiles or even grins,
and like Face Detection is able to
differentiate children and adults to set
Sony Double Anti-Blur Solution
The combination of Super SteadyShot®
optical image stabilization and high
ISO sensitivity helps compensate for
shaky hands, minimizes blur, and allow
flash-free shooting to preserve the
Super SteadyShot® Optical Image
Super SteadyShot® Image Stabilization
compensates for shaky hands and
minimizes blur with a built-in gyro
sensor that detects movement and
sends correcting signals to a
stabilization lens -- so there’s no need to
crop in on your shot to reduce blur.
Convenient Photo Modes
To adjust quickly for specific shooting
situations, you can choose from several
convenient photo modes, including
Auto, Program Auto, and Scene
Selections such as Twilight, Twilight
Portrait, Fireworks, Smile Shutter,
Underwater, Landscape, Soft Snap,
Snow, High Sensitivity, and Beach
MPEG Movie VX Fine Mode
Capture VGA (640 x 480) audio/video
clips at a high frame rate (up to 30
frames per second7 ). The maximum
length of time you can shoot
continuously is about 10 minutes.
High Sensitivity (ISO 3200) Mode
With high sensitivity of ISO 3200, you
can shoot effectively in low light
without flash to preserve the mood,
while the Sony Clear RAW™ Noise
Reduction system helps suppress the
color noise that can degrade low-light
Automatic Macro Shooting
Standard Auto Focus now covers the
macro focus range, eliminating the
need to manually change focus modes
for close-up photography. The Macro
mode has not been eliminated, and
enabling it accelerates Auto Focus
when shooting at point-blank range.
Intelligent Scene Recognition Mode
Intelligent Scene Recognition mode
automatically detects 5 different types
of scenes and selects the appropriate
camera setting: Backlight, Backlight
Portrait, Twilight, Twilight Portrait,
Twilight using a Tripod. Intelligent Scene
Recognition has two different modes,
advanced and auto. In Advanced
mode, if the camera detects the
particular scene, it will take one more
picture. In Auto mode takes a single
shot, arbitrarily deciding on the proper
9-Point Auto Focus
Because an off-center subject can make
your shot more interesting, a 9-point
auto focus measures auto-focus at 9
precision points instead of 5 -- giving
you greater creative freedom to
compose your image.
Dynamic Range Optimization
Powered by the exclusive Sony BIONZ
TM high-speed processing engine,
Dynamic Range Optimization preserves
image data in bright highlights and
reveals more detail in shadows or
backlit areas -- for great results even in
difficult lighting conditions. New DRO
Plus mode enhances optimization,
analyzing each region of an image
and performing additional image
Smart Zoom® Feature5
The Sony Smart Zoom® feature
5 intelligently “crops into” the central
portion of interest in your photo,
helping avoid the image degradation
of other digital zooms.
Burst Mode
Simple Setup Controls
Easy Shooting Mode
Function Guide
Optical Viewfinder
15 MB2 Internal Memory
Memory Stick Duo™ Media
Stamina® Battery Power
Easy Image Management
Cyber-shot® Digital Still Camera
USB Port(s): Yes -supports USB 2.0
HD Output: Yes (1080i)
ISO: Auto / 80 / 100 / 200 / 400 / 800 /
1600 / 3200
Megapixel: 10.1 MP
Imaging Device: 1/2.3" Super HAD™ CCD
LCD: 2.7"1 Clear Photo LCD (230K Pixels)
Recording Media: 15MB internal Flash
Memory, optional Memory Stick® DUO
Media, optional Memory Stick DUO PRO™
Viewfinder: Optical
Microphone/Speaker: Yes/ Yes
White Balance: Automatic, Cloudy,
Daylight, Fluorescent 1, Fluorescent 2,
Fluorescent 3, Incandescent, Flash
Self Timer: Yes (10 seconds, 2 seconds, Off)
Memory Stick PRO™ Media Compatibility:
Tested to support up to 16GB Memory
Stick DUO PROTM media capacity1 ; does
not support Access Control security
Still Image Mode(s): Normal, Burst, Bracket
Red-Eye Reduction: Yes (On/Off all modes)
Burst Mode: Max 100 Shots at 1.6fps (All
Erase/Protect: Yes/Yes
Date/Time Stamp: No/ No
Media/Battery Indicator: Yes/Yes
Color Mode(s): Black & White, Natural,
Sepia, Vivid
Scene Mode(s): Beach, High Sensitivity,
Landscape, Snow, Soft Snap, Twilight,
Twilight Portrait, Fireworks, Smile Shutter,
and Underwater.
Image Stabilization: Yes
Convenience Features
Lens Construction: 9 elements in 7 groups
(including 1ED glass element and
3aspheric elements)
Supplied Accessories
Operating Conditions
NP-BG1 rechargeable battery
Flash Effective Range: ISO Auto:
(W):Approx. 0.2 - Approx. 4.2m /
(T):Approx. 0.5 - Approx. 2.7m
ISO 3200: (W): uo to Approx. 8.4m /
(T):Approx. 5.3m
Flash Mode(s): Auto, Forced On, Forced
Off, Slow Synch
35mm Equivalent: 28-140mm
Focus: 9-Area Multi-Point AF, Center AF,
Spot AF, Semi Manual Focus (0.5m /
1.0m / 3.0m / 7.0m / Unlimited distance)
Aperture Range: Auto( F3.3/F8.0(W), 2
steps) / Program auto( F3.3/F8.0(W), 2
steps) with ND Filter
Shutter Speed: Auto(1/4 - 1/1,600) /
Program Auto(1" - 1/1,600)
Exposure Compensation: Plus / Minus
2.0EV, 1 / 3EV step
Filter Diameter: N/A
Wrist strap
Software CD-ROM
Note: No Memory Stick DUO TM Media or
adaptors are included.
Color: Gold
1.Viewable area; measured diagonally.
2.Available storage capacity may vary and a portion of the memory is
used for data management functions.
3.HD viewing requires a Sony HD connector cable or HD Cyber-shot
Station® cradle and HDTV. All sold separately.
4.Music tracks can be up to fiveminutes long. When using Music Transfer
to download music, tracks longer than five minutes will be reduced to
five minutes when uploading to the Cyber-shot.
5.Smart Zoom® feature will not work at highest resolution setting.
6.Up to 6 shots while in Smile Shutter mode.
7.Shooting at high frame rate of up to 30 frames per second requires
Memory Stick PRO Duo™ media.
8.Special TV settings are required. Further details are available in the
BRAVIA® instruction manual.
© 2008 Sony Electronics, Inc.
All rights reserved. Reproduction in whole or in part without written
permission is prohibited. Sony, BIONZ, Smile Shutter, BRAVIA TV, Clear
RAW, Cyber-shot, Memory Stick Duo, Memory Stick PRO Duo, Smart
Zoom, Stamina, Super HAD, and Super SteadyShot are trademarks of
Sony. All other trademarks are trademarks of their respective owners.
Total Zoom: 10x
Minimum Focus Distance: W: Approx. 3
15/16(10cm) - Infinity / T: Approx. 19
11/16(50cm) - Infinity
Face Detection: Yes
Battery Type: Lithium-Ion NP-BG1
In-Camera Editing: Trimming, Red Eye
Correction, Soft Focus, Partial Color,
Fisheye Lens, Cross Filter, Retro, Radial
Blur, Unsharp Masking, and Happy Face.
Audio/Video Output(s): Yes via Mutli-Use
A/V and USB multi-connector cables
Macro Mode: Yes
Power Save Mode: Yes (after approx. 3 min.
of inactivity)
Accessory Terminal: Multi connector
BC-CSG battery charger
Focal Length: 5-25mm
Optical Zoom: 5x
Inputs and Outputs
Service and Warranty Information
Docking Station: Yes, via optional HD cradle
AF Illuminator Light: Auto / Off, (W:Approx.
2.0m , T:Approx. 1.7m)
Movie Mode(s): MPEG VX Fine with Audio
(640x480 at 30fps) (MPEG VX Fine
requires Memory Stick DUO PRO™
media), MPEG VX Standard with Audio
(640x480 at 16fps), Presentation (320 x
240 at 8fps)
Measurements: W x H x D: 3 11/16 x 2 5/16
x 15/16" (93.7mm x 58.0mm x 24.0mm)
Limited Warranty Term: 1 Year Parts &
Digital Zoom: Smart Zoom / Precision
Digital Zoom / Off
Multi-Pattern Measuring: Yes
Weight: Approx. 5 oz (142g)
Lens Type: Carl Zeiss® Vario-Tessar®
Real Imaging Processor™ Technology:
PictBridge Compatible: Yes
Battery Capacity: 3.6V, 960 mAh
Supplied Software: Windows: Picture Motion
Browser Vers 3.0.02 + USB Driver
Operating System Compatibility:
Microsoft® 2000 Professional, XP Home
and Professional; Macintosh® OS
9.1/9.2/OS X (10.1-10.5)
Sony Electronics Inc. •16530 Via Esprillo •San Diego, CA 92127 •1.800.222.7669 •
