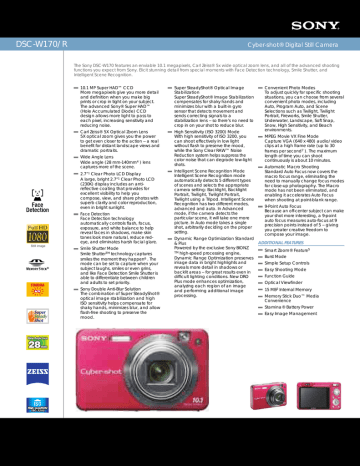

Sony DSC-W170/R Specification

Sony DSC-W170/R Specification
Cyber-shot® Digital Still Camera
The Sony DSC-W170 features an enviable 10.1 megapixels, Carl Zeiss® 5x wide optical zoom lens, and all of the advanced shooting
functions you expect from Sony. Elicit stunning detail from special moments with Face Detection technology, Smile Shutter, and
Intelligent Scene Recognition.
10.1 MP Super HAD™ CCD
More megapixels give you more detail
and definition when you make big
prints or crop in tight on your subject.
The advanced Sony® Super HAD™
(Hole Accumulated Diode) CCD
design allows more light to pass to
each pixel, increasing sensitivity and
reducing noise.
Super SteadyShot® Optical Image
Super SteadyShot® Image Stabilization
compensates for shaky hands and
minimizes blur with a built-in gyro
sensor that detects movement and
sends correcting signals to a
stabilization lens -- so there’s no need to
crop in on your shot to reduce blur.
Carl Zeiss® 5X Optical Zoom Lens
5X optical zoom gives you the power
to get even closer to the action -- a real
benefit for distant landscape views and
dramatic portraits.
High Sensitivity (ISO 3200) Mode
With high sensitivity of ISO 3200, you
can shoot effectively in low light
without flash to preserve the mood,
while the Sony Clear RAW™ Noise
Reduction system helps suppress the
color noise that can degrade low-light
Wide Angle Lens
Wide angle (28 mm-140mm4 ) lens
captures more of the scene.
2.7”1 Clear Photo LCD Display
A large, bright 2.7”1 Clear Photo LCD
(230K) display includes an antireflective coating that provides for
excellent visibility to help you
compose, view, and share photos with
superb clarity and color reproduction,
even in bright sunlight.
Face Detection
Face Detection technology
automatically controls flash, focus,
exposure, and white balance to help
reveal faces in shadows, make skin
tones look more natural, reduce redeye, and eliminates harsh facial glare.
Smile Shutter Mode
Smile ShutterTM technology captures
smiles the moment they happen6 . The
mode can be set to capture when your
subject laughs, smiles or even grins,
and like Face Detection Smile Shutter is
able to differentiate between children
and adults to set priority.
Sony Double Anti-Blur Solution
The combination of Super SteadyShot®
optical image stabilization and high
ISO sensitivity helps compensate for
shaky hands, minimizes blur, and allow
flash-free shooting to preserve the
Intelligent Scene Recognition Mode
Intelligent Scene Recognition mode
automatically detects 5 different types
of scenes and selects the appropriate
camera setting: Backlight, Backlight
Portrait, Twilight, Twilight Portrait,
Twilight using a Tripod. Intelligent Scene
Recognition has two different modes,
advanced and auto. In Advanced
mode, if the camera detects the
particular scene, it will take one more
picture. In Auto mode takes a single
shot, arbitrarily deciding on the proper
Dynamic Range Optimization Standard
& Plus
Powered by the exclusive Sony BIONZ
TM high-speed processing engine,
Dynamic Range Optimization preserves
image data in bright highlights and
reveals more detail in shadows or
backlit areas -- for great results even in
difficult lighting conditions. New DRO
Plus mode enhances optimization,
analyzing each region of an image
and performing additional image
Convenient Photo Modes
To adjust quickly for specific shooting
situations, you can choose from several
convenient photo modes, including
Auto, Program Auto, and Scene
Selections such as Twilight, Twilight
Portrait, Fireworks, Smile Shutter,
Underwater, Landscape, Soft Snap,
Snow, High Sensitivity, and Beach
MPEG Movie VX Fine Mode
Capture VGA (640 x 480) audio/video
clips at a high frame rate (up to 30
frames per second7 ). The maximum
length of time you can shoot
continuously is about 10 minutes.
Automatic Macro Shooting
Standard Auto Focus now covers the
macro focus range, eliminating the
need to manually change focus modes
for close-up photography. The Macro
mode has not been eliminated, and
enabling it accelerates Auto Focus
when shooting at point-blank range.
9-Point Auto Focus
Because an off-center subject can make
your shot more interesting, a 9-point
auto focus measures auto-focus at 9
precision points instead of 5 -- giving
you greater creative freedom to
compose your image.
Smart Zoom® Feature5
Burst Mode
Simple Setup Controls
Easy Shooting Mode
Function Guide
Optical Viewfinder
15 MB2 Internal Memory
Memory Stick Duo™ Media
Stamina® Battery Power
Easy Image Management
Cyber-shot® Digital Still Camera
ISO: Auto / 80 / 100 / 200 / 400 / 800 / 1600 / 3200
Megapixel: 10.1 MP
Imaging Device: 1/2.3" Super HAD™ CCD
Recording Media: 15MB internal Flash Memory, optional
Memory Stick Duo™ Media, optional Memory Stick
PRO Duo™ Media
White Balance: Automatic, Cloudy, Daylight, Fluorescent
1, Fluorescent 2, Fluorescent 3, Incandescent, Flash
Self Timer: Yes (10 seconds, 2 seconds, Off)
Memory Stick PRO™ Media Compatibility: Tested to
support up to 16GB Memory Stick DUO PRO media
capacity1 ; does not support Access Control security
Still Image Mode(s): Normal, Burst, Bracket Exposure
Red-Eye Reduction: Yes (On/Off all modes)
Burst Mode: Max 100 Shots at 1.6fps (All resolutions)
Erase/Protect: Yes/Yes
Date/Time Stamp: No/ No
Media/Battery Indicator: Yes/Yes
Color Mode(s): Black & White, Natural, Sepia, Vivid
Scene Mode(s): Beach, High Sensitivity, Landscape,
Snow, Soft Snap, Twilight, Twilight Portrait, Fireworks,
Smile Shutter, and Underwater.
Image Stabilization: Yes
Convenience Features
Real Imaging Processor™ Technology: BIONZ
AF Illuminator Light: Auto / Off, (W:Approx. 2.0m ,
T:Approx. 1.7m)
PictBridge Compatible: Yes
Multi-Pattern Measuring: Yes
Movie Mode(s): MPEG VX Fine (640x480 at 30fps) (MPEG
VX Fine requires Memory Stick PRO Duo™ media),
MPEG VX Standard (640x480 at 16fps), Presentation
(320 x 240 at 8fps)
Power Save Mode: Yes (after approx. 3 min. of
In-Camera Editing: Trimming, Red Eye Correction, Soft
Focus, Partial Color, Fisheye Lens, Cross Filter, Retro,
Radial Blur, Unsharp Masking, and Happy Face.
Inputs and Outputs
Accessory Terminal: Multi connector
Audio/Video Output(s): Yes via Mutli-Use Connector
USB Port(s): Yes -supports USB 2.0
HD Output: Yes (1080i)
LCD: 2.7" Clear Photo LCD (230K Pixels)
Viewfinder: Optical
Lens Construction: 9 elements in 7 groups(including 1ED
glass element and 3aspheric elements)
Microphone/Speaker: Yes/ Yes
Lens Type: Carl Zeiss® Vario-Tessar®
Battery Type: Lithium-Ion NP-BG1
Battery Capacity: 3.6V, 960 mAh
Supplied Software: Windows: Picture Motion Browser
Vers 3.0.02 + USB Driver
Operating System Compatibility: Microsoft® 2000
Professional, XP Home and Professional; Macintosh®
OS 9.1/9.2/OS X (10.1-10.5)
Operating Conditions
Flash Effective Range: ISO Auto: (W):Approx. 0.2 Approx. 4.2m / (T):Approx. 0.5 - Approx. 2.7m
ISO 3200: (W): uo to Approx. 8.4m / (T):Approx. 5.3m
Flash Mode(s): Auto, Forced On, Forced Off, Slow
Weight: Approx. 5 oz (142g)
Measurements: W x H x D: 3 11/16 x 2 5/16 x
15/16" (93.7mm x 58.0mm x 24.0mm)
Service and Warranty Information
Limited Warranty Term: 1 Year Parts & Labor
Supplied Accessories
NP-BG1 rechargeable battery
BC-CSG battery charger
A/V and USB multi-connector cables
Wrist strap
Software CD-ROM
Note: No Memory Stick DUO TM Media or adaptors are
Color: Red
UPC Code: 027242729995
1.Viewable area; measured diagonally.
2.Available storage capacity may vary and a portion of the memory is
used for data management functions.
3.HD viewing requires a Sony HD connector cable or HD Cyber-shot
Station® cradle and HDTV. All sold separately.
4.Music tracks can be up to five minutes long. When using Music Transfer
to downloadmusic, tracks longer than five minutes will be reduced to
five minutes when uploading to the Cyber-shot.
5.Smart Zoom® feature will not work at highest resolution setting.
6.Up to 6 shots while in Smile Shutter mode.
7.Shooting at high frame rate of up to 30 frames per second requires
Memory Stick PRO Duo™ media.
8.Special TV settings are required. Further details are available in the
BRAVIA® instruction manual.
© 2008 Sony Electronics, Inc.
All rights reserved. Reproduction in whole or in part without written
permission is prohibited. Sony, BIONZ, Smile Shutter, BRAVIA TV, Clear
RAW, Cyber-shot, Memory Stick Duo, Memory Stick PRO Duo, Smart
Zoom, Stamina, Super HAD, and Super SteadyShot are trademarks of
Sony. All other trademarks are trademarks of their respective owners.
Docking Station: Yes, via optional HD cradle (CSS-HD2)
Focal Length: 5-25mm
35mm Equivalent: 28-140mm
Focus: 9-Area Multi-Point AF, Center AF, Spot AF, Semi
Manual Focus (0.5m / 1.0m / 3.0m / 7.0m / Unlimited
Aperture Range: Auto( F3.3/F8.0(W), 2 steps) / Program
auto( F3.3/F8.0(W), 2 steps) with ND Filter
Shutter Speed: Auto(1/4 - 1/1,600) / Program Auto(1" 1/1,600)
Exposure Compensation: Plus / Minus 2.0EV, 1 / 3EV step
Filter Diameter: N/A
Digital Zoom: Smart Zoom / Precision Digital Zoom / Off
Optical Zoom: 5x
Macro Mode: Yes
Total Zoom: 10x
Minimum Focus Distance: W: Approx. 3 15/16(10cm) Infinity / T: Approx. 19 11/16(50cm) - Infinity
Face Detection: Yes
