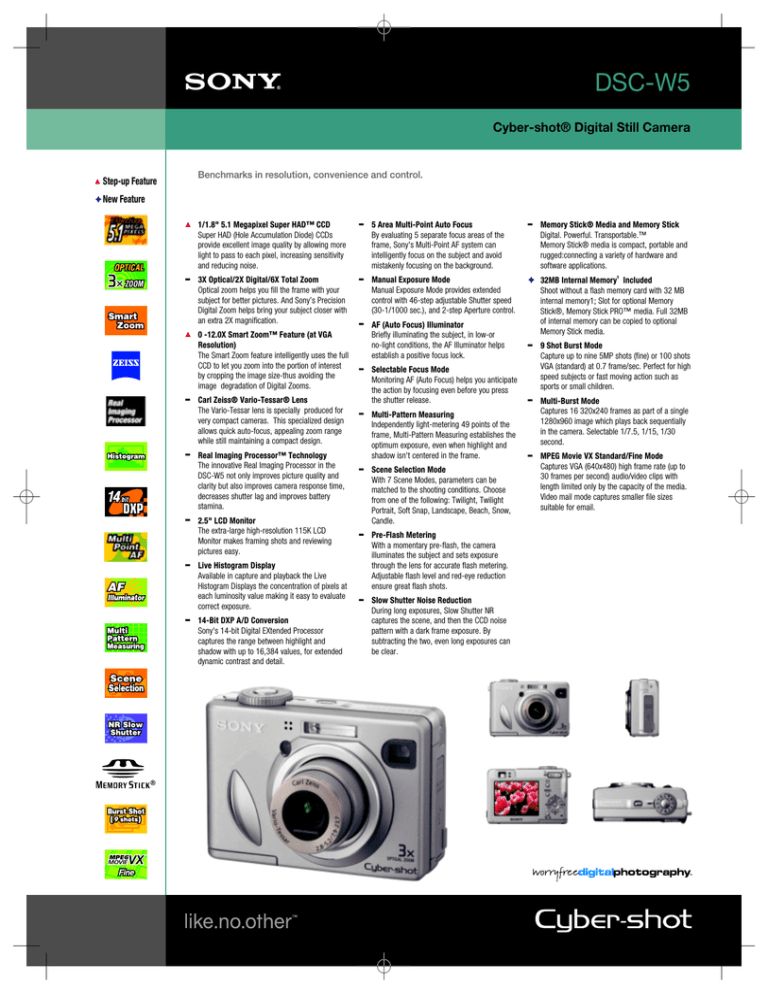

Sony DSC-W5 Specification

Sony DSC-W5 Specification
Cyber-shot® Digital Still Camera
Benchmarks in resolution, convenience and control.
Step-up Feature
' New Feature
1/1.8" 5.1 Megapixel Super HAD™ CCD
Super HAD (Hole Accumulation Diode) CCDs
provide excellent image quality by allowing more
light to pass to each pixel, increasing sensitivity
and reducing noise.
3X Optical/2X Digital/6X Total Zoom
Optical zoom helps you fill the frame with your
subject for better pictures. And Sony’s Precision
Digital Zoom helps bring your subject closer with
an extra 2X magnification.
0 -12.0X Smart Zoom™ Feature (at VGA
The Smart Zoom feature intelligently uses the full
CCD to let you zoom into the portion of interest
by cropping the image size-thus avoiding the
image degradation of Digital Zooms.
Carl Zeiss® Vario-Tessar® Lens
The Vario-Tessar lens is specially produced for
very compact cameras. This specialized design
allows quick auto-focus, appealing zoom range
while still maintaining a compact design.
Real Imaging Processor™ Technology
The innovative Real Imaging Processor in the
DSC-W5 not only improves picture quality and
clarity but also improves camera response time,
decreases shutter lag and improves battery
2.5" LCD Monitor
The extra-large high-resolution 115K LCD
Monitor makes framing shots and reviewing
pictures easy.
Live Histogram Display
Available in capture and playback the Live
Histogram Displays the concentration of pixels at
each luminosity value making it easy to evaluate
correct exposure.
14-Bit DXP A/D Conversion
Sony's 14-bit Digital EXtended Processor
captures the range between highlight and
shadow with up to 16,384 values, for extended
dynamic contrast and detail.
5 Area Multi-Point Auto Focus
By evaluating 5 separate focus areas of the
frame, Sony's Multi-Point AF system can
intelligently focus on the subject and avoid
mistakenly focusing on the background.
Manual Exposure Mode
Manual Exposure Mode provides extended
control with 46-step adjustable Shutter speed
(30-1/1000 sec.), and 2-step Aperture control.
AF (Auto Focus) Illuminator
Briefly illuminating the subject, in low-or
no-light conditions, the AF Illuminator helps
establish a positive focus lock.
Selectable Focus Mode
Monitoring AF (Auto Focus) helps you anticipate
the action by focusing even before you press
the shutter release.
Multi-Pattern Measuring
Independently light-metering 49 points of the
frame, Multi-Pattern Measuring establishes the
optimum exposure, even when highlight and
shadow isn't centered in the frame.
Scene Selection Mode
With 7 Scene Modes, parameters can be
matched to the shooting conditions. Choose
from one of the following: Twilight, Twilight
Portrait, Soft Snap, Landscape, Beach, Snow,
Pre-Flash Metering
With a momentary pre-flash, the camera
illuminates the subject and sets exposure
through the lens for accurate flash metering.
Adjustable flash level and red-eye reduction
ensure great flash shots.
Slow Shutter Noise Reduction
During long exposures, Slow Shutter NR
captures the scene, and then the CCD noise
pattern with a dark frame exposure. By
subtracting the two, even long exposures can
be clear.
Memory Stick® Media and Memory Stick
Digital. Powerful. Transportable.™
Memory Stick® media is compact, portable and
rugged:connecting a variety of hardware and
software applications.
' 32MB Internal Memory1 Included
Shoot without a flash memory card with 32 MB
internal memory1; Slot for optional Memory
Stick®, Memory Stick PRO™ media. Full 32MB
of internal memory can be copied to optional
Memory Stick media.
9 Shot Burst Mode
Capture up to nine 5MP shots (fine) or 100 shots
VGA (standard) at 0.7 frame/sec. Perfect for high
speed subjects or fast moving action such as
sports or small children.
Multi-Burst Mode
Captures 16 320x240 frames as part of a single
1280x960 image which plays back sequentially
in the camera. Selectable 1/7.5, 1/15, 1/30
MPEG Movie VX Standard/Fine Mode
Captures VGA (640x480) high frame rate (up to
30 frames per second) audio/video clips with
length limited only by the capacity of the media.
Video mail mode captures smaller file sizes
suitable for email.
Cyber-shot® Digital Still Camera
additional features
Conversion Lens Compatible
PictBridge™ Compatibility
Rechargeable AA NiMH Batteries
Supports High Speed USB 2.02
Clear Color/Clear Luminance NR
3:2 Aspect Ratio Mode
Adjustable Color Saturation/Contrast
Audio/Video Output
MPEG1 Cue, Review and Divide
Recording Media: 32MB 1 internal flash
memory, Memory Stick® Media, Memory
Stick PRO™ Media
Memory Stick Pro™ Media Compatibility:
Tested to support up to 4GB media
capacity 1 ; does not support Access Control
security function
Movie Mode(s): MPEG Movie Modes: MPEG VX
Fine with Audio (640 x 480 at 30fps),
(MPEG VX Fine requires Memory Stick PRO
media), MPEG VX Standard with Audio (640
x 480 at 16fps), Video Mail (160 x 112 at
8fps) with Audio
Still Image Mode(s): JPEG (Fine/Standard),
Burst, Multi-Burst
Self Timer: Yes, 10 Seconds
Scene Modes: Beach, Candle, Landscape,
Snow, Soft snap, Twilight, Twilight Portrait
Picture Effects: Sepia, Black & White
Burst Mode: 9 Shot (5MP JPEG fine), 100 Shot
VGA (JPEG std.), 0.7fps
White Balance: Auto, Daylight, Cloudy,
Fluorescent, Incandescent, Flash
Red-Eye Reduction: On/Off
Imaging Device: 1/1.8" 5.1 Megapixel Effective
Super HAD™ CCD
Macro Mode: 2 1/4" (6cm)
Microphone/Speaker: Yes/Yes
LCD: 2.5" 115K Pixels TFT LCD Screen
Lens Construction: 7 Elements in 5 Groups, 3
Aspheric Elements
USB Port(s): Yes (Supports USB 2.02 )
Output(s): Audio/Video Output: Yes, NTSC/PAL
Flash Effective Range: 7-7/8” - 14' 9"
Flash Modes: Auto/Forced On/Forced Off/Slow
ISO: Auto, 100, 200, 400
Exposure Compensation: ±2.0 EV, 1/3 EV
Aperture Range: f2.8 - f5.6 (W), f5.2 - f10 (T)
Shutter Speed: Auto: 2-1/2000 sec; Program
Auto: 30-1/1000sec; Manual: Shutter
Speed: 1/8-1/2000 sec.
Focal Distance: 19.7" (50cm)
Focus: Auto Focus: 5 Area Multi-Point AF,
Center AF, 5-Step Manual
35mm Conversion: 38 - 114mm
Focal Length: 7.9 - 23.7mm
Zoom: 3X Optical; Digital Zoom: Precision,
0-2.0X Range, 6X Total; Smart Zoom®
Feature: 0-12.0X (at VGA Resolution)
Filter Diameter: 30mm (by required VAD-WA
Battery Type:"AA" NiMH, "AA" Alkaline, "AA"
Nickel-Metal Manganese
Limited Warranty: 1 Year Parts & Labor
Supplied Software: Picture Package™ for Sony
v1.6 (Windows), Pixela™ ImageMixer VCD2
(Macintosh), USB Driver, Cyber-shot Life
tutorial (Windows)
Operating System Compatibility: Microsoft®
Windows® 98, 98SE, 2000 Professional,
Me, XP Home and Professional; Macintosh®
OS 9.1/9.2/OS X (10.0 - 10.3)
Weight: 7 oz (197 g) Body; 9 oz (253 g) Body
w/Battery, Media, Wrist Strap
Dimensions (WHD): 3 7/12" x 2 4/11" x 1
6/13" (91 x 60 x 37.1mm)
Supplied Accessories: Rechargeable AA
Batteries (NH-AA-DA)
Battery Charger and Cord (BC-CS2)
A/V and USB Cables
Wrist Strap
Software CD-ROM
UPC Code: 0272426713550
service and warranty
Limited Warranty: 1 Year Parts & Labor
optional accessories
Starter Kit (ACC-CN3TR)
Rechargeable NiMH Batteries (2pk)(NH-AA-2DB)
Soft Leather Carrying Case (LCS-WB)
Soft Textile Carrying Case (LCS-WD)
Conversion Lens Adaptor Mount (VAD-WA)
Wide Angle Conversion Lens4 (VCL-DH0730)
Super Telephoto Conversion Lens4 (VCL-DH2630)
Telephoto Conversion Lens4 (VCL-DH1730)
Polarizing Kit Filter4 (VF-30CPKS)
External Slave Flash w/Bracket (HVL-FSL1B)
Marine Sports Pak (MPK-WA)
Marine Color Filter Kit (VF-MP5K)
Memory Stick® Media (MSH-128A)
Memory Stick PRO™ Media (MSX-256S/N)
Memory Stick PRO™ Media (MSX-512S/N)
Memory Stick PRO™ Media (MSX-1GS/N)
Memory Stick PRO™ Media (MSX-2G/N)
Memory Stick PRO™ Media (MSX-4G/N)
Memory Stick PRO™ Media USB Adaptor
Multi-slot Memory Stick Adaptor (MSAC-USM1)
1. Recording numbers are approximate and will vary depending upon the images. Available storage capacity of Memory Stick and Memory Stick PRO media may vary. A portion of the memory is used for data management functions. Actual
available memory in MBs is:16=15, 32=30, 64=61, 128=123, 256=220, 512=460, 1GB=940MB, 2GB=1,850MB, 4GB=3.66GB.
2. Not all products with USB connectors may communicate with each other due to chipset variations.
3. Under Average Conditions: Normal Mode (JPEG), Picture quality Fine; Shooting each image at 30 second intervals; Flash operated every other shot; Power is turned on/off after every 10 shots. Actual results may vary on conditions of use.
4. VAD-WA Conversion Lens Adaptor Mount Required
©2005 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony, Cyber-shot, Digital, Powerful, Transportable, Memory Stick, the Memory Stick logo, Memory Stick PRO, Picture Package,
Real Imaging Processor, Smart Zoom and Super HAD are trademarks of Sony. Carl Zeiss and Vario-Tessar are trademarks of Carl Zeiss. Microsoft and Windows are registered trademarks of Microsoft Corporation. Macintosh is
a trademark of Apple Computer. PictBridge is a trademark of CIPA. All other trademarks are property of their respective owners.
Features and specifications subject to change without notice. Non-metric weights and measures are approximate.
All screen images simulated.
Please visit the Dealer Network for more information at
Sony Electronics, Inc. • 16450 West Bernardo Drive • San Diego, CA 92127 • 1-800-222-7669 •
