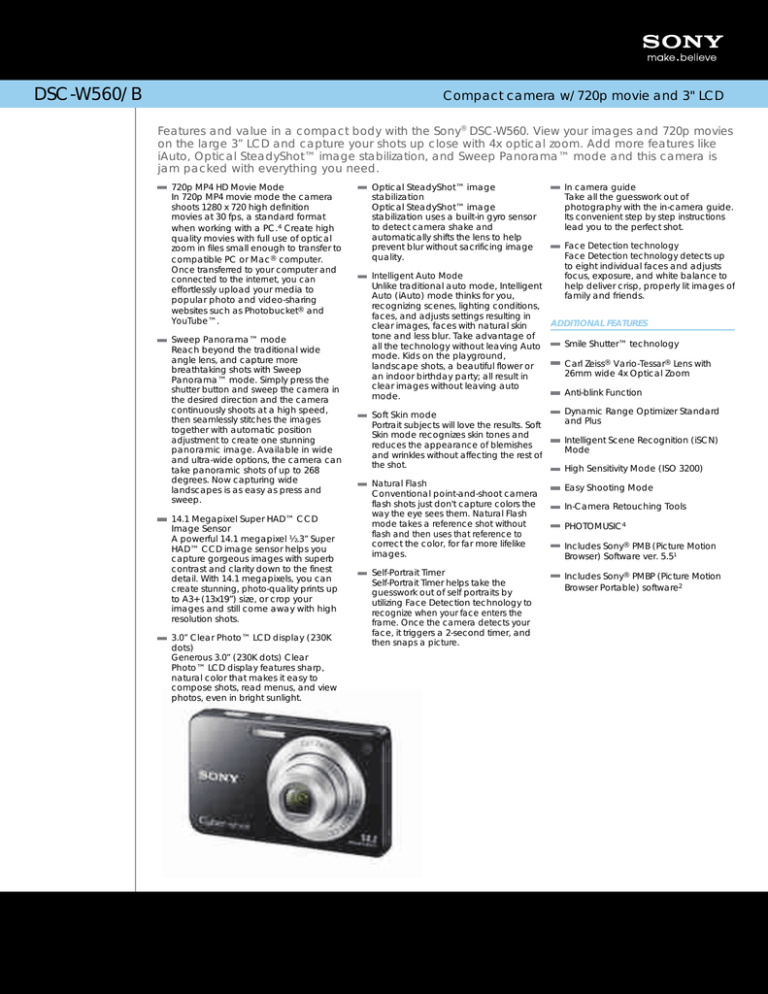

DSC-W560/B
Compact camera w/720p movie and 3" LCD
Features and value in a compact body with the Sony® DSC-W560. View your images and 720p movies
on the large 3” LCD and capture your shots up close with 4x optical zoom. Add more features like
iAuto, Optical SteadyShot™ image stabilization, and Sweep Panorama™ mode and this camera is
jam packed with everything you need.
720p MP4 HD Movie Mode
In 720p MP4 movie mode the camera
shoots 1280 x 720 high definition
movies at 30 fps, a standard format
when working with a PC.4 Create high
quality movies with full use of optical
zoom in files small enough to transfer to
compatible PC or Mac® computer.
Once transferred to your computer and
connected to the internet, you can
effortlessly upload your media to
popular photo and video-sharing
websites such as Photobucket® and
YouTube™ .
Sweep Panorama™ mode
Reach beyond the traditional wide
angle lens, and capture more
breathtaking shots with Sweep
Panorama™ mode. Simply press the
shutter button and sweep the camera in
the desired direction and the camera
continuously shoots at a high speed,
then seamlessly stitches the images
together with automatic position
adjustment to create one stunning
panoramic image. Available in wide
and ultra-wide options, the camera can
take panoramic shots of up to 268
degrees. Now capturing wide
landscapes is as easy as press and
sweep.
14.1 Megapixel Super HAD™ CCD
Image Sensor
A powerful 14.1 megapixel ½ .3” Super
HAD™ CCD image sensor helps you
capture gorgeous images with superb
contrast and clarity down to the finest
detail. With 14.1 megapixels, you can
create stunning, photo-quality prints up
to A3+ (13x19”) size, or crop your
images and still come away with high
resolution shots.
3.0” Clear Photo™ LCD display (230K
dots)
Generous 3.0” (230K dots) Clear
Photo™ LCD display features sharp,
natural color that makes it easy to
compose shots, read menus, and view
photos, even in bright sunlight.
Optical SteadyShot™ image
stabilization
Optical SteadyShot™ image
stabilization uses a built-in gyro sensor
to detect camera shake and
automatically shifts the lens to help
prevent blur without sacrificing image
quality.
Intelligent Auto Mode
Unlike traditional auto mode, Intelligent
Auto (iAuto) mode thinks for you,
recognizing scenes, lighting conditions,
faces, and adjusts settings resulting in
clear images, faces with natural skin
tone and less blur. Take advantage of
all the technology without leaving Auto
mode. Kids on the playground,
landscape shots, a beautiful flower or
an indoor birthday party; all result in
clear images without leaving auto
mode.
In camera guide
Take all the guesswork out of
photography with the in-camera guide.
Its convenient step by step instructions
lead you to the perfect shot.
Face Detection technology
Face Detection technology detects up
to eight individual faces and adjusts
focus, exposure, and white balance to
help deliver crisp, properly lit images of
family and friends.
ADDITIONAL FEATURES
Smile Shutter™ technology
Carl Zeiss® Vario-Tessar® Lens with
26mm wide 4x Optical Zoom
Anti-blink Function
Soft Skin mode
Portrait subjects will love the results. Soft
Skin mode recognizes skin tones and
reduces the appearance of blemishes
and wrinkles without affecting the rest of
the shot.
Dynamic Range Optimizer Standard
and Plus
Natural Flash
Conventional point-and-shoot camera
flash shots just don't capture colors the
way the eye sees them. Natural Flash
mode takes a reference shot without
flash and then uses that reference to
correct the color, for far more lifelike
images.
Easy Shooting Mode
Self-Portrait Timer
Self-Portrait Timer helps take the
guesswork out of self portraits by
utilizing Face Detection technology to
recognize when your face enters the
frame. Once the camera detects your
face, it triggers a 2-second timer, and
then snaps a picture.
Includes Sony® PMBP (Picture Motion
Browser Portable) software2
Intelligent Scene Recognition (iSCN)
Mode
High Sensitivity Mode (ISO 3200)
In-Camera Retouching Tools
PHOTOMUSIC4
Includes Sony® PMB (Picture Motion
Browser) Software ver. 5.5¹
DSC-W560/B
Specifications
Convenience Features
Power Save Mode: Standard / Stamina / Off
Media/Battery Indicator: Yes / Yes
Red-Eye Reduction: Auto / On / Off
Erase/Protect: Erase: Single / Select / Date /
Folder, Protect: Single / Select / Date / Folder
Inputs and Outputs
HD Output: Component (Type3)
LCD Display
Histogram: No
LCD Type: 3.0" Clear Photo? LCD (230K dots)
Grid Display: Yes (Off / On)
Angle Adjustment: No
Brightness Control: Normal / Bright / Auto Bright
Flash
Flash Coverage: ISO Auto: Approx. 0.2-Approx.
3.8m (Approx. 0.66'-Approx. 12.5') (W) /
Approx. 0.6-Approx. 1.9m (Approx. 1.97'Approx. 6.23') (T), ISO3200: up to Approx. 7.9m
(Approx. 25.9') (W) / Approx. 3.9m (Approx.
12.8') (T)
Flash Modes: Auto / Flash On / Slow Synchro /
Flash Off
Viewfinder
Type: None
Diopter Adjustment: No
Optics/Lens
Aperture: iAuto (F2.7/F8.0 (W), 2 steps with ND
Filter) / Program Auto (F2.7/F8.0 (W), 2 steps
with ND Filter)
Filter Diameter: No
Smart Zoom® Technology: 10M: Approx. 4.7x
(Total), 5M: Approx. 6.7x (Total), VGA: Approx.
27x (Total), 16:9 (2M): Approx. 9.0x (Total)
Digital Zoom: Smart Zoom / Precision Digital
Zoom / Off
Optical Zoom: 4x
Minimum Focus Distance: iAuto (W: Approx. 4cm
(0.13') to Infinity, T: Approx. 60cm (1.97') to
Infinity)
Focal Length (35mm equivalent): Still 16:9: 28114mm / Still 4:3: 26-105mm / Movie 16:9: 30122mm / Movie 4:3: 37-149mm
Lens Construction: 6 elements in 5 groups
(including 3 aspheric elements)
Lens Type: Carl Zeiss® Vario-Tessar®
Aperture (Max.): F2.7 (W)-5.7 (T)
Aspheric Elements: 3
Power
Battery Type: LITHIUM ION NP-BN1 3.6V
Battery Capacity: typical: 2.3Wh (630mAh),
minimum: 2.2Wh (600mAh)
Power Consumption (in Operation): Approx. 1.1W
Number of Still Images: 230
Power Requirements: Battery charger: AC 100V to
240V, 50/60 Hz, 2W
Software
Supplied Software: Windows® : PMB (Picture
Motion Browser) Ver. 5.5, PMB Portable
Advanced Features
Image Stabilization: Optical SteadyShot™
Image Stabilization
Compact camera w/720p movie and 3" LCD
In-Camera Editing: Trimming / Red Eye
Correction / Unsharp Masking
Face Detection: 8 Faces (Auto / Off / Child
Priority / Adult Priority / Key Selected Face
Memory)
Anti Motion Blur: No
Background Defocus: No
Blink Detection: Yes
Dustproof: No
Embedded GPS: No
Intelligent Auto: Yes
Shockproof: No
Smile Shutter™ technology: Yes
Superior Auto: No
Sweep Panorama: Sweep Panorama
Tracking Focus: Yes (Face only)
Waterproof: No
Shooting Tips: Yes
Drive System
Burst Mode: Approx 1.1 fps at 14.1MP (Maximum 3
shots)
Self-timer: Off / 10sec. / 2sec. / portrait1 /
portrait2
Shutter Speeds: iAuto (2" - 1/1,600) / Program
Auto (1" - 1/1,600)
Interface
PictBridge Compatible: No
TransferJet: No
HD Output: Component (Type3)
SD Output: Yes
USB Port(s): Yes - Multi Use Terminal
Memory Card Slot: MS Duo and SD/SDHC/SDXC
Compatible
Party Shot Compatible: Yes
Imaging Sensor
Processor: BIONZ?
Imaging Sensor: 1/2.3" (7.76mm) Super HAD
CCD Sensor
Effective Picture Resolution: 14.1MP
Pixel Gross: 14.5MP
Color Filter System: RGB primary color filters
Exposure System
D-Range Optimizer: Standard / Plus / Off
ISO: Auto / 80 / 100 / 200 / 400 / 800 / 1600 /
3200
Noise Reduction: Clear RAW NR / NR Slow Shutter
Scene Mode(s): High Sensitivity / Soft snap /
Landscape / Twilight Portrait / Twilight /
Gourmet / Beach / Snow / Pet / Underwater /
Soft Skin
White Balance Mode: Auto (Intelligent) /
Daylight / Cloudy / Fluorescent 1 (White
Fluorescent Lighting) / Fluorescent 2 (Natural
White Fluorescent Lighting) / Fluorescent 3 (Day
White Fluorescent Lighting) / Incandescent /
Flash / One Push
Exposure Compensation: Plus / Minus 2.0EV, 1 /
3EV step
Metering Modes: Multi Pattern / Center Weighted /
Spot
Microphone/Speaker: Mono / Mono
Still Image Max Effective Resolution: Approx. 14.1
Megapixels
Video Mode: 1,280 x 720 (Fine) Approx 9Mbps
Approx 30fps, Progressive
1,280 x 720 (Standard) Approx 6Mbps Approx
30fps, Progressive
640 x 480 (VGA) Approx 3Mbps Approx 30fps,
Progressive
Panorama Still Image Size: 7,152 x 1,080
(268deg) / 4,912 x 1,080 (184deg) / 4,912 x
1,920 (184deg) / 3,424 x 1,920 (128deg)
Still Image Size 16:9: 11M (4,320 x 2,432) / 2M
(1,920 x 1,080)
Still Image Size 4:3: 14M (4,320 x 3,240), 10M
(3,648 x 2,736), 5M (2,592 x 1,944), VGA (640 x
480)
Video Format: MP4 / MPEG-4 Visual
Sweep Multi Angle Image Size: No
Still Image Mode: JPEG
Still Image Size 3:2: No
Photo Capture from Movie: No
Dual Record: No
Audio Format: MPEG-4 AAC-LC
Focus Control
AF Illuminator: Auto / Off
AF Modes: 9 points AF (Under Face Undetected) /
Center Weighted AF / Spot AF
Dimensions
Weight: 4.4 oz (126g)
Measurements: W x H x D: 3 3/4" x 2 1/4" x
25/32" (94.0mm x 56.1mm x19.4mm)
Supplied Accessories
Battery (NP-BN1)
BatteryCharger (BC-CSN)
Multi Connector Cable
Wrist Strap
CD-ROM
Color: Black
UPC Code: 027242809086
1. Requires Microsoft® Windows® XP SP3/ Windows Vista
® SP2/Windows 7. Not supported by Mac® OS.
2. Uploading directly to the web requires PMB Portable for Windows or
Mac software, USB cable (included), and PC with internet
connectivity. Windows® XP SP3 64-bit and Starter Edition and
Windows Vista® Starter Edition environments not supported.
3. Tracks longer than five minutes will be reduced to five minutes.
4. Movie recording is limited to (29min segments)
© 2011 Sony Electronics Inc. All rights reserved. Reproduction in whole or
in part without written permission is prohibited. Sony, Cyber-shot, Optical
SteadyShot, BIONZ , Smile Shutter, and DVDirect logo are trademarks of
Sony. PlayStation is a trademark of Sony Computer Entertainment.
Microsoft, Windows, and Windows Vista are trademarks of Microsoft
Corporation. Mac is a trademark of Apple Computers, Inc. Blu-ray Disc is
a trademark. All other trademarks are trademarks of their respective
owners.
Recording
Media Type: optional “Memory Stick Duo” (No
movie recording), optional “Memory Stick PRO
Duo” (Mark 2 only for movie recording),
optional “Memory Stick PRO-HG Duo”,
optional SD Memory Card (Class 4 or higher),
optional SDHC Memory Card (Class 4 or
higher), optional SDXC Memory Card (Class 4
or higher)
Sony Electronics Inc. •16530 Via Esprillo •San Diego, CA 92127 •1.800.222.7669 •www.sony.com
Please visit the Dealer Source for more information
at www.sony.com/dealersource
Last Updated: 03/07/2011
