Sony DSX-A40UI Specification

Sony DSX-A40UI Specification

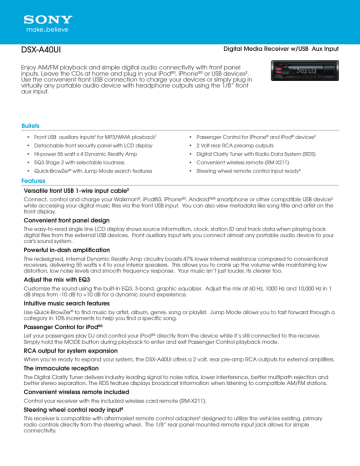

DSX-A40UI
Digital Media Receiver w/USB Aux Input
Enjoy AM/FM playback and simple digital audio connectivity with front panel
inputs. Leave the CDs at home and plug in your iPod®3, iPhone®3 or USB devices2.
Use the convenient front USB connection to charge your devices or simply plug in
virtually any portable audio device with headphone outputs using the 1/8” front
aux input.
Bullets
• Front USB auxiliary inputs2 for MP3/WMA playback1
• Passenger Control for iPhone® and iPod® devices3
• Detachable front security panel with LCD display
• 2 Volt rear RCA preamp outputs
• Hi-power 55 watt x 4 Dynamic Reality Amp
• Digital Clarity Tuner with Radio Data System (RDS)
• EQ3 Stage 2 with selectable loudness
• Convenient wireless remote (RM-X211)
• Quick-BrowZer with Jump Mode search features
• Steering wheel remote control input ready4
®
Features
Versatile front USB 1-wire input cable2
Connect, control and charge your Walkman®, iPod®3, iPhone®3, Android™5 smartphone or other compatible USB device2
while accessing your digital music files via the front USB input. You can also view metadata like song title and artist on the
front display.
Convenient front panel design
The easy-to-read single line LCD display shows source information, clock, station ID and track data when playing back
digital files from the external USB devices. Front auxiliary input lets you connect almost any portable audio device to your
car's sound system.
Powerful in-dash amplification
The redesigned, internal Dynamic Reality Amp circuitry boasts 47% lower internal resistance compared to conventional
receivers, delivering 55 watts x 4 to your interior speakers. This allows you to crank up the volume while maintaining low
distortion, low noise levels and smooth frequency response. Your music isn’t just louder, its clearer too.
Adjust the mix with EQ3
Customize the sound using the built-in EQ3, 3-band, graphic equalizer. Adjust the mix at 60 Hz, 1000 Hz and 10,000 Hz in 1
dB steps from -10 dB to +10 dB for a dynamic sound experience.
Intuitive music search features
Use Quick-BrowZer® to find music by artist, album, genre, song or playlist. Jump Mode allows you to fast forward through a
category in 10% increments to help you find a specific song.
Passenger Control for iPod®3
Let your passengers play DJ and control your iPod®3 directly from the device while it’s still connected to the receiver.
Simply hold the MODE button during playback to enter and exit Passenger Control playback mode.
RCA output for system expansion
When you’re ready to expand your system, the DSX-A40UI offers a 2 volt, rear pre-amp RCA outputs for external amplifiers.
The immaculate reception
The Digital Clarity Tuner delivers industry leading signal to noise ratios, lower interference, better multipath rejection and
better stereo separation. The RDS feature displays broadcast information when listening to compatible AM/FM stations.
Convenient wireless remote included
Control your receiver with the included wireless card remote (RM-X211).
Steering wheel control ready input4
This receiver is compatible with aftermarket remote control adapters4 designed to utilize the vehicles existing, primary
radio controls directly from the steering wheel. The 1/8” rear panel mounted remote input jack allows for simple
connectivity.
Specifications
Amplifier Section
Max power output
55 watts x 4 at 4 ohms
Power Ad Hoc
CEA2006 Standard Power: 17 Watts RMS per channel
into 4 Ohms, 4 channels driven from 20 Hz to 20 kHz with
less than 1% THD+N.
Speaker
Impedance
4-8 Ohms
Amp General Feature
Aux-In
Front
EQ
EQ3: 3 band equalizer with +/- 10 dB adjustment at 60
Hz, 1 kHz and 10 kHz.
High Voltage Pre
Out
2 Volt
Loudness
Dynamic (On/Off)
Output Power
(4ohm, 1kHz,16V)
(W)
55 watts x 4
Pre Out
USB
Key Illumination
Initial
Red
Panel Design
Display color
(Color Variation/
Nega or Posi)
Black color/Negative
Display Device
(LCD/FL/OEL/TFT)
LCD
Key Illumination
Red
Panel finish color
Black
USB Mass Strage Device Control Feature
CODEC (for USB)
MP3, WMA
Jump Mode
Yes
List Browsing
(Folders/Files)
Yes
Pause
Yes
(1) Rear
Repeat
OFF/ TRACK/ ALBUM
Front
Resume Play
Yes
Shuffle
OFF/ALBUM/DEVICE
Audio
Band
AM / FM
General
Equalizer
EQ3: 3 band equalizer with +/- 10 dB adjustment at 60
Hz, 1 kHz and 10 kHz.
CEA2006 output
power
17
Format(s)
Supported
MP3/WMA files1
CEA2006 S/N
80
Preout Impedance
220 ohms
Dimensions
(WxHxD) (mm)
178x50x120
Preout Voltage
2 volt
S/N Ratio
Audio Power: CEA2006 S/N 80 dBA
Maximum output
power (4ohm,
1kHz, 16V)(W)
55
Station Preset(s)
18 FM / 12 AM
Mounting
dimensions
(WxHxD)(mm)
182x53x103
Preout impedance
(ohms)
220
Preout output
level (V)
2
Weight (kg)
0.7
Tuner Frequency
Range
Tuner Type
FM (MHz): 87.5-107.9
AM (kHz): 530-1710
Digital Clarity Tuner with RDS
AUX in Feature
Level Adjustment
-8dB / +18dB
Convenience
Tilt Range
Inputs and Outputs
0-45° mounting angle
Convenience Features
Dimmer Adjust
Manual
Key Illumination
Red
On-Screen Clock
12H
Display
Display Color
Black color / Negative
Display
Technology
LCD
Text Displayed
Source, artist, track, playback time, menu and clock
Text Lines
1 line of information
Display Panel
Auto off mode
Yes
Dimmer Adjust
Manual
12V Trigger
Output(s)
Power remote on
Antenna
Terminal(s)
AM/FM Antenna Input Terminal
Audio In
Front Aux in with variable level
Front USB input
Ability to use all forms of USB devices may vary as not all
devices are compatible. This unit is compliant with MSC
(Mass Storage Class) and MTP (Media Transfer Protocol)
type USB devices compliant with the USB standard. This
unit cannot recognize USB devices via a USB hub.
Digital Audio
Input(s)
This unit can be connected to the following iPods.
Update your iPod to the latest software before you use
it.
iPod Nano 1st - 7th generation
iPod Touch 1st - 5th generation
iPod Classic
iPod with video
iPhone
iPhone 3G
iPhone 3GS
iPhone 4
iPhone 4S
iPhone 5
If you have any questions or problems concerning your
unit that are not covered in the owners manual, consult
your nearest Sony dealer.
Infrared Port
Wireless remote
RCA Audio
Output(s)
Front RCA pre-amp outputs
Remote Jack
Optional wired remote terminal
USB Port(s)
Front
iPod Control Feature
FM Usable
Sensitivity
8 dBf
Frequency
Response
FM: 20-15,000 Hz
S/N Ratio
80 dB (stereo)
Selectivity
75 dB at 400 kHz
Stereo Separation
50 dB at 1 KHz
FM: Channel
separation (dB)
50 dB at 1 kHz
FM: Frequency
response (Hz)
20 - 15k
FM: Intermediate
frequency (MHz)
25 KHz
FM: S/N ratio
(mono) (dB)
80 dB stereo
FM: Selectivity (400
kHz) (dB)
75 dB
FM: Tuning range
(MHz)
87.5-107.9
FM: Usable
sensitivity (75 ohm)
(dBf)
8 dBf
MW: Tuning
range(kHz)
530-1710
MW/LW/SW:
Sensitivity (75 ohm)
MW/LW/SW(uV)
26/-/-
Accessory
Information
Yes
CODEC (for iPod)
Depend on iPod® content
Preset
FM18/AM12
List Browsing
(Folders / Files)
Quick-BrowZer®
RBDS
Passenger Control
Yes
RDS/EON (NA
Only:RBDS,
Others:RDS)
Repeat
All / Track
Weights and Measurements
Resume Play
Yes
178 x 50 x 120 mm, 7.125 x 2 x 4.875 inch (w/h/d)
Shuffle
Off / Track
Dimensions
(Approx.)
Dimensions
(Approx) Depth
4.875" (120 mm)
Dimensions
(Approx) Height
2" (50 mm)
Dimensions
(Approx) Width
7.125" (178 mm)
Weight (Approx.)
0.7 kg (1 lb. 9 oz.)
USB-capable
USB Mass Storage
Device
Yes
Other features
Tuner Feature
Card Remote ( ):
Option
RM-X211 included
Clock
12H
Accessories
Rotary
commander (
):Option
Yes
Supplied
Accessories
Security
Partial detachable face
Tuner
Parts for installation and connections (1 set)
RM-X211 wireless remote
Optional Accessories
Optional
Accessories
USB connection cable for iPod®: RC-100IP
1. Not all files may playback due to file variations. Copyright protected ACC-LC files not supported.
2. Not all USB devices are compatible. Consult www.esupport.sony.com for complete details.
3. Works with iPod touch® (1st – 5th generations), iPod nano® (1st– 7th generations), iPod classic®, iPod with video and iPhone®, 3G, 3GS, 4, 4S and 5. Passenger control is not compatible
with iPod nano 1st generation.
4. Compatibility varies as not all vehicles are compatible; please consult with each interface manufacturer for details.
5. Compatible with Android™ smartphones supporting Mass Storage Class (MSC) devices, users required to manually select MSC/USB connection in smartphone menu for proper
functionality.
© 2013 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, Walkman, Quick-Browzer and their respective logos
are trademarks of Sony. iPod and iPhone are trademarks of Apple Inc. Android is a trademark of Google Inc. All other trademarks are trademarks of their respective owners.
Updated: September 17, 2013
