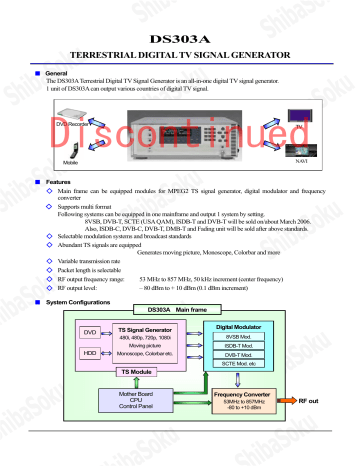

DS303A
TERRESTRIAL DIGITAL TV SIGNAL GENERATOR
‫ ع‬General
The DS303A Terrestrial Digital TV Signal Generator is an all-in-one digital TV signal generator.
1 unit of DS303A can output various countries of digital TV signal.
Discontinued
DVD Recorder
TV
NAVI
Mobile
‫ ع‬Features
٠ Main frame can be equipped modules for MPEG2 TS signal generator, digital modulator and frequency
converter
٠ Supports multi format
Following systems can be equipped in one mainframe and output 1 system by setting.
8VSB, DVB-T, SCTE (USA QAM), ISDB-T and DVB-T will be sold on/about March 2006.
Also, ISDB-C, DVB-C, DVB-T, DMB-T and Fading unit will be sold after above standards.
٠ Selectable modulation systems and broadcast standards
٠ Abundant TS signals are equipped
Generates moving picture, Monoscope, Colorbar and more
٠ Variable transmission rate
٠ Packet length is selectable
٠ RF output frequency range:
53 MHz to 857 MHz, 50 kHz increment (center frequency)
٠ RF output level:
– 80 dBm to + 10 dBm (0.1 dBm increment)
‫ ع‬System Configurations
DS303A Main frame
DVD
HDD
TS Signal Generator
Digital Modulator
480i, 480p, 720p, 1080i
8VSB Mod.
Moving picture
ISDB-T Mod.
Monoscope, Colorbar etc.
DVB-T Mod.
SCTE Mod. etc
TS Module
Mother Board
CPU
Control Panel
Frequency Converter
53MHz to 857MHz
-80 to +10 dBm
RF out
‫ ع‬Specifications
٠ Module for MPEG2 TS signal generator
TS recorded in the built-in HDD can be output.
TS can be recorded in the built-in HDD via network or CD-ROM, DVD-ROM.
Transmission rate:
0.5 Mbps to 60 Mbps (depends on TS contents)
Packet length:
188 Byte, 204 Byte or 208 Byte
Interface:
DVB-SPI, DVB-ASI (option) and SMPTE-310M (option)
TS contents (for ATSC system)480i, 480p, 720p and 1080i
Moving picture, Monoscope, Colorbar, Ramp, Multiburst and more.
٠ Module for digital modulator
Max.8 systems can be equipped.
Input:
DVB-SPI, DVB-ASI (Option), SMPTE-310M (Option)
IF output connector:
BNC, 75 ohm
IF output level:
– 15 dBm +/– 5 dB
IF output frequency:
44 MHz +/– 200 kHz
٠ Module for frequency converter
IF input connector:
BNC, 75 ohm
IF Input level:
– 15 dBm
IF Input frequency:
44 MHz
RF output connector:
BNC, 75 ohm
RF output level:
– 80 dBm to + 10 dBm (0.1 dBm increment)
RF output frequency:
53 MHz to 857 MHz, 50 kHz step (center frequency)
Setting by frequency or channel
Frequency accuracy:
within +/– 1 ppm
Phase noise:
– 90 dBc/Hz at 10 kHz offset
Spurious:
– 60 dBc at + 10 dBm output
٠ Monitor output
Connector:
BNC, 75ohm
Level:
About – 20 dB against RF output level
Frequency:
Same as RF output frequency
Discontinued
‫ ع‬General specifications
Power supply:
Dimensions:
AC 90 V to 250 V, 50/60 Hz
426 (W) x 149 (H) x 460 (D) mm
International Sales Dept.
Mail to: [email protected]
URL: http://www.shibasoku.com/
848, Wakamatsu-cho, Tokorozawa-shi, Saitama, 213-0011 Japan
Phone: +81-4-2996-3414 Fax: +81-4-2996-3419
ShibaSoku Taiwan Co., Ltd.
5F, No.39, Shi-Wei St., San-Chung City, Taipei Hsien, Taiwan
Phone: +886-2-8985-0960 Fax: +886-2-8985-1306
Asaca/ShibaSoku Corp. of America
400 Corporate Circle, Suite G, Golden, CO 80401, U.S.A
Phone: +1-303-278-1111 Fax: +1-303-278-0303 URL: http://www.asaca.com
DS303A.2.03.YC
