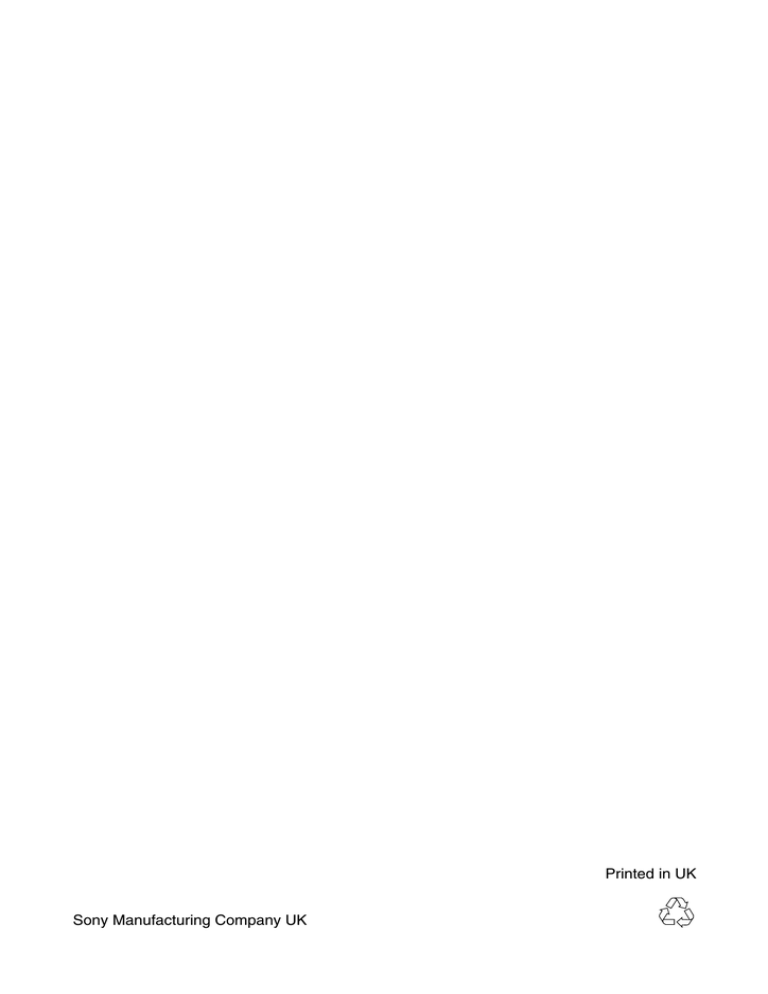

Printed in UK
Sony Manufacturing Company UK
4-205-754-64
R
420575464
Trinitron Colour
Television
GB
Operating Instructions
D
D DOLBY
SURROU
ND
Integrat
ed Dig
ital TV
© 2000 Sony Corporation
D
KV-28DX30U
KV-32DX30U
PR
O .
LO
GIC
NOTICE FOR CUSTOMERS IN THE UNITED KINGDOM
A moulded plug complying with BS1363 is fitted to this equipment for your safety and
convenience.
Should the fuse in the plug supplied need to be replaced, a 5 AMP fuse approved by ASTA
or BSI to BS 1362 (i.e. marked with T or
) must be used.
When an alternative type of plug is used it should be fitted with a 5 AMP FUSE, otherwise
the circuit should be protected by a 5 AMP FUSE at the distribution board.
If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the
fuse cover after you change the fuse. Never use the plug without the fuse cover. If you
should lose the fuse cover, please contact your nearest Sony service station.
ASA
FUSE
How to replace the Fuse
Open the fuse compartment with a flat blade screwdriver, and replace the fuse.
•
•
•
•
IMPORTANT
If the plug supplied is not suitable for the socket outlet in your home, it should be cut off
and an appropriate plug fitted in accordance with the following instructions:
The wires in this mains lead are coloured in accordance with the following code:
Blue
Neutral
Brown
Live
As the colours of the wires in the mains lead of this apparatus may not correspond with
the coloured markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured blue must be connected to the terminal which is marked with
the letter N or coloured black. The wire which is coloured brown must be connected to
the terminal which is marked with the letter L or coloured red. Do not connect either wire
to the earth terminal in the plug which is marked by the letter E or by the safety earth
symbol
or coloured green or green and yellow.
WARNING
To prevent shock hazard, do not insert the plug cut off from the mains lead into a socket
outlet. This plug cannot be used and should be destroyed.
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
Dangerously high voltages are present inside the set. Do not open the cabinet. Refer
servicing to qualified personnel only.
GB
1
Safety Information
For your safety
All TVs operate on extremely high voltages. To prevent fire or electric shock, please follow the safety procedures indicated
below.
For General Safety
•
•
•
Do not expose the TV set to rain or moisture.
Do not remove the rear cover.
For your protection, refer all servicing to qualified personnel only.
For Safe Installation
•
•
•
•
Do not install the TV in hot, humid or excessively dusty places.
Do not block or cover the ventilation openings. For ventilation, leave a space of at least 10
cm all around the set.
Do not install the TV where it may be exposed to mechanical vibrations.
Place the TV set only on a stable stand designed for the weight and dimensions of the TV.
For Safe Operation
•
•
•
•
•
Do not operate the TV set on anything other than a 220-240V AC, 50Hz supply.
Do not operate the TV if any liquid or solid objects fall in through the ventilation slots.
Have it checked immediately.
For environmental and safety reasons, it is recommended that the TV set is not left in
standby mode when not in use. Switch off at the mains.
Do not disconnect the TV by pulling on the power cable. Disconnect by removing the
mains plug.
In case of a thunderstorm, disconnect the TV set from the main supply and the aerial.
Otherwise the set may be damaged by a stroke of lightning.
For Maintenance
•
•
2
Clean the TV screen with a soft dampened cloth. Do not use any abrasive cleaners.
Dust and nicotine deposits may cause heat accumulation inside the TV set. In the long
term this could be a safety risk and may shorten the lifetime of your TV set. Therefore
have your set serviced about every five years.
Table of Contents
Table of Contents
Getting Started
Checking the accessories supplied
Inserting batteries into the remote control
Connecting your own speakers
Connecting the aerial
Switching on the TV
Automatically tuning the TV
Finding your video channel after tuning
4
4
5
6
6
7
7
Overview
Overview of the TV buttons
Overview of the remote control buttons
8
9
Additional TV Features
Adjusting the picture
Changing picture and sound modes quickly
Adjusting the sound
Setting up Virtual Dolby Surround
Setting up Dolby Pro Logic
Changing the screen mode
Setting the digital setup menu
Using the further programme preset feature
Adjusting the picture rotation
Using the parental lock
Using the sleep timer
Manually tuning the TV
Skipping programme positions
Naming a channel (Analogue channels only)
Choosing a language for the TV menu screens
Using the info menu screen
Automatically tuning the TV
Re-arranging the TV channels
10
10
11
12
13
14
15
16
17
17
18
19
20
21
22
22
23
24
Teletext
Viewing standard teletext
Viewing digital teletext
25
26
Electronic Programme Guide (EPG)
Displaying the EPG
Viewing information on the EPG
Recording programmes
Setting the manual timer
27
27
28
29
Optional Equipment
Connecting equipment to the TV
Additional information when connecting equipment
Selecting the output source for the scart sockets G or
Smartlink
Using the AV label preset feature
H
30
30
31
31
32
Additional Information
Specifications
Troubleshooting
33
34
3
Getting started
Follow steps 1-7 to:
Check the accessories supplied
Insert batteries into your remote control
Connect your own speakers
Connect the aerial to your TV
Plug in and switch on the TV
View programmes on your TV
Find your video channel
1. Checking the accessories supplied
MENU
Batteries
PROGR
RM-888
Remote control
2. Inserting batteries into the remote control
Always remember to dispose of used batteries in an environmentally friendly way.
4
Getting started
3. Connecting your own speakers
This TV has been designed to create ‘Virtual Dolby Surround’ without the need for additional speakers. If however, you wish
to experience the full Dolby Pro Logic Surround, you will need to connect your own speakers (SS-CR190 or equivalent) as shown
below. Connect the striped speaker leads to the red terminals and the black leads to the black terminals.
Dolby* Pro Logic Surround normally requires 5 speakers:
Centre Speaker - to anchor the fixed sounds, like dialogues, to the screen.
Left and Right Front Speakers - for the normal two channel stereo or bilingual broadcasts.
Surround Speakers - for the special effects created by the surround channels.
Connect black leads
to the black
terminals of socket
L/G/
S/I
Connect striped leads
to the red terminals
of socket
R/D/
D/D
C
S
S
L/G/
S/I
R/D/
D/D
C
MODEM
S
1
R/D/D/D
2
S
2
3
L/G/S/I
Right speaker
Left speaker
Black
lead
Striped
lead
Centre speaker
NOTE: External speakers
should have an impedance
of 8 Ohms
ting
r Sit
You
tion
Posi
Surround speakers **
Note: When you connect your own external left and right speakers you must mute the internal speakers by pressing in
the button marked
on the rear of the TV.
* Manufactured under licence from Dolby Laboratories. ‘Dolby’, ‘Pro Logic’, and the double-D symbol are trademarks
of the Dolby Laboratories .
** For the best sound effects, place the surround speakers one meter above your listening position.
5
Getting started
4. Connecting the aerial
Connecting an aerial to your TV
Connect your existing aerial to the socket
marked
on the rear of the TV.
L/G/
S/I
R/D/
D/D
C
MODEM
S
S
2
1
R/D/D/D
S
3
2
L/G/S/I
Connecting an aerial and VCR to your TV
1 Connect your existing aerial to the upper
socket marked
on the rear of the TV as
shown.
2 Connect a lead from the RF input of your
VCR to the lower aerial socket marked
on
the TV.
3 Connect the VCR to the mains socket and
switch on.
4 Insert a pre-recorded tape into the VCR and
press the ‘PLAY’ button. This enables the TV
set to locate and store the video channel
during the ‘Automatically tuning the TV’
procedure.
L/G/
S/I
R/D/
D/D
C
MODEM
S
S
1
R/D/D/D
2
S
3
2
L/G/S/I
Scart lead
(not supplied)
OUT
IN
AERIAL
ANTENNA
AC IN
5. Switching on the TV
Connect the TV plug to the mains socket
(220-240V AC, 50Hz) and switch on.
D
D
D
DOLBY SURROUND
PRO . LOGIC
Integrated Digital TV
Push in the on/off switch on the front of the TV.
D
D
D
DOLBY SURROUND
PRO . LOGIC
Integrated Digital TV
6
Getting Started
6. Automatically tuning the TV
When you first switch on the TV, the following sequence of menu screens appear on the TV enabling you to 1) choose a language
for the TV menu screens, 2) tune channels to the TV, 3) arrange the channels.
1. When switching on the TV for the first time, the
‘LANGUAGE’ menu appears automatically on the TV
screen enabling you to select in which language you wish
to read the TV menu screens. Press the V or v buttons on
the remote control to select your chosen language then
press the OK button to confirm your selection.
1
2
3
4
5
6
7
9
8
0
MENU
OK
PROGR
RM-888
2. The ‘automatic tuning’ menu appears on the TV screen in
your selected language. Press the V or v buttons to select
‘YES’ then press the OK button to confirm.
3. Ensure the antenna is connected as instructed, then press
the OK button to confirm. The TV starts to automatically
search and store all available channels for you. Please be
patient and do not press any buttons.
The digital channels will be stored on programme
numbers 1-90 and the analogue channels on programme
numbers 91-99.
Note: If any digital channels are stored on programme
numbers 91-99 during the Automatic Tuning procedure,
then no analogue channels will be allocated. If this
happens, please refer to the section ‘Manually tuning the
TV’ on page 19 of this manual to tune in and store the
analogue channels.
4. When the TV has finished tuning in all available
channels, the ‘PROGRAMME SORTING’ menu appears
on the TV screen enabling you to change the order of the
channels on your TV. If you do not wish to use this
option, proceed to step 5.
If you wish to change the channel order, press the V or v
buttons on your remote control to select the channel you
want to move, then press the OK button. Press the V or v
buttons to select the new programme number position for
your selected channel then press the OK button to
confirm. The selected channel now moves to its new
programme position. Repeat this procedure if you wish to
sort the order of other channels on your TV.
Do you want to start
automatic tuning?
Yes
No
Confirm: OK
Please confirm that
antenna is connected
Confirm: OK
BBC TWO
5. Press the MENU button to remove the menu from the TV
screen.
6. Press the PROGR+/- or the numbered buttons on the
remote control to view the TV channels.
7. Finding your video channel after tuning
If you have connected a VCR to your TV, you now need to find the video channel.
1. Press the PROGR +/- buttons on the remote control until the video picture appears on the TV screen.
Note: If you wish to move your video channel to a different programme position, refer to the ‘Re-arranging the TV channels’ section in this
instruction manual.
7
Overview
Overview of the TV buttons
D
D DOLBY SURROUN
D
Integrated
Digital TV
D
D DOLBY SURROUND
Integra
ted Digital
TV
PRO
D
D
. LOGIC
Press the door flap as shown.
PRO
. LOGIC
Control panel appears.
Programme Up or Down buttons.
Press to increase(+)/decrease(-) channels.
Video input button.
Press to select the input
signals from VCR etc.
Volume control buttons.
Press to increase(+)/decrease(-) volume.
P
-
+
Auto tune button.
Press to select the automatic
tuning function.
s
2
MONO
L/G/S/I
R/D/D/D
8
2
Overview
Overview of the remote control buttons
To temporarily switch off TV
Press to temporarily switch off TV. Press again to
switch on from standby mode. To save energy, we
recommend switching off completely when the TV is
not in use.
NOTE: After 15-30 minutes without a TV signal and
without any button being pressed, the TV switches
automatically into standby mode.
To mute sound
Press to mute TV sound. Press again to
restore the sound.
To reveal on screen information
Press to reveal all on-screen indications.
Press again to cancel. In teletext mode,
press to reveal concealed information (e.g.
answers to a quiz) then press again to
cancel.
To select input signal or freeze teletext
Press to select inputs from the TV sockets (see Using
Optional Equipment section). In teletext mode, press
to freeze the displayed page. Press once again to
cancel.
To select channels
Press the numbered buttons to select
channels.
To exit digital teletext or return to previous
channel
Press to exit digital teletext, or in TV mode, press to
return to the previous channel you were watching.
Note: This can be done only if you have watched the
previous channel for at least 5 seconds.
For double digit programme numbers,
e.g.23, press -/-- first, then the buttons 2 and
3. If you enter an incorrect first digit, select
-/-- button again to enter the programme
number of your choice.
To select EPG
Press to display the Electronic Programme
Guide. Press again to remove display.
MENU
To select menu items
Use these buttons and the OK button to select the
options available when in the menu system of this TV.
Pressing the OK button in normal TV mode will
display the channel listing table.
To select Teletext
Press to switch on Teletext.
To display picture menu
Press to change the picture settings. Press
the OK button to remove the display.
To display sound menu
Press to change the sound settings. Press the
OK button to remove the display.
To display the menu
Press to use the TV menu system. Press again to
remove the menu from the TV screen.
PROGR
To change screen format
Press to change the size of the screen.
See Teletext section of manual for details.
To select channels
Press to select channels.
To adjust TV volume
Press to adjust the volume of the TV.
RM-888
9
Additional TV Features
Adjusting the picture
Although the picture is adjusted at the factory, you can modify it to suit your own taste.
MENU
OK
1. Press the MENU button on the remote control to display the
menu on the TV screen.
2. Press the V or v buttons on the remote control to select the
symbol on the menu screen then press the b button to
enter the ‘PICTURE CONTROL’ menu.
3. Press the V or v buttons to select the item on the screen you
wish to adjust then press the b button to confirm. For a
description of the menu items and their effects, see the table
below.
4. If you selected ‘Picture Mode’ or ‘Format’ in step 3, press the
V or v buttons to select the item on the screen you wish to
adjust then press the b button to confirm.
5. Press the b or B buttons to adjust your selected item.
6. As soon as you have adjusted the item, press the OK button to
store the new setting.
7. If you selected ‘Picture Mode’ or ‘Format’ in step 3, press the
B button to return to the ‘PICTURE CONTROL’ menu.
8. Repeat steps 3-7 to adjust the other items.
9. Press the MENU button to remove the menu from the TV
screen.
Picture Mode
Picture Modeb
B
PROGR
Personal (for individual settings)
Movie (for films)
Live (for live broadcasts)
Brightness*
Colour*
Sharpness*
Hue**
Contrast
RM-888
Reset
Format
Resets picture to factory preset levels
Format
Scroll
Auto 16:9
(refer to page 14 for details)
b
Off
B
On
*Only if you select ‘Personal’ in ‘Picture Mode’.
** Available for NTSC colour system only.
Changing picture and sound modes quickly
You can quickly change the Picture Mode or the Sound Mode
without entering the ‘PICTURE CONTROL’ or the ‘SOUND
CONTROL’ menu screens.
Note: These quick change options will not work on digital
channels that are transmitting digital teletext. In those instances
please use the menu system for any adjustments you require.
10
1. Press the
symbol on the remote control for picture modes
or the
symbol for sound modes.
2. Press the V or v buttons to select the desired mode.
3. Press the OK button to remove the display from the TV
screen.
Personal
Movie
Live
Additional TV Features
Adjusting the sound
Although the sound is adjusted at the factory, you can modify it to suit your own taste.
MENU
OK
1. Press the MENU button on the remote control to display the
menu on the TV screen.
symbol on the
2. Press the V or v buttons to select the
menu screen then press the b button to enter the ‘SOUND
CONTROL’ menu.
3. Press the V or v buttons to select the item on the screen you
wish to adjust then press the b button to confirm. For a
description of the menu items and their effects, see the table
below.
4. If you selected ‘Sound Mode’ or ‘Surround Mode’ in step 3,
press the V or v buttons to select the item on the screen you
wish to adjust then press the b button to confirm.
5. Press the b or B buttons to adjust your selected item.
6. As soon as you have adjusted the item, press the OK button
to store the new setting.
7. If you selected ‘Sound Mode’ or ‘Surround Mode’ in step 3,
press the B button to return to the ‘SOUND CONTROL’
menu.
8. Repeat steps 3-7 to adjust the other items.
9. Press the MENU button to remove the menu from the TV
screen.
Sound Mode
b
PROGR
B
Personal
Rock
Jazz
Pop
In ‘Personal’ mode, Treble and Bass can be adjusted
Balance
Only available when ‘Surround Mode’ is set to ‘Off’
RM-888
Reset
Resets sound to factory preset levels
Bass Extension
Boosts bass by a fixed amount
Surround Mode
Choose from the special sound effects:
Off --> Pro Logic --> 3 Stereo --> Virtual Dolby -->
Pseudo Stereo --> Spatial
Dual Sound
StereoB
b Mono (for a stereo broadcast)
A for channel 1B b B for channel 2
(for a bilingual broadcast)
Volume Offset
B
Headphones
i Volume
i Dual Sound
Auto Surround
The channel volume level can be b
adjusted over a range of -12 to +12.
Stereo B b Mono (for a stereo broadcast)
A for channel 1 B b B for channel 2
(for a bilingual broadcast)
Set to ‘On’ to automatically turn on Pro Logic
decoding when a programme encoded with Dolby
Surround is transmitted.
11
Additional TV Features
Setting up Virtual Dolby Surround
The Virtual Dolby Surround feature gives you the effect of Dolby Pro Logic without having to connect any external centre or
rear speakers. The surround signals are processed and redirected to the front speakers in order to create the illusion of virtual
centre and rear speakers.
.
1. Press the MENU button on the remote control to display
the menu on the TV screen.
2. Press the V or v buttons to select the
symbol on the
menu screen then press the b button to enter the
‘PRESET’ menu.
3. Press the V or v buttons to select ‘Surround Mode Setup’
on the menu screen then press the b button to enter the
‘SURROUND MODE SETUP’ menu.
MENU
4. Press the V or v buttons to select ‘Surround Mode’, then
press the b button to enter.
OK
5. Press the b or B buttons to select Virtual in the display,
then press the OK button.
PROGR
6. Press the v button to select ‘Virtual Effect’, then push the
b button to enter.
7. Press the b or B buttons to adjust the Virtual Effect level
until the illusion of being surrounded by the TV sound is
at its most effective.
RM-888
8. Press the MENU button to remove the display from the
TV screen.
Note: To achieve the maximum effect from Virtual Dolby
Surround, you should sit facing the centre of the TV screen.
12
Additional TV Features
Setting up Dolby Pro Logic
Before listening to Dolby Surround encoded programmes, you can adapt the features of Dolby Pro Logic to suit your own taste.
Note: Dolby Pro Logic decoding should only be turned on when external centre and/or surround speakers are connected. Sony
recommend that the centre and/or surround speakers should only be SS-CR190 or equivalent.
There will be no output available from the headphones or the audio output socket
on the rear of the TV when Dolby Pro Logic
has been selected.
1. Press the MENU button on the remote control to display
the menu on the TV screen.
2. Press the V or v buttons to select the
symbol on the
menu screen then press the b button to enter the
‘PRESET’ menu.
3. Press the V or v buttons to select ‘Surround Mode Setup’
on the menu screen then press the b button to enter the
‘SURROUND MODE SETUP’ menu.
MENU
4. Press the V or v buttons to select ‘Surround Mode’, then
press the b button to enter. Press the b or B buttons to
select one of the following modes then press the OK
button to store the chosen mode:
Pro Logic: all 5 speakers are activated
3 stereo: surround speakers are not used
Virtual: no external speakers required. Do not select this
mode if you wish to receive Dolby Pro logic
OK
PROGR
RM-888
5. Press the v button to select ‘Centre Mode’, then push the
b button to enter. Press the b or B buttons to select one
of the following modes then press the OK button to store
the chosen mode:
Normal: all 5 speakers are activated
Wide: wider bandwidth for centre speaker
Phantom: centre speaker is not used (This cannot be
selected if you have chosen “3 stereo” mode in step 4)
6. Press the v button to select ‘Test Tone’ then push the b
button to enter. Press the b or B buttons to select ‘On’,
then press the OK button.
The test tone will cycle through all the speakers.
7. Press the v button to select the ‘Left Speaker’, then press
the b button to confirm. The tone remains at the left
speaker.
8. Press the V or v buttons to alter the sound level, then
press the OK button.
9. Repeat steps 7 and 8 to select and adjust the ‘Centre’,
‘Right’, and ‘Surround’ speakers, so that the sound output
from all speakers are balanced in relation to your sitting
position.
10. Press the MENU button to remove the display.
Note: After setting up Dolby Pro Logic, refer to the ‘Adjusting the sound’
section on page 11 and set the Surround Mode to Pro Logic.
13
Additional TV Features
Changing the screen mode
Using this Screen Mode feature you can change the aspect ratio of the screen.
1. Press the MENU button on the remote control to display the
menu on the TV screen.
2. Press the V or v buttons to select the
symbol on the menu
screen then press the b button to enter the ‘PICTURE
CONTROL’ menu.
3. Press the V or v buttons to select ‘Format’ on the menu
screen then press the b button to enter the ‘FORMAT’ menu.
MENU
OK
4. Format
Press the V or v buttons to select ‘Format’ then press the b
button to enter. Press the b or B buttons repeatedly to select
one of the following modes then press the OK button to store
the chosen mode:
•
•
•
PROGR
•
•
Smart - imitation of wide screen effect (16:9) for 4:3
broadcasts
Wide - for 16:9 broadcasts
Zoom - imitation of wide screen effect (16:9) for movies
broadcast in cinemascopic format
14:9 - compromise between 4:3 and 16:9 format - for
conventional 14:9 picture
4:3 - conventional 4:3 picture
FORMAT
Wide
0
On
Format
Scroll
Auto 16:9
rmat
Smart
Wide
RM-888
5. Scroll (Applies to Zoom, 14:9 or Smart format only)
Press the V or v buttons to select ‘Scroll’. You can use
‘Scroll’ to move the screen up or downwards in order to see
the cut-off parts (e.g. to read subtitles). Press the b button to
highlight the present value then press the B or b buttons to
adjust the screen position over a range of -5 to +5. Press the
OK button to store.
6. Auto 16:9
Press the V or v buttons to select ‘Auto 16:9’ then press the b
button to enter. Press the B or b buttons to select ‘On’ if you
wish the TV to switch automatically to wide format when a
16:9 broadcast is detected, or ‘Off’ to retain the format
selected in step 4. Press the OK button to store.
7. Press the MENU button to remove the menu from the TV
screen.
Note: You can change the picture format quickly without having
to enter the menu system. Simply press the
button repeatedly
until the picture is displayed in the format you desire.
This function will not work on digital channels that are
transmitting digital teletext. In those instances please use the menu
system as described above.
14
Zoom
14:9
4:3
Additional TV Features
Setting the digital setup menu
The Digital Setup menu allows you to set three options for digital channels.
1. Press the MENU button on the remote control to display
the menu on the TV screen.
2. Press the V or v buttons to select the
symbol on the
menu screen then press the b button to enter the
‘PRESET’ menu.
MENU
3. Press the V or v buttons to select ‘Digital Setup’ then
press the b button to enter the ‘DIGITAL SETUP’
menu.
4. Press the V or v buttons to choose the option you wish
to alter, then press the b or B buttons to change the
present setting.
The options and their effects are explained in the table
below.
OK
PROGR
5. Press the OK button to confirm your selection.
6. Press the MENU button to remove the menu from the TV
screen.
RM-888
Option
Effect
Digital Signal
Set to RGB or Composite. Choose the option that gives you the
picture quality you prefer.
Digital Subtitles
Selects the language to be displayed when viewing subtitles. You can
choose from English, Welsh or Gaelic (when transmitted by
broadcaster).
Software Download
Periodically the software may be updated. When notified by the
broadcasting authorities or Sony, set this option to enabled and the new
software will be downloaded automatically.
15
Additional TV Features
Using the further programme preset feature
With this feature you can a) manually fine-tune the TV to obtain a better picture reception if the picture is distorted or b) preset
the AV output to the programme positions of channels with scrambled signals (e.g. from a pay TV decoder). In this way a
connected VCR records the unscrambled signal.
1. Press the MENU button on the remote control to display
the menu on the TV screen.
2. Press the V or v buttons to select the
symbol on the
menu screen then press the b button to enter the
‘PRESET’ menu.
MENU
3. Press the V or v buttons to select ‘Further Programme
Preset’ then press the b button to enter the ‘FURTHER
PROGRAMME PRESET’ menu.
FURTHER PROGRAMME PRESET
PROG
0
1
2
3
4
5
6
7
8
9
AFT
On
On
On
On
On
On
On
On
On
On
DECODER
Off
Off
AV1
Off
AV2
Off
Off
Off
Off
Off
OK
PROGR
4. Press the V or v buttons to select the relevant
programme number then press the b button repeatedly
to select a) AFT or b) DECODER. The selected item
changes colour.
Note: AFT will only be available on analogue channels.
FURTHER PROGRAMME PRESET
RM-888
5. a) AFT
Press the V or v buttons to fine tune the channel
frequency over a range of -15 to +15. Press the OK
button to confirm. Repeat steps 4 and 5a if you wish to
fine tune other channels.
b) DECODER
Press the V or v buttons to select AV1, AV2 or AV3 for
the programme position chosen, then press the OK
button to confirm. You can now attach a decoder to the
AV1, AV2 or the AV3 socket on the back of the TV and
the picture from that decoder will appear on this
programme number. Repeat steps 4 and 5b to preset the
AV output for other programme positions.
6. Press the MENU button to remove the menu from the
TV screen.
16
PROG
0
1
2
3
4
5
6
7
8
9
AFT
On
On
On
On
On
On
10
On
On
On
DECODER
Off
Off
AV1
Off
AV2
Off
Off
Off
Off
Off
Additional TV Features
Adjusting the picture rotation
If, due to the earth’s magnetic field, the picture slants, you can use this feature to readjust the picture.
1. Press the MENU button on the remote control to display the menu on
the TV screen.
2. Press the V or v buttons to select the
symbol on the menu screen
then press the b button to enter the ‘PRESET’ menu.
MENU
3. Press the V or v buttons to select ‘Picture Rotation’ then press the b
button to highlight the 0 (zero) on the right of the menu.
OK
PROGR
4. Press the b or B buttons to adjust the picture rotation. The adjusting
range is -5 to +5.
RM-888
5. Press the OK button to store the new range.
6. Press the MENU button to remove the menu from the TV screen.
Using the parental lock
This feature enables you to prevent undesirable broadcasts appearing on the TV
1. Press the MENU button on the remote control to display the menu on
the TV screen.
2. Press the V or v buttons to select the
symbol on the menu screen
then press the b button to enter the ‘PRESET’ menu.
MENU
3. Press the V or v buttons to select ‘Parental Lock’ then press the
button to enter the ‘PARENTAL LOCK’ menu.
OK
PROGR
RM-888
b
4. Press the V or v buttons to select the channel you wish to block then
press the OK button to confirm your selection. The
symbol
appears before the programme position to indicate this channel is
now blocked. To unblock the channel, press the OK button again.
The
symbol disappears.
5. Repeat step 4 if you wish to block other channels.
6. Press the MENU button to remove the menu from the TV screen.
17
Additional TV Features
Using the sleep timer
The TV can be set to switch automatically to standby mode after a length of time chosen by you. You may set the time in 30
minute steps up to 4 hours.
/
1. Press the MENU button on the remote control to display
the menu on the TV screen.
2. Press the V or v buttons to select the
symbol on the
TV screen then press the b button twice.
TIMER
3. Press the b or B buttons repeatedly until the required
amount of time delay appears on the screen.
TIMER
Sleep Timer
Sleep Timer
Off
1:00
MENU
4. Once the time delay has been selected, press the OK
button to enter.
OK
PROGR
5. Press the MENU button to remove the menu from the
TV screen.
One minute before standby, the display shown appears
on the screen.
0:01
Notes: When watching TV, press the
wish to see the time remaining.
button if you
RM-888
To return to normal operation from standby mode,
press the / button.
18
Additional TV Features
Manually tuning the TV
You have already tuned the TV automatically using the instructions at the start of this manual. You can however carry out this
operation manually, adding channels to the TV, one at a time.
1. Press the MENU button on the remote control to display
the menu on the TV screen.
1
2
3
4
5
6
7
8
9
0
2. Press the V or v buttons to select the
symbol on the TV
screen then press the b button to enter the PRESET menu.
3. Press the V or v buttons to select ‘Manual Programme
Preset’ on the menu screen then press the b button to enter
the ‘MANUAL PROGRAMME PRESET’ menu.
MENU
03
4. Press the V or v buttons to select an unused programme
number for your channel then press the b button to enter.
OK
PROGR
5. Press the V or v buttons to select the TV broadcast system
(I for analogue or DIG for digital) or a video input source
(AV1, AV2 ...) then press the b button to confirm.
RM-888
6. Select the first number digit of ‘CHAN’ (channel) then the
second number digit of ‘CHAN’ with the numbered buttons
on the remote control
or
Press the V or v buttons to search for the next available
channel.
7. If you wish to change the ‘SERV’ service number (on
digital programmes only), select each digit in turn and press
the numbered buttons on the remote control to change to
your desired service.
8. If you do not wish to store this channel on the programme
number you selected, press the V or v buttons on the
remote control to continue searching for the desired
channel.
9. If this is the channel you wish to store, press the OK button.
10. Repeat steps 4-9 if you wish to store more channels then
press the MENU button to remove the menu from the TV
screen.
NOTE: After manually tuning in the channels you require, you
can sort the channels into the order you prefer by following the
procedure ‘Re-arranging the TV channels’ on page 24.
19
Additional TV Features
Skipping programme positions
This function enables you to skip unused programme positions when selecting them with the PROGR+/- buttons. However, by
using the numbered buttons you can still select the skipped programme position.
1. Press the MENU button on the remote control to display
the menu on the TV screen.
2. Press the V or v buttons to select the
symbol on the
menu screen then press the b button to enter the
‘PRESET’ menu.
MENU
3. Press the V or v buttons to select ‘Manual Programme
Preset’ then press the b button to enter the ‘MANUAL
PROGRAMME PRESET’ menu.
03
OK
4. Press the V or v buttons to select the programme
position you want to skip then press the b button to
enter the ‘SYS’ column.
PROGR
03
5. Press the v button to select ‘---’ then press the OK
button to store.
RM-888
6. Repeat steps 4 and 5 to skip other programme positions.
7. Press the MENU button to remove the menu from the
TV screen.
20
Additional TV Features
Naming a channel (Analogue channels only)
Names for channels are usually taken automatically from Teletext if available. You can however name a channel or an input video
source using up to five characters (letters or numbers).
1. Press the MENU button on the remote control to display
the menu on the TV screen.
2. Press the V or v buttons to select the
symbol on the
menu screen then press the b button to enter the
‘PRESET’ menu.
MENU
3. Press the V or v buttons to select ‘Manual Programme
Preset’ then press the b button to enter the ‘MANUAL
PROGRAMME PRESET’ menu.
OK
4. Press the V or v buttons to select the channel you wish
to name.
PROGR
5. Press the b button repeatedly until the first element of
the ‘LABEL’ column is highlighted.
RM-888
6. Press the V or v buttons to select a letter or number
(select ‘-’ for a blank) then press the b button to
confirm. Select the other four characters in the same
way.
7. After selecting all the characters, press the OK button.
8. Repeat steps 4 to 7 if you wish to label other channels.
9. Press the MENU button to remove the menu from the
TV screen.
21
Additional TV Features
Choosing a language for the TV menu screens
This TV uses a menu system which can appear on screen in a variety of languages. Use the following feature to select the
language that best suits you.
1. Press the MENU button on the remote control to display the menu on
the TV screen.
2. Press the V or v buttons to select the
symbol on the menu screen
then press the b button to enter the ‘PRESET’ menu.
MENU
OK
PROGR
3. Press the V or v buttons to select ‘Language’ on the menu screen
then press the b button to enter the ‘LANGUAGE’ menu.
4. Press the V or v buttons to select your chosen language.
RM-888
5. Press the OK button to confirm your selection.
6. Press the MENU button to remove the display from the TV screen.
Using the info menu screen
This menu is a useful means of seeing what programme is on now and next on the digital channel you are watching.
NOW
1. Press the
button to display the info menu on screen.
This display gives a brief description about the programme currently
being transmitted. When you wish to exit the info menu press the
button again.
2. To obtain a description of what is on next, press the b button to
highlight NEXT.
NEXT
2 BBC TWO
Schools: Hands Up
09:00 - 09:15
[Age 4 - 7] Clothes: Hands Up teaches everyday
language in BSL [British Sign language] to deaf
children
ENG
WEL
ENG
MENU
3. Should you wish to record the programme that is on next, press the b
button to highlight
, then press the OK button. The EPG “TIMER”
menu will now be displayed.
OK
PROGR
RM-888
4. At the bottom of the timer page you can see the symbols
back to menu),
(to record a programme) or
(to set the
programme to switch on automatically).
2
Tue 22 DEC
15:20:40
Vets in Practice
2 BBC TWO
19:00 - 20:00 Tue 22 Dec
Documentary series which follows veterinary graduates
as they embark on their careers.
Julie Richards has to deal with a terrier with behavioural
problems and Steve Leonard encounters problems
when he has to treat a golden labrador.
Continues on Friday.
Return
Event Rec
5. Press the B or b buttons to select one of these symbols then press the
OK button to confirm your selection. Follow the on-screen
instructions until the info menu reappears on screen.
Note: If available, you can change the language of the audio output.
Press the v button to highlight one of the language bars at the bottom of the info screen, then
press the B or b button to select the language in which you wish to hear the programme.
Press the V button to return highlight to the top of the display.
22
Wake Up
Additional TV Features
Automatically tuning the TV
You should have already tuned in all available channels using the ‘Automatically tuning the TV’ section at the start of this
manual. If you need to repeat the tuning procedure however, follow the instructions below and the TV automatically searches
and stores all available channels for you.
1. Press the MENU button on the remote control to display
the menu on the TV screen.
1
2
3
4
5
6
7
8
9
0
2. Press the V or v buttons to select the
symbol on the
menu screen then press the b button to enter the
‘PRESET’’ menu.
3. Press the V or v buttons to select ‘Auto Programme’
then press the b button to display the autotune menu.
MENU
4. Press the V or v buttons to select ‘YES’ then press the
OK button to confirm.
Do you want to start
automatic tuning?
Yes
No
Confirm: OK
Please confirm that
antenna is connected
OK
PROGR
RM-888
5. Ensure the antenna is connected as instructed, then press
the OK button to confirm. The TV starts to automatically
search and store all available channels for you. Please be
patient and do not press any buttons.
The digital channels will be stored on programme
numbers 1-90 and the analogue channels on programme
numbers 91-99.
Note: If any digital channels are stored on programme
numbers 91-99 during the Automatic Tuning procedure,
then no analogue channels will be allocated. If this
happens, please refer to the section ‘Manually Tuning
the TV’ in this manual to tune in and store the analogue
channels.
Confirm: OK
6. When the automatic tuning procedure is complete, the
menu disappears from the TV screen. Press the
PROGR+/- or the numbered buttons on the remote
control to view the TV channels.
Note: Press the MENU button if you wish to stop the
automatic tuning procedure at any time.
23
Additional TV Features
Re-arranging the TV channels
After tuning the TV, you can use this feature to change the channel order.
1. Press the MENU button on the remote control to display
the menu on the TV screen.
2. Press the V or v buttons to select the
symbol on the
menu screen then press the b button to enter the
‘PRESET’ menu.
MENU
3. Press the v button to select ‘Programme Sorting’ then
press the b button to enter the ‘PROGRAMME
SORTING’ menu.
OK
4. Press the V or v buttons to select the channel you want
to move then press the OK button to confirm.
PROGR
RM-888
5. Press the V or v buttons to select the new programme
position (e.g. PROG 4) for your selected channel, then
press the OK button to confirm. The selected channel
now moves to its new programme position.
6. Repeat steps 4 and 5 if you wish to sort other channels.
7. Press the MENU button to remove the menu from the TV
screen.
24
Teletext
Viewing standard teletext
Teletext is an information service transmitted by most TV stations.
Selecting teletext
1. When viewing analogue channels press a numbered button on
the remote control to select the channel which carries the
teletext service you wish to receive.
1
2
3
4
5
6
7
8
9
0
MENU
TELETEXT
Index
Programme
25
News
153
Sport
101
Weather
2. Press the
on the remote control to switch on teletext. Press
the
button again if you wish to superimpose teletext on to
the TV screen.
98
TELETEXT
Index
3. Select your required page using the numbered buttons on the
remote control. If you make an error, complete the number, then
re-enter the correct page number.
4. Press the
Programme
25
News
153
Sport
101
Weather
98
button to switch off teletext.
Using other standard teletext functions
To move to the next or preceding page
Press the
or
buttons to select the previous or next page.
PROGR
To freeze a Teletext page
Press the
button to freeze the page. Press again to cancel the
freeze.
Revealing concealed information (eg:answers to a quiz).
Press the
button to reveal information. Press again to conceal the
information.
RM-888
Using colour buttons to access pages (Fastext)
When the colour coded menu appears at the bottom of a page, press
the colour buttons (red, green, yellow or blue) on the remote control
to access the corresponding page.
Displaying TOP-Text (when available)
With TOP-Text you can access pages easily by selecting blocks or
groups of pages. The block is a category (for example Sports) which
includes the groups (for example Football). When TOP-Text is
broadcast, a colour coded menu appears at the bottom of the screen.
The colours of this menu correspond to the red, green, yellow and
blue buttons on the remote control. Press these coloured buttons to
display the desired pages.
1. Press the
button to display teletext.
2. Press the coloured buttons to search for the page you desire:
Red: to go back to the previous page.
Green: to proceed to the next page.
Yellow: to proceed to the first page of the next group.
Blue: to proceed to the first page of the next block.
3. Press the
button twice to return to normal TV.
25
Teletext
Viewing digital teletext
Most of the digital TV channels broadcast information via teletext. This digital service includes high quality text and graphics as
well as advanced navigational options. Additionally, this television set has access to a dedicated digital teletext channel.
Selecting the dedicated digital
teletext channel
1. To view the dedicated digital teletext service, press the
numbered buttons on your remote control to select the relevant
channel number. If you do not know the channel number, press
the OK button to look for that channel in the channel table.
1
2
3
4
5
6
7
8
9
0
MENU
2. Once the teletext channel is displayed, press the V, v, B or b
buttons as instructed on the screen to select your requirement,
then press the OK button to display the chosen information.
Note: On some pages the TV programme will also be displayed.
You can view the other TV programmes available on the
selected channel by pressing the B or b buttons.
3. Alternatively, you can use the numbered and coloured buttons
on the remote control to directly enter the page number required
and to display the various pages of text information.
4. If when viewing the teletext pages, you are requested to select
‘OK’ or ‘Cancel’, press the OK button for ‘OK’ or the
button for ‘Cancel’.
OK
5. When you have finished viewing teletext, press the
button
or the PROGR +/- buttons, and then select an alternative digital
channel.
PROGR
RM-888
Selecting teletext from the other
digital channels
Normal teletext services may also be available on other digital
channels. Sometimes this is indicated by a small symbol or text
display on your TV screen, superimposed on the channel you are
watching.
1. Press the V, v, B or b buttons to select the symbol then press
the OK button to display the chosen information.
2. Alternatively, you may be requested to use the numbered and
coloured buttons on your remote control to display the various
pages of text information. If when viewing the teletext pages,
you are requested to select ‘OK’ or ‘Cancel’, press the OK
button for ‘OK’ or the
button for ‘Cancel’.
3. Once the text information is displayed on screen, use the V, v,
B or b buttons, the coloured buttons and/or the numbered
buttons to access the chosen information.
4. When you have finished viewing teletext, press the
and then select an alternative digital channel.
button
On other channels there may be no on-screen symbol, but you can
see if there is a digital service as follows:
1. When watching a digital TV channel, press the
button on
your remote control to display any text service which may be
available.
2. Press the numbered buttons to select the various pages of
information available and/or the coloured buttons for the
functions shown on screen.
3. When you have finished using the text service, press the
button to return to normal TV.
26
Electronic Programme Guide
Electronic Programme Guide (EPG)
The Electronic Programme Guide (EPG) is a guide which provides programme information for all digital channels supporting
EPG.
Displaying the EPG
1. Press the
button on the remote control to display the
programme guide on the TV screen. You may see the
message 'EPG INFORMATION IS TEMPORARILY
UNAVAILABLE' whilst waiting for the EPG to appear
on screen.
2. Press the V, v, B or b buttons on the remote control to
move the on-screen cursor around the guide.
3. Press the
button again to remove the programme
guide from the TV screen.
MENU
Viewing information on the EPG
You can alter the type of information presented on the EPG
by changing data in each of the EPG columns. You can for
example display information for all sports programmes being
shown tomorrow from 5.00pm onwards.
OK
1. Press the
button on the remote control to display the
EPG on the TV screen.
PROGR
2. Press the B or b buttons to highlight the 'date' column
then press the V or v buttons to select your chosen date.
RM-888
3. Press the B or b buttons to highlight the 'time' column
then press the V or v button to select your chosen time.
4. Press the b button or press the OK button. The EPG will
display programme information according to the date
and time you selected.
5. Press the b button to highlight the 'programme type'
News,
column then press the V or v button to select
Films,
Sport,
Entertainment,
Lifestyle,
Education or
Childrens Programmes.
6. Press the B or b buttons or press the OK button to
update the programme information accordingly. If you
selected tomorrow's date, 17:00 and Sport, you should
now be able to view all the sports programmes being
shown tomorrow from 5.00 pm onwards.
7. Press the
button on the remote control to remove the
EPG from the TV screen.
27
d
Electronic Programme Guide (EPG)
Electronic Programme Guide
Recording programmes
/
MENU
OK
PROGR
RM-888
1 Press the
button on the remote control to display the
EPG on the TV screen.
2 Press the B or b buttons to highlight the 'programme'
column then press the V or v buttons to select your
desired programme.
3 Press the OK button. If the programme is currently being
broadcast, it will be displayed on your TV. If not, the
'TIMER' menu will be displayed on the TV screen.
4 At the bottom of the timer page you can see the symbols
(back to EPG),
(to record a programme) or
(to set the programme to switch on automatically).
5 Press the B or b buttons to select one of these symbols
then press the OK button to confirm your selection.
Follow the on-screen instructions until the EPG menu
reappears on screen with the relevant icon appearing next
to the programme you selected in step 2.
6 If you wish to cancel a recording, select the relevant
programme and press the OK button. A menu is displayed
on screen requesting you to select 'Return' if you wish to
continue to record the programme or 'Delete' if you wish
to cancel the recording request.
7 After making your selection, press the OK button to
confirm. The record icon disappears from the EPG if
'Delete' was selected in step 6.
8 If you have finished viewing programmes on your TV,
press the / button before the timer recording starts to
leave your TV in standby mode for the timer settings to
be activated. If, however, you wish to continue watching
other programmes after setting the timer, you can do so
by changing programmes in the normal way. If you are
watching another programme when the timer is due to
start, a display will appear on screen advising you that, if
you change channels, you automatically cancel the
recording.
9 If you do not wish to cancel or view the recording, press
the / button whilst one of the displays are still on
screen to leave your TV in standby mode. The standby
indicator on the front of the TV will flash to show that the
timer record operation is active. If, however, you choose
to change programmes, you automatically cancel the
recording.
Notes: If your video recorder (VCR) is not Smartlink
compatible, you will need to set your VCR to switch
on and off automatically after setting the timer on
the EPG.
If you want to change channel once a digital
programme has started recording, select the channel
by using the remote control buttons as normal. A
menu appears asking if you wish to stop recording.
Select Yes or No using the V or v buttons, then
press OK to confirm your choice.
28
2
Tue 22 DEC
15:20:40
Vets in Practice
2 BBC TWO
19:00 - 20:00 Tue 22 Dec
Documentary series which follows veterinary graduates
as they embark on their careers.
Julie Richards has to deal with a terrier with behavioural
problems and Steve Leonard encounters problems
when he has to treat a golden labrador.
Continues on Friday.
Return
Event Rec
Wake Up
Electronic Programme Guide
Electronic Programme Guide (EPG)
Setting the manual timer
1
/
2
3
1
2
3
4
5
6
7
8
9
4
5
0
MENU
6
7
OK
8
9
PROGR
10
11
RM-888
12
13
14
15
Press the button on the remote control to display the EPG
on the TV screen.
Press the B or b button to highlight the 'programme type'
column then press the v button to select the timer symbol
.
Press the OK button to display a screen of 9 programme
slots, each one indicating that it is either free for
programming, or that it has a programme already stored in
it.
Press the B button to enter the 'programme' column.
Press the V or v button to select a free row then press the
OK button to display the Set Timer screen. This screen asks
you to confirm the date, programme number, start time and
stop time.
Press the V button to select the date area then press the V or
v buttons on the remote control to enter the date.
Press the b button to confirm the date then press the V or v
button to select the month.
Press the b button to confirm the month and to select the
start time.
Press the V or v buttons to enter the time when you want
the timer to switch on, preferably several minutes before
your video recorder is due to start recording.
Press the b button to confirm after each entry.
Press the V or v buttons to enter the time you want the
timer to switch off, preferably after your video is due to stop
recording.
Press the b button to confirm each entry, then press the V
or v buttons to select the programme number.
Press the OK button to save the settings, then follow the
on-screen instructions until you finally select
to
return to the Manual Timer Setup menu.
Select another available slot if you wish to record a further
programme. Otherwise, press the b button to enter the
'programme type' column then press the OK button to return
to the EPG.
If you have finished viewing programmes on your TV, press
the / button before the timer recording starts. This will
leave your TV in standby mode for the timer settings to be
activated. If, however, you wish to continue watching other
programmes after setting a timer, you can do so by changing
programmes in the normal way. If you are watching another
programme when the timer is due to start, the display shown
will appear on screen.
If you do not wish to view the recording, press the /
button whilst the display is still on screen to leave your TV
in standby mode. The standby indicator on the front of the
TV will flash to show that the timer record operation is
active. If, however, you choose to change programmes, a
display appears asking if you wish to cancel the recording.
Select Yes or No using the V or v buttons, then press OK
to confirm your choice.
12
Tue 22 DEC
15:45:40
Manual Timer Setup
V
DATE
THU 24
START
DEC
16 : 00
STOP
--
:
--
PROG NO
10
v
Return
29
Optional equipment
Connecting equipment to the TV
Using the following instructions, you can connect a wide range of optional equipment to your TV.
Connecting equipment to the TV
1. Connect your equipment to the correct TV socket as shown.
2. Press the
button repeatedly on the remote control until the correct input symbol for
your equipment appears on the TV screen:
D
D
D DOLBY SURROUND
Integrat
ed Digital
TV
Symbol
1
s
. LOGIC
Input signals
•
Audio/video input signal through the scart connector
•
RGB input signal through the scart connector
2
•
Audio/video input signal through the scart connector
phono sockets B and C
2
•
S video input signal through the scart connector
sockets A and C
F
G
8mm/Hi8
camcorder
or the
P
-
•
+
A
or the
G
S-VHS/Hi8/
DV or Digital 8
camcorder
F
s
2
B
3
PRO
Audio/video input signal through the scart connector
H
MONO
L/G/S/I
2
C
R/D/D/D
3. Switch on the connected equipment.
4. To return to normal TV operation, keep pressing the
until the TV picture appears.
D
button on the remote control
Note: To avoid picture distortion, do not connect equipment to the
sockets at the same time.
A
,
B
,
C
and
G
L/G/
S/I
R/D/
D/D
C
MODEM
S
S
1
R/D/D/D
Additional information when connecting equipment
Connecting a VCR
To record and playback digital programmes you must connect your VCR to the H socket
using a scart lead (the VCR relies on the TV to convert digital programmes to signals suitable
for recording, which are then output from the TV via the scart socket).
To record analogue programmes on the VCR, connect your external aerial to the upper socket
marked
on the TV, then connect a lead from the RF input of the VCR to the lower aerial
socket marked
on the TV.
Note: If you have set the Auto 16:9 feature to ‘On’ (see page 14), any digital recording made
from the H socket will not detect the 16:9 mode, and during playback the picture will be
displayed in the mode you previously selected from the ‘Format’ options.
Connecting headphones
Plug in your headphones to the
S
2
3
E F G
H
L/G/
S/I
R/D/
D/D
C
MODEM
S
S
1
R/D/D/D
2
S
2
3
L/G/S/I
PlayStation
D
socket of the concealed panel on the side of the TV.
DVD
Connecting to external audio equipment
Plug in your hi-fi equipment to the E sockets on the rear of the TV if you wish to amplify
the audio output from the TV. The output level from the E sockets can be varied by adjusting
the volume of the headphones (refer to the ‘Adjusting the sound’ section of this manual).
For mono equipment
Connect the phono plug of your equipment to the L/G/S/I socket of the concealed panel on
the side of the TV, then select the
2 input signal using the instructions on this page.
Finally, refer to the ‘Adjusting the sound’ section of this manual and select ‘A’ on the sound
menu screen.
30
2
L/G/S/I
Hi-Fi
VCR
Decoder
Optional Equipment
Connecting equipment to the TV
Selecting the output source for the scart
socket G or H
1. Press the MENU button on the remote control to display the
menu on the TV screen.
2. Press the V or v buttons to select the
symbol on the menu
screen then press the b button to enter the ‘VIDEO
CONNECTION’ menu screen.
MENU
VIDEO CONNECTION
TV Screen
Output
TV
[TV - - - - -]
[AV 1 - - - - -]
AV1
3. Press the V or v buttons to highlight ‘TV Screen’ (input source
for the TV screen) or ‘Output’ (output source for
2 / s 2 or
3 socket) then press the b button to confirm.
OK
4. Press the B or b button to select the desired source (see below)
then press the OK button to confirm:
TV Screen
TV, AV1, RGB, AV2, YC2, AV3
Output
TV, AV1, AV2, YC2, AV3, AUTO
PROGR
Note: When Auto is selected as the output source, then the signal
being viewed on the TV will also be output to AV2.
RM-888
5. Press the MENU button to remove the menu from the TV screen.
Smartlink
Smartlink is a direct link between your TV set and VCR.
For Smartlink you need:
• a VCR which supports Smartlink, NexTView Link or
Megalogic.
• A fully-wired 21-pin scart cable to connect your VCR to scart
connector
3.
The features of Smartlink are:
• tuning information such as the channel overview are
downloaded from the TV set to the VCR.
• direct TV recording: While watching TV you need to press just
one button on the VCR to record this programme.
For more information on Smartlink please refer to your VCR
instruction manual.
31
Optional Equipment
Connecting
Using
the AVequipment
label preset
to feature
the TV
This function enables you to designate a name to the optional equipment you have connected to the sockets of this TV. This name
can be up to 5 characters (letters or numbers) and will appear on screen whenever the equipment is selected for use.
1. Press the MENU button on the remote control to display
the menu on the TV screen.
2. Press the V or v buttons to select the
symbol on the
menu screen then press the b button to enter the
‘PRESET’ menu.
MENU
3. Press the V or v buttons to select ‘AV Label Preset’ then
press the b button to enter the ‘AV LABEL PRESET’
menu.
OK
4. Press the V or v buttons to select the input source you
wish to name (e.g. AV2) then press the b button to
highlight the first element of the ‘LABEL’ column.
PROGR
5. Press the V or v buttons to select a letter or number
(select ‘-’ for a blank) then press the b button to
confirm. Select the other four characters in the same
way.
6. After selecting all the characters, press the OK button.
RM-888
7. Repeat steps 4 to 6 if you wish to label other input
sources.
8. Press the MENU button to remove the menu from the
TV screen.
32
Additional Information
Specifications
TV system
I/DVB-T
Colour system
PAL
NTSC 3.58, 4.43 (only Video in)
Channel coverage
UHF:B21-B69
Picture tube
KV-28DX30U
FD Trinitron WIDE
Approx. 71cm (28inches) (Approx. 66cm picture measured diagonally), 102° deflection
KV-32DX30U
FD Trinitron WIDE
Approx. 82cm (32 inches) (Approx. 76cm picture measured diagonally), 102° deflection
Rear Terminals
21-pin Euro connector (CENELEC standard) including audio/video
1
input, RGB input, TV audio/video output.
2 / s 2 21-pin Euro connector (CENELEC standard) including audio/video
input, S-video input, selectable audio/video output.
21-pin Euro connector (CENELEC standard) including audio/video
3
input, selectable audio/video output.
Audio outputs - phono jacks
MODEM
Modem connection
Front Terminals
Video input -phono jack
2
Audio inputs - phono jacks
2
S video input - 4 pin DIN
s
Headphones jack - minijack stereo
Sound output
Left/Right:
2x20W (music power)
Power consumption
KV-28DX30U:
136W
KV-32DX30U:
134W
Dimensions (wxhxd)
KV-28DX30U:
Approx. 796x518x522mm
KV-32DX30U:
Approx. 883x567x562mm
Weight
KV-28DX30U:
KV-32DX30U:
Approx. 44kg
Approx. 62kg
Accessories supplied
RM-888 remote control (1)
IEC designated size AA battery (2)
Other features
Teletext
Dolby Pro Logic Surround System
Smartlink
Design and specifications are subject to change without notice.
33
Additional Information
Troubleshooting
Here are some simple solutions to problems which may affect the picture and sound.
Problem
Cause
No picture, no sound.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Power off.
TV in standby.
Aerial disconnected.
Picture preset level adjustment.
No digital transmissions in your area.
No digital transmissions from the transmitter you are currently using.
Weak signal.
Unsuitable aerial.
Scrambled/subscription-only channel.
Programme used only for data (no picture or sound).
Programme not being transmitted.
Digital mode Timer Record active (regular flash).
Fault (irregular flash).
Volume control.
•
•
The button marked
on the rear of the TV is pressed in.
The TV has been set to perform Dolby Pro Logic decoding.
•
•
•
•
Wrong external mode selected on an RGB video source.
Colour level setting.
Batteries low.
Inputs from external equipment not switched off.
Cause
•
Solution
Power off.
TV in standby.
•
•
•
Plug in the TV.
Press the
button on the front of the TV.
If the
indicator is on press the / button or a numbered button on the
remote control.
Check the aerial connection.
Select
on the TV menu system then adjust the brightness, picture and colour
balance levels.
Tune in the analogue channels available using the ‘Manually tuning the TV’
instruction in this manual, then contact a local installer to find out when digital
transmissions begin in your area.
Contact a local installer to find out which transmitter you should be pointing
your aerial at.
Change your aerial to cover the channels used by digital programmes. (Contact
a local installer)
Ensure aerial is correctly aligned to transmitter.
Ensure aerial is plugged directly into the TV (not through other equipment).
Upgrade to a higher gain aerial.
Subscribe to pay-per-view broadcaster.
See ‘Skipping programme positions’ section.
See ‘Re-arranging the TV channels’ section.
Do not open the cabinet, refer to qualified personnel.
Contact your nearest Sony Service Centre.
Press the
+ button on the remote control.
If
is displayed on the screen, press the
button on the remote control.
Press the
button repeatedly until the RGB symbol
is displayed on
screen.
Select
on the TV menu system then adjust the colour setting.
Poor or no picture (screen is dark), but good sound.
No picture on any channel after digital tuning.
Some channels are blank.
Standby indicator flashing.
Good Picture, no sound.
No head phone output and no output from the audio
sockets marked
on the rear of the TV.
Poor picture quality.
No colour on colour programmes.
Remote control does not function.
Distorted picture when changing programmes or
selecting Teletext.
Aerial disconnected.
Picture level adjustment.
•
•
No digital transmissions in your area.
•
No digital transmissions from the transmitter you
are currently using.
Unsuitable aerial.
•
Weak signal.
Wrong external mode selected.
•
•
•
•
•
•
•
•
•
•
•
Colour level setting.
•
Scrambled/subscription-only channel.
Programme information without picture or sound.
Fault.
Volume control.
•
•
34
•
If you continue to have these problems, have your TV serviced by qualified personnel or
you can contact the Sony UK Digital HelpLine on 0870 600 1717.
NEVER open the casing yourself.
35
36
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
