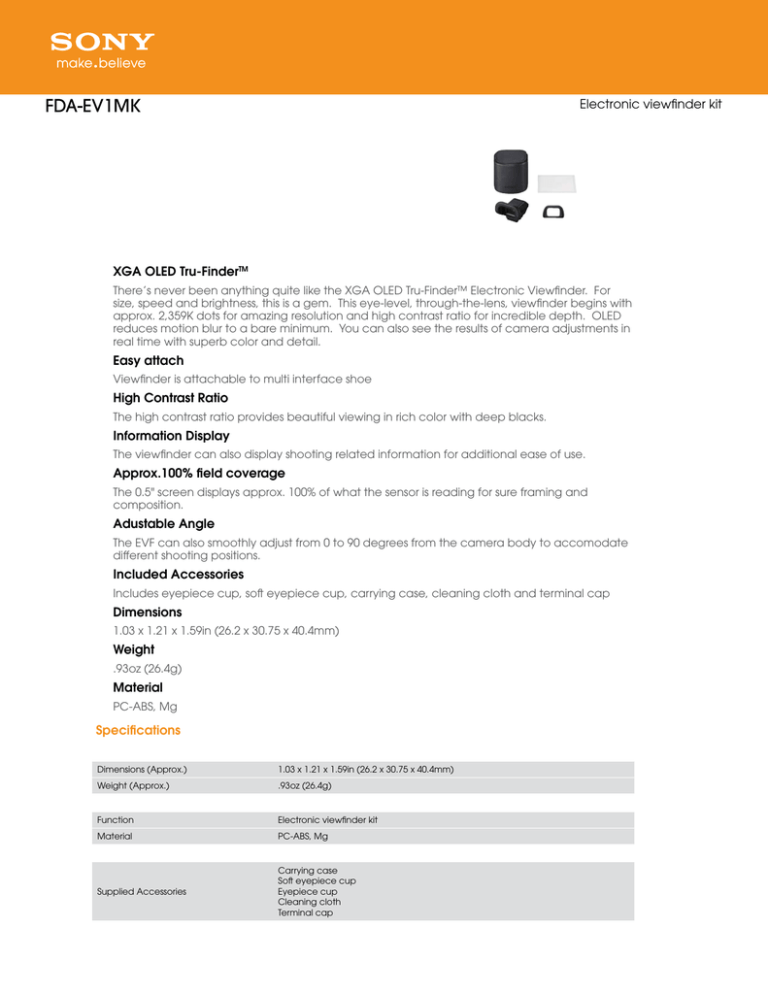

Sony FDA-EV1MK Specification

Sony FDA-EV1MK Specification
FDA-EV1MK
Electronic viewfinder kit
XGA OLED Tru-FinderTM
There’s never been anything quite like the XGA OLED Tru-Finder™ Electronic Viewfinder. For
size, speed and brightness, this is a gem. This eye-level, through-the-lens, viewfinder begins with
approx. 2,359K dots for amazing resolution and high contrast ratio for incredible depth. OLED
reduces motion blur to a bare minimum. You can also see the results of camera adjustments in
real time with superb color and detail.
Easy attach
Viewfinder is attachable to multi interface shoe
High Contrast Ratio
The high contrast ratio provides beautiful viewing in rich color with deep blacks.
Information Display
The viewfinder can also display shooting related information for additional ease of use.
Approx.100% field coverage
The 0.5" screen displays approx. 100% of what the sensor is reading for sure framing and
composition.
Adustable Angle
The EVF can also smoothly adjust from 0 to 90 degrees from the camera body to accomodate
different shooting positions.
Included Accessories
Includes eyepiece cup, soft eyepiece cup, carrying case, cleaning cloth and terminal cap
Dimensions
1.03 x 1.21 x 1.59in (26.2 x 30.75 x 40.4mm)
Weight
.93oz (26.4g)
Material
PC-ABS, Mg
Specifications
Weights and Measurements
Dimensions (Approx.)
1.03 x 1.21 x 1.59in (26.2 x 30.75 x 40.4mm)
Weight (Approx.)
.93oz (26.4g)
General
Function
Electronic viewfinder kit
Material
PC-ABS, Mg
Accessories
Supplied Accessories
Carrying case
Soft eyepiece cup
Eyepiece cup
Cleaning cloth
Terminal cap
© 2012 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. All other trademarks are property of their respective
owners. Features and specifications are subject to change without notice. Non-metric weights and measures are approximate.
UPC:/ Updated: September 27, 2012
