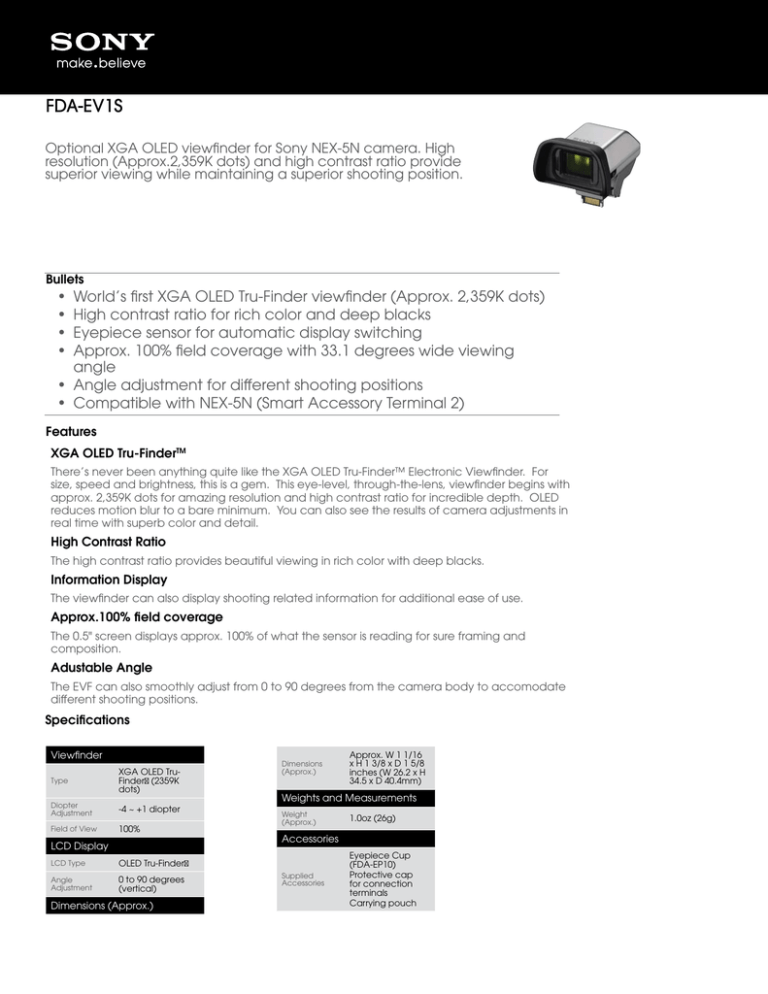

FDA-EV1S
Optional XGA OLED viewfinder for Sony NEX-5N camera. High
resolution (Approx.2,359K dots) and high contrast ratio provide
superior viewing while maintaining a superior shooting position.
Bullets
• World’s first XGA OLED Tru-Finder viewfinder (Approx. 2,359K dots)
• High contrast ratio for rich color and deep blacks
• Eyepiece sensor for automatic display switching
• Approx. 100% field coverage with 33.1 degrees wide viewing
angle
• Angle adjustment for different shooting positions
• Compatible with NEX-5N (Smart Accessory Terminal 2)
Features
XGA OLED Tru-FinderTM
There’s never been anything quite like the XGA OLED Tru-Finder™ Electronic Viewfinder. For
size, speed and brightness, this is a gem. This eye-level, through-the-lens, viewfinder begins with
approx. 2,359K dots for amazing resolution and high contrast ratio for incredible depth. OLED
reduces motion blur to a bare minimum. You can also see the results of camera adjustments in
real time with superb color and detail.
High Contrast Ratio
The high contrast ratio provides beautiful viewing in rich color with deep blacks.
Information Display
The viewfinder can also display shooting related information for additional ease of use.
Approx.100% field coverage
The 0.5" screen displays approx. 100% of what the sensor is reading for sure framing and
composition.
Adustable Angle
The EVF can also smoothly adjust from 0 to 90 degrees from the camera body to accomodate
different shooting positions.
Specifications
Viewfinder
Type
XGA OLED TruFinder™ (2359K
dots)
Diopter
Adjustment
-4 ~ +1 diopter
Field of View
100%
LCD Display
LCD Type
OLED Tru-Finder™
Angle
Adjustment
0 to 90 degrees
(vertical)
Dimensions (Approx.)
Dimensions
(Approx.)
Approx. W 1 1/16
x H 1 3/8 x D 1 5/8
inches (W 26.2 x H
34.5 x D 40.4mm)
Weights and Measurements
Weight
(Approx.)
1.0oz (26g)
Accessories
Supplied
Accessories
Eyepiece Cup
(FDA-EP10)
Protective cap
for connection
terminals
Carrying pouch
©2011 Sony Electronics Inc.
Sony, Tru-Finder, and α (Alpha) are trademarks of Sony. All other trademarks are property of their respective owners.
Features and specifications are subject to change without notice. Non-metric weights and measures are approximate.
/Updated: January 26, 2012
