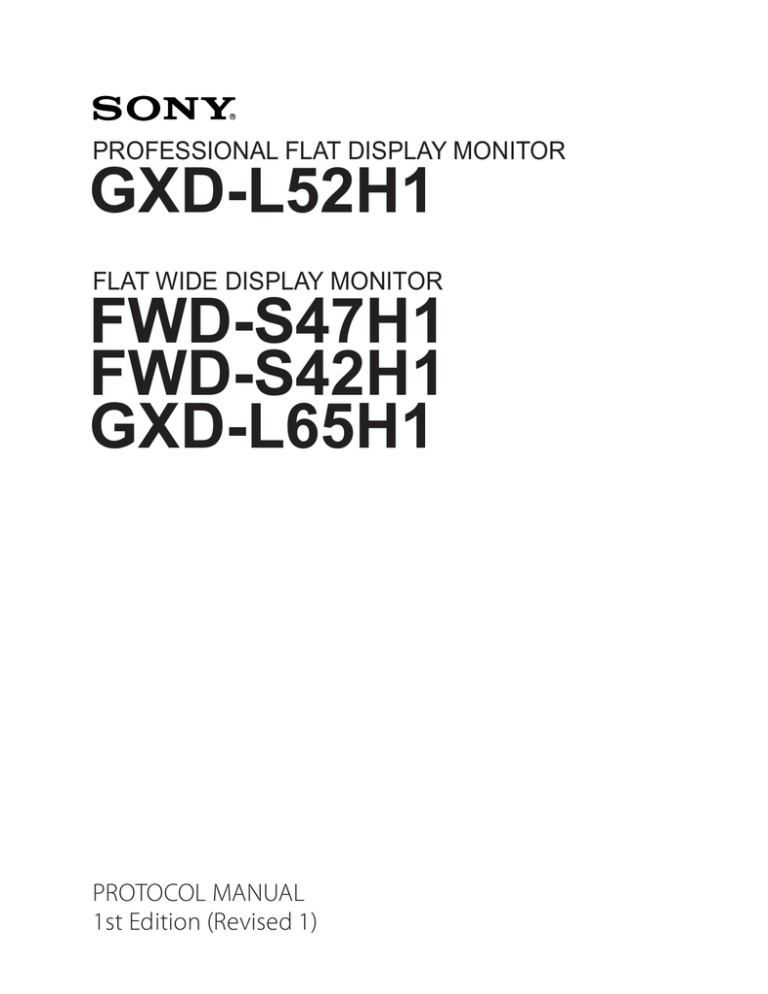

PROFESSIONAL FLAT DISPLAY MONITOR
GXD-L52H1
FLAT WIDE DISPLAY MONITOR
FWD-S47H1
FWD-S42H1
GXD-L65H1
PROTOCOL MANUAL
1st Edition (Revised 1)
Table of Contents
Overview
Appendix 1
Command Examples
Search Function ............................................................................ 3
RS232 Command Examples ................................................... A1-1
ID Talk Command Examples .................................................. A1-2
1. RS-232C
1-1.
Communication Parameters ............................................ 1-1
1-2.
Pin Assignment................................................................ 1-1
1-3.
Communication Data Format .......................................... 1-1
1-4.
Outline of Communication .............................................. 1-3
2. SNMP
Appendix 2
Common Command
1.
General Function .......................................................... A2-1
2.
Analog Signal Detect Function .................................... A2-4
3.
Priority Signal Select Function .................................... A2-5
4.
RGB Signal .................................................................. A2-5
5.
Picture/Sound ............................................................... A2-9
2-1.
SNMP .............................................................................. 2-1
6.
Size/Shift .................................................................... A2-12
2-2.
Specifications of SNMP Installation ............................... 2-2
7.
Status Enquiry ............................................................ A2-17
2-3.
Installation ....................................................................... 2-2
8.
User Reset .................................................................. A2-23
2-4. Operation of SNMP Setting Window .............................. 2-2
2-4-1.
Community ............................................................ 2-3
2-4-2.
Authentication Trap ............................................... 2-4
2-4-3.
IP Restriction of Host............................................. 2-4
2-5.
MIB to Be Installed ......................................................... 2-5
2-6.
Information to Be Notified on Trap ................................. 2-5
Appendix 3
Difference for Each Model
GXD-L52H1 ........................................................................... A3-1
FWD-S42H1/S47H1 ............................................................... A3-3
3. ID Talk
3-1.
Default Setting................................................................. 3-1
3-2.
Setting Items.................................................................... 3-1
3-3.
Packet Structure............................................................... 3-2
3-4.
Requests and Responses .................................................. 3-3
3-5.
Items ................................................................................ 3-4
3-6.
Error Codes ..................................................................... 3-6
GXD-L52H1
GXD-L65H1 ........................................................................... A3-8
1
Overview
This protocol manual explains the basic configuration and operation for describing various commands that are used for a
flat wide display monitor and professional flat display monitor (hereinafter referred to as a display). The display (this unit)
can be controlled using commands described in Appendix.
Search Function
m
. The following shows the example when using Adobe Reader 8.
. If you cannot find the search function, select Edit → Search from the pull-down menu.
A function, menu, and command are searched using a service/protocol manual.
1. Open a file, enter the words, to be searched, in the frame indicated by the arrow on the screen below, and press the
[Enter] key.
2. Search the corresponding words in a document file.
3. Click the button in the enclosed portion.
Search the corresponding place.
Acrobat, Acrobat Readeri is a trademark of Adobe Systems Incorporated in the
United States and/or other countries
GXD-L52H1
3
Section 1
RS-232C
1-1.
Communication Parameters
Communication method
RS-232C
Synchronous method
Asynchronous
Baud rate
9600bps
Character length
8bit
Parity
None
Start bit length
1bit
Stop bit length
1bit
Flow control
None
1-2.
Pin Assignment
Monitor side (D-sub 9-pin)
5
4
9
3
8
2
7
Host side (D-sub 9-pin)
1
5
6
9
_ External view _
Pin No.
1
2
3
4
5
6
7
8
9
4
3
8
2
7
1
6
_ External view _
Function
NC
TXD
RXD
NC
GND
NC
NC
NC
NC
Pin No.
1
2
3
4
5
6
7
8
9
Function
NC
RXD
TXD
NC
GND
NC
NC
NC
NC
n
Use the RS-232C straight cable.
1-3.
Communication Data Format
(a) Control message
No.
Item
Value
1
Header
0x8C: Control
2
Category
0xXX
3
Function
0xXX
4
Data1 (Length)
0xXX
5
Data2 (Data1)
0xXX
:
:
0xXX
:
:
0xXX
X
DataX
0xXX
X+1
Check Sum
0xXX
* Check Sum: Sum total of 1 to X. Lower one-byte data is validated when a value exceeds 255 (1byte).
GXD-L52H1
1-1
(b) Enquiry message
No.
Item
Value
1
Header
0x83: Enquiry
2
Category
0xXX
3
Function
0xXX
4
Data1
0xFF
5
Data2
0xFF
6
Check Sum
0xXX
* Check Sum: Sum total of 1 to X, lower one-byte data is validated when a value exceeds 255 (1byte).
(c) Answer message
 Control answer
No.
Item
Value
1
Header
0x70: Answer
2
Answer*
0x00: Completed
0x01: Limit Over
0x02: Limit Under
0x03: Command Canceled
3
* 0x00:
0x01:
0x02:
0x03:
Check Sum
Completed
Limit Over
Limit Under
Command Canceled
* Check Sum:
0xXX
Packet is correctly received and process is also correctly completed.
Packet is correctly received, but the data value is over the upper limit.
Packet is correctly received, but the data value under the lower limit.
Packet is correctly received, but the data value is not correct. The request cannot be accepted in the current host state.
Sum total of 1 to X, lower one-byte data is validated when a value exceeds 255 (1byte).
 Enquiry answer (Complete)
No.
Item
Value
1
Header
0x70: Answer
2
Answer
0x00: Completed
3
Return Data Size
0xXX
4
Return Data1
0xXX
:
:
0xXX
:
:
0xXX
X
Return DataX
0xXX
X+1
Check Sum
0xXX
* 0x00: Completed
* Return Data:
* Check Sum:
Packet is correctly received and process is also correctly completed.
Returns the read value.
Sum total of 1 to X, lower one-byte data is validated when a value exceeds 255 (1byte).
 Enquiry answer (Command cancel)
No.
Item
Value
1
Header
0x70: Answer
2
Answer
0x03: Command Canceled
3
Check Sum
0x73
0x03: Command Canceled
1-2
Packet is correctly received, but the data value is not correct. The request cannot be accepted in the current host state.
GXD-L52H1
 Error answer
No.
Item
Value
1
Header
0xE0: Answer
2
Answer*
0x00: No Function Error
0x01: Check Sum Error
0x02: Data Length Error
3
Check Sum
* 0x00: No Function Error
0x01: Check Sum Error
0x02: Data Length Error
1-4.
0xXX
Packet header, category or function code are not included in this protocol.
Check sum value of received packet is not correct.
The data size of received packet is not correct.
Outline of Communication
A controller (PC) communicates with a display according to the communication data format. Communication is started by
issuing a command from the controller. Communication is terminated when the display sends return data (an answer message) to the controller after it receives the issued command.
It is inhibited that a controller sends multiple commands at a time.
Therefore, a controller cannot send other commands until return data is sent back from a display after it sends one command. The display sends return data after command processing is completed.
GXD-L52H1
1-3
Section 2
SNMP
2-1. SNMP
This unit installs SNMP (Simple Network Management Protocol). SNMP is a standard protocol for
network management that was standardized in IETF (Internet Engineer Task Force).
By using SNMP, the management information of equipment connected to a network can be gotten via a
network. The information of multiple equipment gotten using SNMP can also be unitarily managed by
using SNMP management software.
The equipment corresponding to SNMP has a “management information database” called MIB (Management Information Base) in the inside of equipment. In SNMP, the bidirectional communication of data
contained in MIB is realized between a “management system” and “management object system” that exist
in a network.
In MIB, there is the standard MIB prescribed by RFC. Especially, MIB-II is its representative MIB.
MIB-II was established to manage a network. MIB-II is installed in much network equipment such as a
PC, router, and switch as a standard feature. This unit installs this MIB-II.
Monitoring and monitored sides exist when equipment is monitored via a network using SNMP. The
monitoring side is called an “SNMP manager”. It is mainly constituted by the software of PC. For the
monitored side, a module called an “SNMP agent” is installed. SNMP-compatible equipment transmits
MIB information to an SNMP manager via this SNMP agent. This unit installs this SNMP agent. This
unit can realize the communication with a general-purpose SNMP manager using this SNMP agent.
Basically, an SNMP agent replies only when an inquiry is sent from an SNMP manager.
The SNMP manager periodically inquires the equipment, which it manages, about MIB information. This
way to get information is called “polling”. In polling, equipment replies using a response command when
an SNMP manger sends a request command to equipment. By polling, therefore, equipment can be
monitored without applying a high load to the equipment.
On the other hand, notification can also be done from the equipment side to an SNMP manager. This notification is called a “trap”. Using this trap, when a serious trouble occurred in equipment, it can be notified
to the SNMP manager in a short time.
This unit is compatible with the two polling and trap protocols described above. Equipment can be
efficiently monitored using these protocols.
GXD-L52H1
2-1
2-2. Specifications of SNMP Installation
The specifications of the SNMP agent installed in this unit are shown in below.
. SNMP version:
SNMPv1
. MIB definition:
SMIv2
. Support PDU:
GetRequesat
SetRequest
GetNextRequest
Trap
. Standard MIB to be installed: MIB-II
2-3. Installation
The setting below is required to use the SNMP function of this unit. (Set according to your network
environment and SNMP management environment.)
. Community and its Community property
. Authentication trap
. Host restriction
The Web server function of this unit is used for setting. Refer to the Operation Manual of this unit for the
operation of the Web server.
The contents of each item and the setting of SNMP are fully described in this specification.
2-4. Operation of SNMP Setting Window
This section describes the procedure and contents for
setting of SNMP.
Open the Web page of this unit and click the [SNMP]
button in the Advanced setting item on the Setup page
(where an administrator’s password is necessary). The
SNMP setting window is displayed.
. User name: root
. Password: pudadm
\
SNMP Setting window (on Web Page)
2-2
GXD-L52H1
2-4-1. Community
A Community name is used as the password for SNMP access. The request received from an SNMP manager is accepted when the Community name contained in the request coincides with the Community name
set. The request is rejected when the former does not coincide with the latter.
A maximum of three Communities can be set.
There are “Rights” and “Trap destinations” items in the property of Community. The property can be set
for each set Community.
n
When multiple Communities are set, all set Communities are validated.
1. Rights
The rights that can be set are as follows:
Read Only: An SNMP manager can reference MIB information using this Community name.
Read Write: This Community must be set when a write request is sent from an SNMP manager.
Other:
Do not set this option because it is used for the function extension in future.
2. Trap destinations
When Trap destinations are set, during trap occurrence, a trap is notified to the equipment set as trap destinations using the Community name set.
Up to four Trap destinations can be set to one Community.
Trap destinations are not set in default.
n
This product can be set on only the Web screen because it does not install the automatic setting function
of Trap destinations.
3. Setting procedure of Community
Community can be added, edited, and removed.
The addition, editing, and removal procedures of Community are described below.
Addition of Community
1. Click the [Add] button.
The “Community name”, “Rights”, and “Trap destinations” text boxes, and [Set|to|List] and
[Cancel] buttons are validated.
2. Type the Community name you want to add.
3. Set the Rights of Community and the Trap destinations you want to add.
When you want to save the setting, click the [Set|to|List] button and then click the [Apply] button at
the bottom of the window.
m
. Click the [Cancel] button when you want to discard the setting during setting.
. When you want to save setting, be sure to click the [Set|to|List] button and then click the [Apply]
button.
GXD-L52H1
2-3
Editing of Community
1. Select the Community, you want to edit, from a drop-down list.
2. Click the [Edit] button.
The “Community name”, “Rights”, and “Trap destinations” text boxes, and [Set|To|List] and
[Cancel] buttons are validated.
Edit the Community name when you want to edit a Community name.
3. Set the Rights of Community and the Trap destinations you want to edit.
m
. Click the [Cancel] button when you want to discard the setting during setting.
. When you want to save the setting, click the [Set|to|List] button and then click the [Apply] button
at the bottom of the window.
Removal of Community
1. Select the Community, you want to remove, from a drop-down list.
2. Click the [Remove] button and then click the [Apply] button at the bottom of the window.
n
Be sure to click the [Remove] button and then click the [Apply] button.
2-4-2. Authentication Trap
An authentication trap is the trap for making it detect by an SNMP manager that an illegal access was
gained to this unit using an SNMP protocol.
. The authentication trap is validated when this check box is selected. A trap is transmitted when an
illegal access is gained.
. The authentication trap is invalidated when this check box is not selected. A trap is not transmitted even
if an illegal access is gained.
n
Be sure to click the [Apply] button when you edited setting.
2-4-3. IP Restriction of Host
It is possible to put restrictions on the IP address of an SNMP manager, as one of the security countermeasures, which communicates using an SNMP protocol.
. IP address restriction is invalidated when you select “Accept packets from any host”.
. Only the SNMP access from an SNMP manager that has the set IP address is accepted when you select
“Accept packets from those hosts”. The SNMP access from an IP address that has not been set is rejected.
m
. Up to four IP restrictions can be set.
. Be sure to click the [Apply] button when you edited setting.
2-4
GXD-L52H1
2-5. MIB to Be Installed
This unit installs MIB-II.
MIB-II is the most representative standard MIB. It is installed in various network products.
The statistical information on the amount of network traffic or the number of transmitted and received
packets is defined, and the change or transition can be monitored by polling the information periodically.
Additionally, the management items to be installed can be defined using a TCP/IP device so as to get the
information effective for the monitoring of the network communication state.
Refer to RFC1213 for the detailed definition of MIB-II.
2-6. Information to Be Notified on Trap
In software version 2.0 or later, the software have a function that transmits error information to this unit.
The error trap and authentication trap are installed.
GXD-L52H1
2-5
Section 3
ID Talk
ID Talk is set as described below. ID Talk is a protocol for operating the function of this unit via a network.
3-1. Default Setting
Item
Description
Transport
TCP
Port number
53484 (Factory setting)
TCP connection time-out
30 seconds (Factory setting)
3-2. Setting Items
The items that can be set to ID Talk are shown in the table below.
Item
Description
Start ID Talk Service
Select the check box when using ID Talk. Clear the check box when using no ID Talk.
(default setting: OFF)
Port No.
Changes the port number. A port number have to change port number 53484 cannot
be used because it has been already used for another purpose.
Timeout
Specify the timeout time of connection.
Connection is automatically disconnected when communication is not done for the
specified time.
IP address of client
(Host Address)
Executes only the request from the specified IP address.
ID Talk does not have the security function such as user authentication. During
installation, safety can be improved by setting this item.
Multiple host addresses can be set.
Community
Changes the community of a header. Four (upper-or-lower case) alphanumeric
characters can be set.
(default setting: SONY)
Set the items described above properly on the SETUP → ID Talk page of the Web page when using ID
Talk.
Enter the SETUP page using the user name and password below.
. User name: root
. Password: pudadm
GXD-L52H1
3-1
3-3. Packet Structure
The packet structure of ID Talk is described below.
Community Command
(4)
(4)
Data
(n)
Header
(2)
Packet structure
1. Header
The header is constituted by two bytes consisting of a version (8 bits) and category (8 bits).
0
1
(Bit position)
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5
Version (8)
Category (8)
Header structure
Version
Indicates the version number of an ID Talk protocol.
This version is fixed to 02h (version 2).
Category
Contains the category number of display equipment to be controlled. A category number is confirmed on
the display equipment side. A request is ignored when a different category number is contained.
Code
Category
10h
Information Display
2. Community
A request is executed when community coincides with the community set in display equipment. Community consists of four (upper- or lower-case) alphanumeric characters. “SONY” is a factory-setting value.
The set character can be changed on the Web page.
0
1
2
3 (Bit position)
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
Community (32)
Community packet
3. Command
The format of a request packet and response packet is described below.
0
2
3 (Bit position)
1
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
Item No(16)
Data Length(8)
Request/Response(8)
Command packet
3-2
GXD-L52H1
4. Request
The format when sending a request from a host to display equipment is described below.
Community
This is the same alphanumeric character as the community set in display equipment that sends a request.
Request
This is a request for display equipment.
Item No.
This is the item number to be treated for request.
Data Length
This is the length of data incident to a request. The maximum length is 128 bytes. The length of data is
“0” when no data exists.
Data
This is data incident to a request.
5. Response
The format when display equipment returns a response to the request from a host is described below.
Community
This contains the same alphanumeric character as a request. For a short header and short community, this
is embedded with 00h.
Response
This contains the result of a request.
Item No.
This is the item number to be treated for response.
Data Length
This is the length of data incident to a response. The maximum length is 128 bytes. The length of data is
“0” when no data exists.
Data
This is data incident to a response.
3-4. Requests and Responses
Requests and responses are described below.
1. Requests
Requests are only a GET request that gets the display information or state and a SET request that changes
the setting of display equipment.
Request
Contents
SET (00h)
Writes data in the register of display equipment.
GET (01h)
Gets the installation information, equipment state, or setting values.
SET command:
Communication with the main microcomputer of display equipment can be done via a network by using
the protocol dedicated to this unit as well as an ID Talk protocol. Use a SET command in this case. (Also,
use a SET command when receiving information from the display equipment.)
GXD-L52H1
3-3
2. Responses
A response returns the result of execution to the request from a host.
Response
Contents
NG (00h)
Indicates that a request is invalid or could not be executed.
OK (01h)
Indicates that a request could be executed normally.
3. SET request
The SET request sets a new value to the specified item. A request and its response are described in details
below.
Request
Request
Item No.
Data
Length
00h
Item No.
n
Data
Set Data(n byte)
SET request
Response
OK(01h)
Item No.
n
Get Data(n byte)
Response to SET request
4. GET request
The GET request gets the value of the specified item. A request and its response are described in details
below.
Request
Request
01h
Data
Length
Item No.
Item No.
0
GET request
Response
OK(01h)
Item No.
n
Get Data(n byte)
Response to GET request
5. ERROR response
An NG message is returned as a response when an error occurs in the contents of a request or the result of
execution.
NG(00h)
Item No.
2
Error Code(16)
ERROR response
3-5. Items
Category
Contents
SET
GET
80**h
Gets the information of this unit
O
O
90**h
Gets the network setting information.
_
O
F100h
FWD-S42H1/S47H1 dedicated protocol
O
_
3-4
GXD-L52H1
1. 80**h
This item gets the information of the connected display equipment.
Lower byte
Contents
SET
GET
00h
Category Code
_
O
01h
Model Name
_
O
02h
Serial Number
_
O
03h
Installation Place
O
O
0x8000 Category code
1 byte
0x8001 Model name
12 alphanumeric characters
For under 12 alphanumeric characters, the remaining section is set as 00h.
0x8002 Serial number
4 bytes
0x8003 Installation place
24 alphanumeric characters
For under 24 alphanumeric characters, the remaining section is set as 00h.
2. 90**h
This item gets the network setting information.
Lower byte
Contents
SET
GET
00h
MAC Address
_
O
01h
IP Address
_
O
02h
Subnet Mask
_
O
03h
Default Gateway
_
O
04h
DHCP
_
O
0x9000 MAC Address
6 bytes
0x9001 IP Address
4 bytes
0x9002 Subnet Mask
4 bytes
0x9003 Default Gateway
4 bytes
0x9004 DHCP
1 byte
DHCP invalid data value: 0
DHCP valid data value: 1
3. F100h
This unit dedicated protocol packets can be transmitted to the main microcomputer of this unit as ID Talk
data according to this unit dedicated protocol. The response of protocol is returned as the data of ID Talk
response packets.
GXD-L52H1
3-5
3-6. Error Codes
An error code list and its details are shown in the table below.
Category
Error
Error code
Item Error (01**h)
Invalid Item
01h
Invalid Item Request
02h
Invalid Length
03h
Invalid Data
04h
Short Data
11h
Not Applicable Item
80h
Community Error (02**h)
Different Community
01h
Request Error (10**h)
Invalid Version
01h
Invalid Category
02h
Invalid Request
03h
Short Header
11h
Short Community
12h
Short Command
13h
Network Error (20**h)
Timeout
01h
Comm Error (F0**h)
Timeout
01h
Check Sum Error
10h
Framing Error
20h
Parity Error
30h
Over Run Error
40h
NVRAM Error (F1**h)
Other Comm Error
50h
Unknown Response
F0h
Read Error
10h
Write Error
20h
1. Item errors
An item error occurs when the Item No. or Data of a request is invalid. The conditions under which each
error occurs are described below.
Invalid Item
When Item No. that is not supported is specified
Invalid Item Request
When Item No. is supported, but Request that is not supported is requested
Invalid Length
When the Data Length of the specified Item No. is too long
Invalid Data
When the Data of the specified Item No. differs in the setting range
Short Data
When the length of data differs from the value specified using Data Length
Not Applicable Item
When an item that is not valid at present is specified
2. Community error
This error occurs when community differs.
3-6
GXD-L52H1
3. Request errors
These errors occur when a header or command is invalid. The conditions under which each error occurs
are described below.
Invalid Version
When the version of a header is other than 2
Invalid Category
When a category differs
Invalid Request
When a request that is not supported is specified
Short Header
When the received data is 1 byte
Short Community
When the received data is 2 to 5 bytes
Short Command
When the received data is 6 to 9 bytes
4. Network error
This error occurs in TCP/IP. The conditions under which an error occurs are described below.
Timeout
When communication was interrupted halfway
5. Comm error
This is an error that occurs during communication with the main control microcomputer of display equipment.
Timeout
When the received data is not sent after data transmission
Check Sum Error
When a check sum error occurs in the main control microcomputer
Framing Error
When a framing error occurs
Parity Error
When a parity error occurs
Over Run Error
When an overrun error occurs
Other Comm Error
When other errors occur
Unknown Response
When data that cannot be processed is received
6. NVRAM error
Read Error
When the read operation from NVRAM fails
Write Error
When the write operation to NVRAM fails
GXD-L52H1
3-7
Simultaneous processing is not performed when one unit is controlled from multiple hosts via a network
in Section 1.
A cancel command is returned to connection when access is gained from another host during processing
of one command.
(0x02 0x10 0x53 0x4F 0x4E 0x59 0x00 0xF1 0x00 0x03 0x70 0x03 0x73)
3-8
GXD-L52H1
Appendix 1
Command Examples
RS232 Command Examples
(1) Power On
Command
Answer
Header
Category
Function
Data1
Data2
0x8C
0x00
0x00
0x02
0x01
Control
Mode Control
Power
FIX
ON
Header
Answer
Check Sum
0x70
0x00
0x70
Control
Complete
Header
Answer
Check Sum
0x70
0x03
0x73
: When a command is canceled
Control
Command
Canceled
Check Sum
0x8F
= 0x8C + 0x00 + 0x00 + 0x02 +
0x01
: When a command is completed
(2) INPUT SELECT HD15 RGB
Command
Answer
Header
Category
Function
Data1
Data2
0x8C
0x00
0x01
0x02
0x08
Control
Mode Control
Input Select
FIX
HD15 RGB
Header
Answer
Check Sum
0x70
0x00
0x70
Control
Complete
Check Sum
0x97
= 0x8C + 0x00 + 0x01 + 0x02 +
0x08
: When a command is completed
(3) MULTI DISPLAY BATCH
Command
Header
Category
Function
Data1
Data2
Data3
Data4
0x8C
0x20
0x11
0x08
0x01
0x03
0x00
Control
Size/Shift
Mullti Display
Batch
FIX
2x2
Position 4
Tiles
Data5
Data6
Data7
Data8
Check Sum
0x1E
0x1E
0x1E
0x1E
0x41
H Size
H Shift
V Size
V Shift
= 0x8C + 0x20 + 0x11 + 0x08 + 0x01 + 0x03 +
0x00 + 0x1E + 0x1E + 0x1E + 0x1E = 0x141
* Lower one-byte data “41” is validated because
the sum total exceeds 255 (0xFF).
Arbitrary numbers in the range of 0x00 (minimum) to 0x3C
(maximum)
Set to position 4 by multi-display 2 x 2.
Answer
GXD-L52H1
Header
Answer
Check Sum
0x70
0x00
0x70
Control
Complete
: When a command is completed
1
2
3
4
A1-1
ID Talk Command Examples
(1) Power On
Header
Command
Community
0x10
0x53
0x4F
0x4E
0x59
0x00
0xF1
0x00
FIX
(Version)
FIX
(Category)
FIX
(S)
FIX
(O)
FIX
(N)
FIX
(Y)
Set
FIX
FIX
Data
Length
Header
Category
Function
Data1
Data2
Check Sum
0x06
0x8C
0x00
0x00
0x02
0x01
0x8F
Data length
after the
above.
Control
Mode
Control
Power
Data
length
after the
above.
ON
Community
= 0x8C + 0x00 + 0x00 + 0x02 + 0x01
Request/
Response
Item No
0x02
0x10
0x53
0x4F
0x4E
0x59
0x00
0xF1
0x00
FIX
(Version)
FIX
(Category)
FIX
(S)
FIX
(O)
FIX
(N)
FIX
(Y)
Set
FIX
FIX
Data
Length
Header
Answer
Check
Sum
0x03
0x70
0x00
0x70
Data length
after the
above.
Control
Complete
Header
A1-2
Item No
0x02
Header
Answer
Request/
Response
: When a command is completed
Community
Request/
Response
Item No
0x02
0x10
0x53
0x4F
0x4E
0x59
0x00
0xF1
0x00
FIX
(Version)
FIX
(Category)
FIX
(S)
FIX
(O)
FIX
(N)
FIX
(Y)
Set
FIX
FIX
Data
Length
Header
Answer
Check
Sum
0x03
0x70
0x03
0x73
Data length
after the
above.
Control
Command
Canceled
: When a command is canceled
GXD-L52H1
(2) INPUT SELECT HD15 RGB
Header
Command
Community
GXD-L52H1
Item No
0x02
0x10
0x53
0x4F
0x4E
0x59
0x00
0xF1
0x00
FIX
(Version)
FIX
(Category)
FIX
(S)
FIX
(O)
FIX
(N)
FIX
(Y)
Set
FIX
FIX
Data
Length
Header
Category
Function
Data1
Data2
Check Sum
0x06
0x8C
0x00
0x01
0x02
0x08
0x97
Data length
after the
above.
Control
Mode
Control
Input
Select
Data
length
after the
above.
HD15
RGB
Header
Answer
Request/
Response
Community
= 0x8C + 0x00 + 0x01 + 0x02 + 0x08
Request/
Response
Item No
0x02
0x10
0x53
0x4F
0x4E
0x59
0x00
0xF1
0x00
FIX
(Version)
FIX
(Category)
FIX
(S)
FIX
(O)
FIX
(N)
FIX
(Y)
Set
FIX
FIX
Data
Length
Header
Answer
Check
Sum
0x03
0x70
0x00
0x70
Data length
after the
above.
Control
Complete
: When a command is completed
A1-3
(3) MULTI DISPLAY BATCH
Header
Command
Community
Request/
Response
Item No
0x02
0x10
0x53
0x4F
0x4E
0x59
0x00
0xF1
FIX
(Version)
FIX
(Category)
FIX
(S)
FIX
(O)
FIX
(N)
FIX
(Y)
Set
FIX
Data
Length
Header
Category
Function
Data1
Data2
Data3
Data4
0x0C
0x8C
0x20
0x11
0x08
0x01
0x03
0x00
Data length
after the
above.
Control
Size/Shift
Mullti
Display
Batch
Data
length
after the
above.
2x2
Position 4
Tiles
Data5
Data6
Data7
Data8
Check
Sum
0x1E
0x1E
0x1E
0x1E
0x41
H Size
H Shift
V Size
V Shift
Arbitrary numbers in the range of 0x00 (minimum) to
0x3C (maximum)
0x00
= 0x8C + 0x20 + 0x11 + 0x08 + 0x01 + 0x03 + 0x00 + 0x1E +
0x1E + 0x1E + 0x1E = 0x141
* Lower one-byte data “41” is validated because the sum total
exceeds 255 (0xFF).
Set to position 4 by multi-display 2 x 2.
Header
Answer
A1-4
1
2
3
4
Community
Request/
Response
Item No
0x02
0x10
0x53
0x4F
0x4E
0x59
0x00
0xF1
0x00
FIX
(Version)
FIX
(Category)
FIX
(S)
FIX
(O)
FIX
(N)
FIX
(Y)
Set
FIX
FIX
Data
Length
Header
Answer
Check
Sum
0x03
0x70
0x00
0x70
Data length
after the
above.
Control
Complete
: When a command is completed
GXD-L52H1
Appendix 2
Common Command
n The item, in a table, described below varies depending on the model used.
Example) (Refer to Appendix 3 “General information”.)
Check the reference and make necessary changes according to the model to be used.
1. General Function
(a) Mode Control
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Control
0x8C
0x00
Code Table(1-a)[a]
0x02
Code Table (1-a)[b]
0xXX
Enquiry
0x83
0xFF
0xFF
0xXX
Answer
Header
Answer
Check Sum
Control
0x70
0x00
0x70
Completed
0x70
0x01
0x71
Limit Over
0x70
0x02
0x72
Limit Under
0x70
0x03
0x73
Command Canceled
Answer
Header
Answer
Return to Data Size
Return Data1
Check Sum
Enquiry
0x70
0x00
0x02
Code Table (1-a)[b]
0xXX
Completed
Code Table(1-a)
[a]Function
[b]Range/Switch Code
Command
Control
Enquiry
Standby
Power On
0x00
Power
0x00
OFF
Yes
Yes
Enable
Enable
0x01
ON
0x01
Input Select
0x02
Force Status Display
Yes
Yes
Disable
Enable
Yes
Yes
Disable
Enable
Yes
Yes
Enable
Enable
Yes
Yes
Disable
Enable
Yes
Yes
Disable
Enable
Yes
Yes
Disable
Enable
0x03
0x04
0x06
0x0F
0x10
*1
Audio Mute
Auto Status Display
Color System
Language
Index Number
(Refer to Appendix 3 “General Function”.)
0x00
ON
0x01
OFF
0x00
OFF
0x01
ON
0x00
ON
0x01
OFF
0x00
Auto
0x01
NTSC
0x02
NTSC4.43
0x03
PAL
0x05
PAL-M
0x06
PAL-N
0x07
PAL60
0x00
Japanese
0x01
English
0x02
Deutsch
0x03
Français
0x04
Español
0x05
Italiano
0x01-0xFF
(Continued)
GXD-L52H1
A2-1
Code Table(1-a)
[a]Function
[b]Range/Switch Code
Command
Control
Enquiry
Standby
Power On
0x12
0x00
Standard
Yes
Yes
Disable
Enable
0x01
Low
Yes
Yes
Disable
Enable
Yes
Yes
Disable
Enable
Yes
Yes
Disable
Enable
Yes
Yes
Disable
Enable
Yes
Yes
Disable
Enable
Yes
Yes
Disable
Enable
Yes
Yes
Disable
Enable
Yes
Yes
Disable
Enable
0x13
0x14
0x18
0x1B
Standby Power
ECO Mode
0x00
Off
(Power Saving)
0x01
ECO High
0x02
ECO Low
Speaker Out
0x00
ON
0x01
OFF
0x00
H/Comp
0x01
Video
0x00
OFF
0x01
ON
Sync Mode
Clock Display
0x1D
Color Matrix
(Refer to Appendix 3 “General Function”.)
0x22
Time Set
(Hour, minute)
H: 0x00-0x17, M: 0x00-0x3B
0x23
Time Set (Week)
(Refer to Appendix 3 “General Function”.)
0x24
Input Detect(Option)
(Refer to Appendix 3 “General Function”.)
FWD-S42H1/S47H1 and GXD-L65H1 are not used this command.
FWD-S42H1/S47H1 and GXD-L65H1 are not used this command.
0x26
0x27
0x30
0x31
Auto Shut OFF
Auto Screen Adjust
PAP
Active Picture
0x00
OFF
0x01
ON
0x00
OFF
0x01
ON
0x00
OFF
0x01
P&P
0x02
PinP
0x00
Left(P&P)/Main(PinP)
0x01
Right (P&P)/Sub (PinP)
0x02
Swap
0x32
Picture Size(P&P)
0x00-0x0E
Yes
Yes
Disable
Enable
0x33
Sub Picture Size
0x00
Yes
Yes
Disable
Enable
(PinP)
0x01
Small
0x34
Picture Position
0x00
Position1
Yes
Yes
Disable
Enable
(PinP)
0x01
Position2
0x02
Position3
0x03
Position4
0x35
PAP Input Detect
Large
(Refer to Appendix 3 “General Function”.)
(Left/Main)
0x36
PAP Input Detect
(Refer to Appendix 3 “General Function”.)
(Right/Sub)
0x40
Screen Saver
(Refer to Appendix 3 “General Function”.)
0x43
BackLight
0x00-0x64
Yes
Yes
Disable
Enable
0x44
Logo Illumination &
0x00
Logo Off
Yes
Yes
Enable
Enable
Status LED
0x01
Logo On (Low)
0x02
Logo On (High)
0x00
Main+Remocon
Yes
Yes
Disable
Enable
0x01
Main
0x02
Remocon
0x03
All Off
0x45
Control Mode
(Continued)
A2-2
GXD-L52H1
Code Table(1-a)
[a]Function
[b]Range/Switch Code
Command
Control
Enquiry
Standby
Power On
0x47
bit0
Sunday 1: Enable, 0: Disable
Yes
Yes
Enable
Enable
bit1
Monday 1: Enable, 0: Disable
bit2
Tuesday 1: Enable, 0: Disable
bit3
Wednesday 1: Enable, 0: Disable
bit4
Thursday 1: Enable, 0: Disable
bit5
Friday 1: Enable, 0: Disable
bit6
Saturday 1: Enable, 0: Disable
Yes
Enable
Enable
Yes
Yes
Enable
Enable
Yes
Yes
Enable
Enable
Yes
Yes
Enable
Enable
No
Yes
Disable
Enable
No
Yes
Disable
Enable
No
Yes
Disable
Enable
Yes
Yes
Enable
Enable
Yes
Yes
Disable
Enable
Yes
Yes
Enable
Enable
Yes
Yes
Disable
Enable
0x48
0x65
0x68
On Timer Enable
Off Timer Enable
IP Setting Mode
Speed Setting
bit7
Every day 1: Enable, 0: Disable
bit0
Sunday 1: Enable, 0: Disable
bit1
Monday 1: Enable, 0: Disable
bit2
Tuesday 1: Enable, 0: Disable
bit3
Wednesday 1: Enable, 0: Disable
bit4
Thursday 1: Enable, 0: Disable
bit5
Friday 1: Enable, 0: Disable
bit6
Saturday 1: Enable, 0: Disable
bit7
Every day 1: Enable, 0: Disable
0x00
DHCP
0x01
Manual
0x02
Speed
0x00
100Mbps/Full Duplex
0x01
100Mbps/Half Duplex
0x02
10Mbps/Full Duplex
0x03
10Mbps/Half Duplex
0x04
Auto
Yes
0x70
Input Skip
(Refer to Appendix 3 “General Function”.)
0x71
Default Input
0x00
0x01
Option1
0x74
Digital Signal Detect
0x00
VIDEO
(DVI/HDMI/etc.)*2
0x01
PC
Signal Status*3
0x00
Stable
0x01
Unstable/No Signal
0x75
0x76
VIDEO Signal Detect 0x00
0x01
0x77
Priority Level of
Last Memory
NTSC
PAL
(Refer to Appendix 3 “General Function”.)
Signal select
GXD-L52H1 and FWD-S42H1/S47H1 are used for only Enquiry.
0x7A
0x7D
0x7E
0x7F
0x80
Logo Position
0x00
Auto
0x01
Landscape
0X02
Portrait
Power Management
0x00
OFF
Mode*4
0x01
ON
On Screen Logo
0x00
OFF
0x01
ON (Default)
0x00
OFF
0x01
ON
LED
Standby Screen
(Refer to Appendix 3 “General Function”.
Saver Time
GXD-L52H1 is not used this command.
(Continued)
GXD-L52H1
A2-3
Code Table(1-a)
[a]Function
[b]Range/Switch Code
0x81
(Refer to Appendix 3 “General Function”.)
Power On Delay
Command
Control
Enquiry
Standby
Power On
GXD-L52H1 is not used this command.
0x82
Audio Delay
(Refer to Appendix 3 “General Function”.)
GXD-L52H1 is not used this command.
0x83
IP Address (Player)
(Refer to Appendix 3 “General Function”.)
GXD-L52H1 is not used this command.
0x85
Power On Batch
0x86
HD15 Out
(Refer to Appendix 3 “General Function”.)
GXD-L52H1 is not used this command.
(Refer to Appendix 3 “General Function”.)
GXD-L52H1 is not used this command.
0x89
Light Sensor
(Refer to Appendix 3 “General Function”.)
GXD-L52H1 and FWD-S42H1/S47H1 are not used this command.
0x8A
RGB Signal
(Refer to Appendix 3 “General Function”.)
GXD-L52H1 and FWD-S42H1/S47H1 are not used this command.
0x8B
Warm Up Mode
(Refer to Appendix 3 “General Function”.)
GXD-L52H1 and FWD-S42H1/S47H1 are not used this command.
0x8C
Warm Up Time
0x8D
Picture Mute
(Refer to Appendix 3 “General Function”.)
GXD-L52H1 and FWD-S42H1/S47H1 are not used this command.
*1:
*2:
*3:
*4:
(Refer to Appendix 3 “General Function”.)
Auto Signal Detect becomes Disable. When Option Slot is connected, Option command is Enable.
Digital Signal Status is Enable for Digital Input Signal Detect Function only in Stable.
Digital Signal or VIDEO Signal is Enable. Return Signal Status of Active Window.
Only the panel power supply is turned off at the standby when setting it “ON”.
2. Analog Signal Detect Function
(a) Mode Control
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x00
Code Table (1-a) [a]
Code Table (1-d)
0xFF
0xXX
Answer
Header
Answer
Return to Data Size
Return Data1
Data2
Check Sum
Enquiry
0x70
0x00
0x02
Code Table (1-a) [b]
0xFF
0xXX
Completed
Code Table (1-a)
[a]Function
0x78
[b]Range/Switch Code
Analog Signal Detect 0x00
0x01
VIDEO
Command
Control
Enquiry
Standby
Power On
No
Yes
Disable
Enable
PC
Code Table (1-d)
Input Select
0x00
Main
0x01
Sub
0xFF
Present input
A2-4
1-a[b]
When input is no signal or not supported signal, return value become
Video (0x00).
GXD-L52H1
3. Priority Signal Select Function
(a) Mode Control
(Refer to Appendix 3 “General Function”.)
4. RGB Signal
(a) Mode Control
(Refer to Appendix 3 “RGB Signal”.)
GXD-L52H1 and FWD-S42H1/S47H1 are not used this command.
(b) Time Control
Data Set (Month, Date)
Syntax
Header
Category
Function
Data1
Data2
Data3
Check Sum
Control
0x8C
0x00
0x7C
0x03
Month: 0x01-0x0C
Date: 0x01-0x1F
0xXX
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x00
0x7C
0xFF
0xFF
0xFD
Answer
Header
Answer
Check Sum
Control
0x70
0x00
0x70
Completed
0x70
0x01
0x71
Limit Over
0x70
0x02
0x72
Limit Under
0x70
0x03
0x73
Command Canceled
Answer
Header
Answer
Return to Data Size
Return Data1
Return Data2
Check Sum
Enquiry
0x70
0x00
0x03
Month: 0x00-0x0C
Date: 0x01-0x1F
0xXX
Completed
Year Set
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Control
0x8C
0x00
0x7B
0x02
Year: 0x00-0x63
0xXX
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x00
0x7B
0xFF
0xFF
0xFC
Answer
Header
Answer
Check Sum
Control
0x70
0x00
0x70
Completed
0x70
0x01
0x71
Limit Over
0x70
0x02
0x72
Limit Under
0x70
0x03
0x73
Command Canceled
Answer
Header
Answer
Return to Data Size
Return Data1
Check Sum
Enquiry
0x70
0x00
0x02
Year: 0x00-0x63
0xXX
GXD-L52H1
Completed
A2-5
Clock Set (Hour, Minute)
Syntax
Header
Category
Function
Data1
Data2
Data3
Check Sum
Control
0x8C
0x00
0x22
0x03
Hour: 0x00-0x17
Minute: 0x00-0x3B
0xXX
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x00
0x22
0xFF
0xFF
0xA3
Answer
Header
Answer
Check Sum
Control
0x70
0x00
0x70
Completed
0x70
0x01
0x71
Limit Over
0x70
0x02
0x72
Limit Under
0x70
0x03
0x73
Command Canceled
Answer
Header
Answer
Return to Data Size
Return Data1
Return Data2
Check Sum
Enquiry
0x70
0x00
0x03
Hour: *
0x00-0x17
Minute: 0x00-0x3B
0xXX
Completed
Clock Set (Week)
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x00
0x23
0xFF
0xFF
0xA4
Answer
Header
Answer
Return to Data Size
Return Data1
Check Sum
Enquiry
0x70
0x00
0x02
Week: Code Table (1-e)
0xXX
Completed
Code Table (1-e)
Week Select
0x00
Sunday
0x01
Monday
0x02
Tuesday
0x03
Wednesday
0x04
Thursday
0x05
Friday
0x06
Saturday
On Timer, Off Timer
Syntax
Header
Category
Function
Data1
Data2
Data3
Check Sum
Control
0x8C
0x00
Code Table (1-f) [a]
0x03
Hour: 0x00-0x17
Minute: 0x00-0x3B
0xXX
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x00
Code Table (1-f) [a]
0xFF
0xFF
0xXX
A2-6
GXD-L52H1
Answer
Header
Answer
Check Sum
Control
0x70
0x00
0x70
Completed
0x70
0x01
0x71
Limit Over
0x70
0x02
0x72
Limit Under
0x70
0x03
0x73
Command Canceled
Answer
Header
Answer
Return to Data Size
Return Data1
Return Data2
Check Sum
Enquiry
0x70
0x00
0x03
Hour: 0x00-0x17
Minute: 0x00-0x3B
0xXX
Completed
Code Table (1-f)
[a]Function
[b]Range/Switch Code
Command
Control
Enquiry
Standby
Power On
Yes
Yes
Disable
Enable
Yes
Yes
Disable
Enable
On Timer
0x50
Sunday
_
0x51
Monday
_
0x52
Tuesday
_
0x53
Wednesday
_
0x54
Thursday
_
0x55
Friday
_
0x56
Saturday
_
0x57
Every day
_
0x58
Sunday
_
0x59
Monday
_
0x5A
Tuesday
_
0x5B
Wednesday
_
0x5C
Thursday
_
0x5D
Friday
_
0x5E
Saturday
_
0x5F
Every day
_
Off Timer
GXD-L52H1
A2-7
(c) IP Address Setting
IP Address
Syntax
Header
Category Function
Data1
Data2
Data3
Data4
Data5
Check Sum
Control
0x8C
0x00
0x05
Address 0
0x00-0xFF
Address 1
0x00-0xFF
Address 2
0x00-0xFF
Address 3
0x00-0xFF
0xXX
0x42
Syntax
Header
Category Function
Data1
Data2
Check Sum
Enquiry
0x83
0x00
FFh
FFh
0xC3
0x42
Subnet Mask
Syntax
Header
Category Function
Data1
Data2
Data3
Data4
Data5
Check Sum
Control
0x8C
0x00
0x05
Address 0
0x00-0xFF
Address 1
0x00-0xFF
Address 2
0x00-0xFF
Address 3
0x00-0xFF
0xXX
Syntax
Header
Category Function
Data1
Data2
Check Sum
Enquiry
0x83
0x00
FFh
FFh
0xE2
0x61
0x61
Gateway Address
Syntax
Header
Category Function
Data1
Data2
Data3
Data4
Data5
Check Sum
Control
0x8C
0x00
0x05
Address 0
0x00-0xFF
Address 1
0x00-0xFF
Address 2
0x00-0xFF
Address 3
0x00-0xFF
0xXX
Syntax
Header
Category Function
Data1
Data2
Check Sum
Enquiry
0x83
0x00
FFh
FFh
0xE3
0x62
0x62
DNS Primary
Syntax
Header
Category Function
Data1
Data2
Data3
Data4
Data5
Check Sum
Control
0x8C
0x00
0x05
Address 0
0x00-0xFF
Address 1
0x00-0xFF
Address 2
0x00-0xFF
Address 3
0x00-0xFF
0xXX
0x63
Syntax
Header
Category Function
Data1
Data2
Check Sum
Enquiry
0x83
0x00
FFh
FFh
0xE4
0x63
DNS Secondary
Syntax
Header
Category Function
Data1
Data2
Data3
Data4
Data5
Check Sum
Control
0x8C
0x00
0x05
Address 0
0x00-0xFF
Address 1
0x00-0xFF
Address 2
0x00-0xFF
Address 3
0x00-0xFF
0xXX
Syntax
Header
Category Function
Data1
Data2
Check Sum
Enquiry
0x83
0x00
FFh
FFh
0xE5
A2-8
0x64
0x64
GXD-L52H1
Player IP Address
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x00
0x83
FFh
FFh
0x04
Answer
Header
Answer
Check Sum
Control
0x70
0x00
0x70
Completed
0x70
0x03
0x73
Command Canceled
Answer Header
Category
Function
Data1
Data2
Data3
Data4
Data5
Check Sum
Enquiry
0x00
Code Table
0x05
Address 0
Address 1
Address 2
Address 3
0xXX
0x00-0xFF
0x00-0xFF
0x00-0xFF
0x00-0xFF
0x8C
(1-a)[a]
IP Address ex)
192.128.14.1 →
192 (0xC0) Address 0
128 (0x80) Address 1
14 (0x0E) Address 2
1 (0x01) Address 3
* IP address command can be carried out even in the standby state.
Code Table (1-a)
[a]Function
[b]Range/Switch Code
0x42
IP Address
_
0x61
Subnet Mask
_
0x62
Gateway Address
_
0x63
DNS Primary
_
0x64
DNS Secondary
_
0x83
IP Address (Player)
_
Command
Control
Enquiry
Standby
Power On
Enable
Enable
Enable
Enable
Disable
Enable
Enable
Enable
5. Picture/Sound
(a) Picture/Sound
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Control
0x8C
0x10
Code Table (2-a) [a]
0x02
Code Table (2-a) [b]
0xXX
Enquiry
0x83
0xFF
0xFF
0xXX
Answer
Header
Answer
Check Sum
Control
0x70
0x00
0x70
Completed
0x70
0x01
0x71
Limit Over
0x70
0x02
0x72
Limit Under
0x70
0x03
0x73
Command Canceled
Answer
Header
Answer
Return to Data Size
Return Data1
Check Sum
Enquiry
0x70
0x00
0x02
Code Table (2-a) [b]
0xXX
GXD-L52H1
Completed
A2-9
Code Table (2-a)
[a]Function
[b]Range/Switch code
Command
Control
Enquiry
Standby
Power On
0x00
Contrast
0x00-0x64
Yes
Yes
Disable
Enable
0x01
Brightness
0x00-0x64
Yes
Yes
Disable
Enable
0x02
Chroma
0x00-0x32
Yes
Yes
Disable
Enable
0x03
Phase
0x00-0x64
Yes
Yes
Disable
Enable
0x04
Color Temp
0x00
Cool
Yes
Yes
Disable
Enable
0x01
Neutral
0x02
Warm
0x03
Custom
Yes
Yes
Disable
Enable
Yes
Yes
Disable
Enable
Yes
Yes
Disable
Enable
Yes
Yes
Disable
Enable
Yes
Disable
Enable
0x09
Sharpness
0x00-0x14
0x0A
NR
0x00
OFF
0x01
Low
0x02
Mid
0x0B
0x0C
Cinema Drive
Dynamic Picture
0x03
High
0x00
Auto
0x01
OFF
0x00
OFF
0x01
ON
0x02
Reserve
0x0E
Gamma Correct
(Refer to Appendix 3 “Picture/Sound”.)
0x10
Picture Mode
0x00
Standard
0x01
Vivid
0x02
Custom
0x05
TC Control
0x06
Conference
0x11
Brightness Boost*1
Yes
(Refer to Appendix 3 “Picture/Sound”.)
GXD-L52H1 is not used this command.
0x12
Option Gamma
(Refer to Appendix 3 “General Function”.)
FWD-S42H1/S47H1 and GXD-L65H1 are not used this command.
0x30
Volume
0x00-0x64
Yes
Yes
Enable
Enable
0x31
Treble*2
0x00-0x64
Yes
Yes
Disable
Enable
0x32
Bass*2
0x00-0x64
Yes
Yes
Disable
Enable
0x33
Balance
0x00-0x64
Yes
Yes
Disable
Enable
0x34
Surround
0x00
OFF
Yes
Yes
Disable
Enable
0x01
Hall
Yes
Yes
Disable
Enable
Yes
Yes
Enable
Enable
Yes
Yes
Enable
Enable
Yes
Yes
Enable
Enable
0x35
Sound Mode
0x02
Simulate
0x00
Dynamic
0x01
Standard
0x03
Custom
0x36
Default Volume Set
0x00-0x64
0x37
Volume Select
0x00
Last Memory
0x01
Default Setting
0x32
50
0x46
70
0x64
100
0x38
Max Volume Set
*1 Picture Mode = Vivid Only is Enabled.
*2 Sound Mode = Custom Only is Enabled.
A2-10
GXD-L52H1
(b) Color Temp
Syntax
Header
Category
Function
Data1
Data2
Data3
Check Sum
Control
0x8C
0x10
Code Table (2-b) [a]
0x03
Code Table (2-c)
Code Table (2-b) [b]
0xXX
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x10
Code Table (2-b) [a]
Code Table (2-c)
0xFF
0xXX
Answer
Header
Answer
Check Sum
Control
0x70
0x00
0x70
Completed
0x70
0x03
0x73
Command Canceled
Answer
Header
Answer
Return to Data Size
Return Data1
Return Data2
Check Sum
Enquiry
0x70
0x00
0x03
Code Table (2-c)
Code Table (2-b) [b]
0xXX
Completed
Code Table (2-b)
[a]Function
[b]Range/Switch code
0x05
Red Gain
0x06
Green Gain
0x00-0x1E
0x07
Blue Gain
Command
Control
Enquiry
Standby
Power On
Yes
Yes
Disable
Enable
Code Table (2-c)
Format Select
0x00
Cool
0x01
Neutral
0x02
Warm
0x03
Custom
GXD-L52H1
A2-11
6. Size/Shift
(a) 8Bits Register
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Control
0x8C
0x20
Code Table (3-b) [a]
0x02
Code Table (3-b) [b]
0xXX
Enquiry
0x83
0xFF
0xFF
0xXX
Answer
Header
Answer
Check Sum
Control
0x70
0x00
0x70
Completed
0x70
0x01
0x71
Limit Over
0x70
0x02
0x72
Limit Under
0x70
0x03
0x73
Command Canceled
Answer
Header
Answer
Return to Data Size
Return Data1
Check Sum
Enquiry
0x70
0x00
0x02
Code Table (3-b) [b]
0xXX
Completed
Code Table (3-b)
[a]Function
[b]Range/Switch code
Command
Control
Enquiry
Standby
Power On
0x00
H Size
0x00-0x3C
Yes
Yes
Disable
Enable
0x01
H Shift
0x00-0x3C
Yes
Yes
Disable
Enable
0x02
V Size
0x00-0x3C
Yes
Yes
Disable
Enable
0x03
V Shift
0x00-0x3C
Yes
Yes
Disable
Enable
0x04
Aspect
0x00
Wide Zoom
(VIDEO Only)
Yes
Yes
Disable
Enable
0x01
Zoom
(VIDEO Only)
0x02
Full
(VIDEO Only)
0x04
Normal
(PC: Real, VIDEO: 4:3)
0x05
Full 1 (PC Only)
Yes
Yes
Disable
Enable
0x05
Multi Display
0x06
Full 2 (PC Only)
0x00
OFF
0x01
2x2
0x02
3x3
0x03
4x4
0x04
1x2
0x05
1x3
0x06
1x4
0x07
2x1
0x08
3x1
0x09
4x1
(Continued)
A2-12
GXD-L52H1
Code Table (3-b)
[a]Function
[b]Range/Switch code
Command
Control
Enquiry
Standby
Power On
0x06
Auto Pixel Adjust
0xFF
Yes
No
Disable
Enable
0x07
Dot Phase
0x00-0x1F
Yes
Yes
Disable
Enable
0x0B
Multi Position
Yes
Yes
Disable
Enable
Yes
Yes
Disable
Enable
Yes
Yes
Disable
Enable
Yes
Yes
Disable
Enable
Yes
Yes
Disable
Enable
0x0C
0x00
Position1
(2 x 2, 1 x 2, 2 x 1)*1 0x01
Position2
0x02
Position3
Multi Position
(3 x 3, 1 x 3, 3 x 1)
*1
0x0D
0x0E
0x0F
0x11
Execute
0x03
Position4
0x00
Position1
0x01
Position2
0x02
Position3
0x03
Position4
0x04
Position5
0x05
Position6
0x06
Position7
0x07
Position8
0x08
Position9
0x00
Position1
(4 x 4, 1 x 4, 4 x 1)*1 0x01
Position2
0x02
Position3
0x03
Position4
0x04
Position5
0x05
Position6
0x06
Position7
0x07
Position8
0x08
Position9
0x09
Position10
0x0A
Position11
Multi Position
Over Scan
0x0B
Position12
0x0C
Position13
0x0D
Position14
0x0E
Position15
0x0F
Position16
0x00
OFF
0x01
ON
0x02
AUTO
Multi Display
0x00
Tiles
Output Format
0x01
Window
Multi Display Batch
(Refer to Appendix 3 “Size/Shift”.)
GXD-L52H1 is not used this command.
GXD-L52H1
A2-13
*1 Arrangement of Multi Position.
Multi Position (2 x 2)
Multi Position (1 x 2)
1
2
1
3
4
2
Multi Position (3 x 3)
Multi Position (1 x 3)
1
2
3
1
4
5
6
2
7
8
9
3
Multi Position (4 x 4)
Multi Position (1 x 4)
1
2
3
4
1
5
6
7
8
2
9
10
11
12
3
13
14
15
16
4
Multi Position (2 x 1)
1
2
Multi Position (3 x 1)
1
2
3
Multi Position (4 x 1)
1
2
3
4
(b) Multi Display Batch
(Refer to Appendix 3 “Size/Shift”.)
GXD-L52H1 is not used this command.
A2-14
GXD-L52H1
Code Table(1-a)
Multi Display[a]
Multi Position[b]
GXD-L52H1
0x00
OFF
0x01
2x2
0x02
3x3
0x03
4x4
0x04
1x2
0x05
1x3
0x06
1x4
0x07
2x1
0x08
3x1
0x09
4x1
0x00
Position1
0x01
Position2
0x02
Position3
0x03
Position4
0x04
Position5
0x05
Position6
0x06
Position7
0x07
Position8
0x08
Position9
0x09
Position10
0x0A
Position11
0x0B
Position12
0x0C
Position13
0x0D
Position14
0x0E
Position15
0x0F
Position16
Multi Display Output Format[c]
0x00
Tiles
0x01
Window
H Size[d]
0x00-0x3C
H Shift[e]
0x00-0x3C
V Size[f]
0x00-0x3C
V Shift[g]
0x00-0x3C
A2-15
(C) PIP/PAP Batch
Syntax
Header
Category Function
Data1
Data2
Data3
Data4
Control
0x8C
0x00
0x05
PIP/PAP setting
Code Table(2-a)[a]
Input (Left/Main)
Code Table(2-a)[b]
Input (Right/Sub)
Active Picture
Code Table(2-a)[b] Code Table(2-a)[c]
0x84
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x00
0x84
0xFF
0xFF
0xXX
Answer
Header
Answer
Check Sum
Control
0x70
0x00
0x70
Completed
0x70
0x01
0x71
Limit Over
0x70
0x02
0x72
Limit Under
0x70
0x03
0x73
Command Canceled
Data5
Answer Header
Answer
Return to
Data Size
Data2
Data3
Data4
Data5
Enquiry
0x00
0x05
PIP/PAP setting
Code Table(2-a)[a]
Input (Left/Main)
Code Table(2-a)[b]
Input (Right/Sub)
Code Table(2-a)[b]
Active Picture
Code Table(2-a)[c]
0x70
Code Table(2-b)
[a]Function
0x84
[b]Range/Switch code
PIP/PAP Batch
Command
Control
Enquiry
Standby
Power On
Yes
Yes
Disable
Enable
Code Table(2-a)
PIP/PAP Setting [a]
PIP/PAP Input [b]
Active Picture [c]
0x00
OFF
0x01
P&P
0x02
PinP
0x03
Special PinP
0x08
HD15 RGB
0x09
IHD15 YUV
0x0E
OPTION RGB
0x0F
OPTION COMPONENT
0x20
DVI
0x30
Video
0x31
S-Video
0x84
Option Digital1(HDMI1/SDI/FW55)
0x85
Option Digital2(HDMI2)
0x00
Left(P&P)/Main(PinP)
0x01
Right(P&P)/Sub(PinP)
(d) Power On Batch
(Refer to Appendix 3 “Size/Shift”.)
GXD-L52H1 is not used this command.
A2-16
GXD-L52H1
7. Status Enquiry
(a) Model Name
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x30
0x00
0xFF
0xFF
0xB1
Answer
Header
Answer
Return to Data Size
Return Data1
Check Sum
Enquiry
0x70
0x00
0x02
Code Table (4-a)
0xXX
Completed
Code Table (4-a)
Format Select
0x26
GXD-L52H1
0x27
GXD-L65H1
0x28
FWD-S42H1
0x29
FWD-S47H1
(b) Serial Number
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x30
0x01
0xFF
0xFF
0xB2
Answer Header
Answer Return to Return Data1 Return Data2 Return Data3 Return Data4 Check Sum
Data Size
Enquiry
0x00
0x70
0x05
Upper 8bit
Data
Middle Upper
Data
Middle Lower
Data
Lower 8bit
Data
0xXX
Completed
Return Data1-Data4: 0x00000000-0x0098967F (0,000,000-9,999,999)
(c) Operation Time
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x30
0x02
0xFF
0xFF
0xB3
Answer Header
Answer Return to Return Data1 Return Data2 Return Data3 Return Data4 Check Sum
Data Size
Enquiry
0x00
0x70
0x05
Upper 8bit
Data
Middle Upper
Data
Middle Lower
Data
Lower 8bit
Data
0xXX
Completed
Return Data1-Data4: 0x00000000-0xD693A3FF (0sec.-3,599,999,999sec.)
(d) Light Sensor Value
(Refer to Appendix 3 “Status Enquiry”.)
GXD-L52H1 and FWD-S42H1/S47H1 are not used this command.
GXD-L52H1
A2-17
(e) Soft Version (Main CPU/LAN)
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x30
0x03
0xFF
0xFF
0xB4
Answer
Header
Answer
Return to Data Size
Return Data1
Return Data2
Check Sum
Enquiry
0x70
0x00
0x03
Upper 8bit Data
Lower 8bit Data
0xXX
Completed
ex) In Version0.100, it is set to 01 and 00.
(f) LAN Soft Version
(Refer to Appendix 3 “Status Enquiry”.)
GXD-L52H1 is not used this command.
(g) 8bits Register
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x30
Code Table (4-b)
0xFF
0xFF
0xXX
Answer
Header
Answer
Return to Data Size
Return Data1
Check Sum
Enquiry
0x70
0x00
0x02
Code Table (4-b)
0xXX
Completed
Code Table (4-b)*
Function
Return Data
Unit
0x07
Digital 3.3 V
0x00-0xFF
0x08
Analog 24 V
0x00-0xFF
0x09
Digital 5 V
0x00-0xFF
0x0A
Temp1
0x00-0xFF
0x0B
Temp2
0x00-0xFF
0x0C
Temp3
0x00-0xFF
(FWD-S42H1/S47H1 is not used this command.)
0x0D
Temp P/S
0: Normal, 1: Abnormal
0x0E
Inverter Alarm
0: Normal, 1: Abnormal
0x0F
Soft Version (Scaler/LAN) 0x0000-0x9999
(GXD-L52H1 is not used this command.)
0x11
Shutdown Log
0x00-0xFF
0x12
Digital 3.3 V (Failure)
0x00-0xFF
0x13
Digital 5 V (Failure)
0x00-0xFF
0x14
Analog 12 V (Failure)
0x00-0xFF
0x16
Analog 12 V
0x00-0xFF
0x18
Light Sensor
0: Normal, 1: Abnormal
(GXD-L52H1 and FWD-S42H1/S47H1 are not used
this command.)
*
. For function 0x07, 0x08, 0x09, 0x11, 0x12, 0x13,
0x14 and 0x16 in the left table
When the display value is 3.0 V, “0x1E” (30) is returned.
. For function 0x0A, 0x0B and 0x0D in the left table
When the display value is 50 dC, “0x32” (50) is
returned.
When the display value is _20 dC, “0xEC” is returned.
. Inverter Alarm: 00 → Normal
01, 10, 11 → Abnormal
(h) Shutdown Log
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x30
0x11
0xFF
0xFF
0xC2
Answer
Header
Answer
Return to Data Size
Return Data1
Check Sum
Enquiry
0x70
0x00
0x02
Shutdown Log Code Table (4-c)
0xXX
Completed
Return Data1: 0x00-0xFF
A2-18
GXD-L52H1
(i) Shutdown Log Clear
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Control
0x8C
0x30
0x11
0x02
0x00
0xCF
Answer
Header
Answer
Check Sum
Control
0x70
0x00
0x70
Completed
0x70
0x03
0x73
Command Canceled
Code Table (4-c)
Shutdown Information
bit0
Reserved
bit1
1: FAN Sensor Abnormal
0: Normal
bit2
1: Panel Temperature Abnormal
0: Normal
bit3
1: Temperature Sensor Abnormal
0: Normal
bit4
Reserved
bit5
1: Power Abnormal (3.3 V, 5 V)
0: Normal
bit6
1: Analog Power Abnormal (12 V, 9 V, 24 V)
0: Normal
bit7
Reserved
(j) Auto Input Detect
Syntax
Header
Category
Functi on
Data1
Data2
Check Sum
Enquiry
0x83
0x30
0x30
0xFF
0xFF
0xE1
Answer Header
Answer Return to Return Data1 Return Data2 Return Data3 Return Data4 Return Data5
Data Size
Enquiry
0x00
0x70
0x0C
Input1
Input Type
Code Table
(4-e)
Input2
Input Type
Code Table
(4-e)
Input3
Input Type
Code Table
(4-e)
Input4
Input Type
Code Table
(4-e)
Input5
Input Type
Code Table
(4-e)
Return Data6 Return Data7 Return Data8 Return Data9 Return Data10
Option1
Option Type
Code Table
(4-e)
Option1
Input Type
Code Table
(4-e)
Option2
Option Type
Code Table
(4-e)
Option2
Input Type
Code Table
(4-e)
Option3
Option Type
Code Table
(4-e)
Return Data11 Check Sum
Option3
Input Type
Code Table
(4-e)
GXD-L52H1
0xXX
Completed
A2-19
Code Table (4-e)
Input
Input Type (Basic)
Option Type
INPUT1
0x02
S-Video
INPUT2
0x01
Video
INPUT3
0x06
RGB/YUV(Analog)
INPUT4
0x07
DVI
INPUT5
0x00
HDMI (FWD-S42H1/S47H1 is not used this command.)
OPTION1
Input Type (Option)
0x00
Analog Only
0x00
No Input
0x00
Analog Only
0x03
Video/S-Video
0x00
Analog Only
0x06
RGB/YUV (Analog)
0x00
Analog Only
0x07
Video/S-Video/RGB/YUV (Analog)
0x01
Analog/Com
0x04
RGB
0x03
Com Only
0x00
No Input
0x04
Digital Only
0x0E
Digital/Digital
0x04
Digital Only
0x0D
Digital
OPTION2
0x00
Analog Only
0x00
No Input
OPTION3
0x00
Analog Only
0x00
No Input
(k) Auto Panel Type Detect
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x30
0x31
0xFF
0xFF
0xE2
Answer Header
Answer
Return to Data Size
Return Data1
Check Sum
Enquiry
0x00
0x02
Code Table (4-h)
0x72
0x70
Code Table (4-h)
Panel Type
0x00
A2-20
LCD
Code Table (4-i)
Completed
Code Table (4-j)
H_Resolution
0x0780(1920)
Input Quantity
0x05
V_Resolution
0x0438(1080)
Option Slot Quantity
0x01
GXD-L52H1
(L) Auto Plug Detect
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x30
0x32
0xFF
0xFF
0xE3
Answer Header
Answer
Return to Data Size
Return Data1
Return Data2
Return Data3
Enquiry
0x00
0x21
Panel Type
Code Table (4-h)
H_Resolution (H)
Code Table (4-i)
H_Resolution (L)
Code Table (4-i)
Return Data4
Return Data5
Return Data6
Return Data7
V_Resolution (H)
Code Table (4-i)
V_Resolution (L)
Code Table (4-i)
Input Quantity
Code Table (4-j)
Input1
Input Type
Code Table (4-e)
Return Data8
Return Data9
Return Data10
Return Data11
Input2
Input Type
Code Table (4-e)
Input3
Input Type
Code Table (4-e)
Input4
Input Type
Code Table (4-e)
Input5
Input Type
Code Table (4-e)
Return Data12
Return Data13
Return Data14
Return Data15
Option Slot Quantity
Code Table (4-j)
Option1
Option Type
Code Table (4-e)
Option1
Input Type
Code Table (4-e)
Option2
Option Type
Code Table (4-e)
Return Data16
Return Data17
Return Data18
Return Data19
Option2
Input Type
Code Table (4-e)
Option3
Option Type
Code Table (4-e)
Option3
Input Type
Code Table (4-e)
(Reserve)
0xFF
Return Data20
Return Data21
Return Data22
Return Data23
(Reserve)
0xFF
(Reserve)
0xFF
(Reserve)
0xFF
(Reserve)
0xFF
Return Data24
Return Data25
Return Data26
Return Data27
(Reserve)
0xFF
(Reserve)
0xFF
(Reserve)
0xFF
(Reserve)
0xFF
Return Data28
Return Data29
Return Data30
Return Data31
(Reserve)
0xFF
(Reserve)
0xFF
(Reserve)
0xFF
(Reserve)
0xFF
Return Data32
Check Sum
(Reserve)
0xFF
0xXX
GXD-L52H1
0x70
A2-21
Code Table (4-d)
[a]Function
[b]Range/Switch code
Command
Control
Enquiry
Standby
Power On
0x00
Model Name
0x27
No
Yes
Enable
Enable
0x01
Serial Number
0x00000000-0x0098967F
(0,000,000-9,999,999)
0x02
Operation Time
0x00000000-0xD693A3FF
(0sec.-3,599,999,999sec.)
0x03
Soft Version (Main)
0x0000-0x9999
0x07
Digital 3.3V
0x00-0xFF
0x08
Analog 24V
0x00-0xFF
0x09
Digital 5V
0x00-0xFF
0x0A
Temp1
0x00-0xFF
0x0B
Temp2
0x00-0xFF
0x0C
Temp3
(Refer to Appendix 3 “Status Enquiry”.)
FWD-S42H1/S47H1 is not used this command.
0x0D
Temp P/S
0x00-0xFF
0x0E
Inverter Alarm
0:Normal, 1:Abnormal
0x0F
Soft Version (LAN)
(Refer to Appendix 3 “Status Enquiry”.)
GXD-L52H1 is not used this command.
0x11
Shutdown Log
0x00-0xFF
0x12
Digital 3.3V (Failure)
0x00-0xFF
0x13
Digital 5V (Failure)
0x00-0xFF
0x14
Analog 12V (Failure)
0x00-0xFF
0x16
Analog 12V
0x00-0xFF
0x17
Light Sensor Value
(Refer to Appendix 3 “Status Enquiry”.)
GXD-L52H1 and FWD-S42H1/S47H1 are not used this command.
0x18
Light Sensor (Failure)
(Refer to Appendix 3 “Status Enquiry”.)
GXD-L52H1 and FWD-S42H1/S47H1 are not used this command.
0x30
Auto Input Detect
0x31
Auto Panel Type Detect
A2-22
GXD-L52H1
8. User Reset
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Control
0x8C
0x50
Code Table (5)
0x02
0xFF
0xXX
Answer
Header
Answer
Check Sum
Control
0x70
0x00
0x70
Completed
0x70
0x03
0x73
Command Canceled
Code Table (5)
Function
Range/Switch code
0x00
Picture Reset
0x01
Audio Reset
0x02
Size Reset
Size, Shift
0x03
Picture Reset2
(FW50)
Contrast, Brightness,
Chroma, Phase
0x04
All Reset
GXD-L52H1
Command
Control
Enquiry
Standby
Power On
Yes
No
Disable
Enable
A2-23
Appendix 3
Difference for Each Model
GXD-L52H1
General Function
[a]Function
0x01
0x1D
Input Select
Color Matrix
[b]Range/Switch Code
0x08
HD15 RGB
0x09
HD15 YUV
0x0E
OPTION RGB
0x0F
OPTION COMPONENT
0x20
DVI
0x30
Video
0x31
S-Video
0x44
HDMI
0x84
Option Digital1
(HDMI1/SDI/FW50)
0x85
Option Digital2 (HDMI2)
0x00
YCbCr
0x01
0x23
Time Set (Week)
0x24
Input Detect (Option) 0x00
0x35
YPbPr
0x00
480P
0x01
1080i
0x02
720P
0x03
480i
0x00
480P
0x01
1080i
0x02
720P
0x03
480i
Week: 0x00-0x06
FW12 (HD15)
0x02
FW11 (BNC)
0x05
FW50 (RGB)
0x06
FW20/21 (UART + CTRL-S)
0x08
FW15 (HDMI x 2)
0x09
FW16 (Digital x 1)
0x0F
Not Connect
PAP Input Detect
0x08
HD15 RGB
(Left/Main)
0x09
IHD15 YUV
0x0E
OPTION RGB
0x0F
OPTION COMPONENT
0x20
DVI
0x30
Video
0x31
S-Video
0x44
HDMI
0x84
Option Digital1
(HDMI1/SDI/FW50)
0x85
Option Digital2 (HDMI2)
Command
Control
Enquiry
Standby
Power On
Yes
Yes
Disable
Enable
Yes
Yes
Disable
Enable
Yes
Yes
Disable
Enable
No
Yes
Disable
Enable
No
Yes
Disable
Enable
(Continued)
GXD-L52H1
A3-1
[a]Function
[b]Range/Switch Code
Command
Control
Enquiry
Standby
Power On
0x36
PAP Input Detect
0x08
HD15 RGB
No
Yes
Disable
Enable
(Right/Sub)
0x09
IHD15 YUV
0x0E
OPTION RGB
Yes
Yes
Disable
Enable
Yes
Yes
Disable
Enable
Command
Control
Enquiry
Standby
Power On
No
Yes
Disable
Enable
0x40
0x70
Screen Saver
Input Skip
0x0F
OPTION COMPONENT
0x20
DVI
0x30
Video
0x31
S-Video
0x44
HDMI
0x84
Option Digital1
(HDMI1/SDI/FW50)
0x85
Option Digital2 (HDMI2)
0x00
OFF
0x01
All White ON
0x02
Sweep ON
bit0
HD15
bit1
DVI
bit2
HDMI
bit3
Video
bit4
S-Video
Code Table (2-a)
[a]Function
0x77
[b]Range/Switch Code
Priority Signal Select
0x00
Input1 Auto
0x01
Input1 RGB
0x02
Input1 YPbPr
Syntax
Sum
Header
Category
Function
Data1
Data2
Data3
Check
Control
0x8C
0x00
Code Table (2-a) [a]
0x03
Code Table (2-d)
Code Table (2-a) [b]
0xXX
Answer
Header
Answer
Check Sum
Control
0x70
0x00
0x70
Completed
0x70
0x01
0x71
Limit Over
0x70
0x02
0x72
Limit Under
0x70
0x03
0x73
Command Canceled
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x00
Code Table (2-a) [a]
Code Table (2-d)
0xFF
0xXX
Answer
Header
Answer
Return to Data Size
Return Data1
Data2
Check Sum
Enquiry
0x70
0x00
0x02
Code Table (2-a) [b]
0xFF
0xXX
A3-2
Completed
GXD-L52H1
Code Table (2-d)
Input Select
0x00
HD15
0x01
Option
[a]Function
0x8D
[b]Range/Switch Code
Picture Mute
0x00
OFF (Mute Cancel)
Used in firmware
Ver. 1.16 or higher.
0x01
ON
Command
Control
Enquiry
Standby
Power On
Yes
Yes
Enable
Enable
Picture/Sound
[a]Function
[b]Range/Switch Code
Command
Control
Enquiry
Standby
Power On
0x0E
0x00
High
Yes
Yes
Disable
Enable
0x01
Mid
0x12
Gamma Correct
0x02
Low
Option Gamma
0x00
Off
Used in firmware
Ver. 1.5 or higher.
0x01
On
FWD-S42H1/S47H1
General Function
[a]Function
[b]Range/Switch Code
Command
Control
Enquiry
Standby
Power On
0x01
0x08
HD15 RGB
Yes
Yes
Disable
Enable
0x09
HD15 YUV
0x0E
OPTION RGB
No
Yes
Enable
Enable
0x23
Input Select
Time Set (Week)
(Function provided
only for Enquiry)
0x0F
OPTION COMPONENT
0x20
DVI
0x30
Video
0x31
S-Video
0x84
Option Digital1
(HDMI1/SDI/FW50)
0x85
Option Digital2 (HDMI2)
Week: 0x00-0x06
(Continued)
GXD-L52H1
A3-3
[a]Function
[b]Range/Switch Code
Command
Control
Enquiry
Standby
Power On
0x35
PAP Input Detect
0x08
HD15 RGB
No
Yes
Disable
Enable
(Left/Main)
0x09
IHD15 YUV
0x0E
OPTION RGB
No
Yes
Disable
Enable
Yes
Yes
Disable
Enable
Yes
Yes
Disable
Enable
Command
Control
Enquiry
Standby
Power On
No
Yes
Disable
Enable
0x36
0x40
0x70
0x0F
OPTION COMPONENT
0x20
DVI
0x30
Video
0x31
S-Video
0x84
Option Digital1
(HDMI1/SDI/FW50)
0x85
Option Digital2 (HDMI2)
PAP Input Detect
0x08
HD15 RGB
(Right/Sub)
0x09
IHD15 YUV
0x0E
OPTION RGB
0x0F
OPTION COMPONENT
0x20
DVI
0x30
Video
0x31
S-Video
0x84
Option Digital1
(HDMI1/SDI/FW50)
Screen Saver
Input Skip
0x85
Option Digital2 (HDMI2)
0x00
OFF
0x01
All White ON
0x02
Sweep ON
0x03
Standby
bit0
HD15
bit1
DVI
bit2
FWD-S42H1/S47H1 is not
used this command.
bit3
Video
bit4
S-Video
Code Table (2-a)
[a]Function
0x77
[b]Range/Switch Code
Priority Signal Select
0x00
Input1 Auto
0x01
Input1 RGB
0x02
Input1 YPbPr
Syntax
Sum
Header
Category
Function
Data1
Data2
Data3
Check
Control
0x8C
0x00
Code Table (2-a) [a]
0x03
Code Table (2-d)
Code Table (2-a) [b]
0xXX
Answer
Header
Answer
Check Sum
Control
0x70
0x00
0x70
Completed
0x70
0x01
0x71
Limit Over
0x70
0x02
0x72
Limit Under
0x70
0x03
0x73
Command Canceled
A3-4
GXD-L52H1
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x00
Code Table (2-a) [a]
Code Table (2-d)
0xFF
0xXX
Answer
Header
Answer
Return to Data Size
Return Data1
Data2
Check Sum
Enquiry
0x70
0x00
0x02
Code Table (2-a) [b]
0xFF
0xXX
Completed
Code Table (2-d)
Input Select
0x00
HD15
0x01
Option
[a]Function
[b]Range/Switch Code
Command
Control
Enquiry
Standby
Power On
0x80
Standby Screen
0x00
0.5H
Yes
Yes
Enable
Enable
Saver Time
Data
1h*Data (Data: 0x01-0x17)
Power On Delay
0x00
OFF
Yes
Yes
Enable
Enable
0x81
0x01-0x78: 1sec*Data
0x82
Audio Delay
0x00-0x18: 5msec*Data
Yes
Yes
Enable
Enable
0x83
IP Address (Player)
IP Address 0-3 (Read)
No
Yes
Enable
Enable
0x86
HD15 Out
0x00
Main (Default)
Yes
Yes
Enable
Enable
0x01
Option
Yes
Yes
Enable
Enable
Command
Control
Enquiry
Standby
Power On
Yes
Yes
Disable
Enable
0x8D
0x02
Mute
Picture Mute
0x00
OFF (Mute Cancel)
Used in firmware
Ver. 1.16 or higher.
0x01
ON
Picture/Sound
[a]Function
0x0E
0x11
Gamma Correct
Brightness Boost
[b]Range/Switch Code
0x00
High
0x01
Mid
0x02
Low
0x03
DICOM GSDF Sim.
0x00
On
0x01 Off
(Possible only for Picture mode = Vivid.)
GXD-L52H1
A3-5
Size/Shift
[a]Function
0x11
[b]Range/Switch Code
Multi Display Batch
Command
Control
Enquiry
Standby
Power On
Yes
Yes
Disable
Enable
Syntax
Header
Category
Function
Data1
Data2
Data3
Data4
Control
0x8C
0x20
0x11
0x08
Multi Setting
Code Table (1-a) [a]
Position Code
Table (1-a) [b]
Output Format
Code Table (1-a) [c]
Data5
Data6
Data7
Data8
Check Sum
H-Size Code
Table (1-a) [d]
H-Shift Code
Table (1-a) [e]
V-Size Code
Table (1-a) [f]
V-Shift Code
Table (1-a) [g]
0xXX
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x20
0x11
0xFF
0xFF
0xXX
Answer
Header
Answer
Check Sum
Control
0x70
0x00
0x70
Completed
0x70
0x01
0x71
Limit Over
0x70
0x02
0x72
Limit Under
0x70
0x03
0x73
Command Canceled
Answer
Header
Answer
Return to Data Size
Data2
Data3
Data4
Enquiry
0x70
0x00
0x08
Multi Setting Code
Table (1-a) [a]
Position Code
Table (1-a) [b]
Output Format
Code Table (1-a) [c]
[a]Function
0x85
Data5
Data6
Data7
Data8
Check Sum
H-Size Code
Table (1-a) [d]
H-Shift Code
Table (1-a) [e]
V-Size Code
Table (1-a) [f]
V-Shift Code
Table (1-a) [g]
0xXX
[b]Range/Switch code
Power On Batch
Command
Control
Enquiry
Standby
Power On
Yes
Yes
Enable
Control/Disable
Enquiry/Enable
Syntax
Header
Category
Function
Data1
Data2
Data3
Check Sum
Control
0x8C
0x00
0x85
0x03
Input Select Code
Table (1-a) [a]
Volume Code
Table (1-a) [b]
0xXX
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x00
0x85
0xFF
0xFF
0xXX
A3-6
GXD-L52H1
Answer
Header
Answer
Check Sum
Control
0x70
0x00
0x70
Completed
0x70
0x01
0x71
Limit Over
0x70
0x02
0x72
Limit Under
0x70
0x03
0x73
Command Canceled
Answer
Header
Answer
Return to Data Size
Data2
Data3
Check Sum
Enquiry
0x70
0x00
0x03
Input Select Code
Table (1-a) [a]
Volume Code
Table (1-a) [b]
0xXX
Code Table (1-a)
Input Select [a]*2 0x08
HD15 RGB
0x09
HD15 YUV
0x0E
OPTION RGB
Volume [b]
0x0F
OPTION COMPONENT
0x20
DVI
0x30
Video
0x31
S-Video
0x84
Option Digital1 (HDMI1/SDI/FW50)
0x85
Option Digital2 (HDMI2)
0x00-0x64
*1 When this control command is received, the power of a set will be turned on first.
*2 Input Select setting, Auto Signal Detect becomes Disable. When Option Slot is connected, Option command is Enable.
[a]Function
[b]Range/Switch Code
Command
Control
Enquiry
Standby
Power On
0x0F
0x0000-0x9999
No
Yes
Enable
Enable
Soft Version (LAN)
Syntax
Header
Category
Function
Data1
Data2
Data3
Check Sum
Control
0x8C
0x30
0x0F
0x03
Upper
8bit Data
Lower 8bit Data
0xXX
ex)In Version1.000, Data2 and 3 are set to 10 and 00.
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x30
0x0F
0xFF
0xFF
0xC0
Answer
Header
Answer
Check Sum
Control
0x70
0x00
0x70
Completed
0x70
0x03
0x73
Command Canceled
Answer
Header
Answer
Return to Data Size
Return Data1
Return Data2
Check Sum
Enquiry
0x70
0x00
0x03
Upper 8bit Data
Lower 8bit Data
0xXX
Completed
Return Data1-2: ex) In Version1.000, Data1 and 2 are set to 10 and 00.
GXD-L52H1
A3-7
GXD-L65H1
General Function
[a]Function
[b]Range/Switch Code
Command
Control
Enquiry
Standby
Power On
0x01
0x08
HD15 RGB
Yes
Yes
Disable
Enable
0x09
HD15 YUV
0x0E
OPTION RGB
Input Select
0x0F
OPTION COMPONENT
0x20
DVI
0x30
Video
0x31
S-Video
0x44
HDMI
0x84
Option Digital1
(HDMI1/SDI/FW50)
0x85
Option Digital2 (HDMI2)
0x23
Time Set (Week)
(Function provided
only for Enquiry)
Week: 0x00-0x06
No
Yes
Enable
Enable
0x35
PAP Input Detect
0x08
HD15 RGB
No
Yes
Disable
Enable
(Left/Main)
0x09
IHD15 YUV
0x0E
OPTION RGB
No
Yes
Disable
Enable
Yes
Yes
Disable
Enable
Yes
Yes
Disable
Enable
0x36
0x40
0x70
0x0F
OPTION COMPONENT
0x20
DVI
0x30
Video
0x31
S-Video
0x44
HDMI
0x84
Option Digital1
(HDMI1/SDI/FW50)
0x85
Option Digital2
(HDMI2)
PAP Input Detect
0x08
HD15 RGB
(Right/Sub)
0x09
IHD15 YUV
0x0E
OPTION RGB
Screen Saver
Input Skip
0x0F
OPTION COMPONENT
0x20
DVI
0x30
Video
0x31
S-Video
0x44
HDMI
0x84
Option Digital1
(HDMI1/SDI/FW50)
0x85
Option Digital2 (HDMI2)
0x00
OFF
0x01
All White ON
0x02
Sweep ON
0x03
Standby
bit0
HD15
bit1
DVI
bit2
HDMI
bit3
Video
bit4
S-Video
(Continued)
A3-8
GXD-L52H1
[a]Function
[b]Range/Switch Code
Command
Control
Enquiry
Standby
Power On
0x77
0x00
Input1 Auto
Yes
Yes
Disable
Enable
0x01
Input1 RGB
0x02
Input1 YPbPr
Priority Signal Select
Syntax
Sum
Header
Category
Function
Data1
Data2
Data3
Check
Control
0x8C
0x00
Code Table (2-a) [a]
0x03
Code Table (2-d)
Code Table (2-a) [b]
0xXX
Answer
Header
Answer
Check Sum
Control
0x70
0x00
0x70
Completed
0x70
0x01
0x71
Limit Over
0x70
0x02
0x72
Limit Under
0x70
0x03
0x73
Command Canceled
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x00
Code Table (2-a) [a]
Code Table (2-d)
0xFF
0xXX
Answer
Header
Answer
Return to Data Size
Return Data1
Data2
Check Sum
Enquiry
0x70
0x00
0x02
Code Table (2-a) [b]
0xFF
0xXX
Completed
Code Table (2-d)
Input Select
0x00
HD15
0x01
Option
[a]Function
[b]Range/Switch Code
Command
Control
Enquiry
Standby
Power On
0x80
Standby Screen
0x00
0.5H
Yes
Yes
Enable
Enable
Saver Time
Data
1h*Data (Data: 0x01-0x17)
Power On Delay
0x00
OFF
Yes
Yes
Enable
Enable
0x81
0x01-0x78: 1sec*Data
0x82
Audio Delay
0x00-0x18: 5msec*Data
Yes
Yes
Enable
Enable
0x83
IP Address (Player)
IP Address 0-3 (Read)
No
Yes
Enable
Enable
0x85
Power On Batch
Refer to Manual
0x86
HD15 Out
0x00
Main (Default)
Yes
Yes
Enable
Enable
0x01
Option
Yes
Yes
Disable
Enable
0x89
GXD-L52H1
Light Sensor
0x02
Mute
0x00
OFF
0x01
ON
A3-9
[a]Function
[b]Range/Switch Code
Command
Control
Enquiry
Standby
Power On
0x8A
0x00
VIDEO
Yes
Yes
Disable
Enable
0x01
PC
RGB Signal
Syntax
Sum
Header
Category
Function
Data1
Data2
Data3
Check
Control
0x8C
0x00
Code Table (3-a) [a]
0x03
Code Table (3-d)
Code Table (3-a) [b]
0xXX
Answer
Header
Answer
Check Sum
Control
0x70
0x00
0x70
Completed
0x70
0x01
0x71
Limit Over
0x70
0x02
0x72
Limit Under
0x70
0x03
0x73
Command Canceled
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x00
Code Table (3-a) [a]
Code Table (3-d)
0xFF
0xXX
Answer
Header
Answer
Return to Data Size
Return Data1
Data2
Check Sum
Enquiry
0x70
0x00
0x02
Code Table (3-a) [b]
0xFF
0xXX
Completed
Code Table (3-d)
Input Select
0x00
HD15
0x01
DVI
0x02
HDMI
[a]Function
[b]Range/Switch Code
Command
Control
Enquiry
Standby
Power On
0x8B
0x00
OFF
Yes
Yes
Enable
Enable
0x01
On (TIMER)
0x02
On (ALL)
Warm Up Mode
0x8C
Warm Up Time
0x01-0x0C
Yes
Yes
Enable
Enable
0x8D
Picture Mute
0x00
OFF (Mute Cancel)
Yes
Yes
Enable
Enable
0x01
ON
Picture/Sound
[a]Function
[b]Range/Switch Code
Command
Control
Enquiry
Standby
Power On
0x0E
0x00
High
Yes
Yes
Disable
Enable
0x01
Mid
0x02
Low
0x11
Gamma Correct
Brightness Boost
0x03
DICOM GSDF Sim.
0x00
On
0x01
Off
(Possible only for
Picture mode = Vivid.)
A3-10
GXD-L52H1
Size/Shift
[a]Function
0x11
[b]Range/Switch Code
Multi Display Batch
Command
Control
Enquiry
Standby
Power On
Yes
Yes
Disable
Enable
Syntax
Header
Category
Function
Data1
Data2
Data3
Data4
Control
0x8C
0x20
0x11
0x08
Multi Setting
Code Table (1-a) [a]
Position Code
Table (1-a) [b]
Output Format
Code Table (1-a) [c]
Data5
Data6
Data7
Data8
Check Sum
H-Size Code
Table (1-a) [d]
H-Shift Code
Table (1-a) [e]
V-Size Code
Table (1-a) [f]
V-Shift Code
Table (1-a) [g]
0xXX
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x20
0x11
0xFF
0xFF
0xXX
Answer
Header
Answer
Check Sum
Control
0x70
0x00
0x70
Completed
0x70
0x01
0x71
Limit Over
0x70
0x02
0x72
Limit Under
0x70
0x03
0x73
Command Canceled
Answer
Header
Answer
Return to Data Size
Data2
Data3
Data4
Enquiry
0x70
0x00
0x08
Multi Setting Code
Table (1-a) [a]
Position Code
Table (1-a) [b]
Output Format
Code Table (1-a) [c]
GXD-L52H1
Data5
Data6
Data7
Data8
Check Sum
H-Size Code
Table (1-a) [d]
H-Shift Code
Table (1-a) [e]
V-Size Code
Table (1-a) [f]
V-Shift Code
Table (1-a) [g]
0xXX
A3-11
[a]Function
0x85
[b]Range/Switch code
Power On Batch
Command
Control
Enquiry
Standby
Power On
Yes
Yes
Enable
Control/Disable
Enquiry/Enable
Syntax
Header
Category
Function
Data1
Data2
Data3
Check Sum
Control
0x8C
0x00
0x85
0x03
Input Select Code
Table (1-a) [a]
Volume Code
Table (1-a) [b]
0xXX
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x00
0x85
0xFF
0xFF
0xXX
Answer
Header
Answer
Check Sum
Control
0x70
0x00
0x70
Completed
0x70
0x01
0x71
Limit Over
0x70
0x02
0x72
Limit Under
0x70
0x03
0x73
Command Canceled
Answer
Header
Answer
Return to Data Size
Data2
Data3
Check Sum
Enquiry
0x70
0x00
0x03
Input Select Code
Table (1-a) [a]
Volume Code
Table (1-a) [b]
0xXX
Code Table (1-a)
Input Select [a]*2 0x08
HD15 RGB
0x09
HD15 YUV
0x0E
OPTION RGB
Volume [b]
0x0F
OPTION COMPONENT
0x20
DVI
0x30
Video
0x31
S-Video
0x84
Option Digital1 (HDMI1/SDI/FW50)
0x85
Option Digital2 (HDMI2)
0x00-0x64
*1 When this control command is received, the power of a set will be turned on first.
*2 Input Select setting, Auto Signal Detect becomes Disable. When Option Slot is connected, Option command is Enable.
A3-12
GXD-L52H1
Status Enquiry
[a]Function
[b]Range/Switch Code
Command
Control
Enquiry
Standby
Power On
0x0F
0x0000-0x9999
No
Yes
Enable
Enable
Soft Version (LAN)
Syntax
Header
Category
Function
Data1
Data2
Data3
Check Sum
Control
0x8C
0x30
0x0F
0x03
Upper
8bit Data
Lower 8bit Data
0xXX
ex)In Version1.000, Data2 and 3 are set to 10 and 00.
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x30
0x0F
0xFF
0xFF
0xC0
Answer
Header
Answer
Check Sum
Control
0x70
0x00
0x70
Completed
0x70
0x03
0x73
Command Canceled
Answer
Header
Answer
Return to Data Size
Return Data1
Return Data2
Check Sum
Enquiry
0x70
0x00
0x03
Upper 8bit Data
Lower 8bit Data
0xXX
Completed
Return Data1-2: ex) In Version1.000, Data1 and 2 are set to 10 and 00.
[a]Function
[b]Range/Switch Code
Command
Control
Enquiry
Standby
Power On
0x17
0x00000000-0xFFFFFFFF (lux)
No
Yes
Enable
Enable
Light Sensor Value
Syntax
Header
Category
Function
Data1
Data2
Check Sum
Enquiry
0x83
0x30
0x17
0xFF
0xFF
0xC8
Answer
Header
Answer
Return to
Data Size
Return
Data1
Return
Data2
Return
Data3
Return
Data4
Check Sum
Enquiry
0x70
0x00
0x05
Upper 8bit
Data
Middle Upper
Data
Middle Lower
Data
Lower 8bit
Data
0xXX
Completed
Return Data1-Data4: 0x00000000-0xFFFFFFFF (lux)
[a]Function
[b]Range/Switch Code
Command
Control
Enquiry
Standby
Power On
0x18
0x00-0xFF
No
Yes
Enable
Enable
GXD-L52H1
Light Sensor
(Failure)
A3-13
The material contained in this manual consists of
information that is the property of Sony Corporation.
Sony Corporation expressly prohibits the duplication
of any portion of this manual or the use thereof for any
purpose other than the operation or maintenance of the
equipment described in this manual without the express
written permission of Sony Corporation.
Le matériel contenu dans ce manuel consiste en
informations qui sont la propriété de Sony Corporation.
Sony Corporation interdit formellement la copie de
quelque partie que ce soit de ce manuel ou son emploi
pour tout autre but que des opérations ou entretiens de
l’équipement à moins d’une permission écrite de Sony
Corporation.
Das in dieser Anleitung enthaltene Material besteht aus
Informationen, die Eigentum der Sony Corporation sind.
Die Sony Corporation untersagt ausdrücklich die
Vervielfältigung jeglicher Teile dieser Anleitung oder den
Gebrauch derselben für irgendeinen anderen Zweck
als die Bedienung oder Wartung der in dieser Anleitung
beschriebenen Ausrüstung ohne ausdrückliche
schriftliche Erlaubnis der Sony Corporation.
GXD-L52H1
GXD-L65H1 (SY)
GXD-L52H1 (WW)
FWD-S47H1 (SY)
FWD-S42H1 (SY) E
9-968-408-02
Sony Corporation
Printed in Japan
2009. 4 22
©2008
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
