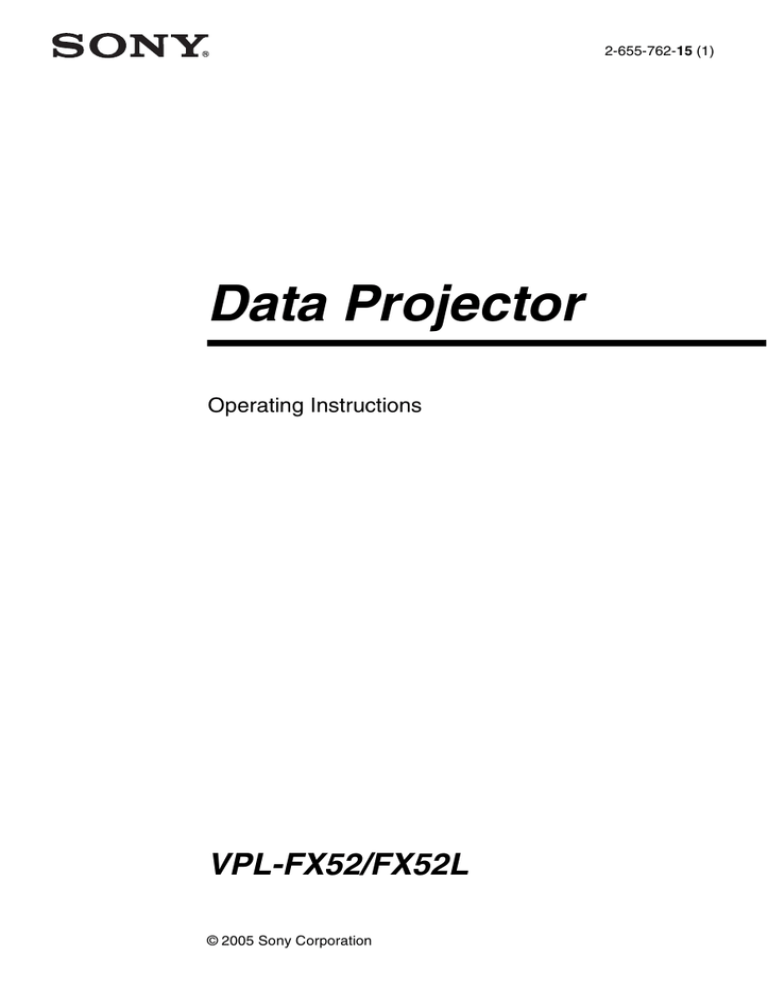

2-655-762-15 (1)
Data Projector
Operating Instructions
VPL-FX52/FX52L
© 2005 Sony Corporation
WARNING
To reduce the risk of fire or electric
shock, do not expose this apparatus
to rain or moisture.
To avoid electrical shock, do not
open the cabinet. Refer servicing to
qualified personnel only.
THIS APPARATUS MUST BE
EARTHED.
WARNING: THIS WARNING IS
APPLICABLE FOR USA ONLY.
If used in USA, use the UL LISTED power
cord specified below.
DO NOT USE ANY OTHER POWER
CORD.
Plug Cap Parallel blade with ground pin
(NEMA 5-15P Configuration)
Cord
Type SJT, three 16 or 18 AWG
wires
Length
Minimum 1.5 m (4 ft .11in.),
Less than 2.5 m (8 ft .3 in.)
Rating
Minimum 10 A, 125 V
Using this unit at a voltage other than 120V
may require the use of a different line cord or
attachment plug, or both.
To reduce the risk of fire or electric shock,
refer servicing to qualified service
personnel.
WARNING: THIS WARNING IS
APPLICABLE FOR OTHER
COUNTRIES.
1 Use the approved Power Cord (3-core
mains lead) / Appliance Connector / Plug
with earthing-contacts that conforms to
the safety regulations of each country if
applicable.
2 Use the Power Cord (3-core mains lead) /
Appliance Connector / Plug conforming
to the proper ratings (Voltage, Ampere).
If you have questions on the use of the above
Power Cord / Appliance Connector / Plug,
please consult a qualified service personnel.
2
WARNING
For the customers in the USA
This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated
in a commercial environment. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instruction
manual, may cause harmful interference to
radio communications. Operation of this
equipment in a residential area is likely to
cause harmful interference in which case the
user will be required to correct the
interference at his own expense.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
All interface cables used to connect
peripherals must be shielded in order to
comply with the limits for a digital device
pursuant to Subpart B of Part 15 of FCC
Rules.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
For the customers in Europe,
Australia and New Zealand
WARNING
This is a Class A product. In a domestic
environment, this product may cause radio
interference in which case the user may be
required to take adequate measures.
For the customers in Canada
This Class A digital apparatus complies with
Canadian ICES-003.
WARNING
When installing the unit, incorporate a
readily accessible disconnect device in the
fixed wiring, or connect the power plug to
an easily accessible socket-outlet near the
unit. If a fault should occur during
operation of the unit, operate the
disconnect device to switch the power
supply off, or disconnect the power plug.
For the State of California, USA only
Perchlorate Material - special handling may
apply, See
www.dtsc.ca.gov/harzardouswaste/
perchlorate
Perchlorate Material: Lithium battery
contains perchlorate.
CAUTION
RISK OF EXPLOSION IF BATTERY IS
REPLACED BY AN INCORRECT
TYPE.
DISPOSED OF USED BATTERIES
ACCORDING TO THE
INSTRUCTIONS.
For safety
Be sure to attach the air filter to the
projector.
For the customers in Europe
The manufacturer of this product is Sony
Corporation, 1-7-1 Konan, Minato-ku,
Tokyo, Japan.
The Authorized Representative for EMC
and product safety is Sony Deutschland
GmbH, Hedelfinger Strasse 61, 70327
Stuttgart, Germany. For any service or
guarantee matters please refer to the
addresses given in separate service or
guarantee documents.
This apparatus shall not be used in the
residential area.
For the customers in Taiwan only
WARNING
3
Table of Contents
Overview
The MENU SETTING Menu .......... 35
Precautions .........................................5
The INFORMATION Menu ............ 36
The INSTALL SETTING Menu ..... 35
Notes on Installation and Usage ......... 7
Unsuitable Installation .................. 7
Usage in High Altitude ................. 8
Unsuitable Conditions .................. 8
Features .............................................. 9
Location and Function of Controls .10
Front ..........................................10
Rear/Bottom ...............................10
Control Panel ..............................11
Connector Panel .........................13
Remote Commander ...................14
Operation and
Administration using a
Network
Accessing the Projector from a
Computer ......................................... 37
Checking the Status of the Projector 37
Controlling the Projector from a
Computer ......................................... 38
Setting Up the Projector .................. 38
Setting Up and Projecting
Maintenance
Installation Example ........................17
Replacing the Lamp ......................... 42
Connecting the Projector ..................18
Cleaning the Air Filter ..................... 43
Connecting with a Computer or a
VCR ................................18
To connect to a video GBR/
Component equipment ....20
Selecting the Menu Language ..........21
Troubleshooting ............................... 45
Projecting .........................................23
Effective Tools for Your
Presentation .....................28
Adjustments and Settings
Using the Menu
Using the MENU .............................29
The PICTURE SETTING Menu ......30
The INPUT SETTING Menu ...........32
The SET SETTING Menu ...............34
4
Table of Contents
Messages List ............................. 47
Others
Specifications .................................. 49
Index ............................................... 55
B Overview
Precautions
On safety
• Check that the operating voltage of your
unit is identical with the voltage of your
local power supply. If voltage adaptation
is required, consult with qualified Sony
personnel.
• Should any liquid or solid object fall into
the cabinet, unplug the unit and have it
checked by qualified Sony personnel
before operating it further.
• Unplug the unit from the wall outlet if it is
not to be used for several days.
• To disconnect the cord, pull it out by the
plug. Never pull the cord itself.
• The wall outlet should be near the unit and
easily accessible.
• The unit is not disconnected from the AC
power source (mains) as long as it is
connected to the wall outlet, even if the
unit itself has been turned off.
• Do not look into the lens while the lamp is
on.
• Do not place your hand or objects near the
ventilation holes — the air coming out is
hot.
• Be careful not to catch your fingers by the
adjuster when you adjust the height of the
projector. Do not push hard on the top of
the projector with the adjuster out.
On illumination
• To obtain the best picture, the front of the
screen should not be exposed to direct
lighting or sunlight.
• Ceiling-mounted spot lighting is
recommended. Use a cover over
fluorescent lamps to avoid lowering the
contrast ratio.
On preventing internal heat buildup
The projector is equipped with ventilation
holes (intake) and ventilation holes
(exhaust) at the front. Do not block or place
anything near these holes, or internal heat
build-up may occur, causing picture
degradation or damage to the projector.
On cleaning
• To keep the cabinet looking new,
periodically clean it with a soft cloth.
Stubborn stains may be removed with a
cloth lightly dampened with a mild
detergent solution. Never use strong
solvents, such as thinner, benzene, or
abrasive cleansers, since these will
damage the cabinet.
• Avoid touching the lens. To remove dust
on the lens, use a soft dry cloth. Do not use
a damp cloth, detergent solution, or
thinner.
• Clean the filter at regular intervals.
On repacking
• Save the original shipping carton and
packing material; they will come in handy
if you ever have to ship your unit. For
maximum protection, repack your unit as
it was originally packed at the factory.
On LCD projector
• The LCD projector is manufactured using
high-precision technology. You may,
however, see tiny black points and/or
bright points (red, blue, or green) that
continuously appear on the LCD projector.
This is a normal result of the
manufacturing process and does not
indicate a malfunction.
Precautions
5
Overview
Warning
The Installation Manual contained in the
CD-ROM is for dealers.
If customers perform the installation
described in this manual, an accident may
occur, causing serious injury. Never install it
by yourself. For installation, be sure to
consult with a Sony dealer.
• Cover any windows that face the screen
with opaque draperies.
• It is desirable to install the projector in a
room where floor and walls are not of
light-reflecting material. If the floor and
walls are of reflecting material, it is
recommended that the carpet and wall
paper be changed to a dark color.
For dealers
Please read throughly this Safety
Regulations and Installation Manual
contained in the CD-ROM for safe
installation.
On safety
• Avoid using an extension cord with a low
voltage limited since it may cause the
short-circuit and physical incidents.
• To carry the projector, be sure to use the
carrying handle. Do not hold other parts of
the projector, especially the lens, nor catch
your finger between the handle, floor, and
the projector.
• Do not catch your finger between the unit
and surface of the floor when moving the
projector installed on the floor.
• Be careful not to catch your finger in the
cooling fan.
• Do not carry the projector with the cabinet
on and with its cover open.
On installation
• When the projector is mounted on the
ceiling, the Sony PSS-620 Projector
Suspension Support must be used for
installation.
• Allow adequate air circulation to prevent
internal heat build-up. Do not place the
unit on surfaces (rugs, blankets, etc.) or
near materials (curtains, draperies) that
may block the ventilation holes. Leave
space of more than 50 cm (19 3/4 inches)
between the wall and the projector. Be
aware that room heat rises to the ceiling;
check that the temperature near the
installation location is not excessive.
• Install the projector on the floor or ceiling.
Any other installation causes a
mulfunction such as color irregularity or
shortening lamp life.
• Do not install the unit in a location near
heat sources such as radiators or air ducts,
or in a place subject to direct sunlight,
excessive dust or humidity, mechanical
vibration or shock.
• To avoid moisture condensation, do not
install the unit in a location where the
temperature may rise rapidly.
6
Precautions
• Be sure to secure the cabinet cover firmly
when installing to the ceiling firmly.
Notes on Installation
and Usage
Subject to direct cool or warm air
from an air-conditioner
Do not install the projector in the following
situations. These installations may cause
malfunction or damage to the projector.
Poorly ventilated
Overview
Unsuitable Installation
Installing in such a location may cause
malfunction of the unit due to moisture
condensation or rise in temperature.
Near a heat or smoke sensor
Malfunction of the sensor may be caused.
Very dusty, extremely smoky
• Allow adequate air circulation to prevent
internal heat build-up. Do not place the
unit on surfaces (rugs, blankets, etc.) or
near materials (curtains, draperies) that
may block the ventilation holes.
• When the internal heat builds up due to the
block-up, the temperature sensor will
function with the message “High temp.!
Lamp off in 1 min.” The power will be
turned off automatically after one minute.
• Leave space of more than 50 cm (19 3/4
inches) around the unit.
• Be careful that the ventilation holes may
inhale tininess such as a piece of paper.
Avoid installing the unit in a very dusty or
extremely smoky environment. Otherwise,
the air filter will become obstructed, and this
may cause a malfunction of the unit or
damage it. Dust preventing the air passing
through the filter may cause a rise in the
internal temperature of the unit. Clean the
filter periodically.
Highly heated and humid
• Avoid installing the unit in a location
where the temperature or humidity is very
high, or temperature is very low.
• To avoid moisture condensation, do not
install the unit in a location where the
temperature may rise rapidly.
Notes on Installation and Usage
7
Usage in High Altitude
When using the projector at an altitude of
1,500 m (4,921 feet) or higher, turn on “High
Altitude Mode” in the INSTALL SETTING
menu. Failing to set this mode when using
the projector at high altitudes could have
adverse effects, such as reducing
the reliability of certain components.
Note on the screen
When using a screen with an uneven surface,
stripes pattern may rarely appear on the
screen depending on the distance between
the screen and the projector or the zooming
magnifications. This is not a malfunction of
the projector.
Unsuitable Conditions
Do not use the projector under the following
conditions.
Toppling the unit
Avoid using as the unit topples over on its
side. It may cause malfunction.
Tilting right/left
Avoid using as the unit tilts more than 20
degrees. Do not install the unit other than on
the floor or ceiling. These installations may
cause malfunction.
8
Notes on Installation and Usage
Blocking the ventilation holes
Avoid using something to cover over the
ventilation holes (exhaust/intake);
otherwise, the internal heat may build up.
Placing a blocking object just in
front of the lens
Do not place any object just in front of the
lens that may block the light during
projection. Heat from the light may damage
the object. Use the PIC MUTING key on the
Remote Commander to cut off the picture.
Note
When using a screen with an uneven surface,
stripes pattern may rarely appear on the screen
depending on the distance between the screen
and the projector or the zooming
magnifications. This is not a malfunction of the
projector.
Features
High brightness, high picture
quality
Convenient and flexible setup
• Power zoom/power focus lens and the
lens shift function
The projector is equipped with a 1.3-times
power zoom and power focus lens*, which
allows you to change the size of the
projected image without having to move
the projector. The lens shift function
enables you to install the projector in a
wide range of locations, without worrying
about trapezoid distortion. Also, three
optional lenses are available for the
projector, depending on your setup
condition.
*For VPL-FX52 (with standard lens) only
• Center positioned lens
The projector is designed to locate the lens
in the center of the unit. This enables an
easy setup, as the lens center aligns with
the center of the screen.
Multi scan compatibility
• DVI, 5BNC and HD D-sub 15 pin
connectors
The projector has the DVI (Digital Visual
Interface) connector, the digital input
connector, which allows you to connect to
the digital RGB equipment equipped with
the DVI output. The 5BNC input
connectors allow you to connect to
workstation output high-resolution signals
and to connect to a computer from a long
distance.
• Accept various input signals
The projector accepts video signals of the
composite, S video and component, and
can also display the VGA, SVGA, XGA,
SXGA, SXGA+ and UXGA (60 Hz)
signals.
The projector has 46 preset data for input
signals in the memory.
• Compatible with six color systems
NTSC 3.58, PAL, SECAM, NTSC 4.431),
PAL-M or PAL-N color system can be
selected automatically.
...............................................................................
1)NTSC4.43 is the color system used when
playing back a video recorded on NTSC on
an NTSC4.43 system VCR.
Features
9
Overview
• High brightness
The high aperture ratio LCD panel with a
microlens and the 300 W lamp provide
high brightness (light output 6000 ANSI
lumen) and excellent uniformity on the
picture.
• High resolution
By adopting three 1.3-inch high definition
panel, approximately 790,000-pixels
XGA panels, the resolutions of 1024 ×768
pixels for RGB input, and 750 horizontal
TV lines for video input.
• High picture performance
The DDE (Dynamic Detail Enhancer)
technology, originally developed by Sony,
enables converting interlace format video
signals to progressive format, allowing
you to obtain a detailed picture.
The technology also reproduces the film
sources in 2-3 Pull-Down format with
smooth picture movement.
The internal RGB enhancer provides
sharper RGB pictures. The 10-bit 3D
Digital Gamma correction for good
picture uniformity is also provided.
• Tilt installation (in front and rear)
You can install the projector by tilting it 90
degrees at the rear or 90 degrees in front.
You can use a mirror for rear projection.
• Direct Power On/Power Off function
The AC power for the entire system can be
turned on and off by means of a breaker or
other switch.
• Twin stack installation
Thanks to the lens shift function, two
projectors can be stacked, which improves
the brightness of the image.
• System expandability using a network
Connection to a LAN allows you to obtain
projector status information such as the
lamp timer or to control the projector away
from the installation location via a Web
browser.
Also, this projector enables the sending of
mail that contains messages on the time for
replacement of the projector lamp, error
occurrences, etc., to mail addresses that
have been specified. This projector
corresponds with SNMP.
Location and
Function of Controls
a Front remote control detector
b Lens
Remove the lens cap before projection.
* The lens for VPL-FX52L are not
supplied.
Front
1
c Lens cover
2
3
4
d Control panel
For details, see “Control Panel” on
page 11.
e AC IN socket
Connects the supplied AC power cord.
f Connector panel
For details, see “Connector Panel” on
page 13.
g Ventilation holes (exhaust)
6
5
Notes
8
• Do not place anything near the
ventilation holes as it may cause internal
heat build-up.
• Do not block the ventilation holes
(intake/exhaust). Otherwise, internal
heat build-up may occur, causing a fire
or damage to the projector.
• Do not place your hand or objects near
the ventilation holes — the air coming
out is hot.
7
Rear/Bottom
9
0
qa
h Security lock
Connects to an optional security cable
(Kensington’s1)).
Home page address:
http://www.kensington.com/
i Rear remote control detector
j Lamp cover
qd
qs
k Ventilation holes (intake)
....................................................................................
1)Kensington is a registered trademark of Kensington Technology Group.
10
Location and Function of Controls
l Adjuster
Control Panel
1 2
3
TEMP/FAN
LAMP/COVER
MENU
INPUT
ENTER
APA
LENS CONTROL
m Air filter
POWER SAVING
ON/STANDBY
RESET
For details, see “Cleaning the Air
Filter” on page 43.
Note
To maintain optimal performance, clean
the air filter periodically.
9
8 7 6 5 4
a LENS CONTROL key
Enters the focus, zoom or shift
adjustment mode. Next adjust them
using the arrow keys. Each time you
press the key, the mode changes to
LENS FOCUS, LENS ZOOM and
LENS SHIFT in order. The mode
currently selected is displayed on the
screen.
• LENS FOCUS: Enters the focus
adjustment mode. Next adjust the
focus using the arrow keys. Press the
M or , key to focus on a picture
further back, and the m or < key to
focus on a forward picture. The LENS
FOCUS does not work when you
attach the optional lens.
• LENS ZOOM: Enters the zoom
adjustment mode. Next adjust the
picture size using the arrow keys.
Press the M or , key to enlarge the
picture size, and the m or < key to
reduce it. The LENS ZOOM does not
work when you attach the optional
lens.
• LENS SHIFT: Enters the shift
adjustment mode. Next adjust the
vertical position of the picture using
the arrow keys. Press the M or , key
to move the picture upward, and the m
or < key to move it downward.
Location and Function of Controls
11
Overview
Use the adjusters to keep the projector
level if it is installed on an uneven
surface.
Adjust the height so that the projector
becomes level. The projector is raised by
turning the adjusters clockwise, or it is
lowered by turning them
counterclockwise.
b Arrow keys (M/m/</,)
Used to adjust focus, zoom and shift, or
to move the cursor or make various
adjustments in the menu.
c Indicators
TEMP (Temperature)/FAN
• Lights up when temperature inside the
projector becomes unusually high.
• Flashes when the fan is broken.
LAMP/COVER
• Lights up when the lamp has reached
the end of its life or becomes a high
temperature.
• Flashes when the lamp cover or air
filter is not secured firmly.
POWER SAVING
Lights up when the projector is in the
power saving mode. When “Power
Saving” in the SET SETTING menu is
set to ON, the projector goes into the
power saving mode if no signal is input
for 10 minutes. Although the lamp goes
out, the cooling fan keeps running. In the
power saving mode, any key does not
function for the first 40 seconds. The
power saving mode is canceled when a
signal is input or any key is pressed.
ON/STANDBY
• Lights in red when the AC power cord
is plugged into the wall outlet. Once in
the standby mode, you can turn on the
projector with the I / 1 key.
• Lights in green when the power is
turned on.
• Flashes in green from the projector is
turned on until the projector is ready to
operate. Also, flashes in green while
the cooling fan is cooling after the
power is turned off with the I / 1 key.
The fan runs for about 120 seconds
after the power is turned off.
• The ON/STANDBY indicator flashes
quickly for the first 40 seconds.
During this time, you cannot light up
the ON/STANDBY indicator with the
I / 1 key.
For details on the LAMP/COVER and
the TEMP/FAN indicators, See page 47.
d I / 1 (on / standby) key
Turns on the projector when the
projector is in the standby mode. The
ON/STANDBY indicator lights in green
when the power is turned on.
When turning off the power, press the I /
1 key twice following the message on
the screen, or press and hold the key for
about one second.
For details on steps for turning off the
power, see “To turn off the power” on
page 27.
e INPUT key
Selects the input signal. Each time you
press the key, the input signal switches
as follows:
t INPUT A t INPUT B t INPUT C t
S VIDEO T VIDEO T
f APA (Auto Pixel Alignment) key
Pressing this key while a signal from a
computer is being input automatically
adjusts the picture so that it can be seen
clearly. This function also
simultaneously adjusts the screen size
and makes up/down and left/right shift
adjustments.
Note
Press the APA key when the full image is
displayed on the screen. If the projected
image includes a large black area around
the periphery, the APA function will not
function properly and in some cases,
portions of the image may not be
displayed.
• You can cancel the adjustment by
pressing the APA key again while
“Adjusting” appears on the screen.
• The picture may not be adjusted properly
depending on the kinds of input signals.
• Adjust the items “Dot Phase,” “H Size”
and “Shift” in the INPUT SETTING
menu when you adjust the picture
manually.
g MENU key
Displays the on-screen menu. Press
again to clear the menu.
12
Location and Function of Controls
h ENTER key
Enters the settings of items in the menu
system.
Connector Panel
i RESET key
56 7
12 4
INPUT B
DVI-D
TRIG
INPUT A
RGB
INPUT C
R/R-Y/PR
G/Y
B/B-Y/PB
SYNC/HD
NEWTWORK
VD
3
0
PLUG IN POWER
CONTROL S
VIDEO IN
S VIDEO
MONITOR OUT
VIDEO
RS-232C
VIDEO OUT
9 8
a INPUT A connectors (HD D-sub
15-pin, female)
Connects to the monitor output on a
computer.
b INPUT B connector (RGB (DVI))
(DVI-D)
Connects to a computer equipped with
DVI (digital) output connector with a
DVI cable.
c INPUT C connectors
5BNC input connectors (R/R-Y/PR, G/
Y, B/B-Y/PB, SYNC/HD, VD
connectors) (BNC type): Connect to a
high-resolution computer or VCR where
signals are transmitted long distances;
for example, when the projector has
been hung from the ceiling.
According to the connected equipment,
computer, component (R-Y/Y/B-Y),
HDTV or DTV (DTV GBR, DTV
YPBPR) signal is selected.
d NETWORK connector (RJ-45)
Connect to a computer on the same LAN
with the LAN cable when you use the
networking function of this projector.
CAUTION
For safety, do not connect the connector
for peripheral device wiring that might
have excessive voltage to this port.
Follow the instructions for this port.
Location and Function of Controls
13
Overview
Resets the value of an item back to its
factory preset value. This key functions
when the menu or a setting item is
displayed on the screen.
e VIDEO IN connectors
Connect to external video equipment
such as a VCR.
S VIDEO (mini DIN 4-pin): Connects
to the S video output (Y/C video
output) on video equipment.
VIDEO (BNC type): Connects to the
composite video output.
f TRIG (trigger output) jack
(monaural minijack)
The signal is transmitted from this jack
to the connected equipment whether the
projector is on or off. (This is not a
power source for external equipment.)
Approximately 12 V DC signal is output
when the projector power is on. The
signal is 0 volt level output when the
projector power is off.
g CONTROL S/PLUG IN POWER
(DC 5V output) jack (stereo
minijack)
Connects to the control S out jacks of the
Sony equipment.
Connects to the CONTROL S OUT jack
on the supplied Remote Commander
when using it as a wired Remote
Commander. In this case, you do not
need to install the batteries in the
Remote Commander, since the power is
supplied from this jack.
Remote Commander
The keys which have the same names as on
the control panel function identically.
ws
wa
w;
ql
qk
qj
COMMAND
OFF ON
PIC
PJ NETWORK MUTING
AUDIO
LENS
VOLUME
APA
MENU/
TAB
i VIDEO OUT connectors
S VIDEO (mini DIN 4-pin): Used as
loop-through output via the S VIDEO
IN connector.
VIDEO (BNC type): Used as loopthrough output via the VIDEO IN
connector.
j MONITOR OUT connector (HD
D-sub 15-pin, female)
Outputs signals from the selected
channel and computer signals only from
among the signals from the INPUT A or
INPUT C RGB connector. This
connector does not output any signals
from the INPUT B connector.
14
Location and Function of Controls
FREEZE
AIR SHOT
qh
qg
8
qf
qd
ENTER
R
CLICK
RESET/
ESCAPE
D ZOOM
1
2
3
8
9
q;
FUNCTION
RM-PJM15
PROJECTOR
RM-PJM17
h RS-232C connector (D-sub 9pin, female)
Connects to a computer to operate the
projector from the computer.
INPUT
TILT/KEYSTONE
1
2
3
4
5
6
7
8
qa, qs
a I / 1 key
b MUTING keys
• PIC: Cuts off the picture. Press again
to restore the picture.
• AUDIO: This key does not work in
the unit.
c INPUT key
4 TILT/KEYSTONE key
Adjusts the vertical trapezoidal
distortion of the image manually. Use
the arrow keys (M/m/</,) for
adjustment.
e
(Memory Stick) key
This key does not work in the unit.
f FREEZE key
g AIR SHOT key
This key does not work in the unit.
8 Keys that emulate a mouse
This key does not work in the unit.
i ENTER key
j FUNCTION 1/2/3 keys
This key does not work in the unit.
k Strap holder
Attaches a strap.
l CONTROL S OUT jack (stereo
mini-jack)
Connects to the CONTROL S IN jack on
the projector with the connecting cable
(not supplied) when using the Remote
Commander as a wired one. In this case,
you do not need to install the batteries
since the power is supplied via the
CONTROL S IN jack on the projector.
m RESET/ESCAPE key
Enlarges the image at a desired location
on the screen.
o Arrow keys (M/m/</,)
p MENU/TAB key
Functions as a MENU key.
q APA (Auto Pixel Alignment) key
Automatically adjusts a picture to its
clearest while a signal is input from a
computer.
For details, see “Smart APA” in the SET
SETTING menu on page 34.
r VOLUME +/– keys
This key does not work in the unit.
s LENS key
This has the same function as the LENS
CONTROL key on the control panel.
t PJ/NETWORK (Projector/
Network) selector switch
Set this switch to PJ always.
u COMMAND ON/OFF switch
When this switch is set to OFF, no key
on the Remote Commander function.
This saves the battery power.
v Infrared transmitter
Functions as a RESET key.
Resets the value of an item to its factory
preset value or returns the enlarged
image to its original size. This key
functions when the menu or a setting
item is displayed on the screen.
Location and Function of Controls
15
Overview
This key freezes the projected image.
Press again to unfreeze the image.
(available for computer signals only)
n D ZOOM +/– key
Battery installation
1
Push and slide to open the lid, then
install the two size AA (R6) batteries
(supplied) with the correct polarity.
While pressing the lid, slide it.
Be sure to install the battery
from the # side.
2
Replace the lid.
Notes on batteries
• Make sure that the battery orientation is
correct when inserting batteries.
• Do not mix an old battery with a new one
or different types of batteries.
• If you will not use the Remote
Commander for a long time, remove the
batteries to avoid damage from battery
leakage. If batteries have leaked, remove
them, wipe and dry the battery
compartment, and replace the batteries
with new ones.
Notes on Remote Commander
operation
• Make sure that nothing to obstruct the
infrared beam between the Remote
Commander and the remote control
detector on the projector.
• The operation range is limited. The shorter
the distance between the Remote
Commander and the projector is, the wider
the angle within which the commander can
control the projector.
16
Location and Function of Controls
B Setting Up and Projecting
Installation Example
• The following table indicates an example of installing the standard lens
supplied with VPL-FX52.
• When you use VPL-FX52L (Lens are not supplied), be sure refer to the
operating instructions of "Installation Manual for Dealers".
a:
b:
c:
x:
Distance between the screen and the center of the lens
Distance from the floor to the center of the lens
Distance from the floor to the foot of the projector
Free
Setting Up and Projecting
Distance between the front of
the cabinet and the center of
the lens
Wall
Center of the screen
Standard lens:
30.5 mm (1 1/4 inches)
x
Center of the lens
b
c
Floor
a
Unit: mm (inches)
Screen size
(inches)
a
b
c
40
60
Minimum
Distance
(58 3/4)
Maximum
Distance
(71 3/4)
(109 1/2)
Minimum
Distance
(×-12 1/8)
×-305
×-457
1490
1820
2280
(89 7/8)
2780
(×-18)
80
3060
(120 1/2)
3740
100
3850
(151 5/8)
4700
120
4630
Maximum
Distance
5810
(182 3/8)
(228 7/8)
5660
7100
180
200
6980
7770
(274 7/8)
(306)
8540
9500
9730
11690
11900
14300
(383 1/8)
(279 5/8)
×-610
×-762
×-914
×-1143 ×-1372 ×-1524 ×-1905 ×-2286
(×-30)
(×-36)
(×-54 1/8)
(×-60)
(468 5/8)
(460 3/8)
(222 7/8)
(×-45)
(374 1/8)
300
(185 1/8)
(×-24 1/8)
(336 3/8)
250
(147 3/8)
Maximum
Distance
Minimum
Distance
150
(×-75 1/8)
(563 1/8)
(×-90 1/8)
×
×-417
(×-16 1/2)
×-569
(×-22 1/2)
×-722
(×-28 1/2)
×-874
(×-34 1/2)
×-1026 ×-1255 ×-1484 ×-1636 ×-2017 ×-2398
(×-40 1/2)
(×-49 1/2)
(×-58 1/2)
(×-64 1/2)
(×-79 7/16)
(×-94 1/2)
×-102 (×-4 1/8)
To calculate the installation measurement (unit: mm)
SS: screen size diagonal (inches)
a (minimum) = {(SS × 50.127/1.3102) – 73.9} × 1.025
a (maximum) = {(SS × 64.519/1.3102) – 107.9} × 0.975
b (minimum) = x – (SS/1.3102 × 9.984)
c (minimum) = x – (SS/1.3102 × 9.984 + 112)
Installation Example
17
Connecting the Projector
When you connect the projector, make sure to:
• Turn off all equipment before making any connections.
• Use the proper cables for each connection.
• Insert the cable plugs firmly; loose connections may increase noise and
reduce performance of picture signals. When pulling out a cable, be sure to
pull it out from the plug, not the cable itself.
Connecting with a Computer or a VCR
This section describes how to connect the projector to a computer or video
equipment.
For more information, refer to the computer’s instruction manual.
Notes
• The projector accepts VGA, SVGA, XGA, SXGA, SXGA+ and UXGA (60 Hz)
signals. However, we recommend that you set the output mode of your computer to
XGA mode for the external monitor.
• If you set your computer, such as a notebook type, to output the signal to both your
computer’s display and the external monitor, the picture of the projector may not
appear properly. Set your computer to output the signal to only the external monitor.
For details, refer to the computer’s operating instructions supplied with your
computer.
• If you connect a computer that can use the DDC function to the INPUT C connector
on this unit, the picture of the projector may not be displayed properly. In that case,
change the setting on your computer to disable the DDC function.
• This projector is compatible with a DDC2B (Digital Data Channel 2B). If your
computer is compatible with a DDC, turn the projector on according to the following
procedures.
1 Connect the projector to the computer by using the HD D-sub 15-pin cable or DVI
cable.
2 Turn the projector on.
3 Start the computer.
18
Connecting the Projector
Computer
To DVI
output
Front of the projector
DVI cable (not supplied)
INPUT B
DVI-D
G/Y
B/B-Y/PB
SYNC/HD
Setting Up and Projecting
TRIG
INPUT A
RGB
INPUT C
R/R-Y/PR
PLUG IN POWER
CONTROL S
VIDEO IN
NEWTWORK
VD
S VIDEO
MONITOR OUT
VIDEO
RS-232C
VIDEO OUT
to S video
output
to video output
Video cable (not supplied)
VCR
S-Video cable
(not supplied)
HD D-sub
15-pin (not
supplied)
HD D-sub 15-pin
(not supplied)
Monitor
to monitor input
to monitor out
Computer
Note
• When connecting a Macintosh1) computer equipped with video output connector of a
type having two rows of pins to the connector, use a commercially available plug
adaptor.
...............................................................................
1) Macintosh is a registered trademark of Apple Computer Inc.
Connecting the Projector
19
To connect to a video GBR/Component equipment
Front of the projector
INPUT B
DVI-D
TRIG
INPUT A
RGB
INPUT C
R/R-Y/PR
G/Y
B/B-Y/PB
SYNC/HD
NEWTWORK
VD
S VIDEO
MONITOR OUT
PLUG IN POWER
CONTROL S
VIDEO IN
VIDEO
RS-232C
VIDEO OUT
Monitor cable (not supplied)
to RGB/
component
output
15k RGB/component equipment
Notes
• When you connect the unit to a video GBR output connector, select video GBR or
component with the Input-C Signal Sel. setting in the SET SETTING menu.
• Use the composite sync signal when you input the external sync signal from video
GBR/component equipment.
20
Connecting the Projector
Selecting the Menu Language
You can select one of nine languages for displaying the menu and other onscreen displays. The factory setting is English.
4,5,6
3
2
LAMP/COVER
MENU
INPUT
ENTER
APA
LENS CONTROL
POWER SAVING
ON/STANDBY
RESET
1
Rear remote
control detector
COMMAND
OFF ON
2
PIC
PJ NETWORK MUTING
AUDIO
INPUT
TILT/KEYSTONE
LENS
VOLUME
APA
MENU/
TAB
FREEZE
AIR SHOT
3
4,5,6
1
Plug the AC power cord into a wall outlet.
2
Press the I / 1 key to turn on the projector.
3
Press the MENU key.
The menu appears.
The menu presently selected is shown as a yellow button.
Selecting the Menu Language
21
Setting Up and Projecting
TEMP/FAN
Input A
PICTURE SETTING
Picture Mode:
Adjust Picture...
4
Press the M or m key to select the MENU SETTING menu, then press the
, or ENTER key.
The selected menu appears.
Input A
:
:
A
:
:
5
Press the M or m key to select “Language,” then press the , or ENTER
key.
Input A
:
:
:
:
6
Press the M or m key to select a language, then press the < or ENTER
key.
The menu changes to the selected language.
To clear the menu
Press the MENU key.
The menu disappears automatically if a key is not pressed for one minute.
22
Selecting the Menu Language
Projecting
ON/STANDBY indicators
6~9 6~9
APA
4
2
LAMP/COVER
MENU
INPUT
ENTER
APA
LENS CONTROL
POWER SAVING
ON/STANDBY
RESET
1
Rear remote control
detector
COMMAND
OFF ON
PIC
PJ NETWORK MUTING
AUDIO
6~9
INPUT
TILT/KEYSTONE
2
4
LENS
VOLUME
APA
MENU/
TAB
FREEZE
AIR SHOT
6~9
1
Plug the AC power cord into a wall outlet, then connect all equipment.
The ON/STANDBY indicator lights in red and the projector goes into
standby mode.
2
Press the I / 1 key.
The ON/STANDBY indicator lights in green after it flashes for about
several seconds.
3
Turn on the equipment connected to the projector.
Projecting
23
Setting Up and Projecting
TEMP/FAN
4
Press the INPUT key to select the input source.
To input from
Press INPUT to display
Computer etc., connected to the INPUT A connector
INPUT A
Computer etc., connected to the INPUT B (digital)
connector
INPUT B
Computer etc., connected to the INPUT C connector
INPUT C
Video equipment connected to the VIDEO input
connector
VIDEO
Video equipment connected to the S VIDEO input
connector
S VIDEO
Smart APA (Auto Pixel Alignment) adjusts the picture of the connected
equipment so that it is projected clearly.
Notes
• If “Auto Input Search” is set to “On”, the projector searches for the signals from
the connected equipment and displays the input channel where the input signals
are found.
For details, see “Auto Input Search” in the SET SETTING menu on page 34.
• The smart APA is effective for the analog input signal from a computer only.
5
Switch the equipment to be connected to output to the projector.
Depending on the type of your computer, for example a notebook, or an all-inone LCD type, you may have to switch the computer to output to the projector
by pressing certain keys (e.g., LCD / VGA ,
, etc.), or by changing your
/
computer’s settings.
F7
or
Fx
and
Fn
Note
The key for switching the computer to output to the projector varies depending on
the type of a computer.
6
24
Projecting
Press the LENS key on the Remote Commander or LENS CONTROL key
on the control panel repeatedly to display “LENS FOCUS.” Then press the
arrow keys to adjust.
7
Press the LENS key on the Remote Commander or LENS CONTROL key
on the control panel repeatedly to display “LENS ZOOM.” Then press the
arrow keys to adjust.
8
Press the LENS key on the Remote Commander or LENS CONTROL key
on the control panel repeatedly to display “LENS FOCUS.” Then press the
arrow keys to adjust again.
9
Press the LENS key on the Remote Commander or LENS CONTROL key
on the control panel repeatedly to display “LENS SHIFT.” Then press the
arrow keys to adjust.
Attention
Looking into the lens when projecting may cause injury to your eyes.
To mute the picture
Press the PIC MUTING key on the Remote Commander. Press again to restore
the picture.
To get the clearest picture
The picture quality can be adjusted automatically when projecting the analog
signal from the computer.
1
Project a still picture from the computer.
2
Press the APA key.
“Complete!” appears on the screen when the picture is adjusted properly.
Notes
• Press the APA key when the full image is displayed on the screen. If the projected
image includes a large black area around the periphery, the APA function will not
function properly and in some cases, portions of the image may not be displayed.
• When you switch the input signal or re-connect a computer, press the APA key again
to adjust the picture again.
• You can cancel the adjustment by pressing the APA key again while “ADJUSTING”
appears on the screen.
• The picture may not be adjusted properly depending on the kinds of input signals.
• Adjust the items in the INPUT SETTING menu when you adjust the picture manually.
Using the security lock
The projector is equipped with a security lock function. When the AC power
cord is inserted into the wall outlet and you turn the power of the projector on,
you are required to input the previously set password. If you do not input the
correct password, you will not be able to project the picture.
Projecting
25
Setting Up and Projecting
Note
A powered zoom/powered focus function is available for the standard lens. If you use
the optional lens, adjust the zoom/focus with the lens ring.
Note
You will not be able to use the projector if you forget your password and the password
administrator is not available. Be please aware that using the security lock can prevent
valid usage in such cases.
1
Press the MENU key and then, in the INSTALL SETTING menu, turn on
the security lock setting.
2
Enter the password.
Use the MENU, M/m/</,, and ENTER keys to enter the four-digit
password. (The default setting is “ENTER, ENTER, ENTER, ENTER.”)
Next, the screen for entering the new password is displayed. (Enter the
password at this screen even if you want to keep the current password.)
Enter password key
Use:
3
Cancel: Other key
Enter the password again to confirm.
If “Invalid Password!” is displayed on the menu screen, perform again
from step 1.
INSTALL SETTING
X
Input A
V Key s t o n e :
0
I m ag e F l i p :
Off
B a ck g ro u n d :
Blue
Lamp Mode:
S t a n d a rd
D i r e c t Pow e r O n : O f f
High Altitude Mode: O f f
S e c u r i t y L o ck :
Off
I nva l i d Pa s swo rd !
4
Turn the main power off and disconnect the AC power cord.
The security lock is set to on, then it becomes effective. The screen for entering
the password is displayed when the power is turned on the next time.
Security certification
When the screen for entering the password is displayed, enter the password
that was set. If you fail to enter the correct password after three tries, the
projector cannot be used. In this case, press the I / 1 key to turn off the power.
To cancel the security lock
1
26
Projecting
Press the MENU key, then turn off the “Security Lock” setting in the
INSTALL SETTING menu.
2
Enter the password.
Enter the password that was set.
Note
If you call the customer service center because you have forgotten the password, you
will need to be able to verify the projector’s serial number and your identity. (This
process may differ in other countries.) Once your identity has been confirmed, we will
provide you with the password.
To turn off the power
Press the I / 1 key.
“POWER OFF? Please press I / 1 key again.” appears to confirm that you
want to turn off the power.
Note
A message disappears if you press any key except the I / 1 key, or if you do not
press any key for five seconds.
2
Press the I / 1 key again.
The ON/STANDBY indicator flashes in green and the fan continues to run for
about 120 seconds to reduce the internal heat. Also, the ON/STANDBY
indicator flashes quickly for the first 40 seconds. During this time, you will not
be able to light up the ON/STANDBY indicator with the I / 1 key.
3
Unplug the AC power cord from the wall outlet after the fan stops running
and the ON/STANDBY indicator lights in red.
(Except when using the Direct Power On/ Off function.)
When you cannot confirm the on-screen message
When you cannot confirm the on-screen message in a certain condition, you can
turn off the power by holding the I / 1 key for about one second.
Direct Power On/Off function
If you will be using a circuit breaker to turn the power for the entire system on and off,
set the direct power on function to “On”. You can turn the power on/off without pressing
the power key on the projector.
On air filter
To maintain optimal performance, clean the air filter whenever you replace
the lamp.
Projecting
27
Setting Up and Projecting
1
Effective Tools for Your Presentation
To enlarge the image (Digital Zoom function)
You can select a point in the image to enlarge. This function works when a
signal from a computer is input.
1
Press the D ZOOM + key on the Remote Commander.
The digital zoom icon appears the center of the image.
Digital zoom icon
2
Move the icon to the point on the image you want to enlarge. Use the arrow
key (M/m/</,) to move the icon.
3
Press the D ZOOM + key again.
The image where the icon is located is enlarged. The enlargement ratio is
displayed on the screen for a few seconds.
By pressing the + key repeatedly, the image size increases (ratio of
enlargement: max. 4 times.)
Use the arrow key (M/m/</,) to scroll the enlarged image.
To return the image back to its original size
Press the D ZOOM – key.
Just pressing the RESET key returns the image back to its original size
immediately.
To freeze the image projected (Freeze function)
Press the FREEZE key. “FREEZE” appears when the key is pressed. This
function works when a signal from a computer is input.
To restore the original screen, press the FREEZE key again.
28
Projecting
B Adjustments and Settings Using the Menu
Using the MENU
1
The menu appears.
The menu presently selected is shown as
a yellow button.
The projector is equipped with an on-screen
menu for making various adjustments and
settings. The setting items are displayed in a
pop-up menu or in a sub menu. If you select
an item name followed by dots (...), a sub
menu with setting items appear. You can
change the tone of the menu display and the
menu language displayed in the on-screen
menu.
To change the menu language, see
“Selecting the Menu Language” on page 21.
SET SETTING
2
NTSC 4.43
Input signal setting indicator
On
Off
Computer
Au t o
Off
F ro n t & R e a r
Use the M or m key to select a menu,
then press the , or ENTER key.
The selected menu appears.
3
Select an item.
Use the M or m key to select the item,
then press the , or ENTER key.
The setting items are displayed in a popup menu or in a sub menu.
Picture adjustment menu
Pop-up menu
C o n t ra s t
Input signal indicator
Shows the selected input channel. x
is
displayed when no signal is input. You can
hide this indicator using “Status” in the
MENU SETTING menu.
Menu Setting items
Selected input
signal
MENU SETTING
Input A
Status:
L a n g u ag e :
M e nu Po s i t i o n :
M e nu C o l o r :
Input signal setting indicator
For Input C: Shows “Computer”,
“Component” or “Video GBR”.
Sub menu
Menu
Setting items
PICTURE SETTING
Input A
ADJUST PICTURE
S t a n d a rd
Contrast:
Brightness:
RGB Enhancer:
Gamma Mode:
C o l o r Te m p :
80
50
30
Graphics
High
Using the MENU
29
Adjustments and Settings Using the Menu
Video
Input A
S m a r t A PA :
Au t o I n p u t S e a rch :
Input-C Signal Sel:
Color System:
Pow e r S av i n g :
IR Receiver:
Display items
Input signal indicator
Press the MENU key.
4
Make the setting or adjustment on an
item.
• When changing the adjustment level:
To increase the number, press the M or
, key.
To decrease the number, press the m
or < key.
Press the ENTER key to restore the
previous screen.
• When changing the setting:
Press the M or m key to change the
setting.
Press the ENTER or < key to restore
the previous screen.
The PICTURE
SETTING Menu
The PICTURE SETTING menu is used for
adjusting the picture or volume.
Items that cannot be adjusted depending on
the input signal are not displayed in the
menu.
For details on the unadjustable items, see
page 52.
PICTURE SETTING
To clear the menu
Picture Mode
Adjust Picture...
Input A
S t a n d a rd
Press the MENU key.
The menu disappears automatically if a key
is not pressed for one minute.
To reset items that have been
adjusted
Press the RESET key on the Remote
Commander.
“Complete!” appears on the screen and the
settings appearing on the screen are reset
to their factory preset values.
Items that can be reset are:
• “Contrast,” “Brightness,” “Color,” “Hue,”
“Sharpness” and “RGB Enhancer” in the
Adjust Picture... menu.
• “Dot Phase,” “H Size,” and “Shift” in the
Adjust Signal... menu.
About the memory of the settings
The settings are automatically stored in the
projector memory.
If no signal is input
If there is no input signal, “Cannot adjust
this item.” appears on the screen.
About the menu display
You can set the display position of the menu,
intensity of the background picture and tone
of the menu items as you like.
For details, see “The MENU SETTING
Menu” on page 35.
30
The PICTURE SETTING Menu
Menu Items
Picture Mode
Selects the picture mode.
Dynamic: Emphasizes the contrast to
produce a “dynamic” picture.
Standard: Normally select this setting. If
the picture has roughness with the
“Dynamic” setting, this setting reduces
the roughness.
Adjust Picture... Menu Items
The unit can store the setting values of the
following sub menu items for each
“Dynamic” or “Standard” picture mode
separately.
Adjust Picture...
Sharpness
When the video signal is input
PICTURE SETTING
Video
ADJUST PICTURE
S t a n d a rd
Contrast:
Brightness:
Color:
Hue:
Sharpness:
B l a ck L ev e l A d j . :
C o l o r Te m p . :
DDE:
80
50
50
50
50
Off
Low
Film
RGB Enhancer
Adjusts the picture sharpness when RGB
signals are input.
The higher the setting, the sharper the
picture. The lower the setting, the softer the
picture.
When the RGB signal is input
PICTURE SETTING
Input A
S t a n d a rd
80
50
30
Graphics
High
Black Level Adj.
Using black level adjustment results in a
vivid image with clearly defined light and
dark areas. Set the black compensation in
accordance with the image source.
High: Strong black compensation
Low: Weak black compensation
Off: No black compensation
Gamma Mode
Contrast
Adjusts the picture contrast. The higher the
setting, the greater the contrast between a
dark portion and a bright portion of the
picture. The lower the setting, the lower the
contrast.
Selects a gamma correction curve.
Graphics: Improves the reproduction of
halftones. Photos can be reproduced in
natural tones.
Text: Contrasts black and white. Suitable
for images that contain lots of text.
Brightness
Color Temp.
Adjusts the picture brightness. The higher
the setting, the brighter the picture. The
lower the setting, the darker the picture.
Adjusts the color temperature.
High: Makes the white color bluish.
Low: Makes the white color reddish.
Color
Adjusts color intensity. The higher the
setting, the greater the intensity. The lower
the setting, the lower the intensity.
Hue
Adjusts color tones. The higher the setting,
the picture becomes greenish. The lower the
setting, the picture becomes purplish.
The PICTURE SETTING Menu
31
Adjustments and Settings Using the Menu
ADJUST PICTURE
Contrast:
Brightness:
RGB Enhancer:
Gamma Mode:
C o l o r Te m p . :
Adjusts the picture sharpness. The higher
the setting, the sharper the image. The lower
the setting, the softer the image.
DDE (Dynamic Detail Enhancer)
Selects the reproduction format of the input
video signals according to the video sources.
Off: Plays back the video signal in an
interlace format without converting.
Progressive: Converts an interlace format
video signal to a progressive format.
Film: Reproduces the 2-2, 2-3 Pull-Down
film sources with smooth picture
movement. When the video signal with a
format other than the 2-2, 2-3 PullDown is input, “Progressive” is
automatically selected.
The INPUT SETTING
Menu
The INPUT SETTING menu is used to
adjust the input signal.
Items that cannot be adjusted depending on
the input signal are not displayed in the
menu.
For details on the unadjustable items, see
page 52.
When the video signal is input
INPUT SETTING
Wide Mode:
Video
Off
When the RGB signal is input
INPUT SETTING
Input A
Adjust Signal...
S c a n C o nv e r t e r
On
MENU Items
Wide Mode
Sets the aspect ratio of the picture. When
inputting 16:9 (squeezed) signal from
equipment such as a DVD player, set to On.
Off: When the picture with ratio 4:3 is input.
On: When the picture with ratio 16:9
(squeezed) is input.
Note
Note that if the projector is used for profit or for
public viewing, modifying the original picture
by switching to the wide mode may constitute
32
The INPUT SETTING Menu
an infringement of the rights of authors or
producers, which are legally protected.
Adjust Signal... Menu Items
Dot Phase
Adjusts the dot phase of the LCD panel and
the signal output from a computer.
Adjust the picture further for finer picture
after the picture is adjusted by pressing the
APA key.
Adjust the picture to where it looks clearest.
H Size
For details on the suitable value for the
preset signals, see page 53.
Shift
Adjusts the position of the picture. H adjusts
the horizontal position of the picture. V
adjusts the vertical position of the picture.
As the setting for H increases, the picture
moves to the right, and as the setting
decreases, the picture moves to the left.
As the setting for V increases, the picture
moves up, and as the setting decreases, the
picture moves down. Use the < or the ,
key to adjust the horizontal position and the
M and m key for the vertical position.
This projector has 46 types of preset data for
input signals (the preset memory). When a
preset signal is input, the projector
automatically detects the signal type and
recalls the data for the signal from the preset
memory to adjust it to an optimum picture.
The memory number and signal type of that
signal are displayed in the INFORMATION
menu (See page 36). You can also adjust the
preset data through the INPUT SETTING
menu.
This projector has 20 types of user memories
into which you can save the setting of the
adjusted data for an unpreset input signal.
When an unpreset signal is input for the first
time, a memory number is displayed as 0.
When you adjust the data of the signal in the
INPUT SETTING menu, it will be
registered to the projector. If more than 20
user memories are registered, the newest
memory always overwrites the oldest one.
See the chart on page 53 to find if the signal
is registered to the preset memory.
Since the data is recalled from the preset
memory about the following signals, you
can use these preset data by adjusting “H
Size.” Make fine adjustment by adjusting
“Shift.”
Signal
Memory No. SIZE
Super Mac-2
23
1,312
SGI-1
23
1,320
Macintosh 19"
25
1,328
Scan Converter
Macintosh 21"
27
1,456
Converts the signal to display the picture
according to the screen size.
On: Displays the picture according to the
screen size. The picture will lose some
clarity.
Off: Displays the picture while matching
one pixel of input picture element to that
of the LCD. The picture will be clear but
the picture size will be smaller.
Sony News
36
1,708
PC9821
1,280 × 1,024
36
1,600
WS Sunmicro
37
1,664
Note
When the aspect ratio of input signal is other
than 4:3, a part of the screen is displayed in
black.
Note
When XGA, SXGA, SXGA+ or UXGA signal
is input, this item will not be displayed.
The INPUT SETTING Menu
33
Adjustments and Settings Using the Menu
Adjusts the horizontal size of picture output
from a connector. The higher the setting, the
larger the horizontal size of the picture. The
lower the setting, the smaller the horizontal
size of the picture. Adjust the setting
according to the dots of the input signal.
About the Preset Memory No.
The SET SETTING
Menu
The SET SETTING menu is used for
changing the settings of the projector.
SET SETTING
S m a r t A PA :
Au t o I n p u t S e a rch :
Input-C Signal Sel:
Color System:
Pow e r S av i n g :
IR Receiver:
Auto Input Search
Normally set to “Off.”
When set to “On,” the projector detects input
signals in the following sequence: Input-A/
Input-B/Input-C/Video/S-Video. It indicates
the input channel when the power is turned
on or the INPUT key is pressed.
Input A
On
Off
Computer
Au t o
Off
F ro n t & R e a r
Input-C Signal Sel.
Selects either a computer signal, a
component signal or a video GBR signal
(15k RGB, DTV, HDTV) for the signal that
is input to the INPUT C connector.
Color System
Menu Items
Smart APA
Activates or deactivates the Smart APA1).
On: Normally select this setting. When a
signal is input from a computer, the APA
functions automatically so that the
picture can be seen clearly. Once the
specified analog input signal has been
adjusted by the Smart APA, it will not be
readjusted even when the cable is
disconnected and connected again or the
input channel is changed. You can adjust
the picture by pressing APA key on the
Remote Commander even if the Smart
APA set to “On.”
Off: The APA functions when you press the
APA key on the Remote Commander.
1) The APA (Auto Pixel Alignment)
automatically adjusts “Dot Phase,” “H Size”
and “Shift” in the INPUT SETTING menu
for the input signal from a computer.
34
The SET SETTING Menu
Selects the color system of the input signal.
If you select “Auto,” the projector detects
the color system of the input signal
automatically. If the picture is distorted or
colorless, select the color system according
to the input signal.
Power Saving
When set to “On,” the projector goes into
power saving mode if you do not operate the
unit for 10 minutes with no signal input.
IR Receiver
Selects the remote control detectors (IR
receiver) on the front and rear of the
projector.
Front&Rear: Activates both the front and
rear detectors.
Front: Activates the front detector only.
Rear: Activates the rear detector only.
The MENU SETTING
Menu
The INSTALL
SETTING Menu
The MENU SETTING menu is used for
changing the settings of the projector.
The INSTALL SETTING menu is used for
changing the settings of the projector.
MENU SETTING
Status:
L a n g u ag e :
M e nu Po s i t i o n :
M e nu C o l o r :
Input A
On
English
Center
White
INSTALL SETTING
A
Menu Items
Status (on-screen display)
V Keystone
Sets up the on-screen display.
On: Shows all of the on-screen displays.
Corrects the trapezoid caused by the
projection angle. If the base edge is longer,
set a negative value; if the upper edge is
longer, set a positive value to square the
image.
Off: Turns off the on-screen displays except
for the menus, a message when turning
off the power, and warning messages.
Image Flip
Language
Selects the language used in the menu and
on-screen displays. Available languages are:
English, Français, Deutsch, Italiano,
Español, Português, Japanese, Chinese and
Korean.
Flips the image on the screen horizontally
and/or vertically.
Off: The image does not flip.
HV: Flips the image horizontally and
vertically.
H: Flips the image horizontally.
Menu Position
V:
Selects the display position of the menu
from Top Left, Bottom Left, Center, Top
Right and Bottom Right.
Background
Menu Color
Selects the tone of the menu display from
Black or White.
Flips the image vertically.
Select the background color of the screen
when no signal is input to the projector.
Select Black or Blue.
Normally set to “Blue.”
Test Pattern
When set to “On,” a test pattern is displayed
on the screen during “Lens Zoom”
adjustment, “Lens Focus,” “Lens Shift,” or
“V Keystone.”
The MENU SETTING Menu / The INSTALL SETTING Menu
35
Adjustments and Settings Using the Menu
Menu Items
Input A
V Key s t o n e :
0
I m ag e F l i p :
Off
B a ck g ro u n d :
Blue
Te s t Pa t t e r n :
On
Lamp Mode:
S t a n d a rd
L e n s C o n t ro l :
On
D i r e c t Pow e r O n : O f f
High Altitude Mode: O f f
S e c u r i t y L o ck :
Off
Lamp Mode
Sets the lamp brightness in the projection.
High:Illuminates the projected image
brightly.
Standard:Reduces fan noise and power
consumption. The brightness of the
projected image will be lower compared
with the “High” setting.
The INFORMATION
Menu
The INFORMATION menu displays the
horizontal and vertical frequencies of the
input signal and the used time of the lamp.
I N F O R M AT I O N
fH:
fV:
Lens Control
When set to “Off,” the LENS key on the
Remote Commander, and the LENS
CONTROL key on the projector do not
function.
Input A
48.47 kHz
60.00 Hz
No.23
1024x768
Lamp Timer:
4 H
IP Address:
192.168. 0. 1
Subnet Mask:
255.255. 0. 0
Memory
number of
a input
signal
Signal
type
Direct Power On/Off function
If you will be using a circuit breaker to turn the
power for the entire system on and off, set the
direct power on function to “On”. You can turn
the power on/off without pressing the power
key on the projector.
High Altitude Mode
Off: Use this setting when using the projector
at normal altitudes.
On: Use this setting when using the projector
at an altitude of 1,500 m (4,921 feet) or
higher.
Security Lock
Turns on the projector’s security lock
function.
Off: Turns off the security lock function.
On: Turns on the security lock function,
which locks the projector once a
password has been set.
For details, see “Using the security
lock” on page 25.
Menu Items
fH
Displays the horizontal frequency of the
input signal.
The displayed value is approximate.
fV
Displays the vertical frequency of the input
signal.
The displayed value is approximate.
Lamp Timer
Indicates how long the lamp has been turned
on.
IP Address
Displays the IP address that is set for the
projector.
Subnet Mask
Displays the subnet mask that is set for the
projector.
Note
These only display on the screen.
36
The INFORMATION Menu
B Operation and Administration using a Network
Accessing the
Projector from a
Computer
Checking the Status
of the Projector
You can check the present status of the
projector on a computer display and control
the projector from a computer. Also, the
projector enables the sending of mail that
contains messages on the time for
replacement of the projector lamp, error
occurrences, etc., to mail addresses that have
been specified.
You can check the information and present
status of the projector on a computer display.
You can check the information and status in
the window, but you cannot change the
settings.
Click “Information.”
Before operating
Confirm that the projector is connected to
the LAN, then turn on the projector. For
details on connection, consult with your
network administrator.
Start Internet Explorer 5.0 (or later
versions) on your computer.
2
Type “http://xxx.xxx.xxx.xxx (the IP
address of the projector)” as the
“Address,” then press the ENTER
key.
Operation and Administration using a Network
1
You can confirm the IP address of the
projector in the “Information menu” on
page 36.
note
When you access the projector via a Web
browser, do not use a proxy server.
Enter the IP address here.
INFORMATION
The present status of the projector is
displayed.
MENU
The present settings of the projector are
displayed.
Accessing the Projector from a Computer / Checking the Status of the Projector
37
Controlling the
Projector from a
Computer
Setting Up the
Projector
Click “Control.”
The Password Properties dialog box
appears.
The name of the “User” account is preset
without a password to “root” at the factory.
You can set the owner information, date and
time, Mail Report, etc.
Click “Apply” in the lower part of each
window to update the projector to the data
input in each window.
You can perform various adjustments and
settings of the projector on a computer
display.
The function of the buttons in the windows
are the same as those on the remote control
supplied with the projector.
The present setting status is indicated
If you change the setting using the remote
control, click “Refresh” in the upper righthand corner of the window to update the
status.
Click “Setup.”
Owner information
This information is used for the Mail Report
function.
Owner
Enter owner information.
Projector
Enter the location and lens type of the
projector.
38
Controlling the Projector from a Computer / Setting Up the Projector
Memo
Enter a memo, if required.
Setting the date and time
This setting is required for the Regular
Report function.
Internet Protocol (TCP/IP)
Normally, set “Obtain an IP address
automatically (DHCP).” If you select
“Specify an IP address,” set the necessary
items.
Ethernet
Select the communication speed or
communication mode from the drop-down
list. (Normally set to Auto.)
Notes
Time Zone
Select the region in which you are using the
projector.
Time Server
Enter the address of the time server when the
time is set by a timer server.
Setting passwords for
“Administrator” and “User”
You can set passwords for each
“Administrator” and “User.”
The name of the “Administrator” account is
preset to “root” at the factory. It cannot be
changed.
Network Settings
Enter the information for the network
settings.
Notes
• When you change the password, input a new
password after deleting the password
(*****) that was set.
• If you forget your password, consult with
qualified Sony personnel.
Setting Up the Projector
39
Operation and Administration using a Network
Date/Time
Set the date and time.
• If the IP address is changed, you will not be
able to access the network using an old IP
address.
• To reset the settings of an item back to its
factory settings, press the RESET, ENTER,
m and ENTER keys on the control panel in
order within 5 seconds with the power on,
and reset the settings depending on the
messages displayed on the screen.
Settings for the Mail Report
function
You can do the following with the Mail
Report function.
• Periodically report the installation status
of the projector, owner information, etc.
You can specify the transmission days and
times of e-mail messages (Regular report).
• Immediately report if any error occurs
with the projector (Error Report).
• Send warning e-mail messages when a
preset time for use of the projector lamp
has been reached (Lamp Reminder).
• Send warning e-mail messages when a
preset time for maintenance of the
projector has been reached (Maintenance
Reminder).
Report Timing field
Regular Report
A report on the present status of the
projector, installation status, etc. of the
projector is periodically sent by e-mail.
Set the timing for sending the e-mail
messages as follows:
AT: Specify the time when e-mail is to be
sent. Select the hour from the drop-down
list.
Every Week on Days: Select this check box
to send e-mail on the selected days every
week.
Mon/Tue/Wed/Thu/Fri/Sat/Sun: Specify
the days of the week when e-mail is to be
sent. You can check two or more days.
Every Month on Day: Select this check box
and select the day from the drop-down
list to send e-mail on a pre-defined day
every month. The Regular Report
contains the product information, owner
information, usage information (time)
for the projector, lamp mode, memos,
etc.
Maintenance Report
Lamp Reminder: Select this check box and
enter the limit for the number of hours
the projector lamp is to be used in the
text box. This information will be used
to send e-mail informing you that
replacement is required for the projector
lamp when the preset time has been
reached. You can specify a time between
1 and 9999 hours.
Maintenance Reminder: Select this check
box and enter the hours of use before
maintenance is required for the projector
in the text box. You can specify a time
between 1 and 99999 hours.
The elapsed time is displayed in the
Elapsed Hours text box. Selecting the
RESET and clicking “Apply” will reset
the elapsed time to zero.
Address field
E-mail Address
Enter the e-mail addresses to which you
want the e-mail messages to be sent in each
text box. The projector allows you to send e-
40
Setting Up the Projector
mail to 4 different addresses. You can enter
up to 64 characters for each address.
Report Timing
Regular: Select this check box to arrange
the sending of the Regular Report.
Maintenance: Select this check box to
arrange the sending of an e-mail
message that informs you of the number
of hours the projector lamp has been
used and the time when maintenance is
required for the projector.
Error: Select this check box to arrange the
sending of an error report if any problem
occurs with the projector.
Notes
Mail Form field
Select the e-mail message type from
“Standard” or “Simple.”
Mail Account field
Mail Address
Type the appropriate e-mail address. You
can enter up to 64 characters.
Outgoing Mail Server (SMTP)
Type the address of the SMTP server. You
can enter up to 64 characters.
Requires Authentication
Select this check box when the
authentication is required for sending an email.
Requires the use of POP Authentication
before send e-mail (POP before
SMTP): Select this check box to arrange
for POP authentication to be performed
before connecting to the SMTP server.
Incoming Mail Server (POP3): Type the
address of the POP3 server.
Account Name: Type the mail account.
Password: Type the mail password.
Notes
If the following items have not been set or are
incorrectly set, an error message appears and
the test e-mail message is disabled:
• Address in the Address field.
• “Mail Address” and “Outgoing Mail Server
(SMTP)” in the Mail Account field.
For details on the mail settings, consult your
network administrator.
Check the contents of the e-mail
The contents of the e-mail message to be
sent appear.
Advanced setting
Click “Advanced Menu” to display the
Advertisement button, PJ Talk button and
SNMP button. These settings are mainly for
administrative use. For details, consult with
qualified Sony personnel.
Note
You cannot use the following characters to
enter the characters in the text box: “ ' ”, “ " ”,
“ \ ”, “ & ”, “ < ”, “ > ”
Setting Up the Projector
41
Operation and Administration using a Network
• Even if days are specified in the Report
Timing field, you still must select the
Regular check box to receive the Regular
Report. If the day preset in “Every Month on
Day” does not exist in the month, you will
receive the e-mail message on the last day of
the month.
• You cannot specify the day of the week or
day of the month if “Every Week on Days”
or “Every Month on Day” is not selected.
SMTP Authentication: Select this check
box to arrange for SMTP Authentication
to be performed before connecting the
SMTP server.
Account Name: Type the mail account.
Password: Type the mail password.
Send test mail: Select the Send check box,
then click “Apply” to send an e-mail
message as a test to confirm whether it is
sent to the specified addresses.
B Maintenance
Replacing the Lamp
3
Slide to open the lamp cover by
loosening one screw with the Phillips
screwdriver.
The lamp used as a light source is a
consumable product. When the lamp has
burnt out or dims, or “Please replace the
LAMP.” appears on the screen, replace the
lamp with a new one. Use LMP-F300
Projector Lamp as the replacement lamp.
The lamp life varies depending on
conditions of use.
Caution
The lamp becomes a high temperature after
turning off the projector with the I / 1 key. If
you touch the lamp, you may scald your
finger. When you replace the lamp, wait for
at least an hour for the lamp to cool.
Note
Be sure not to remove other screws, for
safety reasons.
4
Loosen two screws on the lamp unit
with the Phillips screwdriver.
5
While holding the handle and keeping
the lamp unit horizontal, pull straight
up.
Notes
• If the lamp breaks, consult with qualified
Sony personnel.
• Pull out the lamp by holding the handle. If
you touch the lamp, you may be burned or
injured.
• When removing the lamp, make sure it
remains horizontal, then pull straight up. Do
not tilt the lamp. If you pull out the lamp
while tilted and if the lamp is broken, the
pieces may scatter, causing injury.
• To erase a message, press any key on the
control panel of the projector or on the
remote commander.
1
Turn off the projector, and disconnect
the AC power cord from the AC
outlet.
Note
When replacing the lamp after using the
projector, wait for at least an hour for the
lamp to cool.
2
Place a protective sheet (cloth)
beneath the projector. Turn the
projector over so you can see its
underside.
Note
Be sure that the projector is stable after
turning it over.
42
Replacing the Lamp
6
Insert the new lamp all the way in until
it is securely in place. Tighten the two
screws. Fold down the handle.
Cleaning the Air
Filter
Notes
• Be careful not to touch the glass surface
of the lamp.
• The power will not turn on if the lamp is
not secured properly.
• When attaching the lamp, be careful not
to overtighten the screws.
7
Close the lamp cover and tighten the
screw.
Note
The air filter should be cleaned whenever
you replace the lamp.
Remove all traces of dust from the outside of
the ventilation holes with a vacuum cleaner.
The time needed to clean the air filter will
vary depending on the environment and
on how the projector is used.
When it becomes difficult to remove the dust
from the filter with a vacuum cleaner,
remove the air filter and clean it.
1
Turn off the power and unplug the
power cord.
8
Turn the projector back over.
2
9
Connect the power cord and turn the
projector to standby mode.
Place a protective sheet (cloth)
beneath the projector. Turn the
projector over so you can see its
underside.
3
Slide the air filter cover in the
direction of the arrow and remove it.
4
Remove the air filter from the 6 tabs of
the air filter cover.
10Press the following keys on the
control panel in the following
sequence for less than five seconds:
RESET, <, ,, ENTER.
Maintenance
Be sure to attach the lamp cover securely
as it was. If not, the projector cannot be
turned on.
Caution
Do not put your hands into the lamp
replacement spot, or not fall any liquid or
object into it to avoid electrical shock or fire.
Disposal of the used lamp
For the customers in the USA
Lamp in this product contains mercury.
Disposal of these materials may be regulated
due to environmental considerations. For
disposal or recycling information, please
contact your local authorities or the
Electronic Industries Alliance
(www.eiae.org).
Air filter
Air filter cover
Cleaning the Air Filter
43
5
Clean the air filter with a vacume
cleaner.
6
Insert in order of the air filter and the
sheet into the six tabs of the air filter
cover, and then attach the air filter
cover to the projector.
Notes
• If you neglect to clean the air filter, dust may
accumulate, clogging it. As a result, the
temperature may rise inside the unit, leading
to a possible malfunction or fire.
• If the dust cannot be removed from the air
filter, replace the air filter with the supplied
new one.
• Be sure to attach the air filter cover firmly;
the power will not be turned on if it is not
closed securely.
44
Cleaning the Air Filter
Troubleshooting
If the projector appears to be operating erratically, try to diagnose and correct the problem
using the following instructions. If the problem persists, consult with qualified Sony personnel.
Power
Symptom
Cause and Remedy
The power is not turned on. • The power has been turned off and on with the I / 1 key at a short
interval.
c Wait for about 40 seconds before turning on the power
(see page 27).
• The lamp cover is detached.
c Close the lamp cover securely (see page 42).
• The air filter cover is detached.
c Close the air filter cover securely (see page 43).
Both the LAMP/COVER
• The electrical system breaks down.
and TEMP/FAN indicators
c Consult with qualified Sony personnel.
light up.
Cause and Remedy
No picture.
• Cable is disconnected or the connections are wrong.
c Check that the proper connections have been made
(see page 18).
• Input selection is incorrect.
c Select the input source correctly using the INPUT key
(see page 24).
• The picture is muting.
c Press the PIC MUTING key to release the muting function
(see page 25).
• The computer signal is not set to output to an external monitor or
set to output both to an external monitor and a LCD monitor of a
computer.
c Set the computer signal to output only to an external monitor.
c Depending on the type of your computer, for example a
notebook, or an all-in-one LCD type, you may have to switch
the computer to output to the projector by pressing certain keys
or by changing your computer’s settings.
For details, refer to the computer’s operating instructions
supplied with your computer.
• The signal is input from the computer to the INPUT C connector.
c Confirm the setting of the DDC function of your computer (see
page 18).
The picture is noisy.
• Noise may appear on the background depending on the
combination of the numbers of dot input from the connector and
numbers of pixel on the LCD panel.
c Change the desktop pattern on the connected computer.
Troubleshooting
45
Maintenance
Symptom
Symptom
Cause and Remedy
The picture from INPUT C • Setting for Input-C Signal Sel. in the SET SETTING menu is
connector is colored
incorrect.
strange.
c Select Computer, Video GBR or Component for Input-C Signal
Sel. in the SET SETTING menu according to the input signal
(see page 34).
“Please check INPUT-C
• Setting for Input-C Signal Sel. in the SET SETTING menu is
setting.” appears in spite of
incorrect.
inputting the correct signal
c Select Computer, Video GBR or Component for Input-C Signal
from INPUT C.
Sel. in the SET SETTING menu according to the input signal
(see page 34).
On-screen display does not • Status in the MENU SETTING menu has been set to Off.
appear.
c Set Status in the MENU SETTING menu to On (see page 35).
Color balance is incorrect.
• Picture has not been adjusted properly.
c Adjust the picture (see page 31).
• Projector is set to wrong color system.
c Set Color System in the SET SETTING menu to match the color
system being input (see page 34).
The picture is too dark.
• Contrast or Brightness has not been adjusted properly.
c Adjust the Contrast or Brightness in the PICTURE SETTING
menu properly (see page 31).
• The lamp has burnt or dims.
c Replace the lamp with a new one (see page 42).
The picture is not clear.
• Picture is out of focus.
c Adjust the focus (see page 24).
• Condensation has occurred on the lens.
c Leave the projector for about two hours with the power on.
The image extends beyond • The APA key is pressed although there are black edges around the
the screen.
image.
c Display the full image on the screen and press the APA key.
c Adjust Shift in the INPUT SETTING menu properly (see
page 33 ).
The picture flickers.
• Dot Phase in the INPUT SETTING menu has not been adjusted
properly.
c Adjust Dot Phase in the INPUT SETTING menu properly
(page 33).
Remote Commander
Symptom
Cause and Remedy
The Remote Commander
does not work.
• The Remote Commander batteries are dead.
c Replace with a new battery (see page 16).
The menu display does not • The PJ/NETWORK select switch on the Remote Commander is
appear even when you
set to NETWORK.
press the MENU key on the
c Set the PJ/NETWORK select switch to PJ, then press the
Remote Commander.
MENU key.
46
Troubleshooting
Indicators
Symptom
Cause and Remedy
The LAMP/COVER
indicator flashes.
• The lamp cover or the air filter cover is detached.
c Attach the cover securely (see page 42).
The LAMP/COVER
indicator lights up.
• The lamp has reached the end of its life.
c Replace the lamp (see page 42).
• The lamp becomes a high temperature.
c Wait for 120 seconds to cool down the lamp and turn on the
power again (see page 27).
• The electrical system breaks down.
c Consult with qualified Sony personnel.
The TEMP/FAN indicator
flashes.
• The fan is broken.
c Consult with qualified Sony personnel.
The TEMP/FAN indicator
lights up.
• The internal temperature is unusually high.
c Check to see if nothing is blocking the ventilation holes.
Both the LAMP/COVER
• The electrical system breaks down.
and TEMP/FAN indicators
c Consult with qualified Sony personnel.
light up.
Messages List
Warning Messages
Use the list below to check the meaning of the messages displayed on the screen.
Meaning and Remedy
High temp.!
Lamp off in 1 min.
• Internal temperature is too high.
c Turn off the power.
c Check to see if nothing is blocking the ventilation holes.
Frequency is out of range!
• This input signal cannot be projected as the frequency is out of the
acceptable range of the projector.
c Input a signal that is within the range of the frequency.
• The resolution setting of the output signal of a computer is too
high.
c Set the setting of output to XGA (see page 18).
Please check INPUT-C
setting.
• You have input RGB signal from the computer when Input-C
Signal Sel. in the SET SETTING menu is set to Component.
c Set Input-C Signal Sel. correctly (see page 34).
Please replace the LAMP.
• It is time to replace the lamp.
c Replace the lamp.
• To erase a message
c Press any key on the control panel of the projector or on the
remote commander.
• If this message appears again after you replace the lamp, the lamp
replacement process is not complete.
c Perform the operations in steps 9 and 10 on page 43.
Troubleshooting
47
Maintenance
Message
Caution Messages
Use the list below to check the meaning of the messages displayed on the screen.
Message
Meaning and Remedy
No Input
• No input signal
c Check connections (see page 18).
Not applicable!
• You have pressed the wrong key.
c Press the appropriate key.
48
Troubleshooting
B Others
Specifications
Optical characteristics
1) ANSI lumen is a measuring method of
American National Standard IT 7.228.
Electrical characteristics
Color system NTSC3.58/PAL/SECAM/
NTSC4.43/PAL-M/PAL-N
system, switched automatically/
manually
Resolution
750 horizontal TV lines (Video
input)
1,024 × 768 dots (RGB input)
Acceptable computer signals1)
fH: 19 to 92 kHz
Compatible video signal
15k RGB 50/60Hz,
Progressive Component 50/60Hz
DTV (480/60I, 575/50I, 1,080/
60I, 480/60P, 575/50P, 1,080/
50I, 720/60P, 720/50P, 540/
60P), Composite video, Y/C
video
Input/Output
VIDEO INPUT
VIDEO: BNC type
Composite video: 1 Vp-p ±2 dB
sync negative (75 ohms
terminated)
S VIDEO: Y/C mini DIN 4-pin
type
Y (luminance): 1 Vp-p ±2 dB
sync negative (75 ohms
terminated)
C (chrominance): burst
0.286 Vp-p ±2 dB (NTSC)
(75 ohms terminated),
burst 0.3 Vp-p ±2 dB (PAL)
(75 ohms terminated)
VIDEO OUT VIDEO: Loop-through BNC type
Loop-through output from the
VIDEO IN connector
S VIDEO: Loop-through mini
DIN 4-pin type (male)
Loop-through output from the S
VIDEO IN connector
INPUT A
Analog RGB: HD D-sub15-pin
(female)
R: 0.7 Vp-p ±2 dB (75 ohms
terminated)
G: 0.7 Vp-p ±2 dB (75 ohms
terminated)
G with sync: 1 Vp-p ±2 dB sync
negative (75 ohms terminated)
B: 0.7 Vp-p ±2 dB (75 ohms
terminated)
SYNC/HD:
Composite sync input: 1-5 Vp-p
high impedance, positive/
negative
Horizontal sync input: 1-5 Vp-p
high impedance, positive/
negative
Specifications
49
Others
Projection system
3 LCD panels, 1 lens, 3 primary
color shutter system
LCD panel
1.3-inch TFT SONY LCD panel
with micro-lens array 2,359,296
pixels (1,024 × 768 pixels × 3)
Lens
1.3 times zoom lens (powered)
f 50.8 to 64.0 mm/F 1.7 to 2.0
* The lens for VPL-FX52L are
not supplied.
Lamp
300 W
Projection picture size
Range: 40 to 300 inches (diagonal
measure)
Light output ANSI lumen1) 6,000 lm
Projecting distance (Floor Installation) of VPLFX52 (with standard lens)
40-inches: 1490 to 1820 mm
(4.9 to 6 feet)
60-inches: 2280 to 2780 mm
(7.5 to 9.1 feet)
80-inches: 3060 to 3740 mm
(10.0 to 12.3 feet)
100-inches: 3850 to 4700 mm
(12.6 to 15.4 feet)
120-inches: 4630 to 5660 mm
(15.1 to 18.6 feet)
150-inches: 5810 to 7100 mm
(19.1 to 23.3 feet)
180-inches: 6980 to 8540 mm
(22.9 to 28.0 feet)
200-inches: 7770 to 9500 mm
(25.5 to 31.2 feet)
250-inches: 9730 to 11900 mm
(32 to 39.0 feet)
300-inches: 11690 to 14300 mm
(38.4 to 46.9 feet)
fV: 48 to 92 Hz
(Maximum input resolution
signals: UXGA 1,600 × 1,200
fH: 75kHz, fV: 60Hz)
1) Set the resolution and the frequency of the
signal of the connected computer within the
range of acceptable preset signals of the
projector.
VD:
Vertical sync input: 1-5 Vp-p
high impedance, positive/
negative
INPUT B
Digital RGB: DVI-D (TM-DS)
INPUT C
Analog RGB/component: 5BNC
(female)
R/R-Y: 0.7 Vp-p ±2 dB
(75 ohms terminated)
G: 0.7 Vp-p ±2 dB (75 ohms
terminated)
G with sync/Y: 1 Vp-p ±2 dB
sync negative (75 ohms
terminated)
B/B-Y: 0.7 Vp-p ±2 dB (75
ohms terminated)
SYNC/HD:
Composite sync input: 1-5 Vp-p
high impedance, positive/
negative
Horizontal sync input: 1-5 Vp-p
high impedance, positive/
negative
VD:
Vertical sync input: 1-5 Vp-p
high impedance, positive/
negative
MONITOR OUT
HD D-sub 15-pin (female)
R, G, B: Gain Unity: 75 ohms
SYNC/HD,VD: 4 Vp-p (open),
1 Vp-p (75 ohms)
*DIGITAL RGB signal is not
output from MONITOR OUT
terminal.
TRIG
Minijack
Power on: 12 V DC, output
impedance: 4.7 kilohms
Power off: 0 V
RS-232C
D-sub 9 pin (female)
CONTROL S IN/PLUG IN
POWER
Stereo minijack, 5 Vp-p, plug-in
power 5 V DC
NETWORK RJ-45: 10BASE-T/100BASE-TX
General
Dimensions
Mass
50
VPL-FX52: 480 × 169 × 502 mm
(19 × 6 5/8 × 19 7/8 inches)
(w/h/d) (with the projection
parts)
VPL-FX52L: 480 × 169 × 464 mm
(19 × 6 5/8 ×18 3/8 inches)
(w/h/d) (with the projection
parts)
VPL-FX52: Approx. 10.5 kg (23
lb 4 oz)
VPL-FX52L: Approx. 9.1 kg (20
lb 1 oz)
Specifications
Power requirements
AC 100 to 240 V, 4.0 A - 1.6 A,
50/60 Hz
Power consumption
Max. 400 W
in standby mode: 7 W (when
network function is operating)
Heat dissipation
1,365 BTU
Operating temperature
0°C to 35°C (32°F to 95°F)
Operating humidity
35% to 85% (no condensation)
Storage temperature
–20°C to 60°C (–4°F to 140°F)
Storage humidity
10% to 90%
Supplied accessories
Remote Commander (1)
Size AA (R6) batteries (2)
Lens cap (1) (for VPL-FX52 with
standard lens only)
AC power cord (1)
Air filter (for replacement) (1)
Operating Instructions,
Installation Manual for Dealers
(CD-ROM) (1)
Quick Reference Manual (1)
Safety Regulations (1)
Security Label (1)
Warranty Card (1)
Design and specifications are subject to change
without notice.
Note
Always verify that the unit is operating
properly before use. SONY WILL NOT BE
LIABLE FOR DAMAGES OF ANY KIND
INCLUDING, BUT NOT LIMITED TO,
COMPENSATION OR REIMBURSEMENT
ON ACCOUNT OF THE LOSS OF
PRESENT OR PROSPECTIVE PROFITS
DUE TO FAILURE OF THIS UNIT, EITHER
DURING THE WARRANTY PERIOD OR
AFTER EXPIRATION OF THE
WARRANTY, OR FOR ANY OTHER
REASON WHATSOEVER.
Optional accessories
Projector Lamp
LMP-F300 (for replacement)
Projector Suspension Support
PSS-620
Signal Interface Cable
Some of the items may not be available in some
areas. For details, please consult your nearest
Sony office.
Pin assignment
INPUT A connector
RGB input connector (HD D-sub 15pin, female)
1
R
9
N.C.
2
G
10
GND
3
B
11
GND
4
GND
12
DDC/SDA
5
GND
13
HD/C.Sync
6
GND (R)
14
VD
7
GND (G)
15
DDC/SCL
8
GND (B)
RS-232C connector (D-sub 9-pin,
female)
1
NC
6
RESERVE
2
RXDA
7
RTS
3
TXDA
8
CTS
4
DTR
9
NC
5
GND
Others
SIC10 (5 × BNC (female) y 5 ×
BNC (female))
Projection Lense
Long focus zoom lens VPLL-ZM101
F = 2.0 to 2.6
f = 89 to 133.5 mm
Manual focus/zoom
Projection screen size
40 to 300 inches
Projection distance
100 inches: 6810 to 10030 mm
200 inches: 13840 to 20270 mm
300 inches: 20870 to 30500 mm
Maximum external dimensions
100 × 100 × 222 mm (W × H ×
D)
Weight
1810 g
Fixed short focus lens VPLL-FM21
(for rear projection (Optical
Axis Angle: 0 degree))
F = 2.0
f = 24.5 mm
Manual focus
Projection screen size
40 to 300 inches
Projection distance
100 inches: 1850 mm
200 inches: 3780 mm
300 inches: 5720 mm
Maximum external dimensions
140 × 140 × 233 mm (W × H ×
D)
Weight
1850 g
Short focus zoom lens VPLL-ZM31
F = 1.9 to 2.0
f = 41.4 to 45.6 mm
Manual focus/zoom
Projection screen size
40 to 300 inches
Projection distance
100 inches: 3150 to 3300 mm
200 inches: 6410 to 6710 mm
300 inches: 9680 to 10120 mm
Maximum external dimensions
154 × 154 × 252 mm (W × H ×
D)
Weight
3140 g
Input B connector
DVI connector (DVI-D, female)
1
T.M.D.S.
Data2 –
14
+5 V Power
2
T.M.D.S.
Data2 +
15
Ground
(return for
+5 V, HSync,
and Vsync)
Specifications
51
3
Hot Plug
Detect
Item
17
T.M.D.S.
Data0 –
NC
18
T.M.D.S.
Data0 +
DDC Clock
19
T.M.D.S.
Data0/5
Shield
T.M.D.S.
Data2/4
Shield
16
4
NC
5
6
DDC Data
20
NC
NC
21
NC
9
T.M.D.S.
Data1 –
22
T.M.D.S.
Clock Shield
10
T.M.D.S.
Data1 +
23
T.M.D.S.
Clock +
11
T.M.D.S.
Data1/3
Shield
24
T.M.D.S.
Clock –
13
NC
Video
GBR
Computer
Color
Temp
z
z
z
z
DDE
z
z (480/
z
–
z : Adjustable/can be set
– : Not adjustable/cannot be set
8
NC
Component
60i, 575/ (480/
50i)
60i,
575/
50i)
7
12
Input signal
Video or S
video (Y/C)
INPUT SETTING menu
Input signals and adjustable/
setting items
Item
Input signal
Video
or S
video
(Y/C)
Component
Video
GBR
Computer
Dot Phase
–
–
–
z
H Size
–
z(for
other than
a 15 kHz
signal)
z(for
z
other than
a 15 kHz
signal)
Shift
–
z(for
other than
a 15 kHz
signal)
z(for
z
other than
a 15 kHz
signal)
–
–
Scan Conv –
(lower
than
SVGA)
PICTURE SETTING menu
Item
Wide
Mode
Input signal
Video or S
video (Y/C)
Component
Video
GBR
Computer
z
Contrast
z
z
z
Brightness
z
z
z
z
Color
z
z
z
–
z (NTSC
z
3.58/4.43
only)
(excluding
monochrome
signal)
z
–
Sharpness
z
z
z
–
RGB
Enhancer
–
–
–
z
Black
Level Adj.
z
z
z
–
Gamma
Mode
–
–
–
z
(excluding
monochrome
signal)
Hue
52
Specifications
z
z
z
z
z : Adjustable/can be set
– : Not adjustable/cannot be set
–
Preset signals
Memory Preset signal
No.
fH (kHz) fV (Hz)
Sync
1
Video 60 Hz
15.734
59.940
H-neg, V-neg
2
Video 50 Hz
15.625
50.000
H-neg, V-neg
3
15k RGB/Component 60 Hz
15.734
59.940
4
15k RGB/Component 50 Hz
15.625
50.000
5
HDTV
6
640 × 350
7
8
640 × 400
9
10
VGA mode 1
33.750
60.000
31.469
70.086
SIZE
S on G/Y
or
Composite sync
H-pos, V-neg
800
VGA VESA 85 Hz
37.861
85.080
H-pos, V-neg
832
PC-9801 Normal
24.823
56.416
H-neg, V-neg
848
VGA mode 2
31.469
70.086
H-neg, V-pos
800
VGA VESA 85 Hz
37.861
85.080
H-neg, V-pos
832
VGA mode 3
31.469
59.940
H-neg, V-neg
800
12
Macintosh 13"
35.000
66.667
H-neg, V-neg
864
13
VGA VESA 72 Hz
37.861
72.809
H-neg, V-neg
832
14
VGA VESA 75 Hz
37.500
75.000
H-neg, V-neg
840
VGA VESA 85 Hz
11
640 × 480
15
43.269
85.008
H-neg, V-neg
832
SVGA VESA 56 Hz 35.156
56.250
H-pos, V-pos
1,024
17
SVGA VESA 60 Hz 37.879
60.317
H-pos, V-pos
1,056
18
SVGA VESA 72 Hz 48.077
72.188
H-pos, V-pos
1,040
19
SVGA VESA 75 Hz 46.875
75.000
H-pos, V-pos
1,056
20
SVGA VESA 85 Hz 53.674
85.061
H-pos, V-pos
1,048
16
800 × 600
832 × 624
Macintosh 16"
49.724
74.550
H-neg, V-neg
1,152
1,024 × 768
XGA VESA 43 Hz
35.524
86.958
H-pos, V-pos
1,264
23
XGA VESA 60 Hz
48.363
60.004
H-neg, V-neg
1,344
24
XGA VESA 70 Hz
56.476
69.955
H-neg, V-neg
1,328
25
XGA VESA 75 Hz
60.023
75.029
H-pos, V-pos
1,312
XGA VESA 85 Hz
26
27
1,152 × 864
28
29
30
1,152 × 900
31
32
33
1,280 × 960
68.677
84.997
H-pos, V-pos
1,376
SXGA VESA 70 Hz 63.995
70.019
H-pos, V-pos
1,472
SXGA VESA 75 Hz 67.500
75.000
H-pos, V-pos
1,600
SXGA VESA 85 Hz 77.487
85.057
H-pos, V-pos
1,568
Sunmicro LO
61.795
65.960
H-neg, V-neg
1,504
Sunmicro HI
71.713
76.047
Composite sync
1,472
SXGA VESA 60 Hz 60.000
60.000
H-pos, V-pos
1,800
SXGA VESA 75 Hz 75.000
75.000
H-pos, V-pos
1,728
Specifications
53
Others
21
22
Memory Preset signal
No.
34
1,280 × 1,024
fH (kHz) fV (Hz)
Sync
SIZE
SXGA VESA 43 Hz 46.433
86.872
H-pos, V-pos
1,696
35
SGI-5
53.316
50.062
S on G
1,680
36
SXGA VESA 60 Hz 63.974
60.013
H-pos, V-pos
1,696
37
SXGA VESA 75 Hz 79.976
75.025
H-pos, V-pos
1,688
38
SXGA VESA 85 Hz 91.146
85.024
H-pos, V-pos
1,728
2,160
39
1,600 × 1,200
UXGA VESA 60 Hz 75.000
60.000
H-pos, V-pos
43
480/60P
480/60P
(Double frequency
NTSC)
31.470
60.000
S on G
44
575/50P
575/50P
(Double frequency
PAL)
31.250
50.000
S on G
45
1,080/50I
1,080/50I
28.130
50.000
47
720/60P
720/60P
45.000
60.000
48
720/50P
720/50P
37.500
50.000
50
540/60P
540/60P
33.750
60.000
52
1,400 × 1,050
SXGA+
63.981
60.020
H-neg, V-neg
1,688
Notes
• When a signal other than the preset signals shown above is input, the picture may not
appear properly.
• Memory numbers 22 and 34 are interlace signals.
• When an SXGA+ signal is input, the image may extend beyond the edge of the
screen. In this event, input a signal in which the image is not surrounded by a black
area, and then unplug and then plug back in the connecting cable, or else press the
INPUT key and select the input signal again.
54
Specifications
Index
G
Gamma Mode .................31
Numerics
H
5BNC input connectors ..13
H Size .............................33
High Altitude Mode .......36
Hue .................................31
A
Adjust Signal ..................33
Adjuster ..........................11
Adjusting
memory of the settings 30
the picture .............25, 30
the picture size/shift ....33
Air filter ..........................43
APA (Auto Pixel
Alignment) key .......12
Auto Input Search ...........34
B
Background ....................35
Battery installation .........16
Black Level Adj. ............31
Brightness .......................31
I
Image Flip ......................35
INPUT A connector .......13
INPUT B connector (RGB
(DVI)) .....................13
INPUT C connector .......13
INPUT SETTING Menu 32
Input-C Signal Sel. .........34
INSTALL SETTING
Menu .......................35
Installation examples ......17
unsuitable conditions ....8
unsuitable installation ...7
IP Address ......................36
IR Receiver ....................34
L
C
Color ...............................31
Color System ..................34
Color Temp. ...................31
Connections
computer or VCR .......18
video GBR/Component
equipment ............20
Contrast ..........................31
Lamp Mode ....................36
Lamp Timer ....................36
Language ........................35
Lens Control ...................36
Location and function of
controls
connector panel ..........13
control panel ...............11
front ............................10
rear/bottom .................10
DDE (Dynamic Detail
Enhancer) ................32
Digital Zoom function ....28
Direct Power On .............36
Direct Power On/Off ......36
Dot Phase ........................33
F
fH (Horizontal
Frequency) ..............36
fV (Vertical Frequency) .36
N
NETWORK connector ...13
O
Optional accessories .......50
P
Picture Mode ..................30
PICTURE SETTING
Menu .......................30
Pin assignment ...............51
DVI connector ............51
RGB input connector ..51
RS-232C connector ....51
Power
Turn on .......................23
Power Saving .................34
Projecting .......................23
R
Remote Commander ......14
Remote control detector
front ............................10
rear .............................10
Replacing the Lamp .......42
Reset
resettable items ...........30
resetting the item ........30
RGB Enhancer ...............31
M
Menu
clearing the menu
display .................30
INFORMATION
menu ...................36
INPUT SETTING
menu ...................32
INSTALL SETTING
menu ...................35
MENU SETTING
menu ...................35
PICTURE SETTING
menu ...................30
S
Scan Converter ...............33
Screen size ...............17, 49
Security Lock .................36
Selecting the Menu
Language ................21
SET SETTING Menu ....34
Sharpness .......................31
Shift ................................33
Smart APA .....................34
Specifications .................49
Status ..............................35
Subnet Mask ...................36
Index
55
Other
D
SET SETTING menu .34
Menu Color ....................35
Menu Position ................35
Message
caution ........................48
warning .......................47
Supplied accessories ......50
T
Test Pattern ....................35
Troubleshooting .............45
U
Using the MENU ...........29
V
V Keystone .....................35
Ventilation holes
exhaust ........................10
intake ..........................10
W
Wide Mode .....................32
56
Index
