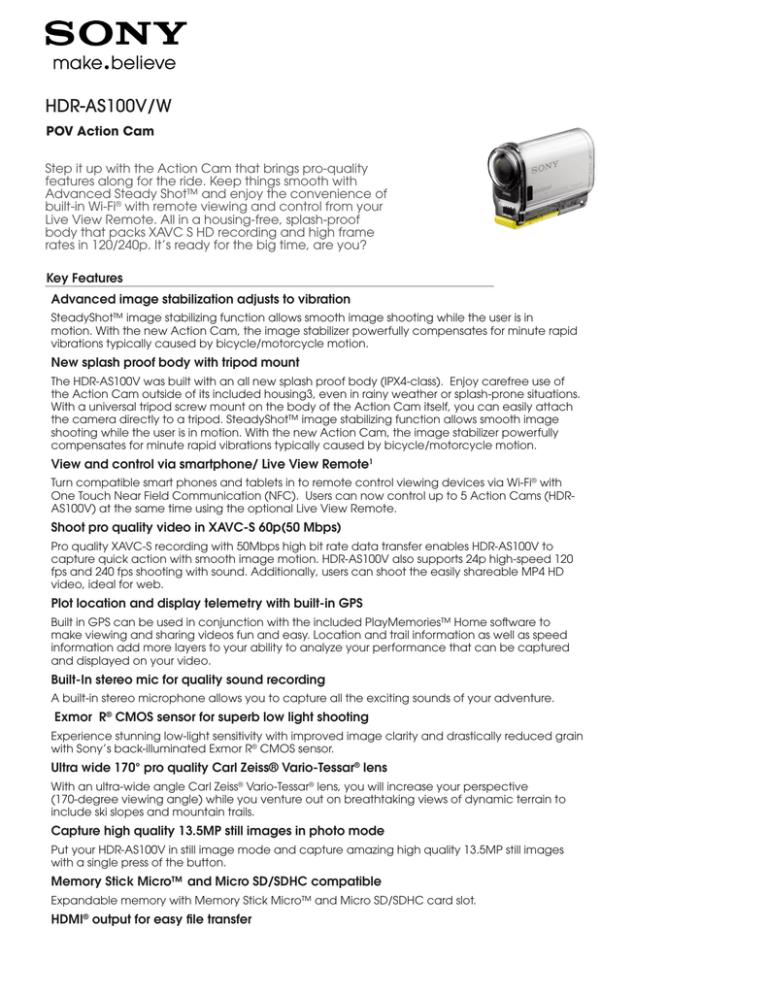

Sony HDR-AS100V/W Specification

Sony HDR-AS100V/W Specification
POV Action Cam
Step it up with the Action Cam that brings pro-quality
features along for the ride. Keep things smooth with
Advanced Steady Shot™ and enjoy the convenience of
built-in Wi-Fi® with remote viewing and control from your
Live View Remote. All in a housing-free, splash-proof
body that packs XAVC S HD recording and high frame
rates in 120/240p. It’s ready for the big time, are you?
Key Features
Advanced image stabilization adjusts to vibration
SteadyShot™ image stabilizing function allows smooth image shooting while the user is in
motion. With the new Action Cam, the image stabilizer powerfully compensates for minute rapid
vibrations typically caused by bicycle/motorcycle motion.
New splash proof body with tripod mount
The HDR-AS100V was built with an all new splash proof body (IPX4-class). Enjoy carefree use of
the Action Cam outside of its included housing3, even in rainy weather or splash-prone situations.
With a universal tripod screw mount on the body of the Action Cam itself, you can easily attach
the camera directly to a tripod. SteadyShot™ image stabilizing function allows smooth image
shooting while the user is in motion. With the new Action Cam, the image stabilizer powerfully
compensates for minute rapid vibrations typically caused by bicycle/motorcycle motion.
View and control via smartphone/ Live View Remote1
Turn compatible smart phones and tablets in to remote control viewing devices via Wi-Fi® with
One Touch Near Field Communication (NFC). Users can now control up to 5 Action Cams (HDRAS100V) at the same time using the optional Live View Remote.
Shoot pro quality video in XAVC-S 60p(50 Mbps)
Pro quality XAVC-S recording with 50Mbps high bit rate data transfer enables HDR-AS100V to
capture quick action with smooth image motion. HDR-AS100V also supports 24p high-speed 120
fps and 240 fps shooting with sound. Additionally, users can shoot the easily shareable MP4 HD
video, ideal for web.
Plot location and display telemetry with built-in GPS
Built in GPS can be used in conjunction with the included PlayMemories™ Home software to
make viewing and sharing videos fun and easy. Location and trail information as well as speed
information add more layers to your ability to analyze your performance that can be captured
and displayed on your video.
Built-In stereo mic for quality sound recording
A built-in stereo microphone allows you to capture all the exciting sounds of your adventure.
Exmor R® CMOS sensor for superb low light shooting
Experience stunning low-light sensitivity with improved image clarity and drastically reduced grain
with Sony’s back-illuminated Exmor R® CMOS sensor.
Ultra wide 170° pro quality Carl Zeiss® Vario-Tessar® lens
With an ultra-wide angle Carl Zeiss® Vario-Tessar® lens, you will increase your perspective
(170-degree viewing angle) while you venture out on breathtaking views of dynamic terrain to
include ski slopes and mountain trails.
Capture high quality 13.5MP still images in photo mode
Put your HDR-AS100V in still image mode and capture amazing high quality 13.5MP still images
with a single press of the button.
Memory Stick Micro™ and Micro SD/SDHC compatible
Expandable memory with Memory Stick Micro™ and Micro SD/SDHC card slot.
HDMI® output for easy file transfer
With HDMI® output, you’ll be able to share your Sony® HDR-AS100V video with friends and family
on your HDTV (HDMI cable required/not included).
Camera Type
Splashproof POV Action Cam
Imaging Sensor
Imaging Sensor
1/2.3” (7.77mm) back-illuminated Exmor® R CMOS Sensor
BIONZ® X image processor
Pixel Gross
Approx.18,900K pixels
Effective Picture Resolution
Approx.13,500K pixels(16:9)
Color Filter System
RGB primary color filters
Media Type
Memory Stick Micro™ (Mark 2), Micro SD/SDHC Memory Card (Class 4 or Higher)
Built-in Microphone, Monoral Speaker
Lens Type
Carl Zeiss® Tessar® Lens
Lens Stabilization
SteadyShot(TM) Image Stabilization
Focal Length (35mm equivalent)
f=17.1mm f= 11/16 inch, f=21.8mm f=7/8inch
Minimum Focus Distance
Approx.11 7/8inch (Approx.30cm)
Angle of View
170° (without SteadyShot), 120° (with SteadyShot)
Focal Distance
f=2.8mm, f=1/9inch
Steady Shot Mode:Active
Exposure System
Metering Modes
Exposure Settings
Scene Mode(s)
Noise Reduction
White Balance Mode
Minimum Illumination
6 lux
Backlight Compensation
Yes (Auto)
Drive System
Shutter Speeds
Auto Control Range: 1/30 - 1/10,000 (30fps)
Convenience Features
Date / Time Stamp
Media/Battery Indicator
Yes (recordable time) / Yes (remaining capacity)
Multiple Language Display
Remote Control
Yes (REC S/S, and TC Reset only)
Advanced Features
Yes (In use with Waterproof Case (SPK-AS2))
Yes (In use with Waterproof Case (SPK-AS2))
Airplane Mode
Embedded GPS
Image Stabilization
SteadyShot™ image stabilization w/ Active mode
Yes (In use with Waterproof Case (SPK-AS2))
Control with Smartphone
Memory Card Slot
Memory Stick Micro™ and Micro SD/SDHC compatible
Yes (NFC forum Type 3 Tag compatible)
Yes (IEEE 802.11b/g/n(2.4GHz band))
SD Output
Composite Video Out(AV CABLE VMC-15MR2(sold separately))
USB Port(s)
micro-B/USB2.0 Hi-speed (mass-storage)
Microphone Input
Stereo Minijack
HDMI Terminal
HDMI Out(mini)(sold separately)
Multi/Micro USB Terminal
Wi-Fi (Opt. Acc)
Yes (NFC forum Type 3 Tag compatible)
Weights and Measurements
Dimensions (Approx.)
Approx.31/32inch x 1 7/8inch
x 3 1/4inch (Approx.24.2mm x 46.5mm x 81.5mm)
Weight (Approx.)
Approx.2.4oz (Approx.67g)
Supplied Accessories
Rechargeable Battery Pack(NP-BX1)
Micro USB Cable (1)
"Operating Guide"(1)
Waterproof Case (SPK-AS2)(1)
Adhesive Mount (VCT-AM1)(1)
Tripod Adapter (1)
1. Requires NFC-compatible mobile device. Check device’s user manual for compatibility. Device cases may prevent connection. Live View Remote is an optional purchase.
3. Supplied housing Waterproof down to 3meters (15feet)
© 2014 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, SteadyShot, Exmor R and the Sony logo are trademarks of Sony Corporation. Carl Zeiss is a registered trademark of Carl Zeiss, Inc. All other trademarks are
trademarks of their respective owners. Features and specifications subject to change without notice. / UPC:027242869738 / Updated: January 3, 2014
