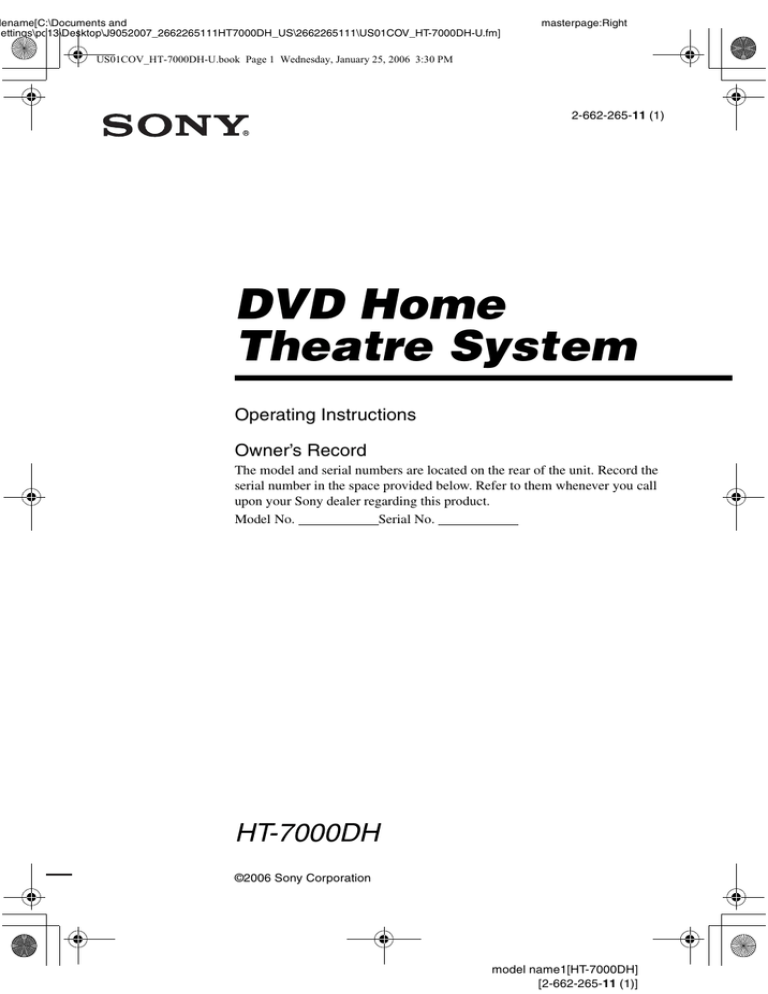

DVD Home
Theatre System
Operating Instructions
Owner’s Record
The model and serial numbers are located on the rear of the unit. Record the
serial number in the space provided below. Refer to them whenever you call
upon your Sony dealer regarding this product.
Model No.
Serial No.
HT-7000DH
©2006 Sony Corporation
model name1[HT-7000DH]
[2-662-265-11 (1)]
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US02REG_HT7000DH-U.fm2-662-265-11 (1)
masterpage: Left
US01COV_HT-7000DH-U.book Page 2 Wednesday, January 25, 2006 3:30 PM
WARNING
To reduce the risk of fire or electric
shock, do not expose this apparatus to
rain or moisture.
To prevent fire, do not cover the ventilation of the
apparatus with newspapers, table-cloths, curtains,
etc. And don’t place lighted candles on the
apparatus.
To prevent fire or shock hazard, do not place objects
filled with liquids, such as vases, on the apparatus.
Do not install the appliance in a confined space,
such as a bookcase or built-in cabinet.
Don’t throw away batteries with
general house waste; dispose of
them correctly as chemical waste.
For customers in the United
States
WARNING
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used
in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this
equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment
and receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV
technician for help.
CAUTION
You are cautioned that any changes or modification
not expressly approved in this manual could void
your authority to operate this equipment.
Note to CATV system installer:
This symbol is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufficient magnitude to constitute a
risk of electric shock to persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the
appliance.
This reminder is provided to call CATV system
installer’s attention to Article 820-40 of the NEC
that provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be
connected to the grounding system of the building,
as close to the point of cable entry as practical.
2US
HT-7000DH
2-662-265-11 (1)
C:\Documents and Settings\pc13\Desktop\Data_HT7000DH\J9052007_2662265111HT7000DH_US\2662265111\US02REG_HT-7000DH-U.fm
masterpage: Right
About This Manual
Note for the supplied remote
• The instructions in this manual are for model
HT-7000DH.
(RM-AAP012)
The 12 button on the remote is not available
for receiver operation.
The HT-7000DH consists of:
• Receiver
• DVD player
• Speaker system
– Front speaker
– Center speaker
– Surround speaker
– Sub woofer
STR-K7000
DVP-NC85H
SS-MSP7000
SS-CNP900
SS-SRP7000
SA-WP780
• The instructions in this manual describe the
controls on the supplied remote. You can also use
the controls on the receiver if they have the same
or similar names as those on the remote.
About area codes
The area code of the receiver you purchased is
shown on the lower right portion of the rear panel
(see the illustration below).
CENTER
+
–
SPEAKERS
L
L
R
+
–
R
SURROUND
SPEAKERS
+
R
FRONT A
L
–
R
L
FRONT B
SPEAKERS
Area code
Any differences in operation, according to the area
code, are clearly indicated in the text, for example,
“Models of area code AA only”.
This receiver incorporates Dolby* Digital and Pro
Logic Surround and the DTS** Digital Surround
System.
* Manufactured under license from Dolby
Laboratories.
“Dolby”, “Pro Logic” and the double-D symbol
are trademarks of Dolby Laboratories.
** “DTS” and “DTS Digital Surround” are
trademarks of Digital Theater Systems, Inc.
This receiver incorporates High-Definition
Multimedia Interface (HDMITM) technology.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
The XM name and related logos are registered
trademarks of XM Satellite Radio Inc.
3US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US01COV_HT7000DH-UTOC.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 4 Wednesday, January 25, 2006 3:30 PM
Table of Contents
Getting Started
Enjoying Surround Sound
Description and location of parts...................5
1: Installing speakers ...................................14
2: Connecting speakers................................16
3a: Connecting the audio components.........18
3b: Connecting the video components ........21
4: Connecting the antennas..........................28
5: Preparing the receiver and the remote .....29
6: Selecting the speaker system ...................30
7: Calibrating the appropriate settings
automatically
(AUTO CALIBRATION) .......................31
8: Adjusting the speaker levels and
balance (TEST TONE) ...........................34
Enjoying Dolby Digital and DTS Surround
sound (AUTO FORMAT DIRECT)....... 48
Selecting a pre-programmed sound field .... 50
Using only the front speakers and
sub woofer (2CH STEREO) .................. 52
Resetting sound fields to the initial
settings ................................................... 53
Playback
Selecting a component.................................35
Listening/Watching a component ................37
Amplifier Operations
Navigating through menus...........................39
Adjusting the level (LEVEL menu).............42
Adjusting the tone (TONE menu) ...............43
Settings for the surround sound
(SUR menu)............................................43
Settings for the tuner (TUNER menu).........44
Settings for the audio (AUDIO menu).........44
Settings for the video (VIDEO menu).........45
Settings for the system (SYSTEM menu) ...46
Calibrating the appropriate settings
automatically (A. CAL menu)................48
Tuner Operations
Listening to FM/AM radio.......................... 53
Presetting radio stations .............................. 55
Listening to the XM Radio ......................... 57
Presetting XM Radio stations ..................... 61
Other Operations
Switching the audio input mode
(INPUT MODE) .................................... 64
Watching component images from
other inputs
(COMPONENT VIDEO ASSIGN) ....... 64
Watching HDMI images from other
inputs (HDMI ASSIGN)........................ 65
Naming inputs............................................. 66
Changing the display .................................. 67
Using the Sleep Timer ................................ 67
Recording using the receiver....................... 68
Using the Remote
Programming the remote ............................ 69
Additional Information
Glossary ...................................................... 72
Precautions.................................................. 73
Troubleshooting .......................................... 75
Specifications.............................................. 78
Index ........................................................... 82
4US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 5 Wednesday, January 25, 2006 3:30 PM
Getting Started
Getting Started
Description and location of parts
Receiver
Front panel
1
2
3
4
5
6
7
8
?/1
MASTER VOLUME
MULTI CHANNEL DECODING
DISPLAY
INPUT MODE
INPUT SELECTOR
SPEAKERS
(OFF/A/B/A+B)
AUTO CAL MIC
MEMORY/
ENTER
TUNING
MODE
TUNING
2CH
A.F.D.
MOVIE
MUSIC
MULTI CH IN
MUTING
q;
9
VIDEO 3 IN/PORTABLE AV IN
PHONES
VIDEO
w; ql
L AUDIO R
qk
qj qh
qg
qf qd
qs
qa
PUSH
To remove the cover
Press PUSH.
When you remove the cover, keep it out of
reach from children.
Name
Function
A ?/1
Press to turn the receiver on
or off (page 29, 37, 38, 53,
79).
B SPEAKERS
(OFF/A/B/A+B)
Press to select OFF, A, B,
A+B of the front speakers
(page 30).
C Display
The current status of the
selected component or a list
of selectable items appears
here (page 7).
D MULTI
CHANNEL
DECODING
lamp
Lights up when multi
channel audio is decoded
(page 38).
continued
5US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 6 Wednesday, January 25, 2006 3:30 PM
Name
Function
Name
E Remote sensor
Receives signals from
remote commander.
F DISPLAY
Press to select information
displayed on the display
(page 67).
R VIDEO 3 IN/
To connect a camcorder or
PORTABLE AV IN video game (page 27, 35).
jacks
G INPUT MODE
Press to select the input
mode when the same
components are connected
to both digital and analog
jacks (page 64).
H MASTER
VOLUME
Turn to adjust the volume
level of all speakers at the
same time (page 34, 35,
37, 38).
I MUTING
Press to mute the sound
(page 35).
J MULTI CH IN
Press to select the audio
directly from the
components connected to
the MULTI CH IN jacks
(page 35).
K INPUT
SELECTOR
Turn to select the input
source to playback (page
35, 37, 38, 54, 56, 64, 66,
68).
L MOVIE,
MUSIC
Press to select sound fields
(MOVIE, MUSIC) (page
50).
M A.F.D.
Press to select A.F.D.
mode (page 48).
N 2CH
Press to select 2CH
STEREO mode (page 52,
53).
O TUNING +/–
Press to scan a station
(page 54, 55).
P TUNING MODE
Press to select the tuning
mode (page 56, 79).
Function
S AUTO CAL MIC
jack
Connects to the supplied
ECM-AC2 optimizer
microphone for the Auto
Calibration function (page
31).
T PHONES jack
Connects to a headphone
(page 75).
Q MEMORY/ENTER Press to store a station or
enter the selection when
selecting the settings
(page 29).
6US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 7 Wednesday, January 25, 2006 3:30 PM
About the indicators on the display
2
3
4
5
6
SW
LFE
SP A ; DIGITAL
;PRO LOGIC II DTS
HDMI
SP B SLEEP OPT COAX
7
D.RANGE
Getting Started
1
CAT
MEMORY
STEREO MONO
L C R
SL S SR
qf
qd qs
qa
q;
9
qg
8
Name
Function
Name
Function
A SW
Lights up when the audio signal
is output from the SUB
WOOFER jack.
F DTS
B LFE
Lights up when the disc being
played back contains an LFE
(Low Frequency Effect)
channel and the LFE channel
signal is actually being
reproduced.
Lights up when DTS signals are
input.
Note
When playing a DTS format
disc, be sure that you have made
digital connections and that
INPUT MODE is not set to
“ANALOG” (page 64).
G MEMORY
C SP A/SP B
Lights up according to the
speaker system used. However,
these indicators do not light up
if the speaker output is turned
off or if a headphone is
connected.
Lights up when a memory
function, such as Preset
Memory (page 55), etc., is
activated.
H Preset
station
indicators
Lights up when using the
receiver to tune in radio stations
you have preset. For details on
presetting radio stations, see
page 55.
I Tuner
indicators
Lights up when using the
receiver to tune in radio stations
(page 53), etc.
J D.RANGE
Lights up when dynamic range
compression is activated (page
40).
K HDMI
Flashes when you select
“HDMI A.” in the VIDEO
menu (page 65).
L COAX
Lights up when INPUT MODE
is set to “AUTO” and the source
signal is a digital signal being
input through the COAXIAL
jack, or when INPUT MODE is
set to “COAX IN” (page 64).
D ;DIGITAL
E ;PRO
LOGIC (II)
Lights up when Dolby Digital
signals are input.
Note
When playing a Dolby Digital
format disc, be sure that you
have made digital connections
and that INPUT MODE is not
set to “ANALOG” (page 64).
Lights up when the receiver
applies Pro Logic processing to
2 channel signals in order to
output the center and surround
channel signals. “; PRO
LOGIC II” lights up when the
Pro Logic II Movie or Music
decoder is activated.
Note
Dolby Pro Logic and Dolby Pro
Logic II decoding do not
function for DTS format
signals.
continued
7US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 8 Wednesday, January 25, 2006 3:30 PM
Name
Function
M OPT
Lights up when INPUT MODE
is set to “AUTO” and the source
signal is a digital signal being
input through the OPTICAL
jack, or when INPUT MODE is
set to “OPT IN” (page 64).
N SLEEP
Lights up when the sleep timer
is activated (page 67).
O Playback
channel
indicators
The letters (L, C, R, etc.)
indicate the channels being
played back. The boxes around
the letters vary to show how the
receiver downmixes the source
sound.
Front Left
Front Right
Center (monaural)
Surround Left
Surround Right
Surround (monaural or the
surround components obtained
by Pro Logic processing)
Example:
Recording format (Front/
Surround): 3/2.1
Sound Field: A.F.D. AUTO
L
R
C
SL
SR
S
SW
L C R
SL
SR
8US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 9 Wednesday, January 25, 2006 3:30 PM
Rear panel
2
DIGITAL
DVD IN
VIDEO 2 IN
3
COMPONENT VIDEO
MONITOR OUT
OPTICAL
VIDEO 1
IN
Getting Started
1
CENTER
ASSIGNABLE
ANTENNA
Y
XM
ASSIGNABLE
VIDEO 2
IN
HDMI
PB/CB
/B–Y
MONITOR
AM
+
–
SPEAKERS
PR/CR
/R–Y
VIDEO IN
VIDEO IN
VIDEO OUT VIDEO IN
VIDEO OUT
DVD
IN
VIDEO 2
IN
MONITOR
OUT
L
L
DVD
IN
R
L
COAXIAL
L
L
L
L
R
R
R
R
L
+
CENTER
R
IN
SA-CD/CD
OUT
IN
MD/TAPE
AUDIO IN
AUDIO IN
DVD VIDEO 2
6
AUDIO OUT AUDIO IN
VIDEO 1
SUB
FRONT SURROUND WOOFER
MULTI CH IN
OPTICAL
IN jack
Connects to a DVD
player, etc. The
COAXIAL jack
provides a better
COAXIAL IN quality of loud
jack
sound (page 23,
26).
HDMI IN/
MONITOR
OUT jacka)
Connects to a DVD
player, or a satellite
tuner. The image
and the sound are
output to a TV or a
projector (page
25).
+
–
AUDIO
OUT
SUB
WOOFER
R
SURROUND
SPEAKERS
5
A DIGITAL INPUT section
–
R
FRONT A
R
L
FRONT B
SPEAKERS
4
C COMPONENT VIDEO INPUT/
OUTPUT section
Green
Blue
COMPONENT
VIDEO
INPUT/
OUTPUT
jacka)
Red
Connects to a DVD
player, TV, or a
satellite tuner. You
can enjoy high
quality image
(page 22, 24, 26).
D SPEAKER section
Connects to
speakers (page 16).
B VIDEO/AUDIO INPUT/OUTPUT
section
White (L)
AUDIO IN/
OUT jack
Red (R)
Yellow
Connects the video
and audio jacks of
a VCR or a DVD
player (page 22,
23, 24, 26, 27).
Connects to sub
woofer (page 16).
VIDEO IN/
OUT jacka)
continued
9US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 10 Wednesday, January 25, 2006 3:30 PM
E AUDIO INPUT/OUTPUT section
AUDIO IN/
White (L) OUT jack
Connects to an MD
deck or CD player,
etc. (page 20).
Red (R)
White (L)
MULTI
CHANNEL
INPUT jack
Red (R)
Black
Connects to a
Super Audio CD
player or DVD
player which has
an analog audio
jack for 5.1
channel sound
(page 19).
Remote commander
You can use the supplied remote RM-AAP012
to operate the receiver and to control the Sony
audio/video components that the remote is
assigned to operate. You can also program the
remote to control non-Sony audio/video
components. For details, see “Programming
the remote” (page 69).
AV ?/1
wl
TV ?/1
TV ?/1 wk
(on/standby)
switch
FM
ANTENNA
wj
Connects to the
FM wire antenna
supplied with this
receiver (page 28).
Connects to the
AM loop antenna
supplied with this
receiver (page 28).
switch
Connects to the
XM connect-andPlay antenna (not
supplied with this
receiver) (page
58).
VIDEO3
DVD
TUNER
AUX
MD/TAPE SA-CD/CD
MULTI CH
3
2CH
A.F.D.
MOVIE
2
wh
4
5
6
JUMP/ PRESET/
AUDIO
ANGLE
TIME CH/D.SKIP
TUNING
7
8
9
MEMORY SUBTITLE
0/10
wg
wf
wd
ws
wa
MUSIC
3
DUAL CATEGORY
MONO
MODE
CATEGORY
can watch the selected input image when you
connect the MONITOR OUT jack to a TV monitor
(page 22).
w;
>10/11
D.TUNING
DISC
M
-
m
ANT
12
ALT
qk
X
H
x
AV MENU
q;
MASTER
VOL
G
g
qa
f
DISPLAY
9
MUTING
TOP MENU/
GUIDE
TV VOL
qj
7
8
CLEAR SEARCH MODE
ql
5
6
ENTER
F
a) You
4
>
.
XM
switch
SYSTEM STANDBY SLEEP
VIDEO2
1
AM
ANTENNA
1 (on/standby)
2 ?/1 (on/standby)
VIDEO1
F ANTENNA section
?/1
AV ?/1
RM SET UP P
O
RETURN/EXIT
TV CH
TV/
VIDEO
AMP
MENU
WIDE
AUTO
CAL
qh
qs
qd
qf
qg
Name
Function
A AV ?/1
Press to turn on or off the
audio/video components that
the remote is programmed to
operate.
If you press ?/1 (B) at the
same time, it will turn off the
receiver and other
components (SYSTEM
STANDBY).
Note
The function of the AV ?/1
switch changes automatically
each time you press the input
buttons (wj).
10US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 11 Wednesday, January 25, 2006 3:30 PM
Function
Name
B ?/1
Press to turn the receiver on or
off.
To turn off all components,
press ?/1 and AV ?/1 (A) at
the same time (SYSTEM
STANDBY).
J MUTING
Press to mute the sound.
K MASTER
VOL +a)/–
Press to adjust the volume level
of all speakers at the same time.
SLEEP
C MULTI CH
D MUSIC
Press ALT (G) and then press
SLEEP to activate the Sleep
Timer function and the duration
which the receiver turns off
automatically.
Press to select the audio directly
from the components connected
to the MULTI CH IN jacks.
Press to select sound fields
(MUSIC).
E CATEGORY Press to select the category
MODE
mode for XM Radio.
F PRESET/
CH/D.SKIP
+/–
Press to
– select preset stations.
– select preset channels of the
TV, VCR, satellite tuner, Bluray disc recorder, or hard disc
recorder.
– skip disc of the CD player,
VCD player, DVD player,
MD deck, or LD player
(multi-disc changer only).
G ALT
Press to light up the button. It
changes the remote key
function to activate the buttons
with orange printing.
H -/--
Press to select the channel entry
mode, either one or two digit of
the TV, Blu-ray disc recorder,
hard disc recorder, PSX, or
satellite tuner.
DISC
Press to select a disc directly of
the CD player or VCD player
(multi-disc changer only).
SEARCH
MODE
Press to select the searching
mode or unit for search (tracks,
index, etc.) of the DVD player.
I x
Press to stop playback of the
VCR, CD player, VCD player,
LD player, DVD player, MD
deck, DAT deck, tape deck, Bluray disc recorder, hard disc
recorder, or PSX.
Function
L AMP MENU Press to display the menu of the
receiver. Then, use the control
buttons to perform menu
operations.
M TV/VIDEO
Press to select the input signal
(TV input or video input).
N AUTO CAL
Press to activate the Auto
Calibration function.
O WIDE
Press ALT (G) and then press
WIDE to select the wide picture
mode.
P TV CH +a)/– Press to select preset TV
channels.
Q TV VOL
+a)/–
Press to adjust the TV volume
level.
R RETURN/
EXIT O
Press to
– return to the previous menu.
– exit the menu while the menu
or on-screen guide of the
VCD player, LD player, DVD
player, Blu-ray disc recorder,
hard disc recorder, PSX, or
satellite tuner is displayed on
the TV screen.
S DISPLAY
Press to select information
displayed on the TV screen of
the TV, VCR, VCD player, LD
player, DVD player, CD player,
MD deck, Blu-ray disc
recorder, hard disc recorder,
PSX, or satellite tuner.
T Control
buttons
After pressing AMP MENU
(L), TOP MENU/GUIDE
(U), or AV MENU (V), press
the control button V, v, B or b
to select the settings. When you
press TOP MENU/GUIDE or
AV MENU, press the control
button to enter the selection.
U TOP MENU/ Press to display the
GUIDE
– DVD title.
– menu or on-screen guide of
the satellite tuner, Blu-ray
disc recorder, hard disc
recorder, or PSX on the TV
screen.
Then, use the control buttons to
perform menu operation.
continued
11US
HT-7000DH
2-662-265-11 (1)
Getting Started
Name
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 12 Wednesday, January 25, 2006 3:30 PM
Name
V AV MENU
W Ha)
X X
Y m/M
Function
Name
Function
Press to display the menus of the
VCR, DVD player, satellite
tuner, Blu-ray disc recorder,
hard disc recorder, or PSX on the
TV screen. Then, use the control
buttons to perform menu
operations.
Z TUNING +/–
Press to scan a station.
./>
Press to skip tracks of the
VCR, CD player, VCD player,
LD player, DVD player, MD
deck, DAT deck, tape deck,
Blu-ray disc recorder, hard
disc recorder, or PSX.
Press to start playback of the
VCR, CD player, VCD player,
LD player, DVD player, MD
deck, DAT deck, tape deck, Bluray disc recorder, hard disc
recorder, or PSX.
2CH
Press to select 2CH STEREO
mode.
A.F.D.
Press to select A.F.D. mode.
MOVIE
Press to select sound fields
(MOVIE).
Press to pause playback or
recording of the VCR, CD
player, VCD player, LD player,
DVD player, MD deck, DAT
deck, tape deck, Blu-ray disc
recorder, hard disc recorder, or
PSX. (Also starts recording with
components in recording
standby.)
CATEGORY
+/–
Press to select the category for
XM Radio.
Press to
– search tracks in the forward/
backward direction of the CD
player, VCD player, DVD
player, LD player, MD deck,
Blu-ray disc recorder, hard
disc recorder, or PSX.
– fast forward/rewind of the
VCR, DAT deck, or tape deck.
D. TUNING
Press to enter direct tuning
mode.
ANT
Press ALT (G) and then press
ANT to select the signal to be
output from the antenna terminal
of the VCR or satellite tuner (TV
signal or video signal).
CLEAR
Press ALT (G) and then press
CLEAR to
– clear a mistake when you press
the incorrect numeric button.
– return to continuous playback,
etc. of the CD player, DVD
player, Blu-ray disc recorder,
PSX, or satellite tuner.
DUAL MONO Press to select the language
you want during digital
broadcast.
AUDIO
Press to change the sound to
Multiplex, Bilingual or Multi
channel TV sound of the TV,
VCR, DVD player, satellite
tuner, Blu-ray disc recorder,
hard disc recorder, or PSX.
ANGLE
Press to select the viewing
angle or change the angles of
the DVD player or Blu-ray
disc recorder.
JUMP/TIME
Press to
– toggle between the previous
and the current channels of
the satellite tuner, TV, or
Blu-ray disc recorder.
– show the time or display the
playing time of a disc, etc. of
the CD player, MD deck,
VCD player, or DVD player.
MEMORY
Press MEMORY to store a
station.
SUBTITLE
Press ALT (G) and then press
SUBTITLE to change the
subtitles of the DVD player.
ENTER
Press ALT (G) and then press
ENTER to enter the value
after selecting a channel, disc
or track using the numeric
buttons.
12US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 13 Wednesday, January 25, 2006 3:30 PM
Name
>10/11
Name
Function
Press ALT (G) and then press
the numeric buttons to
– preset/tune to preset
stations.
– select track numbers of the
CD player, VCD player, LD
player, DVD player, MD
deck, DAT deck, or tape
deck. Press 0/10 to select
track number 10.
– select channel numbers of
the TV, VCR, satellite tuner,
Blu-ray disc recorder, hard
disc recorder, or PSX.
wk TV ?/1
Press to turn the TV on or off.
wl RM SET UP
Press to set up the remote.
Press ALT (G) and then press
>10/11 to select track
numbers over 10 of the CD
player, VCD player, LD
player, MD deck, tape deck,
TV, VCR, Blu-ray disc
recorder, hard disc recorder,
PSX, or satellite tuner.
a) The
MASTER VOL +, TV VOL +, TV CH + and
H buttons have tactile dots. Use the tactile dots as
references when operating the receiver.
Notes
• Some functions explained in this section may not
work depending on the model.
• The above explanation is intended to serve as an
example only. Therefore, depending on the
component, the above operation may not be
possible or may operate differently than described.
• The 12 button on the remote is not available for
receiver operation.
wj Input buttons Press one of the buttons to
select the component you
want to use. When you press
any of the input buttons, the
receiver turns on. The buttons
are factory assigned to control
Sony components as follows.
You can program the remote
to control non-Sony
components following the
steps in “Programming the
remote” on page 69.
Button
Assigned Sony
component
VIDEO1
VCR (VTR mode 3)
VIDEO2
VCR (VTR mode 1)
VIDEO3
VCR (VTR mode 2)
DVD
DVD player
MD/TAPE MD deck
SA-CD/CD Super Audio CD/CD
player
TUNER
Built-in tuner
AUX
Not assigned
13US
HT-7000DH
2-662-265-11 (1)
Getting Started
wh Numeric
buttons
Function
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 14 Wednesday, January 25, 2006 3:30 PM
1: Installing speakers
To fully enjoy theater-like multi channel
surround sound requires five speakers (two
front speakers, a center speaker, and two
surround speakers) and a sub woofer (5.1
channel).
Example of a 5.1 channel
speaker system configuration
Installing the speakers on a flat
surface
Before you install the speakers and sub
woofer, be sure to attach the supplied foot pads
to prevent vibration or movement as shown in
the illustration below.
Installing the speakers on the
speaker stand
For greater flexibility in positioning the
speakers, use the optional WS-FV11 speaker
stand (available only in certain countries). For
details, refer to the operating instructions
supplied with the speaker stand
AFront speaker (L)
BFront speaker (R)
CCenter speaker
DSurround speaker (L)
ESurround speaker (R)
FSub woofer
Tip
Since the sub woofer does not emit highly
directional signals, you can place it wherever you
want.
14US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 15 Wednesday, January 25, 2006 3:30 PM
3
Hang the speakers on the
screws.
Hook on the back of the speaker
You can install your surround speakers on the
wall.
1
Getting Started
Installing the speakers on the
wall
4.6 mm
(3/16 inch)
Prepare screws (not supplied)
that are suitable for the hook on
the back of each speaker as
shown in the illustrations
below.
10 mm
(13/32 inch)
more than 4 mm
(5/32 inch)
more than 25 mm (1 inch)
4.6 mm
(3/16 inch)
10 mm
(13/32 inch)
Hook on the back of the speaker
2
Fasten the screws to the wall.
The screws should protrude 5
to 7 mm.
Notes
• Use screws that are suitable for the wall material
and strength. As a plaster board wall is especially
fragile, attach the screws securely to a beam and
fasten them to the wall. Install the speakers on a
vertical and flat wall where reinforcement is
applied.
• Contact a screw shop or installer regarding the wall
material or screws to be used.
• Sony is not responsible for accident or damage
caused by improper installation, insufficient wall
strength or improper screw installation, natural
calamity, etc.
5 to 7 mm
(7/32 to 9/32 inch)
15US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 16 Wednesday, January 25, 2006 3:30 PM
2: Connecting speakers
F
C
A
B
SPEAKERS FRONT Ba)
DVD IN
VIDEO 2 IN
COMPONENT VIDEO
MONITOR OUT
CENTER
ASSIGNABLE
Y
ASSIGNABLE
HDMI
PB/CB
/B–Y
MONITOR
+
–
SPEAKERS
PR/CR
/R–Y
VIDEO IN
VIDEO IN
VIDEO OUT VIDEO IN
VIDEO OUT
DVD
IN
VIDEO 2
IN
MONITOR
OUT
L
L
R
L
L
L
+
L
CENTER
R
R
OUT
IN
MD/TAPE
AUDIO IN
R
AUDIO IN
DVD VIDEO 2
AUDIO OUT AUDIO IN
VIDEO 1
MULTI CH IN
+
L
–
AUDIO
OUT
R
SUB
FRONT SURROUND WOOFER
–
SUB
WOOFER
R
SURROUND
SPEAKERS
R
FRONT A
R
L
FRONT B
SPEAKERS
B
D
E
B
A
A Monaural audio cord (supplied)
B Speaker cords (supplied)b)
AFront speaker A (L)
BFront speaker A (R)
CCenter speaker
DSurround speaker (L)
ESurround speaker (R)
FSub woofer
a) If
you have an additional front speaker system,
connect them to the SPEAKERS FRONT B
terminal. You can select the front speakers you
want to use with the SPEAKERS (OFF/A/B/A+B)
button. For details, see “6: Selecting the speaker
system” (page 30).
b) Use the long speaker cords to connect the surround
speakers and the short speaker cords to connect the
front and center speakers.
16US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 17 Wednesday, January 25, 2006 3:30 PM
To connect the speakers
correctly
Character on
speaker label
Speaker type
L
Front left
R
Front right
SL
Surround left
SR
Surround right
Getting Started
Check the speaker type by referring to the
speaker label* on the rear panel of the
speakers.
* The center speaker and sub woofer do not have any
character on the speaker label. For details on the
speaker type, see page 3.
Tip
Use the supplied speakers to optimize the system’s
performance.
17US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 18 Wednesday, January 25, 2006 3:30 PM
3a: Connecting the audio components
How to hook up your
components
Audio input/output jack to be
connected
This section describes how to hook up your
components to this receiver. Before you begin,
refer to “Component to be connected” below
for the pages which describe how to connect
each component.
After hooking up all your components,
proceed to “4: Connecting the antennas” (page
28).
The sound quality depends on the connecting
jack. Refer to the illustration that follows.
Select the connection according to the jacks of
your components.
Digital
Component to be connected
Component
With
Page
Super Audio
Multi-channel audio
CD player/CD outputa)
player
Analog audio output
onlyb)
19
MD deck/Tape Analog audio output
deck
onlyb)
20
L
CENTER
R
20
High
quality
sound
SUB
FRONT SURROUND WOOFER
MULTI CH IN
Analog
a) Model with MULTI CH OUTPUT jacks, etc. This
connection is used to output audio decoded by the
component’s internal multi-channel decoder
through this receiver.
b)
Model equipped only with AUDIO OUT L/R
jacks, etc.
18US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 19 Wednesday, January 25, 2006 3:30 PM
Note
When you make connections to the MULTI CH IN
jacks, you will need to adjust the level of the
speakers and sub woofer using the controls on the
connected component.
If your DVD or Super Audio CD player is
equipped with multi channel output jacks, you
can connect it to the MULTI CH IN jacks of
this receiver to enjoy multi channel sound.
Alternatively, the multi channel input jacks
can be used to connect an external multi
channel decoder.
DVD player, Super
Audio CD player, etc.
A
B
DIGITAL
DVD IN
VIDEO 2 IN
COMPONENT VIDEO
MONITOR OUT
OPTICAL
VIDEO 1
IN
CENTER
ASSIGNABLE
ANTENNA
Y
XM
ASSIGNABLE
VIDEO 2
IN
HDMI
PB/CB
/B–Y
MONITOR
AM
+
–
SPEAKERS
PR/CR
/R–Y
VIDEO IN
VIDEO IN
VIDEO OUT VIDEO IN
VIDEO OUT
DVD
IN
VIDEO 2
IN
MONITOR
OUT
L
L
DVD
IN
COAXIAL
L
L
L
L
+
L
CENTER
R
R
R
IN
SA-CD/CD
OUT
IN
MD/TAPE
AUDIO IN
R
AUDIO IN
DVD VIDEO 2
AUDIO OUT AUDIO IN
VIDEO 1
R
SUB
FRONT SURROUND WOOFER
MULTI CH IN
–
+
–
AUDIO
OUT
SUB
WOOFER
R
SURROUND
SPEAKERS
R
FRONT A
A Audio cord (not supplied)
B Monaural audio cord (not supplied)
19US
HT-7000DH
2-662-265-11 (1)
Getting Started
Connecting components with
multi channel output jacks
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 20 Wednesday, January 25, 2006 3:30 PM
Connecting components with
analog audio jacks
The following illustration shows how to
connect a component which has analog jacks
such as tape deck, etc.
Super Audio
CD player/
CD player
MD deck/
Tape deck
A
A
DIGITAL
DVD IN
VIDEO 2 IN
COMPONENT VIDEO
MONITOR OUT
OPTICAL
VIDEO 1
IN
CENTER
ASSIGNABLE
ANTENNA
Y
XM
ASSIGNABLE
VIDEO 2
IN
HDMI
PB/CB
/B–Y
MONITOR
AM
+
–
SPEAKERS
PR/CR
/R–Y
VIDEO IN
VIDEO IN
VIDEO OUT VIDEO IN
VIDEO OUT
DVD
IN
VIDEO 2
IN
MONITOR
OUT
L
L
DVD
IN
COAXIAL
L
L
L
L
+
L
CENTER
R
R
IN
SA-CD/CD
OUT
R
R
IN
MD/TAPE
AUDIO IN
AUDIO IN
DVD VIDEO 2
AUDIO OUT AUDIO IN
VIDEO 1
R
SUB
FRONT SURROUND WOOFER
MULTI CH IN
–
+
–
AUDIO
OUT
SUB
WOOFER
R
SURROUND
SPEAKERS
R
FRONT A
A Audio cord (not supplied)
20US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 21 Wednesday, January 25, 2006 3:30 PM
3b: Connecting the video components
This section describes how to hook up your
components to this receiver. Before you begin,
refer to “Component to be connected” below
for the pages which describe how to connect
each component.
After hooking up all your components,
proceed to “4: Connecting the antennas” (page
28).
Component to be connected
Component
Page
TV monitor
22
DVD player/DVD recorder
23
Satellite tuner
26
With HDMI jack
25
VCR
27
Camcorder, video game, etc.
27
Receiver
MONITOR OUT
jack
HDMI
COMPONENT
VIDEO
VIDEO
HDMI
COMPONENT
VIDEO
VIDEO
HDMI
COMPONENT
VIDEO
VIDEO
HDMI
COMPONENT
VIDEO
VIDEO
Receiver INPUT
jack
Video component
OUTPUT jack
High quality image
Notes
Video input/output jack to be
connected
The image quality depends on the connecting
jack. Refer to the illustration that follows.
Select the connection according to the jacks on
your components.
• Connect image display components such as a TV
monitor or a projector to the MONITOR OUT jack
on the receiver.
• Turn on the receiver when the video and audio of a
playback component are being output to a TV
through the receiver. If the power supply of the
receiver is not on, neither video nor audio is
transmitted.
Reassigning video input signals
to another input
Component video input signals can be
reassigned to another input (page 64). You can
also reassign the HDMI input to another input
(page 65).
21US
HT-7000DH
2-662-265-11 (1)
Getting Started
TV monitor, etc.
INPUT jack
How to hook up your
components
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 22 Wednesday, January 25, 2006 3:30 PM
Notes
Hooking up a TV monitor
• Connect image display components such as a TV
monitor or a projector to the MONITOR OUT jack
on the receiver.
• Turn on the receiver when the video and audio of a
playback component are being output to a TV via
the receiver. If the power supply of the receiver is
not turned on, neither video nor audio is
transmitted.
The image from a visual component connected
to this receiver can be displayed on a TV
screen.
It is not necessary to connect all the cables.
Connect video cords according to the jacks of
your components.
Tip
You can watch the selected input image when you
connect the MONITOR OUT jack to a TV monitor.
TV monitor
A
DIGITAL
DVD IN
VIDEO 2 IN
B
COMPONENT VIDEO
MONITOR OUT
OPTICAL
VIDEO 1
IN
CENTER
ASSIGNABLE
ANTENNA
Y
XM
ASSIGNABLE
VIDEO 2
IN
HDMI
PB/CB
/B–Y
MONITOR
AM
+
–
SPEAKERS
PR/CR
/R–Y
VIDEO IN
VIDEO IN
VIDEO OUT VIDEO IN
VIDEO OUT
DVD
IN
VIDEO 2
IN
MONITOR
OUT
L
L
DVD
IN
COAXIAL
L
L
L
L
+
L
CENTER
R
R
IN
SA-CD/CD
OUT
R
R
IN
MD/TAPE
AUDIO IN
AUDIO IN
DVD VIDEO 2
AUDIO OUT AUDIO IN
VIDEO 1
R
SUB
FRONT SURROUND WOOFER
MULTI CH IN
–
+
–
AUDIO
OUT
SUB
WOOFER
R
SURROUND
SPEAKERS
R
FRONT A
A Video cord (not supplied)
B Component video cord (not supplied)
22US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 23 Wednesday, January 25, 2006 3:30 PM
Notes
• To input multi channel digital audio from the DVD
player, set the digital audio output setting on the
DVD player. Refer to the operating instructions
supplied with the DVD player.
• When connecting optical digital cords, insert the
plugs straight in until they click into place.
• Do not bend or tie the optical digital cords.
The following illustration shows how to
connect a DVD player/DVD recorder.
It is not necessary to connect all the cables.
Connect audio and video cords according to
the jacks of your components.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
1 Connecting audio
DVD player
DVD recorder
C
A
B
B
DIGITAL
DVD IN
VIDEO 2 IN
COMPONENT VIDEO
MONITOR OUT
OPTICAL
VIDEO 1
IN
CENTER
ASSIGNABLE
ANTENNA
Y
XM
ASSIGNABLE
VIDEO 2
IN
HDMI
PB/CB
/B–Y
MONITOR
AM
+
–
SPEAKERS
PR/CR
/R–Y
VIDEO IN
VIDEO IN
VIDEO OUT VIDEO IN
VIDEO OUT
DVD
IN
VIDEO 2
IN
MONITOR
OUT
L
L
DVD
IN
COAXIAL
L
L
L
L
+
L
CENTER
R
R
R
IN
SA-CD/CD
OUT
IN
MD/TAPE
AUDIO IN
R
AUDIO IN
DVD VIDEO 2
AUDIO OUT AUDIO IN
VIDEO 1
R
SUB
FRONT SURROUND WOOFER
MULTI CH IN
–
+
–
AUDIO
OUT
SUB
WOOFER
R
SURROUND
SPEAKERS
R
FRONT A
A Coaxial digital cord (supplied)
B Audio cord (not supplied)
C Optical digital cord (not supplied)
continued
23US
HT-7000DH
2-662-265-11 (1)
Getting Started
Hooking up a DVD player/DVD
recorder
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 24 Wednesday, January 25, 2006 3:30 PM
2 Connecting video
DVD player
B
A
DIGITAL
DVD IN
VIDEO 2 IN
COMPONENT VIDEO
MONITOR OUT
OPTICAL
VIDEO 1
IN
CENTER
ASSIGNABLE
ANTENNA
Y
XM
ASSIGNABLE
VIDEO 2
IN
HDMI
PB/CB
/B–Y
MONITOR
AM
+
–
SPEAKERS
PR/CR
/R–Y
VIDEO IN
VIDEO IN
VIDEO OUT VIDEO IN
VIDEO OUT
DVD
IN
VIDEO 2
IN
MONITOR
OUT
L
L
DVD
IN
COAXIAL
L
L
L
+
L
L
CENTER
R
R
R
IN
SA-CD/CD
OUT
IN
MD/TAPE
AUDIO IN
R
AUDIO IN
AUDIO OUT AUDIO IN
DVD VIDEO 2
VIDEO 1
R
SUB
FRONT SURROUND WOOFER
MULTI CH IN
–
+
–
AUDIO
OUT
SUB
WOOFER
R
SURROUND
SPEAKERS
R
FRONT A
A
DVD recorder
A Video cord (not supplied)
B Component video cord (not supplied)
If you connect a DVD recorder
• Be sure to change the factory setting of the
VIDEO 1 input button on the remote so that
you can use the button to control your DVD
recorder. For details, see “Programming the
remote” (page 69).
• You can also rename the VIDEO 1 input so
that it can be displayed on the receiver’s
display. For details, see “Naming inputs”
(page 66).
24US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 25 Wednesday, January 25, 2006 3:30 PM
HDMI is the abbreviated name for HighDefinition Multimedia Interface. It is an
interface which transmits video and audio
signals in digital format.
DVD player
Satellite tuner
TV monitor, projector, etc.
A
A
DIGITAL
DVD IN
VIDEO 2 IN
A
COMPONENT VIDEO
MONITOR OUT
OPTICAL
VIDEO 1
IN
CENTER
ASSIGNABLE
ANTENNA
Y
XM
ASSIGNABLE
VIDEO 2
IN
HDMI
PB/CB
/B–Y
MONITOR
AM
+
–
SPEAKERS
PR/CR
/R–Y
VIDEO IN
VIDEO IN
VIDEO OUT VIDEO IN
VIDEO OUT
DVD
IN
VIDEO 2
IN
MONITOR
OUT
L
L
DVD
IN
COAXIAL
L
L
L
L
+
L
CENTER
R
R
IN
SA-CD/CD
OUT
R
R
IN
AUDIO IN
MD/TAPE
AUDIO IN
DVD VIDEO 2
AUDIO OUT AUDIO IN
VIDEO 1
R
SUB
FRONT SURROUND WOOFER
MULTI CH IN
–
+
–
AUDIO
OUT
SUB
WOOFER
R
SURROUND
SPEAKERS
R
FRONT A
A HDMI cable (not supplied)
We recommend that you use a Sony HDMI cable.
Notes on HDMI connections
• The multi/stereo area audio signals of a
Super Audio CD are not output.
• Turn on the receiver when the video and
audio of a playback component are being
output to a TV via the receiver. If the power
supply of the receiver is not turned on,
neither video nor audio is transmitted.
• Audio signals (sampling frequency, bit
length, etc.) transmitted from a HDMI jack
may be restricted by the connected
component. Check the setup of the
connected component if the image is poor or
the sound does not come out of a component
connected via the HDMI cable.
• Refer to the operating instructions of each
component connected for details.
25US
HT-7000DH
2-662-265-11 (1)
Getting Started
The sound is output from the TV speaker only
when a playback component and this receiver,
as well as this receiver and the TV are
connected via a HDMI jack. To output the
sound from the supplied speakers and to take
advantage of the multi channel surround
sound, be sure to
– connect the digital audio jacks on the
playback component to the receiver.
– turn off or mute the TV’s volume.
Hooking up components with
HDMI jacks
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 26 Wednesday, January 25, 2006 3:30 PM
Notes
Hooking up a satellite tuner
• When connecting optical digital cords, insert the
plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
The following illustration shows how to
connect a satellite tuner.
It is not necessary to connect all the cables.
Connect audio and video cords according to
the jacks of your components.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
Satellite tuner
B
A
C
DIGITAL
DVD IN
VIDEO 2 IN
D
COMPONENT VIDEO
MONITOR OUT
OPTICAL
VIDEO 1
IN
CENTER
ASSIGNABLE
ANTENNA
Y
XM
ASSIGNABLE
VIDEO 2
IN
HDMI
PB/CB
/B–Y
MONITOR
AM
+
–
SPEAKERS
PR/CR
/R–Y
VIDEO IN
VIDEO IN
VIDEO OUT VIDEO IN
VIDEO OUT
DVD
IN
VIDEO 2
IN
MONITOR
OUT
L
L
DVD
IN
COAXIAL
L
L
L
L
+
L
CENTER
R
R
R
IN
SA-CD/CD
OUT
IN
MD/TAPE
AUDIO IN
R
AUDIO IN
DVD VIDEO 2
AUDIO OUT AUDIO IN
VIDEO 1
R
SUB
FRONT SURROUND WOOFER
MULTI CH IN
–
+
–
AUDIO
OUT
SUB
WOOFER
R
SURROUND
SPEAKERS
R
FRONT A
A Audio cord (not supplied)
B Optical digital cord (not supplied)
C Video cord (not supplied)
D Component video cord (not supplied)
26US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 27 Wednesday, January 25, 2006 3:30 PM
Getting Started
Hooking up components with
analog video and audio jack
The following illustration shows how to
connect a component which has analog jacks
such as a VCR, etc.
VCR
A
DIGITAL
DVD IN
VIDEO 2 IN
COMPONENT VIDEO
MONITOR OUT
OPTICAL
VIDEO 1
IN
CENTER
ASSIGNABLE
ANTENNA
Y
XM
ASSIGNABLE
VIDEO 2
IN
HDMI
PB/CB
/B–Y
MONITOR
AM
+
–
SPEAKERS
PR/CR
/R–Y
VIDEO IN
VIDEO IN
VIDEO OUT VIDEO IN
VIDEO OUT
DVD
IN
VIDEO 2
IN
MONITOR
OUT
L
L
DVD
IN
COAXIAL
L
L
L
L
+
L
CENTER
R
R
R
IN
SA-CD/CD
OUT
IN
MD/TAPE
AUDIO IN
R
AUDIO IN
DVD VIDEO 2
R
AUDIO OUT AUDIO IN
VIDEO 1
SUB
FRONT SURROUND WOOFER
MULTI CH IN
–
+
–
AUDIO
OUT
SUB
WOOFER
R
SURROUND
SPEAKERS
R
FRONT A
VIDEO 3 IN/PORTABLE AV IN
To the VIDEO 3 IN/PORTABLE AV IN jacks
(Front panel)
Camcorder/
video game
A
A Audio/video cord (not supplied)
27US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 28 Wednesday, January 25, 2006 3:30 PM
4: Connecting the antennas
Connect the supplied AM loop antenna and
FM wire antenna.
FM wire antenna (supplied)
AM loop antenna (supplied)
DIGITAL
DVD IN
VIDEO 2 IN
COMPONENT VIDEO
MONITOR OUT
OPTICAL
VIDEO 1
IN
CENTER
ASSIGNABLE
ANTENNA
Y
XM
ASSIGNABLE
VIDEO 2
IN
HDMI
PB/CB
/B–Y
MONITOR
AM
+
–
SPEAKERS
PR/CR
/R–Y
VIDEO IN
VIDEO IN
VIDEO OUT VIDEO IN
VIDEO OUT
DVD
IN
VIDEO 2
IN
MONITOR
OUT
L
L
DVD
IN
COAXIAL
L
L
L
L
+
L
CENTER
R
R
IN
SA-CD/CD
OUT
R
R
IN
MD/TAPE
AUDIO IN
AUDIO IN
AUDIO OUT AUDIO IN
DVD VIDEO 2
VIDEO 1
R
SUB
FRONT SURROUND WOOFER
MULTI CH IN
–
+
–
AUDIO
OUT
SUB
WOOFER
R
SURROUND
SPEAKERS
R
FRONT A
* The shape of the connector varies depending on
the area code of this receiver.
Notes
• To prevent noise pickup, keep the AM loop antenna
away from the receiver and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as
horizontal as possible.
28US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 29 Wednesday, January 25, 2006 3:30 PM
Connecting the AC power cord
Connect the AC power cord to a wall outlet.
AC power cord
Performing initial setup
operations
Before using the receiver for the first time,
initialize the receiver by performing the
following procedure. This procedure can also
be used to return settings you have made to
their factory defaults.
Be sure to use the buttons on the receiver for
this operation.
1,2
?/1
MASTER VOLUME
MULTI CHANNEL DECODING
DISPLAY
INPUT MODE
INPUT SELECTOR
SPEAKERS
(OFF/A/B/A+B)
AUTO CAL MIC
MEMORY/
ENTER
R
R
FRONT A
TUNING
2CH
A.F.D.
MOVIE
MUSIC
MULTI CH IN
MUTING
PHONES
VIDEO
+
TUNING
MODE
VIDEO 3 IN/PORTABLE AV IN
L
L AUDIO R
L
–
3
R
L
FRONT B
SPEAKERS
To the wall outlet
1
Press ?/1 to turn off the
receiver.
2
Hold down ?/1 for 5 seconds.
“PUSH” and “ENTER” appears on the
display alternately.
Note
Install this system so that the power cord can be
unplugged from the wall socket immediately in the
event of trouble.
3
Press MEMORY/ENTER.
After “CLEARING” appears on the
display for a while, “CLEARED”
appears.
The following items are reset to their
factory settings.
• All settings in the LEVEL, TONE,
SUR, TUNER, AUDIO, VIDEO and
SYSTEM menus.
• The sound field memorized for each
input and preset station.
• All sound field parameters.
• All preset stations.
• All index names for inputs and preset
stations.
• MASTER VOLUME is set to “VOL
MIN”.
• Input is set to “DVD”.
29US
HT-7000DH
2-662-265-11 (1)
Getting Started
5: Preparing the receiver
and the remote
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 30 Wednesday, January 25, 2006 3:30 PM
Inserting batteries into the
remote
Insert two R6 (size-AA) batteries in the
RM-AAP012 remote commander.
Observe the correct polarity when installing
batteries.
6: Selecting the speaker
system
You can select the front speakers you want to
drive.
Be sure to use the buttons on the receiver for
this operation.
?/1
MASTER VOLUME
MULTI CHANNEL DECODING
DISPLAY
INPUT MODE
INPUT SELECTOR
SPEAKERS
(OFF/A/B/A+B)
AUTO CAL MIC
MEMORY/
ENTER
TUNING
MODE
TUNING
2CH
A.F.D.
MOVIE
MUSIC
MULTI CH IN
MUTING
VIDEO 3 IN/PORTABLE AV IN
PHONES
VIDEO
L AUDIO R
SPEAKERS
(OFF/A/B/A+B)
Notes
• Do not leave the remote in an extremely hot or
humid place.
• Do not use a new battery with old ones.
• Do not mix alkaline batteries and other kinds of
batteries.
• Do not expose the remote sensor to direct sunlight
or lighting apparatuses. Doing so may cause a
malfunction.
• If you do not intend to use the remote for an
extended period of time, remove the batteries to
avoid possible damage from battery leakage and
corrosion.
Tip
Under normal conditions, the batteries should last
for about 3 months. When the remote no longer
operates the receiver, replace all the batteries with
new ones.
Press SPEAKERS (OFF/A/B/A+B)
repeatedly to select the front
speaker system you want to drive.
To select
Light up
The speakers connected to the
SPEAKERS FRONT A terminals
SP A
The speakers connected to the
SPEAKERS FRONT B terminals
SP B
The speakers connected to both the
SPEAKERS FRONT A and B
terminals (parallel connection)
SP A and
SP B
To turn off the speaker output, press
SPEAKERS (OFF/A/B/A+B) repeatedly until
the “SP A” and “SP B” indicators on the
display do not light up.
30US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 31 Wednesday, January 25, 2006 3:30 PM
Tips
(AUTO CALIBRATION)
This receiver is equipped with D.C.A.C.
(Digital Cinema Auto Calibration)
Technology which allows you to perform
automatic calibration as follows:
• Check the connection between each speaker
and the receiver.
• Adjust the speaker level.
• Measure the distance of each speaker to your
listening position.
You can also adjust the speaker levels and
balance manually. For details, see
“8: Adjusting the speaker levels and balance
(TEST TONE)” (page 34).
• You can also fix the optimizer microphone to a
tripod (not supplied) and place the tripod at your
listening position.
• Be sure to remove any obstacles in the path
between the optimizer microphone and the
speakers.
• When you face the speaker towards the optimizer
microphone, you will get a more accurate
measurement.
Performing Auto Calibration
TV ?/1
?/1
switch
SYSTEM STANDBY SLEEP
VIDEO1
Input
buttons
VIDEO2
VIDEO3
DVD
TUNER
AUX
MD/TAPE SA-CD/CD
MULTI CH
2CH
A.F.D.
MOVIE
1
Before you perform Auto
Calibration
2
MUSIC
3
DUAL CATEGORY
MONO
MODE
CATEGORY
4
5
6
JUMP/ PRESET/
AUDIO
ANGLE
TIME CH/D.SKIP
TUNING
7
8
9
MEMORY SUBTITLE
?/1
0/10
MASTER VOLUME
MULTI CHANNEL DECODING
INPUT MODE
>10/11
D.TUNING
DISC
M
-
m
INPUT SELECTOR
ENTER
>
.
DISPLAY
?/1
AV ?/1
RM SET UP P
12
ALT
SPEAKERS
(OFF/A/B/A+B)
ANT
CLEAR SEARCH MODE
AUTO CAL MIC
MEMORY/
ENTER
TUNING
MODE
TUNING
2CH
A.F.D.
MOVIE
MUSIC
MULTI CH IN
MUTING
VIDEO 3 IN/PORTABLE AV IN
PHONES
X
H
VIDEO
MUTING
TOP MENU/
GUIDE
1
1
x
L AUDIO R
Control
button
Connect the supplied ECM-AC2
optimizer microphone to the
AUTO CAL MIC jack.
2
Place the optimizer
microphone at your listening
position.
3
Place the speakers so that the
speakers are facing the
optimizer microphone.
AV MENU
G
g
f
DISPLAY
TV VOL
MUTING
MASTER
VOL
F
MASTER
VOL +/–
O
RETURN/EXIT
TV CH
TV/
VIDEO
AMP
MENU
WIDE
AUTO
CAL
AUTO
CAL
Press AUTO CAL.
The following appears on the display.
A.CAL [5] t A.CAL [4] t A.CAL [3] t
A.CAL [2] t A.CAL [1]
continued
31US
HT-7000DH
2-662-265-11 (1)
Getting Started
7: Calibrating the
appropriate settings
automatically
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 32 Wednesday, January 25, 2006 3:30 PM
The table below shows the display when
measurement starts.
Measurement for
Display
Environment noise level
NOISE.CHK
Speaker connection
MEASURE and SP
DET. appears
alternately*
Speaker level
MEASURE and
GAIN appears
alternately*
Speaker distance
MEASURE and
DISTANCE appears
alternately*
* The corresponding speaker indicator lights up in
the display during measurement.
When measurement ends, “COMPLETE”
appears on the display and the settings are
registered.
Notes
• Auto Calibration cannot detect the sub woofer.
Therefore, all sub woofer settings will be
maintained.
• You cannot select Auto Calibration when
headphone is connected.
• The measurement process will take a few minutes
to complete.
Tips
• When Auto Calibration starts:
– Stand some distance from the speakers and the
listening position to avoid measurement failure.
This is because test signals are output from the
speakers during measurement.
– Avoid making noise to get a more accurate
measurement.
• The Auto Calibration function will be canceled
when you do the following during the
measurement process:
– Press ?/1, input buttons or MUTING.
– Change the volume level.
– Press AUTO CAL again.
Error and warning codes
Error codes
When an error is detected during Auto
Calibration, an error code will appear on the
display cyclically after each measurement
process as follows:
Error code t blank display t (error code t
blank display)a) t PUSH t blank display
t ENTER
a) Appears
when there are more than one error code.
To rectify the error
1 Record down the error code.
2 Press the control button.
3 Press ?/1 to turn off the receiver.
4 Rectify the error.
For details, see “Error code and remedies”
below.
5 Turn on the receiver and perform Auto
Calibration again (page 31).
Error code and remedies
Error
code
Explanation
Remedies
ERROR 10 The environment Make sure the
is too noisy.
environment is
quiet during Auto
Calibration.
ERROR 11 The speakers are
placed too near
the optimizer
microphone.
Place your speakers
further away from
the optimizer
microphone.
ERROR 20 Front speakers
Check the front
are not detected speaker
or only one front connection.
speaker is
detected.
ERROR 21 Only one
Check the surround
surround speaker speaker
is detected.
connection.
32US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 33 Wednesday, January 25, 2006 3:30 PM
Warning codes
b)
Appears when there are more than one warning
code.
You can choose to ignore the warning code as
the Auto Calibration function will
automatically adjust the settings. You can also
change the settings manually.
To change the settings
manually
1 Record down the warning code.
2 Press the control button.
3 Press ?/1 to turn off the receiver.
4 Follow the solution provided in the
“Warning code and solution” below.
5 Turn on the receiver and perform Auto
Warning
code
Explanation
Solution
WARN. 64 The surround right Reposition your
speaker level is out surround right
of range.
speaker.f)
WARN. 70 The front speaker Reposition your
distance is out of front speakers.c)
range.
WARN. 72 The center speaker Reposition your
distance is out of center speaker.d)
range.
WARN. 73 The surround left Reposition your
speaker distance is surround left
out of range.
speaker.e)
WARN. 74 The surround right Reposition your
speaker distance is surround right
out of range.
speaker.f)
c)
For details, refer “Front speaker distance”
(page 46).
d) For details, refer “Center speaker distance”
(page 46).
e)
For details, refer “Surround left speaker distance”
(page 46).
f)
For details, refer “Surround right speaker
distance” (page 46).
Calibration again (page 31).
Warning code and solution
Warning
code
Explanation
Solution
WARN. 40 The environment Make sure the
is noisy.
environment is
quiet during Auto
Calibration.
WARN. 50 The center speaker Be sure to connect
is not connected. the center speaker.
WARN. 51 The surround
speakers are not
connected.
Be sure to connect
the surround
speakers.
WARN. 60 The front speaker Reposition your
balance is out of front speakers.c)
range.
WARN. 62 The center speaker Reposition your
level is out of
center speaker.d)
range.
WARN. 63 The surround left Reposition your
speaker level is out surround left
of range.
speaker.e)
33US
HT-7000DH
2-662-265-11 (1)
Getting Started
During Auto Calibration, the warning code
provides information on the measurement
result. The warning code will appear on the
display cyclically as follows:
Warning code t blank display t (warning
code t blank display)b) t PUSH t blank
display t ENTER
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US03CON_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 34 Wednesday, January 25, 2006 3:30 PM
6
8: Adjusting the speaker
levels and balance
(TEST TONE)
For details, see “Adjusting the level
(LEVEL menu)” (page 42).
You can adjust the speaker levels and balance
while listening to the test tone from your
listening position.
Tips
• To adjust the level of all speakers at the same
time, press MASTER VOL +/–. You can also
use MASTER VOLUME on the receiver.
• The adjusted value are shown on the display
during adjustment.
Tip
The receiver employs a test tone with a frequency
centered at 800 Hz.
X
H
AV MENU
MASTER
VOL
F
2-5
G
g
f
DISPLAY
TV VOL
1
7
x
MUTING
TOP MENU/
GUIDE
RETURN/EXIT
TV CH
TV/
VIDEO
AMP
MENU
WIDE
AUTO
CAL
Repeat steps 1 to 5 to select
“T. TONE N”.
The test tone turns off.
MASTER
VOL +/–
O
Adjust the speaker levels and
balance using the LEVEL menu
so that the level of the test tone
sounds the same from each
speaker.
Note
The test tone does not work when MULTI CH IN is
selected.
1
Press AMP MENU.
“1-LEVEL” appears on the display.
2
Press the control button or
control button b to enter the
menu.
3
Press control button V/v
repeatedly to select “T. TONE”.
4
Press the control button or
control button b to enter the
parameter.
5
Press control button V/v
repeatedly to select “T. TONE
Y”.
The test tone is output from each speaker
in sequence as follows:
Front left t Center t Front right t
Surround right t Surround left t
Sub woofer
34US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US04PLA_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 35 Wednesday, January 25, 2006 3:30 PM
Selected input Components that can
[Display]
be played back
Playback
Selecting a component
1
VIDEO2
VIDEO3
DVD
TUNER
AUX
MD/TAPE SA-CD/CD
MULTI CH
MULTI CH
2CH
A.F.D.
1
MOVIE
2
MUSIC
3
DUAL CATEGORY
MONO
MODE
CATEGORY
4
5
6
JUMP/ PRESET/
AUDIO
ANGLE
TIME CH/D.SKIP
TUNING
7
8
9
MEMORY SUBTITLE
ENTER
>10/11
D.TUNING
DISC
M
-
m
ANT
ALT
X
H
DVD
[DVD]
DVD player, etc.,
connected to DVD jack
MD/TAPE
[MD/TAPE]
MD deck, tape deck, etc.,
connected to the MD/
TAPE jack
SA-CD/CD
[SA-CD/CD]
Super Audio CD/CD
player, etc., connected to
the SA-CD/CD jack
TUNER
Built-in radio tuner
[FM or AM band]
MULTI CH
[MULTI IN*]
x
Component connected to
the MULTI CH IN jack
MUTING
TOP MENU/
GUIDE
AV MENU
G
g
f
MUTING
*When headphone is connected, “HP MULTI”
appears on the display.
3
Note
MASTER
VOL
F
1
Camcorder, video game,
etc., connected to the
VIDEO 3 IN/PORTABLE
AV IN jack
12
CLEAR SEARCH MODE
DISPLAY
VIDEO3
[VIDEO 3]
>
.
0/10
VCR, etc., connected to the
VIDEO 1 or VIDEO 2 jack
O
The surround effect does not work when
MULTI CH IN is selected.
RETURN/EXIT
Press the input button to select
a component.
You can also use INPUT SELECTOR on
the receiver. To select a component
connected to the MULTI CH IN jack,
press MULTI CH.
You can also use MULTI CH IN on the
receiver.
The selected input appears on the display.
2
Turn on the component and
start playback.
3
Press MASTER VOL +/– to
adjust the volume.
You can also use MASTER VOLUME on
the receiver.
To mute the sound
Press MUTING.
The muting function will be canceled when
you do the following.
• Press MUTING again.
• Increase the volume.
• Turn off the receiver.
continued
35US
HT-7000DH
2-662-265-11 (1)
Playback
SYSTEM STANDBY SLEEP
VIDEO1
VIDEO1 or
VIDEO2
[VIDEO 1 or
VIDEO 2]
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US04PLA_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 36 Wednesday, January 25, 2006 3:30 PM
To avoid damaging your
speakers
Before you turn off the receiver, be sure to turn
down the volume level.
To listen to the sub woofer
Be sure to use the buttons on the rear panel of
the sub woofer for this operation.
1 Press POWER.
The POWER indicator lights up.
2 Turn LEVEL to adjust the volume.
Set the volume level to suit your preference
according to the selected input as slight
adjustments may enhance the sound.
Note
Do not set the volume of the sub woofer to
maximum as extraneous noise may be heard.
36US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US04PLA_HT7000DH-U.fm
masterpage: R-2
US01COV_HT-7000DH-U.book Page 37 Wednesday, January 25, 2006 3:30 PM
Listening/Watching a component
Listening to a Super Audio CD/CD
AV ?/1
RM SET UP P
VIDEO2
?/1
SYSTEM STANDBY SLEEP
VIDEO3
DVD
TUNER
AUX
MD/TAPE SA-CD/CD
MULTI CH
2CH
A.F.D.
MOVIE
1
2
5
7
?/1
MUSIC
MASTER VOLUME
MULTI CHANNEL DECODING
DISPLAY
INPUT MODE
5
6
JUMP/
TIME
AUDIO
ANGLE
TUNING
8
PRESET/
CH/D.SKIP
INPUT SELECTOR
SPEAKERS
(OFF/A/B/A+B)
9
MEMORY SUBTITLE
ENTER
>
.
0/10
2
3
3
DUAL CATEGORY
MONO
MODE
CATEGORY
4
Playback
TV ?/1
VIDEO1
>10/11
D.TUNING
DISC
M
-
m
ANT
12
ALT
AUTO CAL MIC
MEMORY/
ENTER
CLEAR SEARCH MODE
TUNING
MODE
TUNING
2CH
A.F.D.
MOVIE
MUSIC
MULTI CH IN
MUTING
3
VIDEO 3 IN/PORTABLE AV IN
X
H
PHONES
x
MUTING
TOP MENU/
GUIDE
AV MENU
VIDEO
MASTER
VOL
F
G
TV VOL
5
g
f
DISPLAY
L AUDIO R
O
RETURN/EXIT
TV CH
TV/
VIDEO
AMP
MENU
WIDE
AUTO
CAL
Notes
• The operation is described for a
Sony Super Audio CD player.
• Refer to the operating
instructions supplied with the
Super Audio CD player or CD
player.
1
Turn on the Super Audio CD player/CD
player, then place the disc on the tray.
2
3
Turn on the receiver.
You can also use INPUT SELECTOR on the receiver to
select SA-CD/CD.
Tips
• You can select the sound field to
suit the music. Refer to page 50
for details.
Recommended sound fields:
Classical: HALL
Jazz: JAZZ
Live concert: CONCERT
• You can listen to the sound that
was recorded in the 2 channel
format from all speakers (multi
channel). Refer to page 48 for
details.
Press SA-CD/CD.
4
5
6
Playback the disc.
Adjust to a suitable volume.
After you have finished listening to the
Super Audio CD/CD, eject the disc and turn
off the receiver and Super Audio CD player/
CD player.
37US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US04PLA_HT7000DH-U.fm
masterpage: L-2
US01COV_HT-7000DH-U.book Page 38 Wednesday, January 25, 2006 3:30 PM
Watching a DVD
TV ?/1
AV ?/1
RM SET UP P
VIDEO1
VIDEO2
?/1
SYSTEM STANDBY SLEEP
VIDEO3
MD/TAPE SA-CD/CD
DVD
TUNER
AUX
MULTI CH
MULTI CHANNEL DECODING lamp
2
3
?/1
2CH
A.F.D.
MOVIE
1
2
4
5
7
MASTER VOLUME
MULTI CHANNEL DECODING
DISPLAY
INPUT MODE
7
6
JUMP/
TIME
AUDIO
ANGLE
TUNING
8
PRESET/
CH/D.SKIP
INPUT SELECTOR
SPEAKERS
(OFF/A/B/A+B)
9
MEMORY SUBTITLE
ENTER
>
.
0/10
MUSIC
3
DUAL CATEGORY
MONO
MODE
CATEGORY
>10/11
D.TUNING
DISC
M
-
m
ANT
12
ALT
AUTO CAL MIC
MEMORY/
ENTER
CLEAR SEARCH MODE
TUNING
MODE
TUNING
2CH
A.F.D.
MOVIE
MUSIC
MULTI CH IN
VIDEO 3 IN/PORTABLE AV IN
X
H
PHONES
x
MUTING
TOP MENU/
GUIDE
AV MENU
VIDEO
MASTER
VOL
F
G
g
f
DISPLAY
TV VOL
O
RETURN/EXIT
TV CH
TV/
VIDEO
AMP
MENU
WIDE
AUTO
CAL
L AUDIO R
MUTING
3
7
Notes
• Refer to the operating
instructions supplied with the
TV and DVD player.
• Check the following if you
cannot listen to multi channel
sound.
– Be sure the sound source
corresponds to the multi
channel format (the MULTI
CHANNEL DECODING
lamp on the front panel lights
up during playback).
– Be sure this receiver is
connected to the DVD player
via a digital connection.
– Be sure the digital audio
output of the DVD player is
set up properly.
Tips
• Select the sound format of the
disc to be played, if necessary.
• You can select the sound field to
suit the movie/music. Refer to
page 50 for details.
Recommended sound fields:
Movie: C.ST.EX
Music: CONCERT
1
2
3
Turn on the TV and DVD player.
Turn on the receiver.
Press DVD.
You can also use INPUT SELECTOR on this receiver to
select DVD.
4
Switch the input of the TV so that an image
of the DVD is displayed.
5
Set up the DVD player.
Refer to the operating instructions supplied with the DVD
player.
6
7
8
Playback the disc.
Adjust to a suitable volume.
After you have finished watching the DVD,
eject the disc and turn off the receiver, TV
and DVD player.
38US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US05AMP_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 39 Wednesday, January 25, 2006 3:30 PM
To return to the previous
display
Amplifier Operations
Press control button B.
Navigating through
menus
To exit the menu
Press AMP MENU.
By using the amplifier menus, you can make
various adjustments to customize the receiver.
x
MUTING
TOP MENU/
GUIDE
AV MENU
MASTER
VOL
F
2-6
G
g
f
DISPLAY
TV VOL
1
Some parameters and settings may appear dimmed
on the display. This means that they are either
unavailable or fixed and unchangeable.
O
RETURN/EXIT
TV CH
TV/
VIDEO
AMP
MENU
WIDE
AUTO
CAL
1
Press AMP MENU.
“1-LEVEL” appears on the display.
2
Press control button V/v
repeatedly to select the menu
you want.
3
Press the control button or
control button b to enter the
menu.
4
Press control button V/v
repeatedly to select the
parameter you want to adjust.
5
Press the control button or
control button b to enter the
parameter.
6
Press control button V/v
repeatedly to select the setting
you want.
The setting is entered automatically.
39US
HT-7000DH
2-662-265-11 (1)
Amplifier Operations
X
H
Note
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US05AMP_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 40 Wednesday, January 25, 2006 3:30 PM
Overview of the menus
The following options are available in each
menu. For details on navigating through
menus, see page 39.
Menu
[Display]
Parameters
[Display]
LEVEL (42)
[1-LEVEL]
TONE (43)
[2-TONE]
SUR (43)
[3-SUR]
TUNER (44)
[4-TUNER]
Settings
Initial
setting
Test tonea) [T. TONE]
T. TONE Y, T. TONE N
T. TONE N
Front speaker balancea)
[FRT BAL]
BAL. L +1 to BAL. L +8, BALANCE, BALANCE
BAL. R +1 to BAL. R +8
Center speaker level
[CNT LVL]
CNT –10 dB to CNT +10 dB
(1 dB step)
CNT 0 dB
Surround left speaker level
[SL LVL]
SUR L –10 dB to SUR L +10 dB
(1 dB step)
SUR L 0 dB
Surround right speaker level
[SR LVL]
SUR R –10 dB to SUR R +10 dB
(1 dB step)
SUR R 0 dB
Sub woofer level
[SW LVL]
SW –10 dB to SW +10 dB
(1 dB step)
SW 0 dB
Dynamic range compressora)
[D. RANGE]
COMP. OFF, COMP. STD,
COMP. MAX
COMP. OFF
Front speaker bass level
[BASS LVL]
BASS –6 dB to BASS +6 dB
(1 dB step)
BASS 0 dB
Front speaker treble level
[TRE LVL]
TRE –6 dB to TRE +6 dB
(1 dB step)
TRE 0 dB
Sound field selectiona)
[S.F. SELCT]
2CH ST., A.F.D. AUTO, DOLBY PL,
PLII MV, PLII MS, PLII GM, PLIIX
MV, PLIIX MS, PLIIX GM, NEO6
CIN, NEO6 MUS, MULTI ST.,
C.ST.EX A, C.ST.EX B, C.ST.EX C,
HALL, JAZZ, CONCERT
A.F.D. AUTO
for:
TUNER,
SA-CD/CD,
MD/TAPE,
DVD,
VIDEO 1, 2, 3
Effect levela) [EFFECT]
EFCT. MIN, EFCT. STD,
EFCT. MAX
EFCT. STD
FM station receiving modea)
[FM MODE]
FM AUTO, FM MONO
FM AUTO
Naming preset stationsa)
[NAME IN]
40US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US05AMP_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 41 Wednesday, January 25, 2006 3:30 PM
Parameters
[Display]
Settings
Initial
setting
AUDIO (44)
[5-AUDIO]
Digital audio input decoding
prioritya) [DEC. PRI.]
DEC. AUTO, DEC. PCM
DEC. AUTO
for:
VIDEO 1, 2;
DEC. PCM for:
DVD
Digital broadcast language
selectiona) [DUAL]
DUAL M/S, DUAL M, DUAL S,
DUAL M+S
DUAL M
A/V Synca) [A.V. SYNC.]
A.V.SYNC. Y, A.V.SYNC. N
A.V.SYNC. N
Component video assigna)
[COMP. V. A.]
DVD–VD1, DVD–VD3,
DVD–DVD, DVD–MD,
DVD–CD, VD2–VD1,
VD2–VD2, VD2–VD3,
VD2–MD, VD2–CD
DVD–DVD
for:
DVD;
VD2–VD2 for:
VIDEO 2
HDMI assigna)
[HDMI A.]
DVD–VD1, DVD–VD3,
DVD–DVD, DVD–MD,
DVD–CD, VD2–VD1,
VD2–VD2, VD2–VD3,
VD2–MD, VD2–CD
DVD–DVD
for:
DVD;
VD2–VD2 for:
VIDEO 2
Front speaker distancea)
[FRT DIST.]
DIST. 3 ft. to DIST. 23 ft.
(1 ft. step)
DIST. 3.0 m
Center speaker distancea)
[CNT DIST.]
DIST. xx ft.
between front speaker distance and
5 ft. (1 ft. step)
DIST. 3.0 m
Surround left speaker distancea) DIST. xx ft.
[SL DIST.]
between front speaker distance and
15 ft. (1 ft. step)
DIST. 3.0 m
Surround right speaker
distancea)
[SR DIST.]
DIST. xx ft.
between front speaker distance and
15 ft. (1 ft. step)
DIST. 3.0 m
Surround speaker positiona)
[SUR POS.]
SIDE/LO, SIDE/HI, BEHD/LO,
BEHD/HI
SIDE/LO
Brightness of the displaya)
[DIMMER]
0% dim, 40% dim, 70% dim
0% dim
Auto Calibrationa)
[AUTO CAL.]
A.CAL YES, A.CAL NO
A.CAL NO
Naming inputsa) [NAME IN]
VIDEO (45)
[6-VIDEO]
Naming inputsa) [NAME IN]
SYSTEM (46)
[7-SYSTEM]
A. CAL (48)
[8-A. CAL]
a) For
details, refer to the page in the parentheses.
41US
HT-7000DH
2-662-265-11 (1)
Amplifier Operations
Menu
[Display]
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US05AMP_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 42 Wednesday, January 25, 2006 3:30 PM
Adjusting the level
(LEVEL menu)
You can use the LEVEL menu to adjust the
balance and level of each speaker. These
settings are applied to all sound fields.
Select “1-LEVEL” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 39) and
“Overview of the menus” (page 40).
LEVEL menu parameters
x D. RANGE (Dynamic range
compressor)
Lets you compress the dynamic range of the
sound track. This may be useful when you
want to watch movies at low volumes late at
night. Dynamic range compression is possible
with Dolby Digital sources only.
• COMP. OFF
The dynamic range is not compressed.
• COMP. STD
The dynamic range is compressed as
intended by the recording engineer.
• COMP. MAX
The dynamic range is compressed
dramatically.
x T. TONE (Test tone)
Tip
Lets you adjust the speaker levels and balance
while listening to the test tone from your
listening position. For details, see “8:
Adjusting the speaker levels and balance
(TEST TONE)” (page 34).
Dynamic range compressor lets you compress the
dynamic range of the soundtrack based on the
dynamic range information included in the Dolby
Digital signal.
“COMP. STD” is the standard setting, but it only
enacts light compression. Therefore, we recommend
using the “COMP. MAX” setting. This greatly
compresses the dynamic range and lets you view
movies late at night at low volumes. Unlike analog
limiters, the levels are predetermined and provide a
very natural compression.
x FRT BAL (Front speaker
balance)
Lets you adjust the balance between front left
and right speakers.
x CNT LVL (Center speaker level)
x SL LVL (Surround left speaker
level)
x SR LVL (Surround right speaker
level)
x SW LVL (Sub woofer level)
42US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US05AMP_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 43 Wednesday, January 25, 2006 3:30 PM
Adjusting the tone
(TONE menu)
(SUR menu)
You can use the SUR menu to select the sound
field you want for your listening pleasure.
Select “3-SUR” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 39) and
“Overview of the menus” (page 40).
TONE menu parameters
SUR menu parameters
x BASS LVL (Front speaker bass
level)
x S.F. SELCT (Sound field
selection)
x TRE LVL (Front speaker treble
level)
Lets you select the sound field you want. For
details, see “Enjoying Surround Sound” (page
48).
Note
The receiver lets you apply the last selected sound
field to an input whenever it is selected (Sound Field
Link). For example, if you select HALL for the
SA-CD/CD input, then change to a different input
and then return to SA-CD/CD, HALL will
automatically be applied again.
x EFFECT (Effect level)
Lets you adjust the “presence” of the surround
effect for sound fields selected with the
MOVIE or MUSIC buttons and for “HP
THEA” sound field.
• EFCT. MIN
The surround effect is minimum.
• EFCT. STD
The surround effect is standard.
• EFCT. MAX
The surround effect is maximum.
43US
HT-7000DH
2-662-265-11 (1)
Amplifier Operations
You can use the TONE menu to adjust the
tonal quality (bass/treble level) of the front
speakers. These settings are applied to all
sound fields.
Select “2-TONE” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 39) and
“Overview of the menus” (page 40).
Settings for the surround
sound
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US05AMP_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 44 Wednesday, January 25, 2006 3:30 PM
Settings for the tuner
Settings for the audio
(TUNER menu)
(AUDIO menu)
You can use the TUNER menu to set the FM
station receiving mode and to name preset
stations.
Select “4-TUNER” in the amplifier menus.
For details on adjusting the parameters, see
“Navigating through menus” (page 39) and
“Overview of the menus” (page 40).
You can use the AUDIO menu to make settings
for the audio to suit your preference.
Select “5-AUDIO” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 39) and
“Overview of the menus” (page 40).
AUDIO menu parameters
TUNER menu parameters
x FM MODE (FM station receiving
mode)
• FM AUTO
This receiver will decode the signal as stereo
signal when the radio station is broadcast in
stereo.
• FM MONO
This receiver will decode the signal as mono
signal regardless of the broadcast signal.
x NAME IN (Naming preset
stations)
Lets you set the name of preset stations. For
details, see “Naming preset stations” (page
56).
x DEC. PRI. (Digital audio input
decoding priority)
Lets you specify the input mode for the digital
signal input to the DIGITAL IN jacks.
• DEC. AUTO
Automatically switches the input mode
between DTS, Dolby Digital, or PCM.
• DEC. PCM
PCM signals are given priority (to prevent
interruption when playback starts).
However, when other signals are input, there
may be no sound depending on the format.
In this case, set to “DEC. AUTO”.
Note
When set to “DEC. AUTO” and the sound from the
digital audio jacks (for CD, etc.) is interrupted when
playback starts, set to “DEC. PCM”.
44US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US05AMP_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 45 Wednesday, January 25, 2006 3:30 PM
x DUAL (Digital broadcast
language selection)
x A.V. SYNC. (A/V Sync)
• A.V.SYNC. Y (Yes) (Delay time: 68 ms)
The audio output is delayed so that the time
gap between the audio output and visual
display is minimized.
• A.V.SYNC. N (No) (Delay time: 0 ms)
The audio output is not delayed.
Notes
• This parameter is useful when you use a large LCD
or plasma monitor or a projector.
• This parameter is valid only when you use a sound
field selected with the 2CH or A.F.D. buttons.
• This parameter is not valid when MULTI CH IN
function is selected.
Settings for the video
(VIDEO menu)
You can use the VIDEO menu to reassign the
component video input to another input and to
name inputs.
Select “6-VIDEO” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 39) and
“Overview of the menus” (page 40).
VIDEO menu parameters
x COMP. V. A. (Component video
assign)
Lets you reassign the component video input
to another input. For details, see “Watching
component images from other inputs” (page
64).
x HDMI A. (HDMI assign)
Lets you reassign the HDMI input to another
input. For details, see “Watching HDMI
images from other inputs” (page 65).
x NAME IN (Naming inputs)
Lets you set the name of inputs. For details, see
“Naming inputs” (page 66).
x NAME IN (Naming inputs)
Lets you set the name of inputs. For details, see
“Naming inputs” (page 66).
45US
HT-7000DH
2-662-265-11 (1)
Amplifier Operations
Lets you select the language you want to listen
to during digital broadcast. This feature only
functions for Dolby Digital sources.
• DUAL M/S (Main/Sub)
Sound of the main language will be output
through the front left speaker and sound of
the sub language will be output through the
front right speaker simultaneously.
• DUAL M (Main)
Sound of the main language will be output.
• DUAL S (Sub)
Sound of the sub language will be output.
• DUAL M+S (Main + Sub)
Mixed sound of both the main and sub
languages will be output.
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US05AMP_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 46 Wednesday, January 25, 2006 3:30 PM
Settings for the system
(SYSTEM menu)
You can use the SYSTEM menu to set the size
and distance of the speakers connected to this
system.
Select “7-SYSTEM” in the amplifier menus.
For details on adjusting the parameters, see
“Navigating through menus” (page 39) and
“Overview of the menus” (page 40).
SYSTEM menu parameters
x FRT DIST. (Front speaker
distance)
Lets you set the distance from your listening
position to the front speaker (A). If both front
speakers are not placed an equal distance from
your listening position, set the distance as the
average distance between the front speakers.
B
A
30˚
100˚-120˚
C
30˚
A
100˚-120˚
D
x CNT DIST. (Center speaker
distance)
x SR DIST. (Surround right
speaker distance)
Lets you set the distance from your listening
position to the surround right speaker.
Surround right speaker distance should be set
from a distance equal to the front speaker
distance (A) to a distance 15 feet closer to
your listening position (D).
Tip
The receiver lets you to input the speaker position in
terms of distance. However, it is not possible to set
the center speaker further than the front speakers.
Also, the center speaker cannot be set more than 5
feet closer from the front speakers.
Likewise, the surround speakers can not be set
further away from the listening position than the
front speakers. And they can be no more than 15 feet
closer. This is because incorrect speaker placement
is not conducive to the enjoyment of surround
sound.
Please note that, setting the speaker distance closer
than the actual location of the speakers will cause a
delay in the output of the sound from that speaker. In
other words, the speaker will sound like it is further
away.
For example, setting the center speaker distance 3-6
feet closer than the actual speaker position will
create a fairly realistic sensation of being “inside”
the screen. If you cannot obtain a satisfactory
surround effect because the surround speakers are
too close, setting the surround speaker distance
closer (shorter) than the actual distance will create a
larger sound stage.
Adjusting these parameter while listening to the
sound often results in much better surround sound.
Give it a try!
Lets you set the distance from your listening
position to the center speaker. Center speaker
distance should be set from a distance equal to
the front speaker distance (A) to a distance 5
feet closer to your listening position (B).
x SL DIST. (Surround left speaker
distance)
Lets you set the distance from your listening
position to the surround left speaker. Surround
left speaker distance should be set from a
distance equal to the front speaker distance
(A) to a distance15 feet closer to your
listening position (C).
46US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US05AMP_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 47 Wednesday, January 25, 2006 3:30 PM
x SUR POS.
(Surround speaker position)
Lets you specify the location of your surround
speakers for proper implementation of the
surround effects in the Cinema Studio EX
modes (page 51).
Tip
x DIMMER (Brightness of the
display)
Lets you adjust the brightness in 3 steps.
• SIDE/LO
Select if the location of your surround
speakers corresponds to sections A and C.
• SIDE/HI
Select if the location of your surround
speakers corresponds to sections A and D.
• BEHD/LO
Select if the location of your surround
speakers corresponds to sections B and C.
• BEHD/HI
Select if the location of your surround
speakers corresponds to sections B and D.
47US
HT-7000DH
2-662-265-11 (1)
Amplifier Operations
Surround speaker position is designed specifically
for implementation of the Cinema Studio EX modes.
For other sound fields, speaker position is not so
critical.
Those sound fields were designed under the premise
that the surround speakers would be located behind
the listening position, but presentation remains fairly
consistent even with the surround speakers
positioned at a rather wide angle. However, if the
speakers are pointing toward the listener from the
immediate left and right of the listening position, the
surround effects become unclear unless set to
“SIDE/LO” or “SIDE/HI”.
Nevertheless, each listening environment has many
variables, such as wall reflections, and you may
obtain better results using “BEHD/HI” if your
speakers are located high above the listening
position, even if they are located to the immediate
left and right.
Therefore, although it may result in a setting
contrary to the above explanation, we recommend
that you playback multi channel surround encoded
software and select the setting that provides a good
sense of spaciousness and that best succeeds in
forming a cohesive space between the surround
sound from the surround speakers and the sound of
the front speakers. If you are not sure which sounds
best, select “BEHD/LO” or “BEHD/HI” and then
use the speaker distance parameter and speaker level
adjustments to obtain proper balance.
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US05AMP_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 48 Wednesday, January 25, 2006 3:30 PM
Calibrating the
appropriate settings
automatically
(A. CAL menu)
For details, see “7: Calibrating the appropriate
settings automatically (AUTO
CALIBRATION)” (page 31).
Enjoying Surround Sound
Enjoying Dolby Digital
and DTS Surround sound
(AUTO FORMAT DIRECT)
The Auto Format Direct (A.F.D.) mode allows
you to listen to higher fidelity sound and select
the decoding mode for listening to a 2 channel
stereo sound as multi channel sound.
2CH
A.F.D.
1
A.F.D.
MOVIE
2
CATEGORY
4
5
MUSIC
3
DUAL CATEGORY
MONO
MODE
6
Press A.F.D. repeatedly to select
the sound field you want.
For details, see “Types of A.F.D. mode” (page
49).
48US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US05AMP_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 49 Wednesday, January 25, 2006 3:30 PM
Types of A.F.D. mode
A.F.D. mode
[Display]
Multi channel
audio after
decoding
Effect
(Detecting
automatically)
A.F.D. AUTO
[A.F.D. AUTO]
(Detecting
automatically)
Presents the sound as it was recorded/
encoded without adding any surround
effects. However, this receiver will
generate a low frequency signal for output
to the sub woofer when there is no LFE
signals.
Dolby Pro Logic PRO LOGIC
[DOLBY PL]
4 channel
Performs Dolby Pro Logic decoding. The
source recorded in 2 channel format is
decoded into 4.1 channels.
Dolby Pro Logic PRO LOGIC II MOVIE
II
[PLII MV]
5 channel
Performs Dolby Pro Logic II Movie mode
decoding. This setting is ideal for movies
encoded in Dolby Surround. In addition,
this mode can reproduce sound in 5.1
channel for watching videos of overdubbed
or old movies.
PRO LOGIC II MUSIC
[PLII MS]
5 channel
Performs Dolby Pro Logic II Music mode
decoding. This setting is ideal for normal
stereo sources such as CDs.
MULTI STEREO
[MULTI ST.]
(Multi Stereo)
Outputs 2 channel left/right signals from
all speakers.
(Multi Stereo)
Notes
• Dolby Pro Logic and Dolby Pro Logic II decoding do not function for DTS format signals.
• This function does not work when MULTI CH IN is selected.
49US
HT-7000DH
2-662-265-11 (1)
Enjoying Surround Sound
Decoding
mode
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US05AMP_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 50 Wednesday, January 25, 2006 3:30 PM
Selecting a preprogrammed sound field
You can take advantage of surround sound
simply by selecting one of the receiver’s preprogrammed sound fields. They bring the
exciting and powerful sound of movie theaters
and concert halls into your home.
MULTI CH
2CH
2CH
MOVIE
A.F.D.
1
2
CATEGORY
A.F.D.
MUSIC
3
DUAL CATEGORY
MONO
MODE
4
5
6
JUMP/ PRESET/
AUDIO
ANGLE
TIME CH/D.SKIP
TUNING
7
8
MUSIC
MOVIE
9
Press MOVIE repeatedly to select a
sound field for movies or press
MUSIC repeatedly to select a sound
field for music.
For details, see “Types of sound field
available” (page 51).
50US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US05AMP_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 51 Wednesday, January 25, 2006 3:30 PM
Types of sound field available
Sound field
[Display]
Effect
Movie
CINEMA STUDIO EX A
DCS [C.ST.EX A]
Reproduces the sound characteristics of the Sony Pictures
Entertainment “Cary Grant Theater” cinema production
studio. This is a standard mode, great for watching almost any
type of movie.
CINEMA STUDIO EX B
DCS [C.ST.EX B]
Reproduces the sound characteristics of the Sony Pictures
Entertainment “Kim Novak Theater” cinema production
studio. This mode is ideal for watching science-fiction or
action movies with lots of sound effects.
CINEMA STUDIO EX C
DCS [C.ST.EX C]
Reproduces the sound characteristics of the Sony Pictures
Entertainment scoring stage. This mode is ideal for watching
musicals or films where orchestra music is featured in the
soundtrack.
HALL [HALL]
Reproduces the acoustics of a classical concert hall.
JAZZ CLUB [JAZZ]
Reproduces the acoustics of a jazz club.
LIVE CONCERT
[CONCERT]
Reproduces the acoustics of a 300-seat live house.
HEADPHONE 2CH
[HP 2CH]
This mode is selected automatically if you use headphone
when 2 channel mode (page 52)/A.F.D. mode (page 49) is
selected. Standard 2 channel stereo sources completely bypass
the sound field processing and multi channel surround formats
are downmixed to 2 channels.
HEADPHONE MULTI
[HP MULTI]
This mode is selected automatically if you use headphone
when MULTI CH IN is selected. Outputs the front analog
signals from the MULTI CH IN jacks.
HEADPHONE THEATER
DCS [HP THEA]
This mode is selected automatically if you use headphone
when sound field for movie/music is selected. It allows you to
experience a theater-like environment while listening through
a pair of headphones.
Music
Headphone
About DCS (Digital Cinema
Sound)
Sound fields with DCS mark use DCS
technology.
DCS is a unique sound reproduction
technology for home theater developed by
Sony, in cooperation with Sony Pictures
Entertainment, for enjoying the exciting and
powerful sound of movie theaters at home.
With this “Digital Cinema Sound” developed
by integrating a DSP (Digital signal processor)
and measured data, the ideal sound field
intended by film makers can be experienced at
home.
51US
HT-7000DH
2-662-265-11 (1)
Enjoying Surround Sound
Sound field
for
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US05AMP_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 52 Wednesday, January 25, 2006 3:30 PM
About CINEMA STUDIO EX
modes
CINEMA STUDIO EX modes are suitable for
watching motion picture DVDs (etc.), with
multi channel surround effects. You can
reproduce the sound characteristics of Sony
Pictures Entertainment’s dubbing studio in
your home.
The CINEMA STUDIO EX modes consist of
the following three elements.
• Virtual Multi Dimension
Creates 5 sets of virtual speakers from a
single pair of actual surround speakers.
• Screen Depth Matching
Creates the sensation that the sound is
coming from inside the screen like in
theaters.
• Cinema Studio Reverberation
Reproduces the type of reverberation found
in theaters.
The CINEMA STUDIO EX modes integrate
these three elements simultaneously.
Using only the front
speakers and sub woofer
(2CH STEREO)
In this mode, the receiver outputs the sound
from the front left/right speakers and the sub
woofer.
When multi channel surround formats are
input, the signals are downmixed to 2 channel
with bass frequencies being output from the
sub woofer.
When standard 2 channel stereo sources are
input, the receiver’s bass redirection circuitry
will be activated. The front channel bass
frequencies will be output from the sub
woofer.
MULTI CH
2CH
2CH
Notes
• The effects provided by the virtual speakers may
cause increased noise in the playback signal.
• When listening with sound fields that employ the
virtual speakers, you will not be able to hear any
sound coming directly from the surround speakers.
• This function does not work in the following cases:
– MULTI CH IN is selected.
– For signals with a sampling frequency of more
than 48 kHz.
MOVIE
A.F.D.
1
2
CATEGORY
4
5
MUSIC
3
DUAL CATEGORY
MONO
MODE
6
Press 2CH.
Tip
You can identify the encoding format of DVD
software, etc., by looking at the logo on the package.
•
: Dolby Digital discs
•
: Dolby Surround
encoded programs
•
: DTS Digital Surround encoded programs
To turn off the surround effect
for movie/music
Press 2CH to select “2CH ST.” or press A.F.D.
repeatedly to select “A.F.D. AUTO”.
52US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US05AMP_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 53 Wednesday, January 25, 2006 3:30 PM
Resetting sound fields to
the initial settings
Be sure to use the buttons on the receiver for
this operation.
1,2
?/1
MASTER VOLUME
MULTI CHANNEL DECODING
DISPLAY
INPUT MODE
INPUT SELECTOR
SPEAKERS
(OFF/A/B/A+B)
AUTO CAL MIC
MEMORY/
ENTER
TUNING
MODE
TUNING
2CH
A.F.D.
MOVIE
MUSIC
MULTI CH IN
MUTING
VIDEO 3 IN/PORTABLE AV IN
PHONES
VIDEO
L AUDIO R
Tuner Operations
Listening to FM/AM radio
You can listen to FM and AM broadcasts
through the built-in tuner. Before operation,
make sure you have connected the FM and
AM antennas to the receiver (page 28).
Tip
The tuning scale is:
FM : 100 kHz
AM : 10 kHz*
* The AM tuning scale can be changed (page 79).
2
Tuner Operations
1
2
Press ?/1 to turn off the power.
While holding down 2CH, press
?/1.
“S.F. CLR.” appears on the display and all
sound fields are reset to their initial
setting.
53US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US05AMP_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 54 Wednesday, January 25, 2006 3:30 PM
Automatic tuning
VIDEO1
VIDEO2
MD/TAPE SA-CD/CD
Direct tuning
VIDEO3
DVD
TUNER
AUX
MULTI CH
2CH
A.F.D.
1
MOVIE
2
CATEGORY
2
7
.
8
MD/TAPE SA-CD/CD
TUNER
1
2CH
A.F.D.
1
CATEGORY
MODE
3
7
.
0/10
2
Press TUNING + or TUNING –.
Press TUNING + to scan from low to
high; press TUNING – to scan from high
to low.
The receiver stops scanning whenever a
station is received.
Using the controls on the
receiver
1
2
3
ANT
>10/11
D.TUNING
DISC
M
-
12
ALT
4
CLEAR SEARCH MODE
Press TUNER repeatedly to
select the FM or AM band.
Press D.TUNING.
Press the numeric buttons to
enter the frequency.
Example 1: FM 102.50 MHz
Select 1 b 0 b 2 b 5 b 0
Example 2: AM 1,350 kHz
Select 1 b 3 b 5 b 0
If you have tuned in an AM station, adjust
the direction of the AM loop antenna for
optimum reception.
or AM band.
2 Press TUNING MODE repeatedly to select
“AUTO T.”.
3 Press TUNING + or TUNING –.
If the FM stereo reception is poor and
“STEREO” flashes on the display, select
monaural audio so that the sound will be less
distorted.
For details, see “Settings for the tuner”
(page 44).
m
9
ENTER
>
You can also use INPUT SELECTOR on
the receiver.
1 Turn INPUT SELECTOR to select the FM
In case of poor FM stereo
reception
MUSIC
3
DUAL CATEGORY
MONO
MODE
8
MEMORY SUBTITLE
2
1
4
5
6
JUMP/ PRESET/
AUDIO
ANGLE
TIME CH/D.SKIP
TUNING
9
ENTER
Press TUNER repeatedly to
select the FM or AM band.
MOVIE
2
CATEGORY
>
1
AUX
MULTI CH
MUSIC
3
DUAL CATEGORY
MONO
MODE
4
5
6
JUMP/ PRESET/
AUDIO
ANGLE
TIME CH/D.SKIP
TUNING
MEMORY SUBTITLE
Enter the frequency of a station directly by
using the numeric buttons.
4
Press ENTER.
You can also use MEMORY/ENTER on
the receiver.
If you cannot tune in a station
Make sure you have entered the right
frequency. If not, repeat steps 2 to 4. If you still
cannot tune in a station, the frequency is not
used in your area.
54US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US05AMP_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 55 Wednesday, January 25, 2006 3:30 PM
4
Presetting radio stations
You can preset up to 30 FM stations and 30
AM stations. Then you can easily tune in the
stations you often listen to.
Presetting radio stations
MD/TAPE SA-CD/CD
TUNER
2CH
A.F.D.
1
4
3
CATEGORY
MUSIC
3
DUAL CATEGORY
MONO
MODE
7
8
MEMORY SUBTITLE
.
0/10
ANT
H
Press ENTER.
You can also use MEMORY/ENTER on
the receiver.
The station is stored as the selected preset
number.
If “MEMORY” goes out before you press
MEMORY, start again from step 3.
1
6
4
5
6
JUMP/ PRESET/
AUDIO
ANGLE
TIME CH/D.SKIP
TUNING
m
1
5
Repeat steps 1 to 5 to preset
another station.
9
ENTER
>
>10/11
D.TUNING
DISC
M
-
12
ALT
CLEAR SEARCH MODE
X
5
4
x
Press TUNER repeatedly to
select the FM or AM band.
You can also use INPUT SELECTOR on
the receiver.
2
Tune in the station that you
want to preset using Automatic
Tuning (page 54) or Direct
Tuning (page 54).
Switch the FM reception mode, if
necessary (page 54).
3
Press MEMORY.
You can also use MEMORY/ENTER on
the receiver.
“MEMORY” lights up for a few seconds.
Perform steps 4 and 5 before
“MEMORY” goes out.
55US
HT-7000DH
2-662-265-11 (1)
Tuner Operations
TUNING
+/–
MOVIE
2
You can also press TUNING + or
TUNING – to select a preset number.
If “MEMORY” goes out before you select
the preset number, start again from step 3.
AUX
MULTI CH
Press ALT and then press the
numeric buttons to select a
preset number.
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US05AMP_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 56 Wednesday, January 25, 2006 3:30 PM
Tuning to preset stations
Naming preset stations
MD/TAPE SA-CD/CD
MD/TAPE SA-CD/CD
TUNER
AUX
A.F.D.
1
MOVIE
2
CATEGORY
7
MUSIC
2CH
3
DUAL CATEGORY
MONO
MODE
8
MEMORY SUBTITLE
0/10
DISC
M
-
ANT
12
7
8
0/10
>10/11
D.TUNING
DISC
M
-
m
ANT
x
2
4-7
03
30
04
29
05
...
27
Using the controls on the
receiver
TV VOL
1
O
RETURN/EXIT
TV CH
TV/
VIDEO
AMP
MENU
WIDE
AUTO
CAL
3
Press TUNER repeatedly to
select the FM or AM band.
You can also use INPUT SELECTOR on
the receiver.
2
Tune in the preset station you
want to create an index name
for (page 56).
3
Press AMP MENU.
1 Turn INPUT SELECTOR to select the FM
or AM band.
2 Press TUNING MODE repeatedly to select
“PRESET T.”.
3 Press TUNING + or TUNING – repeatedly
to select the preset station you want.
MASTER
VOL
g
f
28
You can also press ALT and then press the
numeric buttons to select the preset
station you want. Then, press ENTER to
enter the selection.
AV MENU
G
DISPLAY
Each time you press the button, you can
select a preset station as follows:
02
x
MUTING
F
Press PRESET + or PRESET –
repeatedly to select the preset
station you want.
01
ALT
X
H
Press TUNER repeatedly to
select the FM or AM band.
12
CLEAR SEARCH MODE
TOP MENU/
GUIDE
1
9
ENTER
>
.
ENTER
ALT
ALT
X
MUSIC
3
DUAL CATEGORY
MONO
MODE
MEMORY SUBTITLE
CLEAR SEARCH MODE
H
MOVIE
2
CATEGORY
2
9
ENTER
>10/11
D.TUNING
m
A.F.D.
1
4
5
6
JUMP/ PRESET/
AUDIO
ANGLE
TIME CH/D.SKIP
TUNING
>
.
1
MULTI CH
4
5
6
JUMP/ PRESET/
AUDIO
ANGLE
TIME CH/D.SKIP
TUNING
Numeric
buttons
AUX
1
MULTI CH
2CH
TUNER
“1-LEVEL” appears on the display.
4
Press control button V/v
repeatedly to select “4TUNER”.
5
Press the control button or
control button b to enter the
menu.
56US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US05AMP_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 57 Wednesday, January 25, 2006 3:30 PM
6
7
Press control button V/v
repeatedly to select “NAME IN”.
Press the control button or
control button b to enter the
parameter.
The cursor flashes and you can select a
character. Follow the procedure given in
“To create an index name” below.
To return to the previous display
Press control button B.
To create an index name
1 Use control button V/v/B/b to create an
If you made a mistake
Press control button B/b until the character
you want to change flashes, then press
control button V/v to select the correct
character.
Tip
You can select the character type as follows by
pressing control button V/v.
Alphabet (upper case) t Numbers t Symbols
2 Press the control button.
The entered name is registered.
XM Radio is the satellite radio service with
millions of listeners across the U.S.
Broadcasting live daily. XM Radio offers 160
digital radio channels offering music, news,
sports, comedy, talk, entertainment, traffic and
weather reports, with high quality digital
sound.
XM $12.95 monthly service subscription sold
separately. XM Connect and Play(TM) antenna
required to receive XM service (sold
separately). Installation costs and other fees
and taxes, including a one-time activation fee
may apply. Subscription fee is consumer only.
All fees and programming subject to change.
Channels with frequent explicit language are
indicated with an XL. Channel blocking is
available for XM radio receivers by calling
1-800-XMRADIO. Subscriptions subject to
Customer Agreement available at
xmradio.com. XM service only available in
the 48 contiguous United States. XM Ready
and XM Connect-and-Play are trademarks of
XM Satellite Radio Inc. (C)2005 XM Satellite
Radio Inc. All rights reserved.
Activate XM Service:
Find the 8-character XM Radio ID of the
Connect-and-Play antenna. Record the Radio
ID here for reference: ssssssss. See
“Checking the XM Radio ID” on page 58.
(Note: The XM Radio ID does not use the
letters I, O, S, or F.)
Activate your XM Satellite Radio service
online at http://activate.xmradio.com or by
calling 1-800-XMRADIO (1-800-967-2346).
You will need a major credit card.
XM will send a signal from the satellites to
activate the full channel lineup. Activation
normally takes 10 to 15 minutes, but during
peak busy periods, you may need to keep your
player on for up to an hour. When you can
access the full channel lineup on your player,
you’re done.
continued
57US
HT-7000DH
2-662-265-11 (1)
Tuner Operations
index name.
Press control button V/v to select a
character, then press control button B/b to
move the cursor to the next position.
Listening to the XM Radio
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US05AMP_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 58 Wednesday, January 25, 2006 3:30 PM
Note
To ensure optimal reception of XM’s satellite signal,
move your antenna to various window locations
around your home to see where the best reception
will be received. Most XM customers place the
antenna in a south-facing window with a clear view
to the sky.
Checking the XM Radio ID
VIDEO1
VIDEO2
MD/TAPE SA-CD/CD
VIDEO3
DVD
TUNER
AUX
MULTI CH
Note
Residents in Canada please see information about
XM Canada at the following webpage:
(http://www.xmradio.ca/)
2CH
A.F.D.
1
MOVIE
2
CATEGORY
2
Connecting the XM Radio
7
.
1
XM jack
MUSIC
3
DUAL CATEGORY
MONO
MODE
4
5
6
JUMP/ PRESET/
AUDIO
ANGLE
TIME CH/D.SKIP
TUNING
8
MEMORY SUBTITLE
Before operating the system, connect the XM
Connect-and-Play antenna to the XM jack.
1
9
ENTER
>
Press TUNER repeatedly to
select “XM RADIO”.
You can also use INPUT SELECTOR on
the receiver.
DIGITAL
DVD
OPTICAL
VIDEO 1
IN
ANTENNA
XM
2
A
VIDEO 2
IN
Press TUNING + or TUNING – to
select channel 0.
You can also press TUNING MODE on
the receiver to select “AUTO T.”, and then
turn TUNING +/– to select channel 0.
AM
DVD
IN
3
COAXIAL
L
L
R
R
IN
SA-CD/CD
OUT
IN
MD/TAPE
Check the XM Radio ID on the
display and write it in the space
provided here.
ID:_____________________________
If you cannot read the characters or
numbers on the display, refer to the
following table.
Note
To ensure optional reception of XM’s satellite
signal, move your antenna to various window
locations around your home to see where the best
reception will be received. Most XM customers
place the antenna in a south-facing window with a
clear view to the sky.
58US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US05AMP_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 59 Wednesday, January 25, 2006 3:30 PM
Display
Description
Receiving XM Radio broadcasts
2 (two)
5 (five)
VIDEO1
6 (six)
VIDEO2
MD/TAPE SA-CD/CD
VIDEO3
DVD
TUNER
AUX
8 (eight)
MULTI CH
1
0 (zero)
2CH
A
A.F.D.
1
B
MOVIE
2
CATEGORY
D
2
G
MUSIC
3
DUAL CATEGORY
MONO
MODE
4
5
6
JUMP/ PRESET/
AUDIO
ANGLE
TIME CH/D.SKIP
TUNING
7
8
MEMORY SUBTITLE
.
9
ENTER
>
H
K
1
M
2
Press TUNING + or TUNING – to
select a channel.
You can also press TUNING MODE on
the receiver to select “AUTO T.”, and then
turn TUNING +/– to select a channel.
59US
HT-7000DH
2-662-265-11 (1)
Tuner Operations
You can also use INPUT SELECTOR on
the receiver.
Q
Z
Press TUNER repeatedly to
select the “XM RADIO”.
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US05AMP_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 60 Wednesday, January 25, 2006 3:30 PM
Selecting channels from a
category (CATEGORY TUNING)
You can select a channel from one category or
all the categories by changing the category
mode.
MD/TAPE SA-CD/CD
TUNER
AUX
MULTI CH
2CH
A.F.D.
1
3
4
1
2
MOVIE
2
CATEGORY
MUSIC
3
DUAL CATEGORY
MONO
MODE
4
5
6
JUMP/ PRESET/
AUDIO
ANGLE
TIME CH/D.SKIP
TUNING
7
8
1
2
Notes
• When you select a channel in the “ONE CAT”
mode, the channel you selected may not be the one
in the category you want. This is because one
channel may belong to more than one category.
• If you press CATEGORY + or CATEGORY – in
the “ALL CAT” mode, the first channel of the next
or previous category is selected (CATEGORY
SKIP).
Selecting channels by inputting
the channel number directly
(DIRECT TUNING)
9
MD/TAPE SA-CD/CD
TUNER
MULTI CH
Press TUNER repeatedly to
select the “XM RADIO”.
2CH
A.F.D.
1
Press CATEGORY MODE
repeatedly to select the “ONE
CAT”.
MOVIE
2
CATEGORY
3
7
Press CATEGORY + or
CATEGORY – to select the
category you want.
The category is selected and the channel
with the lowest number in the specified
category is selected.
4
Press TUNING + or TUNING – to
select the channel.
You can also press TUNING MODE on
the receiver to select “AUTO T.”, and then
turn TUNING +/– to select the channel.
.
0/10
m
2
1
1
MUSIC
3
DUAL CATEGORY
MONO
MODE
4
5
6
JUMP/ PRESET/
AUDIO
ANGLE
TIME CH/D.SKIP
TUNING
8
MEMORY SUBTITLE
• ALL CAT: You can select a channel from all
the categories. The initial setting is “ALL
CAT”.
• ONE CAT: You can select a channel from one
category. “CAT” is displayed on the display
when you set to “ONE CAT” mode.
3
AUX
ANT
H
9
ENTER
>
>10/11
D.TUNING
DISC
M
-
12
ALT
4
CLEAR SEARCH MODE
X
x
Press TUNER repeatedly to
select the “XM RADIO”.
You can also use INPUT SELECTOR on
the receiver.
2
3
Press D.TUNING.
4
Press ENTER.
Press the numeric buttons to
enter the channel number.
You can also use MEMORY/ENTER on
the receiver.
The selected channel is tune in.
60US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US05AMP_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 61 Wednesday, January 25, 2006 3:30 PM
Displaying the XM-RADIO
information on the front panel
display
Presetting XM Radio
stations
You can select the channels you want directly
by presetting them using the preset numbers.
You can preset up to 30 XM Radio channels.
DISPLAY
?/1
MASTER VOLUME
MULTI CHANNEL DECODING
DISPLAY
INPUT MODE
INPUT SELECTOR
SPEAKERS
(OFF/A/B/A+B)
AUTO CAL MIC
MEMORY/
ENTER
TUNING
MODE
TUNING
2CH
A.F.D.
MOVIE
MUSIC
MULTI CH IN
MUTING
VIDEO 3 IN/PORTABLE AV IN
PHONES
VIDEO
L AUDIO R
Presetting channels using the
preset numbers
Press DISPLAY on the receiver
repeatedly.
VIDEO1
VIDEO2
MD/TAPE SA-CD/CD
TUNER
AUX
MULTI CH
2CH
A.F.D.
1
MOVIE
2
CATEGORY
1
MUSIC
3
DUAL CATEGORY
MONO
MODE
4
5
6
JUMP/ PRESET/
AUDIO
ANGLE
TIME CH/D.SKIP
TUNING
Tip
The preset number is always displayed at the right
end of the display.
DVD
7
3
.
0/10
m
ANT
1
8
MEMORY SUBTITLE
PRESET
+/–
9
ENTER
>
>10/11
D.TUNING
DISC
M
-
12
ALT
CLEAR SEARCH MODE
5
4
Press TUNER repeatedly to
select the “XM RADIO”.
You can also use INPUT SELECTOR on
the receiver.
2
Tune in the channel you want to
preset.
For details on selecting channels, see
“Listening to the XM Radio” (page 57).
3
Press MEMORY.
You can also use MEMORY/ENTER on
the receiver.
continued
61US
HT-7000DH
2-662-265-11 (1)
Tuner Operations
Each time you press DISPLAY while tuning in
the channel, the display changes cyclically as
follows:
Channel name t Channel number t
Category t Artist name/Feature t
Song/Program title t Sound field type
VIDEO3
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US05AMP_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 62 Wednesday, January 25, 2006 3:30 PM
4
Press ALT and then press the
numeric buttons to enter the
preset number.
Selecting the channel by using
the preset numbers
You can also select the number by
pressing PRESET + or PRESET –.
You can also turn TUNING +/– on the
receiver.
MD/TAPE SA-CD/CD
5
MOVIE
2
CATEGORY
Numeric
buttons
1
MUSIC
3
DUAL CATEGORY
MONO
MODE
4
5
6
JUMP/ PRESET/
AUDIO
ANGLE
TIME CH/D.SKIP
TUNING
7
Press ENTER.
8
MEMORY SUBTITLE
.
0/10
m
ANT
Repeat steps 2 to 5 to preset
another channel.
A.F.D.
1
You can also use MEMORY/ENTER on
the receiver.
6
AUX
MULTI CH
2CH
Preset numbers from 1 to 30 are available,
and channel 1 is preset for all the preset
numbers when you purchase the receiver.
TUNER
9
2
ENTER
>
>10/11
D.TUNING
DISC
12
M
-
CLEAR SEARCH MODE
ALT
ENTER
ALT
1
Press TUNER repeatedly to
select the “XM RADIO”.
2
Press PRESET + or PRESET –
repeatedly to select the preset
channel you want.
You can also press ALT and then press the
numeric buttons to select the preset
channel you want. Then press ENTER to
enter the selection.
You can also press TUNING MODE on
the receiver to select “PRESET T.”, and
then turn TUNING +/–.
You can select preset channels from 1 to
30.
Note
The preset channel information will be updated
depending on the service provided by the XM
Satellite Radio Inc. that you have subscribed to.
62US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US05AMP_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 63 Wednesday, January 25, 2006 3:30 PM
XM Radio messages list
Explanation
Remedies
ANTENNA
The XM antenna is not
Make sure that the antenna is securely connected.
connected or transmission is
not being received properly.
UPDATING
The encryption code is being Wait until the encryption code has been updated.
updated.
NO SIGNL
The signal is too weak.
Adjust the antenna so that the signal is as strong as possible.
LOADING
The audio channel or
information is being
acquired.
Wait until the audio channel or information has been acquired.
OFF AIR
The selected channel is off
the air.
Make sure that you selected the channel properly.
Try to select another channel.
(space)––––
There is no characteristic
—
information such as an artist
name, song title or program
title available.
––
The preset number entered is Enter a number from 1 to 30.
an invalid number.
–––CH
The selected channel is not
available.
Tuner Operations
Message
appears
—
63US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US06OTH_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 64 Wednesday, January 25, 2006 3:30 PM
Other Operations
Switching the audio input
mode
(INPUT MODE)
You can select the audio input mode by setting
the audio input mode when you connect
components to both digital and analog audio
input jacks on the receiver.
1
Turn INPUT SELECTOR on the
receiver to select the input.
You can also use the input buttons on the
remote.
2
Press INPUT MODE repeatedly
on the receiver to select the
audio input mode.
The selected audio input mode appears on
the display.
Audio input modes
• AUTO IN
Gives priority to digital audio signals when
there are both digital and analog
connections. If there are no digital audio
signals, analog audio signals are selected.
• COAX IN
Specifies the digital audio signals input to
the DIGITAL COAXIAL jack.
• OPT IN
Specifies the digital audio signals input to
the DIGITAL OPTICAL jack.
• ANALOG
Specifies the analog audio signals input to
the AUDIO IN (L/R) jacks.
Watching component
images from other inputs
(COMPONENT VIDEO ASSIGN)
You can reassign a component video input to
another input.
1
Press AMP MENU.
“1-LEVEL” appears on the display.
2
Press control button V/v
repeatedly to select “6-VIDEO”.
3
Press the control button or
control button b to enter the
menu.
4
Press control button V/v
repeatedly to select
“COMP. V. A.”.
5
Press the control button or
control button b to enter the
parameter.
6
Press control button V/v
repeatedly to select the
component video input you
want to reassign (for example,
DVD).
7
Press the control button or
control button b to enter your
selection.
Note
Some audio input modes may not be set up
depending on the input.
64US
HT-7000DH
2-662-625-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US06OTH_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 65 Wednesday, January 25, 2006 3:30 PM
8
Press control button V/v
repeatedly to select the input
you want the component video
input selected in step 6 to be
reassigned to (for example,
VIDEO 1).
In this case, select “DVD–VD1”.
When you press VIDEO 1, the image
from the component connected to the
VIDEO 1 jacks will be a component
image. The input you can reassign to
varies for each component video input.
For details, see “Assignable inputs for
component video input” below.
Watching HDMI images
from other inputs
(HDMI ASSIGN)
You can reassign a HDMI input to another
input.
1
Press AMP MENU.
“1-LEVEL” appears on the display.
Press control button V/v
repeatedly to select “6-VIDEO”.
3
Press the control button or
control button b to enter the
menu.
Assignable inputs for
component video input
4
Press control button V/v
repeatedly to select “HDMI A.”.
Component Assignable
video input inputs
Display
5
DVD
DVD–VD1
Press the control button or
control button b to enter the
parameter.
6
Press control button V/v
repeatedly to select the HDMI
input you want to reassign (for
example, DVD).
7
To return to the previous display
Press control button B.
VIDEO 2
VIDEO 1
VIDEO 3
DVD–VD3
DVD
DVD–DVD
MD/TAPE
DVD–MD
SA-CD/CD
DVD–CD
VIDEO 1
VD2–VD1
VIDEO 2
VD2–VD2
VIDEO 3
VD2–VD3
Press the control button or
control button b to enter your
selection.
MD/TAPE
VD2–MD
“HDMI” flashes on the display.
SA-CD/CD
VD2–CD
Notes
• You cannot reassign more than one component
video input to the same input.
• You cannot use the component video input as the
original input when it has been reassigned to
another input.
continued
65US
HT-7000DH
2-662-625-11 (1)
Other Operations
2
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US06OTH_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 66 Wednesday, January 25, 2006 3:30 PM
8
Press control button V/v
repeatedly to select the input
you want the HDMI input
selected in step 6 to be
reassigned to (for example,
VIDEO 1).
In this case, select “DVD–VD1”.
When you press VIDEO 1, the image
from the component connected to the
VIDEO 1 jacks will be a HDMI image.
The sound will be output from the TV
speaker. For details, see “Hooking up
components with HDMI jacks” (page 25).
The input you can reassign to varies for
each HDMI input. For details, see
“Assignable inputs for HDMI input”
below.
To return to the previous display
Naming inputs
You can enter a name of up to 8 characters for
inputs and display it on the receiver’s display.
This is convenient for labeling the jacks with
the names of the connected components.
1
You can also use INPUT SELECTOR on
the receiver.
2
Press AMP MENU.
“1-LEVEL” appears on the display.
3
Press control button V/v
repeatedly to select either
“5-AUDIO” or “6-VIDEO”.
4
Press the control button or
control button b to enter the
menu.
5
Press control button V/v to
select “NAME IN”.
6
Press the control button or
control button b to enter the
parameter.
Press control button B.
Assignable inputs for HDMI
input
Press the input button to select
the input you want to create an
index name for.
HDMI input
Assignable
inputs
Display
DVD
VIDEO 1
DVD–VD1
VIDEO 3
DVD–VD3
DVD
DVD–DVD
MD/TAPE
DVD–MD
SA-CD/CD
DVD–CD
VIDEO 1
VD2–VD1
VIDEO 2
VD2–VD2
VIDEO 3
VD2–VD3
To return to the previous display
MD/TAPE
VD2–MD
Press control button B.
SA-CD/CD
VD2–CD
VIDEO 2
The cursor flashes and you can select a
character. Follow the procedure given in
“To create an index name” (page 57).
Notes
• You cannot reassign more than one HDMI input to
the same input.
• You cannot use the HDMI input as the original
input when it has been reassigned to another input.
66US
HT-7000DH
2-662-625-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US06OTH_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 67 Wednesday, January 25, 2006 3:30 PM
Changing the display
Using the Sleep Timer
You can check the sound field, etc., by
changing the information on the display.
Be sure to use the buttons on the receiver for
this operation.
You can set the receiver to turn off
automatically at a specified time.
Press DISPLAY repeatedly.
Each time you press the button, the display
changes cyclically as follows.
Press ALT and then press SLEEP
repeatedly while the power is on.
Each time you press the button, the display
changes cyclically as follows:
2-00-00 t 1-30-00 t 1-00-00 t 0-30-00
All inputs except the FM and AM
band
Index name of the inputa) t Selected input
t Sound field currently applied
FM and AM band
Preset station namea) t Frequency t Sound
field currently applied
When Sleep Timer is being used, “SLEEP”
lights up on the display.
Tip
To check the remaining time before the receiver
turns off, press ALT and then press SLEEP. The
remaining time appears on the display. If you press
SLEEP again, the sleep timer will be canceled.
Other Operations
a)
t OFF
Index name appears only when you have assigned
one to the input or preset station (page 56, 66).
Index name does not appear when only blank
spaces have been entered, or it is the same as the
input name.
67US
HT-7000DH
2-662-625-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US06OTH_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 68 Wednesday, January 25, 2006 3:30 PM
Recording using the
receiver
Recording onto a MiniDisc or
audio tape
Recording onto a recording
media
You can record from a video component using
the receiver. See the operating instructions
supplied with your recording component.
1
You can record onto a MiniDisc or audio tape
using the receiver. See the operating
instructions supplied with your MD deck or
tape deck.
1
Press one of the input buttons
to select the playback
component.
You can also use INPUT SELECTOR on
the receiver.
2
You can also use INPUT SELECTOR on
the receiver.
2
3
Prepare the playback
component for playing.
Prepare the recording
component.
Insert a blank MD or tape into the
recording deck and adjust the recording
level.
4
Start recording on the
recording component, then
start playback on the playback
component.
Notes
• Sound adjustments do not affect the signal output
from the MD/TAPE OUT jacks.
• The audio signals input to the MULTI CH IN jacks
are not output from the analog OUT jacks even
when MULTI CH IN is selected. The analog audio
signals of the current or previously used input are
output.
Prepare the playback
component for playing.
For example, insert the video tape you
want to copy into the VCR.
Prepare the recording
component.
Insert a blank video tape, etc. into the
recording component (VIDEO 1) for
recording.
For example, insert a CD into the CD
player.
3
Press one of the input buttons
to select the playback
component.
4
Start recording on the
recording component, then
start playback on the playback
component.
Notes
• Some sources contain copy guards to prevent
recording. In this case, you may not be able to
record from the source.
• The audio signals input to the MULTI CH IN jacks
are not output from the analog AUDIO OUT jacks
even when MULTI CH IN is selected. The analog
audio signals of the current or previously used
input are output.
68US
HT-7000DH
2-662-625-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US07REM_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 69 Wednesday, January 25, 2006 3:30 PM
5
Using the Remote
Programming the remote
You can program the remote to control nonSony components by changing the code. Once
the control signals have been memorized, you
can use those components as part of your
system.
Furthermore, you can also program the remote
for Sony components that the remote is unable
to control. Note that the remote can only
control components that accept infrared
wireless control signals.
1
Press AV ?/1 while holding
down RM SET UP.
The indicator lights up.
2
Press the input button
(including TV ?/1) for the
component you want to control.
3
Press the numeric buttons to
enter the numeric code (or one
of the codes if more than one
code exists) corresponding to
the component and the maker
of the component you want to
control.
See the tables on page 70 for information
on the numeric code(s) corresponding to
the component and the maker of the
component (the first digit and the last two
digits of the numeric code correspond to
the category and the maker’s code
respectively).
4
Press ENTER.
Once the numeric code has been verified,
the indicator slowly flashes twice and the
remote automatically exits the
programming mode.
To cancel programming
Press RM SET UP during any step. The
remote automatically exits the programming
mode.
To activate the input after
programming
Press the programmed button to activate the
input you want.
If programming is
unsuccessful, check the
following:
• If the indicator does not light up in step 1, the
batteries are weak. Replace both batteries.
• If the indicator flashes 4 times in quick
succession while entering the numeric code,
an error has occurred. Start again from step
1.
Notes
• The indicator turns off while a valid button is
pressed.
• In step 2, if several input buttons are pressed, only
the last pressed button is valid.
• In step 2, if you press TV ?/1, only TV VOL +/– ,
TV CH +/–, TV/VIDEO and WIDE buttons are
reprogrammed.
• In step 3, if an input button is pressed, the new
input is selected and the programming procedure
returns to the beginning of step 3.
• For the numeric codes, only the first three numbers
entered are valid.
To clear the memory of the
remote
To clear all programmes, do the following to
reset the remote to factory settings.
Press ?/1, AV ?/1 and MASTER
VOL – at the same time.
The indicator flashes 3 times, then goes off.
continued
69US
HT-8000MH
2-662-265-11 (1)
Using the Remote
For example, if you are going to control a
CD player, press SA-CD/CD.
Repeat steps 1 to 4 to control
other components.
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US07REM_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 70 Wednesday, January 25, 2006 3:30 PM
The numeric codes
corresponding to the
component and the maker of
the component
Use the numeric codes in the tables below to
control non-Sony components and also Sony
components that the remote is normally unable
to control. Since the remote signal that a
component accepts differs depending on the
model and year of the component, more than
one numeric code may be assigned to a
component. If you fail to program your remote
using one of the codes, try using other codes.
Notes
• The numeric codes are based on the latest
information available for each brand. There is a
chance, however, that your component will not
respond to some or all of the codes.
• All of the input buttons on this remote may not be
available when used with your particular
component.
To control a DAT deck
Maker
Code(s)
SONY
203
PIONEER
219
To control an MD deck
Maker
Code(s)
SONY
301
DENON
302
JVC
303
KENWOOD
304
To control a tape deck
Maker
Code(s)
SONY
201, 202
DENON
204, 205
KENWOOD
206, 207, 208, 209
NAKAMICHI
210
PANASONIC
216
To control a CD player
PHILIPS
211, 212
Maker
Code(s)
PIONEER
213, 214
101, 102, 103
TECHNICS
215, 216
DENON
104, 123
YAMAHA
217, 218
JVC
105, 106, 107
SONY
KENWOOD
108, 109, 110
To control an LD player
MAGNAVOX
111, 116
Maker
Code(s)
MARANTZ
116
SONY
601, 602, 603
ONKYO
112, 113, 114
PIONEER
606
PANASONIC
115
PHILIPS
116
To control a video CD player
PIONEER
117
Maker
Code(s)
TECHNICS
115, 118, 119
SONY
605
YAMAHA
120, 121, 122
70US
HT-8000MH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US07REM_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 71 Wednesday, January 25, 2006 3:30 PM
To control a VCR
To control a DVD recorder
Maker
Code(s)
Maker
Code(s)
SONY
701, 702, 703, 704,
705, 706
SONY
403
AIWA*
710, 750, 757, 758
To control a TV
AKAI
707, 708, 709, 759
BLAUPUNKT
740
EMERSON
711, 712, 713, 714,
715, 716, 750
FISHER
717, 718, 719, 720
GENERAL ELECTRIC
721, 722, 730
GOLDSTAR/LG
723, 753
GRUNDIG
HITACHI
Code(s)
SONY
501, 502
DAEWOO
504, 505, 506, 507,
515, 544
FISHER
508
GOLDSTAR/LG
503, 511, 512, 515,
534, 544
724
GRUNDIG
517, 534
722, 725, 729, 741
HITACHI
513, 514, 515, 544
ITT/NOKIA
717
ITT/NOKIA
521, 522
JVC
726, 727, 728, 736
JVC
516
MAGNAVOX
730, 731, 738
MAGNAVOX
503, 518, 544
MITSUBISHI/MGA
732, 733, 734, 735
MITSUBISHI/MGA
503, 519, 544
NEC
736
NEC
503, 520, 544
PANASONIC
729, 730, 737, 738,
739, 740
PANASONIC
509, 524
PHILIPS
729, 730, 731
PHILIPS
515, 518
PIONEER
729
RCA/PROSCAN
722, 729, 730, 731,
741, 747
SAMSUNG
742, 743, 744, 745
SANYO
SHARP
PIONEER
509, 525, 526, 540
RCA/PROSCAN
510, 527, 528, 529,
544
SAMSUNG
503, 515, 531, 532,
533, 534, 544
717, 720, 746
SANYO
508, 545, 546, 547
748, 749
SHARP
535
TELEFUNKEN
751, 752
TELEFUNKEN
523, 536, 537, 538
TOSHIBA
747, 755, 756
THOMSON
530, 537, 539
ZENITH
754
TOSHIBA
535, 540, 541
ZENITH
542, 543
* If an AIWA VCR does not work even though you
enter the code for AIWA, enter the code for Sony
instead.
To control a satellite tuner or
cable box
To control a DVD player
Maker
Code(s)
Maker
Code(s)
SONY
801, 802, 803, 804
SONY
401, 402, 403
JERROLD/G.I.
PANASONIC
406, 408
PHILIPS
407
806, 807, 808, 809,
810, 811, 812, 813,
814
PIONEER
409
PANASONIC
818
TOSHIBA
404
DENON
405
RCA
805, 819
S. ATLANTA
815, 816, 817
continued
71US
HT-8000MH
2-662-265-11 (1)
Using the Remote
Maker
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US07REM_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 72 Wednesday, January 25, 2006 3:30 PM
To control a tuner
Maker
Code(s)
SONY
002, 003, 004, 005
To control a hard disc recorder
Additional Information
Glossary
Maker
Code(s)
x Component video
SONY
307, 308, 309
A format for transmitting video signal
information consisting of three separate
signals: luminance Y, chrominance Pb, and
chrominance Pr. High quality pictures, such as
DVD video or HDTV pictures, are transmitted
more faithfully. The three jacks are color coded green, blue and red.
To control a blu-ray disc
recorder
Maker
Code(s)
SONY
310, 311, 312
x Composite video
To control a PSX
Maker
Code(s)
SONY
313, 314, 315
A standard format for transmitting video
signal information. The luminance signal Y
and chrominance signal C are combined and
transmitted together.
x Dolby Digital
Digital audio encoding/decoding technology
developed by Dolby Laboratories, Inc. It
consists of front (left/right), center, surround
(left/right) and sub woofer channels. It is a
designated audio standard for DVD-video and
also known as 5.1ch surround. Since surround
information is recorded and reproduced in
stereo, more realistic sound with fuller
presence is delivered than with Dolby
surround.
x Dolby Pro Logic II
This technology converts 2ch stereo recorded
audio into 5.1ch for playback. There is a
MOVIE mode for movies and MUSIC mode
for stereo sources such as music. Old movies
encoded in the traditional stereo format can be
enhanced with 5.1ch surround sound.
72US
HT-8000MH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US07REM_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 73 Wednesday, January 25, 2006 3:30 PM
x Dolby Surround (Dolby Pro
Logic)
Audio processing technology developed by
Dolby Laboratories, Inc. Center and mono
surround information is matrixed into two
stereo channels. When reproduced, audio is
decoded and output in 4ch surround sound.
This is the most common audio processing
method for DVD-video.
x DTS Digital Surround
Digital audio encoding/decoding technology
for theaters developed by Digital Theater
Systems, Inc. It compresses audio less than
Dolby Digital, delivering a higher quality
sound reproduction.
x HDMI (High-Definition
Multimedia Interface)
Technology developed by modifying the
display connecting technology, DVI (Digital
Visual Interface), for AV equipment. This
interface can transmit video, audio, and
control signals in digital format.
x Sampling frequency
On safety
Should any solid object or liquid fall into the
cabinet, unplug the receiver and have it
checked by qualified personnel before
operating it any further.
On power sources
• Before operating the receiver, check that the
operating voltage is identical with your local
power supply.
The operating voltage is indicated on the
nameplate on the back of the receiver.
• The unit is not disconnected from the AC
power source (mains) as long as it is
connected to the wall outlet, even if the unit
itself has been turned off.
• If you are not going to use the receiver for a
long time, be sure to disconnect the receiver
from the wall outlet. To disconnect the AC
power cord, grasp the plug itself; never pull
the cord.
• One blade of the plug is wider than the other
for the purpose of safety and will fit into the
wall outlet only one way. If you are unable to
insert the plug fully into the outlet, contact
your dealer.
• The AC power cord must be changed only at
a qualified service shop.
On heat buildup
Although the receiver heats up during
operation, this is not a malfunction. If you
continuously use this receiver at a large
volume, the cabinet temperature of the top,
side and bottom rises considerably. To avoid
burning yourself, do not touch the cabinet.
continued
73US
HT-8000MH
2-662-265-11 (1)
Additional Information
To convert analog audio to digital, analog data
should be quantified. This process is called
sampling, and the number of times per second
the analog data is quantified is called the
sampling frequency. A standard music CD
stores data quantified at 44,100 times per
second, which is expressed as a sampling
frequency of 44.1 kHz. Generally speaking, a
higher sampling frequency means better sound
quality.
Precautions
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US07REM_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 74 Wednesday, January 25, 2006 3:30 PM
On placement
• Place the receiver in a location with adequate
ventilation to prevent heat buildup and
prolong the life of the receiver.
• Do not place the receiver near heat sources,
or in a place subject to direct sunlight,
excessive dust, or mechanical shock.
• Do not place anything on top of the cabinet
that might block the ventilation holes and
cause malfunctions.
• Do not place the receiver near equipment
such as a television, VCR, or tape deck. (If
the receiver is being used in combination
with a television, VCR, or tape deck, and is
placed too close to that equipment, noise
may result, and picture quality may suffer.
This is especially likely when using an
indoor antenna. Therefore, we recommend
using an outdoor antenna.)
• Use caution when placing the receiver or
speakers on surfaces that have been specially
treated (with wax, oil, polish, etc.) as
staining or discoloration of the surface may
result.
If color irregularity is observed
again...
Place the speaker further away from the TV
set.
If howling occurs
Reposition the speakers or turn down the
volume on the receiver.
On cleaning
Clean the cabinet, panel, and controls with a
soft cloth slightly moistened with a mild
detergent solution. Do not use any type of
abrasive pad, scouring powder, or solvent,
such as alcohol or benzine.
If you have any questions or problems
concerning your receiver, please consult your
nearest Sony dealer.
On operation
Before connecting other components, be sure
to turn off and unplug the receiver.
If you encounter color
irregularity on a nearby TV
screen
The front and center speakers and the sub
woofer are magnetically shielded to allow it to
be installed near a TV set. However, color
irregularities may still be observed on certain
types of TV sets. As the surround speakers are
not magnetically shielded, we recommend that
you place the surround speakers slightly
further away from the TV set (page 14).
If color irregularity is
observed...
Turn off the TV set, then turn it on again after
15 to 30 minutes.
74US
HT-8000MH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US07REM_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 75 Wednesday, January 25, 2006 3:30 PM
Troubleshooting
If you experience any of the following
difficulties while using the receiver, use this
troubleshooting guide to help you remedy the
problem.
There is no sound, no matter which
component is selected, or only a very
low-level sound is heard.
• Check that the speakers and components
are connected securely.
• Check that both the receiver and all
components are turned on.
• Check that MASTER VOLUME is not set
to “VOL MIN”.
• Check that the SPEAKERS (OFF/A/B/
A+B) is not set to “OFF”.
• Check that headphone is not connected.
• Press MUTING to cancel the muting
function.
• Check that you have selected the correct
component with the input buttons.
• The protective device on the receiver has
been activated. Turn off the receiver,
eliminate the short-circuit problem, and
turn on the power again.
There is no sound from analog 2
channel sources.
• Check that the INPUT MODE is not set to
“COAX IN” or “OPT IN” for the selected
input (page 64).
• Check that the MULTI CH IN function is
not selected.
There is no sound from digital sources
(from COAXIAL or OPTICAL input jack).
• Check that the INPUT MODE is not set to
“ANALOG” (page 64). Check that the
INPUT MODE is not set to “COAX IN”
for the sources from the OPTICAL input
jack, or to “OPT IN” for the sources from
the COAXIAL input jack.
• Check that the MULTI CH IN function is
not selected.
continued
75US
HT-8000MH
2-662-265-11 (1)
Additional Information
There is no sound from a specific
component.
• Check that the component is connected
correctly to the audio input jacks for that
component.
• Check that the cord(s) used for the
connection is (are) fully inserted into the
jacks on both the receiver and the
component.
There is no sound from one of the front
speakers.
• Connect a pair of headphones to the
PHONES jack to verify that sound is
output from the headphones. If only one
channel is output from the headphones, the
component may not be connected to the
receiver correctly. Check that all the cords
are fully inserted into the jacks on both the
receiver and the component. If both
channels are output from the headphones,
the front speaker may not be connected to
the receiver correctly. Check the
connection of the front speaker which is
not outputting any sound.
• Make sure you have connected to both the
L and R jacks of an analog component, and
not only to either the L or R jack. Use an
audio cord (not supplied).
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US07REM_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 76 Wednesday, January 25, 2006 3:30 PM
The source sound input to the HDMI
jack on the receiver is not output from
the TV speaker.
• Check the HDMI connection.
• You cannot listen to the Super Audio CD
by connecting HDMI.
• Depending on the playback component,
you may need to set up the component.
Refer to the operating instructions
supplied with each component.
The left and right sounds are
unbalanced or reversed.
• Check that the speakers and components
are connected correctly and securely.
• Adjust the balance parameters using the
LEVEL menu.
There is severe hum or noise.
• Check that the speakers and components
are connected securely.
• Check that the connecting cords are away
from a transformer or motor, and at least
3 m away from a TV set or fluorescent
light.
• Move your audio components away from
the TV.
• The plugs and jacks are dirty. Wipe them
with a cloth slightly moistened with
alcohol.
There is no sound, or only a very lowlevel sound is heard from the center/
surround speakers.
• Select a CINEMA STUDIO EX mode
(page 51).
• Adjust the speaker level (page 34).
There is no sound from the sub woofer.
• Check that the sub woofer is connected
correctly and securely.
• Make sure you have turned on your sub
woofer.
The surround effect cannot be
obtained.
• Make sure the sound field function is on
(press MOVIE, or MUSIC).
• Sound fields do not function for signals
with a sampling frequency of more than 48
kHz.
Dolby Digital or DTS multi channel
sound is not reproduced.
• Check that the DVD, etc. you are playing
is recorded in Dolby Digital or DTS
format.
• When connecting the DVD player, etc., to
the digital input jacks of this receiver,
check the audio setting (the settings for the
audio output) of the connected component.
Recording cannot be carried out.
• Check that the components are connected
correctly.
• Select the source component using the
input buttons.
The FM reception is poor.
• Use a 75-ohm coaxial cable (not supplied)
to connect the receiver to an outdoor FM
antenna as shown below. If you connect
the receiver to an outdoor antenna, ground
it against lightning. To prevent a gas
explosion, do not connect the ground wire
to a gas pipe.
Outdoor FM antenna
Receiver
ANTENNA
AM
Ground wire
(not supplied)
To ground
76US
HT-8000MH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US07REM_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 77 Wednesday, January 25, 2006 3:30 PM
Radio stations cannot be tuned in.
• Check that the antennas are connected
securely. Adjust the antennas and connect
an external antenna, if necessary.
• The signal strength of the stations is too
weak (when tuning in with automatic
tuning). Use direct tuning.
• Make sure you set the tuning interval
correctly (when tuning in AM stations
with direct tuning).
• No stations have been preset or the preset
stations have been cleared (when tuning by
scanning preset stations). Preset the
stations (page 61).
• Press DISPLAY repeatedly on the receiver
so that the frequency appears on the
display.
There is no picture or an unclear
picture appears on the TV screen or
monitor.
• Select the appropriate input using the input
buttons.
• Set your TV to the appropriate input mode.
• Move your audio components away from
the TV.
• Assign the component video input
correctly.
The source image input to the HDMI
jack on the receiver is not output from
the TV.
• Check the HDMI connection.
• Depending on the playback component,
you may need to set up the component.
Refer to the operating instructions
supplied with the each component.
• Assign the HDMI input correctly.
Remote control
The remote does not function.
• Point the remote at the remote sensor on
the receiver.
• Remove any obstacles in the path between
the remote and the receiver.
• Replace all the batteries in the remote with
new ones, if they are weak.
• Make sure you select the correct input on
the remote.
• The 12 button on the remote is not
available for receiver operation.
Additional Information
The MULTI CHANNNEL DECODING
lamp does not light up in blue.
• Check that the playback component is
connected to a digital jack and the input is
selected properly on this receiver.
• Check whether the input source of the
software being played back corresponds to
the multi channel format.
• Check whether the setup on the playback
component is set to multi channel sound.
continued
77US
HT-8000MH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US07REM_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 78 Wednesday, January 25, 2006 3:30 PM
Error messages
If there is a malfunction, the display shows a
message. You can check the condition of the
system by the message. Refer to the following
table to solve the problem. If any problem
persists, consult your nearest Sony dealer.
If an error message appears while you perform
Auto Calibration, see “Error and warning
codes” (page 32) to solve the problem.
DEC. EROR
Appears when a signal the receiver cannot
decode (ex. DTS-CD) is input and “DEC.
PRI.” on the AUDIO menu is set to “DEC.
PCM”. Set it to “DEC. AUTO” (page 41).
Specifications
AUDIO POWER
SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
(Models of area code U only)
With 6 ohm loads, both channels driven, from
120 – 20,000 Hz; rated 90 watts per channel
minimum RMS power, with no more than
0.7% total harmonic distortion from 250
milliwatts to rated output.
Amplifier section
PROTECT
Irregular current is output from the
speakers. The receiver will automatically
turn off after a few seconds. Check the
speaker connection and turn on the power
again.
If you are unable to remedy the
problem using the
troubleshooting guide
Clearing the receiver’s memory may remedy
the problem (page 29). However, note that all
memorized settings will be reset to their
factory settings and you will have to readjust
all settings on the receiver.
Power Output1)
Models of area code U
(6 ohms 1 kHz, THD 10%)
FRONT2):
140 W/ch
CENTER2):
140 W
SUR2):
140 W/ch
Models of area code CA
(6 ohms 1 kHz, THD 0.7%)
FRONT2):
90 W/ch
CENTER2):
90 W
SUR2):
90 W/ch
(6 ohms 1 kHz, THD 10%)
FRONT2):
140 W/ch
CENTER2):
140 W
SUR2):
140 W/ch
1)
If the problem persist
Consult your nearest Sony dealer. Note that if
service personnel changes some parts during
repair, these parts may be retained.
Reference sections for clearing
the receiver’s memory
To clear
See
All memorized settings
page 29
Customized sound fields
page 53
Measured under the following conditions:
Area code
Power requirements
U, CA
120 V AC, 60 Hz
2) Depending
on the sound field settings and the
source, there may be no sound output.
Inputs (Analog)
MULTI CH IN,
SA-CD/CD,
MD/TAPE, DVD,
VIDEO 1, 2, 3
Sensitivity: 800 mV
Impedance: 50 kohms
78US
HT-8000MH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US07REM_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 79 Wednesday, January 25, 2006 3:30 PM
Video section
Inputs (Digital)
DVD (Coaxial)
Sensitivity: –
Impedance: 75 ohms
VIDEO 1, 2
(Optical)
Sensitivity: –
Impedance: –
Outputs (Analog)
MD/TAPE (OUT),
VIDEO 1 (AUDIO
OUT)
Voltage: 800 mV
Impedance: 10 kohms
SUB WOOFER
Voltage: 2 V
Impedance: 1 kohm
Inputs/Outputs
Video:
1 Vp-p, 75 ohms
COMPONENT VIDEO:
Y: 1 Vp-p, 75 ohms
PB/CB/B-Y: 0.7 Vp-p,
75 ohms
PR/CR/R-Y: 0.7 Vp-p,
75 ohms
80 MHz HD Pass Through
General
Power requirements
Reproduction frequency range:
28 – 20,000 Hz
Area code
Power requirements
U, CA
120 V AC, 60 Hz
Tone
Power consumption
Gain levels
±6 dB, 1 dB step
FM tuner section
Tuning range
87.5 - 108.0 MHz
Antenna
FM wire antenna
Antenna terminals 75 ohms, unbalanced
Intermediate frequency
10.7 MHz
AM tuner section
Power consumption
U
170 W
CA
230 VA
Power consumption (during standby mode)
0.2 W
Dimensions (w/h/d) (Approx.)
430 × 157.5 × 316 mm
(16 7/8 × 6 2/8 × 12 4/8
inches) including
projecting parts and
controls
Mass (Approx.)
8.0 kg (17 lb 11 oz)
3) You
can change the AM tuning scale to 9 kHz or
10 kHz. After tuning in any AM station, turn off
the receiver. While holding down TUNING
MODE, press ?/1. All preset stations will be
erased when you change the tuning scale. To reset
the scale to 10 kHz (or 9 kHz), repeat the
procedure.
continued
79US
HT-8000MH
2-662-265-11 (1)
Additional Information
Tuning range
Models of area code U, CA
With 10-kHz tuning scale:
530 – 1,710 kHz3)
With 9-kHz tuning scale:
531 – 1,710 kHz3)
Antenna
Loop antenna
Intermediate frequency
450 kHz
Area code
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US07REM_HT7000DH-U.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 80 Wednesday, January 25, 2006 3:30 PM
Speaker section
• Front speakers (SS-MSP7000)
• Center speaker (SS-CNP900)
• Surround speakers (SS-SRP7000)
Front speakers
Center speaker
Surround speakers
Speaker units
Front speakers
2 way, magnetically
shielded
Full range, magnetically
shielded
Full range
Tweeter: 40 mm cone type
Woofer: 80 mm cone type
Center/surround speakers
80 mm cone type
Enclosure type
Bass reflex
Rated Impedance
6 ohms
Dimension (w/h/d) (Approx.)
Front speakers
130 × 211 × 136 mm
(5 1/8 × 8 1/4 × 5 3/8
inches)
Center speaker
245 × 109 × 136 mm
(9 5/8 × 4 3/8 × 5 3/8
inches)
Surround speakers 115 × 169 × 141 mm
(4 1/2 × 6 5/8 × 5 1/2
inches)
Mass (Approx.)
Front speakers
1.4 kg (3 lb 2 oz)
Center speaker
1.3 kg (2 lb 14 oz)
Surround speakers 1.0 kg (2 lb 4 oz)
• Sub woofer (SA-WP780)
AUDIO POWER
SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
With 6 ohm loads, from 28 – 200 Hz; rated 120
watts, minimum RMS power, with no more
than 0.7% total harmonic distortion from 250
milliwatts to rated output.
Speaker system
Speaker unit
Enclosure type
RMS output
Active subwoofer,
magnetically shielded
200 mm cone type
Acoustically loaded bass
reflex
150 W (6 ohms, 100 Hz,
THD 10%)
200 W
LINE IN (input pin jacks)
Music power
Input
Power requirements 120 V AC, 60 Hz
Power consumption 80 W
Dimensions (w/h/d) (Approx.)
270 × 331 × 380 mm
(10 5/8 × 13 × 15 inches)
Mass (Approx.)
8.3 kg (18 lb 5 oz)
80US
HT-8000MH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US07REM_HT7000DH-U.fm
masterpage: Right
US01COV_HT-7000DH-U.book Page 81 Wednesday, January 25, 2006 3:30 PM
Supplied accessories
FM wire antenna (1)
AM loop antenna (1)
Monaural audio cord (1)
Speaker cords
• Long (2)
• Short (3)
Coaxial digital cord (1)
Footpads
• Speakers (20)
• Sub woofer (4)
Remote commander RM-AAP012 (1)
R6 (size-AA) batteries (2)
Optimizer microphone ECM-AC2 (1)
Speakers
• Front speakers (2)
• Center speaker (1)
• Surround speakers (2)
• Sub woofer (1)
For details on the area code of the
component you are using, see page 3.
Design and specifications are subject to
change without notice.
Additional Information
81US
HT-8000MH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US01COV_HT7000DH-UIX.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 82 Wednesday, January 25, 2006 3:30 PM
Index
Numerics
M
T
2 channel 52
2CH STEREO 52
5.1 channel 14
MD deck
connecting 18
Menu
A. CAL 48
AUDIO 44
LEVEL 42
SUR 43
SYSTEM 46
TONE 43
TUNER 44
VIDEO 45
Muting 35
Tape deck
connecting 18
TEST TONE 34
Tuner
connecting 28
Tuning
automatically 54
to preset stations 56
TV
hooking up 21
A
AUTO CALIBRATION 31
AUTO FORMAT DIRECT
(A.F.D.) 48
C
CD player
connecting 18
playback 37
COMPONENT VIDEO
ASSIGN 64
N
Naming 56, 66
D
R
Digital Cinema Sound
(DCS) 51
Dolby Digital 72
DTS 73
DVD player
hooking up 21
playback 38
DVD recorder
hooking up 21
Recording
onto a MiniDisc or audio
tape 68
onto a recording media
68
E
Error messages 78
H
HDMI
ASSIGN 65
hooking up 21
I
Initial setup 29
INPUT MODE 64
V
VCR
hooking up 21
Video game
hooking up 21
X
XM Radio 57
S
Satellite tuner
hooking up 21
Selecting
component 35
sound field 50
speaker system 30
Sleep Timer 67
Sound fields
resetting 53
selecting 50
Speakers
connecting 16
installing 14
Super Audio CD player
connecting 18
playback 37
82US
HT-7000DH
2-662-265-11 (1)
C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US01COV_HT7000DH-UIX.fm
masterpage: Left
US01COV_HT-7000DH-U.book Page 83 Wednesday, January 25, 2006 3:30 PM
HT-7000DH
2-662-265-11 (1)
lename[C:\Documents and
Settings\pc13\Desktop\J9052007_2662265111HT7000DH_US\2662265111\US08BKC_HT-7000DH-U.fm]
masterpage:Left
US01COV_HT-7000DH-U.book Page 84 Wednesday, January 25, 2006 3:30 PM
Sony Corporation Printed in Malaysia
model name1[STR-DG500]
[2-662-265-11 (1)]
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
