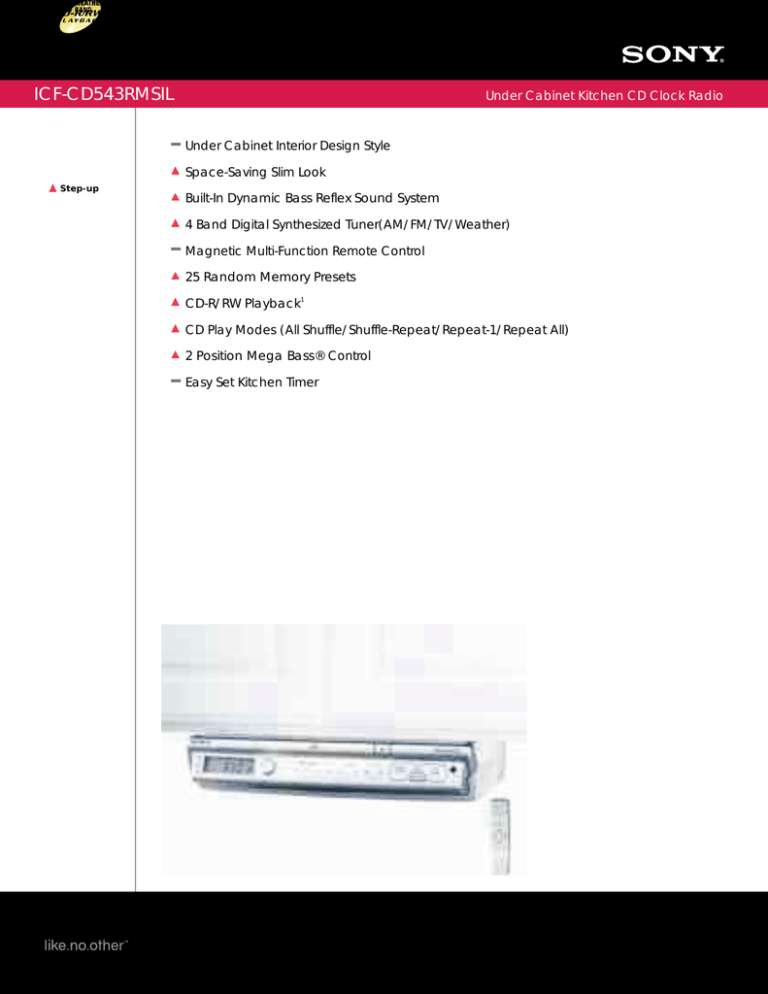

Sony ICF-CD543RMSIL Specification

Sony ICF-CD543RMSIL Specification
Under Cabinet Kitchen CD Clock Radio
Under Cabinet Interior Design Style
Space-Saving Slim Look
Built-In Dynamic Bass Reflex Sound System
4 Band Digital Synthesized Tuner(AM/FM/TV/Weather)
Magnetic Multi-Function Remote Control
25 Random Memory Presets
CD-R/RW Playback1
CD Play Modes (All Shuffle/Shuffle-Repeat/Repeat-1/Repeat All)
2 Position Mega Bass® Control
Easy Set Kitchen Timer
Under Cabinet Interior Design Style Bring a multi-media
entertainment center into your kitchen while saving preciuos
space by mounting under a cabinet.
Space-Saving Slim Look Fits perfectly into your kitchen without
intruding into shelf or storage space.
Built-In Dynamic Bass Reflex Sound System Enhances
reproduction of rich bass tones for a more enjoyable listening
4 Band Digital Synthesized Tuner
(AM/FM/TV/Weather) Accurate drift-free tuning of all
available radio stations, plus audio from TV channels 2-13, and
up to the minute weather from your local Weather Band
Magnetic Multi-Function Remote Control Gives you
convenient remote control over the unit's functions and has a
refrigerator magnet on the back to avoid misplacing it.
25 Random Memory Presets Gives you convenient one-button
tuning of up to 10 of your favorite FM and 5 AM radio stations
along with 5 TV channels and 5 weather frequencies.
CD-R/RW Playback A great companion for your music. This
model plays most compact discs including CD-R/RW as well as
your own compilations from a CD recorder deck or PC.
CD Play Modes (All Shuffle/Shuffle-Repeat/Repeat-1/Repeat
All) Listen to CD tracks in multiple modes: in sequence as
recorded, all tracks in random
(Shuffle), repeat all tracks in random order, a single track
repeat or all track repeat.
Under Cabinet Kitchen CD Clock Radio
Tuner Type: Digital
CD Play Mode(s): Shuffle, Shuffle-Repeat, Repeat-1, Repeat All
Format(s) Supported: CD-R/RW
Sound Enhancer: Dynamic Bass Reflex, Mega Bass® Sound
Station Preset(s): 25 (5 AM, 10 FM, 5 TV, 5 WB)
Tuning: 5 Direct Access Buttons
Timer Clock: Yes
Alarm: Yes
Display: Backlit LCD
Power Requirements: AC 120V, 60Hz
Output Power: 2W + 2W (at 10% harmonic distortion)
Speaker Dimensions: 3 1/8" (77mm)
Speaker Type: Stereo, Built-In
Weight: 6 lbs. 6 oz (2.9kg)
Measurements: 13 7/8" x 3 1/2" x 12 1/4" (350 x 88 x 310mm)
Color: Silver
1. CD/R-RW media/formats are not universally compatible.
©2005 Sony Electronics Inc.
Features and specifications are subject to change without notice. Non-metric weights and measures are
Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony, Dream
Machine, and Mega Bass are trademarks of Sony.
Convenient CD Front Loading Design Allows for fast, easy
access to the compact disc.
2 Position Mega Bass® Control Reproduces rich, powerful
bass tones for a more exciting and enjoyable listening
Easy Set Kitchen Timer Eliminates the need for an additional
timer unit for food preparation or other purposes.
Automatically alerts you to the time you set.
Easy to Clean The front surface is easy to wipe clean, so you
can keep this special entertainment appliance as neat as the
kitchen itself.
Design: Under Cabinet Kitchen
Day/Night Function: Time: 12 hour system
Frequency Range: AM: 530-1710kHz; FM: 87.6-108MHz; TV: Ch. 213; Weather: Ch. 1-7
Antenna System: AM: Built-in Ferrite Bar Antenna; FM, TV,
Weather: Wire Antenna
Please visit the Dealer Network for current information at
Sony Electronics Inc. •16530 Via Esprillo •San Diego, CA 92127 •800.222.7669 •
Last Updated: 10/08/2007
