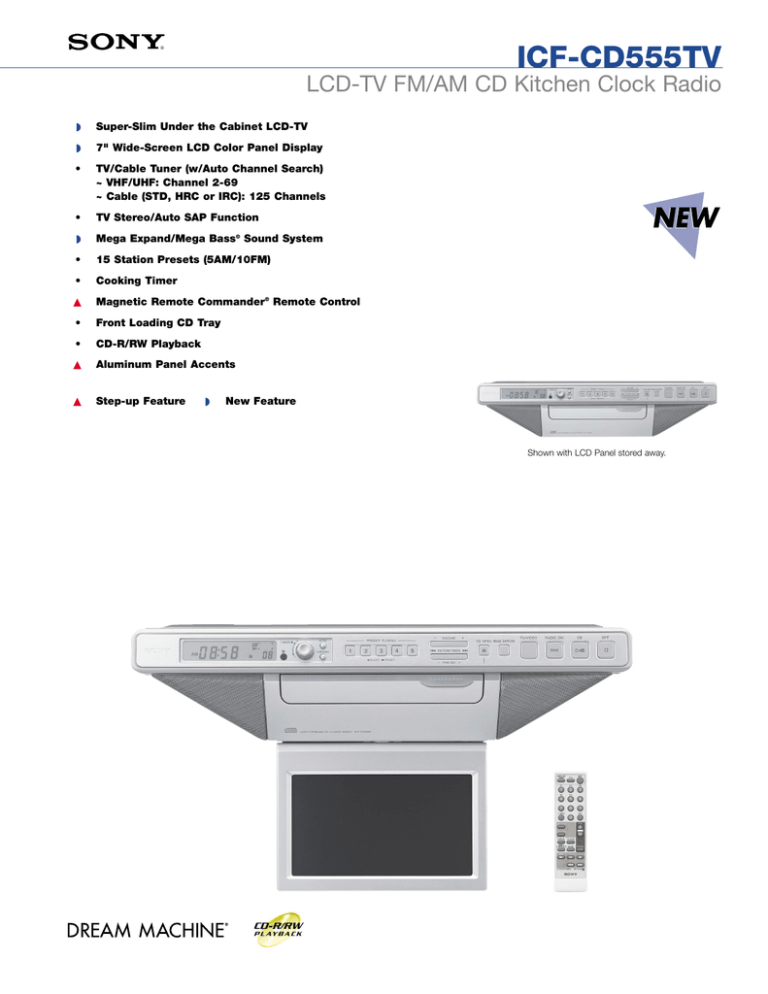

® ICF-CD555TV LCD-TV FM/AM CD Kitchen Clock Radio ◗ Super-Slim Under the Cabinet LCD-TV ◗ 7" Wide-Screen LCD Color Panel Display • TV/Cable Tuner (w/Auto Channel Search) ~ VHF/UHF: Channel 2-69 ~ Cable (STD, HRC or IRC): 125 Channels • TV Stereo/Auto SAP Function ◗ Mega Expand/Mega Bass® Sound System • 15 Station Presets (5AM/10FM) • Cooking Timer ▲ Magnetic Remote Commander® Remote Control • Front Loading CD Tray • CD-R/RW Playback ▲ Aluminum Panel Accents ▲ Step-up Feature ◗ New Feature Shown with LCD Panel stored away. ICF-CD555TV LCD-TV FM/AM CD Kitchen Clock Radio features specifications ◗ Super-Slim Under the Cabinet LCD-TV brings a multi-media Frequency Range: AM: 530-1710kHz FM: 87.5-108 MHz TV: Ch. 2-13 Weather: Ch. 1-7 Antenna System: AM: Built-in Ferrite Bar Antenna FM, TV, Weather: Wire Antenna Speaker: 3 1 ⁄ 8 " (77mm) Power Requirements: AC 120 Volts, 60Hz Color: White Radio: Dimensions (WHD): 15 3 ⁄ 4 " x 4 1⁄ 8 " x 12 3 ⁄ 4 " (400 x 104 x 323mm) Weight: 9 lbs. 4.15 oz (4.2kg) Display: Carton Dimensions (WHD): 19" x 13 1⁄ 2 " x 16 3⁄ 8 " (487 x 183 x 411mm) Weight: 10 lbs. 5.6 oz (1.3kg) w/o Radio 16 lbs. 7.2 oz (5.5kg) w/Radio entertainment center into the kitchen and mounts under a cabinet so it takes up no precious counter area ◗ 7" Wide-Screen LCD Color Panel Display watch your favorite shows on this large LCD screen • TV Cable Tuner VHF/UHF: Channel 2-69 Cable 125 Channels provides the most accurate drift-free tuning of all available audio from TV channels 2-69, as well as 125 cable channels • Auto Channel Search automatically search through available cable channels • TV Stereo/Auto SAP Functions watch your favorite TV shows in stereo • Front Loading CD Tray with slide-out mechanism for fast, easy access to the compact disc • CD-R/RW Playback plays all compact discs including CD-R (recordable) and CD-RW (rewritable); your own compilations from CD recorder deck or PC can be played on the unit, and it provides a great extension of ability to play network audio music from the Internet—a perfect companion for your PC music • FM/AM Digital Tuner provides the most accurate drift-free tuning of all available radio stations for listening to talk and music shows ◗ Mega Expand/Mega Bass® Sound System enhances reproduction of rich bass tones for a more complete and enjoyable listening experience • 15 Station Presets (5AM/10FM) offer convenient one-button tuning to 10 of your favorite FM and 5 AM radio stations • Cooking Timer is built-in and eliminates the need for an additional timer unit for food preparation or other purposes, and automatically alerts you to the time you set ▲ Magnetic Remote Commander® Remote Control provides full function remote control on power on/off, compact disc, tuner and volume ▲ Aluminum Panel Accents ® Sony Electronics Inc. 1 Sony Drive Park Ridge, New Jersey 07656 www.sony.com Printed in USA 2/2004 ©2004 Sony Electronics Inc. Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony, Dream Machine, Mega Bass and Remote Commander are trademarks of Sony. Features and specifications are subject to change without notice. Non-metric weights and measures are approximate.
