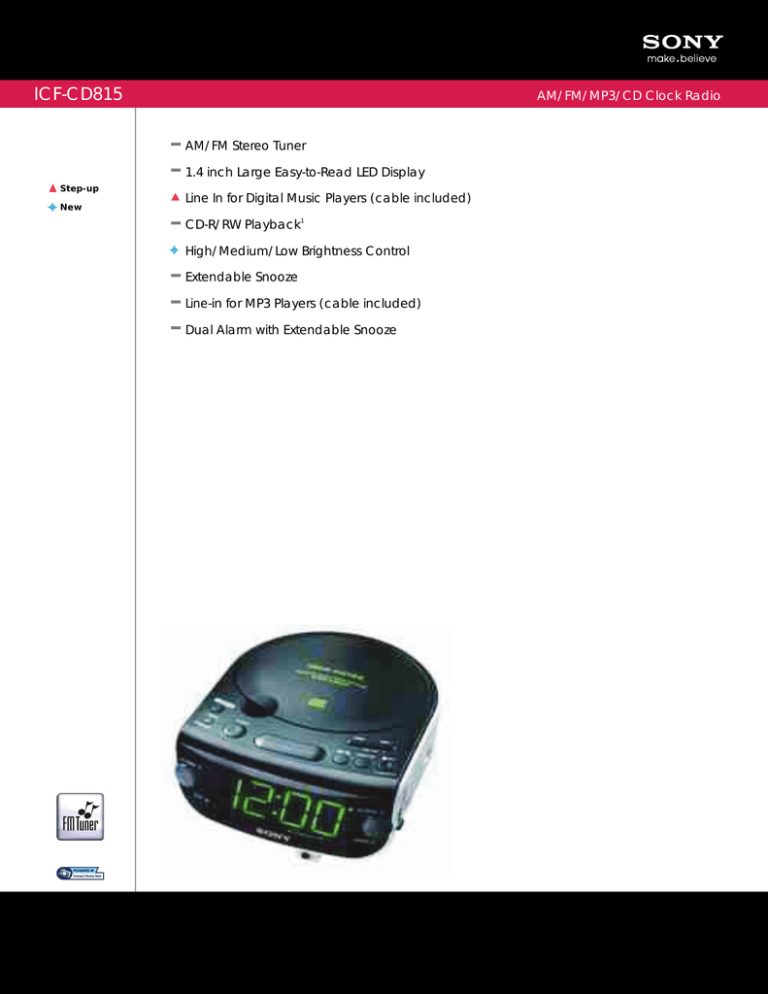

Sony ICF-CD815 Specification

Sony ICF-CD815 Specification
AM/FM/MP3/CD Clock Radio
AM/FM Stereo Tuner
1.4 inch Large Easy-to-Read LED Display
Line In for Digital Music Players (cable included)
CD-R/RW Playback1
High/Medium/Low Brightness Control
Extendable Snooze
Line-in for MP3 Players (cable included)
Dual Alarm with Extendable Snooze
AM/FM/MP3/CD Clock Radio
Supplied Accessories
Line-in cable for digital music player connectivity
Digital AM/FM Stereo Tuner Lets you choose from a wide
variety of radio, talk and music programming.
Dual Alarm Allows you to set two separate wake-up times and
wake up to a CD, the radio or a buzzer.
Audio input Allows simple plug and play integration with a
digital music device via a 3.5mm jack. (cable included)
LCD Display Bright, large numbers make this clock easy to
read with 1.4" Green LED Clock Display
Color: White
UPC Code: 027242710573
1. CD-R/RW media/formats are not universally compatible.
©2007 Sony Electronics Inc.
Features and specifications are subject to change without notice. Non-metric weights and measures are
Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony, Dream
Machine, Snoozinator, and are trademarks of Sony.
Brightness Control Allows you to adjust the brightness of the
display between High, Medium and low.
Extendable Snooze Gives you the freedom to choose your
personal snooze time instead of having to settle for the
standard time intervals of other alarms. Each press of the
snooze bar adds an additional 10 minutes to your snooze time,
up to a full hour without having to reset the alarm.
CD-R/RW Playback1 Plays CD-R/RW discs burned either in a PC
or a home recording deck. Create custom mixes from your
existing personal music collection and always have the right
music at hand.
Design: Compact
Day/Night Function: Time: 12 hour system
Frequency Range: AM: 530-1710kHz; FM: 87.5-108MHz
Tuner Type: Analog
Format(s) Supported: CD-R/RW1 , MP3 Player connectivity with
supplied cable
Alarm: Dual
Snooze w/Extendable Snooze: 10 Minute Intervals up to 1 Hour
Display: Green LED, 1.4" with brightness control
Power Requirements: AC 120V, 60Hz
Output Power: 0.7W + 0.7W (at 10% harmonic distortion)
Speaker Dimensions: 2 1/4" (57mm)
Speaker Type: Stereo, Built-In
Weight: 3 lbs 5oz. (1.5kg)
Measurements: 7 1/2" x 3 2/3" x 8 3/4" (190 x 93 x 222mm)
Please visit the Dealer Source for current information at
Sony Electronics Inc. •16530 Via Esprillo •San Diego, CA 92127 •1.800.222.7669 •
