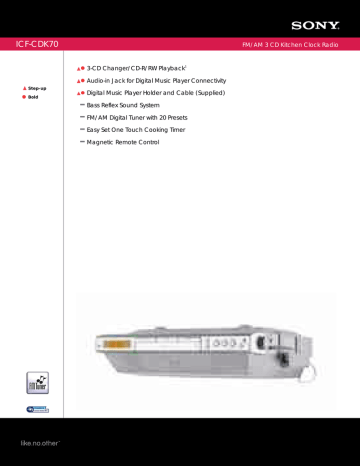

Sony ICF-CDK70 Specification

Sony ICF-CDK70 Specification
FM/AM 3 CD Kitchen Clock Radio
3-CD Changer/CD-R/RW Playback1
Audio-in Jack for Digital Music Player Connectivity
Digital Music Player Holder and Cable (Supplied)
Bass Reflex Sound System
FM/AM Digital Tuner with 20 Presets
Easy Set One Touch Cooking Timer
Magnetic Remote Control
3 CD Changer CD-R/RW Playback Allows you to have up to 3
CD's in rotation for your listening enjoyment. Plays standard
CDs and burned mixes on CD-R/RW discs.
Audio-in Jack for Digital Music Player Connectivity Simple
plug-and-play integration with a digital music device.
Digital Music Player Holder and Cable Connect your digital
music player and keep it close at hand in the holder. Holder
and cable are included.
Bass Reflex Sound System Enhances reproduction of rich bass
tones for a more dramatic sound quality.
FM/AM Digital Tuner with 20 Presets Accurate, drift-free tuning
of available radio stations and convenient one-button tuning
to 10 of your favorite FM stations and 10 AM stations.
FM/AM 3 CD Kitchen Clock Radio
Measurements: W 14 1/4 x H 4 1/5" x D 12 5/8" (362 x 105 x
Supplied Accessories
Digital Music Player holder and cable
Spacer (x4)
Remote Commander
Instruction Manual
Color: Silver
UPC Code: 027242709836
1. CD-R/R-RW Playback may not be compatible with all discs, depending on recording conditions.
©2007 Sony Electronics Inc.
Features and specifications are subject to change without notice. Non-metric weights and measures are
Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony, Mega Bass
and are trademarks of Sony.
Easy Set, One Touch Cooking Timer Eliminate the need for an
additional timer for food preparation.
Magnetic Remote Control Keep the remote on your
refrigerator door for quick and easy access.
Design: Under Cabinet Kitchen
Day/Night Function: Time: 12 hour system
Frequency Range: AM: 530-1710kHz; FM: 87.5-108MHz
Antenna System: AM: Built-in Ferrite Bar Antenna; FM : Telescopic
Tuner Type: Digital
Format(s) Supported: CD-R/RW1
Sound Enhancer: Mega Bass® Sound System
Station Preset(s): 20 (10 FM, 10 AM)
Timer Clock: Yes
Alarm: Yes
Display: Backlit LCD
Power Requirements: AC 120V, 60Hz
Output Power: 1.5W + 1.5W (at 10% harmonic distortion)
Speaker Dimensions: 3 1/8" (77mm)
Speaker Type: Stereo, Built-In
Inputs and Outputs
Audio In: Yes
Please visit the Dealer Network for current information at
Sony Electronics Inc. •16530 Via Esprillo •San Diego, CA 92127 •1.800.222.7669 •
Last Updated: 10/12/2007
