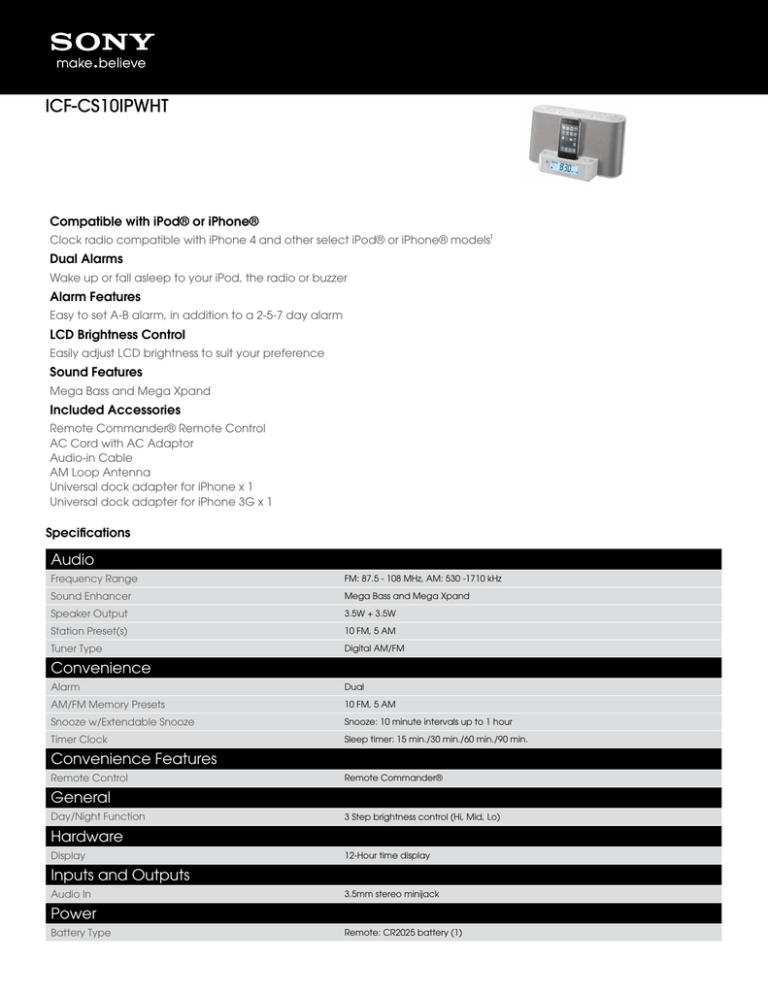

Sony ICF-CS10iPWHT Specification

Sony ICF-CS10iPWHT Specification
ICF-CS10IPWHT
Compatible with iPod® or iPhone®
Clock radio compatible with iPhone 4 and other select iPod® or iPhone® models¹
Dual Alarms
Wake up or fall asleep to your iPod, the radio or buzzer
Alarm Features
Easy to set A-B alarm, in addition to a 2-5-7 day alarm
LCD Brightness Control
Easily adjust LCD brightness to suit your preference
Sound Features
Mega Bass and Mega Xpand
Included Accessories
Remote Commander® Remote Control
AC Cord with AC Adaptor
Audio-in Cable
AM Loop Antenna
Universal dock adapter for iPhone x 1
Universal dock adapter for iPhone 3G x 1
Specifications
Audio
Frequency Range
FM: 87.5 - 108 MHz, AM: 530 -1710 kHz
Sound Enhancer
Mega Bass and Mega Xpand
Speaker Output
3.5W + 3.5W
Station Preset(s)
10 FM, 5 AM
Tuner Type
Digital AM/FM
Convenience
Alarm
Dual
AM/FM Memory Presets
10 FM, 5 AM
Snooze w/Extendable Snooze
Snooze: 10 minute intervals up to 1 hour
Timer Clock
Sleep timer: 15 min./30 min./60 min./90 min.
Convenience Features
Remote Control
Remote Commander®
General
Day/Night Function
3 Step brightness control (Hi, Mid, Lo)
Hardware
Display
12-Hour time display
Inputs and Outputs
Audio In
3.5mm stereo minijack
Power
Battery Type
Remote: CR2025 battery (1)
Output Power
3.5W + 3.5W (at 10% harmonic distortion)
Power Back-up
Battery back-up: CR2032 battery (1)
Power Requirements
120 V AC, 60 Hz
Speaker
Speaker Dimensions
Approx. 2 1/4 inches (5.7 cm) diameter, 6 Ohm
Dimensions (Approx.)
Dimensions (Approx.)
11 3/8 x 5 15/16 x 5 1/2" (290.5 x 152 x 139.5 mm) including projecting parts and controls
Weights and Measurements
Weight (Approx.)
4 lbs. 4 oz. (1.94 kg) including power supply unit
Accessories
Supplied Accessories
Remote Commander (1)
AM loop antenna (1)
Audio Connecting Cable (1)
Universal dock adapter for iPhone (1)
Universal dock adapter for iPhone 3G (1)
Optional Accessories
Remote Commander® Remote Control
AC Cord with AC Adaptor
Audio-in Cable
AM Loop Antenna
Universal dock adapter for iPhone x 1
Universal dock adapter for iPhone 3G x1
Universal dock adapter for iPhone 4 x 1
1. Compatible with:
iPod mini
iPod touch 3rd generation
iPod classic
iPod touch 2nd generation
iPhone 4
iPod touch 1st generation
iPhone 3GS
iPod nano 5th generation (video camera)
iPhone 3G
iPod nano 4th generation (video)
iPhone
iPod nano 3rd generation (video)
© 2009 Sony Electronics Inc. Sony, and the Sony logo are trademarks of Sony. iPod and
iPod nano 2nd generation (aluminum)
iPhone are a trademark of Apple Inc., registered in the U.S. and other countries.
iPod nano 1st generation
Features and Specifications are subject to change without notice. Non-metric weights
iPod 5th generation (video)
and measures are approximate.
iPod 4th generation (color display)
Reproduction in whole or in part without written permission is prohibited. All rights reserved.
iPod 4th generation
Sony, like.no.other and Remote Commander are trademarks of Sony. iPod is a trademark
of Apple Inc. /Updated: December 6, 2011
