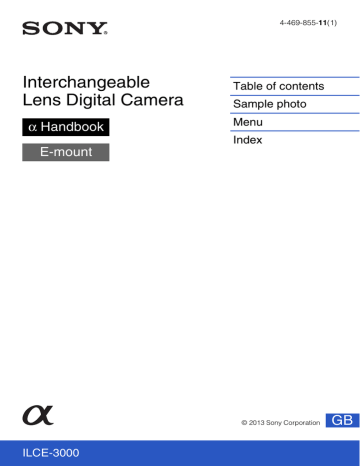

4-469-855-11(1)
Interchangeable
Lens Digital Camera
α Handbook
Table of contents
Sample photo
Menu
Index
E-mount
© 2013 Sony Corporation
ILCE-3000
GB
Notes on using the camera
Click on a button at upper right on the cover and each page to jump to the corresponding
page.
This is convenient when searching for a function you want to use.
Table of
contents
How to use this handbook
Sample photo
Search for information by
function.
Search for information by
sample photos.
Search for information in
a listing of menu items.
Menu
Search for information by
keyword.
Marks and notations used in this handbook
Index
In this handbook, the sequence of
operations is shown by arrows (t).
Operate the camera in the order
indicated.
The default setting is indicated by
.
Indicates cautions and limitations
relevant to the correct operation of the
camera.
The photographs used as examples of
pictures in this manual are reproduced
images, and are not actual images shot
using this camera.
The zmark indicates information that
is useful to know.
2GB
Table of
contents
Table of contents
Notes on using the camera
Sample photo
How to use this handbook ·····································2
Sample photo ························································6
Identifying parts ···················································12
List of icons on the screen···································16
Basic operations
Menu
Operating the camera··········································19
Menu ···································································22
Shooting images··················································27
Playing back images ···········································29
Deleting images···················································31
Index
Using the Photo Creativity function
Photo Creativity ···················································32
Bkground Defocus···············································33
Brightness ···························································34
Color····································································35
Vividness ·····························································36
Picture Effect ·······················································37
3GB
Continued r
Sample photo
Intelligent Auto·····················································51
Superior Auto ······················································53
Scene Selection ··················································55
Sweep Panorama················································57
Manual Exposure ················································59
Shutter Priority·····················································61
Aperture Priority ··················································62
Program Auto ······················································63
Table of
contents
Using functions with the mode dial
Menu
Using functions with the control wheel
DISP (Display Contents) ·····································39
(Exposure Comp.) ··········································42
(Drive Mode)··············································43
ISO (ISO)·····························································49
(Image Index) ·················································50
Index
Using functions in the menu
Camera································································22
Image Size ··························································23
Brightness/Color··················································23
Playback······························································24
Setup ···································································24
Connecting with other equipment
Using with your computer··································160
Installing the software········································162
Connecting the camera to the computer ···········165
Creating a movie disc········································167
Printing still images ···········································171
4GB
Continued r
Troubleshooting·················································172
Warning messages············································179
Table of
contents
Troubleshooting
Sample photo
Others
Menu
Using the camera abroad ··································182
Memory card ·····················································183
“InfoLITHIUM” battery packs ·····························185
Battery charging ················································187
Mount Adaptor···················································188
AVCHD format···················································190
Cleaning ····························································191
Index
Index
Index··································································192
5GB
“This is the scene I want to capture in a photo, but how can I do?”
You may find the answer by going through the sample photos listed here. Click the
desired sample photo.
Table of
contents
Sample photo
Sample photo
Shooting people (page 7)
Shooting macro photos (page 8)
Shooting landscapes (page 9)
Shooting sunset/night scenes (page 10)
Shooting fast moving subjects (page 11)
Menu
If you click on a photo, the screen will jump to the page describing the function
recommended for shooting that kind of photo.
Refer to those descriptions in addition to the shooting tips displayed on the screen of the
camera.
See the pages in parentheses for details of operation.
Click!
Index
6GB
Continued r
The same scene with different brightness
(48)
74
56
A happy smile (74)
A person in candle light (56)
55
49
A person in front of night view (55)
A moving person (49)
46
64
A group photo (46, 47)
A person lit from behind (64)
Index
A person stands out, while backgrounds
blurred away (33)
Menu
48
Sample photo
33
Table of
contents
Shooting people
77
A person with soft skin tones (77)
7GB
Continued r
Table of
contents
Shooting macro photos
Adjusting the color to indoor light (87)
55
91
Flowers (55)
Lowering the amount of flash light (91)
65
42
Focusing manually (65)
Shooting subjects in better brightness (42)
49
42
Preventing camera-shake for indoor shots
(49)
Making food look appealing (42)
Index
Defocusing the background (33)
Menu
87
Sample photo
33
8GB
Continued r
The sky in vivid colors (42)
Running water (61)
96
96
Vivid green colors (96)
Colored leaves (96)
Menu
61
Sample photo
42
Table of
contents
Shooting landscapes
57
Panoramic photos (57)
Index
92
92
Scenery with a wide range of brightness
(92)
Light outdoors shot from a dark interior (92)
33
111
Defocusing the background (33)
Keeping your shot level (111)
9GB
Continued r
Table of
contents
Shooting sunset/night scenes
Holding the camera by hand (56)
Shooting the red of the sunset beautifully
(55)
60
64
Fireworks (60)
Trail of light (64)
48
33
Defocusing the background (33)
Index
The same scene in different brightness (48)
Menu
55
Sample photo
56
46
Preventing camera-shake (46)
10GB
Continued r
Following a moving subject (68)
Expressing vigorous action (61)
65
45
Shooting the subject approaching the
camera (65)
Capturing the best moment (45)
Menu
61
Sample photo
68
Table of
contents
Shooting fast moving subjects
Index
11GB
See the pages in parentheses for details on
operation for the parts.
Table of
contents
Identifying parts
A ON/OFF (Power) switch
E Flash (64)
F Hook for shoulder strap
Attach the shoulder strap to prevent damage
caused by dropping the camera.
Menu
When the lens is removed
Sample photo
B Shutter button (27)
C AF illuminator/Self-timer lamp/Smile
Shutter lamp
D Microphone1)
G Lens release button
Index
H Lens
I Mount
J Image sensor2)
K Lens contacts2)
1)
2)
Do not cover this part during movie recording.
Do not touch this part directly.
12GB
Continued r
Table of
contents
Sample photo
A Multi Interface Shoe1)2)
B FINDER/LCD button
C
D
(Playback) button (29)
Image sensor position mark (65)
E Viewfinder
H Soft key B (20)
I Soft key C (20)
J Control wheel (19)
1)
For details on compatible accessories of the
Multi Interface Shoe, visit the Sony web site
in your area, or consult your Sony dealer or
local authorized Sony service facility.
Accessories for the Accessory Shoe can also
be used. Operations with other
manufactures’ accessories are not
guaranteed.
2)
Accessories for the Auto-lock Accessory
Shoe can also be attached using a Shoe
Adaptor (sold separately).
C LCD screen
D Mode dial
E Access lamp
F Memory card/terminal cover
G Multi/Micro USB Terminal (165)
Supports Micro USB compatible device.
H Charge lamp
I Memory card insertion slot
Index
F MOVIE button (27)
G Soft key A (20)
A (Flash pop-up) button (64)
B Diopter-adjustment dial
Menu
• You can switch between the LCD screen
and the viewfinder display. (In playback
mode, only the LCD screen is available.)
13GB
Continued r
Table of
contents
Sample photo
Menu
A Connection plate cover
Index
Use this when using an AC-PW20 AC
Adaptor (sold separately). Insert the
connection plate into the battery
compartment, and then pass the cord through
the connection plate cover as shown below.
• Make sure that the cord is not pinched when
you close the cover.
B Tripod socket hole
• Use a tripod with a screw length of less than
5.5 mm (7/32 inch). You will be unable to
firmly secure the camera to tripods using
screws longer than 5.5 mm (7/32 inch), and
may damage the camera.
C Speaker
D Battery cover
E Battery compartment
F Lock lever
14GB
Continued r
E 18 - 55 mm F3.5-5.6 OSS
A Hood index
Table of
contents
Lens
B Focusing ring
F Lens contacts1)
G Mounting index
1)
Do not touch this part directly.
Sample photo
C Zooming ring
D Focal-length scale
E Focal-length index
Menu
Index
15GB
Icons are displayed on the screen to indicate the camera status.
You can change the screen display using DISP (Display Contents) on the control wheel
(page 39).
Shooting standby
Table of
contents
List of icons on the screen
A
Indication
Shoot Mode
PASM
Scene Selection
Graphic Display
Menu
Scene Recognition icon
Sample photo
Display
Memory card/Upload
4
Number of recordable
still images
123Min
Recordable time of
movies
Index
Movie recording
100
Aspect ratio of still
images
Playback
20M 17M 10M
8.4M 5.0M 4.2M
Image size of still
images
RAW+J FINE STD
Image quality of still
images
60i/50i
60i/50i
24p/25p
24p/25p
Recording mode of
movies
100%
Remaining battery
Flash charge in progress
AF illuminator
Live view
16GB
Continued r
Display
Display
Indication
Does not record sound
during movie recording
AWB
White Balance
Wind noise reduction is
activated
Table of
contents
Indication
7500K A7 G7
SteadyShot/SteadyShot
warning
Soft Skin Effect
DRO/Auto HDR
Database file full/
Database file error
Auto Object Framing
Zoom magnification
Creative Style
Smart Zoom
Sample photo
Overheating warning
Clear Image Zoom
Smile Shutter
View mode (Still/Movie
Select)
101-0012
Picture Effect
Playback folder –
File number
Protect
B
Index
Smile detection
sensitivity indicator
Print order
Display
Menu
Digital Zoom
Indication
Soft keys
D
C
Display
Indication
Flash Mode/
Red Eye Reduction
±0.0
Flash compensation
Drive Mode
Display
Indication
z
Focus status
1/125
Shutter speed
F3.5
Aperture value
±0.0
±0.0
Metering Mode
ISO200
Metered manual
Exposure compensation
ISO sensitivity
AE lock
Focus mode
Shutter speed indicator
Aperture indicator
Focus area mode
Face Detection
REC 0:12
Recording time of the
movie (m:s)
17GB
Continued r
Indication
2013-1-1 9:30AM
Recorded date/time of
the image
12/12
Image number/Number
of images in the view
mode
Appears when [Picture
Effect] did not work on
the image.
Histogram
Sample photo
Appears when HDR did
not work on the image.
Table of
contents
Display
Menu
Index
18GB
Basic operations
The control wheel and soft keys allow you to use various functions of the camera.
Table of
contents
Operating the camera
Sample photo
Control wheel
Soft keys
Menu
Control wheel
When shooting, DISP (Display Contents),
(Exposure Comp.),
(Drive Mode),
and ISO (ISO) functions are assigned to the control wheel. When playing back, DISP
(Display Contents) and
(Image Index) functions are assigned to the control wheel.
Index
19GB
Continued r
Sample photo
The arrow means you can turn the control wheel.
Table of
contents
When you turn or press the top/bottom/right/left parts of the control wheel following the
on-screen display, you can select setting items. Your selection is determined when you
press the center of the control wheel.
Menu
When options are displayed on the screen, you
can browse through them by turning or pressing
the top/bottom/right/left parts of the control wheel.
Press the center to make your choice.
Index
Soft keys
The soft keys have different roles, depending on the context.
The assigned role (function) of each soft key is shown on the screen.
To use the function shown at the upper right corner of the screen, press soft key A. To
use the function shown at the lower right corner of the screen, press soft key B. To use
the function shown at the center, press the center of the control wheel (soft key C).
You can assign the functions to the soft key B (page 132).
In this handbook, the soft keys are indicated by the icon or the function shown on the
screen.
A
C
In this case, soft key A works as the
MENU (Menu) button, and soft key B as
(Shoot. Tips) button.
B
20GB
Continued r
Select a shooting mode based on the subject.
1 Turn the mode dial and set to the desired shooting mode.
(Intelligent Auto)
The camera evaluates the subject and makes the proper settings.
You can enjoy automatic shooting with the appropriate settings.
(Scene Selection)
Shoots with preset settings according to the subject or condition.
(Sweep Panorama)
Shoots with panoramic size.
(Manual Exposure)
Adjusts the aperture and shutter speed.
Adjusts the shutter speed to express the movement of the subject.
(Aperture Priority)
Shoots by adjusting aperture and changing the range in focus, or
defocuses the background.
Index
(Shutter Priority)
(Program Auto)
Menu
Shoots images with a wider range of shooting functions than
those of Intelligent Auto shooting. Recognizes and evaluates the
shooting conditions automatically, performs Auto HDR, and
chooses the best image.
Sample photo
(Superior Auto)
Table of
contents
Mode dial
Automatic shooting that allows you to customize settings, except
for the exposure (shutter speed and aperture).
21GB
Using functions in the menu
You can set up the basic settings for the camera as a whole, or execute functions such as
shooting, playback, or other operations.
Table of
contents
Menu
Sample photo
1 Select MENU.
Menu
2 Select the desired item by pressing the
top/bottom/right/left parts of the control
wheel, and then press the center.
3 Following the instructions on the
screen, select the desired item and
press the center of the control wheel to
make your choice.
Control wheel
Index
MENU
Camera
Allows you to set shooting functions, such as continuous shooting, self-timer, and flash.
Drive Mode
Selects the drive mode, such as continuous shooting, self-timer,
or bracket shooting.
Flash Mode
Selects the method used to fire the flash.
AF/MF Select
Selects auto focusing or manual focusing.
Autofocus Area
Selects the area to be focused on.
Autofocus Mode
Selects the autofocus method.
Tracking Focus
Keeps the focus on a subject while tracking it.
Zoom
Sets the zoom scale of the [Zoom] feature of the camera.
Face Detection
Detects people’s faces automatically, and adjusts focus and
exposure to suit the faces.
Face Registration
Registers or changes the person to be given priority in the focus.
Smile Shutter
Each time the camera detects a smile, the camera releases the
shutter automatically.
22GB
Continued r
Soft Skin Effect
Shoots the skin smoothly in [Face Detection] function.
Shooting Tip List
Allows you to view all shooting tips.
LCD Display (DISP)
Changes the information to be displayed on the LCD screen.
Finder Display(DISP)
Changes the information to be displayed on the Electronic
Viewfinder.
DISP Button(Monitor)
Allows you to select the kind of information to be displayed on
the LCD screen when you press the DISP button.
Image Size
Sample photo
When shooting faces, close-up (macro) subjects, or subjects
tracked by [Tracking Focus], the camera analyzes the scene and
automatically trims the captured image into a suitable
composition.
Table of
contents
Auto Object Framing
Allows you to set the image size and aspect ratio.
Menu
Still
Image Size
Selects the image size.
Aspect Ratio
Selects the aspect ratio.
Quality
Selects the compression format.
Panorama
Selects the image size of panoramic images.
Panorama Direction
Selects the direction to pan the camera when shooting panoramic
images.
Movie
File Format
Selects AVCHD or MP4.
Record Setting
Selects the image size, frame rate, and image quality of movies.
Index
Image Size
Brightness/Color
Allows you to make brightness settings such as metering mode, and color settings such
as white balance.
Exposure Comp.
Compensates for the brightness of the entire image.
ISO
Sets the ISO sensitivity.
White Balance
Adjusts the color temperature according to the ambient light
conditions.
Metering Mode
Selects the method used for measuring the brightness.
Flash Comp.
Adjusts the amount of flash light.
DRO/Auto HDR
Corrects the brightness or contrast automatically.
Picture Effect
Shoots with the desired effects to express a unique atmosphere.
Creative Style
Selects the image processing method.
23GB
Continued r
Table of
contents
Playback
Allows you to set playback functions.
Deletes images.
Still/Movie Select
Allows you to determine how to group the playback images
(View mode).
Slide Show
Plays back images automatically.
Specify Printing
Selects the images to print, or makes printing settings.
Image Index
Selects the number of images to be displayed on the index screen.
Enlarge Image
Enlarges the image.
Rotate
Rotates images.
Protect
Protects images, or cancels the protection.
Volume Settings
Sets the sound volume of movies.
During playback
Display
Contents
Switches the information to be displayed on the playback screen.
Sample photo
Delete
Menu
Setup
Allows you to make more detailed shooting settings, or change the camera settings.
Shooting Settings
Sets whether or not to fix the exposure when you press the
shutter button halfway down.
AF Illuminator
Sets the AF illuminator to assist auto-focusing in dim places.
Red Eye Reduction
Provides pre-flash before shooting when using the flash, to
prevent eyes from being shot in red.
Live View Display
Allows you to choose whether or not to show the value of
exposure compensation, etc. on the screen display.
Auto Review
Sets the display time of the image right after shooting.
Grid Line
Turns on the grid line that helps you to adjust the composition of
images.
Peaking Level
Enhances the outline of in-focus ranges with a selected color.
Peaking Color
Sets the color used for the peaking function.
Clear Image Zoom
Provides a higher-quality zoomed image than with [Digital
Zoom].
Digital Zoom
Provides zoomed images at higher magnification than with
[Clear Image Zoom]. This feature can be also available in movie
recording.
S. Auto Image Extract.
Sets whether or not to save all the images that were shot
continuously in [Superior Auto] mode.
MF Assist
Displays an enlarged image when focusing manually.
MF Assist Time
Sets the length of time the image will be shown in an expanded
form.
Color Space
Changes the range of color reproduction.
Index
AEL w/ shutter
24GB
Continued r
Sets camera-shake compensation.
Release w/o Lens
Sets whether or not to release the shutter when there is no lens.
High ISO NR
Sets the noise reduction processing for high ISO sensitivity
shootings.
Lens Comp.: Shading
Compensates for the shaded corners of the screen.
Reduces the color deviation at the corners of the screen.
Lens Comp.: Distortion
Compensates for distortion of the screen.
Face Priority Tracking
Sets whether to preferentially-track a certain face or not when the
camera detects that face during tracking focus.
Movie Audio Rec
Sets whether or not to record sound when recording a movie.
Wind Noise Reduct.
Reduces wind noise during movie recording.
AF Micro Adj.
Finely adjusts the autofocused position, when using the LA-EA2
Mount Adaptor (sold separately).
Sample photo
Lens Comp.: Chro. Aber.
Table of
contents
SteadyShot
Main Settings
Selects a first-displayed menu from the top menu or the last
menu screen.
MOVIE Button
Sets whether or not to activate the MOVIE button.
Custom Key Settings
Assigns functions to the soft key or the right side of the control
wheel.
Beep
Language
Menu
Menu start
Selects the sound produced when you operate the camera.
Selects the language used on the screen.
Index
Date/Time Setup
Sets the date and time.
Area Setting
Selects the area where you are using the camera.
Help Guide Display
Turns the Help Guide on or off.
Power Save
Sets the level of the power saving feature.
Power Saving Start Time
Sets the time to turn the camera to the power save mode.
LCD Brightness
Sets the brightness of the LCD screen.
Viewfinder Bright.
Sets the brightness of the Electronic Viewfinder.
Display Color
Selects the color of the LCD screen.
Wide Image
Selects a method to display wide images.
Playback Display
Selects the method used to play back portrait images.
USB Connection
Selects the appropriate USB connection method for each
computer or USB device connected to the camera.
USB LUN Setting
Enhances the compatibility by limiting the functions of USB
connection. Normally, use [Multi].
Version
Displays the versions of the camera and the lens/Mount Adaptor.
Demo Mode
Sets whether or not to display the demonstration with movies.
Initialize
Resets the camera to the default settings.
25GB
Continued r
Memory Card Tool
Formats the memory card.
File Number
Selects the method to use to assign file numbers to still images
and MP4 movies.
Selects the folder name format in which the still image is stored.
Select Shoot. Folder
Selects the recording folder to which still images and MP4
movies are recorded.
New Folder
Creates a new folder to which still images and MP4 movies are
recorded.
Recover Image DB
Repairs the image database file when inconsistencies are found.
Display Card Space
Displays the remaining recording time of movies and the
recordable number of still images on the memory card.
Sample photo
Folder Name
Table of
contents
Format
Eye-Fi Setup*
Upload Settings
Sets the upload function of the camera when an Eye-Fi card is
used.
Menu
* This setting appears when an Eye-Fi (sold separately) card is inserted in the camera.
Index
26GB
Shooting images with the settings in effect when you bought the camera is explained
here.
The camera makes decisions appropriate to the situation, and adjusts the settings.
The Scene Recognition function begins to work.
2 To take still images, press the shutter button halfway down to focus on
your subject, and press it fully down to shoot.
When shooting faces, close-up (macro) subjects, or subjects tracked by [Tracking Focus], the
camera analyzes the scene and automatically trims the captured image into a suitable
composition. Both the original and the trimmed images are saved (page 76).
Menu
To record movies, press the MOVIE button to start recording.
Press the MOVIE button again to stop recording.
Sample photo
1 Look at the LCD screen or through the viewfinder, and position the
camera.
Table of
contents
Shooting images
Notes
• The maximum continuous recording time for a movie is approximately 29 minutes (limited by product
specifications).
• The continuous recording time of MP4 12M is approximately 20 minutes (limited by 2 GB file size).
• The recording time may shorten depending on the ambient temperatures or recording conditions.
The Scene Recognition function lets the camera automatically
recognize the shooting conditions and allows you to shoot the
image with appropriate settings.
Index
z On Scene Recognition
Icon for recognized scene and
guide
• The camera recognizes
(Night Scene),
(Tripod Night Scene),
(Night Portrait),
(Backlight),
(Backlight Portrait),
(Portrait),
(Landscape),
(Macro),
(Spotlight), (Low Brightness), or
(Baby), and displays the corresponding icon
and guide on the LCD screen when the scene is recognized.
27GB
Continued r
difficult to focus on
When the camera cannot focus on the subject automatically, the
focus indicator blinks. Either recompose the shot or change the
focus setting.
Focus indicator
Status
z lit
Focus is locked.
Focus is confirmed. Focal point moves following a moving
subject.
lit
Focusing in progress.
z flashing
Cannot focus.
Menu
lit
Sample photo
Focus indicator
Table of
contents
z Tips for shooting a still image of a subject that is
• Focusing may be difficult in the following situations:
It is dark and the subject is distant.
The contrast between the subject and the background is poor.
The subject is seen through glass.
The subject is moving quickly.
The subject reflects light such as mirror, or has shiny surfaces.
The subject is flashing.
The subject is backlit.
Index
–
–
–
–
–
–
–
28GB
Table of
contents
Playing back images
Plays back the recorded images.
1 Press the
(Playback) button.
2 Select the image with the control wheel.
During movie playback
Control wheel operation
Press the center of the control wheel.
Fast-forward
Press the right, or turn the control wheel clockwise.
Fast-rewind
Press the left, or turn the control wheel
counterclockwise.
Forward slow playback
Turn clockwise during pause.
Reverse slow playback*
Turn counterclockwise during pause.
Adjust sound volume
Press the bottom, then press top/bottom.
Menu
Pause/resume
Sample photo
3 To play back panoramic images or movies, press the center of the control
wheel.
* The movie is played back frame-by-frame.
Notes
• Panoramic images shot on other cameras may not be played back properly.
Index
z Displaying a desired folder
To select a desired folder, select the bar on the left of the
image index screen (page 50), and then press the top/
bottom parts of the control wheel. You can switch
between still image playback and movie playback by
pressing the center of the control wheel.
29GB
Continued r
A portion of a still image can be enlarged during playback. This is convenient to check
the focus condition of a recorded still image. You can enlarge playback images from the
menu (page 102).
Sample photo
1 Display the image you want to enlarge and
then select (Enlarge Image).
2 Adjust the scaling by turning the control
wheel.
3 Select the portion you want to enlarge by
pressing the top/bottom/right/left of the
control wheel.
4 To cancel the enlarged playback, select
.
Table of
contents
Enlarged playback
Menu
(Enlarge Image)
Notes
• You cannot use the enlarged playback function with movies.
• To enlarge panoramic images, pause the playback first, and then press
The scaling range is as follows.
Image size
Scaling range
L
Approx. ×1.0 – ×15.1
M
Approx. ×1.0 – ×10.7
S
Approx. ×1.0 – ×7.6
Index
z Scaling range
(Enlarge Image).
30GB
Table of
contents
Deleting images
You can delete the image displayed.
1 While displaying the image you want to
delete, select
(Delete).
Select
Sample photo
2 Select OK.
to quit the operation.
(Delete)
Menu
OK
Notes
• You cannot delete protected images.
• Once you have deleted an image, you cannot restore it. Be sure that you want to delete the image before
proceeding.
Select MENU t [Playback] t [Delete] to select and delete several images at the same
time.
Index
z Deleting several images
31GB
Using the Photo Creativity function
Using [Photo Creativity], you can shoot a subject with easy operations and obtain
creative photos easily.
Table of
contents
Photo Creativity
1 Set the shooting mode to
(Intelligent
Auto) or
(Superior Auto).
Sample photo
2 Press the bottom of the control wheel, and
select
(Photo Creativity).
Menu
3 Select the item you want to set from the
items displayed at the bottom of the screen.
You can use the [Photo Creativity] setup items
simultaneously.
4 Select the desired setting.
To return to [Intelligent Auto] or [Superior Auto], select
.
Bkground Defocus (page 33)
Adjusts the blurring of the background.
Brightness (page 34)
Adjusts the brightness.
Color (page 35)
Adjusts the color.
Vividness (page 36)
Adjusts the vividness.
Picture Effect (page 37)
Selects the desired effect filter for shooting.
Index
5 To take still images, press the shutter button.
To record movies, press the MOVIE button to start recording.
Notes
• The [Photo Creativity] function is only available when an E-mount lens is mounted.
• The [Photo Creativity] function is only available when [Shoot Mode] is set to [Intelligent Auto] or
[Superior Auto].
• The Smile Shutter function cannot be used.
• When the [Photo Creativity] mode is activated, several items that have been set on the menu become
invalid.
• When the camera returns to [Intelligent Auto] or [Superior Auto], or is turned off, the settings are reset to
the default ones.
• You can adjust [Bkground Defocus] only during recording movies with the [Photo Creativity] function.
• If you turn on the [Photo Creativity] function while [Superior Auto] is activated, the camera does not
make a composite image.
32GB
Photo Creativity allows you to defocus the background easily to make the subject stand
out, while checking the defocusing effect on the LCD screen. You can record a movie
with a value adjusted with the defocusing effect.
2 Select
(Intelligent Auto) or
(Superior Auto).
Sample photo
1 Set the shooting mode to
Table of
contents
Bkground Defocus
(Photo Creativity).
3 Select [Bkground Defocus].
: You can focus on both the subject and the background.
: You can defocus the background.
Select [AUTO] to restore to the original status.
Menu
4 Defocus the background.
Notes
z Tips for a better result of Background Defocus
Index
• The defocusing range available depends on the lens used.
• The defocusing effect may not be noticeable, depending on the lens or the distance between the subject
and the background.
• Move closer to the subject.
• Lengthen the distance between the subject and the background.
33GB
Table of
contents
Brightness
You can adjust the brightness easily in [Photo Creativity].
2 Select
(Intelligent Auto) or
(Photo Creativity).
3 Select [Brightness].
(Superior Auto).
Sample photo
1 Set the shooting mode to
4 Select the desired brightness.
Menu
: You can make images brighter.
: You can make images darker.
Select [AUTO] to restore to the original status.
Index
34GB
Table of
contents
Color
You can adjust the color easily in [Photo Creativity].
2 Select
(Intelligent Auto) or
(Photo Creativity).
3 Select [Color].
(Superior Auto).
Sample photo
1 Set the shooting mode to
4 Select the desired color.
Menu
: You can make the color warm.
: You can make the color cool.
Select [AUTO] to restore to the original status.
Index
35GB
Table of
contents
Vividness
You can adjust the vividness easily in [Photo Creativity].
2 Select
(Intelligent Auto) or
(Photo Creativity).
3 Select [Vividness].
(Superior Auto).
Sample photo
1 Set the shooting mode to
4 Select the desired vividness.
Menu
: You can make images vivid.
: You can make images faint.
Select [AUTO] to restore to the original status.
Index
36GB
You can set [Picture Effect] easily in [Photo Creativity]. Select the desired effect filter to
achieve a more impressive and artistic expression.
1 Set the shooting mode to
(Intelligent Auto) or
(Superior Auto).
(Photo Creativity).
Sample photo
2 Select
3 Select [Picture Effect].
4 Select the desired effect.
Select [AUTO] to restore to the original status.
(Off)
Disables the Picture Effect function.
Creates the look of a Toy Camera photo
with shaded corners and pronounced colors.
(Pop Color)
Creates a vivid look by emphasizing color
tones.
Menu
(Toy Camera)
Table of
contents
Picture Effect
Creates a high contrast, abstract look by
heavily emphasizing primary colors.
(Posterization:
B/W)
Creates a high contrast, abstract look in
black and white.
(Retro Photo)
Index
(Posterization:
Color)
Creates the look of an aged photo with sepia
color tones and faded contrast.
(Soft High-key) Creates an image with the indicated
atmosphere: bright, transparent, ethereal,
tender, soft.
37GB
Continued r
(Partial Color:
Blue)
Creates an image which retains the color
blue, but converts others to black and white.
(Partial Color:
Yellow)
Creates an image which retains the color
yellow, but converts others to black and
white.
(High Contrast
Mono.)
Creates an image with high contrast in
black and white.
Index
Creates an image which retains the color
green, but converts others to black and
white.
Menu
(Partial Color:
Green)
Sample photo
Creates an image which retains the color
red, but converts others to black and white.
Table of
contents
(Partial Color:
Red)
Notes
• When [Partial Color] is selected, images may not retain the selected color, depending on the subject.
• The available picture effects are limited with [Photo Creativity]. Also, fine adjustment is not available.
You can use more picture effects and make fine adjustment with OPTION. Select MENU t [Brightness/
Color] t [Picture Effect] (page 94).
38GB
Using functions with the control wheel
Using the control wheel:
1 Press DISP (Display Contents) on the control wheel repeatedly to select
the desired mode.
1 During shooting, MENU t [Camera] t [LCD Display (DISP)/Finder
Display(DISP)].
During playback, MENU t [Playback] t [Display Contents].
2 Select the desired mode.
Sample photo
Using the Menu:
Table of
contents
DISP (Display Contents)
Notes
Menu
• [Histogram] is not displayed during following operations.
– Movie recording/playback
– Panorama recording/playback
– [Slide Show]
During shooting
Graphic Display
Shows basic shooting information.
Graphically shows the shutter speed and
aperture value, except for when [Shoot
Mode] is set to [Sweep Panorama].
Display All Info.
Shows recording information.
Big Font Size
Disp.
Shows only major items in a larger size.
No Disp. Info.
Does not show recording information.
Index
LCD Display (DISP)
39GB
Continued r
Histogram
Table of
contents
Displays the luminance distribution
graphically.
Finder Display(DISP)
Shows basic recording information on the
viewfinder.
Histogram
Displays the luminance distribution
graphically.
Sample photo
Disp. Basic Info
Menu
z Setting the screen display modes to be available
You can select which LCD screen display modes can be selected in shooting mode with
[DISP Button(Monitor)] (page 79).
Index
During playback
Display Info.
Shows recording information.
Histogram
Displays the luminance distribution
graphically, in addition to recording
information.
No Disp. Info.
Does not show recording information.
40GB
Continued r
The histogram displays the luminance distribution that shows how many pixels of a
particular brightness exist in the picture. Brighter image will make the entire histogram shift
to the right side, and darker image to the left side.
Flashing
R (red) Luminance
Sample photo
• If the image has a loss of details in highlights and
shadows, these parts flash on the histogram display
during playback (Luminance limit warning).
Table of
contents
z What is histogram?
G (green) B (blue)
Menu
Index
41GB
You can adjust the exposure in 1/3 EV steps in a range of –3.0 EV to +3.0 EV.
1
(Exposure Comp.) on the control wheel t desired value.
Or, MENU t [Brightness/Color] t [Exposure Comp.] t desired value.
Sample photo
Notes
Menu
• You cannot use [Exposure Comp.] when using the following functions:
– [Intelligent Auto]
– [Superior Auto]
– [Scene Selection]
– [Manual Exposure]
• You can adjust the exposure in a range of –2.0 EV to +2.0 EV for movies.
• If you shoot a subject in extremely bright or dark conditions, or when you use the flash, you may not be
able to get a satisfactory effect.
• Even though you can adjust the exposure between –3.0 EV and +3.0 EV, only a value between –2.0 EV
and +2.0 EV with the equivalent image brightness appears on the screen when shooting. If you set an
exposure beyond this range, the image brightness on the screen does not show the effect, but it will be
reflected on the recorded image.
Table of
contents
Exposure Comp.
z Adjusting the exposure for better looking images
m
Index
Overexposure = too much light
Whitish image
Set [Exposure Comp.] toward –.
Correct exposure
M
Set [Exposure Comp.] toward +.
Underexposure = too little light
Darker image
• To shoot subjects in brighter tones, set the exposure compensation to the + side.
To make photos of food look more appealing, shoot the food a little brighter than usual
and try to use a white background.
• If you want to capture a blue sky in vivid colors, set the exposure compensation to the –
side.
42GB
You can set the drive mode, such as continuous, self-timer, or bracket shooting.
1
(Drive Mode) on the control wheel t desired mode.
Or, MENU t [Camera] t [Drive Mode] t desired mode.
Shoots 1 still image. Normal shooting mode.
(Cont.
Shooting)
Shoots images continuously while you keep pressing the shutter
button (page 44).
(Spd Priority
Cont.)
Shoots images continuously at high speed while you keep
pressing the shutter button (page 45).
(Self-timer)
(Bracket:
Cont.)
Shoots an image after 10 or 2 seconds (page 46).
Shoots images continuously after 10 seconds (page 47).
Shoots 3 images while holding the shutter button down, each
with different degrees of brightness (page 48).
Menu
(Selftimer(Cont))
Sample photo
(Single
Shooting)
Table of
contents
Drive Mode
Notes
Index
• You cannot change the setting when using the following functions:
– [Hand-held Twilight] [Anti Motion Blur] in [Scene Selection]
– [Sweep Panorama]
– [Auto HDR]
– [Soft Focus], [HDR Painting], [Rich-tone Mono.], [Miniature] in [Picture Effect]
43GB
Shoots images continuously while you keep pressing the shutter button.
1
(Drive Mode) on the control wheel t [Cont. Shooting].
Or, MENU t [Camera] t [Drive Mode] t [Cont. Shooting].
Sample photo
Notes
• You cannot use [Cont. Shooting] with the following functions:
– [Scene Selection], excluding [Sports Action]
– [Sweep Panorama]
– [Smile Shutter]
– [Auto HDR]
– [Soft Focus], [HDR Painting], [Rich-tone Mono.], [Miniature] in [Picture Effect]
Table of
contents
Cont. Shooting
z Continuing to adjust the focus and exposure during
Set [Autofocus Mode] to [Continuous AF] (page 68).
Set [AEL w/ shutter] to [Off] (page 106).
• The exposure for the first image is set when you press the shutter button halfway down.
The camera continues to adjust the exposure for the remaining images.
Menu
continuous shooting
Index
44GB
The camera continues to shoot as long as the shutter button is pressed. You can
continuously shoot at a rate faster than that of [Cont. Shooting] (max. approximately
3.5 images per second*).
Table of
contents
Spd Priority Cont.
* When an E 18 - 55 mm F3.5-5.6 OSS lens (supplied) is attached to the ILCE-3000.
The camera maintains this continuous shooting speed until approximately the 13th recorded image.
(Drive Mode) on the control wheel t [Spd Priority Cont.].
Or, MENU t [Camera] t [Drive Mode] t [Spd Priority Cont.].
Notes
Menu
• You cannot use [Spd Priority Cont.] with the following functions.
– [Scene Selection], excluding [Sports Action]
– [Sweep Panorama]
– [Smile Shutter]
– [Auto HDR]
– [Soft Focus], [HDR Painting], [Rich-tone Mono.], [Miniature] in [Picture Effect]
• The speed of continuous shooting is estimated using our criteria. The speed of continuous shooting may
be slower, depending on shooting conditions (Image size, ISO setting, High ISO NR, or the setting of
[Lens Comp.: Distortion]).
• Between continuous shooting frames, an image of each frame is immediately displayed.
• Focus is fixed with the first shot. When [AEL w/ shutter] is set to [Off], the camera adjusts the exposure
value for each shooting after the first shot.
Sample photo
1
Index
45GB
1
(Drive Mode) on the control wheel t [Self-timer].
Or, MENU t [Camera] t [Drive Mode] t [Self-timer].
Table of
contents
Self-timer
2 OPTION t desired mode.
To cancel the timer, press
(Self-timer: 10 Sets the 10-second delay self-timer.
When you press the shutter button, the self-timer lamp flashes
and beeps until the shutter operates.
To cancel the self-timer, press
(Drive Mode) on the
control wheel.
(Self-timer: 2
Sec)
Sample photo
Sec)
(Drive Mode) and select [Single Shooting].
Sets the 2-second delay self-timer.
This reduces the camera-shake caused by pressing the shutter
button.
Menu
Notes
• You cannot use [Self-timer] with the following functions:
– [Hand-held Twilight] [Anti Motion Blur] in [Scene Selection]
– [Sweep Panorama]
– [Smile Shutter]
– [Auto HDR]
– [Soft Focus], [HDR Painting], [Rich-tone Mono.], [Miniature] in [Picture Effect]
Index
46GB
Continuously shoots 3 images after 10 seconds. You can choose the best shot from 3
shots taken.
1
When you press the shutter button, the self-timer lamp flashes and the audible signal sounds
until the shutter operates.
To cancel the self-timer, press
(Drive Mode) on the control wheel.
Notes
Menu
• You cannot use [Self-timer(Cont)] with the following functions:
– [Hand-held Twilight] [Anti Motion Blur] in [Scene Selection]
– [Sweep Panorama]
– [Smile Shutter]
– [Auto HDR]
– [Soft Focus], [HDR Painting], [Rich-tone Mono.], [Miniature] in [Picture Effect]
Sample photo
(Drive Mode) on the control wheel t [Self-timer(Cont)].
Or, MENU t [Camera] t [Drive Mode] t [Self-timer(Cont)].
Table of
contents
Self-timer(Cont)
Index
47GB
Shoots 3 images while automatically shifting the exposure from base, to darker, and then
to lighter. Press and hold down the shutter button until the bracket recording is
completed.
You can select an image that suits your intention, after recording.
Table of
contents
Bracket: Cont.
Sample photo
1
(Drive Mode) on the control wheel t [Bracket: Cont.].
Or, MENU t [Camera] t [Drive Mode] t [Bracket: Cont.].
To cancel the bracket, press
(Bracket:
Cont.: 0.3EV)
(Drive Mode) and select [Single Shooting].
Menu
2 OPTION t desired mode.
Images are taken with the set value of deviation (steps) from the
base exposure.
(Bracket:
Cont.: 0.7EV)
Index
(Bracket:
Cont.: 1.0EV)
(Bracket:
Cont.: 2.0EV)
(Bracket:
Cont.: 3.0EV)
Notes
• You cannot use [Bracket: Cont.] with the following functions:
– [Intelligent Auto]
– [Superior Auto]
– [Scene Selection]
– [Sweep Panorama]
– [Smile Shutter]
– [Auto HDR]
– [Soft Focus], [HDR Painting], [Rich-tone Mono.], [Miniature] in [Picture Effect]
• The last shot is shown on the auto review.
• In [Manual Exposure], the exposure is shifted by adjusting the shutter speed.
• When you adjust the exposure, the exposure is shifted based on the compensated value.
48GB
Sets the luminous sensitivity.
1 ISO (ISO) on the control wheel t desired setting.
Or, MENU t [Brightness/Color] t [ISO] t desired setting.
Sets the ISO sensitivity automatically.
Sets the sensitivity to light of the imaging sensor. You can
reduce image blurring in dark locations or with moving subjects
by increasing the ISO sensitivity (select a large number).
Notes
Menu
Index
• [ISO AUTO] is selected when using the following functions:
– [Intelligent Auto]
– [Superior Auto]
– [Scene Selection]
– [Sweep Panorama]
• The larger the number, the higher the noise level.
• When the shooting mode is set to [Program Auto], [Aperture Priority], [Shutter Priority], and [ISO] is set
to [ISO AUTO], ISO is automatically set between [ISO 100] and [ISO 3200].
• For movie shooting, the maximum ISO sensitivity you can set is [ISO 3200]. If a value higher than [ISO
3200] is set when shooting movies, the value is automatically changed to [ISO 3200].
• The [ISO AUTO] setting is not provided in [Manual Exposure]. If you change the exposure mode to
[Manual Exposure] with the [ISO AUTO] setting, it is switched to [ISO 100]. Set the ISO according to
your shooting conditions.
Sample photo
(ISO AUTO)
100/200/400/800/
1600/3200/6400/
12800/16000
Table of
contents
ISO
z Adjusting ISO Sensitivity (Recommended Exposure
Index)
ISO setting (speed) is the sensitivity to light of recording media that incorporates an image
sensor that receives light. Even when the exposure is the same, images differ depending on
the ISO setting.
High ISO sensitivity
With high ISO sensitivity, images will be captured with an
appropriate brightness even under insufficient exposure.
However, increasing ISO sensitivity will cause images to
become noisy.
Low ISO sensitivity
You can record smooth images. However, compensation for
low ISO sensitivity will be made by slowing down the shutter
speed. You should take camera-shake or movement of
subjects into account, too.
49GB
Displays multiple images at the same time.
1 Press the
2 Press
(Playback) button to switch to the playback mode.
Table of
contents
Image Index
(Image Index) on the control wheel.
3 To return to the single-image playback, select the desired image and
press the center of the control wheel.
z Displaying a desired folder
Menu
To select a desired folder, select the bar on the left of the
image index screen, and then press the top/bottom parts
of the control wheel. You can switch between still image
playback and movie playback by pressing the center of
the control wheel.
Sample photo
6-image index appears.
You can switch to 12-image index; MENU t [Playback] t [Image Index].
Index
50GB
Using functions with the mode dial
The camera analyzes the subject, and allows you to shoot with appropriate settings.
1 Set the shooting mode to
Auto).
(Intelligent
When the camera recognizes the scene, the icon for
recognized scene appears on the screen.
The camera recognizes
(Night Scene),
(Tripod
Night Scene),
(Night Portrait),
(Backlight),
(Backlight Portrait),
(Portrait),
(Landscape),
(Macro),
(Spotlight), (Low Brightness), or
(Baby).
Icon for recognized scene
Sample photo
2 Point the camera to the subject.
Table of
contents
Intelligent Auto
3 Adjust the focus and shoot the subject.
In [Superior Auto] mode, the camera shoots with higher quality than [Intelligent Auto]
mode. The camera performs composite shooting as necessary. Also, the camera
automatically selects an optimal image from the burst images and records it, depending
on the scene.
In [Program Auto] mode, you can shoot after adjusting various functions, such as white
balance, ISO, etc.
Shooting mode
(Intelligent Auto)
Index
The advantages of automatic shooting
Menu
Notes
• [Flash Mode] is set to [Flash Off], [Autoflash] or [Fill-flash].
• You can shoot even if the camera has not recognized the scene.
• When [Face Detection] is set to [Off], the [Portrait], [Backlight Portrait], [Night Portrait], and [Baby]
scenes are not recognized.
Your purpose
• Select this mode to easily recognize the scene and shoot
continuous images.
(Superior Auto)
(page 53)
• Select this mode to automatically shoot scenes under difficult
circumstances, such as when it is dark or the subject is back-lit.
• Select this mode to shoot a higher quality image than that
offered by [Intelligent Auto].
(Program Auto)
(page 63)
• Select this mode to shoot with various functions other than the
exposure (shutter speed and aperture) adjusted.
Notes
• In [Superior Auto] mode, the recording process takes longer, since the camera makes a composite image.
The camera records one composite image.
51GB
Continued r
You can access the [Photo Creativity] menu by pressing the bottom part of the control wheel
in [Intelligent Auto] or [Superior Auto] mode. Using the [Photo Creativity] menu, you can
change the settings with easy operations and achieve creative photography (page 32).
difficult to focus on
When the camera cannot focus on the subject automatically, the
focus indicator blinks. Either recompose the shot or change the
focus setting.
Sample photo
z Tips for shooting a still image of a subject that is
Table of
contents
z Photo Creativity
Focus indicator
Status
z lit
Focus is locked.
lit
Focus is confirmed. Focal point moves following a moving
subject.
lit
Focusing in progress.
Cannot focus.
• Focusing may be difficult in the following situations:
–
–
–
–
–
–
–
Index
z flashing
Menu
Focus indicator
It is dark and the subject is distant.
The contrast between the subject and the background is poor.
The subject is seen through glass.
The subject is moving quickly.
The subject reflects light such as mirror, or has shiny surfaces.
The subject is flashing.
The subject is backlit.
52GB
The camera automatically recognizes and evaluates the shooting conditions, and the
appropriate settings are set automatically. The camera shoots images with a wider range
of shooting functions than those of Intelligent Auto shooting, such as Auto HDR, and
chooses the best image.
(Superior
Icon for recognized scene
2 Point the camera to the subject.
Shooting function
The number of times the shutter is
released
Menu
When the camera recognizes the subject and adjusts
itself for shooting conditions, the following information
appears on the screen: icon for recognized scene,
appropriate shooting function, the number of times the
shutter is released.
Recognized scene:
(Night Scene),
(Tripod Night
Scene),
(Hand-held Twilight),
(Night Portrait),
(Backlight),
(Backlight Portrait),
(Portrait),
(Landscape),
(Macro),
(Spotlight), (Low
Brightness), or
(Baby).
Shooting function: Auto HDR, Slow Sync., Daylight
Sync., Slow Shutter
Sample photo
1 Set the shooting mode to
Auto).
Table of
contents
Superior Auto
3 Adjust the focus and shoot the subject.
Index
When the camera shoots multiple images, it automatically chooses and saves the appropriate
image. You can also save all the images by setting the [S. Auto Image Extract.] item
(page 116).
Notes
• [Flash Mode] is set to [Flash Off], [Autoflash] or [Fill-flash].
• You can shoot even if the camera has not recognized the scene.
• When [Face Detection] is set to [Off], the [Portrait], [Backlight Portrait], [Night Portrait], and [Baby]
scenes are not recognized.
• When [Quality] is set to [RAW & JPEG], [Hand-held Twilight] and [Auto HDR] are not selected.
z What is the difference between [Superior Auto] and
[Intelligent Auto]?
In [Superior Auto] mode, the camera shoots continuously according to the recognized scene
and makes a composite image (Composite shooting). This allows the camera to perform
back-lit compensation and noise reduction automatically, and also obtain a higher quality
image than [Intelligent Auto].
However, the recording process takes longer than normal when making a composite image.
53GB
Continued r
You can access the [Photo Creativity] menu by pressing the bottom part of the control wheel
in [Intelligent Auto] or [Superior Auto] mode. Using the [Photo Creativity] menu, you can
change the settings with easy operations and achieve creative photography (page 32).
Table of
contents
z Photo Creativity
Sample photo
Menu
Index
54GB
Table of
contents
Scene Selection
Allows you to shoot with preset settings according to the scene.
1 Set the shooting mode to
(Scene Selection).
2 Select the desired mode using the control wheel.
Blurs away backgrounds and sharpens the
subject. Accentuate the skin tones softly.
(Landscape)
Shoots the entire range of scenery in sharp
focus with vivid colors.
(Macro)
Shoots close-ups of the subjects such as
flowers, insects, food, or small items.
(Sports
Action)
Shoots a moving subject at a fast shutter
speed so that the subject looks as if it is
standing still. The camera shoots images
continuously while the shutter button is
pressed.
Menu
(Portrait)
Sample photo
You can select another Scene Selection mode by pressing the center of the control wheel.
Index
(Sunset)
Shoots the red of the sunset beautifully.
(Night Portrait) Shoots portraits in night scenes. Pop up the
flash to use this mode.
55GB
Continued r
(Night Scene)
Shoots night scenes with less noise and blur
without using a tripod. A burst of shots are
taken, and image processing is applied to
reduce subject blur, camera-shake, and noise.
(Anti Motion
Blur)
Allows you to shoot indoor shots without
using the flash and reduces subject blur. The
camera shoots burst images and combines
them to create the image, reducing subject
blur and noise.
Sample photo
(Hand-held
Twilight)
Table of
contents
Shoots night scenes without losing the dark
atmosphere.
Menu
Notes
Index
• In the [Night Scene] and [Night Portrait] modes, the shutter speed is slower, so use of a tripod is
recommended to prevent the image from blurring.
• In the [Hand-held Twilight] or [Anti Motion Blur] mode, the shutter clicks 6 times and an image is
recorded.
• If you select [Hand-held Twilight] or [Anti Motion Blur] with [RAW & JPEG], the image quality
becomes [Fine] temporarily.
• Reducing blur is less effective even in [Hand-held Twilight] or [Anti Motion Blur] when shooting the
following subjects:
– Subjects with erratic movement.
– Subjects that are too close to the camera.
– Subjects with a repeating pattern such as tiles, and subjects with little contrast such as sky, sandy
beach, or lawn.
– Subjects with constant change such as waves or water falls.
• In the case of [Hand-held Twilight] or [Anti Motion Blur], block noise may occur when using a light
source that flickers, such as fluorescent lighting.
• The minimum distance that you can come close to a subject does not change even if you select [Macro].
For the minimum in-focus range, refer to the minimum distance of the lens attached to the camera.
56GB
Table of
contents
Sweep Panorama
Allows you to create a panoramic image from composed images.
Sample photo
1 Set the shooting mode to
(Sweep Panorama).
2 Turn the control wheel to select a shooting direction.
3 Point the camera at the subject for which you want to set the brightness
and focus, and then press the shutter button halfway down.
Menu
4 Keep the shutter button pressed halfway
down and point the camera at the edge of
the subject.
This part will not be taken.
5 Press the shutter button fully down.
Index
6 Pan the camera to the end, following the
guidance on the LCD screen.
Guidance bar
Notes
• If you cannot pan the camera across the entire subject within the given time, a gray area occurs in the
composed image. If this happens, move the camera fast to record a full panoramic image.
• When you select [Wide] in [Image Size], you may not be able to pan the camera across the entire subject
within the given time. In such cases, we recommend that you select [Standard] in [Image Size].
• The camera shoots continuously during [Sweep Panorama] recording, and the shutter continues to click
until shooting is finished.
• Since several images are stitched together, the stitched part will not be recorded smoothly.
• Under low light conditions, panoramic images may be blurred.
• Under flickering lights such as fluorescent light, the brightness or color of the combined image is not
always the same.
• When the panoramic shot overall and the angle in which you fixed the focus and exposure with AE/AF
lock are extremely different in brightness, color and focus, the shooting will not be successful. If this
happens, change the lock angle and shoot again.
57GB
Continued r
Pan the camera in an arc with a constant velocity and in the same direction as the indication
on the LCD screen. [Sweep Panorama] is better suited for still subjects, rather than moving
ones.
Sample photo
z Tips for shooting a panoramic image
Table of
contents
• [Sweep Panorama] is not suitable when shooting the following subjects:
– Subjects in motion.
– Subjects that are too close to the camera.
– Subjects with a repeating pattern such as tiles, and subjects with little contrast such as sky, sandy
beach, or lawn.
– Subjects with constant change such as waves or water falls.
– Subjects with the sun or electric lights, etc. that are much brighter than surroundings.
• [Sweep Panorama] recording may be discontinued in the following situations:
– You pan the camera too fast or too slow.
– There is too much camera-shake.
Menu
Index
• When using a zoom lens, it is recommended that you use it with W side.
• Determine the scene and press the shutter button halfway, so that you can lock the focus
and exposure. Then, press the shutter button fully down and pan the camera.
• If greatly varied shapes or scenery are concentrated along a screen edge, the image
composition may fail. In such case, adjust the frame composition so that the section is in
the center of the image, and then shoot again.
• You can select shooting directions using MENU t [Image Size] t [Panorama
Direction] and you can also select the image size using MENU t [Image Size] t
[Image Size].
z Playing back scrolling panoramic images
You can scroll panoramic images from the beginning to the end by pressing the center of the
control wheel while panoramic images are being displayed. Press the center of the control
wheel again to pause.
• Panoramic images shot with other cameras may not be
displayed or scrolled correctly.
This indicator shows the
displayed area of the whole
panoramic image.
58GB
You can shoot with the desired exposure setting by adjusting both the shutter speed and
aperture.
1 Set the shooting mode to
Table of
contents
Manual Exposure
(Manual Exposure).
Each time you press the bottom of the control wheel, it
switches between the shutter speed and aperture value.
Shutter speed
Sample photo
2 Select the shutter speed or aperture value
by pressing the bottom of the control wheel.
3 Turn the control wheel to select shutter
speed/aperture value.
Aperture (F-value)
Menu
Check the exposure value at “MM” (metered manual).
Toward +: Images become brighter.
Toward –: Images become darker.
0: Appropriate exposure analyzed by the camera
4 Adjust the focus and shoot the subject.
You can adjust the shutter speed and aperture value also
during movie recording.
Index
Metered manual
Notes
• You cannot select [Flash Off] and [Autoflash] in [Flash Mode]. When you want to fire the flash, raise the
flash by pressing (Flash pop-up) button. When you do not fire the flash, push down the flash.
• The
(SteadyShot warning) indicator does not appear in manual exposure mode.
• The ISO setting [ISO AUTO] is set to [ISO 100] in manual exposure mode. Set the ISO sensitivity as
necessary.
• The brightness of the image on the LCD screen may differ from the actual image being shot.
• When using an A-mount lens (sold separately), you can adjust the shutter speed and aperture when
focusing manually during movie recording.
• If you shoot an image using the camera’s fastest shutter speed, the screen may display uneven exposure,
depending on the shooting conditions. To avoid uneven exposure, change the shooting conditions (shift
the shutter speed one step lower, etc.) before shooting.
59GB
Continued r
You can shoot trails with long exposure. BULB is suitable for shooting trails of light,
such as fireworks.
(Manual Exposure).
2 Select the shutter speed by pressing the bottom of the control wheel.
Menu
3 Turn the control wheel counterclockwise
until [BULB] is indicated.
Sample photo
1 Set the shooting mode to
Table of
contents
BULB
[BULB]
4 Press the shutter button halfway down to adjust the focus.
5 Press and hold the shutter button for the duration of the shooting.
Index
As long as the shutter button is pressed, the shutter remains open.
Notes
• Since the shutter speed becomes slow and the camera-shake tends to occur more easily, it is
recommended that you use a tripod. When using a tripod, turn off the SteadyShot function as this may
cause a malfunction.
• The longer the exposure time, the more conspicuous the noise on the image.
• After shooting, noise reduction will be done for the same amount of time that the shutter was open. You
cannot do any further shooting during the reduction.
• When the [Smile Shutter] or [Auto HDR] function is activated, you cannot set the shutter speed to
[BULB].
• If the [Smile Shutter] or [Auto HDR] function is used with the shutter speed set to [BULB], the shutter
speed is temporarily set to 30 seconds.
• We recommend that you start BULB shooting while the temperature of the camera is moderate to prevent
the quality of the image from deteriorating.
60GB
You can express the movement of a moving subject in various ways by adjusting the
shutter speed. You can adjust the shutter speed also during movie recording.
1 Set the shooting mode to
Table of
contents
Shutter Priority
(Shutter Priority).
3 Adjust the focus and shoot the subject.
The aperture is automatically adjusted to obtain proper exposure.
Notes
Menu
• You cannot select [Flash Off] and [Autoflash] in [Flash Mode]. When you want to fire the flash, raise the
flash by pressing (Flash pop-up) button. When you do not fire the flash, push down the flash.
• The
(SteadyShot warning) indicator does not appear in shutter speed priority mode.
• When the shutter speed is 1 second or longer, noise reduction will be done after shooting for the same
amount of time that the shutter was open. You cannot shoot any more while noise reduction is in
progress.
• If proper exposure cannot be obtained after setup, the aperture value on the shooting screen blinks.
Although you can shoot as it is, resetting is recommended.
• The brightness of the image on the LCD screen may differ from the actual image being shot.
• When using an A-mount lens (sold separately), you can adjust the shutter speed when focusing manually
during movie recording.
• If you shoot an image using the camera’s fastest shutter speed, the screen may display uneven exposure,
depending on the shooting conditions. To avoid uneven exposure, change the shooting conditions (shift
the shutter speed one step lower, etc.) before shooting.
Sample photo
2 Select the desired value by turning the control wheel.
Index
z Shutter speed
When a faster shutter speed is used, a moving subject such as a
running person, cars, and sea spray appears as if they are
stopped.
When a slower shutter speed is used, a trailing image of the
movement of the subject is captured to make more natural and
dynamic image.
61GB
You can shoot by adjusting the aperture and changing the range in focus, or by
defocusing the background. You can also adjust the aperture value during movie
recording.
1 Set the shooting mode to
Table of
contents
Aperture Priority
(Aperture Priority).
Smaller F-value: The subject is in focus, but things in front of and beyond the subject are
blurred.
Larger F-value: The subject and its foreground and background are all in focus.
3 Adjust the focus and shoot the subject.
The shutter speed is automatically adjusted to obtain proper exposure.
Sample photo
2 Select the desired value by turning the control wheel.
Notes
Menu
• You cannot select [Flash Off] and [Autoflash] in [Flash Mode]. When you want to fire the flash, raise the
flash by pressing (Flash pop-up) button. When you do not fire the flash, push down the flash.
• If proper exposure cannot be obtained after setup, the shutter speed on the shooting screen blinks.
Although you can shoot as it is, resetting is recommended.
• The brightness of the image on the LCD screen may differ from the actual image being shot.
• When using an A-mount lens (sold separately), you can adjust the aperture when focusing manually
during movie recording.
z Aperture
Index
Smaller F-value (opening the aperture) narrows the range that
is in focus. This allows you to put the subject in sharp focus
and blur things in front of and beyond the subject. (Depth of
field becomes shallower.)
Larger F-value (narrowing down the aperture) widens the range
that is in focus. This allows you to shoot the depth of the
scenery. (Depth of field becomes deeper.)
62GB
While exposure (shutter speed and aperture) is adjusted by the camera automatically, you
can set shooting functions such as ISO sensitivity, Creative Style, D-Range optimizer.
1 Set the shooting mode to
Table of
contents
Program Auto
(Program Auto).
3 Adjust the focus and shoot the subject.
Notes
• You cannot select [Flash Off] and [Autoflash] in [Flash Mode]. When you want to fire the flash, raise the
flash by pressing (Flash pop-up) button. When you do not fire the flash, push down the flash.
Sample photo
2 Set the shooting functions to your desired settings.
z Program Shift
Menu
You can change the shutter speed and aperture (F-value)
combination without changing the exposure you set, when
you do not use the flash.
Turn the control wheel to select the shutter speed and
aperture (F-value) combination.
• The recording mode indicator changes from P to P*.
Index
63GB
In dark environments, use the flash to shoot the subject brightly and to prevent camerashake. When shooting against the sun, use the flash to lighten the image of the backlit
subject.
2 When you want to fire the flash, press the
(Flash pop-up) button to pop up the
flash.
(Flash pop-up) button
Does not fire even if the flash is raised.
(Autoflash)
Fires in dark environments or when shooting towards bright light.
(Fill-flash)
Fires every time you trigger the shutter.
Fires every time you trigger the shutter. Slow sync shooting allows
you to shoot a clear image of both the subject and the background by
slowing the shutter speed.
(Rear Sync.)
Fires right before the exposure is completed every time you trigger the
shutter. Rear sync shooting allows you to shoot a natural image of the
trail of a moving subject such as a moving car or a walking person.
Notes
Index
(Slow Sync.)
Menu
(Flash Off)
Sample photo
1 MENU t [Camera] t [Flash Mode] t
desired mode.
Table of
contents
Flash Mode
•
•
•
•
•
The default setting depends on the shooting mode.
Available flash mode depends on the shooting mode.
You cannot use the flash when recording movies.
The corners of a recorded image may be shaded, depending on the lens.
When an external flash (sold separately) is attached to Multi Interface Shoe, the state of the external flash
has priority over the setting of the camera. You cannot use the camera’s internal flash.
• Do not use a commercially available flash with high-voltage synchro terminals or with reverse polarity.
• Accessories that can be used with the traditional A-mount accessory shoe (Auto-lock Accessory Shoe)
can also be attached using the Shoe Adaptor (sold separately).
z Tips on shooting with the flash
• The lens hood may block the light of the flash. Remove the lens hood when using the
flash.
• When using the flash, shoot the subject at a distance of 1 m (3.3 feet) or greater.
• When shooting a backlit subject, select [Fill-flash]. The flash will operate even in bright
daylight, and make faces come out brighter.
64GB
Table of
contents
AF/MF Select
Selects auto focusing or manual focusing.
1 MENU t [Camera] t [AF/MF Select] t desired mode.
Focuses automatically.
(DMF)
After focusing automatically, make fine focus adjustment
manually (Direct Manual Focus).
(Manual
Focus)
Adjusts the focus manually. Turn the focusing ring right or left
to make the subject look clearer.
Sample photo
(Autofocus)
Notes
z Using manual focusing effectively
Menu
• If you turn the focusing ring when [DMF] or [Manual Focus] is selected, the image is enlarged
automatically to enable you to check focus area easier. You can prevent the image from being enlarged
by selecting MENU t [Setup] t [MF Assist] t [Off].
“Focus fixing” is convenient when you can predict the distance
to the subject. With “Focus fixing,” you can fix the focus in
advance to the distance at which the subject is to pass.
Index
z Measuring the exact distance to the subject
The
mark shows the location of the image
sensor*. When you measure the exact distance
between the camera and the subject, refer to the
position of the horizontal line. The distance from
the lens contact surface to the image sensor is
about 18 mm (23/32 in.).
18 mm
(23/32 in.)
* The image sensor is the part that converts the light
source to a digital signal.
• If the subject is closer than the minimum shooting
distance of the attached lens, the focus cannot be
confirmed. Make sure you put enough distance
between the subject and the camera.
65GB
Continued r
1 MENU t [Camera] t [AF/MF Select] t [DMF].
2 Press the shutter button halfway down to focus automatically.
Table of
contents
DMF (Direct Manual Focus)
3 Keep the shutter button halfway down, rotate the focusing ring of the lens
to achieve a sharper focus.
Sample photo
Notes
• [Autofocus Mode] is fixed to [Single-shot AF].
Menu
Index
66GB
Selects the focusing area. Use this function when it is difficult to get the proper focus in
auto focus mode.
Table of
contents
Autofocus Area
1 MENU t [Camera] t [Autofocus Area] t desired mode.
AF range finder frame
The camera uses the AF area located in
the center area exclusively.
Menu
(Center)
The camera determines which of the 25
AF areas is used for focusing.
When you press the shutter button
halfway down in still image shooting
mode, a green frame is displayed around
the area that is in focus.
• When the [Face Detection] function is
active, AF operates with priority on
faces.
Sample photo
(Multi)
AF range finder frame
Moves the focusing area to focus on a
small subject or narrow area by pressing
the top/bottom/right/left of the control
wheel.
Index
(Flexible
Spot)
AF range finder frame
Notes
• When this function is set to other than [Multi], you cannot use the [Face Detection] function.
• [Multi] is selected when using the following functions:
– [Intelligent Auto]
– [Superior Auto]
– [Scene Selection]
– [Sweep Panorama]
– [Smile Shutter]
• [Multi] is selected during movie recording. But, if you use an E-mount lens and press the shutter button
half way down during recording, the autofocus area you set before you started recording is used for
focusing.
• When the AF illuminator is used, the setting of [Autofocus Area] is invalid and the AF area is indicated
with a dotted line. AF operates with priority on and around the center area.
67GB
Selects the focus method to suit the movement of the subject.
1 MENU t [Camera] t [Autofocus Mode] t desired mode.
The camera focuses and the focus is locked when you press the
shutter button halfway down. Use this mode when the subject is
motionless.
(Continuous
The camera continues to focus while the shutter button is pressed
and held halfway down. Use this mode when the subject is in
motion.
AF)
Sample photo
(Single-shot
AF)
Table of
contents
Autofocus Mode
Notes
Menu
• [Single-shot AF] is selected when using the following functions:
– [Intelligent Auto]
– [Superior Auto]
– [Self-timer]
– [Scene Selection], excluding [Sports Action]
– [Sweep Panorama]
– [Smile Shutter]
• [Continuous AF] is selected when the shooting mode is set to [Sports Action] in [Scene Selection].
• In [Continuous AF] mode, the audible signals will not sound when the subject is in focus.
Index
68GB
Table of
contents
Tracking Focus
Continuously track a moving subject.
1 MENU t [Camera] t [Tracking Focus].
A target frame appears.
The camera starts tracking the subject.
To cancel the tracking feature, select
.
Target frame
3 Press the shutter button fully down.
Sample photo
2 Align the target frame with the subject to be
tracked, and select OK.
Notes
Index
z Tracking the face you want to shoot
Menu
• Tracking may be difficult in the following situations:
– The subject is moving too quickly.
– The subject is too small, or too large.
– The contrast between the subject and the background is poor.
– It is dark.
– The ambient light changes.
• When [Tracking Focus] is activated, the custom setting of soft key B is invalid.
• You cannot use [Tracking Focus] with the following functions:
– [Hand-held Twilight], [Anti Motion Blur] in [Scene Selection]
– [Sweep Panorama]
– [Manual Focus]
– The zoom feature of the camera
The camera stops tracking a subject when the subject moves off of the screen. When [Face
Detection] is set to [On] and the subject to be tracked is a face, if the face disappears from
the screen while the camera is tracking, and then returns to the screen, the camera focuses on
that face again.
• If you trigger [Smile Shutter] while tracking a face, the face becomes the target of the
smile detection feature.
• If you set a face as a target, the camera tracks the body when the face is not visible on the
LCD screen. You can set whether to preferentially-track a certain face or not using [Face
Priority Tracking] (page 126).
69GB
With the [Zoom] feature of the camera, the camera allows you to use a higher
magnification zoom than the optical zoom factor of the zoom lens to magnify the image.
The maximum zoom scale that can be set with the [Zoom] feature of the camera depends
on the setting of [Image Size] (page 80), [Clear Image Zoom] (page 114), or [Digital
Zoom] (page 115).
2 MENU t [Camera] t [Zoom] t desired value.
The zoom features available with this camera
Sample photo
1 When using a zoom lens, magnify the image with the zoom ring.
Table of
contents
Zoom
The zoom feature of the camera provides a higher magnification zoom by combining
various zoom features. The icon displayed on the LCD screen changes as follows,
according to the selected zoom feature.
Menu
Zoom scale (low)
Zoom scale (high)
Smart Zoom: You can magnify images by trimming them partially. (Available only
when [Image Size] is set to [M] or [S] (page 80).)
2
Clear Image Zoom: You can magnify images using a high-quality image process
(page 114).
3
Digital Zoom: You can magnify images using an image process. (The default setting is
[Off] (page 115).)
1
Index
70GB
Continued r
Your purpose
Off
Giving priority to image On
quality when zooming
images.
Off
On
On
–
M
About
1.4×
S
About 2×
L
About
2×*
M
About
2.8×
S
About 4×
L
About 4×
M
About
5.6×
S
About 8×
Index
* Zoom scale in the default setting
Menu
Giving priority to
higher magnification
when zooming images.
L
Sample photo
Zooming images by
Off
trimming them in the
available range (without
deterioration of image
quality).
Table of
contents
Clear Digital Image Zoom scale with optical zoom
Image Zoom Size
Zoom
Notes
• You cannot set this item when using the following functions:
– [Sweep Panorama]
– [Smile Shutter]
– [RAW & JPEG] in [Quality]
• When attaching a lens with power zoom, the camera shifts automatically to the zoom feature of the
camera when the magnification scale is greater than that of the optical zoom.
• You cannot use [Clear Image Zoom] when the [Drive Mode] is set to continuous or bracket shooting.
• You cannot use the Smart Zoom or [Clear Image Zoom] function with movies. If you press the MOVIE
button during a zoom operation, the zooming position will return to the optical zoom range of your lens.
When [Digital Zoom] is set to [On], the camera zooms in at the [Digital Zoom] range.
• When you use the zoom feature of the camera, the setting of [Autofocus Area] is invalid and the AF area
is indicated with a dotted line. AF operates with priority on and around the center area. Also, [Metering
Mode] is fixed to [Multi].
• The zoom speed differs depending on which lens with power zoom you use. Confirm the operation of the
lens before shooting.
z The quality of the zoom feature of the camera
As the image is zoomed by digital processing in [Clear Image Zoom] and [Digital Zoom],
the image quality deteriorates compared to that before zooming was used. If you use a zoom
lens, we recommend that you fully zoom in on an image using the zooming ring first, and
then use the zoom feature of the camera if you need further zooming.
71GB
Detects the faces of your subjects and adjusts the focus, exposure, flash settings and
perform image processing automatically. You can select the priority face to be focused
on.
Face Detection frame (gray/magenta)
This frame appears on a detected face that is not the face with the
priority focus. The magenta frame appears on a face that is registered
with [Face Registration].
(On (Regist.
Faces))
(On)
Focuses on faces registered so as to have priority.
Selects the face which the camera is to automatically focus on.
Does not use the [Face Detection] function.
Notes
Index
(Off)
Menu
1 MENU t [Camera] t [Face Detection] t desired mode.
Sample photo
Face Detection frame (white)
When the camera detects more than 1 subject, the camera will judge
which is the main subject and set focus by priority. The Face Detection
frame for the main subject will turn white. The frame for which the focus
is set will turn green by pressing the shutter button halfway down.
Table of
contents
Face Detection
• You cannot use [Face Detection] with the following functions:
– [Sweep Panorama]
– [Manual Focus]
– The zoom feature of the camera
• You can select [Face Detection] only when [Autofocus Area] is set to [Multi], and [Metering Mode] is
also set to [Multi].
• Up to 8 faces of your subjects can be detected.
• During [Smile Shutter] shooting, [Face Detection] is automatically set to [On (Regist. Faces)] even if it is
set to [Off].
72GB
If you register faces in advance, the camera can detect the registered face as a priority
when [Face Detection] is set to [On (Regist. Faces)].
Table of
contents
Face Registration
1 MENU t [Camera] t [Face Registration] t desired mode.
Registers a new face.
Order Exchanging Changes the priority of faces previously registered.
Delete
Deletes a registered face. Select a face and press OK.
Delete All
Deletes all registered faces.
Sample photo
New Registration
New Registration
Menu
1 MENU t [Camera] t [Face Registration] t [New Registration].
2 Align the guide frame with the face to be registered, and press the shutter
button.
3 When a confirmation message appears, select OK.
Notes
Index
• Up to 8 faces can be registered.
• Shoot the face from the front in a brightly lit place. The face may not be registered correctly if it is
obscured by a hat, a mask, sunglasses, etc.
• Even if you execute [Reset Default], registered faces are not deleted. When you execute [Factory Reset],
all the registered faces are deleted.
• Even if you execute [Delete], the data for registered face will remain in the camera. To delete the data for
registered faces from the camera, select [Delete All].
Order Exchanging
1 MENU t [Camera] t [Face Registration]
t [Order Exchanging].
2 Select a face for which you want to change
the priority.
3 Select the priority level.
The smaller the number of the position, the higher the
priority.
73GB
Table of
contents
Smile Shutter
When the camera detects a smile, the shutter is released automatically.
1 MENU t [Camera] t [Smile Shutter] t
[On].
3 Wait for a smile to be detected.
Face Detection frame
When the smile level exceeds the b point on the
(orange)
indicator, the camera records images automatically.
Smile Detection indicator
If you press the shutter button during [Smile Shutter]
shooting, the camera shoots the image, and then returns
to [Smile Shutter] mode.
(Off)
(On)
Menu
4 To exit [Smile Shutter] mode, MENU t [Camera] t [Smile Shutter] t
[Off].
Sample photo
2 To set the sensitivity to detect a smile,
OPTION t desired setting.
Does not use the Smile Shutter.
Uses the Smile Shutter.
Index
You can set the sensitivity to detect a smile with OPTION.
(On: Big Smile) Detects a big smile.
(On: Normal
Smile)
Detects a normal smile.
(On: Slight
Smile)
Detects even a slight smile.
Notes
• You cannot use [Smile Shutter] with the following functions:
– [Hand-held Twilight], [Anti Motion Blur] in [Scene Selection]
– [Sweep Panorama]
– [Manual Focus]
• If you set [Smile Shutter] to [On] while the zoom feature of the camera is being used, the [Zoom] feature
of the camera is canceled.
• Smiles may not be detected correctly depending on the conditions.
• The [Drive Mode] turns to [Single Shooting] automatically.
74GB
Continued r
1 Do not cover the eyes with the front hair.
Do not obscure the face by a hat, masks, sunglasses, etc.
3 Give a clear smile with an open mouth.
The smile is easier to be detected when the teeth are shown.
• The shutter operates when any person whose smile is detected.
• If the camera detects a face during tracking focus or detects a registered face, the camera
detects the smile of that face only.
• If a smile is not detected, set the sensitivity with OPTION.
Sample photo
2 Try to orient the face in front of the camera and be as level as
possible.
Keep the eyes narrowed.
Table of
contents
z Tips for better capturing of smiles
Menu
Index
75GB
When the camera detects and shoots faces, subjects shot with macro or subjects captured
using [Tracking Focus], the captured image is automatically trimmed into a suitable
composition. Both the original and the trimmed images are saved. The trimmed image is
recorded in the same size as the original image size.
Table of
contents
Auto Object Framing
Sample photo
1 MENU t [Camera] t [Auto Object Framing] t desired mode.
(Off)
Does not use the [Auto Object Framing] function. (The camera
saves only the original image.)
(Auto)
Uses the [Auto Object Framing] function.
Index
Notes
• You cannot use [Auto Object Framing] with the following functions:
– [Hand-held Twilight], [Sports Action], [Anti Motion Blur] in [Scene Selection]
– [Sweep Panorama]
– [Cont. Shooting]
– [Spd Priority Cont.]
– [Bracket: Cont.]
– [Manual Focus]
– [Soft Focus], [HDR Painting], [Rich-tone Mono.], [Miniature] in [Picture Effect]
– [RAW & JPEG] in [Quality]
– [Auto HDR]
– The zoom feature of the camera
• The trimmed image may not be the best possible composition, depending on the shooting conditions.
• When [Face Detection] is set to [Off], [Auto Object Framing] with faces is not available.
Menu
The
icon on the screen turns green when the camera decides that an image being
captured can be trimmed.
After the shot, a frame showing the trimmed area is displayed on the auto review screen.
76GB
Sets the effect used for shooting the skin smoothly in the [Face Detection] function.
1 MENU t [Camera] t [Soft Skin Effect] t [On].
Table of
contents
Soft Skin Effect
2 To set the intensity of the Soft Skin Effect, OPTION t desired setting.
(Off)
Uses the [Soft Skin Effect] function.
Does not use the [Soft Skin Effect] function.
You can set the intensity of the [Soft Skin Effect] with OPTION.
Sets [Soft Skin Effect] to high.
(Mid)
Sets [Soft Skin Effect] to medium.
(Low)
Sets [Soft Skin Effect] to low.
Notes
Index
• You cannot use [Soft Skin Effect] with the following functions:
– Movie recording
– [Cont. Shooting]
– [Spd Priority Cont.]
– [Bracket: Cont.]
– [Self-timer(Cont)]
– [Sports Action] in [Scene Selection]
– [Sweep Panorama]
• This function may not work, depending on your subject.
Menu
(High)
Sample photo
(On)
77GB
Allows you to search through all shooting tips in the camera.
Turn the control wheel to scroll the text up and down.
Sample photo
1 MENU t [Camera] t [Shooting Tip List].
2 Search for the desired shooting tip.
Table of
contents
Shooting Tip List
Menu
Index
78GB
Allows you to select the screen display modes that can be selected with [Display
Contents] (page 39) in shooting mode.
Table of
contents
DISP Button(Monitor)
1 MENU t [Camera] t [DISP Button(Monitor)].
The items marked with
are available.
Shows basic shooting information.
Graphically shows the shutter speed and aperture
value, except for when [Shoot Mode] is set to
[Sweep Panorama].
Display All Info.
Shows recording information.
Big Font Size
Disp.
Shows only major items in a larger size.
No Disp. Info.
Does not show recording information.
Histogram
Displays the luminance distribution graphically.
Menu
Graphic Display
Sample photo
2 Select the desired mode.
Index
79GB
The image size determines the size of the image file that is recorded when you record an
image.
The larger the image size, the more detail will be reproduced when the image is printed
on large-format paper. The smaller the image size, the more images can be recorded.
Sample photo
1 MENU t [Image Size] t [Image Size] t desired mode.
Still
Image size when [Aspect Ratio] is 3:2
Usage guidelines
5456 × 3632 pixels
For prints up to A3+ size
M: 10M
3872 × 2576 pixels
For prints up to A4 size
S: 5.0M
2736 × 1824 pixels
For prints L/2L size
Image size when [Aspect Ratio] is 16:9
Usage guidelines
L: 17M
5456 × 3064 pixels
M: 8.4M
3872 × 2176 pixels
S: 4.2M
2736 × 1536 pixels
Menu
L: 20M
Table of
contents
Image Size
For viewing on a high-definition TV
Index
Notes
• When you print still images recorded with 16:9 aspect ratio, both edges may be cut off.
Panorama
The image size varies depending on the [Panorama Direction] setting.
(Standard)
Shoots images using standard size.
Vertical: 3872 × 2160 pixels
Horizontal: 8192 × 1856 pixels
(Wide)
Shoots images using wide size.
Vertical: 5536 × 2160 pixels
Horizontal: 12416 × 1856 pixels
Notes
• When you print panoramic images, both edges may be cut off.
80GB
Continued r
The images appear differently, depending on the mode selected.
Wide
The images are scrolled when you press the center of the control wheel.
Sample photo
Standard
Table of
contents
z Tips for selecting the image size
Menu
Index
81GB
Sets the aspect ratio of still images.
1 MENU t [Image Size] t [Aspect Ratio] t desired mode.
Standard aspect ratio. Suitable for prints.
16:9
For viewing on a high-definition TV.
Notes
• You cannot set this item when shooting in [Sweep Panorama] mode.
Sample photo
3:2
Table of
contents
Aspect Ratio
Menu
Index
82GB
Selects the compression format of still images.
1 MENU t [Image Size] t [Quality] t desired mode.
FINE (Fine)
File format: JPEG
The image is compressed in the JPEG format when recorded.
Since the compression rate of [Standard] is higher than that of
[Fine], the file size of [Standard] is smaller than that of [Fine].
This will allow more files to be recorded on 1 memory card, but
the image quality will be lower.
• When images are not going to be modified using your
computer, we recommend that you select [Fine] or [Standard].
STD (Standard)
Menu
File format: RAW (Records using the RAW compression
format.) + JPEG
A RAW image and a JPEG image are created at the same time.
This is suitable when you need 2 image files, a JPEG for
viewing, and a RAW for editing.
• The image quality is fixed to [Fine], and the image size is
fixed to [L].
Sample photo
RAW+J (RAW &
JPEG)
Table of
contents
Quality
Notes
Index
• You cannot set this item when shooting in [Sweep Panorama] mode.
• You cannot add DPOF (print order) registration to RAW format images.
• You cannot use [Auto HDR] with [RAW & JPEG] images.
z RAW images
A RAW format file is raw data that has not been through any kind of digital processing.
RAW files are different from more general file formats such as JPEG files, and contain raw
material to be processed for professional purposes.
You need the “Image Data Converter” in order to open a RAW image recorded on this
camera. With this software, a RAW image can be opened and converted to a common
format, such as JPEG or TIFF, and you can readjust its white balance, color saturation,
contrast, etc.
83GB
Sets the direction to pan the camera when you shoot [Sweep Panorama] images.
1 MENU t [Image Size] t [Panorama Direction] t desired mode.
(Right)
(Up)
(Down)
Pan the camera in the direction you set.
Sample photo
(Left)
Table of
contents
Panorama Direction
Menu
Index
84GB
Selects the movie file format.
1 MENU t [Image Size] t [File Format] t desired mode.
Records mp4 (AVC) movies. This format is suitable for WEB
uploads, e-mail attachments, etc.
• Movies are recorded in MPEG-4 format at about 30 frames/
second, utilizing the progressive scanning system, AAC
audio, and the mp4 format.
• You cannot create a disc from the movies recorded in this
format using the software “PlayMemories Home.”
Index
MP4
Menu
Records 60i/50i movies or 24p/25p movies in AVCHD format.
This file format is suitable for viewing the movie on a
high-definition TV. You can create a Blu-ray Disc, an AVCHD
recording disc, or a DVD-Video disc using the software
“PlayMemories Home.”
• 60i/50i movies are recorded at either 60 fields/second or at
50 fields/second, respectively. Both 60i and 50i movies utilize
the interlace scanning system, Dolby Digital audio, and the
AVCHD format.
• 24p/25p movies are recorded at either 24 frames/second or at
25 frames/second, respectively. Both 24p and 25p movies
utilize the progressive scanning system, Dolby Digital audio,
and the AVCHD format.
Sample photo
AVCHD
Table of
contents
File Format
z Checking 60i or 50i
To check if your camera is a 1080 60i-compatible device or 1080 50i-compatible device,
check for the following marks on the bottom of the camera.
1080 60i-compatible device: 60i
1080 50i-compatible device: 50i
z Playing movies on other devices
This camera uses MPEG-4 AVC/H.264 High Profile for AVCHD format recording.
Movies recorded in AVCHD format with this camera cannot be played by the following
devices.
– Other AVCHD format compatible devices which are not compatible with High Profile
– Devices which are not compatible with the AVCHD format
This camera also uses MPEG-4 AVC/H.264 Main Profile for MP4 format recording.
For this reason, movies recorded in MP4 format with this camera cannot be played on
devices other than those that support MPEG-4 AVC/H.264.
85GB
Selects the image size, frame rate, and image quality for movie recording. The higher the
data rate (average bit-rate) per second, the higher the image quality.
Table of
contents
Record Setting
1 MENU t [Image Size] t [Record Setting] t desired mode.
Recording
Maximum 24 Mbps
Records high image quality movies of
1920 × 1080 (60i/50i).
60i 17M(FH)*
50i 17M(FH)**
Average 17 Mbps
Records standard image quality movies
of 1920 × 1080 (60i/50i).
24p 24M(FX)*
25p 24M(FX)**
Maximum 24 Mbps
Records high image quality movies of
1920 × 1080 (24p/25p). This produces a
cinema-like atmosphere.
24p 17M(FH)*
25p 17M(FH)**
Average 17 Mbps
Records standard image quality movies
of 1920 × 1080 (24p/25p). This produces
a cinema-like atmosphere.
[File Format]: [MP4]
Bit-rate
Recording
1440×1080 12M
Average 12 Mbps
Records movies of 1440 × 1080.
VGA 3M
Average 3 Mbps
Records movies of VGA size.
Notes
Index
* 1080 60i-compatible device
** 1080 50i-compatible device
Menu
Bit-rate
60i 24M(FX)*
50i 24M(FX)**
Sample photo
[File Format]: [AVCHD]
• Movies recorded with the [60i 24M(FX)/50i 24M(FX)]/[24p 24M(FX)/25p 24M(FX)] setting in [Record
Setting] are converted by “PlayMemories Home” in order to create an AVCHD recording disc. This
conversion can take a long time. Also, you cannot create a disc in the original image quality. If you want
to keep the original image quality, store your movies on a Blu-ray Disc.
• When playing back 24p/25p movies, a TV compatible with 24p/25p is necessary. If your TV is not
compatible with 24p/25p, the movies are output as 60i/50i.
z Checking 60i or 50i
To check if your camera is a 1080 60i-compatible device or 1080 50i-compatible device,
check for the following marks on the bottom of the camera.
1080 60i-compatible device: 60i
1080 50i-compatible device: 50i
86GB
Adjusts the color tones according to the ambient light conditions.
Use this feature when the color tones of the image did not come out as you expected, or
when you want to change the color tones on purpose for photographic expression.
Table of
contents
White Balance
1 MENU t [Brightness/Color] t [White Balance] t desired mode.
AWB (Auto WB)
(Daylight)
(Shade)
The camera automatically detects the light source and
adjusts the color tones.
When you select an option to suit a specific light source,
the color tones are adjusted for that light source (preset
white balance).
Sample photo
You can finely adjust the color tones with OPTION.
To adjust the white balance to suit a specific light source, see the explanation on each mode.
(Cloudy)
Menu
(Incandescent)
(Fluor.: Warm White)
(Fluor.: Cool White)
(Fluor.: Day White)
(Fluor.: Daylight)
(C.Temp./Filter)
Adjusts the color temperature depending on the light
source. Achieves the effect of CC (Color Compensation)
filters for photography.
(Custom)
Allows to use the white balance setting retained by
[Custom Setup].
(Custom Setup)
Index
(Flash)
Memorizes the basic white color (Custom white
balance).
Notes
• [Auto WB] is selected when using the following functions:
– [Intelligent Auto]
– [Superior Auto]
– [Scene Selection]
87GB
Continued r
The apparent color of the subject is affected by the lighting conditions.
The color tones are adjusted automatically, but you can also adjust them manually using the
[White Balance] function.
Daylight
Cloudy
Fluorescent
Incandescent
Characteristics
of light
White
(standard)
Bluish
Green-tinged
Reddish
1 MENU t [Brightness/Color] t [White Balance] t desired mode.
Menu
Fine adjusting the color tones
Sample photo
Weather/
lighting
Table of
contents
z Effects of lighting conditions
2 As necessary, OPTION t adjust the color tones by pressing the top/
bottom/right/left parts of the control wheel.
You can adjust the color tones towards G (green), M (magenta), A (amber) or B (blue).
Index
C.Temp./Filter
1 MENU t [Brightness/Color] t [White Balance] t [C.Temp./Filter].
2 OPTION t select the desired color temperature by turning the control
wheel.
The higher the number, the more reddish the image, and the lower the number, the more
bluish the image.
3 Adjust the color tones by pressing the top/bottom/right/left parts of the
control wheel.
88GB
Continued r
1 MENU t [Brightness/Color] t [White Balance] t [Custom Setup].
2 Hold the camera so that the white area fully covers the AF area located in
the center, and then press the shutter button down.
Table of
contents
Custom White Balance
The shutter clicks and the calibrated values (color temperature and color filter) are displayed.
You can finely adjust the color tones with OPTION.
Notes
Menu
• If the flash is used when the shutter button is pressed, a custom white balance is registered with the flash
light taken into account. Take pictures with the flash in later shootings.
• The message “Custom WB Error” indicates that the value is beyond the expected range, when the flash is
used on a subject in close proximity or a subject with a bright color is in the frame. In such cases, the
value is registered automatically, and the
indicator turns yellow on the recording information
display. You can shoot at this point, but it is recommended that you set the white balance again to get a
more accurate white balance value.
Sample photo
3 To call the custom white balance setting, MENU t [Brightness/Color] t
[White Balance] t [Custom].
Index
89GB
Selects the metering mode that sets which part of the subject to measure to determine the
exposure.
Table of
contents
Metering Mode
1 MENU t [Brightness/Color] t [Metering Mode] t desired mode.
(Center)
Measures the average brightness of the entire screen, while
emphasizing the central area of the screen (Center-weighted
metering).
(Spot)
Measures only the central area (Spot
metering). This function is useful when
the subject is backlit or when there is
strong contrast between the subject and
the background.
Menu
Measures light on each area after dividing the total area into
multiple areas and determines the proper exposure of the entire
screen (Multi-pattern metering).
Sample photo
(Multi)
Place the spot metering
circle over the subject.
Notes
Index
• If you set [Metering Mode] to other than [Multi], the [Face Detection] function cannot be used.
• [Multi] is selected when using the following functions:
– Movie recording
– [Intelligent Auto]
– [Superior Auto]
– [Scene Selection]
– The zoom feature of the camera
– [Smile Shutter]
90GB
Adjusts the amount of flash light in 1/3 EV steps in a range of –2.0 EV to +2.0 EV.
Flash compensation changes the amount of flash light only. Exposure compensation
changes the amount of flash light along with the change of the shutter speed and
aperture.
(Flash pop-up) button to pop up the flash.
2 MENU t [Brightness/Color] t [Flash Comp.] t desired value.
Selecting higher values (+ side) makes the flash level higher and images brighter. Selecting
lower values (– side) makes the flash level lower and images darker.
Notes
Menu
• You cannot use [Flash Comp.] with the following functions:
– [Intelligent Auto]
– [Superior Auto]
– [Scene Selection]
– [Sweep Panorama]
– [Bracket: Cont.]
• The higher flash effect may not be visible due to the limited amount of flash light available, if the subject
is outside the maximum range of the flash. If the subject is very close, the lower flash effect may not be
visible.
Sample photo
1 Press the
Table of
contents
Flash Comp.
z Tips to adjust the brightness when shooting people
Index
• It is important to balance the brightness of people against
the dark background in night portraits. You can adjust the
brightness of people near the camera by changing the flash
light intensity.
• If the subject is too far from the flash and still too dark after
adjustment, move closer to your subject.
91GB
Corrects the brightness or contrast.
1 MENU t [Brightness/Color] t [DRO/Auto HDR] t desired mode.
(Off)
(Auto HDR)
Does not use [DRO/Auto HDR].
By dividing the image into small areas, the camera analyzes the
contrast of light and shadow between the subject and the
background, producing the image with the optimal brightness
and gradation.
Shoots 3 images with different exposures, and then overlays the
bright area of the under exposed image and the dark area of the
over exposed image to create an image with rich gradation. 1
image with proper exposure and 1 overlaid image are recorded.
Sample photo
(D-Range
Opt.)
Table of
contents
DRO/Auto HDR
Menu
Notes
• You can select [DRO/Auto HDR] only in the following modes:
– [Manual Exposure]
– [Shutter Priority]
– [Aperture Priority]
– [Program Auto]
Index
D-Range Opt.
Corrects the brightness of the image (DRO: Dynamic Range Optimizer).
1 MENU t [Brightness/Color] t [DRO/Auto HDR] t [D-Range Opt.].
2 OPTION t desired value.
(Auto)
Lv1 – Lv5
Corrects the brightness automatically.
Optimizes the gradations of a recorded image in each area of the
image. Select the optimal level between Lv1 (weak) and Lv5
(strong).
Notes
• [Auto] is selected when using the following functions:
– [Intelligent Auto]
– [Superior Auto]
– [Portrait], [Landscape], [Macro], [Sports Action] in [Scene Selection]
• When shooting with [D-Range Opt.], the image may be noisy. Select the proper level by checking the
recorded image, especially when you enhance the effect.
92GB
Continued r
Widens the range (gradations) so that you can record from bright parts to dark parts in
correct brightness (HDR: High Dynamic Range). 1 image with proper exposure and 1
overlaid image are recorded.
Table of
contents
Auto HDR
1 MENU t [Brightness/Color] t [DRO/Auto HDR] t [Auto HDR].
(Auto HDR:
Exposure Diff.
Auto)
Corrects the exposure difference automatically.
1.0 EV – 6.0 EV
Sets the exposure difference, based on the contrast of the subject.
Select the optimal level between 1.0 EV (weak) and 6.0 EV
(strong).
Menu
Notes
Index
• You cannot start the next shoot until the capture process is fully completed.
• You cannot use this function with [RAW & JPEG] images.
• Since the shutter is released 3 times for a single shot, be cautious of the following:
– Use this function when the subject is motionless or does not blink.
– Do not change the composition before shooting.
• You may not obtain a desired effect depending on the luminance difference of a subject and the shooting
conditions.
• When the flash is used, this function has little effect.
• When the contrast of the scene is low or when significant camera-shake or subject blur has occurred, you
may not be able to obtain good HDR images. If the camera detects such situation,
is displayed on
the recorded image to inform you of this situation. If necessary, change the composition or otherwise
adjust the settings, be careful of blurring, and shoot again.
Sample photo
2 OPTION t desired value.
93GB
You can shoot with an effect filter to obtain the various textures.
1 MENU t [Brightness/Color] t [Picture Effect] t desired mode.
(Off)
Table of
contents
Picture Effect
Disables the Picture Effect function.
Creates the look of a Toy Camera photo
with shaded corners and pronounced
colors.
You can set the color tone with
OPTION.
(Pop Color)
Creates a vivid look by emphasizing
color tones.
Sample photo
(Toy Camera)
Menu
(Posterization)
(Soft Highkey)
(Partial Color)
(High
Contrast Mono.)
Index
(Retro Photo)
Creates a high contrast, abstract look by
heavily emphasizing primary colors, or
in black and white.
You can select primary colors or black
and white with OPTION.
Creates the look of an aged photo with
sepia color tones and faded contrast.
Creates an image with the indicated
atmosphere: bright, transparent,
ethereal, tender, soft.
Creates an image which retains a
specific color, but converts others to
black and white.
You can select a color with OPTION.
Creates a high-contrast image in black
and white.
94GB
Continued r
(Soft Focus)
Creates an image in black and white
with rich gradation and reproduction of
details. The camera releases the shutter
3 times.
(Miniature)
Creates an image which enhances the
subject vividly, with the background
defocused considerably. This effect
may often be found in pictures of
miniature models.
You can select the area to be in focus
with OPTION. The focus on other areas
is greatly reduced.
Index
(Rich-tone
Mono.)
Menu
Creates the look of a painting,
enhancing the colors and details.
The camera releases the shutter 3 times.
You can set the intensity of the effect
with OPTION.
Sample photo
(HDR
Painting)
Table of
contents
Creates an image filled with a soft
lighting effect.
You can set the intensity of the effect
with OPTION.
Notes
• You can select [Picture Effect] only in the following modes:
– [Manual Exposure]
– [Shutter Priority]
– [Aperture Priority]
– [Program Auto]
• You cannot use [Picture Effect] with [RAW & JPEG] images.
• The [Toy Camera] and [Miniature] effects may not be available with the zoom feature of the camera.
• When [Partial Color] is selected, images may not retain the selected color, depending on the subject.
• You cannot check the following effects on the shooting screen, because the camera is still processing the
image that has been just shot. Also, you cannot shoot another image until the image processing is
finished. You cannot use these effects with movies.
– [Soft Focus]
– [HDR Painting]
– [Rich-tone Mono.]
– [Miniature]
• In the case of [HDR Painting] and [Rich-tone Mono.], the shutter is released 3 times for 1 shot. Be careful
about the following:
– Use this function when the subject is motionless or does not blink.
– Do not change the composition before shooting.
When the contrast of the scene is low or when significant camera-shake or subject blur has occurred, you
may not be able to obtain good HDR images. If the camera detects such situation,
/
appear
on the recorded image to inform you of this situation. If necessary, change the composition or otherwise
adjust the settings, be careful of blurring, and shoot again.
95GB
Allows you to select the desired image processing.
You can adjust exposure (shutter speed and aperture) as you like with [Creative Style],
unlike with [Scene Selection] where the camera adjusts the exposure.
Table of
contents
Creative Style
1 MENU t [Brightness/Color] t [Creative Style] t desired mode.
For shooting various scenes with rich gradation and beautiful
colors.
(Vivid)
The saturation and contrast are heightened for shooting striking
images of colorful scenes and subjects such as flowers, spring
greenery, blue sky, or ocean views.
(Portrait)
For shooting the skin color in a soft tone, ideally suited for
shooting portraits.
(Landscape) The saturation, contrast, and sharpness are heightened for
shooting vivid and crisp scenery. Distant landscapes also stand
out more.
(Sunset)
(Contrast),
Style] item.
For shooting the beautiful red of the setting sun.
For shooting images in black and white monotone.
(Saturation), and
(Sharpness) can be adjusted for each [Creative
(Contrast)
The higher the value selected, the more the difference of light
and shadow is accentuated, thus making an impact on an image.
(Saturation)
The higher the value selected, the more vivid the color. When a
lower value is selected, the color of the image is restrained and
subdued.
(Sharpness)
Index
(Black &
White)
Menu
(Standard)
Sample photo
2 When you want to adjust contrast, saturation, or sharpness, OPTION t
desired setting.
Adjusts the sharpness. The higher the value selected, the more
the contours are accentuated, and the lower the value selected,
the more the contours are softened.
Notes
• When [Black & White] is selected, you cannot adjust [Saturation].
• [Standard] is selected when using the following functions:
– [Intelligent Auto]
– [Superior Auto]
– [Scene Selection]
– [Picture Effect] (except [Off])
96GB
Table of
contents
Delete
Allows you to select unwanted images for deletion.
1 MENU t [Playback] t [Delete] t desired mode.
Deletes the selected images. Press the center of the control wheel
to select OK.
All in Folder
Deletes all images in the selected folder, or all AVCHD movies.
All AVCHD view
files
Sample photo
Multiple Img.
Notes
• You can select up to 100 images.
It is easier to delete an image displayed on the screen by selecting
(page 31).
(Delete) of soft key
Menu
z Deleting an image
Index
97GB
Selects the unit of images to be played back.
1 MENU t [Playback] t [Still/Movie Select] t desired mode.
Displays still images by folder.
Folder View(MP4)
Displays MP4 movies by folder.
AVCHD View
Displays AVCHD movies.
Sample photo
Folder View(Still)
Table of
contents
Still/Movie Select
Menu
Index
98GB
Plays back images automatically.
1 MENU t [Playback] t [Slide Show] t desired mode t OK.
Table of
contents
Slide Show
Repeat
Plays back images in a continuous loop.
Off
After all the images have been played back, the Slide Show ends.
Interval
1 Sec
Sets the display interval of images.
Sample photo
On
3 Sec
5 Sec
30 Sec
Menu
10 Sec
Notes
Index
• You cannot pause the Slide Show. To stop the Slide Show, press the center of the control wheel.
• You can play back images in Slide Show when [Still/Movie Select] is set to [Folder View(Still)] only.
• A panoramic image is displayed in full image. To scroll a panoramic image, press the center of the
control wheel when the image is displayed.
99GB
You can specify which still images you shot on the memory card that you want to print
out later.
The
(Print order) mark is displayed on registered images (DPOF: Digital Print
Order Format).
DPOF Setup
Multiple Img.
Selects images to order printing.
1 Select an image and press the center of the control wheel. To
cancel the selection, select the -marked image again.
2 Repeat the operation on all images you want to print.
Cancel All
Clears all DPOF marks.
On
Off
Sets whether or not to date the DPOF marked images when
printing them.
Menu
Date Imprint
Sample photo
1 MENU t [Playback] t [Specify Printing] t desired setting.
Table of
contents
Specify Printing
Notes
Index
• You cannot add the DPOF mark to the following files:
– Movies
– RAW images
• You can add the DPOF mark to up to 999 images.
• DPOF registration is not cleared after printing. It is recommended that you clear the DPOF registration
after you print the still images.
• You can select up to 100 images at a time.
100GB
Selects the number of images to be displayed on the index.
1 MENU t [Playback] t [Image Index] t desired mode.
Displays 6 images.
12 Images
Displays 12 images.
To select a desired folder, select the bar to the left of the
image index screen, and then press the top/bottom parts
of the control wheel. You can switch between still image
playback and movie playback by pressing the center of
the control wheel.
Menu
z Displaying a desired folder
Sample photo
6 Images
Table of
contents
Image Index
Index
101GB
You can check the focus by enlarging a portion of the playback image.
1 MENU t [Playback] t [
Enlarge Image].
Table of
contents
Enlarge Image
2 Adjust the scaling by turning the control wheel.
4 To cancel the enlarged playback, select
.
Notes
• You cannot enlarge the movies.
• During playing back panoramic images, pause first, and then enlarge the image.
The scaling range depends on the image size.
Image size
Scaling range
L
Approx. ×1.0 – ×15.1
M
Approx. ×1.0 – ×10.7
S
Approx. ×1.0 – ×7.6
Menu
z Scaling range
Sample photo
3 Select the portion you want to see by pressing the top/bottom/right/left
side of the control wheel.
Index
102GB
Rotates a still image counter-clockwise. Use this to display a horizontal orientation
image in vertical orientation. Once you rotate the image, the image is played back in the
rotated position, even if you turn off the power.
Sample photo
1 MENU t [Playback] t [Rotate].
Table of
contents
Rotate
2 Press the center of the control wheel.
The image rotates counter-clockwise. The image rotates as you press the center.
Menu
Notes
• You cannot rotate the following files:
– Movies
– Protected images
• You may not be able to rotate images shot with other cameras.
• When viewing images on a computer, the image rotation information may not be reflected depending on
the software.
Index
103GB
Protects recorded images against accidental erasure.
The
mark is displayed on protected images.
Table of
contents
Protect
1 MENU t [Playback] t [Protect] t desired mode.
Applies or cancels the protection of the selected images. Press
the center of the control wheel to select OK.
Cancel All Images
Cancels the protection of all still images.
Cancel All
Movies(MP4)
Cancels the protection of all movies (MP4).
Sample photo
Multiple Img.
Cancel All AVCHD Cancels the protection of all AVCHD movies.
view files
• You can protect up to 100 images at a time.
Menu
Notes
Index
104GB
Adjusts the sound volume of movies in 8 steps.
1 MENU t [Playback] t [Volume Settings] t desired value.
The [Volume Settings] screen appears when you press the bottom of the control wheel while
playing back movies.
You can adjust the volume, while listening to the actual sound.
Sample photo
z Adjusting the volume during playback
Table of
contents
Volume Settings
Menu
Index
105GB
Sets whether or not to fix the exposure when you press the shutter button halfway down.
1 MENU t [Setup] t [AEL w/ shutter] t desired setting.
Fixes the exposure when you press the shutter button halfway
down.
Off
Does not fix the exposure when you press the shutter button
halfway down. Use this mode when you want to adjust focus and
exposure separately. The camera keeps adjusting the exposure
while shooting in [Cont. Shooting] or [Spd Priority Cont.] mode.
Sample photo
On
Table of
contents
AEL w/ shutter
Notes
Menu
• When [Autofocus Mode] is set to [Continuous AF], the [Off] settings for [AEL w/ shutter] is invalid, and
the camera fixes the exposure for the first image when you press the shutter button halfway down. In
[Cont. Shooting] or [Spd Priority Cont.] mode, the camera keeps adjusting the exposure for the remaining
images.
• When [AEL toggle] is assigned to soft key B using [Custom Key Settings], operation using soft key B
will be given priority over the [AEL w/ shutter] settings.
Index
106GB
The AF illuminator supplies fill light to focus more easily on a subject in dark
surroundings.
The red AF illuminator allows the camera to focus easily when the shutter button is
pressed halfway, until the focus is locked.
Auto
Uses the AF illuminator.
Off
Does not use the AF illuminator.
Notes
Menu
• You cannot use the AF illuminator in the following situations:
– [Autofocus Mode] is set to [Continuous AF].
– [Landscape], [Night Scene], [Sports Action] in [Scene Selection]
– [Sweep Panorama]
– Movie recording
– Using an A-mount lens (sold separately).
• When the AF illuminator is used, the setting of [Autofocus Area] is invalid and the AF area is indicated
with a dotted line. AF operates with priority on and around the center area.
Sample photo
1 MENU t [Setup] t [AF Illuminator] t desired setting.
Table of
contents
AF Illuminator
Index
107GB
When using the flash, it is fired 2 or more times before shooting to reduce the red-eye
phenomenon.
Table of
contents
Red Eye Reduction
1 MENU t [Setup] t [Red Eye Reduction] t desired setting.
The flash is always fired to reduce the red-eye phenomenon.
Off
Does not use [Red Eye Reduction].
Notes
Menu
• You cannot use [Red Eye Reduction] in the following situations:
– [Hand-held Twilight] or [Anti Motion Blur] in [Scene Selection]
– [Rear Sync.] in [Flash Mode]
– [Smile Shutter]
– [Sweep Panorama]
• [Red Eye Reduction] may not produce the desired effects. It depends on individual differences and
conditions, such as distance to the subject, or if the subject does not look at the pre-strobe.
Sample photo
On
z What causes the red-eye phenomenon?
Pupils become dilated in dark environments. Flash light is reflected off the blood vessels at
the back of the eye (retina), causing the “red-eye” phenomenon.
Index
Camera
Eye
Retina
108GB
Sets whether or not to show images altered with effects of the exposure compensation,
white balance, [Creative Style], or [Picture Effect] on the LCD screen.
Table of
contents
Live View Display
1 MENU t [Setup] t [Live View Display] t desired setting.
Shows the images with effects applied.
Setting Effect OFF Does not show the images with effects applied.
This setting will allow you to concentrate on the composition of
the subject, as the subject appears on the screen as it is.
The images are always displayed with the appropriate brightness
in the [Manual Exposure] mode.
Sample photo
Setting Effect ON
Notes
Menu
• You can select [Setting Effect OFF] in the following shooting modes only:
– [Manual Exposure]
– [Shutter Priority]
– [Aperture Priority]
– [Program Auto]
• When setting [Live View Display] to [Setting Effect ON], you may have difficulty checking the
composition, as the Live View Display may seem too dark or too bright. If such a phenomenon occurs,
set [Live View Display] to [Setting Effect OFF].
Index
109GB
You can check the recorded image on the LCD screen right after the shooting. You can
change the displayed time.
Table of
contents
Auto Review
1 MENU t [Setup] t [Auto Review] t desired setting.
5 Sec
Displays for the set time.
Selecting (Enlarge Image) allows you to check the enlarged
image.
2 Sec
Off
Does not display.
Sample photo
10 Sec
Notes
Menu
• In auto review, the image will not be displayed in the vertical position even if [Playback Display] is set to
[Auto Rotate].
• Even if [Grid Line] is set to a setting other than [Off], the grid line does not appear in auto review.
• Before the image is displayed, an unprocessed image may be displayed temporarily, depending on the
setting such as [DRO/Auto HDR], [Soft Skin Effect], [Lens Comp.: Distortion].
Index
110GB
Sets whether the grid line is displayed or not. The grid line will help you to adjust the
composition of images.
Table of
contents
Grid Line
1 MENU t [Setup] t [Grid Line] t desired setting.
Square Grid
Square grids make it easier to confirm the horizontal level of
your composition. This is suitable to determine the quality of the
composition when shooting landscape, close-up, or duplicated
images.
Diag. + Square
Grid
Place a subject on the diagonal line to express uplifting and
powerful feeling.
Off
Does not display the grid line.
z Checking the frame for movie recording
Frame for movie
Index
The frame that appears when [Grid Line] is set to a
setting other than [Off] will show the extent of the frame
for movies. This enables you to adjust the composition
before shooting movies.
Menu
Place main subjects close to one of the grid lines that divide the
image into thirds for a well-balanced composition.
Sample photo
Rule of 3rds Grid
111GB
Enhances the outline of in-focus ranges with a specific color in manual focus. This
function is useful for macro or portrait shooting that requires fine focus adjustments.
Table of
contents
Peaking Level
1 MENU t [Setup] t [Peaking Level] t desired setting.
Sets the peaking level to high.
Mid
Sets the peaking level to middle.
Low
Sets the peaking level to low.
Off
Does not use the peaking function.
Sample photo
High
Notes
Menu
• Since the camera judges that sharp areas are in focus, the peaking level differs depending on the subject,
the shooting situation, or the lens used.
Index
112GB
Sets the color used for the peaking function in manual focus.
1 MENU t [Setup] t [Peaking Color] t desired setting.
Enhances outlines in white.
Red
Enhances outlines in red.
Yellow
Enhances outlines in yellow.
Notes
• This function cannot be set when [Peaking Level] is set to [Off].
Sample photo
White
Table of
contents
Peaking Color
Menu
Index
113GB
Sets whether or not to use [Clear Image Zoom] when the zoom feature of the camera is
used (page 70). Provides a higher-quality zoomed image than with [Digital Zoom].
Table of
contents
Clear Image Zoom
1 MENU t [Setup] t [Clear Image Zoom] t desired setting.
Uses the [Clear Image Zoom] feature.
Off
Does not use the [Clear Image Zoom] feature.
Notes
Menu
• You cannot use [Clear Image Zoom] with the following functions:
– [Sweep Panorama]
– [Smile Shutter]
– [RAW & JPEG] in [Quality]
• During movie recording, [Clear Image Zoom] is not available.
• You cannot use [Clear Image Zoom] when [Drive Mode] is set to [Cont. Shooting] or [Bracket: Cont.].
Even if [Clear Image Zoom] is set to [On], the camera automatically shifts the zoom feature to [Digital
Zoom].
Sample photo
On
Index
114GB
Sets whether to use [Digital Zoom] or not when the zoom feature of the camera is used
(page 70).
Provides zoomed images at higher magnification than with [Clear Image Zoom] but the
image quality deteriorates compared to [Clear Image Zoom]. This feature can be also
available in movie recording.
On
Uses the [Digital Zoom] feature.
If you want to use higher magnification regardless of the
deterioration of the image, set it to [On].
Off
Does not use the [Digital Zoom] feature.
Menu
Notes
• You cannot use [Digital Zoom] with the following functions:
– [Sweep Panorama]
– [Smile Shutter]
– [RAW & JPEG] in [Quality]
Sample photo
1 MENU t [Setup] t [Digital Zoom] t desired setting.
Table of
contents
Digital Zoom
Index
115GB
Sets whether or not to save all the images that were shot continuously in [Superior Auto]
mode.
Table of
contents
S. Auto Image Extract.
1 MENU t [Setup] t [S. Auto Image Extract.] t desired setting.
Saves 1 appropriate image selected by the camera.
Off
Saves all of the images.
Notes
• Even when you set [S. Auto Image Extract.] to [Off] with [Hand-held Twilight] selected from recognized
scene mode, 1 combined image is saved.
• When the [Auto Object Framing] function is activated, 2 images are saved even if you set [S. Auto Image
Extract.] to [Auto].
Sample photo
Auto
Menu
Index
116GB
Enlarges the image on the screen automatically to make manual-focusing easier. This
works in the [Manual Focus] or [DMF] mode.
Table of
contents
MF Assist
1 MENU t [Setup] t [MF Assist] t desired setting.
The image is enlarged by 6.8 times. You can enlarge the image also by 13.6 times.
• In [DMF] (Direct Manual Focus), adjust the focus using autofocus and then turn the focusing ring
with the shutter button pressed halfway down.
On
Enlarges the image. You can set the enlarging duration with [MF
Assist Time]. To finish enlarging the image, select
.
Off
Does not enlarge the image.
(soft key) will enlarge the image.
Menu
Notes
• You cannot use [MF Assist] during movie recording.
• When an A-mount lens (sold separately) is attached, pressing
Sample photo
2 Turn the focusing ring to adjust the focus.
Index
117GB
Sets the length of time the image will be shown in an expanded form for the [MF Assist]
function.
Table of
contents
MF Assist Time
1 MENU t [Setup] t [MF Assist Time] t desired setting.
Enlarges the display until
5 Sec
Enlarges the image for 5 seconds.
2 Sec
Enlarges the image for 2 seconds.
Notes
is selected.
Sample photo
No Limit
• This function cannot be set when [MF Assist] is set to [Off].
• This item is available only with an E-mount lens.
Menu
Index
118GB
The way colors are represented using combinations of numbers or the range of color
reproduction is called “color space.” You can change the color space, depending on your
purpose.
Table of
contents
Color Space
1 MENU t [Setup] t [Color Space] t desired setting.
This is the standard color space of the digital camera. Use
[sRGB] in normal shooting, such as when you intend to print out
the images without any modification.
AdobeRGB
This has a wide range of color reproduction. When a large part of
the subject is vivid green or red, [AdobeRGB] is effective.
The file name of the image starts with “_DSC.”
Sample photo
sRGB
Notes
Menu
• Adobe RGB is for applications or printers that support color management and DCF2.0 option color space.
Images may not be printed or viewed in the correct colors if you use applications or printers that do not
support Adobe RGB.
• When displaying images that were recorded with Adobe RGB on the camera or non-Adobe RGBcompliant devices, the images are displayed with low saturation.
Index
119GB
Sets whether or not you use the [SteadyShot] function of the lens.
1 MENU t [Setup] t [SteadyShot] t desired setting.
Uses [SteadyShot].
Off
Does not use [SteadyShot]. This setting is recommended when
you use a tripod.
Notes
• [On] is selected when using the following functions:
– [Hand-held Twilight], [Anti Motion Blur] in [Scene Selection]
• You cannot set [SteadyShot] when the name of the lens attached does not contain “OSS,” such as
“E16 mm F2.8,” or when you are using an A-mount lens (sold separately).
Sample photo
On
Table of
contents
SteadyShot
Menu
Index
120GB
Sets whether or not the shutter can be released when no lens is attached.
1 MENU t [Setup] t [Release w/o Lens] t desired setting.
Releases the shutter when no lens is attached. Select this option
when you attach the camera on an astronomical telescope, etc.
Disable
Releases the shutter only when a lens is attached.
Notes
• Correct metering cannot be achieved when you use lenses that do not provide a lens contact, such as the
lens of an astronomical telescope. In such cases, adjust the exposure manually by checking it on the
recorded image.
Sample photo
Enable
Table of
contents
Release w/o Lens
Menu
Index
121GB
When shooting with high ISO sensitivity, the camera reduces noise that becomes more
noticeable when the camera sensitivity is high. When noise reduction is in effect, a
message may appear and you cannot take another picture.
Table of
contents
High ISO NR
1 MENU t [Setup] t [High ISO NR] t desired setting.
Activates high ISO noise reduction normally.
Low
Activates high ISO noise reduction moderately. Select this to
give priority to the timing of shooting.
Notes
Menu
• Noise reduction is not available in the following modes:
– [Intelligent Auto]
– [Superior Auto]
– [Scene Selection]
– [Sweep Panorama]
– [RAW & JPEG] in [Quality]
Sample photo
Normal
Index
122GB
Compensates for the shaded corners of the screen, caused by certain lens characteristics.
1 MENU t [Setup] t [Lens Comp.: Shading] t desired setting.
Compensates for darker corners of the screen automatically.
Off
Does not compensate for darker corners of the screen.
Notes
• This item is available only with an E-mount lens.
• The amount of light around the edges may not be corrected, depending on the lens type.
Sample photo
Auto
Table of
contents
Lens Comp.: Shading
Menu
Index
123GB
Reduces the color deviation at the corners of the screen, caused by certain lens
characteristics.
Table of
contents
Lens Comp.: Chro. Aber.
1 MENU t [Setup] t [Lens Comp.: Chro. Aber.] t desired setting.
Reduces the color deviation automatically.
Off
Does not compensate for the color deviation.
Notes
• This item is available only with an E-mount lens.
Sample photo
Auto
Menu
Index
124GB
Compensates for the distortion of the screen, caused by certain lens characteristics.
1 MENU t [Setup] t [Lens Comp.: Distortion] t desired setting.
Compensates for distortion of the screen automatically.
Off
Does not compensate for distortion of the screen.
Notes
• This item is available only with an E-mount lens.
• With some attached lenses, the setting will be fixed to [Auto], and you will not be able to select [Off].
Sample photo
Auto
Table of
contents
Lens Comp.: Distortion
Menu
Index
125GB
Sets whether to give priority to tracking a certain face when the camera detects that face
during tracking focus.
Table of
contents
Face Priority Tracking
1 MENU t [Setup] t [Face Priority Tracking] t desired setting.
Off
Does not preferentially-track the face.
If you set the detected face as a target, even when [Face Priority
Tracking] is set to [Off], the camera tracks the body when the
face is not visible. If the targeted person disappears from the
screen while the camera is tracking him/her, and then returns to
the screen, the camera tracks on that face again.
Menu
Preferentially-tracks the face.
When the face is not visible on the LCD screen, the camera
tracks the body, but when the face is visible, the camera tracks
the face. If the targeted person disappears from the screen while
the camera is tracking him/her, and then returns to the screen, the
camera tracks on that face again.
Sample photo
On
Notes
• When [Face Detection] is set to [Off], [Face Priority Tracking] is set to [Off] and cannot be reset.
Index
126GB
Sets whether or not you record the sound during movie recording.
1 MENU t [Setup] t [Movie Audio Rec] t desired setting.
Records sound (stereo).
Off
Does not record sound.
Notes
• The sound of the lens and the camera in operation will also be recorded, when [On] is selected.
Sample photo
On
Table of
contents
Movie Audio Rec
Menu
Index
127GB
Sets whether or not to reduce wind noise during movie recording.
1 MENU t [Setup] t [Wind Noise Reduct.] t desired setting.
Reduces wind noise.
Off
Does not reduce wind noise.
Notes
• Setting this item to [On] where wind is not blowing sufficiently hard may cause normal sound to be
recorded with too low volume.
Sample photo
On
Table of
contents
Wind Noise Reduct.
Menu
Index
128GB
Allows you to adjust and register an autofocused position for each lens, when using an
A-mount lens with the LA-EA2 Mount Adaptor (sold separately).
Table of
contents
AF Micro Adj.
1 MENU t [Setup] t [AF Micro Adj.].
3 [amount] t desired value t OK.
Sets whether or not to use the [AF Micro Adj.] function. Select [On] to
use the [AF Micro Adj.].
amount
Allows you to select an optimum value between –20 and +20.
Selecting a larger value shifts the autofocused position away from the
camera. Selecting a smaller value shifts the autofocused position
closer to the camera.
Clear
Clears the value you set.
Notes
Index
• It is recommended that you adjust the position under actual shooting conditions.
• When you attach a lens for which you have already registered a value, the registered value appears on the
screen. [±0] appears for lenses for which a value has not yet been registered.
• If [–] is displayed as the value, then a total of 30 lenses have been registered and no new lens can be
registered. To register a new lens, attach a lens for which the registration can be erased, and set its value
to [±0], or reset the values of all the lenses using [Clear].
• Use [AF Micro Adj.] with Sony, Minolta, and Konika-Minolta lenses only. If you use [AF Micro Adj.]
with other brands of lenses, the registered value may be affected. Do not perform [AF Micro Adj.] with
an unsupported lens.
• You cannot set [AF Micro Adj.] individually for a Sony, Minolta, and Konika-Minolta lens of the same
specification.
Menu
AF Adjustment
Setting
Sample photo
2 [AF Adjustment Setting] t [On].
129GB
Allows you to select whether to always display the first screen of the menu or to display
the screen of the item you set the last time.
Table of
contents
Menu start
1 MENU t [Setup] t [Menu start] t desired setting.
Always displays the first screen of the menu.
Previous
Displays the last item set. This will make it easier to quickly
reset the last item you set previously.
Sample photo
Top
Menu
Index
130GB
Sets whether or not to activate the MOVIE button.
1 MENU t [Setup] t [MOVIE Button] t desired setting.
Activates the MOVIE button.
Off
Deactivates the MOVIE button.
Sample photo
On
Table of
contents
MOVIE Button
Menu
Index
131GB
Assigning functions to the various keys allows you to speed up operations by pressing
the appropriate key on the shooting information screen.
Table of
contents
Custom Key Settings
1 MENU t [Setup] t [Custom Key Settings]
t desired setting.
Sample photo
Soft key C
Menu
Soft key B
Right key
Soft key B Setting
White Balance
Autofocus Mode
Metering Mode
Tracking Focus
DRO/Auto HDR
Zoom
Picture Effect
Face Detection
Creative Style
Smile Shutter
Flash Mode
Auto Object Framing
Flash Comp.
Soft Skin Effect
MF Assist
Quality
AEL toggle (page 134)
ISO
Not set
Index
Shoot. Tips
Right Key Setting
ISO
Sets the ISO sensitivity.
Function Menu
Calls a function assigned to [Custom 1], [Custom 2], [Custom
3], [Custom 4], [Custom 5] or [Custom 6].
132GB
Continued r
Custom 1 to 6
Available functions
[Custom 1]
AF/MF Select
[Custom 2]
Autofocus Mode
[Custom 3]
Autofocus Area
Smile Shutter
Auto Object Framing
Soft Skin Effect
Sample photo
Face Detection
Table of
contents
The default setting of each
[Custom] item
Quality
ISO
[Custom 5]
White Balance
Metering Mode
Menu
[Custom 4]
DRO/Auto HDR
[Custom 6]
Picture Effect
Creative Style
Flash Mode
Index
Not set
Notes
• [Soft key B Setting] under [Custom Key Settings] is available for the following shooting modes.
Functions that have been assigned to the soft key B and the right key are called up only in the following
shooting modes.
– [Manual Exposure]
– [Shutter Priority]
– [Aperture Priority]
– [Program Auto]
• The setting of [Soft key B Setting] cannot be used in the following situations:
– [Tracking Focus] function is activated.
– [Autofocus Area] is set to [Flexible Spot]
• You don’t have to set all [Custom 1], [Custom 2], [Custom 3], [Custom 4], [Custom 5] and [Custom 6]
items.
133GB
When it is hard to obtain an appropriate exposure for the subject, this function allows
you to lock the exposure by focusing on and measuring the light of an area that has the
desired brightness.
Table of
contents
AEL toggle
1 MENU t [Setup] t [Custom Key Settings] t [Soft key B Setting].
The soft key B becomes the AEL button.
3 Aim the camera at an area to which you want to match the exposure.
The exposure is set.
4 Press the AEL button.
The exposure is locked, and
Sample photo
2 Select [AEL toggle].
(AE lock) lights up.
5 Focus on your subject and press the shutter button.
Notes
Menu
6 To cancel the exposure lock, press the AEL button again.
• The setting of [Soft key B Setting] cannot be used in the following situations:
– [Tracking Focus] function is activated.
– [Autofocus Area] is set to [Flexible Spot]
• You don’t have to set all [Custom 1], [Custom 2], [Custom 3], [Custom 4], [Custom 5] and [Custom 6]
items.
Index
134GB
Selects the sound produced when you operate the camera.
1 MENU t [Setup] t [Beep] t desired setting.
Sound will be emitted when you press the control wheel or soft
keys.
Off
Turns off the audible signal.
Sample photo
On
Table of
contents
Beep
Menu
Index
135GB
Selects the language to be used in the menu items, warnings and messages.
1 MENU t [Setup] t [
Language] t desired language.
Table of
contents
Language
Sample photo
Menu
Index
136GB
Sets the date and time again.
1 MENU t [Setup] t [Date/Time Setup].
3 Select OK.
Daylight Svg.:
Selects [ON] or [OFF].
Date Format:
Selects the date and time display format.
Menu
Notes
• The camera does not have a feature for superimposing dates on images. By using “PlayMemories Home,”
you can print or save images with the date.
Sample photo
2 Press the right or left of the control wheel to
select an item, and press the top or bottom
of it to select the desired setting.
Table of
contents
Date/Time Setup
Index
137GB
Sets the area where you are using the camera. This allows you to set the local area when
you use the camera abroad.
Table of
contents
Area Setting
1 MENU t [Setup] t [Area Setting] t
desired setting.
Sample photo
2 Press the right or left of the control wheel to
select an area.
Menu
Index
138GB
You can set whether to display the help guide when you operate the camera.
1 MENU t [Setup] t [Help Guide Display] t desired setting.
Displays the help guide.
Off
Does not display the help guide.
Sample photo
On
Table of
contents
Help Guide Display
Menu
Index
139GB
You can shorten the waiting time until the camera is turned off when it is not being
operated to prevent the battery from being consumed.
Table of
contents
Power Save
1 MENU t [Setup] t [Power Save] t desired setting.
[Power Saving Start Time] is automatically set to [10 Sec].
If you do not operate the camera for a given period of time,
the brightness of the LCD screen is reduced.
Standard
Follows the setting of [Power Saving Start Time].
Sample photo
Max
Notes
• When the AC-PW20 AC Adaptor (sold separately) is used, this function cannot be set to [Max].
Menu
Index
140GB
You can set time intervals to switch to power save mode. To return to shooting mode,
perform an operation such as pressing the shutter button halfway down.
Table of
contents
Power Saving Start Time
1 MENU t [Setup] t [Power Saving Start Time] t desired setting.
Switches to power save mode after the set time.
5 Min
1 Min
20 Sec
10 Sec
Sample photo
30 Min
Notes
Menu
• Turn off the camera when you do not use it for a long time.
Index
141GB
You can adjust the brightness of the LCD screen.
1 MENU t [Setup] t [LCD Brightness] t desired setting.
Allows you to adjust the brightness within the range of –2 to +2.
Sunny Weather
Sets the brightness appropriately for shooting outdoors.
Sample photo
Manual
Table of
contents
LCD Brightness
Menu
Index
142GB
Adjusts the brightness of the Electronic Viewfinder. You can select whether to adjust the
brightness automatically or manually.
Table of
contents
Viewfinder Bright.
1 Press the FINDER/LCD button to switch the screen display to the
viewfinder.
Auto
Adjusts the brightness automatically.
Manual
Allows you to adjust the brightness within the range of –1 to +1.
Sample photo
2 MENU t [Setup] t [Viewfinder Bright.]
3 Look through the viewfinder and select the desired setting.
Menu
Index
143GB
Selects the color of the LCD screen.
1 MENU t [Setup] t [Display Color] t desired setting.
Black
Blue
Pink
Turns to the selected color.
Sample photo
White
Table of
contents
Display Color
Menu
Index
144GB
Selects the method used for displaying the wide images.
1 MENU t [Setup] t [Wide Image] t desired setting.
Displays the wide images on the entire
screen.
Normal
Displays the wide images and the
operation information on the screen.
Sample photo
Full Screen
Table of
contents
Wide Image
Menu
Index
145GB
Selects the orientation when playing back still images recorded in the portrait position.
1 MENU t [Setup] t [Playback Display] t desired setting.
Displays in the portrait position.
Manual Rotate
Displays in the landscape position.
Sample photo
Auto Rotate
Table of
contents
Playback Display
Menu
Index
146GB
Selects the appropriate USB connection method for each computer or USB device
connected to the camera.
Table of
contents
USB Connection
1 MENU t [Setup] t [USB Connection] t desired setting.
Mass Storage
Establishes a Mass Storage connection between the camera, a
computer, and other USB devices.
MTP
Establishes an MTP connection between the camera and a
computer or other USB device. Computers running Windows 7
or Windows 8 are connected in MTP, and the unique functions
of MTP are enabled. With computers running a different OS
(Windows Vista/XP, Mac OS X), the AutoPlay Wizard appears,
and the still images in the recording folder on the camera are
imported to the computer.
Menu
Establishes a Mass Storage or MTP connection automatically, in
accordance with a computer or other USB devices to be
connected. Windows 7 or Windows 8 computers are connected
in MTP, and its unique functions are enabled to use.
Sample photo
Auto
Notes
Index
• The connection may take a long time when [Auto] is selected.
• If the camera is not recognized by the computer, set [USB Connection] to [Mass Storage].
147GB
Enhances compatibility by limiting of USB connection functions.
1 MENU t [Setup] t [USB LUN Setting] t desired setting.
Normally, use [Multi].
Single
Set [USB LUN Setting] to [Single] only if you cannot make a
connection.
Sample photo
Multi
Table of
contents
USB LUN Setting
Menu
Index
148GB
Displays the version of your camera and lens. Confirm the version when a firmware
update is released.
Table of
contents
Version
1 MENU t [Setup] t [Version].
Sample photo
Notes
• An update can be performed only when the battery level is
(3 remaining battery icons) or more. We
recommend that you use a sufficiently charged battery pack or the AC-PW20 AC Adaptor (sold
separately).
Menu
Index
149GB
The [Demo Mode] function displays the movies recorded on the memory card
automatically (demonstration), when the camera has not been operated for a certain time.
Normally select [Off].
Table of
contents
Demo Mode
1 MENU t [Setup] t [Demo Mode] t desired setting.
The demonstration begins automatically when the camera is not
operated for about 1 minute. Only protected AVCHD movies are
available. Select the oldest movie file in [AVCHD View] and
protect it.
Off
Does not show the demonstration.
Sample photo
On
Notes
Menu
• You can set this item only when the camera is powered by the AC-PW20 AC Adaptor (sold separately).
• Even if [On] is selected, the camera does not start a demonstration when there is no movie recorded on
the memory card.
• When [On] is selected, the camera does not switch to power save mode.
Index
150GB
Initializes the setting to the default setting.
Even if you activate [Initialize], the images are retained.
Table of
contents
Initialize
1 MENU t [Setup] t [Initialize] t desired setting.
Initializes the main setting to the default settings.
• The following settings are not reset:
– [Date/Time Setup]
– [Area Setting]
– Faces registered with [Face Registration]
– Settings registered with [AF Micro Adj.]
– File number
Factory Reset
Sample photo
Reset Default
Initializes the settings to the default settings.
• Even settings that are not reset using [Reset Default] may be reset,
including file numbers, etc.
Menu
Notes
• Be sure not to turn off the camera while resetting.
• In some cases, nothing may appear on the screen for about 10 seconds after you execute [Initialize].
Index
151GB
Formats the memory card. When you use a memory card with this camera for the first
time, it is recommended that you format the card using the camera for stable
performance of the memory card before shooting. Note that formatting permanently
erases all data on the memory card, and is unrecoverable. Save precious data on a
computer, etc.
Notes
• Formatting permanently erases all data including even protected images.
• During the format, the access lamp lights up. Do not eject the memory card while the lamp is lit.
• Format the memory card using the camera. If you format the memory card on a computer, it may not be
usable with the camera, depending on the format type used.
• You cannot format a memory card when the remaining battery is less than 1 %.
Sample photo
1 MENU t [Setup] t [Format] t OK.
Table of
contents
Format
Menu
Index
152GB
Selects the method to use to assign file numbers to still images and MP4 movies.
1 MENU t [Setup] t [File Number] t desired setting.
The camera does not reset numbers, and assigns numbers to files
in sequence until the number reaches “9999.”
Reset
The camera resets numbers when a file is recorded in a new
folder and assigns numbers to files from “0001.” When the
recording folder contains a file, a number one higher than the
largest number is assigned.
Sample photo
Series
Table of
contents
File Number
Menu
Index
153GB
Still images you shoot are recorded in a folder that is automatically created under the
DCIM folder on the memory card. You can change the folder name form.
Table of
contents
Folder Name
1 MENU t [Setup] t [Folder Name] t desired setting.
The folder name form is as follows: folder number + MSDCF.
Example: 100MSDCF
Date Form
The folder name form is as follows: folder number + Y (the last
digit)/MM/DD.
Example: 10030405 (Folder number: 100, date: 04/05/2013)
Sample photo
Standard Form
Notes
• The movie folder form is fixed as “folder number + ANV01.” You cannot change this name.
Menu
Index
154GB
When a [Standard Form] folder is selected under [Folder Name] and there are 2 or more
folders, you can select the recording folder to which still images and MP4 movies are
recorded.
Table of
contents
Select Shoot. Folder
1 MENU t [Setup] t [Select Shoot. Folder] t desired folder.
Sample photo
Notes
• You cannot select the folder when you select the [Date Form] setting.
• Movie (MP4) files are recorded in a folder for movies that has the same number as the selected folder for
still images.
Menu
Index
155GB
Creates a new folder in the memory card to which still images and MP4 movies are
recorded.
Images are recorded in the newly created folder until you create another folder or select
another recording folder.
A new folder is created with a folder number one greater than the largest folder number
currently used.
Notes
Menu
• A folder for still images and a folder for MP4 movies that have the same number are created at the same
time.
• When you insert a memory card that was used with other equipment into the camera and shoot images, a
new folder may be automatically created.
• Up to 4,000 images in total can be stored in the folders for still images or movies, respectively, with the
same number. When the folder capacity is exceeded, a new folder is created automatically.
Sample photo
1 MENU t [Setup] t [New Folder].
Table of
contents
New Folder
Index
156GB
When inconsistencies are caused in the image database file by processing files on
computers, etc., images on the memory card will not be played back on this camera. If
these inconsistencies happen, the camera repairs the file.
Table of
contents
Recover Image DB
1 MENU t [Setup] t [Recover Image DB] t OK.
Notes
• Use a sufficiently charged battery. Low battery power during repairing can cause damage to data.
Sample photo
The [Recover Image DB] screen is displayed, and the camera repairs the file.
Wait until repairs are complete.
Menu
Index
157GB
Displays the remaining recording time of movies on the memory card. Number of
recordable still images is also displayed.
Table of
contents
Display Card Space
1 MENU t [Setup] t [Display Card Space].
Sample photo
Menu
Index
158GB
Sets whether or not you use the upload function when using an Eye-Fi card
(commercially available). This item appears when an Eye-Fi card is inserted in the
camera.
Table of
contents
Upload Settings
1 MENU t [Setup] t [Upload Settings] t desired setting.
Enables the upload function. The icon on the screen changes
according to the communication status of the camera.
Standby. No images are to be sent.
Connecting.
Upload standby.
Uploading.
Error
Off
Disables the upload function.
Menu
Notes
•
•
•
•
Index
[Power Save] does not work while the camera is uploading images.
Eye-Fi cards are only sold in certain countries/regions.
For more information, please contact the manufacturer or vendor directly.
Eye-Fi cards can be used only in the countries/regions where they were purchased. Use Eye-Fi cards in
accordance with the law of the countries/regions where you purchased the card.
• Do not use an Eye-Fi card inserted in the camera on an airplane. If an Eye-Fi card is inserted in the
camera, set [Upload Settings] to [Off].
is displayed on the screen when [Upload Settings] is set to
[Off].
Sample photo
On
Transferring images using an Eye-Fi card
1 Set your Wi-Fi network or destination on the Eye-Fi card.
For details, refer to the manual supplied with the Eye-Fi card.
2 Insert the Eye-Fi card you have set up into the camera, and shoot still
images.
Images are transferred to your computer, etc., automatically via the Wi-Fi network.
Notes
• When you use a brand-new Eye-Fi card for the first time, copy the install file of Eye-Fi manager recorded
on the card to your computer before formatting the card.
• Use an Eye-Fi card after updating the firmware to the latest version. For details, refer to the operating
instructions that comes with the Eye-Fi card.
• The power save function of the camera does not work while it is transferring images.
• If
(error) is displayed, remove the memory card and reinsert it, or turn the camera off and then on
again. If
appears again, the Eye-Fi card may be damaged.
• Wi-Fi network communication may be influenced by other communication devices. If the
communication status is poor, move closer to the access point of the Wi-Fi network.
• For details on the file types that can be uploaded, refer to the operating instructions supplied with the
Eye-Fi card.
• This product does not support the Eye-Fi “Endless Memory Mode.” Be sure that “Endless Memory
Mode” of an Eye-Fi card is turned off before inserting it into the camera.
159GB
Connecting with other equipment
Notes
Recommended computer environment
(Windows)
Menu
• An Internet connection is required to install the software.
• Use “Image Data Converter” to play back RAW images.
• “PlayMemories Home” is not compatible with Mac computers. When you play back images on Mac
computers, use the appropriate application software supplied with the Mac computer.
Sample photo
Use following software to allow more versatile use of images shot with your camera.
• “PlayMemories Home” (Windows only)
You can import still images or movies recorded with the camera to your computer so
that you can view them, and use various convenient features to enhance the images
you have shot. “PlayMemories Home” is necessary when importing AVCHD movies
to your computer.
• “Image Data Converter”
You can retouch RAW format images and convert them into JPEG/TIFF format.
For detailed notes on installation, also see page 162.
Table of
contents
Using with your computer
The following computer environment is recommended when using the software and
importing images via a USB connection.
Microsoft Windows XP* SP3/Windows Vista** SP2/Windows 7
SP1/Windows 8
“PlayMemories
Home”
CPU: Intel Pentium III 800 MHz or faster
For playing/editing the High Definition movies: Intel Core Duo
1.66 GHz or faster/Intel Core 2 Duo 1.66 GHz or faster (Intel
Core 2 Duo 2.26 GHz or faster (AVC HD (FX/FH))
Memory: Windows XP with at least 512 MB of memory
(at least 1 GB is recommended), Windows Vista/Windows 7/
Windows 8 with at least 1 GB of memory
Hard Disk: Disk space required for installation—approximately
500 MB
Display: Screen resolution—at least 1024 × 768 dots
“Image Data
Converter Ver.4”
CPU/Memory: Pentium 4 or faster/at least 1 GB of memory
Display: At least 1024 × 768 dots
Index
OS (pre-installed)
* 64-bit editions and Starter (Edition) are not supported. Windows Image Mastering API (IMAPI) Ver. 2.0
or later is required to use the function for creating discs.
** Starter (Edition) is not supported.
160GB
Continued r
The following computer environment is recommended when using the software and
importing images via a USB connection.
USB Connection: Mac OS X v10.3 – v10.8
“Image Data Converter Ver.4”: Mac OS X v10.5, v10.6
(Snow Leopard), v10.7 (Lion), v10.8 (Mountain Lion)
“Image Data
Converter Ver.4”
CPU: Intel processor, such as Intel Core Solo/Core Duo/Core 2
Duo
Memory: 1 GB or more is recommended.
Display: 1024 × 768 dots or more
Notes
Menu
• Operation is not assured in an environment based on an upgrade of the operating systems described above
or in a multi-boot environment.
• If you connect 2 or more USB devices to one computer at the same time, this camera may not operate,
depending on the types of USB devices you are using.
• Connecting the camera using a USB interface that is compatible with Hi-Speed USB (USB 2.0) allows
advanced transfer (high speed transfer), as the camera is compatible with Hi-Speed USB (USB 2.0).
• When your computer resumes activity from suspend or sleep mode, communication between the camera
and your computer may not recover at the same time.
Sample photo
OS (pre-installed)
Table of
contents
Recommended computer environment (Mac)
Index
161GB
Installing “PlayMemories Home” (Windows)
1 Using the Internet browser on your computer, go to the following URL,
then click [Install] t [Run].
www.sony.net/pm
Sample photo
Log on as Administrator.
• If “PMB” (Picture Motion Browser) supplied with a camera that was purchased before
2011 has already been installed on the computer, “PMB” will be overwritten by
“PlayMemories Home.” Some “PlayMemories Home” functions differ from those of
“PMB,” but please use “PlayMemories Home.”
Table of
contents
Installing the software
2 Follow the instructions on the screen to
complete the installation.
Menu
• When the message to connect the camera to a computer is
displayed, connect the camera and computer using the micro
USB cable (supplied).
Index
To a USB jack
Installing “Image Data Converter” (Windows/Mac)
Log on as Administrator.
1 Using the Internet browser on your computer, go to the following URL.
For Windows: http://www.sony.co.jp/imsoft/Win/
For Mac: http://www.sony.co.jp/imsoft/Mac/
2 Follow the instruction on the screen to complete the installation.
162GB
Continued r
Refer to “PlayMemories Home Help Guide.”
Double-click the shortcut of
(PlayMemories Home Help Guide) on the desktop, or click
[Start] t [All Programs] t [PlayMemories Home] t [PlayMemories Home Help
Guide].
• For Windows 8, select the [PlayMemories Home] icon on the Start screen, then launch
“PlayMemories Home” and select [PlayMemories Home Help Guide] from the [Help]
menu.
Index
z Using “PlayMemories Home”
Menu
Notes
• “PlayMemories Home” is not compatible with Mac computers. When you play back images on Mac
computers, use the appropriate application software supplied with the Mac computer.
• Movies recorded with the [60i 24M(FX)/50i 24M(FX)]/[24p 24M(FX)/25p 24M(FX)] setting in [Record
Setting] are converted by “PlayMemories Home” in order to create an AVCHD recording disc. This
conversion can take a long time. Also, you cannot create a disc in the original image quality. If you want
to keep the original image quality, you must store your movies on a Blu-ray Disc.
Sample photo
With “PlayMemories Home,” you can do the following:
• You can import images shot with the camera to your computer and display them on the
computer.
• You can organize images on the computer on a calendar by shooting date to view
them.
• You can retouch (Red Eye Correction, etc.), print, send still images as e-mail
attachments and change the shooting date.
• You can print or save still images with the date.
• You can trim and resize images.
• You can create a Blu-ray Disc, AVCHD disc or DVD disc from AVCHD movies
imported to a computer. (An internet connection environment is required when a Bluray Disc/DVD disc is created for the first time.)
• You can upload images to a network service. (An internet connection is required.)
Table of
contents
Using “PlayMemories Home”
“PlayMemories Home” support page (English only)
http://www.sony.co.jp/pmh-se/
163GB
Continued r
Sample photo
With “Image Data Converter,” you can do the following:
• You can play back and edit images recorded in RAW format with various corrections,
such as tone curve and sharpness.
• You can adjust images with white balance, exposure, and [Creative Style], etc.
• You can save the images displayed and edited on a computer.
You can either save the image as RAW format or save it in the general file format.
• You can display and compare the RAW images and JPEG images recorded by this
camera.
• You can rank images in 5 grades.
• You can apply color labels.
Table of
contents
Using “Image Data Converter”
z Using “Image Data Converter”
Index
“Image Data Converter” support page (English only)
http://www.sony.co.jp/ids-se/
Menu
For Windows:
[Start] t [All Programs] t [Image Data Converter] t [Help] t [Image Data Converter
Ver.4]
For Mac:
Finder t [Applications] t [Image Data Converter] t [Image Data Converter Ver.4] t
“Help” in the menu bar t “Image Data Converter Guide”
• For Windows 8, start “Image Data Converter Ver.4” t “Help” in the menu bar t
“Image Data Converter Guide”
164GB
2 Turn on the camera and the computer.
Sample photo
1 Insert a sufficiently charged battery pack into
the camera, or connect the camera to a wall
outlet (wall socket) using the AC-PW20 AC
Adaptor (sold separately).
Table of
contents
Connecting the camera to the
computer
USB cable
(supplied)
3 Connect the camera to your computer.
When a USB connection is established for the first time,
your computer automatically runs a program to
recognize the camera. Wait for a while.
Menu
Importing images to the computer (Windows)
“PlayMemories Home” allows you to easily import images.
For details on “PlayMemories Home” functions, see the “PlayMemories Home Help
Guide.”
When the AutoPlay Wizard appears after making a USB connection between the camera
and a computer, click [Open folder to view files] t [OK] t [DCIM] or [MP_ROOT]
t copy the desired images to the computer.
Index
Importing images to the computer without using “PlayMemories
Home”
Notes
• For operations such as importing AVCHD movies to the computer, use “PlayMemories Home.”
• When the camera is connected to the computer, if you operate AVCHD movies or folders from the
connected computer, images may be damaged or cannot be played. Do not delete or copy AVCHD
movies on the memory card from the computer. Sony is not held liable for consequences resulting from
such operations via the computer.
165GB
Continued r
1 Connect the camera to your Mac computer first. Double-click the newly
recognized icon on the desktop t the folder where the images you want
to import are stored.
Table of
contents
Importing images to the computer (Mac)
2 Drag and drop the image files to the hard disk icon.
The image is displayed.
z The software for Mac computers
Sample photo
The image files are copied to the hard disk.
3 Double-click the hard disk icon t the desired image file in the folder
containing the copied files.
For details on other software for Mac computers, access the following URL:
http://www.sony.co.jp/imsoft/Mac/
1 Double-click the disconnect icon on the task
bar.
• For Windows 7 or Windows 8, click
, and then click
2 Click
(Safely remove USB Mass Storage
Device).
Windows Vista
Index
Complete steps 1 and 2 below before performing the following operations:
• Disconnecting the USB cable.
• Removing the memory card.
• Turning off the camera.
Menu
Disconnecting the camera from the computer
.
Disconnect icon
Notes
• Drag and drop the icon of the memory card or the drive icon to the “Trash” icon beforehand when you use
a Mac computer, and the camera is disconnected from the computer.
• With Windows 7 or Windows 8, the disconnect icon may not be displayed. In such cases, you can
disconnect without following the above procedure.
• Do not disconnect the USB cable when the access lamp is lit. The data may be damaged.
166GB
Depending on the disc type, playable devices may vary. Select the method that suits your
disc player.
There are two ways to create a movie disc. Use “PlayMemories Home” on your
computer or create a disc with devices other than a computer such as a recorder.
Record setting
available
FX
Player
FH
Blu-ray Disc playback devices
(Sony Blu-ray Disc player,
PlayStation®3, etc.)
Sample photo
Disc type/usage
Table of
contents
Creating a movie disc
You can keep high-definition
image quality (HD)
–*
–*
You can keep standard definition
image quality (STD)
Index
–*
Ordinary DVD playback devices
(DVD player, computer that can
play DVD, etc.)
Menu
You can keep high-definition
image quality (HD) (AVCHD
recording disc)
AVCHD format playback devices
(Sony Blu-ray Disc player,
PlayStation®3, etc.)
* You can create a disc if you reduce the image quality using “PlayMemories Home.”
167GB
Continued r
Characteristics of each type of disc
Description
A Blu-ray Disc enables you to record high definition
image quality (HD) movies of a longer duration than
DVD discs.
High-definition image quality
(HD) (AVCHD recording disc)
Standard definition image quality (STD) movie converted
from high definition image quality (HD) movie can be
recorded on DVD media, such as DVD-R discs, and a
standard image quality (STD) disc is created.
Menu
Standard definition image quality
(STD)
High definition image quality (HD) movie can be
recorded on DVD media, such as DVD-R discs, and a
high definition image quality (HD) disc is created.
• You can play a high definition image quality (HD) disc
on AVCHD format playback devices, such as a Sony
Blu-ray Disc player and a PlayStation®3. You cannot
play the disc on ordinary DVD players.
Sample photo
High-definition image quality
(HD)
Table of
contents
Disc type/usage
z Discs you can use with “PlayMemories Home”
Disc type
Features
DVD-R/DVD+R/DVD+R DL
Non-rewritable
DVD-RW/DVD+RW
Rewritable
Index
You can use 12 cm discs of following type with “PlayMemories Home.” For Blu-ray Disc,
see page 169.
• Always maintain your PlayStation®3 to use the latest version of the PlayStation®3 system software.
• The PlayStation®3 may not be available in some countries/regions.
168GB
Continued r
You can create a high definition image quality (HD) AVCHD recording disc from
AVCHD movies imported to a computer using the software “PlayMemories Home.”
2 Select the AVCHD movies you want to write, then drag and drop onto the
right side of the screen.
3 Create the disc, following the instructions on the screen.
Notes
Install “PlayMemories Home” beforehand.
Still images and MP4 movie files cannot be recorded on the AVCHD recording disc.
It may take a long time to create a disc.
Movies recorded with the [60i 24M(FX)/50i 24M(FX)]/[24p 24M(FX)/25p 24M(FX)] setting in [Record
Setting] are converted by “PlayMemories Home” in order to create an AVCHD recording disc. This
conversion can take a long time. Also, you cannot create a disc in the original image quality. If you want
to keep the original image quality, store your movies on a Blu-ray Disc.
Menu
•
•
•
•
Sample photo
1 Start up [PlayMemories Home] and select
Tools in the upper right of
the screen t
(Create Discs) t
(AVCHD (HD)).
Table of
contents
Creating a high definition image quality (HD) disc
(AVCHD recording disc)
z Playing AVCHD recording disc on a computer
• Movies may not be played smoothly depending on the computer environment.
Index
You can play back the discs using “PlayMemories Home.” Select the DVD drive that hold
the disc and click [Player for AVCHD] on “PlayMemories Home.”
See “PlayMemories Home Help Guide” for details.
Creating a Blu-ray Disc
You can create a Blu-ray Disc with AVCHD movies previously imported to a computer.
Your computer must support the creation of a Blu-ray Disc.
BD-R (non-rewritable) and BD-RE (rewritable) media can be used to create a Blu-ray
Disc. You cannot add contents to either type of disc once it has been created.
To create Blu-ray Discs with “PlayMemories Home,” you have to install proprietary
add-on software. For details, access the following URL:
http://support.d-imaging.sony.co.jp/BDUW/
An Internet connection environment is required to install the add-on software.
See “PlayMemories Home Help Guide” for details.
169GB
Continued r
You can create a standard definition image quality (STD) disc from AVCHD movies
imported to a computer using supplied software “PlayMemories Home.”
2 Select the AVCHD movies you want to write, then drag and drop onto the
right side of the screen.
3 Create the disc, following the instructions on the screen.
Notes
Menu
• Install “PlayMemories Home” beforehand.
• MP4 movie files cannot be recorded on a disc.
• It will take a longer time to create a disc because AVCHD movies are converted to standard definition
image quality (STD) movies.
• An Internet connection environment is required when creating a DVD-Video (STD) disc for the first
time.
Sample photo
1 Start up [PlayMemories Home] and select
Tools in the upper right of
the screen t
(Create Discs) t
(DVD-Video (STD)).
Table of
contents
Creating a standard definition image quality
(STD) disc on a computer
Creating a movie disc with a device other than a
computer
Index
You can create a disc with a Blu-ray Disc recorder etc.
The disc type you can create depends on the device used.
Device
Disc type
Blu-ray Disc recorder: You can
create a Blu-ray Disc or DVD with
standard image quality (STD).
High-definition
image quality
(HD)
Standard
definition image
quality (STD)
HDD recorder, etc.: You can
create a DVD with standard image
quality (STD).
Standard definition image quality
(STD)
Notes
• For details on creating a disc, refer to the operating instructions that comes with the device used.
170GB
Index
You cannot print RAW images.
When you print images shot in [16:9] mode, both edges may be cut off.
You cannot print panoramic images depending on the printer.
When you print at a shop, note the followings.
– Consult your photo printing service shop as to what types of memory card they handle.
– A memory card adaptor (sold separately) may be necessary. Consult your photo printing service shop.
– Before you take image data to a shop, always copy (back up) your data to other media.
– You cannot set the number of prints.
– If you want to superimpose dates on images, consult your photo printing service shop.
• The camera is not compatible with “PictBridge.”
Menu
Notes
•
•
•
•
Sample photo
You can print still images using the following methods.
• Printing directly using a printer which supports your memory card type
For details, see the operating instructions supplied with the printer.
• Printing using a computer
You can import images to a computer using the “PlayMemories Home” software and
print the images. You can insert the date on the image and print the image. For details,
see the “PlayMemories Home Help Guide.”
• Printing at a shop
You can take a memory card containing images shot with the camera to a photo
printing service shop. As long as the shop supports photo printing services conforming
to DPOF, you can make a
(Print order) mark on images in advance in the
playback mode so that you do not have to reselect the images when you print them out
at the shop.
Table of
contents
Printing still images
171GB
Troubleshooting
Table of
contents
Troubleshooting
If you experience trouble with the camera, try the following solutions.
1 Check the items on pages 172 to 178.
3 Reset the settings (page 151).
Menu
4 Consult your Sony dealer or local authorized Sony service
facility.
Sample photo
2 Remove the battery pack, wait for about 1 minute, re-insert
the battery pack, and then turn on the power.
Battery pack and power
The battery pack cannot be installed.
The remaining battery level indicator shows an incorrect level or power runs out
quickly despite the indicator showing sufficient battery level.
Index
• When you insert the battery pack, use the tip of the battery pack to push the lock lever.
• You can only use an NP-FW50 battery pack. Make sure that the battery is NP-FW50.
• This phenomenon occurs when you use the camera in an extremely hot or cold location.
• The battery pack is discharged. Install a charged battery pack.
• The battery pack is dead. Replace the battery pack with a new one.
The camera cannot be turned on.
•
•
•
•
Install the battery pack correctly.
The battery pack is discharged. Install a charged battery pack.
The battery pack is dead. Replace the battery pack with a new one.
The screen display is set to the viewfinder. Press the FINDER/LCD button to switch the display to the
LCD screen.
The power turns off suddenly.
• When the camera or battery pack is too hot, the camera displays a warning message and turns off
automatically to protect the camera.
• If you do not operate the camera for given period of time, the camera turns to power saving mode. To
cancel the power save, operate the camera by means such as pressing the shutter button halfway down
(page 141).
172GB
Continued r
The charge lamp on the camera flashes when charging the battery pack.
• This phenomenon occurs when you use the camera in an extremely hot or cold location. The optimal
temperature for charging the battery pack is between 10 °C and 30 °C (50 °F and 86 °F).
• Set the power switch to OFF while charging the battery.
• When the battery pack is not charged (the charge lamp does not light) even if you follow the proper
charging procedure, remove the battery pack and re-insert the same battery pack securely, or
disconnect and reconnect the USB cable.
Menu
The battery pack is not charged.
Sample photo
The battery pack has not been charged even though the charge lamp has turned
off.
Table of
contents
• You can only use an NP-FW50 battery pack. Make sure that the battery is NP-FW50.
• If you charge a battery pack that has not been used for a long time, the charge lamp may flash.
• The charge lamp flashes in two ways, fast (about 0.3-second intervals) or slow (about 1.3-second
intervals). If the charge lamp is flashing fast, remove the battery pack and reattach the same battery
pack securely, or disconnect and reconnect the USB cable. If the charge lamp flashes fast again, it
suggests that there is something wrong with the battery pack, AC Adaptor or USB cable. Slow
flashing indicates that charging is suspended because the ambient temperature is outside the suitable
range for charging the battery pack. Charging will resume and the charge lamp will be lit when the
ambient temperature returns to within the suitable temperature. The optimal temperature for charging
the battery pack is between 10 °C and 30 °C (50 °F and 86 °F).
Shooting images
• If you do not operate the camera for given period of time, the camera turns to power saving mode. To
cancel the power save, operate the camera, such as pressing the shutter button halfway down
(page 141).
• The screen display is set to the viewfinder. Press the FINDER/LCD button to switch the display to the
LCD screen.
Index
Nothing is displayed on the LCD screen when the power is turned on.
The shutter does not release.
• You are using a memory card with a write-protect switch, and the switch is set to the LOCK position.
Set the switch to the recording position.
• Check the free capacity of the memory card.
• You cannot record images while charging the flash.
• The lens is not attached properly. Attach the lens properly.
• You are using the self-timer.
Recording takes a long time.
• The noise reduction function is processing an image. This is not a malfunction.
• You are shooting in RAW mode (page 83). Since the RAW data file is large, the RAW mode shooting
may take time.
• The [Auto HDR] function is processing an image (page 93).
The image is out of focus.
•
•
•
•
The subject is too close. Check the minimum focal distance of the lens.
You are shooting in manual focus mode. Set [AF/MF Select] to [Autofocus] (page 65).
Ambient light is insufficient.
Use the [Flexible Spot] (page 67) or manual focus function (page 65).
Continued r
173GB
The flash does not work.
Table of
contents
• Press the (Flash pop-up) button to pop up the flash.
• You cannot use a flash with the following recording mode:
– [Bracket: Cont.]
– [Sweep Panorama]
– [Night Scene], [Hand-held Twilight] and [Anti Motion Blur] in [Scene Selection]
– Movie recording
• Particles (dust, pollen, etc.) in the air reflected the flash light and appeared on the image. This is not a
malfunction.
The flash takes too long to recharge.
• The flash has been fired in succession in a short period. When the flash has been fired in succession,
the recharging process may take longer than usual to avoid overheating of the camera.
• If the subject is beyond the flash range (the distance that the flash can reach), the pictures will be dark
because the flash light does not reach the subject. If the ISO is changed, the flash range also changes
with it.
Menu
The image taken with the flash is too dark.
Sample photo
Fuzzy white circular spots appear on images shot using the flash.
The date and time are recorded incorrectly.
The aperture value and/or shutter speed flashes.
Index
• Set the correct date and time (page 137).
• The area selected with [Area Setting] is different from the actual area. Set the actual area by selecting
MENU t [Setup] t [Area Setting].
• The subject is too bright or too dark, and the camera’s adjustable range for the aperture value and/or
shutter speed is exceeded. Adjust the setting again.
The image is whitish (Flare).
Blurring of light appears on the image (Ghosting).
• The picture was taken under backlit conditions, and excessive light has entered the lens. When using
the zoom lens, attach a lens hood.
The corners of the picture are too dark.
• If any filter or hood is used, take it off and try shooting again. Depending on the thickness of the filter
and improper attachment of the hood, the filter or the hood may partially appear in the image. The
optical properties of some lenses may cause the periphery of the image to appear too dark (insufficient
light). You may compensate for this phenomenon with [Lens Comp.: Shading] (page 123).
The eyes of the subject come out red.
• Activate the [Red Eye Reduction] function (page 108).
• Get close to the subject, and shoot the subject within the flash range using the flash.
Dots appear and remain on the LCD screen.
• This is not a malfunction. These dots are not recorded.
174GB
Continued r
The image is blurred.
Table of
contents
• The picture was taken in a dark location without the flash, resulting in camera-shake. The use of a
tripod or the flash is recommended (page 64). [Hand-held Twilight] (page 55) and [Anti Motion Blur]
(page 55) in [Scene Selection] are also effective in reducing blur.
The exposure value is flashing on the LCD screen or the viewfinder.
• The subject is too bright or too dark for the metering range of the camera.
Images cannot be played back.
Deleting/Editing images
Menu
• The folder/file name has been changed on your computer.
• When an image file has been processed by a computer or when the image file was recorded using a
model other than that of your camera, playback on your camera is not guaranteed.
• The camera is in USB mode. Disconnecting the camera from the computer (page 166).
• Use “PlayMemories Home” to copy images stored on your computer to your camera to play them
back on your camera.
Sample photo
Viewing images
The image cannot be deleted.
• Cancel the protection (page 104).
• Once you have deleted an image, you cannot restore it. We recommend that you protect images that
you do not want to delete (page 104).
Index
The image was deleted by mistake.
A DPOF mark cannot be put.
• You cannot place DPOF marks on RAW images.
Computers
Not sure if the OS of the computer is compatible with the camera.
• Check “Recommended computer environment” (page 160).
The computer does not recognize the camera.
• Check that the camera is turned on.
• When the battery level is low, install the charged battery pack, or use the AC-PW20 AC Adaptor (sold
separately).
• Use the USB cable (supplied) for connection.
• Disconnect the USB cable, and connect it again firmly.
• Set [USB Connection] to [Mass Storage] (page 147).
• Disconnect all equipment other than the camera, the keyboard and the mouse from the USB terminals
of your computer.
• Connect the camera directly to your computer without passing through a USB hub or other device.
• If your computer has more than one USB terminal, reconnect the USB cable using another USB
terminal.
• Set [USB LUN Setting] to [Single].
175GB
Continued r
Cannot copy images.
Table of
contents
• Make the USB connection by properly connecting the camera with your computer (page 165).
• Follow the designated copy procedure for your OS.
• When you shoot images with a memory card formatted by a computer, you may not be able to copy
the images to a computer. Shoot using a memory card formatted by your camera.
Cannot play back images on a computer.
The image and sound are interrupted by noise when viewing a movie on a
computer.
• You are playing back the movie directly from the memory card. Import the movie to your computer
using “PlayMemories Home” and play it back.
• Make the USB connection after the computer is turned on (page 165).
Menu
After making a USB connection, “PlayMemories Home” does not start
automatically.
Sample photo
• If you are using “PlayMemories Home,” refer to the “PlayMemories Home Help Guide.”
• Consult the computer or software manufacturer.
Memory card
Cannot insert a memory card.
• Insertion direction of the memory card is wrong. Insert the memory card in the correct direction.
Index
Cannot record on a memory card.
• The memory card is full. Delete unnecessary images (pages 31, 97).
• An incompatible memory card is inserted.
Formatted the memory card by mistake.
• All the data on the memory card is deleted by formatting. You cannot restore the data.
176GB
Continued r
Cannot print images.
• RAW images cannot be printed. To print RAW images, first convert them to JPEG images using
“Image Data Converter.”
Table of
contents
Printing
The color of the image is strange.
Images are printed with both edges cut off.
Cannot print images with the date.
Index
• Using “PlayMemories Home,” you can print images with date.
• The camera does not have a feature for superimposing dates on images. However, because the images
shot with the camera include information on the recording date, you can print images with the date
superimposed if the printer or the software can recognize Exif information. For compatibility with
Exif information, consult the manufacturer of the printer or the software.
• When you print images at a shop, images can be printed with the date if you ask them to do so.
Menu
• Depending on your printer, the left, right, top, and bottom edges of the image may be cut off.
Especially when you print an image shot with the aspect ratio set to [16:9], the lateral end of the image
may be cut off.
• When printing images using your printer, cancel the trimming or borderless settings of the printer.
Consult the printer manufacturer as to whether the printer provides these functions or not.
• When you print images at a shop, ask the shop whether they can print the images without cutting off
both edges.
Sample photo
• When you print the images recorded in [AdobeRGB] mode using sRGB printers that are not
compatible with Adobe RGB (DCF2.0/Exif2.21 or later), the images are printed at a lower saturation.
Others
The lens gets fogged.
• Moisture condensation has occurred. Turn off the camera and leave it for about an hour before using
it.
The message “Set Area/Date/Time.” appears when the camera is turned on.
• The camera has been left unused for sometime with a low battery or no battery pack. Charge the
battery pack and set the date again (page 137). If the message appears every time you charge the
battery pack, the internal rechargeable battery may be exhausted. Consult your Sony dealer or local
authorized Sony service facility.
The date and time are recorded incorrectly.
• Correct or check the date and time setting by selecting MENU t [Setup] t [Date/Time Setup].
The number of recordable images does not decrease, or decreases 2 images at a
time.
• This is because the compression rate and the image size after compression change depending on the
image when you shoot a JPEG image.
The setting is reset without the resetting operation.
• The battery pack was removed when the power switch was set to ON. When removing the battery
pack, make sure the camera is turned off and the access lamp is not lit.
Continued r
177GB
The camera does not work properly.
• Remove the memory card, and insert it again. If the problem persists even after performing this
procedure, format the memory card (page 152).
Sample photo
“--E-” appears on the screen.
Table of
contents
• Turn off the camera. Remove the battery pack and insert it again. If the camera is hot, remove the
battery pack, and allow it to cool down before trying this corrective procedure.
• If an AC-PW20 AC Adaptor (sold separately) is used, disconnect the power cord. Connect the power
cord and turn on the camera again. If the camera does not work after trying these solutions, consult
your Sony dealer or local authorized Sony service facility.
Menu
Index
178GB
Table of
contents
Warning messages
If the following messages appear, follow the instructions accordingly.
Incompatible battery. Use correct model.
• An incompatible battery pack is being used.
• Set the date and time. If you have not used the camera for a long time, charge the internal
rechargeable battery.
Unable to use memory card. Format?
Sample photo
Set Area/Date/Time.
• The memory card was formatted on a computer and the file format was modified. Select OK, and then
format the memory card. You can use the memory card again, however, all previous data in the
memory card is erased. It may take some time to complete the format. If the message still appears,
change the memory card.
Menu
Memory Card Error
• An incompatible memory card is inserted or the format has failed.
Reinsert memory card.
This memory card may not be capable of recording and playing normally.
Index
• The inserted memory card cannot be used in your camera.
• The memory card is damaged.
• The terminal section of the memory card is dirty.
• The inserted memory card cannot be used in the camera.
Processing...
• Noise reduction is being carried out. You cannot do any further shooting during this reduction
process.
Unable to display.
• Images recorded with other cameras or images modified with a computer may not be displayed.
Cannot recognize lens. Attach it properly.
• The lens is not attached properly, or the lens is not attached. If the message appears when a lens is
attached, reattach the lens. If the message appears frequently, check whether the contacts of the lens
and camera are clean or not.
• When attaching the camera to an astronomical telescope or something similar, set [Release w/o Lens]
to [Enable] (page 121).
• The SteadyShot function does not work. You can continue to shoot but the SteadyShot function will
not work. Turn the camera off and on. If this icon does not disappear, consult your Sony dealer or
local authorized Sony service facility.
• The retractable lens with power zoom is retracted. Turn off the camera and eject the battery pack, then
reinsert the battery pack.
No images.
179GB
• There is no image on the memory card.
Continued r
Image protected.
Table of
contents
• You tried to delete protected images.
Unable to print.
• You tried to mark RAW images with a DPOF mark.
Internal temp. high. Allow it to cool.
• You have been recording images for a long time, the camera temperature has risen. Stop recording
images until the camera cools.
Menu
• The number of images exceeds that for which date management in a database file by the camera is
possible.
Sample photo
• The camera has become hot because you have been shooting continuously. Turn the power off. Cool
the camera and wait until the camera is ready to shoot again.
• Unable to register to the database file. Import all the images to a computer using “PlayMemories
Home” and recover the memory card.
Camera Error. Turn power off then on.
Index
• Turn the power off, remove the battery pack, and then re-insert it. If the message appears frequently,
consult your Sony dealer or local authorized Sony service facility.
Image DataBase File error
• There is something wrong occurred in the Image Database File. Select [Setup] t [Recover Image
DB].
Image Database File error. Recover?
• You cannot record or play back AVCHD movies because the Image Database File is damaged.
Follow the on-screen instructions to recover data.
Recording is unavailable in this movie format.
• Set [File Format] to [MP4].
Unable to magnify.
Unable to rotate image.
• Images recorded with other cameras may not be enlarged or rotated.
No images selected.
• You attempted to delete without specifying images.
No images changed.
• You attempted to execute DPOF without specifying images.
180GB
Continued r
Cannot create more folders.
Table of
contents
• The folder with a name beginning with “999” exists on the memory card. You cannot create any
folders if this is the case.
Sample photo
Menu
Index
181GB
Others
You can use the AC Adaptor in any country or region where the power supply is within
100 V to 240 V AC, 50 Hz/60 Hz.
Table of
contents
Using the camera abroad
Notes
• An electronic voltage transformer is unnecessary and its use may cause a malfunction.
To view movies shot using this camera on a TV, the camera and TV must use the same
color television system. Check the color TV system for the country or region where you
are using the camera.
Sample photo
On TV color systems
NTSC system
Menu
Bahama Islands, Bolivia, Canada, Central America, Chile, Colombia, Ecuador, Jamaica,
Japan, Korea, Mexico, Peru, Surinam, Taiwan, the Philippines, the U.S.A., Venezuela,
etc.
PAL system
PAL-M system
Index
Australia, Austria, Belgium, China, Croatia, Czech Republic, Denmark, Finland,
Germany, Holland, Hong Kong, Hungary, Indonesia, Italy, Kuwait, Malaysia, New
Zealand, Norway, Poland, Portugal, Rumania, Singapore, Slovak Republic, Spain,
Sweden, Switzerland, Thailand, Turkey, United Kingdom, Viet Nam, etc.
Brazil
PAL-N system
Argentina, Paraguay, Uruguay
SECAM system
Bulgaria, France, Greece, Guiana, Iran, Iraq, Monaco, Russia, Ukraine, etc.
182GB
You can use following memory cards with this camera: “Memory Stick PRO Duo”
media, “Memory Stick PRO-HG Duo” media, “Memory Stick XC-HG Duo” media, SD
memory card, SDHC memory card, and SDXC memory card.
Table of
contents
Memory card
Notes
•
•
•
•
•
•
•
•
•
•
Menu
Index
Memory card formatted with a computer is not guaranteed to operate with the camera.
Data read/write speeds differ depending on the combination of the memory card and the equipment used.
Do not remove the memory card while reading or writing data.
Data may be corrupted in the following cases:
– When the memory card is removed or the camera is turned off during a read or write operation
– When the memory card is used in locations subject to static electricity or electrical noise
We recommend backing up important data, such as to a hard disk of a computer.
Do not attach a label on the memory card itself nor on a memory card adaptor.
Do not touch the terminal section of the memory card with your hand or a metal object.
Do not strike, bend or drop the memory card.
Do not disassemble or modify the memory card.
Do not expose the memory card to water.
Do not leave the memory card within the reach of small children. They might accidentally swallow it.
The memory card may be hot just after it has been used for a long time. Be careful when you handle it.
Do not use or store the memory card under the following conditions:
– High temperature locations such as in a car parked under the sun
– Locations exposed to direct sunlight
– Humid locations or locations with corrosive substances present
Images recorded on “Memory Stick XC-HG Duo” media or an SDXC memory card cannot be imported
to or played on computers or AV devices that are not compatible with exFAT. Make sure that the device
is compatible with exFAT before connecting it to the camera. If you connect your camera to an
incompatible device, you may be prompted to format the card. Never format the card in response to this
prompt, as doing so will erase all data on the card. (exFAT is the file system used for “Memory Stick XCHG Duo” media and SDXC memory cards.)
Sample photo
•
•
•
•
“Memory Stick” media
The types of “Memory Stick” media that can be used with the camera are listed in the
table below. However, proper operation cannot be guaranteed for all “Memory Stick”
media functions.
“Memory Stick PRO Duo” media1) 2) 3)
Compatible with your camera
“Memory Stick PRO-HG Duo” media1) 2)
“Memory Stick XC-HG Duo” media1) 2)
“Memory Stick Duo” media
Incompatible with your camera
“Memory Stick” media and “Memory Stick
PRO” media
Incompatible with your camera
1)
This is equipped with MagicGate function. MagicGate is copyright protection technology that uses
encryption technology. Data recording/playback that requires MagicGate functions cannot be performed
with this camera.
2) Supports high-speed data transfer using a parallel interface.
3) When using “Memory Stick PRO Duo” media to record movies, only those marked with Mark2 can be
used.
183GB
Continued r
Notes on using “Memory Stick Micro” media (sold separately)
Table of
contents
Sample photo
• This product is compatible with “Memory Stick Micro” media (“M2”). “M2” is an
abbreviation for “Memory Stick Micro” media.
• To use a “Memory Stick Micro” media with the camera, be sure to insert the “Memory
Stick Micro” media into an “M2” Adaptor as large as Duo size. If you insert a
“Memory Stick Micro” media into the camera without an “M2” Adaptor as large as
Duo size, you might not be able to remove it from the camera.
• Do not leave the “Memory Stick Micro” media within the reach of small children.
They might accidentally swallow it.
Menu
Index
184GB
On charging the battery pack
We recommend charging the battery pack in an ambient temperature of between 10 °C
and 30 °C (50 °F and 86 °F). The battery pack may not be effectively charged in
temperatures outside this range.
Index
• Battery performance decreases in low temperature environments. So in cold places,
the operational time of the battery pack is shorter. To ensure longer battery pack use,
we recommend putting the battery pack in your pocket close to your body to warm it
up, and insert it in the camera immediately before you start shooting.
• The battery pack will run out quickly if you use the flash or record movies frequently.
• We recommend preparing spare battery packs and taking trial shots before taking the
actual shots.
• Do not expose the battery pack to water. The battery pack is not water-resistant.
• Do not leave the battery pack in extremely hot places, such as in a car or under direct
sunlight.
Menu
Effective use of the battery pack
Sample photo
Your camera operates only with an “InfoLITHIUM” battery pack NP-FW50. You cannot
use any other battery packs. “InfoLITHIUM” W series battery packs are marked with
.
An “InfoLITHIUM” battery pack is a lithium-ion battery pack that has functions for
communicating information related to operating conditions with the camera.
The “InfoLITHIUM” battery pack calculates the power consumption according to the
operating conditions of your camera, and displays the remaining battery time in
percentages.
Table of
contents
“InfoLITHIUM” battery packs
On the remaining battery time indicator
• You can check the level with the following indicators and percent figures displayed on
the LCD screen.
“Battery exhausted.”
Battery level
High
Low
You cannot shoot any
more image.
• If the power goes off even though the remaining battery time indicator indicates that
the battery pack is fully charged, recharge the battery pack after fully discharging it in
the camera. Remaining battery time will be indicated correctly. Note, however, that
the battery indication will not be restored if it is used in high temperatures for a long
time, or if left after being charged, or when the battery pack is frequently used. Use the
remaining battery indication as a rough guide only.
185GB
Continued r
How to store the battery pack
• The battery life is limited. Battery capacity decreases over time and through repeated
use. If the available time of the battery is shortened significantly, it is probably time to
replace the battery pack with a new one.
• The battery life varies according to how the battery pack is stored and the operating
conditions and environment in which each battery pack is used.
Sample photo
On battery life
Table of
contents
• To maintain the battery pack’s function, charge the battery pack and then fully
discharge it in the camera at least once a year before storing it. Store the battery pack
in a cool, dry place.
• To use the battery pack up, leave the camera in slide show playback mode until the
power goes off.
• To prevent staining the terminal, short-circuiting, etc., be sure to use a plastic bag to
keep away from metal materials when carrying or storing the battery pack.
Menu
Index
186GB
Sample photo
Menu
Index
• Only NP-FW50 battery packs (and no others) can be charged. Batteries other than the
specified kind may leak, overheat, or explode if you attempt to charge them, posing a
risk of injury from electrocution and/or burn.
• Remove the USB cable from the camera. If you leave the charged battery pack in the
camera, battery life may be shortened.
• The charge lamp located on the side of the camera flashes in either way:
Fast flashing: Turns the light on and off repeatedly at the interval of about 0.3 second.
Slow flashing: Turns the light on and off repeatedly at the interval of about
1.3 seconds.
• If the charge lamp flashes fast, remove the battery pack being charged, and then insert
the same battery pack into the camera securely again, or disconnect and reconnect the
USB cable. If the charge lamp flashes fast again, this may indicate a battery error or
that a battery pack other than the specified type has been inserted or that there is
something wrong with the AC Adaptor or USB cable. Check that the battery pack is of
the specified type, and that the AC Adaptor or USB cable is not damaged. If the
battery pack is the specified type, remove the battery pack, replace it with a new one or
another one and check if the battery pack is charged properly. If the battery pack is
charged properly, a battery error may have occurred. If another battery pack cannot be
charged properly, the AC Adaptor or USB cable may be damaged. Replace the AC
Adaptor or the USB cable with another one and check whether the battery pack is
properly charged.
• If the charge lamp flashes slowly, it indicates that the camera stops charging
temporarily on standby. The camera stops charging and enters the standby status
automatically when the temperature is outside of the recommended operating
temperature. When the temperature gets back within the appropriate range, the camera
resumes charging and the charge lamp lights up again. We recommend charging the
battery pack in an ambient temperature of between 10 °C and 30 °C (50 °F and 86 °F).
Table of
contents
Battery charging
187GB
Using a Mount Adaptor (sold separately), you can attach an A-mount lens (sold
separately) to your camera. For details, refer to the operating instructions supplied with
the Mount Adaptor.
Table of
contents
Mount Adaptor
Sample photo
Menu
The available functions differ depending on the Mount Adaptor type.
Functions
LA-EA1
Autofocus
Available with SAM/SSM lens Available
only*
LA-EA2
Contrast AF
Phase-detection AF
AF/MF Select
Switchable on the lens
SAM lens: switchable on the
lens
SSM lens: switchable on the
lens, and also on the menu
when the switch on the lens is
set to AF
Other lenses: switchable on the
menu
Autofocus Area
Multi/Center/Flexible Spot
Wide/Spot/Local
Autofocus Mode
Single
Single/Continuous
Index
AF system
* The autofocus speed will be slower compared to when an E-mount lens is attached. (When an A-mount
lens is attached, the autofocus speed will be about 2 seconds to 7 seconds, when shooting under Sony
measurement condition. The speed may vary depending on the subject, ambient light, etc.)
188GB
Continued r
The available [Autofocus Area] settings differ depending on the Mount Adaptor type.
The camera determines which of the 25 AF areas is used for
focusing.
(Center)
The camera uses the AF area located in the center area
exclusively.
(Flexible Spot)
Moves the focusing area to focus on a small subject or narrow
area by pressing the top/bottom/right/left of the control wheel.
LA-EA2
The camera determines which of the 15 AF areas is used for
focusing.
(Spot)
The camera uses the AF area located in the center area
exclusively.
(Local)
Choose the area for which you want to activate the focus from
among 15 AF areas with the control wheel.
Menu
(Wide)
Sample photo
(Multi)
Table of
contents
LA-EA1
Notes
Index
• You may not be able to use the Mount Adaptor with certain lenses. Consult your Sony dealer or local
authorized Sony service facility on compatible lenses.
• When you are using the Mount Adaptor and record movies, press the shutter button halfway down to use
autofocus.
• You cannot use the AF illuminator when using an A-mount lens.
• The sound of the lens and the camera in operation may be recorded during movie recording. You can turn
the sound off by selecting MENU t [Setup] t [Movie Audio Rec] t [Off].
• It may take a long time or may be difficult for the camera to focus, depending on the lens used or the
subject.
• The light of the flash may be blocked by the lens attached.
189GB
Based on the AVCHD format, your camera records with the high definition image
quality (HD) mentioned below.
1)
1080i specification
A high definition specification which utilizes 1,080 effective scanning lines and the interlace system.
2) 720p specification
A high definition specification which utilizes 720 effective scanning lines and the progressive system.
3)
Data recorded in AVCHD format other than the above mentioned cannot be played on your camera.
Index
Video signal3): 1080 60i-compatible device
MPEG-4 AVC/H.264 1920 × 1080/60i, 1920 × 1080/24p
1080 50i-compatible device
MPEG-4 AVC/H.264 1920 × 1080/50i, 1920 × 1080/25p
Audio signal: Dolby Digital 2ch
Recording media: Memory card
Menu
Recording and playback on your camera
Sample photo
The AVCHD format is a high definition digital video camera format used to record a
high definition (HD) signal of either the 1080i specification1) or the 720p specification2)
using efficient data compression coding technology. The MPEG-4 AVC/H.264 format is
adopted to compress video data, and the Dolby Digital or Linear PCM system is used to
compress audio data.
The MPEG-4 AVC/H.264 format is capable of compressing images at higher efficiency
than that of the conventional image compressing format. The MPEG-4 AVC/H.264
format enables a high definition video signal shot on a digital video camera recorder to
be recorded on 8 cm DVD discs, hard disk drive, flash memory, memory card, etc.
Discs recorded with HD (high definition) image quality can be played back only on
AVCHD format-compatible devices. DVD-based players or recorders cannot play back
HD image quality discs, as they are incompatible with the AVCHD format. Also, DVDbased players or recorders may fail to eject HD image quality discs.
Table of
contents
AVCHD format
190GB
Cleaning the camera
Sample photo
Clean the camera surface with a soft cloth slightly moistened with water, and then wipe
the surface with a dry cloth. To avoid damaging the finish or casing, follow the
instructions below.
– Do not use the chemical products such as thinner, benzine, alcohol, disposable cloths,
insect repellent, sunscreen or insecticide, etc.
– Do not touch the camera if you have the above chemical products on your hand.
– Do not leave the camera in contact with rubber or vinyl for a long time.
Table of
contents
Cleaning
Cleaning the image sensor
Index
Notes
• A blower is not supplied with the camera. Use a commercially available blower.
• Do not use a spray-type blower as doing so may scatter water droplets inside the camera body.
• Do not insert the tip of the blower into the cavity beyond the lens mount area, in order to make sure that
the tip of the blower does not touch the image sensor.
• Hold the camera face downward to prevent dust from entering the camera.
• Do not subject the camera to any shock during cleaning.
• When cleaning the image sensor with a blower, do not blow too hard.
Menu
After turning off the camera, remove the lens and blow
off dust on and around the image sensor surface using a
blower.
Cleaning the lens
• Do not use a cleaning solution containing organic solvents, such as thinner, or benzine.
• When cleaning the lens surface, remove dust with a commercially available blower. In
case of dust that sticks to the surface, wipe it off with a soft cloth or tissue paper
slightly moistened with lens cleaning solution. Wipe in a spiral pattern from the center
to the outside. Do not spray lens cleaning solution directly onto the lens surface.
191GB
Index
Contrast ...............................................................96
AdobeRGB ....................................................... 119
Control wheel .....................................................19
AEL button ...................................................... 134
Creative Style .....................................................96
AEL toggle ....................................................... 134
Custom Key Settings ........................................132
AEL w/ shutter ................................................. 106
Custom white balance .........................................89
AF Illuminator ................................................. 107
D
AF Micro Adj. .................................................. 129
AF/MF Select ..................................................... 65
Anti Motion Blur ............................................... 56
Aperture ............................................................. 62
Aperture Priority ................................................ 62
Area Setting ..................................................... 138
Aspect Ratio ....................................................... 82
Auto Object Framing ......................................... 76
Auto Review .................................................... 110
Autoflash ............................................................ 64
Autofocus Area .................................................. 67
Autofocus Mode ................................................ 68
Autofocus ........................................................... 65
Daylight Svg. ....................................................137
Delete ............................................................31, 97
Demo Mode ......................................................150
Digital Zoom ....................................................115
Direct Manual Focus ..........................................66
Disc creation .....................................................167
DISP ...................................................................39
DISP Button(Monitor) ........................................79
Display Card Space ..........................................158
Display Color ....................................................144
Display Contents ................................................39
DMF ...................................................................66
DPOF ................................................................100
B
D-Range Opt. ......................................................92
Beep ................................................................. 135
Drive Mode .........................................................43
Bkground Defocus ............................................. 33
DRO/Auto HDR .................................................92
Bracket ............................................................... 48
E
Bracket: Cont. .................................................... 48
Brightness .......................................................... 34
BULB ................................................................. 60
Index
AVCHD ..................................................... 85, 190
Date/Time Setup ...............................................137
Menu
Auto HDR .......................................................... 93
Date Format ......................................................137
Sample photo
A
Table of
contents
Index
Enlarge Image ...................................................102
Enlarged playback ..............................................30
Exposure Comp. .................................................42
C
Eye-Fi ...............................................................159
Center ........................................................... 67, 90
Eye-Fi card .......................................................159
Clear Image Zoom ........................................... 114
F
Color filter .......................................................... 88
Color .................................................................. 35
Color Space ...................................................... 119
Color Temperature ............................................. 88
Computer ......................................................... 160
Recommended environment ....................... 160
Connection
Computer .................................................... 165
Cont. Shooting ................................................... 44
Continuous AF ................................................... 68
Face Detection ....................................................72
Face Priority Tracking ......................................126
Face Registration ................................................73
File Format .........................................................85
File Number ......................................................153
Fill-flash .............................................................64
Flash Comp. ........................................................91
Flash Mode .........................................................64
Flash Off .............................................................64
Flash ...................................................................64
Continued r
192GB
Menu ...................................................................22
Folder Name .................................................... 154
Brightness/Color ...........................................23
Format .............................................................. 152
Camera ..........................................................22
Image Size .....................................................23
G
Playback ........................................................24
Grid Line .......................................................... 111
Setup .............................................................24
Menu start .........................................................130
Metering Mode ...................................................90
Hand-held Twilight ............................................ 56
MF Assist ..........................................................117
Help Guide Display ......................................... 139
MF Assist Time ................................................118
High ISO NR ................................................... 122
Movie Audio Rec .............................................127
I
Icons ................................................................... 16
MOVIE Button .................................................131
MP4 ....................................................................85
Sample photo
H
Table of
contents
Flexible Spot ...................................................... 67
Multi .............................................................67, 90
Identifying parts ................................................. 12
N
Image Index ............................................... 50, 101
New Folder .......................................................156
Image Size .......................................................... 80
Night Portrait ......................................................55
“InfoLITHIUM” battery pack .......................... 185
Night Scene ........................................................56
Menu
Image Data Converter .............................. 162, 164
Initialize ........................................................... 151
Install ............................................................... 162
P
Intelligent Auto .................................................. 51
Panorama ............................................................57
ISO ..................................................................... 49
Panorama Direction ............................................84
JPEG .................................................................. 83
L
Peaking Color ...................................................113
Peaking Level ...................................................112
Photo Creativity ..................................................32
Picture Effect ................................................37, 94
Playback .............................................................29
Landscape .......................................................... 55
Playback Display ..............................................146
Language .......................................................... 136
Playback zoom ....................................................30
LCD Brightness ............................................... 142
PlayMemories Home ................................160, 163
Lens Comp.: Chro. Aber. ................................. 124
Portrait ................................................................55
Lens Comp.: Distortion .................................... 125
Power Save .......................................................140
Lens Comp.: Shading ....................................... 123
Power Saving Start Time ..................................141
Live View Display ........................................... 109
Print ..................................................................171
M
Mac .................................................................. 162
Index
J
Program Auto .....................................................63
Program Shift ......................................................63
Protect ...............................................................104
Macro ................................................................. 55
Manual Exposure ............................................... 59
Q
Manual Focus ..................................................... 65
Quality ................................................................83
Memory card .................................................... 183
193GB
Continued r
U
Rear Sync. .......................................................... 64
USB Connection ...............................................147
Record Setting .................................................... 86
USB LUN Setting .............................................148
Recover Image DB ........................................... 157
Red Eye Reduction .......................................... 108
V
Release w/o Lens ............................................. 121
Version .............................................................149
Rotate ............................................................... 103
Viewfinder Bright. ............................................143
Volume Settings ...............................................105
S. Auto Image Extract. ..................................... 116
W
Scene Recognition ....................................... 27, 51
Warning messages ............................................179
Scene Selection .................................................. 55
White Balance ....................................................87
Scroll playback .................................................. 58
Wide Image ......................................................145
Select Shoot. Folder ......................................... 155
Wind Noise Reduct. ..........................................128
Self-timer ........................................................... 46
Windows ...........................................................162
Self-timer(Cont) ................................................. 47
Setup .................................................................. 24
Z
Sharpness ........................................................... 96
Zoom ...................................................................70
Menu
Saturation ........................................................... 96
Sample photo
Vividness ............................................................36
S
Table of
contents
R
Shooting ............................................................. 27
Movie ........................................................... 27
Still image .................................................... 27
Shutter Priority ................................................... 61
Shutter speed ...................................................... 61
Index
Shooting Tip List ............................................... 78
Single-shot AF ................................................... 68
Slide Show ......................................................... 99
Slow Sync. ......................................................... 64
Smile Shutter ...................................................... 74
Soft keys ............................................................ 20
Soft Skin Effect .................................................. 77
Software ........................................................... 162
Spd Priority Cont. .............................................. 45
Specify Printing ............................................... 100
Sports Action ..................................................... 55
Spot .................................................................... 90
sRGB ................................................................ 119
SteadyShot ....................................................... 120
Still/Movie Select .............................................. 98
Sunset ................................................................. 55
Superior Auto ..................................................... 53
Sweep Panorama ................................................ 57
T
Tracking Focus .................................................. 69
Troubleshooting ............................................... 172
194GB
Notes on the License
Sample photo
Menu
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO
LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN
WHICH IT DOES NOT RECEIVE REMUNERATION TO
(i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC
VIDEO”)
AND/OR
(ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED
IN A PERSONAL ACTIVITY AND/OR THAT WAS OBTAINED FROM A VIDEO
PROVIDER LICENSED TO PROVIDE AVC VIDEO.
NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE.
ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C.
SEE
HTTP://WWW.MPEGLA.COM
Table of
contents
The software provided with this camera is supplied under licensing agreements with
each copyright holder. Based on requests by the owners of copyright of these software
applications, we have an obligation to inform you of the following. Please read the
following sections.
You will find licenses (in English) in the internal memory of the camera. By making a
Mass Storage connection between the camera and your computer, you can read the file in
[PMHOME]–[LICENSE].
On GNU GPL/LGPL applied software
Index
The software that is eligible for the following GNU General Public License (hereinafter
referred to as “GPL”) or GNU Lesser General Public License (hereinafter referred to as
“LGPL”) are included in the camera.
This informs you that you have a right to have access to, modify, and redistribute source
code for these software programs under the conditions of the supplied GPL/LGPL.
Source code is provided on the web. Use the following URL to download it.
http://www.sony.net/Products/Linux/
We would prefer you do not contact us about the contents of source code.
You will find licenses (in English) in the internal memory of the camera. By making a
Mass Storage connection between the camera and your computer, you can read the file in
[PMHOME]–[LICENSE].
195GB
Download PDF

advertising
