Connecting Additional Equipment

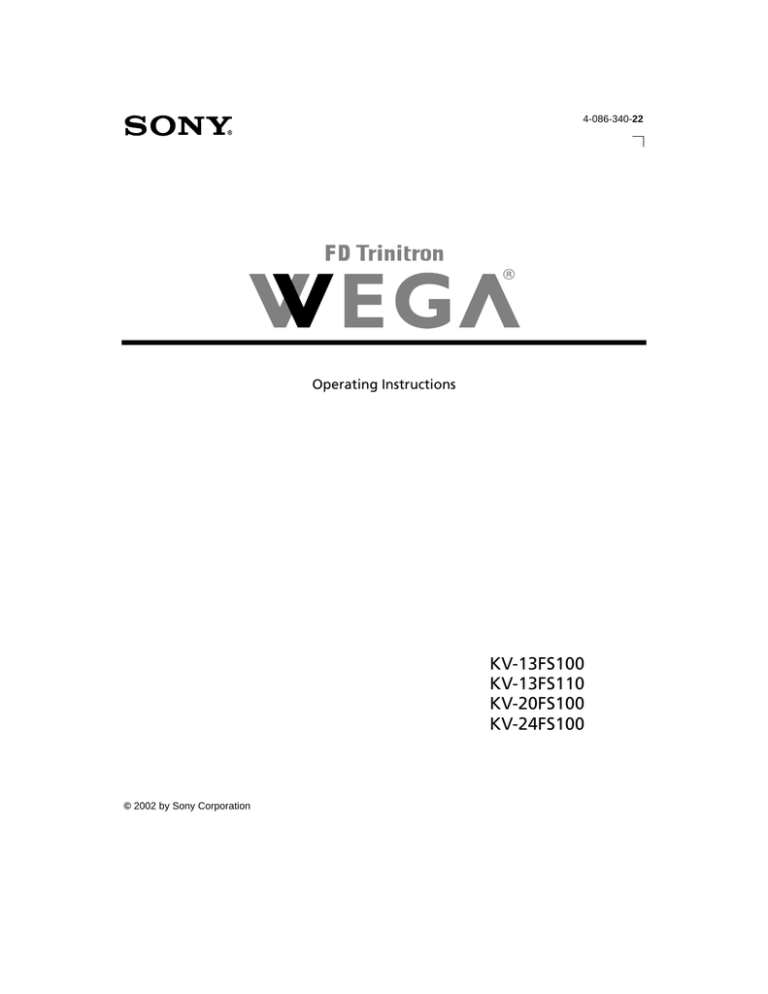

4-086-340-22
Operating Instructions
KV-13FS100
KV-13FS110
KV-20FS100
KV-24FS100
© 2002 by Sony Corporation
User Guide
Connecting Additional Equipment
WARNING
To reduce the risk of fire or electric shock, do not expose the TV to rain or moisture.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION
RISQUE DE CHOC ELECTRIQUE,
NE PAS OUVRIR
PRECAUCION
RIESGO DE CHOQUE ELECTRICO
NO ABRIR
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying the appliance.
Note to the CATV Installer
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the
NEC that provides guidelines for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building as close to the point of
cable entry as practical.
SAFETY PRECAUTIONS
Operate the TV only on 120 V AC.
One blade of the power plug is wider than the other for safety purposes and will fit into the power
outlet only one way. If you are unable to insert the plug fully into the outlet, contact your dealer.
If any liquid or solid object falls into the TV, unplug it and have it checked by qualified personnel
before operating it further.
CAUTION
When using TV games, computers, and similar products with your TV, keep the brightness
and contrast functions at low settings. If a fixed (non-moving) pattern is left on the screen for
long periods of time at a high brightness or contrast setting, the image can be permanently
imprinted onto the screen. Continuously watching the same channel can cause the imprint of
station logos onto the TV screen. These types of imprints are not covered by your warranty
because they are the results of misuse.
To reduce the risk of electric shock, do not use this polarized plug with an
extension cord, receptacle, or other outlet unless the blades can be fully inserted
to prevent blade exposure.
User Guide
You are cautioned that any changes or modifications not expressly approved in this manual
could void your authority to operate this equipment.
NOTIFICATION
This equipment has been tested and found to comply with the limits for a Class B digital
device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference with radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antennas.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Protecting the TV
To prevent internal heat build-up, do not block the ventilation openings.
Do not install the TV in a hot or humid place, or in a place subject to excessive dust or mechanical
vibration.
Note on Caption Vision
This television receiver provides display of television closed captioning in accordance with
§ 15.119 of the FCC rules.
Use of this television for other than private viewing of programs broadcast on UHF or VHF or
transmitted by cable companies for the use of the general public may require authorization
from the broadcaster-cable company and/or program owner.
Owner’s Record
The model and serial numbers are located on the front cover of this manual and at the rear of
your TV.
Trademarks and Copyrights
ENERGY STAR® is a registered mark.
As an ENERGY STAR® Partner, Sony has determined that this product or product
model meets the ENERGY STAR® guidelines for energy efficiency.
Connecting Additional Equipment
IMPORTANT SAFEGUARDS
For your protection, please read these instructions completely, and keep this manual for future
reference. Carefully observe and comply with all warnings, cautions and instructions placed
on the set, or described in the operating instructions or service manual.
WARNING
To guard against injury, the following basic safety precautions should be observed in the
installation, use, and servicing of the set.
Use
Power Sources
This set should be operated only from the
type of power source indicated on the serial/
model plate. If you are not sure of the type of
electrical power supplied to your home,
consult your dealer or local power company.
For those sets designed to operate from
battery power, refer to the operating
instructions.
For the set with a polarized AC power cord
plug
This plug will fit into the power outlet only
one way. This is a safety feature. If you are
unable to insert the plug fully into the outlet,
try reversing the plug. If the plug still fails to
fit, contact your electrician to have a suitable
outlet installed. Do not defeat the safety
purpose of the polarized plug by forcing it
in.
Grounding or Polarization
This set is equipped with a polarized AC
power cord plug (a plug having one blade
wider than the other), or with a three-wire
grounding type plug (a plug having a third
pin for grounding).
Refer to the following instructions:
Alternate Warning
For the set with a three-wire grounding type
AC plug
This plug will only fit into a grounding-type
power outlet. This is a safety feature. If you
are unable to insert the plug into the outlet,
contact your electrician to have a suitable
outlet installed. Do not defeat the safety
purpose of the grounding plug.
User Guide
Overloading
Do not overload wall outlets, extension
cords or convenience receptacles beyond
their capacity, since this can result in fire or
electric shock. Always turn the set off when
it is not to be used. When the set is left
unattended and unused for long periods of
time, unplug it from the wall outlet as a
precaution against the possibility of an
internal malfunction that could create a fire
hazard.
Do not disconnect the antenna or the power
cord during a heavy storm. Lightning may
strike while you are holding the cable or
cord, causing serious injury. Turn off your
TV and wait for the weather to improve.
Object and Liquid Entry
Never push objects of any kind into the set
through the cabinet slots as they may touch
dangerous voltage points or short out parts
that could result in a fire or electric shock.
Never spill liquid of any kind on the set.
Attachments
Do not use attachments not recommended
by the manufacturer, as they may cause
hazards.
Do not place any objects, especially heavy
objects, on top of the set. The object may fall
from the set, causing injury.
Cleaning
Unplug the set from the wall outlet before
cleaning or polishing it. Do not use liquid
cleaners or aerosol cleaners. Use a cloth
lightly dampened with water for cleaning
the exterior of the set.
If a snapping or popping sound from a TV
set is continuous or frequent while the TV is
operating, unplug the TV and consult your
dealer or service technician. It is normal for
some TV sets to make occasional snapping
or popping sounds, particularly when being
turned on or off.
Installation
Always use two or more people to lift or
move the set. The set is heavy and the
bottom surface is flat. Serious injury can
result from trying to move the set by
yourself alone, or from unsteady handling.
Install the set on a stable, level surface.
Water and Moisture
Do not use power-line operated sets near
water — for example, near a bathtub,
washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Connecting Additional Equipment
Accessories
Do not place the set on an unstable cart,
stand, tripod, bracket, table, or shelf. The set
may fall, causing serious injury to a child or
an adult, and serious damage to the set. Use
only a cart or stand recommended by the
manufacturer for the specific model of TV.
Any mounting of the product should follow
the manufacturer’s instructions, and should
use a mounting accessory recommended by
the manufacturer. An appliance and cart
combination should be moved with care.
Quick stops, excessive force, and uneven
surfaces may cause the appliance and cart
combination to overturn.
•
Never block the slots and openings by
placing the set on a bed, sofa, rug or
other similar surface.
•
Never place the set in a confined space,
such as a bookcase or built-in cabinet,
unless proper ventilation is provided.
Disconnect all cables and cords from the set
before attempting to move the set.
•
Do not place the set near or over a
radiator or heat register, or where it is
exposed to direct sunlight.
Do not allow children or pets to climb up
onto, or push against, the set. The set may
fall, causing serious injury.
Ventilation
The slots and openings in the cabinet and in
the back or bottom are provided for
necessary ventilation. To ensure reliable
operation of the set, and to protect it from
overheating, these slots and openings must
never be blocked or covered.
• Never cover the slots and openings
with a cloth or other materials.
Power-Cord Protection
Do not allow anything to rest on or roll over
the power cord, and do not place the set
where the power cord is subject to wear or
abuse.
User Guide
Grounding or Polarization
This set may be equipped with a polarized alternating current line plug (a plug having one
blade wider than other). This plug will fit into the power outlet only one way. This is a safety
feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the
plug still fails to fit, contact your electrician to replace your obsolete outlet. Do not defeat the
safety purpose of the polarized plug.
Antennas
Outdoor Antenna Grounding
If an outdoor antenna is installed, follow the precautions below. An outdoor antenna system
should not be located in the vicinity of overhead power lines or other electric light or power
circuits, or where it can come in contact with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM, EXTREME CARE SHOULD BE
TAKEN TO KEEP FROM CONTACTING SUCH POWER LINES OR CIRCUITS AS
CONTACT WITH THEM IS ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so as to provide some protection against voltage
surges and built-up static charges. Section 810 of the National Electrical Code (NEC) in USA
and Section 54 of the Canadian Electrical Code in Canada provides information with respect
to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding conductors, location of antenna discharge unit,
connection to grounding electrodes, and requirements for the grounding electrode.
Antenna Grounding According to the NEC
Antenna Grounding According to the National Electrical Code, ANSI/NFPA 70.
ANTENNA
LEAD IN
WIRE
GROUND
CLAMP
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
ELECTRIC
SERVICE
EQUIPMENT
NEC - NATIONAL ELECTRIC CODE
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ARTICLE 250, PART H)
Lightning
For added protection for this television receiver during a lightning storm, or when it is left
unattended and unused for long periods of time, unplug it from the wall outlet and
disconnect the antenna. This will prevent damage to the receiver due to lightning and powerline surges.
Connecting Additional Equipment
Service
Damage Requiring Service
Unplug the set from the wall outlet and refer
servicing to qualified service personnel
under the following conditions:
• When the power cord or plug is
damaged or frayed.
•
When the set exhibits a distinct change
in performance — this indicates a need
for service.
Servicing
Do not attempt to service the set yourself
since opening the cabinet may expose you to
dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
If liquid has been spilled into the set or
objects have fallen into the product.
•
If the set has been exposed to rain or
water.
•
If the set has been subject to excessive
shock by being dropped, or the cabinet
has been damaged.
•
•
If the set does not operate normally
when following the operating
instructions. Adjust only those controls
that are specified in the operating
instructions. Improper adjustment of
other controls may result in damage
and will often require extensive work
by a qualified technician to restore the
set to normal operation.
Replacement Parts
When replacement parts are required, be
sure the service technician certifies in
writing that he has used replacement parts
specified by the manufacturer that have the
same characteristics as the original parts.
Unauthorized substitutions may result in
fire, electric shock, or other hazards.
Safety Check
Upon completion of any service or repairs to
the set, ask the service technician to perform
routine safety checks (as specified by the
manufacturer) to determine that the set is in
safe operating condition, and to so certify.
When the set reaches the end of its useful
life, improper disposal could result in a
picture tube implosion. Ask a qualified
service technician to dispose of the set.
User Guide
Contents
Introduction
®
Introducing the FD Trinitron WEGA Features.................................................1
Batteries for the Remote Control ..........................................................................2
About this Manual ..................................................................................................2
Front Panel Menu Controls ...................................................................................2
Connecting Your TV
TV Rear Panel ..........................................................................................................3
Basic Connections ...................................................................................................4
Connecting Additional Equipment ......................................................................5
Using the Remote Control and Basic Functions
Using the Remote Control ...................................................................................12
Setting Up the TV Automatically .......................................................................14
Quick Start to the Menus .....................................................................................15
Using the Menus
To Access a Menu..................................................................................................17
Using the Video
Menu ..................................................................................18
Using the Audio
Menu ................................................................................19
Using the Channel Setup
Menu..................................................................20
Parental Control ....................................................................................................22
Using the Parental Control
Menu ..............................................................25
Using the Timer
Menu.................................................................................28
Using the Setup
Menu .................................................................................29
Other Information
Troubleshooting ....................................................................................................31
Specifications .........................................................................................................33
Index .............................................................................................................................35
User Guide
Introduction
®
Congratulations on your purchase of the Sony FD Trinitron WEGA . Before you begin using
this manual, please check the model number located on the rear of your TV or on the front
cover of this manual.
®
Introducing the FD Trinitron WEGA Features
Some of the features you will enjoy include:
FD Trinitron FLAT CRT — Technologically advanced tube delivers a picture with
uncompromising accuracy and outstanding image detail.
Y, PB, PR Inputs — A component video input connection for a superior picture quality.
Parental Control (V-Chip) — A tool to help parents monitor what their children watch on
TV by establishing rating limits.
Favorite Channels — Instant access to your favorite channels with the touch of a button.
Energy Star® — A recognized symbol of energy efficiency.
Direct MTS — Allows direct access for changing your Multi-Channel TV Sound: Stereo,
Mono, or Auto SAP (Second Audio Program) with the touch of a button.
Trilingual Menus — Choose between English, French, or Spanish menus.
Front Panel Controls — Allows access to the on-screen menus without the use of a remote
control.
Front A/V Inputs — A quick connection for video games, camcorders, stereo/mono
equipment, or headphones.
Auto Mute — A friendly feature designed to automatically mute your TV when no signal
is received.
1
Operating Instructions
Batteries for the Remote Control
Insert two AA (R6) batteries (supplied) into the remote control using the following illustration
as a guide.
Under normal conditions, batteries will last up to six months. If the remote control does
not operate properly, the batteries might be worn out.
If you will not be using the remote control for an extended period of time, remove the
batteries to avoid possible damage from battery leakage.
About this Manual
This manual provides instructions to help you enjoy your new TV. It shows you how to
connect to an antenna or cable, cable box, VCR, DVD, satellite receiver, stereo system, or
camcorder. Once you’re connected, follow the instructions and use the remote control to
access the on-screen menus.
The TV front and rear panels illustrated in this manual are for KV-24FS100. The front and
rear panels on your TV may not look exactly like those illustrated.
Front Panel Menu Controls
F
F
The front Audio/Video panel controls allows you to access the menu without the remote
control. Press
to display the on-screen menu. Use the
and
buttons on the front
button
Audio/Video panel instead of the F and f buttons on the remote control. Use the
buttons on the remote control.
on the front Audio/Video panel instead of the G, g, and
Press
again when the setting or adjustment is complete.
To navigate the menus with your remote control, see “Using the Menus” on page 17.
2
Connecting Your TV
Read this section before setting up your TV for the first time. This section covers basic
connections in addition to any optional equipment you may be connecting.
TV Rear Panel
1
2
4
3
Jack
Description
1 S VIDEO
Connects to the S VIDEO OUT jack on your VCR or other video
equipment that has S VIDEO. S VIDEO provides better picture
quality than the VHF/UHF jacks or the video input jack. S VIDEO
does not provide sound; the audio cables must still be connected.
2 VHF/UHF
Connects to your VHF/UHF antenna or cable.
3 VIDEO/
Connects to the AUDIO and VIDEO output jacks on your VCR or
other video equipment. A second video input jack (VIDEO 2) is
located on the front panel of the TV. These AUDIO/VIDEO input
jacks provide better picture quality than the VHF/UHF jack.
AUDIO (L/R)
4 Y, PB, PR/
L, R
Connects to the component video Y, PB, PR to AUDIO L and R
output jacks on your DVD player or Digital Set-top box.
The rear panels illustrated in this manual are for KV-24FS100. The rear panels on your TV
may not look exactly like those illustrated.
3
Operating Instructions
Basic Connections
TV with indoor or outdoor antenna, or CATV cable
Depending on the cable available in your home, choose one of the connections below:
If you are connecting to an indoor or outdoor antenna, you may need to adjust the
orientation of the antenna for best reception.
4
Connecting Your TV
Connecting Additional Equipment
TV and VCR
Rear of TV
2
1
VCR
Video (yellow)
Audio L (white)
Audio R (red)
From
cable/
antenna
Optional connection
To watch video programs from your VCR, tune your TV to channel 3 or 4 (as set on the rear
of your VCR).
1
Connect the coaxial cable from your TV antenna or cable service to the IN jack on your
VCR.
2
Connect a coaxial cable (not supplied) from the OUT jack on your VCR to the VHF/UHF
jack on the TV.
Optional connection
If your VCR is equipped with video outputs, you can get better picture quality by connecting
Audio/Video cables (not supplied) from AUDIO and VIDEO OUT on your VCR to
AUDIO/VIDEO IN on your TV.
You can use the button to switch between the VHF/UHF and VIDEO inputs.
For better picture quality, use S VIDEO instead of the yellow Audio/ Video cable. S VIDEO
does not provide sound; the audio cables must still be connected.
5
Operating Instructions
TV and Cable Box
Cable Box
1
From
cable
2
Coaxial
Cable
Rear of TV
1
2
Connect the coaxial cable from your cable service to the IN jack on your cable box.
Connect a coaxial cable (not supplied) from the OUT jack on your cable box to the
VHF/UHF jack on the TV.
To view channels from your cable box, tune your TV to channel 3 or 4 (as set on the rear
panel of your cable box) and use the cable box’s remote control to change channels.
If you will be controlling all channel selection through your cable box, you should consider
using the Channel Fix feature by setting your TV to channnel 3 or 4 (see page 20).
6
Connecting Your TV
TV, VCR, and Cable Box
Rear of TV
3
VCR
Video (yellow)
Audio L (white)
Audio R (red)
2
Cable Box
1
Optional connection
From cable
1
2
Connect the coaxial cable from your cable service to the IN jack on your cable box.
3
Connect a coaxial cable (not supplied) from the OUT jack on your VCR to the VHF/UHF
jack on the TV.
Connect a coaxial cable (not supplied) from the OUT jack on your cable box to the IN jack
on your VCR.
Ifusing
you will be controlling all channel selection through your cable box, you should consider
the Channel Fix feature by setting your TV to channel 3 or 4 (see page 20).
Optional connection
If your VCR is equipped with video outputs, you can get better picture quality by connecting
Audio/Video cables (not supplied) from AUDIO and VIDEO OUT on your VCR to
AUDIO/VIDEO IN on your TV.
You can use the button to switch between the VHF/UHF and VIDEO inputs.
For better picture quality, use S VIDEO instead of the yellow Audio/ Video cable. S VIDEO
does not provide sound; the audio cables must still be connected.
7
Operating Instructions
TV and Satellite Receiver
From
cable/
antenna
Rear of TV
2
1
Satellite Receiver
Satellite
antenna
cable
Video (yellow)
Audio L (white)
Audio R (red)
3
1
2
Connect the cable from your satellite antenna to SATELLITE IN on your satellite receiver.
3
Using Audio/Video cables (not supplied), connect AUDIO and VIDEO OUT on your
satellite receiver to AUDIO and VIDEO IN on your TV.
Connect the coaxial cable from your cable service or antenna to the VHF/UHF jack on
your TV.
You can use the button to switch between the VHF/UHF and VIDEO inputs.
For better picture quality, use S VIDEO instead of the yellow Audio/ Video cable. S VIDEO
does not provide sound; the audio cables must still be connected.
8
Connecting Your TV
TV, Satellite Receiver, and VCR
Satellite
antenna
cable
From
cable/
antenna
4
1
Rear of TV
2
VCR
Satellite Receiver
3
Video (yellow)
Audio L (white)
Audio R (red)
5
1
2
3
Connect the cable from your satellite antenna to SATELLITE IN on the satellite receiver.
4
Using Audio/Video cables (not supplied), connect AUDIO and VIDEO OUT on your
satellite receiver to AUDIO and VIDEO IN on your VCR.
5
Using Audio/Video cables (not supplied), connect AUDIO and VIDEO OUT on your VCR
to AUDIO and VIDEO IN on your TV.
Connect the coaxial cable from your cable service or antenna to the IN jack on your VCR.
Using a coaxial cable (not supplied), connect the OUT jack on your VCR to the VHF/UHF
jack on your TV.
To view from the satellite receiver or VCR, select the video input to which your satellite
receiver or VCR is connected by pressing
on the remote control.
9
Operating Instructions
Connecting a DVD Player
Using Audio/Video cables (not supplied), connect AUDIO and VIDEO OUT on your DVD
player to AUDIO and VIDEO IN on your TV.
Rear of TV
Rear of DVD Player
Video (yellow)
Audio L (white)
Audio R (red)
For better picture quality, use S VIDEO instead of the yellow Audio/ Video cable. S VIDEO
does not provide sound; the audio cables must still be connected.
Optional connection
If your DVD player is equipped with component video outputs (Y, PB, PR), you can optimize
the picture quality by using component video cables.
Rear of TV
Rear of DVD Player
Y (black and white)
PB (blue)
PR (red)
2
Audio L (white)
Audio R (red)
1
1
Using component video cables (not supplied), connect the Y, PB, PR OUT on your DVD
player to Y, PB, PR IN on your TV.
2
Connect AUDIO OUT on your DVD player to AUDIO IN on your TV.
The Y, P , P outputs on your DVD player are sometimes labeled Y, C , and C or Y, B-Y, and
B
R
R-Y. If so, connect the cables to like colors.
10
B
R
Connecting Your TV
Connecting a Camcorder
Using Audio/Video cables (not supplied), connect AUDIO and VIDEO OUT on your
camcorder to AUDIO and VIDEO IN on your TV.
Front A/V Panel
F
F
Audio R (red)
Audio L (white)
Video (yellow)
A/V output
Connecting Headphones
Connect the headphones to the
jack on the front of your TV. Headphone jack is STEREO.
Front A/V Panel
11
Using the Remote Control and Basic
Functions
This section shows you how to use the buttons on the remote control and how to navigate the
on-screen menus.
1
2
3
MUTING
POWER
8
9
SLEEP
MTS/SAP
DISPLAY
TV/VIDEO
1
2
3
4
5
6
7
8
9
0
qz
JUMP
ENTER
0
4
VOL
CH
5
qs
RESET
MENU
qd
6
7
RM-Y173
TV
12
Using the Remote Control and Basic Functions
Using the Remote Control
Button
Description
1 MUTING
Instantly turns off the sound. Press again or press
the sound.
2 SLEEP
Turns the TV off automatically in approximately 15, 30, 45, 60, or
90 minutes. Cancel by pressing until SLEEP OFF appears.
3 MTS/SAP
Cycles through the Multi-channel TV Sound (MTS) options:
Stereo, Mono, and Auto SAP (Second Audio Program).
4 JUMP
Press to jump back and forth between two channels. The TV
alternates between current channel and the last channel that was
selected.
5 VOL (volume)
Press when you want to adjust the volume.
6 RESET
Press to return to factory settings while in an on-screen menu.
7
Moves the cursor in the on-screen menus. Press the arrow buttons
to move the cursor, then press the center button to select or access
an option.
8 POWER
Press when you want to turn the TV on or off.
9 TV/VIDEO
Cycles through available video inputs.
0 DISPLAY
Press to display the current time (if set) and channel number.
Press again to turn DISPLAY off.
qa
0
9
and ENTER
Change the channels directly. Press
channel, then press ENTER.
0
9
to restore
buttons to select a
qs CH (channel)
Press when you want to change channels.
qd MENU
Displays the on-screen menu. Press again to exit the menu at any
time.
If you lose your remote control, see page 32.
13
Operating Instructions
Setting Up the TV Automatically
After you have finished connecting your TV, you can perform Auto Program to set up your
channels.
1
Press
to turn on the TV. The Initial Setup screen appears.
Initial Setup
First please connect
cable / antenna
[CH+]
[CH–]
Auto Program
Exit
2
Press
press
on the remote control or on the TV front panel to perform Auto Program, or
to exit.
The Initial Setup screen appears each time you turn on the TV until you perform Auto
Program.
To perform Auto Program again
1
2
3
4
5
Press
.
Press g to highlight Channel Setup (
Press f to highlight Cable. Press
).
to select.
Press F or f to select On or Off according to how you connected your TV. Press
Press f to highlight Auto Program. Press
After performing Auto Program, press
14
to search for channels.
to exit.
.
Using the Remote Control and Basic Functions
Quick Start to the Menus
The following settings are available in your on-screen menus:
Menu
Allows you to
Make adjustments to your picture settings.
Video
Picture Controls
Color Temp. : Neutral
VM : Low
Move
Select
End
Change your audio settings.
Audio
MTS : Stereo
Move
Select
End
Customize your channel settings.
Channel Setup
Favorite Channels
Cable : On
Channel Fix : Off
Auto Program
Channel Skip/Add
Channel Label
Move
Select
End
Set rating limits on your TV based on a
program’s rating or content.
Parental Control
Password :
Move
Select
End
The menus shown in this manual are for KV-24FS100. Your menus may not look like those
illustrated.
15
Operating Instructions
Menu
Allows you to
Set the clock on your TV and program
scheduled viewing using Timer 1 and
Timer 2.
Timer
Timer 1 : Set
Timer 2 : Set
Current Time
Move
Select
End
Select closed captioning options, label video
inputs, adjust tilt correction, select menu
languages, or run a demo of the menus.
Setup
Caption Vision : Off
Video Label
Tilt Correction
Language : English
Demo
Move
16
Select
End
Using the Menus
This section shows the options available for setting up and adjusting your TV.
To Access a Menu
1
2
3
4
Press
5
Press
to display the on-screen menu.
Use the G or g buttons to highlight the desired menu, then press
Use the F or f buttons to highlight the desired option, then press
.
.
Press
to complete the adjustment or follow the instructions that will appear on your
screen to activate the desired option.
to exit the menu.
Press
once to display the on-screen menu, and press again to return to normal viewing.
If no buttons are pressed, the menu closes automatically after about 90 seconds.
17
Operating Instructions
Using the Video
Menu
To access the Video menu, refer to the following steps:
To Display
To Select
Video
MENU
Picture Controls
Color Temp. : Neutral
VM : Low
Move
Select
End
Controls
Press g to open Picture Controls menu:
Picture:
Press G to decrease the contrast. Press g to increase contrast.
Brightness:
Press G to darken the picture. Press g to brighten the picture.
Color:
Press G to decrease color saturation. Press g to increase color saturation.
Hue:
Press G to increase the red tones. Press g to increase the green tones.
Sharpness:
Press G to soften the picture. Press g to sharpen the picture.
Color Temp.
White color tint
adjustment
Use the F or f buttons to select from one of the following options:
Cool: Gives the white colors a blue tint.
Neutral: Gives the white colors a neutral tint.
Warm: Gives the white colors a red tint.
VM
Velocity
Modulation
KV-20FS100 and KV-24FS100 only
Sharpens picture definition to give objects a sharp, clean edge. Use the
F or f buttons to select from one of the following options: Off, High,
Low.
18
Using the Menus
Using the Audio
Menu
To access the Audio menu, refer to the following steps:
To Display
To Highlight
To Select
Audio
MENU
MTS : Stereo
Move
MTS
Multi-Channel
TV Sound
Press
Select
End
Press F or f to select one of the following options:
Stereo: Select when viewing a broadcast in stereo.
Mono: Select to reduce noise in areas of poor reception.
Auto SAP: Select to have the TV automatically switch to a Second Audio
Program (SAP) when a signal is received.
to access MTS settings (Stereo, Mono, Auto SAP) directly.
If your TV is set to Auto SAP, some programs may be muted or distorted. If your TV does
not output sound, change your Audio setting to Stereo or Mono.
19
Operating Instructions
Using the Channel Setup
Menu
To access the Channel Setup menu, refer to the following steps:
To Display
To Highlight
To Select
Channel Setup
Favorite Channels
Cable : On
Channel Fix : Off
Auto Program
Channel Skip/Add
Channel Label
Move
Select
MENU
Favorite
Channels
Quick access
to favorite
channels
Press g to open the Favorite Channels menu:
1 Use the F or f buttons to select the position (1-5) where you want to set
a favorite channel, then press
.
2 Using the F or f button, select the desired channel.
3 Press
to change to the channel selected.
to exit.
4 Press G to return to the Channel Setup menu or press
To use Favorite Channels: Exit all menus and press
the desired channel number and press
Cable
End
. Press F or f to move the cursor to
.
On: Select if you are receiving cable channels with a CATV cable.
Off: Select if you are using a TV antenna.
After changing your cable settings, you will need to perform Auto Program. When
Channel Fix is set, you will not be able to use your Cable settings.
Channel Fix
2-6: Select when you want to control all channel selection through a cable
box or VCR. Select the appropriate channel (usually 3 or 4) and use the
cable box’s or VCR’s remote control for channel selection.
Video 1: Select from available video inputs when you have connected
video equipment (e.g. satellite receiver) and you want your TV fixed to it.
Off: Channel Fix is not set.
Auto Program
Press g to perform Auto Program.
The TV will scan through all available channels and program receivable
channels.
20
Using the Menus
Channel
Skip/Add
Use this feature after you run Auto Program to skip unwanted channels
or add new ones. Press g to open the Channel Skip/Add menu:
1 Use the F or f buttons to select the position of the desired channel,
then press
.
.
2 Use the F or f buttons to select Skip or Add, then press
to exit.
3 Press G to return to the Channel Setup menu or press
Pressing CH+ or CH- will skip over channels that have been skipped. You can still use the
--9 buttons to directly tune to skipped channels.
Channel
Label
Label up to 40
channels with
their call letters
Press g to open the Channel Label menu:
1 Press
, then press F or f until you reach the desired channel
number. Press
to activate the channel.
2 Press
, then use the F or f button to display the first call letter or
number of the caption, then press
to select it. When finished, press
to activate.
Favorite Channels, Cable, Channel Skip/Add, and Channel Label cannot be used when
Channel Fix is set.
21
Operating Instructions
Parental Control
The Parental Control feature is designed to help parents monitor what their children watch on
television. This section shows you the different rating systems available and how to set your
TV’s rating limit.
Overview of the Ratings
Once you have become familiar with these rating systems, you should be ready to set your
TV’s rating limit.
Movie Rating
(U.S. models only)
This system defines the rating levels of movies shown in theaters and on prime cable
channels.
Rating
Defined as
G
General audience
PG
Parental Guidance suggested
PG-13
Parents strongly cautioned
R
Restricted
NC-17
No one 17 and under admitted
X
Adult audience only
22
Movie Rating
G:
PG :
PG-13 :
R:
NC-17 :
X:
Press
Move
Return
to block
Select
Select
End MENU
End
Using the Menus
TV Rating
(U.S. models only)
The TV rating is divided into two groups: age-based and content-based.
Age
TV Rating
TV-Y:
TV-Y7:
TV-G:
TV-PG :
TV-14:
TV-MA :
Press
Move
Return
FV
D
D
L
L
L
S
S
S
to block
Select
Select
V
V
V
Content
End MENU
End
Age
Defined as
Content
Defined as
TV-Y
All children
FV
Fantasy Violence
TV-Y7
Directed to older children
D
Suggestive dialogue
TV-G
General audience
L
Strong language
TV-PG
Parental Guidance
suggested
S
Sexual situations
V
Violence
TV-14
Parents strongly cautioned
TV-MA
Mature Audience only
The content ratings will increase depending on the level of the age-based rating. For
example, a program with a TV-PG V (Violence) rating may contain moderate violence, while
a TV-14 V (Violence) rating may contain intense violence.
Unrated
(U.S. models only)
You have the option of blocking TV programs or movies that are not rated.
Allow
Allows all unrated programs
Block
Blocks all unrated programs
Custom Rating
Movie Rating
TV Rating
Unrated : Allow
Choose a category
Move
Select
Return
Select
End MENU
If you choose to block unrated TV programs, please be aware that the following programs
may be blocked: emergency broadcasts, political programs, sports, news, public service
announcements, religious programs, and weather.
23
Operating Instructions
English Rating
(Canadian models only)
These ratings are for Canadian programs that are broadcast in English.
Rating
Defined as
C
Children
C8+
Children 8 years and older
G
General programming
PG
Parental Guidance
14+
Viewers 14 and older
18+
Adult programming
English Rating
C:
C8+ :
G:
PG :
14+ :
18+ :
Press
Move
Return
to block
Select
Select
MENU
End
French Rating
(Canadian models only)
These ratings are for Canadian programs that are broadcast in French.
Rating
Defined as
G
General
8 ans+ :
Not recommended for younger
children
13 ans+ :
Not recommended for children
under age 13
16 ans+ :
Not recommended for ages
under 16
18 ans+ :
This program is restricted to
adults
French
French Rating
Rating
G
G::
88 ans+
ans+ ::
13 ans+
ans+ ::
13
16 ans+
ans+ ::
16
18 ans+
ans+ ::
18
Press
Press
Move
Move
Return
Return
to block
to
Select
Select
U.S.A. Rating
(Canadian models only)
For programs from the United States, please see “TV Rating” on page 23.
24
MENU
End
End MENU
End
End
Using the Menus
Using the Parental Control
Menu
To access the Parental Control menu, refer to the following steps:
To Display
To Select
To Highlight
Parental Control
MENU
Password :
Use [0-9] buttons to
enter new password
Move
Select
End
In the Parental Control
menu, you will be asked to set a 4-digit password for any further
access into Parental Control.
1
Press
, then use the
0
9
buttons to enter a 4-digit password.
Keep this manual in a safe place. If you forget your password, see page 32.
2
Confirm your password by entering it again.
Once your password is set correctly, the next Parental Control menu appears. For future access
to this menu, use your password. A password is needed every time you want to access
Parental Control menu.
25
Operating Instructions
Setting the Rating
You can change the Rating by selecting one of the Lock options.
Parental Control
Lock : Off
Change Password
Country : U.S.A.
Turn Parental Lock
Off
Move
Select
1
With Lock highlighted, press
End
.
If you are not familiar with the Parental Guidelines rating system, use one of the following
preselected categories to simplify the rating selections: Child, Youth, Young Adult.
2
Use the F or f buttons to select the desired rating, then press
.
Rating
TV will allow a maximum rating of
Child
TV-Y, TV-G, G (U.S. models only), G (Canadian models only)
Youth
TV-PG, PG (U.S. models only), PG (Canadian models only)
Young Adult
TV-14, PG-13 (U.S. models only), 14+ (Canadian models only)
Custom
Select to set more restrictive ratings (see next section)
Off
No rating limit
Changing your Password
1 Use the F or f button to move the cursor to Change Password and press
2
.
Follow steps 1 and 2 for “Using the Parental Control Menu” on page 25.
Information for Parents
To view a program that exceeds the TV rating
Press
, then use the
0
9
buttons to enter your password.
Entering your password to view a blocked program will temporarily turn Lock to Off. To
reactivate your Lock settings, turn the TV off. When you turn the TV on, your Lock settings
are restored.
26
Using the Menus
Using the Custom Menu
Before setting Custom ratings, see pages 22-24, “Overview of the Ratings,” for a description of
the available rating systems.
Follow the instructions on the screen to make your custom settings. Select the country desired
for your TV’s rating limit. See page 23 for U.S. models and page 24 for Canadian models for
more information.
Once you have blocked a rating or content, all higher ratings or content will be
automatically blocked.
27
Operating Instructions
Using the Timer
Menu
To access the Timer menu, refer to the following steps:
To Display
MENU
To Highlight
To Select
Timer
Timer 1 : Set
Timer 2 : Set
Current Time
Move
Current Time
Select
Set your TV to the current day and time.
Press g to open Current Time menu:
1 Use the F or f button to enter the day and time, then press
2 Press
to exit the menu.
End
.
You must set the Current Time before you can use Timer 1 and Timer 2.
Timer 1 and
Timer 2
Scheduled
viewing
Use your timers settings to program your TV by day, time, duration and
channel. The timer’s duration is maximum of 6 hours. When the channel
is fixed, it is not necessary to set the channel.
With the menu open, set cursor on Timer 1 or Timer 2:
.
1 Press F or f to select Timer 1 or Timer 2, then press
2 Press F or f to enter the desired day, time, duration and channel, then
press
. The Timer status should be On when the Timer has been set.
3 Press
to exit the menu.
You can set the Timer to On, Off, or Set. Once the timer is set, you can turn it On or Off
without having to go through the settings. When you set Timer 1 or Timer 2, a red light on
the front panel of your TV will turn on.
When you perform Auto Program, Timer 1 and Timer 2 settings will be cleared. Also, in the
event of any loss of power, Current Time and Timer 1 and Timer 2 settings will be cleared.
28
Using the Menus
Using the Setup
Menu
To access the Setup menu, refer to the following steps:
To Display
To Highlight
To Select
MENU
Setup
Caption Vision : Off
Video Label
Tilt Correction
Language : English
Demo
Move
End
Select
Caption
Vision
ClosedCaptioning
Allows you to select from three closed caption modes (for programs that are
broadcast with closed caption).
Press F or f to select one of the following options:
CC1, 2, 3, 4: Displays printed dialogue and sound effects of a program.
Text1, 2, 3, 4: Displays network/station information.
XDS (Extended Data Services): Displays the name of the current program
and its remaining time, if available.
Off: Caption Vision is not activated.
Video Label
Label
connected
equipment
Allows you to label the audio/video components you connected to the TV:
VCR, DVD, etc. When you press TV/VIDEO to switch inputs, the Video
Label will display on-screen.
Press g to open the Video Label menu:
.
1 Press F or f to access the input you want to label and press
.
2 Press F or f to choose a label and press
Tilt
Correction
Press g to open Tilt Correction:
Press F or f to correct any tilt of the picture from –5 to +5, then press
activate and return to the Setup menu.
Language
Display all menus in the language of your choice.
Use the F or f buttons to select desired language and press
Demo
Press
to
.
to run a demonstration of the on-screen menus.
You can press any key to exit the Demo mode.
29
Other Information
Troubleshooting
If you are having a problem with your TV, try the suggestions below. If the problem persists,
contact your nearest Sony Dealer.
No picture, no
sound
Poor or no picture,
good sound
Good picture, no
sound
No color
Only snow appears
on the screen
Dotted lines or
stripes
Double images or
ghosts
Make sure the power cord is plugged in.
If a red light is flashing on the front of your TV for more than a
few minutes, disconnect and reconnect the power cord to restore
the TV. If the problem continues, call your local service center.
Check the TV/VIDEO settings: when watching TV, set to TV;
when watching video equipment, set to VIDEO (page 13).
Make sure the batteries have been inserted correctly into the
remote control (page 2).
Try another channel; it could be station trouble.
Adjust Picture in the Picture Controls menu under Video
(page 18).
Adjust Brightness in the Picture Controls menu under Video
(page 18).
Check the antenna and/or cable connections (page 4).
Press
so that MUTING disappears from the screen (page 13).
Check your Audio settings. Your TV may be set to Auto SAP
(page 19).
Adjust Color in the Picture Controls menu under Video (page 18).
Check the Cable setting in the Channel Setup menu (page 20).
Check the antenna and/or cable connections (page 4).
Make sure the channel selected is currently broadcasting.
Adjust the antenna.
Move the TV away from other electronic equipment. Some
electronic equipment can create electrical noise, which can
interfere with TV reception.
Check your outdoor antenna or call your cable service.
31
Operating Instructions
Cannot receive
higher number
channels (UHF)
when using an
antenna
Cable stations
don’t seem to work
Remote control
does not operate
The TV needs to be
cleaned
Lost password for
Parental Control
You lost your
remote control
Make sure Cable is set to Off in the Channel Setup menu
(page 20).
Perform Auto Program to add channels that are not presently in
the memory (page 14).
Make sure Cable is set to On in the Channel Setup menu
(page 20).
Perform Auto Program to add channels that are not presently in
the memory (page 14).
Batteries could be weak. Replace them (page 2).
Move the TV 3-4 or more feet away from fluorescent lights.
Clean the TV with a soft dry cloth. Never use strong solvents such
as thinner or benzine, which might damage the finish of the
cabinet.
In the password screen, enter the following master password:
4357. After using the master password, you must create a new
password, it cannot be used to unlock currently blocked channels.
You can use the front Audio/Video panel controls to access the
menu (page 2). Contact your nearest Sony Dealer to order a
replacement.
If, after reading these Operating Instructions, you have additional questions related to the use of your Sony television, please call
our Direct Response Center at 1-800-222-SONY (7669) (U.S. residents only) or (416) 499-SONY (7669) (Canadian residents
only).
32
Other Information
Specifications
For all models (except as noted)
Television system
Channel coverage
Antenna
Picture tube
Power requirements
Supplied Accessories
Optional Accessories
KV-13FS100, KV-13FS110
Screen size
Inputs/outputs
Speaker output
Power Consumption
American TV standard/NTSC
VHF: 2-13/UHF: 14-69/CATV: 1-125
75-ohm external antenna terminal for VHF/UHF
FD Trinitron® tube
120V, 60 Hz
Size AA (R6) batteries (2)
Remote Control RM-Y173 (1)
Connecting cables VMC-810S/820S, VMC-720M,
YC-YC-15V/30V, RK74A
EAC-66 U/V mixer
Visible screen size: 13 inches (330 mm) measured diagonally
Actual screen size: 14 inches (355.6 mm) measured diagonally
2 video, 2 audio
1 Y, PB, PR, 1 audio
1 headphone jack
3Wx2
100 W in use
1 W in standby
Dimensions (W/H/D)
407 x 340 x 411 mm (16x 13 3/8 x 161/8 in.)
Mass
KV-20FS100
Screen size
12 kg (26 lbs. 7 oz.)
Inputs/outputs
Speaker output
Power Consumption
Visible screen size: 20 inches (508 mm) measured diagonally
Actual screen size: 21 inches (533.4 mm) measured diagonally
2 video, 2 audio
1 Y, PB, PR, 1 audio
1 headphone jack
5Wx2
120 W in use
1 W in standby
Dimensions (W/H/D)
592 x 466 x 494 mm (23 1/4 x 18 3/8 x 19 1/2 in.)
Mass
24.8 kg (54 lbs. 10 oz.)
33
Operating Instructions
KV-24FS100
Screen size
Inputs/outputs
Speaker output
Power Consumption
Visible screen size: 24 inches (610 mm) measured diagonally
Actual screen size: 25 inches (635 mm) measured diagonally
2 video, 2 audio
1 S VIDEO
1 Y, PB, PR, 1 audio
1 headphone jack
7.5 W x 2
145 W in use
1 W in standby
Dimensions (W/H/D)
704 x 524 x 472 mm (27 3/4 x 20 5/8 x 18 1/2 in.)
Mass
35 kg (77 lbs. 1oz.)
Design and specifications are subject to change without notice.
34
Index
Video
18
Mono 19
MTS
Auto SAP 19
Mono 19
Stereo 19
A
Audio
Menu 19
Auto Program 14, 20
Auto SAP 19
B
Battery Installation 2
Brightness 18
P
Parental Control 22
Parental Control
menu 25
Picture 18
Picture Controls 18
Brightness 18
Color 18
Hue 18
Picture 18
Sharpness 18
C
Cable 20
Caption Vision 29
Channel Fix 20
Channel Label 21
Channel Setup
Menu 20
Channel Skip/Add 21
Color 18
Connections
Cable and Antenna 4
Connecting a Camcorder 11
Connecting a DVD Player 10
Connecting Headphones 11
TV and Cable Box 6
TV and VCR 5
TV and Satellite Receiver 8
TV, Satellite Receiver, and VCR 9
TV, VCR, and Cable Box 7
Current Time 28
R
Ratings
English Rating 24
French Rating 24
Movie Rating 22
TV Rating 23
Unrated 23
U.S.A. Rating 24
Remote Control 12
S
Setup
menu 29
Sharpness 18
SLEEP 13
Specifications 33
Stereo 19
D
Demo 29
DISPLAY 13
F
Favorite Channels 20
Front A/V Panel (see TV Front Panel) 2
T
Tilt Correction 29
Timer
Menu 28
Timer 1 and Timer 2 28
Troubleshooting 31
TV Features 1
TV Front Panel 2
TV Rear Panel 3
H
Hue 18
L
Language 29
M
Menus
19
Audio
Channel Setup
Parental Control
Setup
29
Timer
28
20
25
V
Video
Menu 18
Video Label 29
VM 18
35
User Guide
Sony Corporation
Printed in U.S.A.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
