Sony | KV-32FQ80U | User's Manual | Sony KV-32FQ80U User's Manual

KV-32FQ80U
KV-36FQ80U
Checking the supplied
accessories
1
3
Connecting the TV
Connecting an aerial only
VCR
Thank you for choosing this Sony
Trinitron Television.
DVD
TV
MODE
Insert batteries into the remote control.
4
4
s
(SMARTLINK)
3 s3
VCR
Connect the aerial to your TV.
2
DVD
1
ANALOGUE
Connect a video cassette recorder (VCR) to your TV.
R/D/D/D L/G/S/I
Batteries
DOLBY. THE DOUBLE-D SYMBOL D
ARE TRADEMARKS OF DOLBY
LABORATORIES
D
Switch on your TV.
1.
Tune your TV.
Connect your aerial lead to the aerial socket labelled 8 on the rear of the TV.
View TV programmes.
Connecting an aerial and VCR
Remote Control
2
Inserting batteries into
the remote control
4
s
4
(SMARTLINK)
3 s3
VCR
2
DVD
1
ANALOGUE
R/D/D/D L/G/S/I
DOLBY. THE DOUBLE-D SYMBOL D
ARE TRADEMARKS OF DOLBY
LABORATORIES
D

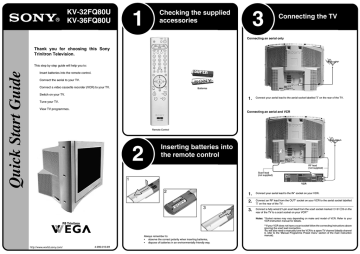

Quick Start Guide
This step by step guide will help you to:
RF lead
(not supplied)
Scart lead
(not supplied)
1
VCR
2
3
1.
Connect your aerial lead to the IN* socket on your VCR.
2.
Connect an RF lead from the OUT* socket on your VCR to the aerial socket labelled
8 on the rear of the TV.
3.
Connect a fully wired 21-pin scart lead from the scart socket marked i3/r3 on the
rear of the TV to a scart socket on your VCR**
Notes: *Socket names may vary depending on make and model of VCR. Refer to your
VCR instruction manual for details.
Always remember to:
• observe the correct polarity when inserting batteries,
• dispose of batteries in an environmentally friendly way.
4-090-013-01
**If your VCR does not have a scart socket follow the connecting instructions above
ignoring the scart lead connection.
You will also need to manually tune the VCR to a spare TV channel (ideally channel
0, refer to the ‘Manual Programme Preset menu’ section of the main instruction
manual).
4
Switching on the TV
5
Automatically tuning the TV
When you first switch on your new TV you need to tune in all the available channels. The ‘Auto Tune’ feature automatically searches for and stores all the available channels for you.
The following instructions and illustrations will guide you through this procedure.
1.
When you switch on the TV for the first time the Sony logo appears
on the TV screen, followed by the Memory Stick logo then the
Language/Country menu with the word ‘English’ highlighted. Press
the V or v buttons on the remote control to highlight your required
language. Press the OK button to confirm your choice. From now on
all menus appear in your chosen language.
2.
The word ‘Country’ is now highlighted. Press the V or v buttons on
the remote control to highlight the country in which you are using the
TV. It is important to select the correct country to ensure correct
Teletext displays. Press the OK button to confirm your choice.
3.
The picture rotation prompt appears. Sometimes the Earth’s natural
magnetism can cause the picture to look tilted.
a)
If no correction is required, press the B button on the remote
control.
b)
If some correction is required, press the OK button on the
remote control. Press the V or v buttons to rotate the picture
over a range of -5 to +5. Press the OK button to store.
Selecting your language.
Selecting your country.
v, V, B and b buttons
OK button
1.
Connect the TV plug to your mains socket and switch on.
MENU
MENU button
4.
The autotune prompt screen appears. Press the OK button to select
Yes. The autotune procedure begins tuning all the available
channels.
A display appears on the TV screen to inform you of the tuning
progress.
If no channels are found, a display appears on the TV screen asking
you to confirm your aerial is connected. Check the aerial has been
connected correctly then press the OK button to repeat the tuning
process.
5.
The picture rotation prompt.
Once all available channels have been tuned the ‘Programme
Sorting’ menu appears. This menu allows you to rearrange the order
of the channels on the TV.
a) If you do not wish to rearrange the order, press the MENU button
to remove the ‘Programme Sorting’ menu from the TV screen.
b) If you wish to rearrange the order, press the V or v buttons to
select the channel you wish to move, then press the b button.
Press the V or v buttons to select the new position for your
selected channel. Press the OK button to confirm. The selected
channel moves to its new position. Repeat this procedure if you
wish to move other channels. Press the MENU button to remove
the ‘Programme Sorting’ menu from the TV screen when you have
finished rearranging the channel order.
2.
The TV is usually switched on. If not, push in the On/Off button
the TV.
on the front of
If the red standby mode indicator on the front of the TV is lit, press the TV I/1 button
on the remote control to switch on the TV set. Please be patient as the picture may
take a few moments to appear on the TV screen.
The TV has now tuned in all the
available channels and is ready for use.
The autotune prompt screen.
