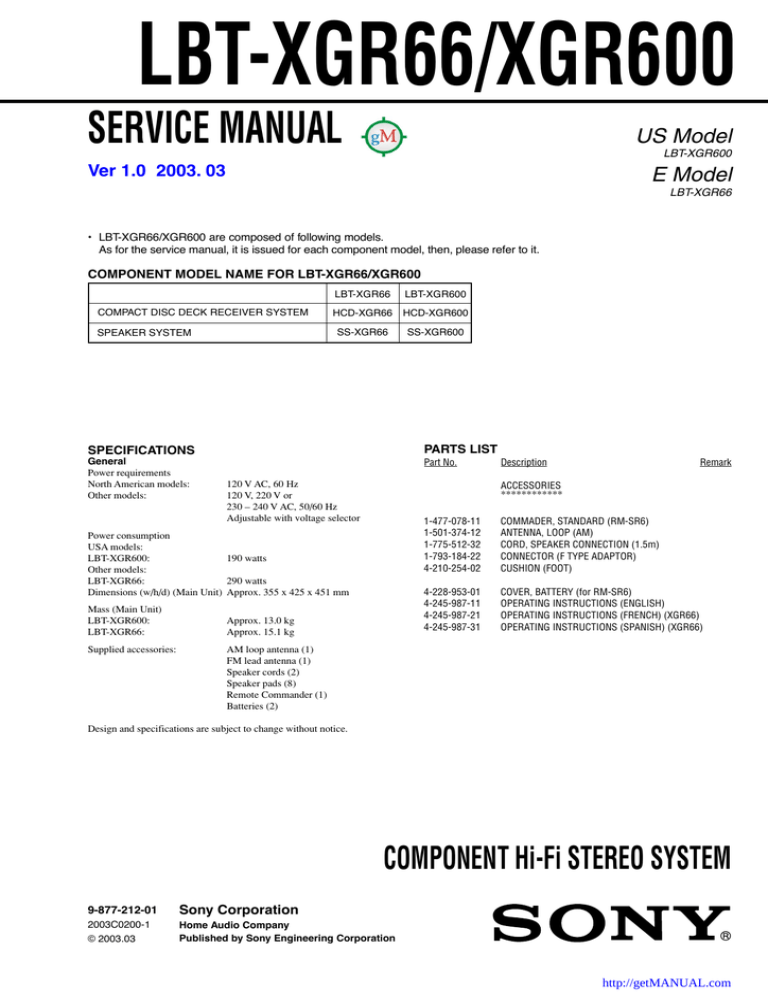

LBT-XGR66/XGR600
SERVICE MANUAL
US Model
LBT-XGR600
Ver 1.0 2003. 03
E Model
LBT-XGR66
• LBT-XGR66/XGR600 are composed of following models.
As for the service manual, it is issued for each component model, then, please refer to it.
COMPONENT MODEL NAME FOR LBT-XGR66/XGR600
COMPACT DISC DECK RECEIVER SYSTEM
SPEAKER SYSTEM
LBT-XGR66
LBT-XGR600
HCD-XGR66
HCD-XGR600
SS-XGR66
SS-XGR600
SPECIFICATIONS
PARTS LIST
General
Power requirements
North American models:
Other models:
Part No.
120 V AC, 60 Hz
120 V, 220 V or
230 – 240 V AC, 50/60 Hz
Adjustable with voltage selector
Supplied accessories:
Remark
ACCESSORIES
************
Power consumption
USA models:
LBT-XGR600:
190 watts
Other models:
LBT-XGR66:
290 watts
Dimensions (w/h/d) (Main Unit) Approx. 355 x 425 x 451 mm
Mass (Main Unit)
LBT-XGR600:
LBT-XGR66:
Description
Approx. 13.0 kg
Approx. 15.1 kg
1-477-078-11
1-501-374-12
1-775-512-32
1-793-184-22
4-210-254-02
COMMADER, STANDARD (RM-SR6)
ANTENNA, LOOP (AM)
CORD, SPEAKER CONNECTION (1.5m)
CONNECTOR (F TYPE ADAPTOR)
CUSHION (FOOT)
4-228-953-01
4-245-987-11
4-245-987-21
4-245-987-31
COVER, BATTERY (for RM-SR6)
OPERATING INSTRUCTIONS (ENGLISH)
OPERATING INSTRUCTIONS (FRENCH) (XGR66)
OPERATING INSTRUCTIONS (SPANISH) (XGR66)
AM loop antenna (1)
FM lead antenna (1)
Speaker cords (2)
Speaker pads (8)
Remote Commander (1)
Batteries (2)
Design and specifications are subject to change without notice.
COMPONENT Hi-Fi STEREO SYSTEM
9-877-212-01
Sony Corporation
2003C0200-1
© 2003.03
Home Audio Company
Published by Sony Engineering Corporation
