MK10430V1.qxd
07.7.13 1:28 PM
Page 1

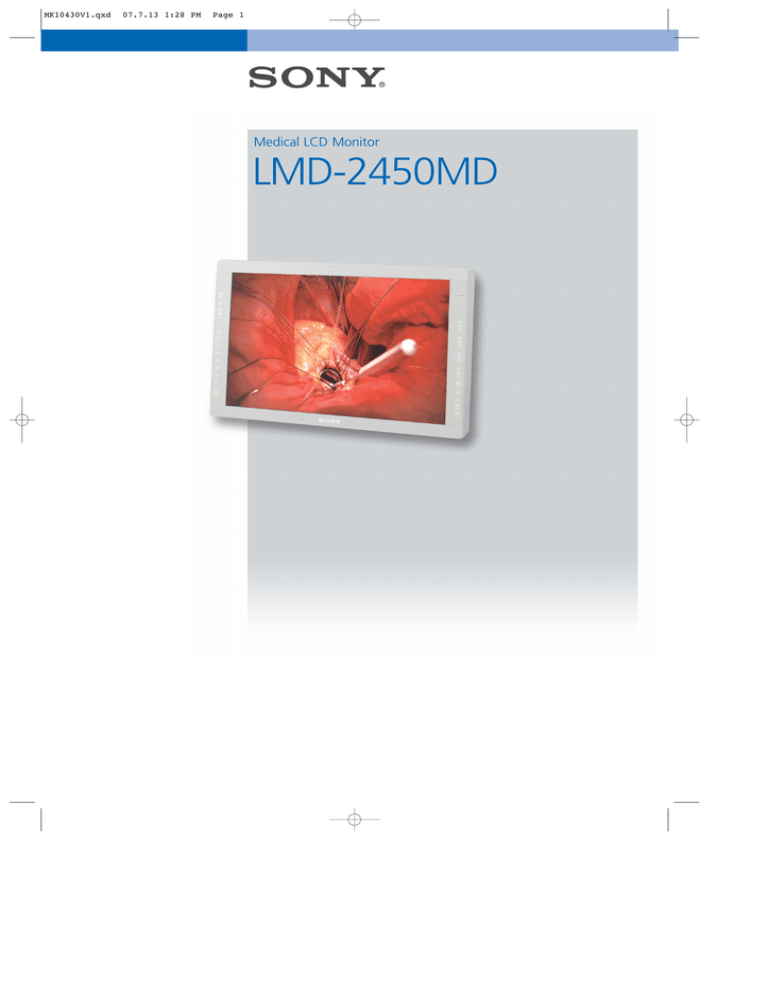

Medical LCD Monitor
LMD-2450MD
MK10430V1.qxd
07.7.13 1:28 PM
Page 2
FEATURES
With Sony Advanced Image
Processing Technology, the
LMD-2450MD Reproduces
Accurate High-Definition
Images for Critical Endoscopic
Applications
Sony introduces an exceptional High Definition
24-inch*1 medical monitor – the LMD-2450MD.
This monitor incorporates a superb-quality WUXGA
(1920 x 1200) panel, delivering extremely high levels
of brightness and high-contrast images to the surgical
theater. In addition, the LMD-2450MD accepts almost
any SD and HD video signal in both analog and
digital, allowing doctors to view images from multiple
sources. For accurate image reproduction, the
LMD-2450MD incorporates advanced Sony ChromaTRU
color processing technology, providing consistent color
images across multiple monitors.
What’s more, the LMD-2450MD complies with the
100-mm VESA mounting standard so it can be
attached to a surgical mount arm, making it ideal for
use in operating theaters. With other convenient
features such as Flexible Display Modes, Selectable
Gamma Curves, and a Key-inhibit function, the
LMD-2450MD is an ideal choice for surgical
endoscopy applications.
*1
Viewable area measured diagonally.
Safety Listing and Compliance
The LMD-2450MD monitor is UL60601-1 listed and
complies with CSA C 22.2 No. 60601 and EN60 601-1
safety regulations, making it suitable for use in
professional medical applications.
Excellent Picture Reproduction
ChromaTRU Color Processing
For an extra level of color reproduction accuracy,
every LCD panel used in the LMD-2450MD is
precisely color calibrated at the factory, providing
consistent characteristics. The colorimetry of an LCD
display, by nature, can exhibit inaccurate color
characteristics and gamma curves, which can make
precise color matching between multiple monitors a
challenge. The LMD-2450MD solves this problem by
precisely calibrating each LCD panel's light output so
that the R, G, B color coordinates are consistent for
every monitor. A second calibration is further applied
so that white balance is maintained at a consistent
color temperature throughout all grayscale levels.
This technology is invaluable for applications such as
simultaneous monitoring in operating rooms and
monitoring rooms.
Excellent Brightness and Contrast
(WUXGA Panel)
The LMD-2450MD provides high-brightness and high
contrast images by utilizing super-wide aperture
WUXGA LCD panels.
Natural Gradation and Accurate Color
Reproduction (10-Bit DSP)
The LMD-2450MD adopts an advanced full 10-bit
digital video signal processor to produce accurate,
lifelike images with smooth and natural gradation.
Sophisticated I/P (Interlace to Progressive)
Conversion
The LMD-2450MD uses an advanced technology to
perform sophisticated I/P conversion. This method
combines the pixels above, below, and in the
diagonal direction of the image in areas where there
is movement, and then inserts a natural pixel to
create the absent lines. The result is very smooth
image reproduction for both moving and static
picture areas.
MK10430V1.qxd
07.7.13 1:28 PM
Page 3
Input Versatility
(Multi-format Signal Support)
Input Signals
Input Signal
Video
The LMD-2450MD monitor can accept almost any
signal ranging from SD to HD video, as well as PC
signals via its DVI-D or HD15 connectors. In addition
to its standard inputs, four different optional input
adapters are offered for use in its expansion slot.
This flexibility allows images from a variety of medical
equipment sources, including endoscopes, to be
monitored. The LMD-2450MD also provides parallel
and serial control (including via Ethernet) as standard.
Operational Convenience
Signal
Formats
Interface
Composite Component SD-SDI
SDI Composite Component
HD-SDI 4:2:2
Y/C
RGB
Y/C
RGB
Total Active Aspect Frame
Lines Lines Ratio rate*3
Optional Optional Optional
Standard
BKM-220D BKM-227W BKM-229X
575/50i (PAL)
625
575
16:9 & 4:3
25
O
O
O
O
O
O
480/60i (NTSC)
525
483
16:9 & 4:3
30
O
576/50p
625
576
16:9 & 4:3
50
O
–
O
O
–
O
–
O
–
O
480/60p
525
483
16:9 & 4:3
60
–
–
–
1125
1080
16:9
24
–
O
O*2
–
1080/24PsF
O
–
–
O
O*2
1080/25PsF
1125
1080
16:9
25
–
O*2
O
–
–
O*2
1080/24p
1125
1080
16:9
24
–
O*2
O
–
–
O*2
1080/25p
1125
1080
16:9
25
–
O*2
O
–
–
O*2
1080/30p
1125
1080
16:9
30
–
O*2
O
–
–
O*2
1080/50i
1125
1080
16:9
25
–
O
O
–
–
O
1080/60i
1125
1080
16:9
30
–
O
O
–
–
O
720/50p
750
720
16:9
50
–
O*2
O
–
–
O*2
720/60p
750
720
16:9
60
–
O
O
–
–
O
*2 Available with component input only
Gamma Curve Selection
Users can choose from two gamma curves, DICOM
or CRT 2.2, whichever is more appropriate for the
image being monitored.
Multiple Display Modes
The LMD-2450MD incorporates multiple display
modes such as Picture-in-Picture, and Picture-andPicture (including a side-by-side split screen). These
flexible display modes can be used for special
applications such as to view both live video and
captured images simultaneously for more
comprehensive coverage of the surgical procedure.
Picture-in-Picture
Picture-and-Picture
(side-by-side split screen)
*3 Also compatible with 1/1.001 frame rates
HD15 Input Signal Format
Sync Polarity
Resolution
Dot Clock
[MHz]
fH
[kHz]
fV
[Hz]
Horizontal
Vertical
640x480 @60Hz
25.175
31.469
59.940
N
N
800x600 @56Hz
36.000
35.156
56.250
P
P
800x600 @60Hz
40.000
37.879
60.317
P
P
800x600 @72Hz
50.000
48.077
72.188
P
P
800x600 @75Hz
49.500
46.875
75.000
P
P
800x600 @85Hz
56.250
53.674
85.061
P
P
1024x768 @60Hz
65.000
48.363
60.004
N
N
1024x768 @70Hz
75.000
56.476
70.069
N
N
1024x768 @75Hz
78.750
60.023
75.029
P
P
1024x768 @85Hz
94.500
68.677
84.997
P
P
1152x864 @75Hz
108.000
67.500
75.000
P
P
1280x960 @60Hz
108.000
60.000
60.000
P
P
1280x1024 @60Hz
108.000
63.981
60.020
P
P
1600x1200 @60Hz
162.000
75.000
60.000
P
P
640x480 @60Hz
23.625
29.531
59.780
P
N
800x600 @60Hz
35.500
36.979
59.837
P
N
1024x768 @60Hz
56.000
47.297
59.870
P
N
1280x960 @60Hz
85.250
59.201
59.920
P
N
1600x1200 @50Hz
132.375
61.742
49.994
N
P
1600x1200 @60Hz
130.375
74.077
59.981
P
N
1360x768 @50Hz
69.500
39.489
49.922
N
P
1360x768 @60Hz
84.625
47.649
59.936
N
P
1360x768 @60Hz
72.000
47.368
59.960
P
N
1920x1080 @50Hz
141.375
55.572
49.975
N
P
1920x1080 @60Hz
138.625
66.647
59.988
P
N
1920x1200 @50Hz
158.000
61.719
49.975
N
P
1920x1200 @60Hz
154.125
74.099
59.999
P
N
1280x1024 @60Hz
91.000
63.194
59.957
P
N
1280x768 @50Hz
65.125
39.518
49.959
N
P
1280x768 @60Hz
80.125
47.693
59.992
N
P
1280x768 @75Hz
102.875
60.091
74.926
N
P
1280x768 @60Hz
68.250
47.396
59.995
P
N
720x400 @70Hz
28.322
31.469
70.087
N
P
Protected Controls
1280x800 @60Hz
68.900
48.935
59.969
N
N
The key-inhibit function helps prevent inadvertent
operation from the control panel.
1920x1200 @60Hz
154.000
74.642
59.935
P
P
N = Negative
P = Positive
Selectable Scan Size/Aspect Ratio
Either a 20% overscan mode or a 0% scan mode
can be selected. Also, the aspect ratio can be set to
either 16:9 or 4:3 to match the input signal.
Mounting Flexibility (VESA)
The LMD-2450MD complies with the 100-mm hole
spacing VESA mounting standard making it ideal for
use with surgical equipment arms.
O
07.7.13 1:28 PM
Page 2
SPECIFICATIONS
OPTIONAL ACCESSORIES
Picture Performance
LCD Panel Type
Resolution
Effective Picture
Size (W x H)
Aspect
Colors
Viewing Angle
BKM-220D
BKM-243HS*4
BKM-227W
BKM-229X
SU-560
a-Si TFT Active Matrix
WUXGA (1920 X 1200)
Approx. 518 x 324 mm (20 1/2 x 12 7/8 inches)
Diagonal 609 mm (24 inches)
16:10
Approx. 16,770,000 colors (8-bit)
89°/89°/89°/89° (typical)
(up/down/left/right contrast > 10:1)
SD-SDI 4:2:2 Input Adaptor
HD-SDI/SD-SDI Input Adaptor
NTSC/PAL Input Adaptor
Analog Component Adaptor
Monitor Stand
*4 The LMD-2450MD is equipped with all inputs on the BKM-243HS as standard.
DIMENSIONS
602.4 (23 3/4)
110 (4 3/8)
Remote
Output
General
Power Consumption
Power Requirements
Maximum: Approx. 115 W (with 2 x BKM-229X)
AC 100 to 240 V, 50/60 Hz, 1.2~0.6 A,
DC 24 V 3.5 A, 5 V 0.030 A
Operating Temperature
0 to 35 °C (32 to 95 °F),
Recommended: 20 to 30 °C (68 to 86 °F)
Operating Humidity
30 to 85 % (no condensation)
Storage & Transport Temperature -20 to 60 °C (-4 to 140 °F)
Storage & Transport Humidity 0 to 90 % (no condensation)
Operating, Storage, and
700 to 1060 hPa
Transport Pressure
Dimensions (W x H x D)
Approx. 602 x 386 x 110 mm
(23 3/4 x 15 1/4 x 4 3/8 inches)
(including projections)
Mass
Approx 10 kg (22 lb) (without optional board)
Supplied accessories
AC adaptor, AC power cord, AC plug holder, Instructions
for Use, CD-ROM (Operating instructions), Using the
CD-ROM manual, Quick Reference, When You First Use
The Monitor booklet, Sales Company Guide, Warranty card
Distributed by
MK10430V1IW07JUL
302 (12)
M4
209.7 (8 3/8)
100 (4)
100 (4)
273.5 (10 7/8)
142.3 (5 5/8)
BNC (x 1), 1.0 Vp-p ±3dB, sync negative
4pin Mini DIN (x 1)
Y: 1.0 Vp-p ±3dB, sync negative
C: 0.286 Vp-p ±3dB (NTSC), 0.3 Vp-p ±3dB (PAL)
Component/RGB BNC (x 3)
Component: 0.7 Vp-p ±3dB
(75% chrominance standard color bar signal)
RGB: 0.7 Vp-p ±3dB
(Sync On Green, 0.3 Vp-p, sync negative)
Ext. Sync
BNC (x 1)
0.3 to 4.0 Vp-p ±bipolarity ternary or negative
polarity binary
Computer
DVI-D (x 1): TMDS single link
HD15
D-sub 15pin (x 1)
0.7 Vp-p, sync positive
(Sync On Green, 0.3 Vp-p, sync negative)
Sync: TTL level (polarity free, H/V separate sync)
Plug & Play function: corresponds to DDC-2B
Optional
1 slot
Signal format: H 15 to 45 kHz, V 48 to 60 Hz
DC IN
DC 5 V/24 V (output impedance 0.05 Ω or less)
Parallel
Modular 8-pin (x 1)
Serial
D-sub 9-pin (RS-232C) (x 1)
RJ-45 modular (ETHERNET) (x 1)
Composite
BNC (x 1), Loop-through, 75 Ω automatic termination
Y/C
4-pin mini-DIN (x 1), Loop-through,
75 Ω automatic termination
Component/RGB
BNC (x 3), Loop-through, 75 Ω automatic termination
Ext. Sync
BNC (x 1), Loop-through, 75 Ω automatic termination
386.2 (15 1/4)
Input / Output
Input
Composite
Y/C
454 (17 7/8)
MK10430V1.qxd
100 (4)
100 (4)
100 (4)
Unit: mm (inches)
FRONT PANEL
COMPOSITE
Y/C
RGB
COMPONENT
+
A-1
–
A-2
+
B-1
–
+
B-2
–
HD15
+
DVI
–
F1
F2
+
F3
–
F4
MEMORY
Tally lamp
Power indicator
(key inhibit) indicator
CONTROL button
CONTRAST buttons
PHASE buttons
CHROMA buttons
BRIGHT (brightness) buttons
Menu operation buttons
Input select buttons
Function buttons
MEMORY button
CONNECTOR PANEL
DC 5V/24 IN connector
(Equipotential/Ground) terminal
COMPOSITE IN connector (BNC)
Y/C IN connector (4-pin mini-DIN)
G/Y IN connector (BNC)
B/PB IN connector (BNC)
R/PR IN connector (BNC)
EXT SYNC IN/OUT (external sync)
connectors (BNC)
Loop-through output connectors
/ (power) switch
Optional input slot
PARALLEL REMOTE connector
(modular connector, 8-pin)
SERIAL REMOTE connector (RJ-45)
SERIAL REMOTE RS-232C connector
(D-sub 9-pin, female)
DVI-D input connector (DVI-D)
HD15 input connector (D-sub 15-pin, female)
©2007 Sony Corporation. All rights reserved.
Reproduction in whole or in part without permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric weights and measurements are approximate.
Images on monitors are simulated.
Sony is a registered trademark of Sony Corporation.
ChromaTRU is a trademarks of Sony Corporation.
VESA is a trademark of the Video Electronics Standards Association.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
