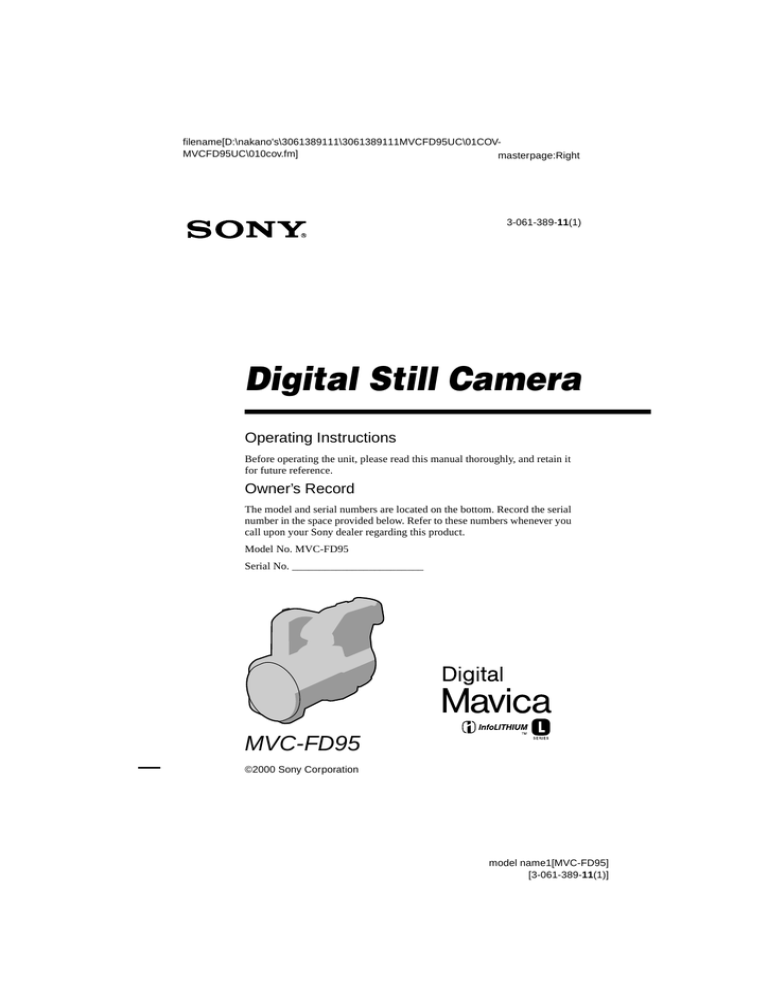

Digital Still Camera
Operating Instructions
Before operating the unit, please read this manual thoroughly, and retain it
for future reference.
Owner’s Record
The model and serial numbers are located on the bottom. Record the serial
number in the space provided below. Refer to these numbers whenever you
call upon your Sony dealer regarding this product.
Model No. MVC-FD95
Serial No. ________________________
MVC-FD95
©2000 Sony Corporation
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\02war.fm]
masterpage:Left
01cov.book Page 2 Thursday, March 9, 2000 10:26 AM
.
Note:
WARNING
To prevent fire or shock hazard, do
not expose the unit to rain or
moisture.
For the Customers in the
U.S.A.
This symbol is intended to
alert the user to the presence
of uninsulated “dangerous
voltage” within the
product’s enclosure that
may be of sufficient
magnitude to constitute a
risk of electric shock to
persons.
This symbol is intended to
alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the
appliance.
If you have any questions about this
product, you may call: Sony Customer
Information Center 1-800-222-SONY
(7669) or write to: Sony Customer
Information Center 1 Sony Drive, Mail
Drop #T1-11, Park Ridge, NJ07656
CAUTION
You are cautioned that any changes or
modifications not expressly approved
in this manual could void your
authority to operate this equipment.
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct
the interference by one or more of the
following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the
equipment and receiver.
— Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
— Consult the dealer or an experienced
radio/TV technician for help.
For the Customers in the
U.S.A. and Canada
DISPOSAL OF LITHIUM ION
BATTERY.
LITHIUM ION BATTERY.
DISPOSE OF PROPERLY.
You can return your unwanted lithium ion
batteries to your nearest Sony Service
Center or Factory Service Center.
Note:
In some areas the disposal of lithium ion
batteries in household or business trash may
be prohibited.
For the Sony Service Center nearest you call
1-800-222-SONY (United States only)
For the Sony Factory Service Center nearest
you call 416-499-SONY (Canada only)
Caution:
Do not handle damaged or leaking lithium
ion battery.
2
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\02war.fm]
masterpage:Right
01cov.book Page 3 Thursday, March 9, 2000 10:26 AM
For the Customers in Canada
CAUTION
TO PREVENT ELECTRIC SHOCK, DO
NOT USE THIS POLARIZED AC PLUG
WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE FULLY
INSERTED TO PREVENT BLADE
EXPOSURE.
NOTICE FOR THE
CUSTOMERS IN THE UNITED
KINGDOM
A moulded plug complying with BS 1363 is
fitted to this equipment for your safety and
convenience.
Should the fuse in the plug supplied need to
be replaced, a 5 AMP fuse approved by
ASTA or BSI to BS 1362, (i.e. marked with
or
mark) must be used.
If the plug supplied with this equipment has
a detachable fuse cover, be sure to attach the
fuse cover after you change the fuse. Never
use the plug without the fuse cover. If you
should lose the fuse cover, please contact
your nearest Sony service station.
For the Customers in
Germany
Directive:EMC Directive 89/336/EEC.92/
31/EEC
This equipment complies with the EMC
regulations when used under the following
circumstances:
• Residential area
• Business district
• Light-industry district
(This equipment complies with the EMC
standard regulations EN55022 Class B.)
3
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\02war.fm]
masterpage:Left
01cov.book Page 4 Thursday, March 9, 2000 10:26 AM
Attention
The electromagnetic fields at the specific
frequencies may influence the picture and
sound of this camera.
Be sure to read the following
before using your camera
Operating instructions
Before operating the unit, please read this
manual thoroughly, and retain it for future
reference.
Before you start reading this manual and
operating the unit, check the model number.
As you read through this manual, buttons
and settings on the camera are shown in
capital letters.
e.g. Press DISPLAY.
Trial recording
Before you record one-time events, you may
want to make a trial recording to make sure
that the camera is working correctly.
No compensation for contents of
the recording
LCD screen, finder, and lens
• The LCD screen and finder are
manufactured using high-precision
technology. However, there may be some
tiny black points and/or bright points (red,
blue or green in color) that constantly
appear on the LCD screen or on the finder.
These points are normal in the
manufacturing process and do not affect
the recording in any way. Over 99.99% of
the pixels are operational for effective use.
• Be careful when placing the camera near a
window or outdoors. Exposing the LCD
screen or the lens to direct sunlight for
long periods may cause malfunctions.
Do not get the camera wet
When taking pictures outdoors in the rain or
under similar conditions, be careful not to
get the camera wet. If moisture
condensation occurs, refer to page 55 and
follow the instructions on how to remove it
before using the camera.
Back up recommendation
To avoid the potential risk of data loss,
always copy (back up) data to a disk.
Contents of the recording cannot be
compensated for if recording or playback is
not possible due to a malfunction of your
camera, etc.
Precaution on copyright
Television programs, films, video tapes, and
other materials may be copyrighted.
Unauthorized recording of such materials
may be contrary to the provision of the
copyright laws.
Do not shake or strike the camera
In addition to malfunctions and inability to
record images, this may render the floppy
disks unusable or image data breakdown,
damage or loss may occur.
4
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\01covTOC.fm]
masterpage:Right
01cov.book Page 5 Thursday, March 9, 2000 10:26 AM
Table of contents
Getting started
Identifying the parts .........................6
Preparing the power supply .............8
Setting the date and time ...............12
Inserting a floppy disk ...................14
Basic operations
B Recording
Recording still images ...................15
Recording moving images .............21
B Playback
Playing back still images ...............22
Playing back moving images .........23
Viewing images using a personal
computer .................................25
Image file storage destinations and
image file names .....................27
Advanced operations
Before performing
advanced operations
How to use the PLAY/STILL/
MOVIE selector .....................29
How to use the control button .......29
How to change the menu settings ..31
B Various recording
Setting the image size
(IMAGE SIZE) .......................36
Recording still images for e-mail
(E-MAIL) ................................37
Adding audio files to still images
(VOICE) .................................37
Recording text documents
(TEXT) ....................................38
Recording images in macro ...........38
Focusing manually ........................39
Using the PROGRAM AE
function ...................................40
Using the Spot light
– metering function .................41
Adjusting the exposure
(EXPOSURE) .........................41
Adjusting the white balance
(WHITE BALANCE) .............42
Recording the date and time on the
still image (DATE/TIME) .......43
Enjoying picture effects
(PICTURE EFFECT) ..............43
B Various playback
Playing back six images at once
(INDEX) ..................................44
Enlarging a part of the still image
(Zoom and trimming) .............45
Playing back the still images in order
(SLIDE SHOW) ......................46
Viewing images on a TV screen ....47
B Editing
Preventing accidental erasure
(PROTECT) ............................48
Deleting images (DELETE) ..........49
Changing the recorded still image size
(RESIZE) ...............................50
Copying images (COPY) ...............50
Copying all the information on your
floppy disk (DISK COPY) ......52
Selecting still images to print
(PRINT MARK) .....................53
Format ............................................54
Additional information
Precautions ....................................55
Using your camera abroad .............57
Troubleshooting .............................58
Warning and notice messages .......61
Self-diagnosis display ....................63
Specifications ................................64
LCD screen/finder indicators ........65
Index ..............................................67
5
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\03pre.fm]
masterpage:Left
Getting started
Identifying the parts
See the pages in parentheses for details of operation.
A OPEN (FLASH) button (19)
L Accessory shoe
B Built-in microphone
M SPOT METER button (41)
Do not touch while recording.
N Finder adjustment dial (16)
C Self-timer lamp (19)
O WHITE BALANCE button (42)
D Shutter button (15, 21)
P PROGRAM AE button (40)
E Zoom lever (17)
Q STEADY SHOT ON/OFF switch
(18)
F Photocell window for flash
Do not block while recording.
G Focus ring (39)
H Lens
R AUDIO (MONO) /VIDEO OUT
jack (47)
Audio output is monaural.
I DC IN cover/DC IN jack (9, 11)
S FOCUS AUTO/MANUAL switch
(38, 39)
J
T
(One-push white balance)
button (42)
K Flash (19)
6
(Macro) button (38)
U PROGRAM AE +/– buttons (40)
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\03pre.fm]
01cov.book Page 7 Thursday, March 9, 2000 10:26 AM
9
Getting started
Attaching the
shoulder strap
1
0
2
qa
3
qs
4
qd
5
qf
qg
6
qh
7
qj
8
qk
ql
A LCD screen
M DISK EJECT lever (14)
B Finder (16)
N Speaker
C LCD ON/OFF switch (16)
O Floppy disk slot (14)
D VOL +/– buttons (24)
P Battery cover/PUSH button
(bottom surface) (8)
E Lens cap (supplied)
F
(Flash) button (19)
G ON/CHG (Charge) lamp (9)
H POWER switch (12)
I Hooks for strap
J
(External flash) jack
K PLAY/STILL/MOVIE selector
(29)
Q Control button (29)
R DISPLAY button (18)
S Tripod receptacle (bottom
surface)
Use a tripod with a screw length of
less than 6.5 mm (7/32 inch). You
will be unable to firmly secure the
camera to tripods having longer
screws, and may damage the
camera.
L ACCESS lamp (16)
7
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\03pre.fm]
masterpage:Left
01cov.book Page 8 Thursday, March 9, 2000 10:26 AM
Preparing the power supply
Installing the battery pack
Your camera operates only with the NP-F330 (supplied)/F550 (not supplied)
“InfoLITHIUM” battery pack* (L series).
1
2
3
1
1
2
2
1
Open the battery cover.
Slide the battery cover in the direction of the arrow while pressing the PUSH
button.
2
Install the battery pack.
Insert the battery pack with the v mark facing toward the battery compartment
as illustrated.
3
Close the battery cover.
To remove the battery pack
Open the battery cover. Slide the battery eject lever rightward, and remove
the battery pack.
Be careful not to drop the battery pack when removing it.
Battery eject lever
* What is “InfoLITHIUM”?
“InfoLITHIUM” is a lithium ion battery pack which can exchange information such as battery
consumption with compatible video equipment. “InfoLITHIUM” L series battery packs have the
mark. “InfoLITHIUM” is a trademark of Sony Corporation.
8
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\03pre.fm]
masterpage:Right
Charging the battery pack
When the camera is turned on, you cannot charge the battery pack. Be sure to turn off
the power of the camera.
Getting started
1
Insert the battery pack into your camera.
2
Open the DC IN cover and connect the DC connecting plug to the
DC IN jack of your camera with the v mark facing up.
3
Connect the power cord (mains lead) to the AC power adaptor and
then to a wall outlet (mains).
The ON/CHG lamp (orange) below the LCD screen lights up when charging
begins. When the ON/CHG lamp goes off, normal charge is completed. For
full charge, which allows you to use the battery longer than usual, leave the
battery pack inserted for about one hour after normal charge is completed.
Battery remaining indicator
The LCD screen or finder on the camera shows the remaining time for which you can
still record or play back images.
This indication may not be entirely accurate depending on the conditions of use and
the operating environment.
Auto power-off function
If you do not operate the camera for about three minutes during recording, the camera
turns off automatically to prevent wearing down the battery pack. To use the camera
again, slide the POWER switch to the right to turn on the camera again.
9
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\03pre.fm]
masterpage:Left
01cov.book Page 10 Thursday, March 9, 2000 10:26 AM
Charging time
Full charge (min.)
Normal charge (min.)
NP-F330 (supplied)
Battery pack
Approx. 150
Approx. 90
NP-F550
Approx. 210
Approx. 150
Approximate time to charge a completely discharged battery pack using the AC-L10A/
L10B/L10C AC power adaptor. (Lower temperatures require a longer charging time.)
Battery life and number of images that can be recorded/played back
STILL mode recording/playback
NP-F330 (supplied)
NP-F550
Battery life
(min.)
Number of
images
Battery life
(min.)
Number of
images
Continuous
recording*
Approx. 65
(60)
Approx. 650
(550)
Approx. 150
(130)
Approx. 1600
(1300)
Continuous
playback**
Approx. 80
(75)
Approx. 2200
(2000)
Approx. 170
(150)
Approx. 4800
(4200)
Approximate battery life and number of images that can be recorded/played back
with a fully charged battery pack at a temperature of 25 °C (77 °F), 640×480 image
size and in NORMAL recording mode. Numbers in parentheses indicate the time
when you use a normally charged battery pack.
∗ Recording at about 5-second intervals
∗∗ Playing back single images continuously at about 2-second intervals
MOVIE mode recording
NP-F330 (supplied)
Continuous
recording
NP-F550
Battery life
(min.)
Number of
images
Battery life
(min.)
Number of
images
Approx. 70
(60)
Approx. 50
(40)
Approx. 160
(140)
Approx. 120
(100)
Approximate time that can be recorded with a fully charged battery pack at a
temperature of 25°C (77°F) and 160×112 image size. Numbers in parentheses
indicate the time when you use a normally charged battery pack.
10
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\03pre.fm]
masterpage:Right
01cov.book Page 11 Thursday, March 9, 2000 10:26 AM
Notes
Using the AC power adaptor
to DC IN jack
AC-L10A/L10B/L10C
AC power adaptor
1
Power cord
(mains lead)
2
to wall outlet (mains)
1
Open the DC IN cover and connect the DC connecting plug to the
DC IN jack of your camera with the v mark facing up.
2
Connect the power cord (mains lead) to the AC power adaptor and
then to a wall outlet (mains).
Using a car battery
Use Sony DC adaptor/charger.
11
model name1[MVC-FD95]
[3-061-389-11(1)]
Getting started
• The battery life and number of images will be decreased when using at low temperature, using
the flash, turning the power on/off frequently, or using the zoom.
• The capacity of the floppy disk is limited. The above figures are a guide when you continuously
record/play back by replacing the floppy disk.
• If sufficient battery remaining time is indicated but the power runs out soon, fully charge the
battery so that the correct battery remaining time appears.
• Do not short the DC plug of the AC power adaptor with a metallic object, as this may cause
malfunction.
• Do not expose the battery pack to water.
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\03pre.fm]
masterpage:Left
12
model name1[MVC-FD95]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\03pre.fm]
masterpage:Right
01cov.book Page 13 Thursday, March 9, 2000 10:26 AM
5
CLOCK SET
Y/M/D
M/D/Y
D/M/Y
2000 / 1 / 1 12 : 00 AM
ENTER
CANCEL
SELECT/ADJUST
6
Select the year, month, day, hour or minute
item you want to set with b/B on the control
button.
The item to be set is indicated with v/V.
OK
CLOCK SET
Y/M/D
M/D/Y
D/M/Y
2000 / 1 / 1 12 : 00 AM
ENTER
CANCEL
SELECT/ADJUST
7
Set the numeric value with v/V on the
control button, then press the center z to
enter it.
After entering the number, v/V moves to the next
item. If you selected [D/M/Y] in step 5, set the
time on a 24-hour cycle.
CLOCK SET
Y/M/D
M/D/Y
D/M/Y
2000 / 7 / 1 12 : 00 AM
ENTER
CANCEL
SELECT/ADJUST
8
OK
Select [ENTER] with B on the control button,
then press the center z at the desired
moment to begin clock movement.
The date and time are entered.
OK
CLOCK SET
Y/M/D
M/D/Y
D/M/Y
2000 / 7 / 4 10 : 30 PM
ENTER
CANCEL
SELECT/ADJUST
OK
To cancel the date and time setting
Select [CANCEL] with v/V/b/B on the control button, then press the center z.
13
model name1[MVC-FD95]
[3-061-389-11(1)]
Getting started
Select the desired date display format with
v/V on the control button, then press the
center z.
Select from [Y/M/D] (year/month/day), [M/D/Y]
(month/day/year), or [D/M/Y] (day/month/year).
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\03pre.fm]
masterpage:Left
Inserting a floppy disk
2
1
1
Check that the write protect tab is set to the recordable position for
recording.
2
Insert the floppy disk until it clicks.
Usable floppy disks
• Size: 3.5 inch
• Type: 2HD
• Capacity: 1.44 MB
• Format: MS-DOS format (512 bytes × 18 sectors)
You can use the “Memory Stick”* (not supplied) with inserting it into the MSACFD2M Floppy Disk Adaptor for Memory Stick (not supplied), other than floppy
disks mentioned above.
∗ “Memory Stick” and
are trademarks of Sony Corporation.
Removing the floppy disk
While sliding the EJECT lock to the left, slide down the DISK EJECT lever.
14
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\04bas.fm]
masterpage:Right
01cov.book Page 15 Thursday, March 9, 2000 10:26 AM
B Recording
Basic operations
Recording still images
Still images are recorded in JPEG format.
To record still images, slide the POWER switch to the right to turn on the power and
insert a floppy disk.
2, 3
B Recording
ACCESS lamp
1
1
Set the PLAY/STILL/MOVIE selector to STILL.
2
Press and hold the shutter button
halfway down and check the image.
While the AE lock indicator z (green) is
flashing, the image is frozen, however, the
image is not yet recorded. When the camera
finishes the automatic adjustments*, the AE
lock indicator z lights up and the camera is
ready for recording.
To cancel the recording, release the shutter
button.
3
AE lock indicator
Press the shutter button fully down.
The shutter clicks and the image is recorded on the floppy disk.
∗ The exposure and focus are automatically adjusted. The focus is not automatically adjusted
when the camera is in manual focus mode.
For the number of images you can record on a floppy disk
See page 36.
15
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\04bas.fm]
masterpage:Left
01cov.book Page 16 Thursday, March 9, 2000 10:26 AM
Notes
• When recording bright subjects, the color of the LCD screen or the finder may
change after the AE is locked, however, this will not affect the recorded image.
• While the image is being recorded on a floppy disk, the ACCESS lamp lights.
When this lamp is lit, do not shake or strike the camera. Also, do not turn the power
off, or not remove the battery pack/floppy disk. Otherwise, an image data
breakdown may occur and the floppy disk may become unusable.
• When using a “Memory Stick,” writing and reading images take about twice times
than using a floppy disk.
Recording images with the finder
Turn the finder adjustment dial until the image appears clearly within the finder, then
record the image.
Finder adjustment dial
Note
The finder display is automatically turned off when your face is not near the finder.
To turn off the LCD screen
Set the LCD ON/OFF switch to OFF.
LCD ON/OFF switch
Notes
• You cannot turn off the LCD screen when [DEMO] is set to [ON] in the menu setting.
• When the LCD ON/OFF switch is set to OFF and the finder display is turned off,
you can only operate the LCD ON/OFF switch, POWER switch, and the PLAY/
STILL/MOVIE selector.
Adjusting the brightness of the LCD screen
Adjust the brightness with the [LCD BRIGHT] item in the menu settings (page 35).
This adjustment does not affect the brightness of the images recorded on the floppy disk.
16
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\04bas.fm]
masterpage:Right
01cov.book Page 17 Thursday, March 9, 2000 10:26 AM
Checking the last recorded image (Review)
Clear the menu bar (page 30), and press b on the control button. To return to the
normal recording mode, press lightly on the shutter button or select [RETURN] with
b/B on the control button and then press the center z. To delete the image, select
[DELETE] on the review screen with b/B on the control button, then press the center
z. And select [OK] with v on the control button, then press the center z.
B Recording
Using the zoom feature
Zoom lever
T side: for
telephoto (subject
appears closer)
W side: for wideangle (subject
appears farther
away)
If you cannot get a sharp focus on a close subject
Slide the zoom lever to the W side and move closer to the subject until the focus is
sharp.
Minimum focal distance to the subject
W side: About 25 cm (9 7/8 inches) or more
T side:
About 80 cm (31 1/2 inches) or more
To record even closer subjects, see page 38.
Digital zoom function
This camera has a digital zoom function.
Digital zoom enlarges the image by digital processing, and it starts to function when
the zoom exceeds 10×.
W
T
The T-side of the bar shows the
digital zooming zone.
Using digital zoom
• The maximum zoom magnification is 20×.
• Digital zooming deteriorates the picture quality. When digital zoom is not necessary, set
[DIGITAL ZOOM] to [OFF] in the menu settings (page 34).
Note
Digital zoom does not work for moving images.
17
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\04bas.fm]
masterpage:Left
01cov.book Page 18 Thursday, March 9, 2000 10:26 AM
Activating the SteadyShot function
When the SteadyShot function is working, the camera compensates for camerashake.
STEADY SHOT ON/
OFF switch
Set the STEADY SHOT ON/OFF switch to ON. The
appears on the LCD screen or on the finder.
(SteadyShot) indicator
Notes
• The SteadyShot function will not correct excessive camera-shake.
• If you use a wide conversion lens (not supplied), this lens may influence the SteadyShot
function.
LCD screen or finder indicators during recording
Press DISPLAY to turn on/off the indicators on the LCD screen or on the finder. See
page 65 for a detailed description of the indicators.
DISPLAY
Notes
• You cannot turn off the
(self-timer) indicator and some of the indicators used in advanced
operations.
• The indicators on the LCD screen or on the finder are not recorded.
18
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\04bas.fm]
masterpage:Right
Using the self-timer
When you use the self-timer function, the subject is recorded 10 seconds after you
press the shutter button.
Recording images with the flash
Press OPEN (FLASH) to pop up the flash. The initial setting is AUTO (no
indication). In this mode, the flash automatically strobes when the surroundings
become dark. When you change the flash mode, press
(Flash) repeatedly so that
the flash mode indicator appears on the LCD screen or on the finder. This setting can
be set only when the flash is popped up.
Each time you press the button, the indicator changes as follows.
t
t
t (No indication)
(No indication) t
Auto red-eye reduction : The flash preparatively strobes before recording to
reduce the red-eye phenomenon.
Forced flash : The flash strobes regardless of the surrounding brightness.
No flash : The flash does not strobe.
You can change the amount of the flash light with [FLASH LEVEL] in the menu
settings (page 34).
19
model name1[MVC-FD95]
[3-061-389-11(1)]
B Recording
Select
on the LCD screen with v/V/b/B on the control button, then press the
center z. The
(self-timer) indicator appears on the LCD screen or on the finder,
and the subject is recorded 10 seconds after you press the shutter button. The selftimer lamp flashes after you press the shutter button until the image is recorded.
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\04bas.fm]
masterpage:Left
01cov.book Page 20 Thursday, March 9, 2000 10:26 AM
Notes
• The recommended shooting distance is 0.6 to 2.5 m (23 5/8 inches to 8 1/3 feet).
• Attaching a conversion lens (not supplied) may block the light from the flash and the recorded
image may be eclipsed.
• You cannot use the built-in flash and an external strobe at the same time.
• The
indicator appears when the flash is not popped up under situations that you should use
the flash.
• Auto red-eye reduction may not produce the desired red-eye reduction effects depending on
individual differences, the distance to the subject, if the subject does not see the pre-strobe, or
other conditions. In addition, red-eye reduction effects are also difficult to obtain if you select a
slow shutter speed in shutter priority mode of the PROGRAM AE function.
• The flash effect is not obtained easily when you use forced flash in a bright location.
20
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\04bas.fm]
masterpage:Right
01cov.book Page 21 Thursday, March 9, 2000 10:26 AM
Recording moving images
Moving images with audio are recorded in MPEG format.
To record moving images, slide the POWER switch to the right to turn on the power
and insert a floppy disk.
2
B Recording
1
1
Set the PLAY/STILL/MOVIE selector to MOVIE.
2
Press the shutter button fully down.
“REC” appears on the LCD screen or on the finder, and the image and sound
are recorded on the floppy disk.
If you press the shutter button momentarily
The image and sound are recorded for 5 seconds. The recording time can be set
to 10 or 15 seconds with [REC TIME SET] in the menu settings (page 33).
If you hold the shutter button down
The image and sound are recorded while the shutter button is held down for up
to 60 seconds. However, when [IMAGE SIZE] in the menu settings is set to
[320×240], the maximum recording time is 15 seconds (page 36).
Adjusting the brightness of the LCD screen, zooming or using the selftimer
See page 16 to 19.
LCD screen or finder indicators during recording
Press DISPLAY to turn on/off the indicators on the LCD screen or on the finder.
These indicators are not recorded. See page 65 for a detailed description of the
indicators.
21
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\05bas.fm]
masterpage:Left
01cov.book Page 22 Thursday, March 9, 2000 10:26 AM
B Playback
Playing back still images
2, 3
Control button
1
1
Set the PLAY/STILL/MOVIE selector to PLAY.
The last recorded image (still or moving) appears on the LCD screen or on the
finder.
2
Press v on the control button to display the menu bar on the LCD
screen or on the finder.
3
Select the desired still image with the
control button.
Press v/V/b/B on the control button to
select "b/B" on the LCD screen or on the
finder, then press b/B.
"b: To display the preceding image.
B": To display the next image.
"b/B"
120min
INDEX DELETE
SELECT
6/8
640
FILE
TOOL SETUP
FILE BACK/NEXT
When the menu bar is not displayed
You can directly select and play back the image with b/B on the control button.
Notes
• You might not be able to correctly play back images recorded with this camera on other
equipment.
• You may not be able to play back images whose image sizes are larger than the maximum
image size that can be used with this camera for recording.
LCD screen or finder indicators during still image playback
Press DISPLAY to turn on/off the indicators on the LCD screen or on the finder.
See page 66 for a detailed description of the indicators.
22
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\05bas.fm]
masterpage:Right
Playing back moving images
2–4
Control button
1
Set the PLAY/STILL/MOVIE selector to PLAY.
The last recorded image (still or moving) appears on the LCD screen or on the
finder.
2
Press v on the control button to display the menu bar on the LCD
screen or on the finder.
3
Select the desired moving image with the
control button.
Moving images are displayed one size smaller than
still images.
Press v/V/b/B on the control button to select "b/B"
on the LCD screen or on the finder, then press b/B.
"b: To display the preceding image.
B": To display the next image.
4
Select the B (playback) button on the LCD
screen or on the finder with v on the control
button, then press the center z.
The moving image and sound are played back.
During playback, B (playback) changes to X
(pause).
"b/B"
120min
INDEX DELETE
SELECT
120min
160
FILE
160
INDEX DELETE FILE
SELECT
OK
6/8
TOOL SETUP
FILE BACK/NEXT
6/8
0:05
SETUP
23
model name1[MVC-FD95]
[3-061-389-11(1)]
B Playback
1
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\05bas.fm]
masterpage:Left
01cov.book Page 24 Thursday, March 9, 2000 10:26 AM
To pause playback
Select X (pause) on the LCD screen or on the finder with v/V/b/B on the control
button, then press the center z.
When the menu bar is not displayed
You can directly select the image with b/B on the control button, and play back the
image and sound by pressing the center z. When you press the center z during
playback, playback is paused.
Adjusting the volume
Press VOL +/– to adjust the volume.
VOL +/–
LCD screen or finder indicators during moving image playback
Press DISPLAY to turn on/off the indicators on the LCD screen or on the finder.
See page 66 for a detailed description of the indicators.
24
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\05bas.fm]
masterpage:Right
01cov.book Page 25 Thursday, March 9, 2000 10:26 AM
Viewing images using a personal
computer
You can view data with your camera on a personal computer and attach it to e-mail.
This section describes the general method for viewing images on a personal
computer. Be sure to also see the operation manuals for your personal computer and
application software.
Note
Data recorded with your camera is stored in the following formats. Make sure that
applications that support these file formats are installed on your personal computer.
B Playback
• Still image (except TEXT mode) : JPEG format
• Moving image/Voice memo: MPEG format
• Still image in TEXT mode : GIF format.
Recommended OS/applications
OS
Windows 3.1, Windows 95, Windows 98, Windows 98SE, Windows NT 3.51,
Windows NT 4.0
Applications
Microsoft Internet Explorer 4.0 or higher, Netscape Navigator, etc.
To display the image list, double-click [Mavica.htm] in the floppy disk used with this
camera as a medium for recording if you have installed a browser such as Microsoft
Internet Explorer on your personal computer.
Notes
• To play back an MPEG file, install ActiveMovie (DirectShow).
• You cannot play back an MPEG file with Windows 3.1.
• For Macintosh, you can use the floppy disk recorded with this camera using PC Exchange with
Mac OS system 7.5 or higher. A viewing application for Macintosh is also necessary for
viewing images. To play back an MPEG file, install QuickTime 3.0 or higher.
• When using the MSAC-FD2M Floppy Disk Adaptor for Memory Stick, the recommended OS
is Windows 98, Windows 95, Windows NT 4.0 or Mac OS 7.6 - 8.6.
25
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\05bas.fm]
masterpage:Left
01cov.book Page 26 Thursday, March 9, 2000 10:26 AM
Viewing images
For Windows 98 users
1
Start up your personal computer and insert the floppy disk into the
disk drive of your personal computer.
2
Open [
3
Double-click the desired data file.
Copying moving image files and audio files to the hard disk of your personal
computer before viewing is recommended. If you play back the file directly
from the floppy disk, the image and sound may break off.
My computer] and double click [
3 1/2 Floppy (A:)].
• Windows and Windows NT, ActiveMovie, DirectShow are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other countries.
• Macintosh and Mac OS, QuickTime are trademarks of Apple Computer, Inc.
• All other product names mentioned herein may be the trademarks or registered trademarks of
their respective companies.
Furthermore, “™” and “®” are not mentioned in each case in this manual.
26
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\05bas.fm]
masterpage:Right
01cov.book Page 27 Thursday, March 9, 2000 10:26 AM
Image file storage destinations
and image file names
Image files recorded with your camera are grouped in folders by recording mode.
Images in a floppy disk and ones in a “Memory Stick” have different file names. The
meanings of the file names are as follows.
When using floppy disks
sss stands for any number within the range from 001 to 999.
f stands for one of the following characters below.
B Playback
S: Still image file recorded at 640×480 size
F: Still image file of more than 640×480 size
V: Moving image file recorded at 160×112 size
W: Moving image file recorded at 320×240 size
For Windows 98 users (The drive recognizing the floppy disk is [A].)
Storage destination containing still or
moving image data
Folder containing E-mail mode image data
Folder containing voice memo audio data
Location
File
Meaning
• Still image file recorded normally
• Still image file recorded in E-MAIL
mode (page 37)
• Still image file recorded in VOICE
mode (page 37)
MVC-sssf.411
• INDEX display file
This file can only be played back on
your camera.
MVC-sssf.MPG
• Moving image file
• Still image file recorded in TEXT mode
(page 38)
E-mail folder
• Small-size image file recorded in EMAIL mode (page 37)
Voice folder
MVC-sssA.MPG
• Audio file recorded in VOICE mode
(page 37)
3 1/2 Floppy
(A:)
27
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\05bas.fm]
masterpage:Left
01cov.book Page 28 Thursday, March 9, 2000 10:26 AM
The numerical portion of the following files are the same.
— An image file recorded in VOICE mode and its corresponding audio file
— An image file recorded in E-MAIL mode and its corresponding small-size
image file
— INDEX display files cannot be played back on other equipment.
When using “Memory Stick”s
ssss stands for any number within the range from 0001 to 9999.
For Windows 98 users (The drive recognizing the Floppy Disk
Adaptor for Memory Stick is [A].)
Folder containing still image data
Folder containing E-mail mode image data
Folder containing moving image data
Folder containing voice memo audio data
Folder
File
Meaning
• Still image file recorded normally
• Still image file recorded in E-MAIL
mode (page 37)
• Still image file recorded in VOICE
mode (page 37)
• Still image file recorded in TEXT mode
(page 38)
Imcif 100
• Small-size image file recorded in EMAIL mode (page 37)
Moml0001
MOV0ssss.MPG
• Moving image file
Momlv100
DSC0ssss.MPG
• Audio file recorded in VOICE mode
(page 37)
100msdcf
The numerical portion of the following files are the same.
— An image file recorded in VOICE mode and its corresponding audio file
— An image file recorded in E-MAIL mode and its corresponding small-size
image file
28
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\06bef.fm]
01cov.book Page 29 Thursday, March 9, 2000 10:26 AM
Advanced operations
Before performing advanced
operations
This section describes the basic control methods that are frequently used for
“Advanced operations.”
How to use the PLAY/STILL/MOVIE selector
PLAY
STILL
MOVIE
PLAY:
MOVIE:
How to use the control button
The control button is used to select the buttons, images and menus displayed on the
LCD screen or on the finder of your camera and modify the settings. The operation
methods that are frequently used for “Advanced Operations” are described below.
Select
Set (enter)
29
model name1[MVC-FD95]
[3-061-389-11(1)]
Before performing advanced operations
STILL:
To play back or edit
images
To record still images
and voice memos
To record moving
images
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\06bef.fm]
01cov.book Page 30 Thursday, March 9, 2000 10:26 AM
Turning on/off the operation buttons (menu bar) on the LCD screen or
on the finder
Press v to display the menu bar
on the LCD screen or on the finder.
Press V to clear the menu bar from
the LCD screen or on the finder.
INDEX DELETE FILE
SELECT
OK
TOOL SETUP
MENU BAR OFF
Menu bar
Note
You cannot clear the menu bar on the INDEX screen (page 44).
Selecting items or images on the LCD screen or on the finder
1
2
Press v/V/b/B on the control
button to select the item you
want to set or the image you
want to display.
The color of the selected item or the
frame of the selected image
changes from blue to yellow.
Press the center z to enter
the item.
Repeat steps 1 and 2 to execute
each function.
INDEX DELETE FILE
SELECT
OK
TOOL SETUP
MENU BAR OFF
VIDEO OUT
/LANGUAGE
CLOCK SET
BEEP
LCD BRIGHT
INDEX DELETE FILE
SELECT
CLOSE
TOOL
SETUP
The “Advanced operations” section of this manual refers to selecting and
entering items by the above procedure as “Select [item name].”
30
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\06bef.fm]
01cov.book Page 31 Thursday, March 9, 2000 10:26 AM
How to change the menu settings
Some of the advanced operations for your camera are executed by selecting menu
items displayed on the LCD screen or on the finder with the control button.
1–3
Control button
PLAY/STILL/MOVIE selector
Press v on the control button to display the menu bar.
The menu bar appears as follows according to the position of the PLAY/STILL/
MOVIE selector.
MOVIE/STILL
EFFECT FILE
SELECT
OK
2
PLAY (INDEX mode)
PLAY (single mode)
CAMERA SETUP
MENU BAR OFF
INDEX DELETE FILE
SELECT
OK
MVC–001F 2000 7 4 10:30PM
DELETE FILE
TOOL SETUP
SELECT
SINGLE DISPLAY
TOOL SETUP
MENU BAR OFF
Select the desired item with v/V/b/B on the
control button, then press the center z.
The color of the selected item changes from blue to
yellow, and when you press the center z, the settings
that can be set for its item are displayed.
VIDEO OUT
/LANGUAGE
CLOCK SET
BEEP
LCD BRIGHT
INDEX DELETE FILE
SELECT
OK
3
NTSC
TOOL
SETUP
Select the desired setting with v/V/b/B on the control button, then
press the center z.
To cancel the setup
Press V on the control button repeatedly until the LCD screen or on the finder returns
to the menu bar display in step 1. To clear the menu bar, press V again.
31
model name1[MVC-FD95]
[3-061-389-11(1)]
Before performing advanced operations
1
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\06bef.fm]
01cov.book Page 32 Thursday, March 9, 2000 10:26 AM
Menu settings
Menu items that can be modified differ depending on the position of the PLAY/
STILL/MOVIE selector. The LCD screen or finder shows only the items you can
operate at the moment. Initial settings are indicated with x.
(self-timer)
Records with the self-timer (page 19).
EFFECT
Item
P. EFFECT
DATE/
TIME
Setting
Description
PLAY/STILL/
MOVIE selector
SOLARIZE Sets the image special effects (page 43). MOVIE
B&W
STILL
SEPIA
NEG.ART
x OFF
DAY &
TIME
Sets whether to insert the date and time STILL
into the image (page 43).
DATE
x OFF
FILE
Item-1
DISK
TOOL
Item-2
Setting
FORMAT OK
DISK
COPY
Cancels formatting of a floppy
disk.
OK
Copies all data stored in a floppy
disk to another disk (page 52).
Cancels the disk copy.
CANCEL
FILE
NUMBER
Setting
PLAY/STILL/
MOVIE selector
Formats a floppy disk (page 54). MOVIE
STILL
PLAY
CANCEL
CANCEL
Item
Description
Goes back to the [DISK TOOL]
item.
Description
PLAY/STILL/
MOVIE selector
SERIES
Assigns numbers to files in sequence
even if the floppy disk is changed.
x NORMAL
Resets the file number that starts from
001 each time the floppy disk is
changed.
MOVIE
STILL
32
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\06bef.fm]
01cov.book Page 33 Thursday, March 9, 2000 10:26 AM
Item
SIZE
Setting
PLAY/STILL/
MOVIE selector
x 1600×1200 Selects the image size when recording
1600(3:2) still images.
1600 (ECM)
1024×768
640×480
STILL
320×240
x 160×112
Selects the MPEG image size when
recording moving images.
MOVIE
STILL
REC MODE
TEXT
Records a GIF file in black-and-white.
VOICE
Records an audio file (with a still image)
in addition to the JPEG file.
E-MAIL
Records a small-size (320×240) JPEG
file in addition to the selected image
size.
x NORMAL
Records a JPEG file in the selected
image size.
15 sec
10 sec
x 5 sec
Selects the recording time for moving
images.
SLIDE
SHOW
(Only in
PLAY
(single)
mode)
INTERVAL Sets the slide show interval.
x 3 sec/5 sec/10 sec/30 sec/1 min
REPEAT
A slide show can be repeated for up to
approx. 20 minutes.
x ON/OFF
START
Starts the slide show.
CANCEL
Cancels the slide show settings or
execution.
Before performing advanced operations
REC TIME
SET
Description
MOVIE
PLAY
PRINT
MARK
—
Marks the images to be printed
(page 53).
PLAY
PROTECT
—
Protects images against accidental
erasure (page 48).
PLAY
33
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\06bef.fm]
01cov.book Page 34 Thursday, March 9, 2000 10:26 AM
CAMERA
Item
DIGITAL
ZOOM
Setting
x ON
OFF
Description
PLAY/STILL/
MOVIE selector
Uses digital zoom.
STILL
Does not use digital zoom.
SHARPNESS +2 to –2
STILL
Adjusts the sharpness of the image.
The
indicator appears (except when
the setting is 0).
FLASH
LEVEL
Makes the flash level higher than
normal.
HIGH
x NORMAL
LOW
EXPOSURE +2.0EV to
–2.0EV
STILL
Normal setting.
Makes the flash level lower than normal.
Adjusts the exposure.
MOVIE
STILL
TOOL
Item
Setting
Description
PLAY/STILL/
MOVIE selector
COPY
OK
x CANCEL
Copies the images (page 50).
Cancels copying of the image.
RESIZE
(Only in
PLAY
(single)
mode)
1600×1200 Changes the recorded image size
1024×768 (page 50).
640×480
x CANCEL
PLAY
PLAY
SETUP
Item
Setting
Description
PLAY/STILL/
MOVIE selector
DEMO
x STBY/ON
OFF
MOVIE
Displayed only when you use the AC
power adaptor in MOVIE or STILL
STILL
mode. When [ON] is selected, a
demonstration will start if you do not
operate your camera for about 10
minutes. To stop the demonstration, turn
off your camera.
VIDEO
OUT
x NTSC
Sets the video output signal to NTSC
mode (e.g., Japan, the USA).
PAL
Sets the video output signal to PAL
mode (e.g., Europe).
MOVIE
STILL
PLAY
34
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\06bef.fm]
01cov.book Page 35 Thursday, March 9, 2000 10:26 AM
Item
/
LANGUAGE
CLOCK
SET
BEEP
Setting
PLAY/STILL/
MOVIE selector
/JPN Displays the menu items in Japanese.
x ENGLISH
Displays the menu items in English.
—
Sets the date and time. (page 12)
MOVIE
STILL
PLAY
MOVIE
STILL
PLAY
MOVIE
STILL
PLAY
SHUTTER Turns off the beep only. (The shutter
sound is heard when you press the
shutter button.)
x ON
OFF
LCD
BRIGHT
Description
Turns on the beep/shutter sound (when
you press the control button/shutter
button).
Turns off the beep/shutter sound.
Adjusts the LCD screen brightness
using +/- on the LCD screen.
INDEX (Only in PLAY (single) mode)
Displays six images at a time (PLAY (INDEX) mode).
DELETE (Only in PLAY (single) mode)
Setting
Description
OK
Deletes the displayed image.
CANCEL
Cancels deleting of the image.
PLAY/STILL/MOVIE
selector
PLAY
(Return) (Only in PLAY (INDEX) mode)
Returns to PLAY (single) mode.
35
model name1[MVC-FD95]
[3-061-389-11(1)]
Before performing advanced operations
MOVIE
STILL
PLAY
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\07adv.fm]
masterpage:Left
01cov.book Page 36 Thursday, March 9, 2000 10:26 AM
B Various recording
Setting the image size
(IMAGE SIZE)
Numbers in parentheses indicate the number
or time when you use the “Memory Stick”
(8 MB) (not supplied).
∗ When [REC MODE] is set to
[NORMAL].
When you select [1600 (ECM)]
1
2, 3
The image quality deteriorates,
however, the number of images you
can record increases. If you give
priority to the image quality, select
[1600×1200].
Notes
1
Set the PLAY/STILL/MOVIE
selector to MOVIE or STILL.
2
Select [FILE] and then
[IMAGE SIZE] from the menu.
3
Select the desired image
size.
Still image sizes:
1600×1200, 1600 (3:2)*,
1600 (ECM), 1024×768, 640×480
• If you try to record 55 images or
more on a floppy disk, even if the
remaining disk capacity is sufficient,
“DISK FULL” appears on the LCD
screen and you cannot record any
more images.
• In TEXT mode, even if you select
[1600 (ECM)], the number of images
you can record is equal with the
number in [1600×1200].
∗ The image is recorded in the ratio of
three to two to fit the printing paper
size.
Moving image sizes:
320×240, 160×112
The number of images or the time
that you can record on a floppy
disk
Image size
Number of
images or time*
1600×1200
Approx. 4 (20)
1600 (3:2)
Approx. 4 (20)
1600 (ECM)
Approx. 8 (40)
1024×768
Approx. 10 (52)
640×480
Approx. 30 (159)
320×240
Approx. 15 sec (1
min 25 sec)
160×112
Approx. 60 sec
(5 min 45 sec)
36
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\07adv.fm]
masterpage:Right
01cov.book Page 37 Thursday, March 9, 2000 10:26 AM
Recording still
images for e-mail (EMAIL)
Adding audio files to
still images (VOICE)
3
The E-MAIL mode records a smallsize (320×240) image at the same time
as a still image. Small-size images are
convenient for e-mail transmission,
etc.
3
1
2
Set the PLAY/STILL/MOVIE
selector to STILL.
2
Select [FILE], [REC MODE],
and then [VOICE] from the
menu.
3
Record the image.
If you press and release the
shutter button, sound is
recorded for five seconds.
If you hold down the shutter
button, sound is recorded until
you release the shutter button for
up to 40 seconds.
2
1
Set the PLAY/STILL/MOVIE
selector to STILL.
2
Select [FILE], [REC MODE],
and then [E-MAIL] from the
menu.
3
Record the image.
The number of images that you can
record on a floppy disk in E-MAIL
mode
Image size
The number of images that you can
record on a floppy disk in VOICE
mode
Number of
images
Image size
1600×1200
Approx. 3 (19)
1600×1200
Approx. 3 (17)
1600 (3:2)
Approx. 3 (19)
1600 (3:2)
Approx. 3 (17)
1600 (ECM)
Approx. 7 (35)
1600 (ECM)
Approx. 5 (30)
1024×768
Approx. 8 (47)
1024×768
Approx. 6 (37)
640×480
Approx. 22 (120)
640×480
Approx. 12 (74)
Numbers in parentheses indicate the number
when you use the “Memory Stick” (8 MB)
(not supplied).
To return to normal
recording mode
Select [NORMAL] in step 2.
Number of
images
Numbers in parentheses indicate the number
when you use the “Memory Stick” (8 MB)
(not supplied).
To return to normal
recording mode
Select [NORMAL] in step 2.
37
model name1[MVC-FD95]
[3-061-389-11(1)]
B Various recording
1
1
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\07adv.fm]
masterpage:Left
01cov.book Page 38 Thursday, March 9, 2000 10:26 AM
Recording text
documents (TEXT)
Recording images in
macro
1
Text is recorded in GIF format to
provide a clear image.
3
2
3
1
2
1
Set the PLAY/STILL/MOVIE
selector to MOVIE or STILL.
1
Set the PLAY/STILL/MOVIE
selector to STILL.
2
Set the FOCUS AUTO/
MANUAL switch to AUTO.
2
Select [FILE], [REC MODE],
and then [TEXT] from the
menu.
3
3
Record the image.
Press
(macro).
The
(macro) indicator appears
on the LCD screen or on the finder.
With the zoom lever set to the W
side, you can shoot a subject that is
about 2 cm (13/16 inch) away from
the lens surface in macro mode.
The number of images that you can
record on a floppy disk in TEXT mode
Image size
Number of
images
1600×1200
Minimum 4 (25)
1600 (3:2)
Minimum 5 (28)
1600 (ECM)
Minimum 4 (25)
1024×768
Minimum 11 (61)
640×480
Minimum 28 (160)
Numbers in parentheses indicate the number
when you use the “Memory Stick” (8 MB)
(not supplied).
To return to normal
recording mode
Press
again. The
indicator
disappears.
Notes
• You cannot record images in macro
with the following PROGRAM AE
modes:
— Landscape mode
— Panfocus mode
• You cannot record images in macro if
the
indicator appears.
To return to normal
recording mode
Select [NORMAL] in step 2.
Notes
• If the subject is not evenly illuminated, you
may be unable to record a clear image.
• Writing and reading data take more time
than normal recording.
38
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\07adv.fm]
masterpage:Right
Notes
Focusing manually
Normally the focus is automatically
adjusted. The manual focus function is
convenient to focus the subject under
dark situations.
Set the PLAY/STILL/MOVIE
selector to MOVIE or STILL.
2
Set the FOCUS AUTO/
MANUAL switch to MANUAL.
The 9 (manual focus) indicator
appears on the LCD screen or on
the finder.
3
Turn the focus ring to achieve
a sharp focus.
When you shoot still images, the
image on the LCD screen or on the
finder is enlarged (double*) and
the focal point information appears
while the focus is being adjusted.
After adjusting, the image returns
to normal size. The range is from
2 cm (13/16 inch) to ∞ (infinity).
B Various recording
1
• Focal point information may not
completely show the correct distance. Use
the information as a guide.
• Focal point information does not show the
correct distance when attaching the
conversion lens.
• If you shoot a subject within 0.8 m
(31 1/2 inches) while the zoom lever is set
to T side, you cannot get a clear focus. In
such cases, the focal point information
flashes. Move the zoom lever to the W side
until the indicator stops flashing.
• You cannot adjust the focus manually if
you have selected the Panfocus mode in
the PROGRAM AE function.
∗ When using the digital zoom
function, the enlarged image will be
less than double size.
To reactivate auto focusing
Set the FOCUS AUTO/MANUAL
switch to AUTO.
39
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\07adv.fm]
masterpage:Left
Using the PROGRAM
AE function
1
Set the PLAY/STILL/MOVIE
selector to MOVIE or STILL.
2
Press PROGRAM AE
repeatedly to select the
desired PROGRAM AE mode.
Aperture priority mode
For making the subject stand out
against an unclear background or
making both the subject and the
background stand out clearly. Press
PROGRAM AE +/– repeatedly to
select an aperture value in 9 steps
from F2.8 to F11.
Shutter speed priority
mode
For recording a sharp picture of a
fast-moving subject or recording
the flow of motion of a moving
subject.
Press PROGRAM AE +/–
repeatedly to select a shutter speed
in 17 steps from 8'' to 1/500 when
recording a still image, or in 11
steps from 1/8 to 1/500 when
recording a moving image.
To cancel PROGRAM AE
Press PROGRAM AE repeatedly until
the indicator on the LCD screen or on
the finder goes out.
Notes
• You can focus only on distant subjects in
Landscape mode.
• In Panfocus mode, the zoom position is set
to the W side and focus is fixed.
• When you record in Twilight plus mode,
we recommend that you use a tripod to
prevent shaking.
• Set the forced flash
when you use the
flash in the following modes:
– Twilight mode
– Twilight plus mode
– Landscape mode
• You cannot use the PROGRAM AE
function when [REC MODE] is set to
[TEXT].
• If the setting is not appropriate in aperture
priority mode and shutter priority mode,
the setting value indicator on the LCD
screen or on the finder flashes. In this case,
reset the value.
Twilight mode
Suppresses the blurring of colors
of a bright subject in a dark place
so that you can record the subject
without losing the dark atmosphere
of the surroundings.
40
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\07adv.fm]
masterpage:Right
Using the Spot light
– metering function
Select this mode when there is
backlight or when there is strong
contrast between the subject and the
background, etc.
Adjusting the
exposure
(EXPOSURE)
Press SPOT METER to activate the
spot light-metering function. Position
the point you want to record at the spot
light-metering cross hair.
If a subject is under extremely bright or
dark situations, or the flash is used, the
exposure adjustment may not be
effective.
41
model name1[MVC-FD95]
[3-061-389-11(1)]
B Various recording
Note
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\07adv.fm]
masterpage:Left
01cov.book Page 42 Thursday, March 9, 2000 10:26 AM
2 Shoot a white object such as paper
full under the same situation you will
shoot.
3 Press
.
The
indicator flashes quickly.
When the white balance has been
adjusted and stored in the memory, the
indicator stops flashing.
Adjusting the white
balance (WHITE
BALANCE)
Normally the white balance is
automatically adjusted.
1
To reactivate auto
adjustment
Select [AUTO] in step 2.
2
Notes
1
Set the PLAY/STILL/MOVIE
selector to MOVIE or STILL.
2
Press WHITE BALANCE
repeatedly to select the
desired white balance
setting.
IN DOOR (n)
• Select [AUTO] when shooting with
fluorescent lighting.
• The
indicator means:
Slow flashing: white balance is not set.
Quick flashing: white balance is being
adjusted (after you pressed
).
Lit steady: white balance has been set.
• If the
indicator keeps flashing even
when you press
, record in automatic
white balance mode.
• Places where the lighting
condition changes quickly
• Under bright lighting such as
photography studios
• Under sodium or mercury lamps
OUT DOOR (
)
Recording a sunrise/sunset, night
scene, neon signs, or fireworks
One-push white balance (
)
Adjusting the white balance
depending on the light source
AUTO (No indicator)
Adjusts the white balance
automatically
To shoot in one-push white
balance mode
1 Press WHITE BALANCE
repeatedly until the
indicator
appears.
42
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\07adv.fm]
masterpage:Right
Recording the date
and time on the still
image (DATE/TIME)
Enjoying picture
effects (PICTURE
EFFECT)
4
1
2, 3
1
Set the PLAY/STILL/MOVIE
selector to STILL.
1
2
Select [EFFECT] and then
[DATE/TIME] from the menu.
Set the PLAY/STILL/MOVIE
selector to MOVIE or STILL.
2
3
Select the date and time.
Select [EFFECT] and then
[P. EFFECT] from the menu.
Select the desired mode.
DAY & TIME
SOLARIZE
Imposes the date, hour, and
minute.
DATE
Imposes the year, month, and day.
B&W
OFF
The picture is monochrome (black
and white).
Does not impose the date and time.
4
SEPIA
Record the image.
The date and time do not appear on
the LCD screen or on the finder
during shooting, these appear
during playback only.
The picture is sepia-toned like an
old photograph.
NEG.ART
The color and brightness of the
picture are reversed as in a
negative.
OFF
Does not use the picture effect
function.
2000
7
4
To cancel picture effect
Select [OFF] in step 2.
43
model name1[MVC-FD95]
[3-061-389-11(1)]
B Various recording
The light contrast is clearer and the
picture looks like an illustration.
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\08adv.fm]
masterpage:Left
B Various playback
Playing back six
images at once
(INDEX)
1
Set the PLAY/STILL/MOVIE
selector to PLAY.
2
Select [INDEX] on the LCD
screen.
Six images are displayed at once
(index screen).
To display the next
(previous) index screen
Select v/V at the lower left on the
LCD screen or on the finder.
To return to normal playback
(single image)
• Select the desired image with the
control button.
(Return).
• Select
Note
Images shot in TEXT mode cannot be
displayed on the INDEX screen.
The following marks are displayed
on each image according to the
image type and settings.
: Moving image file
: Voice memo file
: E-mail file
: Print mark
-: Protect mark
TEXT: TEXT file
(No mark): Normal recording (no
settings)
44
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\08adv.fm]
masterpage:Right
01cov.book Page 45 Thursday, March 9, 2000 10:26 AM
Notes
Enlarging a part of the
still image (Zoom and
trimming)
3
1
• You cannot use this function on moving
images or TEXT mode images.
• Zoom scaling is up to 5× regardless of the
original image size.
• The quality of enlarged images may be
deteriorated.
• The original data is left even if you enlarge
the image.
• The enlarged image is recorded as the
newest file.
2, 4
Set the PLAY/STILL/MOVIE
selector to PLAY.
2
Display the image to be
enlarged.
3
Zoom in/out the image with
the zoom lever.
The zoom scaling indicator
appears on the LCD screen or on
the finder.
4
Press the control button
repeatedly to trim the image.
v: The image moves downward
V: The image moves upward
b: The image moves rightward
B: The image moves leftward
B Various playback
1
To return to the normal size
Zoom out with the zoom lever until the
zoom scaling indicator ( ×1.1)
disappears from the screen, or simply
press the center z.
To record an enlarged image
(trimming)
1 Enlarge the image.
2 Press the shutter button. The image
is recorded at 640×480 size and the
image on the LCD screen or on the
finder returns to the normal size after
recording.
45
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\08adv.fm]
masterpage:Left
01cov.book Page 46 Thursday, March 9, 2000 10:26 AM
Playing back the still
images in order
(SLIDE SHOW)
This function is useful for checking the
recorded images or for presentations,
etc.
1
To skip to the next/previous
image during the slide show
Select \b/B\ at the lower-left on the
screen.
Notes
• The interval setting time may vary
depending on the image size.
• When [REPEAT] is set to [ON], the
slide show does not end until all the
images played back, even if it takes
more than 20 minutes.
2, 3
1
Set the PLAY/STILL/MOVIE
selector to PLAY.
2
Select [FILE] and then [SLIDE
SHOW] from the menu.
Set the following items.
INTERVAL
You can select from 1 min (one
minute), 30 sec (30 seconds),
10 sec (10 seconds), 5 sec
(5 seconds), or 3 sec (3 seconds).
REPEAT
ON: Plays back images in a
continuous loop (approximately 20
minutes) until [RETURN] is
selected.
OFF: After all images have been
played back, the slide show ends.
3
Select [START] with the
control button.
The slide show begins.
To cancel the slide show
Select [CANCEL] in step 2 or 3.
46
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\08adv.fm]
masterpage:Right
Viewing images on a
TV screen
Before connecting your camera, be
sure to turn off the TV.
Connect the A/V connecting
cable to the AUDIO (MONO) /
VIDEO OUT jack of your
camera and to the audio/
video input jacks of the TV.
If your TV has stereo type input
jacks, connect the audio plug of the
A/V connecting cable to the Lch
jack.
2
Turn on the TV and start
playback on your camera.
The playback image appears on the
TV screen.
B Various playback
1
Note
You cannot use a TV that has an antenna
(aerial) connector only.
47
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\09adv.fm]
masterpage:Left
01cov.book Page 48 Thursday, March 9, 2000 10:26 AM
B Editing
3
Preventing accidental
erasure (PROTECT)
The - (protect) indicator appears on
protected images.
When you select [ALL]
Select [ON].
All the images in the floppy disk
are protected.
When you select [SELECT]
Select all the images to be
protected with the control button,
then select [ENTER]. The selected
images are protected.
1
2, 3
In single mode
1
Set the PLAY/STILL/MOVIE
selector to PLAY, then
display the image to be
protected.
2
Select [FILE], [PROTECT],
and then [ON] from the menu.
The displayed image is protected
and the - indicator appears.
SELECT
PROTECT
OK
0001-0006/0040
ENTER CANCEL
To release protection
If you selected [ALL] in step 2, select
[OFF]. If you selected [SELECT] in
step 2, select the images to be
unprotected with the control button,
then select [ENTER].
To release protection
Select [OFF] in step 2.
In INDEX mode
1
Set the PLAY/STILL/MOVIE
selector to PLAY, then
display the INDEX screen.
2
Select [FILE], [PROTECT],
and then [ALL] or [SELECT]
from the menu.
48
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\09adv.fm]
masterpage:Right
01cov.book Page 49 Thursday, March 9, 2000 10:26 AM
3
Deleting images
(DELETE)
Protected images cannot be deleted.
1
2, 3
When you select [ALL]
Select [ENTER].
All the unprotected images are
deleted.
When you select [SELECT]
Select all the images to be deleted
with the control button, then select
[ENTER]. The
(delete)
indicator appears on the selected
images and these images are
deleted.
In single mode
1
2
Set the PLAY/STILL/MOVIE
selector to PLAY, then
display the image to be
deleted.
Select [DELETE] and then
[OK] from the menu.
The image is deleted.
SELECT
DELETE
OK
0001-0006/0040
ENTER CANCEL
To cancel deleting
Select [CANCEL] in step 2 or 3.
In INDEX mode
Set the PLAY/STILL/MOVIE
selector to PLAY, then
display the INDEX screen.
2
Select [DELETE] and then
[ALL] or [SELECT] from the
menu.
B Editing
1
49
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\09adv.fm]
masterpage:Left
01cov.book Page 50 Thursday, March 9, 2000 10:26 AM
Changing the
recorded still image
size (RESIZE)
Copying images
(COPY)
Copies images to another floppy disk.
In single mode
1
2, 3
1
Set the PLAY/STILL/MOVIE
selector to PLAY, then
display the image of which
you want to change the size.
2
Select [TOOL] and then
[RESIZE] from the menu.
3
Select the desired size.
1600×1200, 1024×768, 640×480.
The resized image is recorded and
the image on the LCD screen or on
the finder returns to the previous
size after recording.
1
3
2
1
Set the PLAY/STILL/MOVIE
selector to PLAY, then
display the image to be
copied.
2
Select [TOOL], [COPY], and
then [OK] from the menu.
“DISK ACCESS” appears.
3
When “CHANGE FLOPPY
DISK” appears, eject the
floppy disk.
“INSERT FLOPPY DISK”
appears.
4
Insert another floppy disk.
“RECORDING” appears. When
copying is completed,
“COMPLETE” appears.
To end copying, select [EXIT].
To cancel changing the size
Select [CANCEL] in step 3.
Notes
• When you change from a small size to a
large size, the picture quality deteriorates.
• The original image is retained even after
resizing.
• You cannot change the size of images
recorded in TEXT mode or moving
pictures.
• The resized image is recorded as the
newest file.
4
To continue copying the
image to other floppy disks
After “COMPLETE” appears in step 4,
select [CONTINUE] and repeat steps 3
and 4 above.
50
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\09adv.fm]
masterpage:Right
To continue copying the
image to other floppy disks
After “COMPLETE” appears in step 5,
select [CONTINUE] and repeat steps 4
and 5 above.
To cancel copying part-way
Change the PLAY/STILL/MOVIE
selector position or turn off the power.
Note
B Editing
51
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\09adv.fm]
masterpage:Left
Copying all the
information on your
floppy disk (DISK
COPY)
You can copy to another disk not only
the images you have recorded with
your camera but also various files you
have created in other software with
your personal computer.
Notes
• With copying disk, all information saved
on the recipient floppy disk is erased to be
replaced by newly written data including
the protected image data. Check the
contents of the recipient disk before
copying disk.
• Be sure to use a formatted floppy disk to
carry out DISK COPY.
To continue copying the
image to other floppy disks
After “COMPLETE” appears in step 4,
select [CONTINUE] and repeat steps 3
and 4 above.
To cancel copying part-way
Change the PLAY/STILL/MOVIE
selector position or turn off the power.
Note
If you eject and insert the floppy disk
without selecting [EXIT] after
“COMPLETE” appears, DISK COPY
will be carried out onto the floppy disk.
Note on the Floppy Disk Adaptor
for Memory Stick
You cannot do DISK COPY between
“Memory Stick”s and floppy disks.
1
Insert the floppy disk to be
copied.
2
Select [FILE], [DISK TOOL],
[DISK COPY], and then [OK]
from the menu.
“DISK ACCESS” appears.
3
When “CHANGE FLOPPY
DISK” is displayed, eject the
floppy disk.
“INSERT FLOPPY DISK”
appears.
52
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\09adv.fm]
masterpage:Right
01cov.book Page 53 Thursday, March 9, 2000 10:26 AM
Selecting still images
to print (PRINT MARK)
You can mark a print mark on still
images recorded with your camera.
This mark is convenient when you
have images printed at a shop that
conforms with the DPOF (Digital Print
Order Format) standard.
4
Select [ENTER].
The
marks on the selected
images change from green to
white.
PRINT MARK
SELECT
OK
1
2, 3, 4
In single mode
1
Set the PLAY/STILL/MOVIE
selector to PLAY and display
the image you want to print.
2
Select [FILE], [PRINT MARK],
and then [ON] from the menu.
The
(print) mark is marked on
the displayed image.
In INDEX mode
1
Set the PLAY/STILL/MOVIE
selector to PLAY, then
display the INDEX screen.
2
Select [FILE], [PRINT MARK],
and then [SELECT] from the
menu.
3
Select the images to be
marked with the control
button.
To remove selected print
marks
Select the images to be removed in step
3 with the control button, then select
[ENTER].
To remove all the print
marks
Select [FILE], [PRINT MARK],
[ALL], and then [OFF] from the menu.
The
marks on all images are
removed.
To print out using the FVP-1
Mavica Printer
Set PRESET SELECT SW to PC on
the printer.
Note
B Editing
To remove the print mark
Select [OFF] in step 2.
0001-0006/0100
ENTER CANCEL
You cannot mark a print mark on
moving images or TEXT mode
images.
53
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\09adv.fm]
masterpage:Left
01cov.book Page 54 Thursday, March 9, 2000 10:26 AM
Format
When you format a floppy disk, all
data stored on the floppy disk will be
deleted. Check the contents of the
floppy disk before formatting.
Note
Even if images are protected, these images
will be deleted.
1
2
1
Insert the floppy disk you
want to format.
2
Select [FILE], [DISK TOOL],
[FORMAT], and then [OK]
from the menu.
To cancel formatting
Select [CANCEL] in step 2.
Notes
• When you format the disk, be sure to use a
fully charged battery pack or the AC power
adaptor as the power source.
• If you use the Floppy Disk Adaptor for
Memory Stick, you can format “Memory
Stick”s.
54
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\10add.fm]
masterpage:Right
01cov.book Page 55 Thursday, March 9, 2000 10:26 AM
Additional information
Precautions
On cleaning
Cleaning the LCD screen or finder
Wipe the screen surface with a
cleaning cloth (not supplied) or an
LCD cleaning kit (not supplied) to
remove fingerprints, dust, etc.
Cleaning the camera surface
Clean the camera surface with a soft
cloth slightly moistened with water,
then wipe the surface dry. Do not use
any type of solvent such as thinner,
alcohol or benzene as this may damage
the finish or the casing.
• Avoid getting liquids on the floppy
disk.
• Be sure to use a floppy disk case to
ensure protection of important data.
• Even when you use a 3.5 inch 2HD
floppy disk, image data may not be
recorded and/or displayed depending
on the using environment. In this
case, use an other brand of disks.
On operating temperature
Your camera is designed for use
between the temperatures of 0 °C to
40 °C (32 °F to 104 °F). Recording in
extremely cold or hot places that
exceed this range is not recommended.
On moisture condensation
After using your camera at the
seashore or other dusty locations
Clean your camera carefully.
Otherwise, the salty air may corrode
the metal fittings or dust may enter the
inside of your camera, causing a
malfunction.
On floppy disks
Moisture condensation occurs
easily when:
• The camera is brought from a cold
location such as a ski slope into a
warmly heated room.
• The camera is taken from an airconditioned room or car interior to
the hot outdoors, etc.
How to prevent moisture
condensation
When bringing the camera from a cold
place to a warm place, seal the camera
in a plastic bag and allow it to adapt to
conditions at the new location over a
period of time (about an hour).
55
model name1[MVC-FD95]
[3-061-389-11(1)]
Additional information
To protect data recorded on floppy
disks, note the following:
• Avoid storing floppy disks near
magnets or magnetic fields such as
those of speakers and televisions,
permanent erasure of disk data may
result.
• Avoid storing floppy disks in areas
subject to direct sunlight or sources
of high temperature, such as a
heating device. Floppy disk warping
or damage may result, rendering the
disk useless.
• Avoid contact with the disk’s surface
by opening the disk shutter plate. If
the disk’s surface becomes
blemished, data may be rendered
unreadable.
If the camera is brought directly from a
cold to a warm location, or is placed in
a very damp room, moisture may
condense inside or outside the camera.
Should this occur, the camera will not
operate properly.
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\10add.fm]
masterpage:Left
01cov.book Page 56 Thursday, March 9, 2000 10:26 AM
If moisture condensation occurs
Immediately eject the floppy disk, then
turn off the camera and wait about an
hour for the moisture to evaporate.
Note that if you attempt to record with
moisture remaining inside the lens, you
will be unable to record clear images.
On AC power adaptor
• Unplug the unit from the wall outlet
(mains) when you are not using the
unit for a long time. To disconnect
the power cord (mains lead), pull it
out by the plug. Never pull the power
cord (mains lead) itself.
• Do not operate the unit with a
damaged cord (mains lead) or if the
unit has been dropped or damaged.
• Do not bend the power cord (mains
lead) forcibly, or place a heavy object
on it. This will damage the cord
(mains lead) and may cause fire or
electrical shock.
• Prevent metallic objects from coming
into contact with the metal parts of
the connecting section. If this
happens, a short may occur and the
unit may be damaged.
• Always keep metal contacts clean.
• Do not disassemble the unit.
• Do not apply mechanical shock or
drop the unit.
• While the unit is in use, particularly
during charging, keep it away from
AM receivers and video equipment.
AM receivers and video equipment
disturb AM reception and video
operation.
• The unit becomes warm during use.
This is not a malfunction.
• Do no place the unit in locations that
are:
— Extremely hot or cold
— Dusty or dirty
— Very humid
— Vibrating
On battery pack
• Use only the specified charger with
the charging function.
• To prevent accident from a short
circuit, do not allow metal objects to
come into contact with the battery
terminals.
• Keep the battery pack away from fire.
• Never expose the battery pack to
temperatures above 60 °C (140 °F),
such as in a car parked in the sun or
under direct sunlight.
• Keep the battery pack dry.
• Do not expose the battery pack to any
mechanical shock.
• Do not disassemble nor modify the
battery pack.
• Attach the battery pack to the camera
securely.
• Charging while some capacity
remains does not affect the original
battery capacity.
On vanadium-lithium battery
Your camera is supplied with a
vanadium-lithium battery installed so
as to retain the date and time, etc.,
regardless of the setting of the POWER
switch. The vanadium-lithium battery
is always charged as long as you are
using your camera. The battery,
however, will get discharged gradually
if you do not use your camera. It will
be completely discharged in about six
months if you do not use your camera
at all. Even if the vanadium-lithium
battery is not charged, it will not affect
the camera operation. To retain the
date and time, etc., charge the battery if
the battery is discharged.
56
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\10add.fm]
masterpage:Right
01cov.book Page 57 Thursday, March 9, 2000 10:26 AM
Charging the vanadium-lithium
battery:
• Connect your camera to house
current (mains) using the AC power
adaptor supplied with your camera,
and leave your camera with the
power turned off for more than 24
hours.
• Or install the fully charged battery
pack in your camera, and leave your
camera with the power turned off for
more than 24 hours.
If any problem occurs, unplug your
camera and contact your nearest Sony
dealer.
NTSC system countries
Bahama Islands, Bolivia, Canada,
Central America, Chile, Columbia,
Ecuador, Jamaica, Japan, Korea,
Mexico, Peru, Surinam, Taiwan, the
Philippines, the U.S.A., Venezuela, etc.
PAL system countries
Australia, Austria, Belgium, China,
Denmark, Finland, Germany, Great
Britain, Holland, Hong Kong, Italy,
Kuwait, Malaysia, New Zealand,
Norway, Portugal, Singapore, Spain,
Sweden, Switzerland, Thailand, etc.
PAL-M system country
Brazil
PAL-N system countries
Argentina, Paraguay, Uruguay
Using your camera
abroad
Power sources
You can use your camera in any
country or area with the supplied
battery charger within 100 V to 240 V
AC, 50/60 Hz. Use a commercially
available AC plug adaptor [a], if
necessary, depending on the design of
the wall outlet (mains) [b].
SECAM system countries
Bulgaria, Czech Republic, France,
Guiana, Hungary, Iran, Iraq, Monaco,
Poland, Russia, Slovak Republic,
Ukraine, etc.
AC-L10A/L10B/L10C
Additional information
Watching the playback picture on
TV
If you want to view the playback
picture on a TV, you need a TV having
a video input jack and a video
connecting cable.
The color system of the TV must be
the same as that of your digital still
camera. TV color systems differ from
country to country. Check the
following list:
57
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\10add.fm]
masterpage:Left
01cov.book Page 58 Thursday, March 9, 2000 10:26 AM
Troubleshooting
If you experience trouble with your camera, first check the following items. Should
your camera still not operate properly after you have made these checks, consult your
Sony dealer or local authorized Sony service facility. If code displays (C:ss:ss)
appear on the LCD screen or on the finder, the self-diagnosis display function is
working (page 63).
Symptom
Cause and/or Solution
Your camera does not
work.
• You are not using an “InfoLITHIUM” battery pack.
t Use an “InfoLITHIUM” battery pack (page 8).
• The floppy disk is not inserted properly.
t Eject the disk, and insert it again (page 14).
indicator
• The battery level is too low. (The
appears.)
t Charge the battery pack (page 9).
• The AC power adaptor is not connected securely.
t Connect it securely to the DC IN jack and a wall
outlet (mains) (page 9, 11).
• The malfunction occurs inside the camera.
t Turn off the power, and turn on after one
minute, then check that the camera works
properly.
Your camera cannot
record images.
• The PLAY/STILL/MOVIE selector is set to PLAY.
t Set it to MOVIE or STILL (page 15, 21).
• No floppy disk has been inserted into your camera.
t Insert a floppy disk (page 14).
• The tab on the disk is set to the non-recording
position.
t Set it to the recording position (page 14).
The picture is noisy.
• Your camera is placed near a TV or other
equipment that uses strong magnets.
t Move your camera away from the TV, etc.
The picture is too dark.
• You are shooting a subject with a light source
behind the subject.
t Adjust the exposure (page 41).
• The brightness of the LCD screen is too low.
t Adjust the brightness of the LCD screen
(page 16).
58
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\10add.fm]
masterpage:Right
01cov.book Page 59 Thursday, March 9, 2000 10:26 AM
Cause and/or Solution
The flash does not work.
.
• The flash is set to
t Set the flash to (no indication),
, or
(page 19).
• The camera is in one of the following PROGRAM
AE modes: Twilight, Twilight plus, or Landscape.
t Cancel the PROGRAM AE function or set the
flash to
(page 19, 40).
• The PLAY/STILL/MOVIE selector is set to
MOVIE.
t Set it to STILL.
• The flash is not popped up.
t Pop up the flash (page 19).
The read/write time is
slow when using a
“Memory Stick.”
• When using the Floppy Disk Adaptor for Memory
Stick, writing and reading images take about twice
times than using a floppy disk.
t This is not a malfunction.
The date and time are
recorded incorrectly.
• The date and time are not set correctly.
t Set the correct date and time (page 12).
Vertical streaks appear
when you are shooting a
very bright subject.
• This is called the smear phenomenon.
t This is not a malfunction.
The battery life is short.
• You are recording/playing back images under
extremely cold temperatures.
• The battery pack is not charged enough.
t Charge the battery pack fully.
• The battery pack is dead.
t Replace the battery pack with a new one.
The indication of the
battery remaining time is
not proper.
• You are using the camera for many hours under
extremely hot or cold temperatures.
• The battery pack is dead.
t Replace the battery pack with a new one
(page 8).
• The battery level is too low.
t Install the charged battery pack (page 8, 9).
The power is immediately
turned off even if the
battery remaining
indicator indicates that the
battery level is sufficient.
The zoom does not work.
t Charge the battery pack about one hour after the
normal charge is complete (page 9).
• PROGRAM AE is set to the Panfocus mode.
t Cancel the Panfocus mode (page 40).
59
model name1[MVC-FD95]
[3-061-389-11(1)]
Additional information
Symptom
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\10add.fm]
masterpage:Left
01cov.book Page 60 Thursday, March 9, 2000 10:26 AM
Symptom
Cause and/or Solution
Digital zoom does not
function.
• You cannot use digital zoom to record moving
pictures.
The image is in
monochrome.
• You shot the image in TEXT mode.
t Cancel the TEXT mode (page 38).
The image and sound
break off when you play
back an image on a
personal computer.
• You are playing back the file from the floppy disk.
t Copy the file to the hard disk of the personal
computer and then play back the file from the
hard disk (page 26).
The image cannot be
played back on a personal
computer.
t Consult the personal computer or software
manufacturer.
Your camera cannot delete
an image.
• The image is protected.
t Cancel the protection (page 48).
The power turns off
suddenly.
• With the PLAY/STILL/MOVIE selector set to
STILL or MOVIE, if you do not operate the camera
for about three minutes while the power is on, the
camera turns off automatically to prevent wearing
down the battery pack.
t Turn on the camera.
• The battery pack is discharged.
t Replace it with a charged battery pack.
The image does not
appear on the TV screen.
• The VIDEO OUT setting of your camera is
incorrect.
t Change the setting (page 34).
The slide show function
stops automatically.
• The slide show function stops after about
20 minutes.
t To continue the slide show, select [START]
again (page 46).
You cannot use the
PROGRAM AE function.
• The camera is set to TEXT mode.
t Cancel the TEXT mode (page 38).
The
work.
• The camera is in manual focus mode.
t Set it to auto focus mode (page 39).
• PROGRAM AE is set to the Panfocus mode.
t Cancel the Panfocus mode (page 40).
button does not
You cannot resize the
image.
• This function does not work on a moving image nor
on a TEXT image.
You cannot mark an image
with the print mark.
• The print mark cannot be marked on a moving
image nor on a TEXT image.
60
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\10add.fm]
masterpage:Right
01cov.book Page 61 Thursday, March 9, 2000 10:26 AM
Warning and notice messages
Various messages appear on the LCD screen. Check the corresponding descriptions
in the following list.
Message
Meaning
DRIVE ERROR
There is trouble with the disk drive.
NO DISK
No disk has been inserted.
FORMAT ERROR
• The floppy disk loaded is not MS-DOS
formatted (512 bytes×18 sectors).
• The battery level of the Floppy Disk
Adaptor for Memory Stick is low.
DISK PROTECT
The tab on the disk is set to the nonrecording position.
DISK FULL
The disk is full.
No image has been recorded on the disk.
FILE ERROR
Trouble has occurred during playback.
FILE PROTECT
The image is protected.
DISK ERROR
A 2DD floppy disk is inserted, or there is
trouble with the disk.
NOT ENOUGH MEMORY
The remaining capacity of the floppy
disk is not enough to copy the image.
IMAGE SIZE OVER
You tried to play back images with an
image size larger than the maximum
playback size of this camera.
INVALID OPERATION
• You cannot do DISK COPY between a
“Memory Stick” and a floppy disk.
• You select [ALL] from [COPY] when
copying images in the “Memory Stick.”
for "InfoLITHIUM" battery only
The battery is not the “InfoLITHIUM” type.
-
The image is protected.
The battery level is too low.
NOT ENOUGH FD ADAPTOR’S
BATTERY
COULDN’T RECORD
The battery level of the Floppy Disk
Adaptor for Memory Stick is low.
The battery level of the Floppy Disk
Adaptor for Memory Stick is too low to
shoot.
61
model name1[MVC-FD95]
[3-061-389-11(1)]
Additional information
NO FILE
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\10add.fm]
masterpage:Left
01cov.book Page 62 Thursday, March 9, 2000 10:26 AM
Message
Meaning
INVALID OPERATION
The battery level of the Floppy Disk
Adaptor for Memory Stick is too low to
do some operations.
DISK ERROR
• The battery level of the Floppy Disk
Adaptor for Memory Stick is too low to
operate.
• Trouble has occurred on the Floppy
Disk Adaptor for Memory Stick.
62
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\10add.fm]
masterpage:Right
01cov.book Page 63 Thursday, March 9, 2000 10:26 AM
Self-diagnosis display
Your camera has a self-diagnosis display. This
function displays the camera condition on the
LCD screen or on the finder with a combination
of a letter and four digits of numbers. If this
appears, check the following code chart. The code
informs you of the camera’s current condition.
The last two digits (indicated by ss) will differ
depending on the state of the camera.
Self-diagnosis display
• C: ss: ss
You can repair the camera
yourself.
• E: ss: ss
Contact your Sony dealer or local
authorized Sony service facility.
Cause and/or Corrective Action
C:32:ss
• There is trouble with the disk drive.
t Turn the power off and on again.
C:13:ss
• An unformatted floppy disk is inserted.
t Format the floppy disk. (page 54)
• An disk not compatible with this
camera is inserted.
t Change the disk. (page 14)
• The battery level of the Floppy Disk
Adaptor for Memory Stick is too low.
t Replace the battery with a new one.
E:61:ss
E:91:ss
• A camera malfunction that you cannot
repair has occurred.
t Contact your Sony dealer or local
authorized Sony service facility and
inform them of the 5-digit service
code. (example: E:61:10)
If you are unable to rectify the problem even if you try corrective actions a
few times, contact your Sony dealer or local authorized Sony service facility.
63
model name1[MVC-FD95]
[3-061-389-11(1)]
Additional information
Code
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\10add.fm]
masterpage:Left
01cov.book Page 64 Thursday, March 9, 2000 10:26 AM
Specifications
System
Image device
1/2.7 type color CCD
Lens
10× zoom lens
f = 6.0 – 60.0 mm (1/4 –
2 3/8 inches) (39 – 390 mm
(1 9/16 – 15 3/8 in) when
converted into a 35 mm still
camera)
F = 2.8
Exposure control
Automatic exposure
White balance
Automatic, Indoor, Outdoor,
One-push
Data compression
system
Movie: MPEG1
Still:
Floppy disk: JPEG (JFIF)
“Memory Stick”: JPEG
(Exif2.1)
GIF (in TEXT mode)
Audio (with still image):
MPEG AUDIO (Monaural)
Recording medium
Floppy disk:
3.5 inch 2HD MS-DOS
format (1.44MB)
MSAC-FD2M Floppy Disk
Adaptor for Memory Stick:
DCF98 format
Flash
Recommended recording
distance:
0.6 m to 2.5 m (23 5/8 in to
8 1/3 feet)
Input and Output
connector
AUDIO (MONO) /VIDEO
OUT (Monaural)
Minijack Video:
1 Vp-p, 75 Ω, unbalanced,
sync negative
Audio: 327 mV (at a 47 kΩ
load)
Output impedance: 2.2 kΩ
External flash jack
Minijack
AC-L10A/L10B/L10C
AC power adaptor
LCD screen
Power requirements
100 V to 240 V AC, 50/
60 Hz
Rated output voltage
DC 8.4 V, 1.5 A in operating
mode
Operation temperature
0°C to 40°C (32°F to 104°F)
Storage temperature
–20°C to +60°C (–4°F to
+140°F)
Maximum dimensions
125×39×62 mm (5×1 9/16×
2 1/2 inches) (w/h/d)
Mass
Approx. 280 g (10 oz)
Used LCD panel
TFT (Thin Film Transistor
active matrix) drive
Total number of dots
123 200 (560×220) dots
Finder
Used LCD panel
TFT (Thin Film Transistor
active matrix) drive
Total number of dots
180 000 (800×225) dots
General
Application
Sony battery pack NP-F330
(supplied)/F550
Power requirements
8.4 V
Power consumption
(During shooting)
3.9 W (When using the LCD
screen)
3.5 W (When using the
finder)
Operation temperature
0°C to 40°C (32°F to 104°F)
Storage temperature
–20°C to +60°C (–4°F to
+140°F)
Maximum dimensions
126×124×184 mm (5×5×
7 1/4 in) (w/h/d)
Mass
Approx. 970 g (2 lb 2 oz)
(including battery, floppy
disk and lens cap, etc.)
Built-in microphone
Electret condenser
microphone
Built-in speaker
Dynamic speaker
NP-F330 battery pack
Used battery
Lithium ion battery
Maximum voltage
DC 8.4 V
Nominal voltage
DC 7.2 V
Capacity
5.0 Wh (700 mAh)
Accessories
AC-L10A/L10B/L10C AC
power adaptor (1)
Power cord (mains lead) (1)
NP-F330 battery pack (1)
A/V connecting cable (1)
Shoulder strap (1)
Lens cap (1)
Lens cap strap (1)
CD-ROM (1)
Operating instructions (1)
Design and specifications
are subject to change
without notice.
64
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\10add.fm]
masterpage:Right
01cov.book Page 65 Thursday, March 9, 2000 10:26 AM
LCD screen/finder indicators
The indicators during recording
1
2
3
4
5
6
7
8
9
0
qa
120min
+1.0EV
10
REC 0:03
15s
1600 ECM
DATE
SOLARIZE
F2.8
500
EFFECT FILE
OK
SELECT
A Sharpness indicator
B Focus mode indicator/Macro
indicator
C Battery remaining indicator
D Flash level indicator/Flash
mode indicator
E PROGRAM AE indicator/Zoom
indicator
F White balance indicator
G SteadyShot indicator
H Picture effect indicator
CAMERA SETUP
MENU BAR OFF
qs
qd
qf
qg
qh
qj
qk
ql
w;
wa
P Remaining disk capacity
indicator
Q Recording time indicator
R Self-diagnosis function
indicator/Recording time
indicator
S Self-timer indicator
T Spot light-metering indicator
U Menu bar and guide menu
They appear by pressing v on the
control button and disappear by
pressing V.
I Date and time indicator
Additional information
J EV level indicator
K Iris/Shutter speed indicator
L AE lock indicator/Focus lock
indicator
M Recording mode indicator
N Image size indicator
O Number of recorded images
65
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\10add.fm]
masterpage:Left
01cov.book Page 66 Thursday, March 9, 2000 10:26 AM
The indicators during still image playback
1
2
3
4
5
120min
MVC-011S
11/12
1280
2000
7
6
7
8
9
4 12:00AM
A Protect indicator/Zoom scaling
indicator
F Remaining disk capacity
indicator
B Print mark indicator
G Number of stored images on a
floppy disk
C Recording mode indicator
H Image number
D Image size indicator
I Recording date of the playback
image*
E File name*
∗ When the menu bar is displayed, this
indicator disappears from the screen.
The indicators during moving image playback
120min
1
2
3
4
5
160
INDEX DELETE FILE
SELECT
OK
A Moving image file indicator
B Image size indicator
C Playback button
B is displayed during stop, and X
during playback.
6/8
0:10
6
7
8
9
0
TOOL SETUP
MENU BAR OFF
H Image number/number of
stored images on a floppy disk
I Playback image
J Playback bar
D Image searching buttons
E Menu bar and guide menu
F Remaining disk capacity
indicator
G Counter
66
model name1[MVC-FD95]
[3-061-389-11(1)]
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\02GBMVCFD95UC\01covIX.fm]
masterpage:Left
I
Index
Copying..................... 50
Deleting..................... 49
Symbols
“InfoLITHIUM” battery
pack .............................8
A
AC power adaptor..........11
Adjusting brightness
Image.........................41
LCD screen................16
AE (auto exposure) ........15
Auto power-off function ..9
B
Battery pack
Charging......................9
Installing......................8
Remaining time ...........9
Usable time................10
BEEP..............................35
C
Charging ..........................9
Cleaning.........................55
CLOCK SET..................12
Control button................29
D
DELETE ........................49
DEMO............................34
DIGITAL ZOOM ..........34
DISK COPY ..................52
DPOF .............................53
E
Editing
COPY ........................50
DELETE....................49
PROTECT .................48
E-MAIL .........................37
F
Additional information
FILE NUMBER.............32
Finder.............................16
FLASH LEVEL .............34
Floppy disk
Copying .....................52
Format .......................54
Inserting.....................14
Number of recordable
images
........... 36 37 38
Usable type................14
FORMAT.......................54
Full charge .......................9
, ,
67
filename[D:\nakano's\3061389111\3061389111MVCFD95UC\03BCOMVCFD95UC\01covIX.fm]
masterpage:Left
01covIX.fm Page 68 Thursday, March 9, 2000 10:30 AM
Sony Corporation Printed in Japan
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
