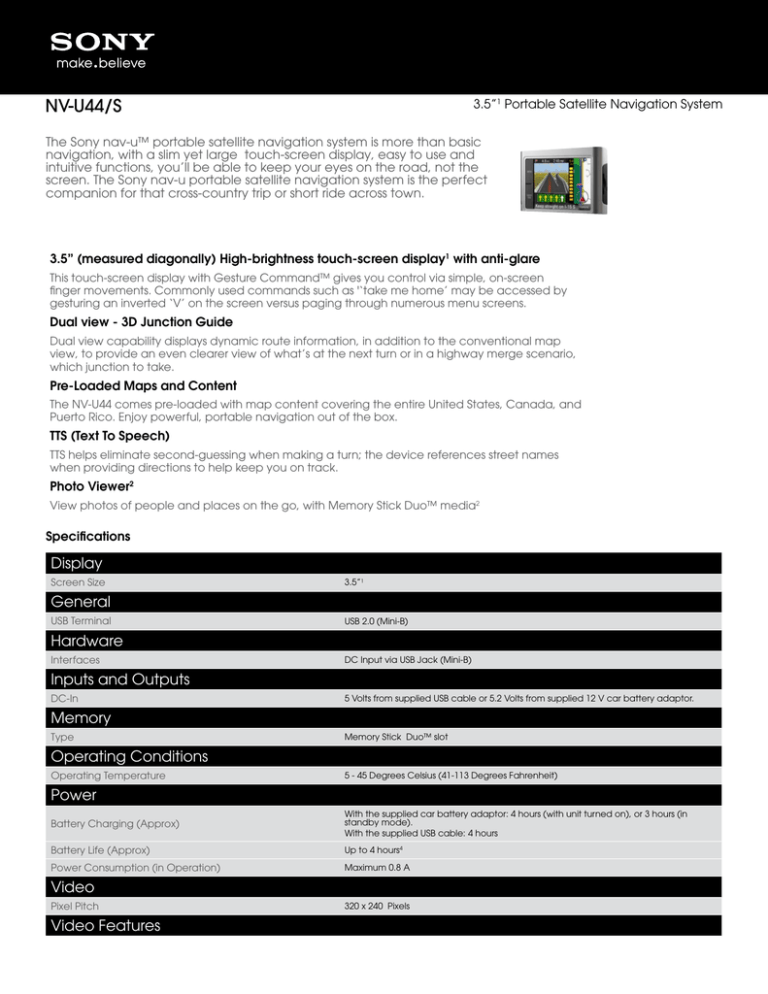

Sony NV-U44/S Specification

Sony NV-U44/S Specification
3.5”1 Portable Satellite Navigation System
The Sony nav-u™ portable satellite navigation system is more than basic
navigation, with a slim yet large touch-screen display, easy to use and
intuitive functions, you’ll be able to keep your eyes on the road, not the
screen. The Sony nav-u portable satellite navigation system is the perfect
companion for that cross-country trip or short ride across town.
3.5” (measured diagonally) High-brightness touch-screen display1 with anti-glare
This touch-screen display with Gesture Command™ gives you control via simple, on-screen
finger movements. Commonly used commands such as '‘take me home’ may be accessed by
gesturing an inverted ‘V’ on the screen versus paging through numerous menu screens.
Dual view - 3D Junction Guide
Dual view capability displays dynamic route information, in addition to the conventional map
view, to provide an even clearer view of what’s at the next turn or in a highway merge scenario,
which junction to take.
Pre-Loaded Maps and Content
The NV-U44 comes pre-loaded with map content covering the entire United States, Canada, and
Puerto Rico. Enjoy powerful, portable navigation out of the box.
TTS (Text To Speech)
TTS helps eliminate second-guessing when making a turn; the device references street names
when providing directions to help keep you on track.
Photo Viewer2
View photos of people and places on the go, with Memory Stick Duo™ media2
Screen Size
USB Terminal
USB 2.0 (Mini-B)
DC Input via USB Jack (Mini-B)
Inputs and Outputs
5 Volts from supplied USB cable or 5.2 Volts from supplied 12 V car battery adaptor.
Memory Stick Duo™ slot
Operating Conditions
Operating Temperature
5 - 45 Degrees Celsius (41-113 Degrees Fahrenheit)
Battery Charging (Approx)
With the supplied car battery adaptor: 4 hours (with unit turned on), or 3 hours (in
standby mode).
With the supplied USB cable: 4 hours
Battery Life (Approx)
Up to 4 hours4
Power Consumption (in Operation)
Maximum 0.8 A
Pixel Pitch
Video Features
320 x 240 Pixels
Picture Mode
2D, 3D (Map)
Screen Technology
A Si-TFT Active Matrix Screen Touch Screen operation
Weights and Measurements
Dimensions (Approx.)
3.7 x 2.1 x 4.3 inches" (95 x 54 x 109 mm)
Weight (Approx.)
(157 Grams)
Supplied Accessories
Supplied Accessories
Car Cradle
XA-DC6 Car Battery Adaptor
USB Cable
Quick Start Guide
Warranty card
End-User License Agreement
Important Information
Car Dash Mount
Optional Accessories
Optional Accessories
Car Battery Adaptor
1. Screen size measured diagonally. Width measured at narrowest point.
written permission is prohibited. Sony, Memory Stick, nav-u, Quick-BrowZer, Walkman,
2. Requires compatible Memory Stick® media (sold separately).
Xplod, ZAPPIN, and the Sony, nav-u and Xplod logos are trademarks of Sony. iPhone and
3. State and local traffic laws may limit placement. Please check your local rules.
iPod are trademarks of Apple Inc., registered in the U.S. and other countries. Bluetooth is
4. Actual battery life may vary, based upon product settings, usage patterns, battery, and
environmental conditions.
© 2009 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without
a trademark of Bluetooth SIG, Inc. NAVTEQ Maps & Traffic is a trademark of NAVTEQ. All
other trademarks are trademarks of their respective owners. Features and specifications
are subject to change without notice. Non-metric weights and measures are approximate.
/Updated: April 13, 2012
