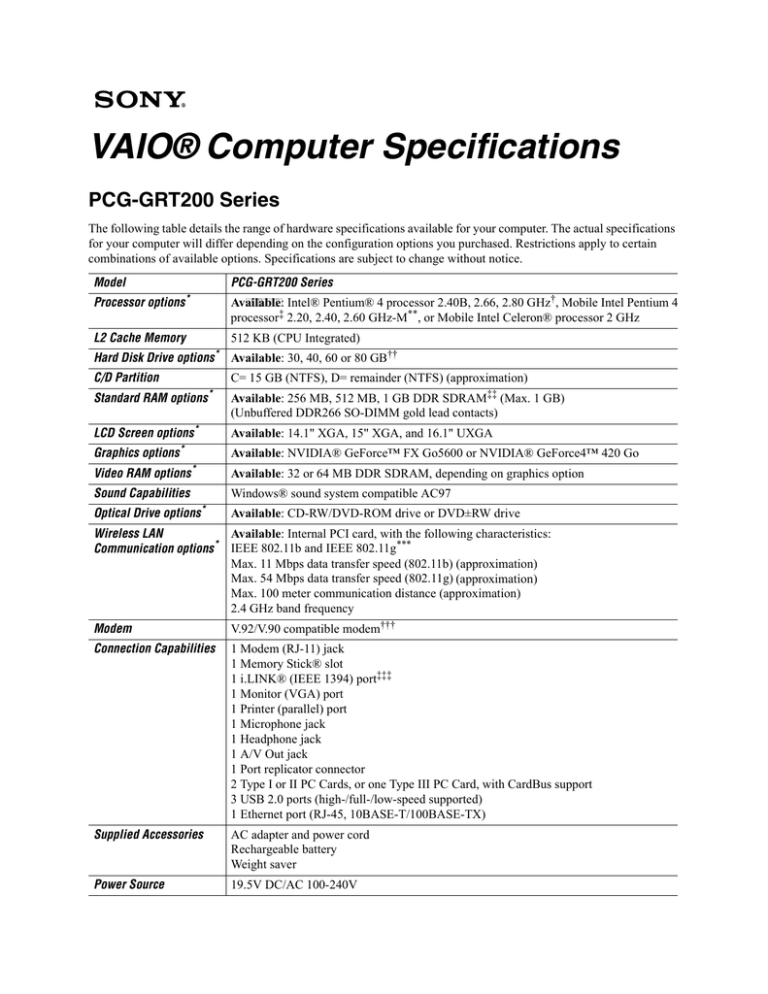

VAIO® Computer Specifications
PCG-GRT200 Series
The following table details the range of hardware specifications available for your computer. The actual specifications
for your computer will differ depending on the configuration options you purchased. Restrictions apply to certain
combinations of available options. Specifications are subject to change without notice.
PCG-GRT200 Series
Available: Intel® Pentium® 4 processor 2.40B, 2.66, 2.80 GHz†, Mobile Intel Pentium 4
processor‡ 2.20, 2.40, 2.60 GHz-M**, or Mobile Intel Celeron® processor 2 GHz
512 KB (CPU Integrated)
L2 Cache Memory
Hard Disk Drive options
C= 15 GB (NTFS), D= remainder (NTFS) (approximation)
C/D Partition
Standard RAM options
LCD Screen options*
Graphics options
Available: 30, 40, 60 or 80 GB††
Available: 14.1" XGA, 15" XGA, and 16.1" UXGA
Video RAM options
Available: 256 MB, 512 MB, 1 GB DDR SDRAM‡‡ (Max. 1 GB)
(Unbuffered DDR266 SO-DIMM gold lead contacts)
Available: NVIDIA® GeForce™ FX Go5600 or NVIDIA® GeForce4™ 420 Go
Available: 32 or 64 MB DDR SDRAM, depending on graphics option
Windows® sound system compatible AC97
Sound Capabilities
Optical Drive options
Available: CD-RW/DVD-ROM drive or DVD±RW drive
Wireless LAN
Available: Internal PCI card, with the following characteristics:
Communication options* IEEE 802.11b and IEEE 802.11g***
Max. 11 Mbps data transfer speed (802.11b) (approximation)
Max. 54 Mbps data transfer speed (802.11g) (approximation)
Max. 100 meter communication distance (approximation)
2.4 GHz band frequency
V.92/V.90 compatible modem†††
Connection Capabilities
1 Modem (RJ-11) jack
1 Memory Stick® slot
1 i.LINK® (IEEE 1394) port‡‡‡
1 Monitor (VGA) port
1 Printer (parallel) port
1 Microphone jack
1 Headphone jack
1 A/V Out jack
1 Port replicator connector
2 Type I or II PC Cards, or one Type III PC Card, with CardBus support
3 USB 2.0 ports (high-/full-/low-speed supported)
1 Ethernet port (RJ-45, 10BASE-T/100BASE-TX)
Supplied Accessories
AC adapter and power cord
Rechargeable battery
Weight saver
Power Source
19.5V DC/AC 100-240V
VAIO® Computer Specifications
PCG-GRT200 Series
Power Management
Energy Star® Compliant
Advanced Configuration and Power Interface (ACPI)
Unit dimensions will vary depending on the options selected.
Unit weight will vary depending on the options selected.
Operating Temperature
40° F to 95° F (5° C to 35° C)
Operating Humidity
20% to 80% (not condensed), provided that humidity is less than 65% at 95° F (35° C),
hygrometer reading of less than 84° F (29° C)
Storage Temperature
-4° F to 140° F (-20° C to 60° C) (temperature gradient less than 18° F (10° C/hour)
Storage Humidity
10% to 90% (not condensed) provided that humidity is less than 20% at 140° F (60° C),
hygrometer reading of less than 95° F (35° C)
* Certain specifications differ depending on the specific configuration you purchased.
† GHz denotes maximum microprocessor internal clock speed; other factors may affect application performance.
‡ The processor speed will be reduced under certain operating conditions.
** Mobile Intel® Pentium® 4 processors support Enhanced Intel SpeedStep® Technology.
†† GB means one billion bytes when referring to hard drive capacity. Five GB is reserved as a recovery partition.
Accessible capacity may vary.
‡‡ Your system may contain additional memory installed at the time of purchase.
***IEEE 802.11b and IEEE 802.11g comply with WPA (Wi-Fi Protected Access). Max. data communication/transfer speed per IEEE
802.11b/g standard. Speed will be reduced under certain operating and environmental conditions. Communication distance will be reduced
under certain operating and environmental conditions.
†††Maximum speed for faxing is 14.4 Kbps. Your modem is capable of downloading at 56 Kbps using V.92/V.90. Your online service or
Internet Service Provider may not support this technology or operate at this speed.
‡‡‡i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connection. The i.LINK connection may vary,
depending on the software applications, operating system, and compatible i.LINK devices. All products with an i.LINK connection may
not communicate with each other. Refer to the documentation that came with your compatible i.LINK device for information on operating
conditions and proper connection. Before connecting compatible i.LINK PC peripherals to your system, such as CD-RW or hard disk
drive, confirm their operating system compatibility and required operating conditions.
© 2003 Sony Electronics Inc.
