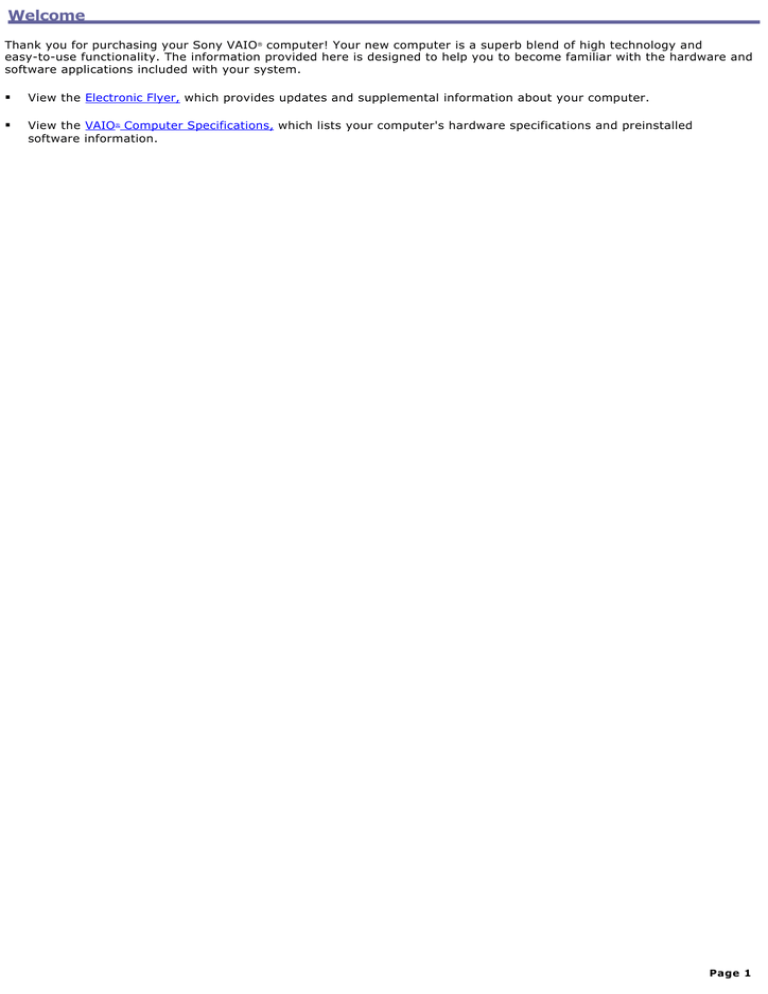

Welcome
Thank you for purchasing your Sony VAIO® computer! Your new computer is a superb blend of high technology and
easy-to-use functionality. The information provided here is designed to help you to become familiar with the hardware and
software applications included with your system.

View the Electronic Flyer, which provides updates and supplemental information about your computer.

View the VAIO® Computer Specifications, which lists your computer's hardware specifications and preinstalled
software information.
Page 1
Getting Started
Congratulations on your purchase of the Sony VAIO® computer! Your new, high-performance, multimedia computer combines
state-of-the-art computer functionality with the latest audio, video and information technology features.

Unpacking Your Computer

Planning An Ergonomic Work Space
Page 2
Unpacking Your Computer
Your computer may not be supplied with all of the accessories shown, depending on the system configuration you
purchased. For details on the accessories supplied with your computer, see the online Specifications sheet.
Com puter and supplied accessories
(See the online specifications sheet for details about supplied accessories.)
Manuals

VAIO® Computer Quick Start — Provides basic information on setting up and registering your computer. The Quick
Start also provides resources for technical support, safety guidelines and owner's information.

Microsoft® Windows® XP Guide — Explains how to use the basic features of the latest Windows operating system.
Online Documentation


VAIO® Com puter User Guide —Contains information on the hardware and preinstalled software applications
included with your system. To access the online manual:
1.
Click Start in the Windows taskbar, then click VAIO Help and Support.
2.
From the VAIO Help and Support Center menu, click VAIO User Guide.
Creating DVDs — (For models equipped with a DVD-RW drive) This online guide provides information designed to
help you become familiar with your DVD-RW drive and the DVD recording software applications included with your
computer.
To access this online information:

1.
Click Start in the Windows taskbar, then click Help and Support.
2.
From the VAIO Help and Support Center menu, click Creating DVDs.
Specifications — This online specification sheet describes the hardware and software configuration of your VAIO
computer. To view this online information:
1.
Click Start in the Windows taskbar, then click VAIO Help and Support.
2.
From the VAIO Help and Support menu, click VAIO User Guide.
Page 3
3.
Click the Welcome link. The Welcome page displays in the right-side frame.
4.
Locate the link in the text, "View the VAIO® Computer Specifications..."
Other
Software Library containing the Microsoft software license agreement and Sony end-user license agreement.
Page 4
Planning An Ergonomic Work Space
Before you set up your new computer, find the best location for your new computer and plan your work space. There are
several ergonomic factors to consider when you arrange your work space:

Stable work surface — Use a stable work surface large enough to support the computer and other peripheral
equipment.

Ventilation — Leave at least eight inches of space on the left and back sides of your computer to enable proper
ventilation.

Placement of the keyboard, mouse, and other input devices — Place your keyboard, mouse, and other input
devices so that your arms and hands are in a relaxed, comfortable position. The keyboard should be directly in front
of you. Adjust the level of the keyboard so that your lower arms are parallel to the floor. Keep your wrists in a
relaxed position when you are using the keyboard—not angled up or down. Use the palmrest only briefly, for
resting. While typing, never use the palmrest or rest your hands on the table. Position the mouse at the same level
as the keyboard. Hold the mouse with a relaxed hand, and use your whole arm to move it. Take breaks during
sessions with your computer. Excessive use of the mouse or a joystick may strain muscles or tendons.

Furniture and posture — Sit in a chair with good back support and armrests. Adjust the level of the chair so your
feet are flat on the floor. A footrest may make you more comfortable. Sit with relaxed, upright posture—avoid
slouching forward or leaning far backward.

Viewing angle of the display — Position the display 18 to 26 inches directly in front of you, with the top of the
screen at or a little below eye level. Use the display's tilting feature to find the best position. You can reduce eye
strain and muscle fatigue by placing the display in the proper position.

Lighting — Choose a location where windows and lights do not create glare and reflection on the display. Use
indirect lighting to avoid bright spots on the display. You can also purchase accessories for your display that help
reduce glare. Proper lighting adds to your comfort and work effectiveness.
Page 5
Locating Controls And Ports
This section is intended to familiarize you with the controls, ports and jacks on your computer. Your computer may not be
equipped with all of these hardware features and the location of the controls, ports, and jacks may vary from the
illustrations shown in this section. To view the specific connection capabilities for your system, see the online specifications
sheet.

About the Front Panel

About the Back Panel

About the Keyboard
Page 6
About the Front Panel
The front panel of your VAIO® Computer enables access to the optical and floppy disk drives. It also includes access to the
Universal Serial Bus (USB) and i.LINK® ports that enable you to connect compatible peripheral devices.
Front panel
1
Optical drive 1
See the online specifications sheet for optical drive information.
2
Optical drive 2
See the online specifications sheet for optical drive information.
3
Floppy disk drive
Reads and writes data from and to a 3.5-inch floppy disk.
4
Floppy disk drive access indicator
Light is green while reading and writing data from and to a floppy disk.
5
Power button
The power button turns the computer on/off.
Page 7
6
Standby indicator
Light is amber when the computer is in Stand by mode.
7
i.LINK 4-pin port (IEEE 1394)
Connection for a compatible digital device.
8
Optical drive 1 eject button
Ejects a disc from Optical drive 1.
9
Optical drive 2 eject button
Ejects a disc from Optical drive 2.
10
Floppy disk eject button
Ejects a floppy disk.
11
Power indicator (VAIO)
Light is blue when the computer is on. The light turns off when the computer is in Standby mode or turned off.
12
Hard disk drive and optical disc drive access indicator
Light is amber while reading and writing data.
13
Universal Serial Bus (USB 2.0) ports (2)
Connections for compatible high/full/low-speed USB devices.
For your convenience, your computer includes USB and i.LINK ports on both the front and back panels. The 4-pin
i.LINK port is located on the front panel and the 6-pin i.LINK port is located on the back.
Additional information
Your computer is equipped with two optical disc drives that have a drive eject button on the drive door.

After pushing the eject button, wait for the drive to stop reading the CD. It may take a few moments for the drive
tray to eject.

Gently push the drive tray in, when closing the optical drive door. Do not force the door or handle roughly.

After closing the drive door, wait a few moments for the drive to begin reading the CD.
Page 8
About the Back Panel
The back panel of your computer contains the ports for supplied and optional accessories. The icons on the back panel
locate and identify the ports and jacks on your computer.
Your system may vary based on the configuration you purchased.
Back panel
1
AC Input port
Connection for the supplied power cord.
2
Mouse port
Connection for a PS/2® mouse.
3
Keyboard port
Connection for a PS/2® keyboard.
4
Ethernet port
Connection for a 10BASE-T/100BASE-TX Ethernet interface. (The port marked with
only.)
5
(Network) is for LAN connections
Universal Serial Bus (USB 2.0) ports (2)
Page 9
Connections for compatible high/full/low-speed USB devices.
6
Monitor port
Connection for a display.
7
Printer port
Connection for a parallel device, such as a printer or scanner.
8
i.LINK 6-pin port (IEEE 1394)
Connection for a compatible digital device.
9
Serial port
Connection for a compatible serial device, such as a digital still camera.
10
Headphones jack
Connection for the supplied speakers or optional headphones.
11
Line In jack
Connection for an audio device.
12
Microphone jack
Connection for a microphone (optional).
13
Telephone jack
Connection for a telephone cable (optional) to the computer.
14
Modem line jack
Connection for the modem cable to the wall jack.
i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connection. The i.LINK
connection may vary, depending on the software applications, operating system, and compatible i.LINK devices. All products
with an i.LINK connection may not communicate with each other.
Please refer to the documentation that came with your compatible i.LINK device for information on operating conditions and
proper connection. Before connecting compatible i.LINK devices to your system, such as an optical or hard disk drive,
confirm their operating system compatibility and required operating conditions.
Page 10
About the Keyboard
Your VAIO® keyboard uses a standard key arrangement with additional keys that perform specific functions.
VAIO Keyboard
KEY
DESCRIPTION
Function
The 12 function keys along the top of the keyboard are used to perform certain tasks. The task
associated with each function key may vary from one application to the next.
Volume Control
Mute
sound.
Press a button to increase (+) or decrease (-) the volume of the speakers.
Press the button to turn off the volume of the speaker. Press the Mute button again to restore
Standby
Press the button to place the computer in Standby mode. Press the Power button or any key
briefly, to resume normal operation.
Numeric keypad
Use the numeric keypad area to type numbers or to perform basic math calculations. Press the
Num Lock key to activate the numeric keypad. (The Num Lock indicator lights.) Press the Num Lock key again to deactivate
the numeric keypad.
Directional Arrows
The Up, Down, Left, and Right arrow keys move the pointer on the screen.
Applications
The Applications key displays a shortcut menu in certain software applications. Pressing this key
is equivalent to clicking the right mouse button.
Windows
The key with the Microsoft® Windows ® logo, displays the Start menu. Pressing this key is
equivalent to clicking Start on the taskbar.
INDICATORS FUNCTION
Num Lock
Page 11
The Num Lock indicator lights when the numeric keypad is activated. When the indicator is off, the directional
arrow and correction keys on the numeric keypad area are active.
Caps Lock
The Caps Lock indicator lights up to advise you that the keyboard is set to type letters in uppercase. When
the indicator is off, the letters appear in lower case as you type.
Scroll Lock
The Scroll Lock indicator lights up to advise you that your screen's scrolling pattern has changed. When the
indicator is off, the screen scrolls normally. This function is not available with all software applications.
Page 12
Setting Up Your Computer
Your computer may not be equipped with all of these hardware features and the location of the controls, ports, and jacks
may vary from the illustrations shown in this section. See the online specifications sheet for your system's configuration.

Connecting a Display (Monitor)

Connecting the Speakers

Connecting the Keyboard and Mouse

Connecting the Telephone and Modem Cables

Connecting the Power Cords

Turning On Your Computer

Registering your Computer

Setting Up your Dial-up Connection

Turning Off your Computer
Page 13
Connecting a Display (Monitor)
Plug the display's cable into the Monitor port.
If necessary, plug the display's cable into the back of the display.
To connect a display
Install your equipment so that you can easily reach the power outlet in the event of an emergency.
Page 14
Connecting the Speakers
The right and left speakers are attached. The right speaker has a speaker wire that ends in a jack connector and an AC
cord that supplies power to both speakers.
1.
From the right speaker, plug the jack connector into the Headphones jack located on the back panel of your
computer.
2.
From the right speaker, insert the the AC adapter plug into a grounded AC wall outlet or surge supressor.
To connect the speakers
Page 15
Connecting the Keyboard and Mouse
1.
Plug the keyboard cable into the keyboard port on the back of the computer.
2.
Plug the mouse cable into the mouse port on the back of the computer.
To connect the keyboard and m ouse
Page 16
Connecting the Telephone and Modem Cables
1.
Unplug your telephone from the wall jack and plug its cable into the telephone jack located on the back panel of
your computer.
2.
Plug the modem cable (supplied) into the modem line jack located on the back panel of your computer
3.
Plug the other end of the modem cable into the wall jack.
To connect the telephone and m odem cables
Your computer has a protective sticker
covering the Ethernet port located on the rear panel.
Connect only 10BASE-T and 100BASE-TX cables to the Ethernet port. Using other cables or a telephone cable
may result in an electric current overload that can cause a malfunction, excessive heat, or fire in the Ethernet
port. For help on connecting to a network, see your network administrator.
Page 17
Connecting the Power Cords
1.
Plug the power cord connector into the AC Input port, located on the back panel of the computer.
2.
Plug both the display and computer power cords into a grounded AC wall outlet or a power strip.
To connect the power cords
Page 18
Turning On Your Computer
When you start your system for the first time, your computer may detect new equipment and display a dialog box that
prompts you to restart your computer. Respond to this prompt immediately.
1.
Press the power button on the computer to turn on the power.
2.
Press the power button on the display to turn on the power.
3.
Press the power button, located on the side of the right speaker, to turn on the power.
To turn on your com puter
Page 19
Registering your Computer
Take advantage of Sony's commitment to quality customer support and receive these benefits by registering your
computer:

Sony Customer Support — Communicate with a Support Representative to troubleshoot problems you may be
having with your computer.

Limited warranty — Protect your investment. See the Warranty Card for more details.
You are prompted to register your computer the first time you turn on the unit. Follow the on-screen instructions to
complete the registration process. If you are not able to register your computer during the first session, you are provided
with additional registration opportunities later.
Page 20
Setting Up your Dial-up Connection
The first time you turn your computer on, follow these steps to set up your dial-up connection:
1.
Click Start from the Windows taskbar and select All Programs.
2.
Point to Accessories, point to Communications, and then click New Connection Wizard. The Location
Information window appears.
Location Inform ation window
3.
Enter in your information as requested. Click OK. The Phone and Modem Options window appears.
Phone and Modem Options window
4.
Click to select your dialing location and then click OK. The New Connection Wizard appears.
New Connection Wizard window
Page 21
5.
Follow the on-screen instructions to finish setting up your dial-up connection.
Page 22
Turning Off your Computer
Follow these steps when you are ready to turn off your computer for an extended period of time.
To avoid loss of data, do not use the Power button to turn off the computer.
To turn off your computer
1.
Click Start in the Windows taskbar, then select Turn Off Computer.
The Turn Off Computer dialog box appears.
2.
Select the Turn Off option.
Respond to any prompts about saving your documents.
3.
Wait for your computer to turn off automatically—the power indicator light turns off.
4.
Turn off any peripheral devices connected to your computer.
If you plan to turn off your computer for a short period of time, you may want to use Stand by mode instead.
About the power button
If your system stops responding, press and hold the Power button for more than six seconds to force your system to shut
down. You may need to repeat this procedure if your system does not shut down on the first attempt.
Page 23
VAIO AV Applications
Your VAIO® computer has a collection of preinstalled audio and video (AV) applications that make it easy to use your
system's advanced multimedia features.
Your computer may not be supplied with all of the software applications listed, depending on the system
configuration you purchased.
Your computer's visual presentation of the VAIO AV applications may not appear exactly as shown in this section,
depending on the specific computer model you purchased.

Overview of Software

Working with Digital Video

Using DVgate Software

Working with Still Images

Using PictureGear Studio Software

Working with Digital Music

Using SonicStage software

Sharing Video, Images, and Music on a Network

Using VAIO Media Software
Page 24
Overview of Software

DVgate software—offers advanced video import and export features, as well as precise editing. DVgate software
provides control over all aspects of capturing, editing, and exporting digital video. After editing your creations, you
can export them back to your video camera.

PictureGear Studio software— enables image importing from your digital camera. You can create your own
unique photo art by adding comments, custom backgrounds, clip art, and stamps to your digital images.

SonicStage software—shows creative ways to work with digital music from audio CDs and from the Internet.
SonicStage software provides a music visualizer, a sleek player skin design, audio CD burning capability, and a
parametric equalizer for fine-tuning audio playback.

VAIO Media software—makes it easy to share video, images, and music between the VAIO computers on a
network. A single VAIO computer becomes the media server, providing a central location for all your video, image,
and music files, with easy access from any VAIO computer connected to a wired or wireless network.
Page 25
Working with Digital Video
The multimedia software preinstalled on your VAIO® computer makes it easy to import and edit videos from a compatible
digital video (DV) or MICROMV camera equipped with an i.LINK® port.
You can save finished movies to your hard disk drive to use on the Internet, to send to others by e-mail, or to distribute on
CD media using a CD-recording drive or device.
The basic procedures for working with digital video, are as follows:
1.
Connect a compatible digital video (DV) or MICROMV
2.
Start the video editing software.
3.
Use the video editing software to capture video clips from the DV camera.
4.
Use the video editing software to assemble the clips into a finished movie.
5.
Use the video editing software to export the finished movie back to the video camera.
camera to your computer using an i.LINK® cable.
Page 26
Using DVgate Software
This is a brief overview of DVgate software. For more detailed information, refer to the DVgate software Help. For
information about connecting your digital video camera to your computer, see the manual supplied with your camera.
DVgate software provides control over capturing, trimming, and combining digital video clips from a compatible digital
video (DV) camera. Combine your clips into a finished movie and export it back to your compatible digital video camera.
DVgate software does not support MICROMV
video cameras.
Page 27
Capturing digital video with DVgate software
1.
Connect an i.LINK® cable (optional) between the i.LINK ports on your computer and on a compatible digital video
(DV) camera.
2.
Turn on the DV camera and insert a videotape. Set the camera to Recording mode. (On some camera models this
is called VCR or VTR mode.)
3.
From the Windows® taskbar, click Start, point to All Programs, point to DVgate, and then click DVgate Motion.
The DVgate Motion software starts.
4.
Select IMPORT - Auto from the MODE list in the DVgate Motion window, and click SCAN.
The DVgate Motion software scans your tape and creates a list of video clips to be captured. The list appears in
the IN/OUT list window.
You can manually specify video clips to be captured while viewing playback of your tape in the Monitor window.
Refer to the DVgate Help for more information.
5.
If necessary, edit the list of video clips to be captured.

Delete a clip from the list by selecting it, and then clicking DELETE.

Change the order in which clips are captured by dragging them up or down on the list.

To capture all the video clips on the IN/OUT list, click CAPTURE ALL.

To capture an individual clip, click it in the IN/OUT list window and click CAPTURE.
The Save as a file window appears. This window enables you specify a location on your hard disk drive
where the video clips is saved. In most cases, the default location of your D: drive partition is a good
choice. You can also specify how DVgate Motion names your clip files.

Click Save.
The Batch capturing... window appears, and DVgate Motion captures your video clips to you hard disk
drive.
Page 28
Editing digital video with DVgate software
DVgate software enables you to combine your captured video clips into a single movie. You can also trim the beginning and
end of each clip, so you only include the scenes you desire.
1.
Click Start, click All Programs, point to DVgate, and click DVgate Assemble.
DVgate Assemble starts.
2.
Click ADD.
The ADD dialog box appears.
3.
4.
In the ADD dialog box, select the video clip files you want to include in your combined movie, and click Open.

You can select multiple clips by holding down the Ctrl key and clicking several files.

Your selected clips appear in the Assemble list in the DVgate Assemble window.
If necessary, edit the order of clips in the Assemble list.
For the combined movie, clips are combined in the order they appear in the Assemble list, starting from the top.
5.

To rearrange the order, drag clips up and down the list.

To remove a clip from the list, click it, and click DELETE.

To copy a clip, click it, click Copy on the Edit menu, click the location on the list where you want the copy
to be placed, and click Insert on the Edit menu.
If necessary, trim your video clips to include only the scenes you want included in the final movie, using these
steps:

Double-click a clip. The clip opens in the DVgate Assemble - Clip window.

Drag the slider to the point in the clip where your chosen scene begins.

Click BEGIN.

Drag the slider to the point in the clip where your chosen scene ends. Click END.
To view your trimmed clip, make sure the BEGIN-END check box is not selected. Use the Play button
to play your clip.
If the BEGIN-END check box is selected, the entire clip is played back.
You can also set the starting and stopping points for your scene by playing the clip with the function
buttons, then clicking BEGIN and END when the clip reaches your chosen begin and end points

Click OK to save your changes and close DVgate Assemble - Clip window.
6.
When you have set the order of your clips and trimmed them to include only the scenes you want, you can
preview the entire finished movie by clicking PREVIEW ALL in the main window.
7.
Click OUTPUT ALL to save your finished movie to your hard disk drive.
The Save As dialog box appears.
8.
Save your movie to the desired location, type a name for your movie, and click Save.
If you intend later to export your movie to your digital video camera, be sure to select AVI file (*.avi) in the Save as
type: box before saving your movie.
Page 29
Exporting a finished movie to your digital video camera
After you have created a finished movie, you can export it back to your digital video (DV) camera.
1.
Make sure your camera is set to recording mode. (On some camera models this is called VCR or VTR mode.)
2.
Turn on your DV camera, and insert a videotape.
3.
On your computer, click Start, point to All Programs, point to DVgate, and then click DVgate Motion.
The DVgate Motion software starts.
4.
Select EXPORT - Auto from the MODE list in the DVgate Motion window.
5.
In the DVgate Motion - AVI file list window, click ADD. If the DVgate Motion - AVI file list window is not open,
click List on the Window menu.
The ADD dialog box appears.
6.
In the ADD dialog box, select the movie file you want to export, and click Open.
The ADD dialog box closes, and your selected movie appears in the Record list in the DVgate Motion - AVI file
list window.
7.
Click RECORD ALL.
The Output dialog box appears.
8.
Click OK.
The Output dialog box closes, and recording to your DV camera begins.
Additional Information about using DVgate software

Turn off the power to your digital video camcorder before connecting it to your computer. After connecting the
device, turn its power back on. You do not need to turn off the computer when connecting the camcorder.

DVgate software does not support MICROMV

Under the Microsoft® Windows ® XP operating system, do not capture DV- AVI video files to the root directory (the top
level) of your hard disk drive. Instead, create a folder and capture files to this folder.

Do not use DVgate software when the connected digital video device is in Timer Recording mode, as this may
produce a malfunction in the device.

Video captures larger than 2 GB (9 minutes and 30 seconds) are automatically continued in a second file.

You can record stereo audio (stereo 1) while capturing video, or you can add audio on the stereo 2 track after
capturing the video data.

You cannot use different audio modes on the same tape. Perform a separate capture for each audio mode you wish
to use.

DVgate software does not support hard disk compression. Do not use disk compression if you are planning to work
with DVgate software.

Title data is saved in the flash memory of a digital video camera and is not transferred to tape by DVgate software.

Disable your screen saver program to avoid interruption during your capture sessions.

The drop frame compensation feature does not provide accurate compensation adjustments for tapes recorded in
LP mode.

The information displayed by the capture progress indicator may not be accurate for tapes that are recorded using a
mixture of both SP and LP modes.

Keep the video head of your digital video device properly cleaned. Anomalies that you see in captured data may be
due to dust or other particles on the video head.
digital video cameras.
Page 30

The last frame captured is one frame before your selected [OUT] point. The frame you see immediately after clicking
the [OUT] button is not captured.

DVgate software supports recording of AVI files. MPEG files cannot be recorded with this software.

Do not use DVgate software when the connected digital video device is in Timer Recording mode, as this could
produce a malfunction in the device.

Avoid recording problems, such as a single frame appearing in multiple frames, by closing other applications on your
system while recording.

You cannot use multiple audio modes on the same tape. If you have AVI files that use different audio modes, the
files cannot be recorded at the same time, but must be recorded separately.

The DVgate software does not support AVI files that are smaller than 4 MB.

The DVgate software does not support hard disk compression.

To maximize recording capabilities, video and audio data are not available while you are recording.

If the DVgate software indicates that frames are dropped, try closing all open applications or defragmenting your
hard drive.
Page 31
Working with Still Images
The Microsoft® Windows ® XP operating system contains software that can import pictures from many of the newer Universal
Serial Bus (USB) digital cameras. After connecting a USB cable between your camera and computer, Windows XP walks you
through the process of transferring your pictures from the camera to your computer.
About digital cameras and storage media
Some digital cameras store pictures on floppy disks or Memory Stick® media that you can remove from the camera and insert
into your computer. When the floppy disk or Memory Stick media is inserted into your computer, you can copy your pictures
to your hard disk drive.
About cameras without USB connectivity
If your digital camera does not have a USB connection or is not directly supported by the Windows XP operating system,
see the manual supplied with your camera for information on connecting your camera to your computer and transferring
images.

If you want to get traditional printed photographs into your computer, use a scanner.
A scanner is a device that can transfer pictures by:
1.
Connecting to your computer.
2.
Scanning your pictures
3.
Enabling transfer to your computer.
The Windows XP operating system contains the software that is compatible with different scanners. To use a
scanner that is not supported by Windows XP, see the information supplied with your scanner.

Some companies that develop traditional film photographs can provide your images on a CD-ROM or floppy disk.
Consult your film developer for details.
Page 32
Using PictureGear Studio Software
PictureGear Studio software is designed to creatively manage your digital pictures. With its easy-to-use features, you can
quickly load images from your digital camera or camcorder, print high-quality photos, create custom labels, and design
personalized photo albums or binders to share with friends and family.
PictureGear Studio m ain window
Photo albums, binders, and photo collections can only be viewed or edited using PictureGear Studio software. To share
a PictureGear Studio creation over the Internet or by using another computer, use the Export feature. See the section, To
export a photo album.
Page 33
Using the Import Photo feature
Capture and import the pictures from your digital camera or camcorder to your computer. You can select your favorite
pictures and place them in handy folders for future use.
When you initially connect your digital camera, camcorder or insert a Memory Stick® media, Windows® XP may attempt to
recognize the device or media. An identification window may appear.
Windows XP dev ice/m edia identification window
Select Import Photo using PictureGear Studio PhotoCollection, to proceed directly to the PhotoCollection Import Window
(See Step 2).
1.
Click Import Photo. Your connected digital camera, camcorder, or Memory Stick® media is displayed in a Select
Device window.
Connect your digital camera or camcorder to your computer, or insert your Memory Stick media into the
appropriate slot, before attempting to import pictures.
Select Dev ice window
2.
Click List to view all pictures that are located on the device or media. Make your selections and click Import
Selected Photos. A Specify Folder window appears.
Specify Folder window
Page 34
3.
Select a folder option. If you are importing to a new folder, type in the folder name before clicking Start
Importing. An Adjust window appears.
Adjust window
4.
5.
Click to make any desired adjustments to the pictures. The Adjust window displays an enlarged version of the
picture on the right and thumbnail versions on the left.

Save to relocate the individual picture to a new folder.

Delete to remove the picture from the photo collection.

Rotate to change the picture's position.

Trim to crop the picture or capture a specific area.
Click Finish Importing to save the imported pictures in a photo collection.
Page 35
Using the PhotoCollection feature
You can organize and manage your imported pictures on your computer's hard drive or from your ImageStationSM account.
1.
Click PhotoCollection. A list of available photo sources is displayed on the left, with the selected source's
contents displayed as thumbnail pictures on the right.
PhotoCollection window
2.
From the thumbnail view, click to select pictures. Hold down the Ctrl key while clicking, to select several pictures.
Use Ctrl+A to select all of the photos in a folder.
3.
Manage your pictures with these additional tools and features:

Rotate to change the picture's position.

View to enlarge a thumbnail view.

Slideshow to place the selected pictures into an organized slideshow, customizing the slideshow
settings with the icon toolbar at the top of the slideshow window.

Print to set up your photos and select paper to make prints.
Page 36
Using the Binder feature
You can add comments to your favorite photos, add custom backgrounds, clip art, and stamps, or showcase your own
drawing talent. Add, remove, or change your designs to create your own unique photo art.
1.
Click Binder. A list of binder styles is displayed on the left. When you add your pictures to a binder, they are
displayed as thumbnails on the right.
Binder window
You can create your own custom binder styles by clicking Create Title.
2.
Select a binder style, then click New Page. Available photo sources are displayed as thumbnails.
3.
Click to select a photo. An information form appears.
4.
Fill in your information and click OK. An art palette window appears.
To create an original page with art or stamps, use the decoration features on the right by clicking on the desired
feature and applying it to your photo.
5.
Click Save to add the new page to your binder.
Page 37
Using the PhotoAlbum feature
Organize your memorable photos in an electronic photo album. You can share your custom photo albums with friends and
family.
1.
Click PhotoAlbum.
PhotoAlbum window
2.
Click New Album. The Select Photo area appears.
If you want to work on a previously created album, do not click Create New Album. Instead, select the desired
album from the Album Collection view on the right side of the window.
3.
To select the photos you want to include in your album from available folders, click List. The Photo List window
appears.
Photo List window
4.
Click Create the Album with the selected photo(s) after making your picture selection(s). A Select Design
window appears.
Select Design window
Page 38
5.
Click to select a design layout for your album. Use the scroll bar to view all available album designs. A Select
Layout window appears.
Select Layout window
6.
Click to select a page layout for your album. Use the scroll bar to view all available layout designs. A preview of
your selected design and page layout is displayed.
Scroll through your album using the book icons at the bottom of the window.
Album prev iew window
Page 39
7.
Click Edit Album to make changes to your album. Customize your album by adding more pictures, pages,
decorations, or comments, or by deleting pages.
Click Edit Page to customize a page in your album. You can customize with your own drawing, stamps or other
decorations.
8.
Click Save. The Save Album dialog box appears.
9.
Enter a name for your album and click OK.
Photo albums can only be viewed or edited using PictureGear Studio software. To share a PictureGear Studio creation
over the Internet or by using another computer, use the Export feature.
To export a photo album
There are three export formats available:

Export as a Flash File to create a small file that can be viewed using Microsoft® Internet Explorer.

Export as a Light Package to create a compressed file that can be viewed on a computer.

Export as a Full Package to create an uncompressed file to be saved to recordable media, such as a CD-R/CD-RW
or Memory Stick® media.
Export your completed photo album to enable viewing over the Internet, with another computer, or saving to a recordable
media.
1.
Create a photo album, as described in Using the PhotoAlbum feature.
2.
Click Export. A Select Format window appears.
Select Form at window
Page 40
3.
Click to select an export format. A Select Folder window appears.
Select Folder window
4.
Click Browse and navigate to the destination folder. Enter a file name, if desired.
5.
Click Export. A progress window appears briefly.
Finish Exporting window
6.
An export completion message window appears, displaying the file name and file size. Click Return to Edit Album
Screen.
Page 41
Using the PrintStudio feature
Use PrintStudio to design original postcards, calendars, art, and labels using your favorite pictures.
1.
Click PrintStudio. The PrintStudio window appears.
PrintStudio window
2.
Select the item you want to create and click Start Creating. The initial creation window appears.
The initial window varies, depending on the item you are creating.
3.
Make selections for the picture(s), design layout, and custom decoration for the item you wish to create.
4.
Set the number of copies to be printed and select a connected printer. Click Print.
Use the appropriate paper when creating items, such as postcards, labels or business cards.
Page 42
Working with Digital Music
You can play music on your computer, create custom audio CDs, and check music out to portable digital music devices, such
as Net MD players and Network Walkman Digital Music Players.
Your computer is equipped with SonicStage software, which employs Sony's OpenMG copyright protection technology
and advanced ATRAC3 audio file format. These features enable you to enjoy digital music while protecting the rights of
copyright holders.
You can enjoy digital music with SonicStage software in a wide variety of ways:

Play and record music from audio CDs—SonicStage software enables you to play your audio CDs and record audio
tracks to your computer. Music tracks recorded to your computer can be combined into Playlists and checked out to
portable music devices so you can take your music with you.

Create custom audio CDs—On computer models equipped with a CD recording device, you can create custom audio
CDs from your SonicStage Playlists, mixing tracks from different sources and artist.

Make backup copies of your audio CDs—On computer models equipped with a CD recording device, SonicStage
software's Backing Up Audio CDs utility makes it easy to create backup copies of your audio CDs.

Use Playlists to organize and manage your music—SonicStage software's powerful, hierarchical Playlist feature
enables you to organize the music you've imported into the SonicStage program. You can create lists of songs
categorized by artist or genre and place a shortcut to the list onto your desktop with Microsoft® Windows ® operating
system for one-click playback of your favorite music.

Download music from Electronic Music Distribution (EMD) services on the Internet1—Electronic Music Distribution
services are Internet-based subscription services that allow you download music tracks from the World Wide Web.
Using EMD services with SonicStage software enables you to download music tracks, include them in your Playlists,
and check them out to your portable digital music devices.

Import audio files from your computer—SonicStage software enables you to import MP3 and WAV audio files
stored on your computer so they can be added to Playlists and recorded to CD.

Enjoy karaoke-type effects during music playback—The Vocal Canceler effect can suppress the vocal track from
most music during playback. This effect also enables you to shift the pitch of music to suit your vocal range. Used
together, these features make it easy to sing along with your favorite music, turning your computer into a karaoke
system.Vocal Canceler works only with stereo music clips.

Enjoy a Visualizer light show during music playback—The Visualizer feature of SonicStage software performs a
colorful light show on your computer's screen to match your music as it plays.
SonicStage software has a tutorial that can help you get started. The tutorial lists common tasks and directs you to the
appropriate SonicStage feature that performs the task.
To view SonicStage software Help
1.
From the Windows® taskbar, point to all programs, and then click SonicStage.
2.
From the SonicStage main window, click Help from the menu bar, and then click SonicStage Help.
U s e of an E M D s ervic e requires I nternet ac c es s and s eparate s ubs c ription to the E M D s ervic e. T he Sonic Stage s oftware s upports only E M D s ervic es
c ompatible with O penM G tec hnology. Refer to the online H elp within the Sonic Stage s oftware for details .
1
Page 43
Using SonicStage software
SonicStage software is a new jukebox application that enables you to play and record from audio CDs and import digital
audio files while maintaining copyright information.
1.
Click Start on the Windows taskbar, and click All Programs.
2.
Point to SonicStage, and click SonicStage.
3.
When you have registered with CDDB, the Confirm the setup of SonicStage... dialog box appears.
4.
Click Yes to continue.
The CDDB® (Compact Disc Database) Music Recognition Service registration wizard enables you to register with CDDB.
You need Internet access from your computer to register and use this service. For more information regarding CDDB
registration, click the Help button.
About SonicStage source icons (Main window)

Music Drive

CD
— View the contents of the audio CD or CD-R. Enables you to record audio files to the hard disk drive.

MS
Stick slot.
— View the audio files stored on the MagicGate

Devices/Media
— View the audio files stored in the music database or registered to a Playlist.
Memory Stick
media, if one is inserted in the Memory
— View the status of your audio files, connected external device, or inserted media.
SonicStage Main Window
1
Recording Assistant button
Page 44
Displays the Recording Assistant window, where you can record or transfer audio files.
8
Volume Control buttons
Controls the volume for playing audio files.
2
Source icons
Changes the window according to the selected feature.
9
Equalizer button
Displays the Equalizer dialog box where you can adjust the sound quality and register new settings.
3
Playback Area (Playlist view)
Contains different functions depending on the source icon you select. The Player control buttons, which enable you to play,
pause, stop, fast forward, and reverse, are located in this area.
10
Sound Effect button
Displays the menu where you can adjust the Vocal Canceller settings.
4
Import button
Displays the Import window, where you can import audio files from the hard disk drive to the Music Drive. 11
Visualizer button
Displays or hides the Visualizer window where you can view images synchronized to the audio file's sound.
5
Content Area (Playlist view)
Displays the playlists that are contained within the Categorized List you selected. Double-click a playlist to view its tracks.
12
Internet button
Displays or hides the Internet window where you can download or stream audio files via EMD services.
6
Categorized List (Tree view)
Displays the playlists stored in the Music Drive by artist name, genre, format, and so on, and enables you to locate your
audio files.
13
Internet address drop-down list (Playlist view)
Displays Internet addresses associated with the currently selected song. You can create a URL for either the album or
individual tracks. Click GO to immediately connect to the Internet address displayed in the drop-down list.
7
Menu button
Displays the SonicStage main menu.
14
Switch to Edit Area button
Switches the Content Area to the Edit Area.
Page 45
Recording from a CD
You can record songs from audio CDs and add them to playlists in SonicStage software.
When you record from an audio CD from your optical drive for the first time, the CD Drive Optimization dialog box
appears. Click Start to verify your optical drive. After the verification is performed, recording begins.
1.
Insert an audio CD into your computer's optical drive. The Microsoft Windows® system recognizes the CD, and a
window may appear asking you to select an action. Click Cancel to close this window.
When SonicStage software is running and an audio CD is inserted, an Internet connection to CDDB is
automatically launched to retrieve artist and track information. An error message is displayed if there is no
Internet connection. Follow these steps to disable this function:
1.
Click Menu.
2.
Select CD Settings.
3.
Clear the Start playing the CD automatically check box.
2.
Open SonicStage software using the Start menu. See Using SonicStage software for more information.
3.
When the Main Window appears, click
4.
Select the CD icon
5.
Click the Jump to Record Window button. The Record Window appears.
. The Recording Assistant Window appears.
in the Source box, and then select the Music Drive icon
in the Target box.
You can also drag and drop the CD icon onto the Music Drive icon in the Main Window to open the Record
Window.
6.
Click
to view the List Area of the Record Window. To select specific files on your CD, click to
check or clear the check marks of the tracks on the CD. A check mark indicates you have selected that track for
recording.
Record Window
You can also select or clear the check marks of all the tracks on the CD by clicking one of the Select All buttons:
or
.
Page 46
7.
Click the CD Info icon
its song titles.
in the lower left corner of the Record Window to launch CDDB and name your CD and
The CD Info button feature is not supported for all audio CDs.
8.
Click
(Change CD Recording Format) on the Record Window to select a different recording format and bit
rate. See the online SonicStage Help guide for more information.
9.
You have two options for recording the audio tracks on a CD:
1.
Click the Record All button to record all the tracks on a CD.
2.
Click the Rec Selection button to record the specific tracks you checked in the List Area.
10. When the Select Playlist window appears, select either Create a New Playlist or Add to Playlist, and click the
Start Rec button. When the recording is finished, the playlist appears in the Playlist window.
Page 47
Transferring songs (Check-In/Check-Out)
You can use SonicStage software to transfer audio files between the playlists stored in the Music Drive and the external
devices or media. Transferring files from the Music Drive to the external device or media is called "check-out," and
transferring files from the external device or media to the Music Drive is called "check-in."
See the instructions supplied with the external device or media for more information on how to use it.
The following instructions explain how to check in and check out audio files from the Music Drive to a USB device, a MiniDisc,
or a MagicGate Memory Stick® media. For instructions on automatically checking in and out audio files, see the online
SonicStage Help guide.
To check-out songs
1.
Connect the external device or insert the media into your computer.
2.
Open SonicStage software using the Start menu. See Using SonicStage software for more information.
3.
When the Main Window appears, click
. Your computer automatically recognizes the connected
external device or media and the Check-In/Out Window appears.
4.
Click
to view the List Area of the Check-In/Out Window.
Check- In/Out Window
5.
Select the playlist that contains the track that you want to check out. The tracks in the playlist are shown in the
Playlist view panel. Click the track to select it.
You can also hold down the Ctrl key while you click the tracks to select more than one at a time.
6.
Click
(Change Transfer Mode). A Setup in transfer mode dialog box appears containing transfer
information relevant to the installed device or media. See the online SonicStage Help guide for more information
on how to select a transfer mode for a particular device.
7.
Click
(Check-Out), or drag and drop the file onto the external device or media song list to begin the
check-out process.
To cancel check-out, click
Check-In/Out Window.
, or click
(Stop), which is located in the middle of the
Page 48
To check-in songs
The songs that you transfer to external devices or media can only be checked in to the Music Drive (or hard drive) of the
same computer from which the songs were originally checked out.
1.
Connect the external device or insert the media into your computer. Your computer automatically recognizes the
connected external device or media and the Check-In/Out Window appears.
2.
Click
3.
Select a track from the song list of the external device or media. To check in more than one track at a time, hold
down the Ctrl key and click the additional songs.
4.
Click
(Check-In), or drag and drop the track(s) onto the Playlist view panel to begin the check-in process. If
you want to check in all of the tracks in the external device or media, click the Check-In All button.
To cancel check-in, click
Window.
to view the List Area of the Check-In/Out Window.
, or click
(Stop), which is located in the middle of the Check-In/Out
See the SonicStage Help guide for more information about using SonicStage
software.
Page 49
Making a backup copy of an audio CD
On computer models equipped with a CD recording device, you can use the Backing Up Audio CDs utility to make a backup
copy of an audio CD.
On computer models that have both a read-only optical drive and an optical writing drive, you can make a copy with one
click.
On computer models with only one optical drive, you must swap the original CD for a blank CD-R disc when requested to do
so in the middle of the copying process.
1.
Quit SonicStage, if the application is open.
2.
Click Start, click All Programs, point to SonicStage, and click Backing up Audio CDs.
The Backing Up Audio CDs utility starts.
3.
Insert the CD you want to make a backup of into your CD drive.
Insert the CD into the optical drive you use to read CDs. Depending upon your computer model, this may be a
CD-ROM drive, CD-RW drive, a DVD-ROM drive, a DVD-RW drive, or a Combo Drive.
On computer models that have both a read-only optical drive (CD-ROM or DVD-ROM) and an optical writing drive
(CD-RW or DVD-RW), put the CD into the read-only optical drive.
4.
On computer models that have both a read-only optical drive (CD-ROM or DVD-ROM) and an optical writing drive
(CD-RW or DVD-RW), insert a blank CD-R disc into the optical writing drive.
5.
Make sure your CD drive is selected in the Retrieve from: drive list.
6.
On computer models that have both a read-only optical drive (CD-ROM or DVD-ROM) and an optical writing drive
(CD-RW or DVD-RW), make sure your optical writing drive is selected in the Write to: drive list.
7.
Click Start.
The audio data is read from your audio CD.
On computer models that have both a read-only optical drive (CD-ROM or DVD-ROM) and an optical writing drive
(CD-RW or DVD-RW), the data is immediately written to the blank CD-R disc. The Copy Successful message
appears. The backup copy is finished.
On computer models that have only a single optical drive (CD-RW, DVD-RW, or Combo Drive), the Reading
completed message appears after the data is read from the original CD.
8.
If a Reading complete message appears, remove the original source CD from the optical writing drive and insert
a blank CD-R disc.
9.
Click OK.
The audio data is written to the blank CD-R disc.
The Copy Successful message appears.
The backup copy is complete.
To view the SonicStage Help
1.
Click Start on the Windows taskbar, and click All Programs.
2.
Point to SonicStage, and click SonicStage Help.
Page 50
Additional features

SonicStage Backup Tool—You can back up and restore music, graphics, and information data managed by
SonicStage software. You must be connected to the Internet to use the SonicStage Backup Tool.

Import audio files in various formats—You can import audio files in various formats, such as the ATRAC3 ,
ATRAC3plus, MP3, or WAV standards. You can also import audio files that comply with the Microsoft® Windows Media
Technologies (WMT) standard, identified by .asf or .wma extensions. Manage your audio files through the Playlist
feature of SonicStage software.

Manage imported songs on the playlist—Additional features are available when you register your imported songs
through the Playlist feature of the SonicStage software. You can manage your music by creating your own list of
songs categorized by genre or artist, displaying your song list in the Playlist feature, and arranging your songs in a
customized order using the Playlist folders. Edit your music by combining multiple songs into a single song, or divide
one song into two, by using the Combine and Divide features.

Simple mode—The main SonicStage window viewed in Simple mode, is a smaller, compact version of Full mode. This
may be convenient when you want to listen to music with SonicStage software, while using other applications, or
whenever you feel the Full mode view is intrusive. The design of the main SonicStage window in simple mode can be
changed by selecting a new "skin," which enhances the window's appearance. The Simple mode feature enables
you to perform playback operations only.
Page 51
Sharing Video, Images, and Music on a Network
Your VAIO Media server computer can store three types of media:

Music files—VAIO Media supports music files in MP3, WAV, OpenMG (ATRAC3 ), and WMA formats. On your VAIO
Media server computer, use SonicStage 1.5 software to create playlists of music to share on your network.

Video files—VAIO Media supports Video Capsule files created by Giga Pocket 5.0 software or later. Video
Capsules in MPEG1 (LP), MPEG2 (SP), and MPEG2 (HQ) formats are supported. Only VAIO computers with Giga
Pocket 5.0 software or later installed can be VAIO Media servers for video.

Image files—VAIO Media supports image files in JPEG, GIF, BMP, and TIFF formats.
VAIO Media feature ov erv iew
This guide provides a brief overview of the VAIO Media software and features. For detailed instructions about setting up
and using VAIO Media, see the VAIO Media Help.
Page 52
Using VAIO Media Software
To share music, video, and photos with the VAIO Media system, set up one computer on your network as the central library
or "media server," and install the VAIO Media client software on other computers. Computers on the network with the VAIO
Media client software can then view the multimedia content stored on the VAIO Media server computer.
Page 53
Setting up a VAIO Media server computer
A VAIO® computer that shipped with VAIO Media software preinstalled, can be used as a VAIO Media server, within a
network environment. To support video files, the VAIO computer must have Giga Pocket software, vers.5.0 or later,
installed.
1.
Prepare your multimedia content.

Music files—Use SonicStage 1.5 software to create playlists of music files on your VAIO Media server
computer. The VAIO Media Music Server software automatically makes SonicStage software, ver.1.5
playlists available to VAIO Media users on your network.

Image files—To make your image files available to VAIO Media users on your network, place the image
files (JPEG, GIF, BMP, or TIFF) format into the folder:
C:\Documents and Settings\All Users\Photo Server\VAIO Media

2.
Video files—Use Giga Pocket software, ver.5.0 or later, to create cabinets containing Video Capsules on
your VAIO Media server computer. The VAIO Media Video Server software automatically makes these
cabinets available to VAIO Media users on your network.
Use the VAIO Media Console software on the VAIO Media server computer to start the appropriate VAIO
Media servers (VAIO Media Music Server, VAIO Media Photo Server , or VAIO Media Video Server.)
To make additional SonicStage playlists or Giga Pocket cabinets available to VAIO Media users on your network:

Create the playlists or cabinets.

Stop the VAIO Media Music Server software or the VAIO Media Video Server software that is accessing
through the VAIO Media Console software

Restart the appropriate server software. The music playlist and video cabinet content shared to the
network is only updated when the server software is started.
To start the VAIO Media Console software:

Click Start, and click All Programs.

Point to VAIO Media, point to Server Administration, and click Console.
Your VAIO Media server computer is now ready to serve multimedia content to VAIO Media client computers on your
network
The music playlist and video cabinet contents shared to the network is only updated when the server software is
started.
Page 54
Setting up a VAIO Media client computer
Any networked VAIO® computer that shipped with the Microsoft® Windows ® XP operating system installed, can be used as a
VAIO Media client computer. A VAIO Media client computer can view or listen to media content located on a VAIO Media
server computer.
To set up a VAIO Media client computer
If the client computer did not ship with VAIO Media software preinstalled, transfer and install a copy from the server
computer.
To transfer a copy of VAIO Media software to a client computer, follow these steps:
1.
On the VAIO Media server computer, click Start, point to All Programs, point to VAIO Media, and then click
Install VAIO Media to other VAIO.
The Using other PCs wizard starts.
2.
Click Get Installer.
3.
A file download message box appears. Click Save.
4.
Select a location to save the file, VM20Inst.exe.
5.
After saving the application, navigate through the network and locate the client computer.
6.
Save the file to the client computer.
You can copy the file to storage media that can be read by the client computer, such as a CD-R disc or Memory
Stick® media, for transfer and set up of the installer package to client computers.
The VM20Inst.exe file is 16MB in size. Verify the capacity of the storage media before attempting to save the
application.
When the VAIO Media software is installed on the client computer, register the client computer with the VAIO Media server
computer.
To register a VAIO Media client computer
Begin the registration process when the installer package is set up on the client computer.
1.
Add the file at the client computer and run the VM20Inst.exe file.
2.
Restart the client machine when the file is loaded. VAIO Media software appears in the Start menu.
3.
Click Start on the Windows taskbar, point to VAIO Media, point to Register to Servers, and then click Start.
4.
At the server, perform the following steps:
5.
6.
1.
Click Start on the Windows taskbar, point to VAIO Media, point to Console, Click Register devices.
2.
Click to select the client to be added from the list of recognized devices.
To register a client to a server, perform the following steps:
1.
Go to Access Control Settings.
2.
Click to select Access this computer from other devices connected to the network.
Click Register. Both server and client machines should be active during this process.
Stand by status is automatically canceled 5 minutes after clicking Start.
7.
At the server, accept the new client.
As the server and client recognize each other, the server generates a 4-digit number for the client. Type this Page 55
number on the client machine. Each client has a unique number that cannot be used by the other clients on the
network. If the process is cancelled, no number is generated and the registration process must be restarted for
that client.
Only one client computer can be registered at a time. If more than one client computer is actively seeking
registration, only one client is registered. The registration process must be restarted for the next client computer.
8.
Restart the client machine. A new icon, VAIO Home Network, appears.
The installation is complete and users can access media files stored on the VAIO Media server.
Page 56
Using the VAIO Media software
When VAIO Media software has been installed on the server and client computers, start VAIO Media on the server and
client.
To start VAIO Media software on a server computer
1.
Click Start on the Windows taskbar, point to All Programs, point to VAIO Media Server, and then click Console
to start VAIO Media.
2.
Specify the service to start and click Start.
Or click Start All to start all VAIO Media services.
To start VAIO Media software on a client computer
1.
Click Start on the Windows taskbar, point to All Programs, and point to VAIO Media.
Or click the VAIO Home Network icon on the desktop.
The VAIO Media main window is displayed.
VAIO Media m ain window
2.
Click the content you want to access (MUSIC, PHOTO, or VIDEO).
VAIO Media searches for an available VAIO Media server computer on your network.

If more than one VAIO Media server is found, the Please select a server window appears. Select the
desired VAIO Media server computer from the list.

If only one VAIO Media server is found on your network, a Playlists (music), Folders (images), or Video
Cabinets (video) window appears, depending upon the type of content you selected.
These windows display a listing of available playlists, image folders, or video cabinets.
Playlists window
3.
Click on the desired playlist, image folder, or video cabinet.
Page 57

Playlists—When you click a playlist in the Playlist window, a list of the music files on the playlist is
displayed, and the first music file on the playlist begins playing.

Folders—When you click a folder in the Folders window, thumbnail images of the image files in that
folder are displayed. Click an image thumbnail to view the image file.

Video Cabinets—When you click a folder in the Video Cabinets window, a list of Video Capsules in the
cabinet is displayed. Click a Video Capsule on the list to view it.
Page 58
Additional information
Server system requirements

The VAIO Media server requires VAIO computers running Microsoft® Windows XP Home Edition or Windows XP
Professional Edition operating systems. Other computers and environments are not supported.

The server and client computers must be connected through a wired network (ethernet cables) or a wireless local
area network (LAN)

Only a VAIO computer with Giga Pocket
5.0 software can act as a VAIO Media video server.
Client system requirements

All client machines must be VAIO computers running Windows XP Home Edition or Windows XP Professional Edition
operating system. Other computers and environments are not supported.

All client computers must be on the same network with the server using a hub, ethernet cables, or a wireless LAN.

All client computers must have VAIO Media 2.0 software installed before registration.
Network requirements
The VAIO Media network must meet one of the following network requirements:

Ethernet that is built into the VAIO computer (100Base-TX/10 Base-T), or wireless LAN interface (IEEE802.11a or
IEEE802.11b)

Sony wireless LAN interface (IEEE802.11a or IEEE802.11b)
Each client computer must be configured to use a hub or an access point on the network.
Compatible file formats
The VAIO Media Software is compatible with files in these formats:

Music files in:

OpenMG

WAV format - extension .wav. (Only 16-bit linear WAV files are compatible with VAIO Media software.)

MP3 format - extension .mp3

Image files in:

format - extension .omg

Bitmap format

JPEG format

GIF format

TIFF format

PNG format
Video Capsules that have been previously recorded using Giga Pocket
cannot be viewed using VAIO Media Software.
software. Other types of movie files
Page 59
Configuring Your VAIO Computer
This section provides basic information about managing your computer's hard disk drive performance, using i.LINK devices
and changing default settings. Your computer may not be equipped with all of the hardware features described in this
section, depending on the system configuration purchased. To view the specific hardware configuration for your computer,
see the online specifications sheet.

About Your Hard Disk Drive

About i.LINK Compatibility
Page 60
About Your Hard Disk Drive
To improve the performance of Sony audio and video software applications, the hard disk drive on your computer has been
formatted with two partitions, drives C and D. Some Sony software applications save files to the drive D partition. This
prevents large video captures from consuming the available space on your drive C partition.
To maintain optimum system performance, you should defragment your system regularly.
Defragmenting your hard disk drive
If you encounter frame dropping while recording digital video onto your hard disk drive, defragmentation may be
necessary.
1.
Deactivate your screen saver and close other open applications, if applicable.
2.
Click Start in the Windows taskbar and select All Programs.
3.
Point to Accessories, point to System Tools, and then select Disk Defragmenter.
The Disk Defragment dialog box appears.
4.
Select Action from the menu bar and click Analyze.
It may take a long time to complete the defragmentation process, depending on the data capacity and current
utilization of your computer's hard disk drive(s).
Page 61
About i.LINK Compatibility
Your VAIO® computer may be equipped with a 4-pin and/or a 6-pin i.LINK port, depending on the system configuration
purchased. A 4-pin i.LINK port cannot supply power to a connected i.LINK device. A 6-pin i.LINK port can supply power (10V
to 12V) to a connected i.LINK device, if the device is equipped with a 6-pin connector.
To view the specific hardware configuration for your computer see the online specifications sheet.
The total power supplied by the 6-pin i.LINK port cannot exceed 6 watts.
The following i.LINK 400 Mbps cables are available and recommended for use with your computer: VMC-IL4415,
VMC-IL4435, VMC-IL4615, and VMC-IL6615.
Sony computer supplies, accessories, and peripherals can be purchased from Sony VAIO Direct through the Web site at
http://vaio.sonystyle.com or the toll-free number, 1-888-315-7669.
i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connection. The i.LINK
connection may vary, depending on the software applications, operating system and compatible i.LINK devices. All products
with an i.LINK connection may not communicate with each other.
Please refer to the documentation that came with your compatible i.LINK device for information on operating conditions and
proper connection. Before connecting compatible i.LINK devices to your system, such as an optical or hard disk drive,
confirm their operating system compatibility and required operating conditions.
Connecting an i.LINK (IEEE 1394) device
1.
Use the symbol to locate the i.LINK port on your compatible i.LINK device and on your computer. Plug the i.LINK
cable connector into this port.
2.
Plug the other end of the cable into the corresponding 4- or 6-pin i.LINK port on your computer.
See the instructions that came with your i.LINK device for more information on installation and use.
Page 62
Upgrade and Maintain your VAIO Computer
In the future you may want to increase the functionality of your VAIO computer. This section describes how to perform basic
upgrades and maintenance on your system. For more information on upgrading your computer, see your model's System
Reference Manual. You can download the System Reference Manual from the Sony Computing Support Web site at
http://www.sony.com/pcsupport.

Overview

About Opening your System

About Add-on Card Installation

About Installing Memory

About the Lithium Battery

About Hard Disk Drive Installation
Page 63
Overview
The upgrading procedures described in this section assume that you are familiar with the general terminology associated
with personal computers and with the safety practices and regulatory compliance required for using and modifying
electronic equipment.
Your computer may not be equipped with all of the hardware features mentioned in this section. The interior configuration
of your system may vary from the illustrations, depending the computer purchased. To view the specific hardware
configuration for your system, see the online specifications sheet.
Before upgrading your computer
Disconnect the computer from its power source and from telecommunications links, networks, or modems before you open
the unit or follow any procedures described in this section.
Failure to disconnect your computer from its power source may result in personal injury or equipment damage.
Electrostatic discharge (ESD) can damage disk drives, add-on cards, and other components. Work at an ESD workstation
when following the procedures described in this section. If an ESD station is not available, use these precautions:

Avoid working in a carpeted area

Do not handle materials that may produce or hold static electricity, such as cellophane wrappers.

Ground yourself by maintaining continuous contact with an unpainted metal portion of the chassis while performing
the procedure.

When removing a slot cover or other internal components, avoid rough handling that may damage the system board
or add-on cards.
You may need to temporarily remove add-on cards or other components that may be near the slot cover you plan to
remove.
Electrostatic discharge (ESD) can damage disk drives, add-on cards, and other components. Follow the
procedures described here only at an ESD workstation. If such a station is not available, do not work in a carpeted
area and do not handle materials that produce or hold static electricity (for example, cellophane wrappers). Ground
yourself by maintaining continuous contact with an unpainted metal portion of the chassis while performing the
procedure.
Always turn the power off before you open the system or connect your computer to peripheral equipment. Otherwise,
damage may occur to the integrated circuits in your computer.
Page 64
About Opening your System
Removing the cover
1.
Shut down your computer and turn off all peripheral devices, such as your printer.
2.
Unplug your computer and disconnect any peripheral devices.
3.
Position the system unit so that the back panel is facing towards you.
4.
Unscrew the three cover release screws located on the edges of the back panel and set aside.
Rem ov ing the release screws
5.
When the screws are removed, the cover is released. Slide the cover towards the back of the unit to remove it.
Rem ov ing the cov er
If you remove the cover immediately after you shut down your computer, the components may be too hot to
touch. Wait until the internal parts of the system unit cool down before you attempt to remove the cover.
Page 65
Replacing the cover
1.
Carefully align the cover to the chassis frame. The cover should align evenly against the chassis.
2.
Slide the cover firmly onto the unit, sliding it forward until the cover snaps into place.
3.
Replace the release screws.
Replacing the cov er
Page 66
About Add-on Card Installation
Your computer may have one or more open expansion slots, depending on the model configuration. An expansion slot
enables you to install add-on cards to expand the functionality of your system. The length of the add-on card should not
exceed 9.05 inches.
Add-on card configuration varies by model. Some models, such as Configure-to-Order (CTO) systems, may contain
preinstalled add-on cards.
Observe the proper safety precautions when you add cards to your Sony computer. See Before upgrading your
computer.
Installing an add-on card
1.
Shut down your computer and turn off all peripheral devices, such as your printer.
2.
Unplug your computer and any peripheral devices.
3.
Remove the cover. See Removing the cover.
4.
Locate an available expansion slot. Remove the slot cover's screw, and then remove the slot cover.
When removing a slot cover, be careful not to damage components on the system board or add-on
cards. You may need to temporarily remove add-on cards or other components that may be next to the slot cover
you want to remove.
Rem ov ing/installing the slot cov er
5.
Install the add-on card by inserting it into the expansion slot and securing it with the screw from the expansion
slot cover.
Installing an add- on card
Page 67
6.
Attach any internal cables that the card requires. See the instructions supplied with the add-on card.
7.
Replace the cover. See Replacing the cover.
8.
Reconnect the power cord and all peripheral devices.
9.
Turn on the computer.
Page 68
About Installing Memory
The amount of preinstalled memory may vary, depending on the system configuration you purchased. Your computer may
ship with all available memory slots filled. See the online specifications sheet for details about the amount of memory
installed in your computer. For memory replacement or upgrades, use only 2.5 V, 64-bit, PC2100 DDR-SDRAM Dual InLine
Memory Modules (DIMM).
You can purchase additional memory modules, accessories, and peripheral equipment from your local retailer.
Observe the proper safety precautions when you add or remove the memory in your computer. See Before
upgrading your computer.
Removing a memory module
1.
Shut down your computer and turn off all peripheral devices, such as your printer.
2.
Unplug your computer and any peripheral devices.
3.
Remove the cover. See Removing the cover.
4.
Gently place the unit on its side. If necessary, remove any cables, add-on cards, or other components to access
the memory module slots.
5.
Locate the memory module(s) you wish to remove.
6.
Push down on the latches, located on both sides of the module, to gently eject it from the slot.
7.
Grasp one edge of the module and lift it out. Store the module in a static-free bag.
Rem ov ing/Installing m em ory
Installing a memory module
1.
Shut down your computer and turn off all peripheral devices, such as your printer.
Page 69
2.
Unplug your computer and any peripheral devices.
3.
Remove the cover. See Removing the cover.
4.
Gently place the unit on its side. If necessary, remove any cables, add-on cards, or other components to access
the memory module slots.
5.
Remove the memory module from its anti-static package, handling it by the the edges.
6.
Locate the notch on the bottom edge of the module to align it over the open memory slot.
7.
Firmly insert the bottom edge of the memory module into the slot.
8.
Press down evenly against the module's upper corners. The latches snap into position, holding the module in
place.
To avoid damaging a memory module slot, move the end latches slightly outward to relieve
pressure. The module clicks into place.
9.
Reinstall any components or add-on cards you may have removed.
10. Replace the cover. See Replacing the cover.
Page 70
About the Lithium Battery
The lithium battery starts to weaken after several years and the system settings, such as the date and time stored in
CMOS RAM, may become inaccurate. Replace the lithium battery when this occurs.
There is danger of the battery exploding if it is replaced incorrectly. Replace the battery only with a
CR2032-type lithium battery.
Replacing the lithium battery
1.
Write down any changes you may have made to the settings in the BIOS Setup utility.
2.
Shut down your computer and turn off all peripheral devices, such as your printer.
3.
Unplug your computer and any peripheral devices.
4.
Remove the cover. See Removing the cover.
5.
If necessary, remove any cables, add-on cards, or other components to access the lithium battery.
6.
Remove the old battery and install the new battery with the plus (+) side up.
Installing a lithium battery
7.
Replace the cover. See Replacing the cover.
The values stored in the CMOS memory are now reset to the factory default values. Run the Setup utility to reset the date,
time, passwords, and other changes you may have made to the BIOS settings. If you do not wish to customize your BIOS
settings, do not run the Setup utility.
Dispose of the lithium battery properly. In some areas, the disposal of lithium batteries in household or
business trash may be prohibited. You can return your unwanted lithium batteries to your nearest Sony Service Center
or Factory Service Center. To locate a Service Center near you, visit the Sony Computing Support Web site at
http://www.sony.com/pcsupport.
Resetting the computer's date and time
1.
Double-click on the time readout displayed in the Windows® tasktray. The Date and Time Properties window
appears.
Page 71
2.
From the Date & Time tab, change the settings as desired. Click Apply, then click OK.
Page 72
About Hard Disk Drive Installation
Your computer comes with an available internal bay to hold a second standard 3.5-inch hard disk drive. Some models, such
as Configure-to-Order (CTO) systems, may already have a second hard disk drive installed. Your system can support
ATA-33, ATA-66, or ATA-100 hard disk drives. Sony recommends using an ATA-100 hard disk drive to take full advantage of
your system's features.
The hard disk drive access indicator is lit when either internal hard disk drive is active.
Make sure you observe the proper safety precautions when you upgrade your Sony computer. See Before
upgrading your computer.
Replacing the original hard disk drive
If you replace the original, factory-installed hard disk drive, your system cannot restore the drive partitions, operating
system, or original software, using the instructions provided in the section, Using the VAIO Recovery Wizard.
The VAIO Recovery Wizard is a quick and easy way to repair your system if it becomes unstable or stops working properly.
To enable you to recover your system with the VAIO Recovery utility, you can purchase a Partition Recovery CD Assembly
(PRCD ASSY) to restore your system.
To order the Partition Recovery CD Assembly:
1.
Go to the Sony Direct Accessories and Parts Center Web site at http://servicesales.sel.sony.com.
2.
In the Search by type section, enter the part number, A8113558A. Click Retrieve Part Info. The Item
Information window appears.
3.
Verify the part number, item description, and availability. Click Continue to Check Out to purchase the Partition
Recovery CD Assembly.
If you are not able to access the Sony Direct Accessories and Parts Center Web site, contact a customer service
representative at 1-800-488-7669.
Installing an additional hard disk drive
1.
Shut down your computer and turn off all peripheral devices, such as your printer.
2.
Unplug your computer and any peripheral devices.
3.
Remove the cover. See Removing the cover.
4.
Configure the jumpers on the new drive as a slave. See the configuration instructions supplied with your drive.
5.
Detach the power and drive cables from the original hard disk drive that is preinstalled in your computer.
6.
Release the drive holder from the chassis by removing the drive holder screw.
7.
Slide the drive holder out.
Rem ov ing the driv e holder
Page 73
8.
Slide the new drive into the drive holder and align the holes on each side of the drive to the holes in the Drive
holder.
9.
Secure the drive to the drive holder with screws, through the holes on each side of the drive holder.
Attaching the driv e screws
Your new hard disk drive is supplied with the necessary screws. Do not overtighten these screws when securing
the new drive to the drive holder.
10. Realign the drive holder with the tracks on the inside of the chassis and slide the drive holder in completely.
11. Reinsert the drive holder screw and tighten to lock the drive holder back into position.
12. Connect the second drive connector to the new drive. Orient the connector to align pin 1 on the red side of the
ribbon cable with pin 1 on the new drive.
13. Connect the second power connector to the new drive, following the instructions supplied with the drive.
Replacing the driv e holder
Page 74
14. Replace the cover. See Replacing the cover.
15. Reconnect the power cord to your computer.
Identifying the additional hard disk space
When you initialize the new hard disk, it must be configured as an extended partition in Windows NT file system (NTFS)
format.
1.
Log on to Windows ® as Administrator.
2.
Click Start in the Windows taskbar, then right-click My Computer. A shortcut menu appears.
3.
Select Manage. The Computer Management window appears.
4.
Under the file directory, go to Storage and then select Disk Management.
5.
Right-click on the newly installed, unformatted hard disk (Disk label identified with red marking). From the
shortcut menu, select Initialize Disk.
6.
Click on the Unallocated area of the disk and then right-click to display a shortcut menu.
7.
Select New Partition. The New Partition wizard appears.
8.
Follow the wizard's on-screen instructions to complete the process.
The Windows ® XP operating system recognizes the new hard disk drive and applies the NTFS format.
Page 75
Recovering your Software
Your system is equipped with a utility program that enables you to recover your computer's operating system and
preinstalled software. The information1 provided in this section, describes the recovery process.

Creating a Recovery Startup CD

Overview of System and Application Recovery

Using the VAIO Recovery Wizard
1
T he s c reen views s hown in this s ec tion may vary s lightly from the ac tual s oftware s c reen views .
Page 76
Creating a Recovery Startup CD
A recovery startup CD can be used to start your computer in the event your system is unable to start normally. Sony
recommends creating a recovery startup CD when you begin using your machine.
If you have previously created a recovery startup CD, the VAIO Recovery Startup CD Wizard icon is not visible in the
Windows ® tasktray. Go to Using the VAIO Recovery Wizard for information on accessing the VAIO Recovery Startup CD
Wizard.
To create a recovery startup CD
1.
Double click
, located in the Windows® tasktray. The VAIO Recovery Startup CD Wizard appears.
VAIO Recov ery Startup CD Wizard (m ain window)
2.
3.
Click Next. Follow the onscreen instructions that advise you to

close all open software programs.

disconnect from the Internet.

disable the screensaver. (See To disable the screen saver)

avoid connecting or disconnecting peripheral equipment, such as a USB or i.LINK® device.
Click Next. You are prompted to insert a blank CD-R or CD-RW disc into the upper optical drive. Close the drive.
Sony recommends using a blank CD-R disc. If you use a CD-RW disc containing data, the data is deleted. The
media may not eject automatically at the end of the recovery startup CD creation. If this occurs, use the drive eject
button to remove the recovery startup CD.
Disc types for Recov ery Startup CD
Page 77
4.
When the blank CD-R or CD-RW disc is detected and approved, click Next. The recovery startup CD process
begins.
A window with a progress bar appears.
Do not attempt to open another software application or use your system in any way during the
Recovery Startup CD creation process.
VAIO Recov ery Startup CD Wizard (Status)
5.
When the message, The VAIO Recovery Startup CD is complete, is displayed, click Next.
6.
Follow the onscreen instructions to properly label your Recovery Startup CD and store it in a safe place. Click
Finish.
VAIO Recov ery Startup CD Wizard (Label CD)
Page 78
7.
You are prompted to restart your system. Click OK.
VAIO Recov ery Startup CD Wizard (Restart system )
To use the recovery startup CD
If your system becomes unstable and you cannot access the Windows® operating system, you can use the recovery startup
CD to start the computer.
1.
With your computer turned on, place the recovery startup CD in an optical drive.
2.
Close the optical drive and turn off your computer.
3.
Wait approximately 30 seconds, then turn the computer on. The VAIO System Recovery Utility begins.
4.
After the system recovers, remove the recovery startup CD from the drive. Click Finish.
Some recovery options are not available if you use the recovery startup CD to start your computer.
To disable the screen saver
1.
Right click on the Windows® desktop. From the shortcut menu, select Properties.
2.
From the Display Properties window, select the Screen Saver tab.
Display Properties window
Page 79
3.
In the Screen saver area, open the drop-down list box and select (None). Click Apply.
4.
Click OK.
Page 80
Overview of System and Application Recovery
A system or application recovery may become necessary if your computer becomes unstable or the operating system and
original software stops working properly.
Your system's data is not retained during the system recovery process. Perform a full backup of your system's
data to external media before continuing with the system recovery process.
Page 81
Using the VAIO Recovery Wizard
1.
Click Start in the Windows ® taskbar, point to All Programs, and click VAIO Recovery Wizard.
Locating the VAIO Recov ery Wizard
The VAIO Recovery Wizard appears.
VAIO Recov ery Wizard (m ain window)
2.
Follow the onscreen instructions that advise you to:

Close all open software programs.

Disconnect from the Internet.

Disable the screen saver. (See To disable the screen saver)

Avoid connecting or disconnecting peripheral equipment, such as a USB or i.LINK® device.

Maintain power to the system during the recovery process.
Using the Recovery Wizard utility may require you to restart your system, even if you cancel and exit the wizard.
3.
Click Next. You are prompted to create a Recovery Startup CD.
Create Recov ery Startup CD window
Page 82
If you have not created your Recovery Startup CD, select the option, Create Recovery Startup CD and click
Next. For more information, see Creating a Recovery Startup CD
4.
If you have already created a Recovery Startup CD, select the option, "I have already created the Recovery
Startup CD" and click Next. The Begin Recovery window appears.
Begin Recov ery window
5.
Select the appropriate recovery option.
Page 83
Default System Drive Recovery (Recommended)
Your computer's drive C is restored to the original factory-installed settings. All data on drive C is deleted. Data on other
drive partitions or other hard disk drives are not changed.
The system recovery process cannot be interrupted once it has been started. Do not attempt to use your
computer in any way during the recovery process.
1.
Select the option, "Default System Drive Recovery (Recommended)" and click Next.
2.
Read the onscreen information and click Next.
3.
To begin the Default System Drive Recovery process, click Finish. Your system restarts and begins the system
recovery.
Using the Recovery Wizard utility may require you to restart your system, even if you cancel and exit the wizard.
Several screens appear before the first VAIO System Recovery Utility window starts. The initial system recovery
utility window displays a progress bar showing elapsed recovery time.
The recovery process takes approximately 6 minutes.
4.
After the progress bar shows all tasks as Completed, click Next.
5.
Click Finish to restart your computer.
After recovering, your system may take a few moments to restart and resume normal operation.
Page 84
Custom Recovery (Recommended for advanced users)
You can customize the recovery of your system. This advanced recovery process enables you to select partition size
settings or recover specific software. The VAIO Recovery Wizard recovers the factory-installed operating system and
software only.
1.
Select the option, "Custom Recovery (Recommended for advanced users)" and click Next.
The Begin Custom Recovery window appears.
Begin Custom Recov ery window
2.
Select one of three options:

Full System Recovery: Recovers all original factory-installed settings and software. Data on drives C and
D are deleted.

Operating System and Drivers Recovery Only: Recovers the operating system and drivers. Data on
drives C and D are deleted.
Certain software, such as DVgate software, automatically saves data to the drive D partition. If you choose
not to have a drive D partition, change the software settings to enable file saving to a location on drive C.

Application Recovery: Recovers factory-installed software without changing the drive C and drive D
partition sizes. If you select this option, you cannot return to the system recovery portion of the VAIO
Recovery Wizard without restarting your computer.
Full System Recovery
1.
Select the option, Full System Recovery and click Next.
In the section, Current Partition Information, the current partition size settings for your system are displayed.
In the section, New Partition Information, the pie chart shows the division of the hard disk according to your
partition size selections.
Begin Custom Recov ery window (Custom partition options)
2.
Select a size for the drive C partition, using the dropdown list. Click Next.
Drive D partition size is the remaining hard disk space that is not allocated to Drive C. The Recovery Drive size Page 85
remains at 5 Gigabytes (GB).
The size of the partition identified as the Recovery Drive (5 GB) cannot be changed and is not available for use.
This dedicated portion of your hard disk drive enables the recovery of your system.
3.
Read the onscreen information and click Next.
4.
Click Finish to start the system recovery process. Your system restarts and begins the system recovery.
The system recovery process cannot be interrupted once it has been started. Do not attempt to
use your computer in any way during the recovery process.
Several screens appear before the first VAIO System Recovery Utility window starts. The initial system recovery
utility window displays a progress bar showing elapsed recovery time.
The recovery process takes approximately 6 minutes.
5.
After the progress bar shows all tasks as Completed, click Next.
6.
Click Finish to restart your computer.
After recovering, your system may take a few moments to restart and resume normal operation.
Operating System and Drivers Recovery Only
1.
Select the option, Operating System and Drivers Recovery Only and click Next.
In the section, Current Partition Information, you can see the current partition size settings for your system.
In the section, New Partition Information, the pie chart shows the division of the hard disk according to your
partition size selections.
2.
Select a size for the drive C partition, using the dropdown list. Click Next.
Drive D partition size is the remaining hard disk space that is not allocated to Drive C. The Recovery Drive size
remains at 5 Gigabytes (GB).
The size of the partition identified as the Recovery Drive (5 GB) cannot be changed and is not available for use.
This dedicated portion of your hard disk drive enables the recovery of your system.
3.
Read the onscreen information and click Next.
4.
Click Finish to start the system recovery process. Your system restarts and begins the system recovery.
The system recovery process cannot be interrupted once it has been started. Do not attempt use
your computer in any way during the recovery process.
Several screens appear before the first VAIO System Recovery Utility window starts. The initial system recovery
utility window displays a progress bar showing elapsed recovery time.
The recovery process takes approximately 6 minutes.
5.
After the progress bar shows all tasks as Completed, click Next.
6.
Click Finish to restart your computer.
After recovering, your system may take a few moments to restart and resume normal operation.
Application Recovery
1.
Select the option, Application Recovery and click Next. The VAIO Application Recovery Wizard appears (Begin
Application Recovery window).
Begin Application Recov ery (m ain window)
Page 86
If you select the Application Recovery option, you cannot return to the system recovery portion of the VAIO
Recovery Wizard without restarting your computer.
2.
Click the checkbox for each software application you want to recover. You may need to use the scrollbar to view
all available software. Click Next.
You can select the checkbox, Select or deselect all applications, if you wish to recover all available software.
The Application Recovery utility recovers the original, factory-installed software only.
3.
As your system prepares to install each application, a status indicator appears. You may see installation wizards,
messages, and prompts. Follow the instructions provided in each wizard, and respond to each prompt or
message.
Application Recov ery in progress window
4.
When the selected software applications have been recovered, the Application Recovery Complete window
appears.
Application Recov ery Com plete window
5.
Click Back, if you wish to recover more applications. The VAIO Application Recovery Wizard main window is
displayed again, with a listing of the available software applications.
6.
Click Finish. The Application Recovery process is completed and your system restarts.
If your recovered software does not function properly, or you see an installation error message, try recovering
the software again.
Page 87
Additional Information

Certain software, such as DVgate software, automatically saves data to the drive D partition. If you choose not to
have a drive D partition, change the software settings to enable file saving to a location on drive C.

The VAIO Recovery Wizard is a quick and easy way to repair your computer's operating system or original software,
if they become unstable or stop working properly.
If your hard drive loses its partitions and you are not able to restore your system using the instructions provided
here, you can order a Partition Recovery CD Assembly (PRCD ASSY) to restore your system.
To order the Partition Recovery CD Assembly:
1.
Go to the Sony Direct Accessories and Parts Center Web site at http://servicesales.sel.sony.com.
2.
In the Search by type section, enter the part number, A8113809A. Click Retrieve Part Info. The Item
Information window appears.
3.
Verify the part number, item description, and availability. Click Continue to Check Out, to purchase the
PRCD Assembly.
If you are not able to access the Sony Direct Accessories and Parts Center Web site, contact a customer service
representative at 1-800-488-7669.
Page 88
Troubleshooting
This section describes how to troubleshoot common problems. You can also find helpful information on how to use your
computer's hardware features and preinstalled software. Your computer may not be equipped with all of the features or
software discussed in this section, depending on the system configuration purchased.

About VAIO Computer Functions

About Software

About Using the Optical Disc Drive(s)

About the Mouse and Keyboard

About the Modem

About the Speakers

About Using a Microphone

About Using Peripheral Equipment
Page 89
About VAIO Computer Functions
My computer does not start.

Verify that the computer is plugged into a power source and that it is turned on. Check that the power indicator is lit
on the front panel of the computer.

Confirm that a disk is not in the floppy disk drive1 (unless you are using a bootable floppy disk).

Confirm that a CD is not in an optical drive (unless you are using a bootable CD).

Confirm that the power cord and all cables are connected firmly.

If you plugged the computer into a power strip or Uninterruptible Power Supply (UPS), make sure the power strip or
UPS is turned on and working.

Verify that the monitor is plugged into a power source and turned on.
If your system has a built-in monitor, confirm that it is plugged into an appropriate power source and that the
system is turned on.

Verify that the brightness or contrast control dials are adjusted correctly. (See the manual that came with your
display for details.)

Confirm that the computer is not in stand by mode.
Why did my computer or software stop responding?
You can try to locate and close the software application that has stopped responding.
1.
Press the Ctrl+Alt+Delete keys. The Windows Task Manager window appears.
2.
From the Applications tab, locate the application that has the status message, "Not responding."
3.
Select the application that has a Not Responding status and click End Task. Windows attempts to close the
application.
If your computer does not respond or the application does not close, try the following steps:
1.
Save any open files, if possible.
2.
Press the Alt+F4 keys. The Turn Off Computer window appears.
3.
Click Restart.
If your computer still does not respond and you cannot restart, shut down your computer by pressing and holding the
power button for more than six seconds.
If the software application continues to stop responding or causes your computer to stop responding, contact the software
publisher or designated technical support provider.
Pressing and holding the power button for more than six seconds, may result in the loss of data from files that
are currently open.
Why does the Windows operating system stop responding during shutdown?
The Windows operating system may not shut down properly for many reasons, including incompatible or conflicting drivers,
damaged files, or non-responsive hardware. For troubleshooting information, you can search Windows Help.
1.
Click Start in the Windows taskbar and select Help and Support. The VAIO Help and Support Center menu
appears.
2.
Select Fixing a Problem and then select Startup and Shut Down problems. A list of specific problem topics
appears on the right side of the dialog box.
3.
Select Startup and Shutdown Troubleshooter. Follow the on-screen instructions according to your specific
situation.
Page 90
I cannot find the Windows taskbar.
The Windows taskbar may be hidden or minimized.

Use the mouse to locate a hidden taskbar by pointing to the left, right, top, and bottom edges of the screen. The
taskbar appears when the cursor is placed over its location.

1.
Right-click on the taskbar and select Properties from the shortcut menu.
2.
Clear the check box for Auto-hide the taskbar, then click OK.
Use the mouse to locate a minimized taskbar by pointing to the left, right, top and bottom edges of the display
screen. The taskbar has been located when the cursor changes to a double arrow cursor. Left-click and drag away
from the edge of the display screen. The minimized taskbar resizes and becomes visible.
Why is my system running slowly?

The system responsiveness varies depending with the number of applications that are open and running. Close any
applications that you are not currently using.

Increasing the system memory may also help.
How do I change the video resolution of my display?
1.
Click Start in the Windows taskbar and then select Control Panel.
2.
Select Appearances and Themes, then select Change the screen resolution.
3.
Click the Settings tab.
4.
Change the Screen resolution and Color quality to the desired levels.
5.
Click Apply and then click OK.
How do I change the parallel port type to ECP, EPP, or bi-directional?
You can change the parallel port2 type using the System Setup utility (CMOS Setup Utility). To access System Setup:
1.
Click Start in the Windows taskbar and select Turn Off Computer. Select Restart.
2.
When the Sony screen displays, press the F2 key on your keyboard.
3.
Select the Advanced tab from the Setup Utility screen.
4.
Select I/O Device Configuration and press Enter.
5.
Use the arrow keys to highlight Parallel Port Mode and press Enter.
You can toggle between the Normal (bi-directional), EPP, ECP, and ECP+EPP options using the directional arrow
keys.
6.
Select the desired setting displays, and press Enter.
7.
Press the F10 key to Save and Exit.
Where can I find a listing of my computer's preinstalled hardware?
You can find details about the drives, cards, and memory modules that are installed on your system by viewing the online
specifications sheet. This online document describes the hardware configuration of your VAIO computer.
To access the online specifications sheet:
1.
Click Start in the Windows ® taskbar and click Help and Support.
2.
From the VAIO Help and Support Center menu, click VAIO User Guide.
Page 91
3.
Click the Welcome link. The Welcome page displays on the right.
4.
Locate the link in the text, "View the VAIO® Computer Specifications..."
1
C ertain V A I O c omputers are not equipped with a floppy dis k drive. Y ou c an purc has e this equipment s eparately.
2
Y our V A I O c omputer may not be equipped with a parallel port. See the online s pec ific ations s heet for details on your c omputer's hardware c onfiguration.
Page 92
About Software
Your computer may not be supplied with all of the software discussed in this section, depending on the system
configuration you purchased.
How do I create an audio CD with preinstalled Sony software?
Your VAIO® computer has SonicStage software preinstalled on your computer. SonicStage is a digital music management
software that enables you work with digital music from audio CDs and from the Internet. You can play music on your
computer, create custom audio CDs, and check music out to compatible digital music devices.
SonicStage software employs OpenMG copyright protection technology and advanced ATRAC3
you to enjoy digital music while protecting the rights of copyright holders.
audio file format to allow
To access SonicStage software Help
1.
Click Start in the Windows taskbar, and click All Programs.
2.
Point to SonicStage, and click SonicStage.
3.
On the Help menu, click SonicStage Help.
How do I use the System Restore feature in Windows XP?
System Restore is a feature of the Microsoft® Windows ® XP operating system that enables you to restore your computer to
a previous state, if a problem occurs. System Restore provides the following support:

Restores your system to a previous state.

Restores without erasing your personal data files.

Creates restore points daily and when software applications or utilities are installed.

Maintains storage of one to three weeks of past restore points.

Enables you to create your own custom restore points.

Locates the dates associated with the restore points.

Performs restorations that are reversible.

Enables different types of restore points.
To Use the System Restore Wizard
1.
Click Start in the Windows ® taskbar and click Help and Support. The VAIO Help and Support window appears.
2.
Under Pick a Help topic, click Performance and maintenance.
3.
Under Performance and maintenance, click Using System Restore to undo changes. A submenu appears on the
right.
4.
Under Pick a task, click Run the System Restore Wizard. The System Restore wizard dialog box appears.
5.
Follow the on-screen instructions to restore your system or create a custom restore point.
How do I copy files to a recordable CD or DVD?
You can copy files to CD-R or CD-RW media, using the installed CD-RW or DVD-RW drive1.
To copy files and folders to a CD using Windows XP
1.
Insert a blank CD-R or CD-RW disc into your CD-RW or DVD-RW drive. (If the CD Drive window appears, click Take
no action.)
2.
Click Start in the Windows ® taskbar and click My Computer. Locate the files and folders you want to copy to the
Page 93
CD.
3.
Point to select a file or folder, or select several files or folders by holding down the CTRL key while pointing to
each of the files you want.
4.
Under File and Folder Tasks, click Copy this file, Copy this folder, or Copy the selected items.
If the files are located in My Pictures, under Picture Tasks, click Copy to CD or Copy all items to CD. Skip to step
6.
If your files are located in My Music, under Music Tasks, click Copy to audio CD or Copy all items to audio CD.
Skip to step 6.
5.
In the Copy Items dialog box, click the read/write drive icon2, and click Copy.
6.
Under Other Places, click My Computer, and click the CD-RW or DVD-RW drive.
Windows displays the temporary area that holds the files until they are copied to the CD.
7.
Confirm that the files and folders you want to copy are displayed under Files Ready to Be Written to the CD.
8.
Click Write to CD, under CD Writing Tasks. The CD Writing Wizard starts.
9.
Follow the instructions in the wizard to complete writing the files or folders to the CD.
When the writing process is finished, the wizard displays a check box that enables you to copy another CD. To
create additional copies, click Yes, write these files to another CD, insert a blank CD-R or CD-RW disc, and click
Next.
To copy files to a DVD using preinstalled software
If your VAIO® computer is equipped with a DVD-RW drive, you can copy files to DVD-R or DVD-RW media using the
preinstalled DVD burning software3.
To learn more about creating DVDs, refer to Creating DVDs — an online guide that provides information designed to help you
become familiar with your DVD-RW drive and the DVD recording software applications included with your computer.
To access this online information:
1.
Click Start in the Windows taskbar, then click Help and Support.
2.
From the VAIO Help and Support Center menu, click Creating DVDs.
Where can I find a listing of my computer's preinstalled software titles?
You can find details about the software that is preinstalled on your system by viewing the online specifications sheet. This
online document describes the preinstalled software on your VAIO computer.
To access the online specifications sheet
1.
Click Start in the Windows ® taskbar and click Help and Support.
2.
From the VAIO Help and Support Center menu, click VAIO User Guide.
3.
Click the Welcome link. The Welcome page displays on the right.
4.
Locate the link in the text, "View the VAIO® Computer Specifications..."
1
U nauthorized duplic ation of audio or video files is a violation of applic able laws .
2
T he read/write drive letter des ignation may vary, depending your s ys tem's hardware c onfiguration.
3
U nauthorized duplic ation of audio or video files is a violation of applic able laws .
Page 94
About Using the Optical Disc Drive(s)
Use care in opening and closing your optical disc drive tray to avoid damage to the drive or drive cover. When you press the
eject button, the drive tray may not imediately open because it is has not finished reading or writing to the CD or DVD. Wait
a moment to permit the optical drive to finish accessing the CD or DVD media.
Your computer may not be equipped with all of the hardware features listed in this section. To view the specific
hardware configuration for your system, see the online specifications sheet.
Why doesn't my optical drive tray open?
To use the Eject button
1.
Make sure the computer is turned on.
2.
Press the Eject button on the drive.
To use the My Computer icon
1.
Click Start in the Windows taskbar, then select My Computer.
2.
Right-click the appropriate optical drive icon.
3.
Select Eject from the shortcut menu.
Avoid using adhesive labels to identify your CD or DVD media. Adhesive labels may come off while the CD or DVD media
is in use in your optical drive(s) and may cause damage to the unit.
The message, "You must insert the application CD into your drive" appears and the software does not start.

Some software applications require specific files that are located on the application's CD. Try inserting the disc and
starting the program again.

Check to make sure you inserted the CD correctly, with the label side facing up.
Why can't I play a DVD or CD media?

After inserting your CD or DVD, wait a few seconds for the system to detect it before trying to access it.

Confirm that the disc is in the tray with the label side facing up.

Install your CD or DVD software according to the manufacturer's instructions.

If your drive reads some DVDs or CDs, but not others, check the shiny side of the disc for dirt or scratches.
To recover the CD or DVD software applications that are preinstalled on your computer, see Application Recovery for
more information.
Why isn't my DVD playing properly?
If a region code warning appears when you are using the DVD player application, it may be that the region code of the DVD
you are trying to play is incompatible with the region code setting of your optical drive. A region code is listed on the disc
packaging. Region code indicators such as "1" or "ALL" are labeled on some DVDs to indicate the type of player that can
play the disc. Unless a "1" or "ALL" appears on the DVD or on its packaging, you cannot play the disc on this system.
If you hear audio but cannot see video, your computer's video resolution may be set too high. To improve video resolution,
verify that your screen area is set to 1024 x 7681, using 32-bit color (preset factory default). To verify or change your video
resolution:
1.
Click Start in the Windows taskbar and then select Control Panel.
2.
Select Appearances and Themes, then select Change the screen resolution.
3.
Click the Settings tab.
Page 95
4.
Change the Screen resolution and Color quality to the desired levels.
5.
Click Apply and then click OK.
If you see video but cannot hear audio, check all of the following:

Verify that your DVD player's mute feature is turned off.

Check the master volume setting in the Audio Mixer.

Check the volume settings on your computer speakers.

Check the connections between your speakers and the computer.

Verify that drivers are installed properly, by following these steps:
1.
Click Start in the Windows taskbar, then select Control Panel.
2.
Click Performance and Maintenance and then click Systems. The System Properties dialog box appears.
3.
Select the Hardware tab and then select the Device Manager button to view installed drivers.
A dirty or damaged disc may also cause the computer to stop responding while it tries to read the disc. If necessary,
remove the disc and check that it is not dirty or damaged.
To recover the CD or DVD software applications that are preinstalled on your computer, see Application Recovery for
more information.
Why doesn't my recordable optical drive (DVD-RW/CD-RW) record to CD-RW media?
If you are having difficulty with writing, erasing, or formatting on your CD-RW media, the reason may be that the media is
not compatible with your high-speed CD-RW drive. Sony recommends using CD-RW media that is identified as "high-speed"
(4X or higher) for maximum performance and compatibility.
1
T he V A I O "W" s eries c omputer us es 1 2 8 0 x 7 6 8 for the default video res olution s etting.
Page 96
About the Mouse and Keyboard
Why doesn't my mouse work properly?

Confirm that the mouse is plugged securely into the mouse port. If you are using a USB mouse, verify that the
mouse is plugged securely into the appropriate USB port.

Save and close all open applications. Turn off your computer, wait approximately 10 seconds, and then restart your
computer.

If you are using an optical mouse, use an appropriate surface to ensure proper mouse tracking. A good mouse
surface requires a certain amount of detail or texture to enable mouse tracking.


Use surfaces such as plain paper, card stock, or fabric that do not have a lot of repetitive patterning.

Avoid surfaces such as mirrors, smooth glass, or magazines.

Avoid possible damage to easily-scratched surfaces by using a mouse pad.

Avoid surfaces that may damage or soil your optical mouse. Dirt or damage may cause the mouse to
malfunction.

If the cursor is not moving properly, try using the mouse on another mousing surface or using a mouse pad.
There may be dust or dirt inside the mouse mechanism. To clean the mouse, follow these steps:

Save and close all applications, and turn off your computer.

Turn the mouse upside down.

Remove the mouse ball cover on the back of the mouse by turning clockwise the ring that covers the
mouse ball.

Turn the mouse upright, and drop the mouse ball into your hand.

Using a piece of tape, remove any dust or dirt on the mouse ball and inside the mouse ball socket.

Return the mouse ball to the socket, and replace the mouse ball cover. Secure the cover by turning the
ring counter-clockwise.
You may need to reinstall the mouse drivers. See Application Recovery to reinstall VAIO Driver.
How do I set up my mouse for left-hand use?
1.
Click Start in the Windows taskbar, then click Control Panel.
2.
Click Printers and Other Hardware, then click Mouse. The Mouse Properties dialog box appears.
3.
From the Buttons tab, select Switch primary and secondary buttons under the Button Configuration options.
4.
Click Apply, then click OK.
Why doesn't my keyboard work properly?

Check that the keyboard1is securely plugged into the keyboard port.

Save and close all open applications. Turn off your computer, wait approximately 10 seconds, and then restart your
computer.
1
T he V A I O "W" s eries c omputer has a built-in keyboard.
Page 97
About the Modem
Why is my modem connection slow?
Many factors influence modem connection speed:

Telephone line noise

Incompatibility with other telephone equipment such as fax machines or other modems.

Internet Service Providers (ISP) connection capability may vary.
If you think your modem is not connecting properly to other PC-based modems, fax machines, or your ISP, check the
following:

Contact your telephone company and ask them to verify that your telephone line is free from line noise.

If your problem is fax-related, check that there are no problems with the fax machine you are calling and that it is
compatible with fax modems.

For optimum performance, verify that your ISP point of presence (POP) telephone number is compliant with V.90
standards.

If you are having a problem connecting with your ISP, check that they are not experiencing technical problems.

Try connecting your modem through another telephone line, if available.
Why doesn't my modem work properly?
Your modem may be experiencing equipment or software conflicts. If your modem is not functioning properly, check the
following:

Check that the telephone line is plugged into the modem line jack.

Check that the telephone line is working properly. You can verify the line by plugging in an external device such as a
standard telephone or fax machine and listening for a dial tone.

Check that the access telephone number (POP) is correct.

All software applications that are preinstalled by Sony are compatible with your computer's modem. If you have
installed other software, contact the software publisher for information on how to configure the software in order to
recognize the modem.

If it appears that your modem is not functioning properly, check the device status.
1.
Click Start in the Windows taskbar, then click Control Panel.
2.
Click Printers and Other Hardware and then select Phone and Modem Options.
3.
From the Modems tab, click to select your modem.
4.
Click Properties. The Modem Properties window appears.
5.
Review the information in the Device status section. If your modem is not working properly, click the
Troubleshoot button. The VAIO Help and Support Center window appears.
6.
Follow the on-screen instructions to resolve the problem.
You may need to reinstall the modem drivers. See Application Recovery to reinstall VAIO Driver.
How do I change my modem to rotary or Touch-tone dialing?
1.
Click Start in the Windows taskbar, then click Control Panel.
2.
Click Printers and Other Hardware, then click Phone and Modem options.
3.
From the Dialing Rules tab, click Edit. The Edit Location dialog box appears.
Page 98
4.
Select the Tone or Pulse option. Click OK.
Page 99
About the Speakers
Why is there no sound in any application?

Check that the speakers are plugged into the Headphones jack.

If your speakers have a mute button, verify that it is turned off.

If your speakers are powered by batteries, verify that the batteries are inserted properly and that they are
charged.

If your speakers use an external power source, verify that the power cord is plugged into a grounded wall outlet or
power strip.

If your speakers have volume control, check the volume level.

You cannot hear sound from your speakers if headphones are connected to your computer.

If the software application you are using has its own volume control, check that the volume is turned up.

Verify that the mute button on your keyboard is turned off. The mute button is located above the function keys. Use
the keyboard's volume controls to adjust the volume level.

Check the volume controls in the Windows® operating system using these steps:

1.
Click Start in the Windows taskbar, then select Control Panel.
2.
Select Sounds, Speech, and Audio Devices, then click Adjust the system volume.
3.
From the Volume tab, adjust the Device volume by moving the slider bar to the desired sound level.
Verify that the Mute option is not selected.
Check that the Mute check box is not selected in the Windows volume control.
You may need to reinstall the sound drivers. See Application Recovery to reinstall VAIO Driver.
Page 100
About Using a Microphone
Why doesn't my microphone work properly?
Check that the microphone is plugged into the Microphone jack.
Why is my microphone so sensitive to background noise?
If you find there is too much background noise when you record sound, you should adjust the microphone gain by following
these steps:
1.
Click Start in the Windows taskbar, then click Control Panel.
2.
Click Sounds, Speech, and Audio Devices, then click Sounds and Audio Devices.
3.
From the Audio tab, locate the Sound recording section and click Volume. The Recording Control dialog box
appears.
4.
Select the Options menu and click Properties. The Properties dialog box appears.
5.
In the section, Adjust volume for, select the Recording option. Click OK.
6.
From the Recording Control dialog box, decrease the microphone volume level by moving the slider bar down.
7.
Close the Recording Control dialog box and then close the Sounds and Audio Devices Properties window.
Page 101
About Using Peripheral Equipment
How do I install a printer?

Connect your USB or IEEE 1394 printer to the appropriate port on your computer's front, back or covers1. If your
printer has a USB, IEEE 1394, or infrared connection, contact the printer manufacturer for information or updates
that may be required for proper installation.

Check the printer manufacturer's Web site for the latest drivers for your operating system before proceeding with
installation. Some printers do not function properly without the updated drivers for specific operating systems.

To install your printer, follow these steps:
1.
Click Start in the Windows taskbar, then click Control Panel.
2.
Click Printers and Other Hardware, then click Add a Printer.
3.
From the Add Printer Wizard, click Next.
4.
Select Local Printer, then click Next.
Place a check mark in the box for "Automatically detect and install my Plug and Play printer", if you are installing a
recently manufactured printer with Plug and Play capability.
5.
Select the appropriate port, usually LPT1, and then click Next.
6.
Select the appropriate printer manufacturer and model.
7.
Follow the on-screen instructions to print a test page and complete printer installation.
If the printer is not included in the list and the printer manufacturer included a disk with a Windows XP Printer
driver, choose Have Disk, enter the appropriate path for the disk or CD and click OK.
If the printer is not included on the list and no drivers are included with the printer, choose an alternate printer driver
that your printer may emulate. Refer to the manual that came with your printer for specific emulation information.
The connected printer does not function properly when the computer resumes from a powersaving mode.

Clear the printer memory by turning the printer off for approximately 10 seconds, and then turning it back on.

If the printer does not resume normal operation, try restarting your computer.
1
T he loc ation of the c onnec tion ports for peripheral equipment may vary, depending upon your c omputer's hardware c onfiguration.
Page 102
Notes On Use
The information in this section provides basic procedures for handling your system and common peripheral devices, using
storage media, and locating upgrade procedures. A support resource listing is also provided to help you locate the
appropriate support options.

About the Power Source

About Disposing of the Lithium Battery

About Handling the Computer System

About Handling a Monitor (Display)

About DVD, CD, and Floppy Disk Media
Page 103
About the Power Source
Before opening your computer, turn the system off and let it cool down for 10 minutes. This protects you against
internal components that may be too hot to handle.

Your computer operates on 120 V AC 50/60 Hz.

Plug all the power cords for your computer and its peripheral equipment into the same AC supply line. AC derived
from different supply lines may result in voltage differences that can cause unstable operation or unwanted weak
currents at the time of connection.

Do not share the AC outlet with any other power-consuming equipment, such as copying machines or shredders.

You can purchase a power strip with a surge protector. This device prevents damage to your computer caused by
sudden power surges such as those that may occur during an electrical storm.

If you live in an area that experiences frequent power fluctuations, you may want to purchase an Uninterruptible
Power Supply (UPS). This device contains both a surge protector and a battery backup. The surge protector
prevents damage to your computer caused by power surges. The battery backup safeguards your data during a
brief period of power loss.

The power control button on the front panel does not turn off the system AC power. To remove power from the
system, you must turn off the computer and then unplug the AC power cord from the wall outlet or power strip.

Do not place heavy objects on the power cord.

Do not operate the system with the cover removed. Always reinstall the cover before turning on the system.

To disconnect the cord, pull it out by the plug. Never pull the cord itself.

Unplug your computer from the wall outlet if you will not be using the computer for a long time.

Do not attempt to open the power supply. There are no user-serviceable parts in the power supply. To avoid
personal injury or damage to your equipment, refer the repair or replacement of the power supply to qualified
personnel only.
Page 104
About Disposing of the Lithium Battery
Dispose of the lithium battery properly. In some areas, the disposal of lithium batteries in household or business trash may
be prohibited. You can return your unwanted lithium batteries to your nearest Sony Service Center or Factory Service
Center. For the Sony Service Center nearest you, visit the Sony Computing Support Web site at
http://www.sony.com/pcsupport.
Do not handle damaged or leaking lithium batteries. The lithium battery may explode if mistreated. Do
not disassemble it or dispose of it in fire.
Replace the battery with a Sony CR2032 lithium battery. Using a type of battery other than a CR2032 may present a
risk of fire or explosion.
Page 105
About Handling the Computer System
Your computer uses high-frequency radio signals and may cause interference to radio or TV reception. If this occurs,
relocate the computer a suitable distance away from the TV or radio equipment.

Do not place your Sony computer in a location subject to:

Heat sources, such as radiators or air ducts

Direct sunlight

Excessive dust

Mechanical vibration or shock

Strong magnets or speakers that are not magnetically shielded

Ambient temperature of more than 95ºF (35ºC) or less than 50ºF (10ºC)

High humidity, moisture, or rain

Do not place electronic equipment near your computer. The computer's electromagnetic field may cause a
malfunction.

Provide adequate air circulation to prevent internal heat build-up. Do not place your computer on loose surfaces
(such as rugs or blankets) or near materials (such as curtains or draperies) that may block its ventilation slots.
Leave a space of at least 8 inches from the back panel of your computer.

Clean the cabinet with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution. Do not use
any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as it may damage the finish of
your Sony computer.

Should any solid object or liquid fall into the cabinet, keyboard, or mouse, shut down your computer and then
unplug it. You may want to have the computer checked by qualified personnel before operating it any further.

Use only specified peripheral equipment and interface cables; otherwise, problems may result.

Do not use cut or damaged connection cables.

Always switch the power off before connecting your computer to peripheral equipment; otherwise, damage may
occur to the integrated circuits in your computer.

Your computer, keyboard, and mouse consist of high-precision electronic parts. Do not drop them or bump them
against other objects.

Your Sony computer will not work with party lines, cannot be connected to a coin-operated telephone, and may not
work with multiple telephone lines or a private branch exchange (PBX).

If the telephone company makes a service call to your home or office and determines that your computer is
responsible for the problem, the telephone company may bill you for the service call. If you do not disconnect your
computer when it is adversely affecting the telephone line, the telephone company has the right to disconnect your
service until you correct the problem.
Moisture condensation
If your computer is brought directly from a cold location to a warm one, moisture may condense inside your computer. In
this case, allow at least an hour before turning on your computer. If any problem occurs, unplug your computer, and contact
your Sony Service Center.
The hard disk drive

Your computer's hard disk has 5 GB allocated to a special recovery partition. This hard disk space is not available for
use. See the section, Using the VAIO Recovery Wizard for more information about hard disk drive partitions.

Do not place the computer in a location that is subject to vibration or shock.

Do not move the computer during operation.

Do not subject the computer to sudden changes in temperature.
Page 106

Do not turn off the power while the computer is accessing the hard disk drive.
The optical disc drives
Your computer is equipped with two optical disc drives that have a drive eject button on the drive door.

After pushing the eject button, wait for the drive to stop reading the CD. It may take a few moments for the drive
tray to eject.

Gently push the drive tray in, when closing the optical drive door. Do not force the door or handle roughly.

After closing the drive door, wait a few moments for the drive to begin reading the CD.
Page 107
About Handling a Monitor (Display)

Do not change the display refresh rate to 85 Hz, as DVD playback and the DVgate software may not function
correctly. Sony recommends that you keep your display at the preset, optimal refresh rate (75 Hz).

Do not place the display near a strong magnetic force.

Do not block the ventilation slots on the display.

Using the computer in low temperature conditions may produce a residual image on the screen. This is not a
malfunction. When the computer returns to normal temperature, the screen returns to normal.

A residual image may appear on the screen if the same image is displayed for a lengthy period of time. The image
disappears after a period of time. You can use a screen saver to prevent residual images.

The screen becomes warm during operation. This is normal and does not indicate a malfunction.
Page 108
About DVD, CD, and Floppy Disk Media
Handling CD or DVD media

Do not touch the surface of the disc.

Do not drop or bend the disc.

Do not use adhesive labels to identify the disc. The label may come off while the disc is in use in the optical drive
and damage the drive.
Cleaning CD or DVD media

Fingerprints and dust on the surface of a disc may cause read errors. Proper care of the disc is essential to maintain
its reliability. Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray, as
they may cause damage to the disc.

For normal cleaning, hold the disc by its edge and use a soft cloth to wipe the surface from the center out.

If the disc is badly soiled, moisten a soft cloth with water, wring it out well, and use it to wipe the surface of the disc
from the center out. Wipe off any remaining moisture with a dry soft cloth.
Handling floppy disks1

Do not open the shutter manually and touch the surface of the floppy disk.

Keep floppy disks away from magnets.

Keep floppy disks away from direct sunlight and other heat sources.
1
T he V A I O "W" s eries c omputer is not equipped with a floppy dis k drive. Y ou c an purc has e a floppy dis k drive s eparately.
Page 109
Support Options
Sony provides several options to help solve common problems or to locate technical support for your VAIO® computer. This
section describes all available resources and offers suggestions on how to access this information for maximum results.

Immediate Help and Support

Software Help and Support

Contacting Sony for Help and Support
Page 110
Immediate Help and Support
You can locate helpful information immediately by consulting your hard copy guides and supplements, or by accessing the
online Computer User Guide and the individual software Help files.
Your computer is supplied with these support options:

VAIO® Computer Quick Start — The Quick Start contains information on how to set up your computer quickly and
easily. You can find instructions on how to plan an ergonomic work space, connect power cords, cables and
peripheral devices, register your computer with Sony, and establish a dial-up connection to the Internet. The Quick
Start can also provide troubleshooting support, if problems occur.

VAIO Computer User Guide — The online User Guide1 provides information about configuring, maintaining, and
upgrading your computer. This support resource offers a variety of available topics, enabling you to quickly view
specific information using context-sensitive search features.
To access the online User Guide:

1.
Click Start in the Windows ® taskbar
2.
Click Help and Support. The VAIO Help and Support Center menu appears.
3.
Click VAIO User Guide.
Specifications — The online specifications sheet lists the hardware configuration and preinstalled software
applications of your VAIO computer. You can view your system's processor speed, determine the amount of installed
memory, identify optical drive specifications, and more.
To access the online specification sheet:

1.
Click Start in the Windows taskbar and click Help and Support.
2.
From the VAIO Help and Support Center, click VAIO User Guide.
3.
Click Welcome from the menu displayed in the right frame.
4.
Locate the link in the text, "View the VAIO® Computer Specifications..."
Preinstalled software Help files2 — Each preinstalled software application provides online Help that describes the
software's features. In these Help files, you can find tutorials that teach you to use the software and locate
troubleshooting support, should problems occur.
To access software Help files:
1.
Click Start in the Windows taskbar and point to All Programs. A submenu appears, listing all preinstalled
software applications.
2.
Click the desired software application.3 The software's main window appears.
3.
From the menu bar, click Help. The Help file appears.
1
A hardc opy vers ion of the V A I O C omputer U s er Guide is provided with s elec ted models .
2
A hardc opy s oftware manual may available for c ertain s oftware applic ations .
3
Y ou c an loc ate the online H elp files for Sony s oftware applic ations by pointing to the individual applic ation's ic on and s elec ting H elp from the s ubmenu.
Page 111
Software Help and Support
When you have questions about your computer and the preinstalled software, check with these software publishers to
access troubleshooting support from the publisher's Web site, by e-mail, or by telephone.
Your computer may not be supplied with all of the software discussed in this section, depending on the system
configuration you purchased. To view the specific software preinstalled on your computer, see the online specifications
sheet.
Adobe® Acrobat® Reader®, Photoshop® Elements (On selected models), Premiere® LE (On selected models)
(Adobe Systems Inc.)
Web site
http://www.adobe.com/
phone
206-675-6126 (fee-based support)
fax
206-628-5737
e-mail
[email protected]
hours
M-F, 6 AM-5 PM PST
Adobe® Photoshop® Elements (Trial Version available on selected models)
(Adobe Systems Inc.)
Web site
http://www.adobe.com
America Online®
(America Online, Inc.)
Web site
http://www.aol.com
phone
800-827-6364
hours
7 days a week, 24 hours a day
EarthLinkSM Total Access®
(EarthLink, Inc.)
Web site
http://help.earthlink.net/techsupport
phone
800-395-8410
e-mail
[email protected]
hours
7 days a week, 24 hours a day
Microsoft® Windows® XP, Internet Explorer, Outlook® Express, Works (On selected models) Office XP (On selected
models)
(Microsoft Corp.)
Web site
http://www.sony.com/pcsupport
McAfee Antivirus
(Norton Utilities.)
Page 112
Web site(s)
http://www.mcafee.com/support/default.asp
phone (900) 733-8255 Phone support is $2.95 per minute.
hours 5AM-11PM PST
Quicken® 2003 New User Edition
(Intuit Inc.)
Web site
http://www.intuit.com/support
phone 900-555-4932; 800-644-3193*
hours M-F, 5 A.M.-5 P.M. (Pacific time)
* Support from 9 0 0 -5 5 5 -4 9 3 2 is fee-bas ed. Support from 8 0 0 -6 4 4 -3 1 9 3 is automated and free of c harge.
RecordNow DX
(VERITAS Software Corp.)
Web site
http://www.easy.co.jp/jrndx/sony
Sony Software
(Sony Electronics Inc.)
Web site
http://www.sony.com/pcsupport
WordPerfect® Office 2002 Standard (On selected models)
(Corel Corp.)
Web site
http://www.corel.com
phone 613-274-0500
hours M-F, 8:30 A.M.-7:30 P.M. (Eastern time)
Sony Service Center
To locate the Sony Service Center nearest you, visit the Sony Computing Support Web site at
http://www.sony.com/pcsupport. Computing support is free of charge for 90 days after the original date of purchase.
Page 113
Contacting Sony for Help and Support
If the information provided with your VAIO® computer does not provide an immediate solution, or you would like to get
direct support, contact Sony online or by telephone.
Sony Computing Support Web site
Online help and support are available 24 hours a day, seven days a week, when you visit the Sony Computing Support
Web site. You can access the Web site at http://www.sony.com/pcsupport.
The Sony Computing Support Web site provides

Information about your specific model computer, such as
1.
hardware and software specifications.
2.
upgrade and maintenance procedures.
3.
safety and legal information.
4.
quick solutions to common problems.

An automated tutorial library that contains interactive, easy-to-understand lessons on using your computer's
hardware and software features.

Links that enable you to
1.
quickly find the nearest Sony service center locations.
2.
arrange for repairs or check repair status.
3.
review warranty information.
4.
e-mail your question or comments to the Sony Customer Information Services Center.
5.
check pricing and availability for products, accessories and parts, as well as purchase online.
6.
access the Sony Solutions Knowledge Base, a database that contains answers to many frequently asked
questions.
Sony Customer Information Services Center
If other support options do not resolve your issue, you can contact a Sony Support representative directly.
Before making a call to the Sony Customer Information Services Center, have this basic information readily available.
1.
VAIO® computer system type
2.
Model number
3.
Serial number1
4.
Operating system
5.
Hardware feature or software application that has a problem. (See Software Help and Support for the
appropriate software contact information.)
6.
Brief description of the issue.
For VAIO® computers purchased in the U.S. and Canada, contact a Sony Support representative at 1-888-476-6972.
1
T he s erial number is loc ated on the bac k panel of your c omputer. T he s erial number is on a white barc ode label.
Page 114
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
