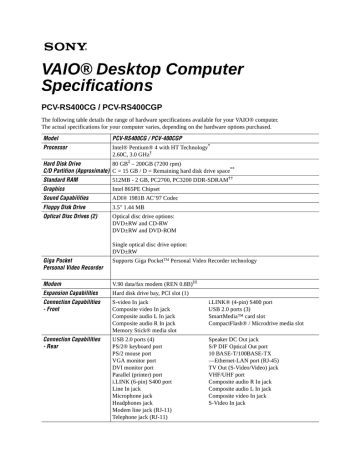

Sony PCV-RS400CGP Specifications

Sony PCV-RS400CGP Specifications
VAIO® Desktop Computer
Specifications
PCV-RS400CG / PCV-RS400CGP
The following table details the range of hardware specifications available for your VAIO® computer.
The actual specifications for your computer varies, depending on the hardware options purchased.
Model
PCV-RS400CG / PCV-400CGP
Processor
Intel® Pentium® 4 with HT Technology*
2.60C, 3.0 GHz†
Hard Disk Drive
80 GB‡ – 200GB (7200 rpm)
C/D Partition (Approximate) C = 15 GB / D = Remaining hard disk drive space**
Standard RAM
512MB - 2 GB, PC2700, PC3200 DDR-SDRAM††
Graphics
Intel 865PE Chipset
Sound Capabilities
ADI® 1981B AC’97 Codec
Floppy Disk Drive
3.5" 1.44 MB
Optical Disc Drives (2)
Optical disc drive options:
DVD±RW and CD-RW
DVD±RW and DVD-ROM
Single optical disc drive option:
DVD±RW
Giga Pocket
Personal Video Recorder
Supports Giga PocketTM Personal Video Recorder technology
Modem
V.90 data/fax modem (REN 0.8B)‡‡
Expansion Capabilities
Hard disk drive bay, PCI slot (1)
Connection Capabilities
- Front
S-video In jack
Composite video In jack
Composite audio L In jack
Composite audio R In jack
Memory Stick® media slot
i.LINK® (4-pin) S400 port
USB 2.0 ports (3)
SmartMedia™ card slot
CompactFlash® / Microdrive media slot
Connection Capabilities
- Rear
USB 2.0 ports (4)
PS/2® keyboard port
PS/2 mouse port
VGA monitor port
DVI monitor port
Parallel (printer) port
i.LINK (6-pin) S400 port
Line In jack
Microphone jack
Headphones jack
Modem line jack (RJ-11)
Telephone jack (RJ-11)
Speaker DC Out jack
S/P DIF Optical Out port
10 BASE-T/100BASE-TX
—Ethernet-LAN port (RJ-45)
TV Out (S-Video/Video) jack
VHF/UHF port
Composite audio R In jack
Composite audio L In jack
Composite video In jack
S-Video In jack
VAIO® Desktop Computer Specifications
Model
PCV-RS400CG / PCV-400CGP
Supplied Accessories
VAIO® keyboard
PS/2® wheel mouse
Stereo speakers (PCVA-SP3A)
Power cable
Modem cable
Power Requirement
295 W maximum
Power Source
100 - 240 V 1.7 - 4.4A 50/60 Hz
Dimensions
7.2" (w) x 15.6" (h) x 14.9" (d)
(185mm x 407 mm x 387 mm)
Weight
26.5 lbs. (12 kg)
Operating Temperature
50° F to 95° F (+10° C to 35° C)
Video adapter
Infrared receiver (PCVA-IR5U)
Remote control (PCVA-GP4U)
TV coaxial cable
AA batteries (2)
* Hyper-Threading Technology requires a computer system with an Intel® Pentium® 4 processor supporting Hyper-Threading Technology
and an HT Technology enabled chipset, BIOS, and operating system. Performance varies, depending on the specific hardware and software
in use. Go to http://www.intel.com/info/hyperthreading/ for more information, including details on which processors support HT
Technology.
† GHz denotes microprocessor internal clock speed; other factors may affect application performance.
‡ GB means one billion bytes when referring to hard drive capacity. Accessible capacity may vary.
** Approximately 5 GB is allocated for hard disk drive recovery.
†† The amount and speed of the installed memory varies, depending on the hardware configuration purchased.
‡‡ Maximum speed for faxing is 14.4 Kilobits per second (Kbps). Your modem is capable of downloading at 53 Kbps using 56K/V.90. Your
online service or Internet Service Provider may not support this technology or operate at this speed.
Specifications are subject to change without notice.
