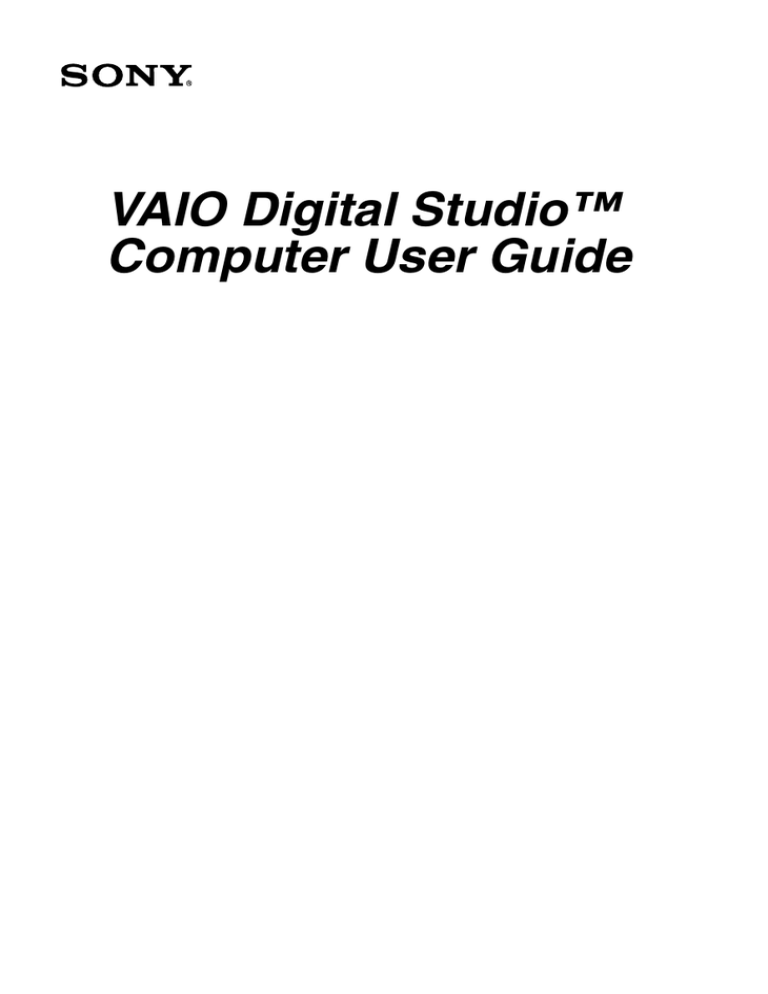

VAIO Digital Studio™
Computer User Guide
Contents
Welcome.......................................................5
Locating Controls And Connectors...........7
Front Panel Overview..................................................7
Back Panel Overview ................................................10
VAIO Action Setup ....................................13
Shortcut Keys ............................................................13
To Change the Sony Software Window Design........15
VAIO AV Applications ...............................17
Overview of Preinstalled Software ...........................18
DigitalPrint Software.................................................21
DVgate Software .......................................................29
MovieShaker Software ..............................................31
PictureGear Software ................................................39
Smart Capture............................................................42
SonicStage Software .................................................51
VisualFlow Software.................................................58
Additional Software Information ..............................60
3
VAIO Digital Studio Computer User Guide
Configuring Your VAIO Computer...........61
Hard Disk Drive Partition ......................................... 61
i.LINK (IEEE1394) Compatibility ........................... 62
System, Application,
And Driver Recovery CD(s) ......................65
To Use the System Recovery CD(s) ......................... 66
To Use the Application Recovery CD(s) .................. 68
To Use the Driver Recovery CD............................... 69
Troubleshooting........................................71
Topics........................................................................ 71
Notes on Use ............................................................. 85
Resources .................................................................. 90
Index...........................................................93
4
Welcome
Thank you for purchasing your Sony VAIO® computer! Your new
computer is a superb blend of high technology and easy-to-use
functionality. The information provided here is designed to help you to
become familiar with the hardware and software applications included
with your system.
5
VAIO Digital Studio Computer User Guide
6
Locating Controls And
Connectors
Your computer may not be equipped with all of the hardware features
listed in this section. To view the specific hardware configuration for your
system, see the Specifications sheet.
Front Panel Overview
The front panel of your VAIO Digital Studio™ Computer enables access to the
optical and floppy disk drives. On certain models, the front panel also provides
access to Giga Pocket Personal Video Recorder jacks and ports, Universal Serial
Bus (USB), and i.LINK® ports to connect compatible peripheral devices.
✍ i.LINK is a trademark of Sony used only to designate that a product contains an
IEEE1394 connection. The i.LINK connection may vary, depending on the software
applications, operating system, and compatible i.LINK devices. All products with an
i.LINK connection may not communicate with each other.
Please refer to the documentation that came with your compatible i.LINK device for
information on operating conditions and proper connection. Before connecting
compatible i.LINK PC peripherals to your system, such as an optical or hard disk drive,
confirm their operating system compatibility and required operating conditions.
7
VAIO Digital Studio Computer User Guide
Front panel (Model equipped with Giga Pocket features)
1
Optical drive 1
See the Specifications sheet for optical drive information.
2
Optical drive 2
See the Specifications sheet for optical drive information.
3
Floppy disk drive
Reads and writes data from and to a 3.5-inch floppy disk.
4
Floppy disk drive access indicator light
Lights in green while reading and writing data from and to a floppy
disk.
5
Optical drive access indicator light
Lights in amber while reading and writing data from and to the optical
drives.
8
Front Panel Overview
6
Hard disk drive access indicator light
Lights in amber while reading and writing data from and to the hard
disk.
7
Power switch and indicator light
Turns the computer on and off. The indicator light is blue while the
power is on and amber when the computer is in Stand by mode.
8
(For models equipped with Giga Pocket features)
S-video In port
Connection for an S-video cable (optional).
Video In jack
Connection for a video cable (supplied).
Audio L In jack/Audio R In jack
Connection for an audio cable (supplied).
9
Optical drive 1 eject button
Ejects a disc from Optical drive 1.
10
Optical drive 2 eject button
Ejects a disc from Optical drive 2.
11
Memory Stick media slot
Reads and writes data from and to a Memory Stick® media.
12
Floppy disk eject button
Ejects a floppy disk from the floppy disk drive.
13
Universal Serial Bus (USB) ports (2)
Connections for compatible USB devices.
14
i.LINK (4-pin) port (IEEE1394)
Connection for a compatible digital device.
✍ For your convenience, your computer includes Giga Pocket, USB, and i.LINK ports and
jacks on both the front and back panels. (The 4-pin i.LINK port is located on the front
panel and the 6-pin i.LINK port is located on the back.)
9
VAIO Digital Studio Computer User Guide
Back Panel Overview
The back panel of your computer contains the ports for supplied and optional
accessories. The icons on the back panel locate and identify the ports on your
computer.
Back panel (Model equipped with Giga Pocket features)
KEYBOARD MOUSE
USB
NETWORK
ACT
LINK
PRINTER
OPTICAL
OUT
i.LINK
S400
HEADPHONES
SERIAL
LINE IN
MIC
4 MONITOR
3
VIDEO
2 OUTPUT
S VIDEO
VIDEO 1
INPUT
S VIDEO
/VIDEO
/VIDEO VHF
/UHF
AUDIO
AUDIO
1
1
2
3
4
10
LINE
Mouse port
Connection for a PS/2® mouse.
Keyboard port
Connection for a PS/2 keyboard.
Ethernet port
10BASE-T/100BASE-TX Fast Ethernet interface.
(The port marked with
(Network) is for LAN connections only.)
Universal Serial Bus (USB) port
Connection for a compatible USB device.
Back Panel Overview
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Printer port
Connection for a parallel device, such as a printer or scanner.
S/P DIF optical out port
Connection for a digital audio or optical device.
i.LINK 6-pin port (IEEE1394)
Connection for a compatible digital device such as a Sony Digital
Handycam® camcorder.
Serial port
Connection for a compatible serial device, such as a digital still camera.
Headphones jack
Connection for the supplied speakers or optional headphones.
Line In jack
Connection for an audio device.
Microphone jack
Connection for a microphone (optional).
Monitor port
Connection for a standard display.
(For models equipped with Giga Pocket features)
Audio Out jack
Connection for an audio cable (supplied).
Video/S-video Out port
Connection for a video cable adapter (supplied) or an S-video cable
(optional).
(For models equipped with Giga Pocket features)
Audio In jack
Connection for an audio cable (supplied).
Video/S-video In port
Connection for a video cable adapter (supplied) or an S-video cable
(optional).
AC Input port
Connection for the supplied power cord.
(For models equipped with Giga Pocket)
VHF/UHF port
Connection for a coaxial cable (supplied).
Telephone jack
Connection for a phone cable (optional) to the computer.
Modem line jack
Connection for the modem (supplied) cable to the wall jack.
11
VAIO Digital Studio Computer User Guide
12
VAIO Action Setup
VAIO Action Setup manages the settings for your computer’s Shortcut
keys (S Keys).
Shortcut Keys
The programmable S Keys are linked with the following applications as their
default settings:
❑ S1 — Outlook® Express
❑
❑
❑
S2 — Internet Explorer
S3 — SonicStage™
S4 — PictureGear™
❑
S5 — MovieShaker™
❑ S5 — Giga Pocket™ Personal Video Recorder (For models equipped
with Giga Pocket)
❑
S6 — Help/Demo
You can reprogram the S keys to launch other applications.
13
VAIO Digital Studio Computer User Guide
Changing the settings of the S keys
1
Click Start in the Windows taskbar and select All Programs.
2
Select VAIO Action Setup, then click VAIO Action Setup.
✍ You can also double-click
the VAIO Action Setup icon, located in the Windows
taskbar, to launch VAIO Action Setup.
3
Click the S Key you want to change.
4
From the Select Application dialog box, click the option for the desired type
of function. The corresponding applications appear in the list box on the
right.
✍ You can drag an application to place it into the list box.
5
The Confirmation Application Name window appears. Click Next.
6
You may now type a new name and description, if desired. Then click
Finish.
14
To Change the Sony Software Window Design
To Change the Sony Software Window Design
You can select from different window designs for your Sony software and create
your own personal computing environment.
Changing the window design
1
Click Start in the Windows taskbar and select the Control Panel.
2
Click Other Control Panel Options.
3
Click UI Design Selector.
4
Click << or >> and select the desired design.
5
Click Apply.
6
The “UI Design Selector” window design changes. The window design for
your Sony software will match the “UI Design Selector” window.
7
To try another selection, click << or >>, then click Apply.
8
When you have made your selection, click OK. The UI Design Selector
closes and the Sony software window design displays.
✍ You may only use this feature with compatible UI Design Selector software.
15
VAIO Digital Studio Computer User Guide
16
VAIO AV Applications
Your VAIO® computer has a preinstalled collection of audio and video
(AV) applications that make it easy to use advanced multimedia
technology. This section describes the VAIO AV applications.
✍ Your computer may not be supplied with all of the software applications listed,
depending on the system configuration you purchased.
Your computer’s visual presentation of the VAIO AV applications may not appear
exactly as shown in this section, depending on the specific computer model you
purchased.
17
VAIO Digital Studio Computer User Guide
Overview of Preinstalled Software
DigitalPrint
Sony Electronics Inc.
This image management software makes it fun and easy to edit, import, and
organize your digital pictures in a photo album for rich digital printing to any
standard color laser or inkjet printer. DigitalPrint can also be used to make
custom CD labels for your audio CDs.
DVgate™
Sony Electronics Inc.
Connect a digital video camera recorder to the i.LINK® port and capture your
own video clips and still images. You can edit clips from your video, add new
clips, and combine clips into new movie segments. You can also save your
images in a variety of popular file formats.
Media Bar® DVD Player
Sony Electronics Inc.
Media Bar DVD Player is created especially for high-quality DVD playback.
You can enjoy the superior digital video quality and the effects features. You can
rewind or fast-forward scenes from the DVD Player monitor as you would with
any ordinary DVD player, to easily find the scene you want to view. Typical
DVD playback features are available, such as multiple angles, audio language
tracks, and subtitles. Media Bar DVD Player seamlessly integrates a premium
audio/visual experience with an easy-to-use software interface.
MovieShaker™
Sony Electronics Inc.
Sony’s original MovieShaker software creates personal movies that have
transitions, background music, and text. Just import your video clips and “shake”
with a click of the mouse. Your personal movies are easy to create and fun to
share with family and friends.
PictureGear™
Sony Electronics Inc.
This image management software displays images from your hard drive, a Sony
digital still camera, or a Sony Mavica® camera. The images appear in a
convenient light-table format, so that you can easily view the contents of an
entire folder.
18
Overview of Preinstalled Software
Smart Capture
Sony Electronics Inc.
Smart Capture is a fun new way to send multimedia messages via e-mail. Smart
Capture manages the i.LINK® connection between your notebook and a Sony
Digital Handycam® Camcorder that supports the i.LINK interface. It allows you
to capture compressed video or still images and save them to your hard disk drive
or share via e-mail. A smart solution for computer, digital audio/video and
network convergence.
SonicStage™
Sony Electronics Inc.
This new jukebox application adds a host of new features to its predecessor,
OpenMG™ Jukebox. Continuing to take advantage of Sony’s copyrightprotected ATRAC3™ format for high-quality digital audio storage, SonicStage
sports a new music visualizer, a sleek new player skin design, audio CD burning
capability, and a parametric equalizer for fine-tuning audio playback.
VisualFlow™
Sony Electronics Inc.
VisualFlow software is a state-of-the-art Sony multimedia browser designed
specifically for Memory Stick® media. It displays any still picture, movie or
sound file stored in a Memory Stick media in a visually pleasing, artistic manner.
VisualFlow software not only plays a selected movie or sound file, but also
enables playback of files by other applications like PictureGear™ software or
Memory Stick Slideshow.
19
VAIO Digital Studio Computer User Guide
20
DigitalPrint Software
DigitalPrint Software
DigitalPrint is designed to creatively manage your digital pictures. With its
easy-to-use features, you can quickly load images from your digital camera or
camcorder, print high-quality photos, and make personalized photo albums and
labels to share with friends and family.
DigitalPrint main window
Using PhotoCapture
Capture and import your digital pictures from your digital camera or camcorder
into your computer. You can select your favorite pictures and place them in
handy folders for future use.
1
Click
(Import) to open the PhotoCapture window. Your connected
digital camera, camcorder, or Memory Stick® media is indicated in the
window.
✍ Properly connect your digital camera, camcorder, or insert your Memory Stick media
in your computer.
21
VAIO Digital Studio Computer User Guide
PhotoCapture window
2
Click the camera icon to open the Enter Photo Folder Name dialog box. You
can enter a name for a new folder or click Select Photo Folder to import your
pictures to an existing folder. Click OK.
Enter Photo Folder Name dialog box
22
DigitalPrint Software
3
Click Capture to capture still images. You can preview a thumbnail version
of your pictures in the selection view window.
Capture Pictures from Video window
4
Select the desired pictures, and click Get Pictures. The PhotoCapture picture
editor window appears.
5
Click View to see an enlarged version of a selected picture. You can use
(Rotate) to change the position of a selected picture. Click Delete to
eliminate any unwanted pictures.
PhotoCapture editing window
23
VAIO Digital Studio Computer User Guide
Using PhotoCollection
You can select and print your favorite digital pictures, using your computer and
home printer.
1
Click
(Photo) to open the PhotoCollection window. A list of folders is
displayed on the left side of the window, with the folder contents displayed
as thumbnail pictures on the right.
PhotoCollection window
2
Select the desired folder. From the thumbnail view, click to select the
pictures you want to print.
3
Click Photo Print at the top of the window. Select the number of prints you
want to make, using the scroll arrows. Click OK.
4
Select the paper, based on the picture positioning desired. A layout preview
is displayed on the left side of the window.
5
Use the configuration buttons and drop-down lists to select the printer and to
set margins.
24
DigitalPrint Software
Printer and Paper selection window
6
Click Print All to print all pages, or click “Print the selected page only” to
print a specific page of photos.
Using PhotoDecor
You can decorate your favorite photos with clip art, stamps, or your own drawing
talent. Add, remove, and change your designs to create your own unique photo
art.
1
Click
(Edit) to open the PhotoDecor - New PhotoDecor window. A list
of folders is displayed on the left side of the window, with the folder contents
displayed as thumbnail pictures on the right.
PhotoDecor-New PhotoDecor window
25
VAIO Digital Studio Computer User Guide
2
Select the desired folder. From the thumbnail view, click to select the
pictures you want to decorate. The PhotoDecor editing window appears.
3
Use the decoration features on the right side of the window by clicking on
the desired decoration icon, and then dragging the decoration onto your
photo.
4
Click Print when your photo is ready to be printed. You can save your
decorated pictures before printing. Name the new picture, and click Save.
✍ The default location for your saved decorated pictures is in the Decorated Photos
folder, which can be viewed from the PhotoDecor - New PhotoDecor window.
Using PhotoAlbum
Capture your special photos in an organized photo album. You can share your
custom-made photo albums with friends and family.
1
Click
(Album) to open the PhotoAlbum - New Album window.
PhotoAlbum - New Album window
✍ If you wish to work on a previously created album, do not click Create New Album.
Instead, select the desired album from the Album Collection view on the right side of
the window.
26
DigitalPrint Software
2
Click Create New Album. The Select Photo window appears.
3
Select the photos you want to include in your album from the available
folders displayed. Click List to select individual pictures from each folder.
The Select Design window appears.
4
Select a design template for your album. Use the scroll bar to see all
available designs. When you have selected the design, the Select Layout
window appears.
5
Select a page layout for your album. A preview of your selected design and
page layout is displayed. Scroll through the album using the book icons at
the bottom of the window.
6
Click Page List to edit your album. Customize your album by adding more
pictures, decorations, comments, or deleting pages.
7
You can save your album before printing by clicking Save.
8
Click Print. Select an album type, and click Print again.
✍ For information on stitching your album, click Stitch Album. See the online Help file
for more details.
Using LabelMaker
Use LabelMaker to design original labels to personalize your media, such as
Memory Stick® media, CDs, or video cassettes.
1
Click
(Label) to open the Label - New Label window.
Label - New Label window
27
VAIO Digital Studio Computer User Guide
2
Click an icon to select a media type. A new window opens.
3
Click the paper layout icon. The Select Design window appears.
4
Select a design template. Use the decoration and customization features on
the right by clicking an icon and dragging it onto your template.
✍ A new window appears, enabling you to list the contents of your audio or video media.
You can create a song or video list, depending on the type of media label being
created.
Design Edit window
5
Click Print to complete the label making process. Use the configuration
buttons and drop-down lists to select the printer and to set margins.
✍ See the online Help for detailed information on using DigitalPrint software.
28
DVgate Software
DVgate Software
Connecting a digital video camcorder
Turn off the power to your digital video camcorder before connecting it to your
computer. After connecting the device, turn its power back on. You do not need
to turn off the computer when connecting the camcorder.
To use DVgate™ software with a digital video camcorder
❑
Do not use DVgate™ software when the connected digital video device is in
Timer Recording mode, as this may produce a malfunction in the device.
❑
Video captures larger than 2 GB (9 minutes and 30 seconds) are
automatically continued in a second file.
❑
You can record stereo audio (stereo 1) while capturing video, or you can add
audio on the stereo 2 track after capturing the video data.
❑
You cannot use different audio modes on the same tape. Perform a separate
capture for each audio mode you wish to use.
DVgate software does not support hard disk compression. Do not use disk
compression if you are planning to work with DVgate software.
Title data is saved in the flash memory of a digital video camera and is not
transferred to tape by DVgate software.
❑
❑
❑
❑
❑
❑
❑
Disable your screen saver program to avoid interruption during your capture
sessions.
The drop frame compensation feature does not provide accurate
compensation adjustments for tapes recorded in LP mode.
The information displayed by the capture progress indicator may not be
accurate for tapes that are recorded using a mixture of both SP and LP
modes.
Keep the video head of your digital video device properly cleaned.
Anomalies that you see in captured data may be due to dust or other particles
on the video head.
The last frame captured is one frame before your selected [OUT] point. The
frame you see immediately after clicking the [OUT] button is not captured.
29
VAIO Digital Studio Computer User Guide
To use DVgate software to record AVI files to tape
✍ You can record only AVI files. MPEG files cannot be recorded.
❑
Do not use DVgate™ software when the connected digital video device is in
Timer Recording mode, as this could produce a malfunction in the device.
❑
❑
Avoid recording problems, such as a single frame appearing in multiple
frames, by closing other applications on your system while recording.
You cannot use multiple audio modes on the same tape. If you have AVI files
that use different audio modes, the files cannot be recorded at the same time,
but must be recorded separately.
❑
The DVgate software does not support AVI files that are smaller than 4 MB.
❑
The DVgate software does not support hard disk compression.
To maximize recording capabilities, video and audio data are not available
while you are recording.
❑
❑
30
If the DVgate software indicates that frames are dropped, try closing all open
applications or defragmenting your hard drive.
MovieShaker Software
MovieShaker Software
MovieShaker™ software can be used to create fun and innovative movies
without any previous knowledge of film editing. In a few simple steps, video
files can be made from still images with added special effects and music. You can
save your personal video creation in a format that is compatible with most
computers.
MovieShaker main window
Working panel
Shake
tab/tray
Import clip tray
Edit
tab/tray
Capture
tab/tray
Effect tray
Story Board tray
31
VAIO Digital Studio Computer User Guide
Creating movies with MovieShaker software
Using your imported clips, you can create a short movie using the Shake feature.
The Shake feature selects clips from the Story Board tray, adds effects, and
combines them randomly into a 30-second movie. After you “Shake” your video,
you can edit it by adding effects and text, by adjusting the color and contrast, and
by modifying its length.
Importing images and sound clips
1
Click Import. The Import file browser window appears.
2
Find the clips you want to add.
3
Click the clips. The files are added to the Import clip tray.
4
Repeat this process to gather each of the images and video and sound clips
you want to use in your movie.
✍ You can delete a clip from the Import clip tray by dragging the clip’s icon to the trash
icon located on the Edit tray of the working panel.
Importing image or sound files that are over 30 seconds in length may cause
the MovieShaker software to stop responding.
32
MovieShaker Software
Using the Shake feature
1
Click the Shake tab. The Shake tray appears
2
Select a mood by clicking a face in the Shake pattern tray.
Shake tray
Shake tab
Shake
pattern tray
Shake!
button
Playback
buttons
3
Click the Shake! button. A 30-second movie is automatically generated.
4
Optional: Add text to your new movie by clicking on the Input button.
5
To preview, rewind, or fast forward your movie, use the Playback buttons.
✍ Scenes created with the Shake feature begin with a black screen in the Shake tray
window. Your scenes appear during movie playback.
You can improve the image quality produced by the Shake feature (at the cost of
longer Shake times) by turning off the “Shorten the Shake time” feature in the General
panel of the Setting dialog box. See the “Menu reference” section of the online Help
file for details.
33
VAIO Digital Studio Computer User Guide
Adding effects to a scene or a clip
1
Double-click or drag the desired clip or scene to move it to the Story Board
tray.
2
Click the Effect button on the Effect tray.
Effect tray window (Effect button selected)
Effect
button
Effect
icons
Additional
effects
3
Drag the Effect icon you want to add from the Effect tray to the Effect
palette on the Edit tray.
4
Click the Play button on the Edit tray to preview the effect. The added effect
previews on the clip displayed in the Effect tray window.
✍ A preview of the added effect is displayed in the Effect tray window. You can eliminate
an effect by dragging it from the Effect palette to the trash icon on the Edit tray. See
the online Help file for more information on adjusting effect duration and replaying
clips and scenes.
34
MovieShaker Software
Adding text effects to a scene or clip
1
Double-click or drag the clip or scene to move it to the Story Board tray.
2
Click the Text button on the Editing tray.
Effects Tray (Text button selected)
3
Click the Text Setting button to create customized text. The Text Setting
dialog box appears. Enter your text, and select the font, size, color, and
positioning for your text.
4
Drag the Text effect icon you want to add from the Effect tray to the Effect
palette on the Edit tray.
5
Click the Play button on the Edit tray to preview the text effect. The clip
displays the text effect in the Effect tray window.
✍ A preview of the added text and text effect is displayed in the Effects tray window.
From the Edit tray, you can eliminate a text effect by dragging it from the Effect palette
to the trash icon. See the online Help file for more information on adjusting Text
effects.
35
VAIO Digital Studio Computer User Guide
Saving a movie
1
Verify that the movie or clips you want to save are located on the Story
Board tray.
2
Click the Export button on the Story Board tray.
3
Select the format in which you want the movie to be saved.
✍ You can click on each export format to view its description and use.
Export window
4
Click Next.
5
Confirm that you want to continue.
6
Locate the folder to which you want to save the file, name your file, and
click Save.
✍ The time required to export your movie file may vary, depending on the format
selected. See the online Help file for more information on exporting a movie.
36
MovieShaker Software
Using ImageStation online service with MovieShaker software
ImageStationSM is an online service that allows you to store your pictures and
movies on the Internet to share with family and friends. ImageStation requires an
Internet connection and registration for the Web-based service. You must be
connected to the Internet before uploading your pictures or movies using
MovieShaker and ImageStation applications.
To upload MovieShaker files
1
Locate the clips or video files that you want to upload to the ImageStation
service, and import them to the Import Clip tray.
2
Drag the desired clips or video files to the Story Board tray.
3
Click the Export button. The Export window appears.
4
Select “MPEG1 (ImageStation)” and click Next.
✍ The MovieShaker application creates a temporary file to store your images prior to
uploading to ImageStation. This file is deleted after the upload process.
5
If you are a registered member, provide your login name and password.
For first-time users, click “Register to ImageStation.” The ImageStation
registration wizard appears and guides you through the initial registration
process. Follow the on-screen instructions.
ImageStation Login window
37
VAIO Digital Studio Computer User Guide
6
When the ImageStation application on your computer connects with
ImageStation online, your files are uploaded to the Web site. The Image
Uploader window appears and displays the Internet connection and upload
status.
Image Uploader window
7
Go to http://www.imagestation.com to view your uploaded pictures or
movies. Follow the on-screen instructions to access your ImageStation
account.
✍ The ImageStation Web site may ask you to complete a full login again if your current
session is not active.
38
PictureGear Software
PictureGear Software
PictureGear™ software is a digital image management application that allows
you to view all the images stored in any directory on your computer. Thumbnail
views provide quick reminders of your pictures. Use PictureGear software to
brighten, add contrast, enhance, resize, crop, and color-correct your pictures.
Create animations, screen savers, wallpaper, still pictures from MPEG, and
HTML photo albums.
PictureGear main window
Managing your pictures
Use the Collection feature to manage your pictures.
1
From the Collection menu, click Create New Collection.
2
Enter a name for your collection, then click OK.
3
Click the Folder tab in the main window, and browse to locate your pictures.
4
Select the pictures you want to include in your collection.
5
From the Collection menu, click Add File to Collection.
6
In the Add File to My Collection message box, select the name of your
collection, and click OK.
39
VAIO Digital Studio Computer User Guide
Creating a photo album
1
Click the Folder tab in the main window and browse to locate your pictures.
2
Select the pictures you want to include in your album.
PIctureGear Album Maker window
3
From the Utilities menu, select Album Maker.
4
Choose a Design template for your album.
5
Click the “Make soon” button to create your album immediately, using the
PictureGear default settings.
40
PictureGear Software
6
Click the “Customize the design” button to add pictures, frames, text, and
effects.
Custom Album window
✍ If you select the Custom Album process, the final album is created when you click the
Finish button in the last dialog box.
Custom album “Completed” window
7
Click Save to designate the location where you want to save your album.
8
Enter a name for the target folder and click OK.
9
The PictureGear™ Custom Album feature creates the new folder in the
designated location.
41
VAIO Digital Studio Computer User Guide
Smart Capture
Smart Capture is a Sony application that manages the i.LINK® connection
between your computer and a compatible i.LINK digital camera or camcorder.
You can capture and enhance video or still images to share with your family and
friends over the Internet or through e-mail.
✍ i.LINK is a trademark of Sony used only to designate that a product contains an
IEEE1394 connection. The i.LINK connection may vary, depending on the software
applications, operating system and compatible i.LINK devices. All products with an
i.LINK connection may not communicate with each other.
Please refer to the documentation that came with your compatible i.LINK device for
information on operating conditions and proper connection. Before connecting
compatible i.LINK PC peripherals to your system, such as an optical disc drive or hard
disk drive, confirm their operating system compatibility and required operating
conditions.
Smart Capture main window
1
2
3
4
5
6
42
Smart Capture
1
2
3
Mode indicator
4
Displays the current mode (Still or
Net Movie).
Mode dial
5
Switches Smart Capture from Still
mode to Net Movie mode with a
single click of your mouse.
6
Options button
Displays the configuration options
available for either Still or Net
Movie mode.
Effects button
Displays the special effects that you
can apply to your pictures or video
clips.
Help button
Connects you directly to the online
Smart Capture Help.
Capture button
Captures your individual still
images in the same manner as a
camera. You can select different
characteristics for the Capture
button when capturing a Net Movie.
Image window
Displays the still or video image
from your digital camera or
camcorder.
The Smart Capture main window opens with a blue screen image, indicating that
there is no data input from a digital camera or camcorder. When you connect
your digital camera or camcorder to your system with an i.LINK cable and turn it
on, an image appears in the main window. Some cameras and camcorders need to
have a recording media inserted before an image can be displayed in the Smart
Capture window. Consult the manual supplied with your digital camera or
camcorder for more information.
Using Still Mode
1
Click Start in the Windows® taskbar and click All Programs.
2
Select Smart Capture and then click Smart Capture. The Smart Capture main
window appears.
3
Connect your compatible i.LINK digital camera or camcorder to your
computer with an i.LINK cable (optional). An image appears in the Smart
Capture main window.
4
Check that the Mode dial is set to Still. Click the Mode dial to switch
between Still mode and Net Movie mode.
43
VAIO Digital Studio Computer User Guide
5
Click the Options button to view the available options for your still image
capture. The Still Image Options window appears.
Still Image Options window
The Still Image Options window has four tabs:
❑
❑
❑
❑
6
Capturing Mode — You can choose between Normal, Self-timer, or
Panorama Capture modes.
Image Size — Select the image size, horizontal by vertical, in pixels.
Image Quality — Set the quality of your pictures as they are being
saved by selecting Fine, Standard, or Economy image quality.
Destination — Select a file destination for your pictures.
Click the Effects button to select a special image effect. The Effect Settings
window appears. Use the drop-down list to view and customize the available
effects.
✍ You can use a different special effect for each picture, or you can remove all special
effects by clicking the No Effects button.
Effect Settings window
44
Smart Capture
To capture a picture in Still mode
1
Use your digital camera or camcorder to locate the image you want to
capture. When you see the desired image in the Smart Capture window, click
the Capture button. The Still Viewer window appears. You can capture one
picture or several pictures at a time.
Still Viewer window
2
Click the arrows or drag the scroll bar to view the pictures. As each image is
captured, it appears in the Still Viewer window with a text balloon to add
your comments and an identifying number in the viewer queue.
To manage pictures in Still mode
From the Still Viewer window, you can perform various functions using the task
buttons:
❑ Delete — Discard any or all of your still images by clicking the Delete
button. Select a single image or all and the image(s) is “torn” and removed
from the Still Viewer window.
❑ Upload — Send your still images online to the ImageStation Web site to
share with your family and friends. The ImageStation service stores your
still images online when you become a registered user. See “Using
ImageStation with Smart Capture software.”
❑
Mail — E-mail your still images to your family and friends. Click the Mail
button and your e-mail application launches with a new message window
containing the still image as an attachment.
❑
Save — Click the Save button to save your still image in a variety of
formats, to a location of your choice.
45
VAIO Digital Studio Computer User Guide
✍ You must be connected to the Internet before attempting to upload or e-mail your still
images or videos.
Using Net Movie Mode
1
From the Start button in the Windows taskbar, select All Programs, select
Smart Capture, and then click Smart Capture. The Smart Capture main
window appears.
2
Connect your compatible i.LINK digital camcorder to your computer with
an i.LINK cable (optional). An image appears in the Smart Capture main
window.
3
Verify that the Mode dial is set to Net Movie. Click the Mode dial to switch
between Still mode and Net Movie mode.
4
Click the Options button to view the available options for your movie
capture. The Recording Options window appears.
Recording Options window
Format tab view
Capture Button tab view
The Recording Options window has three tabs:
❑
46
Format — You can adjust the compression rate for your movies in
MPEG1 format or choose the AVI option for no compression. You can
also set the maximum recording time for your movie capture.
Smart Capture
5
❑
Destination — Select a file destination for your movies when recording
video clips.
❑
Capture Button — Set the characteristics of the software’s on-screen
Capture button. You can start and stop recording by clicking the Capture
button (this is the default characteristic). You can select Anti-Ground
Shooting, which allows recording to occur only while you click and
hold the Capture button. Recording will stop when you release the
button.
Click the Effects button to select a special image effect. The Effect Settings
window appears. Use the drop-down list to view and customize the available
effects.
✍ You can remove all special effects by clicking the No Effects button.
To capture a movie in Net Movie mode
1
Use your digital camcorder to locate the view(s) you want to capture. When
you see the desired view in either the Smart Capture window or your
camcorder’s viewfinder, click the Capture button to begin recording your
movie. The Movie Player window appears.
2
Click the Capture button when you have finished recording your movie and
the first frame of your movie appears in the Movie Player window. You can
record a movie for approximately 30 seconds. The Movie Player feature
automatically stops recording when this time limit is reached.
Movie Player window
47
VAIO Digital Studio Computer User Guide
3
You can review your movie from the Movie Player window by using the
play, pause, and stop buttons. Click the arrows or drag the scroll bar to view
your movie. Each frame is displayed with an identifying number in the
queue.
✍ If you have set the Capture button to use the Anti-Ground setting, you must click and
hold the Capture button to record your movie.
To manage your movie in Net Movie mode
From the Movie Player window, you can perform various functions using the
task buttons:
❑
❑
❑
❑
Delete — Discard any frame or the entire movie by clicking the Delete
button. The frame or movie is removed from the Movie Player window.
Upload — Send your movies online to the ImageStation Web site to share
with your family and friends. The ImageStation service stores your movies
online when you become a registered user. See “Using ImageStation with
Smart Capture software.”
Mail — E-mail your movies to family and friends. Click the Mail button and
your e-mail application launches with a new message window containing the
movie as an attachment.
Save — Click the Save button to compress and save your movie in a variety
of formats, to a location of your choice.
Using ImageStation with Smart Capture software
ImageStationSM is an online service that allows you to store your pictures and
movies on the Internet to share with family and friends. The ImageStation service
requires an Internet connection and registration for the Web-based service. You
must be connected to the Internet before uploading your pictures or movies with
Smart Capture and ImageStation applications.
48
Smart Capture
To upload with Movie Player
1
Click the Upload Button in Movie Player to begin transfer of your movie to
the ImageStation Web site. The Image Uploader window appears and
displays the Internet connection and upload status.
Image Uploader window
2
Click
to see thumbnail previews of your pictures or movies.
✍ The ImageStation preview feature is available when you upload two or more pictures
or a movie. No preview is shown if a single picture is being uploaded.
To upload with Still Viewer
1
Click the Upload button in Still Viewer. The ImageStation Login window
appears.
ImageStation Login window
2
For first-time users, the ImageStation registration wizard guides you through
the initial registration process. Follow the on-screen instructions. If you are
already a registered member, provide your login name and password. The
Image Uploader window appears.
49
VAIO Digital Studio Computer User Guide
3
From the Still Viewer window, click the Upload button to transfer your
pictures or movies to the ImageStation Web site. The Image Uploader
window displays your Internet connection and upload status. Click
to
see thumbnail previews of your pictures or movies.
✍ The ImageStation preview feature is available when you upload two or more pictures
or a movie. No preview is shown if a single picture is being uploaded.
4
Go to http://www.imagestation.com to view your uploaded pictures or
movies. Follow the on-screen instructions to access your ImageStation
account. The ImageStation Web site may ask you to complete a full login
again, if your current session is not active.
✍ Sony recommends that your movie file size not exceed 254 MB if compressed, or 2 GB
if not compressed. Large movie files take longer to upload to the ImageStation Web
site.
50
SonicStage Software
SonicStage Software
SonicStage software is a new jukebox application that adds a host of new
features to its predecessor, OpenMG™ Jukebox. SonicStage software lets you
play and record from audio CDs and import digital audio files while maintaining
copyright information. Continuing to take advantage of Sony’s copyrightprotected ATRAC3™ format for high-quality digital audio storage, SonicStage
sports a new music visualizer, a sleek new player skin design, audio CD burning
capability, and a parametric equalizer for fine-tuning audio playback.
Electronic Music Distribution (EMD) Services
EMD enables you to download music files via the Internet. To use Internet
services that are compatible with SonicStage, you need:
❑
Access to the Internet from your computer. Sign up with an Internet Service
Provider (ISP) and configure your computer for Internet access before using
EMD services.
❑
An EMD service provider. Consult the provider for service information.
✍ To protect your personal data, Sony uses Secure Sockets Layer (SSL), an encryption
protocol for communication between your browser and Sony’s World Wide Web
(WWW) server. If you are accessing the Internet from an enterprise Local Area
Network (LAN), you may not be able to use SSL due to the proxy server of the LAN.
Contact your network administrator for more information.
Starting SonicStage
1
Click Start in the Windows taskbar and then click All Programs.
2
Select SonicStage and then click SonicStage.
✍ The CDDB® (Compact Disc Database) Music Recognition Service registration wizard
enables you to register with CDDB. You need Internet access from your computer to
register and use this service. For more information regarding CDDB registration, click
the Help button.
3
When you have registered with CDDB, the “Confirm the setup of
SonicStage...” dialog box appears.
4
Click Yes to continue.
51
VAIO Digital Studio Computer User Guide
SonicStage feature tabs (Main window)
❑
❑
❑
CD tab
— The contents of your inserted audio CD are displayed,
enabling functions such as recording to the computer’s hard disk drive.
Import tab
— Import MP3, WAV or audio files on your computer to
a Playlist.
Playlist tab
— View the available Playlists as “tree + list” or “list”
only.
❑
Transfer tab
— View the available Playlists on your computer. You
can transfer the audio files to an external device or media.
❑
Device/Media tab
— View the status of your audio files,
connected external device, or inserted media.
Internet tab
— The browser view displays your connection to the
Internet, enabling you to locate audio files and use EMD services.
❑
SonicStage main window
Playlist view
1
2
3
4
52
5
6
7
SonicStage Software
1
2
3
4
5
Feature tabs
Changes the screen view according
to the selected feature.
6
Player control buttons
Controls playback functions, such
as play, pause, stop, fast forward,
and reverse. You can increase or
decrease volume and switch view
modes.
Playlist drop-down list
7
(Playlist view)
Displays available playlists and
audio files.
File tree view (Playlist view)
Displays the folders available on
your computer, enabling you to
locate your audio files. Expand the
views for the file list or Playlist
drop-down using the Playlist switch
button.
Tutorial
Click to open or close the Tutorial
feature.
Internet address drop-down list
Displays current and recently
visited Internet addresses. Click the
“Go to URL link” button to
immediately connect to your
favorite Web sites.
File list view (Playlist view)
Displays the contents of the folder
selected in the file tree view.
Recording from a CD
You can record songs from audio CDs and import them to playlists in
SonicStage.
✍ When you record from an audio CD from your optical disc drive for the first time, the
“CD Drive Optimization” dialog box appears. Click Start to verify your optical disc
drive. After the verification is performed, recording begins.
1
Insert an audio CD into your system’s optical disc drive.
2
Click the CD tab.
3
Use the drop-down lists to select the ATRAC3 bit rate, CD drive, and Record
To destination.
53
VAIO Digital Studio Computer User Guide
CD tab window
4
You can identify specific tracks on your CD by clearing the check marks
from the tracks you don’t want to record. You can clear all selected tracks by
selecting the empty checkbox next to Select All, and then selecting the tracks
you want to record.
If your Internet connection is active, you can use the
view the name of your CD and its song titles.
CD Info button to
✍ The CD Info button feature is not supported for all audio CDs.
5
Click
(Rec to Jukebox) to begin recording. When the recording is
finished, the new playlist appears in the File tree view of the Playlist
window.
Transferring songs (Check-In/Check-Out)
You can transfer songs between the playlists in the SonicStage software and
external devices or media. For more information on using your external devices
or media, see the instructions supplied with the device or media.
These instructions are for using the Check-In/Check-Out “1-step” method. For
information on using another method, see “Changing the check-in/check-out
settings” in the SonicStage online Help file.
54
SonicStage Software
Check-Out
1
Connect the external device or insert the media into your computer.
2
Click the Transfer tab to display the Transfer window. Your computer
automatically recognizes the connected external device or media and lists
the content information in a new panel on the right side of the Transfer
window.
Transfer window
3
Select the Playlist that contains the song that you want to check out. The
songs in the playlist are shown in the Playlist view panel located in the
center of the Transfer window.
4
From the Playlist view panel, select the song to be checked out. To check out
more than one song at a time, hold down the Ctrl key and select the
additional songs.
5
Click
(Out), or drag the song to the desired position in the song list of the
external device or media. Check Out begins.
✍ To cancel Check Out, click
(Stop), or click Cancel in the Processing dialog box that
is displayed during the Check Out process.
55
VAIO Digital Studio Computer User Guide
Check In
✍ The songs that you transfer to external devices or media can only be checked in to the
hard drive of the same computer from which the songs were checked out.
1
Connect the external device or insert the media into your computer.
2
Click the Transfer tab to display the Transfer window. Your computer
automatically recognizes the connected external device or media and lists
the content information in a new panel on the right side of the Transfer
window.
3
Select the song to be checked in from the song list of the external device or
media. To check in more than one song at a time, hold down the Ctrl key and
click the additional songs.
4
Click
(In), or drag the song(s) to the Playlist view panel. If you want to
check in all of the songs in the external device or media, click
(In All).
Check In begins.
✍ To cancel Check In, click
(Stop), or click Cancel in the Processing dialog box that
is displayed during the Check Out process.
For more information about using SonicStage software, go to the online
SonicStage Help. You can access the online help file as follows:
1
Click the Start button in the Windows taskbar, select All Programs.
2
Select SonicStage, then select SonicStage Help.
56
SonicStage Software
Additional features
❑
SonicStage Tutorial — SonicStage features are described in the Tutorial.
The user-friendly interface instructs you on how to use all SonicStage
features.
❑
SonicStage Backup Tool — You can back up and restore music, graphics,
and information data managed by SonicStage. You must be connected to the
Internet to use the SonicStage Backup Tool.
❑
Import audio files in various formats — You can import audio files in
various formats, such as MP3 or WAV standards. You can also import audio
files that comply with the Microsoft® Windows Media™ Technologies
(WMT) standard, identified by .asf or .wma extensions. Manage your audio
files through the Playlist feature of SonicStage.
❑
Manage imported songs on the Playlist — Additional features are
available when you register your imported songs through the Playlist feature
of SonicStage. You can manage your music by creating your own list of
songs categorized by genre or artist, displaying your song list in the Playlist
feature, and arranging your songs in a customized order using the Playlist
folders. Edit your music by combining multiple songs into a single song, or
divide one song into two, by using the Combine and Divide features.
❑
Simple mode — The main SonicStage window viewed in Simple mode, is a
smaller, compact version of Full mode. This may be convenient when you
want to listen to music with SonicStage software, while using other
applications, or whenever you feel the Full mode view is intrusive. The
design of the main SonicStage window in simple mode can be changed by
selecting a new “Skin,” which enhances the window’s appearance. The
Simple mode feature enables you to perform playback operations only.
57
VAIO Digital Studio Computer User Guide
VisualFlow Software
VisualFlow™ software is a Sony state-of-the-art multimedia browser designed
specifically for Memory Stick® media. It displays any still picture, movie or
sound files stored in a Memory Stick media in a visually pleasing, artistic
manner. VisualFlow software plays a selected movie or sound file and enables
playback of files by other applications like PictureGear™, PictureToy™, and
Memory Stick Slideshow.
Using VisualFlow software
You can navigate in the VisualFlow application by using your mouse, the
directional arrows on your keyboard, or the Sony Jog Dial™ control (on those
models that offer the Sony Jog Dial™ control).
1
Click Start in the Windows taskbar, then select All Programs.
2
Select VisualFlow, then click VisualFlow.
VisualFlow main window
3
58
Click an icon in the View section on the main toolbar to select a display
layout.
VisualFlow Software
4
Click an icon in the Sort section on the main toolbar to select a sorting
method.
5
Placing your cursor on the left end of the main toolbar activates the current
Memory Stick properties.
6
Placing your cursor on the right end of the main toolbar activates a
secondary toolbar with more functions.
7
Click an image to show a normal view centered on the screen.
Double-clicking an image shows an enlarged view.
8
The movie file starts playback when the view is enlarged. Click on the movie
files again to restore the view to normal.
✍ While an image is enlarged, the Launch toolbar appears at the bottom of the window.
Any associated application can be activated from this point.
59
VAIO Digital Studio Computer User Guide
Additional Software Information
VAIO Edit Components
VAIO® Edit Components is a software plug-in for Adobe® Premiere® that
provides maximum compatibility and video quality for capturing video from
your Sony digital camcorder. If your VAIO computer does not have Adobe
Premiere software preinstalled and you subsequently purchase this software,
install the VAIO Edit Component plug-in to ensure compatibility with Sony
digital camcorders.
Installing VAIO Edit Components
1
Insert the Driver Recovery CD into your optical drive.
2
Click Start from the Windows® taskbar, select My Computer, and click your
optical drive.
3
Select Support, and click VEC.
4
Double-click Setup. The VAIO Edit Components installation wizard starts.
5
Follow the on-screen instructions in the installation wizard.
6
Restart your computer when prompted.
60
Configuring Your VAIO Computer
This section provides information about maintaining your computer’s
hard disk drive performance and connecting a compatible i.LINK®
device.
Hard Disk Drive Partition
To maintain optimum system performance, you should defragment your
computer’s D partition regularly.
To improve the performance of Sony audio and video software applications, the
hard disk drive on your computer has been formatted with two partitions, C and
D. Some Sony software applications save files to the D partition. This prevents
large video captures from consuming the available space on your C partition.
Defragmenting your hard disk drive
If you encounter frame dropping while recording digital video onto your hard
disk drive, defragmentation may be necessary.
1
Deactivate your screen saver and close other open applications, if applicable.
2
Click Start in the Windows taskbar and select All Programs.
3
Point to Accessories, point to System Tools, and then select Disk
Defragmenter.
The Disk Defragment dialog box appears.
4
Select Action from the menu bar and click Analyze.
✍ It may take more than a couple of hours to complete defragmentation, depending on
the data capacity and current utilization of your computer’s hard disk drive(s).
61
VAIO Digital Studio Computer User Guide
i.LINK (IEEE1394) Compatibility
Your VAIO computer may include either 4-pin or 6-pin, or both types, of i.LINK
ports.
✍ i.LINK is a trademark of Sony used only to designate that a product contains an
IEEE1394 connection. The i.LINK connection may vary, depending on the software
applications, operating system and compatible i.LINK devices. All products with an
i.LINK connection may not communicate with each other.
Please refer to the documentation that came with your compatible i.LINK device for
information on operating conditions and proper connection. Before connecting
compatible i.LINK PC peripherals to your system, such as an optical or hard disk drive,
confirm their operating system compatibility and required operating conditions.
A 6-pin i.LINK port can:
❑ supply power from the computer to the connected device if the device is
equipped with a 6-pin connector.
❑
supply 10V to 12V.
A 4-pin i.LINK port cannot supply power to a connected device.
The total power supplied by the 6-pin i.LINK port cannot exceed 6 watts.
The following Sony i.LINK 400 Mbps cables are available and recommended for
use with your computer: VMC-IL4415, VMC-IL4435, VMC-IL4615,
VMC-IL4635, VMC-IL6615, and VMC-IL6635.
Sony computer supplies, accessories, and peripherals can be purchased from your
local retailer, from the Sony VAIO Direct Web site at http://vaio.sonystyle.com,
or by calling 1-888-315-7669 (toll free).
62
i.LINK (IEEE1394) Compatibility
Connecting an i.LINK (IEEE1394) device
1
Use the symbol to locate the i.LINK port on your compatible i.LINK
device and on your computer. Plug the i.LINK cable connector into this port.
2
Plug the other end of the cable into the corresponding 4- or 6-pin i.LINK
port on your computer.
✍ See the instructions that came with your i.LINK device for more information on
installation and use.
63
VAIO Digital Studio Computer User Guide
64
System, Application,
And Driver Recovery CD(s)
System Recovery CD(s)
Sony Electronics Inc.
The System Recovery CD utility enables you to restore the operating system and
software that shipped with your computer if they become corrupted or are erased.
It can be used only to restore the hard disk of the Sony computer you purchased.
Application Recovery CD(s)
Sony Electronics Inc.
The Application Recovery CD program enables you to reinstall individual
applications. Use it to restore corrupted or erased files.
Driver Recovery CD
Sony Electronics Inc.
The Driver Recovery CD program enables you to reinstall individual device
drivers. Use it to restore corrupted or erased files.
65
VAIO Digital Studio Computer User Guide
To Use the System Recovery CD(s)
The System Recovery utility formats your hard disk drive and restores all the
original software applications. Your computer is returned to the original factory
settings.
The System Recovery process removes all software that you may have
installed since you started using your computer. Reinstall any applications
that were not included with the computer when you purchased it.
If you experience a problem with your computer, reinstalling an individual
application or device driver may correct the problem. You may not need to
recover the entire contents of your hard drive.
✍ Use the Application Recovery CD(s) to reinstall individual applications.
When you successfully complete your system recovery, you are prompted to
complete the Windows registration process.
System Recovery Options
System Drive Recovery
All data on Drive C is deleted. The factory default settings and software
applications are restored on this drive only.
Change Partition Size
All partitions, custom installations, and changes are removed from the hard disk
drive. You can set the partition sizes for both the Drive C and Drive D. The
original, preinstalled operating system and software applications are restored.
Recovery to Original Factory Defaults
All data and partitions are removed from the hard disk drive. All original factory
settings, operating system, and preinstalled software is restored.
The System Recovery utility does not back up your system's data. If you wish
to retain your system data, perform a back up to an external media.
66
To Use the System Recovery CD(s)
Using the System Recovery CD(s)
Your system may take a few minutes to load necessary files. A blue screen
appears during the downloading process.
1
Insert the System Recovery CD in your computer’s optical drive.
The System Recovery utility starts from the optical drive. The first CD must
be in the drive when you turn on your computer.
✍ If your system is equipped with two optical drives, insert the System Recovery CD into
the upper optical drive.
2
Turn off your computer.
3
Wait 30 seconds and turn on your computer. Your screen displays the
downloading progress, “Starting VAIO Recovery Utility.”
4
The VAIO System Recovery Utility dialog box appears. Click Next.
5
At the pop-up prompt, select Yes to begin the system recovery process.
Follow the on-screen instructions.
✍ Your system may include one or more System Recovery CDs. If you have more than
one System Recovery CD, insert the first CD to run the System Recovery program.
You are prompted to insert the next CD(s) once the information from the first CD has
been installed.
The recovery process takes approximately 30 to 60 minutes to complete.
After recovering your system using the System Recovery CD(s), you may be prompted
to insert your Application Recovery CD(s) after restarting Windows. Use the
Application Recovery CD(s) to complete full restoration of your system.
67
VAIO Digital Studio Computer User Guide
To Use the Application Recovery CD(s)
The Application Recovery CD utility enables you to reinstall individual software
applications if they become corrupted or are erased. Reinstalling an individual
software application may correct a problem that you are experiencing with your
computer or specific application. You may not need to reinstall the entire
contents of your hard drive.
✍ If you need to reinstall all of the software that shipped with your computer, use the
System Recovery CD(s).
You must be in Windows to run the Application Recovery CD utility. If you have
any questions about using the Application Recovery CD(s), visit
http://www.sony.com/pcsupport, or contact Sony Customer Support at
1-888-4-SONY-PC.
Using the Application Recovery CD(s)
1
Turn on your computer. If your computer is already on, save and close all
open applications.
2
When the Windows desktop appears, insert the Application Recovery CD
into your computer’s optical drive. The Application Recovery utility loads
automatically.
✍ If your system is equipped with two optical drives, insert the Application Recovery CD
into the upper optical drive.
3
When the Application Recovery menu appears, follow the on-screen
instructions to complete the recovery process.
✍ Your system may include one or more Application Recovery CDs. If you have more
than one Application Recovery CD, insert the first CD to run the Application Recovery
utility. You may be prompted to insert the next CD(s), depending on the software
application you wish to restore.
68
To Use the Driver Recovery CD
To Use the Driver Recovery CD
The Driver Recovery CD utility enables you to reinstall individual drivers and
repair software applications if they become corrupted or are erased. You can
reinstall an individual driver to correct a problem that you are experiencing with
your computer, peripheral hardware, or software application.
✍ If you need to reinstall all of the software applications that shipped with your
computer, use the System Recovery CD(s).
You must be in Windows to run the Driver Recovery CD utility.
Reinstalling device drivers with the Driver Recovery CD
1
Turn on your computer. If your computer is already on, close all
applications.
2
When the Windows desktop appears, insert the Driver Recovery CD into the
optical disc drive.
✍ If your system is equipped with two optical drives, insert the Driver Recovery CD into
the upper optical drive.
3
Click Start in the Windows taskbar and click Control Panel. The Control
Panel window appears.
4
Click Performance and Maintenance and click System. The System
Properties dialog box appears.
5
From the Hardware tab, click Device Manager.
6
Click to select the unknown device or the device that requires the driver
installation. The unknown device(s) is identified by a yellow question mark.
7
From the Action menu, click Uninstall. This removes the device driver from
your system. Click OK. Repeat for each device driver as necessary.
8
Restart your computer. Click Start in the Windows taskbar, select Turn Off
Computer, and then click Restart.
9
When the desktop appears, Windows automatically reinstalls the device
driver(s) from the Driver Recovery CD.
69
VAIO Digital Studio Computer User Guide
70
Troubleshooting
This section describes how to solve common problems you may encounter
when using your computer. Many problems have simple solutions, so try
these suggestions before you call Sony Customer Support.
Topics
My computer does not start.
❑
Check that the computer is plugged into a power source and that it is turned
on. Check that the power light is lit on the front panel of the computer.
❑
Confirm that a disk is not in the floppy disk drive (unless you are using a
bootable floppy disk).
❑
Confirm that the power cord and all cables are connected firmly.
If you plugged the computer into a power strip or Uninterruptible Power
Supply (UPS), make sure the power strip or UPS is turned on and working.
Check that the monitor is plugged into a power source and turned on. Check
that the brightness and contrast controls are adjusted correctly. See the
manual that came with your display for details.
Check that the computer is not in stand by mode.
❑
❑
❑
My files are corrupted or deleted. I want to recover applications that came with
my computer.
See “To Use the Application Recovery CD(s)” in the online User Guide, for more
information. You can access the online User Guide as follows:
1
Click Start in the Windows taskbar, then click VAIO Help and Support.
2
From the VAIO Help and Support menu, click VAIO User Guide.
71
VAIO Digital Studio Computer User Guide
My drivers are corrupted or deleted. I want to recover drivers that came with my
computer.
See “To Use the Driver Recovery CD” in the online User Guide, for more
information. You can access the online User Guide as follows:
1
Click Start in the Windows taskbar, then click VAIO Help and Support.
2
From the VAIO Help and Support menu, click VAIO User Guide.
My computer or software application stopped responding.
You can try to locate and close the software application that has stopped
responding.
1
Press the Ctrl+Alt+Delete keys. The Windows Task Manager window
appears.
2
From the Applications tab, locate the application that has the status message,
“Not responding.”
3
Select the application that has a Not Responding status and click End Task.
Windows attempts to close the application.
If your computer does not respond or the application does not close, try the
following steps:
1
Save any open files, if possible.
2
Press the Alt+F4 keys. The Turn Off Computer window appears.
3
Click the Restart button.
If your computer still does not respond and you cannot restart, shut down your
computer by pressing and holding the power switch for more than six seconds.
If the software application continues to stop responding or causes your computer
to stop responding, contact the software publisher or designated technical support
provider.
Pressing and holding the power switch for more than six seconds, may result
in the loss of data from files that are currently open.
72
Troubleshooting
Why does the Windows® operating system stop responding during shutdown?
The Windows operating system may not shut down properly for many reasons,
including incompatible or conflicting drivers, damaged files, or non-responsive
hardware. For troubleshooting information, you can search Windows Help.
1
Click Start in the Windows taskbar and select VAIO Help and Support. The
VAIO Help and Support dialog box appears.
2
Select Fixing a Problem and then select Startup and Shut Down problems. A
list of specific problem topics appears on the right side of the dialog box.
3
Select Startup and Shutdown Troubleshooter. Follow the on-screen
instructions according to your specific situation.
How do I change the parallel port type to ECP, EPP, or bi-directional?
You can change the parallel port type using the System Setup utility (CMOS
Setup Utility). To access System Setup:
1
Click Start in the Windows taskbar and select Turn Off Computer. Select
Restart.
2
When the Sony screen displays, press the F2 key on your keyboard.
3
Select the Advanced tab from the Setup Utility screen.
4
Select “I/O Device Configuration” and press Enter.
5
Use the arrow keys to highlight Parallel Port Mode and press Enter.
✍ You can toggle between the Normal (bi-directional), EPP, ECP, and ECP+EPP options
using the directional arrow keys.
6
Select the desired setting displays, and press Enter.
7
Press the F10 key to Save and Exit.
73
VAIO Digital Studio Computer User Guide
My optical drive tray does not open.
There are two methods for opening your optical drive tray:
❑
❑
Use the Eject button
1
Make sure the computer is turned on.
2
Press the Eject button on the drive.
Use the My Computer icon
1
Click Start in the Windows taskbar, then select My Computer.
2
Right-click the appropriate optical drive icon.
3
Select Eject from the shortcut menu.
✍ Avoid using adhesive labels to identify your CD media. Adhesive labels may come off
while the CD media is in use in your optical drive(s) and may cause damage to the
unit.
I cannot play a DVD or CD.
❑
❑
❑
❑
After inserting your optical disc, wait a few seconds for it to be detected
before trying to access it.
Verify that the disc is in the tray with the label side facing up.
Install your CD or DVD software according to the manufacturer’s
instructions.
If your drive reads some DVDs or CDs, but not others, check the shiny side
of the disc for dirt or scratches. You may also need to clean the disc drive
lens with an appropriate cleaner.
✍ To recover the CD or DVD software applications that are preinstalled on your
computer, see “To Use the Application Recovery CD(s)” for more information.
74
Troubleshooting
I cannot play a DVD.
If a region code warning appears when you are using the DVD player
application, it may be that the region code of the DVD you are trying to play is
incompatible with the region code setting of your optical drive. A region code is
listed on the disc packaging. Region code indicators such as “1” or “ALL” are
labeled on some DVDs to indicate the type of player that can play the disc.
Unless a “1” or “ALL” appears on the DVD or on its packaging, you cannot play
the disc on this system.
If you hear audio but cannot see video, your computer’s video resolution may be
set too high. To improve video resolution, verify that your screen area is set to
1024 x 768, using 32-bit color (preset factory default). To check your video
resolution, see the Troubleshooting topic, “How do I change the video resolution
of my display?”
✍ If your video card utilizes system memory, you may improve video resolution by
changing your screen area to 800 x 600, using 16-bit color. See your Specifications
sheet for details about your computer’s video RAM.
If you see video but cannot hear audio, check all of the following:
❑
❑
❑
❑
❑
Verify that your DVD player’s mute feature is turned off.
Check the master volume setting in the Audio Mixer.
Check the volume settings on your computer speakers.
Check the connections between your speakers and the computer.
Verify that drivers are installed properly, by following these steps:
1
Click Start in the Windows taskbar, then select Control Panel.
2
Click Performance and Maintenance and then click Systems. The
System Properties dialog box appears.
3
Select the Hardware tab and then select the Device Manager button to
view installed drivers.
A dirty or damaged disc may also cause the computer to stop responding while it
tries to read the disc. If necessary, remove the disc and check that it is not dirty or
damaged.
✍ To recover the CD or DVD software applications that are preinstalled on your
computer, see “To Use the Application Recovery CD(s)” for more information.
75
VAIO Digital Studio Computer User Guide
When I click an application icon, a message such as “You must insert the
application CD into your drive” appears and the software does not start.
❑
Some software applications require specific files that are located on the
application’s CD-ROM. Insert the disc and try starting the program again.
❑
Check to make sure you inserted the CD-ROM with the label side facing up.
Why doesn't my optical drive (DVD-RW or CD-RW) record at the highest speed?
If you are having difficulty formatting DVD-RW or CD-RW media for recording
purposes, try changing the write speed to a lower setting.
See the online Help or documentation that came with your CD or DVD recording
software application for details on adjusting write speed settings.
Why is my computer operating improperly after downloading the CD-burning
component of RealJukebox® software?
If you choose to download and use the optional RealJukebox software’s CDburning component to create CDs, the software feature may interfere with your
computer’s normal system operations.
For VAIO® computers that are equipped with all of the necessary components
for creating a CD-R or CD-RW, Sony recommends using the SonicStage
software application to create CDs. SonicStage software is preinstalled on your
computer.
How do I change the video resolution of my display?
1
Click Start in the Windows taskbar and then select Control Panel.
2
Select Appearances and Themes, then select “Change the screen resolution.”
3
Click the Settings tab.
4
Change the Screen resolution and Color quality to the desired levels.
5
Click Apply and then click OK.
76
Troubleshooting
Why is there no sound in any application?
❑
❑
❑
❑
❑
❑
Check that the speakers are plugged into the Headphones jack.
If your speakers have a mute button, verify that it is turned off.
If your speakers are powered by batteries, verify that the batteries are
inserted properly and that they are charged.
If your speakers use an external power source, verify that the power cord is
plugged into a grounded wall outlet or power strip.
If your speakers have volume control, check the volume level.
You cannot hear sound from your speakers if headphones are connected to
your computer.
❑
If the software application you are using has its own volume control, check
that the volume is turned up.
❑
Check the volume controls in the Windows® operating system using these
steps:
❑
1
Click Start in the Windows taskbar, then select Control Panel.
2
Select Sounds, Speech, and Audio Devices, then click “Adjust the
system volume.”
3
From the Volume tab, adjust the Device volume by moving the slider
bar to the desired sound level. Verify that the Mute option is not
selected.
Check that the Mute check box is not selected in the Windows volume
control.
✍ You may need to reinstall the sound drivers. See “To Use the Driver Recovery CD” for
more information.
77
VAIO Digital Studio Computer User Guide
My modem connection is slow.
Many factors influence modem connection speed:
❑
Telephone line noise
❑
Incompatibility with other telephone equipment such as fax machines or
other modems.
Internet Service Providers (ISP) connection capability may vary.
❑
If you think your modem is not connecting properly to other PC-based modems,
fax machines, or your ISP, check the following:
❑ Contact your phone company and ask them to verify that your phone line is
free from line noise.
❑
❑
❑
❑
If your problem is fax-related, check that there are no problems with the fax
machine you are calling and that it is compatible with fax modems.
For optimum performance, verify that your ISP point of presence (POP)
phone number is compliant with V.90 standards.
If you are having a problem connecting with your ISP, check that they are
not experiencing technical problems.
Try connecting your modem through another phone line, if available.
My modem does not work.
Your modem may be experiencing equipment or software conflicts. If your
modem is not functioning properly, check the following:
❑ Check that the phone line is plugged into the Line jack.
❑
Check that the phone line is working properly. You can verify the line by
plugging in an external device such as a standard telephone or fax machine
and listening for a dial tone.
❑
Check that the access phone number (POP) is correct.
All software applications that are preinstalled by Sony are compatible with
your computer’s modem. If you have installed other software, contact the
software publisher for information on how to configure the software in order
to recognize the modem.
❑
❑
If it appears that your modem is not functioning properly, check the device
status.
1
78
Click Start in the Windows taskbar, then click Control Panel.
Troubleshooting
2
Click Printers and Other Hardware and then select Phone and Modem
Options.
3
From the Modems tab, click to select your modem.
4
Click Properties. The Modem Properties window appears.
5
Review the information in the Device status section. If your modem is
not working properly, click the Troubleshoot button. The VAIO Help
and Support Center window appears.
6
Follow the on-screen instructions to resolve the problem.
✍ You may need to reinstall the modem drivers. See “To Use the Driver Recovery CD” for
more information.
How do I change my modem to rotary or Touch-Tone dialing?
1
Click Start in the Windows taskbar, then click Control Panel.
2
Click Printers and Other Hardware, then click Phone and Modem options.
3
From the Dialing Rules tab, click Edit. The Edit Location dialog box
appears.
4
Select the Tone or Pulse option. Click OK.
My microphone does not work.
Check that the microphone is plugged into the Microphone jack.
My microphone is too sensitive to background noise.
If you find there is too much background noise when you record sound, you
should adjust the microphone gain by following these steps:
1
Click Start in the Windows taskbar, then click Control Panel.
2
Click Sounds, Speech, and Audio Devices, then click Sounds and Audio
Devices.
3
From the Audio tab, locate the Sound recording section and click the Volume
button. The Recording Control dialog box appears.
79
VAIO Digital Studio Computer User Guide
4
Select the Options menu and click Properties. The Properties dialog box
appears.
5
In the section, “Adjust volume for,” select the Recording option. Click OK.
6
From the Recording Control dialog box, decrease the microphone volume
level by moving the slider bar down.
7
Close the Recording Control dialog box and then close the Sounds and
Audio Devices Properties window.
My mouse does not work.
❑
❑
❑
Check that the mouse is plugged securely into the Mouse port.
Save and close all open applications. Turn off your computer, wait
approximately 10 seconds, and then restart your computer.
There may be dust or dirt inside the mouse mechanism. To clean the mouse,
follow these steps:
1
Save and close all applications, and turn off your computer.
2
Turn the mouse upside down.
3
Remove the mouse ball cover on the back of the mouse by turning
clockwise the ring that covers the mouse ball.
4
Turn the mouse upright, and drop the mouse ball into your hand.
5
Using a piece of tape, remove any dust or dirt on the mouse ball and
inside the mouse ball socket.
6
Return the mouse ball to the socket, and replace the mouse ball cover.
Secure the cover by turning the ring counter-clockwise.
✍ You may need to reinstall the mouse drivers. See “To Use the Driver Recovery CD” for
more information.
80
Troubleshooting
My mouse needs to be set up for left-hand use.
1
Click Start in the Windows taskbar, then click Control Panel.
2
Click Printers and Other Hardware, then click Mouse. The Mouse Properties
dialog box appears.
3
From the Buttons tab, select “Switch primary and secondary buttons” under
the Button Configuration options.
4
Click Apply, then click OK.
My keyboard does not work.
❑
❑
Check that the keyboard is securely plugged into the Keyboard port.
Save and close all open applications. Turn off your computer, wait
approximately 10 seconds, and then restart your computer.
I cannot find the Windows® taskbar.
The Windows taskbar may be hidden or minimized.
❑ Use the mouse to locate a hidden taskbar by pointing to the left, right, top,
and bottom edges of the screen. The taskbar appears when the cursor is
placed over its location.
❑
1
Right-click on the taskbar and select Properties from the shortcut menu.
2
Clear the check box for Autohide the taskbar, then click OK.
Use the mouse to locate a minimized taskbar by pointing to the left, right,
top and bottom edges of the display screen. The taskbar has been located
when the cursor changes to a double arrow cursor. Left-click and drag away
from the edge of the display screen. The minimized taskbar resizes and
becomes visible.
Why is my system running slowly?
❑
The system responsiveness varies depending with the number of
applications that are open and running. Close any applications that you are
not currently using.
❑
Increasing the system memory may also help. For information on installing
memory, please see the online VAIO User Guide.
81
VAIO Digital Studio Computer User Guide
How do I install a printer?
❑
If your printer has a USB, IEEE1394, or infrared connection, contact the
printer manufacturer for information or updates that may be required for
proper installation.
❑
Check the printer manufacturer’s Web site for the latest drivers for your
operating system before proceeding with installation. Some printers do not
function properly without the updated drivers for specific operating systems.
❑
To install your printer, follow these steps:
1
Click Start in the Windows taskbar, then click Control Panel.
2
Click Printers and Other Hardware, then click Add a Printer.
3
From the Add Printer Wizard, click Next.
4
Select Local Printer, then click Next.
✍ Place a check mark in the box for “Automatically detect and install my Plug and Play
printer”, if you are installing a recently manufactured printer with Plug and Play
capability.
5
Select the appropriate port, usually LPT1, and then click Next.
6
Select the appropriate printer manufacturer and model
7
Follow the on-screen instructions to print a test page and complete
printer installation.
✍ If the printer is not included in the list and the printer manufacturer included a disk
with a Windows XP Printer driver, choose Have Disk, enter the appropriate path for the
disk or CD and click OK.
If the printer is not included on the list and no drivers are included with the printer,
choose an alternate printer driver that your printer may emulate. Refer to the manual
that came with your printer for specific emulation information.
My connected printer doesn't function after the computer resumes from a power
saving mode.
Clear the printer memory by turning the printer off for approximately 10 seconds,
and then turning it back on.
82
Troubleshooting
To contact Sony for technical support
For further technical assistance, call 1-888-4-SONY-PC (1-888-476-6972) or
access the Sony Computing Support Web site at:
http://www.sony.com/pcsupport.
83
VAIO Digital Studio Computer User Guide
84
Notes on Use
Notes on Use
The information in this section provides basic procedures to follow when
handling your computer, components, and accessories.
The power source
❑
Your computer operates on 100–120 V AC 50/60 Hz only.
❑
Plug all the power cords for your computer and its peripheral equipment into
the same AC supply line. AC derived from different supply lines may result
in voltage differences that can cause unstable operation or unwanted weak
currents at the time of connection.
❑
Do not share the AC outlet with any other power-consuming equipment,
such as copying machines or shredders.
❑
You can purchase a power strip with a surge protector. This device prevents
damage to your computer caused by sudden power surges such as those that
may occur during an electrical storm.
❑
If you live in an area that experiences frequent power fluctuations, you may
want to purchase an Uninterruptible Power Supply (UPS). This device
contains both a surge protector and a battery backup. The surge protector
prevents damage to your computer caused by power surges. The battery
backup safeguards your data during a brief period of power loss.
❑
The power control button on the front panel does not turn off the system AC
power. To remove power from the system, you must turn off the computer
and then unplug the AC power cord from the wall outlet or power strip.
❑
Do not place heavy objects on the power cord.
Do not operate the system with the cover removed. Always reinstall the
cover before turning on the system.
❑
❑
❑
❑
❑
To disconnect the cord, pull it out by the plug. Never pull the cord itself.
Unplug your computer from the wall outlet if you will not be using the
computer for a long time.
Before touching anything inside the computer, turn the system off and let it
cool for ten minutes. This will ensure that the processor heat sink will not be
hot.
Do not attempt to open the power supply. There are no user-serviceable parts
in the power supply. To avoid personal injury or damage to your equipment,
refer the repair or replacement of the power supply to qualified personnel
only.
85
VAIO Digital Studio Computer User Guide
Disposal of the lithium battery
Dispose of the lithium battery properly. In some areas, the disposal of lithium
batteries in household or business trash may be prohibited. You can return your
unwanted lithium batteries to your nearest Sony Service Center or Factory
Service Center. For the Sony Service Center nearest you, call 1-888-4-SONY-PC
(1-888-476-6972).
Do not handle damaged or leaking lithium batteries. The lithium battery may
explode if mistreated. Do not disassemble it or dispose of it in fire.
Replace the battery with a Sony CR2032 lithium battery. Using a type of
battery other than a CR2032 may present a risk of fire or explosion.
Handling the computer system
❑
Do not place your Sony computer in a location subject to:
❑
❑
❑
❑
❑
Heat sources, such as radiators or air ducts
Direct sunlight
Excessive dust
Mechanical vibration or shock
Strong magnets or speakers that are not magnetically shielded
❑
❑
❑
❑
86
Ambient temperature of more than 95ºF (35ºC) or less than 50ºF (10ºC)
❑ High humidity, moisture, or rain
Do not place electronic equipment near your computer. The computer’s
electromagnetic field may cause a malfunction.
Provide adequate air circulation to prevent internal heat build-up. Do not
place your computer on loose surfaces (such as rugs or blankets) or near
materials (such as curtains or draperies) that may block its ventilation slots.
Leave a space of at least 8 inches from the back panel of your computer.
Clean the cabinet with a soft, dry cloth or a soft cloth lightly moistened with
a mild detergent solution. Do not use any type of abrasive pad, scouring
powder, or solvent such as alcohol or benzine, as it may damage the finish of
your Sony computer.
Notes on Use
❑
Should any solid object or liquid fall into the cabinet, keyboard, or mouse,
shut down your computer and then unplug it. You may want to have the
computer checked by qualified personnel before operating it any further.
❑
The computer uses high-frequency radio signals and may cause interference
to radio or TV reception. Should this occur, relocate the computer a suitable
distance away from the set.
Use only specified peripheral equipment and interface cables; otherwise,
problems may result.
Do not use cut or damaged connection cables.
Always switch the power off before connecting your computer to peripheral
equipment; otherwise, damage may occur to the integrated circuits in your
computer.
❑
❑
❑
❑
❑
❑
Your computer, keyboard, and mouse consist of high-precision electronic
parts. Do not drop them or bump them against other objects.
Your Sony computer will not work with party lines, cannot be connected to a
coin-operated telephone, and may not work with multiple phone lines or a
private branch exchange (PBX).
If the telephone company makes a service call to your home or office and
determines that your computer is responsible for the problem, the telephone
company may bill you for the service call. If you do not disconnect your
computer when it is adversely affecting the telephone line, the telephone
company has the right to disconnect your service until you correct the
problem.
Moisture condensation
If your computer is brought directly from a cold location to a warm one, moisture
may condense inside your computer. In this case, allow at least an hour before
turning on your computer. If any problem occurs, unplug your computer, and
contact your Sony Service Center.
87
VAIO Digital Studio Computer User Guide
Upgrading the computer system
❑
❑
❑
The upgrading procedures described in the online manual, assume
familiarity with the general terminology associated with personal computers
and with the safety practices and regulatory compliance required for using
and modifying electronic equipment.
Disconnect the system from its power source and from telecommunications
links, networks, or modems before you open the system or follow any of the
upgrading procedures described in the online manual. Failure to do so may
result in personal injury or equipment damage.
Electrostatic discharge (ESD) can damage disk drives, add-on cards, and
other components. Follow the upgrading procedures described in the online
manual while working at an ESD workstation. If such a station is not
available, use these precautions:
❑
❑
❑
❑
Avoid working in a carpeted area.
Do not handle materials that may produce or hold static electricity, such
as cellophane wrappers.
Ground yourself by maintaining continuous contact with an unpainted
metal portion of the chassis while performing the procedure.
When removing a slot cover, be careful not to damage components on the
system board or add-on cards. You may need to temporarily remove add-on
cards that are next to the slot cover you want to remove.
Handling a display
❑
Do not change the display refresh rate to 85 Hz, as DVD playback and the
DVgate software may not function correctly. Sony recommends that you
keep your display at the preset, optimal refresh rate (75 Hz).
❑
Do not place the display near a strong magnetic force.
Do not block the ventilation slots on the display.
❑
❑
Using the computer in low temperature conditions may produce a residual
image on the screen. This is not a malfunction. When the computer returns to
normal temperature, the screen returns to normal.
❑
A residual image may appear on the screen if the same image is displayed
for a lengthy period of time. The image disappears after a period of time.
You can use a screen saver to prevent residual images.
❑
The screen becomes warm during operation. This is normal and does not
indicate a malfunction.
88
Notes on Use
Using the hard disk drive
❑
❑
❑
❑
Do not place the computer in a location that is subject to vibration or shock.
Do not move the computer during operation.
Do not subject the computer to sudden changes in temperature.
Do not turn off the power while the computer is accessing the hard disk
drive.
Handling floppy disks
❑
Do not open the shutter manually and touch the surface of the floppy disk.
❑
Keep floppy disks away from magnets.
Keep floppy disks away from direct sunlight and other heat sources.
❑
Handling CD or DVD media
❑
❑
❑
Do not touch the surface of the disc.
Do not drop or bend the disc.
Do not use adhesive labels to identify the disc. The label may come off while
the disc is in use in the optical drive and damage the drive.
Cleaning CD or DVD media
❑
❑
❑
Fingerprints and dust on the surface of a disc may cause read errors. Proper
care of the disc is essential to maintain its reliability. Do not use solvents
such as benzine, thinner, commercially available cleaners or anti-static spray,
as they may cause damage to the disc.
For normal cleaning, hold the disc by its edge and use a soft cloth to wipe the
surface from the center out.
If the disc is badly soiled, moisten a soft cloth with water, wring it out well,
and use it to wipe the surface of the disc from the center out. Wipe off any
remaining moisture with a dry soft cloth.
89
VAIO Digital Studio Computer User Guide
Resources
Sony provides several support options for your Sony computer. When you have
questions about your computer and the preinstalled software, check these sources
for answers, in the following sequence:
VAIO QuickStart
The QuickStart contains information on how to set up
your computer quickly and easily.
VAIO Computer
User Guide
The User Guide contains information on how to get the
most from your computer, find help, and solve common
problems. (Note: The User Guide is not available in
hard copy for all models.)
Online (Electronic)
Documentation
The User Guide is available electronically on your hard
drive. Two additional guides, Upgrading and
Maintaining Your VAIO Digital Studio Computer and
the Troubleshooting Help are also available online.
To access online documentation:
1
Click Start and point to VAIO Help and Support
Center.
2
Click on the VAIO User Guide.
Software application
manuals and online
help files
Most manuals for preinstalled software are located on
your hard disk drive as online help files. You can access
online help files from the Help menu within the specific
application. A printed manual may be available for
some applications.
Knowledge Database
This database provides instant access to information on
commonly encountered problems. Enter a description
of your problem and the Knowledge Database searches
for the corresponding solutions online. You can access
the Sony Knowledge Database from the Sony
Computing Support Web site at
http://www.sony.com/pcsupport.
90
Resources
Sony Fax-on-Demand This service provides you with answers to commonly
asked questions. You can use this automated service to
request a list of available topics. Select the topics that
you want to view. To contact the Sony fax-on-demand
service, call 1-888-4-SONY-PC (1-888-476-6972).
(Requires a fax machine or fax software.)
Software Updates
You can download the latest software updates and
software patches for your Sony computer by selecting
Software Updates on the Sony Computing Support Web
site at http://www.sony.com/pcsupport.
VAIO Computer
System Reference
Manual
This advanced reference manual supplies detailed
technical information about your computer's hardware.
This document is available on the Sony Computing
Support Web site at http://www.sony.com/pcsupport.
91
VAIO Digital Studio Computer User Guide
92
Index
A
AC
Input port location 11
air circulation 86
Application Recovery CD(s)
ARCDs 68
audio file formats 57
Audio In jack 11
Audio L In jack 9
Audio Out jack 11
audio problems 77
Audio R In jack 9
B
Back Panel 10
Browser security 51
C
caution
lithium battery 86
speakers 86
CD
playback problems 74, 76
tray eject 74
CD-RW
recording problems 76
changing window design 15
Check-In/Check-out 54
coaxial cable port 11
computer
adjusting voltage settings 85
changing parallel port type 73
condensation 87
disposing of lithium battery 86
hard disk drive 89
proper handling 86
removing side cover 85
shutting down 85
startup problems 71
system response problem 72
upgrading 88
connecting
cables 87
peripheral equipment 87
power cord 85
printers 82
D
defragmenting
hard disk drive 61
DigitalPrint software 21
LabelMaker 27
PhotoAlbum 26
PhotoCapture 21
PhotoCollection 24
PhotoDecor 25
disconnecting power cords 85
display
port location 11
refresh rate 88
Driver Recovery CD
DRCD 69
DVD
playback problems 74, 75
region code warning 75
tray eject 74
93
VAIO Digital Studio Computer User Guide
DVD-RW
recording problems 76
DVgate software 29
AVI files 30
using a digital video device 29
E
electronic equipment 86
Electronic Music
Distribution service 51
electrostatic discharge 88
EMD service 51
encryption 51
ethernet
port location 10
F
floppy disk
drive location 8
Front Panel 7
Full mode 57
H
handling your computer 86
hard disk drive
defragmenting 61
partitioning 61
using 89
hardware
cooling the heat sink 85
I
i.LINK
(4-pin) port 9
6-pin port 11
compatibility 62
connecting 63
connectivity 7
ImageStation 37
interference 87
94
J
Jog Dial 58
K
keyboard
port location 10
troubleshooting 81
L
Line In jack 11
lithium battery
disposing 86
losing power 85
M
magnetic shielding 86
Memory Stick 58
Memory Stick slot 9
microphone
background noise 79
jack location 11
troubleshooting 79
modem
line jack location 11
slow connection 78
troubleshooting 78
moisture condensation 87
monitor
port location 11
refresh rate 88
mouse
port location 10
troubleshooting 80
MovieShaker software 31
adding effects 34
creating movies 32
saving a movie 36
uploading to Internet 37
using ImageStation 37
using the Shaker feature 33
multiple telephone lines 87
Index
O
Operating system locks up 73
optical drive
recording speed 76
tray eject 74
optical out port 11
P
parallel port
changing type 73
location 11
partitioning your hard disk drive 61
party lines 87
PBX (Private Branch Exchange) 87
PictureGear software 39
creating a photo album 40
managing pictures 39
power
cord 85
disconnecting power cord 85
fluctuations or loss 85
source 85
source, precautions 85
switch/button location 9
precautions about power source 85
printer
installing 82
port location 11
R
radio interference 87
recovering drivers 72
Recovery CDs 65
region codes 75
removing side cover 85
S
S keys 13
S/P DIF optical out port
location 11
safeguarding data 85
Secure Sockets Layer 51
Serial port 11
setting up
electronic equipment 86
printers 82
Shortcut keys 13
changing the settings 14
shutting down the computer 85
Simple mode 57
Skins 57
slot cover 88
Software
audio problems 77
CD playback problems 76
driver recovery 72
recovering applications 71
stopped responding 72
SonicStage software 51
Backup Tool 57
Electronic Music Distribution service 51
importing audio files 57
Main Features 52
managing imported songs 57
recording from a CD 53
Secure Sockets Layer (SSL) 51
Simple mode 57
transferring songs 54
Tutorial 57
Sony
online service 37
Sony software window design
changing 15
speakers
caution 86
surge protectors 85
S-video In port 9, 11
S-video Out port 11
System Recovery CD(s)
SRCDs 66
system response problem 81
95
VAIO Digital Studio Computer User Guide
T
telephone service 87
Troubleshooting 72
CD playback problems 76
CD/DVD playback problems 74
CD-RW recording 76
changing parallel port type 73
computer stopped responding 72
DVD playback problems 75
DVD-RW recording 76
keyboard 81
microphone 79
modem 78
modem speed 78
mouse 80
operating system locks up 73
optical drive tray eject 74
printer installation 82
recover applications 71
software audio problems 77
startup problems 71
system response 81
Topics 71
turning off your computer 85
TV interference 87
U
Uninterruptible Power Supply 85
Universal Serial Bus
port location 9, 10
upgrading
your computer 88
UPS 85
USB port 9
V
VAIO Action Setup 13
VAIO Edit Components 60
VAIO Edit Components software 60
96
ventilation 86
VHF/UHF port 11
Video In jack 9
Video In port 11
Video Out port 11
VisualFlow software 58
navigating 58
voltage settings 85
Download PDF

advertising
