Sony | PCV-RX753 | Marketing Specifications | Sony PCV-RX753 Marketing Specifications

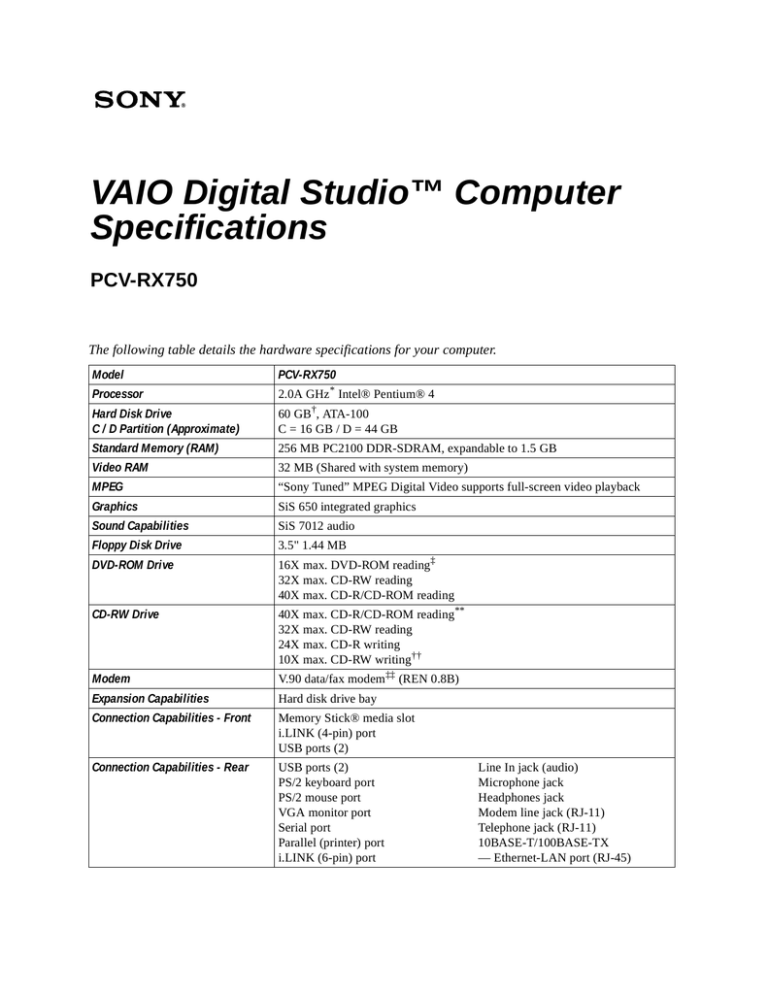

VAIO Digital Studio™ Computer
Specifications
PCV-RX750
The following table details the hardware specifications for your computer.
Model
PCV-RX750
Processor
2.0A GHz* Intel® Pentium® 4
Hard Disk Drive
C / D Partition (Approximate)
60 GB†, ATA-100
C = 16 GB / D = 44 GB
Standard Memory (RAM)
256 MB PC2100 DDR-SDRAM, expandable to 1.5 GB
Video RAM
32 MB (Shared with system memory)
MPEG
“Sony Tuned” MPEG Digital Video supports full-screen video playback
Graphics
SiS 650 integrated graphics
Sound Capabilities
SiS 7012 audio
Floppy Disk Drive
3.5" 1.44 MB
DVD-ROM Drive
16X max. DVD-ROM reading‡
32X max. CD-RW reading
40X max. CD-R/CD-ROM reading
CD-RW Drive
40X max. CD-R/CD-ROM reading**
32X max. CD-RW reading
24X max. CD-R writing
10X max. CD-RW writing††
Modem
V.90 data/fax modem‡‡ (REN 0.8B)
Expansion Capabilities
Hard disk drive bay
Connection Capabilities - Front
Memory Stick® media slot
i.LINK (4-pin) port
USB ports (2)
Connection Capabilities - Rear
USB ports (2)
PS/2 keyboard port
PS/2 mouse port
VGA monitor port
Serial port
Parallel (printer) port
i.LINK (6-pin) port
Line In jack (audio)
Microphone jack
Headphones jack
Modem line jack (RJ-11)
Telephone jack (RJ-11)
10BASE-T/100BASE-TX
— Ethernet-LAN port (RJ-45)
VAIO Digital Studio Computer Specifications
Model
PCV-RX750
Supplied Accessories
VAIO® Smart keyboard
PS/2 wheel mouse
Stereo speakers with AC adapter (PCVA-SP3)
Power cord
Modem cable
Service
90-day limited service. See Limited Warranty Card.***
Limited Warranty
90-day parts/labor standard. See Limited Warranty Card.†††
Power Requirement
268 watts maximum
Voltage
100-120 V ~3.9A
Dimensions
8.0" (w) x 14.2" (h) x 14.6" (d)
(203 mm x 360 mm x 371 mm)
Weight
28.7 lbs. (13 kg.)
Operating Temperature
50° F to 95° F (+10° C to 35° C)
* GHz denotes microprocessor internal clock speed; other factors may affect application performance.
† GB means one billion bytes when referring to hard drive capacity. Accessible capacity may vary.
‡ The DVD-ROM data transfer standard 1X rate is 1350 Kilobytes per second (KBps).
Data on a DVD-RW/DVD-R is read at a variable transfer rate, ranging from 2X at the innermost track to 4.8X at the outermost track. The
average data transfer rate is 3.4X (4597 KBps).
Data on a DVD-ROM is read at a variable transfer rate, ranging from 6X at the innermost track to 16X at the outermost track. The average
data transfer rate is 11X (14872 KBps).
Data on a CD-RW is read at a variable transfer rate, ranging from 13.3X at the innermost track to 32X at the outermost track. The average
data transfer rate is 22.7X (3405 KBps).
Data on a CD-R/CD-ROM is read at a variable transfer rate, ranging from 13.8X at the innermost track to 40X at the outermost track. The
average data transfer rate is 26.9X (4035 KBps).
** The CD-RW/CD-R/CD-ROM data transfer standard 1X rate is 150 KBps.
Data on a CD-R is written at a constant transfer rate of 4X, 12X, 16X, or 24X maximum, depending on the speed selected.
Data on a CD-RW is written at a constant transfer rate of 4X or 10X, depending on the speed selected.
Data on a CD-R/CD-ROM is read at a variable transfer rate, ranging from 14X at the innermost track to 32X at the outermost track. The
average data transfer rate is 23X (3450 KBps).
Data on a CD-RW is read at a variable transfer rate, ranging from 14X at the innermost track to 32X at the outermost track. The average
data transfer rate is 23X (3450 KBps).
†† Your CD-RW drive does not support low-speed writing to CD-RW media. Verify that your CD-RW media supports writing at speeds of
4X or higher.
‡‡ Maximum speed for faxing is 14.4 Kilobits per second (Kbps). Your modem is capable of downloading at 53 Kbps using 56K/V.90. Your
online service or Internet Service Provider may not support this technology or operate at this speed.
***Certain restrictions apply.
†††Certain restrictions apply.
Specifications are subject to change without notice.
X-XXX-XXX-XX
© 2002 Sony Electronics Inc.
Printed in USA
