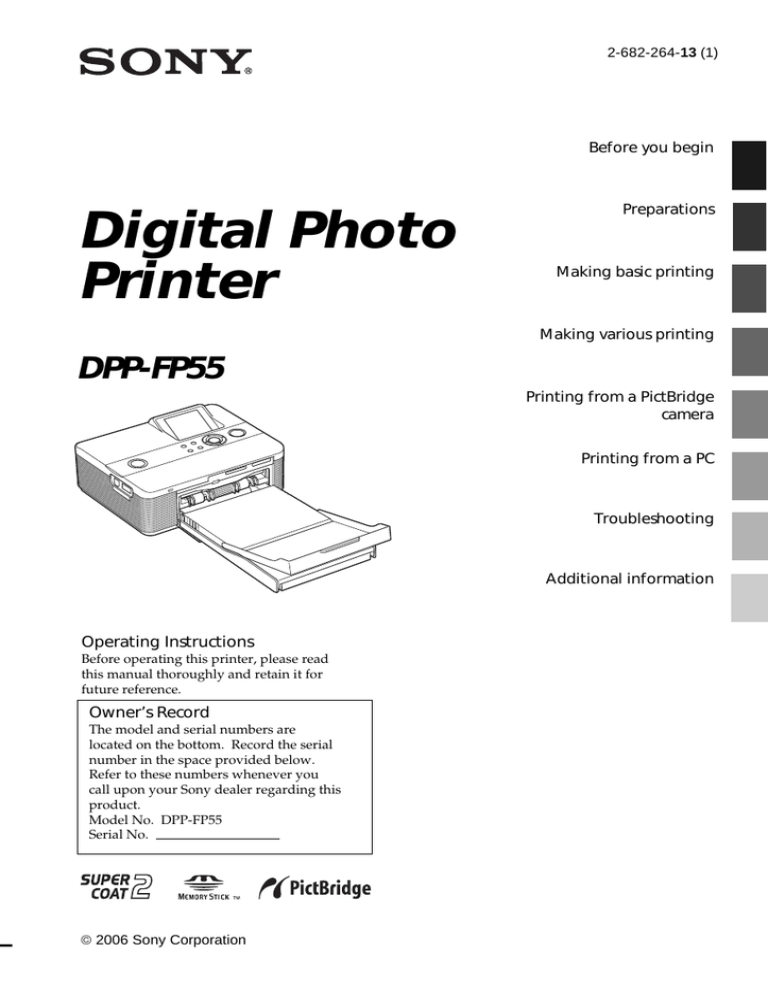

Sony | DPP-FP55 | User's Manual | Sony DPP-FP55 User's Manual

2-682-264-13 (1)
Before you begin
Digital Photo
Printer
Preparations
Making basic printing
Making various printing
DPP-FP55
Printing from a PictBridge
camera
Printing from a PC
Troubleshooting
Additional information
Operating Instructions
Before operating this printer, please read
this manual thoroughly and retain it for
future reference.
Owner’s Record
The model and serial numbers are
located on the bottom. Record the serial
number in the space provided below.
Refer to these numbers whenever you
call upon your Sony dealer regarding this
product.
Model No. DPP-FP55
Serial No.
 2006 Sony Corporation
WARNING
To reduce fire or shock hazard, do not
expose the unit to rain or moisture.
For the customers in the U.S.A.
CAUTION
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate this
equipment.
If you have any questions about this product, you
may call:
Sony Customer Information Services Center
1-800-222-SONY (7669)
The number below is for the FCC related
matters only.
Regulatory Information
Declaration of Conformity
Trade Name: SONY
Model No.:
DPP-FP55
Responsible Party:
Sony Electronics Inc.
Address:
16530 Via Esprillo,
San Diego, CA 92127 U.S.A.
Telephone No.: 858-942-2230
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference
that may cause undesired operation.
Note:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:
2 GB
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment
and receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV
technician for help.
For the Customer in Europe
This product has been tested and found compliant
with the limits set out in the EMC Directive for
using connection cables shorter than 3 meters (9.8
feet).
Attention
The electromagnetic fields at the specific
frequencies may influence the picture of this digital
photo printer.
Notice
If static electricity or electromagnetism causes data
transfer to discontinue midway (fail), restart the
application or disconnect and connect the
communication cable (USB, etc) again.
Disposal of Old Electrical & Electronic
Equipment (Applicable in the European
Union and other European countries
with separate collection systems)
This symbol on the product or on its packaging
indicates that this
product shall not be
treated as household
waste. Instead it shall be
handed over to the
applicable collection
point for the recycling of
electrical and
electronic equipment. By
ensuring this product is
disposed of correctly,
you will help prevent
potential negative
consequences for the
environment and human
health, which could otherwise be caused by
inappropriate waste handling of this product. The
recycling of materials will help to conserve natural
resources. For more detailed information about
recycling of this product, please contact your local
Civic Office, your household waste disposal service
or the shop where you purchased the product.
NOTICE FOR CUSTOMERS IN THE
UNITED KINGDOM
A moulded plug complying with BS 1363 is fitted to this
equipment for your safety and convenience.
Should the fuse in the plug supplied need to be replaced,
a fuse of the same rating as the supplied one and
approved by ASTA or BSI to BS 1362, (i.e.marked with
or mark) must be used.
If the plug supplied with this equipment has a detachable
fuse cover, be sure to attach the fuse cover after you
change the fuse. Never use the plug without the fuse
cover. If you should lose the fuse cover, please contact
your nearest Sony service station.
Duplication, edition, or printing of a CD, TV
programs, copyrighted materials such as pictures
or publications, or any other materials except for
your own recording or creation is limited to
private or domestic use only. Unless you hold
copyright or have permission of copyright
holders for the materials to be duplicated, use of
those materials beyond this limit may infringe the
provisions of the copyright law and be subject to
the copyright holder’s claim for damages.
When using photo images with this printer, pay
special attention not to infringe the provisions of
the copyright law. Any unauthorized use or
modification of others’ portrait may also infringe
their rights.
For some demonstrations, performances, or
exhibits, photography may be forbidden.
Backup recommendations
To avoid potential risk of data loss caused by
accidental operation or malfunction of the
printer, we recommend that you save a
backup copy of your data.
Information
IN NO EVENT SHALL SELLER BE LIABLE
FOR ANY DIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY
NATURE, OR LOSSES OR EXPENSES
RESULTING FROM ANY DEFECTIVE
PRODUCT OR THE USE OF ANY
PRODUCT.
Sony shall assume no responsibility for any
accidental or consequential damages or loss of
the recording contents which may be caused
by use or malfunction of the printer or
memory card.
Notes on LCD screen
• The displayed image on the screen is not
identical in picture quality and colors with the
printed image because phosphor methods or
profiles differ. Please regard the displayed
image as just a reference.
• Do not press against the LCD screen. The
screen may be discolored and that may cause a
malfunction.
• Exposing the LCD screen to direct sunlight for
long periods may cause malfunctions.
• The LCD screen is manufactured using
extremely high-precision technology so over
99.99% of the pixels are operational for effective
use. However, there may be some tiny black
points and/or bright points (white, red, blue or
green in color) that constantly appear on the
LCD screen. These points are normal in the
manufacturing process and do not affect the
recording in any way.
• Images may trail across on the LCD screen in a
cold location. This is not a malfunction.
On trademarks and copyrights
• Cyber-shot is the trademark of Sony
Corporation.
, “Memory Stick
• “Memory Stick“,
PRO”,
, “Memory Stick
Duo”,
, “Memory Stick
PRO Duo”
,
“MagicGate“, and
are
trademarks of Sony Corporation.
• Microsoft, Windows® and DirectX are
registered trademarks of Microsoft Corporation
in the United States and other countries.
• IBM and PC/AT are registered trademarks of
International Business Machines Corporation.
• Intel and Pentium are the registered
trademarks or trademarks of Intel Corporation.
• All other companies and product names
mentioned herein may be the trademarks or
registered trademarks of their respective
companies. Furthermore, “™” and “®” are
not mentioned in each case in this manual.
• The raster process of true type fonts is based on
the FreeType Team software.
•This software is based in part on the work of the
independent JPEG Group.
• Libtiff
Copyright © 1988-1997 Sam Leffler
Copyright © 1991-1997 Silicon Graphics, Inc.
Permission to use, copy, modify, distribute, and
sell this software and its documentation for any
purpose is hereby granted without fee.
• Zlib
© 1995- 2002 Jean-loup Gailly and Mark Adler
3 GB
Notice for users
Program © 2006 Sony Corporation
Documentation ©2006 Sony Corporation
All rights reserved. This manual or the software
described herein, in whole or in part, may not be
reproduced, translated or reduced to any machine
readable form without prior written approval from
Sony Corporation.
IN NO EVENT SHALL SONY CORPORATION BE
LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES,
WHETHER BASED ON TORT, CONTACT, OR
OTHERWISE, ARISING OUT OF OR IN
CONNECTION WITH THIS MANUAL, THE
SOFTWARE OR OTHER INFORMATION
CONTAINED HEREIN OR THE USE THEREOF.
By breaking the seal of the envelope of the CDROM package, you accept all the terms and
conditions of this agreement. If you do not accept
these terms and conditions, please return this disk
envelope unopened, along with the rest of the
package, immediately to the dealer where you
obtained it.
Sony Corporation reserves the right to make any
modification to this manual or the information
contained herein at any time without notice.
The software described herein may also be
governed by the terms of a separate user license
agreement.
Any design data such as sample pictures provided
in this software cannot be modified or duplicated
except for the purpose of personal use. Any
unauthorized duplication of this software is
prohibited under copyright law.
Please note that unauthorized duplication or
modification of others’ portraits or copyrighted
work could infringe the rights reserved by right
holders.
Table of contents
Before you begin
What you can do with this printer .......... 6
Identifying the parts ............................... 8
Preparations
1 Checking the contents of
the package .................................... 10
2 Preparing the print pack ................. 11
Size of print paper ................................... 11
Optional print packs ................................ 11
3 Loading the print cartridge ............. 12
4 Inserting the print paper ................. 13
5 Connecting the AC power source ... 16
Inserting a memory card ....................... 17
Inserting a “Memory Stick” ..................... 17
Inserting an SD card ................................ 18
Connecting a camera or other
external device ............................... 18
Making basic printing
Printing selected images ....................... 20
Printing an image .................................... 20
Printing multiple images .......................... 22
Using the LCD screen ............................ 24
An image preview ................................... 24
Image list ................................................ 25
4 GB
Making various printing
Printing from a PC
Editing an image .................................. 26
Installing the software .......................... 47
Displaying the Edit menu ......................... 26
Enlarging and reducing an image size ...... 27
Moving an image .................................... 27
Rotating an image ................................... 27
Adjusting an image ................................. 28
Adding a special filter to an image .......... 28
Reducing the red-eye phenomenon .......... 29
Printing and saving an image .................. 30
System requirements ............................... 47
Installing the printer driver ...................... 48
Installing the Picture Motion Browser ...... 51
Making split images and a calendar
(Creative Print) ............................... 31
Displaying the Creative Print menu .......... 31
Making split images ................................ 32
Making a calendar .................................. 34
Making easy printing
(Index/DPOF/All) ............................. 35
Viewing a slideshow ............................. 37
Searching for an image ......................... 38
Printing photos from the Picture
Motion Browser .............................. 53
Printing from other application
software ................................................. 60
Troubleshooting
If trouble occurs .................................... 62
If an error message appears ................. 77
If paper jams ........................................ 80
Cleaning the inside of the printer ......... 80
Additional information
Deleting images .................................... 39
Precautions ........................................... 82
Deleting selected images ......................... 40
Formatting a “Memory Stick” .................. 40
About the Memory Cards ..................... 83
Changing the print settings
(Set Up) .......................................... 41
Changing the printer preferences
(Option) .......................................... 44
About the “Memory Stick” ...................... 83
About the SD card ................................... 86
Specifications ....................................... 87
Printing range ......................................... 89
Glossary ................................................ 90
Index .................................................... 91
Printing from a PictBridge
camera
Printing images from the digital
camera ............................................ 46
5 GB
Before you begin
What you can do with this printer
You can print from a memory
card or an external device
You can print using the
printer‘s LCD screen
.pages 20 to 25
“Memory Stick”
(“Memory Stick Duo”),
or SD card
You can select and print an image
.page 20
Digital Camera
or other
external device
You can print from a
PictBridge-compliant camera
Basic one-image
print
You can make a variety of printing
.pages 26 to 36
.page 46
Enlarged/Reduced/
Moved/Rotated
image prints
(.page 27)
Split images
print (.page
32)
You can print from a PC
.pages 47 to 61
Easy printing
(Index/DPOF/
All) (.page
35)
Calendar print
(.page 34)
You can view
a slideshow.
.page 37
You can
search or
delete an
image.
.pages 38 to 40
You can change print and printer
settings.
.pages 40 to 45
6 GB
Convenient printing operations
Versatility of printing
x You can select border or borderless
prints (.page 42)
x You can view a slideshow of the images
in a memory card or an external device.
(.page 37)
x Supplied application software allows
you to print an image easily from your
PC. (.page 47)
x You can print an image
easily from a
PictBridge-compliant
digital camera. (.page 46)
x You can print an image easily from your
camera or an external mass storage
device*. (.page 18)
Supreme picture quality functions
enabling photo-realistic printing
x Professional high-performance printing
system reproduces photo realistic
printing.
x Super Coat 2 feature enables high
durability of a print and resistance
against moisture and fingerprint.
x Auto Fine Print 3 analyses an image and
corrects the picture to optimum quality.
(.page 42)
x Exif 2.21 (Exif Print)
feature utilises shooting
conditions data stored in
an image file of an Exif 2.21-compliant
camera to adjust and print it with
improved quality. (.page 42)
x Red-eye phenomenon reduction,
brightness, hue, and other corrections or
adjustments enable high-quality
printing. (.page 29)
(*Not all types of mass storage devices’
operations are guaranteed.)
7 GB
Before you begin
x Easy-to-view, 2.0 type color TFT liquid
crystal display allows you to preview,
edit, process, save, and print an image
easily. In addition, guide messages will
navigate you through the operations.
x High-speed CPU greatly shortens the
time required for displaying and
printing an image.
x A 20-sheet paper tray allows you to
print up to 20 sheets of paper at one
time. (.page 13)
Identifying the parts
For details, see the pages indicated in the
parentheses.
Printer front panel
1 1 (on/standby) switch/indicator
(pages 16, 20)
2 MENU button
3 (zoom out)/ (zoom in) buttons
(page 24)
4 LCD screen (page 24)
5 Direction (f/F/g/G) buttons
6 ENTER button
7 PRINT button/indicator (page 21)
8 CANCEL button
9 Access indicator (pages 17, 18)
0 Paper tray compartment door
(page 15)
qa Paper tray compartment (page 15)
qs SD CARD slot (pages 18)
qd MEMORY STICK PRO STD/DUO slot
(page 17)
Printer right side panel
qf Print cartridge eject lever
(page 12)
qg Print cartridge (pages 12, 13)
qh Print cartridge compartment door
(pages 12, 13)
8 GB
Printer rear panel
1 Ventilation holes
2 DC IN 24V jack (page 16)
Connect the supplied AC power adaptor
into this connector.
3
Before you begin
Printer left side panel
USB connector (page 49)
When using the printer in PC mode,
connect a PC into this connector.
4 PictBridge connector
(pages 19, 46)
Paper tray
1 Paper eject tray (pages 13, 14)
2 Paper tray lid (pages 13, 14)
9 GB
Preparations
1 Checking the
contents of the
package
Make sure that the following accessories
are supplied with your printer.
Paper tray (1)
AC adaptor (AC-S2425) (1)
CD-ROM (1)
– Sony DPP-FP55 Printer Driver
Software for Windows® XP
Professional/Windows® XP Home
Edition/Windows® 2000
Professional/Windows® Millennium
Edition
– Picture Motion Browser Ver.1.1
• Sample color print pack (Post card size,
10 sheets)
• Operating Instructions (this booklet, 1)
• Quick Start Guide (1)
• Warranty (1)*
• Sony End User Software License
Agreement (1)
* In some regions, the warranty is not supplied.
AC power cord * (1)
* The AC power cord illustrated is for 120V
only. The plug shape and specifications of
the AC power cord differ depending on the
region you purchased the printer.
Cleaning cartridge (1)
10 GB
2 Preparing the print
pack
Note
Not all models are available in all countries.
Notes on using print packs
Size of print paper
The size of the post card size print paper
is as follows:
• Post card (4 x 6 inch/10 x 15 cm) size
(101.6 x 152.4 mm)
(the maximum borderless printing size)
Optional print packs
You can use the following optional print
packs for the printer:
Post card size print pack
SVM-F40P
• 40 sheets of 4 x 6 inch print paper (20sheet-pack x 2)
• Print cartridge for 40 prints
SVM-F80P
• 80 sheets of 4 x 6 inch print paper (20sheet-pack x 4)
• 2 print cartridges each for 40 prints
SVM-F120P
• 120 sheets of 4 x 6 inch print paper (20sheet-pack x 6)
• 3 print cartridges each for 40 prints
• Always use the print pack designed for this
printer only. If you use different types of
print pack, printing may not be possible or
malfunction may occur.
• The side without the imprinting is the
printing surface. Inferior print quality may
result if the printing surface is contaminated
with dust or fingerprints. Be careful to avoid
touching the printing surface.
• Do not bend the paper or tear it off at the
perforations before printing.
• Do not print on used sheets of print paper
or attempt to rewind the ribbon inside the
print cartridge. Doing so could result in
damages to the printer.
• Please do not disassemble the print cartridge.
• Do not pull out the ribbon from the print
cartridge.
Notes on storing print packs (for quality
prints)
• When you are going to store a partially-used
pack of the print cartridge and print paper for
an extended period of time, store it in its
original bag or in a similar container.
• Avoid placing the print pack in locations that
are subject to high temperature, high
humidity, excessive dust, or direct sunlight.
• Use print pack within two years from the date
of production.
Note on storing printouts
Do not affix cellophane tape or plastic erasers to
printouts. Also avoid leaving printouts under
plastic desk mats.
11 GB
Preparations
To print an image, you need a
print pack designed for the
printer. The sample color print
pack contains a set of 10 sheets
of post card size print paper
and a print cartridge for 10
prints.
3 Loading the print
cartridge
1
Pull and open the cartridge
compartment door.
Removing the print cartridge
When the print cartridge runs out, the
cartridge error message appears on the
LCD screen.
Open the cartridge compartment door,
push up the eject lever, and remove the
used print cartridge.
Eject lever
2
Insert the print cartridge in the
arrow direction until it clicks into
place.
Notes
Arrow
3
Close the cartridge compartment
door.
• Use the print cartridge contained in the same
box with the print paper.
• Do not touch the ink ribbon or place the print
cartridge in a dusty location. Fingerprints or
dust on the ink ribbon may result in imperfect
printing.
Ink ribbon
12 GB
• Never put your hand into the cartridge
compartment. The thermal head reaches high
temperatures, especially after repeated
printing.
1
Open the paper eject tray.
2
Slide the paper tray lid in the
opposite direction to the paper
feeding direction (1) and then
lift it up (2).
• Do not remove the print cartridge while
printing.
Notes on storing the print cartridge
• Avoid placing the print cartridge in a location
subject to high temperatures, high humidity,
excessive dust or direct sunlight.
• When you are going to store a partially-used
cartridge, store it in its original bag.
Continued
13 GB
Preparations
• Do not rewind the ink ribbon and use the
rewound print cartridge for printing.
Otherwise, proper printing result will not be
obtained, or even a malfunction may occur.
• If the print cartridge does not click into place,
remove it and then re-insert it. If the ink
ribbon is too slack to be loaded, wind the ink
ribbon in the direction of the arrow to remove
the slack.
4 Inserting the print
paper
3
Set the print paper into the tray.
You can set up to 20 sheets of print
paper.
Riffle the print paper thoroughly.
Insert the print paper into the tray,
with the protective sheet at the top.
If there is no protective sheet: Riffle
the print paper thoroughly. Then
insert the print paper with its printing
surface (the side with no imprint)
facing up.
Printing surface
4
Remove the protective sheet.
5
Close the paper tray lid (1) and
slide it to the paper feeding
direction (2).
Keep the paper eject tray open.
Paper feeding
direction
Face stamp marker
toward the paper
feeding direction.
To set the print paper,
face the stamp marker
toward the paper
feeding direction.
Note
Do not touch the printing surface.
Fingerprints on the printing surface may
result in imperfect printing.
14 GB
6
Pull and open the printer’s paper
tray compartment door.
If print paper runs out during printing, the
paper error message appears on the LCD
screen of the printer. Remove the paper
tray and feed the print paper.
Notes
Insert the paper tray into the
printer.
Insert the paper tray straight in until it
reaches the end.
Notes on storing the print paper
Note
Make sure that the paper tray is not
inserted at any angle. If it is, the printer
will not print properly.
• Avoid storing the paper with the printed
faces touching each other or in contact with
rubber or plastic products including vinyl
chloride or plasticizer for an extended period
of time; color changes or deterioration of the
printed image may occur.
• Avoid placing the print paper in a location
subject to high temperatures, high humidity,
excessive dust or direct sunlight.
• When you are going to store partially-used
print paper, store it in its original bag.
15 GB
Preparations
7
• Do not remove the paper tray during
printing.
• To avoid paper jam or malfunctions of the
printer, make sure the following before
printing:
– Do not write or type on the print paper.
Use the oil ink pen to write on the paper
after printing. You cannot type on the
print paper using an ink-jet printer, etc.
– Do not attach sticker or stamps on the print
paper.
– Do not fold or bend the print paper.
– Total number of print paper does not
exceed 20 sheets.
– Do not print on the used print paper.
Printing an image twice on the same paper
will not make the printed image thicker.
– Use the print paper for this printer only.
– Do not use the print paper ejected without
printed.
5Connecting the AC
power source
1
Insert one plug of the supplied AC
power cord to the supplied AC
adaptor.
2
Insert the other plug of the AC
power cord to the wall outlet
close by (wall socket).
3
Insert the plug of the AC adaptor
to the DC IN 24V jack of the
printer.
The 1 (on/standby) indicator lights
in red.
To DC IN 24V
AC adaptor
AC-S2425
(supplied)
AC power cord
(supplied)
16 GB
To the wall
outlet
Notes
• Connect the AC adaptor to an easily accessible
wall outlet close by. If some trouble occurs
while using the adaptor, immediately shut off
the power by disconnecting the plug from the
wall outlet.
• When you have finished using the AC adaptor,
disconnect it from the DC IN 24V jack of the
printer.
• The printer is not disconnected from the AC
power source (mains) as long as it is connected
to the wall outlet , even if the printer itself has
been turned off.
• The print paper emerges from the rear a few
times during printing. Do not block the rear
with the AC adaptor or AC power cord.
• Be sure to use the AC adaptor supplied with
the printer. Do not use other AC adaptor, as
this may cause malfunction.
• In case the cord of the AC adaptor is damaged,
never use it any longer, as this may cause
danger.
• Do not short the DC plug of the AC adaptor
with a metallic object, as this may cause
malfunction.
• Do not use the AC adaptor in a narrow space,
such as the one between the printer and the
wall.
Inserting a memory
card
On using a memory card
• Do not attempt to insert a memory card
forcibly into or out of the slot. If you do so,
the memory card or the printer may be
damaged.
• Do not remove the memory card while the
access indicator is flashing; the memory card
or printer may be damaged.
• To avoid loss of data, make a backup copy of
the contents of the memory card. We cannot
compensate for any damage to or loss of data.
• Check the memory card and insert it in the
correct direction. If a memory card is forcibly
inserted in the wrong direction, the memory
card and its slot may be damaged.
• Check the memory card type and make sure
to insert it to the slot designed for the
particular card type. If you insert a memory
card to a different slot, the memory card may
be damaged or you may not be able to
remove the card from the slot.
• When you remove a memory card, make sure
to hold it with your hands to prevent it from
popping out and hitting your eye, as this may
cause injuries.
Insert a “Memory Stick” or “Memory Stick
Duo” into the MEMORY STICK PRO
STD/DUO slot until it clicks into place.
As this printer is equipped with a
“Memory Stick”/“Memory Stick Duo” slot
a Memory Stick Duo adaptor is not
necessary.
Preparations
To print an image stored on a “Memory
Stick” (or “Memory Stick Duo”), or SD
card, insert it into the relevant card slot.
When multiple memory cards are inserted,
the card inserted first will have the first
priority. When you turn on the printer
with multiple cards being inserted, the
printer detects in the order of “Memory
Stick” (or “Memory Stick Duo”), and SD
card.
For the types of the memory card that you
can use with the printer, see pages 83
through 86.
Inserting a “Memory Stick”
Access indicator flashes
while the printer is
accessing the memory
card.
Insert it so that
the b mark is on
the upper left
corner.
To eject a “Memory Stick”
Push the “Memory Stick” lightly into the
insertion slot. After it pops out, remove it
slowly.
17 GB
Inserting an SD card
Insert the SD card into the SD CARD slot
until it fits into place.
Connecting a camera
or other external
device
To print an image from a camera or other
external device, connect it to the printer .
You can connect an external device that
supports mass storage system. For how to
connect the PictBridge-compliant digital
camera, see page 46.
Access indicator flashes
while the printer is
accessing the memory
card.
Insert it in the b
mark direction.
In the SD CARD slot of this printer, you
can use the following media;
• SD Memory card
• MiniSD card (you need to use a miniSD
card adaptor)
• MMC standard memory card
• RS-MMC card (you need to use an
MMC adaptor)
Note
If a memory card is inserted in the printer,
the printer cannot read the signal from an
external device connected to the PictBridge
connector of the printer. Remove the memory
card, if any.
1
The settings and operations that are
necessary before connection differ
depending on the external device you
use. For details, see the operating
instructions of the external device. (In
case of Sony Cyber-shot digital
camera, for example, select “Normal”
mode or “Mass Storage” mode for the
“USB Connect”. )
To eject an SD card
Push the SD card lightly into the insertion
slot. After it pops back out, remove it
slowly.
Notes
• When you remove the SD card, make sure to
hold it with your hands to prevent it from
popping out and hitting your eye, as this may
cause injuries.
• When you use a miniSD card, use a miniSD
card adaptor. If you insert a miniSD card
without the adaptor into a slot of the printer,
you may not be able to remove it.
18 GB
Set your digital camera or other
external device ready for printing
with the Mass Storage-compliant
printer.
2
Connect a camera or an external
device to the PictBridge connector
of the printer.
Use the USB cable supplied with the
digital camera or other external
device.
To PictBridge connector
(USB A-TYPE)
Preparations
Camera or other
external device
To USB connector
Notes
• The type of USB cable you should use may
differ depending on the digital camera. Use a
USB cable with an A-TYPE connector for the
printer and an appropriate type for your
digital camera.
• We cannot guarantee connection with all
types of mass storage devices.
• If you use a commercially available USB
cable, please use the one shorter than 3m in
length.
• While the access indicator of the external
device is flashing, never turn off the power of
the printer or an external device nor remove
the USB cable. The data inside the external
device may be damaged. We cannot
guarantee any damages that may be caused
by data loss or damage.
19 GB
Making basic printing
Printing selected
images
This section explains how to display the
images of a memory card
or an external device on
the printer’s LCD screen
and print the selected
images.
Borderless standard print
Before you begin
You need preparations 1 through 5
(pages 10 to 16), and the following:
• “Inserting a memory card” (page 17) or
“Connecting a camera or other external
device” (page 18)
Before you start, make sure to insert or
connect only a media that contains the
images you want to print. The name of
the media whose images are being
displayed appears on the upper left corner
of the LCD screen.
Printing an image
1
Press 1 (on/standby) switch to
turn on the printer.
The 1 (on/standby) indicator of the
printer lights in yellow green.
Note
The print paper emerges from the rear a few
times during printing. Make sure to spare
enough space behind the printer during
printing.
Selecting an input signal with
the printer
The printer is not equipped with the input
select switch. When you connect a
memory card or an external device with
the printer, the images of the connected
media are displayed automatically. If
multiple memory cards or an external
device are connected, the media first
connected has the priority. When you turn
on the printer with multiple media being
inserted or connected, the printer detects
in the order of “Memory Stick” (or
“Memory Stick Duo”), SD card, and an
external device connected to the
PictBridge connector, and a PC connected
to the USB connector.
20 GB
An image contained in the memory
card or external device is displayed
on the LCD screen.
2
The images are displayed in the image
list.
To select an image in the image list
Press (zoom out). One image
preview changes to image list display.
Press g/G/f/F to move the cursor
to the image you want to print.
Press PRINT.
Printing of the selected image starts.
During printing the PRINT indicator
flashes and the printing process is
displayed on the LCD screen.
When the printer is ready for printing, the
PRINT indicator lights in blue green. (If
not, check to see that the print paper and
print cartridge are properly set.)
4
When printing is complete and
the print paper automatically
emerges, remove the printed
paper from the paper tray.
Notes on printing
• Do not remove or connect a memory card or
an external device while the access indicator
is flashing or the access indication is
displayed on the LCD screen.
• Never move or turn off the printer while it is
printing; the print cartridge or paper may
become stuck. In case you turn off the power,
keep the paper tray inserted and then turn on
the printer. If paper being printed remains in
the printer, remove the paper that emerged
automatically and resume printing from the
step 1.
• The print paper emerges a few times during
printing. Do not touch nor pull the emerged
paper. Wait for the print paper to be fully
ejected after printing ends.
• As the print paper emerges from the rear a
few times during printing, make sure to spare
enough space behind the printer during
printing.
21 GB
Making basic printing
To print multiple copies
1 Press ENTER to display the print
quantity.
2 Press f/F to increase or decrease
the print quantity.
3 Press ENTER to fix the quantity.
3
Tip
Press g/G/f/F repeatedly until
the image that you want to print
appears.
To display another page
• To display the next page, move the
cursor to the bottom line of the
image list and press F.
• To display the previous page, move
the cursor to the top line and press
f.
Printing multiple images
This section explains how to select
multiple images, specify print quantity for
each of them and print them at a time.
1
Press 1 (on/standby) switch to
turn on the printer.
The 1 (on/standby) indicator of the
printer lights in yellow green. An
image contained in the memory card
or external device is displayed on the
LCD screen.
2
Press (zoom out) to display the
image list.
To display one image preview again
Move the cursor to the desired image
and press (zoom in).
3
Press g/G/f/F to move the cursor
to the image you want to print,
and press ENTER.
The one image preview changes to the
image list display. The orange frame
shows the cursor.
The print quantity indication becomes
“1”.
Print quantity indication
Cursor (orange frame)
22 GB
4
Press f/F to set the print
quantity.
• To increase the print quantity one
by one, press f repeatedly.
• To reduce the print quantity one by
one, press F briefly repeatedly.
• To reset the print quantity to zero
immediately, press F for more than
two seconds.
You can set up to 20 copies of print
quantity for an image.
5
When printing is complete and
the print paper automatically
emerges, remove the printed
paper from the paper tray.
Tip
Even if the remaining volume of the print
cartridge is shorter than the print quantity, you
can proceed with printing. If the print cartridge
runs out in the middle of printing and a
message appears, follow the displayed
instructions to replace the printing cartridge
(page 12).
Making basic printing
• To display another image, press
g/G.
• To cancel the selection, press
CANCEL.
7
Repeat steps 3 and 4 to select
other images and set print
quantity for each of them.
The selected images are displayed
with the cursor .
To cancel the selection
1 Press g/G/f/F to move the
cursor to the image you want to
cancel in the image list and press
ENTER.
2 Press F repeatedly until the print
quantity becomes “0.”
The image selection is canceled.
6
Press PRINT.
The selected images will be printed.
During printing, the PRINT indicator
flashes and the printing process is
displayed on the LCD screen.
To stop printing
Press CANCEL. When you are
printing multiple copies, the next
printing after the one currently
printing will be canceled.
23 GB
Using the LCD screen
You can switch an image preview and the
image list display to view and check a
picture before printing.
An image preview
Selected input
media (Memory
card or external
device)*
Print cartridge type
(P: Postcard/C:
cleaning cassette)
Associated file/ Number of the
DPOF/Protect selected images/
indications** Total number of
• Press (zoom out) repeatedly.
An image is reduced up to the original
scale and then the display changes from
an image preview to the image list.
• Press (zoom in) repeatedly.
The display changes from the image list
to an image preview. Then the image is
enlarged up to 5 times the original scale.
To display or select another image
Press g/G/f/F. In one image preview,
the displayed image switches. In the
image list, the cursor (showing the
selected image) moves.
Image number
(folder- file number)
Image data
display when
the “Image
data display”
in the Options
menu is set to
“ON”.
Saved date (year/
month/day)
Scroll bar
Operation
indicating the
tips
position of the
image among
the total
number of
images.
* Input indications
The icon of the connected media is displayed:
: “Memory Stick” or “Memory Stick Duo”
: SD Card
: External Device
24 GB
**Associated file/DPOF/Protect indications
• Associated file indication:
The image, in addition to the displayed
image, has an associated file such as a motion
file or a miniature e-mail image file.
• DPOF indication:
The image is DPOF preset with a digital
camera.
• Protect indication:
The image is protected with a digital camera.
Image list
Making basic printing
Cursor (orange frame)
Operation tips
Scroll bar indicating the
position of the image
among the total
number of images.
25 GB
Making various printing
Cursor
Edit menu
Editing an image
Displaying the Edit menu
You can display the Edit menu and edit or
add an effect to an image.
Buttons to be used in the Edit menu
g/G/f/F/ENTER
Items
PRINT
/
CANCEL
MENU
1
2
Procedures
Increases or reduces the
size of an image by
pressing the buttons on the
printer.
Display the image that you want
to edit.
Moves an image.
Display the image in the image
preview window or move the Cursor
to the desired image in the image list.
Rotates an image.
Adjusts the picture quality
of an image.
Press MENU on the printer.
Adds an filter to an image.
The menu bar is displayed.
Edit menu icon
Menu bar
Reduces the red-eye
phenomenon.
Undoes the editing just
done and resets the image
to the status before editing.
Saves the edited image.
To exit the menu mode
Press MENU again. The previous
window is displayed.
3
Press g/G to select
then press ENTER.
(Edit) and
The Edit menu is displayed.
26 GB
Exits the Edit menu.
Tip
You can press MENU while editing an image
and set part of the Set Up menu items.
Enlarging and reducing an
image size
1
2
3
Move the image with g/G/f/F.
The image moves to the selected
direction.
Display the Edit menu (page 26).
Press (zoom in) to enlarge an
image or (zoom out) to reduce
the size of it.
Each time you press the button, the
image becomes larger or smaller:
: up to 200%
: up to 60%
4
Press ENTER.
The image is fixed to the position.
Rotating an image
Note
The picture quality of an enlarged image may be
deteriorated depending on its size.
Moving an image
1
2
1
2
Display the Edit menu (page 26).
Press g/G to select
(Rotate)
and then press ENTER.
The Rotate menu is displayed.
Rotate icon
Rotate menu
Display the Edit menu (page 26).
Press g/G to select
(Position)
and then press ENTER.
The b/B/v/V appears on the right/
left/above/down the image and you
can move the image.
Continued
27 GB
Making various printing
Tip
To print the image previewed, press PRINT
(page 30).
3
When “Brightness” is selected.
Press f/F to select the direction
to rotate the image and then
press ENTER.
• Rotate 90° Clockwise: Each time
you press ENTER, the image rotates
90° clockwise.
• Rotate 90° Counterclockwise:
Each time you press ENTER, the
image rotates 90° counterclockwise.
Tip
To print the image previewed, press PRINT
(page 30).
Adjustment slider
4
Adjusting an image
1
2
• Brightness: Press G to brighten the
picture or g to darken it.
• Tint: Press G to make the picture
bluish or g to make it reddish.
• Saturation: Press G to deepen the
colors or g to lighten the colors.
• Sharpness: Press G to sharpen the
outlines or g to reset them.
Display the Edit menu (page 26).
Press g/G to select
(Adjust)
and then press ENTER.
The Adjust menu is displayed.
Adjust icon
Move the slider to the desired
position to adjust the level.
Adjust menu
5
Press ENTER.
The adjustment takes effect.
Tip
To print the image previewed, press PRINT
(page 30).
Adding a special filter to an
3
Press f/F to select the desired
adjustment tool and press ENTER.
The adjustment slider appears.
28 GB
1
2
Display the Edit menu (page 26).
Press g/G to select
then press ENTER.
(Filter) and
The Filter menu is displayed.
Filter menu
Filter icon
Reducing the red-eye
phenomenon
You can reduce the red-eye phenomenon
of a subject shot using a flash.
Note
3
If you perform additional editing, such as
enlarging, reducing the image size,
rotating or moving an image, after the redeye reduction adjustment, the red-eye
reduction may not take effect. Perform the
red-eye reduction after these editorial
operations.
• Sepia: Changes the image like an
old photograph with faded colors.
• Monochrome: Changes the image
into a black and white picture.
• Paint: Makes the image look like a
painted picture.
• Fish-eye: Makes the image look like
a photo taken with a fish-eye lens.
• No Filter: No special filter on the
image (default setting).
4
1
2
Display the Edit menu (page 26).
Press g/G to select
(Red-eye
reduction) and then press ENTER.
The adjustment frame appears on the
image, which indicates the range for
red-eye reduction adjustment.
Adjustment frame
Press ENTER.
The filter takes effect.
Tip
To print the image previewed, press PRINT
(page 30).
3
Adjust the position and size of the
adjustment frame.
Make the red-eye reduction
adjustment for the right and left eyes
separately.
To move the adjustment frame
1 Press g/G to select
(Position)
and press ENTER.
Continued
29 GB
Making various printing
Press f/F to select the desired
filter you want to add to the
image.
2 Move the frame with g/G/f/F.
The frame moves in the selected
direction.
3 Press ENTER.
The frame is fixed in the current
position.
To change the size of the
adjustment frame
Press g/G to select
(Enlarge) or
(Reduce) and press ENTER.
Each time you press ENTER, the
frame becomes larger or smaller.
You can also enlarge or reduce the
size by pressing
(zoom in) or
(zoom out) buttons on the printer.
Tip
Make the size of the adjustment frame two
to seven times as large as the eye size.
4
Press g/G to select
and press
ENTER.
The range of red-eye reduction
adjustment is enlarged.
5
Press ENTER.
The adjustment takes effect.
The Red-eye reduction menu is
displayed.
To make a red-eye reduction
adjustment for other eyes, repeat
steps 3 to 5.
To reset the adjustment
Press CANCEL in step 5 instead of
ENTER. The red-eye reduction
adjustment is canceled and the window of
step 2 is displayed.
Tip
To print the image previewed, press PRINT
(page 30).
30 GB
Printing and saving an image
Printing an image
1
Press PRINT.
The dialog box to specify the print
quantity is displayed.
2
Press f/F to increase or decrease
the print quantity.
• To increase the print quantity one
by one, press f repeatedly.
• To reduce the print quantity one by
one, press F briefly repeatedly.
• To reset the print quantity to zero,
press F for more than two seconds.
3
Press PRINT to start printing.
The image previewed is printed.
Saving an image
When you select
(save) in the Edit or
Creative Print menu, the dialog box to
select the destination to save the image is
displayed. You can save the image under a
new image number.
Tip
The selected image will not be overwritten.
1
Select the destination to save an
image.
Press f/F to select the media
(“Memory Stick”, or “SD Card”) and
press ENTER.
The dialog box for setting date is
displayed. You can save the date with
the image.
2
Set date.
Press f/F to select the number and
press g/G to select the day, month or
year. Then press ENTER.
Making split images
and a calendar
(Creative Print)
Displaying the Creative Print
menu
You can display the Creative Print menu
and make a calendar or split images prints
using the images of a memory card or an
external device.
Buttons to be used in Creative Print
3
Press ENTER.
PRINT
CANCEL
MENU
1
Press MENU.
The menu bar is displayed.
Creative Print menu icon
Menu bar
Note
While saving the image, do not turn off the
printer or remove a memory card from the
printer. The memory card may be damaged.
To exit the menu mode
Press MENU. The previous window
is displayed.
Continued
31 GB
Making various printing
g/G/f/F/ENTER
The edited or Creative Print image is
saved as a new image. The dialog box
to notify the new image numbers
(folder number-file number) is
displayed.
For example, when “100-0001” is
displayed, “100” is folder number and
“0001” is file number.
2
Press g/G to select
(Creative
Print) and then press ENTER.
The Creative Print menu is displayed.
Making split images
You can make a print
with 2-split, 4-split, 9split, 13-split, or 16split images.
1
Display the Creative Print menu
(page 31).
2
Press g/G to select “Split Image”,
then press ENTER.
The split image templates are
displayed.
To undo the operation midway
Press CANCEL. The window of the
previous step is displayed. Depending on
the step, you cannot undo the operation.
Tip
You can press MENU while making a Creative
Print and set part of the Set Up menu items.
To save Creative Print (page 30)
• To save an image, select
window.
on the
To exit the Creative Print menu
• Press MENU in the middle of the
operations and select “Creative Print
Complete”.
• Display the preview image and then
3
Press g/G to select the desired
template, then press ENTER.
The preview of the selected template
is displayed.
Image area
press g/G/f/F to select
and press
ENTER.
The dialog box for saving an image may
be displayed (page 30).
Tip
You can select and set each area in any
order.
32 GB
4
Press g/G/f/F to select the
desired image area and press
ENTER.
Items
/
The window for selecting an image is
displayed.
Procedures
Increases or reduces the size of
an image by pressing the
buttons on the printer.
Move the adjustment frame
with g/G/f/F, and then
press ENTER.
Each time you press ENTER,
the image rotates 90°
clockwise.
7
and
The selected image is added to the
image area. When you select a
template with multiple images, repeat
the steps 3 through 7 to select an
image for each area.
Press g/G/f/F to select the
desired image, and then press
ENTER.
The window used for adjusting the
image position is displayed.
Adjustment tools
Tip
6
Adjust the size and position of the
selected image.
To print the image previewed, press PRINT
(page 30).
Press g/G to select the desired
adjustment item, then press ENTER.
Continued
33 GB
Making various printing
5
Press g/G/f/F to select
press ENTER.
Making a calendar
4
When you select a template with
multiple images, repeat the
procedures below to select an image
for each area.
You can make calendars
with your favorite
images.
1
Display the Creative Print menu
(page 31).
2
Press g/G to select “Calendar”,
then press ENTER.
1 Press g/G/f/F to select an image
area, then press ENTER.
The image list is displayed (page
32).
2 Press g/G/f/F to select the
desired image, then press ENTER.
The window used for adjusting the
image size and position is
displayed. For information on
adjustment, see step 6 on page 33.
3 Press g/G to select
and then
press ENTER.
The image is selected and displayed
in the relevant area.
The window used for selecting the
calendar template, is displayed.
5
3
Press g/G to select the desired
template, and then press ENTER.
The preview of the selected template
is displayed.
Image area
Select an image.
Set the calendar.
1 Press g/G/f/F to select the
calendar area and press ENTER to
display the calendar setting
window.
Calendar area
2 Press f/F to select the following
items and then press g/G to select
an option.
Tip
You can select and set an image area or
calendar area in any order.
34 GB
Item
Procedures
Start Y/M
Set the first month and the year
starting the calendar. Press g/G
to select the month or year and
press f/F to set the number.
Press ENTER.
Start Day
Set the day of the week (placed
furthest left in the calendar).
Press f/F to select “Sunday” or
“Monday”. Then press ENTER.
3 Press g/G/f/F to select
and
then press ENTER.
The calendar is displayed in the
calendar area.
Tip
To print the image previewed, press PRINT
(page 30).
The Easy Printing menu allows you to
print multiple images stored on a memory
card or an external device at one time.
The printer provides the following three
easy printing methods:
• Index printing
You can print a list (index) of all the
images contained in a memory card or
an external device, which allows you to
check the contents of the selected media
easily.
The number of split panes on a sheet
will be calculated automatically. Images
are printed with their corresponding
image numbers (folder number-file
number).
Image numbers
Date (If Date Print
is on.)
• DPOF preset image printing
The images which are DPOF (Digital
Print Order Format) preset for printing
are displayed with the print mark (
)
in the image list. You can print those
images at one time. The images are
printed with the preset number of
copies in the order they were displayed.
• All images printing
You can print all the images stored in a
memory card or an external device at
one time.
Continued
35 GB
Making various printing
Color of Day
Set the color of Sunday and
Saturday to be displayed in the
calendar. Press G and then f/F
to select the desired color for
Sunday and Saturday. Then press
ENTER.
Making easy printing
(Index/DPOF/All)
Notes
Note
• For how to preset images for printing, see the
manual of your digital camera.
• Some types of digital camera do not support
the DPOF function, or the printer may not
support some of the functions of the digital
camera.
1
If there are no DPOF preset images when
you selected “DPOF Print,” an error
message will be displayed.
4
Press MENU on the printer.
When you select “Yes,” printing starts.
During printing, the PRINT indicator
flashes and the printing process is
displayed.
The menu bar is displayed.
Easy Printing icon
Press g/G to select “Yes” to start
printing or “No” to cancel
printing, and then press ENTER.
Menu bar
To stop printing
Press CANCEL. When you are
printing multiple copies, the next
printing after the one currently
printing will be canceled.
To exit the menu mode
Press MENU again. The previous
window is displayed.
2
Press g/G to select
(Easy
5
When printing is complete and
the print paper automatically
emerges, remove the printed
paper from the paper tray.
Printing) and then press ENTER.
The Easy Printing menu is displayed.
Easy Printing menu
3
Press f/F to select “Index Print”,
“DPOF Print”, or “Print All” and
then press ENTER.
The confirmation dialog box is
displayed.
36 GB
Tips
• Even if the remaining volume of the print
cartridge is shorter than the print quantity,
you can proceed with printing. If the print
cartridge runs out in the middle of printing
and a message appears, follow the displayed
instructions to replace the printing cartridge
(page 12).
• When the “Date Print” item of the Set Up
menu is set to “On”, the date the image was
shot or saved is printed (page 43).
Viewing a slideshow
You can perform a slideshow of the
images saved in a memory card or an
external device. You can also manually
print an image being displayed.
3
The window to specify the way how
images are switched is displayed.
4
Press f/F to select “Automatic” to
switch images automatically or
“Manual” to switch them
manually. Then press ENTER.
5
Press f/F to select “Execute”, and
press ENTER.
Buttons to be used in this section
g/G/f/F/ENTER
PRINT
CANCEL
MENU
Press MENU.
The menu bar is displayed.
Menu bar
Slideshow menu icon
• When “Automatic” is selected: The
images in the memory card or an
external device are displayed
automatically one after another.
• When “Manual” is selected:
The image with the cursor in the
image list is displayed. To switch
images, press g/G/f/F. The
image to the left, right, above, or
below the current image in the
image list will be displayed.
To stop slideshow
Press CANCEL.
2
Press g/G to select
(Slideshow)
and then press ENTER.
Printing a displayed image
While playing the slideshow manually,
you can print a displayed image by
pressing PRINT.
The Slideshow menu is displayed.
Slideshow menu
Notes
• Depending on the image, it may take time to
be displayed.
• You cannot display the images that are not
displayed as thumbnails because they are
damaged or for some other reason.
37 GB
Making various printing
1
Press f/F to select “Switch”, and
then press ENTER.
Searching for an image
The Search menu allows you to search a
memory card or an external device for an
image by image number or date.
Buttons to be used in this section
g/G/f/F/ENTER
CANCEL
MENU
1
3
Press f/F to select the search key
and press ENTER.
The dialog box used for specifying
the criteria for searching is displayed.
4
Press g/G to select an item and
press f/F to specify numbers.
• When you select “By File No.”:
Specify the starting and ending
numbers of the files (folder and file
numbers) that you want to search for:
Starting image
number
Ending image
number
Press MENU.
The menu bar is displayed.
Image Search menu icon
Tip
To search for a specific file, enter the same
file number in both the boxes.
To exit the menu mode
Press MENU. The previous window
is displayed.
2
• When you select “By Date”:
Specify the starting and ending
dates of the files that you want to
search for:
Starting date
Ending date
Press g/G to select
(Image
Search) and then press ENTER.
The Image Search menu is displayed.
Image Search menu
Tip
To search for images of a specific day,
enter the same date in both the boxes.
38 GB
• When you select “By Folder No.”:
Specify the folder number of the
images you want to search for:
Deleting images
You can delete the selected images or
format the “Memory Stick”.
Buttons to be used in this section
g/G/f/F/ENTER
5
CANCEL
Press ENTER.
Searching starts. When the search is
complete, the search results will be
displayed.
If no images have been found
6
Press ENTER.
The image list is displayed.
• If you selected “By File No.” and
“By Date”, “01” is displayed on the
images found to indicate their print
quantity. You can easily check the
images you selected on the image
list.
• If you selected “By Folder No.”, the
first or last image in the selected
folder is displayed.
Notes
• During deleting or formatting, do not turn off
the printer or remove the memory card. The
printer, the memory card or an external
device may be damaged. Or the image may
be damaged.
• An image, once deleted, will be lost forever.
Before deleting an image, double-check that it
is the right one.
• When formatting a “Memory Stick”, all the
files including the image files will be deleted.
• You cannot delete an image of an external
device.
• You cannot format a memory card other than
the “Memory Stick”.
Printing a searched image
Press g/G/f/F to select the image that
you want to print and then press ENTER.
Press f/F to set the print quantity and
then press ENTER again.
If you want to print multiple images,
repeat these procedures.
Press PRINT to start printing. The
specified number of copies of the selected
images are printed.
39 GB
Making various printing
“No images were found” will be displayed.
MENU
Deleting selected images
4
You can select and delete images on a
memory card.
1
Press MENU.
The menu bar is displayed.
Menu bar
Press g/G/f/F to move the trash
icon to the image you want to
delete, then press ENTER.
A confirmation dialog box is
displayed.
5
Delete/Format menu icon
Press g/G to select “OK” and
press ENTER.
The selected image is deleted. To
delete other images, repeat steps 4
through 5.
Tip
To exit the Delete/Format menu, press MENU
or CANCEL.
To exit the menu mode, press MENU.
The previous window is displayed.
2
Press g/G to select
(Delete/
Format) and then press ENTER.
The Delete/Format menu is
displayed.
Notes
• When you delete an image with the
associated file indication ( ), the associated
motion or e-mail file will be also deleted.
• You cannot delete a protected image with the
protect indication (
) or a waiting-to-print
indication (
) displayed.
Delete/Format menu
Formatting a “Memory Stick”
You can format a “Memory Stick”.
1
Press MENU.
The menu bar is displayed.
3
Press f/F to select “Delete
Image” and press ENTER.
2
The Delete/Format menu is
displayed.
The image list is displayed.
Trash icon
Press g/G to select
(Delete/
Format) and then press ENTER.
3
Press f/F to select “Memory Stick
Format” and press ENTER.
The confirmation dialog box is
displayed.
4
Press g/G to select “OK” and
press ENTER.
The “Memory Stick” is formatted.
Note
When you format a “Memory Stick”, all the
images inside are deleted.
40 GB
Changing the print
settings (Set Up)
2
Press g/G to select
(Set Up)
and then press ENTER.
The Set Up menu is displayed.
Set Up menu
The Set Up menu allows you to change
various print settings listed on pages 42
and 43.
Buttons to be used in this section
g/G/f/F/ENTER
CANCEL
MENU
Note
Press MENU.
Setting items which cannot be changed are
displayed in gray and cannot be selected.
The menu bar is displayed.
Menu bar
Set Up menu icon
3
Press f/F to select the desired
setting item, and press ENTER.
The setting window for the selected
item is displayed (next page).
4
Press f/F to select the desired
setting and press ENTER.
The setting is fixed.
Tip
To exit the Set Up menu, press MENU.
To exit the menu mode, press MENU.
The previous window is displayed.
Continued
41 GB
Making various printing
1
Item
Settings
Contents
Auto Fine Print 3
Photo*/
Vivid
•Photo: Adjusts an image automatically
so that the image is printed with natural and
beautiful pictures. (Recommended)
•Vivid: Adjusts an image automatically so that
the image is printed with stronger sharpness
correction and more vivid pictures than the
Photo mode.
Notes
• The image data is not corrected.
• When printing in PC mode, the Auto Fine Print 3 setting
with the printer driver has priority over the setting here.
In the PictBridge mode, this setting holds effective.
Exif Print
Off
Prints an image without any corrections.
On*
Adjusts an image shot by an Exif Print (Exif 2.21)compliant digital camera to its optimum picture
quality.
Note
The image data is not corrected.
Borders
Off
Prints an image without any adjustments.
Yes
Prints an image with borders around the image.
Note
Depending on an image, its top and bottom edges or right
and left edges may be trimmed and printed.
No*
Prints an image without blank space around the image.
Note
When printing a standard 4:3 picture shot by a digital
camera, the top and bottom edges of the image are cut and
it is printed as a 3:2 picture.
*: Factory settings
42 GB
Item
Settings
Contents
Date Print
On
Prints the date of shooting with an image when the
image is a file recorded in the DCF (Design rule for
Camera File system) format. To make a print with
the date of shooting, shoot an image in the DCF file
format.
When the image is saved with the printer, the date of
saving is printed.
Off*
Prints an image without the date.
Color Setting
*: Factory settings
To cancel settings
Press CANCEL. The settings will be returned to the state they were in before you made
changes.
43 GB
Making various printing
Adjusts the colors and sharpness of a print. Press g/G
to select a color element ( “R” (red), “G“ (green), or
“B” (blue)) or “S” (Sharpness), and then press f/F to
set the level. You can set the levels for R, G, B in the
range from +4 to –4 and for S in the range from +7 to
0.
R: Adjusts the red and blue elements. The higher
you set the level, the more reddish the picture
becomes as if it receives red light. The lower you
set the level, the darker the picture becomes as if
light blue is added.
G: Adjusts the green and purple elements. The
higher you set the level, the more greenish the
picture becomes as if it receives green light. The
lower you set the level, the darker the picture
becomes as if red purple is added.
B: Adjusts the blue and yellow elements. The higher
you set the level, the more bluish the picture
becomes as if it receives blue light. The lower you
set the level, the darker the picture becomes as if
yellow is added.
S: The higher you set the level, the more distinct the
outlines become.
(*R: 0/G:0/B:0/S:0)
Changing the printer
preferences (Option)
2
Press g/G to select
(Option)
and then press ENTER.
The Option menu is displayed.
Option menu
The Option menu allows you to change
the preferences listed on page 45.
Buttons to be used in this section
g/G/f/F/ENTER
CANCEL
MENU
1
3
Press MENU.
The menu bar is displayed.
Menu bar
Press f/F to select the desired
setting item, and press ENTER.
The setting window for the selected
item is displayed (next page).
To display the hidden setting items,
scroll the window with f/F.
Option menu icon
Note
Items which cannot be changed are
displayed in gray and cannot be selected.
4
Press f/F to select the desired
setting and press ENTER.
The setting is fixed.
Tip
To exit the menu mode, press MENU.
The previous window is displayed.
44 GB
To exit the Set Up menu, press MENU.
Item
Listing Order
Icon
Image Data Display
Settings
Contents
In the image list window, the images are displayed in
the order of their image numbers, starting from the
smallest number.
Descending
In the image list window, the images are displayed in
the order of their image numbers, starting from the
largest number.
On*
In the image list window, the images without
thumbnail (miniature image used as index) data
will be displayed as an icon.
Off
In the image list window, the images without
thumbnail (miniature image used as index)
data will be displayed as its original image.
On
In an image preview window, image information
(file type, shooting conditions, etc.) will be displayed.
Off*
In an image preview window, no image information
will be displayed.
Date Display Order
Set the displayed order of the date (Year, Month, and Day) from the
following:
• Y/M/D*
• M/D/Y
•D/M/Y
LCD Backlight
Set the brightness level of the LCD backlight from the following:
Bright*/Dark
Demonstration Mode On*
Off
Language
A flash file demonstration to explain the functions of
the printer starts automatically after the printer has
been left unused for about 3 minutes without any
media connected. To stop the demonstration, press
any button.
No demonstration flash file will be started.
You can select the language of menu or messages. Depending on the
region you purchased the unit, some of the following languages will
appear: English*/French/Italian/German/Spanish/Russian/
Korean/Chinese (Simplified)
*: Factory settings
Note
To display the hidden setting items, scroll the window with f/F.
To cancel settings
Press CANCEL. The settings will be returned to the state they were in before you made
changes.
45 GB
Making various printing
Ascending*
Printing from a PictBridge camera
Printing images from
the digital camera
You can connect a PictBridge-compliant
digital camera and print an image directly
from your digital camera.
Before you begin
You need preparations 1 through 4
(pages 10 to 15), and the following:
1
Set your digital camera ready for
printing with a PictBridgecompliant printer.
5
Operate the digital camera to
print an image.
The printer supports the following
prints:
• Single-image print.
• All images print
• Index print
• DPOF print
• Border/Borderless print
• Date print
For notes during printing, see page
21.
Notes
The settings and operations that are
necessary before connection differ
depending on the digital camera. For
details, see the operating instructions
of the digital camera you use. (In case
of Sony Cyber-shot digital camera, for
example, select “PictBridge” or
“Auto” mode for the “USB Connect”.)
• If you replace a print cartridge while the
printer is connected to a PictBridge-compliant
digital camera, an image may not be printed
properly. If this occurs, disconnect and then
connect the digital camera.
• If you print an image from your digital
camera without picture quality settings, it
will be printed according to the settings of the
Set Up menu.
Note
When you use a DSC-T1, you need to
update software version.
To PictBridge connector
(USB A-TYPE)
2
Connect the printer to the AC
power source (page 16).
3
Press 1 (on/standby) switch to
turn on the printer (page 20).
The 1 (on/standby) indicator of the
printer lights in yellow green.
4
Connect a PictBridge-compliant
digital camera to the PictBridge
connector of the printer (page 18).
When you connect a PictBridgecompliant digital camera to the
printer, “The printer is being
connected to PictBridge camera.” is
displayed on the display window of
the printer.
46 GB
Camera or other
external device
To USB connector
Printing from a PC
You can print the images from a PC by
installing the supplied software on your
PC and connecting it to the printer .
This section explains how to install the
supplied software on your PC and how to
use the supplied Picture Motion Browser
software to print an image.
Please also refer to the operating
instructions supplied with your PC.
Installation of the software is necessary
only when you connect the printer to your
PC for the first time.
System requirements
To use the supplied printer driver and
Picture Motion Browser, your PC must
meet the following system requirements:
OS: Microsoft Windows ® XP
Professional/Windows ® XP Home
Edition/Windows® 2000
Professional/Windows ® Millennium
Edition, pre-installed (IBM PC/AT
compatible)
(Windows 95, Windows 98 Gold
Edition, Windows 98 Second Edition,
Windows NT, other versions (ex.
Server) of Windows 2000 are not
supported.)
CPU: Pentium III 500MHz or faster
(Pentium III 800MHz or faster is
recommended.)
RAM: 128 MB or more (256 MB or more is
recommended.)
Hard disk space: 200 MB or more
(Depending on the Windows version
you use, more space will be required.
To handle image data, you will need
additional hard disk space.)
Display:
Screen area: 800 x 600 pixels or more
Colors: High Color (16-bit) or more
Required software: DirectX 9.0 or higher
(Required for the Picture Motion
Browser.)
Notes
• If a hub is used to connect the printer and
your PC, or if two or more USB devices
including other printers are connected to your
PC, a trouble may occur. If this occurs,
simplify the connections between your PC
and the printer.
• You cannot operate the printer from another
USB device being used simultaneously.
Continued
47 GB
Printing
camera/Printing from a PC
Printing from
from aa PictBridge
PC
On the supplied CD-ROM
The supplied CD-ROM contains the
following software:
• Printer driver for DPP-FP55: The
software describes the printer’s
requirements and enables printing from
the computer.
• Picture Motion Browser: Sony’s
original software application that allows
you to handle photographs and moving
images—capturing, managing,
processing, and printing.
Installing the software
• Do not remove the USB cable from or connect
it to the printer during data communication
or printing. The printer may not work
properly.
• Do not allow the PC connected to the printer
to switch to standby mode or hibernation
mode during printing. If you do so, the
printer may not print properly.
• We cannot guarantee operations with all
personal computers, even though they may
meet or exceed the system requirements.
• Picture Motion Browser supports the DirectX
technology and the DirectX installation may
be required.
• If the Picture Motion Browser is installed on a
PC on which the Cyber-shot Viewer is
already installed, the Cyber-shot Viewer will
be overwritten and replaced by the Picture
Motion Browser. The browsing folders once
registered in the Cyber-shot Viewer will be
automatically registered in the Picture Motion
Browser. When using the Picture Motion
Browser, you can view the folders easier than
you can when using the Cyber-shot Viewer,
as the registered folders are displayed by
group when viewing folders. With its
improved red-eye reduction adjustment and
newly-added tone curve adjustment, the
Picture Motion Browser also offers more
powerful editorial features. You can also use
the software to write data into an external
memory card for taking it outside.+-
Installing the printer driver
1
2
Turn on your computer and start
Windows.
• When installing or uninstalling the
software in Windows ® 2000
Professional, log on to Windows as
“Administrator” or “Power user”.
• When installing or uninstalling the
software with Windows ® XP
Professional/Windows ® XP Home
Edition, log on using a “Computer
administrator” user account.
Notes
• Be sure to close all running programs
before installing the software.
• The dialog boxes in this section are
those in Windows XP Professional,
unless otherwise specified. The
installation procedures and the dialog
boxes shown differ depending on the
operating system.
3
Insert the supplied CD-ROM into
the CD-ROM drive of your
computer.
The setup starts automatically and the
installation window is displayed.
Note
In case the installation window is not
automatically displayed, double-click the
“Setup.exe” of the CD-ROM.
4
Click “Installing Printer Driver”.
Make sure that the printer is
disconnected from the
computer.
Note
If you connect the printer to your PC in this
stage, either of the following dialog boxes
are displayed:
• When using Windows Me: Add New
Hardware Wizard
• When using Windows 2000/XP:
Found New Hardware Wizard
If this occurs, disconnect the printer from
the PC and then click “Cancel” in the
dialog box.
48 GB
The “Sony DPP-FP55 - InstallShield
Wizard” dialog box appears.
5
Click “Next”.
The license agreement dialog box is
displayed.
6
11 Connect the USB connectors of
the printer and your computer.
Check “I accept the terms of the
license agreement” and click
“Next”.
If you check “I do not accept the terms
of the license agreement”, you cannot
proceed to the next step.
To USB
connector
(B-TYPE)
Windows PC
To USB
connector
Note
The “Ready to install the program”
dialog box is displayed.
Click “Install”.
The “Printer connection” dialog box is
displayed.
8
Connect the printer to the AC
power source (page 16).
9
Press 1 (on/standby) switch to
turn on the printer (page 20).
The 1 (on/standby) indicator of the
printer lights in yellow green.
10 Click “Next”.
The printer automatically enters the
PC mode and the printer setup will
start automatically.
When the printer setup is complete,
the “InstallShield Wizard Complete”
dialog box is displayed.
12 Click “Finish”.
The installation of the printer driver is
complete. When you are prompted to
restart your computer, restart the
computer.
13 • To finish installation, click
“Complete” and remove the
CD-ROM from your computer
and keep it for future use.
• To continue to install the
Picture Motion Browser
software, click “Installing the
Picture Motion Browser” and
follow the procedures on page
51.
Continued
49 GB
Printing from a PC
7
In case you use commercially available
USB cable, use a B-type USB cable shorter
than 3m in length.
Notes
• If the printer driver CD-ROM is prompted
during the installation, specify the following
directory:
C:\WINDOWS\Temp\dpp-fp55
Replace “C:\WINDOWS” with the Windows
folder location of your PC.
• The supplied CD-ROM will be required when
you uninstall or re-install the printer driver.
Keep it in good order for possible future use.
• If the installation fails, remove the printer
from your computer, restart your computer,
and then do the installation procedures from
the step 3.
• After installation, the “Sony DPP-FP55” is not
set as the default printer. Set the printer you
use for each application.
• Before you use the printer, read the Readme
file (the Readme folder of the CDROMcEnglish foldercReadme.txt).
Uninstalling the printer driver
When the printer driver becomes
unnecessary, remove it from your PC hard
disk as follows:
1
Disconnect the USB cable from
your printer and the computer.
2
Insert the supplied CD-ROM into
the CD-ROM drive of your
computer.
The setup starts automatically and the
installation window is displayed.
3
The “Sony DPP-FP55 - InstallShield
Wizard” dialog box appears.
4
Click “Next”.
The license agreement dialog box is
displayed.
Checking the installation
Open the “Printers and Faxes” (in case of
Windows ® XP Professional/Windows ®
XP Home Edition) or “Printers” from the
“Control Panel”. When the “Sony DPPFP55” is displayed in the “Printers and
Faxes” or “Printers” window, the printer
driver has been successfully installed.
Click “Installing Printer Driver”.
5
Check “I accept the terms of the
license agreement” and click
“Next”.
The dialog box used for confirming
uninstallation is displayed.
6
Click “Yes”.
The dialog box used for restarting the
computer is displayed.
50 GB
7
Notes
Check “Yes, I want to restart my
computer now” and click “OK”.
• Be sure to close all running programs
before installing the software.
• The dialog boxes in this section are
those in Windows XP Professional,
unless otherwise specified. The
installation procedures and the dialog
boxes shown differ depending on the
operation system.
2
Insert the supplied CD-ROM into
the CD-ROM drive of your
computer.
After the computer is restarted, the
relevant files will be deleted and
uninstallation is complete.
The setup starts automatically and the
installation window is displayed.
To check uninstallation
Select “Printers and Faxes” (in case of
Windows ® XP Professional/Windows ®
XP Home Edition) or “Printers” from the
“Control Panel” to check if the “Sony DPPFP55” is displayed. If not, the printer
driver is successfully removed.
In case the installation window is not
automatically displayed, double-click the
“Setup.exe” of the CD-ROM.
1
3
Click “Installing Picture Motion
Browser. ”
The “Picture Motion Browser Setup”
starts and the “Choose Setup
Language” dialog box is displayed.
4
Select the language to be used
during installation and click
“Next.”
Turn on your computer and start
Windows.
• When installing or uninstalling the
software in Windows ® 2000
Professional, log on Windows as
the user name of “Administrator”
or “Power user”.
• When installing or uninstalling the
software in Windows ® XP
Professional/Windows ® XP Home
Edition, log on as a user name with
the “Computer administrator” user
account.
The “Sony Picture Utility Setup”
dialog box is displayed.
Continued
51 GB
Printing from a PC
Installing the Picture Motion
Browser
Note
5
Click “Next.”
8
The license agreement dialog box is
displayed.
6
Check “I accept the terms of the
license agreement” and click
“Next.”
The dialog box used to specify the
destination folder is displayed.
7
Check the destination and then
click “Next.”
Click “Install.”
The “Setup Status” dialog box is
displayed.
When the printer setup is complete,
the “InstallShield Wizard Complete”
dialog box is displayed.
9
Click “Finish.”
The installation of the Picture Motion
Browser is complete. When you are
prompted to restart your computer,
restart it.
10 Remove the CD-ROM from your
computer and keep it for future
use.
Notes
The “Ready to install the program”
dialog box is displayed.
52 GB
• If the installation fails, perform the
installation procedures from step 2 again.
• The supplied CD-ROM will be required when
you uninstall or re-install the Picture Motion
Browser. Keep it in a safe place for possible
future use.
When the software is installed
The
is displayed on the Windows
desktop, as well as a shortcut to the web
site for printer customer registration. If
you finish registration, you can find
support information at:
http://www.sony.net/registration/di/
Uninstalling the Picture Motion
Browser
When this software is no longer needed,
remove it from your computer as follows:
1
Click “Start” - “Setting” - “Control
Panel” (or “Start” - “Control
Panel” with Windows XP).
2
Double-click “Add/Remove
Programs.”
The Control Panel is displayed.
3
Select “Sony Picture Utility” and
click “Change/Remove”
(“Remove” with Windows XP).
You can use the Picture Motion Browser to
print an image from your PC using post card
size print paper.
1
Start the Picture Motion Browser
window using either of the
following methods:
• Double-click
(Picture Motion
Browser) on the Windows desktop.
• Click “Start” - “All Programs” (or
“Programs” with Windows 2000) “Sony Picture Utility” - “Picture
Motion Browser.”
When the Picture Motion Browser is
started for the first time, the
registration window used to register a
browsing folder is displayed. If
images have already been saved in
the “My Pictures” folder, click
“Register Now.”
If you have saved images in a folder
other than the “My Pictures” folder,
click “Register Later.” Refer to ”To
register a browsing folder” (page 59).
Continued
53 GB
Printing from a PC
The software is uninstalled.
Printing photos from
the Picture Motion
Browser
How to access the “My Pictures”
folder
• In Windows Me/2000:
Click “My Documents” - “My
Pictures” on the desktop.
• In Windows XP:
Click “Start” - “My Pictures” from
the taskbar.
2
Click the folder containing the
photos you want to print.
As an example, the “sample” folder is
selected in the following explanation.
The main window of the Picture
Motion Browser is displayed.
3
Select the photos that you want
to print and click
To switch the display of the main
window
There are 2 different versions of photo
view used in the main window as
follows:
To switch the view, click the tab
“Folders” or “Calendar.”
• “Folders” view
The images will be classified in each
registered folder and are displayed
as thumbnails.
• “Calendar” view
The images will be classified
according to the shot date and are
displayed as thumbnails on each
date of the calendar. In “Calendar”
view, you can switch the display
according to the year, month, or
hour.
54 GB
(print).
The Print dialog box is displayed.
4
In the “Print” drop-down list box,
select “Sony DPP-FP55” and then
click “Print.”
The preparations for printing start.
Items
Functions
Printer Select “Sony DPP-FP55”.
Paper size
From the drop-down list box,
select the paper size you
actually use for printing:
• P size
• L size
Note
In some regions, L size print paper
is not sold.
Print options
• When checked, an image
will be printed over the
entire printing area of the
paper. An edge of the
photo may not be printed.
• When unchecked, an
image will be printed
without cutting off an
edge.
To print an image without
margins around it (Borderless
Print), you must check this
option.
Borderless
• When checked, an image
will be printed without
margins around it.
• When unchecked, an
image will be printed with
margins around it.
Functions
Apply Exif Print
• When checked, an image
shot with a Exif Print
(Exif 2.21)-compliant
digital camera will be
adjusted and printed with
its optimum picture
quality.
Note
The image displayed on the
monitor will not be adjusted.
•When unchecked, an
image will be printed
without adjustments.
Note
Even if you uncheck the item,
“Color reproduction/Picture
quality” is still set to “Auto Fine
Print 3”. To change the “Color
reproduction/Picture quality”
settings, follow the Properties
steps.
Properties
Specifies orientation, picture
quality and other details.
To make detailed settings, click
“Properties,” so that the properties
dialog box for the selected printer is
displayed.
Tip
When you make a Borderless
Print, you must check the
“Zoom the image until the print
area is full” item for Print
options.
Continued
55 GB
Printing from a PC
Tip
Items
5
In the “Paper/Output” tab, specify
the paper size.
Items
Functions
Paper size
From the drop-down list box,
select the paper size you
actually use for printing:
• P size
• L size
Then check either of the
following to specify the
margins around the image:
• with border: an image is
printed with borders
around it.
• borderless: an image is
printed without borders
around it.
Tip
The settings in the properties
dialog box will be reflected in
the Print dialog box.
Orientation
Select the orientation of an
image when printed:
• Portrait
• Landscape
• Rotates 180 degrees
56 GB
Items
Functions
Copies Specify the number of copies
to be printed.
Enlarge/Reduce
Specify the percentage to
enlarge or reduce the
size of an image when
printed.
You can set the reference
point when an image is
enlarged or reduced by
checking “Upper left
reference”.
• When unchecked, an
image is enlarged or
reduced with the center as
the reference point.
Usually, use this option.
• When checked, an image is
enlarged or reduced with
the upper left corner as the
reference point.
Print preview
Check this option to display
a preview of an image before
printed.
6
In the “Graphics” tab, set the
color reproduction and picture
quality.
Items
Functions
• ICM (system): From the
“Settings” drop-down list
box, select either of the
following correction
method:
– Graphics: when
graphics or vivid colors
are used.
– Match: when you want
to match colors.
– Pictures: when a
photograph or pictures
are printed.
ExifPrint
Items
Functions
Tip
The settings in the properties
dialog box will be reflected in
the Print dialog box.
Red-eye reduction
Check it to automatically
reduce the red-eye
phenomenon of the subject
shot by using a flash light.
Notes
• When you check this option,
make sure to select
“Preview” to display the
preview image before
printing and check that the
red-eye reduction has been
correctly processed to the
image.
Continued
57 GB
Printing from a PC
Color reproduction/Picture quality
Select the setting from the
drop-down list box:
• Off: An image will be
printed without
adjustment. In this case
“ExifPrint” is disabled.
• Auto Fine Print 3:From the
“Settings” drop-down list
box, select either of the
following correction
method:
– Photographical: An
image will be adjusted
automatically and
printed with natural and
beautiful pictures.
(Recommended option)
– Vivid: An image will be
adjusted automatically
and printed with more
vivid pictures. (In this
setting, a stronger
sharpness correction is
given, making pictures
more vivid.)
Check it to adjust and print
an image shot with a Exif
Print (Exif 2.21)-compliant
digital camera. The printer
driver uses the color
conversion and Exif shooting
data to adjust the image.
This option is effective only
with Picture Motion
Browser.
Items Functions
• Red-eye phenomenon will be
detected automatically, and it
may not be corrected.
If red-eye phenomenon is not
corrected, use the Picture
Motion Browser correction
function.
• Red-eye reduction is enabled
only when you have installed
the printer driver from
“Setup.exe” in the supplied
CD-ROM. For the details see
the Readme.txt.
Print settings
Adjusts the color elements and
sharpness.
R (red): Adjusts the red and
blue elements. The higher
you set the level, the more
reddish the picture becomes
as if it receives red light.
The lower you set the level,
the darker the picture
becomes as if light blue is
added.
G (green): Adjusts the green
and purple elements. The
higher you set the level, the
more greenish the picture
becomes as if it receives
green light. The lower you
set the level, the darker the
picture becomes as if red
purple is added.
B (blue): Adjusts the blue
and yellow elements. The
higher you set the level, the
more bluish the picture
becomes as if it receives
blue light. The lower you
set the level, the darker the
picture becomes as if yellow
is added.
Sharp (sharpness): The higher
you set the sharpness level,
the more distinct the
outlines become.
58 GB
7
Click “OK.”
The print dialog box is displayed.
Tip
When “Print preview” is checked
in step 5, the preview window is displayed.
Check the results of any adjustments and
then click “Print.”
Printing resumes. Make sure to read
“Notes on printing” on page 21, as
well.
For the details of the properties of the
Picture Motion Browser, see the
Picture Motion Browser online Help.
Note
You cannot print a motion-picture file or RAW
data files.
Tips
• To select serial still images in the image area
of the main window, click the first image in
the series and then click the last image while
pressing the Shift key.
• To select multiple still images not in a
sequence, click the images individually while
pressing the Ctrl key.
• You can print from an image preview.
• The Picture Motion Browser is compatible
with the ICM.
To register a browsing folder
The Picture Motion Browser does not
allow you to view images saved on the PC
hard disk directly. You must to register the
browsing folder as follows:
1
Note
You cannot register the whole drive.
3
Click “Yes.”
Registration of the image information
in the data base starts.
Click “File”-“Register Viewed
(Register
Folder,” or click
Folders to View).
The browsing folder registration
window is displayed.
4
Click “Close.”
Notes
2
Select the folder you want to
register and then click “Register.”
To change the browsing folder
Click “Tools” - “Settings” - “Viewed
folders.”
Tips
• If a sub folder is contained in the source
folder, the images in the sub folder will also
be registered.
• When the software is first started, the
message prompting you to register “My
Pictures” will be displayed.
• Depending on the number of images, it may
take some tens of minutes to register images.
Continued
59 GB
Printing from a PC
• The folder you select as the destination
of the imported images will be
registered automatically.
• You cannot cancel registration of the
folder you register here.
To stop printing
1
2
Double-click on the printer icon
on the taskbar, and open the
“Print” dialog box.
Click the document name that
you want to cancel printing of
and then click “Cancel” from the
“Document” menu.
The dialog box used for confirming
the deletion is displayed.
3
Click “Yes.”
The printing job is canceled.
Note
Do not cancel the printing job during the
printing process, which may cause a paper jam.
Printing from other
application software
You can use a commercially-available
application software to print an image
from the DPP-FP55. Select “DPP-FP55” in
the print dialog box and select the print
paper size in the page setup dialog box.
For details in print settings, see steps 5 and
6 on pages 56 and 57.
On “borderless” setting in the “Paper
size” section
When using an application other than the
Picture Motion Browser, an image might
be printed with borders even if you select
borderless print in the “Paper size” section
of the “Paper/Output” tab in the “Sony
DPP-FP55 Properties” dialog box.
When you select the borderless print
option, the printing rage information for
borderless print will be supplied to the
application. Some applications, however,
may arrange and print the image with
borders within the specified range.
If this occurs, do either of the following to
print an image without borders:
• When you can set print range with an
application, set an image to be printed
fully in the print range. For example,
select “Full page photo print” or a
similar option.
• Set a larger value in the “Enlarge/
Reduce” text box in the “Paper/Output”
tab of the “Sony DPP-FP55 Properties”
dialog box.
If borders remain on the right and
bottom sides of a printed image even
after you set a larger value, check
“Upper left reference”.
In either case, make sure to display and
check the preview image before printing.
60 GB
Orientation setting
Depending on the application software
you use, orientation may not change even
if you change portrait or landscape setting.
With border/borderless setting of the
printer driver
When the application software you use
has border/borderless setting, we suggest
you select borderless as the printer driver
setting.
Print quantity setting in the Properties
dialog box
Depending on the application software
you use, the print quantity setting of the
application you use may have priority
over the setting specified in the printer
driver dialog box.
Printing from a PC
Exif Print Settings in the “Graphics” tab
The Exif Print setting in the “Color
reproduction/Picture quality” section
supports the Picture Motion Browser
only. If you use other application to print
an image with this option checked, the
image may be printed with incorrect
colors. If this occurs, remove the check.
61 GB
Troubleshooting
If trouble occurs
If you run into any problems using the printer, use the following guidance to solve the
problem. If the problem persists, consult your Sony dealer.
Power
Symptom
Check
Cause/Solutions
The 1 (on/
standby) switch
cannot be
turned on.
• Is the AC power cord
properly connected?
c Connect the AC power cord to an AC
outlet securely. (.page 16)
Displaying images
Symptom
Check
Cause/Solutions
The LCD screen
displays no
images.
• Does the LCD screen of
the printer show “The
printer is being connected
to a PictBridge camera.”
or “The printer is being
connected to a PC.”?
c When a PictBridge camera or a PC is
connected to the printer and the
printer operates on the PictBridge/PC
mode, no images will be displayed on
the window.
• Are any error messages
displayed (cause/
remedies) on the LCD
screen?
c Follow the directions of the messages,
if any, and try to solve the problem.
(.page 77)
• Is the memory card or an
external device properly
inserted?
c Insert a memory card or an external
device properly. (.pages 17 to 19)
When a memory card or an external
device is connected, the images will be
displayed in the following priority:
“Memory Stick”c“SD Card”c
“External Device”
• Does the memory card or c Insert a memory card or an external
an external device contain
device that contains the recorded
images recorded with a
images.
digital camera or other
device?
62 GB
Symptom
Check
Cause/Solutions
Some images in
the image list
are not
displayed or not
printed even if
they are
displayed.
• Are thumbnail images
displayed in the image
list?
c If the image is displayed but cannot be
printed, the file used for printing is
damaged.
c If there are no images stored in the
memory card or an external device, the
“No image file” message appears.
c If an image is not compatible with DCF
(Design rule for Camera File system), it
may not be printed with the printer even
if it is displayed on the PC monitor.
• Does the mark
displayed below
appear in the image
list?
c If the mark shown on the left is
displayed, the image may be a JPEG file
created with your computer, or the
thumbnail data is not contained.
Select the mark and press
(zoom in)
repeatedly to display its image preview.
If an image is displayed, you can print
the image. If the same mark is displayed
again, the image is of incompatible file
format and you cannot print it with the
printer.
• Was the image created
on your PC?
c If the mark shown on the left is
displayed, the image is of compatible file
format but its thumbnail data or the data
itself cannot be opened.
Select the mark and press
(zoom in)
repeatedly to display its image preview.
If an image is displayed, you can print
the image. If the same mark is displayed
again, you cannot print it with the
printer.
• Are there more than
9 999 images saved in
the memory card or an
external device?
c The printer can display, save, delete or
handle up to 9 999 image files. If there
are more than 9 999 images stored in a
memory card or an external device, use
the PC or PictBridge mode to display and
handle the remaining images.
63 GB
Troubleshooting
• Does the mark
displayed below
appear in the image
list?
Symptom
Check
Cause/Solutions
Some images in
the image list
are not
displayed or not
printed even if
they are
displayed.
• Did you name or rename
an image file with your
PC?
c When you name or rename an image
file on your computer and its file
name includes characters other than
alphanumeric characters, the file name
may not be displayed correctly or the
image may not be displayed on the
printer (read error).
• Did you specify the print
quantity in the image list?
c Once you have selected images in the
“Printing multiple images”
procedures, you cannot print an image
with which the cursor is just placed.
Press ENTER to select it and specify
the print quantity for the image.
(.page 22)
c The printer cannot display the images
• There are 8 or more
saved in a folder of the 8th or higher
hierarchies in the memory
hierarchy.
card or an external device.
The file name is
not displayed
correctly.
• Did you change the file
name of the image with
your PC?
c When you name or rename an image
file on your computer and its file
name includes characters other than
alphanumeric characters, the file name
may not be displayed correctly . For a
file created with a PC application, the
first 8 characters of its file name will
be displayed as the file name.
In the Edit
menu, there are
blank areas at
the top and
bottom of the
previewed
image.
• Is the previewed image
extremely stretched
vertically or horizontally?
c If an image is extremely stretched
vertically or horizontally, blank areas
may appear in the Edit menu.
c The standard aspect ratio of an image
shot with a digital camera is 3:4.
When an image is edited or printed in
the postcard size, it is saved as a more
horizontal print image and its top and
bottom edges will be cut and
displayed in black.
64 GB
Printing
Symptom
Check
Paper does not
feed.
• Is the print paper properly c If print paper is not properly loaded,
set in the paper tray?
the printer may develop trouble.
Check the following:
• Is the correct set of print paper and
print cartridge loaded? (.page
11)
• Is the print paper loaded in the
correct direction in the tray?
(.page 14)
• Did you place more than 20 sheets of
print paper in the paper tray?
(.page 14)
• Did you riffle the print paper
thoroughly?
• Did you bend or fold the print paper
before printing?
Cause/Solutions
• Are you using print paper c Use print paper designed for the
printer. If you use incompatible print
that was not designed for
paper, the printer may develop
the printer?
trouble. (.page 11)
c When the printer cannot feed the print
paper, an error message is displayed.
Remove the paper tray and check
paper jam. (.page 80)
• Is it in the middle of the
printing process?
c The print paper may emerge a few
times during printing. Do not touch
nor pull the emerged paper. Wait for
the print paper to be fully ejected after
printing ends. As the print paper
emerges from the rear a few times
during printing, make sure to spare
enough space behind the printer
during printing.
65 GB
Troubleshooting
The print paper
emerges
partially during
printing in
process.
• Is the print paper
jammed?
Printed results
Symptom
Check
Cause/Solutions
The printed
pictures are
inferior in
quality.
• Did you print preview
image data?
c Depending on the type of digital
camera used, preview images may be
displayed along with the primary
images in the thumbnail list. The
printed quality of the preview images
will not be as good as the primary
images. Note that if you delete the
preview images, the data for the
primary images may be damaged.
c When the image is displayed as the
• Did you print an image
mark shown on the left, it is a small
whose size (width or
image. The printing quality is rough
height) is smaller than 480
due to this small image size.
dots?
c Change the image size setting of the
Is the following mark
digital camera you are using.
displayed in the image
list?
66 GB
• Did you use the Edit
menu to enlarge the
image?
c An enlarged image, depending on its
image size, will be printed with
deteriorated picture quality.
• Did you allow dust to get
on the print cartridge?
c Wipe the plastic part of the print
cartridge and remove dust.
• Did you allow dust or
finger prints to get on the
printed surface?
c Do not touch the printing surface (the
shiny-side with no imprint).
Fingerprints on the printing surface
may result in imperfect printing.
• Did you use used print
paper?
c Do not print on used print paper.
Printing an image twice on the same
paper will not make the printed image
thicker.
Symptom
Check
The printed
pictures are
inferior in
quality.
• Did you shoot an image in c When you shoot an image in the RAW
the RAW file format?
file format, a highly-compressed JPEG
file may be also recorded. As the
printer does not support the RAW file
format, it may use the JPEG file to
print an image. A RAW file can be
printed from a PC. For details, see the
operating instructions of the digital
camera you are using.
Cause/Solutions
What is a RAW file?
A RAW file is an original image file
format to save uncompressed,
unprocessed still image data captured
from a digital camera.
For whether or not a digital camera
can capture an image in the RAW file
format, see the operating instructions
of the digital camera.
• Did you use an
AdobeRGB-compliant
digital camera, not
compatible with the DCF
2.0, to shoot an image in
the AdobeRGB mode?
c An AdobeRGB image file that
supports the DCF 2.0 will undergo
color corrections, but an AdobeRGB
image file that does not support the
DCF 2.0 will be printed in vague
colors without color corrections.
67 GB
Troubleshooting
What is an AdobeRGB?
An AdobeRGB is a color space that the
Adobe Systems Incorporated employs
and uses as the default setting for
image processing software including
the Adobe Photoshop. The
AdobeRGB, an optional color space
extended with the DCF 2.0,
determines the color ranges widely
used in printing industry.
For whether or not a digital camera
supports the AdobeRGB, see the
operating instructions of the digital
camera.
Symptom
Check
Cause/Solutions
The picture
quality and
colors of the
previewed on
the screen
differs from
those printed.
c Because of differences in the phosphor
method or profiles of a LCD screen,
please regard the image being
displayed on the display as just a
reference. To adjust picture quality,
do either of the following:
– Menu - Set Up - Color Setting
(.page 43)
– Menu-Edit-Adjust (.page 28)
The printed
image differs
when an image
is directly
printed from the
memory card or
an external
device inserted
into the printer’s
slot and when it
is printed via a
PC.
c Because of the differences in the
printer’s internal processing and PC
software processing, the printed
images will be different.
The date cannot
be printed.
The date is
printed
unintentionally.
68 GB
• Is “Date Print” set to
“On”?
c Set “Date Print” in the Set Up menu to
“On”. (.page 43)
• Does the image support
DCF?
c The “Date Print” function of this unit
supports an image that is compatible
with the DCF standards.
• Is “Date Print” set to
“Off”?
c Set “Date Print” in the Set Up menu to
“On”. (.page 43)
• Was the date saved with
the image when it was
shot with the digital
camera?
c Change the camera settings.
Symptom
Check
The image
cannot be
printed fully in
the print range.
• Did you set “Borders” in
c Set “Borders” to “No” by selecting
the Set Up menu to “Yes”?
Menu - Set Up - Borders. (.page
42)
Even if
“Borders” is set
to “No”, the
image is printed
with borders on
both sides.
Cause/Solutions
• Is the aspect ratio of the
image correct?
c Depending on the type of digital
camera used, the aspect ratio of the
recorded image differs, so the image
may not be printed covering the entire
printable area.
• Is the image edited and
saved with “Borders” set
to “Yes”?
c When you edit and save an image in
the postcard size, it is saved as a print
image including the blank areas. Even
if you print it with “Borders” set to
“No”, you cannot eliminate the borders
on both sides of a print. To print
without borders, edit and save an
image with “Borders” set to “No”.
(.page 42)
c Set “Borders” to “Yes” to print the
whole area of an image. (.page 42)
The image is
stretched
horizontally
when printed.
• Did you rotate the image
or add other process?
c Depending on the type of digital
camera used, the image may be
stretched vertically if it has been
rotated or processed using your
digital camera. This is not because of
trouble with the printer, but because
the image was rewritten with your
digital camera.
The image is
printed at an
angle.
• Is the paper tray inserted
properly?
cRe-insert the paper tray firmly straight
in to the end.
There are white
lines or dots on
the printed
pictures.
c The print head or paper path may be
soiled. Use the supplied cleaning
cartridge to clean the head and path.
(.page 80)
69 GB
Troubleshooting
• Did you set “Borders” in
Only part of an
image is printed.
the Set Up menu to “Yes”?
Symptom
Check
Cause/Solutions
The picture is
too bright, dark,
reddish,
yellowish, or
greenish.
c Adjust an image by selecting Menu Edit - Adjust. (.page 28)
The eyes of the
subject are red.
c Adjust for the red-eye phenomenon by
selecting Menu - Edit - Red-eye
reduction. (.page 29)
Red-eye
reduction does
not take effect.
c Set the size of the adjustment frame to
be two to seven times as large as the
eye. (.page 29)
c Red-eye reduction may not work
• Did you enlarge, reduce
properly if other editorial operations
the size of, rotate, or move
such as enlarging, reducing the size of,
an image after the red-eye
rotating, or moving an image.
reduction?
Perform these editorial operations first
and then perform red-eye reduction.
Settings
Symptom
Check
Cause/Solutions
The “Borders”
“Yes/No”
setting does not
take effect.
• Are you operating the
Creative Print menu?
c In the Creative Print menu, templates
are used and you cannot select
border/borderless prints.
70 GB
Saving or deleting an image
Symptom
Check
You cannot save • Is the memory card or an
an image.
external device protected?
You cannot
delete an image.
Cause/Solutions
c Release the protection and try saving
again.
• Is the write-protect switch
of the memory card in the
LOCK position?
c Slide the write-protect switch to the
write enable position. (.page 85)
• Is the memory card full?
c Delete unnecessary images (.page
39), or replace it with a new memory
card with sufficient free memory
space. Save the image again.
• Is the memory card or an
external device protected?
c Release the protection and try
printing again.
• Is the image DPOF-preset? c Release the DPOF preset with your
digital camera.
• Is the write-protect switch
of the memory card in the
LOCK position?
c Slide the write-protect switch to the
write enable position. (.page 85)
• Are you using a “Memory
Stick-ROM”?
c You cannot delete an image from or
format a “Memory Stick-ROM”.
An image was
deleted
accidentally.
The “Memory
Stick” was
formatted
accidentally.
• Is the write-protect switch
of the memory card is in
the LOCK position?
c Slide the write-protect switch to the
write enable position. (.page 85)
• Is it a “Memory StickROM”?
c You cannot delete an image from or
format a “Memory Stick-ROM”.
c Once the “Memory Stick” is
formatted, all the data is deleted and
cannot be recovered. To prevent
accidental format, set the write protect switch to the LOCK position.
(.page 85)
71 GB
Troubleshooting
The “Memory
Stick” cannot be
formatted.
c You cannot recover an image once it is
deleted.
Others
Symptom
Check
Cause/Solutions
You cannot
insert the print
cartridge
smoothly.
c If the print cartridge does not click
into place, remove it and then re-insert
it. Only when the ink ribbon is too
slack to be loaded, wind the ink
ribbon in the direction of the arrow to
remove the slack. (.page 13)
The print
cartridge cannot
be removed.
c Turn off the 1 (on/standby) switch
and then turn it on. After the motor
sound stops, try to remove the
cartridge. If this does not solve the
problem, contact Sony service facilities
or your Sony dealer.
The print paper
jams.
• Is an error message
displayed ?
c Paper is jammed. See “If paper jams”
(.page 80) and remove jammed
paper from the printer. If jammed
paper cannot be removed, contact the
Sony service facilities.
Printing stops
midway.
• Does the access indicator
flash in orange?
c The data size of an image is large and
it takes longer to process it for
printing. As soon as the data
processing finishes, the printer starts
printing.
• Is an error message
displayed?
c Paper is jammed. See “If paper jams”
(.page 80) and remove jammed
paper from the printer. If jammed
paper cannot be removed, contact the
Sony service facilities.
• Is any indicator lit?
c If no indicator is lit, the thermal head
may be overheated. Leave the printer
until the head cools down and the
printer resumes printing.
72 GB
Connecting with a digital camera
Symptom
Check
Cause/Solutions
The PictBridge
mark does not
appear on the
LCD screen of
the digital
camera.
• Is the digital camera
connected correctly?
c Connect the cable correctly.
• Is the 1 (on/standby)
switch turned on?
c Turn on the 1 (on/standby) switch
• Does your digital camera
support PictBridge?
c Refer to the operating instructions
supplied with the digital camera you
are using or consult the digital camera
manufacturer.
• Is “The printer is being
connected to a PictBridge
camera. ”displayed?
c The message is not displayed while
the printer is in the Edit, Creative
Print, or other menu modes. Exit the
menu and then connect the cable
again.
c Disconnect the digital camera and the
printer and then connect them again. Or
turn off and then on the printer and the
digital camera.
• Is the USB setting of your
c Set the USB setting of your camera to the
camera in PictBridge mode?
PictBridge mode.
• Is printing in process?
c Connect the cable again after printing
is complete.
c The printer has developed an overcurrent error. Unplug the AC power
cord of the printer, plug it in again,
and then press the 1 (on/standby)
switch to recover from the error.
You cannot stop
printing even if
you pressed
CANCEL.
c The next print from the one currently
printed will be canceled.
c Depending on the digital camera you
use, you cannot cancel printing from the
printer. Operate the digital camera to
stop printing. Refer to the operating
instructions of the digital camera.
You cannot
make Index
printing.
• Is the message “There
were images for which
printing data could not be
created.” displayed?
c The printer cannot print Index print of
the DPOF printing. To make Index
printing, insert the memory card
directly (.page 17) or use a mass
storage external device (.page 18).
73 GB
Troubleshooting
You connect and
disconnect the
USB cable, but
nothing
happens.
Connecting with a computer
Symptom
Check
Cause/Solutions
The images of
the memory
card or an
external device
inserted in the
printer are not
displayed on the
PC.
c The printer does not provide the
function for viewing the memory card
or an external device images from the
printer.
You lost the
supplied CDROM and want
to obtain a new
one.
c Please download the printer driver
from the Customer support home
page (.page 88). Or contact your
Sony dealer.
The printer
• Are you sure that you
driver cannot be
have followed the
installed.
installation procedures
correctly?
c Follow the procedures in the
operating instructions to install the
driver (.page 48). If an error
occurs, restart your computer and do
the installation procedures again.
74 GB
• Is another application
program running?
c Exit all applications and then install
the driver again.
• Did you specify the CDROM as the installation
CD-ROM correctly?
c Double-click My Computer, and then
the CD-ROM icon in the open
window. Follow the procedures in the
operating instructions to install the
driver.
• Is the USB driver
installed?
c The USB driver may not be installed
properly. Follow the operating
instructions to install the USB driver
again.
• Can you read the CDROM with Explorer?
c If there is an error with the CD-ROM,
you may not be able to read it. If an
error message is displayed on your
PC, check the contents and remove the
source of the problem. Then install
the printer driver again. For details on
the error contents, see the operating
instructions of your PC.
Symptom
Check
The printer
• Is there an anti-virus
driver cannot be
program or other
installed.
program running on
the system?
• Did you log onto
Windows XP/2000
Professional using an
Administrator user
account?
Cause/Solutions
c If there is an anti-virus program or other
program running on the system, exit it
and then start installing the driver.
c To install the driver in Windows XP/
2000 Professional, log onto Windows
using an Administrator user account.
c If there is no trouble displayed on the
Windows desktop, check the printer’s
LCD screen.
If the printer shows trouble, do the
following:
1. Turn off the 1 (on/standby) switch
then turn it on again.
2. Disconnect the power cable, wait for 5
to 10 seconds, and then connect the
cable again.
3. Restart your computer.
If these do not solve the problem, consult
with your Sony dealer or service
facilities.
The printer does
not respond to
the printing
order from the
PC.
• Are you using an
An image is
application software
printed with
other than Picture
borders even if I
Motion Browser?
set “Borders” to
“No”.
c When using an application other than the
Picture Motion Browser, an image might
be printed with borders even if you select
borderless print. If this occurs, do either
of the following to print an image
without borders:
– When you can set print range with an
application, set an image to be printed
fully in the print range even if it is
printed over the range.
– Set a larger value in the “Enlarge/
Reduce” text box in the “Paper/
Output” tab of the “Sony DPP-FP55
Properties” dialog box. (.page 56)
75 GB
Troubleshooting
c Remove the USB cable and then connect
• Is an error message
it again.
displayed stating that
an error was detected
in output of documents
via USB?
Symptom
Check
Cause/Solutions
Colors are not
reproduced
correctly.
• Is “Exif Print” checked in
the “Graphics” tab of the
“Sony DPP-FP55
Properties” dialog box?
c The Exif Print setting in the “Color
reproduction/Picture quality” section
supports the Picture Motion Browser
only. To print from other application,
uncheck “Exif Print”.
• Is “ICM” selected in the
“Graphics” tab of the
“Sony DPP-FP55
Properties” dialog box?
c The ICM setting may be valid only
when you are using an ICM-compliant
application. Check to see if the
application software you are using
supports ICM.
Preview image
does not reflect
the print
settings in the
“Graphics” tab
of the “Sony
DPP-FP55
Properties”
dialog box.
c The print settings adjusts the printer
itself and cannot influence the preview
image.
Print quantity
specified in the
“Paper/Output”
tab of the “Sony
DPP-FP55
Properties”
dialog box does
not take effect.
c Depending on the application you use,
the print quantity setting of the
application you use may have priority
over the setting specified in the printer
driver dialog box.
76 GB
If an error message appears
If an error occurs, the following error messages may be displayed on the LCD screen.
Follow the solution described here to solve the problem.
Printer
Error messages
Meaning/Solutions
Errors occurred with printer. Turn
it off and on, then retry.
c An error has occurred with the printer. Unplug
the AC power cord of the printer, connect it
again and then try operating again. If this occurs
again, consult with your Sony dealer or Sony
service facilities.
Storage media
Meaning/Solutions
No Memory Stick./No SD Card./
No External Device.
c The “Memory Stick”, SD card is not inserted into
their slot. Or the external device is not connected.
Insert the memory card or an external device.
(.pages 17, 18)
The Memory Stick is protected.
c A protected “Memory Stick” is inserted. To save
or edit the images with the printer, cancel
protection of the “Memory Stick”.
An incompatible Memory Stick/
SD Card/External Device is
inserted.
c A “Memory Stick”, SD card, or an external
device that the printer does not support are
inserted. Use a compatible media. (.pages 83
to 86)
No image file.
c There are no image files in the memory card or an
external device that the printer can handle.
Connect a media that contains images that can be
displayed with the printer.
No DPOF file.
c There are no DPOF-preset image files in the
memory card or an external device. Specify the
print (DPOF) mark with your camera.
Cannot delete a protected image.
c To delete a protected image, cancel protection on
your camera.
You cannot delete a DPOF image.
c To delete a DPOF-preset image, cancel the print
(DPOF) mark on your camera.
77 GB
Troubleshooting
Error messages
Error messages
Meaning/Solutions
Protected. Cancel protect then try
again.
c The “Memory Stick” is write-protected. Release
the write-protection. (.page 85)
The Memory Stick/SD Card is full.
c There is no free memory space in the selected
media. Delete unnecessary images or replace
with a one having sufficient memory space.
The Memory Stick/SD card/
External Device has trouble.
c An error may have occurred. If these messages
appear frequently, check the memory card or an
external device status with another device.
Write error in Memory Stick/SD
card.
Memory Stick Format Error
Print cartridge
Error messages
Meaning/Solutions
No print cartridge. Set a new print
cartridge and press [PRINT].
c The print cartridge is not inserted in the printer.
Set the print cartridge into the printer. (.page
12)
If “cleaning cartridge” is displayed, set the
cleaning cartridge. (.page 80)
No print cartridge. Set the print
cartridge for the P Size and press
[PRINT].
Print cartridge is empty.
Print cartridge is empty. Set a new
print cartridge for the P Size and
press [PRINT].
Wrong print cartridge. Set the
print cartridge for the P Size and
press [PRINT].
78 GB
c Replace it with a new print cartridge.
(.page 12)
c Set a print cartridge and print paper of the
displayed size. (.pages 12 to 15)
Print paper
Error messages
Meaning/Solutions
No paper tray. Set the print paper
for the P Size and press [PRINT].
c There is no print paper in the printer.
– The paper tray is not set in the printer.
– The print paper is not set in the paper tray.
– The print paper has run out.
In either case, set the print paper in the tray and
set the paper tray into the printer.
(.pages 13 to 15)
No print paper. Set the print paper
for the P Size and press [PRINT].
Cleaning sheet is not placed.
Set the cleaning sheet and press
[PRINT].
c There is no cleaning sheet (protective sheet) in the
paper tray. Insert the protective sheet into the
paper tray and set the paper tray into the printer.
(.page 80)
Wrong print paper.
Set the print paper for the P Size
and press [PRINT].
c The print paper and print cartridge do not match.
Check the print cartridge size actually loaded in
the printer and set the print paper for the
identical size. (.page 14)
Paper jam. Remove Print Paper.
c Paper jams. See “If paper jams” (.page 80)
and remove jammed paper from the printer. If
the jammed paper cannot be removed, contact the
Sony service facilities.
Troubleshooting
79 GB
If paper jams
If the print paper jams, an error message is
displayed and printing stops.
Unplug the AC power cord of the printer
and remove the jammed paper from the
paper outlet or take out the paper tray to
remove the jammed paper.
Cleaning the inside of
the printer
If white lines or periodical dots are printed
on the pictures, use the cleaning cartridge
supplied and the protective sheet of the
supplied printing pack to clean inside the
printer.
Tip
You can also use the protective sheet supplied in
the optional printing pack.
Pull out the
jammed paper
slowly.
1
Open the cartridge compartment
door and if there is a print
cartridge, remove it (page 12).
2
Insert the supplied cleaning
cartridge into the printer and
close the cartridge compartment
door.
3
Remove the paper tray from the
printer. If there is print paper in
the tray, remove the print paper
from the tray.
Take out the
paper tray to
remove the
jammed paper.
Note
If you cannot remove the jammed paper, contact
your Sony dealer.
80 GB
4
Place the protective sheet into the
paper tray with the no-imprint
side facing up.
surface without imprints
If the protective sheet sticks to the ink
ribbon, that may cause damage to the
printer. Check the following before
you start cleaning.
• The protective sheet has been
inserted with the no-imprint side
facing up.
• The protective sheet you are using is
the one designed for this printer.
Set the print cartridge and print paper into
the printer.
Notes
• Carry out cleaning only when there are white
lines or dots on the print.
• When you can obtain proper printing
performances, cleaning will not improve the
printed picture quality.
• The maximum cleaning times that you can
carry out is approximately 20. As the number
of cleaning times increases, the cleaning loses
its effect.
• Do not place the protective sheet on the print
paper and carry out cleaning, which may
cause paper jam or other troubles.
• If a cleaning does not improve printed picture
quality, please carry out cleaning a couple of
times.
• You cannot clean the printer while it is
connected to a PC or a PictBridge camera.
Set the paper tray into the printer
and press PRINT.
Troubleshooting
5
When cleaning ends
The cleaning cartridge and protective
sheet will clean inside the printer.
During printing the PRINT indicator
flashes.
After the cleaning is finished, the
protective sheet is automatically
ejected.
6
Remove the cleaning cartridge
and protective sheet from the
printer.
Tip
Keep the cleaning cartridge and protective sheet
together for future cleaning.
81 GB
Additional information
Precautions
On safety
• Be careful not to set or drop any heavy
objects on the power cord, or to damage
the power cord in any way. Never
operate this printer with a damaged
power cord.
• Should any solid object or liquid fall into
the cabinet, unplug the printer and have
it checked by qualified personnel before
operating it any further.
• Never disassemble the printer.
• To disconnect the power cord, pull it out
by the plug. Never pull the power cord
itself.
• When the printer is not going to be used
for an extended period of time,
disconnect the power cord from the wall
outlet.
• Do not handle the printer roughly.
• To reduce the risk of electrical shock,
always unplug the printer from the
electrical outlet before cleaning and
servicing the printer.
On installation
• Avoid placing the printer in a location
subject to:
– vibration
– high humidity
– excessive dust
– direct sunlight
– extremely high or low temperatures
• Do not use electrical equipment near the
printer. The printer will not work
properly in electromagnetic fields.
• Do not place heavy objects on the
printer.
• Leave enough room around the printer
so that the ventilation holes are not
blocked. Blocking these holes may cause
internal heat build-up.
82 GB
On the AC adaptor
• Be sure to use the AC adaptor supplied
with the printer. Do not use other AC
adaptors, as this may cause a
malfunction.
• Do not use the supplied AC adaptor to
other devices.
• Do not use an electrical transformer
(travel converter), as this may cause
overheat or a malfunction.
• In case the cord of the AC adaptor is
damaged, never use it any longer, as this
may cause danger.
On moisture condensation
If the printer is brought directly from a
cold location to a warm location or placed
in an extremely warm or humid room,
moisture may condense inside the unit. In
such cases the printer will probably not
work properly and may even develop a
fault if you persist in using it. If moisture
condensation occurs, unplug the AC
power cord of the printer and do not use
the printer for at least one hour.
On transport
When you transport the printer, remove
the print cartridge, paper tray, AC adaptor,
the memory card, or an external device
from the printer and put the printer and its
peripherals in the original box with the
protective packaging.
If you no longer have the original box and
packing parts, use similar packing material
so that the printer will not be damaged
while being transported.
On cleaning
Clean the cabinet, panel and controls with
a soft dry cloth, or a soft cloth lightly
moistened with a mild detergent solution.
Do not use any type of solvent, such as
alcohol or benzine, which may damage the
finish.
On restrictions on duplication
If duplicating documents with the printer,
pay special attention to the following:
• Duplication of banknotes, coins, or
securities is against the law.
• Duplication of blank certificates,
licenses, passports, private securities, or
unused postal stamps is also against the
law.
• TV program, films, video tapes, others’
portraits or other materials may be
copyrighted. Unauthorized video
printing of such materials may infringe
the provisions of the copyright law.
About the Memory
Cards
About the “Memory Stick”
What is “Memory Stick”?
“Memory Stick” is a compact-size IC
recording medium with a large capacity. It
has been designed not only for
exchanging/sharing digital data among
“Memory Stick” complaint products, but
also for serving as an insertable/
removable external storage medium that
can save data.
Types of “Memory Stick”
“Memory Stick” is available in the
following types to meet various functional
requirements:
Continued
83 GB
Additional information
• “Memory Stick” (Not compatible with
“MagicGate”): “Memory Stick” stores
any type of data except copyrightprotected data that requires the
“MagicGate” copyright protection
technology.
• “MagicGate Memory Stick” : Equipped
with the “MagicGate” copyright
protection technology.
• “Memory Stick” (Compatible with
“MagicGate”): Equipped with the
“MagicGate” copyright protection
technology and compatible with high
speed data transfer. This “Memory
Stick” can be used with the “Memory
Stick” compliant devices. (Data transfer
speed depends on the “Memory Stick”compatible device.)
• “Memory Stick PRO” : Equipped with
the “MagicGate” copyright protection
technology. The “Memory Stick PRO”
can be used only with “Memory Stick
PRO” compliant devices.
• “Memory Stick-ROM”: “Memory StickROM” stores pre-recorded, read-only
data. You cannot record on “Memory
Stick-ROM” or erase pre-recorded data.
x About “Memory Stick Duo” and
“Memory Stick PRO Duo”
“Memory Stick Duo” is smaller than the
standard-size “Memory Stick” media. By
attaching a Duo adaptor, it can become the
same size as the standard-size “Memory
Stick” so it can also be used in products
compatible with standard-size “Memory
Stick” media.
x About “Memory Stick Micro” (“M2”)
media
“Memory Stick Micro” (“M2”) media is
even smaller than the “Memory Stick Duo”
media. The M2 media comes with an
adaptor for the standard size and that for
the “Memory Stick Duo” size. By attaching
either of the adaptors, the “Memory Stick
Micro” media can also be used in products
compatible with standard-size “Memory
Stick PRO” or “Memory Stick PRO Duo”.
84 GB
Types of “Memory Stick” that
the printer can use
With the printer, you can use the following
types of “Memory Stick”*4:
Function
Memory Stick media type
Media other than
Memory Stick PRO*2
Memory
Stick (Not
compatible
with
MagicGate)
Memory
Stick
Memory
PRO*2*3
Stick
(MagicGate
Compatible)
MagicGate
Memory
Stick
Displaying/
Printing
OK
OK*1
Deleting/
Saving/
Formatting
OK
OK*1
OK*1
OK*1
*1 Data reading/recording that requires
“MagicGate” copyright protection cannot be
performed.
*2 The printer is equipped with a slot compatible
with both standard-size and Duo-size media.
Without a Memory Stick Duo adaptor, you
can use both standard-size “Memory Stick”
and compact-size “Memory Stick Duo”.
*3 When using the “Memory Stick Micro” with
the printer, always insert it into an M2
adaptor. If you insert the “Memory Stick
Micro” into the printer without an M2
adaptor, you may be unable to remove the
“Memory Stick Micro”.
*4 The printer supports FAT32. The printer has
been demonstrated as operable with a
“Memory Stick” with a capacity of 4GB or
smaller manufactured by Sony Corporation.
However, we do not guarantee the operations
of all the “Memory Stick” media.
What is “MagicGate”?
“MagicGate” is the general name of a
copyright protection technology developed
by Sony. This technology provides
authentication and encryption; mutual
confirmation is performed between the
“Memory Stick” media and the
“MagicGate” compliant device that the
other can record and play the copyrightprotected data correctly. When the
authentication is established, the data
encryption is performed.
When the data is played, the
authentication is also performed. Only
when authentication is established, the
data is decrypted to the original status and
played. Copyright-protected data cannot
be played with a device other than
authenticated ones.
The printer is not equipped with the
“MagicGate” technology and cannot read
or write the data subject to the
“MagicGate” copyright protection.
Notes on use
Connector
Write-protect switch
Write
enable
position
LOCK
Write
protect
position
LOCK
Place the label here.
• You cannot record, edit or delete data if you
slide the write-protect switch to LOCK.
• When you use a “Memory Stick Duo” without
the write-protect switch, be careful not to edit
or delete the data by accident.
• When you slide the write-protect switch of the
“Memory Stick Duo”, use a thin-pointed
device.
• Do not attach any other material than the
supplied label on the labeling position. When
you attach the supplied label, be sure to attach
it to the labeling position. Be careful that the
label does not stick out.
• When you write on the memo area of the
attached label, do not write forcefully.
• When you carry or store the “Memory Stick”,
put it in the case supplied with it.
• Do not touch the terminal of the “Memory
Stick” with your hand or a metal object.
• Do not strike, bend or drop the “Memory
Stick”.
• Do not disassemble or modify the “Memory
Stick”.
• Do not expose the “Memory Stick” to water.
Continued
85 GB
Additional information
• Do not insert multiple “Memory Stick” at the
same time, which may cause trouble with the
printer.
• When using a “Memory Stick”, make sure to
check correct insertion direction. Wrong usage
may cause trouble with the printer.
• Do not place the “Memory Stick Duo” or
“Memory Stick Micro” within the reach of a
small child to prevent him from swallowing it
by accident.
• Avoid removing the “Memory Stick” from the
printer while the printer is reading or writing
data.
• Data may be damaged in such occasions:
– “Memory Stick” is removed or the printer
is turned off during a read or write
operation.
– “Memory Stick” is used in a location
subject to static electricity or electrical
noises.
• We recommend that you save backup of the
important data.
• The data processed with the computer may
not be played with the printer.
• When you format a “Memory Stick”, use the
format function of the printer or your digital
camera. If you format a “Memory Stick” with
your computer, images may not be displayed
properly.
• When you format a “Memory Stick”, all the
data including the protected image files will
be erased. To avoid erasing important data by
accident, make sure to check the content
before formatting.
• Do not use or store the “Memory Stick” under
the following conditions:
– Locations beyond the required operational
conditions including locations such as the
hot interior of a car parked in the sun or/
and in the summer, the outdoors exposed
to direct sunlight, or a place near a heater.
– Humid locations or locations with corrosive
substances present
About the SD card
The SD card slot of the printer allows you
to use an SD memory card*1 and MMC
standard memory card*2.
*1 The printer supports FAT32. The printer has
been demonstrated as operable with an SD
card with a capacity of 2 GB or smaller. To use
a miniSD card, you need an adaptor.
*2 The printer has been demonstrated as
operable with an MMC standard memory
card with a capacity of 128 MB or smaller .
We do not guarantee proper operations for
all types of SD cards/MMC standard
memory cards.
Notes on use
• When using a card, make sure to check correct
insertion direction of the card and correct
insertion slot.
• You cannot read or write the data subject to
the copyright protection. (SD card)
• Do not strike, drop, or bend a card.
• Do not disassemble or modify a card.
• Do not expose a card to water.
• Avoid using a card in areas subject to high
humidity, since it may be easily affected by
the humidity.
• Do not use or store a card in a location subject
to:
– extremely high temperature such as the hot
inside of a car or the outdoors exposed to a
86 GB
direct sunlight, or a place near a heater.
– direct sunlight
– high humidity or corrosive substances
– static electricity or electrical noises
• When you carry or store a card, put it in the
case supplied with it.
• Do not remove a card or turn off the printer
while the printer is reading or writing data
and the access indicator is flashing.
Otherwise, data may be rendered unreadable
or erased.
Specifications
x Printer
Continued
87 GB
Additional information
Printing method
Dye sublimation printing (Yellow/
Magenta/Cyan 3 pass)
Resolution
300 (H) x 300 (V) dpi
Equivalent to
3 color Ink-Jet 4800 dpi x 4800 dpi *1
6 color Ink-Jet 3810 dpi x 3810 dpi *2
Image processing per dot
256 levels (8 bits for each Yellow/
Magenta/Cyan), approx. 16 770 000
colors
Printing size
Post Card (4 x 6 inch) size:
101.6 x 152.4 mm (maximum,
borderless)
Printing time (per sheet)*3
Memory card*4: Approx. 63 seconds
PictBridge mode*5: Approx. 71 seconds
PC mode*6: Approx. 60 seconds
Input/Output connectors
USB for PC connection USB 1.1
(Type B)
Highspeed is not supported.
PictBridge connector
Slot
“Memory Stick” insertion slot
SD Card insertion slot
Compatible image file formats
JPEG: DCF 2.0 compatible, Exif 2.21
compatible, JFIF*7
TIFF: Exif 2.21 compatible
BMP*8: 24bit Windows format
Some image file formats are not
compatible.
Maximum number of pixels to be
handled
6 400(H) x 4 800(V) dots
(Excluding Index Print and part of
Creative Print)
Maximum number of files to be handled
9 999 files for a memory card/an
external device
Print cartridge/Print Paper
See “Preparing the print pack” on
page 11.
LCD panel
5.0 cm (2.0 type) TFT drive
Total number of dots:
86636 (358 x 242) dots
Power requirements
DC IN jack, DC 24V
Power consumption
While printing: 75 W (maximum)
On standby mode: less than 1W
Operating temperature
5 ˚C to 35 ˚C (41 ˚F to 95 ˚F)
Dimensions
Approx. 175 x 60 x 137 mm
(7 x 2 3/8 x 5 1/2 inches)
(w/h/d, excluding protruding parts)
(306 mm (12 1/8 inches) of depth when
the paper tray is installed.)
Mass
Approx. 1.1 kg (2 lb 7 oz)
(excluding the paper tray, print
cartridge, AC power adaptor)
Supplied accessories
See “Checking the contents of the
package” on page 10.
x AC power adaptor AC-S2425
Power requirements
AC 100 to 240 V, 50/60 Hz, 1.5 to
0.75 A
Rated output voltage
DC 24 V, 2.2 A
Operating temperature
5 ˚C to 35 ˚C (41 ˚F to 95 ˚F)
Dimensions
Approx. 60 x 30.5 x 122 mm
(2 3/8 x 1 1/4 x 4 7/8 inches)
(w/h/d, excluding protruding parts)
Mass
Approx. 305 g (11 oz)
Design and specifications are subject to
change without notice.
*1:
*2:
*3:
*4:
*5:
*6:
*7:
*8:
When the 16 x 16 matrix is used: 300 x 16 =
4,800 dpi
When the 12.7 x 12.7 matrix is used: 300 x
12.7 = 3,810 dpi
When photo of 3.11MB file size containing
effective picture elements of 7,200,000 is
taken by DSC-T30 (7Mega Cyber-shot)
Time from when the PRINT button is
pressed to when printing is finished while
printing from a “Memory Stick PRO Duo”
inserted in the printer ’s slot (The printing
time may vary depending on a used
equipment, a format of an image, a used
memory card, settings of an application
and operating conditions.)
Time from when the print button on the
display window of the camera is pressed to
when printing is finished via DSC-T30
connected by USB cable
The time for data processing and
transferring is excluded.
Baseline JPEG with 4:4:4, 4:2:2, or 4:2:0
format
You cannot print using the Picture Motion
Browser.
88 GB
Customer support home page
The latest support information is available at
the following home page address:
http://www.sony.net/
Printing range
Postcard size
152.4 mm/6 inch
(1 800 dots)
101.6 mm/
4 inch
(1 200 dots)
95.5 mm/
3 7/8 inch
(1 128 dots)
146.3 mm/5 7/8 inch
(1 728 dots)
Border print range
Borderless print
range
Perforations
The above illustrations are those when an image with a 2:3 aspect ratio is printed.
The printing range differs for a border or a borderless print.
Additional information
89 GB
Glossary
Auto Fine Print 3
The function automatically corrects the
picture quality so that an image may be
printed in more vivid, clear and
beautiful pictures. It is especially
effective for a darker image with low
contrast. The pictures are corrected to
reproduce natural skin colors, vivid tree
leaf green, or clear sky blue.
DCF (Design rule for Camera File system)
This camera conforms with the DCF
(Design rule for Camera File system)
standard established by JEITA (Japan
Electronics and Information Technology
Industries Association) to maintain file
exchangeability and compatibility
between digital cameras and related
products. Complete exchangeability and
compatibility, however, are not
guaranteed.
DPOF (Digital Print Order Format)
The format used to record the
information necessary for automatically
printing images shot by a digital camera
at a printing shop or with a home-use
printer. The printer supports DPOF
printing and can automatically print the
preset number of copies of the DPOF
preset images.
Exif 2.21 (Exif Print)
Exif (Exchangeable image file format for
digital cameras) Print is a global
standard for digital photo printing. A
digital camera supporting Exif Print
stores the data relevant to the conditions
of shooting as each shot is taken. The
printer utilises the Exif Print data stored
in each image file to ensure the printed
result matches the original shot as
closely as possible*1.
90 GB
*1 When the “Auto Fine Print 3” is enabled
and an image (JPEG file) is shot by an Exif
Print (Exif 2.21)-compliant digital camera,
the image is automatically adjusted to its
optimum picture quality and printed.
Mass Storage System
Various types devices for storing large
amounts of data, including all types of
disk drives (floppy disks, hard disks,
optical disks) or tape media. Unlike flash
memory, mass storage devices retain
data even when the PC or unit is turned
off.
“Memory Stick”/SD card
Compact, light, removable storage
media. For details see pages 83 to 86.
PictBridge
A standard specified by Camera &
Imaging Products Association that
allows you to connect PictBridgecomplaint digital camera directly to the
printer without a PC, enabling direct
printing on the spot.
Thumbnails
Miniature images for representing the
original images that are stored in the
image files taken by a digital camera.
The printer uses thumbnails in the image
list.
Index
A
AC adaptor 16
Access indicator 17, 18
Adjusting an image 28
All printing 35
Auto Fine Print 3 42
B
Borders/borderless print
42
C
Calendar 34
Changing the display 24
Cleaning 80
Color Setting 43
Connecting the AC
power source 16
Creative Print 31
D
E
Easy printing 35
Edit menu 26
Enlarging and reducing
an image size 27
Exif Print 42
External device 18
O
Filter 28
Fish-eye effect 29
Format 40
On/standby indicator
16, 20, 22, 46, 49
On/standby switch
20, 22, 46, 49
Option 44
Overview 6
I
Icon 45
Image Data Display
24, 45
Image list 25
Index printing 35
Input indications 24
Inserting
Memory card 17
Print cartridge 12
Print paper 13
Installing
Picture Motion
Browser 51
Printer driver 48
L
Language 45
LCD backlight 45
LCD screen 24
Listing Order 45
M
Memory Stick
Format 40
Inserting 17
Notes on use 85
Types 83
Moving an image 27
P
Paper jams 80
Paper tray 13
Paper tray lid 13
PictBridge camera 46
PictBridge connector 19,
46
Picture Motion Browser
47
Precautions 82
Preview 24
PRINT 21
Print cartridge 12
Print pack 11
Print paper 11, 14
Print quantity 21, 23, 30
Printing
Edited/Creative Print
image 30
From a PC 47
From a PictBridge
camera 46
From memory card/
external device 20
Multiple copies 21
Multiple images 22
Printing range 89
91 GB
Additional information
Date Display Order 45
Date print 43
DC IN 24V 16
Deleting an image 39
Demonstration mode 45
DPOF 35
F
R
Red-eye phenomenon 29
Rotating an image 27
S
Saving an image 30
Saving/printing an
edited image 30
SD Card
Inserting 18
Types 86
Searching for an image
38
Selecting an input signal
20
Sepia 29
Set Up 41
Slideshow 37
Special filter 28
Specifications 87
Split images 32
Supplied accessories 10
System requirement 47
T
Troubleshooting 62
U
USB connector 49
W
Write-protect switch 85
Z
Zoom in/out 24
Printed using VOC (Volatile Organic Compound)-free vegetable oil based ink.
Sony Corporation
Printed in China
