3-066-615-22(1)

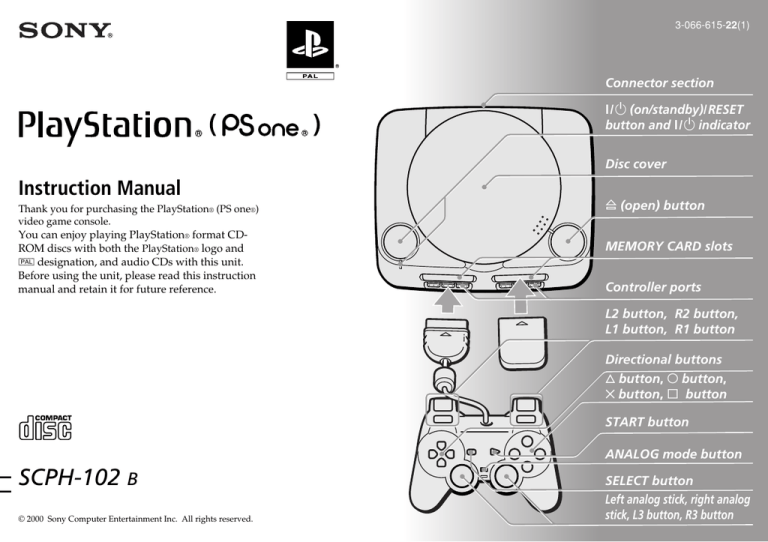

Connector section
1/u (on/standby)/RESET
button and 1/u indicator
Disc cover
Instruction Manual
Thank you for purchasing the PlayStation® (PS one®)
video game console.
You can enjoy playing PlayStation® format CDROM discs with both the PlayStation® logo and
[PAL] designation, and audio CDs with this unit.
Before using the unit, please read this instruction
manual and retain it for future reference.
§ (open) button
MEMORY CARD slots
Controller ports
L2 button, R2 button,
L1 button, R1 button
Directional buttons
¢ button, ® button,
✕ button, π button
START button
ANALOG mode button
SCPH-102 B
© 2000 Sony Computer Entertainment Inc. All rights reserved.
SELECT button
Left analog stick, right analog
stick, L3 button, R3 button
2
WARNING
WARNING
Read before operating
your PS one® console
To prevent fire or shock hazard,
do not expose the unit to rain or
moisture.
To prevent fire or shock hazard,
do not place a container filled
with liquids on top of the
console.
To avoid electrical shock, do not
open the cabinet. Refer servicing
to qualified personnel only.
Caution
The use of optical instruments
with this product will increase
eye hazard.
A few people may experience
epileptic seizures when viewing
flashing lights or patterns in our
daily environment. These persons
may experience seizures while
watching TV pictures or playing
video games. Even players who
have never had any seizures may
nonetheless have an undetected
epileptic condition.
Consult your doctor before playing
video games if you have an
epileptic condition or should you
experience any of the following
symptoms during play: altered
vision, muscle twitching, other
involuntary movements, loss of
awareness of your surroundings,
mental confusion, and/or
convulsions.
This appliance is classified as a CLASS 1
LASER product. The CLASS 1 LASER
PRODUCT MARKING is located on the
bottom of the PS one® console.
Precautions
Your PS one® console is not
disconnected from the AC power
source (mains) as long as it is
connected to the wall outlet, even if
the unit itself has been turned off.
About the nameplate
The nameplate is located on the
bottom of the PS one® console.
Notice
Use the supplied AC adaptor only.
If you use other types, it may cause
fire, electrical shocks or a
malfunction.
If this unit is affected by static
electricity or burst-noise, it may not
work correctly.
USING THE PS one® CONSOLE
IN A MOVING VEHICLE COULD
DISTRACT THE DRIVER. IT IS
DANGEROUS AND MAY BE
ILLEGAL TO USE A SCREEN
WHICH IS NOT SECURELY
MOUNTED OR IS WITHIN THE
DRIVER’S VIEW OR WHERE THE
DRIVER CAN SEE REFLECTIONS
OF IT. DO NOT USE THE PS one®
CONSOLE IN THE FRONT SEAT
OF A MOVING VEHICLE.
If the PS one® console is used in a
moving vehicle, the user should
ask the driver’s permission and
follow the driver’s instructions.
Many games include loud or
sudden noises that can be
distracting, and it may be
necessary to operate at a reduced
volume, with the volume turned
off or by using headphones. If used
loose in a moving vehicle the
PS one® console, like any loose
object, could cause injury to the
user, the driver and other
passengers in accidents or as a
result of sudden braking. It is
unsafe to leave children
unaccompanied in a car, whether
playing with the PS one® console or
not.
PLEASE KEEP THIS WARNING
AVAILABLE FOR REFERENCE.
Table of contents
2 WARNING
3 Unpacking
4 Precautions
Unpacking
3
Check that you have the following items:
5 Connecting your PS one®
console to a TV set
7 Playing a game
9 Using the Analog Controller
(DUALSHOCK®)
11 Using the Memory Card
13 Playing an audio CD
16 Enjoying SoundScope
18 Troubleshooting
21 GUARANTEE
22 Specifications
• PS one® console
• Analog Controller
(DUALSHOCK®)
• RFU Adaptor
• AC Adaptor
Precautions
4
On safety
• The laser beam emitted from the lens
of your PS one® console is harmful to
the eyes. Do not attempt to
disassemble the casing. Servicing
should be carried out by qualified
personnel only.
• Should any solid objects or liquid fall
into your PS one® console, unplug it
immediately and have it checked by
qualified personnel before any
further use.
• Disconnect your PS one® console
from the mains if you do not intend
to use it for any length of time. When
doing this, grasp the adaptor and pull
it from the wall socket. Never pull
the cord itself.
For your health
• Be sure to take a break of about 15
minutes during every hour of play.
• Do not play a game when you are
very tired or short of sleep.
• Play in a well lit room, sitting as far
from the screen as the cord will
allow.
On operation
• Operate your PS one® console only
on 220 - 240 V AC, 50/60 Hz.
• Do not cover your PS one® console
during use as heat may build up
internally.
• Avoid rough handling or knocks and
do not put any heavy objects on top
of your PS one® console. This could
damage the console or the disc.
• Do not leave your PS one® console
near heat sources, or in a place
subject to direct sunlight (operating
temperature: 5˚C-35˚C), excessive
dust or sand, moisture, liquid, on an
uneven surface, or in a car with its
windows closed.
• If your PS one® console causes
interference to radio or television
reception, turn it off or move it away
from the radio or television.
• Do not touch the lens inside the disc
cover. To protect the lens from dust
keep the disc cover closed except
when inserting or removing the disc.
If the lens is not clean, your PS one®
console may not operate properly.
• The SCPH-1040 Link Cable cannot be
used with this unit.
• The method for resetting the PS one®
is different to that for the
PlayStation® (SCPH-1002 B,
SCPH-5502 B, SCPH-5552 B,
SCPH-7002 B, SCPH-7502 B,
SCPH-9002 B). For more information,
see “Restarting a game” on page 8.
• Avoid prolonged physical contact
with the PS one® console or AC
adaptor. This may cause low
temperature burns.
About the discs
On condensation
• You can use two kinds of discs with
your PS one® console: CD-ROM discs
with both PlayStation® logo and [PAL]
designation, and audio CD discs.
• Some discs sold in foreign countries
cannot be used with this unit.
If your PS one® console is brought
directly from a cold to a warm location,
or is placed in a very damp room,
moisture may condense on the lens
inside. Should this occur, your PS one®
console may not operate properly. In
this case, remove the disc for several
hours until the moisture evaporates. If
your PS one® console still does not
operate properly, call the appropriate
PlayStation® customer service helpline
which can be found:
– on the customer registration card;
– within every PlayStation® format
software manual.
On handling discs
• Do not leave the discs near heat
sources or in direct sunlight or
excessive moisture.
• Store the discs in their cases when
they’re not in use.
• When handling the discs, do not
touch the surface.
Hold them by the edge.
• Do not stick paper or tape on the
discs.
• Do not write on the discs with a
marker, etc.
Do not connect your PS one®
console to a projection TV
Do not connect your PS one® console to
a projection TV. Permanent damage
may result unless it has an LCD screen.
Never analyse, examine or
remodel your PS one® console
Use your PS one® console according to
this instruction manual. Sony
Computer Entertainment Inc. expressly
prohibits the analysis or remodelling of
the PS one® console, and also prohibits
the analysis, use of its circuit
configurations without express written
permission of Sony Computer
Entertainment Inc.
5
Connecting your PS one® console to a TV set
B Connecting to a TV with a Euro-AV
A Connecting to a TV with an aerial
connector using the Euro-AV
connector plug
input
ANT
Connect your PS one® console to the aerial input on the TV using the
supplied RFU Adaptor. Note that the sound will not be in stereo in this case.
After connecting
Tune your TV to frequency 36.
Connect your PS one® console to the Euro-AV connector on the TV using
the optional Euro-AV connector plug (not supplied) and optional AV
Cable (integrated audio/video) SCPH-1140 E (not supplied), making sure
you match the colours on the plug and terminals.
After connecting
Set your TV to the appropriate video input mode. (Refer to the instruction
manual of your TV.)
(continued)
6
Connecting your PS one® console to a TV set (continued)
C Connecting to a TV with a Euro-AV
connector directly
You can improve picture quality by using the optional Euro-AV Cable
SCPH-1052.
Connect your PS one® console to the Euro-AV connector on the TV.
After connecting
Set your TV to the appropriate video input mode. (Refer to the instruction
manual of your TV.)
D Connecting to a TV with audio/
video inputs
Connect your PS one® console to the TV using the optional AV Cable
(integrated audio/video) SCPH-1140 E (not supplied), making sure you
match the colours on the plugs and terminals.
If your TV is monaural, do not connect the red plug. If you want to hear
both left and right sounds from a monaural TV, use a commercially available
dual-phono to single-phono (stereo to monaural) type audio cable.
After connecting
Set your TV to the appropriate video input mode. (Refer to the instruction
manual of your TV.)
IMPORTANT INFORMATION
A small number of television sets or monitors may display a bouncing or other
incorrect screen effect when connected to the PS one® console. Any applicable
warranties offered by SCEE may be limited or disclaimed in such particular cases.
Should you experience any difficulties with your PS one® console, please contact the
appropriate PlayStation® customer service helpline which can be found:
– on the customer registration card;
– within every PlayStation® format software manual.
Playing a game
7
1 Press § (open) button.
The disc cover opens.
2 Insert a disc in the disc holder with the label side up.
3 Close the disc cover.
When you close the disc cover, close it firmly until it clicks.
4 Press 1/u (on/standby)/RESET button.
The 1/u (on/standby) indicator lights up.
After the start-up screen, screen 1 appears and the game begins.
Set the supplied Analog Controller (DUALSHOCK®) to the appropriate
mode for the software (see page 9).
Tips
When you close the disc cover, push here firmly until it clicks.
• When you end a game, press § button, remove a disc and press 1/u/RESET button to
turn off the PS one® console.
• If you turn on your PS one® console without first inserting a disc, screen 2 appears. It
gives you access to the audio CD control screen and the Memory Cards activity screen,
described later on in this instruction manual. If you insert a CD-ROM disc of the
PlayStation® format while screen 2 is on, the game will start automatically.
• If the screen 3 appears, the inserted disc might be of a different format. Check if it has
both the PlayStation® logo and [PAL] designation on it. A damaged or dirty disc would
also produce this screen.
See ”Troubleshooting“ on page 18.
Notes
1
2
3
• When inserting a disc, push the disc gently but firmly until it sits snugly on the central
spindle.
MWARNING
Before removing a disc, press the § button and make sure that the disc completely stops.
Never touch the disc while it is spinning. Otherwise, you may hurt yourself or damage the
disc or your PS one® console.
(continued)
8
Playing a game (continued)
A Restarting a game
C Screens that appear after
start-up screen
1/u/RESET button
When you turn on your PS one® console, one of the following screens will
appear.
Press 1/u (on/standby)/RESET button twice.
Be careful not to accidentally press 1/u/RESET button twice while playing
the game, or the game will end.
B Removing a disc
1 A CD-ROM with both PlayStation®
logo and [PAL] designation is
inserted.
2 No disc is inserted.
When you close
the disc cover,
push here firmly
until it clicks.
§ button
Press § (open) button.
While pressing the central spindle gently, pick up the disc holding it by the
edge.
When you close the disc cover, close it firmly until it clicks.
3 A disc that cannot be played with
the PS one® console is inserted.
Using the Analog Controller (DUALSHOCK®)
9
B Digital mode (indicator: off)
A Mode switching and mode indicator
You can use this Analog Controller (DUALSHOCK®) in the same manner as
the SCPH-1080 E Controller.
START button
ANALOG mode button
R2 button
SELECT button
R1 button
L2 button
¢ button
L1 button
® button
Mode indicator
This Analog Controller (DUALSHOCK®) can be switched between two
modes by pressing the ANALOG mode button.
Each time the ANALOG mode button is pressed, the mode changes as
follows.
Digital mode (indicator: off)
µ
Analog mode (indicator: red)
Note
After checking the “
” icons on the software, switch to the
appropriate mode for use.
Note however, that some software makes this adjustment automatically. In such cases, the
ANALOG mode button is overridden by the software. For details, refer to the software
manual.
Directional
buttons
✕ button
ANALOG mode
button
π button
Mode indicator: off
(continued)
10
Using the Analog Controller (DUALSHOCKR) (continued)
C Analog mode (indicator: red)
Supports software with “
” icon.
Before using the Analog Controller
(DUALSHOCK®)
After turning the console on, rotate the
analog sticks once with your thumbs
before starting a game. Do not twist the
analog sticks but rotate as if drawing a
circle (see diagram at left).
START button
R2 button
Vibration function
This Analog Controller (DUALSHOCK®) is a touch sensitive controller
with a vibration function. The vibration function can be set to ON or OFF
using the appropriate software operations screen on your TV. The function
of each button may vary depending on the software played. Refer to
individual software manuals for further details.
Notes
• When the Analog Controller (DUALSHOCK®) is not being used, turn the PS one® console
off or unplug the Analog Controller (DUALSHOCK®) from the PS one® console.
• Before using the vibration function of this Analog Controller (DUALSHOCK®), please
read the following notes on safety.
• The vibration function for the PS one® is designed differently from that of the
PlayStation® in order to conserve power. (SCPH-1002 B, SCPH-5502 B, SCPH-5552 B,
SCPH-7002 B, SCPH-7502 B, SCPH-9002 B).
SELECT button
R1 button
L2 button
¢ button
L1 button
® button
Directional buttons
✕ button
Left analog stick /
L3 button *
π button
ANALOG mode button
Mode indicator: red
* The R3 button and the L3 button function when the stick is pressed.
Right analog stick /
R3 button *
For safety
• Stop using this unit immediately if you become tired or if you experience
unpleasantness or pain in your hands or arms while using. If the condition persists,
consult your doctor.
• Do not attempt to operate the Analog Controller (DUALSHOCK®) in any way other
than with your hands. Do not bring the Analog Controller (DUALSHOCK®) into
close contact with your head, face or near the bones of any other part of your body.
• Do not use the vibration function of the Analog Controller (DUALSHOCK®) if you
have any ailment in the bones or joints of your hands or arms.
• Do not use the vibration function of the Analog Controller (DUALSHOCK®) when
your fingers, hands, wrists, or arms are broken, dislocated, or sprained; or if you have
a pulled muscle. These ailments may become worse due to the vibration of the
Analog Controller (DUALSHOCK®).
• Avoid prolonged use of the Analog Controller (DUALSHOCK®). Take a break
approximately every thirty minutes.
Using the Memory Card
11
A MEMORY CARD screen
!¡
1
2
3
4
5
Memory Card 1
!º
Memory Card 2
You can save and load game data using the optional SCPH-1020 E Memory
Card.
Each Memory Card has 15 memory blocks.
6
You can copy game data from one Memory Card to another or delete
unnecessary data, by bringing up the MEMORY CARD screen.
Set the supplied Analog Controller (DUALSHOCK®) to digital mode
(indicator: off).
Starting Memory Card operation
1
Turn on your PS one® without inserting a disc.
2
Insert Memory Card (or two Memory Cards).
3
Select “MEMORY CARD” with the directional buttons and press the
® button.
Cancelling the Memory Card screen
Select “EXIT “ (9) on the Memory Card screen with the directional buttons
and press the ® button.
7 89
1
2
3
4
5
6
7
8
9
!º
Contents of Memory Card 1. The game data is displayed as icons.
Copy the selected game data.
Copy all game data on the selected card.
Delete the selected game data.
Arrow pointer.
Displays of the game name and other details of the selected data.
“YES”
“NO”
Exit from this screen.
Icon. The number of icons corresponds to the number of used memory
blocks.
!¡ Contents of Memory Card 2. The game data is displayed as icons.
(continued)
12
Using the Memory Card (continued)
B Memory Card operation
Copying all the game data
1
Check that the Memory Card you are copying to has enough memory
blocks, then select “COPY ALL”.
2
3
Select the Memory Card to be copied .
Press the ® button.
To cancel copying, select “NO”.
Notes
• Do not remove the Memory Card until the icons stop moving.
• If the data you are tried to copy already exists on the Memory Card, the data will not be
copied.
Deleting game data
Directional buttons
® button
How to use the Analog Controller (DUALSHOCK®) for the Memory
Card screen
• To move the arrow pointer: Press the directional buttons.
• To select the items: Press the ® button.
Tip
You can also operate using the optional SCPH-1090 E Mouse.
Copying game data
1
Check that the Memory Card you are copying to has enough memory
blocks, then select “COPY”.
2
3
4
Select the Memory Card containing the data to be copied.
Select the icon of the data to be copied.
Press the ® button.
To cancel copying, select “NO”.
Notes
• You cannot copy the data to a Memory Card that does not have enough empty blocks.
Delete unnecessary data.
• Do not remove the Memory Card until the icons stop moving.
1
2
3
4
Select “DELETE”.
Select the Memory Card that has the data you wish to delete.
Select the icon of the data you wish to delete.
Select “YES”.
To cancel deleting, select “NO”.
Playing an audio CD
13
You can also play audio CDs through your PS one® console. There are two
control methods for the audio CD facility.
• Selecting the buttons on the audio CD screen operation (A)
• Pressing the buttons on the Analog Controller (DUALSHOCK®) (direct
button operation) (C)
Set the supplied Analog Controller (DUALSHOCK®) to digital mode
(indicator: off).
Note
As the two ways above work at the same time, be sure not to confuse the operation.
Starting audio CD operation
When you close the disc cover, push here firmly until it clicks.
1
Press § (open) button.
The disc cover opens.
2
Insert a disc in the disc holder with the label side up.
3
Close the disc cover.
When you close the disc cover, close it firmly until it clicks.
4
Press 1/u (on/standby)/RESET button.
The 1/u (on/standby) indicator lights up.
After the start-up screen, the audio CD screen appears.
You can also insert an audio CD after turning on the power.
Cancelling audio CD operation
Select “EXIT “ (7) on the screen with the directional buttons and press the
® button.
Music discs encoded with copyright protection technologies
The audio CD playback feature of this product is designed to conform
to the Compact Disc (CD) standard. Recently, some record companies
have started marketing music discs encoded with copyright protection
technologies. Some of these music discs do not conform to the CD
standard and may not be playable on this product.
(continued)
14
Playing an audio CD (continued)
A Audio CD Screen
1
1
2
3
4
5
6
0
9
8
2
3
4
5
6
7
7
8
9
0
Displays the current track number, and the elapsed or remaining
playback time. Press the “TIME“ button to switch the display.
Displays the selected playback mode.
“CONTINUE”: Play all tracks on the disc in order.
“SHUFFLE”: Play the tracks in random order.
“PROGRAM”: Play the selected tracks in a specified order.
“REPEAT”: Play a single track or all tracks repeatedly.
Change the playback time display.
Arrow pointer.
“(”: Play.
“P”: Pause.
“p”: Stop.
“=”: Find the start of the current or previous track.
“+”: Find the start of the next track.
“0”: Fast Reverse.
“)”: Fast Forward.
Cancel audio CD operation.
Sound effect buttons.
Select “DIRECT” to cancel the sound effect you chose.
Display track numbers higher than 20. (Appears only when there are
more than 20 tracks on an audio CD.)
Select the track number(s) from a grid showing all the tracks on the
CD.
15
B Various playback modes
Programming a sequence of tracks
1
Select “PROGRAM“.
2
Select the track number you want to play.
Repeat this step until you have selected all the tracks you want to
include.
3
Select “(“.
To resume normal play, select “CONTINUE“.
Playing the tracks in random order
Directional buttons
® button
How to use the Analog Controller (DUALSHOCK®) for the CD operation
screen
• To move the arrow pointer: Press the directional buttons.
• To select the items: Press the ® button.
1
Select “SHUFFLE“.
2
Select “(“.
To resume normal play, select “CONTINUE“.
C To operate the CD directly with the
Analog Controller (DUALSHOCK®)
Tip
You can also operate using the optional SCPH-1090 E Mouse.
Using the buttons on the Analog Controller (DUALSHOCK®), you can
control basic CD operations without looking at the screen.
Playing an audio CD through to the end once
Select “(“.
+
=
)
0
Playing tracks on a loop
• To repeat the current track, select “REPEAT“ until “REPEAT 1” appears.
• To repeat all the tracks, select “REPEAT“ until “REPEAT ALL” appears.
To resume normal play, select “REPEAT“ until the “REPEAT“ indication
disappears.
Start SoundScope
(See page 14)
(, P
16
Enjoying SoundScope
A SoundScope operation
1* 2*
Playing Audio CDs on your PS one® console will activate the SoundScope
feature, a graphical representation of the music you are playing. Using the
buttons on the Analog Controller (DUALSHOCK®), you can choose your
favorite picture from 24 patterns, change the colour of the picture or add
the effect of an afterimage. You can also save and load your SoundScope
settings using the Memory Card.
When enjoying SoundScope, set the supplied Analog Controller
(DUALSHOCK®) to digital mode and operate the CD directly with
the Analog Controller (DUALSHOCK®) in digital mode (indicator: off).
Starting SoundScope operation
Press SELECT button when the CD operation screen is displayed.
Returning to the CD operation screen
Press SELECT button.
3
4* 5*
6*
0
7
!¡
8*
!™
9
!£
* : Press these buttons while holding down ✕ button to save your operation or change
the size of the picture. For details, see "C Additional operations".
1 - 5 Audio CD operation:
1 Find the start of the current or previous track.
2 Fast Reverse
3 Play / Pause
4 Fast Forward
5 Find the start of the next track.
6 Shorten the interval of displayed pictures.
7 Change the pattern of the picture.
8 Lengthen the interval of displayed pictures.
9 Return to the CD operation screen.
0 Add an afterimage effect to the picture.
!¡ Select the pattern of the picture in random order.
!™ Use this ✕ button with others for additional operations.
!£ Change the colour of the picture.
17
B Operation with the Mouse
A!¡
A!£
A6
A9
Switching to stored settings
1
During playback, press L1 button while holding down ✕ button.
A mark appears on the lower left of the screen, and the SoundScope
picture is transformed by the stored operation.
2
Press L1 button while holding down ✕ button.
The mark disappears and the procedure is completed.
You can also operate SoundScope
using the Mouse (SCPH-1090 E:
sold separately). Refer to A for the
operation.
For the CD operation screen
A8
A!£
• To move the mouse pointer(+):
Move the Mouse.
• To select the items: Press the left
button.
C Additional operations
Changing the size of the picture
Tip
Your stored setting is lost when you turn off the PS one® console. If you want to keep the
data, you can save and load it by using the Memory Card with one memory block.
Saving the stored operation in the Memory Card
Press R2 button while holding down ✕ button.
A mark appears on the upper right of the screen.
Press the directional buttons (up or down) while holding down ✕ button.
Changing and Storing the settings
1
During playback, press R1 button while holding down ✕ button.
A mark flashes on the lower right of the screen.
Note
You can store only one custom setting of SoundScope operation. If the data already exists,
it is erased.
Loading the data in the Memory Card
2
Operate the Analog Controller (DUALSHOCK®).
While the mark is lit, any changes you make to the SoundScope
operation with the Analog Controller (DUALSHOCK®) are stored.
3
When you are finished, press R1 button while holding down ✕ button.
The mark disappears and the procedure is completed.
Note
Do not unplug the Analog Controller (DUALSHOCK®) during the procedures.
Press L2 button while holding down ✕ button.
A mark appears on the upper left of the screen. To use the loaded data,
follow the procedure above.
18
Troubleshooting
Symptoms
Checks
If you experience any of the following problems, read the instructions for the specified
“Check” or “Diagnosis”.
1
2
3
4
No sound
∫ Check 1
No picture on the screen.
∫ Check 2
The picture and the sound skip.
∫ Check 12
The screen and the sound freeze
or the game (or audio CD) stops playing.
∫ Check 13
5
6
The game (or audio CD) does not start.
∫ Check 6
The Analog Controller (DUALSHOCKR)
does not work.
∫ Check 14
A game (or audio CD) that once worked
perfectly, now no longer does.
∫ Check 17
8
You cannot save game data using
the Memory Card.
∫ Check 18
9
The vibration function of the Analog
Controller (DUALSHOCKR) does not work.
∫ Check 14
7
10 The screen and sound are noisy.
11 The error message appears on the screen.
∫ Diagnosis E
∫ Diagnosis F
1
Is the TV volume set properly?
If not, adjust the volume. Make sure
“mute” is not selected on the TV.
If the problem persists,
bCheck 2
2
Is the frequency or input selector of
the TV set correctly?
If not, set it to the correct position.
If the problem persists,
bCheck 3
3
Is your PS one® console correctly
connected to a TV (or a VCR) with
the cable?
If not, connect it correctly.
If the problem persists,
bCheck 4
4
Is the AC adaptor connected to
your PS one® console and the wall
socket?
Connect the AC adaptor firmly to a wall
socket and to the PS one® console.
If the problem persists,
bCheck 5
5
Is the power turned on to both your
PS one® console and the TV?
If not, turn on the PS one® console and the
TV.
If the problem persists,
bCheck 6
19
6
Is a disc inserted in your PS one®
console?
If not, insert a disc.
If the problem persists,
7
bCheck 7
Is the inserted disc either a
CD-ROM disc with both the
PlayStation® logo and [PAL]
designation or an audio CD?
Insert such a CD-ROM disc or an audio
CD.
If the problem persists,
bCheck 8
8
Is the disc cover closed firmly?
If not, close it firmly.
If the problem persists,
9
bCheck 9
Is the disc inserted with the label
side up?
If not, insert the disc with the label side up.
If the problem persists,
bCheck 10
10 Check to see if the PS one® console
is set to pause mode.
If “Yes”, cancel it.
If the problem persists,
bCheck 11
11 Did you bring your PS one® console
directly from a cold to a warm
location before you inserted the
disc?
If “Yes”,
b Diagnosis C
If “No”,
b Check 12
12 Is your PS one® console placed on a
stable surface?
Install the PS one® console in a flat stable
place.
Do not shake or vibrate the PS one®
console.
If the problem persists,
bCheck 13
13 Check to see if another game (or
audio CD) will work.
If “Yes”,
If “No”,
b Diagnosis
b Diagnosis
A
B
14 Is the Analog Controller
(DUALSHOCK®) connected to your
PS one® console?
If not, connect it to the controller port of
the PS one® console.
If the problem persists,
bCheck 15
15 Is the Analog Controller
(DUALSHOCK®) set to the
appropriate mode for the software?
Switch to the appropriate mode.
If the problem persists,
bCheck 16
16 Check to see if another controller
will work.
If “Yes”,
If “No”,
b Diagnosis
b Diagnosis
D
F
17 Check to see if another game (or
audio CD) will work.
If “Yes”,
If “No”,
b Diagnosis
b Diagnosis
A
F
18 Is the Memory Card inserted in your
PS one® console?
If not, insert it in the MEMORY CARD slot
of the PS one® console.
If the problem persists,
bCheck 19
19 Are there empty blocks on the
Memory Card?
Keep empty blocks on the Memory Card.
If the problem persists,
bDiagnosis G
20
Troubleshooting (continued)
Diagnoses
A
There is a problem with the
disc.
D
Clean the underside of the disc with a CD
cleaner and try to play it again.
To clean the disc, refer to the instruction
manual of the CD cleaner.
If the problem persists, the disc may be
defective.
B
The lens may be dirty.
Clean the lens by using a plastic lens
cleaning kit.
To clean the lens, refer to the instruction
manual of the plastic lens cleaning kit.
If the problem persists, please contact the
appropriate PlayStation® customer service
helpline which can be found:
– on the customer registration card;
– within every PlayStation® format
software manual.
C
Moisture condensation has
occured on the disc.
Remove the disc and leave it until the
moisture evaporates, or clean the
underside of the disc using a CD cleaner.
There is a problem with the
Analog Controller
(DUALSHOCK®).
Please contact the appropriate PlayStation®
customer service helpline which can be
found:
– on the customer registration card;
– within every PlayStation® format
software manual.
E
Check the connection
between your PS one®
console and the TV (or
VCR).
Insert the plugs of the connecting cable
firmly into the connectors. If the picture
and the sound are still picking up noise,
the plugs may be dirty or there may be a
short inside the cable. If the problem
persists even after trying another cable,
please contact the appropriate PlayStation®
customer service helpline which can be
found:
– on the customer registration card;
– within every PlayStation® format
software manual.
F
There is a problem with
your PS one® console.
Please contact the appropriate PlayStation®
customer service helpline which can be
found:
– on the customer registration card;
– within every PlayStation® format
software manual.
G
There is a problem with the
Memory Card.
Please contact the appropriate PlayStation®
customer service helpline which can be
found:
– on the customer registration card;
– within every PlayStation® format
software manual.
GUARANTEE
21
GUARANTEE
IMPORTANT
Thank you for buying this Product.
1.
Sony Computer Entertainment Europe (“SCEE”) will,
for a period of 1 (one) year from the date of original
purchase, repair or (at SCEE’s option) replace any
component part of this Product, free of charge, where it
is faulty due to defective materials or workmanship.
Replacement will be with a new or refurbished unit, at
SCEE’s option.
This Guarantee is in addition to your statutory
consumer rights (under applicable law) and does not
affect them in any way.
Sony Computer Entertainment Europe
30 Golden Square, London W1F 9LD UK
If you need to claim under this Guarantee, please
call your local Customer Service Helpline (listed on
the Customer Registration Card and in a current
software manual) for return instructions and other
guidance.
2. This Guarantee is only valid:
i
in the UK and Ireland
ii when the original sales receipt or invoice
(indicating the date of purchase and retailer’s
name) is presented together with the faulty
Product (and has not been altered or defaced
since the date of original purchase).
iii When the Guarantee seal on the Product has
not been damaged or removed.
3. You may not claim under this Guarantee when the
Product is damaged as a result of:
i
commercial use, accident, fair wear and tear or
misuse (including, without limitation, failure to
use this Product for its normal purpose and/or
in accordance with instructions on proper use
and maintenance, or installation or use in a
manner inconsistent with applicable local
technical or safety standards);
ii use in conjunction with any unauthorized
peripheral (including, without limitation, game
enhancement devices, adaptors and power
supply devices);
iii any adaptation or adjustment to, or alteration
of, this Product carried out for any reason, and
whether properly carried out or not; or
iv maintenance or repairs carried out other than
by an authorised service facility.
4. Where permitted under applicable law, this
Guarantee will be your sole and exclusive remedy
for breach of any warranty, guarantee or condition,
express or implied, in respect of this Product and
neither SCEE nor any other Sony entity, or their
suppliers or authorised service facilities, will be
liable for any incidental or consequential loss or
damage.
If this Product needs any repair which is not covered
by this Guarantee, please call your local Customer
Service Helpline for advice. If your home country is
not one of those listed, please contact your retailer.
Please complete and return the enclosed (Freepost)
Customer Registration Card.
22
Specifications
General
Optional accessories
Power requirements:
! DC IN 7.5V
Power consumption:
9W
Dimensions:
193 x 38 x 144 mm (w/h/d)
Mass:
560 g
Operating Temperature: 5˚C-35˚C
Laser diode properties
•Material: GaAlAs
•Wavelength: l=780 nm
•Emission duration: Continuous
•Laser output: Less than 44.6 µW
(measured at a distance of 200 mm from the lens surface on
the optical pick-up block)
SCPH-110 E
SCPH-1020 E
SCPH-1052
SCPH-1070 E
SCPH-1080 E
SCPH-1090 E
SCPH-1122
SCPH-1140 E
SCPH-1160 E
SCPH-1200 E
SCPH-10072 B
Inputs/outputs on the console front
Controller ports (2)
MEMORY CARD slots (2)
Output on the console rear
AV MULTI OUT connector (1)
Supplied accessories
AC Adaptor (1)
Analog Controller (DUALSHOCKR) (1)
RFU Adaptor (1)
Instruction Manual (1)
Analog Controller (DUALSHOCKR)
Memory Card
Euro-AV Cable
Multitap
Controller
Mouse
RFU Adaptor
AV Cable (integrated audio/video)
AV Adaptor
Analog Controller (DUALSHOCKR)
RFU Adaptor
Design and specifications are subject to change without
notice.
23
24
“
”, “PlayStation”, “PS one”, “DUALSHOCK” and “
” are registered
trademarks of Sony Computer Entertainment Inc.
“SONY“ and “
“ are registered trademarks of Sony Corporation.
Printed in China.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
