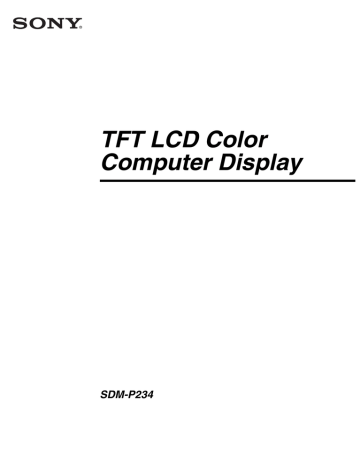

TFT LCD Color
Computer Display
SDM-P234
© 2004 Sony Corporation
Owner’s Record
The model and serial numbers are located at the rear of the unit.
Record these numbers in the spaces provided below. Refer to them
whenever you call upon your dealer regarding this product.
Model No.
Serial No.
WARNING
To prevent fire or shock hazard, do not expose the
unit to rain or moisture.
Dangerously high voltages are present inside the
unit. Do not open the cabinet. Refer servicing to
qualified personnel only.
FCC Notice
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly
approved in this manual could void your authority to operate this
equipment.
IMPORTANTE
Para prevenir cualquier mal funcionamiento y evitar daños, por
favor, lea detalladamente este manual de instrucciones antes
de conectar y operar este equipo.
If you have any questions about this product, you may call;
Sony Customer Information Services Center
1-800-222-7669 or http://www.sony.com/
Declaration of Conformity
Trade Name:
Model:
Responsible Party:
Address:
SONY
SDM-P234
Sony Electronics Inc.
16450 W. Bernardo Dr,
San Diego, CA 92127 U.S.A.
Telephone Number: 858-942-2230
This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
BZ03
2
NOTICE
This notice is applicable for USA/Canada only.
If shipped to USA/Canada, install only a UL LISTED/CSA
LABELLED power supply cord meeting the following
specifications:
SPECIFICATIONS
Plug Type
Nema-Plug 5-15p
Cord
Type SVT or SJT, minimum 3 × 18 AWG
Length
Maximum 15 feet
Rating
Minimum 7 A, 125 V
NOTICE
Cette notice s’applique aux Etats-Unis et au Canada
uniquement.
Si cet appareil est exporté aux Etats-Unis ou au Canada, utiliser
le cordon d’alimentation portant la mention UL LISTED/CSA
LABELLED et remplissant les conditions suivantes:
SPECIFICATIONS
Type de fiche Fiche Nema 5-15 broches
Cordon
Type SVT ou SJT, minimum 3 × 18 AWG
Longueur
Maximum 15 pieds
Tension
Minimum 7 A, 125 V
As an ENERGY STAR Partner, Sony
Corporation has determined that this
product meets the ENERGY STAR
guidelines for energy efficiency.
This monitor complies with the
TCO’99 guidelines.
Table of Contents
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Identifying parts and controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Setup 1: Connect the video signal cables . . . . . . . . . . . . . . . . . . . . 7
Setup 2: Connect the audio cord . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Setup 3: Connect the speakers or headphones . . . . . . . . . . . . . . . 8
Setup 4: Connect the power cord . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Setup 5: Bundle the cords and cables . . . . . . . . . . . . . . . . . . . . . . 9
Setup 6: Turn on the monitor and computer . . . . . . . . . . . . . . . . . . 9
Setup 7: Adjust the tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Selecting the input signal (INPUT) . . . . . . . . . . . . . . . . . . . . . . . . . 11
Customizing Your Monitor . . . . . . . . . . . . . . . . . . . . . . .12
Navigating the menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
PICTURE ADJUST menu . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
SCREEN menu (analog RGB signal only) . . . . . . . . . . . . . . 14
COLOR menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
GAMMA menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
ZOOM menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
MENU POSITION menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
INPUT SENSING ON/OFF menu . . . . . . . . . . . . . . . . . . . . . 17
LANGUAGE menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
0 RESET menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
MENU LOCK menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
OPTION menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
• Macintosh is a trademark licensed to
Apple Computer, Inc., registered in the
U.S.A. and other countries.
• Windows is registered trademark of
Microsoft Corporation in the United
States and other countries.
• IBM PC/AT and VGA are registered
trademarks of IBM Corporation of the
U.S.A.
• VESA and DDC are trademarks of the
Video Electronics Standards
Association.
• ENERGY STAR is a U.S. registered
mark.
• Adobe and Acrobat are trademarks of
Adobe Systems Incorporated.
• All other product names mentioned
herein may be the trademarks or
registered trademarks of their respective
companies.
• Furthermore, “” and “” are not
mentioned in each case in this manual.
Technical Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Power saving function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Reducing the power consumption (ECO mode) . . . . . . . . . . . . . . 19
Automatic brightness adjustment function (light sensor) . . . . . . . . 19
Automatic picture quality adjustment function
(analog RGB signal only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
On-screen messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Trouble symptoms and remedies . . . . . . . . . . . . . . . . . . . . . . . . . 22
Self-diagnosis function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
http://www.sony.net/
3
GB
Note on the LCD (Liquid Crystal Display)
Precautions
Warning on power connections
Use the supplied power cord. If you use a different power cord, be
sure that it is compatible with your local power supply.
For the customers in the U.S.A.
If you do not use the appropriate cord, this monitor will not
conform to mandatory FCC standards.
For the customers in the UK
If you use the monitor in the UK, be sure to use the appropriate
UK power cord.
Example of plug types
for 100 to 120 V AC
for 200 to 240 V AC
for 240 V AC only
The equipment should be installed near an easily accessible outlet.
Installation
Do not install or leave the monitor:
• In places subject to extreme temperatures, for example near a
radiator, heating vent, or in direct sunlight. Subjecting the
monitor to extreme temperatures, such as in an automobile
parked in direct sunlight or near a heating vent, could cause
deformations of the casing or malfunctions.
• In places subject to mechanical vibration or shock.
• Near any equipment that generates a strong magnetic field,
such as a TV or various other household appliances.
• In places subject to inordinate amounts of dust, dirt, or sand, for
example near an open window or an outdoor exit. If setting up
temporarily in an outdoor environment, be sure to take
adequate precautions against airborne dust and dirt. Otherwise
irreparable malfunctions could occur.
Please note that the LCD screen is made with high-precision
technology. However, black points or bright points of light (red,
blue, or green) may appear constantly on the LCD screen, and
irregular colored stripes or brightness may appear on the LCD
screen. This is not malfunction.
(Effective dots: more than 99.99%)
Maintenance
• Be sure to unplug the power cord from the power outlet before
cleaning your monitor.
• Clean the LCD screen with a soft cloth. If you use a glass
cleaning liquid, do not use any type of cleaner containing an
anti-static solution or similar additive as this may scratch the
LCD screen’s coating.
• Clean the cabinet, panel, and controls with a soft cloth lightly
moistened with a mild detergent solution. Do not use any type
of abrasive pad, scouring powder, or solvent, such as alcohol or
benzine.
• Do not rub, touch, or tap the surface of the screen with sharp or
abrasive items such as a ballpoint pen or screwdriver. This type
of contact may result in a scratched picture tube.
• Note that material deterioration or LCD screen coating
degradation may occur if the monitor is exposed to volatile
solvents such as insecticide, or if prolonged contact is
maintained with rubber or vinyl materials.
Transportation
• Disconnect all cables from the monitor and hold the LCD
display by the body. Be careful not to scratch the screen when
transporting. If you drop the monitor, you may be injured or the
monitor may be damaged.
• When you transport this monitor for repair or shipment, use the
original carton and packing materials.
Disposal of the monitor
The openings are provided for necessary ventilation. To ensure
reliable operation of the set, and to protect it from overheating,
these openings must never be blocked or covered.
• Do not dispose of this monitor with general
household waste.
• The fluorescent tube used in this monitor contains
mercury. Disposal of this monitor must be carried out
in accordance to the regulations of your local
sanitation authority.
Handling the LCD screen
For customers in the United States
• Do not leave the LCD screen facing the sun as it can damage
the LCD screen. Take care when you place the monitor by a
window.
• Do not push on or scratch the LCD screen. Do not place a heavy
object on the LCD screen. This may cause the screen to lose
uniformity or cause LCD panel malfunctions.
• If the monitor is used in a cold place, a residual image may
appear on the screen. This is not a malfunction. The screen
returns to normal as the temperature rises to a normal operating
level.
• If a still picture is displayed for a long time, a residual image
may appear for a while. The residual image will eventually
disappear.
• The LCD panel becomes warm during operation. This is not a
malfunction.
This product contains mercury. Disposal of this product may be
regulated if sold in the United States. For disposal or recycling
information, please contact your local authorities or the
Electronics Industries Alliance (http://www.eiae.org).
Ventilation
4
A Sony logo (page 18)
Sony logo illuminates.
Identifying parts and controls
See the pages in parentheses for further details.
B 1 (Power) (pages 9, 19, 24)
This key turns the monitor on when the key lights up in red.
To turn the monitor off, touch this key again.
If the key does not light up, press the MAIN POWER switch
(9).
Front of the LCD display
2
MENU
C MENU (page 12)
This key turns the menu screen on and off.
OK
INPUT
ECO
MENU
3
1
4
D m/M (page 12)
These keys are used to select the menu items and make
adjustments.
E OK (pages 12, 14)
This key activates the selected menu item and adjustments
made using m/M (4).
When the menu screen is not displayed, with this key you can
make automatic adjustment of the picture quality for the
current input signal (one touch sensing function).
F INPUT (page 11)
This key switches the video input signal between INPUT1,
INPUT2 and INPUT3 when multiple computers are
connected to the monitor.
OK
5
GB
G ECO (page 19)
This key is used to reduce the power consumption.
H Light sensor (page 19)
This sensor measures the brightness of the surrounding area.
Be sure not to cover the sensor with papers, etc.
INPUT
6
Rear of the display stand
ECO
7
9
8
0
This display employs a touch sensor key system. You can operate
the display by touching the letters or symbols on the front panel.
Touch sensor keys work only when they are lit. Touch sensor keys
light up when you turn the monitor on, but they turn off if you do
not perform any operations for a while. To light them up again,
touch an area of the touch sensor keys.
Note
Do not press the touch sensor keys too hard. This may cause a
malfunction.
I MAIN POWER switch (page 9)
This switch turns the monitor’s main power on and off.
J Back cover (page 7)
Slide up this cover when you connect cables or cords.
5
K AC IN connector (page 8)
This connector connects the power cord (supplied).
Rear of the LCD display
L Cable holder (page 9)
This part secures cables and cords to the monitor.
M Security lock hole
The security lock hole should be used with the Kensington
Micro Saver Security System.
Micro Saver Security System is a trademark of Kensigton.
N Audio input jack for INPUT1 (page 8)
This jack inputs audio signals when connected to the audio
output jack of a computer or other audio equipment connected
to INPUT1.
O HD15 input connector (analog RGB) for INPUT1
(page 7)
This connector inputs analog RGB video signals (0.700 Vp-p,
positive) and sync signals.
INPUT 1
INPUT 2
INPUT 3
P Audio input jack for INPUT2 (page 8)
This jack inputs audio signals when connected to the audio
output jack of a computer or other audio equipment connected
to INPUT2.
Q HD15 input connector (analog RGB) for INPUT2
(page 7)
This connector inputs analog RGB video signals (0.700 Vp-p,
positive) and sync signals.
R Audio input jack for INPUT3 (page 8)
This jack inputs audio signals when connected to the audio
output jack of a computer or other audio equipment connected
to INPUT3.
S DVI-D input connector (digital RGB) for INPUT3
(page 7)
This connector inputs digital RGB video signals that comply
with DVI Rev.1.0.
T Audio output jack (page 8)
This jack outputs audio signals to speakers or headphones.
6
Setup
Before using your monitor, check that the following items are
included in your carton:
• LCD display
• Power cord
• HD15-HD15 video signal cable (analog RGB)
• DVI-D video signal cable (digital RGB)
• Audio cord (stereo miniplug)
• CD-ROM (utility software for Windows/Macintosh, Operating
Instructions, etc.)
• Warranty card
• Quick Setup Guide
Setup 1: Connect the video signal
cables
• Turn off the monitor, computer, and any other
equipment before connecting them.
• When connecting the computer to the monitor’s HD15
input connector (analog RGB), refer to “Connect a
computer equipped with an HD15 output connector
(analog RGB).”
Note
• Do not touch the pins of the video signal cable connector as this
might bend the pins.
• Check the alignment of the HD15 connector to avoid bending the
pins of the video signal cable connector.
1
Slide up the back cover.
2
Tilt the display forward.
Connect a computer equipped with a DVI output
connector (digital RGB)
Using the supplied DVI-D video signal cable (digital RGB), connect the
computer to the monitor’s DVI-D input connector (digital RGB) for
INPUT3.
to the DVI-D input
connector
(digital RGB)
to the computer’s DVI output
connector (digital RGB)
DVI-D video signal
cable (digital RGB)
(supplied)
Connect a computer equipped with an HD15
output connector (analog RGB)
GB
Using the supplied HD15-HD15 video signal cable (analog RGB),
connect the computer to the monitor’s HD15 input connector (analog
RGB) for INPUT1 or INPUT2.
Connect the computer according to the following illustrations.
x Connecting to an IBM PC/AT or
compatible computer
to the HD15 input
connector
(analog RGB)
to the computer’s HD15 output
connector (analog RGB)
IBM PC/AT or compatible
computer
HD15-HD15 video signal
cable (analog RGB)
(supplied)
7
x Connecting to a Macintosh
Setup 3: Connect the speakers or
headphones
Connect the speaker cord or headphone cord securely
to the monitor’s audio output jack. (The speakers and
headphones are not supplied.)
When connecting a Macintosh computer, use an adapter (not supplied),
if necessary. Connect the adapter to the computer before connecting the
video signal cable.
Setup 2: Connect the audio cord
Connect the supplied audio cord to the monitor’s
corresponding audio input jack.
Using the speakers or headphones, you can listen to sound from
your computer or other audio equipment connected to the
monitor’s audio input jacks.
8
Setup 4: Connect the power cord
1
Connect the supplied power cord securely to the
monitor’s AC IN connector.
2
Connect the other end securely to a power outlet.
Setup 5: Bundle the cords and
cables
Setup 6: Turn on the monitor and
computer
1
Slide up the back cover.
1
2
Remove the stand cover.
3
Secure the video signal cables, audio cords and
speaker cord (or headphone cord) using the cable
holder on the cabinet.
4
Secure the power cord, connecting cables and
cords using the cable holder.
5
Replace the stand cover and then slide down the
back cover.
Please be sure that cords come out through the opening at the
bottom of the stand cover, for proper placement of the stand
cover.
Press the MAIN POWER switch located on the upper
side of the monitor, if 1 (power) is not lit. Make sure
1 (power) is lit in red.
MAIN POWER
2
1 5
back cover
lights in red
Touch and hold 1 (power) on the front right of the
monitor for a few seconds.
1 (power) lights up in green.
GB
lights in green
3 4
2 5
cable holder
stand cover
3
Turn on the computer.
4
Touch INPUT to select the desired input signal.
The selected input’s picture appears on the screen.
For more information, see “Selecting the input signal
(INPUT)” on page 11.
INPUT
The installation of your monitor is complete. If necessary, use the
monitor’s controls to adjust the picture (page 12).
9
If no picture appears on your screen
• Check that the power cord and the video signal cable are
properly connected.
• If “NO INPUT SIGNAL” appears on the screen:
– The computer is in the power saving mode. Try pressing any
key on the keyboard or moving the mouse.
– Check that the input signal setting is correct by touching
INPUT (page 11).
Setup 7: Adjust the tilt
This monitor can be adjusted within the angles shown below.
Grasp the sides of the LCD panel, then adjust screen
angles.
approx. approx.
5°
30°
• If “CABLE DISCONNECTED” appears on the screen:
– Check that the video signal cable is properly connected.
– Check that the input signal setting is correct by touching
INPUT (page 11).
• If “OUT OF RANGE” appears on the screen, reconnect the old
monitor. Then adjust the computer’s graphics board within the
following ranges.
Analog RGB
Digital RGB
Horizontal
frequency
28–92 kHz
28–75 kHz
Vertical
frequency
48–85 Hz
60 Hz
Resolution
1600 × 1200 or more*
1920 × 1200 or less
* Only when the vertical frequency is set to 60 Hz.
For more information about on-screen messages, see “Trouble
symptoms and remedies” on page 22.
No need for specific drivers
The monitor complies with the “DDC” Plug & Play standard and
automatically detects all the monitor’s information. No specific driver
needs to be installed on the computer.
The first time you turn on your computer after connecting the monitor, the
setup Wizard may appear on the screen. In this case, follow the on-screen
instructions. The Plug & Play monitor is automatically selected so that
you can use this monitor.
The vertical frequency is set to 60 Hz.
Since flickers are unobtrusive on the monitor, you can use it as it is. You
do not need to set the vertical frequency to any particular high value.
approx.
175°
approx. 175°
To use the monitor comfortably
Adjust the viewing angle of your monitor according to the height
of your desk and chair, and so that light is not reflected from the
screen to your eyes.
Note
When adjusting the screen tilt, proceed slowly and carefully, being sure
not to hit the monitor against the desk.
10
Selecting the input signal
(INPUT)
Touch INPUT.
The input signal changes each time you touch this key.
INPUT
On-screen message
(Appears about 5 seconds on
the upper left corner.)
Input signal configuration
INPUT1 : HD15
HD15 input connector
(analog RGB) for INPUT1
INPUT2 : HD15
HD15 input connector
(analog RGB) for INPUT2
INPUT3 : DVI-D
DVI-D input connector
(digital RGB) for INPUT3
GB
11
4
Customizing Your Monitor
Select the item you want to adjust.
Touch m/M to select the item you want to adjust, then touch
OK.
Before making adjustments
Connect the monitor and the computer, and turn them on.
For the best results, wait for at least 30 minutes before making
adjustments.
,
OK
You can make numerous adjustments to your monitor using the
on-screen menu.
If
is one of the menu items.
When you select
and touch OK, the display returns to the
previous menu.
Navigating the menu
You can adjust the menus by using the touch sensor keys on the
front of the monitor.
1
5
Light up touch sensor keys.
Touch an area of the touch sensor keys so they light up. If
touch sensor keys are already been lit, this step is unnecessary
(go to step 2).
Adjust the item.
Touch m/M to make the adjustment, then touch OK.
When you touch OK, the setting is stored, then the display
returns to the previous menu.
OK
MENU
,
,
MENU
Note
Touch sensor keys work only when they are lit. Touch sensor keys
light up when you turn the monitor on, but they turn off if you do not
perform any operations for a while. To light them up again, touch an
area of the touch sensor keys.
While the menu is displayed, the touch sensor keys remain on and
ready for use.
2
Display the main menu.
Touch MENU to display the main menu on your screen.
P I CTURE
MENU
MIDDLE
:
:
:
,
100
70
50
Select the menu.
Touch m/M to display the desired menu. Touch OK to move
to the first menu item.
OK
,
12
Close the menu.
When you touch MENU, the menu closes and the touch
sensor keys turn off. If MENU is not touched for 45 seconds
after adjustment, the menu closes and the touch sensor keys
turn off.
MENU
ADJUST
S M O OT H I N G
1 9 2 0 x 1 2 0 0 / 6 0Hz
EX I T
3
6
x Resetting the adjustments to the default
settings
You can reset the adjustments using RESET menu. For more
information about resetting the adjustments, see 0 (RESET) on
page 17.
PICTURE ADJUST menu
You can adjust the following items using the PICTURE ADJUST
menu.
•
•
•
•
•
•
MODE (ECO mode)
BACKLIGHT
CONTRAST 6
BRIGHTNESS
MODE RESET 0
SMOOTHING
P I CTURE
MIDDLE
:
:
:
1
Touch MENU.
The main menu appears on the screen.
2
Touch m/M to select
(PICTURE ADJUST) and
touch OK.
The PICTURE ADJUST menu appears on the screen.
3
Touch m/M to select “
BACKLIGHT” and touch OK.
The “BACKLIGHT” menu appears on the screen.
4
Touch m/M to adjust the light level and touch OK.
ADJUST
100
70
50
S M O OT H I N G
1 9 2 0 x 1 2 0 0 / 6 0Hz
EX I T
Note
• You can adjust the backlight, contrast, and brightness for each ECO
mode.
• Settings in the PICTURE ADJUST menu can be made for the current
input. You can also adjust settings for other inputs.
x Selecting the MODE (ECO mode)
You can select the picture mode to reduce the power
consumption.
Note
You can also select the picture mode with ECO (pages 5, 19) on the front
of the monitor.
x Adjusting the CONTRAST 6
Adjust the picture contrast.
Note
The contrast cannot be adjusted when the ECO mode is set to “AUTO”
(page 19).
1
Touch MENU.
The main menu appears on the screen.
2
Touch m/M to select
(PICTURE ADJUST) and
touch OK.
The PICTURE ADJUST menu appears on the screen.
Touch m/M to select “6 CONTRAST” and touch OK.
The “CONTRAST” menu appears on the screen.
1
Touch MENU.
The main menu appears on the screen.
3
2
Touch m/M to select
(PICTURE ADJUST) and
touch OK.
The PICTURE ADJUST menu appears on the screen.
4
3
Touch m/M to select “MIDDLE” and touch OK.
The “MODE” menu appears on the screen.
MODE
HIGH
MIDDLE
L OW
AU TO
1 9 2 0 x 1 2 0 0 / 6 0Hz
EX I T
4
Touch m/M to select the desired mode and touch OK.
The screen brightness is changed as the mode turns to HIGH
t MIDDLE t LOW, and the power consumption is
reduced.
When you select “AUTO,” the monitor automatically adjusts
the screen brightness according to the brightness of the
surroundings (automatic brightness adjustment function). For
more information, see “Automatic brightness adjustment
function (light sensor)” on page 19.
Touch m/M to adjust the contrast and touch OK.
x Adjusting the BRIGHTNESS
Adjust the picture brightness (black level).
Note
The brightness cannot be adjusted when the ECO mode is set to “AUTO”
(page 19).
1
Touch MENU.
The main menu appears on the screen.
2
Touch m/M to select
(PICTURE ADJUST) and
touch OK.
The PICTURE ADJUST menu appears on the screen.
3
Touch m/M to select “
BRIGHTNESS” and touch OK.
The “BRIGHTNESS” menu appears on the screen.
4
Touch m/M to adjust the brightness and touch OK.
x Resetting the adjustment data to the
defaults 0
You can reset the adjustments to the default settings.
x Adjusting the BACKLIGHT
If the screen is too bright, adjust the backlight to make the screen
easier to see.
1
Touch MENU.
The main menu appears on the screen.
Note
The backlight cannot be adjusted when the ECO mode is set to “AUTO”
(page 19).
2
Touch m/M to select
(PICTURE ADJUST) and
touch OK.
The PICTURE ADJUST menu appears on the screen.
13
GB
3
Touch m/M to select “0 MODE RESET” and touch
OK.
The “RESET” menu appears on the screen.
4
Touch m/M to select the desired mode and touch OK.
• OK:
To reset all of the adjustment data in the
PICTURE ADJUST menu to the default settings.
• CANCEL:To cancel resetting and return to the PICTURE
ADJUST menu.
x Adjusting the SMOOTHING
If the picture displayed at the FULL2 or FULL1 mode of
ZOOM is not smooth, use the picture smoothing function.
1
Touch MENU.
The main menu appears on the screen.
2
Touch m/M to select
(PICTURE ADJUST) and
touch OK.
The PICTURE ADJUST menu appears on the screen.
3
Touch m/M to select “SMOOTHING” and touch OK.
The SMOOTHING menu appears on the screen.
4
Touch m/M to select the desired mode.
The smoothing effect becomes stronger in the order of
TEXT t STANDARD t GRAPHICS.
• TEXT: To make the characters appear clear. (This mode is
suited for text-based applications.)
• STANDARD (The default setting): Standard smoothing
effect.
• GRAPHICS: To make the pictures appear clean. (This
mode is suited for CD-ROM software such as
photo images or illustrations.)
Note
• When you set the
(ZOOM) menu to REAL, the SMOOTHING
menu is not available.
• 1920 × 1200 resolution signals are shown only in REAL mode and
SMOOTHING is not possible.
SCREEN menu (analog RGB
signal only)
You can adjust the following items using the SCREEN menu.
• AUTO
SCREEN
• PHASE
• PITCH
AU TO
PHASE
• H CENTER
P I TCH
H CENTER
• V CENTER
V CENTER
x Automatic picture quality adjustment
function
When the monitor receives an input signal, it automatically
adjusts the picture’s position and sharpness (phase/pitch), and
ensures that a clear picture appears on the screen (page 20).
Note
While the automatic picture quality adjustment function is activated, only
1 (power) will operate.
If the automatic picture quality adjustment function of this
monitor seems not to completely adjust the picture
You can make further automatic adjustment of the picture quality for the
current input signal. Adjust by touching OK on the front of the monitor
(one touch sensing function), or following the steps in “AUTO” below.
If you still need to make further adjustments to the picture
quality
You can manually adjust the picture’s sharpness (phase/pitch) and
position (horizontal/vertical position).
These adjustments are stored in memory and automatically
recalled when the monitor receives a previously input and
registered input signal.
x Make further automatic adjustments to the
picture quality for the current input signal
(AUTO)
1
Touch MENU.
The main menu appears on the screen.
2
Touch m/M to select
(SCREEN) and touch OK.
The SCREEN menu appears on the screen.
3
Touch m/M to select “AUTO” and touch OK.
Make the appropriate adjustments of the screen’s phase, pitch
and horizontal/vertical position for the current input signal
and store them.
x Adjust the picture’s sharpness manually
(Phase/Pitch)
You can adjust the picture’s sharpness as follows. This
adjustment is effective when the computer is connected to the
monitor’s HD15 input connector (analog RGB).
1
Set the resolution to 1920 × 1200 on the computer.
2
Load the CD-ROM.
3
Start the CD-ROM, select the area and model, and
display the test pattern.
For Windows
Click [Utility] t [Windows]/[Win Utility.exe].
For Macintosh
Click [Utility] t [Mac]/[Mac Utility].
4
Touch MENU.
The main menu appears on the screen.
5
Touch m/M to select
(SCREEN) and touch OK.
The SCREEN menu appears on the screen.
1 9 2 0 x 1 2 0 0 / 6 0Hz
EX I T
Note
When receiving digital RGB signals from the DVI-D input connector
for INPUT3, adjustment is unnecessary.
14
6
Touch m/M to select “PHASE” and touch OK.
The “PHASE” adjustment menu appears on the screen.
7
Touch m/M until the horizontal stripes are at a
minimum.
Adjust so that the horizontal stripes are at a minimum.
8
Touch OK.
The main menu appears on the screen.
If vertical stripes are observed over the entire screen, adjust
the pitch using the following procedures.
COLOR menu
You can select the picture’s color level for the white color field
from the default color temperature settings.
Also, if necessary, you can fine tune the color temperature.
Note
• You can adjust the color temperature for each ECO mode.
• Settings in the COLOR menu can be made for the current input. You
can also adjust settings for other inputs.
Touch m/M to select “PITCH” and touch OK.
The “PITCH” adjustment menu appears on the screen.
1
Touch MENU.
The main menu appears on the screen.
10 Touch m/M until the vertical stripes disappear.
Adjust so that the vertical stripes disappear.
2
Touch m/M to select
(COLOR) and touch OK.
The COLOR menu appears on the screen.
3
Touch m/M to select the desired color temperature
and touch OK.
Whites will change from a bluish hue (9300K) to a reddish
hue (5000K) as the temperature is lowered.
When you select “sRGB,” the colors adjust to the sRGB
profile. (The sRGB color setting is an industry-standard color
space protocol designed for computer products.) If you select
“sRGB,” the color settings of your computer must be set to the
sRGB profile.
9
11 Click [END] on the screen to turn off the test pattern.
x Adjust the picture’s position manually
(H CENTER /V CENTER)
If the picture is not in the center of the screen, adjust the picture’s
centering as follows.
1
Set the resolution to 1920 × 1200 on the computer.
2
Load the CD-ROM.
3
Start the CD-ROM, select the area and model, and
display the test pattern.
For Windows
Click [Utility] t [Windows]/[Win Utility.exe].
For Macintosh
Click [Utility] t [Mac]/[Mac Utility].
Note
• If a connected computer or other equipment is not sRGB-compliant,
color cannot be adjusted to the sRGB profile.
• You cannot select “sRGB” when the ECO mode is set to “AUTO.”
• If you select “sRGB,” you cannot adjust the contrast and brightness in
the PICTURE ADJUST menu. Also, you cannot adjust the GAMMA
menu.
x Fine tuning the color temperature
You can make additional adjustments to the light areas
(GAIN:white level) and the dark areas (BIAS:black level) of a
picture.
1
Touch MENU.
The main menu appears on the screen.
4
Touch MENU.
The main menu appears on the screen.
2
Touch m/M to select
(COLOR) and touch OK.
The COLOR menu appears on the screen.
5
Touch m/M to select
(SCREEN) and touch OK.
The SCREEN menu appears on the screen.
3
Touch m/M to select “GAIN” and touch OK.
The GAIN ADJUSTMENT menu appears on the screen.
6
Touch m/M to select “H CENTER” or “V CENTER”
and touch OK.
The “H CENTER” adjustment menu or “V CENTER”
adjustment menu appears on the screen.
7
Touch m/M to center the test pattern on the screen.
8
Click [END] on the screen to turn off the test pattern.
15
GB
4
5
6
Touch m/M to select R (Red), G (Green) or B (Blue)
and touch OK. Then touch m/M to adjust the GAIN
and touch OK.
Touch m/M to select
, then touch OK.
The COLOR menu appears on the screen.
R
128
G
128
B
128
Touch m/M to select R (Red), G (Green) or B (Blue)
and touch OK. Then touch m/M to adjust the BIAS
and touch OK.
Touch m/M to select
, then touch OK.
The new color setting is stored in memory and automatically
recalled whenever “USER” is selected.
The COLOR menu appears on the screen.
x Resetting the adjustment data to the
defaults 0
You can reset the GAIN or BIAS to the default settings.
1
Touch MENU.
The main menu appears on the screen.
2
Touch m/M to select
(COLOR) and touch OK.
The COLOR menu appears on the screen.
3
GAMMA
GAMMA 1 . 8
GAMMA 2 . 2
GAMMA 2 . 6
ADJUSTMENT
1 9 2 0 x 1 2 0 0 / 6 0Hz
EX I T
8
You can associate the picture’s color shade on the screen with the
picture’s original color shade.
Touch m/M to select “BIAS” and touch OK.
The BIAS ADJUSTMENT menu appears on the screen.
BIAS
7
GAMMA menu
1 9 2 0 x 1 2 0 0 / 6 0Hz
EX I T
x Selecting the GAMMA
1
Touch MENU.
The main menu appears on the screen.
2
Touch m/M to select
(GAMMA) and touch OK.
The GAMMA menu appears on the screen.
3
Touch m/M to select the desired mode and touch
OK.
ZOOM menu
The monitor is set to display the picture on the screen in full,
irrespective of the picture’s mode or resolution in the default
setting (FULL2).
You can also view the picture in its actual aspect ratio or
resolution.
Settings in the ZOOM menu can be made for the current input.
You can also adjust settings for other inputs.
ZOOM
FULL2
FULL1
REAL
Touch m/M to select “GAIN” or “BIAS” and touch
OK.
The GAIN ADJUSTMENT menu or BIAS ADJUSTMENT
menu appears on the screen.
1 9 2 0 x 1 2 0 0 / 6 0Hz
EX I T
4
Touch m/M to select “0 RESET” and touch OK.
The “RESET” menu appears on the screen.
1
Touch MENU.
The main menu appears on the screen.
5
Touch m/M to select the desired mode and touch OK.
• OK:
To reset GAIN or BIAS to the default settings.
• CANCEL:To cancel resetting and return to the GAIN
ADJUSTMENT menu or BIAS
ADJUSTMENT menu.
2
Touch m/M to select
(ZOOM) and touch OK.
The ZOOM menu appears on the screen.
3
Touch m/M to select the desired mode and touch
OK.
• FULL2 (The default setting): The input signal is
displayed on the screen in full, irrespective of the
picture’s mode or resolution.
• FULL1: The input signal is displayed on the screen at its
actual aspect ratio. Therefore, black bands may
appear at the top and bottom of the picture,
depending on the signal.
• REAL: The input signal is displayed on the screen at its
actual resolution. Sub-1920 × 1200 signals are
displayed at the center of the screen surrounded
by a black frame.
Note
When you use 1920 × 1200 resolution signals, the above mentioned
settings are not available. The picture is displayed on the screen in full.
16
LANGUAGE menu
MENU POSITION menu
You can change the menu position if it is blocking an image on
the screen.
L A N G UAG E
ENGL I SH
FRANÇA I S
DEUTSCH
ESPA ÑOL
I TA L I ANO
MENU POS I T I ON
1 9 2 0 x 1 2 0 0 / 6 0Hz
EX I T
1 9 2 0 x 1 2 0 0 / 6 0Hz
EX I T
1
2
3
Touch MENU.
The main menu appears on the screen.
Touch m/M to select
(MENU POSITION) and
touch OK.
The MENU POSITION menu appears on the screen.
1
Touch MENU.
The main menu appears on the screen.
2
Touch m/M to select
(LANGUAGE) and touch OK.
The LANGUAGE menu appears on the screen.
3
Touch m/M to select a language and touch OK.
• ENGLISH
• FRANÇAIS: French
• DEUTSCH: German
• ESPAÑOL: Spanish
• ITALIANO: Italian
• NEDERLANDS: Dutch
• SVENSKA: Swedish
•
: Russian
•
: Japanese
•
: Chinese
Touch m/M to select the desired position and touch
OK.
You can choose one of 9 positions where the menu will
appear.
INPUT SENSING ON/OFF menu
When you select AUTO ON in the INPUT SENSING ON/OFF
menu, the monitor automatically detects an input signal to an
input terminal, and changes the input automatically before the
monitor goes into the power saving mode.
I NPUT SENSING
GB
0 RESET menu
Reset the adjustments to the default settings.
AU TO O N
AU TO O F F
RESET
OK
CANCEL
1 9 2 0 x 1 2 0 0 / 6 0Hz
EX I T
1
Touch MENU.
The main menu appears on the screen.
2
Touch m/M to select
(INPUT SENSING ON/OFF)
and touch OK.
The INPUT SENSING menu appears on the screen.
3
Touch m/M to select the desired mode and touch
OK.
• ON: When the selected input terminal has no input
signal, or when you select an input terminal by
INPUT on the monitor and the terminal has no input
signal, the on-screen message appears (page 21) and
the monitor checks the input signal to another input
terminal automatically to change the input.
When the input is changed, the selected input
terminal is displayed on the left upper of the screen.
When there is no input signal, the monitor goes into
the power saving mode automatically.
• OFF: The input is not changed automatically. Touch
INPUT to change the input.
1 9 2 0 x 1 2 0 0 / 6 0Hz
EX I T
1
Touch MENU.
The main menu appears on the screen.
2
Touch m/M to select 0 (RESET) and touch OK.
The RESET menu appears on the screen.
3
Touch m/M to select the desired mode and touch
OK.
• OK:
To reset all of the adjustment data to the default
settings. Note that the “
LANGUAGE”
setting is not reset by this method.
• CANCEL:To cancel resetting and return to the menu
screen.
17
MENU LOCK menu
OPTION menu
Lock the control of keys to prevent accidental adjustments or
resetting.
You can set the Sony logo on the front of the monitor to
illuminate. The default setting is “ON”.
MENU LOCK
OPTION
ON
OFF
I L L U M I N AT I O N
1 9 2 0 x 1 2 0 0 / 6 0Hz
EX I T
1 9 2 0 x 1 2 0 0 / 6 0Hz
EX I T
1
Touch MENU.
The main menu appears on the screen.
1
Touch MENU.
The main menu appears on the screen.
2
Touch m/M to select
(MENU LOCK) and touch
OK.
The MENU LOCK menu appears on the screen.
2
Touch m/M to select
(OPTION) and touch OK.
The OPTION menu appears on the screen.
3
3
Touch m/M to select either “ON” or “OFF” and touch
OK.
• ON: Only 1 (power) and INPUT will operate. If you
attempt any other operation, the
(MENU
LOCK) icon appears on the screen.
• OFF: Set “
MENU LOCK” to off. If “
MENU
LOCK” has been set to “ON,” when you touch
MENU, “
MENU LOCK” is automatically
selected.
Touch m/M to select “ILLUMINATION” and touch
OK.
The ILLUMINATION menu appears on the screen.
4
Touch m/M to select either “ON” or “OFF” and touch
OK.
• ON: Turns the Sony logo illumination on.
• OFF: Turns the Sony logo illumination off. (Logo lights
up approx. 15 seconds after you touch 1 (power) to
turn the monitor on.)
18
Technical Features
Reducing the power consumption
(ECO mode)
If you touch ECO on the front of the monitor repeatedly, you can
select the screen brightness.
Power saving function
This monitor meets the power-saving guidelines set by VESA,
ENERGY STAR, and NUTEK. If the monitor is connected to a
computer or video graphics board that is DPM (Display Power
Management) Standard compliant, the monitor will automatically
reduce power consumption as shown below.
Power mode
Power consumption
1 (power)
normal
operation
80 W (max.)
green
ECO
E C O : L OW
,
E C O : AU TO
ECO mode
green
active off*
(deep sleep)
1.0 W (max.)
orange
1 (power) off
1.0 W (max.)
red
main power off 0 W
*
ECO : MIDDLE
50
ECO : HIGH
off
When your computer enters the “active off” mode, the input signal is
cut and “NO INPUT SIGNAL” appears on the screen. After 5
seconds, the monitor enters the power saving mode.
“Deep sleep” is a power saving mode defined by the Environmental
Protection Agency.
Each mode appears on the screen and the screen brightness is
reduced according to the mode. The menu automatically
disappears after about 5 seconds.
Screen brightness and power consumption are reduced as the
mode changes from HIGH to MIDDLE to LOW.
The default setting of the screen brightness is set to “MIDDLE”.
When you select “AUTO,” the monitor automatically adjusts the
screen brightness according to the brightness of the surroundings
(automatic brightness adjustment function). For more
information, see “Automatic brightness adjustment function
(light sensor)” on page 19.
Note
• When the ECO mode is set to “HIGH,” “MIDDLE,” or “LOW,”
BACKLIGHT, CONTRAST and BRIGHTNESS of the menu are
available (page 13).
• You cannot select “sRGB” in the COLOR menu when the ECO mode
is set to “AUTO.”
Automatic brightness adjustment
function (light sensor)
This monitor is provided with a feature to automatically adjust the
screen brightness according to the brightness of the surroundings.
The brightness of the screen is set to the most appropriate level by
setting the ECO mode to “AUTO” with ECO on the front of the
monitor, or in the PICTURE ADJUST menu. The default setting
of the screen brightness is set to “MIDDLE”. Also, when you set
the ECO mode to “AUTO” with ECO on the front of the monitor,
the adjustment bar is also displayed. You can adjust the bar with
m/M. Screen brightness changes according to the level you set.
19
GB
Automatic picture quality
adjustment function (analog RGB
signal only)
When the monitor receives an input signal, it
automatically adjusts the picture’s position and
sharpness (phase/pitch), and ensures that a clear
picture appears on the screen.
The factory preset mode
When the monitor receives an input signal, it automatically
matches the signal to one of the factory preset modes stored in the
monitor’s memory to provide a high quality picture at the center
of the screen. If the input signal matches the factory preset mode,
the picture appears on the screen automatically with the
appropriate default adjustments.
If input signals do not match one of the factory
preset modes
When the monitor receives an input signal that does not match one
of the factory preset modes, the automatic picture quality
adjustment function of this monitor is activated to ensure that a
clear picture always appears on the screen (within the following
monitor frequency ranges):
Horizontal frequency: 28–92 kHz (analog RGB)
28–75 kHz (digital RGB)
Vertical frequency: 48–85 Hz (analog RGB)
60 Hz (digital RGB)
Consequently, the first time the monitor receives input signals
that do not match one of the factory preset modes, the monitor
may take a longer time than normal to display the picture on the
screen. This adjustment data is automatically stored in memory so
that next time, the monitor will function in the same way as when
the monitor receives the signals that match one of the factory
preset modes.
If you adjust the phase, pitch, and picture position
manually
For some input signals, the automatic picture quality adjustment
function of this monitor may not completely adjust the picture
position, phase, and pitch. In this case, you can set these
adjustments manually (page 14). If you set these adjustments
manually, they are stored in memory as user modes and
automatically recalled whenever the monitor receives the same
input signals.
20
If “NO INPUT SIGNAL” appears on the screen
Troubleshooting
Before contacting technical support, refer to this section.
On-screen messages
If there is something wrong with the input signal, one of the
following messages appears on the screen. To solve the problem,
see “Trouble symptoms and remedies” on page 22.
This indicates that no signal is being input via the currently
selected connector.
When INPUT SENSING ON/OFF (page 17) is set to ON, the
monitor finds another input signal and changes the input
automatically.
I NFORMA T I ON
NO I NPUT S I GNA L
I NPUT # : XXXX X
If “OUT OF RANGE” appears on the screen
This indicates that the input signal is not supported by the
monitor’s specifications. Check the following items.
For more information about on-screen messages, see “Trouble
symptoms and remedies” on page 22.
If “xxx.x kHz / xxx Hz” is displayed
This indicates that either the horizontal or vertical frequency
is not supported by the monitor’s specifications.
The figures indicate the horizontal and vertical frequencies of
the current input signal.
GO TO POWER SAVE
The monitor will enter the power saving mode after about 5
seconds from the time the message is displayed.
I NFORMA T I ON
NO I NPUT S I GNA L
I NPUT # : XXXX X
GO TO POWER SAVE
I NFORMA T I ON
OUT OF RANGE
I NPUT # : XXXXX
XXX . X k H z / XXXH z
If “RESOLUTION i 1920 × 1200” is displayed
This indicates that the resolution is not supported by the
monitor’s specifications (1920 × 1200 or less).
If “CABLE DISCONNECTED” appears on the
screen
GB
This indicates that the video signal cable has been disconnected
from the currently selected connector.
When INPUT SENSING ON/OFF (page 17) is set to ON, the
monitor finds another input signal and changes the input
automatically.
I NFORMA T I ON
I NFORMA T I ON
OUT OF RANGE
I NPUT # : XXXXX
RESOL UT I ON > 1 9 2 0 X 1 2 0 0
CAB L E D I SCONNECT ED
I NPUT # : XXXXX
21
Trouble symptoms and remedies
If a problem occurs as a result of a connected computer or other equipment, refer to the connected computer/equipment’s instruction manual.
Use the self-diagnosis function (page 24) if the following recommendations do not resolve the problem.
For further information and troubleshooting assistance, please visit Sony support website at: http://www.sony.net/.
Symptom
Check these items
No picture
If 1 (power) is not lit, or if 1
(power) will not light up when 1
(power) is touched,
• Check that the power cord is properly connected.
• Check that the monitor’s MAIN POWER switch is on (page 9).
If 1 (power) turns on in red,
• Check that 1 (power) is on.
If 1 (power) is green,
• Use the self-diagnosis function (page 24).
If “CABLE DISCONNECTED”
appears on the screen,
• Check that the video signal cable is properly connected and all plugs are firmly seated in
their sockets (page 7).
• Check that the video input connector’s pins are not bent or pushed in.
• Check that the input select setting is correct (page 11).
• A non-supplied video signal cable is connected. If you connect a non-supplied video
signal cable, “CABLE DISCONNECTED” may appear on the screen. This is not a
malfunction.
If “NO INPUT SIGNAL” appears on
the screen, or 1 (power) is orange,
• Check that the video signal cable is properly connected and all plugs are firmly seated in
their sockets (page 7).
• Check that the video input connector’s pins are not bent or pushed in.
• Check that the input select setting is correct (page 11).
xProblem caused by a connected computer or other equipment, and not
caused by the monitor
• The computer is in the power saving mode. Try pressing any key on the keyboard or
moving the mouse.
• Check that your graphics board is installed properly.
• Check that the computer’s power is on.
• Restart the computer.
If “OUT OF RANGE” appears on
the screen (page 21),
xProblem caused by a connected computer or other equipment, and not
caused by the monitor
• Check that the video frequency range is within that specified for the monitor. If you
replaced an old monitor with this monitor, reconnect the old monitor and adjust the
computer’s graphics board within the following ranges:
Horizontal frequency: 28–92 kHz (analog RGB), 28–75 kHz (digital RGB)
Vertical frequency: 48–85 Hz (analog RGB), 60 Hz (digital RGB)
Resolution: 1600 × 1200 or more*, 1920 × 1200 or less
* Only when the vertical frequency is set to 60 Hz.
22
If using Windows,
• If you replaced an old monitor with this monitor, reconnect the old monitor and do the
following. Select “SONY” from the “Manufacturers” list and select “SDM-P234” from
the “Models” list in the Windows device selection screen. If “SDM-P234” does not appear
in the “Models” list, try “Plug & Play.”
If using a Macintosh system,
• When connecting a Macintosh computer, use an adapter (not supplied) if necessary.
Connect the adapter to the computer before connecting the video signal cable.
Symptom
Check these items
Picture flickers, bounces,
oscillates, or is scrambled.
• Adjust the pitch and phase (analog RGB signal only) (page 14).
• Try plugging the monitor into a different AC outlet, preferably on a different circuit.
• Change the orientation of the monitor.
xProblem caused by a connected computer or other equipment, and not
caused by the monitor
• Check your graphics board manual for the proper monitor setting.
• Confirm that the graphics mode (VESA, Macintosh 19'' Color, etc.) and the frequency of
the input signal are supported by this monitor. Even if the frequency is within the proper
range, some graphics boards may have a sync pulse that is too narrow for the monitor to
sync with correctly.
• This monitor does not process interlace signals. Set for progressive signals.
• Adjust the computer’s refresh rate (vertical frequency) to obtain the best possible picture
(60 Hz is recommended).
Picture is fuzzy.
• Adjust the brightness and contrast (page 13).
• Adjust the pitch and phase (analog RGB signal only) (page 14).
• Adjust the smoothing (page 14).
xProblem caused by a connected computer or other equipment, and not
caused by the monitor
• Set the resolution to 1920 × 1200 on your computer.
Picture is ghosting.
• Eliminate the use of video cable extensions and/or video switch boxes.
• Check that all plugs are firmly seated in their sockets.
Picture is not centered or sized
• Adjust the pitch and phase (page 14).
properly (analog RGB signal only). • Adjust the picture position (page 14). Note that some video modes do not fill the screen to
the edges.
Picture is too small.
• Set the zoom setting to “FULL2” (page 16).
GB
xProblem caused by a connected computer or other equipment, and not
caused by the monitor
• Set the resolution to 1920 × 1200 on your computer.
Picture is dark.
•
•
•
•
•
Wavy or elliptical pattern (moire)
is visible.
• Adjust the pitch and phase (analog RGB signal only) (page 14).
Color is not uniform.
• Adjust the pitch and phase (analog RGB signal only) (page 14).
White does not look white.
• Adjust the color temperature (page 15).
Touch sensor keys do not work
(the menu screen is not
displayed).
• Touch the touch sensor key again. Touch sensor keys do not work when they are not lit.
Touch an area of the touch sensor keys so they light up, then operate the display using the
touch sensor keys.
Touch sensor keys do not work
properly.
• Turn off the MAIN POWER switch located on the upper side of the monitor once and turn
on again after 30 seconds, when static electricity might have caused the problem.
Touch sensor keys do not operate
(
appears on the screen).
• If “MENU LOCK” is set to “ON,” set it to “OFF” (page 18).
Resolution displayed on the menu
screen is incorrect.
• Depending on the graphics board setting, the resolution displayed on the menu screen may
not coincide with the one set on the computer.
After turning off the main power,
1 (power) stays bright for a while.
• When 1 (power) is lit in red, or when the monitor is in the power saving mode, if you turn
the MAIN POWER switch off, 1 (power) may not turn off right away. This is not a
malfunction.
Adjust the brightness (page 13).
Adjust the backlight (page 13).
It takes a few minutes for the display to become bright after turning on the monitor.
Adjust the gamma on the GAMMA menu (page 16).
The screen might turn darker, depends on ECO mode you selected.
23
Displaying this monitor’s information
While the monitor is receiving a video signal, touch and
hold MENU for more than 5 seconds until the
information box appears.
Touch MENU again to make the box disappear.
Example
INFORMATION
MENU
MODEL : SDM-P234
SER. NO : 1234567
MANUFACTURED : 2004-40
Self-diagnosis function
This monitor is equipped with a self-diagnosis function. If there is
a problem with your monitor or computer(s), the screen will go
blank and 1 (power) will light up in green. If 1 (power) is lit in
orange, the computer is in power saving mode. Try pressing any
key on the keyboard or moving the mouse.
Model
name
Serial
number
1 (power)
Week and year
of manufacture
If any problem persists, call your authorized Sony dealer and give
the following information:
• Model name: SDM-P234
• Serial number
• Detailed description of the problem
• Date of purchase
• Name and specifications of your computer and graphics board
• Type of input signals (analog RGB/digital RGB)
If the picture disappears from the screen and 1
(power) is green
1
Turn the monitor off by touching 1 (power) and
disconnect the video signal cables from the
monitor.
2
Turn the monitor on by touching 1 (power).
If all four color bars appear (white, red, green, blue), the monitor
is working properly. Reconnect the video signal cables and check
the condition of your computer(s).
If the color bars do not appear, there is a potential monitor failure.
Inform your authorized Sony dealer of the monitor’s condition.
Be sure to note the model name and serial number of your
monitor. Also note the model name and specifications of your
computer and graphics board.
24
Specifications
LCD panel
Panel type: a-Si TFT Active Matrix
Picture size: 23 inch (58.4 cm)
Input signal format
RGB operating frequency*
Horizontal: 28–92 kHz (analog RGB)
28–75 kHz (digital RGB)
Vertical:48–85 Hz (analog RGB)
60 Hz (digital RGB)
Resolution
Horizontal: Max.1920 dots (Only when the vertical
frequency is set to 60 Hz, the horizontal resolution is 1600
dots or more.)
Vertical: Max.1200 lines (Only when the vertical frequency
is set to 60 Hz, the vertical resolution is fixed to 1200 lines.)
Input signal levels
Analog RGB video signal:
0.7 Vp-p, 75 Ω, positive
SYNC signal:
TTL level, 2.2 kΩ, positive or negative (Separate
horizontal and vertical, or composite sync)
0.3 Vp-p, 75 Ω, negative (Sync on green)
Digital RGB (DVI) signal: TMDS (Single link)
Audio input
Stereo minijack, 0.5 Vrms
Audio output
Stereo minijack
Power requirements
100–240 V, 50–60 Hz, Max. 1.0 A
Power consumption
Max. 80 W
Operating temperature
5–35 °C
Dimensions (width/height/depth)
Display (upright):
Approx. 534 × 429 × 250 mm (with stand)
(21 1/8 × 17 × 9 7/8 inches)
Approx. 534 × 352 × 110.5 mm (without stand)
(21 1/8 × 13 7/8 × 4 inches)
Mass
Approx. 9.7 kg (21 lb 6 oz) (with stand)
Approx. 7.5 kg (16 lb 9 oz) (without stand)
Plug & Play
DDC2B
Accessories
See page 7.
GB
* Recommended horizontal and vertical timing condition
• Horizontal sync width duty should be more than 4.8% of total
horizontal time or 0.8 µs, whichever is larger.
• Horizontal blanking width should be more than 2.5 µsec.
• Vertical blanking width should be more than 450 µsec.
Design and specifications are subject to change without notice.
25
TCO’99 Eco-document
Labelled products must meet strict environmental demands, for example,
in respect of the reduction of electric and magnetic fields, physical and
visual ergonomics and good usability.
Below you will find a brief summary of the environmental requirements
met by this product. The complete environmental criteria document may
be ordered from:
TCO Development
SE-114 94 Stockholm, Sweden
Fax: +46 8 782 92 07
Email (Internet): [email protected]
Current information regarding TCO’99 approved and labelled
products may also be obtained via the Internet, using the address:
http://www.tco-info.com/
x Environmental requirements
Flame retardants
x Congratulations!
You have just purchased a TCO’99 approved and labelled product! Your
choice has provided you with a product developed for professional use.
Your purchase has also contributed to reducing the burden on the
environment and also to the further development of environmentally
adapted electronics products.
x Why do we have environmentally labelled computers?
In many countries, environmental labelling has become an established
method for encouraging the adaptation of goods and services to the
environment. The main problem, as far as computers and other electronics
equipment are concerned, is that environmentally harmful substances are
used both in the products and during their manufacture. Since it is not so
far possible to satisfactorily recycle the majority of electronics equipment,
most of these potentially damaging substances sooner or later enter nature.
There are also other characteristics of a computer, such as energy
consumption levels, that are important from the viewpoints of both the
work (internal) and natural (external) environments. Since all methods of
electricity generation have a negative effect on the environment (e.g.
acidic and climate-influencing emissions, radioactive waste), it is vital to
save energy. Electronics equipment in offices is often left running
continuously and thereby consumes a lot of energy.
x What does labelling involve?
Flame retardants are present in printed circuit boards, cables, wires,
casings and housings. Their purpose is to prevent, or at least to delay the
spread of fire. Up to 30% of the plastic in a computer casing can consist
of flame retardant substances. Most flame retardants contain bromine or
chloride, and those flame retardants are chemically related to another
group of environmental toxins, PCBs. Both the flame retardants
containing bromine or chloride and the PCBs are suspected of giving rise
to severe health effects, including reproductive damage in fish-eating
birds and mammals, due to the bio-accumulative* processes. Flame
retardants have been found in human blood and researchers fear that
disturbances in foetus development may occur.
The relevant TCO’99 demand requires that plastic components weighing
more than 25 grams must not contain flame retardants with organically
bound bromine or chlorine. Flame retardants are allowed in the printed
circuit boards since no substitutes are available.
Cadmium**
Cadmium is present in rechargeable batteries and in the colour-generating
layers of certain computer displays. Cadmium damages the nervous
system and is toxic in high doses. The relevant TCO’99 requirement states
that batteries, the colour-generating layers of display screens and the
electrical or electronics components must not contain any cadmium.
Mercury**
Mercury is sometimes found in batteries, relays and switches. It damages
the nervous system and is toxic in high doses. The relevant TCO’99
requirement states that batteries may not contain any mercury. It also
demands that mercury is not present in any of the electrical or electronics
components associated with the labelled unit.
This product meets the requirements for the TCO’99 scheme which
provides for international and environmental labelling of personal
computers. The labelling scheme was developed as a joint effort by the
TCO (The Swedish Confederation of Professional Employees), Svenska
Naturskyddsforeningen (The Swedish Society for Nature Conservation)
and Statens Energimyndighet (The Swedish National Energy
Administration).
CFCs (freons)
Approval requirements cover a wide range of issues: environment,
ergonomics, usability, emission of electric and magnetic fields, energy
consumption and electrical and fire safety.
Lead**
The environmental demands impose restrictions on the presence and use
of heavy metals, brominated and chlorinated flame retardants, CFCs
(freons) and chlorinated solvents, among other things. The product must
be prepared for recycling and the manufacturer is obliged to have an
environmental policy which must be adhered to in each country where the
company implements its operational policy.
The relevant TCO’99 requirement states that neither CFCs nor HCFCs
may be used during the manufacture and assembly of the product. CFCs
(freons) are sometimes used for washing printed circuit boards. CFCs
break down ozone and thereby damage the ozone layer in the stratosphere,
causing increased reception on earth of ultraviolet light with e.g. increased
risks of skin cancer (malignant melanoma) as a consequence.
Lead can be found in picture tubes, display screens, solders and
capacitors. Lead damages the nervous system and in higher doses, causes
lead poisoning. The relevant TCO’99 requirement permits the inclusion of
lead since no replacement has yet been developed.
* Bio-accumulative is defined as substances which accumulate within
living organisms.
** Lead, Cadmium and Mercury are heavy metals which are Bioaccumulative.
The energy requirements include a demand that the computer and/or
display, after a certain period of inactivity, shall reduce its power
consumption to a lower level in one or more stages. The length of time to
reactivate the computer shall be reasonable for the user.
iii
Was this manual useful for you? yes no
