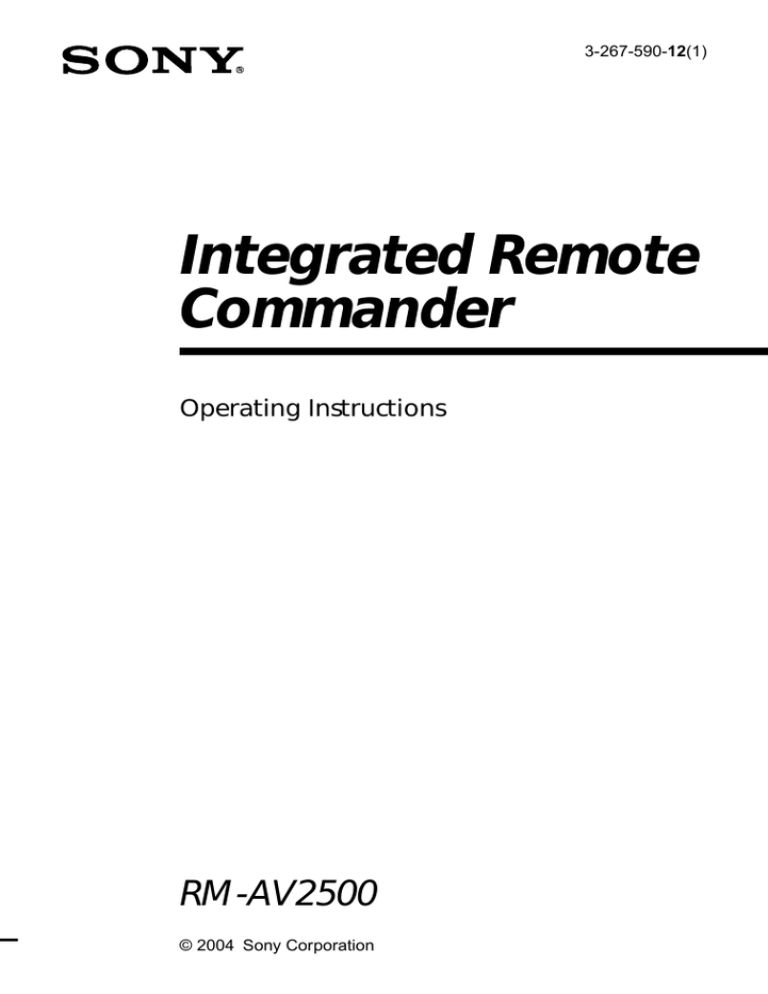

3-267-590-12(1)
Integrated Remote
Commander
Operating Instructions
RM-AV2500
© 2004 Sony Corporation
WARNING
To prevent fire or shock
hazard, do not expose the
unit to rain or moisture.
To avoid electrical shock, do
not open the cabinet. Refer
servicing to qualified
personnel only.
WARNING
You are cautioned that any changes or
modifications not expressly approved in
this manual could void your authority to
operate this equipment.
For the customers in the USA
Owner’s Record
The model number is located on the front
panel.
The serial number is located on the inner
side of the battery compartment.
Record these numbers in the spaces
provided below. Refer to them whenever
you call upon your Sony dealer
regarding this product.
Model No. RM-AV2500
Serial No.
2
NOTICE FOR THE CUSTOMERS IN
THE U.S.A.
NOTE
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses, and can
radiate radio frequency energy and, if
not installed and used in accordance with
the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or
television reception, which can be
determined by turning the equipment off
and on, the user is encouraged to try to
correct the interference by one or more of
the following measures:
– Reorient or relocate the receiving
antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment to an outlet on
a circuit different from that to which
the receiver is connected.
– Consult the dealer or an experienced
radio/TV technician for help.
Multi component in one screen
Features
The RM-AV2500 Remote Commander
provides centralized control of all your
AV components from a single remote
commander and saves the trouble of
operating different AV components with
different remote control devices. The
following are its main features.
Centralized control of Sony AV
components with this one remote
commander
This Commander is preset at the factory
to operate Sony brand components, so
you can use it out of the box as a control
center for your Sony AV components.
Remote control signals for non-Sony
components are also preset
This Commander is preset for most major
brands components including Sony. You
can remote control your components by
setting their code numbers (page 8).
Learning function for programming
other remote control signals you
need
This Commander has a learning function,
to learn remote control signals to operate
non-preset components or functions
(page 15).
In addition, the Commander can learn
remote control signals (infrared signals
only) of non-Audio Visual components
such as air-conditioners, lights, etc. (some
specific appliances or functions may not
be available) (page 35).
When you operate a lot of equipment all
together, you need not change the screen.
When watching a DVD, the DVD run
system key, the Power key for TV and
Receiver or the input change key can be
displayed on one screen, and it can be
operated, without switching the screen.
Alias function
Keys memorized on other screen can be
link, it is not necessary to learning again.
For example, it is useful to display the
Power key for TV or the input change
key on the CABLE screen (page 43).
Channel macro function allows you
to select a channel with a single key
Up to 4 key steps can be programmed on
macro keys. If you set the key operations
for entering a channel number on a
macro key, you can select the channel by
pressing that macro key (page 41).
Easy-to-operate touch key LCD with
blue back light
This Commander has a touch key LCD
that changes the key display according to
the selected component. The Commander
is easy to operate as only the keys
necessary to operate the selected
component are displayed. The display
backlight allows operation even in the
dark.
Setting a maximum of 24 macro
commands of a maximum of 32
successive steps
A maximum of 24 macro commands
which provide a maximum of 32
successive steps by pressing a single
button can be set (12 system control
macros and 12 component macros).
Macro execution speed is changeable. All
power on/off macro commands for Sony
components are preset at the factory.
3
Table of Contents
Getting Started
Installing the Batteries ......................................................................................................... 6
When to replace the batteries .............................................................................................. 6
Location and Function of Controls ....................................................................................... 7
Basic Operations
Setting the Code for Preset Audio and Visual Components ................................................. 8
Setting a component code ................................................................................................... 8
Checking if the code number works ................................................................................ 10
Finding a component code with the Search function .................................................... 11
Operating Your Components with the Remote Commander .............................................. 13
To control the volume ........................................................................................................ 14
Notes on operating your components ............................................................................. 14
Using Non-Preset Remote Control Operations — Learning Function ................................ 15
For accurate learning ......................................................................................................... 19
Changing or erasing the function of a taught key or button ....................................... 19
Advanced Features
Controlling the Volume of Visual Components Connected to an Audio System ................. 21
Executing a Series of Commands — System Control Functions ......................................... 22
Programming a series of commands to the SYSTEM CONTROL buttons ................ 23
Notes on System Control Operations .............................................................................. 27
Programming a series of commands to the Component Select buttons ..................... 27
Changing the interval between operation steps ............................................................ 29
Adding an Extra Function to the Component Select Buttons ............................................. 30
Programming the Power-On command of the selected component
(for Sony components only) ........................................................................................... 30
Adding a command that is required when selecting a component ............................ 32
Copying the settings of a Component Select button to another button ........................... 34
Programming a Frequently Used Key Operation for SYSTEM CONTROL Buttons ............... 35
Notes on learning the signals of an air-conditioner ...................................................... 37
Transferring Data between Remote Commanders .............................................................. 37
Transferring data ................................................................................................................ 37
Receiving the data .............................................................................................................. 40
Selecting a Channel with a Single Key Press — Channel Macro Function ......................... 41
Creating an Alias Component key (ALIAS) .......................................................................... 43
4
Using Other Functions
Locking the Controls — Hold Function ............................................................................... 46
Protecting your settings — Preset Lock Function .............................................................. 46
Changing the Auto Power-Off Time of the Commander ..................................................... 47
Adjusting the Backlight of the Display Window ................................................................. 48
Setting the Key-Touch Beep ................................................................................................ 50
Adjusting the beam interval to avoid key misoperation .................................................... 51
Additional Information
Precautions ......................................................................................................................... 54
Maintenance ....................................................................................................................... 54
Specifications ...................................................................................................................... 54
Troubleshooting .................................................................................................................. 55
Appendix
Table of Preset Functions .................................................................................................... 59
TV .......................................................................................................................................... 59
VCR ....................................................................................................................................... 60
DVD ...................................................................................................................................... 60
CBL (Analog Cable box) .................................................................................................... 61
CBL (Digital Cable box) ..................................................................................................... 62
SAT ........................................................................................................................................ 63
AMP ...................................................................................................................................... 64
DVR (Digital video recorder) ............................................................................................ 65
CD ......................................................................................................................................... 66
MD ........................................................................................................................................ 66
DAT ....................................................................................................................................... 67
TAPE ..................................................................................................................................... 67
LCD Touch-Key Display Table ............................................................................................... 68
Quick Reference of Operations ........................................................................................... 74
Index ...................................................................................................................... Back cover
5
Getting Started
Installing the Batteries
When to replace the batteries
Slide open the battery compartment lid
and insert four size AA (R6) batteries (not
supplied). Be sure to line up the + and –
on the batteries with the + and – on the
battery compartment.
Batteries for remote control
operation and backlight (four
size AA (R6) batteries)
Under normal conditions, alkaline
batteries will last up to 5 months. If the
Commander does not operate properly,
batteries might be worn out and E is
displayed on the LCD touch panel. When
the display dims or the backlight for the
touch keys grows dim, replace the
alkaline batteries with new ones.
Note
Do not take more than one day to replace the
batteries; otherwise, your setting of the code
numbers (page 8) and learned remote control
signals (page 15) will be erased.
Notes on batteries
• Do not mix old batteries with new ones or
mix different types of batteries together.
• If the electrolyte inside the battery should
leak, wipe the contaminated area of the
battery compartment with a cloth and replace
the old batteries with new ones. To prevent
the electrolyte from leaking, remove the
batteries when you plan not to use the
Commander for a long period of time.
6
Location and Function
of Controls
8 LIGHT button (page 49)
Used to light up the LCD display in
the dark. Press the button once to turn
on the light, and once again to turn it
off. You can also set the backlight to
go off automatically after a certain
period of time.
9 Component Select buttons
Selects the component to control.
VOLUME
CHANNEL
OK
MENU
EXIT
MUTING
MORE
LIGHT
RECALL
SYSTEM CONTROL
A
B
C
COMMANDER OFF
TV
CBL
SAT
DVR
VCR
M1
AMP
CD
MD
TAPE
DVD
M2
1 Component display area
Displays the name of the component
selected.
2 LCD touch key display (page 9)
The keys used for operating each
component are displayed.
Note
Do not press the touch keys using sharp
objects such as pins or ball-point pens.
3 VOLUME +/– buttons* (page 14, 22)
Adjusts the volume.
4 CHANNEL +/– buttons
Selects the channel.
5 RECALL button (page 44)
6 MUTING button* (page 14, 22)
Mutes the audio. Press the button
once again to resume at the previous
volume.
7 COMMANDER OFF button
Turns the power of the Commander
off.
0 MORE button (page 23)
Displays the SYSTEM CONTROL
buttons and number keys.
qa SYSTEM CONTROL buttons (page
22)
You can program up to 32 consecutive
key operations to each of the three
SYSTEM CONTROL buttons. You can
automatically carry out the entire
program by pressing one button.
qs MENU button
Calls up the menu display of the
buttons or keys that have menu
function.
qd OK button and Cursor Control
buttons (page 15)
qf EXIT button
Used to exit the setting menu.
* Note on the VOLUME +/– and
MUTING buttons
The Commander controls or mutes the TV’s
volume when you select a visual component.
The Commander controls or mutes the
amplifier’s volume when you select an audio
component.
You can change this setting also (page 21).
Note on the power on and off of the
Remote Commander
To turn on, press any button except the
COMMANDER OFF button or touch the screen.
To turn off, press COMMANDER OFF, or if
you do not use the Commander, it
automatically turns off after 10 minutes. This
interval can also be changed (page 47).
7
Basic Operations
Setting the Code for
Preset Audio and Visual
Components
The Commander is preset at the factory
to operate Sony brand AV components
(see the table below). If you are using the
Commander with a factory-set Sony
components, skip the following
procedures.
You can use the Commander with other
preset AV components also. To use with
other AV components, you need to follow
the procedures to set the correct codes for
each component.
Setting a component code
CompoPreset
nent Select component(s)
Button
Factory setting
TV
TV
Sony TV
CBL
Cable box
Sony digital
cable box
SAT
Satellite tuner
Sony satellite
tuner
Example: To set up a Philips TV
DVD
DVD player
Sony DVD
player
1 See the tables in the supplied
DVR
Digital video
recorder
Sony digital
video recorder
M1
TV/VCR
Sony TV/Sony
VHS VCR
VCR
VCR
Sony VHS VCR
(VTR3)
AMP
Amplifier
Sony amplifier
CD
CD player
Sony CD player
MD
MD deck
Sony MD deck
TAPE
Cassette deck*
Sony cassette
deck
M2
TV/DVD
Sony TV/Sony
DVD player
* Analog audio compact cassette deck
8
See “Table of Preset Functions” (page 59)
for the functions of keys and buttons as
for each component.
“Component Code Numbers,”
and find the four-digit code
number for the desired
component.
If more than one code number is
listed, use the number that is listed
first.
For example, to set up a Philips TV,
you would use the code number 8056.
The first digit of the component code
number means the component
category (TV, VCR, etc.). For further
details, see the tables in the supplied
“Component Code Numbers.”
2 While pressing COMMANDER
OFF, press MUTING.
5 If you want to set a code for
another component, repeat Steps
3 and 4.
6 Press COMMANDER OFF.
All the component names in the
display flash.
Notes
3 Press the Component Select
button for the desired component.
The selected component remains
displayed, and the 0 – 9, ENTER and
DISPLAY keys flash.
• If you press a component code number that is
not on the table in the supplied “Component
Code Numbers,” the Commander beeps and
“NG” flashes after you press the ENTER key.
If this happens, check the component code
number, and try setting again.
• If you do not input anything into the
Commander for over two minutes between
each step, the setup procedure will be
canceled. To set the code, you must press
MUTING again while pressing
COMMANDER OFF.
• The first digit of the component code number
means the component category (TV, VCR,
etc.). The component corresponding to the
four-digit component code number is preset
in Step 4.
To check which code number is
set
4 Press the four-digit component
code number followed by the
ENTER key on the touch-key
display.
Press the DISPLAY key in Step 3 to 5. The
code number and “ENTER” appear
twice.
A beep sounds, and the code number
and “ENTER” appear twice.
Continued
9
Setting the Code for Preset Audio
and Visual Components
(continued)
Checking if the code number
works
1 Press the corresponding
Component Select button for the
component you have set up.
The Commander turns on and the
touch-keys appear on the display.
4 If you have succeeded, check that
the Commander is operating the
other functions of your
component, such as channel and
volume control.
See page 13 for details.
5 Press COMMANDER OFF.
If the Commander does not seem to
be working
Try repeating these setup procedures using the
other codes listed for your components (page
8).
Notes on keys which have
“learned” a remote control
signal already
2 Power on the component with its
power switch.
3 Aim the Commander at the
component and press the POWER
key in the touch-key display.
When the remote control signal is
sent,
is shown on the display.
The component should power off.
10
If another signal has already been
programmed on that key or button by the
learning function (page 15), that
“learned” signal will work even after you
set the component code number. To use it
as a preset component key or button, first
erase its learned signal (page 19).
Note on the touch-key display
When you set a component code number,
only the keys that have been preset with
the signals for the desired component
will be displayed. Preset signal of each
key varies depending on the brand.
By using the learning function, you can
program remote control signals to both
the displayed keys and keys that are not
displayed (page 15).
Finding a component code
with the Search function
2 Press the Component Select
button for the desired component.
You can find a code number available for
a component that does not have one in
the supplied “Component Code
Numbers.”
Before starting the Search
function
Set each component to the following
status to enable the Search function.
TV: Power-on
VCR, DVD, SAT, CBL, AMP: Power-off
CD, MD, TAPE: Power-on with a
playback source (disc, cassette tape, etc.)
VOLUME
CHANNEL
EXIT
MUTING
RECALL
MORE
LIGHT
SYSTEM CONTROL
2
B
CHANNEL – to search
component code numbers in the
same category (in this case, code
numbers which begin with “8”).
Press CHANNEL + to go to the next
code number.
Press CHANNEL – to go back to the
previous code number.
3
OK
MENU
A
3 Press CHANNEL + or
C
COMMANDER OFF
TV
CBL
SAT
DVR
VCR
M1
AMP
CD
MD
TAPE
DVD
M2
1
6
Note
1 While pressing COMMANDER
OFF, press MUTING.
To search component code numbers in
another category, return to Step 3, or input
a four-digit component code number of
another category (for example, a code
number which begins with “3”, “4”, etc.)
before Step 4.
All the component names on the
display flash.
Continued
11
Setting the Code for Preset Audio
and Visual Components
(continued)
4 Aim the Commander at the
component and press the POWER
key.
When the remote control signal is
sent,
is shown on the display.
If it successfully works (power-off for
TV, power-on for VCR, DVD, SAT,
CBL, AMP, and playback for CD, MD,
TAPE), go to Step 5.
If it does not, repeat Steps 3 and 4.
5 Press the ENTER key.
A beep sounds, and the code number
and “ENTER” appear twice.
Note
It is recommended to write down the code
number.
6 Press COMMANDER OFF.
12
To check which code number is
set
Press the DISPLAY key in Step 2 and 5.
The code number and “ENTER” appear
twice.
Be sure to press the DISPLAY key after
you have pressed the ENTER key to set
the code number. If you press the
DISPLAY key before the code number is
set, it returns back to the first number at
which you started searching.
Operating Your
Components with the
Remote Commander
When you operate a non-Sony
component, make sure you set the
component code first (page 8).
Example: To play a CD player
1 Press the desired Component
Select button.
The Commander comes on and the
keys for operating the selected
component are displayed.
13
Operating Your Components with
the Remote Commander
(continued)
Notes on operating your
components
To control the volume
About the input select of a TV
Press the VOLUME +/– buttons to
control the volume, and the MUTING
button to mute. When you select a visual
component, the TV’s volume will be
controlled, and when you select an audio
component, the amplifier’s volume will
be controlled. You can change this setting
also (page 21).
Notes
• If you have programmed any signal for the
VOLUME or MUTING button for any
component using the learning function (page
15), that signal will be transmitted instead of
controlling the volume of the TV or amplifier
once you select that component.
• If you have programmed any signal for the
VOLUME or MUTING button of TV or AMP
using the learning function, that signal will
be transmitted only after you select TV or
AMP. When you select another components,
the preset volume control signals for TV or
AMP will be transmitted at that time.
• If you have assigned another component to
the TV or AMP button, the volume of the TV
or amplifier cannot be controlled even when
you select other components.
14
The component code “8077” is the preset
code number for the input select of a
Sony TV. You can set this code number
for an infrequently used Component
Select button.
Follow the procedure on page 8 for the
input select setting.
“0” : TV tuner
“1” : VIDEO1
“2” : VIDEO2
“3” : VIDEO3
“4” : VIDEO4
“5” : VIDEO5
“6” : VIDEO6
“7” : HD1
“8” : HD2
“9” : HD3
This setting can be used for
programming the SYSTEM CONTROL
buttons (page 41).
Example: To program the N
(Play) signal of your component
to the VCR N (Play) key of the
Commander
Using Non-Preset
Remote Control
Operations
1 Place the RM-AV2500 head to
— Learning Function
To operate non-preset components or
functions, use the following “learning”
procedure to “teach” any of the
programmable buttons and keys to
operate the functions of another remote
control. You can also use the learning
function to change the signal of
individual keys and buttons after setting
the component code number (page 8).
It is useful if you make a memo of the
learned key functions in the LCD touch
key display table (page 68).
head with your component’s
remote control.
2 While pressing COMMANDER
Note
Some specific remote control signals may not
be learned.
OFF, press the Component Select
button for the component whose
signals are to be learned.
3
“LEARN” appears and all the
learnable keys flash.
6
2
15
Using Non-Preset Remote Control
Operations
— Learning Function (continued)
The “C+ C- V+ V- MUTE RECALL
MENU OK EXIT R r T t” display
indicates if CHANNEL +/–,
VOLUME +/–, MUTING, RECALL,
MENU, OK, EXIT and cursor (T t R
r) buttons are learnable or not.
4 Press and hold down the button
on the other remote control until
you hear a beep.
(If you release the button before you
hear a beep, the signal may not be
learned correctly.)
Note on the flashing display
The keys or buttons that are already preset
for the component flash twice while those
that are not preset flash once.
3 Press the key or button on the
Commander you want to “teach.”
“LEARN” stops flashing and stays lit.
When the command has been learned
successfully, the learned keys stay lit
and the other learnable keys flash.
If “NG” flashes on the display
Learning did not succeed. Try Steps 3 and 4
again.
5 Repeat Steps 3 and 4 to teach
“LEARN” flashes and the only
pressed key remains on the dislplay.
To teach on the CHANNEL +/–,
VOLUME +/– , MUTING, RECALL,
MENU, OK, EXIT and cursor buttons
Press the corresponding button. “LEARN”
flashes, and only the pressed button
remains indicated on the display (“C+,”
“C–,” “V+,” “V–,” “MUTE,” “RECALL,”
“MENU,” “OK,” “EXIT,” or “R r T t” ).
Example: When pressing the VOLUME +
button
To change the function display of
the key
Follow the procedure on page 18.
16
functions to other kyes or
buttons.
To learn another component’s
remote control signal
After positioning the two remote
commanders as in Step 1 on page 15, press
the corresponding Component Select
button, and then follow Steps 3 and 4 on
the left to perform learning.
6 Press COMMANDER OFF.
Notes
• If you do not perform learning steps within
two minutes, learning mode ends.
• If you do not perform Step 4 within 10
seconds after Step 3, the display turns back to
the display in Step 2. (All the learnable keys
flash.) In this case, perform Step 3 again
while the display is flashing.
• If “NG” appears while learning, the memory
is full. To free memory, clear learned
functions from keys that you do not use often
(page 19). Then continue the learning steps.
• If you touch a key by mistake in step 4, while
pressing the LIGHT button, press the
mistaken key. Then repeat from Step 3 to
continue learning.
If the Commander does not seem to
be working
If the learned key or button does not operate
properly, teach once again. (For example, if the
volume becomes very loud after pressing the
VOLUME + button only once, noise may have
interfered during the learning procedure.)
If you set a component code after
learning a signal
If you have programmed any signal for a key
or button using the learning function, that
signal will remain assigned to that key or
button even after you set a component code.
When you teach signals to the
VOLUME or MUTING buttons
•If you have programmed any signal on
the VOLUME or MUTING button for
components other than TV and AMP
using the learning function, that signal
will be transmitted only when you
select that component.
•If you have programmed any signal on
the VOLUME or MUTING button for
TV or AMP using the learning function,
that signal will be transmitted only
when you select TV or AMP. When you
select other components, the preset
volume control signals for TV or AMP
will be transmitted (for the difference
between visual components and audio
components, see page 21). To use the
learned signal, you need to program the
VOLUME or MUTING button for each
component using the learning function.
When you teach the signals of an
air-conditioner
See the notes on page 37.
Continued
17
Using Non-Preset Remote Control
Operations
— Learning Function (continued)
Each time the key is pressed, the
display is changed in order.
To display only the frequently
used keys
You can hide keys you do not use. This
makes operations even easier to
understand, when the components have
many keys.
After Step 2 (page 15), while pressing the
LIGHT button, press the key you want to
hide (flashing). The pressed key changes
to slower flashing and will no longer be
displayed during remote control
operations.
To display it again, perform the same
procedure again.
Note
You can not hide a key which has “learned”
any signal.
To change the function display of
a key
When you program a signal for a key,
you can select the most suitable function
display among all the displays the key
has, and set it to the key.
1 After Step 2 (page 15), while
pressing the Component Select
button (VCR), press the key you
want to teach repeatedly.
18
2 When the desired display
appears, release the Component
Select button.
3 Then follow Steps 4 to 6 (page
16).
Notes
• You can change the display of a key only
when you program it using the learning
function. If you want to change the display of
the key that has learned a signal, clear the
signal first (page 19). Then teach the key
again using the above procedure to change its
display.
• If you do not change the display of a key, the
default display is used.
• You cannot change the display of the keys
(the number
that are not framed with
keys 0 to 9, +10 and ENTER).
For accurate learning
•Do not move the remote units during
the learning procedure.
•Be sure to keep holding down the
button of the other remote control until
you hear the confirmation beep.
•Use fresh batteries in both remote
control units.
•Avoid learning in places under direct
sunlight or a strong fluorescent light.
•The remote control detector area may
differ depending on each remote unit. If
learning does not work, try changing
the positions of the two remote control
units.
•When you teach signals of an
interactive signal exchange system
remote control unit (supplied with
some of Sony’s receivers and
amplifiers) to the Commander, the
response signal of the main unit may
interfere with the learning of the
Commander. In such a case, move to a
place where the signals will not reach
the main unit (e.g. other rooms, etc.).
Changing or erasing the
function of a taught key or
button
To change the learned function, clear it
first and perform learning again.
To clear the learned function of a
single key or button
1 After Step 2 (page 15), while
pressing the LIGHT button, press
the key or button you want to
erase.
IMPORTANT
Be sure to place the Commander out
of the reach of small children or pets.
Also set the Hold function to lock the
all buttons on the Commander (page
46) when it is not used. Components
such as air conditioners, heaters,
electric appliances, and electric
shutters or curtains receiving an
infrared signal can be dangerous if
misused.
The cleared key flashes together with
other learnable keys.
2 Press COMMANDER OFF.
To clear all the learned keys at once
While pressing the LIGHT button, press the
Component Select button.
19
Using Non-Preset Remote Control
Operations
— Learning Function (continued)
To clear all signals learned for a
specific component
3
1
2
1 While pressing COMMANDER
OFF, press the corresponding
Component Select button.
2 While pressing the LIGHT button,
press that Component Select
button again.
The learned contents are cleared. The
keys for the component return to their
original states before learning.
20
3 Press COMMANDER OFF.
Advanced Features
Controlling the Volume
of Visual Components
Connected to an Audio
System
The Commander is factory preset based
on the assumption that you hear the
sound of your visual components from
your TV speakers, and that you hear
sound of your audio components from
the loudspeakers connected to your
amplifier.
This feature enables you to control the
volume of your TV or amplifier without
having to select TV or AMP each time
you want to control the volume.
For example, to control the volume while
using a VCR, you do not need to press
the TV button to control the TV volume.
However, if your visual components are
connected to an audio system, you
probably hear TV or VCR sound from the
loudspeakers via your amplifier, not
from your TV speakers. In this case, you
need to change the factory preset so that
you can control the volume of your
visual components without first having
to switch to the amplifier.
To change the Factory Preset of
the Volume Control
Component
Select button
Controls the volume of
TV
TV
VCR
TV
SAT
TV
CBL
TV
DVD
TV
DVR
TV
M1
TV
M2
TV
AMP
amplifier
CD
amplifier
MD
amplifier
TAPE
amplifier
CHANNEL
EXIT
MUTING
RECALL
MORE
LIGHT
1
OK
MENU
SYSTEM CONTROL
A
The following table shows the factory
setting of which volume would be
controlled for each component.
VOLUME
B
C
COMMANDER OFF
TV
CBL
SAT
DVR
VCR
M1
AMP
CD
MD
TAPE
DVD
M2
Continued
21
Controlling the Volume of Visual
Components Connected to an
Audio System (continued)
1 While pressing COMMANDER
OFF, press VOLUME + and
VOLUME –.
The volume control setting of visual
components (TV, VCR, CBL, SAT, and
DVD) changes to the displayed
component.
When set to
amplifier volume
When set to
TV volume
Notes
• If you have already programmed the
VOLUME or MUTING button of each
component any signals by “learning,” the
procedure above will not change the function
of the VOLUME and MUTING buttons.
• If you have programmed volume control
signals on VOLUME or MUTING buttons of
TV or AMP, you can only use that signal
when you select TV or AMP. For other
component, the preset volume control signals
for TV or AMP (depending on the above
setting procedure) will be transmitted. To use
the new signals, you need to program each
button for each component by the learning
procedure (page 15).
22
Executing a Series of
Commands
— System Control Functions
With the System Control function, you
can program a series of operating
commands, and execute them by
pressing just one button.
For example, when you watch a video, a
series of operations like the ones below
are necessary.
Example:
1 Power on the TV.
2 Power on the video (VCR).
3 Power on the amplifier.
4 Set the input selector of the amplifier
to VIDEO 1.
5 Set the input mode of the TV to VIDEO
1.
6 Start video playback.
You can program up to 32 consecutive
operation steps to each of the SYSTEM
CONTROL buttons (A – C).
If you have set the System Control
function for a Component Select button
(page 27), the execution of the
programmed commands begins when
you press the Component Select button
for more than 2 seconds.
While executing the programmed
commands, at the same time that each
remote control signal is transmitted, the
corresponding key is displayed.
Preset programs for the SYSTEM
CONTROL A and C buttons
The SYSTEM CONTROL A and C
buttons are preset at the factory to
execute each program as follows.
SYSTEM CONTROL A button:
Turn off all the Sony components that
could receive the signal from the
Commander at the same time.
SYSTEM CONTROL C button:
Turn on all the Sony components that
could receive the signal from the
Commander at the same time.
Example: To program the
procedure above to the SYSTEM
CONTROL B button
1 While pressing COMMANDER
OFF, press the MORE button.
The SYSTEM CONTROL keys (A – C)
and number keys (1 – 9) flash while
the preset buttons stay lit.
Programming a series of
commands to the SYSTEM
CONTROL buttons
2 Select the system number by
2
4
6
1
pressing the SYSTEM CONTROL
button (in this case, SYSTEM
CONTROL B) or the number key.
All the component names flash.
3
Continued
23
Executing a Series of Commands
— System Control Functions
(continued)
To program a new series of
operations for buttons which have
already been set
SYSTEM CONTROL A or C button:
Erase the factory preset program
(page 26).
Other buttons:
Erase the program (page 25).
3 Press the Component Select
buttton (in the case, TV) for the
component to operate.
The keys for the selected component
flash.
If the component has the poweron and power-off signals
Both the OFF and ON keys are displayed
and you can select either of them to
program.
It is useful to set the exact command for
power-on or power-off and operate the
component regardless of its status (on/off).
24
Notes
About the order of operation steps
• If you interrupt the procedure at any point
for over two minutes, the setting mode ends
and the series of commands will be
programmed to that point. In this case, clear
the program (page 25) and start again from
Step 1 to set the entire program from the
beginning. You cannot continue from where
you let off.
• If a SYSTEM CONTROL button has already
“learned” a remote control signal (page 35),
“NG” flashes and you cannot program on
this button. Clear the learned contents first
(page 36).
• If you change the component code number
(page 8) or program a new signal by learning
(page 15) on a key or button that has been
programmed in the series of commands of
the System Control function, the new signal
will be transmitted when you press the
corresponding SYSTEM CONTROL button.
• During Setting mode, you cannot clear any
operation step you have programmed. If you
have programmed an incorrect operation by
mistake, start again from Step 1.
• If you try to program more than 32 steps, the
System Control setting finishes, and the 32
steps you have programmed are registered. If
you want to program again, clear the
program (page 25) and start again from Step
1.
• Some of the components may not accept
consecutive remote control signals. For
example, a TV generally does not react to
next signal right after the Power-on signal.
So, a series of commands such as TV Poweron and input select may not work properly.
In this case, insert other signals like the
example below;
Tips for programming the
System Control functions
The following information helps you to
program a consecutive operation steps.
TV Power-on t VCR Power-on
t VCR play back t TV input select
• After the series of input commands is
executed, the Commander displays the
touch-keys of the component of the final step.
By programming an often-used component’s
command as the final step, you can save the
step of pressing a Component Select button
when you start operating that component. (In
the example on page 24, the touch-keys of
VCR are displayed.)
To clear programmed commands
1 While pressing COMMANDER
OFF, press the MORE button.
The SYSTEM CONTROL keys (A – C)
and number keys (1 – 9) flash while
the preset buttons stay lit.
About the interval between
operation steps
You can change the interval between operation
steps (page 29).
Continued
25
Executing a Series of Commands
— System Control Functions
(continued)
2 While pressing the LIGHT button,
press the SYSTEM CONTROL
button (A, B or C) or the number
key (1 – 9) of which programmed
commands you want to erase.
The program for the selected button is
erased.
To erase the SYSTEM CONTROL A
or C button
At the factory, the SYSTEM CONTROL A
button is preset with a series of power-off
commands for Sony components and the
SYSTEM CONTROL C button with a
series of power-on commands for Sony
components. To erase the programmed
commands for each button, follow the
steps below.
1 While pressing COMMANDER OFF,
press the MORE button.
2 While pressing the LIGHT button,
press the SYSTEM CONTROL button
(A or C).
The program for the selected button is
erased.
To set the SYSTEM CONTROL A or
C button back to the factory
setting
To reset them to the factory settings,
follow the steps below.
When you want to set a new program
to this SYSTEM CONTROL button,
follow Steps 2 to 6 on pages 23 and 24.
1 While pressing COMMANDER OFF,
press the MORE button.
2 While pressing the LIGHT button,
press the SYSTEM CONTROL button
(A or C).
Note
The interval setting (page 29) is not reset to the
factory setting, even if you perform these steps.
26
Programming a series of
commands to the Component
Select buttons
As with the SYSTEM CONTROL buttons,
you can also program a series of
operating commands for the Component
Select buttons (up to 32 steps).
To execute the commands programmed
on a Component Select button by the
System Control function, press the button
for more than 2 seconds.
Notes
• The programmed commands are executed
when you press a Component Select button
for more than 2 seconds. When you press the
button for less than 2 seconds, it works as the
normal Component Select button, and the
corresponding touch-keys are displayed.
• See also “Tips for programming the System
Control functions” on page 25 and “Notes on
System Control Operations” on page 27.
VOLUME
CHANNEL
OK
MENU
EXIT
MUTING
RECALL
SYSTEM CONTROL
LIGHT
COMMANDER OFF
TV
CBL
SAT
DVR
VCR
M1
AMP
CD
MD
TAPE
DVD
M2
27
Executing a Series of Commands
— System Control Functions
(continued)
Example: To program the
procedure on page 22 for the
VCR button
1 While pressing COMMANDER
OFF, press VOLUME + and VCR.
The selected component name stays
lit, while other component names
flash.
If a series of commands is already
programmed for that button
The programmed operations are displayed
in order. To program a new series of
operations, clear the program first (page
25).
2 Follow Steps 3 to 6 on page 24.
28
Notes
• You can program the System Control
functions for a Component Select button on
which the Power-On function (page 30) has
been programmed. In this case, the Power-On
function is overwritten and cannot be used. If
you clear the System Control functions for
the button, the Power-On function is
resumed, and you can use it again.
• You cannot program the System Control
functions for a Component Select button for
which a signal has been programmed by
“learning” (page 32). (“NG” flashes on the
display.)
• You can program a signal for a Component
Select button by “learning” (page 32) for
which the System Control functions have
been programmed. In this case, the System
Control function is overwritten and cannot be
used. If you clear the “learned” signal on the
button, the System Control function is
resumed and you can use it again.
• You can program the Power-On function
(page 30) for a Component Select button for
which a System Control function has been
programmed, but the Power-On function
cannot be used. If you clear the System
Control function from the button, you can
use the Power-On function.
• If you interrupt the procedure at any point
for over two minutes, the setting mode ends
and the series of commands will be
programmed to that point. In this case, clear
the program and start again from Step 1 to
set the entire program from the beginning.
You can not continue from where you let off.
• If you change the component code number
(page 8) or program a new signal by learning
(page 15) for a key or button that has been
programmed with the series of commands of
a System Control function, the new signal
will be transmitted when you press the
corresponding Component Select button.
Changing the interval
between operation steps
You can control the interval from 100 –
900 ms in units of 100 ms steps.
3
1
2
4
1 While pressing COMMANDER
OFF, press CHANNEL+ and
CHANNEL–.
Learnable SYSTEM CONTROL keys
and number keys flash in the display
panel.
29
Executing a Series of Commands
— System Control Functions
(continued)
2 Press one of the SYSTEM
CONTROL buttons (A, B, or C),
number keys or the Component
Select button whose interval you
want to change.
The number of the current setting
stays lit and other numbers flash.
Adding an Extra
Function to the
Component Select
Buttons
Programming the Power-On
command of the selected
component (for Sony
components only)
When using Sony components, you can
program the Power-on signal for each
component on a Component Select
button. You can select the desired
component and turn it on by just
pressing that Component Select button.
3 Press one of the number keys (1 –
9) to select the interval.
1: approx. 100 ms (factory setting)
2: approx. 200 ms
...
9: approx. 900 ms
(ms: 1/1000 second)
VOLUME
CHANNEL
OK
MENU
EXIT
MUTING
MORE
LIGHT
RECALL
SYSTEM CONTROL
A
The selected number stays lit and
other numbers flash.
4 Press COMMANDER OFF.
30
B
C
COMMANDER OFF
TV
CBL
SAT
DVR
VCR
M1
AMP
CD
MD
TAPE
DVD
M2
1
Example: To program the TV
button
1 While pressing COMMANDER
OFF, press VOLUME – and the
desired Component Select
button.
When the Power-on command is
programmed, you will hear a beep
and “POWER ON” appears on the
display. (The display goes off when
you release the buttons.)
To clear the Power-on command
Repeat the procedure above.
The following display appears.
Notes
• If the component code of a non-Sony product
has been set for a Component Select button,
you cannot program the Power-On function
for it.
• Even if you have programmed a signal by
“learning” (See “Adding a command that is
required when selecting a component” on
page 32.) or a System Control function (page
27) for a Component Select button, you can
program the Power-On function for that
button, but it cannot be used. If you clear a
“learned” signal or the System Control
function from the button, you can use the
Power-On function.
• You can program a signal by “learning” (page
32) or a System Control function (page 27) for
a Component Select button for which the
Power-On function has been programmed. In
this case, the Power-On function is
overwritten and cannot be used. If you clear
the “learned” signal or the System Control
function from the button, the Power-On
function is resumed, and you can use it again.
If you have programmed both a signal by
“learning” and a System Control function for
the button, the “learned” signal will have
overwritten the System Control function.
Continued
31
Example: To program the input
select signal of your amplifier to
the CD button
1 Place the RM-AV2500 head to
head with your component’s
remote control.
Remote control of
your component
about 2 – 4 inches
(5 – 10 cm) away
RM-AV2500
2 While pressing COMMANDER
OFF, press CHANNEL + and
VOLUME +.
Learnable SYSTEM CONTROL keys
and number keys flash in the display
panel.
Note
The name of a Component Select button for
which a signal has already been learned
stays lit. If you want to program a new
signal for that button by learning, clear the
learned signal first (page 33).
32
3 Press the desired Component
Select button.
The selected component name stays
lit and “LEARN” flashes.
To clear the learned function of
the Component Select button
1 While pressing COMMANDER OFF,
press CHANNEL + and VOLUME +.
2 While pressing the LIGHT button,
press the Component Select button
which you want to clear.
Notes
4 Press and hold down the button
on the component’s remote
control (amplifier in this example)
until you hear a beep.
(If you release the button before
you hear a beep, the signal may
not be learned correctly.)
“LEARN” stops flashing and stays lit.
• You can program a signal by “learning” for a
Component Select button for which a System
Control function (page 27) or the Power-On
function (page 30) has been programmed. In
this case, the System Control function or the
Power-On function is overwritten and cannot
be used. If you clear the “learned” signal
from the button, the System Control function
or the Power-On function is resumed, and
you can use it again.
• You cannot program a System Control
function (page 27) for a Component Select
button for which a signal has been
programmed by “learning.”
• You can program the Power-On function for
a Component Select button for which a signal
has been programmed by “learning,” but
then the Power-On function cannot be used.
If you clear a “learned” signal from the
button, you can use the Power-On function.
If “NG” flashes on the display
Learning did not succeed. Try Steps 3 and 4
again.
5 Press COMMANDER OFF.
33
Copying the settings of
a Component Select
button to another
button
You can copy the entire settings of a
Component Select button to another
Component Select button. The settings of
the component code (page 8), the channel
macro function (page 41), and the learned
functions (page 15) are copied to a new
button.
Example: To copy the settings of
the CD button to the VCR button
1 While pressing COMMANDER
OFF, press VCR.
The keys for that component (VCR)
flash.
Note
You cannot copy the settings to a Component
Select button for which any learning function
or channel macro function has been
programmed. (“NG” flashes.)
2 While pressing VCR, press CD.
The keys for CD flash.
VOLUME
CHANNEL
OK
MENU
EXIT
MUTING
MORE
LIGHT
RECALL
SYSTEM CONTROL
A
2
B
C
COMMANDER OFF
TV
CBL
SAT
DVR
VCR
M1
AMP
CD
MD
TAPE
DVD
M2
3
1
3 Press COMMANDER OFF.
34
Example: To store the On/Off
signal of an air-conditioner to
the SYSTEM CONTROL B button
1 Place the Commander head to
head with the remote control of
the air-conditioner.
Remote control of
your air-conditioner
about 2 – 4 inches
(5 – 10 cm) away
RM-AV2500
2 While pressing COMMANDER
OFF, press CHANNEL + and
VOLUME +.
Learnable SYSTEM CONTROL keys
and number keys flash in the display
panel.
If a signal has been learned on that
button, the display stays lit. If you
want to program on that button, clear
the signal first (page 36).
35
Programming a Frequently Used
Key Operation for SYSTEM
CONTROL Buttons (continued)
3 Press the SYSTEM CONTROL
button you want to teach.
Note
You can program a remote control signal for a
SYSTEM CONTROL button by “learning” for
which the System Control functions have been
programmed. In this case, the System Control
functions are overwritten and cannot be used.
If you clear the “learned” signal from the
button, the System Control function, are
restored, and you can use them again.
To clear the learned remote
control signal
“LEARN” flashes and the display for
the pressed SYSTEM CONTROL key
stays lit.
1 While pressing COMMANDER OFF,
press CHANNEL + and VOLUME +.
2 While pressing the LIGHT button,
press the SYSTEM CONTROL button
(1 – 9, A, B, or C).
3 Press COMMANDER OFF.
The display for that button flashes.
4 Press and hold down the button
of the remote control until you
hear a beep.
(If you release the button before you
hear a beep, the signal may not be
learned correctly.)
“LEARN” display stops flashing and
stays lit.
If “NG” flashes on the display
Learning did not succeed. Try Steps 3 and 4
again.
5 Press COMMANDER OFF.
36
If you want to program a new signal for
that button, follow Steps 3 to 5.
Transferring Data
between Remote
Commanders
You can transfer data, such as learned
signals and component code settings,
between this Commander and another
Sony RM-AV2500.
Transferring data
You can transfer the all data of this
Commander or the data of a Component
Select button on this Commander to
another Sony RM-AV2500.
To transfer the all data of the
Commander
37
Transferring Data between Remote
Commanders (continued)
4 Press the 1 key.
1 Place the RM-AV2500 head to
head with another remote
commander.
Another remote commander
1: All data of the Commander
2: Data of a Component Select button
5 Confirm that the receiving remote
commander is ready for data.
(To set the receiving commander,
follow the procedure on page 40.)
about 2 – 4 inches
(5 – 10 cm) away
RM-AV2500
6 Press the “ENTER” key.
2 While pressing COMMANDER
OFF, press CHANNEL – and
VOLUME –.
As the data is transferred, the
corresponding component name goes
off. If the all data has been
successfully transferred, the backlight
of the display turns off.
Note
If “NG” appears while sending the data, go
back to Step 5 and continue the operation
or press COMMANDER OFF to stop the
operation.
Note
3 Press the R button.
R: Transfer data
r: Receive data
38
Be sure that the receiving remote commander is
ready to receive data.
To transfer the data of a
Component Select button
The data of a Component Select button
on this Commander (the settings and
learned signals programmed on the keys
and buttons) can be transferred to a
Component Select button on another
Sony RM-AV2500.
1~3 Perform Steps 1 to 3 on page
38.
4 Press the 2 key.
7 Press the “ENTER” key.
When the data has been transferred,
“TV” and “R” go off. If the data have
been successfully transferred, the
backlight of the display turns off.
Note
If “NG” appears while sending the data, go
back to Step 6 and continue the operation
or press COMMANDER OFF to stop the
operation.
Notes
5 Press the Component Select
button whose data you want to
send.
6 Confirm that the receiving remote
• The data of the “learned” signal and the
System Control function programmed for a
Component Select button cannot be
transferred.
You can use the learning function (page 32) to
program the “learned” signal and the System
Control functions programmed for a
Component Select button on another remote
commander.
• Be sure that the receiving remote commander
is ready to receive data.
commander is ready to accept
data.
(To set the receiving commander,
follow the procedure on page 40.)
Continued
39
Transferring Data between Remote
Commanders (continued)
Receiving the data
This Commander can receive the data of
another Sony RM-AV2500.
To receive the all data from
another remote commander
1 While pressing COMMANDER
OFF, press CHANNEL – and
VOLUME –.
40
To receive the data of a
Component Select button from
another remote commander
1~2 Perform Steps 1 and 2 on page
40.
3 Press the 2 key.
4 Press the Component Select
button to which want to assign
the data.
Selecting a Channel
with a Single Key Press
— Channel Macro Function
You can program the Channel Macro
function for the keys listed below (macro
keys).
If you program the operation of entering
the 1, 2, 3 and ENTER keys for a macro
key, you can select the channel 123 by
pressing that single key.
Component
TV:
CBL:
SAT:
5 Press the ENTER key.
When the data have been received,
“TV” and “r” go off. If the data have
been successfully received, the
backlight of the display turns off.
Macro key
PIP INPUT, PIP MOVE,
PIP CH+, PIP STILL, PIP
SWAP, PIP CHm, N, M, REC*, x, X
m, N, M, x, X
* You can program this function for REC key
alone (not on the REC + B key for a doublekey operation).
2
VOLUME
CHANNEL
OK
Notes
• If the Commander is not ready for
receiving the data, press CLEAR key, then
OK key to clear the learned signal on all
or one of the Component Select buttons.
• If “NG” appears during data transfer, go
back to Step 3 and continue the operation
or press COMMANDER OFF to stop the
operation. If you continue the operation,
you have to set the sending remote
commander again to send data.
MENU
EXIT
MUTING
MORE
LIGHT
RECALL
SYSTEM CONTROL
A
B
C
COMMANDER OFF
TV
CBL
SAT
DVR
VCR
M1
AMP
CD
MD
TAPE
DVD
M2
1
5
Continued
41
Selecting a Channel with a Single
Key Press (continued)
4 Press the keys for the operation in
order (1t 2 t 3 t ENTER).
Example: To program TV channel
123 for the PIP INPUT key
1 While pressing COMMANDER
OFF, press MUTING.
Note
If you enter more than four keys, the
last four keys are programmed for the
macro key.
5 Press the EXIT button to confirm
the Channel Macro.
2 While pressing CHANNEL +,
“1,” “2,” “3,” and “ENTER” appear
twice.
press the Component Select
button (TV).
Note
If you enter more than four keys, the
last four keys are programmed for the
macro key.
6 Press COMMANDER OFF.
Notes
3 Press the macro key (in this case,
PIP INPUT).
The selected macro key lights. The
number keys and “ENTER” flash.
42
• You cannot program the Channel Macro
function for a macro key that has “learned” a
signal. Try again with another macro key, or
clear the “learned” signal (page 19) from the
button and program the Channel Macro
function on it.
• If you change the component code for a key
that has been programmed with the Channel
Macro function, the new signal is transmitted
when you press the corresponding macro
key.
To clear the Channel Macro
function
1 While pressing COMMANDER OFF,
press MUTING.
2 While pressing CHANNEL +, press the
Component Select button (TV).
3 While pressing the LIGHT button,
press the macro key.
Note
The procedure above can clear only the
Channel Macro function from the key. It does
not clear the learned signals from that key.
Creating an Alias
Component key (ALIAS)
The Alias Component key to be created
in this section is a Component key that
refers to the setting contents of another
Component key and work the same as
the reference key. If you create an Alias
Component key, function keys (Alias
function keys) that have the same
function as the function keys in the
reference component are also created.
Using this Alias Component function,
you can assign the function keys of
various AV components (alias keys) to
one Component display. A Component
key that has this kind of function is called
a Multi Component key.
The M1 button is a preset multicomponent button for TV and VCR. And
the M2 button is for TV and DVD.
VOLUME
CHANNEL
OK
MENU
EXIT
MUTING
MORE
LIGHT
RECALL
SYSTEM CONTROL
A
6
B
C
COMMANDER OFF
TV
CBL
SAT
DVR
VCR
M1
AMP
CD
MD
TAPE
DVD
M2
1
Continued
43
Creating an Alias Component key
(ALIAS) (continued)
3 Press the component button to be
referred to.
1 While pressing COMMANDER
OFF, press RECALL and the
component (button) for which
you want to create alias key.
The keys for the selected component
flash.
4 Press the key you want to be
referred to.
Note
You cannot select an already set alias key.
2 Press the key you want to set.
5 Repeat Steps 2 and 4 to create
other alias keys.
6 Press the COMMANDER OFF
button.
To change the function display of
a key
Note on the flashing display
The keys or buttons that are already preset
for the component flash twice while those
that are not preset flash once.
44
When you program a signal for a key,
you can select the most suitable function
display among all the displays the key
has, and set it to the key.
1 After Step 1 (page 44), while
pressing the Component Select
button (VCR), press the key you
want to teach repeatedly.
Each time the key is pressed, the
display is changed in order.
2 When the desired display
appears, release the Component
Select button.
3 Then follow Steps 3 to 6 (page
44).
Notes
• If you do not change the display of a key, the
default display is used.
• You cannot change the display of the keys
(the number
that are not framed with
keys 0 to 9, +10 and ENTER).
45
Using Other Functions
Protecting your
settings
Locking the Controls
— Hold Function
To prevent accidental operation, you can
lock all the buttons with the Hold
function.
— Preset Lock Function
You can lock the Commander so that you
can not change, add, or clear any of your
component code settings (page 8).
1
VOLUME
2
CHANNEL
OK
MENU
EXIT
MUTING
MORE
LIGHT
RECALL
SYSTEM CONTROL
A
B
C
COMMANDER OFF
TV
CBL
SAT
DVR
VCR
M1
AMP
CD
MD
TAPE
DVD
M2
1
3
1 While pressing COMMANDER
OFF, press the display panel.
“OFF” is displayed.
To unlock the control
Repeat the procedure above.
“OFF” disappears from the display.
46
1 While pressing COMMANDER
OFF, press MUTING.
All the component names flash and
“OFF” appears.
2 Press the OFF key.
All the component names stop
flashing and stay lit, and “ON”
flashes.
3 Press COMMANDER OFF.
Changing the Auto
Power-Off Time of the
Commander
The Commander is preset at the factory
to switch the power off automatically
after 10 minutes if left unused (Auto
Power-Off). To change this time, perform
the following procedure.
You can set the Auto Power-Off time up
to 90 minutes, in units of 10 minutes, or
disable the Auto Power-Off function.
Note
The Auto Power-Off function only turns off the
power of the Commander, but not of the
component.
When the preset lock is on
If you try to set a component code
number (page 8) or perform learning for
the Component Select buttons (page 32),
“NG” will flash on the display.
To unlock the preset lock
To unlock the preset lock, follow the
same procedure as the above and press
the POWER ON key in Step 2. “POWER
OFF” appears on the display.
47
Changing the Auto Power-Off Time
of the Commander (continued)
1 While pressing COMMANDER
OFF, press CHANNEL + and
VOLUME –.
The number which shows the current
Power-Off time of the Commander
stays lit, and other numbers flash.
Adjusting the Backlight
of the Display Window
The Commander is preset at the factory to
bright backlight, and to switch off the
backlight automatically if you do not operate
for more than 10 seconds. To change this
setting, perform the following procedure.
You can adjust the backlight Automatic-Off
time (from 10 seconds to 90 seconds in the
units of 10 seconds) and the brightness
(bright or dim).
2
3
2 Press one of the 1 – 9 keys to
select the Auto Power-Off time, or
press the 0 key to disable the
Auto Power-off function.
For example, to set the Auto PowerOff time to 20 minutes, press the 2
key.
“2” stops flashing and stays lit.
3 Press COMMANDER OFF.
48
4
1
4 Press the POWER key.
1: The backlight will only light when you
press the LIGHT button
2: The backlight will light when you press
any buttons except the VOLUME +/–,
MUTING, CHANNEL +/–, RECALL
and COMMANDER OFF buttons
5 Press COMMANDER OFF.
49
Setting the Key-Touch
Beep
3 Press COMMANDER OFF.
You can turn on or off the key-touch
confirmation beep.
To turn off the key-touch beep
In Step 2, while pressing MUTING, press
VOLUME –.
“OFF” appears on the display.
2
VOLUME
CHANNEL
OK
MENU
EXIT
MUTING
MORE
LIGHT
RECALL
SYSTEM CONTROL
A
B
C
COMMANDER OFF
TV
CBL
SAT
DVR
VCR
M1
AMP
CD
MD
TAPE
DVD
M2
To turn on the key-touch beep
1 While pressing COMMANDER
OFF, press MUTING.
2 While pressing MUTING, press
VOLUME +.
“ON” appears on the display.
50
1
3
The keys of the selected component
appear as set at the factory.
Adjusting the beam
interval to avoid key
misoperation
You can control the beam interval of the
commander. This prevents an
unexpected action caused by
mistouching a commander key. The
factory setting is 0 seconds.
To adjust the keys of each
Component button
VOLUME
0 second: Stays lit
1 second: Flashes
2 seconds: Flashes slowly
2 Press the key you want to adjust.
The beaming time is changed with
each press of the key (from 0 to 2
seconds).
CHANNEL
OK
MENU
EXIT
MUTING
MORE
LIGHT
3 Press the COMMANDER OFF
RECALL
SYSTEM CONTROL
A
3
B
C
COMMANDER OFF
TV
CBL
SAT
DVR
VCR
M1
AMP
CD
MD
TAPE
DVD
M2
1
button.
1 While pressing COMMANDER
OFF, press CHANNEL – and the
component button.
Continued
51
Adjusting the beam interval to
avoid key misoperation
(continued)
VOLUME
CHANNEL
2 Press the key or button you want
to adjust.
The beaming time is changed with
each press of the key (from 0 to 2
seconds).
0 second: Stays lit
1 second: Flashes
2 seconds: Flashes slowly
OK
MENU
EXIT
MUTING
RECALL
SYSTEM CONTROL
LIGHT
52
COMMANDER OFF
TV
CBL
SAT
DVR
VCR
M1
AMP
CD
MD
TAPE
DVD
M2
3 Press the COMMANDER OFF
button.
To adjust the component buttons
CHANNEL
VOLUME
OK
MENU
EXIT
MUTING
MORE
LIGHT
RECALL
SYSTEM CONTROL
A
2
B
C
COMMANDER OFF
TV
CBL
SAT
DVR
VCR
M1
AMP
CD
MD
TAPE
DVD
M2
1
1 While pressing COMMANDER
OFF, press CHANNEL + and the
component button.
The keys of the selected component
appear as set at the factory.
0 second: Stays lit
1 second: Flashes
2 seconds: Flashes slowly
2 Press the COMMANDER OFF
button.
53
Additional Information
Precautions
•Do not drop the unit or give a shock to
the unit, or it may cause a malfunction.
•Do not leave the unit in a location hear
heat sources, or in a place subject to
direct sunlight, excessive dust or sand,
moisture, rain or mechanical shock.
•Do not put foreign objects into the unit.
Should any liquid or solid object fall
into the unit, have it checked by
qualified personnel before operating
the unit any further.
•Do not expose the remote control
detectors of your components to direct
sunlight or other strong illumination.
Too much light there can interfere with
remote control operations.
•Be sure to place the Commander out of
the reach of small children or pets.
Components such as air conditioners,
heaters, electric appliances, and electric
shutters or curtains receiving an
infrared signal can be dangerous if
misused.
Maintenance
Clean the surface with a soft cloth sightly
moistened with water or a mild detergent
solution. Do not use any type of solvent
such as alcohol, benzine or thinner as
they may damage the finish of the
surface.
54
Specifications
Operating distance
Approx. 32.8 ft. (10 meters) (varies depending
on components of different manufacturers)
Power requirements
Remote control and backlight: Four size AA
(R6) batteries
Battery life
Approx. 5 months (varies depending on
frequency of use)
Dimensions
Approx. 4 1/2 × 7 × 1 1/2 in. (w × h × d)
(112 × 177 × 38 mm)
Mass
8.64 oz. (245 g) (not including batteries)
Design and specifications are subject to change
without notice.
The CE mark on the unit is
valid only for products
marketed in the European
Union.
Troubleshooting
If you have problems setting up or using the Remote Commander, first check the
batteries (page 6), then check the items below.
Symptom
Remedy
You cannot operate the
components.
• Go closer to the component. The maximum operating distance is
approximately 32.8 ft. (10 m).
• Check that you are aiming the Commander directly at the compoent,
and that there are no obstructions between the Commander and the
component.
• Turn on the components first, if necessary.
• Check that the component has infrared remote capability. For example,
if your component did not come with a remote commander, it probably
is not capable of being controlled by a remote commander.
• You have assigned a different component to the Component Select
button. Check the component assigned to that button and the
component code.
• If you do not use the commander for a long time, LCD panel response
may become erratic. In this case, follow the procedure below:
1 While pressing COMMANDER OFF, press MENU and EXIT.
A bullet mark will appear in the bottom left of the LCD panel.
2 Press the next target that appears in the top right of the LCD panel.
3 Press the square that appears in the center of the LCD panel.
A beep sounds to confirm the setting.
55
Troubleshooting (continued)
56
Symptom
Remedy
You cannot operate the
components even after
setting the component
code numbers.
• Set the component code correctly. If the code that is listed first for your
component does not work, try all the codes for your component in the
order in which they are listed in the supplied “Component Code
Numbers.”
• Some features may not be preset. If some or all of the keys do not
function correctly even after you have set the component codes, then
use the learning function to program the remote control signals for the
component (page 15).
• The component may be operated with a code number that is not listed
in the “Component Code Numbers.” See “Finding a component code
with the Search function” (page 11) and try setting a code number
again.
You cannot control the
volume.
• If your visual components are connected to an audio system, make sure
you have set up the Commander as described in “Controlling the
Volume of Visual Components Connected to an Audio System” (page
21).
• You have assigned another component to the TV or AMP button (page
32). In this case, the volume cannot be controlled when you select a
component other than TV or AMP.
The Commander fails to
learn the remote control
signals.
• When you teach signals of an interactive signal exchange system remote
control unit (supplied with some of Sony’s receivers and amplifiers) to
the Commander, the response signal of the main unit may interfere with
the learning of the Commander. In such a case, move to a place where
the signals will not reach the main unit (e.g. other rooms, etc.).
You cannot operate a
component even after
you programmed the
remote control signals
with the “learning”
function.
• Make sure that the Remote Commander has learned the correct signals.
If not, see “For accurate learning” (page 19) and try the learning
procedure again (page 15).
Symptom
Remedy
You hear beeps (“pip,
pip”) and “NG” flashes.
• The Preset Lock function is on. Unlock the Preset Lock function (page
46), and try the component code setting or the learning function.
• Signals have been programmed for that Component Select or SYSTEM
CONTROL button using the learning function. Clear the learned signals
(page 25, 43) and try programming the System Control function again.
• Signal has been programmed for that key using the learning function.
Clear the signal(s) (pages 19 and 20) and try programming the function
or the display for the same key again, or try with another Component
Select button.
• Signals have been programmed for that macro key using the learning
function. Clear the learned signals (page 19) and try programming the
Channel Macro function for the same key again, or try with another
macro key.
• There are some keys, on which signals have been programmed, on the
display for the Component Select button of the Commander when the
commander receives the data from another Commander. Clear the
signals (pages 20, 21 and “Notes” on page 43) and try receiving the data
again.
You hear beeps (“pip,
pip, pip, pip, pip”) and
“NG” flashes.
• Learning has not succeeded. See “For accurate learning” (page 19) and
try the learning procedure again (page 15).
• The component codes cannot be set. See the supplied “Component
Code Numbers” and try setting the component codes again (page 8).
• The data have not been transferred. See “Transferring data” (page 37)
and try transferring the data again.
• The data have not been received. See “Receiving the data” (page 40) and
try receiving the data again.
“NG” appears during
learning.
• Clear infrequently used learned keys (page 19), then carry out learning
operations.
Continued
57
Troubleshooting (continued)
Symptom
Remedy
A system control
program does not
function correctly.
• Make sure that you have programmed the commands in the correct
order (page 22).
• Try changing the orientation of the Commander. If that does not help,
try placing the components as close to each other as possible.
• Check the status of the components and make sure that you have set the
components properly to receive commands (page 27).
• The component codes are changed or a new signals have been learned
for a key or button that has been programmed with a series of
commands. In this case, the new signals are transmitted when the series
of commands is executed.
• The interval may be too short. See “Changing the interval between
operation steps” (page 29) and set a longer interval.
The power of the
• This Commander is preset at the factory to switch the power off
Commander turns off by
automatically after 10 minutes if left unused. (Auto Power-Off, page 47)
itself.
You can change the power-off time from 10 to 90 minutes, or set the
Commander not to power off automatically.
The power of the
• The Hold function is on (“OFF” appears on the display). Unlock the
Commander does not
Hold function (page 46).
turn on when you press a
button.
Your Commander does
not work as expected
after data transfer.
• Data transfer to/from a single button cannot transfer System Control
functions that are learned by Component Select buttons. Either set up
the learned Commander from the start, or perform whole data transfer.
For the customers in the U.S.A.
Customer Support Information
After you have read through this manual, if you still cannot get the Remote Commander to work
properly, call the Sony Customer Support Helpline at 1-800-822-2217.
58
Appendix
Table of Preset
Functions
Note
There may be some components or functions
that cannot be operated with this Commander.
KEY DISPLAY
FUNCTION
CHANNEL +/– Channel up: +
Channel down: –
TV
KEY DISPLAY
FUNCTION
POWER
To turn the power on/off
1 – 9, 0, ENTER To change the channel
For example, to change to
channel 5, press 0 and 5 (or,
press 5 and ENTER)
RECALL
To operate JUMP,
FLASHBACK or CHANNEL
RETURN function on the TV
depending on the setting of
the TV’s manufacturer
VOLUME +/–
Volume up: +
Volume down: –
MUTING
To mute the volume on the
TV. Press again to turn
muting off.
INPUT
To change the input mode
DISPLAY
To display the current
channel on TV
ANT/SW
SLEEP
To operate SLEEP function on
the TV (works only for a TV
with SLEEP function)
To switch the multiplex
antenna input
SUB TITLE
To display the CRT screen
subtitle
WIDE
To switch to WIDE
EXIT
To exit the mode
MENU
To call up the MENU display
R
To move the cursor upward
r
To move the cursor
downward
t
To move the cursor to the
right
T
To move the cursor to the left
OK
To enter the selection of the
MENU display
PIP ON/OFF
To turn on/off the “window”
PIP OFF
To turn off the “window”
PIP CH+/–
To change the TV channel in
the “window” picture
PIP INPUT
To change the input mode of
the “window” picture
PIP MOVE
To move the location of the
“window” picture
PIP STILL
To freeze the “window”
PIP SWAP
To swap the “window”
Continued
59
Table of Preset Functions
(continued)
VCR
DVD
KEY DISPLAY
FUNCTION
KEY DISPLAY
FUNCTION
POWER
To turn the power on/off
POWER
To turn the power on/off
1 – 9, 0, ENTER To change the channel
For example, to change to
channel 5, press 0 and 5 (or,
press 5 and ENTER)
1 – 9, 0
Number keys: To set items
selected from the screen
+10
To select numbers 10 and
above
INPUT
To change the input mode
ENTER
DISPLAY
To activate the on-screen
display
To enter a setting or to set
items selected from the screen
AUDIO
To change the sound
ANT/SW
To switch the antenna output
DISPLAY
MENU
To call the MENU display
To show the current play
status on the screen
R
To move the cursor upward
CLEAR
r
To move the cursor
downward
To clear the selected
characters from the screen
RETURN
t
To move the cursor to the
right
To return to the last previous
screen
TITLE
To display the title menu
T
To move the cursor to the left
SUB TITLE
To switch the subtitle
OK
To enter the selection of the
MENU display
MENU
To display the DVD menu
R
To move the cursor upward
m
To rewind
r
N
To play
To move the cursor
downward
M
To fast-forward
t
REC*
To record
To move the cursor to the
right
x
To stop
T
To move the cursor to the left
X
To pause
OK
To execute items selected
from the screen
CHANNEL +/– Channel up: +
m
Channel down: –
To rewind
N
A/B
To select the deck
To play
M
EXIT
To exit the mode
To fast-forward
x
To stop
X
To pause
REC*
To record
MODE
To change the playback mode
* To avoid accidental recording, the REC key
does not work unless pressed for more than
1 second (factory setting). To change this
setting, see ”Adjusting the beam interval to
avoid key misoperation” on page 51.
60
CBL (Analog Cable box)
KEY DISPLAY
FUNCTION
>
To proceed to the next
(CHANNEL +) location or song
A/B
FUNCTION
POWER
To turn the power on/off
To proceed to the previous
location or song
1 – 9, 0, ENTER To change the channel
For example, to change to
channel 5, press 0 and 5 (or ,
press 5 and ENTER)
Channel down
CHANNEL +/– Channel up : +
To decide the distance
between A and B
RECALL
Channel up
.
(CHANNEL –)
KEY DISPLAY
To select the deck
Channel down : –
To operate JUMP,
FLASHBACK or CHANNEL
RETURN function
* To avoid accidental recording, the REC key
does not work unless pressed for more than
1 second (factory setting). To change this
setting, see ”Adjusting the beam interval to
avoid key misoperation” on page 51.
Continued
61
Table of Preset Functions
(continued)
CBL (Digital Cable box)
KEY DISPLAY
FUNCTION
KEY DISPLAY
FUNCTION
POWER
To turn the power on/off
m*1
To rewind
1 – 9, 0, ENTER To change the channel
For example, to change to
channel 5, press 0 and 5 (or,
press 5 and ENTER)
N*1
To play
M*1
To fast-forward
REC*1 *2
To record
INPUT
x*1
To stop
X*1
To pause
To switch the output of the
SAT receiver to the TV (When
connecting a TV cable or
antenna to the receiver, the
output switches between a
TV and SAT program)
DISPLAY
To turn on the display
FAVORITE
To use the “FAVORITE”
function
EPG
To call up the title bar and
toggle the title bar on/off in
CABLE mode
GUIDE
To call up the title bar and
toggle the title bar on/off in
CABLE mode
MENU
To call up the MENU display
R
To move the cursor upward
r
To move the cursor
downward
t
To move the cursor to the
right
T
To move the cursor to the left
OK
To bring up the Station Index
when a program guide is not
displayed
To select the channel that is
highlighted
EXIT
To exit the setting menu
CHANNEL +/– Channel up: +
Channel down: –
RECALL
62
To turn on the display of a
shortcut menu
*1 The operation of the built-in DVR or the
video on demand
*2 To avoid accidental recording, the REC key
does not work unless pressed for more than
1 second (factory setting). To change this
setting, see ”Adjusting the beam interval to
avoid key misoperation” on page 51.
SAT
KEY DISPLAY
FUNCTION
KEY DISPLAY FUNCTION
POWER
To turn the power on/off
+10
Decimal point for channel
number
ANT/SW
To switch the antenna input in
order
REPLAY
To replay the built-in DVR
INFO
To display program
information
1 – 9, 0, ENTER To change the channel
For example, to change to
channel 5, press 0 and 5 ( or,
press 5 and ENTER)
INPUT
To switch the output of the
SAT receiver to the TV (When
you connect a TV cable or
anntenna to the receiver, the
output switches between a
TV and SAT program)
DISPLAY
To turn on the display
RECALL
To tune to the last tuned
station
FAVORITE
To use the “FAVORITE”
function
S.INDEX
To bring up the Station Index
GUIDE
To bring up Master Guide
EXIT
To exit the mode
MENU
To call up the MENU display
R
To move the cursor upward
r
To move the cursor
downward
t
To move the cursor to the
right
T
To move the cursor to the left
OK
To bring up the Station Index
when a program guide is not
displayed
To select the channel that is
highlighted
*1 The operation of the built-in DVR or the
video on demand
*2 To avoid accidental recording, the REC key
does not work unless pressed for more than
1 second (factory setting). To change this
setting, see ”Adjusting the beam interval to
avoid key misoperation” on page 51.
CHANNEL +/– Channel up : +
Channel down : –
m*1
To rewind
N*1
To play
M*1
To fast-forward
REC*1 *2
To record
x*1
To stop
X*1
To pause
Continued
63
Table of Preset Functions
(continued)
AMP
64
KEY DISPLAY FUNCTION
KEY DISPLAY FUNCTION
POWER
To turn the power on/off
RECALL
To shift band or preset select
VIDEO 1
To select the input source:
VIDEO 1
EXIT
To return to the basic MENU
CHANNEL
+/–
Presetting or tuning frequency
to a higher: +
VIDEO 2
To select the input source:
VIDEO 2
VIDEO 3
To select the input source:
VIDEO 3
AUX
To select the input source:
AUX
Presetting or tuning frequency
to a lower: –
VOLUME +/– Volume up: +
Volume down: –
MUTING
To mute the volume on the
AMP
Press again to turn muting off
DVD
To select the input source: DVD
TV
To select the input source: TV
CD
To select the input source: CD
S.FIELD
To turn on/off the sound field
MD/DAT
To select the input source: MD
MODE
To select a sound field mode
TUNER
To select the input source:
TUNER
T.TONE
To output a test tone
CENTER
To adjust the center speaker
level: +
TAPE
To select the input source:
TAPE
CENTER
PHONO
To select the input source:
PHONO
To adjust the center speaker
level: –
REAR
5.1 INPUT
To change the multi-channel of
5.1ch and above
To adjust the rear speaker level:
+
REAR
MENU
To call up the MENU display,
or return to the previous
MENU
To adjust the rear speaker level:
–
SUB
WOOFER
To adjust the subwoofer level: +
R
To move the cursor upward
To move the cursor downward
SUB
WOOFER
To adjust the subwoofer level: –
r
t
To move the cursor to the right
FRONT BAL
T
To move the cursor to the left
To control the front speaker
balance
OK
To enter the selection of the
MENU display
REAR BAL
To control the rear speaker
balance
EFFECT
To control the effect
DVR (Digital video recorder)
KEY DISPLAY
FUNCTION
KEY DISPLAY
FUNCTION
POWER
To turn the power on/off
OK
To bring up the Station Index
when a program guide is not
displayed
To select the channel that is
highlighted
To switch the output of the
SAT receiver to the TV
(When connecting a TV cable
or antenna to the receiver, the
output switches between a
TV and SAT program)
EXIT
To exit the setting menu
EPG*1
To access to all aspects of the
service
DISPLAY
To turn on the display
REPLAY*1
CLEAR
To clear the setting
GUIDE
To bring up Master Guide
THUMBS +*1
To select the desired recorded
program
(It is necessary to have
recorded the desired
program)
To replay
Or to go into REC/REVIEW
mode during play (After
about 5-second rewind,
replay begins)
Live TV*1
To bring up Master Guide
LIST*1
To call up the title of the
recorded program
1 – 9, 0, ENTER To change the channel
For example, to change to
channel 5, press 0 and 5 (or,
press 5 and ENTER)
INPUT
THUMBS –*1
To select the desired recorded
program
(It is necessary to have
recorded the desired
program)
m
To rewind
N
To play
M
To fast-forward
REC*2
To record
x
To stop
X
To pause
MENU
To call up the MENU display
R
To move the cursor upward
r
To move the cursor
downward
t
To move the cursor to the
right
T
To move the cursor to the left
CHANNEL +/– Channel up: +
Channel down: –
*1 This key corresponds to Tivo service or the
replay service. Refer to its instruction
manual for details.
*2 To avoid accidental recording, the REC key
does not work unless pressed for more than
1 second (factory setting). To change this
setting, see ”Adjusting the beam interval to
avoid key misoperation” on page 51.
Continued
65
Table of Preset Functions
(continued)
CD
MD
KEY DISPLAY
FUNCTION
KEY DISPLAY
FUNCTION
POWER
To turn the power on/off
POWER
To turn the power on/off
1 – 9, 0
To select the track number (0
selects track 10)
To select track numbers
above 10, see the descriptions
on the +10 button below.
1 – 9, 0
To select the track number (0
selects track 10)
To select track numbers
above 10, see the descriptions
on the +10 button below.
+10
To select numbers 10 and
above
+10
To select numbers 10 and
above
ENTER
To enter the setting
ENTER
To enter the setting.
RECALL
To select the next disc
RECALL
To select the next disc
REPEAT
To select repeat play mode
DISPLAY
To switch the display mode
CONTINUE
To select continuous play
mode
CONTINUE
To select continuous play
mode
SHUFFLE
To play in random order
SHUFFLE
To play in random order
PROGRAM
To use for program play
PROGRAM
To use for program play
CLEAR
To clear the setting
CLEAR
To clear the setting
m
To rewind
m
To rewind
N
To play
N
To play
M
To fast-forward
M
To fast-forward
x
To stop
REC*
To record
X
To pause
x
To stop
>
To select the next track
X
To pause
.
To select the previous track
>
To select the next track
.
To select the previous track
MODE
To toggle the recording mode
A/B
To select the deck
* To avoid accidental recording, the REC key
does not work unless pressed for more than
1 second (factory setting). To change this
setting, see ”Adjusting the beam interval to
avoid key misoperation” on page 51.
66
DAT
TAPE
KEY DISPLAY
FUNCTION
KEY DISPLAY
FUNCTION
POWER
To turn the power on/off
m*1
To rewind
1 – 9, 0
To select a program number
N*1
To play
DISPLAY
To turn on/off the display
mode
M*1
To fast-forward
REC*1 *3
To record
m
To rewind
x*1
To stop
N
To play
X*1
To pause
M
To fast-forward
A/B
REC*
To record
x
To stop
To select the tape deck : Deck
A or B (dual cassette deck
only)
X
To pause
CHANNEL +*1 To reverse
>
To proceed to the next song
T*2
To rewind
To proceed to the previous
song
R*2
To play
t*2
To fast-forward
MENU*2 *3
To record
r*2
To stop
EXIT*2
To pause
.
* To avoid accidental recording, the REC key
does not work unless pressed for more than
1 second (factory setting). To change this
setting, see ”Adjusting the beam interval to
avoid key misoperation” on page 51.
CHANNEL –*2 To reverse
*1 Tape operation buttons. For dual cassette
decks, operation buttons for Deck A (for
Sony-brand dual cassette deck, buttons for
Deck B).
2
* Operation buttons for Deck B (for Sonybrand dual cassette deck, buttons for Deck
A).
3
* To avoid accidental recording, the REC key
does not work unless pressed for more than
1 second (factory setting). To change this
setting, see ”Adjusting the beam interval to
avoid key misoperation” on page 51.
67
LCD Touch-Key Display Table
Memo for component select buttons
If you assign other components on Component Select buttons, use the space below as
your memo.
New component t
New component t
Keys for each component
The followings are the tables of the keys available for each component, which are useful
if you use them as a memorandum of learned keys.
TV
68
CBL
SAT
DVR
69
LCD Touch-Key Display Table (continued)
VCR
M1
70
AMP
CD
MD
71
LCD Touch-Key Display Table (continued)
TAPE
DVD
M2
72
Full display
You can use the
following tables
as a
memorandum
for the optional
button or for
any component.
73
Quick Reference of Operations
To
Set a component code
For
details,
see
page 8
COMMANDER OFF
+
MUTING
Program to the keys
or buttons on a
component (learning
function)
COMMANDER OFF
+
Component Select
Change the volume
control setting
COMMANDER OFF
+
VOLUME+
Assign the System
Control function to
the SYSTEM
CONTROL buttons
COMMANDER OFF
+
MORE
Program the PowerOn command to the
Component Select
buttons
COMMANDER OFF
+
VOLUME–
Program a command
to the SYSTEM
CONTROL buttons
or Component Select
buttons
Copy the settings of
one Component
Select button to
another
page 15
+
VOLUME–
page 22
page 23
page 31
+
+
Component Select
page
32, 36
COMMANDER OFF
+
CHANNEL+
COMMANDER OFF
+
(copy to) Component Select
VOLUME+
page 34
x
(copy to) Component Select
+
(copy from) Component Select
Program a System
Control functions for
Component Select
buttons
COMMANDER OFF
+
VOLUME+
Set the interval of the
System Control
functions
COMMANDER OFF
+
CHANNEL+
+
CHANNEL–
COMMANDER OFF
+
CHANNEL–
+
VOLUME–
Transfer data
74
Press
page 28
+
Component Select
page 29
page 38
To
Program a Channel
Macro function
Press
COMMANDER OFF
CHANNEL+
Turn the key-touch
beep on/off
For
details,
see
page 42
MUTING
x
+ Component Select
COMMANDER OFF
x
(ON) MUTING
(OFF) MUTING
Set the Auto PowerOff time
+
+
+
+
page 50
MUTING
VOLUME+
VOLUME–
COMMANDER OFF
+
CHANNEL+
Set the Auto-Off time/
brightness of the
COMMANDER OFF
Backlight
+
LIGHT
Lock the Remote
Commander
COMMANDER OFF
+
Display Panel
COMMANDER OFF
+
MUTING
Create an Alias
Component key
COMMANDER OFF
+
RECALL
Adjust the beam
interval (keys in each
Component button)
COMMANDER OFF
+
CHANNEL–
+
Component Select
Adjust the beam
interval (SYSTEM
CONTROL buttons)
COMMANDER OFF
+
CHANNEL+
+
MORE
Adjust the beam
interval (Component
buttons)
COMMANDER OFF
+
CHANNEL+
+
Component Select
Protect the settings
+
VOLUME–
page 48
page 49
page 46
page 46
+
Component Select
page 44
page 51
page 52
page 53
75
Index
A
Adjusting the beam interval
51
Alias Component key 43
Auto Power-Off
of the Commander 47
of the backlight 48
Preset components 8
Preset Lock Function 46
E
S
Erasing
See “Clearing/
Changing”
R
Receiving data 40
Backlight
adjusting 48
Auto Power-Off 47
batteries 6
Batteries 6
H
Input select 14
SYSTEM CONTROL
buttons
programming a signal
35
programming System
control function 22
System Control function
changing interval 29
clearing 26, 29
programming 23, 27
SYSTEM CONTROL A
button 26
C, D
K
T, U
Changing
function display of keys
18
interval of the System
Control function 29
time of Auto Power-off
47
CHANNEL button 7
Channel Macro function 41
Clearing/Changing
Channel Macro function
43
learned signal 19, 33, 36
System Control function
25, 29
Code number 8
Component Select buttons
copying settings 34
programming a signal
30
programming System
Control function 27
receiving data 40
setting Power-On
function 30
transferring data 37
COMMANDER OFF button
7
Key touch beep 50
Transferring data 37
Troubleshooting 55
B
76
Copying
data to another
commander 37
settings of Component
Select buttons 35
Printed in Malaysia
F, G
Factory setting 8, 21, 26
Hold Function 46
I, J
L
LCD
Auto-Off time 47
brightness 48
touch keys 68
Learning Function 15, 33,
35
LIGHT button 7, 48
Locking
control of Commander
46
settings on Commander
46
M, N, O
MUTING button 7, 11, 17,
22
P, Q
Power-On function
setting 30
SYSTEM CONTROL C
button 26
Power-Off function
See “Auto Power-off”
V, W, X, Y, Z
VOLUME buttons 7, 11, 17,
22
Volume Control 14, 21
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
