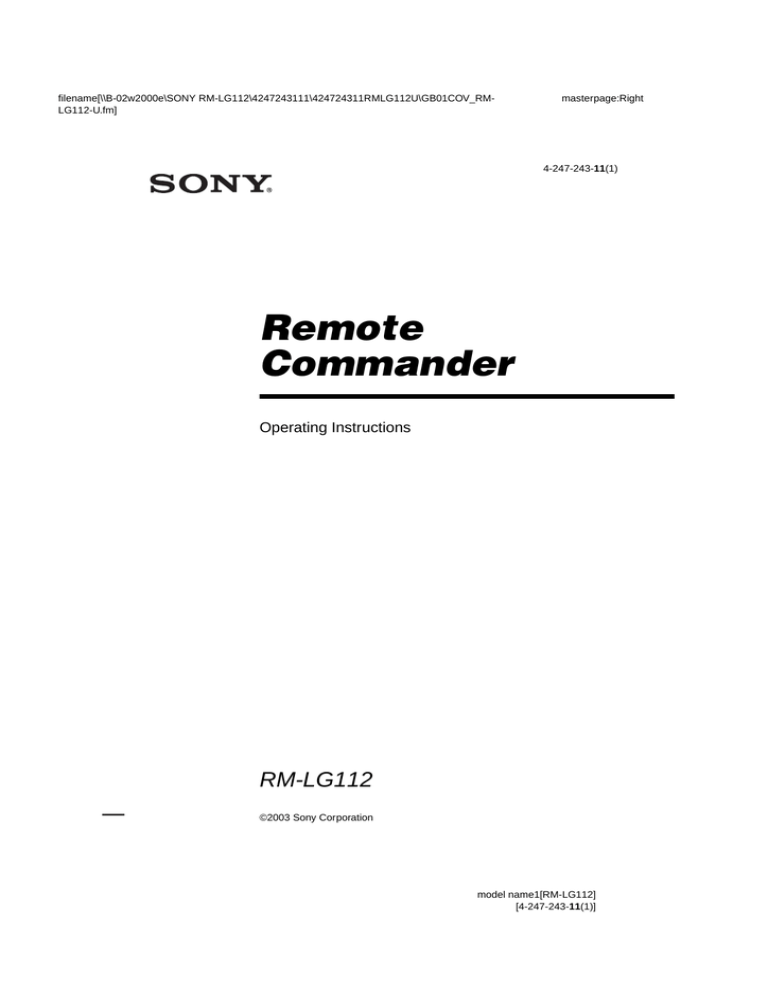

4-247-243-11(1)
Remote
Commander
Operating Instructions
RM-LG112
©2003 Sony Corporation
model name1[RM-LG112]
[4-247-243-11(1)]
filename[\\B-02w2000e\SONY RM-LG112\4247243111\424724311RMLG112U\GB02REG_RMLG112-U.fm]
masterpage:Left
Precautions
On safety
Should any solid object or liquid fall into the cabinet,
unplug the receiver and have it checked by qualified
personnel before operating it any further.
On operation
Before connecting other components, be sure to turn
off and unplug the receiver.
On cleaning
Clean the cabinet, panel and controls with a soft cloth
slightly moistened with a mild detergent solution. Do
not use any type of abrasive pad, scouring powder or
solvent such as alcohol or benzine.
If you have any question or problem concerning
your remote, please consult your nearest Sony
dealer.
Before you use your remote
Inserting batteries into the
remote
Insert two R6 (size-AA) batteries with the + and
– properly oriented in the battery compartment.
Tip
Under normal conditions, the batteries should last for
about 6 months. When the remote no longer operates
the receiver, replace all the batteries with new ones.
Notes
• Do not leave the remote in an extremely hot or humid
place.
• Do not use a new battery with old ones.
• Do not expose the remote sensor of the receiver to
direct sunlight or lighting apparatuses. Doing so may
cause a malfunction.
• If you don’t use the remote for an extended period of
time, remove the batteries to avoid possible damage
from battery leakage and corrosion.
2GB
model name1[RM-LG112]
[4-247-243-11(1)]
filename[\\B-02w2000e\SONY RM-LG112\4247243111\424724311RMLG112U\GB01COV-RMLG112-UTOC.fm]
masterpage:Right
Table of Contents
Location of Parts and Basic
Remote Operations
Parts description...................................... 4
Table of buttons used to control each
component ........................................ 8
Advanced Remote Operations
Programming the remote......................... 9
Learning the commands of your
components ..................................... 12
Performing several commands in
sequence automatically................... 13
— Macro Play
Selecting the mode of the remote.......... 14
Additional Information
Troubleshooting .................................... 15
Specifications........................................ 15
3GB
model name1[RM-LG112]
[4-247-243-11(1)]
filename[\\B-02w2000e\SONY RM-LG112\4247243111\424724311RMLG112U\GB03BSC_RMLG112-U.fm]
masterpage:Left
A.F.D. w;
Location of Parts and Basic Remote
Operations
This chapter provides information on the
location of buttons and how to use them to
perform basic operations.
However, some functions explained in this
section may not work depending on the model of
the receiver.
For the functions of the receiver you purchased,
refer to the Operating Instructions supplied with
the receiver.
Press to set the receiver to automatically
select the appropriate decoding mode for
the input signal.
ALT 8
Press to change remote key function to
activate those buttons with orange printing.
ANT* (After pressing ALT) qh
When you selected VCR, press to select
output signal from antenna terminal: TV
signal or VCR program.
AUDIO qk
Changing the sound to Multiplex, Bilingual
or Multi channel TV sound.
Parts description
AV MENU qa
wa
Press to display the menus of the VCR,
satellite tuner, or DVD.
?/1
TV ?/1
AV ?/1
L USE MODE P
1
2
3
w;
ql
2CH
A.F.D.
1
DIRECT
3
AAC
SB
BI-LING DECODING
5
7
9
SUBTITLE
ENTER
>
0/10
>10/11
SHIFT D.TUNING
12
DISC
ANT
ALT
-
M
m
CLEAR SEARCH MODE
X
N
TOP MENU/
GUIDE
MASTER
VOL
G
DISPLAY
TV VOL
q;
qa
g
qs
f
qf
6
7
8
9
x
MUTING
AV MENU
F
Press to turn the selected audio and video
components on or off.
If you press the ?/1 switch at the same
time, it will turn off the receiver and other
Sony audio/video components (SYSTEM
STANDBY).
PRESET/
CH/D.SKIP
JUMP/
TIME
8
.
4
5
6
SWAP/
ANGLE
AUDIO
MUSIC
MOVIE
2
TEST
TONE
4
qk
qj
qh
qg
AV ?/1 wa
SYSTEM STANDBY SLEEP
Note
The function of the AV ?/1 switch changes
automatically each time you select the input with
the easy scroll key (3). Depending on the
component, the above operation may not be
possible or may operate differently than
described.
CLEAR* (After pressing ALT) qg
O
RETURN/EXIT
TV CH
TV/
VIDEO
MAIN
MENU
qd
WIDE ON SCREEN
When you selected CD player or DVD
player, press if you made a mistake when
you press the numeric buttons or press to
return to the continuous play, etc.
D.TUNING* qg
When you selected tuner, press to enter
direct tuning mode.
DIRECT ql
?/1 1
Press to turn the receiver on or off.
Press to select DIRECT function.
DISC* 9
When you selected CD player or video CD
player, press to select a disc directly (multidisc changer only).
4GB
model name1[RM-LG112]
[4-247-243-11(1)]
filename[\\B-02w2000e\SONY RM-LG112\4247243111\424724311RMLG112U\GB03BSC_RMLG112-U.fm]
DISPLAY* qf
Display 2
Select the input, macro list and command
mode of the remote.
Easy scroll key 3
Press to toggle between the previous and
the current channels.
If you selected CD player, video CD
player, or DVD player:
Press to display the time information.
MAIN MENU qd
Press to select the menu of the receiver.
Move to select the input and press to enter
the selection. The components are factory
assigned to the inputs as follows. When you
want to assign other components, program
the remote following the steps on
“Programming the remote” on page 9.
MASTER VOL +/– qs
Input(s)
Assigned component(s)
MUSIC 5
VIDEO 1
VIDEO 2
VIDEO 3
VCR (VTR mode 3)
VCR (VTR mode 1)
VCR (VTR mode 2)
DVD
DVD player
TV/SAT
TV tuner
TAPE
Tape deck (B)
MD/DAT
MD deck
CD/SACD
CD player
TUNER
Built-in tuner
PHONO
Turntable
MULTI
Component connected to the
multi channel input jacks on the
receiver
M1, M2*
(Macro list)
* For details, see page 13.
See the table on page 8 for information on
the buttons that you can use to control each
component.
Note that the inputs are factory-set as
described in the table above. If you want to
change the factory setting of the buttons to
match your particular components, do the
procedure “Programming the remote” on
page 9.
Press to adjust the volume level of all
speakers at the same time.
MOVIE 4
Press to select the sound fields for movies.
Press to select the sound fields for music.
MUTING q;
Press to mute the sound.
Numeric buttons (1–9, 0/10)* (After
pressing ALT) qj
If you selected tuner:
Use with SHIFT to select tuner preset
station numeric input during DIRECT
TUNING or MEMORY mode.
If you selected CD player, video CD
player, DVD player, MD deck, or DAT
deck:
Press to select track numbers. 0/10 selects
track 10.
If you selected TV, VCR, or satellite
tuner:
Press to select channel numbers.
Location of Parts and Basic Remote Operations
Press to select the information displayed on
the display of the receiver or TV screen.
masterpage:Right
* The function of these buttons switch automatically
each time you select the input with the easy scroll key
(3). Depending on the component, the above
operation may not be possible or may operate
differently than described.
ENTER (After pressing ALT) 7
After selecting a channel, disc or track
using the numeric buttons, press to enter the
valve.
JUMP/TIME* 6
If you selected TV:
continued
5GB
model name1[RM-LG112]
[4-247-243-11(1)]
filename[\\B-02w2000e\SONY RM-LG112\4247243111\424724311RMLG112U\GB03BSC_RMLG112-U.fm]
masterpage:Left
SEARCH MODE* 9
ra
r;
When you selected DVD player, press to
select the search mode. Press to select the
unit for search (track, index, etc.).
?/1
TV ?/1
AV ?/1
L USE MODE P
SYSTEM STANDBY SLEEP
SHIFT* qh
el
2CH
A.F.D.
1
ek
ej
eh
2
TEST
TONE
DIRECT
4
3
AAC
SB
BI-LING DECODING
5
7
8
9
.
DISC
M
-
ANT
eg
>
0/10
>10/11
D.TUNING
m
12
ALT
wf
CLEAR SEARCH MODE
X
N
TOP MENU/
GUIDE
ef
ed
wd
ENTER
x
MUTING
AV MENU
g
f
DISPLAY
TV VOL
wg
wh
MASTER
VOL
F
G
es
Press repeatedly to activate the sleep
function and select the duration which the
receiver turns off automatically.
SUBTITLE* (After pressing ALT) eh
When you selected DVD player, press to
change the subtitles.
SWAP**/ANGLE* ej
O
RETURN/EXIT
TV CH
When you selected tuner, press repeatedly
to select a memory page for presetting radio
stations or tuning to preset stations.
SLEEP (After pressing ALT) 1
PRESET/
CH/D.SKIP
JUMP/
TIME
SUBTITLE
SHIFT
ws
6
SWAP/
ANGLE
AUDIO
MUSIC
MOVIE
TV/
VIDEO
MAIN
MENU
WIDE ON SCREEN
ea
wj
wk
wl
e;
If you selected TV:
Press to swap the small and large pictures
(only for Sony TVs with picture-in-picture
function).
If you selected DVD player:
Press to select viewing angle or changing
the angles.
TEST TONE ek
ON SCREEN wl
Press to output a test tone.
Press to display the menus of the receiver
on the TV screen (only for the models with
on screen function).
*
PRESET/CH/D.SKIP +/– wd
If you selected tuner:
Press to scan and select preset stations.
If you selected TV, VCR, or satellite
tuner:
Press to select preset channels.
If you selected CD player, video CD
player, DVD player, or MD deck:
Press to skip discs (multi-disc changer
only).
RETURN O/EXIT* wj
After pressing MAIN MENU, AV MENU,
or TOP MENU/GUIDE, press to return to
the previous menu or exit the menu.
SB DECODING ws
TOP MENU/GUIDE* ef
Press to display DVD titles or guide menus.
TV/VIDEO wk
Press to select the TV to input signal: TV
input or video input.
TV CH +/– ea
Press to select preset TV channels.
TV VOL +/– es
Press to adjust the volume of TV.
TV ?/1 r;
Press to turn the TV on or off.
USE MODE ra
Press to set up the remote.
WIDE e;
Press to switch the TV to the wide mode.
Press to select surround back decoding
mode.
6GB
model name1[RM-LG112]
[4-247-243-11(1)]
filename[\\B-02w2000e\SONY RM-LG112\4247243111\424724311RMLG112U\GB03BSC_RMLG112-U.fm]
2CH el
>10/11* (After pressing ALT) eh
When you selected CD player, video CD
player, LD player, MD deck, or tape deck,
press to select track number over 10.
component the above operation may not be possible
or may operate differently than described.
• To activate the buttons with orange printing, press
ALT first before pressing the buttons.
• Before you use the V/v/B/b/ENTER/EXECUTE
button for receiver operation, press MAIN MENU.
To operate other components, press TOP MENU/
GUIDE or AV MENU after selecting the input.
-/--* 9
When you selected TV, press to select the
channel entry mode, either one or two digit.
V/v/B/b/ENTER/EXECUTE ed
After pressing MAIN MENU, AV MENU,
or TOP MENU/GUIDE, use the button to
make specific settings, then press the button
to enter the selection.
H eg
Press to start play. (Press to start play on the
front sides of the cassette.)
Location of Parts and Basic Remote Operations
Press to turn the sound field off and listen to
2 channel stereo sound. Multi channel
source is also downmixed to a 2 channel
stereo sound.
masterpage:Right
X wh
Press to pause play or recording, or press to
start recording when the component is in
recording standby.
x wg
Press to stop play.
./> wf
Press to skip tracks.
m/M qgqh
Press to fast-forward or rewind.
Press to search tracks in the forward or
backward direction.
* The function of these buttons switch automatically
each time you select the input with the easy scroll
key (3). Depending on the component, the above
operation may not be possible or may operate
differently than described.
** Only for Sony TVs with the picture-in-picture
function.
Notes
• The AAC BI-LING and 12 buttons are not available.
• Some buttons may not be used depending on the
model.
• The above explanation is intended to serve as an
example only. Therefore, depending on the
7GB
model name1[RM-LG112]
[4-247-243-11(1)]
filename[\\B-02w2000e\SONY RM-LG112\4247243111\424724311RMLG112U\GB03BSC_RMLG112-U.fm]
masterpage:Left
Table of buttons used to control each component
When you program the remote to control the following Sony or non-Sony components, you can use the
buttons on the remote that are marked with circles. Note, however, that some buttons may not operate
your component.
Component
CD
player
DAT
deck
MD
deck
Tape
deck
(A and
B)
LD
player
AV ?/1
z
z
z
Numeric buttons
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
H
z
X
z
z
z
z
z
z
z
z
z
z
z
z
z
z
x
z
z
z
z
z
z
z
z
z
./>
z
z
z
z*
z
z
z
z
m/M
z
z
z
z
z
z
z
z
z
z
Button(s)
SUBTITLE
>10/11
TV
z
z
z
z
z
z
z
z
z
z
z
z
SWAP
ANGLE
z
JUMP
TIME
z
z
z
z
DISC**
-/-SEARCH MODE
z
ENTER
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
AV MENU
z
TOP MENU/GUIDE
z
RETURN O
EXIT
z
z
z
z
z
z
z
z
z
z
z
z
V/v/B/b/ENTER/
EXECUTE
CLEAR
DVD
player
z
z
AUDIO
DISPLAY
Satellite Video
tuner/
CD
Cable player
box
z
ANT
D.SKIP**
PRESET/CH +/–
VCR
z
z
z
z
z
* B deck only.
** With a multi-disc changer only.
8GB
model name1[RM-LG112]
[4-247-243-11(1)]
filename[\\B-02w2000e\SONY RM-LG112\4247243111\424724311RMLG112U\GB04ADV_RMLG112-U.fm]
Advanced Remote Operations
Programming the remote
twice and the remote automatically exits the
programming mode.
5
Repeat steps 1 to 4 to control other
components.
To cancel programming
Press USE MODE during any step. The remote
automatically exits the programming mode.
To use the programmed input
You can program the remote to control nonSony components. Once the control signals have
been memorized, you can use those components
as part of your system.
Furthermore, you can also program the remote
for Sony components that the remote is unable to
control. Note that the remote can only control
components that accept infrared wireless control
signals.
Note
You cannot program “SOURCE”.
1
Press AV ?/1 while holding down USE
MODE.
The USE MODE button lights and “IR
SET” appears in the display.
2
Move the easy scroll key to select the
input you want to control, then press
the key to enter the selection.
For example, if you are going to control a
CD player, select CD/SACD.
You can also select the TV ?/1 button.
3
Press the numeric buttons to enter the
numeric code (or one of the codes if
more than one code exists)
corresponding to the component and
the maker of the component you want
to control.
See the tables starting from page 10 for
information on the numeric code(s)
corresponding to the component and the
maker of the component. (The first digit and
the last two digits of the numeric code
correspond to the category and the maker’s
code respectively.)
4
Move the easy scroll key to select the
programmed input, then press the key to enter
the selection.
If programming is unsuccessful,
check the following:
• If the USE MODE button does not light up in step
1, the batteries are weak. Replace both batteries.
• If the USE MODE button flashes 4 times in quick
succession while entering the numeric code, an error
has occurred. Start again from step 1.
• In step 1, the remote automatically exits the
programming mode if 60 seconds has passed after
pressing USE MODE. Start again from step 1.
Advanced Remote Operations
This chapter describes how to change the factory
setting of the easy scroll key and how to set the
remote to control non-Sony components.
masterpage:Right
Notes
• The USE MODE button turns off while a valid
button is pressed.
• In step 2, if you press the easy scroll key several
times, only the last selected input is valid.
• In step 2, if you press TV ?/1, only TV VOL +/–,
TV CH +/–, TV/VIDEO and WIDE buttons are
reprogrammed.
• In step 3, if you press the easy scroll key, the new
input is selected and the programming procedure
returns to the beginning of step 3.
• For the numeric codes, only the first three numbers
entered are valid.
To clear the memory of the
remote
Press ?/1, AV ?/1 and MASTER VOL – at the
same time. The USE MODE button flashes 3
times, then goes off.
Press ENTER.
Once the numeric code has been verified,
the USE MODE button slowly flashes
continued
9GB
model name1[RM-LG112]
[4-247-243-11(1)]
filename[\\B-02w2000e\SONY RM-LG112\4247243111\424724311RMLG112U\GB04ADV_RMLG112-U.fm]
The numeric codes
corresponding to the
component and the maker of
the component
masterpage:Left
To control a DAT deck
Maker
Code(s)
SONY
203
PIONEER
219
Use the numeric codes in the tables below to
control non-Sony components and also Sony
components that the remote is normally unable
to control. Since the remote signal that a
component accepts differs depending on the
model and year of the component, more than one
numeric code may be assigned to a component.
If you fail to program your remote using one of
the codes, try using other codes.
To control a tape deck
Notes
• The numeric codes are based on the latest
information available for each brand. There is a
chance, however, that your component will not
respond to some or all of the codes.
• All of the functions on this remote may not be
available when used with your particular component.
TECHNICS
215, 216
YAMAHA
217, 218
To control a tuner
Maker
Code(s)
SONY
002, 003, 004, 005
To control a CD player
Maker
Code(s)
SONY
101, 102, 103
DENON
123, 104
JVC
105, 106, 107
KENWOOD
108, 109, 110
MAGNAVOX
111, 116
MARANTZ
116
ONKYO
112, 113, 114
PANASONIC
115
PHILIPS
116
PIONEER
117
TECHNICS
115, 118, 119
Maker
Code(s)
SONY
201, 202
DENON
204, 205
KENWOOD
206, 207, 208, 209
NAKAMICHI
210
PANASONIC
216
PHILIPS
211, 212
PIONEER
213, 214
To control an MD deck
Maker
Code(s)
SONY
301
DENON
302
JVC
303
KENWOOD
304
To control a DVD player
Maker
Code(s)
SONY
401, 402, 403
PANASONIC
408, 406
PHILIPS
407
PIONEER
409
TOSHIBA
404
DENON
405
10GB
model name1[RM-LG112]
[4-247-243-11(1)]
filename[\\B-02w2000e\SONY RM-LG112\4247243111\424724311RMLG112U\GB04ADV_RMLG112-U.fm]
masterpage:Right
To control a VCR
Maker
Code(s)
Maker
Code(s)
SONY
501, 502
SONY
701, 702, 703, 704, 705, 706
DAEWOO
544, 515
AIWA
757, 758, 710, 750
FISHER
508
BLAUPUNKT
740
GOLDSTAR
544, 503, 515, 534
EMERSON
750
GRUNDIG
534
722, 730
HITACHI
544, 515
GENERAL
ELECTRIC
JVC
516
HITACHI
722, 729, 741
544, 503, 518
JVC
726, 727, 728, 736
MITSUBISHI/
MGA
544, 503
MAGNAVOX
730, 731, 738
NEC
736
NEC
544, 503
PANASONIC
729, 730, 737, 738, 739, 740
PANASONIC
509, 524
PHILIPS
729, 730, 731
PHILIPS
515, 518
PIONEER
729
PIONEER
509, 525, 526, 540
RCA/PROSCAN 722, 729, 730, 731, 741, 747
MAGNAVOX
RCA/PROSCAN 544, 510, 527, 528, 529
TOSHIBA
747
SAMSUNG
544, 503, 515, 531, 532, 533, 534
SANYO
508, 545, 546, 547
SHARP
535
To control a satellite tuner or
cable box
TOSHIBA
535, 540
Maker
Code(s)
ZENITH
542, 543
SONY
801, 802, 803, 804
JERROLD/G.I.
806, 807, 808, 809, 810, 811,
812, 813, 814
818
To control an LD player
Advanced Remote Operations
To control a TV
Maker
Code(s)
PANASONIC
SONY
601, 602, 603
RCA
819, 805
PIONEER
606
S.ATLANTA
815, 816, 817
To control a video CD player
Maker
Code(s)
SONY
605
11GB
model name1[RM-LG112]
[4-247-243-11(1)]
filename[\\B-02w2000e\SONY RM-LG112\4247243111\424724311RMLG112U\GB04ADV_RMLG112-U.fm]
Learning the commands of
your components
By using the Learning function, it is possible for
this remote to perform learned commands.
Setting remote control codes
that are not stored in the
remote
When a remote control code is not one of the
presets stored in the remote, it is possible for the
remote to learn the code using the Learning
function.
1
Press TV ?/1 while holding down USE
MODE.
The USE MODE button lights and
“LEARN” appears in the display.
2
Move the easy scroll key to select the
input you want to learn commands for,
then press the key to enter the
selection.
For example, if you are going to learn an
operation for a CD player, select CD/
SACD.
You can also select the TV ?/1 button.
3
Press the button you want to use for
the Learning function.
The USE MODE button turns off while a
valid button is pressed, then blinks slowly.
4
Point the remote control code receiver
section of the remote towards the
receiver/transmitter on the remote
control to be learned.
and the remote automatically exits the
learning mode.
When learning is not completed
successfully, the USE MODE button
flashes 4 times in quick succession and the
procedure returns to step 5.
If the memory of the remote is already full,
the USE MODE button flashes 8 times in
quick succession and the remote
automatically exits the learning mode.
Notes
• You can program at the most 80 keys for the
Learning function. In some cases, you may not be
able to program even if you have not programmed 80
buttons.
• In steps 2 and 3, the USE MODE button turns off
while a valid button is pressed.
• In step 3, if several buttons that can be used for
learning are pressed, only the last pressed button is
valid. The USE MODE button blinks slowly, then
lights when the valid button is selected.
• In step 5, if a button that can be used for learning is
pressed, the new button is selected and the learning
procedure returns to the beginning of step 5.
To cancel learning
Press USE MODE during any step. The remote
automatically exits the learning mode.
To clear the learned codes
.
>
f
F
M
G
N
m
Start again from step 1.
After step 3, press TV ?/1 for more than 2
seconds. The USE MODE button blinks twice
slowly and the learned code is cleared.
If TV ?/1 is pressed less than 2 seconds, the
learning procedure returns to the beginning of
step 5.
When a learned code is cleared, if the button was
previously programmed for another input, the
programmed code for that input can be used.
g
P
X
O
-
x
To use the learned input
5-10 cm
5
masterpage:Left
Press the appropriate button on the
remote control to be learned to send
the remote button code.
Lightly pressing the button once should be
sufficient.
If learning is completed successfully, the
USE MODE button slowly flashes twice
Move the easy scroll key to select the learned
input, then press the key to enter the selection.
To use a command that has been
learned
Select a learned input, then press the learned
button for that input.
12GB
model name1[RM-LG112]
[4-247-243-11(1)]
filename[\\B-02w2000e\SONY RM-LG112\4247243111\424724311RMLG112U\GB04ADV_RMLG112-U.fm]
To clear the memory of the
remote
Press ?/1, AV ?/1 and MASTER VOL – at the
same time. The USE MODE button flashes 3
times, then goes off.
masterpage:Right
— Macro Play
The Macro Play function lets you link several IR
codes in a sequential order as a single command.
The remote provides 2 macro lists (M1 and M2).
You can specify up to 10 IR codes for each
macro list.
Setting the sequence of IR
codes
1
Press TV ?/1 while holding down USE
MODE.
Advanced Remote Operations
Performing several
commands in sequence
automatically
The USE MODE button lights and
“LEARN” appears in the display.
2
3
Move the easy scroll key to select “M1”
or “M2”, then press the key to enter the
selection.
Press the numeric buttons to select the
macro step number.
For example, to program step 1, press 1.
You can also move the easy scroll key to
select the macro step number.
The USE MODE button blinks slowly.
4
5
Point the remote control code receiver
section of the remote towards the
receiver/transmitter on the remote
control to be learned.
Press the appropriate button on the
remote control to be learned to send
the remote button code.
Lightly pressing the button once should be
sufficient.
If learning is completed successfully, the
USE MODE button slowly flashes twice
and the remote automatically exits the
macro setting mode.
When learning is not completed
successfully, the USE MODE button
flashes 4 times in quick succession and the
procedure returns to step 5.
continued
13GB
model name1[RM-LG112]
[4-247-243-11(1)]
filename[\\B-02w2000e\SONY RM-LG112\4247243111\424724311RMLG112U\GB04ADV_RMLG112-U.fm]
If the memory of the remote is already full,
the USE MODE button flashes 8 times in
quick succession and the remote
automatically exits the learning mode.
6
Repeat steps 1 through 5 to program
up to 10 IR codes.
Tip
If programming is unsuccessful, check the following:
– If the USE MODE button does not light up in step 1,
the batteries are weak. Replace both batteries.
– If the USE MODE button lights 4 times in quick
succession in step 3, an error has occurred. Start
again from step 1.
To cancel programming
Press USE MODE during any step. The remote
automatically exits the macro setting mode.
Selecting the mode of the
remote
You can switch the command mode (AV1 or
AV2) of the remote. If the command mode of the
receiver and the remote is different, you cannot
use the remote to operate the receiver.
1
2
3
To delay the output of an IR code
Start over from step 1.
In step 3, press the easy scroll key lightly (for
less than 2 seconds). A 1 second delay is
programmed. The USE MODE button lights
twice slowly, then the remote automatically
exits the macro setting mode.
To clear the programmed IR
codes
Clear each macro step individually. In step 3,
press the easy scroll key for more than 2
seconds. The IR code is cleared. The USE
MODE button lights twice slowly, then the
remote automatically exits the macro setting
mode.
To start macro play
Move the easy scroll key to select “M1” or
“M2”, then press the key to enter the
selection
Note
masterpage:Left
Press ?/1 while holding down USE
MODE.
Move the easy scroll key to select
“MAIN”, then press the key to enter the
selection.
Move the easy scroll key to select
“AV1” or “AV2”, then press the key to
enter the selection.
The USE MODE button lights once (or
twice for AV2), then the command mode
switches.
To set the 2nd zone mode (North
American models only)
You can use the remote to select the input for the
2nd zone. You can use the easy scroll key only
for the 2nd zone.
1
2
Press ?/1 while holding down USE
MODE.
Move the easy scroll key to select
“2ND”, then press the key to enter the
selection.
The USE MODE button lights once, then
the command mode switches.
To reset the remote to factory
settings
Press ?/1, AV ?/1, and MASTER VOL – at
the same time. The USE MODE button lights 3
times, then goes off.
If the Macro Play function does not work properly,
program a delay between each operation. See “To
delay the output of an IR code”.
14GB
model name1[RM-LG112]
[4-247-243-11(1)]
filename[\\B-02w2000e\SONY RM-LG112\4247243111\424724311RMLG112U\GB05BCO_RMLG112-U.fm]
Additional Information
Troubleshooting
Specifications
General
Remote control system
Power requirements
Dimensions
Mass (approx.)
Infrared control
3 V DC with two R6
(size-AA) batteries
210 × 49 × 27 mm
85 g excluding batteries
Design and specifications are subject to change
without notice.
The remote does not function.
• The AAC BI-LING and 12 buttons are not
available.
• Check that the mode of the remote corresponds to
that of the receiver (page 14).
• Point the remote at the remote sensor
on the
component.
• Remove any obstacles in the path between the
remote and the receiver.
• Replace both batteries in the remote with new
ones, if they are weak.
• Make sure you select the correct input on the
remote.
• When you operate a programmed non-Sony
component, the remote may not function properly
depending on the model and the maker of the
component.
• Press MAIN MENU before you use the V/v/B/
b/ENTER/EXECUTE button for receiver
operation (page 7).
Additional Information
If you experience any of the following
difficulties while using the receiver, use this
troubleshooting guide to help you remedy the
problem. Should any problem persist, consult
your nearest Sony dealer.
masterpage:Right
15GB
model name1[RM-LG112]
[4-247-243-11(1)]
filename[\\B-02w2000e\SONY RM-LG112\4247243111\424724311RMLG112U\GB05BCO_RMLG112-U.fm]
masterpage:Left
Sony Corporation Printed in Malaysia
model name1[RM-LG112]
[4-247-243-11(1)]
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
