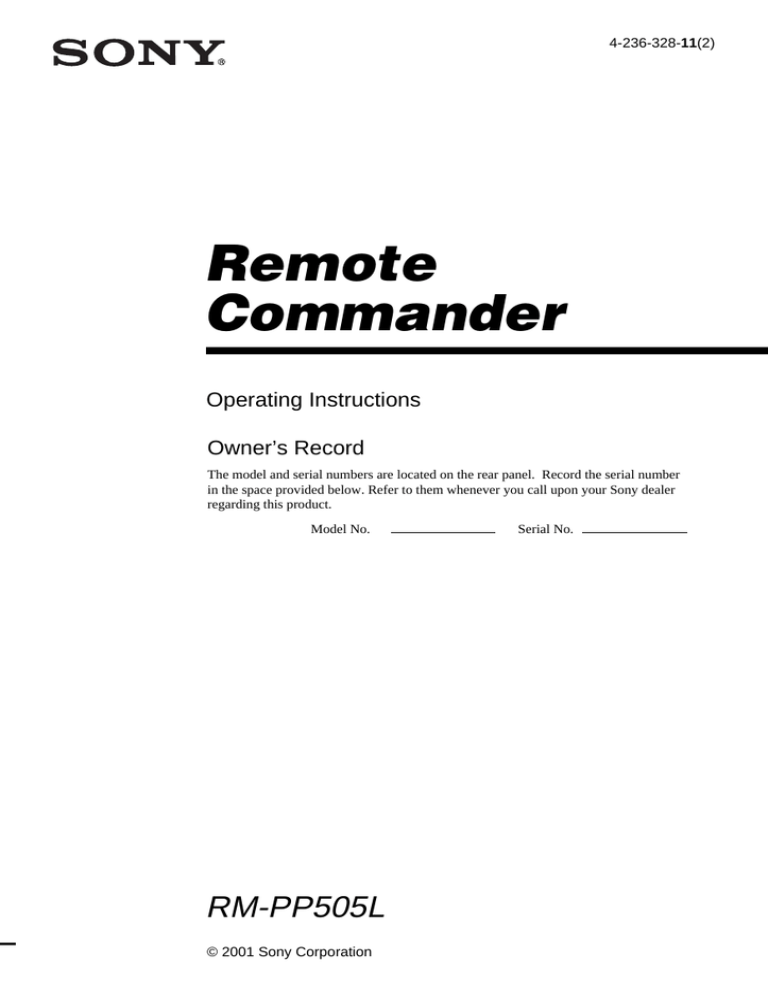

4-236-328-11(2)
Remote
Commander
Operating Instructions
Owner’s Record
The model and serial numbers are located on the rear panel. Record the serial number
in the space provided below. Refer to them whenever you call upon your Sony dealer
regarding this product.
Model No.
RM-PP505L
© 2001 Sony Corporation
Serial No.
Precautions
On safety
Should any solid object or liquid fall into the cabinet,
unplug the receiver and have it checked by qualified
personnel before operating it any further.
On operation
Before connecting other components, be sure to turn
off and unplug the receiver.
On cleaning
Clean the cabinet, panel and controls with a soft cloth
slightly moistened with a mild detergent solution. Do
not use any type of abrasive pad, scouring powder or
solvent such as alcohol or benzine.
If you have any question or problem
concerning your remote, please consult your
nearest Sony dealer.
2
About this manual
The instructions in this manual are for model
RM-PP505L. Check your model number by
looking at the lower right corner of the front
side.
Before you use your
remote
Check that you received the following item
with the remote:
R6 (size-AA) batteries (2)
Inserting batteries into the
remote
Insert two R6 (size-AA) batteries with the +
and – properly oriented in the battery
compartment. When using the remote, point it
at the remote sensor on the receiver.
Table of Contents
Location of Parts and Basic
Remote Operations
Parts description .................................... 4
Table of buttons that you can use to
control each component .................. 9
Advanced Remote Operations
Programming the remote ..................... 10
Learning the commands of your
components ................................... 13
Performing several commands in
sequence automatically
(Macro Play) .................................. 14
Selecting the mode of the remote ........ 15
Additional Information
Tip
Under normal conditions, the batteries should last for
about 6 months. When the remote no longer operates
the receiver, replace both batteries with new ones.
Troubleshooting ..................... Back cover
Specifications ........................ Back cover
Notes
• Do not leave the remote in an extremely hot or
humid place.
• Do not use a new battery with an old one.
• Do not expose the remote sensor of the receiver to
direct sunlight or lighting apparatuses. Doing so
may cause a malfunction.
• If you don’t use the remote for an extended period
of time, remove the batteries to avoid possible
damage from battery leakage and corrosion.
3
Location of Parts and Basic Remote
Operations
1 Function buttons
This chapter provides information on the
location of buttons and how to use them to
perform basic operations.
However, some functions explained in this
section may not work depending on the model
of the receiver.
For the functions of the receiver you purchased,
refer to the Operating Instructions supplied
with the receiver.
Parts description
qd
USE MODE
VIDEO 1
TAPE
MONITOR
?/1
AV ? / 1
SLEEP
VIDEO 2
VIDEO 3
MD/DAT CD/SACD
AV1
AV2
1
SYSTEM
STANDBY
DVD/LD
TUNER
PHONO
2ND ROOM
3
(SOURCE)
TV/VIDEO
SEARCH
MODE
5
6
7
8
9
MACRO 2
WIDE
CLEAR
SHIFT
– /– –
>10
/11
– SUB CH +
POSITION
M
– VOL +
n
N
O
A.F.D.
qs
qa
AV
DISPLAY
/10
2
/12
.
>
P IN P
X
x
SOUND FIELD
2CH
MODE
TEST
TONE
TITLE/
GUIDE
ENTER/
EXEC
3
DISC
JUMP
D. SKIP/
CH/PRESET
PRESET
NIGHT
MODE
EQ/
TONE
MULTI/2CH
A. DIRECT
AV
MENU
ON
SCREEN
MUTING
MAIN
MENU
EXIT/
RETURN
MASTER
VOL
4
5
6
7
8
9
0
4
VIDEO1
VIDEO2
VIDEO3
VCR (VTR mode 3)
VCR (VTR mode 1)
VCR (VTR mode 2)
DVD/LD
DVD player
TV/SAT
TV tuner
TAPE
Tape deck
MD/DAT
MD deck
CD/SACD
CD player
TUNER
Built-in tuner
PHONO
Turntable
See the table on page 9 for information on
the buttons that you can use to control each
component.
SWAP
MUTING
Assigned
ANT
TV/VTR
ENTER
0
D.TUNING
m
1
MACRO 1
4
Button(s)
component(s)
TV/SAT
3RD
2
Press one of the buttons to select the
component you want to use. When you
press a button, the receiver turns on. The
components are factory assigned to the
buttons as follows. When you want to
assign other components, program the
remote following the steps on page 10.
Note that the function buttons are factoryset as described in the table above. If you
want to change the factory setting of the
buttons to match your particular
components, do the procedure
“Programming the remote” on page 10.
2 Remote mode buttons
Press to select the mode of the remote (page
15).
3 MACRO 1, 2 buttons
Press to use Macro Play function (page 14).
4 SOUND FIELD buttons
Press to set the receiver to automatically
select the appropriate sound field for the
input signal.
This button can be used only with receivers
that have digital inputs.
MODE +/– button
Press to select sound fields.
2CH button
Press to turn the tone effect on or off.
Note that if you have adjusted the tone
using the MAIN MENU button and cursor
buttons, the adjusted tone will be produced
whenever you turn on the tone effect.
7 MUTING button
Press to mute the sound.
8 ON SCREEN button
Press to display the menus of the receiver
on the TV screen.
9 MASTER VOLUME +/– buttons
Press to adjust the volume level of all
speakers at the same time.
0 MAIN MENU button
Press to select the cursor mode of the
receiver (LEVEL, SURROUND, or EQ).
Press to turn the sound field off and listen to
2 channel stereo sound.
Multi channnel source is also downmixed to
a 2 channel stereo sound.
qa NIGHT MODE button
PRESET button
qs TEST TONE button
Press to select CINEMA STUDIO A, B, or
C, etc.
5 MULTI/2CH A. DIRECT button
Press to select the multi channel input
sources.
Press to select NIGHT MODE.
Press to output a test tone.
qd SLEEP button
Press repeatedly to activate the sleep
function and the duration which the receiver
turns off automatically.
Location of Parts and Basic Remote Operations
A.F.D. button
6 EQ/TONE button
continued
5
Parts description (continued)
wk
wj
VIDEO 3
DVD/LD
TV/SAT
MD/DAT CD/SACD
TUNER
PHONO
Press to turn the selected audio and video
components under the function button, on or
off.
If you press the ?/1 switch at the same
time, it will turn off the main component
and other Sony audio/video components
(SYSTEM STANDBY).
2ND ROOM
Note
USE MODE
TAPE
MONITOR
?/1
AV ? / 1
SLEEP
VIDEO 1
qf AV ?/1 switch
VIDEO 2
AV1
AV2
1
SYSTEM
STANDBY
3RD
2
qf
3
(SOURCE)
TV/VIDEO
wh
wg
wf
wd
SEARCH
MODE
MACRO 1
4
5
6
7
8
9
CLEAR
SHIFT
– /– –
>10
/11
– SUB CH +
m
M
– VOL +
n
N
AV
DISPLAY
/10
/12
POSITION
SWAP
.
>
MUTING
P IN P
X
x
SOUND FIELD
2CH
MODE
TEST
TONE
TITLE/
GUIDE
NIGHT
MODE
EQ/
TONE
AV
MENU
ON
SCREEN
MAIN
MENU
w;
ENTER/
EXEC
ANT
TV/VTR
ENTER
0
D.TUNING
O
A.F.D.
ws
wa
MACRO 2
WIDE
DISC
JUMP
D. SKIP/
CH/PRESET
qg
qh
qj
PRESET
MULTI/2CH
A. DIRECT
MUTING
qk
The function of the AV ?/1 switch changes
automatically each time you press the function
buttons (1). Depending on the component, the
above operation may not be be possible or may
operate differently than described.
qg ANT TV/VTR / DISC button*
Press repeatedly to select the signal to be
output from the antenna terminal of the
VCR (TV signal or video signal). With a
CD player, press to select discs (mega
storage CD player only).
qh ENTER button
Press to enter the selection.
MASTER
VOL
qj D.SKIP/CH/PRESET +/– buttons*
EXIT/
RETURN
ql
If you selected tuner:
Press to scan and select preset stations.
If you selected TV, VCR, or SAT:
Press to select preset channels.
If you selected CD player:
Press to skip discs (CD player with multidisc changer only).
qk AV MENU button
Press to display the menus of the VCR,
satellite tuner, or DVD.
ql EXIT/RETURN button
After pressing the MAIN MENU, AV
MENU, or TITLE GUIDE button, press to
return to the previous menu or exit the
menu.
* The function of these buttons switch automatically
each time you press the function buttons (1). The
above explanation is intended to serve as an
example only. Therefore, depending on the
component, the above operation may not be
possible or may operate differently than described.
6
w; Cursor buttons (U/u/I/i), ENTER/
EXEC button
After pressing the MAIN MENU, AV
MENU, or TITLE/GUIDE button, use the
cursor buttons to make specific settings,
then press the ENTER/EXEC button to
enter the selection.
Press to display DVD titles or guide menus.
ws AV DISPLAY button
Press to select the information displayed on
the TV screen.
wd Operation buttons*
The following table describes the
component operated by each button and the
function of the buttons. See the table on
page 10 for information on the buttons that
you can use to control each component.
Button(s)
Function
./>
Skips tracks.
m/M
Fast forwards or rewinds.
Searches tracks in the forward or
backward direction.
n
Starts play on the reverse side of
the cassette.
N
Starts play. (Starts play on the
front side of the cassette.)
X
Pauses play or recording or starts
recording when the component is
in recording standby.
x
Stops play.
If you selected tuner:
Press repeatedly to select a memory page
for presetting radio stations or tuning to
preset stations.
If you selected VCR, TV, LD player, tape
deck, MD deck, or CD player:
Press before inputting a channel or track
number of eleven or higher.
wg CLEAR / -/-- / D.TUNING button*
If you selected DVD player:
Press if you made a mistake when you press
the numeric buttons.
If you selected TV or VCR:
Press to select the channel entry mode,
either one or two digit.
wh SEARCH MODE button
Press to select the search mode of DVD
player.
wj Indicator*
Lights up whenever any button on the
remote is pressed.
wk USE MODE button
Use to program the remote.
Location of Parts and Basic Remote Operations
wa TITLE/GUIDE button*
wf SHIFT / >10 button*
* The function of these buttons switch automatically
each time you press the function buttons (1). The
above explanation is intended to serve as an
example only. Therefore, depending on the
component, the above operation may not be
possible or may operate differently than described.
continued
7
Parts description (continued)
wl Numeric buttons (1 to 0)*
Press to select channel numbers.
e; JUMP button
TV operation
After pressing the MONITOR button, the
button lights up and you can use the following
buttons to operate TV.
AV ? / 1
SLEEP
USE MODE
VIDEO 1
TAPE
el
ek
ej
MONITOR
VIDEO 2
VIDEO 3
MD/DAT CD/SACD
AV1
AV2
1
2
TV/SAT
TUNER
PHONO
Press to swap the small and large
pictures**.
ed P IN P button
2ND ROOM
Press to activate the picture-in-picture
function**.
3
(SOURCE)
SEARCH
MODE
MACRO 1
4
5
6
7
8
9
wl
MACRO 2
WIDE
CLEAR
SHIFT
– /– –
>10
/11
– SUB CH +
m
M
– VOL +
n
AV
DISPLAY
/10
/12
POSITION
SWAP
.
>
MUTING
N
O
A.F.D.
X
TITLE/
GUIDE
x
PRESET
NIGHT
MODE
EQ/
TONE
MULTI/2CH
A. DIRECT
AV
MENU
ON
SCREEN
MUTING
MAIN
MENU
ENTER/
EXEC
DISC
JUMP
D. SKIP/
P IN P CH/PRESET
SOUND FIELD
2CH
MODE
TEST
TONE
ANT
TV/VTR
ENTER
0
D.TUNING
eh
eg
es SWAP button
SYSTEM
STANDBY
TV/VIDEO
ea POSITION button
Press to change the position of the small
picture**.
?/1
DVD/LD
3RD
Press to toggle between the previous and the
current channels.
MASTER
VOL
e;
ea
es
ed
ef
ef MUTING button
Press to mute the sound.
eg VOLUME +/– buttons
Press to adjust the volume of TV.
eh SUB CH +/– buttons
Press to change the sub channel selection.
ej WIDE button
Press to switch the TV to the wide mode.
wk TV/VIDEO button
Press to select the TV input signal.
EXIT/
RETURN
el MONITOR button
Press to active TV control buttons. The
button lights up. Press again to restore
original category.
* The function of these buttons switch automatically
each time you press the function buttons (1). The
above explanation is intended to serve as an
example only. Therefore, depending on the
component, the above operation may not be
possible or may operate differently than described.
**Only with Sony TVs with the picture-in-picture
function.
8
Table of buttons that you can use to control each component
Component
CD
player
DAT
deck
MD
deck
Tape
LD
deck player
(A and B)
AV ?/1
z
z
z
Numeric buttons
z
z
z
z
SHIFT >10
z
z
z
VCR
TV
Satellite Video
tuner/
CD
Cable box player
DVD
player
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
Button(s)
z
z
VOL –
O (Return)
N
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
VOL +
X
z
z
z
MUTING
x
z
z
z
z
z
z
z
./>
z
z
z
z**
z
z
z
z
m/M
z
z
z
z
z
z
z
z
z
z*
z
SUB CH +/–
D.SKIP
z*
z
z
CH/PRESET +/–
z
z
ANT TV/VTR
DISC
z
z*
z
z
CLEAR
-/-- D.TUNING
z
AV MENU
z
z
z
TITLE/GUIDE
z
Cursor buttons
z
z
z
z
z
z
z
EXIT/RETURN
z
z
z
z
z
AV DISPLAY
z
z
z
z
z
ENTER/EXEC
TV/VIDEO
SEARCH MODE
Location of Parts and Basic Remote Operations
n
z
z
z
z
z
* With a multi-disc changer only.
** B deck only.
9
Advanced Remote Operations
This chapter describes how to change the
factory setting of a function button and how to
set the remote to control non-Sony
components.
4 Press ENTER.
Once the numeric code has been verified,
the indicator slowly lights twice and the
remote automatically exits the programming
mode.
5 Repeat steps 1 to 4 to control other
Programming the remote
components.
To cancel programming
You can program the remote to control nonSony components by changing the code. Once
the control signals have been memorized, you
can use those components as part of your
system.
Furthermore, you can also program the remote
for Sony components that the remote is unable
to control. Note that the remote can only
control components that accept infrared
wireless control signals.
Note
When you assign a component to the MONITOR
button, you can operate the programmed component
without changing the function of the receiver.
1 Press AV ?/1 while pressing down USE
MODE.
The indicator lights.
2 Press the function button (including
MONITOR) for the component you want
to control.
For example, if you are going to control a
CD player, press CD.
3 Press the numeric buttons to enter the
numeric code (or one of the codes if
more than one code exists)
corresponding to the component and
the maker of the component you want
to control.
See the tables on pages 11 and 12 for
information on the numeric code(s)
corresponding to the component and the
maker of the component (the first digit and
the last two digits of the numeric code
correspond to the category and the maker’s
code respectively.)
10
Press USE MODE during any step. The remote
automatically exits the programming mode.
Tips
• If programming is unsuccessful, check the
following:
– If the indicator does not light up in step 1, the
batteries are weak. Replace both batteries.
– If the indicator lights 4 times in quick succession
while entering the numeric code, an error has
occurred. Start again from step 1.
• To activate the function after programming, press
the programmed button to activate the function you
want.
Notes
• The indicator turns off while a valid button is
pressed.
• In step 2, if several function buttons are pressed,
only the last pressed button is valid.
• In step 3, if a function button is pressed, the new
function is selected and the programming procedure
returns to the beginning of step 3.
• For the numeric codes, only the first three numbers
entered are valid.
To clear the memory of the remote
To clear all programmed and learned signals,
do the following to reset the remote to factory
settings.
Press ?/1, AV ?/1 and MASTER VOL – at
the same time.
The indicator lights 3 times, then goes off.
The numeric codes
corresponding to the
component and the maker of
the component
Maker
Code(s)
SONY
203
PIONEER
219
To control an MD deck
Maker
Code(s)
SONY
301
DENON
302
JVC
303
KENWOOD
304
Notes
To control a tape deck
• The numeric codes are based on the latest
information available for each brand. There is a
chance, however, that your component will not
respond to some or all of the codes.
• All of the functions on this remote may not be
available when used with your particular
component.
Maker
To control a CD player
PANASONIC
216
PHILIPS
211, 212
PIONEER
213, 214
Maker
Code(s)
SONY
101, 102, 103
DENON
104, 123
JVC
105, 106, 107
KENWOOD
108, 109, 110
Code(s)
SONY
201, 202
DENON
204, 205
KENWOOD
206, 207, 208, 209
NAKAMICHI
210
TECHNICS
215, 216
YAMAHA
217, 218
MAGNAVOX
111, 116
To control an LD player
MARANTZ
116
Maker
ONKYO
112, 113, 114
SONY
601, 602, 603
PANASONIC
115
PIONEER
606
PHILIPS
116
PIONEER
117
To control a video CD player
TECHNICS
115, 118, 119
Maker
Code(s)
YAMAHA
120, 121, 122
SONY
605
Advanced Remote Operations
Use the numeric codes in the tables below to
control non-Sony conponents and also Sony
components that the remote is normally unable
to control. Since the remote signal that a
component accepts differs depending on the
model and year of the component, more than
one numeric code may be assigned to a
component. If you fail to program your remote
using one of the codes, try using other codes.
To control a DAT deck
Code(s)
continued
11
Programming the remote (continued)
To control a VCR
Maker
Code(s)
SONY
701, 702, 703, 704, 705, 706
AIWA
710, 750, 757, 758
AKAI
707, 708, 709, 759
BLAUPUNKT
740
EMERSON
711, 712, 713, 714, 715,
716, 750
Maker
Code(s)
SONY
501
DAEWOO
504, 505, 506, 507, 515, 544
FISHER
508
GOLDSTAR
503, 511, 512, 515, 534, 544
GRUNDIG
517, 534
HITACHI
513, 514, 515, 544
ITT/NOKIA
521, 522
JVC
516
MAGNAVOX
503, 518, 544
GENERAL ELECTRIC 721, 722, 730
MITSUBISHI/MGA
503, 519, 544
GOLDSTAR
723, 753
NEC
503, 520, 544
GRUNDIG
724
PANASONIC
509, 524
HITACHI
722, 725, 729, 741
PHILIPS
515, 518
ITT/NOKIA
717
PIONEER
509, 525, 526, 540
JVC
726, 727, 728, 736
RCA/PROSCAN
510, 527, 528, 529, 544
MAGNAVOX
730, 731, 738
SAMSUNG
MITSUBISHI/MGA
732, 733, 734, 735
503, 515, 531, 532, 533,
534, 544
NEC
736
SANYO
508, 545
FISHER
PANASONIC
717, 718, 719, 720
729, 730, 737, 738, 739, 740
PHILIPS
729, 730, 731
PIONEER
729
RCA/PROSCAN
722, 729, 730, 731, 741, 747
SAMSUNG
742, 743, 744, 745
SANYO
717, 720, 746
SHARP
535
TELEFUNKEN
523, 536, 537, 538
THOMSON
530, 537, 539
TOSHIBA
535, 540, 541
ZENITH
542, 543
To control a satellite tuner or cable
box
SHARP
748, 749
TELEFUNKEN
751, 752
TOSHIBA
747, 755, 756
Maker
ZENITH
754
SONY
801, 802, 803
JERROLD/G.I.
806, 807, 808, 809, 810,
811, 812, 813, 814
PANASONIC
818
To control a DVD player
12
To control a TV
Maker
Code(s)
SONY
401
PANASONIC
402, 406
PHILIPS
407
PIONEER
403
TOSHIBA
404
DENON
405
Code(s)
RCA
804, 805
S. ATLANTA
815, 816, 817
Learning the commands
of your components
By using the Learning function, it is possible
for this remote to perform learned commands.
When a remote control code is not one of the
presets stored in the remote, it is possible for
the remote to learn the code using the Learning
function.
1 Press SLEEP while pressing down USE
MODE.
The indicator lights.
2 Press the function button for the
component you want to learn functions
for.
For example, if you are going to learn an
operation for a CD player, press CD.
3 Press the button you want to use for
the Learning function.
The indicator turns off while a valid button
is pressed, then blinks slowly.
4 Point the remote control code receiver
section of the remote toward the
receiver/transmitter on the remote
control to be learned.
remote control to be learned to send
the remote button code.
Lightly pressing the button once should be
sufficient.
If learning is completed successfully, the
indicator slowly lights twice and the remote
automatically exits the learning mode.
If the memory of the remote is already full,
the indicator flashes 8 times in quick
succession and the remote automatically
exits the learning mode.
When learning is not completed
successfully, the indicator lights 4 times in
quick succession and the procedure returns
to step 5.
Notes
• You can program up to 80 buttons for the Learning
function. In some cases, you may not be able to
program even if you have not programmed 80
buttons.
• In steps 2 and 3, the indicator turns off while a valid
button is pressed.
• In step 3, if several buttons that can be used for
learning are pressed, only the last pressed button is
valid.
• In step 5, if a button that can be used for learning is
pressed, the new button is selected and the learning
procedure returns to the beginning of step 5.
• You can use TV/VIDEO only for the MONITOR
function.
Advanced Remote Operations
Setting remote control codes
that are not stored in the
remote
5 Press the appropriate button on the
To cancel learning
Press USE MODE during any step. The remote
automatically exits the learning mode.
n
m
N
M
To clear the learned codes
x
>
X
.
5–15 cm
Start over from step 1. After step 3, press
SLEEP for more than 2 seconds. The indicator
lights twice slowly and the learned code is
cleared.
When a learned code is cleared, if the button
was previously programmed for another
function, the programmed code for that button
can be used.
continued
13
Learning the commands of your
components (continued)
To clear the memory of the remote
To clear all programmed and learned signals,
do the following to reset the remote to factory
settings.
Press ?/1, AV ?/1, and MASTER VOL – at
the same time.
The indicator lights 3 times, then goes off.
To use a command that has been
learned
When selecting a learned function, press the
learned button for that function.
Performing several
commands in sequence
automatically (Macro Play)
The Macro Play function lets you link several
IR codes in a sequential order as a single
command. The remote provides 2 macro lists
(MACRO1 and 2). You can specify up to 10 IR
codes for each macro list.
3 Press the button you want to program.
To program the operation (IR
code) of a component connected
to the receiver, press the function
button (including MONITOR) first,
then press the button for the
operation.
For example, to play the CD player, press
CD, then press H.
When programmed successfully, the
indicator lights twice slowly, then the
remote automatically exits the macro setting
mode.
To program the operation (IR
code) of the receiver, press the
button for the operation.
Buttons that can be programmed:
SLEEP, ?/1, 2ND ROOM, A.F.D., MODE
+/–, 2CH, PRESET, TEST TONE, NIGHT
MODE, EQ, MULTI/2CH A. DIRECT, ON
SCREEN, MUTING, MAIN MENU,
MASTER VOL +/–
When programmed successfully, the
indicator lights twice slowly, then the
remote automatically exits the macro setting
mode.
4 Repeat steps 1 through 3 to program
up to 10 IR codes.
Setting the sequence of IR
codes
1 Press MACRO1 (or MACRO2) while
pressing down USE MODE.
The indicator lights.
2 Press the numeric buttons to select the
macro step number.
For example, to program step 1, press 1.
Tip
• To program a function switch, press the same
function button twice in step 3.
• If programming is unsuccessful, check the
following:
– If the indicator does not light up in step 1, the
batteries are weak. Replace both batteries.
– If the indicator lights 4 times in quick succession
in step 3, an error has occurred. Start again from
step 1.
Note
The indicator turns off while a valid button is pressed.
14
To cancel programming
Setting to the 2nd room mode.
Press USE MODE during any step. The remote
automatically exits the macro setting mode.
You can use the remote to select the function
for the 2nd room (2nd room mode). You can
use the function buttons only for the 2nd room.
To delay the output of an IR code
Press 2ND ROOM while pressing down
USE MODE.
To clear the programmed IR codes
• If you press a function button while pressing down
2ND ROOM, you can select the function for the
2nd room even though the mode is not set to the
2nd room mode.
• If you press 2ND ROOM only, you can output the
source signal of the current function of the receiver
to the amplifier in the 2nd room.
Clear each macro step individually.
1 Press MACRO1 or MACRO2 (in which
the IR code you want to clear is
programmed) while pressing down USE
MODE.
2 Press the numeric button to select the
macro step number you want to clear.
3 Press VIDEO 1.
4 Hold down MACRO1 or MACRO2 for
more than 2 seconds.
The IR code is cleared. The indicator lights
twice slowly, then the remote automatically
exits the macro setting mode.
To start macro play
Press MACRO1 (or MACRO2).
Note
If the Macro Play function does not work properly,
program a delay between each operation. See “To
delay the output of an IR code”.
Selecting the mode of the
remote
Set the remote mode using the USE MODE
button (wk) and the remote mode buttons (2).
The indicator lights for a while, then the mode
switches to the 2nd room mode.
Tips
Setting to the 3rd room mode.
You can use the remote to select the function
for the 3rd room and adjust the volume in the
3rd room (3rd room mode). During 3rd room
mode, you can adjust the volume of speakers in
another room when you set the receiver to
output the sound using SPEAKER terminals.
You can use the function buttons and
MASTER VOL +/– buttons only.
Advanced Remote Operations
Start over from step 1. In step 3, press VIDEO
1, then MACRO1 or MACRO2. This allows
you to specify 1 second delay before output the
next IR code. Be sure not to press MACRO1 or
MACRO2 for more than 2 seconds.
Press 3 (3RD) while pressing down USE
MODE.
The indicator lights 3 times, then the mode
switches to the 3rd room mode.
To check the mode of the remote
Press USE MDOE. You can check the remote
by the indicator.
Mode
Indicator lights
AV1
once
AV2
twice
2nd room
once (for a while)
3rd room
3 times
Selecting the command mode
You can switch the command mode (AV1 or
AV2) of the remote. If the command mode of
the receiver and the remote is different, you
cannot use the remote to operate the receiver.
Press 1 (AV1) (or 2 (AV2)) while pressing
down USE MODE.
The indicator lights once (twice for AV2), then
the command mode switches.
15
Additional Information
Troubleshooting
If you experience any of the following
difficulties while using the receiver, use this
troubleshooting guide to help you remedy the
problem. Should any problem persist, consult
your nearest Sony dealer.
The remote does not function.
• Check the mode of the remote (page 15).
on the
• Point the remote at the remote sensor
receiver.
• Remove any obstacles in the path between the
remote and the receiver.
• Replace both batteries in the remote with new
ones, if they are weak.
• Make sure you select the correct function on the
remote.
16
Sony Corporation
Printed in Malaysia
Specifications
General
Remote control system
Infrared control
Power requirements
3 V DC with two R6
(size-AA) batteries
Dimensions
210 x 68 x 25 mm
Mass (approx.)
150 g excluding batteries
Design and specifications are subject to change
without notice.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
