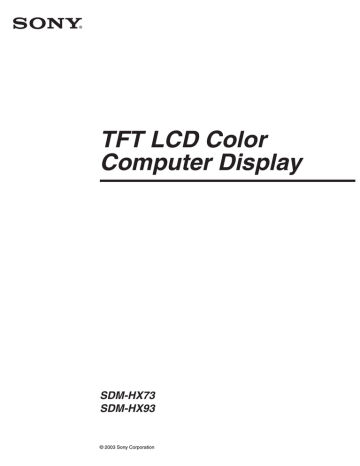

TFT LCD Color
Computer Display
SDM-HX73
SDM-HX93
© 2003 Sony Corporation
Owner’s Record
The model and serial numbers are located at the rear of the unit.
Record these numbers in the spaces provided below. Refer to them
whenever you call upon your dealer regarding this product.
Serial No.
Model No.
WARNING
To prevent fire or shock hazard, do not expose the
unit to rain or moisture.
Dangerously high voltages are present inside the
unit. Do not open the cabinet. Refer servicing to
qualified personnel only.
FCC Notice
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly
approved in this manual could void your authority to operate this
equipment.
IMPORTANTE
Para prevenir cualquier mal funcionamiento y evitar daños, por
favor, lea detalladamente este manual de instrucciones antes
de conectar y operar este equipo.
If you have any questions about this product, you may call;
Sony Customer Information Services Center
1-800-222-7669 or http://www.sony.com/
Declaration of Conformity
Trade Name:
Model:
Responsible Party:
Address:
Telephone Number:
SONY
SDM-HX73/HX93
Sony Electronics Inc.
16450 W. Bernardo Dr,
San Diego, CA 92127 U.S.A.
858-942-2230
This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
BZ03
2
NOTICE
This notice is applicable for USA/Canada only.
If shipped to USA/Canada, install only a UL LISTED/CSA
LABELLED power supply cord meeting the following
specifications:
SPECIFICATIONS
Plug Type
Nema-Plug 5-15p
Cord
Type SVT or SJT, minimum 3 × 18 AWG
Length
Maximum 15 feet
Rating
Minimum 7 A, 125 V
NOTICE
Cette notice s’applique aux Etats-Unis et au Canada
uniquement.
Si cet appareil est export* aux Etats-Unis ou au Canada, utiliser
le cordon d’alimentation portant la mention UL LISTED/CSA
LABELLED et remplissant les conditions suivantes:
SPECIFICATIONS
Type de fiche Fiche Nema 5-15 broches
Cordon
Type SVT ou SJT, minimum 3 × 18 AWG
Longueur
Maximum 15 pieds
Tension
Minimum 7 A, 125 V
As an ENERGY STAR Partner, Sony
Corporation has determined that this
product meets the ENERGY STAR
guidelines for energy efficiency.
Table of Contents
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Identifying parts and controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Setup 1: Connect the video signal cables . . . . . . . . . . . . . . . . . . . . 7
Setup 2: Connect the audio cord . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Setup 3: Connect the power cord . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Setup 4: Bundle the cords and cables . . . . . . . . . . . . . . . . . . . . . . 9
Setup 5: Turn on the monitor and computer . . . . . . . . . . . . . . . . . . 9
Setup 6: Adjust the tilt and swivel . . . . . . . . . . . . . . . . . . . . . . . . . 10
Selecting the input signal (INPUT button) . . . . . . . . . . . . . . . . . . . 11
Customizing Your Monitor . . . . . . . . . . . . . . . . . . . . . . .12
• Macintosh is a trademark licensed to
Apple Computer, Inc., registered in the
U.S.A. and other countries.
• Windows is registered trademark of
Microsoft Corporation in the United
States and other countries.
• IBM PC/AT and VGA are registered
trademarks of IBM Corporation of the
U.S.A.
• VESA and DDC are trademarks of the
Video Electronics Standards
Association.
• ENERGY STAR is a U.S. registered
mark.
• Adobe and Acrobat are trademarks of
Adobe Systems Incorporated.
• WOW, SRS and
symbol are
trademarks of SRS Labs, Inc.
• WOW technology is incorporated under
license from SRS Labs, Inc.
• All other product names mentioned
herein may be the trademarks or
registered trademarks of their respective
companies.
• Furthermore, “” and “” are not
mentioned in each case in this manual.
http://www.sony.net/
Navigating the menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
PICTURE/AUDIO menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
MODE menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
PICTURE menu
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Adjusting the BACKLIGHT
. . . . . . . . . . . . . . . . . . . . . . . 13
Adjusting the CONTRAST 6 . . . . . . . . . . . . . . . . . . . . . . . . 13
Adjusting the BRIGHTNESS
. . . . . . . . . . . . . . . . . . . . . 14
Adjusting the GAMMA
. . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Adjusting the COLOR
. . . . . . . . . . . . . . . . . . . . . . . . . . 14
Adjusting the SHARPNESS . . . . . . . . . . . . . . . . . . . . . . . . . 15
AUDIO menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Adjusting TREBLE, BASS or BALANCE . . . . . . . . . . . . . . . 15
Adjusting SURROUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
MODE RESET menu
(resetting every mode to the default) 0 . . . . . . . . . . . . . . . . . 15
SCREEN menu (analog RGB signal only) . . . . . . . . . . . . . . . 16
MENU POSITION menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
INPUT SENSING ON/OFF menu . . . . . . . . . . . . . . . . . . . . . . 17
LANGUAGE menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
0 RESET menu (reset to the default setting) . . . . . . . . . . . . . . . 18
MENU LOCK menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Technical Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Controlling the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Power saving function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Setting the MODE (PICTURE/AUDIO) (
mode) . . . . . . . . . . . 20
Automatic brightness adjustment function (light sensor) . . . . . . . . 20
Automatic picture quality adjustment function
(analog RGB signal only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
On-screen messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Trouble symptoms and remedies . . . . . . . . . . . . . . . . . . . . . . . . . 22
Self-diagnosis function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
3
GB
Note on the LCD (Liquid Crystal Display)
Precautions
Warning on power connections
• Use the supplied power cord. If you use a different power cord,
be sure that it is compatible with your local power supply.
For the customers in the U.S.A.
If you do not use the appropriate cord, this monitor will not
conform to mandatory FCC standards.
For the customers in the UK
If you use the monitor in the UK, be sure to use the appropriate
UK power cord.
Example of plug types
for 100 to 120 V AC
for 200 to 240 V AC
for 240 V AC only
The equipment should be installed near an easily accessible outlet.
Installation
Do not install or leave the monitor:
• In places subject to extreme temperatures, for example near a
radiator, heating vent, or in direct sunlight. Subjecting the
monitor to extreme temperatures, such as in an automobile
parked in direct sunlight or near a heating vent, could cause
deformations of the casing or malfunctions.
• In places subject to mechanical vibration or shock.
• Near any equipment that generates a strong magnetic field,
such as a TV or various other household appliances.
• In places subject to inordinate amounts of dust, dirt, or sand, for
example near an open window or an outdoor exit. If setting up
temporarily in an outdoor environment, be sure to take
adequate precautions against airborne dust and dirt. Otherwise
irreparable malfunctions could occur.
Handling the LCD screen
• Do not leave the LCD screen facing the sun as it can damage
the LCD screen. Take care when you place the monitor by a
window.
• Do not push on or scratch the LCD screen. Do not place a heavy
object on the LCD screen. This may cause the screen to lose
uniformity or cause LCD panel malfunctions.
• If the monitor is used in a cold place, a residual image may
appear on the screen. This is not a malfunction. The screen
returns to normal as the temperature rises to a normal operating
level.
• If a still picture is displayed for a long time, a residual image
may appear for a while. The residual image will eventually
disappear.
• The LCD panel becomes warm during operation. This is not a
malfunction.
About the built-in stereo speakers
Be sure to keep magnetic recording equipment, tapes, and floppy
discs away from the speaker’s opening as the speakers generate a
magnetic field. This magnetic field may affect data stored on
magnetic tapes and discs.
4
Please note that the LCD screen is made with high-precision
technology. However, black points or bright points of light (red,
blue, or green) may appear constantly on the LCD screen, and
irregular colored stripes or brightness may appear on the LCD
screen. This is not malfunction.
(Effective dots: more than 99.99%)
Maintenance
• Be sure to unplug the power cord from the power outlet before
cleaning your monitor.
• Clean the LCD screen with a soft cloth. If you use a glass
cleaning liquid, do not use any type of cleaner containing an
anti-static solution or similar additive as this may scratch the
LCD screen’s coating.
• Clean the cabinet, panel, and controls with a soft cloth lightly
moistened with a mild detergent solution. Do not use any type
of abrasive pad, scouring powder, or solvent, such as alcohol or
benzine.
• Do not rub, touch, or tap the surface of the screen with sharp or
abrasive items such as a ballpoint pen or screwdriver. This type
of contact may result in a scratched picture tube.
• Note that material deterioration or LCD screen coating
degradation may occur if the monitor is exposed to volatile
solvents such as insecticide, or if prolonged contact is
maintained with rubber or vinyl materials.
Transportation
• Disconnect all cables from the monitor, and grasp both side of
the LCD display firmly taking care not to scratch the screen
when transporting. If you drop the monitor, you may be injured
or the monitor may be damaged.
• When you transport this monitor for repair or shipment, use the
original carton and packing materials.
Disposal of the monitor
• Do not dispose of this monitor with general
household waste.
• The fluorescent tube used in this monitor contains
mercury. Disposal of this monitor must be carried out
in accordance to the regulations of your local
sanitation authority.
A 1 (Power) switch and 1 (power) indicator
(pages 9, 19, 24)
To turn the display on or off, press the 1 (power) switch.
The power indicator lights up in green when the display is
turned on, and lights up in orange when the display is in the
power saving mode.
Identifying parts and controls
See the pages in parentheses for further details.
Front of the LCD display
B Light sensor (page 20)
This sensor measures the brightness of the surrounding area.
Be sure not to cover the sensor with papers, etc.
MENU
MENU
OK
INPUT
C Stereo speakers (page 19)
These speakers output the audio signals as sound.
D MENU button (page 12)
This button turns the menu screen on and off.
OK
E m/M and 2 (volume control) buttons (pages 12, 19)
These buttons are used to select the menu items and make
adjustments, and also display the “Volume” menu to control
the volume.
INPUT
3
1
2
Side view of the LCD display
F OK button (page 12)
This button activates the selected menu item and adjustments
made using the m/M buttons (5).
G INPUT button (page 11)
This button switches the video input signal between INPUT1,
INPUT2 and INPUT3 when two computers are connected to
the monitor.
H
4
5
button (page 20)
This button changes the MODE (PICTURE/AUDIO).
9
I Back cover (page 7)
Slide up this cover when you connect cables or cords.
q;
J Headphones jack (page 19)
This jack outputs audio signals to the headphones.
6
7
8
(continued)
5
GB
K AC IN connector (page 8)
This connector connects the power cord (supplied).
Rear of the LCD display
L Security Lock Hole
The security lock hole should be used with the Kensington
Micro Saver Security System.
Micro Saver Security System is a trademark of Kensington.
ql
qa
qd
qf
INPUT 1
N HD15 input connector (analog RGB) for INPUT1
(page 7)
This connector inputs analog RGB video signals (0.700 Vp-p,
positive) and sync signals.
qs
qg
qh
INPUT 2
qj
M Audio input jack for INPUT1 (page 8)
This jack inputs audio signals when connected to the audio
output jack of a computer or other audio equipment connected
to INPUT1.
qk
INPUT 3
O Audio input jack for INPUT2 (page 8)
This jack inputs audio signals when connected to the audio
output jack of a computer or other audio equipment connected
to INPUT2.
P HD15 input connector (analog RGB) for INPUT2
(page 7)
This connector inputs analog RGB video signals (0.700 Vp-p,
positive) and sync signals.
Q Audio input jack for INPUT3 (page 8)
This jack inputs audio signals when connected to the audio
output jack of a computer or other audio equipment connected
to INPUT3.
R DVI-D input connector (digital RGB) for INPUT3
(page 7)
This connector inputs digital RGB video signals that comply
with DVI Rev.1.0.
S Cable holder (page 9)
This part secures cables and cords to the monitor.
6
Setup
Before using your monitor, check that the following items are
included in your carton:
• LCD display
• Power cord
• HD15-HD15 video signal cable (analog RGB)
• DVI-D video signal cable (digital RGB)
• Audio cord (stereo miniplug)
• CD-ROM (utility software for Windows/Macintosh, Operating
Instructions, etc)
• Warranty card
• Quick Setup Guide
Connect a computer equipped with a DVI output
connector (digital RGB)
Using the supplied DVI-D video signal cable (digital RGB), connect the
computer to the monitor’s DVI-D input connector (digital RGB) for
INPUT3.
to the DVI-D input
connector (digital
RGB)
Setup 1: Connect the video signal
cables
• Turn off the monitor and computer before connecting
them.
• When connecting the computer to the monitor’s HD15
input connector (analog RGB), refer to “Connect a
computer equipped with an HD15 output connector
(analog RGB).”
Note
Do not touch the pins of the video signal cable connector as this might
bend the pins.
Slide up the back cover.
to the computer’s DVI output
connector (digital RGB)
DVI-D video signal
cable (digital RGB)
(supplied)
GB
Connect a computer equipped with an HD15
output connector (analog RGB)
Using the supplied HD15-HD15 video signal cable (analog RGB),
connect the computer to the monitor’s HD 15 input connector (analog
RGB) for INPUT1 or INPUT2.
Connect the computer according to the following illustrations.
x Connecting to an IBM PC/AT or
compatible computer
to the HD 15 input
connector (analog
RGB)
to the computer’s HD15 output
connector (analog RGB)
IBM PC/AT or compatible
computer
HD15-HD15 video signal
cable (analog RGB)
(supplied)
(continued)
7
x Connecting to a Macintosh
Setup 3: Connect the power cord
1
Connect the supplied power cord securely to the
monitor’s AC IN connector.
2
Connect the other end securely to a power outlet.
to the HD 15 input
connector (analog
RGB)
1
to
AC IN
to the computer’s
output connector
HD15-HD15 video signal
cable (analog RGB)
(supplied)
Macintosh
2
power cord (supplied)
When connecting a Macintosh computer, use an adapter (not supplied),
if necessary. Connect the adapter to the computer before connecting the
video signal cable.
Setup 2: Connect the audio cord
Connect the supplied audio cord to the monitor’s
corresponding audio input jack.
Using the monitor’s speakers or headphones, you can listen to
sound from your computer or other audio equipment connected to
the monitor’s audio input jacks.
For more information, see “Controlling the volume” on page 19.
to the audio input
to audio output of the
computer or other
audio equipment
audio cord (supplied)
8
to power outlet
Setup 4: Bundle the cords and
cables
Setup 5: Turn on the monitor and
computer
1
Slide up the back cover.
1
2
Secure the video signal cable, audio cords and the
power cord using the cable holder on the cabinet.
3
Slide down the back cover.
Press the 1 (power) switch on the front of the
monitor.
The 1 (power) indicator lights up in green.
MENU
lights in green
OK
INPUT
1
back cover
2
3
2
Turn on the computer.
3
Press the INPUT button to select the desired input
signal.
The selected input’s picture appears on the screen.
For more information, see “Selecting the input signal (INPUT
button)” on page 11.
INPUT
The installation of your monitor is complete. If necessary, use the
monitor’s controls to adjust the picture (page 12).
(continued)
9
GB
If no picture appears on your screen
• Check that the power cord and the video signal cable are
properly connected.
• If “NO INPUT SIGNAL” appears on the screen:
– The computer is in the power saving mode. Try pressing any
key on the keyboard or moving the mouse.
– Check that the input signal setting is correct by pressing the
INPUT button (page 11).
• If “CABLE DISCONNECTED” appears on the screen:
– Check that the video signal cable is properly connected.
– Check that the input signal setting is correct by pressing the
INPUT button (page 11).
Setup 6: Adjust the tilt and swivel
This monitor can be adjusted within the angles shown below.
Grasp the sides of the LCD panel, then adjust screen
angles.
approx.
5°
approx.
20°
MEN
U
OK
INPU
T
• If “OUT OF RANGE” appears on the screen, reconnect the old
monitor. Then adjust the computer’s graphics board within the
following ranges.
Analog RGB
Digital RGB
Horizontal
frequency
28–80 kHz
28–64 kHz
Vertical
frequency
48–75 Hz
60 Hz
Resolution
1280 × 1024 or less
1280 × 1024 or less
MENU
For more information about on-screen messages, see “Trouble
symptoms and remedies” on page 22.
No need for specific drivers
The monitor complies with the “DDC” Plug & Play standard and
automatically detects all the monitor’s information. No specific driver
needs to be installed on the computer.
The first time you turn on your computer after connecting the monitor, the
setup Wizard may appear on the screen. In this case, follow the on-screen
instructions. The Plug & Play monitor is automatically selected so that
you can use this monitor.
The vertical frequency is set to 60 Hz.
Since flickers are unobtrusive on the monitor, you can use it as it is. You
do not need to set the vertical frequency to any particular high value.
OK
INP
UT
approx.
45°
approx.
45°
To use the monitor comfortably
Adjust the viewing angle of your monitor according to the height
of your desk and chair, and so that light is not reflected from the
screen to your eyes.
Note
When adjusting the screen tilt and height, proceed slowly and carefully,
being sure not to hit the monitor against the desk.
10
Selecting the input signal
(INPUT button)
Press the INPUT button.
The input signal change each time you press this button.
INPUT
On-screen message
(Appears about 5 seconds on
the upper left corner.)
Input signal configuration
INPUT1: HD15
HD15 input connector
(analog RGB) for INPUT1
INPUT2 : HD15
HD15 input connector
(analog RGB) for INPUT2
INPUT3 : DVI-D
DVI-D input connector
(digital RGB) for INPUT3
GB
11
4
Customizing Your Monitor
Before making adjustments
Adjust the item.
Press the m/M buttons to make the adjustment, then press the
OK button.
When you press the OK button, the setting is stored, then the
display returns to the previous menu.
Connect the monitor and the computer, and turn them on.
For the best results, wait for at least 30 minutes before making
adjustments.
OK
,
You can make numerous adjustments to your monitor using the
on-screen menu.
Navigating the menu
1
Display the main menu.
Press the MENU button to display the main menu on your
screen.
P I C T U R E / AU D I O
MENU
,
5
Close the menu.
Press the MENU button once to return to normal viewing. If
no buttons are pressed, the menu closes automatically after
about 45 seconds.
MENU
M OV I E
1 2 8 0 x 1 0 2 4 / 6 0Hz
EX I T
2
Select the menu.
Press the m/M buttons to display the desired menu. Press the
OK button to move to the first menu item.
OK
,
3
Select the item you want to adjust.
Press the m/M buttons to select the item you want to adjust,
then press the OK button.
OK
,
If
is one of the menu items.
When you select
and press the OK button, the display returns to the
previous menu.
12
x Resetting the adjustments to the default
settings
You can reset the adjustments using RESET menu. For more
information about resetting the adjustments, see 0 (RESET) on
page 18.
PICTURE/AUDIO menu
You can adjust the following items using PICTURE/AUDIO
menu.
• MODE
P I C T U R E / AU D I O
(GAME/MOVIE/PC/AUTO)
M OV I E
• PICTURE
• AUDIO
• MODE RESET 0
1 2 8 0 x 1 0 2 4 / 6 0Hz
EX I T
x MODE menu
You can select the appropriate screen brightness for your purpose.
The PICTURE/AUDIO settings can be set for each mode.
The changed setting is automatically applied for each input
(INPUT1/INPUT2/INPUT3).
1
Press the MENU button.
The main menu appears on the screen.
2
Press the m/M button to select
(PICTURE/
AUDIO) and press the OK button.
The PICTURE/AUDIO menu appears on the screen.
3
Press the m/M button to select “MOVIE” and press
the OK button.
The MODE menu appears on the screen.
MODE
GAME
M OV I E
PC
AU TO
1 2 8 0 x 1 0 2 4 / 6 0Hz
EX I T
4
Press the m/M button to select the desired mode and
press the OK button.
The default setting is MOVIE.
• GAME: Bright picture.
• MOVIE: Clear picture with strong contrast.
• PC:
Soft tone picture.
• AUTO: Automatically adjusts the screen brightness
according to the brightness of the surroundings
(automatic brightness adjustment function). For
more information, see “Automatic brightness
adjustment function (light sensor)” (page 20).
NOTE
In the AUTO mode, you cannot adjust the backlight.
x PICTURE menu
You can adjust the following items using the PICTURE menu.
• BACKLIGHT
P I CTURE
M OV I E
• CONTRAST 6
: 100
• BRIGHTNESS
:
70
:
50
• GAMMA menu
• COLOR menu
SHARPNESS
• SHARPNESS
1 2 8 0 x 1 0 2 4 / 6 0Hz
EX I T
Adjusting the BACKLIGHT
If the screen is too bright, adjust the backlight to make the screen
easier to see.
1
Press the MENU button.
The main menu appears on the screen.
2
Press the m/M button to select
(PICTURE/
AUDIO) and press the OK button.
The PICTURE/AUDIO menu appears on the screen.
3
Press the m/M buttons to select
(PICTURE) and
press the OK button.
The PICTURE menu appears on the screen.
4
Press the m/M buttons to select “
BACKLIGHT”
and press the OK button.
The “BACKLIGHT” menu appears on the screen.
5
Press the m/M buttons to adjust the light level and
press the OK button.
Adjusting the CONTRAST 6
Adjust the picture contrast.
1
Press the MENU button.
The main menu appears on the screen.
2
Press the m/M button to select
(PICTURE/
AUDIO) and press the OK button.
The PICTURE/AUDIO menu appears on the screen.
3
Press the m/M buttons to select
(PICTURE) and
press the OK button.
The PICTURE menu appears on the screen.
4
Press the m/M buttons to select “6 CONTRAST” and
press the OK button.
The “CONTRAST” menu appears on the screen.
5
Press the m/M buttons to adjust the contrast and
press the OK button.
(continued)
13
GB
2
Press the m/M button to select
(PICTURE/
AUDIO) and press the OK button.
The PICTURE/AUDIO menu appears on the screen.
Press the MENU button.
The main menu appears on the screen.
3
Press the m/M button to select
(PICTURE/
AUDIO) and press the OK button.
The PICTURE/AUDIO menu appears on the screen.
Press the m/M buttons to select
(PICTURE) and
press the OK button.
The PICTURE menu appears on the screen.
4
Press the m/M buttons to select
(PICTURE) and
press the OK button.
The PICTURE menu appears on the screen.
Press the m/M buttons to select “
(COLOR)” and
press the OK button.
The COLOR menu appears on the screen.
5
Press the m/M buttons to select the desired color
temperature and press the OK button.
White balance changes from bluish to reddish as the color
temperature is adjusted from 9300K to 6500K.
Adjusting the BRIGHTNESS
Adjust the picture brightness (black level).
1
2
3
4
Press the m/M buttons to select “
BRIGHTNESS”
and press the OK button.
The “BRIGHTNESS” menu appears on the screen.
5
Press the m/M buttons to adjust the brightness and
press the OK button.
Fine tuning the color temperature
Adjusting the GAMMA
You can associate the picture’s color shade on the screen with the
picture’s original color shade.
GAMMA
GAMMA 1
GAMMA 2
GAMMA 3
GAMMA 4
The color temperature can be set for each mode
(GAME/MOVIE/PC/AUTO).
1
Press the MENU button.
The main menu appears on the screen.
2
Press the m/M button to select
(PICTURE/
AUDIO) and press the OK button.
The PICTURE/AUDIO menu appears on the screen.
3
Press the m/M buttons to select
(PICTURE) and
press the OK button.
The PICTURE menu appears on the screen.
4
Press the m/M buttons to select “
(COLOR)” and
press the OK button.
The COLOR menu appears on the screen.
5
Press the m/M buttons to select “ADJUST” and
press the OK button.
The fine tuning menu for color temperature appears on the
screen.
1 2 8 0 x 1 0 2 4 / 6 0Hz
EX I T
1
Press the MENU button.
The main menu appears on the screen.
2
Press the m/M button to select
(PICTURE/
AUDIO) and press the OK button.
The PICTURE/AUDIO menu appears on the screen.
3
Press the m/M buttons to select
(PICTURE) and
press the OK button.
The PICTURE menu appears on the screen.
4
5
USER
Press the m/M buttons to select “ (GAMMA)” and
press the OK button.
The GAMMA menu appears on the screen.
Press the m/M buttons to select the desired mode
and press the OK button.
A D J U S T MENT
R
128
G
128
B
128
1 2 8 0 x 1 0 2 4 / 6 0Hz
EX I T
6
Press the m/M buttons to select R (Red) or B (Blue)
and press the OK button. Then press the m/M
buttons to adjust the color temperature and press
the OK button.
Since this adjustment changes the color temperature by
increasing or decreasing the R and B components with respect
to G (green), the G component is fixed.
7
Press the m/M buttons to select
, then press the
OK button.
The new color setting is stored in memory and automatically
recalled whenever “User” is selected.
The COLOR menu appears on the screen.
Adjusting the COLOR
You can select the picture’s color level for the white color field
from the default color temperature settings.
Also, if necessary, you can fine tune the color temperature.
COLOR
9300K
6500K
USER
AD J U S T
1 2 8 0 x 1 0 2 4 / 6 0Hz
EX I T
1
Press the MENU button.
The main menu appears on the screen.
14
Adjusting the SHARPNESS
Adjust to sharpen the edge of images, etc.
1
2
5
SURROUND
Press the MENU button.
The main menu appears on the screen.
S R S W OW
OFF
Press the m/M button to select
(PICTURE/
AUDIO) and press the OK button.
The PICTURE/AUDIO menu appears on the screen.
3
Press the m/M buttons to select
(PICTURE) and
press the OK button.
The PICTURE menu appears on the screen.
4
Press the m/M buttons to select “SHARPNESS” and
press the OK button.
The “SHARPNESS” menu appears on the screen.
5
Press the m/M buttons to select the desired mode
and press the OK button.
Press the m/M buttons to adjust the sharpness and
press the OK button.
x AUDIO menu
You can adjust the following items using the AUDIO menu.
• TREBLE
AU D I O
M OV I E
• BASS
• BALANCE
TREBLE
BASS
• SURROUND
BALANCE
1 2 8 0 x 1 0 2 4 / 6 0Hz
EX I T
• SRS WOW: Deep rich bass tone and clear high tone
creates a rich surround sound experience,
and movies and games, especially, can be
enjoyed with powerful sound.
• OFF:
Turns off the SRS WOW effect.
Adopting the latest technology developed by SRS Labs, Inc., SRS
WOW significantly improves the sound quality of various audio
sources.
x MODE RESET menu (resetting every
mode to the default) 0
You can reset the adjustments to the default settings.
1
Press the MENU button.
The main menu appears on the screen.
2
Press the m/M button to select
(PICTURE/
AUDIO) and press the OK button.
The PICTURE/AUDIO menu appears on the screen.
3
Press the m/M buttons to select “0 RESET” and
press the OK button.
The “RESET” menu appears on the screen.
4
Press the m/M buttons to select the desired mode
and press the OK button.
• OK:
To reset every mode in the PICTURE/AUDIO
menu to the default settings.
• CANCEL:To cancel resetting and return to the PICTURE/
AUDIO menu.
SURROUND
1 2 8 0 x 1 0 2 4 / 6 0Hz
EX I T
Adjusting TREBLE, BASS or BALANCE
1
Press the MENU button.
The main menu appears on the screen.
2
Press the m/M button to select
(PICTURE/
AUDIO) and press the OK button.
The PICTURE/AUDIO menu appears on the screen.
3
Press the m/M buttons to select
press the OK button.
4
Press the m/M buttons to select TREBLE, BASS or
BALANCE, and press the OK button.
5
Press the m/M buttons to select the desired mode
and press the OK button.
(AUDIO) and
GB
Adjusting SURROUND
1
Press the MENU button.
The main menu appears on the screen.
2
Press the m/M button to select
(PICTURE/
AUDIO) and press the OK button.
The PICTURE/AUDIO menu appears on the screen.
3
Press the m/M buttons to select
press the OK button.
4
Press the m/M buttons to select SURROUND and
press the OK button.
(AUDIO) and
15
SCREEN menu (analog RGB
signal only)
You can adjust the following items using the SCREEN menu.
• AUTO
SCREEN
• PHASE
• PITCH
AU TO
PHASE
• H CENTER
P I TCH
H CENTER
• V CENTER
V CENTER
x Adjust the picture’s sharpness manually
(Phase/Pitch)
You can adjust the picture’s sharpness as follows. This
adjustment is effective when the computer is connected to the
monitor’s HD15 input connector (analog RGB).
1
Set the resolution to 1280 × 1024 on the computer.
2
Load the CD-ROM.
3
Start the CD-ROM, select the area and model, and
display the test pattern.
For Windows
Click [Utility] t [Windows]/[Win Utility.exe].
For Macintosh
Click [Utility] t [Mac]/[Mac Utility].
4
Press the MENU button.
The main menu appears on the screen.
5
Press the m/M buttons to select
(SCREEN) and
press the OK button.
The SCREEN menu appears on the screen.
6
Press the m/M buttons to select “PHASE” and press
the OK button.
The “PHASE” adjustment menu appears on the screen.
7
Press the m/M buttons until the horizontal stripes
are at a minimum.
Adjust so that the horizontal stripes are at a minimum.
8
Press the OK button.
The main menu appears on the screen.
If vertical stripes are observed over the entire screen, adjust
the pitch using the following procedures.
x Make further automatic adjustments to the
picture quality for the current input signal
(AUTO)
9
Press the m/M buttons to select “PITCH” and press
the OK button.
The “PITCH” adjustment menu appears on the screen.
1
Press the MENU button.
The main menu appears on the screen.
10 Press the m/M buttons until the vertical stripes
disappear.
Adjust so that the vertical stripes disappear.
2
Press the m/M buttons to select
(SCREEN) and
press the OK button.
The SCREEN menu appears on the screen.
3
Press the m/M buttons to select “AUTO” and press
the OK button.
Make the appropriate adjustments of the screen’s phase, pitch
and horizontal/vertical position for the current input signal
and store them.
1 2 8 0 x 1 0 2 4 / 6 0Hz
EX I T
Note
When receiving digital RGB signals from the DVI-D input connector
for INPUT3, adjustment is unnecessary.
x Automatic picture quality adjustment
function
When the monitor receives an input signal, it automatically
adjusts the picture’s position and sharpness (phase/pitch), and
ensures that a clear picture appears on the screen (page 20).
Note
While the automatic picture quality adjustment function is activated, only
the 1 (power) switch will operate.
If the automatic picture quality adjustment function of this
monitor seems to not completely adjust the picture
You can make further automatic adjustment of the picture quality for the
current input signal (See “AUTO” below).
If you still need to make further adjustments to the picture
quality
You can manually adjust the picture’s sharpness (phase/pitch) and
position (horizontal/vertical position).
These adjustments are stored in memory and automatically
recalled when the monitor receives a previously input and
registered input signal.
16
11 Click [END] on the screen to turn off the test pattern.
x Adjust the picture’s position manually
(H CENTER /V CENTER)
If the picture is not in the center of the screen, adjust the picture’s
centering as follows.
1
Set the resolution to 1280 × 1024 on the computer.
2
Load the CD-ROM.
3
Start the CD-ROM, select the area and model, and
display the test pattern.
For Windows
Click [Utility] t [Windows]/[Win Utility.exe].
For Macintosh
Click [Utility] t [Mac]/[Mac Utility].
4
Press the MENU button.
The main menu appears on the screen.
5
Press the m/M buttons to select
(SCREEN) and
press the OK button.
The SCREEN menu appears on the screen.
6
Press the m/M buttons to select “H CENTER” or “V
CENTER” and press the OK button.
The “H CENTER” adjustment menu or “V CENTER”
adjustment menu appears on the screen.
7
Press the m/M buttons to center the test pattern on
the screen.
8
Click [END] on the screen to turn off the test pattern.
MENU POSITION menu
You can change the menu position if it is blocking an image on
the screen.
INPUT SENSING ON/OFF menu
When you select AUTO ON in the INPUT SENSING ON/OFF
menu, the monitor automatically detects an input signal to an
input terminal, and changes the input automatically before the
monitor goes into the power saving mode.
I NPUT SENSING
AU TO O N
AU TO O F F
1 2 8 0 x 1 0 2 4 / 6 0Hz
EX I T
1
Press the MENU button.
The main menu appears on the screen.
2
Press the m/M buttons to select
(INPUT
SENSING ON/OFF) and press the OK button.
The INPUT SENSING menu appears on the screen.
3
Press the m/M buttons to select the desired mode
and press the OK button.
• ON: When the selected input terminal has no input
signal, or when you select an input terminal by the
INPUT button on the monitor and the terminal has
no input signal, the on-screen message appears
(page 21) and the monitor checks the input signal to
another input terminal automatically to change the
input.
When the input is changed, the selected input
terminal is displayed on the left upper of the screen.
When there is no input signal, the monitor goes into
the power saving mode automatically.
• OFF: The input is not changed automatically. Press the
INPUT button to change the input.
MENU POS I T I ON
1 2 8 0 x 1 0 2 4 / 6 0Hz
EX I T
1
Press the MENU button.
The main menu appears on the screen.
2
Press the m/M buttons to select
(MENU
POSITION) and press the OK button.
The “MENU POSITION” menu appears on the screen.
3
Press the m/M buttons to select the desired position
and press the OK button.
You can choose one of 9 positions where the menu will
appear.
(continued)
17
GB
MENU LOCK menu
LANGUAGE menu
L A N G UA G E
ENGL I SH
FRANÇA I S
DEUTSCH
ESPA ÑOL
I TA L I ANO
Lock the control of buttons to prevent accidental adjustments or
resetting.
MENU LOCK
ON
OFF
1 2 8 0 x 1 0 2 4 / 6 0Hz
EX I T
1
Press the MENU button.
The main menu appears on the screen.
2
Press the m/M buttons to select
(LANGUAGE)
and press the OK button.
The LANGUAGE menu appears on the screen.
3
Press the m/M buttons to select a language and
press the OK button.
• English
• Français: French
• Deutsch: German
• Español: Spanish
• Italiano: Italian
• Nederlands: Dutch
• Svenska: Swedish
•
: Russian
•
: Japanese
•
: Chinese
0 RESET menu (reset to the
default setting)
RESET
OK
CANCEL
1 2 8 0 x 1 0 2 4 / 6 0Hz
EX I T
1
Press the MENU button.
The main menu appears on the screen.
2
Press the m/M buttons to select 0 (RESET) and
press the OK button.
The RESET menu appears on the screen.
3
Press the m/M buttons to select the desired mode
and press the OK button.
• OK:
To reset all of the adjustment data to the default
settings. Note that the “
LANGUAGE”
setting is not reset by this method.
• CANCEL:To cancel resetting and return to the menu
screen.
18
1 2 8 0 x 1 0 2 4 / 6 0Hz
EX I T
1
Press the MENU button.
The main menu appears on the screen.
2
Press the m/M buttons to select
(MENU LOCK)
and press the OK button.
The MENU LOCK menu appears on the screen.
3
Press the m/M buttons to select either “On” or “Off.”
• ON: Only the 1 (power) switch and INPUT button will
operate. If you attempt any other operation, the
icon appears on the screen.
• OFF: Set “
MENU LOCK” to off. If “
MENU
LOCK” has been set to “ON,” when you press the
MENU button, “
MENU LOCK” is
automatically selected.
Power saving function
Technical Features
Controlling the volume
Using the monitor’s speakers or headphones, you can listen to
sound from your computer or other audio equipment connected to
the monitor’s audio input jacks.
This monitor meets the power-saving guidelines set by VESA,
ENERGY STAR, and NUTEK. If the monitor is connected to a
computer or video graphics board that is DPMS (Display Power
Management Signaling) compliant, the monitor will
automatically reduce power consumption as shown below.
SDM-HX73
You can control the volume by using a separate “Volume” menu
from the main menu.
1
Press the m/M buttons when no menu appears on
the screen.
VO L U M E
,
2
Power mode
Power consumption
1 (power)
indicator
normal
operation
50 W (max.)
green
active off*
(deep sleep)**
1 W (max.)
amber
1 (power) off
1 W (max.)
off
Power mode
Power consumption
1 (power)
indicator
normal
operation
60 W (max.)
green
active off*
(deep sleep)**
1 W (max.)
amber
1 (power) off
1 W (max.)
off
30
Press the m/M buttons to control the volume.
The menu automatically disappears after about 5 seconds.
Notes
• You cannot adjust the volume when the main menu is displayed on the
screen.
• When your monitor is in power saving mode, no sound comes from the
speakers or the headphones.
SDM-HX93
GB
*
When your computer enters the “active off” mode, the input signal is
cut and “NO INPUT SIGNAL” appears on the screen. After 5
seconds, the monitor enters the power saving mode.
** “Deep sleep” is a power saving mode defined by the Environmental
Protection Agency.
(continued)
19
Setting the MODE (PICTURE/
mode)
AUDIO) (
If you press the
button on the right side of the monitor
repeatedly, you can select the MODE from GAME t
MOVIE t PC t AUTO.
When you select “AUTO,” the monitor automatically adjusts the
screen brightness according to the brightness of the surroundings
(Automatic brightness adjustment function). For more
information, see “Automatic brightness adjustment function
(light sensor)”.
Press the
button repeatedly.
The default setting of the MODE is set to “MOVIE”. When you
press the
button once, “MOVIE” (the default setting) is
displayed, and when you press again, “PC” is displayed.
Each time you press the
follows.
When the monitor receives an input signal, it
automatically adjusts the picture’s position and
sharpness (phase/pitch), and ensures that a clear
picture appears on the screen.
The factory preset mode
When the monitor receives an input signal, it automatically
matches the signal to one of the factory preset modes stored in the
monitor’s memory to provide a high quality picture at the center
of the screen. If the input signal matches the factory preset mode,
the picture appears on the screen automatically with the
appropriate default adjustments.
If input signals do not match one of the factory
preset modes
: M OV I E
: PC
: AU TO
50
Each mode appears on the screen and the MODE is changed. The
menu automatically disappears after about 5 seconds.
Automatic brightness adjustment
function (light sensor)
This monitor is provided with a feature to automatically adjust the
screen brightness according to the brightness of the surroundings.
The brightness of the screen is set to the most appropriate level by
button on the right
setting the
mode to AUTO with the
side of the monitor, or in the PICTURE/AUDIO menu. The
default setting of the brightness of the screen is set to MOVIE.
Also, when you set the
mode to AUTO with the
button
on the right side of the monitor, the adjustment bar is also
displayed. You can adjust the bar with the m/M buttons. Screen
brightness changes according to the level you set.
20
signal only)
button, the mode changes as
: GAME
,
Automatic picture quality
adjustment function (analog RGB
When the monitor receives an input signal that does not match one
of the factory preset modes, the automatic picture quality
adjustment function of this monitor is activated to ensure that a
clear picture always appears on the screen (within the following
monitor frequency ranges):
Horizontal frequency: 28–80 kHz
Vertical frequency: 48–75 Hz
Consequently, the first time the monitor receives input signals
that do not match one of the factory preset modes, the monitor
may take a longer time than normal to display the picture on the
screen. This adjustment data is automatically stored in memory so
that next time, the monitor will function in the same way as when
the monitor receives the signals that match one of the factory
preset modes.
If you adjust the phase, pitch, and picture position
manually
For some input signals, the automatic picture quality adjustment
function of this monitor may not completely adjust the picture
position, phase, and pitch. In this case, you can set these
adjustments manually (page 16). If you set these adjustments
manually, they are stored in memory as user modes and
automatically recalled whenever the monitor receives the same
input signals.
Troubleshooting
Before contacting technical support, refer to this section.
On-screen messages
If there is something wrong with the input signal, one of the
following messages appears on the screen. To solve the problem,
see “Trouble symptoms and remedies” on page 22.
If “CABLE DISCONNECTED” appears on the
screen
This indicates that the video signal cable has been disconnected
from the currently selected connector.
When INPUT SENSING ON/OFF (page 17) is set to ON, the
monitor finds another input signal and changes the input
automatically.
I NFORMA T I ON
CAB L E D I SCONNECT ED
I NPUT # : XXXXX
If “OUT OF RANGE” appears on the screen
This indicates that the input signal is not supported by the
monitor’s specifications. Check the following items.
For more information about on-screen messages, see “Trouble
symptoms and remedies” on page 22.
If “xxx.x kHz / xxx Hz” is displayed
This indicates that either the horizontal or vertical frequency
is not supported by the monitor’s specifications.
The figures indicate the horizontal and vertical frequencies of
the current input signal.
I NFORMA T I ON
OUT OF RANGE
I NPUT # : XXXXX
XXX . XKH z / XXXH z
GB
If “RESOLUTION i 1280 × 1024” is displayed
This indicates that the resolution is not supported by the
monitor’s specifications (1280 × 1024 or less).
I NFORMA T I ON
OUT OF RANGE
I NPUT # : XXXXX
RESOL UT I ON > 1. 2 8 0 X 1 0 2 4
If “NO INPUT SIGNAL” appears on the screen
This indicates that no signal is being input via the currently
selected connector.
When INPUT SENSING ON/OFF (page 17) is set to ON, the
monitor finds another input signal and changes the input
automatically.
I NFORMA T I ON
NO I NPUT S I GNA L
I NPUT # : XXXX X
(continued)
21
Trouble symptoms and remedies
If a problem occurs as a result of a connected computer or other equipment, refer to the connected computer/equipment’s instruction manual.
Use the self-diagnosis function (page 24) if the following recommendations do not resolve the problem.
Symptom
Check these items
No picture
If the 1 (power) indicator is not lit,
or if the 1 (power) indicator will not
light up when the 1 (power) switch
is pressed,
• Check that the power cord is properly connected.
If the 1 (power) indicator is green,
• Use the self-diagnosis function (page 24).
If “CABLE DISCONNECTED”
appears on the screen,
• Check that the video signal cable is properly connected and all plugs are firmly seated in
their sockets (page 7).
• Check that the video input connector’s pins are not bent or pushed in.
• Check that the input select setting is correct (page 11).
• A non-supplied video signal cable is connected. If you connect a non-supplied video
signal cable, “CABLE DISCONNECTED” may appear on the screen. This is not a
malfunction.
If “NO INPUT SIGNAL” appears on
the screen, or the 1 (power)
indicator is amber,
• Check that the video signal cable is properly connected and all plugs are firmly seated in
their sockets (page 7).
• Check that the video input connector’s pins are not bent or pushed in.
• Check that the input select setting is correct (page 11).
xProblem caused by a connected computer or other equipment, and not
caused by the monitor
• The computer is in the power saving mode. Try pressing any key on the keyboard or
moving the mouse.
• Check that your graphics board is installed properly.
• Check that the computer’s power is on.
If “OUT OF RANGE” appears on
the screen (page 21),
xProblem caused by a connected computer or other equipment, and not
caused by the monitor
• Check that the video frequency range is within that specified for the monitor. If you
replaced an old monitor with this monitor, reconnect the old monitor and adjust the
computer’s graphics board within the following ranges:
Horizontal frequency: 28–80 kHz (Analog RGB), 28–64 kHz (Digital RGB)
Vertical frequency: 48–75 Hz (Analog RGB), 60 Hz (Digital RGB)
Resolution: 1280 × 1024 or less
If using Windows,
• If you replaced an old monitor with this monitor, reconnect the old monitor and do the
following. Select “SONY” from the “Manufacturers” list and select “SDM-HX73 or
SDM-HX93” from the “Models” list in the Windows device selection screen. If “SDMHX73 or SDM-HX93” does not appear in the “Models” list, try “Plug & Play.”
If using a Macintosh system,
• When connecting a Macintosh computer, use an adapter (not supplied) if necessary.
Connect the adapter to the computer before connecting the video signal cable.
Picture flickers, bounces,
oscillates, or is scrambled.
• Adjust the pitch and phase (analog RGB signal only) (page 16).
• Isolate and eliminate any potential sources of electric or magnetic fields such as other
monitors, laser printers, electric fans, fluorescent lighting, or televisions.
• Move the monitor away from power lines or place a magnetic shield near the monitor.
• Try plugging the monitor into a different AC outlet, preferably on a different circuit.
• Change the orientation of the monitor.
xProblem caused by a connected computer or other equipment, and not
caused by the monitor
• Check your graphics board manual for the proper monitor setting.
• Confirm that the graphics mode (VESA, Macintosh 19'' Color, etc.) and the frequency of
the input signal are supported by this monitor. Even if the frequency is within the proper
range, some graphics boards may have a sync pulse that is too narrow for the monitor to
sync with correctly.
• This monitor does not process interlace signals. Set for progressive signals.
• Adjust the computer’s refresh rate (vertical frequency) to obtain the best possible picture
(60 Hz is recommended).
22
Symptom
Check these items
Picture is fuzzy.
• Adjust the contrast and brightness (page 13, 14).
• Adjusting the sharpness (page 15).
• Adjust the pitch and phase (analog RGB signal only) (page 16).
xProblem caused by a connected computer or other equipment, and not
caused by the monitor
• Set the resolution to 1280 × 1024 on your computer.
Picture is ghosting.
• Eliminate the use of video cable extensions and/or video switch boxes.
• Check that all plugs are firmly seated in their sockets.
Picture is not centered or sized
• Adjust the pitch and phase (page 16).
properly (analog RGB signal only). • Adjust the picture position (page 17). Note that some video modes do not fill the screen to
the edges.
Picture is too small.
xProblem caused by a connected computer or other equipment, and not
caused by the monitor
• Set the resolution to 1280 × 1024 on your computer.
Picture is dark.
•
•
•
•
•
Wavy or elliptical pattern (moire)
is visible.
• Adjust the pitch and phase (analog RGB signal only) (page 16).
Color is not uniform.
• Adjust the pitch and phase (analog RGB signal only) (page 16).
White does not look white.
• Adjust the color temperature (page 14).
Monitor buttons do not operate
(
appears on the screen).
• If “MENU LOCK” is set to “ON,” set it to “OFF” (page 18).
Resolution displayed on the menu
screen is incorrect.
• Depending on the graphics board setting, the resolution displayed on the menu screen may
not coincide with the one set on the computer.
Adjust the backlight (page 13).
Adjust the brightness (page 14).
Adjust the gamma on the GAMMA menu (page 14).
It takes a few minutes for the display to become bright after turning on the monitor.
When the
mode is set to AUTO, the display brightness may become dark in low
ambient light (page 13, 20).
GB
(continued)
23
Displaying this monitor’s information
While the monitor is receiving a video signal, press and
hold the MENU button for more than 5 seconds until the
information box appears.
Press the MENU button again to make the box disappear.
Example
MENU
INFORMATION
MODEL : SDM-HX93
SER. NO : 1234567
MANUFACTURED : 2003-40
Model
name
Self-diagnosis function
This monitor is equipped with a self-diagnosis function. If there is
a problem with your monitor or computer(s), the screen will go
blank and the 1 (power) indicator will light up green. If the 1
(power) indicator is lit in amber, the computer is in power saving
mode. Try pressing any key on the keyboard or moving the
mouse.
Serial
number
Week and year
of manufacture
MENU
1 (power)
indicator
OK
INPUT
If any problem persists, call your authorized Sony dealer and give
the following information:
• Model name: SDM-HX73 or SDM-HX93
• Serial number
• Detailed description of the problem
• Date of purchase
• Name and specifications of your computer and graphics board
• Type of input signals (analog RGB/digital RGB)
If the picture disappears from the screen and the
1 (power) indicator is green
1
Turn off the 1 (power) switch and disconnect the
video signal cables from the monitor.
2
Turn the monitor on by pressing the 1 (power)
switch.
If all four color bars appear (white, red, green, blue), the monitor
is working properly. Reconnect the video input cables and check
the condition of your computer(s).
If the color bars do not appear, there is a potential monitor failure.
Inform your authorized Sony dealer of the monitor’s condition.
If the 1 (power) indicator lights up in amber
Try pressing any key on the keyboard or moving the
mouse.
The computer’s power saving mode is shut off and the 1 (power)
indicator lights up in green, and the picture appears on the screen.
24
Specifications
LCD panel
Panel type: a-Si TFT Active Matrix
Picture size: 17 inch (43 cm)
(SDM-HX73)
19 inch (48 cm)
(SDM-HX93)
Input signal format
RGB operating frequency*
Horizontal:
28–80 kHz (analog RGB)
28–64 kHz (digital RGB)
Vertical:
48–75 Hz (analog RGB)
60 Hz (digital RGB)
Resolution
Horizontal: Max.1280 dots
Vertical: Max.1024 lines
Input signal levels
Analog RGB video signal:
0.7 Vp-p, 75 Ω, positive
SYNC signal:
TTL level, 2.2 kΩ,
positive or negative
(Separate horizontal and vertical,
or composite sync)
Digital RGB (DVI) signal:
TMDS (Single link)
Audio input
Stereo minijack, 0.5 Vrms
Speaker output
3W× 2
Headphones jack
Stereo minijack
Power requirements
SDM-HX73
100–240 V, 50–60 Hz, Max. 1.0 A
SDM-HX93
100–240 V, 50–60 Hz, Max. 1.1 A
Power consumption
Max. 50 W (SDM-HX73)
Max. 60 W (SDM-HX93)
Operating temperature
5–35 °C
Dimensions (width/height/depth)
Display (upright):
SDM-HX73
Approx. 414 × 418.5 × 232 mm
(16 3/8 × 16 1/2 × 9 1/4 inches)
SDM-HX93
Approx. 466.5 × 468 × 265 mm
(18 3/8 × 18 1/2 × 10 1/2 inches)
Mass
SDM-HX73
Approx. 6.5 kg (14 lb 5 oz)
SDM-HX93
Approx. 8.5 kg (18 lb 12 oz)
Plug & Play
DDC2B
Accessories
See page 7.
GB
* Recommended horizontal and vertical timing condition
• Horizontal sync width duty should be more than 4.8% of total
horizontal time or 0.8 µsec, whichever is larger.
• Horizontal blanking width should be more than 2.5 µsec.
• Vertical blanking width should be more than 450 µsec.
Design and specifications are subject to change without notice.
25
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
