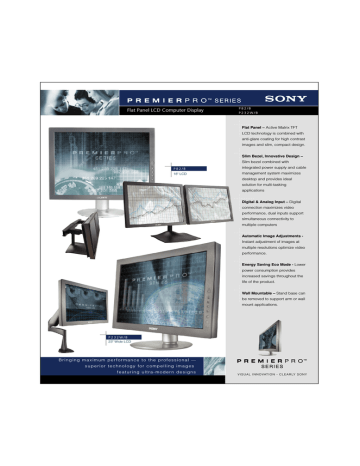

Flat Panel LCD Computer Display
P82/B
P232W/B
Flat Panel – Active Matrix TFT
LCD technology is combined with
anti-glare coating for high contrast
images and slim, compact design.
Slim Bezel, Innovative Design –
Slim bezel combined with
P82/B
integrated power supply and cable
18" LCD
management system maximizes
desktop and provides ideal
solution for multi-tasking
applications
Digital & Analog Input – Digital
connection maximizes video
performance, dual inputs support
simultaneous connectivity to
multiple computers
Automatic Image Adjustments Instant adjustment of images at
multiple resolutions optimize video
performance.
Energy Saving Eco Mode - Lower
power consumption provides
increased savings throughout the
life of the product.
Wall Mountable – Stand base can
be removed to support arm or wall
mount applications.
P232W/B
23" Wide LCD
Bringing maximum per for mance to the professional —
superior technology for compelling images
featuring ultra-modern designs
V I S U A L I N N O VAT I O N - C L E A R LY S O N Y
............
Model Number
P82/B
P232W/B
P82/B
P232W/B
Viewable Image Size
18.1"
23.0"
Native Resolution
1280 x 1024
1920 x 1200
Screen Coating
Anit-Glare / Hard Coating
Anit-Glare / Hard Coating
Pixel Pitch
0.280 mm
0.258 mm
Cabinet Color
Black & Silver
Black & Silver
Bezel Type
Slim Bezel
Slim Bezel
Horizontal Scan (kHz)
28-92kHz
28-92kHz
Vertical Refresh (Hz)
56-85Hz
48-85Hz
Response Time (Rise/Fall)
50ms
40ms
Contrast Ratio (max.)
400:1
350:1
Luminance
300cd/m2
200 cd/m2
Viewing Angle (H/V)
170˚/170˚
170˚/170˚
Tilt Adjust
-5° to +20°
-5° to +20°
Video Input Connector(s)
Digital (DVI-D) and Dual Analog (HD15)
Dual Digital (DVI-D) and Dual Analog (HD15)
...............................................................................................................
Slim Bezel Design
...............................................................................................................
...............................................................................................................
...............................................................................................................
Tile multiple displays
closely for increased
productivity
Wall & Arm Mountable
...............................................................................................................
...............................................................................................................
...............................................................................................................
...............................................................................................................
...............................................................................................................
...............................................................................................................
Flexible mounting
solutions for every
application
Widescreen LCD
...............................................................................................................
...............................................................................................................
...............................................................................................................
...............................................................................................................
See and do more with
wide panoramic display
Max. Power
58W (max.)
Max. Power
78W (max.)
Eco
Mode
48W
(max.)
Eco
Mode
. . .Power
. . . . .Management
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69W
. . . . (max.)
........................
Sleep Mode
3W (max.)
Sleep Mode
3W (max.)
. . . . . . . . . . . . . . . . . . . . . . . Main
. . . . .Off
. . . . . . . . . . . . .0W
. . . . . . . . . . . . . . . . . . . . . . . . .Main
. . . . Off
. . . . . . . . . . . . .0W
............................
Internal Power Supply
Yes
Yes
...............................................................................................................
15.9" x 16.0" x 7.9" (w/ stand base)
22.3” x 17.6” x 9.9” (w/ stand base)
15.9"
x
13.1
x
3.4"
(w/o
stand
base)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22.3”
. . . . .x .15.0”
. . . . .x .4.5”
. . . .(w/o
. . . .stand
. . . . base)
.....................
16.8 lbs (w/ stand base)
28.7 lbs. (w/ stand base)
Weight (Display)
. . . . . . . . . . . . . . . . . . . . . . . 13.9
. . . . lbs.
. . . .w/o
. . .stand
. . . . .base)
. . . . . . . . . . . . . . . . . . . . . . . . . . .23.6
. . . .lbs.
. . .(w/o
. . . .stand
. . . . .base)
.............................
Dimensions (WxHxD)
Wall / Arm Mount
100mm
100mm
On Screen Controls
Power, Menu, Contrast, Brightness, Input Select, Eco Mode, Color
Temperature,Backlight, Auto Adjust, H/V Adjust, Power Save, Phase, Pitch,
Reset, Gamma, Zoom, Smoothing, Menu Lock, OSD Position
Multi Lang. (Eng., Fre., Spa., ITal., Ger., Jap.)
Power, Menu, Contrast, Brightness, Input Select, Eco Mode, Color
Temperature, Backlight, Auto Adjust, H/V Adjust, Power Save,
Phase, Pitch, Reset, Gamma, Zoom, Smoothing, Menu Lock, OSD
Position Multi Lang. (Eng., Fre., Spa., ITal., Ger., Jap.)
Safety: UL1950, CSA 22.2, IEC60950, EMI CE, FCC Class B, IC Class B;
Power Management: Energy Star
Emisions/Ergonomics: TCO '95
Designed For: PC2001, Windows® 95, 98, 2000 Windows NT®,
Windows XP®; Macintosh®
.Plug
. . .and
. .Play:
. . .DDC
. . .2B. . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety: UL1950, CSA 22.2, IEC60950, EMI CE, FCC Class B,IC
Class B; Power Management: Energy Star
Emisions/Ergonomics: TCO '95
Designed For: PC2001, Windows® 95, 98, 2000, Windows NT®,
Windows XP®; Macintosh®
.Plug
. . and
. . .Play:
. . DDC
. . .2B. . . . . . . . . . . . . . . . . . . . . .
...............................................................................................................
...............................................................................................................
Regulation Compliance
.......................
Supplied Accessories
AC Power Cord, Owners Manual, Windows® Utility Files
Macintosh® Utlity Files, DVI-D Video Signal Cable
HD15 Video Signal Cable, Audio Cable, Warranty Card
...
AC Power Cord, Owners Manual, Windows® Utility Files
Macintosh® Utlity Files, DVI-D Video Signal Cable
HD15 Video Signal Cable, Audio Cable, Warranty Card
.............
...............................................................................................................
Limited Warranty
Sony Electronics Inc.
16450 West Bernardo Drive
San Diego, California 92127
For more information: 1.800.352.SONY
Web address: sony.com/displays
3 years (Parts, Labor, Backlight)
3 years (Parts, Labor, Backlight)
Computer Interface: The computer industry lacks standards, and therefore, there are a multitude of varying software packages and add-on hardware options. These displays are not manufactured to any specific software, and Sony does not and
cannot make any warranty or representation with respect to the performance of this product with any particular software packages and/or non-Sony add-on hardware option except those mentioned here. Sony hereby disclaims any
representations or warranty that this product is compatible with any combination of non-Sony products you may choose to connect. While Sony representatives or Sony authorized dealers may be able to assist you and may make
recommendations, they are NOT authorized to vary or waive this disclaimer. Purchasers must determine for themselves the suitability and compatibility of the hardware and software in each and every particular instance. © 2002 Sony
Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, the Sony logo are trademarks of Sony. Microsoft, the Windows Logo, and Windows are registered trademarks of Microsoft
Corporation. Mac and Macintosh are trademarks of Apple Inc. All other trademarks are property of their respective owners. Features and specifications are subject to change without notice. These monitors are Energy Star Compliant when used
with a computer equipped with VESA Display Power Management Signaling (DPMS). As an International Energy Star Partner, Sony Corporation has determined that this product merits the International Energy Star Program for energy efficiency.
The Energy Star emblem does not represent EPA endorsement of any product or service. Screen images are simulated.
