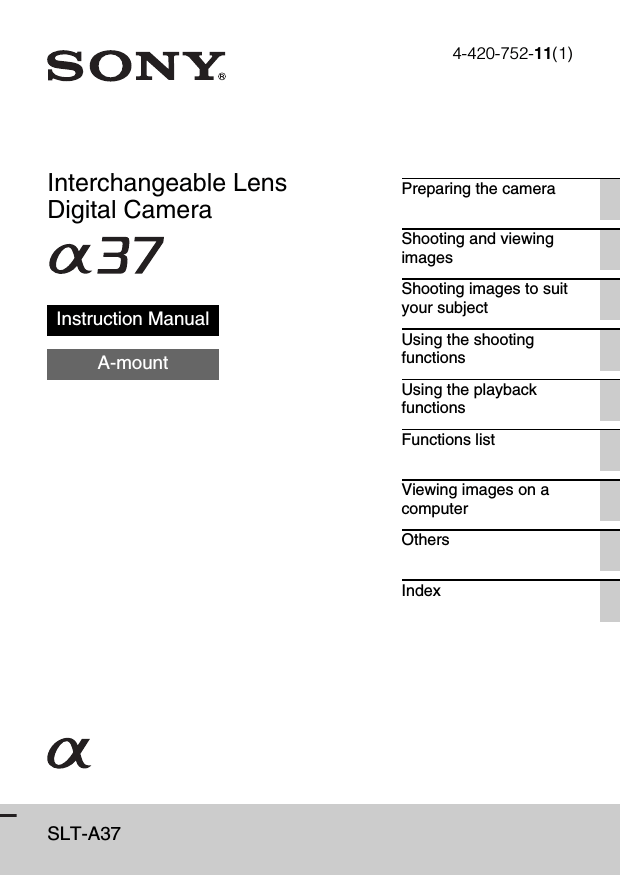

4-420-752-11(1)
Interchangeable Lens
Digital Camera
Preparing the camera
Shooting and viewing
images
Instruction Manual
A-mount
Shooting images to suit
your subject
Using the shooting
functions
Using the playback
functions
Functions list
Viewing images on a
computer
Others
Index
SLT-A37
Owner’s Record
The model and serial numbers are located
on the bottom.
Record the serial number in the space
provided below.
Refer to these numbers whenever you call
upon your Sony dealer regarding this
product.
Model No. SLT-A37
Serial No. __________________________
WARNING
To reduce fire or shock hazard, do
not expose the unit to rain or
moisture.
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE
INSTRUCTIONS.
DANGER - TO
REDUCE THE RISK
OF FIRE OR
ELECTRIC SHOCK,
CAREFULLY
FOLLOW THESE
INSTRUCTIONS.
If the shape of the plug does not fit the
power outlet, use an attachment plug
adaptor of the proper configuration for the
power outlet.
Caution
Battery pack
If the battery pack is mishandled, the
battery pack can burst, cause a fire or even
chemical burns. Observe the following
cautions.
• Do not disassemble.
• Do not crush and do not expose the
battery pack to any shock or force such as
hammering, dropping or stepping on it.
• Do not short circuit and do not allow
metal objects to come into contact with
the battery terminals.
• Do not expose to high temperature above
60°C (140°F) such as in direct sunlight or
in a car parked in the sun.
• Do not incinerate or dispose of in fire.
• Do not handle damaged or leaking
lithium ion batteries.
• Be sure to charge the battery pack using a
genuine Sony battery charger or a device
that can charge the battery pack.
2
• Keep the battery pack out of the reach of
small children.
• Keep the battery pack dry.
• Replace only with the same or equivalent
type recommended by Sony.
• Dispose of used battery packs promptly
as described in the instructions.
Battery charger
Even if the CHARGE lamp is not lit, the
battery charger is not disconnected from the
AC power source (mains) as long as it is
connected to the wall outlet (wall socket).
If some trouble occurs while using the
battery charger, immediately shut off the
power by disconnecting the plug from the
wall outlet (wall socket).
The power cord (mains lead), if supplied, is
designed specifically for use with this
camera only, and should not be used with
other electrical equipment.
For Customers in the U.S.A.
and Canada
RECYCLING LITHIUM-ION
BATTERIES
Lithium-Ion batteries are
recyclable.
You can help preserve
our environment by
returning your used
rechargeable batteries to
the collection and
recycling location nearest you.
For more information regarding recycling
of rechargeable batteries, call toll free
1-800-822-8837, or visit http://
www.rbrc.org/
Caution: Do not handle damaged or
leaking Lithium-Ion batteries.
Battery Pack and lens
accept any interference received, including
interference that may cause undesired
operation.
This Class B digital apparatus complies
with Canadian ICES-003.
For Customers in the U.S.A.
UL is an internationally recognized safety
organization.
The UL Mark on the product means it has
been UL Listed.
If you have any questions about this
product, you may call:
Sony Customer Information Center
1-800-222-SONY (7669)
The number below is for the FCC related
matters only.
Regulatory Information
Declaration of Conformity
Trade Name: SONY
Model No.: SLT-A37
Responsible Party: Sony Electronics
Inc.
Address:16530 Via Esprillo,
San Diego, CA 92127 U.S.A.
Telephone No.: 858-942-2230
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This
device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
CAUTION
You are cautioned that any changes or
modifications not expressly approved in
this manual could void your authority to
operate this equipment.
This device complies with Part 15 of the
FCC Rules, Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
3
Note:
This equipment has been tested and found
to comply with the limits for a Class B
digital device, pursuant to Part 15 of the
FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by
turning the equipment off and on, the user
is encouraged to try to correct the
interference by one or more of the
following measures:
– Reorient or relocate the receiving
antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
– Consult the dealer or an experienced
radio/TV technician for help.
The supplied interface cable must be used
with the equipment in order to comply with
the limits for a digital device pursuant to
Subpart B of Part 15 of FCC Rules.
For Customers in Europe
Notice for the customers in the
countries applying EU Directives
The manufacturer of this product is Sony
Corporation, 1-7-1 Konan Minato-ku
Tokyo, 108-0075 Japan. The Authorized
Representative for EMC and product safety
is Sony Deutschland GmbH, Hedelfinger
Strasse 61, 70327 Stuttgart, Germany. For
any service or guarantee matters please
refer to the addresses given in separate
service or guarantee documents.
4
This product has been tested and found
compliant with the limits set out in the
EMC Directive for using connection cables
shorter than 3 meters (9.8 feet).
Attention
The electromagnetic fields at the specific
frequencies may influence the picture and
sound of this unit.
Notice
If static electricity or electromagnetism
causes data transfer to discontinue midway
(fail), restart the application or disconnect
and connect the communication cable
(USB, etc.) again.
Disposal of Old Electrical &
Electronic Equipment (Applicable in
the European Union and other
European countries with separate
collection systems)
This symbol on the product or on its
packaging indicates that this product shall
not be treated as household waste. Instead it
shall be handed over to the applicable
collection point for the recycling of
electrical and electronic equipment. By
ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the environment
and human health, which could otherwise
be caused by inappropriate waste handling
of this product. The recycling of materials
will help to conserve natural resources. For
more detailed information about recycling
of this product, please contact your local
Civic Office, your household waste
disposal service or the shop where you
purchased the product.
Disposal of waste batteries
(applicable in the European Union
and other European countries with
separate collection systems)
This symbol on the battery or on the
packaging indicates that the battery
provided with this product shall not be
treated as household waste.
On certain batteries this symbol might be
used in combination with a chemical
symbol. The chemical symbols for mercury
(Hg) or lead (Pb) are added if the battery
contains more than 0.0005% mercury or
0.004% lead.
By ensuring these batteries are disposed of
correctly, you will help prevent potentially
negative consequences for the environment
and human health which could otherwise be
caused by inappropriate waste handling of
the battery. The recycling of the materials
will help to conserve natural resources.
In case of products that for safety,
performance or data integrity reasons
require a permanent connection with an
incorporated battery, this battery should be
replaced by qualified service staff only.
To ensure that the battery will be treated
properly, hand over the product at end-oflife to the applicable collection point for the
recycling of electrical and electronic
equipment.
For all other batteries, please view the
section on how to remove the battery from
the product safely. Hand the battery over to
the applicable collection point for the
recycling of waste batteries.
For more detailed information about
recycling of this product or battery, please
contact your local Civic Office, your
household waste disposal service or the
shop where you purchased the product.
Notice for customers in the
United Kingdom
A moulded plug complying with BS 1363
is fitted to this equipment for your safety
and convenience.
Should the fuse in the plug supplied need to
be replaced, a fuse of the same rating as the
supplied one and approved by ASTA or
BSI to BS 1362, (i.e., marked with an
or
mark) must be used.
If the plug supplied with this equipment has
a detachable fuse cover, be sure to attach
the fuse cover after you change the fuse.
Never use the plug without the fuse cover.
If you should lose the fuse cover, please
contact your nearest Sony service station.
5
Table of Contents
Notes on using your camera .............................................. 8
Preparing the camera
Checking the supplied items ............................................ 10
Identifying parts ............................................................... 11
Charging the battery pack ................................................ 17
Inserting the battery pack/memory card (sold separately)
..................................................................................... 19
Attaching a lens ............................................................... 22
Turning the camera on and setting the clock ................... 25
Before shooting ............................................................... 27
Adjusting the viewfinder to the visual acuity (diopter
adjustment)......................................................... 27
Holding the camera properly ...................................... 27
Shooting and viewing images
Shooting still images ....................................................... 29
Recording movies ............................................................ 31
Playing back images ........................................................ 32
Deleting images (Delete) ................................................. 33
Shooting images to suit your subject
Adjusting the angle of the LCD screen ........................... 34
Shooting with the various shooting modes ...................... 35
Superior Auto .................................................. 36
Scene Selection .................................................. 36
Sweep Panorama/
3D Sweep Panorama ....... 37
Tele-zoom Cont. Priority AE ............................. 38
Using the shooting functions
Using the flash ................................................................. 39
Adjusting the brightness of the image ............................. 41
Selecting the drive mode .................................... 43
Switching the recording information display (DISP) ...... 44
Setting image size ............................................................ 45
Image Size .................................................................. 45
Panorama: Size ........................................................... 45
6
Using the playback functions
Enlarging images ............................................................. 47
Switching to the display of the image list ....................... 48
Viewing images on a TV screen ...................................... 49
Functions list
Functions that can be operated with the buttons/switch
..................................................................................... 50
Selecting a function with the Fn (Function) button ......... 51
Functions that can be selected with the Fn (Function) button
..................................................................................... 52
The functions selected with the MENU button ............... 54
Using the guide function of the camera ........................... 61
In-Camera Guide ........................................................ 61
Shooting Tip ............................................................... 61
Viewing images on a computer
Using with your computer ............................................... 62
Using the software ........................................................... 64
Selecting the method for creating a disc of movies ......... 67
Others
List of icons on the screen ............................................... 69
Functions available for each shooting mode ................... 72
Flash modes available ..................................................... 73
Learning more about the camera (α Handbook) .............. 74
Checking the number of recordable images/recording time
..................................................................................... 75
Specifications .................................................................. 79
Index ............................................................................... 87
7
Notes on using your camera
Shooting procedure
Back up recommendation
• This camera has 2 modes for monitoring
subjects: the LCD screen mode using the
LCD screen, and the viewfinder mode
using the viewfinder.
• The recorded image may be different
from the image you monitored before
recording.
To avoid the potential risk of data loss,
always copy (back up) data to other
medium.
Notes on the functions available with
the camera
• To check whether it is a 1080 60icompatible device or 1080 50icompatible device, check for the
following marks on the bottom of the
camera.
1080 60i-compatible device:60i
1080 50i-compatible device:50i
• You may feel uncomfortable symptoms
such as eyestrain, nausea, or a tired
feeling while watching 3D-images
recorded with the camera on 3Dcompatible monitors. When you watch
3D-images, we recommend that you take
a break at regular time intervals. Since
the need for or frequency of break times
varies among individuals, please set your
own standards. If you feel sick, stop
watching 3D-images, and consult a
doctor as needed. Also, refer to the
operating instructions of the connected
device or the software used with the
camera. A child’s vision is always
vulnerable (especially for children under
6 years of age). Before allowing them to
watch 3D-images, please consult with an
expert, such as a pediatric or ophthalmic
doctor. Be sure to make sure your
children follow the precautions above.
No compensation for contents of the
recording
The contents of the recording cannot be
compensated for if recording or playback is
not possible due to a malfunction of your
camera or a memory card, etc.
8
Notes on the LCD screen, electronic
viewfinder, lens, and image sensor
• The LCD screen and electronic
viewfinder are manufactured using
extremely high-precision technology so
over 99.99% of the pixels are operational
for effective use. However, there may be
some tiny black points and/or bright
points (white, red, blue or green in color)
that constantly appear on the LCD screen
and electronic viewfinder. These points
are normal in the manufacturing process
and do not affect the images in any way.
• Do not hold the camera by taking hold of
the LCD screen.
• Do not expose the camera to sunlight or
shoot sunward for a long time. The
internal mechanism may be damaged. If
sunlight is focused on a nearby object, it
may cause a fire.
• Images may trail across on the screen in a
cold location. This is not a malfunction.
When turning on the camera in a cold
location, the screen may become
temporarily dark. When the camera
warms up, the screen will function
normally.
Notes on long-time recording
• When you continue to shoot for a long
time, the temperature of the camera rises.
If the temperature reaches above a certain
level, the
mark is indicated on the
screen and the camera is turned off
automatically. If the power is turned off,
leave the camera for 10 minutes or longer
to allow the temperature inside the
camera to decrease to a safe level.
• Under high ambient temperatures, the
temperature of the camera rises quickly.
• When the temperature of the camera
rises, the image quality may deteriorate.
It is recommended that you wait until the
Notes on using your camera
temperature of the camera drops before
continuing to shoot.
• The surface of the camera may get warm.
This is not a malfunction.
Notes on importing AVCHD movies to
a computer
When importing AVCHD movies to a
computer, for Windows computers, use the
“PlayMemories Home” software on the
CD-ROM (supplied).
Notes when playing movies on other
devices
• This camera uses MPEG-4 AVC/H.264
High Profile for AVCHD format
recording. Movies recorded in AVCHD
format with this camera cannot be played
with the following devices.
– Other devices compatible with
AVCHD format that does not support
High Profile
– Devices incompatible with the
AVCHD format
This camera also uses MPEG-4 AVC/
H.264 Main Profile for MP4 format
recording. For this reason, movies
recorded in MP4 format with this camera
cannot be played on devices other than
those that support MPEG-4 AVC/H.264.
• Discs recorded with HD image quality
(high definition) can be played back only
on AVCHD format-compatible devices.
DVD-based players or recorders cannot
play back HD image quality discs, as
they are incompatible with the AVCHD
format. Also, DVD-based players or
recorders may fail to eject HD image
quality discs.
On the data specifications described
in this manual
The data on performance and specifications
is defined under the following conditions,
except as described in this manual: at an
ordinary ambient temperature of 25ºC
(77°F), and using a battery pack that is
charged for about 1 hour after the
CHARGE lamp goes out.
Model name
This manual covers several models
supplied with different lenses.
The model name varies depending on the
supplied lens. The available model varies
depending on the countries/regions.
Model name
Lens
SLT-A37
–
SLT-A37K
DT18-55mm
SLT-A37M
DT18-135mm
SLT-A37Y
DT18-55mm and
DT55-200mm
Warning on copyright
Television programs, films, videotapes, and
other materials may be copyrighted.
Unauthorized recording of such materials
may be contrary to the provisions of the
copyright laws.
The pictures used in this manual
The photographs used as examples of
pictures in this manual are reproduced
images, and are not actual images shot
using this camera.
9
Preparing the camera
Checking the supplied items
First check the model name of your camera (page 9). The accessories
supplied differ depending on the model.
The number in parentheses indicates the number of pieces.
Common accessories
• Camera (1)
• BC-VW1 Battery charger (1)
• Power cord (mains lead) (1)* (not
supplied in the U.S.A. and
Canada)
* Multiple power cords may be supplied
with your camera. Use the appropriate
one that matches your country/region.
• Rechargeable battery pack NPFW50 (1)
• Body cap (1) (Attached on the
camera)
• Eyecup (1) (Attached on the
camera)
• CD-ROM (1)
– Application Software for α
camera
– α Handbook
• Instruction Manual (1) (This
manual)
SLT-A37K
• DT18-55mm zoom lens (1)/Front
lens cap (1)/Packaging lid (1)
SLT-A37M
• DT18-135mm zoom lens (1)/
Front lens cap (1)/Rear lens cap
(1)/Lens hood (1)
• USB cable (1)
• Shoulder strap (1)
10
SLT-A37Y
• DT18-55mm zoom lens (1)/Front
lens cap (1)/Packaging lid (1)
• DT55-200mm zoom lens (1)/
Front lens cap (1)/Rear lens cap
(1)/Lens hood (1)
Identifying parts
See the pages in parentheses for details of operation.
Front side
Preparing the camera
A Shutter button (29)
B Power switch (25)
C Control dial
D Self-timer lamp (43)
E Lens contacts*
F Mirror*
G Preview button (50)
H Mount
I Built-in flash* (39)
J Microphone**
L
(Flash pop-up) button (39,
50)
M Mounting index (22)
N Lens release button (23)
O Focus mode switch (50)
* Do not directly touch these
parts.
** Do not cover this part
during movie recording.
Doing so may cause noise
or lower the volume.
K Mode dial (35)
11
Identifying parts
Rear side
A Eyecup
WB (White balance) (50)/
(Drive) (43, 50)/ISO
(50)
B Viewfinder*
• When you look into the
viewfinder, the viewfinder
mode is activated, and when
you take your face away from
the viewfinder, the screen mode
returns to the LCD screen
mode.
I Control button (Enter)/AF
button/Object Tracking button
(52)
J
(In-Camera Guide) button
(61)
For viewing: (Delete) button
(33)
K
(Playback) button (32)
C Eyepiece sensors
D Diopter-adjustment dial (27)
E LCD screen (69)
F Access lamp (20)
G For shooting: Fn (Function)
button (51, 52)
For viewing:
(Image
rotation) button (50)
H Control button
v/V/b/B/DISP (Display) (44)/
12
* Do not directly touch this
part.
Identifying parts
Top side
Preparing the camera
A Auto-lock Accessory shoe
B MENU button (54)
C Microphone*
D FINDER/LCD button (50)
E Speaker
F
Image sensor position
mark
button (47)/
button (48)
(Image index)
J MOVIE button (31, 50)
* Do not cover this part
during movie recording.
Doing so may cause noise
or lower the volume.
G ZOOM button (50)
H For shooting: AEL (AE lock)
button (50, 57)
For viewing:
(Zoom in)
button (50)
I For shooting:
(Exposure)
button (41)/AV (Aperture
value) button (50)
For viewing:
(Zoom out)
13
Identifying parts
Sides/Bottom
A REMOTE terminal
• When connecting the RML1AM Remote Commander
(sold separately) to the camera,
insert the plug of the Remote
Commander into the REMOTE
terminal, aligning the guide of
the plug with the guide of the
REMOTE terminal. Make sure
that the cord of the Remote
Commander faces forward.
B Hooks for shoulder strap
• Attach both ends of the strap
onto the camera.
C HDMI mini terminal (49)
D
(USB) terminal
E Microphone jack
• When an external microphone
is connected, the internal
microphone is turned off
automatically. When the
external microphone is a plugin-power type, the power of the
microphone is supplied by the
camera.
F Tripod receptacle
• Use a tripod with a screw length
of less than 5.5 mm (7/32 inch).
You will be unable to firmly
secure the camera to tripods
with a screw length of 5.5 mm
(7/32 inch) or longer, and
attempting to do so may
damage the camera.
G Memory card insertion slot (19)
H Battery/memory card cover
(19)
14
Identifying parts
I Connection plate cover
Preparing the camera
• For using the AC-PW20 AC
Adaptor (sold separately)
Be careful not to catch the cord
of the AC Adaptor in the cover
when you close the cover.
15
Identifying parts
Lens
DT 18-55mm F3.5-5.6 SAM
(Supplied with the SLT-A37K/A37Y)
A Focusing ring
B Zoom ring
C Focal-length scale
D Focal-length index
E Lens contacts
F Focusing mode switch
G Mounting index
DT 55-200mm F4-5.6 SAM
(Supplied with the SLT-A37Y)
H Lens hood index
I Zoom lock switch
DT 18-135mm F3.5-5.6 SAM
(Supplied with the SLT-A37M)
16
• The DT 18-55mm F3.5-5.6
SAM/DT 55-200mm F4-5.6
SAM/DT 18-135mm F3.5-5.6
SAM are designed for Sony Amount cameras (models equipped
with an APS-C sized image
sensor). You cannot use these
lenses on 35mm-format cameras.
• For the lenses other than DT 1855mm F3.5-5.6 SAM/DT 55200mm F4-5.6 SAM/DT 18135mm F3.5-5.6 SAM, refer to
the operating instructions
supplied with the lens.
Charging the battery pack
1
Insert the battery pack onto
the battery charger.
Push the battery pack until it clicks.
17
Preparing the camera
When using the camera for the first time, be sure to charge the NP-FW50
“InfoLITHIUM” battery pack (supplied).
The “InfoLITHIUM” battery pack can be charged even when it has not
been fully depleted.
It can also be used when it has not been fully charged.
The battery pack is discharged little by little, even when you do not use it.
To avoid missing an opportunity to shoot, check the remaining battery level
before you shoot. If the battery level is low, charge it again.
Charging the battery pack
2
Connect the battery charger
to the wall outlet (wall
socket).
For the U.S.A and Canada
Plug
Light on: Charging
Light off: Charge completed
Charging time
About 250 minutes
• When charging a fully depleted
battery pack at a temperature of 25°C
CHARGE lamp
(77°F).
• The CHARGE lamp turns off when For countries/regions other than the
charging is completed.
U.S.A. and Canada
CHARGE lamp
To a wall outlet
(wall socket)
Notes
• The charging time differs depending on the remaining capacity of the battery pack or
charging conditions.
• We recommend charging the battery pack in an ambient temperature of between
10°C to 30°C (50°F to 86°F). You may not be able to efficiently charge the battery
pack outside of this temperature range.
• Connect the battery charger to the nearest wall outlet (wall socket).
18
Inserting the battery pack/memory
card (sold separately)
While sliding the cover open
lever, open the cover.
2
Firmly insert the battery pack
all the way while pressing
the lock lever with the tip of
the battery.
Preparing the camera
1
Lock lever
3
Insert a memory card.
• With the notched corner facing as
illustrated, insert the memory card
until it clicks into place.
Ensure the notched corner faces
correctly.
4
Close the cover.
19
Inserting the battery pack/memory card (sold separately)
To remove the battery pack
Turn off the camera. Slide the lock lever
in the direction of the arrow 10 seconds
after turning off the camera, then remove
the battery pack. Be careful not to drop
the battery pack.
Lock lever
To remove the memory card
Check that the access lamp is not lit, then open the cover, and push the
memory card once.
To check the remaining battery level
The supplied battery pack is a lithium-ion battery pack that has functions
for exchanging information related to operating conditions with your
camera. The remaining battery time in percent figures is displayed
according to the operating conditions of your camera.
“Battery
exhausted.”
Battery level
High
Low
You cannot shoot
any more pictures.
Available memory cards
The following memory cards are compatible with this camera. However, all
memory cards are not guaranteed to work with this camera.
Types of memory card
Memory Stick PRO Duo
Memory Stick PRO-HG Duo
SD memory card
SDHC memory card
SDXC memory card
• MultiMediaCard cannot be used.
20
Still
images
Movies
In this manual
(Mark2)
Memory Stick
PRO Duo
(Class 4 or faster)
(Class 4 or faster)
(Class 4 or faster)
SD card
Inserting the battery pack/memory card (sold separately)
Note
• Images recorded on an SDXC memory card cannot be imported to or played on
computers or AV devices that are not compatible with exFAT. Make sure that the
device is compatible with exFAT before connecting it to the camera. If you connect
your camera to an incompatible device, you may be prompted to format the card.
Never format the card in response to this prompt, as doing so will erase all data on
the card. (exFAT is the file system used on SDXC memory cards.)
Preparing the camera
21
Attaching a lens
1
Remove the body cap from
the camera and the
packaging lid from the rear
of the lens.
• When changing the lens, quickly
change the lens away from dusty
locations so as to keep dust or debris
from getting inside the camera.
• When shooting, remove the front lens
cap from the front of the lens.
2
Front lens cap
Body cap
Packaging lid
Mount the lens by aligning
the orange index marks
(mounting indexes) on the
lens and camera.
Orange index marks
3
Turn the lens clockwise until
it clicks into the locked
position.
• Be sure to put the lens on straight.
Notes
• When attaching a lens, do not press the lens release button.
• Do not use force when attaching a lens.
• E-mount lenses are not compatible with this camera.
• When you use a lens for which a tripod socket is provided, attach the lens onto the
tripod using the tripod socket provided to help balance the weight of the lens.
• When carrying the camera with a lens attached, hold both the camera and the lens
firmly.
22
Attaching a lens
• Do not hold the part of the lens that is extended for the zoom or focus adjustment.
To remove the lens
1
Press the lens release button
all the way in and turn the
lens counterclockwise until it
stops.
2
Attach the caps to the front
and rear of the lens and the
body cap to the camera.
• Before you attach them, remove dust
from them.
• A rear lens cap is not supplied with
the DT 18-55mm F3.5-5.6 SAM Lens
Kit. When you store the lens without
attaching it to the camera, purchase
the Rear Lens Cap ALC-R55.
To attach a lens hood
It is recommended that you use a lens
hood to reduce flare and ensure
maximum image quality.
Fit the hood into the mount on the end of
the lens barrel and rotate the hood
clockwise until it clicks.
Notes
• A lens hood is not included with the DT 18-55mm F3.5-5.6 SAM. You can use the
ALC-SH108 (sold separately).
• The lens hood may block the light of the flash. Remove the lens hood when using the
flash.
23
Preparing the camera
Lens release button
Attaching a lens
• When storing, turn over the lens hood and place it onto the lens backwards.
Note on changing the lens
When changing the lens, if dust or debris gets inside the camera and
adheres to the surface of the image sensor (the part that acts as the film), it
may appear as dark spots on the image, depending on the shooting
environment.
The camera is equipped with an anti-dust function to prevent dust from
landing on the image sensor. However, quickly change the lens away from
dusty locations when attaching/removing a lens.
24
Turning the camera on and setting the
clock
When you turn the camera on for the first time, the date/time setup screen
appears.
1
Set the power switch to ON to
turn the camera on.
Preparing the camera
The screen used for setting date and
time appears.
• To turn the camera off, set it to OFF.
2
Verify that [Enter] is selected
on the LCD screen, then
press the center of the
control button.
3
Select your area with b/B on the control button, then
press the center of the control button.
4
Select each item with b/B
and set the numeric value
with v/V.
[Daylight Svg.:]: Turns on or off the
daylight saving time setting.
[Date Format:]: Selects the format to
display date.
• Midnight is indicated as 12:00 AM,
and noon as 12:00 PM.
25
Turning the camera on and setting the clock
5
Repeat step 4 to set other items, then press the center
of the control button.
6
Verify that [Enter] is selected, then press the center of
the control button.
To cancel the date/time setting operation
Press the MENU button.
To set up the date/time again
When you turn the camera on for the first time, the date/time setup screen
appears automatically. The next time, set up the date and time from the
menu.
MENU button t
1 t [Date/Time Setup]
To set up the area again
You can set the area where you are using the camera. This allows you to set
the local area when you use the camera abroad.
MENU button t
1 t [Area Setting]
Maintaining the date and time setting
This camera has an internal rechargeable battery for maintaining the date
and time and other settings regardless of whether the power is on or off, or
the battery is installed or not.
26
Before shooting
Adjusting the viewfinder to the visual acuity (diopter
adjustment)
• If you cannot see the entire screen in
the viewfinder, you can change the
scale of the viewfinder screen
(page 56).
Note
• The dioptic adjustment attachment (sold separately) cannot be used with this camera.
Holding the camera properly
Stabilize your upper body and take a position that keeps the
camera from moving.
In LCD screen mode
In viewfinder mode
In viewfinder mode
(vertical position)
Point 1
One hand holds the grip of the camera, and the other hand supports the lens.
Point 2
Take a secure stance with your feet shoulder-width apart.
27
Preparing the camera
Adjust the diopter-adjustment
dial to your eyesight until the
display appears clearly in the
viewfinder.
Before shooting
Point 3
Lightly tuck your elbows against your body.
When shooting in a kneeling position, steady your upper body by placing
your elbow on your knee.
28
Shooting and viewing images
Shooting still images
The “Intelligent Auto” mode allows you to easily shoot any subject under
any conditions because the camera makes appropriate judgments on the
situation to adjust the settings.
Select
when shooting in a location where the use of a flash is restricted.
1
Set the mode dial to
(Flash Off).
or
or
Hold the camera, monitoring your shot with the LCD
screen or viewfinder.
3
Overlay the AF area on the
desired subject.
• If the
(Camera shake
warning) indicator flashes, carefully
shoot the subject, holding the camera
steady, or by using a tripod.
• When the camera recognizes the
scene, the Scene Recognition icon
appears on the screen and suitable
settings for that scene will be put into
effect.
4
Shooting and viewing images
2
(Camera shake
warning) indicator
AF area
When using a zoom lens,
turn the zoom ring, then
decide on your shot.
Zoom ring
29
Shooting still images
5
Press the shutter button
halfway down to focus.
When the focus is confirmed, z or
(Focus indicator) lights up.
Focus indicator
6
Press the shutter button fully
down to shoot.
• When the camera detects and
shoots a face with [Auto Port.
Framing] set to [Auto], the
captured image is automatically
trimmed into a suitable
composition. Both the original and
the trimmed images are saved
(page 52).
30
Recording movies
1
Press the MOVIE button to
start recording.
MOVIE button
2
Press the MOVIE button again to stop recording.
Notes
• The sound of the camera and the lens in operation may be recorded while recording a
movie. You can disable sound recording by setting [Audio Recording] to [Off]
(page 55).
• The continuous recording time of a movie may be shorter, depending on the ambient
temperature or the status of the camera. See “Notes on continuous movie recording.”
• When the
mark is indicated, the temperature of the camera is too high. Turn the
camera off and wait until the temperature of the camera drops.
31
Shooting and viewing images
• Movie recording can be started from
any exposure mode.
• The shutter speed and aperture are
adjusted automatically. If you want to
set them to particular values, set the
mode dial to
(Movie) (page 35).
• The camera continues to adjust the
focus when it is in autofocus mode.
Playing back images
1
Press the
button.
button
2
MENU button t
desired mode
1 t [View Mode] t Select the
• To play back still images, select [Folder View(Still)], and to play back
movies, select [Folder View(MP4)] or [AVCHD View] according to the
file format.
3
Select an image with b/B on the control button.
• To play back movies, press the center of the control button.
During movie playback
Control button/control dial operation
To pause/resume
z
To fast-forward
B
To fast-rewind
b
To slow-forward
Rotate the control dial to the right during
pause
To slow-reverse
Rotate the control dial to the left during
pause
• The movie is played back frame-byframe.
To adjust sound volume
V t v/V
To display the information
v
Note
• Movies recorded with other devices may not be played back on this camera.
32
Deleting images (Delete)
Once you have deleted an image, you cannot restore it. Check whether to
delete the image or not beforehand.
Note
• Protected images cannot be deleted.
Deleting the image that is currently displayed
2
Display the image you want
to delete and press the
button.
button
Select [Delete] with v on the control button, then press
the center of the control button.
33
Shooting and viewing images
1
Shooting images to suit your subject
Adjusting the angle of the LCD screen
Adjust the LCD screen to an easily
viewable angle.
34
Shooting with the various shooting
modes
Set the mode dial to the desired
mode.
The following shooting modes are provided with the camera:
(Intelligent
The “Intelligent Auto” mode allows you to easily shoot any
Auto)/
(Flash Off) subject under any conditions because the camera makes
appropriate judgments on the situation to adjust the settings.
Select “Flash Off” when you want to shoot without the flash.
(Superior
The camera recognizes and evaluates the shooting condition,
and appropriate settings are set automatically. The camera
saves 1 appropriate image by combining or separating
images, as necessary.
(Scene
Selection)
Selecting an appropriate mode for the subject or the shooting
conditions allows you to shoot the image with a suitable
setting for the subject.
(Sweep
Panorama)
Allows you to shoot panoramic images.
(3D Sweep
Panorama)
Allows you to shoot 3D panoramic images for playback on a
3D compatible TV.
(Tele-zoom
Cont. Priority AE)
The camera continues to shoot while the shutter button is
pressed fully down. The center area on the screen is cropped
and the camera records the images continuously at a
maximum of about 7 images per second.
(Movie)
(Program Auto)
(Aperture
Priority)
Allows you to shoot movies with the exposure adjusted
manually (both the shutter speed and the aperture value).
Allows you to shoot with the exposure adjusted automatically
(both the shutter speed and the aperture value). The other
settings can be adjusted manually.
Allows you to shoot after adjusting the aperture value
manually using the control dial.
(Shutter Priority) Allows you to shoot after adjusting the shutter speed
manually using the control dial.
(Manual
Exposure)
Allows you to shoot after adjusting the exposure manually
(both the shutter speed and the aperture value) using the
control dial.
35
Shooting images to suit your subject
Auto)
Shooting with the various shooting modes
Superior Auto
1 Set the mode dial to
(Superior Auto).
2 Point the camera towards the
Recognized scene mode mark
subject.
When the camera recognizes and adjusts
for shooting conditions, the following
information is indicated: recognized
scene mode mark, appropriate shooting
function, the number of images to be
shot.
Shooting function
Number of images to be shot
3 Adjust the focus and shoot the subject.
Scene recognized by the camera
(Night Scene)
(Hand-held Twilight)
(Landscape)
(Backlight Portrait)
(Portrait)
(Tripod Night Scene)
(Backlight)
(Macro)
(Night Portrait)
(Spotlight)
(Low Brightness)
(Baby)
Shooting function
Cont. Shooting (43)
Slow Sync. (39)
Auto HDR (52)
Daylight Sync.
Slow Shutter
Hand-held Twilight (36)
Scene Selection
1 Set the mode dial to
36
(Scene Selection).
Shooting with the various shooting modes
2 Select the desired mode with v/V, then press the center of the
control button.
• To change the scene, press the Fn button, then select another scene.
3 Adjust the focus and shoot the subject.
(Portrait)
Blurs away backgrounds and sharpens the subject. Expresses
skin tones softly.
(Sports Action)
Shoots a moving subject at a fast shutter speed so that the
subject looks as if it is standing still. The camera shoots
images continuously while the shutter button is pressed.
Shoots close subjects such as flowers, foods.
Shoots the entire range of scenery in sharp focus with vivid
colors.
(Sunset)
Shoots the red of the sunrise or sunset beautifully.
(Night Scene)
(Hand-held
Twilight)
(Night Portrait)
Shoots night scenes at a distance without losing the dark
atmosphere of the surroundings.
Shoots night scenes with less noise and blur without using a
tripod. A burst of shots are taken, and image processing is
applied to reduce subject blur, camera shake, and noise.
Shoots portraits in night scenes.
Sweep Panorama/
1 Set the mode dial to
3D Sweep Panorama
(Sweep Panorama)/
(3D Sweep
Panorama).
37
Shooting images to suit your subject
(Macro)
(Landscape)
Shooting with the various shooting modes
2 Point the camera at the edge of
the subject, then press the shutter
button halfway down to adjust the
focus.
This part will not be taken
3 Press the shutter button fully down.
4 Pan or tilt the camera to the end,
following the guidance on the
screen.
Guidance bar
Tele-zoom Cont. Priority AE
1 Set the mode dial to
(Tele-zoom Cont. Priority AE).
2 Adjust the focus and shoot the subjects.
• The camera continues to shoot while the shutter button is pressed fully
down.
• The center area on the screen is cropped and the camera records the images
continuously at a maximum of about 7 images per second.
• The minimum zoom scale of the camera is set to 1.4 times and the image
size can be set to M or S.
38
Using the shooting functions
Using the flash
In a dark location, using the flash allows you to shoot the subject brightly,
and it also helps to prevent camera shake. When shooting into the sun, you
can use the flash to shoot a bright image of the backlit subject.
1 Fn button t
(Flash Mode) t Select the desired setting
• For further information on the flash modes available for each shooting
mode, see page 73.
2 Press the
button.
button
Using the shooting functions
The flash pops up.
• In Intelligent Auto, Superior Auto or
Scene Selection mode, the flash
automatically pops up if the amount of
light is insufficient or the subject is
backlit. The built-in flash does not pop
up even if you press the button.
3 After the flash has finished
charging, shoot the subject.
Flashing: The flash is being charged.
When the indicator flashes, you cannot
release the shutter.
Lit: The flash has been charged and
is ready to fire.
• When you press the shutter button
halfway down under dark lighting in
autofocus mode, the flash may be fired
to help focus on a subject (AF
Illuminator).
(Flash charging) indicator
39
Using the flash
(Flash Off)
Does not fire even the built-in flash pops up.
• You cannot select this item when the mode dial is set to P,
A, S, or M. However, the flash will not be fired if it is not
pulled up.
(Autoflash)
Fires if it is dark or against light.
(Fill-flash)
Fires every time you trigger the shutter. Slow sync shooting
allows you to shoot a clear image of both the subject and the
background by slowing the shutter speed.
(Rear Sync.)
Fires right before the exposure is completed every time you
trigger the shutter.
(Wireless)
40
Fires every time you trigger the shutter.
(Slow Sync.)
Fires an external flash (sold separately) that is off the camera
and away from it (Wireless flash shooting).
Adjusting the brightness of the image
Except for exposure mode M, the exposure is automatically selected
(Automatic exposure).
Based on the exposure acquired by the automatic exposure, you can
perform exposure compensation. You can make the entire image brighter
by shifting to the + side. The entire image becomes darker when you shift it
to the – side (Exposure compensation).
1 Press the
button.
2 Adjust the exposure with the
The LCD screen after the
exposure is adjusted.
Toward + (over): Brightens an image.
Toward – (under): Darkens an image.
• In viewfinder mode, confirm the
exposure using the EV scale.
Compensated exposure
The screen in the viewfinder
Standard exposure
3 Adjust the focus and shoot the subject.
Shooting techniques
• Adjust the compensation level by checking the recorded image.
• Using bracket shooting, you can shoot multiple images with the exposure
shifted to the plus or minus sides (page 43).
41
Using the shooting functions
control dial.
button
Adjusting the brightness of the image
Note
• This item cannot be set when the exposure mode is set to Intelligent Auto, Superior
Auto, or Scene Selection.
42
Selecting the drive mode
You can use an appropriate drive mode to suit your purposes, such as
single-shot advanced, continuous advanced, or bracket.
on the control button t
Select the desired mode
(Single
Shooting)
This mode is for normal shooting.
(Cont. Shooting) The camera records the images continuously.
(Self-timer)
Cont.)
You can shoot 3 images, each with different degrees of
exposure.
(Single
Bracket)
You can shoot 3 images, shot by shot, each with different
degrees of exposure.
(WB
bracket)
Based on the selected white balance, and the color
temperature/color filter, 3 images are recorded with the white
balance shifted.
43
Using the shooting functions
(Bracket:
The 10-second self-timer is convenient when the
photographer appears in a photo and the 2-second self-timer
is convenient to reduce the camera shake.
Switching the recording information
display (DISP)
Each time you press DISP on the control
button, the recording information display
changes as follows.
You can select the available displays in
the viewfinder or on the LCD screen
separately.
Graphic Display
Display All Info.
No Disp. Info.
Graphic Display
The Graphic Display shows the shutter
speed and aperture value as graphs, and
clearly illustrates how the exposure
works. The pointers on the shutter speed
indicator and aperture indicator indicate
the current value.
Aperture value
Shutter speed
44
Setting image size
Image Size
MENU button t
1 t [Image Size] t Select the desired size
[Aspect Ratio]: [3:2]
Image size
Usage guidelines
L:16M
4912 × 3264 pixels
M:8.4M
3568 × 2368 pixels
For prints up to A4 size
S:4.0M
2448 × 1624 pixels
For prints up to L/2L size
For prints up to A3+ size
[Aspect Ratio]: [16:9]
Image size
Usage guidelines
4912 × 2760 pixels
M:7.1M
3568 × 2000 pixels
S:3.4M
2448 × 1376 pixels
For viewing on a high-definition
TV
Note
• When you select a RAW image with [Quality], the image size of the RAW image
corresponds to L. This size is not displayed on the screen.
Panorama: Size
You can set the image size of panoramic images. The image size varies
depending on the setting of the shooting direction (page 54).
MENU button t
1 t [Panorama: Size] or [3D Pan.: Image
Size] t Select the desired size
[Panorama: Size]
Standard
[Panorama: Direction] is set to [Up] [Down]: 3872 × 2160
[Panorama: Direction] is set to [Right] [Left]: 8192 × 1856
Wide
[Panorama: Direction] is set to [Up] [Down]: 5536 × 2160
[Panorama: Direction] is set to [Right] [Left]: 12416 × 1856
45
Using the shooting functions
L:14M
Setting image size
[3D Pan.: Image Size]
16:9
1920 × 1080
Standard
4912 × 1080
Wide
7152 × 1080
46
Using the playback functions
Enlarging images
A still image can be enlarged for closer examination. This is convenient to
check the focus condition of a recorded image.
1 Display the image you want to
enlarge, then press the
button.
button
2 Zoom the image in or out with the
button or
button.
• Rotating the control dial switches the image at the same display
magnification. When you shoot multiple images with the same
composition, you can compare their focus conditions.
control button.
To cancel the enlarged playback
Press the center of the control button so that the image returns to the normal
size.
47
Using the playback functions
3 Select the portion you want to enlarge with v/V/b/B on the
Switching to the display of the image
list
You can display multiple images on the screen simultaneously.
Press the
button.
The image index screen is displayed.
• You can select the number of images
displayed on one page of the image
index screen using [Image Index] in the
Playback menu.
button
To return to the single-image screen
Press the center of the control button when you select the desired image.
To display the desired folder
Select the left bar on the image index
screen with the control button, then select
the desired folder with v/V. Pressing the
center of the control button when the left
bar is selected switches the view mode.
48
Viewing images on a TV screen
To view images recorded on the camera on a TV set, an HDMI cable (sold
separately) and an HD TV equipped with an HDMI connector are required.
1 Turn off both your camera and the
TV, and connect the camera to the
TV.
1 To the HDMI
connector
HDMI cable
(sold separately)
2 To the
HDMI mini terminal
2 Turn on the TV and switch the input.
• See also the operating instructions supplied with the TV.
Using the playback functions
3 Turn on the camera, and press the
button.
Images shot with the camera appear on
the TV screen.
Select the desired image with b/B on the
control button.
• The LCD screen on the camera does
not turned on.
button
Control button
49
Functions list
Functions that can be operated with
the buttons/switch
You can set up or operate various functions with these buttons/switch.
For the location of the buttons/switch, see “Identifying parts” (page 11).
button
Pops the flash up.
button/AV button/
button/
button
Compensates the exposure./Sets up the aperture value./
Displays multiple images on the screen simultaneously./
Scales down an image that has been scaled up when
viewing images.
FINDER/LCD button
Switches the display between the LCD screen and the
viewfinder.
MENU button
Displays the menu screen for setting up the menu item.
MOVIE button
Records movies.
AEL button/
button
ZOOM button
Magnifies and shoots the subject using the zoom feature
of the camera (ZOOM).
Fn button/
button
Control button
button
button/
Fixes the exposure of the entire screen./Scales an image
up when viewing images.
Displays the setup screen of the function that is set using
the Fn button./Rotates images.
Sets up the following functions: Display, White
Balance, Drive mode, ISO, and Autofocus.
Plays back images.
button
Displays a shooting tip or In-Camera Guide./Deletes
images.
Focus mode switch
Switches the autofocus and manual focus.
Preview button
Checks blurring of the background.
50
Selecting a function with the Fn
(Function) button
This button is used for setting up or executing functions used frequently in
shooting.
1 Press the Fn button.
2 Select the desired item with v/V/b/B on the control button,
then press the center z to execute.
The setup screen appears.
3 Following the operation guide,
select and execute the desired
function.
Functions list
Operation guide
To set up the camera directly from the recording information screen
Turn the control dial without pressing the center z in step 2. You can set
up the camera directly from the recording information screen.
51
Functions that can be selected with
the Fn (Function) button
The functions that can be selected with the Fn button are as follows:
Scene Selection
Selects an appropriate mode from among the Scene Selection
preset settings to suit shooting conditions.
(Portrait/Sports Action/Macro/Landscape/Sunset/Night
Scene/Hand-held Twilight/Night Portrait)
Movie
Selects the exposure mode to suit your subject or your effect
and records movies.
(P/A/S/M)
Drive Mode
Sets the drive mode such as continuous shooting.
(Single Shooting/Cont. Shooting/Self-timer/Bracket: Cont./
Single Bracket/WB bracket)
Flash Mode
Sets the flash mode.
(Flash Off/Autoflash/Fill-flash/Slow Sync./Rear Sync./
Wireless)
Autofocus Mode
Selects the method for focusing according to movement of
the subject.
(Single-shot AF/Automatic AF/Continuous AF)
AF area
Selects the area of focus.
(Wide/Zone/Spot/Local)
Object Tracking
Keeps the focus on a subject while tracking it.
(On/Off)
Smile/Face Detect.
Automatically captures people’s face(s) with the optimal
focus and exposure./Shoots when a smile is detected.
(Face Detection Off/Face Detection On (Regist. Faces)/Face
Detection On/Smile Shutter)
Auto Port. Framing
Analyzes the scene when capturing face and automatically
saves another image with well-balanced composition.
(Auto/Off)
ISO
Sets the sensitivity to light. The larger the number, the faster
the shutter speed.
(Multi Frame Noise Reduct./ISO AUTO to 16000)
Metering Mode
Selects the method for measuring brightness.
(Multi segment/Center weighted/Spot)
Flash Comp.
Adjusts the intensity of flash output.
(+2.0EV to –2.0EV)
52
Functions that can be selected with the Fn (Function) button
White Balance
Adjusts the color tone of images.
(Auto WB/Daylight/Shade/Cloudy/Incandescent/Fluor.:
Warm White/Fluor.: Cool White/Fluor.: Day White/Fluor.:
Daylight/Flash/C.Temp./Filter/Custom)
DRO/Auto HDR
Compensates for the brightness and contrast automatically.
(Off/D-RangeOptimizer/Auto HDR)
Creative Style
Selects your desired image processing.
(Standard/Vivid/Portrait/Landscape/Sunset/Black & White)
Picture Effect
Shoots with the desired effect filter to achieve more
impressive expression.
(Off/Toy Camera/Pop Color/Posterization/Retro Photo/Soft
High-key/Partial Color/High Contrast Mono./Soft Focus/
HDR Painting/Rich-tone Mono./Miniature)
Functions list
53
The functions selected with the MENU
button
You can set up the basic settings for the camera as a whole or execute
functions such as shooting, playback, or other operations.
Press the MENU button, then set up the desired item with v/V/b/B on the
control button, then press the center of the control button.
Select a page of the menu
Select an item on the menu
Still shooting menu
Image Size
Selects the size of still images.
(L:16M/M:8.4M/S:4.0M (When [Aspect Ratio] is set to 3:2)
L:14M/M:7.1M/S:3.4M (When [Aspect Ratio] is set to 16:9))
Aspect Ratio
Selects the aspect ratio for still images.
(3:2/16:9)
Quality
Sets the image quality for still images.
(RAW/RAW & JPEG/Fine/Standard)
Panorama: Size
Selects the size of panoramic images.
(Standard/Wide)
Panorama: Direction Sets the shooting direction for panoramic images.
(Right/Left/Up/Down)
3D Pan.: Image Size
Selects the size of 3D-images.
(16:9/Standard/Wide)
3D Pan.: Direction
Sets the shooting direction for 3D-images.
(Right/Left)
Clear Image Zoom
Zooms an image with higher quality than Digital Zoom.
(On/Off)
54
The functions selected with the MENU button
Digital Zoom
Zooms an image with higher magnification than Clear Image
Zoom. This feature can be also available in movie recording.
(On/Off)
Long Exposure NR
Sets noise reduction processing for shots in which shutter
speed will be 1 second or longer.
(On/Off)
High ISO NR
Sets noise reduction processing for high-sensitivity shooting.
(High/Normal/Low)
Flash control
Sets the method for determining the intensity of flash output.
(ADI flash/Pre-flash TTL)
AF Illuminator
Sets the AF illuminator, which sheds light on a dark scene to
aid focusing.
(Auto/Off)
Color Space
Changes the range of reproducible colors.
(sRGB/AdobeRGB)
SteadyShot
Sets SteadyShot.
(On/Off)
Shooting Tip List
Allows you to access all shooting tips.
File Format
Selects the movie file format.
(AVCHD/MP4)
Record Setting
Selects the size of the recorded movie frame.
(60i 24M(FX)/50i 24M(FX)/60i 17M(FH)/50i 17M(FH)/24p
24M(FX)/25p 24M(FX)/24p 17M(FH)/25p 17M(FH)/
1440×1080 12M/VGA 3M)
Audio Recording
Sets whether or not to record audio when shooting a movie.
(On/Off)
Wind Noise Reduct.
Reduces wind noise during movie recording.
(On/Off)
SteadyShot
Sets SteadyShot.
(On/Off)
55
Functions list
Movie shooting menu
The functions selected with the MENU button
Custom menu
Eye-Start AF
Sets whether or not to use auto focus when you look through
the viewfinder.
(On/Off)
FINDER/LCD Setting
Sets the method for switching between the viewfinder and
LCD screen.
(Auto/Manual)
Viewfinder Magnifi.
Changes the screen size in the viewfinder. If you cannot see
the entire screen in the viewfinder, set it to [Standard].
(Maximum/Standard)
Red Eye Reduction
Reduces the red-eye phenomenon during flash use.
(On/Off)
Release w/o Lens
Sets whether shutter can open when lens is not attached.
(Enable/Disable)
S. Auto Cont.
Shooting
Sets whether or not to shoot continuously in Superior Auto
mode.
(Auto/Off)
S. Auto Image
Extract.
Sets whether or not to save all the images that were shot
continuously in Superior Auto mode.
(Auto/Off)
Grid Line
Sets a grid line display to enable alignment to a structural
outline.
(Rule of 3rds Grid/Square Grid/Diag. + Square Grid/Off)
Auto Review
Displays the captured image after shooting. Sets auto review.
(10 Sec/5 Sec/2 Sec/Off)
DISP Button(Monitor) Allows you to select the available screen display modes of
the LCD screen that can be selected by pressing DISP on the
control button.
(Graphic Display/Display All Info./No Disp. Info./
Histogram/For viewfinder)
DISP Button(Finder)
56
Allows you to select the available screen display modes of
the viewfinder that can be selected by pressing DISP on the
control button.
(Graphic Display/Display All Info./No Disp. Info./
Histogram)
The functions selected with the MENU button
Enhances the outline of in-focus ranges with a specific color
in manual focus mode.
(High/Mid/Low/Off)
Peaking Color
Sets the color used for the peaking function.
(Red/Yellow/White)
Live View Display
Sets whether or not to display the effect of a function on the
screen, such as the effect of the exposure compensation
value.
(Setting Effect ON/Setting Effect OFF)
Func. of AEL button
Assigns the desired function to the AEL button.
(Exposure Comp./Drive Mode/Flash Mode/Autofocus Mode/
AF area/Face Detection/Smile Shutter/Auto Port. Framing/
ISO/Metering Mode/Flash Comp./White Balance/DRO/Auto
HDR/Creative Style/Picture Effect/Image Size/Quality/AEL
hold/AEL toggle/ AEL hold/ AEL toggle/Object
Tracking/AF lock/Aperture Preview/Shot. Result Preview/
Zoom/Focus Magnifier)
Preview Button
Assigns the desired function to the preview button.
(Exposure Comp./Drive Mode/Flash Mode/Autofocus Mode/
AF area/Face Detection/Smile Shutter/Auto Port. Framing/
ISO/Metering Mode/Flash Comp./White Balance/DRO/Auto
HDR/Creative Style/Picture Effect/Image Size/Quality/AEL
hold/AEL toggle/ AEL hold/ AEL toggle/Object
Tracking/AF lock/Aperture Preview/Shot. Result Preview/
Zoom/Focus Magnifier)
Focus Hold Button
Sets the function of the focus hold button of the lens.
(Focus Hold/D.O.F.Preview)
MOVIE Button
Selects the appropriate mode for the MOVIE button.
(Always/Movie Mode Only)
Lens Comp.: Shading Compensates for the shaded corners of the screen caused by
the lens attached.
(Auto/Off)
Lens Comp.: Chro.
Aber.
Reduces the color deviation at the corners of the screen
caused by the lens attached.
(Auto/Off)
57
Functions list
Peaking Level
The functions selected with the MENU button
Lens Comp.:
Distortion
Compensates for distortion on the screen caused by the lens
attached.
(Auto/Off)
Front Curtain Shutter Sets whether or not to use the electronic front curtain shutter
function.
(On/Off)
Face Registration
Registers or changes the person to be given priority in the
focus.
(New Registration/Order Exchanging/Delete/Delete All)
Face Priority
Tracking
Sets whether to preferentially-track a certain face or not when
the camera detects that face during object tracking.
(On/Off)
Playback menu
Delete
Deletes images.
(Multiple Img./All in Folder/All AVCHD view files)
View Mode
Allows you to determine how to group the playback images.
(Folder View(Still)/Folder View(MP4)/AVCHD View)
Slide Show
Shows a slide show.
(Repeat/Interval/Image Type)
Image Index
Displays the image list.
(4 Images/9 Images)
3D Viewing
Plays back 3D-images using a 3D-compatible TV connected
to the camera.
Protect
Protects or cancels protection for an image.
(Multiple Img./Cancel All Images/Cancel All Movies(MP4)/
Cancel All AVCHD view files)
Specify Printing
Specifies or unspecifies the images for DPOF.
(DPOF Setup/Date Imprint)
Volume Settings
Sets the volume for movie playback.
Playback Display
Sets how to play back an image recorded in portrait.
(Auto Rotate/Manual Rotate)
58
The functions selected with the MENU button
Memory Card Tool menu
Format
Formats the memory card.
File Number
Sets the method used to assign file numbers to still images
and MP4 movies.
(Series/Reset)
Folder Name
Sets the folder format for still images.
(Standard Form/Date Form)
Select REC Folder
Changes the selected folder for storing still images and MP4
movies.
New Folder
Creates a new folder for storing still images and MP4 movies.
Recover Image DB
Recovers the image database file and enables recording and
playback.
Display Card Space
Displays the remaining recording time of movies and the
recordable number of still images on the memory card.
Clock setup menu
Sets date and time, and daylight savings.
Area Setting
Sets the location of use.
Setup menu
Menu start
Sets the default position of the cursor on the menu to the top
item or the last-selected item.
(Top/Previous)
LCD Brightness
Sets the brightness of the LCD screen.
(-2 to +2)
Viewfinder Bright.
Sets the brightness of the viewfinder.
(Auto/Manual)
Eco Mode
Sets the level of the power saving feature.
(Standard/Max)
Power Save
Sets the interval after which power save mode engages.
(30 Min/5 Min/1 Min/20 Sec/10 Sec)
59
Functions list
Date/Time Setup
The functions selected with the MENU button
HDMI Resolution
Sets the resolution when the camera is connected to an HDMI
TV.
(Auto/1080p/1080i)
CTRL FOR HDMI
Operates the camera from a TV that support “BRAVIA”
Sync.
(On/Off)
Upload Settings*
Sets the upload function of the camera when using an Eye-Fi
card.
(On/Off)
USB Connection
Sets the USB connection method.
(Auto/Mass Storage/MTP)
Audio signals
Sets whether or not to use the beep sound when the focus is
achieved or the self-timer is working.
(On/Off)
Cleaning Mode
Starts the cleaning mode to clean the image sensor.
* Appears when an Eye-Fi card (sold separately) is inserted in the camera.
Version
Language
Displays the camera software version.
Selects the language.
Mode Dial Guide
Turns on or off the mode dial guide (the explanation of each
shooting mode).
(On/Off)
Demo Mode
Sets the demonstration playback of a movie to on or off.
(On/Off)
Initialize
Restores the settings to their defaults.
(Reset Default/Rec mode reset/Custom reset)
60
Using the guide function of the camera
In-Camera Guide
When you press the (In-Camera Guide)
button on the Fn screen or menu screen, a
guide in accordance with the currently
selected function or setting appears
automatically.
Select unavailable functions or settings
on the Fn screen, then press the center of
the control button, the appropriate setup
is indicated in order to enable them.
(In-Camera Guide) button
Shooting Tip
The camera displays the shooting tips in accordance with the shooting
mode selected.
1 Press the
Functions list
(In-Camera Guide) button when the recording
information display is displayed.
A shooting tip list in accordance with the current subject appears
automatically.
2 Select the desired shooting tip with v/V on the control button,
then press the center of the control button.
The shooting tip is displayed.
• You can scroll the screen with v/V.
• You can select the item with b/B.
To access all shooting tips
You can search through all the shooting tips from the menu.
Use this item when you want to read shooting tips you have seen before.
MENU button t
shooting tip
3 t [Shooting Tip List]t Select the desired
61
Viewing images on a computer
Using with your computer
Following applications are contained on the CD-ROM (supplied) to allow
more versatile use of images shot with your camera.
• “Image Data Converter”
You can open RAW format image files.
• “PlayMemories Home”
You can import still images or movies recorded with the camera to your
computer so that you can view them, and use various convenient features
to enhance the images you have shot.
For detailed notes on installation, also see page 64.
Notes
• Use “Image Data Converter” to play back RAW images.
• “PlayMemories Home” is not compatible with Mac computers. When you play back
images on Mac computers, use the appropriate application software supplied with
the Mac computer.
Recommended computer environment (Windows)
The following computer environment is recommended when using the
supplied software and importing images via a USB connection.
OS (pre-installed)
Microsoft Windows XP* SP3/Windows Vista** SP2/
Windows 7 SP1
“PlayMemories
Home”
CPU: Intel Pentium III 800 MHz or faster
(For playing/editing the High Definition movies: Intel Core
Duo 1.66 GHz or faster/Intel Core 2 Duo 1.66 GHz or faster,
Intel Core 2 Duo 2.26 GHz or faster (AVC HD (FX/FH)))
Memory: Windows XP 512MB or more (1 GB or more is
recommended), Windows Vista/Windows 7 1 GB or more
Hard Disk: Disk space required for installationapproximately 500 MB
Display: Screen resolution-1024 × 768 dots or more
“Image Data
Converter Ver.4”
CPU/Memory: Pentium 4 or faster/1 GB or more
Display: 1024 × 768 dots or more
* 64-bit editions and Starter (Edition) are not supported. Windows Image
Mastering API (IMAPI) Ver.2.0 or later is required to use the function
for creating discs.
** Starter (Edition) is not supported.
62
Using with your computer
Recommended computer environment (Mac)
The following computer environment is recommended when using the
supplied software and importing images via a USB connection.
OS (pre-installed)
USB Connection: Mac OS X v10.3 – 10.7
“Image Data Converter Ver.4”: Mac OS X v10.5, 10.6
(Snow Leopard), 10.7 (Lion)
“Image Data
Converter Ver.4”
CPU: Intel Core Solo/Core Duo/Core 2 Duo or faster
Memory: 1 GB or more is recommended.
Display: 1024 × 768 dots or more
Notes
• Operation is not assured in an environment based on an upgrade of the operating
systems described above or in a multi-boot environment.
• If you connect 2 or more USB devices to a single computer at the same time, some
devices, including the camera, may not operate, depending on the types of USB
devices you are using.
• Connecting the camera using a USB interface that is compatible with Hi-Speed USB
(USB 2.0 compliant) allows advanced transfer (high speed transfer), as the camera is
compatible with Hi-Speed USB (USB 2.0 compliant).
• When your computer resumes activity from suspend or sleep mode, communication
between the camera and your computer may not recover at the same time.
Viewing images on a computer
63
Using the software
Installing the software (Windows)
Log on as Administrator.
1 Turn on your computer, and insert the CD-ROM (supplied) into
the CD-ROM drive.
The installation menu screen appears.
• If it does not appear, double-click [Computer] (For Windows XP: [My
Computer]) t
(PMHOME) t [Install.exe].
• If the AutoPlay screen appears, select “Run Install.exe” and follow the
instructions that appear on the screen to proceed with the installation.
2 Connect the camera to the computer.
3 Click [Install].
Make sure that both “Image Data Converter” and “PlayMemories Home” are
checked and follow the instructions on the screen.
• When the restarting confirmation message appears, restart the computer
following the instructions on the screen.
• DirectX may be installed depending on the system environment of your
computer.
4 Remove the CD-ROM after the installation is complete.
The following software is installed and shortcut icons appear on the desktop.
“Image Data Converter”
“PlayMemories Home”
“PlayMemories Home Help Guide”
Note
• If “PMB” (Picture Motion Browser) supplied with a camera that was purchased
before 2011 has already been installed on the computer, “PMB” is overwritten by
“PlayMemories Home,” and you may be unable to use some functions of “PMB.”
64
Using the software
Installing the software (Mac)
Log on as Administrator.
1 Turn on your Mac computer, and insert the CD-ROM (supplied)
into the CD-ROM drive.
2 Double-click the CD-ROM icon.
3 Copy the [IDC_INST.pkg] file in the [MAC] folder to the hard
disk icon.
4 Double-click the [IDC_INST.pkg] file in the copy-to folder.
Follow the instructions on the screen to complete the installation.
Using “Image Data Converter”
“Image Data Converter” support page (English only)
http://www.sony.co.jp/ids-se/
65
Viewing images on a computer
With “Image Data Converter” you can do the following, etc.:
• To edit images recorded in RAW format with various corrections, such as
tone curve, and sharpness.
• To adjust images with white balance, exposure, and creative style, etc.
• To save the images displayed and edited on a computer.
You can either save the image as RAW format or save it in the general
file format.
• To display and compare RAW/JPEG images recorded with this camera.
• To rate the images on a scale of five.
• To set color labels.
To use “Image Data Converter,” refer to Help.
Click [Start] t [All Programs] t [Image Data Converter] t [Help] t
[Image Data Converter Ver.4].
Using the software
Using “PlayMemories Home”
With “PlayMemories Home” you can do the following, etc.:
• To set images shot with the camera and display them on the computer.
• To organize images on the computer on a calendar by shooting date to
view them.
• To retouch (red-eye reduction, etc.), print, send still images as e-mail
attachments, and change the shooting date.
• To print or save still images with the date.
• To create Blu-ray discs or DVD discs from AVCHD movies imported to
a computer. (An Internet connection environment is required when a Bluray disc/DVD disc is created for the first time.)
Notes
• “PlayMemories Home” is not compatible with Mac computers. When you play back
images on Mac computers, use the appropriate application software supplied with
the Mac computer.
• Movies recorded with the [60i 24M(FX)]/[50i 24M(FX)] or [24p 24M(FX)]/[25p
24M(FX)] setting in [Record Setting] are converted by “PlayMemories Home” in
order to create an AVCHD recording disc. This conversion can take a long time.
Also, you cannot create a disc with the original image quality. If you want to keep
the original image quality, you must store your movies on a Blu-ray disc.
To use “PlayMemories Home,” refer to “PlayMemories Home Help
Guide.”
Double-click the shortcut of
(PlayMemories Home Help Guide) on the
desktop. Or, click [Start] t [All Programs] t [PlayMemories Home] t
[PlayMemories Home Help Guide].
“PlayMemories Home” support page (English only)
http://www.sony.co.jp/pmh-se/
66
Selecting the method for creating a
disc of movies
You can create a disc from AVCHD movies that have been recorded with
this camera.
Depending on the disc type, playable devices may vary. Select the method
that suits your disc player.
Here, 2 ways of creating a disc of movies are described; creating a disc with
a computer using “PlayMemories Home” or creating a disc with devices
other than a computer such as a recorder.
Disc type/usage
Record setting available
FX
FH
Blu-ray disc playback
devices
(Sony Blu-ray disc player,
PlayStation®3, etc.)
To keep high-definition
image quality (HD)
To keep high-definition
image quality (HD)
(AVCHD recording disc)
Player
AVCHD format playback
devices
(Sony Blu-ray disc player,
PlayStation®3, etc.)
–*
–*
* When creating a disc using “PlayMemories Home,” changing the image quality to a
lower setting allows you to create a disc.
Creating a disc using a computer
You can import AVCHD movies to a computer using “PlayMemories
Home” and create an AVCHD recording disc or a standard definition image
quality (STD) disc.
67
Viewing images on a computer
–*
To keep standard definition
image quality (STD)
Ordinary DVD playback
devices
(DVD player, computer
that can play DVDs, etc.)
Selecting the method for creating a disc of movies
For details on the method for creating a disc using “PlayMemories Home,”
see “PlayMemories Home Help Guide.”
Notes
• To create Blu-ray discs with “PlayMemories Home,” you have to install proprietary
add-on software. For details, access following URL:
http://support.d-imaging.sony.co.jp/BDUW/
• The PlayStation®3 may not be available in some countries/regions.
• Movies recorded with the [60i 24M(FX)]/[50i 24M(FX)] or [24p 24M(FX)]/[25p
24M(FX)] setting in [Record Setting] are converted by “PlayMemories Home” in
order to create an AVCHD recording disc. This conversion can take a long time.
Also, you cannot create a disc with the original image quality. If you want to keep
the original image quality, you must store your movies on a Blu-ray disc.
Creating a disc with a device other than a computer
You can create a disc with a Blu-ray disc recorder etc.
The disc type you can create depends on the device used.
Device
Disc type
Blu-ray disc recorder: To
create a Blu-ray disc or
DVD with standard image
quality (STD)
HDD recorder, etc.: To
create a DVD with
standard image quality
(STD)
High-definition Standard
image quality
definition
(HD)
image quality
(STD)
Standard definition image quality
(STD)
Note
• For details on how to create a disc, refer to the operating instructions of the device
you use.
68
Others
List of icons on the screen
Graphic Display (LCD screen)
A
Display
Indication
Exposure mode (35)
PAS
M
Display All Info. (LCD screen)
Scene Recognition icons
(29, 36)
Memory card (19)/
Upload (59)
100
For playback (Basic information
display)
Remaining number of
recordable images
Aspect ratio of still
images (54)
3D Sweep Panorama (37)
Image quality of still
images (54)
Frame rate of movies (55)
69
Others
16M 8.4M Image size of still images
4.0M 14M (45)
7.1M 3.4M
List of icons on the screen
Display
Indication
C
Image size of movies (55)
Display
Indication
REC 0:12
Recording time of the
movie (m:s)
Flash charge in progress
(39)
z
Focus (30)
1/250
Shutter speed (35)
Setting Effect OFF (56)
F3.5
Aperture (35)
100% Remaining battery (20)
No audio recording of
movies (55)
EV scale (41) (Only for
viewfinder)
SteadyShot/Camera
shake warning (54, 55)
+3.0
AE lock (50)
SteadyShot error
Auto HDR image
warning
Overheating warning (8)
Database file full/
Database file error
View Mode (58)
100-0003
Folder - file number
-
Protect (58)
DPOF
DPOF set (58)
Remaining battery
warning (20)
B
Display
Exposure compensation
(41)
Picture Effect error
ISO400
ISO sensitivity (50)
3/7
File number/Number of
images in the view mode
2012-1-1
10:37AM
Date of recording
D
Display
Indication
Drive mode (43)
Indication
Spot metering area (52)
AF area (52)
Flash mode (39)/Red-eye
reduction (56)
Smart Zoom (50)
Clear Image Zoom (50)
Focus mode (52)
Digital Zoom (50)
Shutter speed indicator
(44)
Aperture indicator (44)
70
AF area (52)
Object tracking (52)
List of icons on the screen
Display
Indication
Face Detection (52)/
Smile Shutter (52)
Auto Portrait Framing
(52)
Smile Detection
Sensitivity indicator (52)
E
Display
Indication
Metering mode (52)
Flash compensation (52)
AWB
White balance (Auto,
Preset, Custom, Color
temperature, Color filter)
(50)
7500K
A5 G5
D-Range Optimizer (52)/
Auto HDR (52)
Others
+3 +3 +3
Creative Style (52)/
Contrast, Saturation,
Sharpness
Picture Effect (52)
71
Functions available for each shooting
mode
The functions you can use depend on the selected shooting mode.
In the table below, indicates the function available. – indicates the
function not available.
The functions you cannot use are displayed in gray on the screen.
Shoot Mode
(29)
(29)
(36)
Exposure
Comp.
(41)
Cont.
Self-timer
Shooting
(43)
(43)
Auto Port.
Framing
(52)
–
–
–
–
(36)
Face
Smile
Detection Shutter
(52)
(52)
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
(37)
–
–
–
–
(37)
–
–
–
–
–
(38)
–
–
–
–
–
–
–
(35)
(35)
(35)
(35)
(31)
–
*
* When [Manual Exposure] is selected, this function is not available.
72
Flash modes available
The flash modes you can select depend on the shooting mode and functions
selected.
In the table below, indicates the function selectable. – indicates the
function not selectable.
The flash modes you cannot select are displayed in gray on the screen.
Shoot Mode
(Flash
Off)
(Fill(Autoflash) flash)
(29)
(29)
–
–
(36)
(36)
–
(Slow
(Rear
Sync.)
Sync.)
(Wireless)
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
(38)
–
–
(35)
–
–
(35)
–
–
(35)
–
–
(35)
–
–
(31)
–
Others
(37)
(37)
73
Learning more about the camera
(α Handbook)
“α Handbook,” which explains how to use the camera in detail, is included
on the CD-ROM (supplied). Refer to it for in-depth instructions on the
many functions of the camera.
For Windows users
1 Turn on your computer, and insert the CD-ROM (supplied) into
the CD-ROM drive.
2 Click [Handbook].
3 Click [Install].
4 Start “α Handbook” from the shortcut on the desktop.
For Mac users
1 Turn on your computer, and insert the CD-ROM (supplied) into
the CD-ROM drive.
2 Select the [Handbook] folder and copy “Handbook.pdf” stored
in the [GB] folder to your computer.
3 After copying is complete, double-click “Handbook.pdf.”
74
Checking the number of recordable
images/recording time
Once you insert a memory card into the
camera and set the power switch to ON,
the number of images that can be
recorded (should you continue to shoot
using the current settings) is displayed on
the screen.
Notes
• When “0” (the number of recordable images) flashes in yellow, the memory card is
full. Replace the memory card with another one, or delete images in the current
memory card (pages 33, 58).
• When “NO CARD” (the number of recordable images) flashes in yellow, it means
no memory card has been inserted. Insert a memory card.
The number of images that can be recorded on a memory
card
The table shows the approximate number of images that can be recorded on
a memory card formatted with this camera. The values are defined using
Sony standard memory cards for testing. The values may vary depending
on the shooting conditions and the type of memory card used.
Capacity
(Units: Images)
2GB
4GB
8GB
16GB
32GB
410
820
1650
3350
6700
Fine
295
590
1150
2400
4800
RAW & JPEG
80
160
325
650
1300
RAW
110
220
445
890
1750
Size
Standard
* When [Aspect Ratio] is set to [16:9], you can record more images than the numbers
shown in the table above (except when [RAW] is selected).
75
Others
Image Size: L 16M
Aspect Ratio: 3:2*
“Memory Stick PRO Duo”
Checking the number of recordable images/recording time
The number of images that can be recorded using a
battery pack
The approximate number of images that can be recorded is as follows when
you use the camera with the battery pack (supplied) at full capacity.
Note that the actual numbers may be less than those indicated depending on
the conditions of use.
LCD screen mode
Approx. 500 images
Viewfinder mode
Approx. 450 images
• The number is calculated with a battery pack at full capacity and in the
following situation:
– At an ambient temperature of 25°C (77°F).
– Using the battery pack that is charged for an hour after the CHARGE
lamp goes out.
– Using Sony “Memory Stick PRO Duo” media (sold separately).
– [Quality] is set to [Fine].
– [Autofocus Mode] is set to [Automatic AF].
– Shooting once every 30 seconds.
– The flash strobes once every 2 times.
– The power turns on and off once every 10 times.
• The measurement method is based on the CIPA standard.
(CIPA: Camera & Imaging Products Association)
Available recording time for a movie
The table below shows the approximate total recording times using a
memory card formatted with this camera.
76
Checking the number of recordable images/recording time
“Memory Stick PRO Duo”
(h (hour), m (minute))
Capacity
Record
Setting
60i 24M(FX)/50i
24M(FX)
2GB
4GB
8GB
16GB
32GB
10 m
20 m
40 m
1 h 30 m
3h
60i 17M(FH)/50i
17M(FH)
10 m
30 m
1h
2h
4h5m
24p 24M(FX)/25p
24M(FX)
10 m
20 m
40 m
1 h 30 m
3h
24p 17M(FH)/25p
17M(FH)
10 m
30 m
1h
2h
4h5m
1440×1080 12M
VGA 3M
20 m
40 m
1 h 20 m
2 h 45 m
5 h 30 m
1 h 10 m
2 h 25 m
4 h 55 m
10 h
20 h 5 m
Notes
• The recordable time of movies varies for the reason that the camera equipped with
VBR (Variable Bit Rate) which automatically adjusts image quality depending on
shooting scene. When you record fast-moving subject, the image is clearer but the
recordable time is shorter because it spends much memory to record. The recordable
time also vary depending on the shooting condition or subject or setting of image
quality/size.
• The values shown are not the continuous recording time.
• Recording time may depend on shooting conditions and the memory card used.
• When
is indicated, stop recording the movie. The temperature inside the camera
has increased to an unacceptable level.
• For details on movie playback, see page 32.
Others
Notes on continuous movie recording
• It requires a lot of power to perform high quality movie recording or continuous
shooting using the APS-C size image sensor. Therefore, if you continue to shoot, the
temperature inside the camera will rise, especially that of the image sensor. In such
cases, the camera is turned off automatically since higher temperatures affect the
quality of the images or burden the internal mechanism of the camera.
• The duration of time available for movie recording is as follows when the camera
starts recording after the power of the camera has been turned off for a while. (The
77
Checking the number of recordable images/recording time
following values indicate the continuous time from when the camera starts recording
until the camera stops recording.)
Ambient temperature
Continuous recording time
for movies
20°C (68°F)
About 29 minutes
30°C (86°F)
About 29 minutes
40°C (104°F)
About 26 minutes
• The duration of time available for movie recording varies with the temperature or
condition of the camera before you start recording. If you frequently recompose or
shoot images after the power is turned on, the temperature inside the camera rises
and the recording time available is shorter than the values indicated in the table
above.
• If the camera stops recording due to the temperature, leave it for several minutes
with the power turned off. Start recording after the temperature inside the camera
drops fully.
• If you observe the following points, the recording time is longer.
– Keep the camera out of direct sunlight.
– Turn the camera off when it is not being used.
– If possible, use a tripod and disable the SteadyShot function.
• The maximum size of a movie file is about 2 GB. When the file size is about 2 GB,
the recording stops automatically when [File Format] is set to [MP4], and a new
movie file is created automatically when [File Format] is set to [AVCHD].
• The maximum continuous recording time is 29 minutes.
78
Specifications
Camera
[System]
Camera Type
Interchangeable Lens Digital Camera
Lens
A-mount lens
[Image sensor]
Image format
23.5 mm×15.6 mm (APS-C format) CMOS image
sensor
Total pixel number of image sensor
Approx. 16 500 000 pixels
Effective pixel number of camera
Approx. 16 100 000 pixels
[SteadyShot]
For still images
System: Image sensor-shift mechanism
Effect: Approx. 2.5 EV to 4.0 EV in shutter speed
(depending on shooting conditions and the attached
lens)
For movies
System: Electronic
[Anti-Dust]
System
Charge protection coating on Low-Pass Filter and
image sensor-shift mechanism
[Auto focus system]
TTL phase-detection system, 15 points (3 points cross
type)
Sensitivity Range
–1 EV to 18 EV (at ISO 100 equivalent)
AF illuminator
Approx. 1 m to 5 m (3.3 feet to 16.4 feet)
[Electronic viewfinder]
Type
Electronic viewfinder (color)
Screen size
1.2 cm (0.46 type)
Total number of dots
1 440 000 dots equivalent
Effective number of dots
When [Viewfinder Magnifi.] is set to [Maximum]:
1 440 000 dots equivalent
When [Viewfinder Magnifi.] is set to [Standard]:
1 253 280 dots equivalent
79
Others
System
Specifications
Frame coverage
100%
Magnification
When [Viewfinder Magnifi.] is set to [Maximum]:
1.19× with 50 mm lens at infinity, –1 m–1 (diopter)
When [Viewfinder Magnifi.] is set to [Standard]:
1.09× with 50 mm lens at infinity, –1 m–1 (diopter)
Eye Point
When [Viewfinder Magnifi.] is set to [Maximum]:
Approximately 17 mm from the eyepiece, 16 mm from
the eyepiece frame (at –1 m–1)
When [Viewfinder Magnifi.] is set to [Standard]:
Approximately 19 mm from the eyepiece, 18 mm from
the eyepiece frame (at –1 m–1)
Diopter Adjustment
–4.0 m–1 to +4.0 m–1 (diopter)
[LCD screen]
Type
2.7 type TFT drive/Clear Photo LCD screen
Total number of dots
230 400 (320 × 3 (RGB) × 240) dots
[Exposure control]
Metering Cell
“Exmor” CMOS sensor
Metering method
1 200-zone evaluative metering
Metering Range
–2 EV to +17 EV on Multi segment, Center weighted,
Spot modes (at ISO 100 equivalent with F1.4 lens)
ISO sensitivity (Recommended exposure index)
Still images: AUTO (ISO 100 – 3 200), ISO 100 to
16 000 (1 EV step)
Movies: AUTO (ISO 100 – 3 200 equivalent), ISO 100
to 3 200 equivalent (1 EV step)
Exposure compensation
±3.0 EV (1/3 EV step)
[Shutter]
Type
Electronically-controlled, vertical-traverse, focal-plane
type
Speed range
Still images: 1/4 000 second to 30 seconds, bulb
Movies: 1/4 000 second to 1/4 second (1/3 step), up to
1/60 in AUTO mode
Flash sync speed
1/160 second
[Built-In-Flash]
Flash G.No.
GN 10 (in meters at ISO 100)
Recycling time
Approx. 3 seconds
80
Specifications
Flash coverage
Covering 18 mm lens (focal length that the lens
indicates)
Flash compensation
±2.0 EV (1/3 EV step)
Flash range
ISO setting
Aperture F2.8
F4.0
F5.6
100 1 m – 3.6 m
(3.3 feet –
11.8 feet)
1 m – 2.5 m
(3.3 feet –
8.2 feet)
1 m – 1.8 m
(3.3 feet –
5.9 feet)
200 1 m – 5 m
(3.3 feet –
16.4 feet)
1 m – 3.6 m
(3.3 feet –
11.8 feet)
1 m – 2.5 m
(3.3 feet –
8.2 feet)
400 1.4 m – 7.1 1 m – 5 m
m (4.6 feet – (3.3 feet –
23.3 feet)
16.4 feet)
800 2 m – 10 m
(6.6 feet –
32.8 feet)
1 m – 3.6 m
(3.3 feet –
11.8 feet)
1.4 m – 7.1 1 m – 5 m
m (4.6 feet – (3.3 feet –
23.3 feet)
16.4 feet)
[Continuous shooting]
Continuous shooting speed
Tele-zoom cont. priority AE: Maximum 7 images per
second/
: Maximum 5.5 images per second/
: Maximum 2.5 images per second
• The speed of continuous shooting is estimated using
our criteria. The speed of continuous shooting may be
slower, depending on shooting conditions (Image
size, ISO setting, aperture value, High ISO NR, or the
setting of [Lens Comp.: Distortion]).
[Image zooming playback]
Scaling range
Image size: L: Approx. ×1.0 – ×15.4/M: Approx. ×1.0 –
×11.2/S: Approx. ×1.0 – ×7.7
[Recording format]
File format
JPEG (DCF Ver. 2.0, Exif Ver. 2.3, MPF Baseline)
compliant, RAW (Sony’s exclusive ARW2.3 format)
3D still images
MPO (MPF Extended (Disparity Image)) compliant
81
Others
The maximum number of continuous shots
In Tele-zoom cont. priority AE mode
Fine: 17 images/Standard: 18 images
In Continuous shooting
Fine: 15 images/Standard: 16 images/RAW & JPEG: 6
images/RAW: 7 images
Specifications
Movie (AVCHD format)
AVCHD format Ver. 2.0 compatible
Video: MPEG-4 AVC/H.264
Audio: Dolby Digital 2ch, equipped with Dolby Digital
Stereo Creator
• Manufactured under license from Dolby
Laboratories.
Movie (MP4 format)
Video: MPEG-4 AVC/H.264
Audio: MPEG-4 AAC-LC 2ch
[Recording media]
“Memory Stick PRO Duo” media, SD card
[Input/output terminals]
USB
miniB, Hi-Speed USB (USB 2.0)
HDMI
HDMI minijack
Mic Terminal
3.5 mm Stereo minijack
REMOTE Terminal
[Power, general]
Used battery pack
Rechargeable battery pack NP-FW50
[Others]
Microphone
Stereo
Speaker
Monaural
Print features
Exif Print compatible, PRINT Image Matching III
compatible, DPOF compatible
Dimensions
Approx. 124.4 mm × 92 mm × 84.7 mm
(4 7/8 inches × 3 5/8 inches × 3 1/3 inches) (W/H/D,
excluding protrusions)
Mass
Approx. 506 g (1.12 lb 17.8 oz) (with battery and
“Memory Stick PRO Duo” media)
Approx. 448 g (0.99 lb 15.8 oz) (body only)
Operating temperature
0°C to 40°C (32°F to 104°F)
On image data compatibility
• This camera conforms with DCF (Design rule for Camera File system)
universal standard established by JEITA (Japan Electronics and Information
Technology Industries Association).
• Playback of images recorded with your camera on other equipment and
playback of images recorded or edited with other equipment on your camera
are not guaranteed.
82
Specifications
Design and specifications are subject to change without notice.
Battery charger/Battery
BC-VW1 Battery charger
Input rating
100 V - 240 V AC, 50 Hz/60 Hz, 4.2 W
Output rating
8.4 V DC, 0.28 A
Operating temperature range 0°C to 40°C (32°F to 104°F)
Storage temperature range
–20°C to +60°C (–4°F to +140°F)
Maximum dimensions
Approx. 63 mm × 95 mm × 32 mm (2 1/2 inches ×
3 3/4 inches × 1 5/16 inches) (W/H/D)
Mass
Approx. 85 g (3 oz)
Rechargeable battery pack NP-FW50
Used battery
Lithium-ion battery
Maximum voltage
DC 8.4 V
Nominal voltage
DC 7.2 V
Maximum charge voltage
DC 8.4 V
Maximum charge current
1.02 A
Capacity
Typical
7.7 Wh (1 080 mAh)
Minimum
7.3 Wh (1 020 mAh)
Approx. 31.8 mm × 18.5 mm × 45 mm (1 5/16 inches ×
3/4 inches × 1 13/16 inches) (W/H/D)
Mass
Approx. 57 g (2.1 oz)
Others
Maximum dimensions
Lens
Name (Model name)
DT 18-55mm
F3.5-5.6 SAM
(SAL1855)
DT 55-200mm
F4-5.6 SAM
(SAL55200-2)
DT 18-135mm
F3.5-5.6 SAM
(SAL18135)
Equivalent 35mmformat focal length*
(mm)
27–82.5
82.5–300
27–202.5
Lens groups-elements
Angle of view*
7–8
9–13
11–14
76°-29°
29°-8°
76°-12°
83
Specifications
Name (Model name)
DT 18-55mm
F3.5-5.6 SAM
(SAL1855)
DT 55-200mm
F4-5.6 SAM
(SAL55200-2)
DT 18-135mm
F3.5-5.6 SAM
(SAL18135)
Minimum focus** (m
(feet))
0.25 (0.82)
0.95 (3.2)
0.45 (1.48)
0.34
0.29
0.25
f/22-36
f/32-45
f/22-36
55
55
62
Dimensions (maximum
diameter × height)
(approx., mm (in.))
69.5×69
(2 3/4 × 2 3/4)
71.5×85
(2 7/8 × 3 3/8)
76×86
(3 × 3 1/2)
Mass (approx., g (oz.))
210 (7 4/8)
305 (10 3/4)
398 (14)
Maximum
magnification (X)
Minimum f-stop
Filter diameter (mm)
* The values for equivalent 35mm-format focal length and angle of view are based
on Interchangeable Lens Digital Camera equipped with an APS-C sized image
sensor.
** Minimum focus is the shortest distance from the image sensor to the subject.
• This lens is equipped with a distance encoder. The distance encoder allows more
accurate measurement (ADI) by using a flash for ADI.
• Depending on the lens mechanism, the focal length may change with any change of
the shooting distance. The focal length assumes the lens is focused at infinity.
• The infinity position provides for some adjustment to compensate for focus shift
caused by change in temperature. To shoot a subject at infinite distance in MF mode,
use the viewfinder and set focus.
On focal length
The picture angle of this camera is narrower than that of a 35 mm-format
camera. You can find the approximate equivalent of the focal length of a 35 mmformat camera, and shoot with the same picture angle, by increasing the focal
length of your lens by half.
For example, by using a 50 mm lens, you can get the approximate equivalent of
a 75 mm lens of a 35 mm-format camera.
84
Specifications
• Intel, Intel Core, MMX, and
Pentium are trademarks or
registered trademarks of Intel
Corporation.
• SDXC Logo is a trademark of SD3C, LLC.
• Eye-Fi is a trademark of Eye-Fi Inc.
• MultiMediaCard is a trademark of
MultiMediaCard Association.
• “ ” and “PlayStation” are
registered trademarks of Sony
Computer Entertainment Inc.
• Adobe is a registered trademark or
a trademark of Adobe Systems
Incorporated in the United States
and/or other countries.
• In addition, system and product
names used in this manual are, in
general, trademarks or registered
trademarks of their respective
developers or manufacturers.
However, the ™ or ® marks are not
used in all cases in this manual.
• Add further enjoyment with your
PlayStation 3 by downloading the
application for PlayStation 3 from
PlayStation Store (where available.)
• The application for PlayStation 3
requires PlayStation Network
account and application download.
85
Others
Trademarks
•
is a trademark of Sony
Corporation.
• “Memory Stick,”
, “Memory
Stick PRO,”
,
“Memory Stick Duo,”
, “Memory Stick
PRO Duo,”
,
“Memory Stick PRO-HG Duo,”
, “Memory
Stick Micro,” “MagicGate,” and
are trademarks of
Sony Corporation.
• “InfoLITHIUM” is a trademark of
Sony Corporation.
• “PhotoTV HD” is a trademark of
Sony Corporation.
• “AVCHD” and “AVCHD”
logotype are trademarks of
Panasonic Corporation and Sony
Corporation.
• Blu-ray Disc ™ and Blu-ray ™ are
trademarks of the Blu-ray Disc
Association.
• Dolby and the double-D symbol are
trademarks of Dolby Laboratories.
• Microsoft, Windows, DirectX, and
Windows Vista are either registered
trademarks or trademarks of
Microsoft Corporation in the
United States and/or other
countries.
• HDMI, the HDMI logo and HighDefinition Multimedia Interface are
trademarks or registered trademarks
of HDMI Licensing LLC.
• Mac and Mac OS are trademarks or
registered trademarks of Apple Inc.
• PowerPC is a registered trademark
of IBM Corporation in the United
States.
Specifications
Accessible in areas where the
PlayStation Store is available.
86
Index
Index
Numerics
3D .......................................................37
A
AE Lock .............................................50
AEL button .........................................50
AF area ...............................................52
AF illuminator ....................................55
Aperture Priority.................................35
Area Setting ........................................26
Aspect ratio.........................................54
Audio signals......................................60
Auto HDR...........................................53
Auto Port. Framing.............................52
Auto review ........................................56
Autofocus mode .................................52
AVCHD........................................55, 67
Enlarged image...................................47
EV scale..............................................41
Exposure compensation......................41
Eye-Fi .................................................60
Eye-Start AF.......................................56
F
Battery pack..................................17, 19
Bracket................................................43
Face Detection ....................................52
Face Priority Tracking........................58
FINDER/LCD Setting ........................56
Flash compensation ............................52
Flash mode ...................................39, 73
Flash Off.......................................29, 39
Fn button.......................................50, 52
Focal length ........................................84
Focus Hold Button..............................57
Focus Magnifier .................................57
Folder Name .......................................59
Format ................................................59
Func. of AEL button...........................57
C
H
B
Cleaning mode....................................60
Clear Image Zoom..............................54
Continuous shooting...........................43
Creative Style .....................................53
D
E
Electronic Front Curtain Shutter ........58
I
Image Data Converter ........................65
Image Index ........................................48
Image quality ......................................54
Image size...........................................45
In-Camera Guide ................................61
Initialize..............................................60
Intelligent Auto...................................29
ISO sensitivity ....................................52
J
JPEG ...................................................54
L
Landscape ...........................................36
Language ............................................60
LCD brightness...................................59
87
Index
Date imprint........................................58
Date/Time setup .................................25
Delete............................................33, 58
Digital Zoom ......................................55
Diopter-adjustment .............................27
Disc creation.......................................67
DISP ...................................................44
DPOF Setup........................................58
D-Range Optimizer ............................53
Drive mode .........................................43
Hand-held Twilight ............................36
Histogram ...........................................56
Index
LCD screen .................................. 34, 69
Lens.............................................. 16, 22
Lens Compensation............................ 57
Remote Commander .......................... 14
Reset................................................... 60
Rotate ................................................. 50
M
S
Macro ................................................. 36
Manual Exposure ............................... 35
Manual focus...................................... 50
Memory card...................................... 19
Menu .................................................. 54
Metering mode ................................... 52
Movie Audio Recording .................... 55
MOVIE Button................................... 57
Movie File Format ............................. 55
Multi frame noise reduction............... 52
Scene Selection .................................. 36
Select REC Folder.............................. 59
Self-timer ........................................... 43
Set the clock....................................... 25
Shooting ............................................. 29
Shooting Tip....................................... 61
Shutter Priority................................... 35
Slide show.......................................... 58
Slow Sync. ......................................... 39
Smile Shutter...................................... 52
Software ............................................. 64
Specifications..................................... 79
Sports Action ..................................... 36
SteadyShot function ........................... 55
Sunset................................................. 36
Superior Auto..................................... 36
Superior Auto Cont. Shooting............ 56
Superior Auto Image Extract. ............ 56
Sweep Panorama................................ 37
N
Night Portrait ..................................... 36
Night Scene........................................ 36
Noise reduction ............................ 52, 55
Number of recordable images...... 75, 76
O
Object Tracking ................................. 52
P
Peaking............................................... 57
Picture Effect ..................................... 53
Playback Display ............................... 58
PlayMemories Home ................... 64, 66
Portrait................................................ 36
Power Save......................................... 59
Preview Button................................... 57
Program Auto..................................... 35
Protect ................................................ 58
Q
Quality................................................ 54
R
RAW .................................................. 54
Record Setting.................................... 55
Recording information display .......... 44
Recording movies .............................. 31
Recover Image DB............................. 59
Red Eye Reduction ............................ 56
88
T
Tele-zoom Continuous Priority AE ... 38
U
USB connection ................................. 60
V
Version............................................... 60
View Mode......................................... 32
Viewfinder ......................................... 56
Viewing image ................................... 32
Viewing images on a TV screen ........ 49
Volume Settings................................. 58
W
White balance..................................... 53
Z
Zoom ............................................ 29, 50
Index
89
90
Index
91
92
Index
93
94
Index
95
