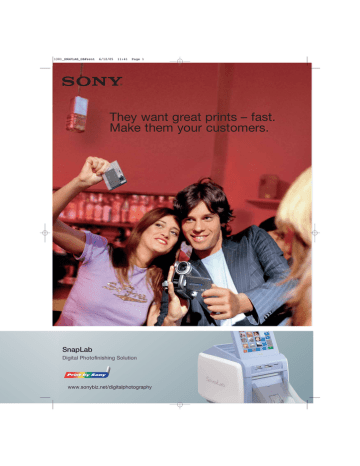

Page 1
They want great prints – fast.
Make them your customers.
SnapLab
Digital Photofinishing Solution
www.sonybiz.net/digitalphotography
1301_SNAPLAB_GB#sent
6/12/05
11:41
Page 2
Print anywhere, anytime
for anyone
New from Sony; the state-of-the-art SnapLab Digital Photo Printer,
the world’s smallest and lightest standalone professional photofinishing solution.
Sleekly-designed and compact, the SnapLab is packed with features that are simple
to use, easy to understand and that your customers will love. Thanks to Sony printing
technology, the SnapLab produces photolab-quality prints in just a few seconds.
The touch-screen colour LCD and user-friendly interface mean greater ease-of-use
and more customer interaction. The result? More memorable and creative photos
for your customers and more opportunities and business for you.
The digital revolution is here …
and it’s here for good.
It’s a fact – film sales continue to decline
while the market for digital cameras, camera
phones and digital photofinishing services is
going through the roof.
Tens of millions of potential customers who
have digital photos stored in one form or
another regularly decide how and where
they can print their photos as quickly, easily
and cheaply as possible. Even people
without a digital camera receive photos via
email, the Internet or on their mobile phone
and sometimes want professional quality
prints, without always knowing where or
how to get them.
Make it easy for your customers
Let’s face it. Not all digital photos will be
printed. Some are forgotten, some are
forgettable and some are just bad! One of
the key advantages of digital over film is the
possibility to pre-select the photos we want
to delete, keep or print. But your digital
customers have a simple choice to make:
■ Not to print their photos
■ Print their photos themselves
■ Have their photos printed
on a professional system
With SnapLab you can offer a fast, affordable and professional
digital photofinishing service to your customers anywhere at any time!
1301_SNAPLAB_GB#sent
6/12/05
11:42
Page 3
SnapLab ■ Making it easier & more affordable
than ever before to provide digital photo services
THE EASIEST AND MOST AFFORDABLE WAY
INTO THE LUCRATIVE DIGITAL MARKET.
The Sony SnapLab is a terrific way to offer photofinishing
services at a competitive but profitable rate that
will help you win new and repeat business. Its affordable
price tag means that there is no longer a prohibitively high
investment required to enter the market. You can be up and
running for a fraction of the price of a digital mini lab, and in
a fraction of the time, so you can get a return on your investment in months or even weeks.
Leaving aside the financial aspect, the SnapLab is practically
“Plug and Pay”! You don’t need training to operate it, nor do
you need to be a computer whiz or IT expert. User-friendly
touch-screen interfaces guide both you and your customers
through all operations. Changing paper rolls and ribbons
is simple too: release handle, replace cartridge and close.
■ Perfect for …
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Party & Event Organisers
School, Colleges & Universities
Hotels
Corporate
Hospitals
Craft Shops
Government / Law Enforcement agencies
Librairies
Indoor Amusement & Recreation Facilities
Photo Shops
Convenience Stores
Tobacconists
Newsagents
Consumer Electronics Shops
Tourism
Cruise Liners / Ferries
1301_SNAPLAB_GB#sent
6/12/05
11:42
Page 4
Easy to use and effortless to maintain
Intuitive Touch Screen
User Interface
Easy to use and operate, this guides both you and
your customers through all operations.
Medias
The SnapLab accepts today’s most popular and
widely-used media devices: MemoryStick (STD,
DUO & PRO), CompactFlash, xD-Picture Card,
SD/MMC and SmartMedia
Paper
One roll of paper is
sufficient for up to 300
photos (9 x 13 cm prints).
When it’s time to change
rolls, simply drop a new
roll into the pull-out tray.
The printing side is on the
inside of the roll, so there’s
no need to worry about
touching printing surfaces.
2
1
Ink Ribbon
3
4
PHOTOS
on customers’ media
Start-up Menu to select
print style
Changing ink
ribbons takes
seconds – the
side panel opens
for access to the
ribbon cartridge
and the new
ribbon simply
slots into place.
Shot selection
Customer can choose creative
options as desired
1301_SNAPLAB_GB#sent
6/12/05
11:42
Page 5
ntain
Main Features
Creative and
editing Features
Other Features
The SnapLab has been designed to
be quickly operational and as simple
to maintain as possible, without
making compromises on printing
quality.
The SnapLab has a robust set of
editing features built into the printer,
which are operated via its LCD
panel, without a PC.
Several other features provide
additional flexibility and greater
satisfaction for user and owner alike.
Screen saver customisation*
Zoom, Crop & Rotate
Quick start-up
The SnapLab can be used without a PC.
Once switched on, the SnapLab is
operational within 15 seconds and is ready
to print your photos.
Focuses on the subject, eliminates
unwanted background and rotates picture.
Colour Adjustment
Adjusts vibrancy.
Screen saver images can be customised by
preloading data. Owners can display various
images such as a company logo or a special
promotion when the printer is not in
operation.
* Need to preload data onto a MicroDrive or a
CompactFlash card and insert it into the expansion
slot.
Various media inputs
Red-Eye Reduction
The SnapLab accepts today’s most popular
digital media.
Reduces unwanted red-eye easily.
Image data spooling*
Sepia / Monochrome
Transforms colour pictures into black and
white or sepia-toned images.
The SnapLab spools image data to be
printed after sending the order. This allows
users to remove memory cards and shoot
more photos while the job is printing.
Text input*
*Need to insert a MicroDrive or CompactFlash card
and insert it into the expansion slot.
Easy to use
The operation of the SnapLab is very simple.
No PC is required. With a large 8-inch
touch-sensitive colour LCD and a userfriendly GUI (Graphical User Interface),
it is easy and comfortable to operate.
High speed and high quality
A newly-developed thermal print mechanism
enables the SnapLab to operate at high
speeds, regardless of print size. Printing
a 9 x 13 cm (3.5 x 5 inches) photo takes
approximately 13 seconds*, while a
10 x 15 cm (4 x 6 inches) photo can be
printed in approximately 17 seconds*,
and a 13 x 18 cm (5 x 7 inches) photo in
approximately 18 seconds*. In addition
to this high speed, the SnapLab provides
photolab-quality prints, utilising Sony dye
sublimation technology. It outputs crisp,
vibrant colours with natural, continuous
tones on UV-protected archival-quality paper.
*Excluding image-processing time.
Compact
The compact body of the SnapLab enables
it to fit almost anywhere and its LCD panel
can be angled to accommodate a variety of
viewing positions.
Messages and captions can be placed on
images and on borders without using a PC.
After they have been input, these will appear
on all prints except index and split image
printing. This is a useful feature for identifying
the name of an event or the date of the
photo.
*English only.
Multiple layouts
The SnapLab offers 30 built-in templates
that enable users to create anything from
ID cards to novelty products and add value
to each print.
Border composition*
The SnapLab provides value-added prints
by using borders to overlay preloaded logos,
event names, or a custom-designed frame
to your photo. The additional border designs
can be created using a Microsoft®
Windows®-based version of Adobe®
Photoshop®.
* Need to preload data onto a MicroDrive® or
CompactFlash® card and insert it into the expansion
slot.
Order management
A print log can be viewed on the LCD and
exported to a MicroDrive or CompactFlash
card in “CSV” format. This exported data
can be used as a Microsoft Excel file on a
PC. In addition, the order number can be
printed, using Sony original pattern
lamination technology. The numbers are
barely seen from the front, but they become
visible when you tilt the print. With this order
number, owners can sort prints for smooth
distribution.
PC connectivity
The SnapLab is supplied with Windows®
printer drivers to enhance its flexibility.
This allows the user to use powerful editing
functions on a PC that are not available
on the printer.
Security cable compatibility
The SnapLab is equipped with a security
slot for protection against theft.
5
mer can choose creative
s as desired
Sepia / monochrome
Red-Eye Reduction
Order and Print in approx.
13 seconds (9 x 13 cm prints)
Zoom / Crop / Rotate
Colour Adjustment
Next!
1301_SNAPLAB_GB#sent
6/12/05
11:42
Page 6
Sony Dye Sublimation Printing Technology
l
Printing paper
n
ma
d
In
k
rib
T
r
he
a
he
One of the key benefits of dye sublimation
printing is the wide range of colour
reproduction that the technology makes
possible. The SnapLab uses this printing
method to maximum effect, producing
brilliant, crisp and clear colour prints.
Dye sublimation printing produces truly
photographic-quality prints thanks to a
unique process: ink is converted into a gas
by each heat element on the thermal head
which can apply 256 different densities. This
produces incredibly rich colours with a tonal
range of up to 256 gradations. These
gradations are used to reproduce the tonal
changes and neutral colours that are vital for
creating photo-quality prints.
Ink
ribbon
bo
In
k
rib
bo
n
Heat
Pa
pe
r
Platen roller
Each of the dye colours – cyan, magenta
and yellow – has a tone range of up to 256
gradations, and Sony dye sublimation
printing blends each and every one of them
to make true full-colour prints.
Other printing methods, such as inkjet,
cannot gradate each dot or blend the colour
dots – that’s why they simply can’t achieve
the same results.
Sony dye sublimation printing technology is
also
environmentally-friendly.
Liquid
chemicals are not used, so there’s no
chemical waste to be disposed of, and no
drainage needs too be considered when
installing the printer.
Superior Colour Reproduction
Dye sublimation provides rich colour reproduction with 403 dpi resolution
and 16.77 million colour processing for each dot. Compare this to the 7colour inkjet method which requires a resolution as high as 4550 dpi
(403x11.3) to reproduce prints of similar quality.
x 150
Sony Digital Photo Printer
403 dpi x 403 dpi
Colour Reproduction Chart
Ink Jet Printer
4800 dpi x 1200 dpi, 6 colour Ink
Yellow
CLE Lab colour space
Brilliant Colour
+b*
100
80
RedRed
60
Green
Full-colour prints
Only 6 colours
40
20
-a* -100 -80 -60 -40 -20
Sony Dye Sublimation
Printer
0
-40
Silver Halide
20
40
60
80
100 +a*
-20
Magenta
Magenta
-60
Cyan
-80
-100
-b*
Ink Jet Printer
Blue
* Each measurement sample is printed with same image data
Sony Dye Sublimation Printing
(with lamination)
Silver Halide Photo
1301_SNAPLAB_GB#sent
7/12/05
10:32
Page 7
Specifications
SNAPLAB
DIMENSIONS
Printing Method
Dye sublimation Printing (Y/M/C/O)
Resolution
300 dpi
Print Size
5 x 7”(13 x 18cm)
4 x 6”(10 x 15cm)
3.5 x 5”(9 x 13cm)
Print Speed
(excluding image
processing)
5 x 7”(13 x 18cm): 18 seconds
4 x 6”(10 x 15cm): 17 seconds
3.5 x 5”(9 x 13cm): 13 seconds
Media Capacity
per print cartridge/roll
5x7”(13x18cm): 172
4x6”(10x15cm): 200
3.5x5”(9x13cm): 300
Paper Feed Method
Roll paper, Automatic loading
Interface
Memory Card Direct Slots:
MS (Duo, Pro, PRO Duo)
SD
MMC
CF
MD
xD
SM
H
h
d
D
w
W
USB Host: USB (A) x 1 for USB Mass Storage
Class Device
PC Connection: USB (B) x1 for PC
Expansion Terminal: RS-232C (D-sub 9pin)
x 1 for future peripheral support
Expansion Slot
Compact Flash type x1
Compatible Image
File Format
JPEG: JFIF, Exif 2.2 Compatible, DCF 1.0
Compatible
BMP: 24bit Windows format
TIFF: Exif 2.2 Compatible
h 300 mm (11.9”)
H (when LCD is up): 447 mm (17.6”)
w 275 mm (10.8”)
W (when ribbon access door is open): 435 mm (17.1”)
d 380 mm (15.0”)
D (incl. paper tray): 552 mm (21.7”)
LCD Display
8-inch touch sensitive colour LCD
Print Order when print
from memory cards
Selected image, All image, Index, Border
Composition*, Split Image
Image Adjustment
Crop, Colour adjust, Monochrome/Sepia,
Red eye Reduction
Printer Driver Support OS
Win: 2000/XP Professional/XP Home Edition
2UPC-C15
Export module
to create border data
Windows Adobe Photoshop 5.0 or higher,
Photoshop Elements
Self-Laminating Colour Printing Pack
Power Supply
Input 100-240 V AC, 50/60 Hz
Supplied Accessories
Paper holder x1
Operating instructions x1
CD-ROM (incl. Printer driver software) x1
AC power cord x1
COLOUR PRINTING PACKS
Paper size (after print):
127 x 178 mm (5 x 7 inches)
Contents:
A roll of print paper for 172 prints x 2 rolls
2 rolls of ink ribbon
2UPC-C14
* Need MicroDrive or CompactFlash on the market. Image or format data needs to be saved when using
these functions
Self-Laminating Colour Printing Pack
Paper size (after print):
102 x 152 mm (4 x 6 inches)
Contents:
A roll of print paper for 200 prints x 2 rolls
2 rolls of ink ribbon
2UPC-C13
Self-Laminating Colour Printing Pack
Paper size (after print):
89 x 127 mm (3.5 x 5 inches)
Contents:
A roll of print paper for 300 prints x 2 rolls
2 rolls of ink ribbon
1301_SNAPLAB_GB#sent
6/12/05
11:41
Page 8
© 2005 Sony Corporation. All rights reserved. Reproduction in whole or in part
without written permission is prohibited. Features and specifications are subject to
change without notice. All non-metric weights and measurements are approximate.
Sony is a registered trademark of Sony Corporation. Microsoft and Windows
are registered trademarks of Microsoft Corporation. Macintosh is a registered
trademark of Apple Computer Inc. Memory Stick, Memory Stick Duo, Memory
Stick PRO, and Memory Stick PRO Duo are trademarks of Sony Corporation.
CompactFlash is a trademark of SanDisk Corporation. SmartMedia is a registered
trademark of Toshiba Corporation. MultiMediaCard is a trademark of Infineon
Technologies AG. Microdrive is a registered trademark of Hitachi Global Storage
Technologies. SD card is a trademark of Matsushita Electric Industrial Co., Ltd.,
SanDisk Corporation in the USA and Toshiba Corporation. Adobe and Photoshop
are either registered trademarks or trademarks of Adobe Systems Incorporated in
the United States and/or other countries. xD-Picture Card is a trademark of
Fuji Photo Film Co., Ltd. All other trademarks are the property of their respective
owners.
CA UP-CR10L/GB-22/12/2005
Download PDF

advertising
