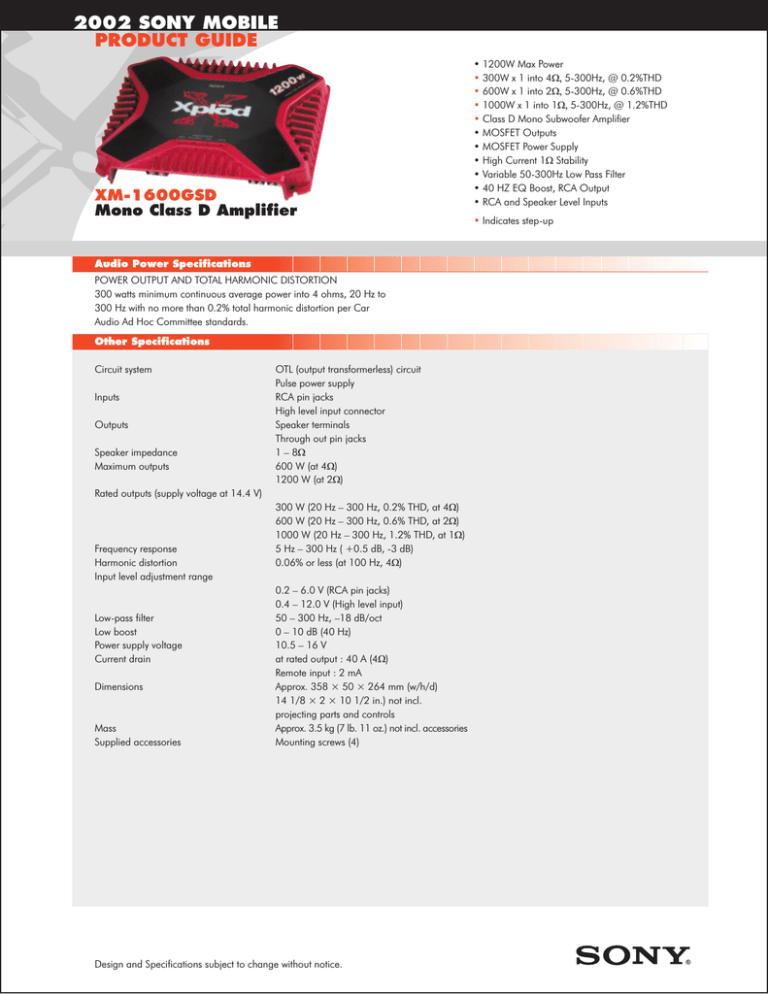

2002 SONY MOBILE
PRODUCT GUIDE
XM-1600GSD
Mono Class D Amplifier
Audio Power Specifications
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
300 watts minimum continuous average power into 4 ohms, 20 Hz to
300 Hz with no more than 0.2% total harmonic distortion per Car
Audio Ad Hoc Committee standards.
Other Specifications
Circuit system
Inputs
Outputs
Speaker impedance
Maximum outputs
OTL (output transformerless) circuit
Pulse power supply
RCA pin jacks
High level input connector
Speaker terminals
Through out pin jacks
1 – 8W
600 W (at 4W)
1200 W (at 2W)
Rated outputs (supply voltage at 14.4 V)
Frequency response
Harmonic distortion
Input level adjustment range
Low-pass filter
Low boost
Power supply voltage
Current drain
Dimensions
Mass
Supplied accessories
300 W (20 Hz – 300 Hz, 0.2% THD, at 4W)
600 W (20 Hz – 300 Hz, 0.6% THD, at 2W)
1000 W (20 Hz – 300 Hz, 1.2% THD, at 1W)
5 Hz – 300 Hz ( +0.5 dB, -3 dB)
0.06% or less (at 100 Hz, 4W)
0.2 – 6.0 V (RCA pin jacks)
0.4 – 12.0 V (High level input)
50 – 300 Hz, –18 dB/oct
0 – 10 dB (40 Hz)
10.5 – 16 V
at rated output : 40 A (4W)
Remote input : 2 mA
Approx. 358 × 50 × 264 mm (w/h/d)
14 1/8 × 2 × 10 1/2 in.) not incl.
projecting parts and controls
Approx. 3.5 kg (7 lb. 11 oz.) not incl. accessories
Mounting screws (4)
Design and Specifications subject to change without notice.
• 1200W Max Power
• 300W x 1 into 4W, 5-300Hz, @ 0.2%THD
• 600W x 1 into 2W, 5-300Hz, @ 0.6%THD
• 1000W x 1 into 1W, 5-300Hz, @ 1.2%THD
• Class D Mono Subwoofer Amplifier
• MOSFET Outputs
• MOSFET Power Supply
• High Current 1W Stability
• Variable 50-300Hz Low Pass Filter
• 40 HZ EQ Boost, RCA Output
• RCA and Speaker Level Inputs
• Indicates step-up
2002 SONY MOBILE
PRODUCT GUIDE
XM-1600GSD
Mono Class D Amplifier
Filter Control
Connections
Low Boost Control
Hi Level Input
3 - 25A fuses
Battery
Ground
Input Level Control
Test Tone
Remote Turn-on
Dimensions
Subwoofer OUT
Through Output
Line Input
Subwoofer OUT
Unit: mm (in.)
14 1/8 (358)
12 1/4 (310)
9 1/4 (234)
10 1/2 (264)
2 (50)
ø 1/4 (6)
Design and Specifications subject to change without notice.
