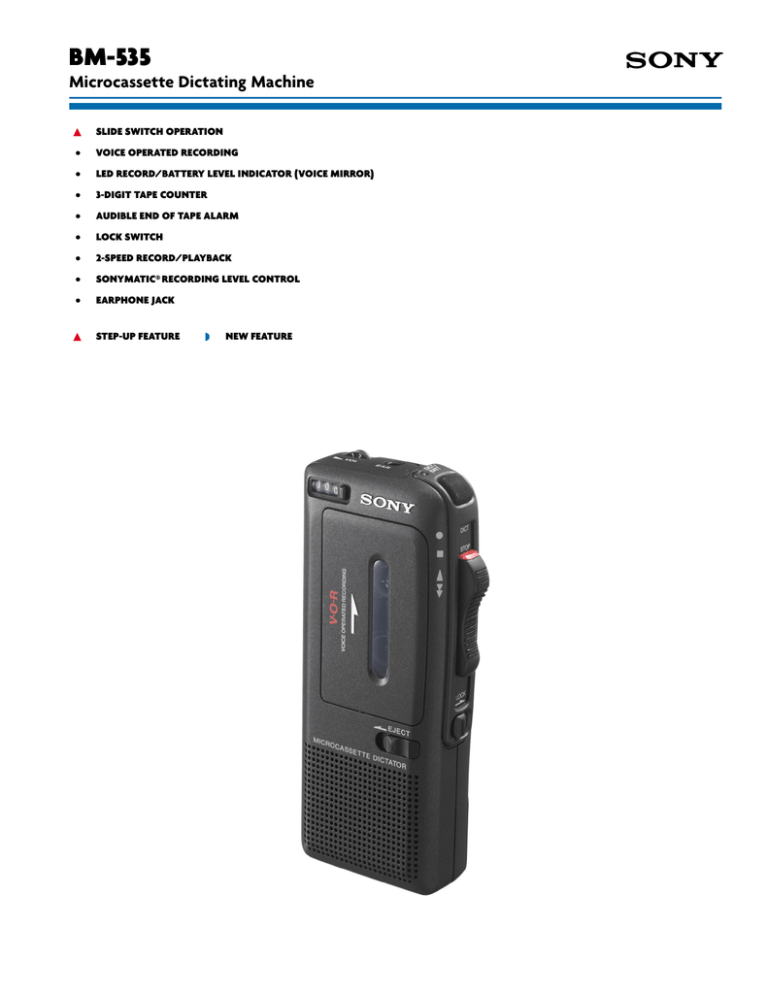

BM-535
Microcassette Dictating Machine
▲
SLIDE SWITCH OPERATION
•
VOICE OPERATED RECORDING
•
LED RECORD/BATTERY LEVEL INDICATOR (VOICE MIRROR)
•
3-DIGIT TAPE COUNTER
•
AUDIBLE END OF TAPE ALARM
•
LOCK SWITCH
•
2-SPEED RECORD/PLAYBACK
•
SONYMATIC® RECORDING LEVEL CONTROL
•
EARPHONE JACK
▲
STEP-UP FEATURE
◗
NEW FEATURE
BM-535
features
specifications
• MICROCASSETTE SYSTEM uses easy to obtain, easy to store
RECORDING SYSTEM: 4 Track, 1 Channel monaural microcassette
TAPE SPEED: 2.4 cm/sec, 1.2 cm/sec
FREQUENCY RESPONSE: 300-4000Hz (2.4cm/sec)
microcassettes for recording and playback convenience
▲ SLIDE SWITCH OPERATION needs only one-finger operation to change
the operating mode from Dictate to Stop to Listen to Backspace
• VOICE OPERATED RECORDING (VOR) activates the recorder only when
audible sound is present, conserving tape and eliminating soundless
pauses during playback
• LED RECORD/BATTERY LEVEL INDICATOR (VOICE MIRROR) confirms
recording status at all times, shows relative battery strength, and
indicates when sound is present
• 3-DIGIT TAPE COUNTER gives a visible indication of tape elapsed for
rapid access when editing and shows amount of dictation on the tape
• AUDIBLE END OF TAPE ALARM sounds an audible alert when end of tape
is reached
300-3000Hz (1.2cm/sec)
SPEAKER: 1" (28mm) Dia.
POWER OUTPUT: 250mW at 10% THD
POWER REQUIREMENTS: DC 3V with "AAA" x 2 batteries
AC 120V, 60Hz with optional AC Adaptor
BATTERY LIFE: Approx. 7 hours with Sony "AAA" alkaline batteries (not incl.)
DIMENSIONS (WHD): 2 5⁄32" x 4 3⁄4" x 29⁄32" (54.5 x 120 x 22.4mm)
WEIGHT: 5 3⁄4 oz (165g) with batteries
OPTIONAL ACCESSORIES: AC-E30HG AC Adaptor, Microcassettes
©2002 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved.
Sony and Sonymatic are trademarks of Sony.
Features and specifications are subject to change without notice. Non-metric weights and measures
are approximate.
• LOCK SWITCH locks the controls to prevent accidental activation of any
function
• 2-SPEED RECORD/PLAYBACK gives you the option of using a standard
60-minute microcassette for an extended recording or dictation session
lasting as long as 2 hours
• SONYMATIC® RECORDING LEVEL CONTROL ensures correct recording
levels for the particular situation
• EARPHONE JACK for private listening with optional earphone
Sony Electronics Inc • 1 Sony Drive, Park Ridge, New Jersey 07656 • www.sony.com
Printed in USA 2/2002
