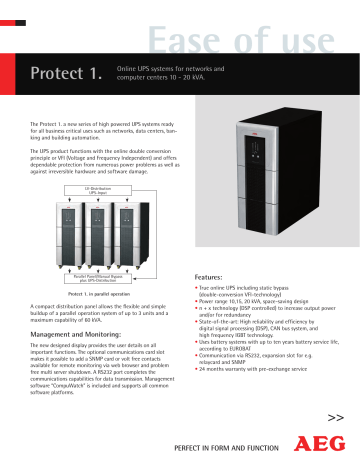

Protect 1. Ease of use Online UPS systems for networks and computer centers 10 - 20 kVA. The Protect 1. a new series of high powered UPS systems ready for all business critical uses such as networks, data centers, banking and building automation. The UPS product functions with the online double conversion principle or VFI (Voltage and Frequency Independent) and offers dependable protection from numerous power problems as well as against irreversible hardware and software damage. LV-Distribution UPS-Input Features: Parallel Panel/Manual Bypass plus UPS-Distribution Protect 1. in parallel operation A compact distribution panel allows the flexible and simple buildup of a parallel operation system of up to 3 units and a maximum capability of 60 kVA. Management and Monitoring: The new designed display provides the user details on all important functions. The optional communications card slot makes it possible to add a SNMP card or volt free contacts available for remote monitoring via web browser and problem free multi server shutdown. A RS232 port completes the communications capabilities for data transmission. Management software “CompuWatch” is included and supports all common software platforms. • True online UPS including static bypass (double-conversion VFI-technology) • Power range 10,15, 20 kVA, space-saving design • n + x technology (DSP controlled) to increase output power and/or for redundancy • State-of-the-art: High reliability and efficiency by digital signal processing (DSP), CAN bus system, and high frequency IGBT technology. • Uses battery systems with up to ten years battery service life, according to EUROBAT • Communication via RS232, expansion slot for e.g. relaycard and SNMP • 24 months warranty with pre-exchange service >> PERFECT IN FORM AND FUNCTION Protect 1: technical specifications Classification VFI SS 111 acc. to IEC 62040-3 Protect 1.100 Protect 1.150 n + x technology scalable (parallel operation of up to 3 units) Type power 10 kVA 15 kVA 7 kW 10.5 kW Protect 1.200 20 kVA 14 kW UPS-Input Rated connected voltage Voltage range without battery mode Frequency (auto selection) Powerfactor Current consumption maximum 13 A / 46 A (bypass) 400 / 230 Vac (3/N/PE~) 304 – 478 Vac (Bypass: 176 – 261 Vac) 50 Hz / 60 Hz ± 4Hz λ > 0.95 19 A / 68 A (bypass) 25 A / 91 A (bypass) UPS-Output Rated AC voltage (single-phase) Frequency in battery mode Output current (at 230 Vac) Transfer time at mains failure Voltage wave form Overload response Crest factor for non-linear load Short Circuit Reaction 43.4 A 220 Vac / 230 Vac / 240 Vac ± 1% 50 Hz / 60 Hz ± 0,1% (slew rate 1Hz/s) 65.2 A 0 ms (zero transfer) Sinusoidal, THD < 2% 130% for 10 min / > 130% for 1 s automatic transfer to bypass mode (zero transfer) 3:1 Short circuit proof 86.9 A Battery Rated voltage Load characteristic Autonomy time Overload / deep discharge protection 240 Vdc IU - characteristic curve (charging voltage 274 Vdc/charging current max. 4.2 Adc) Runtime extension with scalable external battery packs Yes Communication Interface Shutdown-software (on CD) Alarms (audible / optical) RS232 with status message and measured values Communication-Slot (potential-free contacts, USB, SNMP) Included for common Operating Systems (Windows, Linux, Mac) single licence CompuWatch with a 5 fold network licence LED bar graph showing UPS load, battery capacity, Indicators for mains failure, overload, battery low, battery replacement, fault General data Efficiency total AC–AC (at full load) Noise level (1 m distance) Operating temperature Installation height EMC stability EMC emitted interference Humidity Equipment colour Size appr. W x H x D (mm) UPS unit Size appr. W x H x D (mm) battery unit Weight appr. (kg) UPS unit Weight appr. (kg) battery unit Shipment Certification > 90 % ≤ 55 dB (A) ≤ 60 dB (A) 0° – 40° C Up to 1000 m above sea level, at nominal load EN 50091-2 EN 61000-6-3 > 25 A 0 - 95% (non condensing) black line 260 x 720 x 570 260 x 720 x 570 (Protect 1.100 BP) 260 x 720 x 795 (Protect 1. BP 20) 39 kg 55 kg 135 kg (Protect 1.100 BP) 170 kg (Protect 1. BP 20) Parallel operation cable, communication cable, management software “CompuWatch“ (CD), user-manual CE AEG is a registered trademark used under license from AB Electrolux • Specifications are subject to change without notice • 11/2008 AEG Power Solutions GmbH Emil-Siepmann-Str. 32 59581 Warstein-Belecke Germany Tel.: +49 2902 763 168 Fax: +49 2902 763 169 www.aegpartnernet.com PERFECT IN FORM AND FUNCTION
