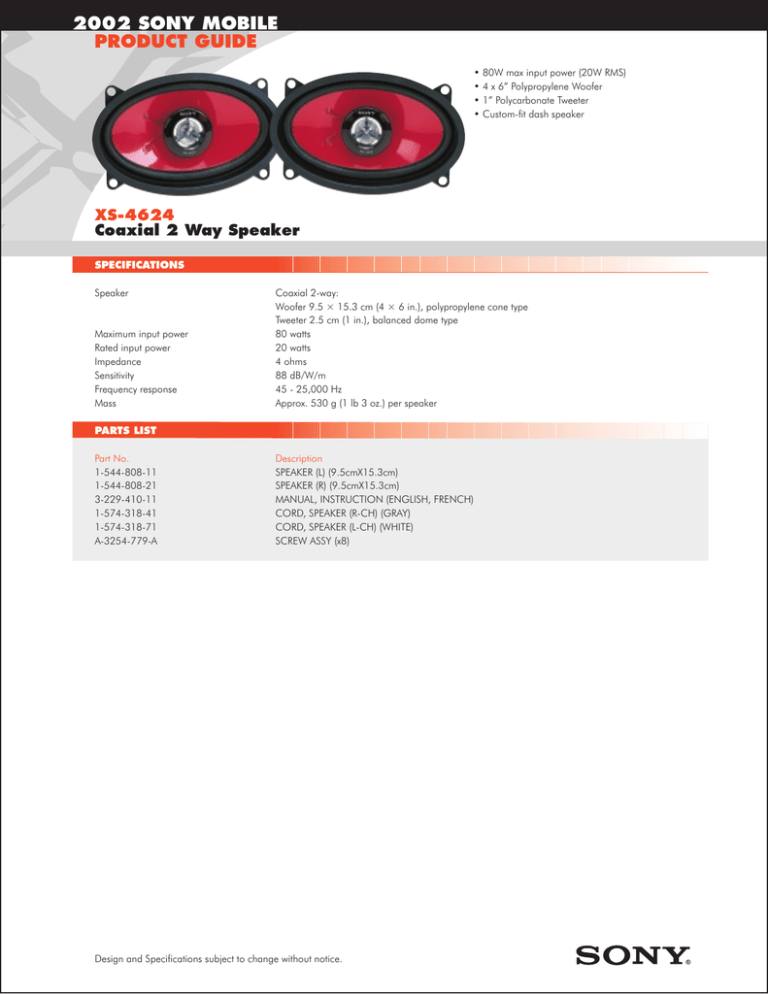

2002 SONY MOBILE
PRODUCT GUIDE
• 80W max input power (20W RMS)
• 4 x 6” Polypropylene Woofer
• 1” Polycarbonate Tweeter
• Custom-fit dash speaker
XS-4624
Coaxial 2 Way Speaker
SPECIFICATIONS
Speaker
Maximum input power
Rated input power
Impedance
Sensitivity
Frequency response
Mass
Coaxial 2-way:
Woofer 9.5 × 15.3 cm (4 × 6 in.), polypropylene cone type
Tweeter 2.5 cm (1 in.), balanced dome type
80 watts
20 watts
4 ohms
88 dB/W/m
45 - 25,000 Hz
Approx. 530 g (1 lb 3 oz.) per speaker
PARTS LIST
Part No.
1-544-808-11
1-544-808-21
3-229-410-11
1-574-318-41
1-574-318-71
A-3254-779-A
Description
SPEAKER (L) (9.5cmX15.3cm)
SPEAKER (R) (9.5cmX15.3cm)
MANUAL, INSTRUCTION (ENGLISH, FRENCH)
CORD, SPEAKER (R-CH) (GRAY)
CORD, SPEAKER (L-CH) (WHITE)
SCREW ASSY (x8)
Design and Specifications subject to change without notice.
2002 SONY MOBILE
PRODUCT GUIDE
XS-4624
Coaxial 2 Way Speaker
Dimensions
Design and Specifications subject to change without notice.
Unit: mm (in.)
