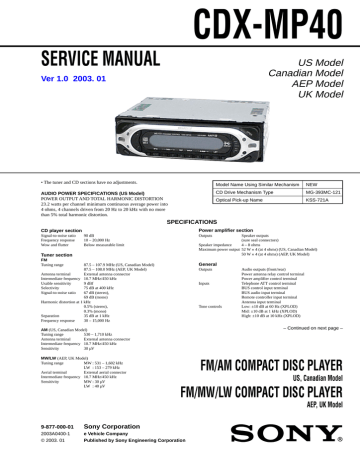

SERVICE MANUAL

Ver 1.0 2003. 01

CDX-MP40

US Model

Canadian Model

AEP Model

UK Model

• The tuner and CD sections have no adjustments.

AUDIO POWER SPECIFICATIONS (US Model)

POWER OUTPUT AND TOTAL HARMONIC DISTORTION

23.2 watts per channel minimum continuous average power into

4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than 5% total harmonic distortion.

SPECIFICATIONS

Model Name Using Similar Mechanism NEW

CD Drive Mechanism Type

Optical Pick-up Name

MG-393MC-121

KSS-721A

CD player section

Signal-to-noise ratio

Frequency response

Wow and flutter

90 dB

10 – 20,000 Hz

Below measurable limit

Power amplifier section

Outputs Speaker outputs

Speaker impedance

(sure seal connectors)

4 – 8 ohms

Maximum power output 52 W × 4 (at 4 ohms) (US, Canadian Model)

50 W

× 4 (at 4 ohms) (AEP, UK Model)

Tuner section

FM

Tuning range 87.5 – 107.9 MHz (US, Canadian Model)

87.5 – 108.0 MHz (AEP, UK Model)

Antenna terminal External antenna connector

Intermediate frequency 10.7 MHz/450 kHz

Usable sensitivity 9 dBf

Selectivity

Signal-to-noise ratio

75 dB at 400 kHz

67 dB (stereo),

69 dB (mono)

Harmonic distortion at 1 kHz

0.5% (stereo),

Separation

Frequency response

0.3% (mono)

35 dB at 1 kHz

30 – 15,000 Hz

General

Outputs

Inputs

Tone controls

Audio outputs (front/rear)

Power antenna relay control terminal

Power amplifier control terminal

Telephone ATT control terminal

BUS control input terminal

BUS audio input terminal

Remote controller input terminal

Antenna input terminal

Low: ±10 dB at 60 Hz (XPLOD)

Mid: ±10 dB at 1 kHz (XPLOD)

High: ±10 dB at 10 kHz (XPLOD)

– Continued on next page –

AM

(US, Canadian Model)

Tuning range 530 – 1,710 kHz

Antenna terminal External antenna connector

Intermediate frequency 10.7 MHz/450 kHz

Sensitivity 30 µV

MW/LW

(AEP, UK Model)

Tuning range MW : 531 – 1,602 kHz

Aerial terminal

LW : 153 – 279 kHz

External aerial connector

Intermediate frequency 10.7 MHz/450 kHz

Sensitivity MW : 30 µV

LW : 40 µV

FM/AM COMPACT DISC PLAYER

US, Canadian Model

FM/MW/LW COMPACT DISC PLAYER

AEP, UK Model

9-877-000-01

2003A0400-1

© 2003. 01

Sony Corporation

e Vehicle Company

Published by Sony Engineering Corporation

1

CDX-MP40

Power requirements

Supplied accessories

12 V DC car battery

(negative ground)

Dimensions Approx. 178 × 50 × 180 mm

(7

1/8

× 2 × 7

1/8

in.) (w/h/d)

Mounting dimensions Approx. 182 × 53 × 161 mm

(7

1/4

× 2

1/8

× 6

3/8 in.) (w/h/d)

Mass Approx. 1.2 kg

(2 lb. 10 oz.)

Parts for installation and connections

Front panel case (1)

Card remote commander RM-X115

Note

This unit cannot be connected to a digital preamplifier or an equalizer which is Sony BUS system compatible.

Design and specifications are subject to change without notice.

• US, Canadian model

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

If the optical pick-up block is defective, please replace the whole optical pick-up block.

Never turn the semi-fixed resistor located at the side of optical pick-up block.

optical pick-up block

SERVICE NOTES

NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK

OR BASE UNIT

The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body.

During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts.

The flexible board is easily damaged and should be handled with care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pickup block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens.

Notes on Chip Component Replacement

• Never reuse a disconnected chip component.

• Notice that the minus side of a tantalum capacitor may be damaged by heat.

TEST DISCS

This set can playback CD-R and CD-ROM discs. The following test discs should be used to check the capability:

CD-R test disc TCD-R082LMT (Part No. J-2502-063-1)

CD-RW test disc TCD-W082L (Part No. J-2502-063-2)

• AEP, UK model semi-fixed resistor

This label is located on the bottom of the chassis.

This label is located on the drive unit’s internal chassis.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK

0

OR DOTTED LINE

WITH MARK

0

ON THE SCHEMATIC DIAGRAMS AND IN

THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.

REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE

PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR

IN SUPPLEMENTS PUBLISHED BY SONY.

2

ATTENTION AU COMPOSANT AYANT RAPPORT

À LA SÉCURITÉ!!

LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE

0

SUR LES

DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES

SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT.

NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES

SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL

OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.

Notes on CD-Rs (recordable CDs)/CD-RWs (rewritable

CDs)

This unit can play the following discs:

Type of discs Label on the disc

Audio CD

MP3 files

• Some CD-Rs/CD-RWs (depending on the equipment used for its recording or the condition of the disc) may not play on this unit.

• You cannot play a CD-R/CD-RW that is not finalized∗.

• You can play MP3 files recorded on CD-ROMs, CD-Rs, and

CD-RWs.

• A CD-R/CD-RW to which a session can be added can be played.

∗ A process necessary for a recorded CD-R/CD-RW disc to be played on the audio CD player.

EXTENSION CABLE AND SERVICE POSITION

When repairing or servicing this set, connect the jig (extension cable) as shown below.

• Connect the MAIN board (CNP701) and the SERVO board (CN1) with the extension cable (Part No. J-2502-062-1).

MAIN BOARD CNP701

CDX-MP40

SERVO BOARD CN1

3

CDX-MP40

TABLE OF CONTENTS

1. GENERAL

Location of Controls (US, Canadian Model) .......................... 5

Location of Controls (AEP, UK Model) .................................. 5

Connections (US, Canadian Model) ........................................ 6

Connections (AEP, UK Model) ............................................... 7

2. DISASSEMBLY

2-1. Sub Panel Assy (CD) ........................................................... 9

2-2. CD Mechanism Block ....................................................... 10

2-3. Main Board ....................................................................... 10

2-4. Heat Sink ........................................................................... 11

2-5. Chassis (T) Sub Assy ........................................................ 11

2-6. Lever Section ..................................................................... 12

2-7. Servo Board ....................................................................... 12

2-8. Shaft Roller Assy, Load Sw Board .................................... 13

2-9. Floating Block Assy .......................................................... 14

2-10. Optical Pick-up Block ....................................................... 14

3. DIAGRAMS

3-1. IC Pin Descriptions ........................................................... 15

3-2. Circuit Boards Location .................................................... 20

3-3. Block Diagram –CD Section– ........................................... 21

3-4. Block Diagram –Main Section– ........................................ 22

3-5. Block Diagram –Display Section– .................................... 23

3-6. Printed Wiring Boards –CD Mechanism Section– ............ 24

3-7. Schematic Diagram –CD Mechanism Section (1/2)– ....... 26

3-8. Schematic Diagram –CD Mechanism Section (2/2)– ....... 27

3-9. Printed Wiring Boards –Main Section– ............................ 28

3-10. Schematic Diagram –Main Section (1/2)– ........................ 29

3-11. Schematic Diagram –Main Section (2/2)– ........................ 30

3-12. Printed Wiring Board –Relay Section– ............................. 31

3-13. Printed Wiring Board –Key Section

(US, Canadian Model)– ............... 32

3-14. Schematic Diagram –Relay, Key Section

(US, Canadian Model)– .................. 33

3-15. Printed Wiring Board –Key Section

(AEP, UK Model)– ...................... 34

3-16. Schematic Diagram –Relay, Key Section

(AEP, UK Model)– ......................... 35

3-17. IC Block Diagrams ............................................................ 36

4. EXPLODED VIEWS

4-1. Chassis Section ................................................................. 38

4-2. Front Panel Section ........................................................... 39

4-3. CD Mechanism Section (1) ............................................... 40

4-4. CD Mechanism Section (2) ............................................... 41

4-5. CD Mechanism Section (3) ............................................... 42

5. ELECTRICAL PARTS LIST

........................................ 43

4

(US, Canadian Model)

SECTION 1

GENERAL

CDX-MP40

This section is extracted from instruction manual.

(AEP, UK Model)

5

CDX-MP40

Connections (US, Canadian Model)

6

Connections (AEP, UK Model)

CDX-MP40

7 7

CDX-MP40

8 8

SECTION 2

DISASSEMBLY

Note : This set can be disassemble according to the following sequence.

SET

2-1.

SUB PANEL ASSY (CD)

(Page 9)

2-2.

CD MECHANISM BLOCK

(Page 10)

2-5.

CHASSIS (T) SUB ASSY

(Page 11)

2-6.

LEVER SECTION

(Page 12)

2-7.

SERVO BOARD

(Page 12)

2-3.

MAIN BOARD

(Page 10)

2-4.

HEAT SINK

(Page 11)

2-8.

SHAFT ROLLER ASSY,

LOAD SW BOARD

(Page 13)

2-9.

FLOATING BLOCK ASSY

(Page 14)

2-10.

OPTICAL PICK-UP BLOCK

(Page 14)

CDX-MP40

Note : Follow the disassembly procedure in the numerical order given.

2-1. SUB PANEL ASSY (CD)

2 claws

1 PTT 2.6x6

5 sub panel assy (CD)

4

CN802

3

claws

9

CDX-MP40

2-2. CD MECHANISM BLOCK

5 CD mechanism block

7 bracket (CD)

6 PTT 2.6x6

2 PTT 2.6x6

3

4 CNP701

2-3. MAIN BOARD

4 screws (+BTT)

5

MAIN board

3 screw (+BTT)

1 PTT 2.6x6

2

PTT 2.6x8

1 PTT 2.6x8

10

2-4. HEAT SINK

2-5. CHASSIS (T) SUB ASSY

2 P 2x3

1 Unsoldering three lead wires.

SERVO board

(SIDE A) black red white

CDX-MP40

6 heat sink

5 PTT 2.6x8

4

P 2.6x8

3 PTT 2.6x12

2 PTT 2.6x8

1 PTT 2.6x8

3

P 2x3

4 chassis (T) sub assy

11

CDX-MP40

2-6. LEVER SECTION

5 guide (disc)

6 lever (R)

3 tension spring (LR)

7 lever (L)

1 special screw

2 DISC IN SW board

4 two claws

2-7. SERVO BOARD

7 special screws

9

SERVO board

3

Removal the solders.

5 P2x3

1 CN3

8 special screw

2 CN2

4 Unsolder the

lead wires.

black yellow

6 loading motor assy optical pick-up block

12

CDX-MP40

2-8. SHAFT ROLLER ASSY, LOAD SW BOARD

When installing, take note of the positions arm (roller) and washers. (Fig. 1)

3 retaining ring (RA)

4 shaft retainer (roller) shaft retainer (roller) retaining ring (RA) arm washer

6 special screw washer arm shaft retainer (roller)

Fig. 1

5 shaft roller assy

2 arm (roller)

7 LOAD SW board

1 tension spring (RA)

13

CDX-MP40

2-9. FLOATING BLOCK ASSY

7 compression spring (FL)

1 tension spring (KF1)

5

Turn loading ring in the

direction of the arrow.

6 floating block assy

8 compression spring (FL)

4

Fit lever (D) in the direction of the arrow.

3 damper (T)

2-10. OPTICAL PICK-UP BLOCK

1

P 2x3

2 sled motor assy (M902)

6 shaft (feed) assy

2 damper (T)

3 P 2x3

7

PICK-UP FLEXIBLE board

4 plate spring (feed)

5 optical pick-up (KSS-721A)

14

SECTION 3

DIAGRAMS

3-1. IC PIN DESCRIPTIONS

• IC3 HD6432238RWN35TEI (CD MASTER CONTROL) (SERVO BOARD)

Pin No.

Pin Name I/O

1

2

3

TEST

DECXRST

DECSTBY

Pin Description

I Test mode selection pin Not used. (Open)

O Reset signal output to the DSP IC “L”: reset

O Standby mode control signal output to the DSP IC “H”: standby

36

59

60

61

62

55

56

57

58

63

64

65

66

42

43, 44

45, 46

47

48

49 – 52

53

54

37

38

39

40

41

15

16

17

18

19 – 26

27

28

29, 30

11

12

13

14

4 – 7

8

9

10

31

32

33

34

35

MD0

MD1

X1A

X0A

RSTX

NMI

STBY

VCC

XTAL

VSS

XTEAL

FWE

CD_RST

PACK

NC

SELF_SW

NC

AVSS

NC

NC

KEY0

KEY1

NC

AVREF

AVCC

NC

PH3

INSW/PH2

LIMIT_SW

D_SW

CVCC

NC

VSS

NC

PH1

EJECT

LOAD

NC

FLAG

RFOK

NC

TXD

RXD

XTALEN

TSTB

STB

A0

I

I

O Not used. (Open)

I CD PH3 photo sensor detection signal input Not used. (Open)

CD mechanism disc in switch detection signal input

CD mechanism in-limit switch detection signal input

I CD mechanism down switch detection signal input

— System power supply pin (+3.3 V)

O Not used. (Open)

— Ground pin

O Not used. (Open)

I CD PH1 photo sensor detection signal input Not used. (Open)

O CD mechanism loading motor control signal output (eject operation)

O CD mechanism loading motor control signal output (load operation)

O Not used. (Open)

I Correction unable detection signal input

I RFOK signal input from the servo IC

O Not used. (Open)

O UART TXD PC connection output Not used. (Open)

I UART RXD PC connection input Not used. (Open)

O Crystal oscillation control signal output to the servo IC

O CD text parameter strobe signal output to the servo IC

O Data strobe signal output to the servo IC

Command/parameter identification signal output to the servo IC

O

“L”: command, “H”: parameter

O Reset signal output to the servo IC

I CD text pack sync signal input from the servo IC

O Not used. (Open)

I CD mechanism self load position detection switch signal input

O Not used. (Open)

I

I

— Ground for A/D converter

O Not used. (Open)

Not used. (Open)

Key switch signal input in the test mode Not used. (Open)

I

I Mode switch signal input in the test mode Not used. (Open)

Not used. (Open)

— Reference voltage for A/D converter

— Power supply for A/D converter

— CPU operation mode setting pin Connecting to +3.3 V in this set.

— CPU operation mode setting pin Connecting to +3.3 V in this set.

— Sub clock oscillator terminal Not used. (Open)

— Sub clock oscillator terminal Not used. (Open)

I Microcomputer reset signal input

— Not used. (Fixed at “H”)

— Not used. (Fixed at “H”)

— Power supply pin (+3.3 V)

— Main clock oscillator pin (12.288 MHz)

— Ground pin

— Main clock oscillator pin (12.288 MHz)

I Flash write enable signal input

CDX-MP40

15

CDX-MP40

UNI_CK

NC

SDA

SCL

NC

TSO

TSI

TSCK

LEDDAT

LEDCLK

LEDLAT

NC

BUSON

BUCHK

A-ATT

CDON

Pin Name

MD2

FL_BOOT

FL_W

NC

CDMON

DECINT

CLOSE

OPEN

LINKOFF

UNI_SO

UNI_SI

NC

U/J_SEL

TEXTSEL

NC

CFSEL

DOUT SEL

86

87

88

89, 90

91

92

93

94

82

83

84

85

78

79

80

81

95

96

97

98

99

100

Pin No.

67

68

69

74

75

76

77

70

71

72

73

O

I

I

O

I

I

O

O

O

I

O

O

I

O

I/O Pin Description

— CPU operation mode setting pin

I Flash write selection signal input (“L”: flash write mode)

O Flash write control signal output connected to pin 66 (FWE)

Not used. (Open)

CD mechanism power supply control signal output

Interrupt signal input from the DSP IC

Front panel operation request output (Close)

Front panel oparation request output (Open)

LINK OFF signal output for UNI_LINK “H”: link off, “L”: link on

Sony-Bus serial data output to the bus interface

Sony-Bus serial data input from the bus interface

O

O

I

I

O

O

O

O

O

O

I

O

I

O

Sony-Bus serial clock input from the bus interface

Not used. (Open)

I/O I2C interface data input/output

O I2C interface clock output

Not used. (Open)

Serial data output to the servo IC

Serial data input from the servo IC

Serial clock output to the servo IC

LED data output for the jig

LED clock output for the jig

LED latch signal output for the jig

Not used. (Open)

Sony-Bus BUS ON signal input from the bus interface

Back up power supply detection signal input

Audio muting control signal output

Power control signal output for the CD servo “H”: servo on, “L”: during loading

Not used. (Open)

Destination setting pin

CD text function setting pin

Not used. (Open)

Custom file function setting pin

Digital output selection setting pin “H”: digital output available

16

44, 45

46, 47

48

49 – 51

52

53 – 55

56

57

30

31 – 34

35

36 – 38

39

40

41, 42

43

62

63

64

58

59

60

61

26

27

28

29

22

23

24

25

18

19

20

21

14

15

16

17

• IC5 CXD9684R-005 (DSP) (SERVO BOARD)

Pin No.

Pin Name I/O

1

2

3, 4

/RESET

MIMD

AD0, AD1

I

I Reset input pin “L”: reset

Pin Description

Microcomputer interface mode selection input “H”: I2C, “L”: TSB

O External SRAM address signal output

9

10, 11

12

13

7

8

5

6

MIDIO (I2C_SDA)

MICK (I2C_SCL)

AD2

VDDT (3.3V)

SDO

AD3, AD4

SDI0

BCKIA

I/O Serial data input/output

I

O Data output

O External SRAM address signal output

I

I

Serial clock input

O External SRAM address signal output

— Power supply (3.3 V) for digital circuit

Data input 0

Bit clock input A

LRCKIA

AD5

CE

OE

VDD (2.5V)

STANDBY

VSS (2.5VGND)

VSSL (2.5VGND)

VRAL

LO

VDAL (2.5V)

VDAR (2.5V)

RO

VRAR

VSSR (2.5VGND)

TESTP

I

O

O

O

I

LR clock input A

External SRAM address signal output

External SRAM chip enable signal output

External SRAM output enable signal output

Power supply pin (2.5 V) for digital circuit

Standby mode control signal input “H”: STB, “L”: normal

— Ground pin for digital circuit

— Ground pin for DAC Lch

— Reference voltage pin for DAC Lch

O DAC Lch signal output (Open)

— Power supply pin (2.5 V) for DAC Lch

— Power supply pin (2.5 V) for DAC Rch

O DAC Rch signal output (Open)

— Reference voltage pin for DAC Rch

— Ground pin for DAC Rch

I Pin for test “H”: test mode, “L”: normal (fixed at “L”)

CKS

AD12 to AD9

VDDT (3.3V)

AD8 to AD6

REQ

VSS

AD13, AD14

WR

AD16, AD15

IO0, IO1

VSS

IO2 to IO4

VDD (2.5V)

IO5 to IO7

VSSP

PDO

VCOI

VDDP

XRDE

VDDX (2.5V)

XI

XO

VSSX

I

I

I/O

I

O

VCO selection input “H”: VCO, “L”: X1 input

O External SRAM address signal output

— Power supply pin (3.3 V) for digital circuit

O External SRAM address signal output

O Interrupt request signal output to the CD master control

— Ground pin for digital circuit

O External SRAM address signal output

O External SRAM write signal output

O External SRAM address signal output

I/O External SRAM data input/output

— Ground pin for digital circuit

I/O External SRAM data input/output

— Power supply pin (2.5 V) for digital circuit

I/O External SRAM data input/output

— Ground pin for VCO circuit

O PLL phase error detection signal output

VCO control voltage input

Power supply pin for VCO circuit

External clock input, audio clock output Not used. (Open)

Power supply pin for oscillation circuit

Resonator pin

Resonator pin

Ground pin for oscillation circuit

CDX-MP40

17

CDX-MP40

20

21 – 23

24

25

26

16

17

18

19

12

13

14

15

27

49

50

51 – 66

67

68

45

46

47

48

41

42

43

44

37

38

39

40

33

34

35

36

28

29

30

31

32

• IC801 MN101C49KSJ (SYSTEM CONTROL) (MAIN BOARD)

Pin No.

Pin Name I/O

1

2

3

VREF–

VSM

NIL

I

I

Pin Description

Power supply pin for A/D converter

S-meter voltage detection signal input from the tuner unit (TU601)

Not used. (Connected to ground.)

8

9

10

11

6

7

4

5

KEYIN1

KEYIN0

RC_IN0

QUALITY

DST SEL

NIL

VREF+

VDD

I

I

I

I

I

I

Key signal input

Key signal input

Rotary commander key signal input from the remote-in jack

Noise detection signal input (AEP, UK model)/Connected to ground. (US, Canadian model)

Destination setting pin (US, Canadian model)

Not used. (Connected to ground.)

Power supply pin for A/D converter

Power supply pin

OSCOUT

OSCIN

VSS

XIN

XOUT

MMOD

LCDSO

LCDCE

LCDCKO

NCO

SYSRST

BUSON

KEYACK

DAVN (NIL)

BU_IN

SIRCS

TUATT IN

NIL

NIH

RESET

NOSE SW

BEEP

NCO

TESTIN

ACCIN

NCO

TELATT

NIH

BUSSO

BUSSI

BUSCKO

I2CSIO

NCO

I2CCKO

NCO

NCO

POW_ON

NCO

ATT

NCO

O

I

— Ground pin

I

O

— Memory mode selection input “L”: single chip mode (connected to ground)

O

O

O

O

O

O

I

I

Serial clock output to the LCD driver

Not used. (Open)

System reset signal output

Bus on signal output to the bus interface

Key acknowledge detection signal input

RDS data block sync detection signal input (AEP, UK model)/Connected to ground. (US, Canadian model)

Back up power supply detection signal input

I

I

I

I

I

O

I

I

I

O

O

I

I

Remote control signal input from the remote control receiver

ATT control signal input from tuner unit.

Not used. (Connected to ground.)

Not used. (Connected to power supply.)

Microcomputer reset signal input from the reset IC

Front panel with/without detection signal input “L”: panel with

Beep signal output to the power amplifier

Not used. (Open)

I

O

I

O

Test mode detection signal input

Accessory power supply detection signal input

Not used. (Open)

TEL ATT detection signal input

Fixed at “H”.

Sony_Bus serial data output to the bus interface IC

Sony_Bus serial data input from the bus interface IC

Sony_Bus serial clock output to the bus interface IC

I/O I2C bus serial data input/output

O Not used. (Open)

O

O

I2C bus serial clock output

Not used. (Open)

O

O

O

O

O

High speed clock output (18.43 MHz)

High speed clock input (18.43 MHz)

Low speed clock input (32.768 kHz)

Low speed clock output (32.768 kHz)

Serial data output to the LCD driver

Chip enable signal output to the LCD driver

Not used. (Open)

System power supply control signal output

Not used. (Open)

System ATT control signal output

Not used. (Open)

18

CDX-MP40

88

89, 90

91

92

93

94

95

96

97

98

99

100

Pin No.

69

70

71

72

73

74

75

76 – 84

85

86

87

TUATT

NCO

XKEYON

ILL ON

NCO

DOORSW

DAVSS

NCO

FLASH W

RC_IN1

NCO

DAVDD

Pin Name

TU ON

VOLATT

NCO

AMPON

NCO

AMPATT

DOORIND

NCO

NS MASK

EE_CKO

EE_SIO

I/O Pin Description

O Tuner power supply control signal output

O Electronic volume ATT control signal output to the electronic volume

O Not used. (Open)

O Power amplifier standby control signal output to the power amplifier

O Not used. (Open)

O Power amplifier ATT control signal output to the power amplifier

O Sub panel power supply control signal output

O Not used. (Open)

O Noise mask signal output

O EEPROM serial clock output

I/O EEPROM serial data input/output

O Tuner ATT signal output to the tuner unit

O Not used. (Open)

O Power supply control signal to the function key

O Illumination power supply control signal output

O Not used. (Open)

I Front panel open/close detection signal input “L”: close, “H”: open

— Ground pin for D/A converter

O Not used. (Open)

I

I Flash write detection signal input

Remote commander shift key signal input from the remote-in jack “L”: shift key on

O Not used. (Connected to ground.)

— Power supply pin for D/A converter

19

CDX-MP40

3-2. CIRCUIT BOARDS LOCATION

DISC IN SW board

LOAD SW board

SERVO board

LIMIT SW board

SPEAKER board

DISPLAY board (US, CND)

KEY board (AEP, UK) tuner unit

(TUX501)

RELAY board

MAIN board

20

CDX-MP40

A

C

B

D

3-3. BLOCK DIAGRAM — CD SECTION —

E

F

PD

LD

OPTICAL PICK-UP

KSS-721A

FOCUS

COIL

TRACKING

COIL

I-V

CONV.

M901

(SPINDLE)

M

IC1

RF AMP,DIGITAL SERVO

DIGITAL SIGNAL PROCESSOR

M902

(SLED)

M903

(LOADING)

LD

DRIVE

Q1

A+5V

84

B

85

82

83

87

D

A

C

E

86

F

97

98

PD

LD

TRACKING

APC

ERROR

IC2

FOCUS/TRACKING COIL DRIVE,

SLED/SPINDLE/LOADING MOTOR DRIVE

FCS-

15

FCS+

16

FOCUS

COIL

DRIVE

26

FD

FORCUS

ERROR

RF

EQ

SERVO

CTL

EFM

DEMOD

62 63 64 65 23

OSC

24

D/A

CONV

DSUB CODE

PROCESS

I/F

RFOK

FLAG

2

28

XTALEN

9

C16M

38

DIN

29

DOUT

30

SCKIN

SCKO

LRCKIN

LRCK

31

32

33

34

LOUT

ROUT

16

12

PACK

TSTB

TSCK

TSI

52

56

55

54

SI

8

SO

7

SCK

6

STB

5

AO

4

RST

3

X1

16.9344MHz

R-CH

TRK+

TRK-

17

18

TRACKING

COIL

DRIVE

23

TD

3

14

12

7

16

18

IC7

5V 3.3V

17

6

8

5

13

9

4

2

IC4

S-RAM

DQ1-DQ3,

IO4-IO8

21-23

25-29

A0-A16

20-13

3,2,31

1,12,4

11,7,10

WR

CS1

OE

5

30

32

15

11

M

SL-

13

SL+

SP+

SP-

14

11

12

M

LD-

9

LD+

10

SLED

MOTOR

DRIVE

SPINDLE

MOTOR

DRIVE

LOADING

MOTOR

DRIVE

5

6

1

LOAD

2

SD

MD

EJECT

CDL

(Page 22)

MAIN

SECTION

A

IC5

DSP

62

X1

9 SDO

12 SDIO

13

BCKIA

/RESET

1

STANDBY

19

REQ 39

MIDIO(I2C_SDA)

5

14

LRCKIA

MICK(I2C_SCL) 6

4

IC12

1

2

46,47

49-51

53-55

IO0-IO7

3,4

7,10

11,15

38-36

34-31

41,42

45,44

AD0-AD16

43

17

16

WR

OE

CE

+2.5V

(IC5)

3

IC6

+2.5V

REG

2

BU+3.3V

SW5

(DOWN)

SW2

(SELF)

SW3

(DISC IN)

SW4

(LIMIT)

X2

12.288MHz

A+5V

AU+5V

D+5V

DR+6V

Q916,D927

CD+5V

REG

Q912,D926

CD DRIVE+6V

REG

D925

Q913,914

CDM ON

SWITCH

BATT

Q915

CD ON

SWITCH

72

80

2

3

DECXRST

DECSTBY

DECINT

SDA

81 SCL

63 XTAL

65 EXTAL

IC3

CD MASTER CONTROL

38 PACK

34 TSTB

83 TSO

84 TSI

85

TSCK

35

STB

36

AO

37

CD_RST

28

RFOK

27 FLAG

33 XTALEN

A-ATT 93

11 D_SW

40 SELF SW

9 INSW/PH2

10 LIMIT_SW

RSTX 59

BUCHK 92

BUSON 91

UNI CK 78

UNI_SI 77

UNI_SO 76

LINKOFF 75

18 LOAD

17 EJECT

71 CDMON

94 CDON

• R-ch is omitted due to

same as L-ch.

• Signal path

:CD

:CD-R/RW(MP3)

A-ATT

MAIN

SECTION

B

(Page 22)

SYSRST

MAIN

SECTION

C

(Page 22)

BU CHK

BUSON

BUS-CLK

BUS-SI

BUS-SO

LINK-OFF

MAIN

SECTION

D

(Page 22)

21 21

CDX-MP40

3-4. BLOCK DIAGRAM — MAIN SECTION —

PJ601

(ANTENNA)

TU501

TUNER UNIT

2

ANT L

4

R

3

QUALITY

5

AEP,UK MODEL

R-CH CDR

(Page 21)

CD

SECTION

A

CDL

Q602

NS MASK

SWITCH

S-METER

6

SDA

14

SCL

13

TU MUTE

MUTE CONDITION

7

8

SDA(EEP)

17

SCL(EEP) 16

RDS DET 9

AEP,UK MODEL

X601

4.332MHz

16 MPX

IC601

RDS DECODER

SDA

SCL

9

10

4 OSCO

5 OSCI

DAVN 8

CD

SECTION

(Page 21)

D

BU-CHECK

BUSON

BUS-SI

BUS-CLK

2

BUS-SO

LINK-OFF

6

5

IC701

BUFFER

3

7

1

IC401

INPUT SELECTOR,

ELECTRONIC VOLUME,

SIGNAL PROCESSOR

5 AUX L

8 CD R

OUT LF 19 12

IC501

POWER AMP

5

3

R-CH

R-CH

R-CH

PJ401

L

-1

R

-2

L

-5

R

-6

L

-3

R

-4

CNP901

1

9

FL+

FL-

BUS AUDIO IN

AUDIO OUT FRONT

AUDIO OUT REAR

9 CD L

OUT LR 18

7 RADIO L

Q402

MUTE

Q401

MUTE

OUT RF 21

OUT RR 20

R-CH

27 SDA

26

25

SCL

MUTE

R-CH

IC801 (1/2)

SYSTEM CONTROL

7 QUALITY

70 VOL ATT

85 NS_MASK

ATT

BEEP

67

35

AMP ON

72

AMP ATT 74

TEL ATT 40

ACC IN

38

(Page 21)

CD

SECTION

B

TEST IN 37

2

45

VSM

I2C SIO

47 I2C CKO

A-ATT

3

IC902

+3.3V

REG

2

88

30

TU MUTE

TU ATT IN

BU+3.3V

TUNER

+8V

TUNER

+5V

Q911,D918,919

TUNER +5V

REG

87

86

EE SIO

EE CKO

SYSRST

C

CD

SECTION

(Page 21)

D701

D819

Q904,905

LINE MUTE

SWITCH

BU+5V

Q909,910

TUNER ON

SWITCH

+8V

D921

DELAY

Q903,D916

+5V REG

Q906,D917

+8V REG

Q907,908

POWER ON

CONTROL

TU ON 69

POW ON 50

D810

RESET 33

27

DAVN(NIL)

SYSRST 24

BUSON 25

BUSSI 43

BUSCKO 44

BUSSO

42

BU IN 28

D818

D808

IC803

BUS INTERFACE

BUSON 1

13 RST

12 BUSON

8 DATA OUT

11 CLK IN

9 DATA IN

10 B/U-C

DATA I/O

CLK

6

4

RST 2

BATT 3

Q802

SWITCH

D802

BATT

BATT

BATT

6

5

4

CNJ801

BUS

CONTROL IN

8

3

2

1

7

BATT

BATT

Q902

ACC

DETECT

BATT

Q801,D801

BATT DET

BATT

Q804

BUS-SO

SWITCH

Q805,806

LIMNKOFF

SWITCH

11

16 AUX

4 STBY

22 MUTE

Q920

AMP B+

SWITCH

Q921

AMP REM

CONTROL

SWITCH

Q901

TEL

ATT

9

7

Q922

ANT B+

SWITCH

Q917

ANT REM

CONTROL

SWITCH

IC802

1

RESET

2

S801

RESET

R-CH

BATT

F901

10A

BU+5V

22 22

2

10

RL+

RL-

4

12

FR+

FR-

3

11

RR+

RR-

13 ATT

7 ACC

15 TEST

5 AMP R

19

17

6 ANT R

8

GND

18

16 +B (BATT)

• R-ch is omitted due to same as L-ch.

• Signal path

:FM

:AM(MW/LW)

:CD

:CD-R/RW(MP3)

3-5. BLOCK DIAGRAM — DISPLAY SECTION —

AEP,UK :S902,903,931,LSW901(1/2),904(1/2)-910(1/2)

US,CND:S901,903,931,LSW901(1/2)-907(1/2)

FUNCTION SWITCH

5

IC801 (2/2)

SYSTEM CONTROL

KEY IN0

IC901

LCD DRIVER

(US,Canadian MODEL)

(AEP,UK MODEL)

4 KEY IN1

LCDSO

LCDCKO

18

20

LCDCE 19

78

DATA

77 CLK

76 CE

S1

I

S64

1

I

64

AEP,UK :S911,LSW912(1/2)-922(1/2)

US,CND:S902,LSW908(1/2)-917(1/2)

FUNCTION SWITCH

CNP801

(REMOTE IN)

COM1

|

COM4

65

|

68

D809

D807

Q803

KEY

DETECT

IC951(US,Canadian MODEL)

IC971(AEP,UK MODEL)

REMOTE

CONTROL

RECEIVER

2

26 KEY ACK

91 XKEYON DOOR

IND

75

98

6

29

RC IN1

RC IN0

SIRCS

ILLON 92

BATT

DOOR IND

SW

Q923,924

Q919

ILL ON

SWITCH

BATT

Q918

ILL B+

SWITCH

S802

(NOSE DET)

34 NOSE SW

LCD901

LIQUID

CRYSTAL

DISPLAY

LED930,931

ILL B+

AEP,UK :LED933,934

US,CND:LED910,911

( LCD BACK

LIGHT

)

AEP,UK :LED903,911,951-954,LSW901(2/2),

904(2/2)-910(2/2),912(2/2)-922(2/2)

US,CND:LED901-906,LSW901(2/2)-917(2/2)

( KEY

ILLUMINATION

)

X802

32.768kHz

15

XIN

16 XOUT

OSC OUT 12

OSC IN 13

X801

18.432MHz

CDX-MP40

THIS NOTE IS COMMON FOR PRINTED WIRING

BOARDS AND SCHEMATIC DIAGRAMS.

(In addition to this, the necessary note is printed in each block.) for schematic diagram:

• All capacitors are in µF unless otherwise noted. pF: µµF

50 WV or less are not indicated except for electrolytics and tantalums.

• All resistors are in Ω and

1

/

4

W or less unless otherwise specified.

• % : indicates tolerance.

• f

: internal component.

C

: panel designation.

Note:

The components identified by mark

0

or dotted line with mark

0

are critical for safety.

Replace only with part number specified.

Note:

Les composants identifiés par une marque

0

sont critiques pour la sécurité.

Ne les remplacer que par une piéce portant le numéro spécifié.

A

: B+ Line.

• Power voltage is dc 14.4V and fed with regulated dc power supply from ACC and BATT cords.

• Voltages are taken with a VOM (Input impedance 10 M Ω ).

Voltage variations may be noted due to normal production tolerances.

• Waveforms are taken with a oscilloscope.

Voltage variations may be noted due to normal production tolerances.

• Circled numbers refer to waveforms.

• Signal path.

F

: FM f

: AM/MW/LW

J

: CD c

: CD-R/RW (MP3)

for printed wiring boards:

• X

: parts extracted from the component side.

• Y : parts extracted from the conductor side.

• x

: parts mounted on the conductor side.

• a

: Through hole.

: Pattern from the side which enables seeing.

(The other layer’s patterns are not indicated.)

Caution:

Pattern face side: Parts on the pattern face side seen from the

(Side B) pattern face are indicated.

Parts face side: Parts on the parts face side seen from the

(Side A) parts face are indicated.

• Waveforms

— SERVO Board —

(MODE: CD PLAY)

1

1V/DIV,20ns/DIV

MAIN Board

6

2V/DIV,100ns/DIV

2

3

4

59 ns

IC1 wd

(XTAL)

2.8 Vp-p

500mV/DIV,1 µ s/DIV

IC1 uj

(RFO)

1.7 Vp-p

100mV/DIV,20 µ s/DIV

Approx. 200m Vp-p

IC1 oa

(FEO)

100mV/DIV,20 µ s/DIV

Approx. 300m Vp-p

5

IC1 od

(TEO)

1V/DIV,40ns/DIV

82 ns

IC3 yd

(XTAL)

1.2 Vp-p

7

8

230 ns

5.5 Vp-p

IC601

4

(OSCD)

2V/DIV,40ns/DIV

3.2 Vp-p

54 ns

IC801 qs

(OSCOUT)

2V/DIV,20 µ s/DIV

3.8 Vp-p

30.5 µ s

IC801 qh

(XOUT)

23 23

CDX-MP40

3-6. PRINTED WIRING BOARDS — CD MECHANISM SECTION — • Refer to page 20 for Circuit Boards Location.

14 13 12 11 10 9 8 7

• Semiconductor

Location

Ref. No.

Location

IC1

IC2

IC3

IC4

IC5

(IC6)

IC7

(IC12)

E-8

H-8

D-3

G-2

G-4

E-3

F-6

E-4

(Q1) C-8

( ): SIDE B

C3

Q1

C6

R5

C19

R9

R8

C20

C23

C15

C16

C78

C44

C29

C35

C38

JR5

6

C30

C77

FB6

C22

R7

C81

5 4 3 2

R114

R121

R130

R105

IC6

R107

IC12

R91

C75

R92

C70

C60

L4

C62

R54

R45

R46

R90

R55

R76

R77

R47

R94

R48

R67

C57

C55

C58

JR14

C63

C67

1

A

B

C

D

E

F

G

H

I

24 24

CDX-MP40

G

H

I

E

F

A

B

C

D

1 2 3 4 5 6 7 8

CN2

R128

R118

R109

R100

R111

R117

IC3

C61

R71

C59

JR15

R124

X2

R102

R78

C113

R136

IC4

R93

R95

R96

R87

IC5

R143

JR12

R70

R83

R85

C56

R89 R50

R88

CN1

R153

R132

R131

IC7

R145

C68

R144

R146

R142

C27

C43

R29

C4

FB3

C39

R148

C40

C17

C9

X1

R12 R10

R14

IC1

IC2

C21

CN3

C11

C18

9 10 11 12 13 14

(Page 28)

SW5

SW3

SW2

CN13

SW4

25 25

CDX-MP40

• Refer to page 23 for Waveforms.

3-7. SCHEMATIC DIAGRAM — CD MECHANISM SECTION (1/2) — • Refer to page 36 for IC Block Diagram.

M902

SW4

Note:

• Voltage is dc with respect to ground under no-signal conditions.

no mark : CD PLAY

: Impossible to measure

CN13

CN3

CN2

TP10

R5

C14

C13

C11

TP7 C15

TP12

C10

C9

TP11

C8

C16

IC B/D

C78

TP89

C18

C19

C5

C24

C1

IC1

C39

C29

C41 C27

JR5 JR1

C45 JR3

JR6

TP8

C4

TP9

C6

C3

Q1

FB2

R152

R153

C35

TP45

TP44

TP43

TP42

TP41

TP40

TP39

TP38

TP37

TP36

R65

C38

R142

R144

R146

C77

C81

FB6 C58

TP56

C36

R98

R97

C68

C34

X1

C44

R50

R51

R52

R53

R54

R55

R90 R91

C59

L6

C60

L8

L4

C61

C62

C54

JR14

R68

C57 C56

R69

R70

IC4

IC5

C65

IC6

C63

C67

JR21

R82

R83

R84

R85

RB2

C55

RB1

JR15

R96

R95

R94

R93

R78

R77

R76

R75

C53

R74

R73

R92

C51

C69

R71 R72

TP65

FB3

C79

TP73

R81

R86

R87

R49

R48

R47

R46

R45

TP50

TP51

JR13

TP54

TP55

TP52

TP53

TP57

TP58

R117

R118

R116 TP62

TP63

TP64

TP59

TP60

TP61

TP66

TP67

TP68

TP72

TP70

TP71

TP76

TP75

TP49

CN1

(Page 30)

(Page 27) (Page 27)

26 26

• Refer to page 23 for Waveform.

3-8. SCHEMATIC DIAGRAM — CD MECHANISM SECTION (2/2) — • Refer to page 36 for IC Block Diagrams.

(Page 26)

SW3

SW2

SW5

TP4

TP3

TP2

TP1

TP92

M903

TP87

TP86

R7

TP15

MD14

BP3

BP4

TP18

TP21

C22

C21

TP17

TP20

TP16

TP19

IC2

IC B/D

TP31

TP33

BP1 BP2

TP30 TP32

R15

R10

R12

R14

TP90

C30

TP27

TP29

TP26

TP28

TP91

R130

R133

R134

R135

R136

R129

R105

C114

IC3

R124

C113

C112

X2

R119

R121

R114

R102

BP6

R104

R115

C111

R109

R111

R113

R100

JR17

R131

R132

R106

R154

IC B/D

C102

IC12

C70

R107

(Page 26)

Note:

• Voltage is dc with respect to ground under no-signal conditions.

no mark : CD PLAY

: Impossible to measure

27 27

CDX-MP40

CDX-MP40

• Refer to page 20 for Circuit Boards Location.

3-9. PRINTED WIRING BOARDS — MAIN SECTION — • Refer to page 30 for Semiconductor Location.

1 2 3 4 5 6 7

PJ401

A

PJ601

B

C

D

E

F

G

H

I

8 9 10

CNP801

11

CNJ801

JR401

JW133

CNP901

C415

D907

D906

F901

C421

TUX501

JW82

JW87

JW96

C622

R502

JW128

JR402

R505

JR403

C429

C503

C507

JW86

R414

C629

JW106

R925

JW116

C717

Q911

C428

R103

R608

R620

R612

C621

C623

C624

Q602

JR602

R408

Q402

JW130

R409

L704

R111

JR116

C207

R407

C425

R101

R104

C101

R112

R102

JW152

C418

R410

C616

C419

JW129

JW24

JW91

C408

C405

C407

C406

C409

Q904

C413

C907

JW25

JW3

JW26

JW27

JW28

JW29

D923

R903

D912

C905

D911

JW30

D910

C902

JW20

JW21

JW22

JW12

JW13

C106

C426

C427

R420

R417

JR906

R418

C202

C201

C617

D921

R932

R906 R907

JW123

D806

R909

R913

Q924

JW56

Q923

D915

R201

R202

JW120

JW121

JW122

JW138

C210

C211

JR405

JW117

JW114

JW115

R203

JW134

JW51

R204

C714

C703

C715

C718

IC902

D701

JW118

JW90

C705

JW125

JW190

JW89

Q901

L703

CNP701

JW141

JW41

JW100

R829

R607

JW88

R830

JW81

R820

R823

JW102

R824

JW49

C910

C713

C712

C704

JW35

L702

JW61

R708

IC701

FMB6

JW73

D927

Q903

JW43

JW47

JW135

Q914

JW80

JR803

R927

R911

D818

R868

C821

Q922

D810

JW31

JW32

JW33

JW124

R926

Q910

Q917

R707

JW98

JW34

R931

C805

Q915

C813

R609

R406 R412

C615

JW78

JW109

R870

IC501

R821

JW23

IC801

X802

R813

R814

R815

R866

R812

D805

D804

R924

R805

JW17

R804

JW39

JW37

JW38

JW18

JW19

Q804

D802

Q805

C804

TH900

JW14

R843

D925

Q907

R801

Q801

C815

JR806

JW160

R934

Q920

Q802

Q806

R806

JW15

JW16

Q909

JW40

R826

JW137

R935

R802

C807

R811

D809

X801

IC802

JW79

JW108

R819

R836

FMB5

JW191

JW59

C823

C817

R832 R834 C827

R825

CNP802

R833

Q912

L900

TH901

Q906

C918

Q921

Q908

C917

C916

C922

JW54

D917

S801

FB701

S802

JW202

JW204

JW206

JW208

(Page 25)

J

12

(Page 31)

28 28

13

US,Canadian Model

14

JW201

JW203

JW205

JW207

AEP,UK Model

CDX-MP40

• Refer to page 23 for Waveform.

3-10. SCHEMATIC DIAGRAM — MAIN SECTION (1/2) — • Refer to page 36 for IC Block Diagrams.

PJ601

TUX501

IC B/D

FB601

R608

C615

R607

IC601

R505

C629

JW87

JW82

R502

C505

C506

C503

JW96

R620

Q602

JR601

C617 C618

X601

R609

C507

R612

C621

C622

C623

C624

Q911

Q909

C920

R925

D918

D919

Q910

R924 R923

C918

C917

Q906

C215

C213

C212

C211

C210

R204

C204

R203

C205

C203

C206

C207

C208 C209

R202

C201

R201

C202

R922

D917

Q908

Q907

C922

C717

IC401

R103

R102

R112

R111

R404

R403

R401

R402

C101

R101 R104

C109

C702

C701

L704

IC B/D

C106

C429

C428

C421

C420

C419

C418

R416

R414

R415

R413

C417

C416

JR401

PJ401

C415 C413

IC501

C401

C424

C425

C402

R405

R406

R408

R407

Q401

Q402

C405

C406

D901

D902

D903

D904

D905

D906

D907

D908

CNP901

C403 R409

R410

C426

C427

C404

R412

R411

Q403

Q404

C407

C408

R811

C814

C817 C807

C806

C423

IC802

Q905

Q904

D921

R901

R903

C412

C907

R932

C409

R417

R418

R419

R420

C411

Q903

C910

D915

R913

R905

R911

Q902

R910

R909

R908

C909

R904

C905

D912

D911

C902

D910

Q901

R907

R906

TH901

R934

Q920

Q921

R935

Q922

R930

Q917

R931

D923

L900

F901

D909

C901

(Page 30)

Note:

• Voltage is dc with respect to ground under no-signal conditions.

( no mark : FM

) : AM/MW/LW

29 29

CDX-MP40

• Refer to page 23 for Waveforms.

3-11. SCHEMATIC DIAGRAM — MAIN SECTION (2/2) — • Refer to page 36 for IC Block Diagram.

(Page 29)

R706

R705

C716

C715

C718

IC902

R707

IC701

(Page

26)

CNP701

R702

D920

C704 R708

D701

C705

L701

C719

C712

L702

C713

C703

C714 L703

D927

Q916

R927

D926

Q912

Q913

R926

D925

Q915

C916

Q914

C816

D810

D819

R820

JR805

R824

R823

C802

R821 R822

IC801

R830 R829

C825

R870

FB801

C818

R835

C812 C813

Q803

R812

C815

R868

R825

R836

C810

R813

R814

R815

X802

C808

C809

C822

R816

C823

X801

JR801

R834

R832

R817

R818

R819

C826

R831

S801 S802

R828

C827

D807

D809

D808

D818

D801

R801

Q801

IC B/D

IC803

Q804

R802

D802

TH900

CNJ801

C805

R826 R804

R805

C804

C803

Q805

R843

Q806

Q802

R806

R807

Q918

R918

12

2W

Q919

R915

R914

Q923

Q924

JR906

CNP801

CNP802

R833

(Page 33)

(Page 35)

FB701

C811

JW174

• Semiconductor Location

Ref. No.

Location

D701

D801

D802

D804

D805

D806

D807

D808

D809

D810

D811

D812

D813

G-8

I-2

G-8

J-3

J-2

J-2

F-5

G-9

G-9

D-9

D-9

D-9

I-4

Ref. No.

Location

D814

D815

D816

D817

D818

D819

D901

D902

D903

D904

D905

D906

D907

C-6

C-6

C-6

C-5

B-7

B-7

J-3

J-3

I-2

J-2

G-8

F-5

C-6

Ref. No.

Location

D908

D909

D910

D911

D912

D915

D916

D917

D918

D919

D920

D921

D923

C-5

C-9

D-8

C-8

C-8

D-6

E-7

G-10

F-2

E-2

G-6

D-5

C-7

Ref. No.

Location

D925

D926

D927

G-9

C-10

E-7

IC401

IC501

IC601

IC701

IC801

IC802

IC803

IC902

E-3

B-5

H-3

F-7

H-7

I-10

F-9

F-4

Ref. No.

Location

Q401

Q402

Q403

Q404

Q602

Q801

Q802

Q803

Q804

Q805

Q806

Q901

C-4

C-3

C-3

C-4

H-3

H-9

F-9

H-8

F-9

G-9

F-9

D-6

Ref. No.

Location

Q902

Q903

Q904

Q905

Q906

Q907

Q908

Q909

Q910

Q911

Q912

Q913

D-6

E-7

D-5

D-5

F-10

G-9

F-10

D-9

E-9

F-2

C-10

E-8

Ref. No.

Location

Q914

Q915

Q916

Q917

Q918

Q919

Q920

Q921

Q922

Q923

Q924

E-7

G-9

E-7

E-9

G-10

H-10

E-10

F-10

F-8

D-5

D-4

30 30

Note:

• Voltage is dc with respect to ground under no-signal conditions.

no mark : FM

(

<

) : AM/MW/LW

> : CD PLAY

G

H

I

J

C

D

E

F

3-12. PRINTED WIRING BOARD — RELAY SECTION — • Refer to page 20 for Circuit Boards Location.

1 2 3 4 5 6 7

A

8

(Page 32)

9

(Page 34)

10

B

LED930

R932

R931

R930

LED931

S931

FMA3

CNP902

(Page 28)

CNP903

31 31

CDX-MP40

CDX-MP40

3-13. PRINTED WIRING BOARD — KEY SECTION (US, Canadian MODEL) — • Refer to page 20 for Circuit Boards Location.

1 2 3 4 5 6 7 8

A

LED901

S901

B

LSW903

LSW904

9

C

LED905

LED904

S903

LSW906

LED910

LCD901

LSW905

LSW902

D

LSW907

LSW908 LSW909

LSW910

LSW917

LSW916

10 11 12 13 14

LSW913

LSW911

LSW915

LSW914

LED911

LSW912

LED906

IC951

LED902

S902

LED903

LSW901

E

F

R977

R909

G

H

R981

I

J

• Semiconductor Location

Ref. No.

D901

D902

D903

D904

D905

Location

H-10

H-10

H-10

H-10

G-10

Ref. No.

Location

D907

D951

G-12

H-13

IC901

IC951

G-8

C-13

Ref. No.

Location

LED901 A-2

LED902 C-14

LED903 C-14

LED904 C-2

Ref. No.

Location

LED905 C-1

LED906 C-12

LED910 C-4

LED911 C-11

R910

R916

R975

R920

R919

R918

R917

C953

C955

R962

R958

R959

C956

C954

32 32

R914

CN901

C951

R973

R951

D951

(Page 31)

CDX-MP40

3-14. SCHEMATIC DIAGRAM — RELAY, KEY SECTION (US, Canadian MODEL) —

(Page 30)

R966 R967 R940

LED910

R941

R972 R974 R976

LSW901(2/2) LSW914(2/2) LSW910(2/2)

R978

LED911

LSW912(2/2)

LSW915(2/2)

LSW909(2/2)

LED906

R980

LSW905(2/2)

R982

LSW902(2/2)

LSW906(2/2) LED904

R952

IC951

C951

R951

R968 R969 R942 R943

LSW911(2/2)

LSW916(2/2)

LSW913(2/2) LSW917(2/2)

R973 R975

LSW908(2/2)

LSW907(2/2)

R977

LED902

LED903

R979

LSW903(2/2)

LSW904(2/2) LED901

R981 R983

LED905

C954

C956

C955

C953

C952

D905

R958

R962

R959

R960

R957

R953

R954

R955

R956

R961

C973

CNP903

R932

R931

R930

LED931

LED930

S931

CNP902

C974

CN901

D907

LSW901(1/2)

R901

S901

S903

R902

R903

LSW903(1/2)

R904

LSW904(1/2)

R905

LSW905(1/2)

R906

LSW906(1/2)

R907

LSW902(1/2)

R908

LSW907(1/2)

R909

S902

LSW913(1/2) R912

LSW911(1/2)

R913

LSW912(1/2)

R914

LSW914(1/2)

R915

LSW915(1/2) R917

LSW916(1/2) R918

LSW917(1/2) R919

LSW910(1/2) R920

LSW909(1/2) R916

LSW908(1/2) R910

LCD901

IC901

Note:

• Voltage is dc with respect to ground under no-signal conditions.

no mark : FM

33 33

CDX-MP40

3-15. PRINTED WIRING BOARD — KEY SECTION (AEP, UK MODEL) — • Refer to page 20 for Circuit Boards Location.

1 2 3 4 5 6 7 8

A

LED954

S902

B

LSW904

R966

LSW905

LED934

C

LSW907

S903

LSW906

LSW919

D

LSW909 LSW910

LSW922

LSW921

LSW920

LSW908

9

LSW918

10

LSW917

11

LED933

LSW916

LSW915

12

LSW913

LSW914

LED952

13

LSW912

IC971

S911

LSW901

14

E

F

R920

G

H

R962

R961

R960

R929

I

J

• Semiconductor Location

Ref. No.

D901

D902

D981

D983

Location

H-10

H-11

G-6

H-6

Ref. No.

Location

IC971 C-13

LED903

LED911

C-2

C-14

LED933 C-11

IC901 G-8

Ref. No.

Location

LED934 C-4

LED951 C-14

LED952 C-12

LED953 C-1

LED954 A-2

R946

R970

R982

R989

C985

34

FMB6

IC901

34

FMB5

R917

R918

R971

D901

R927

R916

R915

R914

R901

R934

C971

CN901

R975

(Page 31)

3-16. SCHEMATIC DIAGRAM — RELAY, KEY SECTION (AEP, UK MODEL) —

(Page 30)

R981 R982 R983 R972

IC971

LED933

R927

R928

R929

LED934

LSW912(2/2) LSW913(2/2)

LSW915(2/2) LSW919(2/2)

LSW905(2/2)

LED903

R930

R931

LED911

LED951

R934

R935

R936

LED952

LSW914(2/2)

LSW901(2/2)

LSW916(2/2)

LSW917(2/2)

LSW918(2/2)

R941

R942

LSW920(2/2)

LSW921(2/2)

R950

R951

LSW906(2/2)

LED954

R960

LED953

LSW904(2/2)

R961 R966

LSW922(2/2)

LSW909(2/2)

R946

R947

LSW910(2/2)

R962 R967

LSW908(2/2) LSW907(2/2)

R970

C971

D981

R990

C986

C981

R989

R985

C985

C982

C983

C984

R986

R987

R988

R979

R980

R978

C973

CNP903

R932

R931

R930

LED931

LED930

S931

CNP902

C974

CN901 R971

D902

R975

R976

R977

D901

IC901

R911 R912 R913 R914 R915 R916 R917 R918 R919 R920 R921

S911 LSW912(1/2)

LSW913(1/2) LSW914(1/2)

LSW915(1/2) LSW916(1/2) LSW917(1/2) LSW918(1/2) LSW919(1/2) LSW920(1/2) LSW921(1/2) LSW922(1/2)

R901

LSW901(1/2)

R902

S902

R903

S903

R904 R905 R906 R907 R908 R909 R910

LSW904(1/2) LSW905(1/2)

LSW906(1/2)

LSW907(1/2)

LSW908(1/2) LSW909(1/2) LSW910(1/2)

LCD901

CDX-MP40

Note:

• Voltage is dc with respect to ground under no-signal conditions.

no mark : FM

35 35

CDX-MP40

3-17. IC BLOCK DIAGRAMS

IC1 µPD63711GC-8EU

IC2 BA5810FP-E2 IC12 TC7SH08FU-TE85R

AVDD 88

REFOUT 89

FE90

FEO

91

TE-

92

TEO

93

TE2

94

TEC 95

AGND 96

PD 97

LD 98

PN 99

AVDD 100

AGCI

76

RFO

77

EQ2

78

EQ1

79

RF-

80

AGND 81

A 82

C 83

B 84

D 85

F 86

E 87

75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51

EFM

COMPARATOR

EFM D/A

AUTO GAIN

CONTROLLER

FD/TD/SD/MD

CONTROLLER

ADDER

RF

FEOFS

TEOFS

AMP BLOCK

SVDRAM

MULTIPLIER

SVCRAM

SVROM

ROM

DECODER

EFM

CLV

PROCESSOR

DEFECT

FOK

A3T

MIRR

FEO

TEO

SWITCH

COMPARATOR

DEFECT

COMPARATOR

RFENV

MIRENV

TRACKING

REGISTER

FOCUS

REGISTER

MEMORY

PROCESSOR

16K

SRAM

MICROCOMPUTER INTERFACE

CD-TEXT DECODER

SUB-CODE PROCESSOR

EFM DEMODULATOR

TIMING GENERATOR

D/A

INTERFACE

CIRCUIT

DE-EMPHASIS CIRCUIT

OCTUPLED

OVERSAMPLING DIGITAL FILTER

NOISE SHAVER NOISE SHAVER

OUTPUT BUFFER OUTPUT BUFFER

DIGITAL PLL

DIGITAL

AUDIO

INTERFACE

MICROCOMPUTER INTERFACE

SCF

OSC

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

50 C2D3

49 C2D2

48 C2D1

47 C1D2

46 C1D1

45 DGND

44 PLCK

43 MIRR/WFCK

42 RFCK

41 LOCK

40 DVDD

39 TSOI

38 C16M

37 DGND

36 TX

35 HOLD/WDCK

34 LRCK

33 LRCKIN

32 SCKO

31 SCKIN

30 DOUT

29 DIN

28 FLAG

27 EMPH

26 DVDD

FWD 1

REV 2

LOADING PRE

FWD REV

LDCONT 3

PS 4

IN1 5

IN2 6

X3

POWER

SAVE

PREVCC

7

PREVCC

(PRE.LOADING)

POWVCC12

(CH1.CH2)

POWVCC

8

+

+

VOL–

VOL+

9

10

VO2– 11

10k

VO2+ 12

10k

VO1– 13

10k

VO1+ 14

10k

10k

10k

10k

LEVEL

SHIFT

10k

LEVEL

SHIFT

+

28

27

26

25

24

23

22

BIAS

OPIN4+

OPIN4–

OPOUT4

OPIN3+

OPIN3–

OPOUT3

+

10k

LEVEL

SHIFT

LEVEL

SHIFT

10k

10k

10k

CH1-4

MUTE

POWVCC34

(CH3,CH4)

21 MUTE

20 POWVCC

19 GND

10k

18 VO3–

10k

17 VO3+

10k

16 VO4–

10k

15 VO4+

IC601 SAA6588T/V2-518

IN B

IN A

GND

1

2

3

BUSON

1

RST

2

BATT 3

CLK

4

VREF 5

DATA

I/O

6

GND 7

5

4

VCC

OUT

IC803 MM1175XFF

RESET

SWITCH

BATT

SWITCH

20 19 18 17 16 15 14 13

MULTI

PATH

DETECTOR

57kHz

8th ORDER

BAND-PASS FILTER

POWER SUPPLY

& RESET

CLOCKED

COMPARATOR

RDS/RDBS

DEMODULATOR

TEST

CONTROL

RDS/RDBS

DECODER

CLOCK

SIGNAL QUALITY

DECODER

4 5

4

INTERFACE

REGISTER

DATA

OSCILLATOR

& CLOCK

CLOCK

DATA

IIC BUS SLAVE

TRANSCEIVER

PAUSE

DETECTOR

12 11

1 2

3

4 5 6 7 8 9 10

14 VCC

13 RST

12

BUSON

11

CLK-IN

10

B/U-C

9

DATA IN

8 DATA OUT

36 36

IC401 BD3802F (MAIN Board)

D-GND

28

SDA

27

SCL MUTE SEL

26 25 24

ADJ

23

VCC

22

OUT-

FR

21

VCC

OUT-

RR

20

OUT-

FL

19

OUT-

RL

18

DS32 DS22 DS12

17 16 15

I

2

C BUS

LOGIC

VCO

FADER

(0~-58,

-∞dB)

ON OFF

EFFECT (OFF,6dB,

10dB,14dB)

FADER

(0~-58,

-∞dB)

FADER

(0~-58,

-∞dB)

ON OFF

EFFECT (OFF,6dB,

10dB,14dB)

FADER

(0~-58,

-∞dB)

TONE

PASS

TONE

PASS

BASS,TREBLE, MIDDLE

(-15dB~+15dB,1dB STEP)

BASS,TREBLE, MIDDLE

(-15dB~+15dB,1dB STEP)

VOLUME

(+23~-79dB,-∞dB

1dB STEP)

INPUT GAIN

(0~15dB,1dB STEP)

MUTE

INPUT SELECTOR

(4 STEREO INCLUDE 1 ISOLATION INPUT)

VOLUME

(+23~-79dB,-∞dB

1dB STEP)

INPUT GAIN

(0~15dB,1dB STEP)

MUTE

VCC/2

1

A-GND

2 3

FIL BUS-

RCH

4

AN

5

BUS-

LCH

6

TU-

RCH

7

TU-

LCH

8

CD-

RCH

9

CD-

LCH

10

D1

11 12

D2 DS11

13 14

DS21 DS31

CDX-MP40

37

CDX-MP40

NOTE:

• The mechanical parts with no reference number in the exploded views are not supplied.

• Items marked “*” are not stocked since they are seldom required for routine service.

Some delay should be anticipated when ordering these items.

• -XX and -X mean standardized parts, so they may have some difference from the original one.

4-1. CHASSIS SECTION

9

#1

SECTION 4

EXPLODED VIEWS

• Color Indication of Appearance Parts

Example :

KNOB, BALANCE (WHITE) ... (RED)

R R

Parts Color Cabinet’s Color

• Accessories are given in the last of this parts list.

• Abbreviation

CND: Canadian model

The components identified by mark 0 or dotted line with mark

0 are critical for safety.

Replace only with part number specified.

Les composants identifiés par une marque 0 sont critiques pour la sécurité.

Ne les remplacer que par une piéce portant le numéro spécifié.

not supplied

12

1

not supplied

(RELAY board)

2

4

#2

#1

#2

#2

6

7

5

not supplied

3

MG-393MC-121

10

15

11

8

#1

#1

#3 not supplied

13

14

#3

#5

#4

#3

#3 not supplied

#3

TUX501

F901 not supplied

11

not supplied

#1

8

9

6

7

9

3

4

1

2

* 5

Ref. No.

Part No.

Description

X-3382-626-1 PANEL ASSY (CD), SUB

3-246-030-01 BUTTON (EJECT)

1-792-173-11 CABLE, FLAT (FFC) 12P

X-3376-686-4 GEAR ASSY

X-3376-689-2 BRACKET (GEAR) ASSY

Remark

3-030-909-03 DAMPER, OIL

3-713-786-51 SCREW +P 2X3

X-3376-687-2 LOCK ASSY

1-776-207-82 CORD (WITH CONNECTOR) (POWER) (US,CND)

1-776-527-61 CORD (WITH CONNECTOR) (ISO) (POWER)

(AEP,UK)

Ref. No.

Part No.

12

12

13

* 14

15

Description

A-3274-739-A MAIN BOARD, COMPLETE (US,CND)

A-3274-742-A MAIN BOARD, COMPLETE (AEP,UK)

3-041-261-11 BRACKET (TR)

3-019-565-01 BRACKET (IC)

3-223-913-11 LABEL (OP CAUTION) (AEP,UK)

Remark

F901

#1

#2

#3

1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A

TUX501 A-3220-887-A TUNER UNIT (TUX-030)

7-685-792-09 SCREW +PTT 2.6X6 (S)

7-621-772-20 SCREW +B 2X5

7-685-793-09 SCREW +PTT 2.6X8 (S)

10

11

3-246-007-01 BRACKET (CD)

3-922-535-11 SCREW (+BTT)

#4

#5

7-685-795-09 SCREW +PTT 2.6X12 (S)

7-685-134-19 SCREW +P 2.6X8 TYPE2 NON-SLIT

38

CDX-MP40

4-2. FRONT PANEL SECTION

not supplied

(DISPLAY board (US, CND))

(KEY board (AEP, UK)) not supplied not supplied

LCD901 not supplied

54

not supplied

#6

#6

56

55

not supplied not supplied not supplied

52

51

not supplied

53

57

Ref. No.

Part No.

51

51

52

52

53

Description Remark

A-3337-163-A OVERALL ASSY, FRONT PANEL (AEP,UK)

A-3337-442-A PANEL COMPLETE ASSY, FRONT (US,CND)

X-3382-827-1 PANEL (S) ASSY, FRONT (AEP,UK)

X-3383-151-1 PANEL (S) ASSY, FRONT (US,CND)

3-246-534-01 SPRING (RELEASE) (US,CND)

53

54

54

55

55

3-246-778-01 SPRING (OPEN) (AEP,UK)

X-3383-105-1 BUTTON ASSY (S) (AEP,UK)

X-3383-169-1 BUTTON ASSY (S) (US,CND)

1-694-976-11 CONDUCTIVE BOARD, CONNECTION (AEP,UK)

1-694-989-11 CONDUCTIVE BOARD, CONNECTION (US,CND)

Ref. No.

Part No.

Description Remark

56

56

57

57

X-3382-625-1 PANEL ASSY, FRONT BACK (US,CND)

X-3382-702-1 PANEL ASSY, FRONT BACK (AEP,UK)

X-3378-390-3 CASE ASSY (for FRONT PANEL) (US,CND)

X-3378-490-2 CASE (PANEL) ASSY (for FRONT PANEL)

(AEP,UK)

LCD901 1-805-084-11 DISPLAY PANEL, LIQUID CRYSTAL

#6 7-685-106-19 SCREW +P 2X10 TYPE2 NON-SLIT

39

CDX-MP40

4-3. CD MECHANISM SECTION (1)

(MG-393MC-121)

#7

102

#7

104

103

107

115

105

101

116

114

106

109

117

#8

114

110

105

108

113

M903

#9

Ref. No.

Part No.

101

102

103

104

105

Description

A-3274-253-A DISC IN SW BOARD, COMPLETE

3-040-039-03 CHASSIS (T)

3-040-038-01 SPRING (LR), TENSION

3-040-050-01 LEVER (L)

3-040-022-01 RETAINER (ROLLER), SHAFT

106

107

108

109

110

111

3-040-044-01 ROLLER (S)

3-040-067-01 LEVER (R)

A-3301-980-A SHAFT ROLLER ASSY

3-040-037-01 GUIDE (DISC)

3-040-040-03 ARM (ROLLER)

A-3274-698-A SERVO BOARD, COMPLETE

40

111

#7

112

#8

Remark Ref. No.

Part No.

112

113

114

115

116

Description

3-221-779-02 BRACKET (MOTOR)

3-040-034-01 SPRING (RA), TENSION

3-040-042-01 WASHER

3-043-880-01 RING (RA), RETAINING

3-044-206-11 SCREW, SPECIAL

117 1-685-337-11 LOAD SW BOARD

M903 A-3315-039-A MOTOR SUB ASSY, LO (LOADING)

#7

#8

#9

7-627-553-37 SCREW, PRECISION +P 2X3 TYPE 3

7-628-253-00 SCREW, SPECIAL

7-627-553-17 SCREW, PRECISION +P 2X2 TYPE 3

Remark

CDX-MP40

4-4. CD MECHANISM SECTION (2)

(MG-393MC-121)

154

157

158

160

162

163

156

151

157

155

164

not supplied

153

161

152

152

152

159

Ref. No.

Part No.

151

152

153

154

155

Description

3-040-025-02 ARM, CHUCKING

3-040-031-01 DAMPER (T)

3-040-056-01 LEVER (D)

3-040-024-01 RETAINER (DISC)

3-040-054-01 WHEEL (LW), WORM

156

157

3-040-026-01 SPRING (CH), TENSION

3-040-032-01 SPRING (FL), COMPRESSION

Remark Ref. No.

Part No.

158

159

160

161

162

Description

3-040-033-01 SPRING (KF1), TENSION

A-3307-422-A CHASSIS (M) COMPLETE ASSY

3-040-059-01 SPRING (TR), TENSION

3-040-057-01 LEVER (LOCK)

3-040-058-01 GEAR (MDL)

163

164

3-040-052-01 WHEEL (U), WORM

3-040-051-02 LEVER (TR)

Remark

41

CDX-MP40

4-5. CD MECHANISM SECTION (3)

(MG-393MC-121)

201

not supplied

207

211

209

208

210

206

209

202

M902

205

#7

204

203

#10

The components identified by mark 0 or dotted line with mark

0 are critical for safety.

Replace only with part number specified.

Les composants identifiés par une marque 0 sont critiques pour la sécurité.

Ne les remplacer que par une piéce portant le numéro spécifié.

Ref. No.

Part No.

201

202

203

204

205

Description

A-3337-193-A FLOATING BLOCK ASSY

3-040-029-01 SPRING (SL), TORSION

3-040-045-01 BASE (DRIVING)

3-040-194-01 GEAR (MIDWAY)

A-3301-983-A SHAFT (FEED) ASSY

206

207

3-040-030-01 SPRING (FEED), PLATE

1-823-951-11 CABLE, FLEXIBLE FLAT (16 CORE)

Remark Ref. No.

Part No.

Description

208

209

A-3274-254-A LIMIT SW BOARD, COMPLETE

3-909-607-01 SCREW

0 210

211

8-820-165-06 OPTICAL PICK-UP KSS-721A/C-RP

1-676-707-11 PICK-UP FLEXIBLE BOARD

M902 A-3301-985-A MOTOR ASSY, SLED (SLED)

#7

#10

7-627-553-37 SCREW, PRECISION +P 2X3 TYPE 3

7-627-850-28 SCREW, PRECISION +P 1.4X3

Remark

42

NOTE:

• Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set.

• -XX and -X mean standardized parts, so they may have some difference from the original one.

• RESISTORS

All resistors are in ohms.

METAL:Metal-film resistor.

METAL OXIDE: Metal oxide-film resistor.

F:nonflammable

• Abbreviation

CND: Canadian model

SECTION 5

ELECTRICAL PARTS LIST

DISC IN SW

CDX-MP40

DISPLAY

• Items marked “*” are not stocked since they are seldom required for routine service.

Some delay should be anticipated when ordering these items.

• SEMICONDUCTORS

In each case, u : µ, for example: uA.. : µA..

uPA.. : µPA..

uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD..

• CAPACITORS uF : µF

• COILS uH : µH

The components identified by mark 0 or dotted line with mark

0 are critical for safety.

Replace only with part number specified.

Les composants identifiés par une marque 0 sont critiques pour la sécurité.

Ne les remplacer que par une piéce portant le numéro spécifié.

When indicating parts by reference number, please include the board.

Ref. No.

Part No.

Description Remark

A-3274-253-A DISC IN SW BOARD, COMPLETE

**************************

*************************************************************

DISPLAY BOARD (US,CND)

**************

Ref. No.

Part No.

Description Remark

LED903 8-719-053-09 LED SML-310VT-T86 (EQ3) (US,CND)

LED904 8-719-053-09 LED SML-310VT-T86 (DSO) (US,CND)

LED905 8-719-053-09 LED SML-310VT-T86 (DSO) (US,CND)

LED906 8-719-053-09 LED SML-310VT-T86 (SEEK) (US,CND)

LED910 6-500-459-01 LED NSCW505T-ARS (LCD BACK LIGHT)

(US,CND)

1-694-989-11 CONDUCTIVE BOARD, CONNECTION (US,CND) LED911 6-500-459-01 LED NSCW505T-ARS (LCD BACK LIGHT)

(US,CND)

< CAPACITOR >

< SWITCH >

C951 1-164-227-11 CERAMIC CHIP 0.022uF

10% 25V

(US,CND)

C952 1-125-891-11 CERAMIC CHIP 0.47uF

10% 10V

(US,CND)

C953 1-162-927-11 CERAMIC CHIP 100PF

C955 1-107-826-11 CERAMIC CHIP 0.1uF

5% 50V

(US,CND)

C954 1-164-227-11 CERAMIC CHIP 0.022uF

10% 25V

(US,CND)

10% 16V

(US,CND)

LSW901 1-771-476-11 SWITCH, KEYBOARD (WITH LED) (OFF)

(US,CND)

LSW902 1-771-476-11 SWITCH, KEYBOARD (WITH LED) (MODE)

(US,CND)

LSW903 1-771-476-11 SWITCH, KEYBOARD (WITH LED) (SEL)

(US,CND)

LSW904 1-771-476-11 SWITCH, KEYBOARD (WITH LED) (VOLUME +)

(US,CND)

LSW905 1-771-476-11 SWITCH, KEYBOARD (WITH LED) (VOLUME –)

(US,CND)

C956 1-107-826-11 CERAMIC CHIP 0.1uF

10% 16V

(US,CND)

CN901

D901

D902

< CONNECTOR >

1-817-158-11 PLUG, CONNECTOR 14P (US,CND)

< DIODE >

8-719-083-66 DIODE UDZS-TE-17-18B (US,CND)

8-719-978-33 DIODE DTZ-TT11-6.8B (US,CND)

D903 8-719-978-33 DIODE DTZ-TT11-6.8B (US,CND)

D904 8-719-978-33 DIODE DTZ-TT11-6.8B (US,CND)

D905 8-719-988-61 DIODE 1SS355TE-17 (US,CND)

LSW906 1-771-476-11 SWITCH, KEYBOARD (WITH LED) (ATT)

(US,CND)

LSW907 1-771-883-31 SWITCH, TACTILE (WITH LED) (SENS)

(US,CND)

LSW908 1-771-883-31 SWITCH, TACTILE (WITH LED) (1/DISC –)

(US,CND)

LSW909 1-771-883-31 SWITCH, TACTILE (WITH LED) (2/DISC +)

(US,CND)

LSW910 1-771-883-31 SWITCH, TACTILE (WITH LED) (3/REP)

(US,CND)

D907

D951

IC901

8-719-978-33 DIODE DTZ-TT11-6.8B (US,CND)

8-719-069-54 DIODE UDZS-TE-17-5.1B (US,CND)

< IC >

8-759-826-21 IC LC75874W (US,CND)

IC951 8-749-017-35 IC KSM-401N (US,CND)

LSW911 1-771-476-11 SWITCH, KEYBOARD (WITH LED)

(+ > M SEEK) (US,CND)

LSW912 1-771-476-11 SWITCH, KEYBOARD (WITH LED)

(SEEK m . –) (US,CND)

LSW913 1-771-476-11 SWITCH, KEYBOARD (WITH LED) (DSPL)

(US,CND)

LSW914 1-771-883-31 SWITCH, TACTILE (WITH LED) (BTM)

(US,CND)

LSW915 1-771-883-31 SWITCH, TACTILE (WITH LED) (6) (US,CND)

< LIQUID CRYSTAL DISPLAY >

LSW916 1-771-883-31 SWITCH, TACTILE (WITH LED) (5) (US,CND)

LSW917 1-771-883-31 SWITCH, TACTILE (WITH LED) (4/SHUF)

(US,CND)

LCD901 1-805-084-11 DISPLAY PANEL, LIQUID CRYSTAL (US,CND)

< RESISTOR >

< DIODE >

LED901 8-719-053-09 LED SML-310VT-T86 (SOURCE) (US,CND)

LED902 8-719-053-09 LED SML-310VT-T86 (EQ3) (US,CND)

R901 1-216-819-11 METAL CHIP 680 5% 1/10W

(US,CND)

43

CDX-MP40

DISPLAY KEY

Ref. No.

Part No.

Description

R902 1-216-819-11 METAL CHIP

R903 1-216-819-11 METAL CHIP

R904 1-216-821-11 METAL CHIP

R905 1-216-823-11 METAL CHIP

R906 1-216-823-11 METAL CHIP

R907

R908

R909

R910

R912

R913

R914

R915

R916

R917

R918

R919

R920

R940

R941

R942

R943

R951

R952

R953

1-216-825-11 METAL CHIP

1-216-827-11 METAL CHIP

1-216-834-11 METAL CHIP

1-216-832-11 METAL CHIP

1-216-819-11 METAL CHIP

1-216-819-11 METAL CHIP

1-216-819-11 METAL CHIP

1-216-826-11 METAL CHIP

1-218-867-11 METAL CHIP

1-216-823-11 METAL CHIP

1-216-825-11 METAL CHIP

1-216-827-11 METAL CHIP

1-216-829-11 METAL CHIP

1-216-815-11 METAL CHIP

1-216-817-11 METAL CHIP

1-216-815-11 METAL CHIP

1-216-817-11 METAL CHIP

1-216-815-11 METAL CHIP

1-216-825-11 METAL CHIP

1-216-821-11 METAL CHIP

680

680

1K

1.5K

1.5K

2.2K

3.3K

12K

8.2K

680

680

680

2.7K

6.8K

1.5K

2.2K

3.3K

4.7K

330

470

330

470

330

2.2K

1K

R954 1-216-821-11 METAL CHIP

R955 1-216-821-11 METAL CHIP

R956 1-216-821-11 METAL CHIP

R957 1-216-850-11 METAL CHIP

R958 1-216-809-11 METAL CHIP

1K

1K

1K

270K

100

R959 1-216-821-11 METAL CHIP 1K

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

Remark Ref. No.

Part No.

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

Description

R960 1-216-821-11 METAL CHIP

R961

R962

R966

R967

1-216-857-11 METAL CHIP

1-216-821-11 METAL CHIP

1-216-815-11 METAL CHIP

1-216-817-11 METAL CHIP

R968 1-216-815-11 METAL CHIP

R969 1-216-817-11 METAL CHIP

R972

R973

R974

R975

R976

R977

R978

R979

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-811-11 METAL CHIP

1-216-811-11 METAL CHIP

1K

1M

1K

330

470

330

470

100

100

100

100

100

100

150

150

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

R980

R981

R982

R983

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

< SWITCH >

100

100

100

100

5%

5%

5%

5%

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

S901 1-771-884-31 SWITCH, TACTILE (WITH LED) (SOURCE)

(US,CND)

S902 1-771-884-31 SWITCH, TACTILE (WITH LED) (EQ3)

(US,CND)

S903 1-771-884-31 SWITCH, TACTILE (WITH LED) (DSO)

(US,CND)

**************************************************************

KEY BOARD (AEP,UK)

**********

C971

C984

1-694-976-11 CONDUCTIVE BOARD, CONNECTION (AEP,UK)

< CAPACITOR >

1-107-826-11 CERAMIC CHIP

1-107-826-11 CERAMIC CHIP

0.1uF

0.1uF

10% 16V

(AEP,UK)

C981 1-164-227-11 CERAMIC CHIP 0.022uF

10% 25V

(AEP,UK)

C982 1-164-227-11 CERAMIC CHIP 0.022uF

10% 25V

(AEP,UK)

C983 1-107-826-11 CERAMIC CHIP 0.1uF

10% 16V

(AEP,UK)

10% 16V

(AEP,UK)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

Remark

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

1/10W

(US,CND)

44

CDX-MP40

KEY

Ref. No.

Part No.

Description Remark

C985 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

(AEP,UK)

C986 1-127-715-11 CERAMIC CHIP 0.22uF

10% 16V

(AEP,UK)

CN901

< CONNECTOR >

1-817-158-21 PLUG, CONNECTOR 14P (AEP,UK)

< DIODE >

Ref. No.

Part No.

Description Remark

LSW918 1-771-883-31 SWITCH, TACTILE (WITH LED) (5/ALBUM –)

(AEP,UK)

LSW919 1-771-883-31 SWITCH, TACTILE (WITH LED) (4/SHUF)

(AEP,UK)

LSW920 1-771-883-31 SWITCH, TACTILE (WITH LED) (3/REP)

(AEP,UK)

LSW921 1-771-883-31 SWITCH, TACTILE (WITH LED) (2/DISC +)

(AEP,UK)

LSW922 1-771-883-31 SWITCH, TACTILE (WITH LED) (1/DISC –)

(AEP,UK)

D901 8-719-085-72 DIODE UMZ6.8ENTR (AEP,UK)

D902 8-719-083-66 DIODE UDZS-TE-17-18B (AEP,UK)

D981 8-719-069-54 DIODE UDZS-TE-17-5.1B (AEP,UK)

D983 8-719-404-50 DIODE MA111-TX (AEP,UK)

R901

< RESISTOR >

1-216-819-11 METAL CHIP 680

680

5%

5%

< IC >

IC901 8-759-826-21 IC LC75874W (AEP,UK)

IC971 6-600-163-01 IC RS-770 (AEP,UK)

< LIQUID CRYSTAL DISPLAY >

LCD901 1-805-084-11 DISPLAY PANEL, LIQUID CRYSTAL (AEP,UK)

< DIODE >

LED903 6-500-450-01 LED CL-195SR-CD-T (DSO) (AEP,UK)

LED911 6-500-450-01 LED CL-195SR-CD-T (EQ3) (AEP,UK)

LED933 6-500-459-01 LED NSCW505T-ARS (LCD BACK LIGHT)

(AEP,UK)

LED934 6-500-459-01 LED NSCW505T-ARS (LCD BACK LIGHT)

(AEP,UK)

LED951 6-500-450-01 LED CL-195SR-CD-T (EQ3) (AEP,UK)

R902 1-216-819-11 METAL CHIP

R903 1-216-819-11 METAL CHIP

R904

R905

R906

R907

R908

R909

R910

1-216-821-11 METAL CHIP

1-216-823-11 METAL CHIP

1-216-823-11 METAL CHIP

1-216-825-11 METAL CHIP

1-216-827-11 METAL CHIP

1-216-829-11 METAL CHIP

1-218-867-11 METAL CHIP

680

1K

1.5K

1.5K

2.2K

3.3K

4.7K

6.8K

5%

5%

5%

5%

5%

5%

5%

5%

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

R911 1-216-819-11 METAL CHIP

R912 1-216-819-11 METAL CHIP

R913 1-216-819-11 METAL CHIP

R914 1-216-821-11 METAL CHIP

R915 1-216-823-11 METAL CHIP

680

680

680

1K

1.5K

5%

5%

5%

5%

5%

LED952 6-500-450-01 LED CL-195SR-CD-T (SEEK) (AEP,UK)

LED953 6-500-450-01 LED CL-195SR-CD-T (DSO) (AEP,UK)

LED954 6-500-450-01 LED CL-195SR-CD-T (SOURCE) (AEP,UK)

< SWITCH >

LSW901 1-771-476-11 SWITCH, KEYBOARD (WITH LED) (OFF)

(AEP,UK)

LSW904 1-771-476-11 SWITCH, KEYBOARD (WITH LED) (SEL)

(AEP,UK)

LSW905 1-771-476-11 SWITCH, KEYBOARD (WITH LED) (VOLUME +)

(AEP,UK)

LSW906 1-771-476-11 SWITCH, KEYBOARD (WITH LED) (VOLUME –)

(AEP,UK)

LSW907 1-771-476-11 SWITCH, KEYBOARD (WITH LED) (ATT)

(AEP,UK)

LSW908 1-771-476-11 SWITCH, KEYBOARD (WITH LED) (MODE)

(AEP,UK)

LSW909 1-771-883-31 SWITCH, TACTILE (WITH LED) (AF) (AEP,UK)

LSW910 1-771-883-31 SWITCH, TACTILE (WITH LED) (SENS/BTM)

(AEP,UK)

LSW912 1-771-476-11 SWITCH, KEYBOARD (WITH LED) (DSPL)

(AEP,UK)

LSW913 1-771-476-11 SWITCH, KEYBOARD (WITH LED)

(+ > M SEEK) (AEP,UK)

LSW914 1-771-476-11 SWITCH, KEYBOARD (WITH LED)

(SEEK m . –) (AEP,UK)

LSW915 1-771-883-31 SWITCH, TACTILE (WITH LED) (TA) (AEP,UK)

LSW916 1-771-883-31 SWITCH, TACTILE (WITH LED) (PTY/LIST)

(AEP,UK)

LSW917 1-771-883-31 SWITCH, TACTILE (WITH LED) (6/ALBUM +)

(AEP,UK)

R916

R917

R918

R919

R920

R921

R927

R928

R929

R930

1-216-823-11 METAL CHIP

1-216-825-11 METAL CHIP

1-216-827-11 METAL CHIP

1-216-829-11 METAL CHIP

1-218-867-11 METAL CHIP

1-216-833-11 METAL CHIP

1-216-025-11 RES-CHIP

1-216-021-00 METAL CHIP

1-216-033-00 METAL CHIP

1-216-017-11 RES-CHIP

1.5K

2.2K

3.3K

4.7K

6.8K

10K

100

68

220

47

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

45

CDX-MP40

KEY

LIMIT SW

Ref. No.

Part No.

Description

R931 1-216-041-00 METAL CHIP

R934 1-216-017-11 RES-CHIP

R935 1-216-025-11 RES-CHIP

R936 1-216-021-00 METAL CHIP

R941 1-216-025-11 RES-CHIP

LOAD SW

470

47

100

68

100

5%

5%

5%

5%

5%

MAIN

R942 1-216-021-00 METAL CHIP

R946 1-216-025-11 RES-CHIP

R947 1-216-021-00 METAL CHIP

R950 1-216-025-11 RES-CHIP

R951 1-216-021-00 METAL CHIP

R960 1-216-025-11 RES-CHIP

R961 1-216-025-11 RES-CHIP

R962 1-216-029-00 METAL CHIP

R966 1-216-025-11 RES-CHIP

R967 1-216-037-00 METAL CHIP

R970 1-216-864-11 METAL CHIP

R971 1-216-821-11 METAL CHIP

R972 1-216-809-11 METAL CHIP

R975 1-216-817-11 METAL CHIP

R976 1-216-817-11 METAL CHIP

R977 1-216-817-11 METAL CHIP

R978 1-216-817-11 METAL CHIP

R979 1-216-817-11 METAL CHIP

R980 1-216-817-11 METAL CHIP

R981 1-216-811-11 METAL CHIP

R982 1-216-811-11 METAL CHIP

R983 1-216-811-11 METAL CHIP

R985 1-216-864-11 METAL CHIP

R986 1-216-821-11 METAL CHIP

R987 1-216-821-11 METAL CHIP

R988 1-216-821-11 METAL CHIP

150

150

0

1K

1K

470

470

470

470

150

0

1K

100

470

470

100

100

150

100

330

68

100

68

100

68

1K

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

Remark

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

Ref. No.

R989

R990

Part No.

Description

1-216-840-11 METAL CHIP

1-216-857-11 METAL CHIP

< SWITCH >

39K

1M

5%

5%

Remark

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

S902 1-771-884-31 SWITCH, TACTILE (WITH LED) (SOURCE)

(AEP,UK)

S903 1-771-884-31 SWITCH, TACTILE (WITH LED) (DSO)

(AEP,UK)

S911 1-771-884-31 SWITCH, TACTILE (WITH LED) (EQ3)

(AEP,UK)

*************************************************************

A-3274-254-A LIMIT SW BOARD, COMPLETE

*************************

< CONNECTOR >

CN13 1-816-275-21 CONNECTOR, FFC/FPC 6P

*************************************************************

*

1-685-337-11 LOAD SW BOARD

***************

*************************************************************

A-3274-739-A MAIN BOARD, COMPLETE (US,CND)

A-3274-742-A MAIN BOARD, COMPLETE (AEP,UK)

*********************

3-019-565-01 BRACKET (IC)

3-041-261-11 BRACKET (TR)

7-685-134-19 SCREW +P 2.6X8 TYPE2 NON-SLIT

7-685-793-09 SCREW +PTT 2.6X8 (S)

7-685-795-09 SCREW +PTT 2.6X12 (S)

C101

C106

C109

C201

< CAPACITOR >

1-136-154-00 FILM

1-164-156-11 CERAMIC CHIP

1-162-965-11 CERAMIC CHIP

1-136-154-00 FILM

0.012uF

0.1uF

0.012uF

5%

0.0015uF 10%

5%

50V

25V

50V

50V

C202 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V

C203

C204

C205

C206

C207

C208

C209

C210

1-162-964-11 CERAMIC CHIP

1-162-964-11 CERAMIC CHIP

1-162-964-11 CERAMIC CHIP

1-162-964-11 CERAMIC CHIP

1-164-160-11 CERAMIC CHIP

1-126-160-11 ELECT

1-126-160-11 ELECT

1-115-467-11 CERAMIC CHIP

C212 1-126-160-11 ELECT

0.001uF

0.001uF

0.001uF

0.001uF

20PF

1uF

1uF

0.22uF

C211 1-115-467-11 CERAMIC CHIP 0.22uF

1uF

10%

10%

10%

10%

5%

20%

20%

10%

10%

20%

50V

50V

50V

50V

50V

50V

50V

10V

10V

50V

1/10W

(AEP,UK)

C213

C215

C401

C402

C403

C404

C405

1-126-160-11 ELECT

1-104-946-11 ELECT

1-128-428-11 ELECT

1-128-428-11 ELECT

1-128-428-11 ELECT

1-128-428-11 ELECT

1-125-891-11 CERAMIC CHIP

1uF

10uF

10uF

10uF

10uF

10uF

0.47uF

C406 1-125-891-11 CERAMIC CHIP 0.47uF

C407 1-125-891-11 CERAMIC CHIP 0.47uF

C408 1-125-891-11 CERAMIC CHIP 0.47uF

20%

20%

20%

20%

20%

20%

10%

10%

10%

10%

50V

35V

35V

35V

35V

35V

10V

10V

10V

10V

46

CDX-MP40

MAIN

Ref. No.

Part No.

Description

C409 1-164-227-11 CERAMIC CHIP 0.022uF

10% 25V

C411 1-124-233-11 ELECT 10uF 20% 16V

C412 1-128-428-11 ELECT

C413 1-136-177-00 MYLAR

10uF

1uF

C415 1-107-826-11 CERAMIC CHIP 0.1uF

20%

5%

10%

35V

50V

16V

C416 1-162-927-11 CERAMIC CHIP 100PF

C417 1-162-927-11 CERAMIC CHIP 100PF

C418 1-162-927-11 CERAMIC CHIP 100PF

C419 1-162-927-11 CERAMIC CHIP 100PF

C420 1-162-927-11 CERAMIC CHIP 100PF

C421 1-162-927-11 CERAMIC CHIP 100PF

C423 1-126-160-11 ELECT 1uF

C424 1-162-927-11 CERAMIC CHIP 100PF

C425 1-162-927-11 CERAMIC CHIP 100PF

C426 1-162-927-11 CERAMIC CHIP 100PF

5%

5%

5%

5%

5%

5%

5%

5%

5%

Remark

50V

50V

50V

50V

50V

50V

20% 50V

50V

50V

50V

C427 1-162-927-11 CERAMIC CHIP 100PF 5% 50V

C428 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C429 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C503 1-124-259-11 ELECT 4.7uF

20% 16V

(AEP,UK)

C505 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C506 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C507 1-124-589-11 ELECT 47uF 20% 16V

C615 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

(AEP,UK)

C616 1-107-826-11 CERAMIC CHIP 0.1uF

10% 16V

(AEP,UK)

C617 1-162-916-11 CERAMIC CHIP 12PF 5% 50V

(AEP,UK)

C618

C621

C622

C623

C624

1-162-916-11 CERAMIC CHIP

1-164-360-11 CERAMIC CHIP

1-162-959-11 CERAMIC CHIP

1-125-838-11 CERAMIC CHIP

1-164-739-11 CERAMIC CHIP

12PF

0.1uF

330PF

2.2uF

560PF

5% 50V

(AEP,UK)

16V

(AEP,UK)

5% 50V

(AEP,UK)

10% 6.3V

(AEP,UK)

5% 50V

(AEP,UK)

C629 1-162-970-11 CERAMIC CHIP 0.01uF

C701 1-124-589-11 ELECT 47uF

10% 25V

20% 16V

C702 1-162-970-11 CERAMIC CHIP 0.01uF

10% 25V

C703 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C704 1-164-160-11 CERAMIC CHIP 20PF 5% 50V

C705 1-164-160-11 CERAMIC CHIP 20PF

C712 1-124-584-00 ELECT 100uF

C713 1-124-584-00 ELECT

C714 1-124-584-00 ELECT

C715 1-128-057-11 ELECT

100uF

100uF

330uF

5%

20%

20%

20%

20%

50V

10V

10V

10V

6.3V

C716

C717

C718

C719

C802

1-164-156-11 CERAMIC CHIP

1-162-970-11 CERAMIC CHIP

1-125-837-11 CERAMIC CHIP

1-162-964-11 CERAMIC CHIP

1-162-927-11 CERAMIC CHIP

0.1uF

0.01uF

1uF

0.001uF

100PF

C803 1-162-970-11 CERAMIC CHIP 0.01uF

C804 1-126-940-11 ELECT 330uF

C805 1-162-970-11 CERAMIC CHIP 0.01uF

C806 1-128-647-11 DOUBLE LAYERS 0.1F

C807 1-164-156-11 CERAMIC CHIP 0.1uF

10%

10%

10%

5%

10%

20%

10%

25V

25V

6.3V

50V

50V

25V

16V

25V

5.5V

25V

Ref. No.

Part No.

Description Remark

C808 1-162-918-11 CERAMIC CHIP 18PF

C809 1-164-160-11 CERAMIC CHIP 20PF

5%

5%

50V

50V

C810 1-165-176-11 CERAMIC CHIP 0.047uF

10% 16V

C811 1-107-826-11 CERAMIC CHIP 0.1uF

10% 16V

C812 1-164-156-11 CERAMIC CHIP 0.1uF

25V

C813

C813

1-162-927-11 CERAMIC CHIP

1-216-864-11 METAL CHIP

100PF

0

C814 1-164-160-11 CERAMIC CHIP 20PF

C815 1-164-156-11 CERAMIC CHIP 0.1uF

C816 1-109-982-11 CERAMIC CHIP 1uF

C817

C818

C821

C822

C823

C907

C909

C910

C916

1-124-589-11 ELECT

1-125-837-11 CERAMIC CHIP

1-164-160-11 CERAMIC CHIP

1-164-160-11 CERAMIC CHIP

1-164-160-11 CERAMIC CHIP

1-125-972-61 ELECT

1-126-160-11 ELECT

1-126-154-11 ELECT

1-125-837-11 CERAMIC CHIP

47uF

1uF

20PF

20PF

20PF

100uF

1uF

47uF

1uF

5%

5%

5%

10%

50V

(AEP,UK)

1/10W

(US,CND)

50V

25V

10V

20% 10V

10% 6.3V

5%

5%

5%

50V

50V

50V

C825 1-107-826-11 CERAMIC CHIP 0.1uF

10% 16V

C826 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C827 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C901 1-135-473-21 ELECT 3300uF 20% 16V

C902 1-115-156-11 CERAMIC CHIP 1uF 10V

(AEP,UK)

C905 1-115-156-11 CERAMIC CHIP 1uF 10V

(AEP,UK)

20% 16V

20% 50V

20% 6.3V

10% 6.3V

C917 1-124-584-00 ELECT

< CONNECTOR >

100uF

C918 1-107-826-11 CERAMIC CHIP 0.1uF

C920 1-107-826-11 CERAMIC CHIP 0.1uF

C922 1-162-927-11 CERAMIC CHIP 100PF

20% 10V

10% 16V

10% 16V

5% 50V

CNJ801 1-580-907-31 PLUG, CONNECTOR (BUS CONTROL IN)

CNP701 1-815-260-11 CONNECTOR, BOARD TO BOARD 30P

CNP802 1-569-907-11 SOCKET, CONNECTOR 12P

CNP901 1-774-701-11 PIN, CONNECTOR 16P

CNP801 1-764-270-21 JACK, STEREO MINIATURE (DIA.3.5)

D701 8-719-991-33 DIODE 1SS133T-77

D801 8-719-083-66 DIODE UDZS-TE-17-18B

D802 8-719-069-56 DIODE UDZS-TE-17-6.2B

D804 8-719-058-24 DIODE RB501V-40TE-17

D805 8-719-083-66 DIODE UDZS-TE-17-18B

D806 8-719-083-66 DIODE UDZS-TE-17-18B

D807 8-719-991-33 DIODE 1SS133T-77

D808 8-719-988-61 DIODE 1SS355TE-17

D809 8-719-988-61 DIODE 1SS355TE-17

D810 8-719-988-61 DIODE 1SS355TE-17

D811

D812

D813

< JACK >

< DIODE >

8-719-978-33 DIODE DTZ-TT11-6.8B

8-719-978-33 DIODE DTZ-TT11-6.8B

8-719-978-33 DIODE DTZ-TT11-6.8B

D814 8-719-978-33 DIODE DTZ-TT11-6.8B

(REMOTE IN)

47

CDX-MP40

MAIN

Ref. No.

Part No.

Description

D815 8-719-978-33 DIODE DTZ-TT11-6.8B

D816 8-719-978-33 DIODE DTZ-TT11-6.8B

D817 8-719-978-33 DIODE DTZ-TT11-6.8B

D818 8-719-988-61 DIODE 1SS355TE-17

D819 8-719-988-61 DIODE 1SS355TE-17

D901 8-719-200-82 DIODE 11ES2

D902 8-719-200-82 DIODE 11ES2

D903 8-719-200-82 DIODE 11ES2

D904 8-719-200-82 DIODE 11ES2

D905 8-719-200-82 DIODE 11ES2

D906 8-719-053-18 DIODE 1SR154-400TE-25

D907 8-719-053-18 DIODE 1SR154-400TE-25

D908 8-719-200-82 DIODE 11ES2

D909 8-719-049-38 DIODE 1N5404TU

D910 8-719-200-82 DIODE 11ES2

D911 8-719-200-82 DIODE 11ES2

D912 8-719-978-33 DIODE DTZ-TT11-6.8B

D915 8-719-200-82 DIODE 11ES2

D916 8-719-069-55 DIODE UDZS-TE-17-5.6B

D917 8-719-929-15 DIODE HZS9.1N-B2

D918 8-719-988-61 DIODE 1SS355TE-17

D919 8-719-109-89 DIODE RD5.6ES-B2

D920 8-719-988-61 DIODE 1SS355TE-17

D921 8-719-988-61 DIODE 1SS355TE-17

D923 8-719-200-82 DIODE 11ES2

D925 8-719-978-33 DIODE DTZ-TT11-6.8B

D926 8-719-921-63 DIODE MTZJ-7.5B

D927 8-719-069-55 DIODE UDZS-TE-17-5.6B

< FERRITE BEAD >

FB601 1-414-235-22 INDUCTOR, FERRITE BEAD (AEP,UK)

FB701 1-469-144-21 FERRITE, EMI (SMD)

FB801 1-414-235-22 INDUCTOR, FERRITE BEAD

< IC >

IC401 6-703-304-01 IC BD3802F-FE2

IC501 8-759-827-14 IC TA8268AH

IC601 6-703-809-01 IC SAA6588T/V2-518 (AEP,UK)

IC701 8-759-679-05 IC TC7WH34FU(TE12R)

IC801 6-802-685-01 IC MN101C49KSJ

IC802 6-701-405-01 IC PST3443UL

IC803 8-759-096-16 IC MM1175XFF

IC902 6-703-986-01 IC NJU7222U33-TE1

< JUMPER RESISTOR >

JR115 1-216-864-11 METAL CHIP

JR116 1-216-864-11 METAL CHIP

0

0

5%

5%

1/10W

1/10W

JR401 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

JR402 1-216-864-11 METAL CHIP 0 5% 1/10W

JR403 1-216-864-11 METAL CHIP 0 5% 1/10W

JR405

JR601

JR602

JR801

JR803

JR805

1-216-864-11 METAL CHIP

1-216-864-11 METAL CHIP

1-216-864-11 METAL CHIP

1-216-845-11 METAL CHIP

1-216-864-11 METAL CHIP

1-216-864-11 METAL CHIP

0

0

0

100K

0

0

5%

5%

5%

5%

5%

5%

1/10W

1/10W

(AEP,UK)

1/10W

1/10W

(US,CND)

1/10W

1/10W

Remark Ref. No.

Part No.

Description

JR806 1-216-864-11 METAL CHIP

JR807 1-216-864-11 METAL CHIP

JR904 1-216-864-11 METAL CHIP

JR906 1-216-864-11 METAL CHIP

L701

L702

L703

L704

L900

0

0

0

0

< COIL >

1-216-864-11 METAL CHIP

1-414-398-11 INDUCTOR

0

10uH

1-469-144-21 FERRITE, EMI (SMD)

1-414-398-11 INDUCTOR 10uH

1-419-476-31 COIL, CHOKE 250uH

< JACK >

5%

5%

5%

5%

5%

Remark

1/10W

1/10W

1/10W

1/10W

1/10W

PJ401 1-774-700-11 JACK, PIN 6P (BUS AUDIO IN,

AUDIO OUT REAR/FRONT)

PJ601 1-793-598-11 JACK (ANTENNA)

< TRANSISTOR >

Q401 8-729-920-21 TRANSISTOR DTC314TK-T-146

Q402 8-729-920-21 TRANSISTOR DTC314TK-T-146

Q403 8-729-920-21 TRANSISTOR DTC314TK-T-146

Q404 8-729-920-21 TRANSISTOR DTC314TK-T-146

Q602 8-729-055-96 TRANSISTOR SRC1203SF (AEP,UK)

Q801 8-729-055-96 TRANSISTOR SRC1203SF

Q802 8-729-055-92 TRANSISTOR SRA2203SF

Q803 8-729-055-92 TRANSISTOR SRA2203SF

Q804 8-729-055-96 TRANSISTOR SRC1203SF

Q805 8-729-055-96 TRANSISTOR SRC1203SF

Q806

Q901

Q902

Q903

Q904

8-729-055-92 TRANSISTOR SRA2203SF

8-729-049-40 TRANSISTOR 2SC5343SFG

8-729-049-40 TRANSISTOR 2SC5343SFG

8-729-015-11 TRANSISTOR 2SD1802FAST-TL

8-729-055-92 TRANSISTOR SRA2203SF

Q905 8-729-055-96 TRANSISTOR SRC1203SF

Q906 8-729-019-00 TRANSISTOR 2SD2394-G

Q907 8-729-055-92 TRANSISTOR SRA2203SF

Q908 8-729-055-96 TRANSISTOR SRC1203SF

Q909 8-729-049-43 TRANSISTOR STB1132Y

Q910 8-729-055-96 TRANSISTOR SRC1203SF

Q911 8-729-049-40 TRANSISTOR 2SC5343SFG

Q912 8-729-019-00 TRANSISTOR 2SD2394-G

Q913 8-729-055-92 TRANSISTOR SRA2203SF

Q914 8-729-055-96 TRANSISTOR SRC1203SF

Q915 8-729-055-96 TRANSISTOR SRC1203SF

Q916 8-729-920-85 TRANSISTOR 2SD1664-QR

Q917 8-729-055-96 TRANSISTOR SRC1203SF

Q918 8-729-049-43 TRANSISTOR STB1132Y

Q919 8-729-055-96 TRANSISTOR SRC1203SF

Q920 8-729-820-46 TRANSISTOR 2SB1202FAS

Q921 8-729-055-96 TRANSISTOR SRC1203SF

Q922 8-729-820-46 TRANSISTOR 2SB1202FAS

Q923 8-729-055-92 TRANSISTOR SRA2203SF

Q924 8-729-055-96 TRANSISTOR SRC1203SF

< RESISTOR >

R101 1-216-833-11 METAL CHIP

R102 1-216-809-11 METAL CHIP

R103 1-216-809-11 METAL CHIP

R104 1-216-833-11 METAL CHIP

10K

100

100

10K

5%

5%

5%

5%

1/10W

1/10W

1/10W

1/10W

48

Ref. No.

Part No.

Description

R111 1-218-882-11 METAL CHIP

R112 1-216-833-11 METAL CHIP

R201 1-216-833-11 METAL CHIP

R202 1-216-833-11 METAL CHIP

R203 1-216-825-11 METAL CHIP

R204 1-216-825-11 METAL CHIP

R401 1-247-807-31 CARBON

R402 1-247-807-31 CARBON

R403 1-247-807-31 CARBON

R404 1-247-807-31 CARBON

R405 1-247-807-31 CARBON

R406 1-216-841-11 METAL CHIP

R407 1-216-809-11 METAL CHIP

R408 1-216-841-11 METAL CHIP

R409 1-216-809-11 METAL CHIP

R410 1-216-841-11 METAL CHIP

R411 1-247-807-31 CARBON

R412 1-216-841-11 METAL CHIP

R413 1-216-821-11 METAL CHIP

R414 1-216-833-11 METAL CHIP

R415 1-216-821-11 METAL CHIP

R416 1-216-833-11 METAL CHIP

R417 1-216-841-11 METAL CHIP

R418 1-216-825-11 METAL CHIP

R419 1-216-821-11 METAL CHIP

R420 1-216-833-11 METAL CHIP

R502 1-216-864-11 METAL CHIP

R505 1-216-864-11 METAL CHIP

R607 1-216-817-11 METAL CHIP

R608 1-216-797-11 METAL CHIP

47K

100

47K

1K

10K

100

47K

100

47K

100

30K

10K

10K

10K

2.2K

2.2K

100

100

100

100

1K

10K

47K

2.2K

1K

10K

0

0

470

10

R609 1-216-827-11 METAL CHIP

R612 1-216-797-11 METAL CHIP

R620 1-216-809-11 METAL CHIP

R702 1-216-845-11 METAL CHIP

R705 1-216-864-11 METAL CHIP

R706 1-216-864-11 METAL CHIP

R707 1-216-864-11 METAL CHIP

R708 1-216-864-11 METAL CHIP

R801 1-249-417-11 CARBON

R802 1-249-431-11 CARBON

0

0

0

1K

15K

R804 1-247-807-31 CARBON

R805 1-216-809-11 METAL CHIP

100

100

R806 1-469-144-21 FERRITE, EMI (SMD)

R807 1-469-144-21 FERRITE, EMI (SMD)

R811 1-216-845-11 METAL CHIP 100K

R812 1-216-841-11 METAL CHIP

R813 1-216-821-11 METAL CHIP

R814 1-216-821-11 METAL CHIP

R815 1-216-821-11 METAL CHIP

R816 1-216-813-11 METAL CHIP

R817 1-216-809-11 METAL CHIP

R818 1-216-809-11 METAL CHIP

R819 1-216-837-11 METAL CHIP

R820 1-216-809-11 METAL CHIP

47K

1K

1K

1K

220

100

100

22K

100

3.3K

10

100

100K

0

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

CDX-MP40

MAIN

Remark

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/4W

1/4W

1/4W

1/4W

1/4W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

(AEP,UK)

1/10W

1/10W

1/10W

1/4W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/4W

1/4W

1/4W

1/10W

Ref. No.

Part No.

R826

R827

R828

R829

R830

Description

R821 1-216-809-11 METAL CHIP

R822 1-216-809-11 METAL CHIP

R823 1-216-833-11 METAL CHIP

R824 1-216-833-11 METAL CHIP

R825 1-216-821-11 METAL CHIP

1-216-864-11 METAL CHIP

1-216-845-11 METAL CHIP

1-247-807-31 CARBON

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

R831 1-216-845-11 METAL CHIP

R832 1-216-845-11 METAL CHIP

R833 1-216-821-11 METAL CHIP

R834 1-216-845-11 METAL CHIP

R835 1-216-845-11 METAL CHIP

R836

R843

R866

R867

R868

R905

1-216-864-11 METAL CHIP

1-216-845-11 METAL CHIP

1-216-845-11 METAL CHIP

1-216-845-11 METAL CHIP

1-216-845-11 METAL CHIP

R870 1-216-845-11 METAL CHIP

R901 1-216-821-11 METAL CHIP

R903 1-216-214-00 METAL CHIP

R904 1-216-821-11 METAL CHIP

1-216-841-11 METAL CHIP

R906 1-216-833-11 METAL CHIP

R907 1-216-833-11 METAL CHIP

R908 1-216-841-11 METAL CHIP

R909 1-216-841-11 METAL CHIP

R910 1-216-829-11 METAL CHIP

R911 1-216-845-11 METAL CHIP

R913 1-249-427-11 CARBON

R914 1-216-825-11 METAL CHIP

R915 1-216-825-11 METAL CHIP

R918 1-216-445-11 METAL OXIDE

100

100

10K

10K

1K

0

100K

100

100

100

100K

100K

1K

100K

100K

0

100K

100K

100K

100K

100K

1K

4.7K

1K

47K

10K

10K

47K

47K

4.7K

100K

6.8K

2.2K

2.2K

12

R922

R923

R924

R925

R926

1-247-815-11 CARBON

1-216-845-11 METAL CHIP

1-249-421-11 CARBON

1-216-821-11 METAL CHIP

1-249-413-11 CARBON

R927 1-249-417-11 CARBON

R930 1-216-845-11 METAL CHIP

R931 1-249-421-11 CARBON

R932 1-216-805-11 METAL CHIP

R934 1-216-845-11 METAL CHIP

220

100K

2.2K

1K

470

1K

100K

2.2K

47

100K

2.2K

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5% R935 1-249-421-11 CARBON

< SWITCH >

S801 1-762-638-21 SWITCH, TACTILE (RESET)

S802 1-786-458-11 SWITCH, PUSH (1 KEY) (NOSE DET)

1/4W

1/10W

1/4W

1/10W

1/4W

1/4W

1/10W

1/4W

1/10W

1/10W

1/4W

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/4W

1/10W

1/10W

2W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/8W

1/10W

1/10W

Remark

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/4W

1/10W

1/10W

1/10W

1/10W

(US,CND)

1/10W

1/10W

(AEP,UK)

1/10W

49

CDX-MP40

MAIN RELAY SERVO

Ref. No.

Part No.

Description

< THERMISTOR (POSITIVE) >

TH900 1-801-792-21 THERMISTOR, POSITIVE

TH901 1-810-940-11 THERMISTOR, POSITIVE

Remark Ref. No.

Part No.

C13

C14

C15

C16

C17

Description

1-162-916-11 CERAMIC CHIP

1-125-837-11 CERAMIC CHIP

1-162-970-11 CERAMIC CHIP

1-162-970-11 CERAMIC CHIP

1-162-970-11 CERAMIC CHIP

12PF

1uF

0.01uF

0.01uF

0.01uF

< TUNER >

TUX501 A-3220-887-A TUNER UNIT (TUX-030)

< VIBRATOR >

X601 1-760-556-31 VIBRATOR, CRYSTAL (4.332MHz) (AEP,UK)

X801 1-795-165-11 VIBRATOR, CERAMIC (18.43MHz)

X802 1-567-098-41 VIBRATOR, CRYSTAL (32.768kHz)

*************************************************************

RELAY BOARD

************

C18

C19

C20

C21

C22

C23

C24

C25

C27

C29

1-162-966-11 CERAMIC CHIP

1-107-826-11 CERAMIC CHIP

1-107-826-11 CERAMIC CHIP

1-162-970-11 CERAMIC CHIP

1-162-970-11 CERAMIC CHIP

Remark

5% 50V

10% 6.3V

10% 25V

10% 25V

10% 25V

0.0022uF 10%

0.1uF

0.1uF

0.01uF

0.01uF

1-162-970-11 CERAMIC CHIP 0.01uF

1-162-970-11 CERAMIC CHIP 0.01uF

1-162-970-11 CERAMIC CHIP 0.01uF

1-125-837-11 CERAMIC CHIP 1uF

10%

10%

10%

10%

10%

10%

10%

10%

50V

16V

16V

25V

25V

25V

25V

25V

6.3V

1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C973

C974

1-792-173-11 CABLE, FLAT (FFC) 12P (CNP903)

< CAPACITOR >

1-107-826-11 CERAMIC CHIP

1-107-826-11 CERAMIC CHIP

< CONNECTOR >

0.1uF

0.1uF

CNP902 1-817-159-11 SOCKET, CONNECTOR 14P

10%

10%

16V

16V C39

C40

C41

C43

C44

C30

C34

C35

C36

C38

1-162-970-11 CERAMIC CHIP 0.01uF

1-125-837-11 CERAMIC CHIP 1uF

1-162-970-11 CERAMIC CHIP 0.01uF

1-162-970-11 CERAMIC CHIP 0.01uF

1-162-970-11 CERAMIC CHIP 0.01uF

10% 25V

10% 6.3V

10% 25V

10% 25V

10% 25V

1-126-391-11 ELECT CHIP 47uF

1-107-826-11 CERAMIC CHIP 0.1uF

20% 6.3V

10% 16V

1-162-970-11 CERAMIC CHIP 0.01uF

10% 25V

1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V

1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

< DIODE >

D901 8-719-978-33 DIODE DTZ-TT11-6.8B

D902 8-719-978-33 DIODE DTZ-TT11-6.8B

D903 8-719-978-33 DIODE DTZ-TT11-6.8B

D904 8-719-978-33 DIODE DTZ-TT11-6.8B

D905 8-719-978-33 DIODE DTZ-TT11-6.8B

D906 8-719-978-33 DIODE DTZ-TT11-6.8B

D907 8-719-978-33 DIODE DTZ-TT11-6.8B

LED930 8-719-082-38 LED CL-270SR-C-TS (CD WINDOW)

LED931 8-719-053-09 LED SML-310VT-T86 (Z)

< RESISTOR >

R930

R931

R932

1-216-823-11 METAL CHIP

1-216-823-11 METAL CHIP

1-216-823-11 METAL CHIP

< SWITCH >

1.5K

1.5K

1.5K

5%

5%

5%

1/10W

1/10W

1/10W

S931 1-771-884-31 SWITCH, TACTILE (WITH LED) (Z)

*************************************************************

A-3274-698-A SERVO BOARD, COMPLETE

**********************

< CAPACITOR >

C1

C3

C4

C5

C6

C8

C9

C10

C11

1-162-970-11 CERAMIC CHIP

1-162-970-11 CERAMIC CHIP

1-104-609-11 ELECT CHIP

1-162-970-11 CERAMIC CHIP

1-125-837-11 CERAMIC CHIP

0.01uF

0.01uF

100uF

0.01uF

1uF

1-107-826-11 CERAMIC CHIP 0.1uF

1-162-924-11 CERAMIC CHIP 56PF

1-162-924-11 CERAMIC CHIP 56PF

1-162-909-11 CERAMIC CHIP 4PF

10%

10%

20%

10%

10%

5%

25V

25V

4V

25V

6.3V

10% 16V

5% 50V

50V

0.25PF 50V

C45

C51

C53

C54

C55

C56

C57

C58

C59

C60

C61

C62

C63

C65

C67

C68

C69

C70

C75

C77

C78

C79

1-162-970-11 CERAMIC CHIP 0.01uF

1-107-826-11 CERAMIC CHIP 0.1uF

1-107-826-11 CERAMIC CHIP 0.1uF

1-107-826-11 CERAMIC CHIP 0.1uF

1-107-826-11 CERAMIC CHIP 0.1uF

1-128-934-11 CERAMIC CHIP 0.33uF

1-107-826-11 CERAMIC CHIP 0.1uF

20% 10V

10% 16V

1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

1-104-609-11 ELECT CHIP 100uF 20% 4V

1-107-826-11 CERAMIC CHIP 0.1uF

10% 16V

1-126-391-11 ELECT CHIP 47uF

1-107-826-11 CERAMIC CHIP 0.1uF

1-107-826-11 CERAMIC CHIP 0.1uF

1-107-826-11 CERAMIC CHIP 0.1uF

1-104-851-11 TANTAL. CHIP 10uF

1-107-826-11 CERAMIC CHIP 0.1uF

1-107-826-11 CERAMIC CHIP 0.1uF

1-107-826-11 CERAMIC CHIP 0.1uF

1-107-826-11 CERAMIC CHIP 0.1uF

1-107-826-11 CERAMIC CHIP 0.1uF

C81 1-107-826-11 CERAMIC CHIP 0.1uF

C102 1-162-927-11 CERAMIC CHIP 100PF

C111 1-162-970-11 CERAMIC CHIP 0.01uF

C112 1-107-826-11 CERAMIC CHIP 0.1uF

C113 1-162-970-11 CERAMIC CHIP 0.01uF

C114 1-107-826-11 CERAMIC CHIP 0.1uF

CN1

CN2

CN3

10% 25V

10% 16V

10% 16V

10% 16V

10% 16V

20%

10%

10%

10%

20%

10%

6.3V

16V

16V

16V

10V

10% 16V

10% 16V

10% 16V

10% 16V

16V

1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V

< CONNECTOR >

1-816-275-21 CONNECTOR, FFC/FPC 6P

10%

5%

10%

10%

10%

10%

1-815-352-11 CONNECTOR, BOARD TO BOARD 30P

1-794-153-21 CONNECTOR, FPC (ZIF) 16P

16V

50V

25V

16V

25V

16V

50

R47

R48

R49

R50

R51

R26

R29

R30

R45

R46

R52

R10

R12

R13

R14

R15

R3

R5

R7

R8

R9

Ref. No.

FB2

FB3

FB6

Part No.

Description

< FERRITE BEAD >

1-216-864-11 METAL CHIP

1-216-864-11 METAL CHIP

0

0

1-469-144-21 FERRITE, EMI (SMD)

< IC >

5%

5%

IC1

IC2

IC3

IC4

IC5

IC6

IC7

IC12

L4

L6

L8

8-759-699-98 IC uPD63711GC-8EU

8-759-658-87 IC BA5810FP-E2

6-703-905-01 IC HD6432238RWN35TEI

6-702-661-01 IC UT62L1024LC-55LLI

6-702-153-01 IC CXD9684R-005

8-759-645-31 IC RN5RZ25BA-TL-FA

8-759-491-50 IC TC74VHCT244AFT(EL)

8-759-196-96 IC TC7SH08FU-TE85R

< JUMPER RESISTOR >

JR1

JR3

JR5

JR6

1-216-821-11 METAL CHIP

1-216-864-11 METAL CHIP

1-216-821-11 METAL CHIP

1-216-864-11 METAL CHIP

JR12 1-216-864-11 METAL CHIP

JR13 1-216-864-11 METAL CHIP

JR14 1-216-864-11 METAL CHIP

JR15 1-216-864-11 METAL CHIP

JR17 1-216-864-11 METAL CHIP

JR21 1-216-864-11 METAL CHIP

< COIL >

Q1

0

0

0

0

0

1K

0

1K

0

0

1-216-001-00 METAL CHIP 10

1-469-144-21 FERRITE, EMI (SMD)

1-414-398-11 INDUCTOR 10uH

< TRANSISTOR >

8-729-904-87 TRANSISTOR 2SB1197K-R

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

< RESISTOR >

1-216-806-11 METAL CHIP

1-218-344-11 METAL CHIP

1-216-839-11 METAL CHIP

1-216-833-11 METAL CHIP

1-216-840-11 METAL CHIP

1-216-835-11 METAL CHIP

1-216-837-11 METAL CHIP

1-216-807-11 METAL CHIP

1-216-841-11 METAL CHIP

1-216-841-11 METAL CHIP

1-216-806-11 METAL CHIP

1-216-833-11 METAL CHIP

1-216-833-11 METAL CHIP

1-216-845-11 METAL CHIP

1-216-845-11 METAL CHIP

1-216-845-11 METAL CHIP

1-216-845-11 METAL CHIP

1-216-845-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

56

10K

10K

100K

100K

100K

100K

100K

100

100

100

15K

22K

68

47K

47K

56

7.5K

33K

10K

39K

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

Remark

1/10W

1/10W

1/10W

R94

R95

R96

R97

R98

R89

R90

R91

R92

R93

R84

R85

R86

R87

R88

R77

R78

R81

R82

R83

Ref. No.

Part No.

R53

R54

R55

R64

R65

Description

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-819-11 METAL CHIP

R72

R73

R74

R75

R76

R67

R68

R69

R70

R71

1-216-845-11 METAL CHIP

1-216-857-11 METAL CHIP

1-216-813-11 METAL CHIP

1-216-813-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-845-11 METAL CHIP

1-216-845-11 METAL CHIP

1-216-845-11 METAL CHIP

1-216-845-11 METAL CHIP

1-216-845-11 METAL CHIP

1-216-845-11 METAL CHIP

1-216-845-11 METAL CHIP

1-216-845-11 METAL CHIP

1-216-845-11 METAL CHIP

1-216-845-11 METAL CHIP

1-216-845-11 METAL CHIP

1-216-845-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-837-11 METAL CHIP

1-216-834-11 METAL CHIP

R100 1-216-845-11 METAL CHIP

R102 1-216-845-11 METAL CHIP

R103 1-216-845-11 METAL CHIP

R104 1-216-845-11 METAL CHIP

R105 1-216-845-11 METAL CHIP

R106 1-216-821-11 METAL CHIP

R107 1-216-821-11 METAL CHIP

R109 1-216-845-11 METAL CHIP

R111 1-216-845-11 METAL CHIP

R113 1-216-845-11 METAL CHIP

R114 1-216-845-11 METAL CHIP

R115 1-216-837-11 METAL CHIP

R116 1-216-809-11 METAL CHIP

R117 1-216-809-11 METAL CHIP

R118 1-216-809-11 METAL CHIP

R119 1-216-821-11 METAL CHIP

R121 1-216-845-11 METAL CHIP

R124 1-216-837-11 METAL CHIP

R126 1-216-845-11 METAL CHIP

R127 1-216-845-11 METAL CHIP

R128 1-216-845-11 METAL CHIP

R129 1-216-845-11 METAL CHIP

R130 1-216-809-11 METAL CHIP

CDX-MP40

SERVO

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

Remark

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

100

100

100

22K

12K

100K

100K

100K

100K

100K

100K

100K

100K

100K

100K

100K

100K

100K

100K

100

100

100

100

100

100

100

100

100K

100K

100K

100

100

100

100

680

100K

1M

220

220

100

1K

100K

22K

100K

100K

100K

100K

100

1K

1K

100K

100K

100K

100K

22K

100

100

100

51

CDX-MP40

SERVO

Ref. No.

Part No.

R131

R132

R133

R134

R135

Description

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

R136 1-216-809-11 METAL CHIP

R142 1-216-815-11 METAL CHIP

R143 1-218-484-11 METAL CHIP

R144 1-216-812-11 METAL CHIP

R145 1-216-817-11 METAL CHIP

R146

R147

R148

R149

R150

1-216-815-11 METAL CHIP

1-218-484-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-814-11 METAL CHIP

1-216-821-11 METAL CHIP

R151 1-216-825-11 METAL CHIP

R152 1-216-813-11 METAL CHIP

R153 1-216-818-11 METAL CHIP

R154 1-216-809-11 METAL CHIP

RB1

RB2

330

750

100

270

1K

2.2K

220

560

100

< NETWORK RESISTOR >

1-233-576-11 RES, CHIP NETWORK 100X4

1-233-576-11 RES, CHIP NETWORK 100X4

< VIBRATOR >

100

330

750

180

470

100

100

100

100

100

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

1/10W

1/10W

1/10W

1/10W

X1

X2

1-795-520-11 VIBRATOR, CERAMIC (16.9344MHz)

1-795-127-21 VIBRATOR, CERAMIC (12.288MHz)

*************************************************************

MISCELLANEOUS

***************

9

9

207

0 210

211

1-776-207-82 CORD (WITH CONNECTOR) (POWER) (US,CND)

1-776-527-61 CORD (WITH CONNECTOR) (ISO) (POWER)

(AEP,UK)

1-823-951-11 CABLE, FLEXIBLE FLAT (16 CORE)

8-820-165-06 OPTICAL PICK-UP KSS-721A/C-RP

1-676-707-11 PICK-UP FLEXIBLE BOARD

Remark Ref. No.

Part No.

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

1/10W

251

252

253

254

255

256

257

258

Description

PARTS FOR INSTALLATION AND CONNECTIONS

***************************************

X-3382-647-1 FRAME ASSY, FITTING

X-3366-405-1 SCREW ASSY (EXP), FITTING (AEP,UK)

3-246-035-01 COLLAR

3-934-325-01 SCREW (+K 5X8 TP) (US,CND)

1-465-459-21 ADAPTOR, ANTENNA (AEP,UK)

Remark

1-776-207-82 CORD (WITH CONNECTOR) (POWER) (US,CND)

1-776-527-61 CORD (WITH CONNECTOR) (ISO) (POWER)

(AEP,UK)

3-246-471-01 KEY (FRAME) 1/10W

1/10W

1/10W

1/10W

1/10W

251 252

253

256

254

257

255

258

F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A

M902 A-3301-985-A MOTOR ASSY, SLED (SLED)

M903 A-3315-039-A MOTOR SUB ASSY, LO (LOADING)

*************************************************************

ACCESSORIES

************

1-476-526-34 REMOTE COMMANDER (RM-X115)

3-230-047-01 LID, BATTERY CASE (for RM-X115)

3-251-806-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH)

(US,CND)

3-251-806-31 MANUAL, INSTRUCTION (ENGLISH,GERMAN,

FRENCH,ITALIAN,DUTCH) (AEP,UK)

3-251-853-11 MANUAL, INSTRUCTION, INSTALL (ENGLISH,

FRENCH) (US,CND)

3-251-853-31 MANUAL, INSTRUCTION, INSTALL (ENGLISH,

GERMAN,FRENCH,ITALIAN,DUTCH) (AEP,UK)

X-3378-390-3 CASE ASSY (for FRONT PANEL) (US,CND)

X-3378-490-2 CASE (PANEL) ASSY (for FRONT PANEL)

(AEP,UK)

*************************************************************

52

The components identified by mark 0 or dotted line with mark

0 are critical for safety.

Replace only with part number specified.

Les composants identifiés par une marque 0 sont critiques pour la sécurité.

Ne les remplacer que par une piéce portant le numéro spécifié.

MEMO

CDX-MP40

53

CDX-MP40

REVISION HISTORY

Clicking the version allows you to jump to the revised page.

Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page.

Ver.

1.0

Date

2003. 01 New

Description of Revision

54

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
