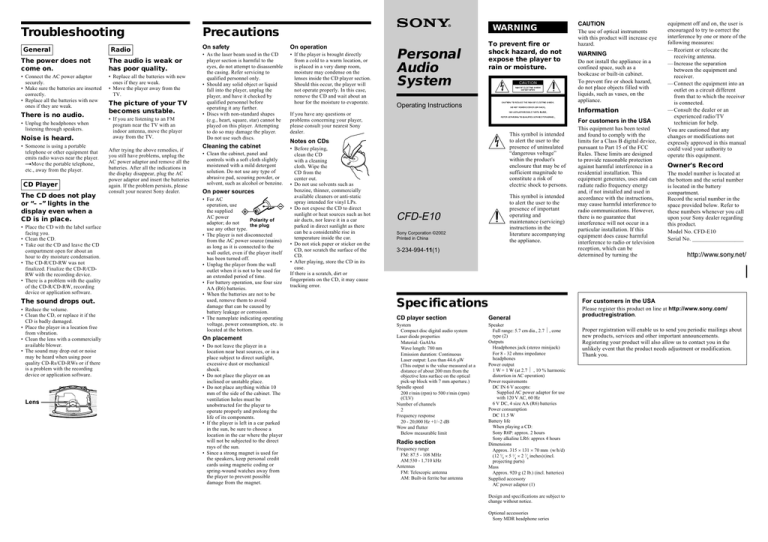

Troubleshooting
General
Radio
The power does not
come on.
The audio is weak or
has poor quality.
• Connect the AC power adaptor
securely.
• Make sure the batteries are inserted
correctly.
• Replace all the batteries with new
ones if they are weak.
• Replace all the batteries with new
ones if they are weak.
• Move the player away from the
TV.
There is no audio.
• Unplug the headphones when
listening through speakers.
Noise is heard.
• Someone is using a portable
telephone or other equipment that
emits radio waves near the player.
tMove the portable telephone,
etc., away from the player.
CD Player
The CD does not play
or “– –” lights in the
display even when a
CD is in place.
• Place the CD with the label surface
facing you.
• Clean the CD.
• Take out the CD and leave the CD
compartment open for about an
hour to dry moisture condensation.
• The CD-R/CD-RW was not
finalized. Finalize the CD-R/CDRW with the recording device.
• There is a problem with the quality
of the CD-R/CD-RW, recording
device or application software.
The sound drops out.
• Reduce the volume.
• Clean the CD, or replace it if the
CD is badly damaged.
• Place the player in a location free
from vibration.
• Clean the lens with a commercially
available blower.
• The sound may drop out or noise
may be heard when using poor
quality CD-Rs/CD-RWs or if there
is a problem with the recording
device or application software.
Lens
The picture of your TV
becomes unstable.
• If you are listening to an FM
program near the TV with an
indoor antenna, move the player
away from the TV.
After trying the above remedies, if
you still have problems, unplug the
AC power adaptor and remove all the
batteries. After all the indications in
the display disappear, plug the AC
power adaptor and insert the batteries
again. If the problem persists, please
consult your nearest Sony dealer.
WARNING
Precautions
On safety
On operation
• As the laser beam used in the CD
player section is harmful to the
eyes, do not attempt to disassemble
the casing. Refer servicing to
qualified personnel only.
• Should any solid object or liquid
fall into the player, unplug the
player, and have it checked by
qualified personnel before
operating it any further.
• Discs with non-standard shapes
(e.g., heart, square, star) cannot be
played on this player. Attempting
to do so may damage the player.
Do not use such discs.
• If the player is brought directly
from a cold to a warm location, or
is placed in a very damp room,
moisture may condense on the
lenses inside the CD player section.
Should this occur, the player will
not operate properly. In this case,
remove the CD and wait about an
hour for the moisture to evaporate.
Cleaning the cabinet
• Clean the cabinet, panel and
controls with a soft cloth slightly
moistened with a mild detergent
solution. Do not use any type of
abrasive pad, scouring powder, or
solvent, such as alcohol or benzine.
On power sources
• For AC
operation, use
the supplied
AC power
Polarity of
adaptor; do not
the plug
use any other type.
• The player is not disconnected
from the AC power source (mains)
as long as it is connected to the
wall outlet, even if the player itself
has been turned off.
• Unplug the player from the wall
outlet when it is not to be used for
an extended period of time.
• For battery operation, use four size
AA (R6) batteries.
• When the batteries are not to be
used, remove them to avoid
damage that can be caused by
battery leakage or corrosion.
• The nameplate indicating operating
voltage, power consumption, etc. is
located at the bottom.
On placement
• Do not leave the player in a
location near heat sources, or in a
place subject to direct sunlight,
excessive dust or mechanical
shock.
• Do not place the player on an
inclined or unstable place.
• Do not place anything within 10
mm of the side of the cabinet. The
ventilation holes must be
unobstructed for the player to
operate properly and prolong the
life of its components.
• If the player is left in a car parked
in the sun, be sure to choose a
location in the car where the player
will not be subjected to the direct
rays of the sun.
• Since a strong magnet is used for
the speakers, keep personal credit
cards using magnetic coding or
spring-wound watches away from
the player to prevent possible
damage from the magnet.
Personal
Audio
System
To prevent fire or
shock hazard, do not
expose the player to
rain or moisture.
Operating Instructions
The use of optical instruments
with this product will increase eye
hazard.
WARNING
Do not install the appliance in a
confined space, such as a
bookcase or built-in cabinet.
To prevent fire or shock hazard,
do not place objects filled with
liquids, such as vases, on the
appliance.
Information
If you have any questions or
problems concerning your player,
please consult your nearest Sony
dealer.
For customers in the USA
This symbol is intended
to alert the user to the
presence of uninsulated
“dangerous voltage”
within the product's
enclosure that may be of
sufficient magnitude to
constitute a risk of
electric shock to persons.
Notes on CDs
• Before playing,
clean the CD
with a cleaning
cloth. Wipe the
CD from the
center out.
• Do not use solvents such as
benzine, thinner, commercially
available cleaners or anti-static
spray intended for vinyl LPs.
• Do not expose the CD to direct
sunlight or heat sources such as hot
air ducts, nor leave it in a car
parked in direct sunlight as there
can be a considerable rise in
temperature inside the car.
• Do not stick paper or sticker on the
CD, nor scratch the surface of the
CD.
• After playing, store the CD in its
case.
If there is a scratch, dirt or
fingerprints on the CD, it may cause
tracking error.
CAUTION
This symbol is intended
to alert the user to the
presence of important
operating and
maintenance (servicing)
instructions in the
literature accompanying
the appliance.
CFD-E10
Sony Corporation ©2002
Printed in China
3-234-994-11(1)
Specifications
CD player section
General
System
Compact disc digital audio system
Laser diode properties
Material: GaAlAs
Wave length: 780 nm
Emission duration: Continuous
Laser output: Less than 44.6 µW
(This output is the value measured at a
distance of about 200 mm from the
objective lens surface on the optical
pick-up block with 7 mm aperture.)
Spindle speed
200 r/min (rpm) to 500 r/min (rpm)
(CLV)
Number of channels
2
Frequency response
20 - 20,000 Hz +1/–2 dB
Wow and flutter
Below measurable limit
Speaker
Full range: 5.7 cm dia., 2.7 Ω, cone
type (2)
Outputs
Headphones jack (stereo minijack)
For 8 - 32 ohms impedance
headphones
Power output
1 W + 1 W (at 2.7 Ω , 10 % harmonic
distortion in AC operation)
Power requirements
DC IN 6 V accepts:
Supplied AC power adaptor for use
with 120 V AC, 60 Hz
6 V DC, 4 size AA (R6) batteries
Power consumption
DC 11.5 W
Battery life
When playing a CD:
Sony R6P: approx. 2 hours
Sony alkaline LR6: approx 4 hours
Dimensions
Approx. 315 × 131 × 70 mm (w/h/d)
(12 5⁄8 × 5 1⁄4 × 2 7⁄8 inches) (incl.
projecting parts)
Mass
Approx. 920 g (2 lb.) (incl. batteries)
Supplied accessory
AC power adaptor (1)
Radio section
Frequency range
FM: 87.5 - 108 MHz
AM:530 - 1,710 kHz
Antennas
FM: Telescopic antenna
AM: Built-in ferrite bar antenna
Design and specifications are subject to
change without notice.
Optional accessories
Sony MDR headphone series
This equipment has been tested
and found to comply with the
limits for a Class B digital device,
pursuant to Part 15 of the FCC
Rules. These limits are designed
to provide reasonable protection
against harmful interference in a
residential installation. This
equipment generates, uses and can
radiate radio frequency energy
and, if not installed and used in
accordance with the instructions,
may cause harmful interference to
radio communications. However,
there is no guarantee that
interference will not occur in a
particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be
determined by turning the
equipment off and on, the user is
encouraged to try to correct the
interference by one or more of the
following measures:
— Reorient or relocate the
receiving antenna.
— Increase the separation
between the equipment and
receiver.
— Connect the equipment into an
outlet on a circuit different
from that to which the receiver
is connected.
— Consult the dealer or an
experienced radio/TV
technician for help.
You are cautioned that any
changes or modifications not
expressly approved in this manual
could void your authority to
operate this equipment.
Owner's Record
The model number is located at
the bottom and the serial number
is located in the battery
compartment.
Record the serial number in the
space provided below. Refer to
these numbers whenever you call
upon your Sony dealer regarding
this product.
Model No. CFD-E10
Serial No. __________________
For customers in the USA
Please register this product on line at http://www.sony.com/
productregistration.
Proper registration will enable us to send you periodic mailings about
new products, services and other important announcements.
Registering your product will also allow us to contact you in the
unlikely event that the product needs adjustment or modification.
Thank you.
Location of controls
Choosing Power
Sources
Playing a CD
TUNING
i (headphones)
MEGA BASS
FUNCTION
1 Turn on the player.
Connecting the AC power
adaptor
1 to DC IN 2 to a
VOL*
6V
POWER
wall
outlet
PLAY MODE
OPR/BATT
AC power
adaptor
(supplied)
2 Press Z to open the CD compartment.
To
Do this
adjust the volume
Slide VOL.
stop playback
Press x.
pause playback
Press u.
Press the button again to resume
play after pause.
go to the next track
Press >.
go back to the
previous track
Press ..
Listening to the
radio
1 Turn on the player.
locate a point while
Press > (forward) or .
listening to the sound (backward) while playing until
you find the point.
remove the CD
Press x, then Z.
turn off the player
Set POWER to “OFF”.
2 Set FUNCTION to “FM STEREO” or
“AM”.
,
To remove the CD
Be careful not to touch the
playing side (the side with
no label).
Using the player on batteries
PUSH CLOSE
Display
**
DC IN 6V
Insert four size AA (R6) batteries (not supplied) into
the battery compartment.
To release the battery
Press the # side of the battery and then take out the
battery.
3 Place a CD in the CD compartment.
12 cm CD
8 cm CD
Push down until it
clicks into place.
Insert aligning the
center part.
Connect the headphones to the i (headphones) jack.
To reinforce the bass sound
Set MEGA BASS to “ON”.
To return to normal sound, set the switch to “OFF”.
3 Turn TUNING to tune in a radio station.
1 Set FUNCTION to “CD”.
2 Press PLAY MODE until the play mode you want
* There is a tactile dot beside VOL to show the direction
to turn up the volume.
** The u button has a tactile dot.
To listen through headphones
Selecting play mode
appears in the display. Then proceed as follows:
If the battery compartment lid comes
off
Insert the right corner of the lid and then insert the left
corner aligning it to the groove of the battery
compartment.
To
Selected play mode and
operation you need
repeat a single track
“REP 1”: Select the track you
want to repeat by pressing >
or . and then press u.
To
Do this
repeat all tracks
“REP ”: Press u.
adjust the volume
Slide VOL.
shuffle play
“SHUF ”: Press u.
turn off the radio
Set POWER to “OFF”.
repeat tracks in
random order
“SHUF REP ”: Press u.
With the label side facing you
4 Press PUSH CLOSE to close the the lid
of the CD compartment.
Notes
• To use the player on batteries, disconnect the AC power
adaptor from the player. The player does not operate on
batteries as long as the AC power adaptor is connected.
• Replace the batteries when the OPR/BATT indicator
dims or when the player stops operating. Replace all
batteries with new ones.
To cancel selected play mode
5 Set FUNCTION to “CD”.
Display
Total track number
To improve broadcast reception
Reorient the antenna for FM. Reorient the player itself
for AM.
Press PLAY MODE until the selected play mode
disappears from the display.
About CD-Rs/CD-RWs
This CD player can play CD-Rs/CD-RWs recorded in
the CD-DA format*, but playback capability may vary
depending on the quality of the disc and the condition
of the recording device.
FM
* CD-DA is the abbreviation for Compact Disc Digital
Audio. It is a recording standard used for Audio CDs.
AM
Tip
If the FM broadcast is noisy, set FUNCTION to “FM
MONO”. The radio will play in monaural.
6 Press u.
The player plays all the tracks once.
Track number
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
