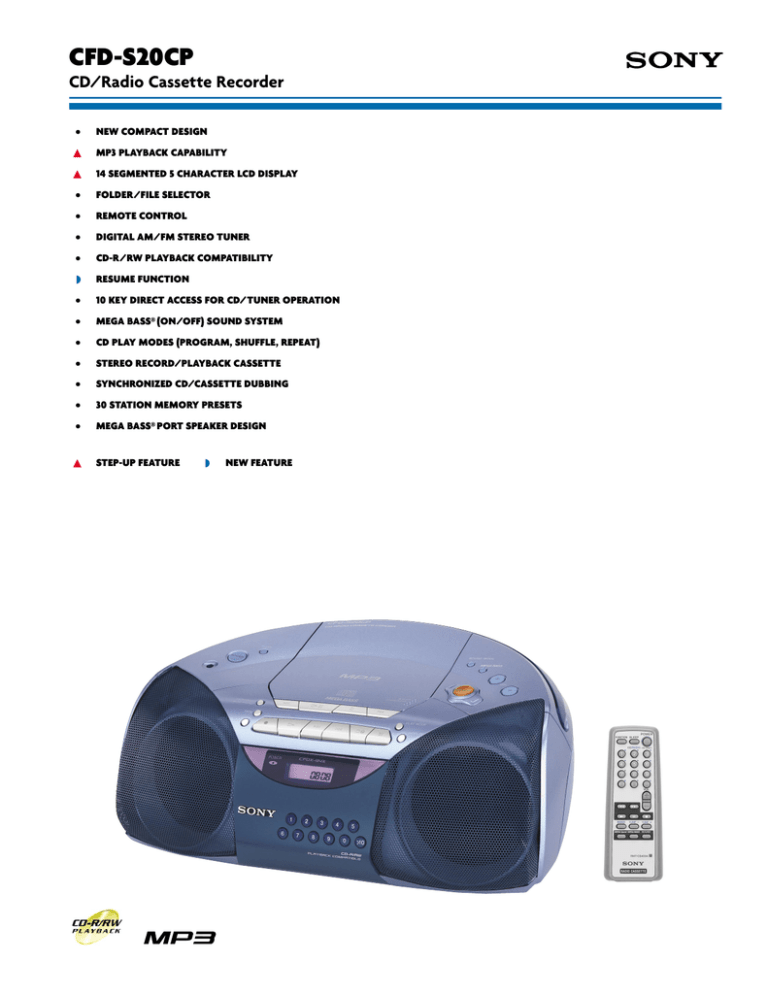

CFD-S20CP
CD/Radio Cassette Recorder
•
NEW COMPACT DESIGN
▲
MP3 PLAYBACK CAPABILITY
▲
14 SEGMENTED 5 CHARACTER LCD DISPLAY
•
FOLDER/FILE SELECTOR
•
REMOTE CONTROL
•
DIGITAL AM/FM STEREO TUNER
•
CD-R/RW PLAYBACK COMPATIBILITY
◗
RESUME FUNCTION
•
10 KEY DIRECT ACCESS FOR CD/TUNER OPERATION
•
MEGA BASS® (ON/OFF) SOUND SYSTEM
•
CD PLAY MODES (PROGRAM, SHUFFLE, REPEAT)
•
STEREO RECORD/PLAYBACK CASSETTE
•
SYNCHRONIZED CD/CASSETTE DUBBING
•
30 STATION MEMORY PRESETS
•
MEGA BASS® PORT SPEAKER DESIGN
▲
STEP-UP FEATURE
◗
NEW FEATURE
CFD-S20CP
features
specifications
• NEW COMPACT DESIGN represents high quality and power with a new
DIGITAL FILTER: 8X Oversampling
DIGITAL TO ANALOG CONVERSION: 1 Bit
CD FREQUENCY RESPONSE: 20-20000Hz, +1,-2dB
TUNER FREQUENCY RANGE: AM: 530-1710kHz
look in portable entertainment
▲ MP3 PLAYBACK CAPABILITY plays CD-R/RW discs that have been
recorded with MP3 compressed data
▲ 14 SEGMENTED 5 CHARACTER LCD DISPLAY scrolls up to 64 characters
for complete folder/track name information
• FOLDER/FILE SELECTOR is separate control button on remote and main
unit for folder selection on MP3 discs, and lets you to use the normal
Track selector button to “fast forward” or “fast back” through MP3 files
• REMOTE CONTROL provides full function remote control on power
on/off, compact disc, tuner and volume, as well as 10-key direct access of
CD tracks and tuner presets
• DIGITAL AM/FM STEREO TUNER provides the most accurate drift-free
tuning of AM and FM radio stations and lets you choose from the wide
variety of radio talk shows and music programs, with the added
enjoyment of stereo sound
FM: 87.6-108MHz
ANTENNA SYSTEM: AM: Built-in Ferrite Bar Antenna
FM: Telescopic Antenna
TAPE SYSTEM: 4 track, 2 channel stereo cassette
SPEAKERS: 4" (10cm) x 2
OUTPUTS: Headphone (stereo mini jack)
POWER REQUIREMENTS: “D” x 6 Batteries (optional)
“AA” x 2 batteries for Remote (optional)
COLOR: Blue
DIMENSIONS (WHD): 16 1⁄2" x 6 1⁄4" x 11 1⁄8" (386 x 166 x 252mm)
WEIGHT: 8 lbs 8 2⁄3 oz (3.8kg) w/batteries
©2002 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved.
Sony and Mega Bass are trademarks of Sony.
Features and specifications are subject to change without notice. Non-metric weights and measures
are approximate.
• CD-R/RW PLAYBACK COMPATIBILITY plays all compact discs including
CD-R recordable and CD-RW rewritable, plays all compact discs including
your own compilations from CD recorder deck or PC, and provides a
great extension of ability to play network audio music from the Internet a perfect companion for your PC music
◗ RESUME FUNCTION re-starts the compact disc at exact track where
playback last stopped instead of at the beginning of disc, even on MP3
playback
• 10 KEY DIRECT ACCESS FOR CD/TUNER OPERATION provides convenient
one-button access to preset AM/FM stations or tracks on standard CDs
• MEGA BASS® (ON/OFF) SOUND SYSTEM produces rich, deep, bass tones
for more powerful overall sound
• CD PLAY MODES (PROGRAM, SHUFFLE, REPEAT) lets you hear tracks in
multiple modes: in sequence as recorded, in program (RMS) order, all
tracks in random (Shuffle) order or a single track over and over
• 4 ELECTRONIC SOUND MODES (ROCK/POP/JAZZ/VOCAL) is selected
when EQ appears on the LCD display, allowing you to select an
appropriate sound adjustment setting for listening to various different
types of music
• STEREO RECORD/PLAYBACK CASSETTE DECK provides direct recording
from the AM/FM Stereo tuner or the CD player, and lets you play back
your own cassettes in addition to pre-recorded tapes
• SYNCHRONIZED CD/CASSETTE DUBBING starts cassette recording when
compact disc playback begins
• 30 STATION MEMORY PRESETS (10AM/20FM) uses electronic settings for
easy one-button tuning of your choice of 10 AM and 20 FM radio stations
• MEGA BASS® PORT SPEAKER DESIGN integrates common cavity speaker
with front firing bass duct to provide powerful, strong bass sound
Sony Electronics Inc • 1 Sony Drive, Park Ridge, New Jersey 07656 • www.sony.com
Printed in USA 2/2002
