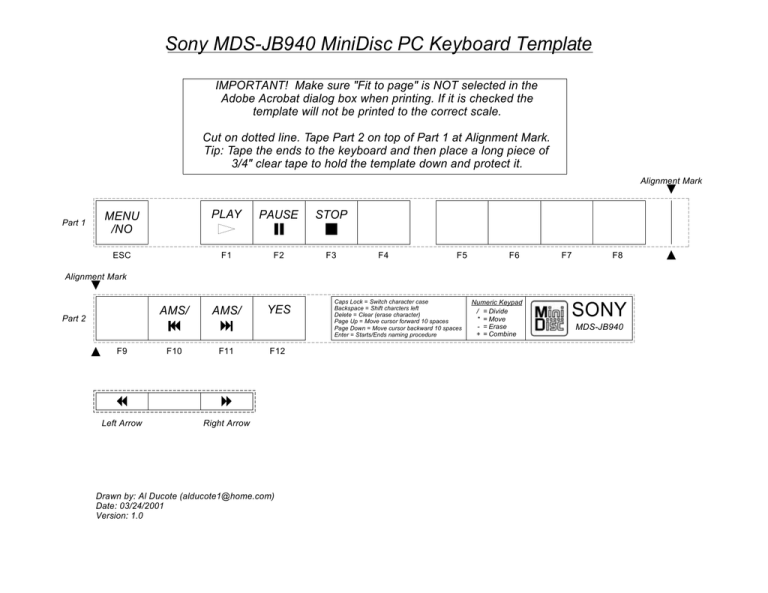

Sony MDS-JB940 MiniDisc PC Keyboard Template
IMPORTANT! Make sure "Fit to page" is NOT selected in the
Adobe Acrobat dialog box when printing. If it is checked the
template will not be printed to the correct scale.
Cut on dotted line. Tape Part 2 on top of Part 1 at Alignment Mark.
Tip: Tape the ends to the keyboard and then place a long piece of
3/4" clear tape to hold the template down and protect it.
Alignment Mark
Part 1
MENU
/NO
PLAY
PAUSE
STOP
ESC
F1
F2
F3
AMS/
YES
F4
F5
F6
F7
F8
Alignment Mark
AMS/
Part 2
F9
Left Arrow
F10
F11
F12
Right Arrow
Drawn by: Al Ducote (alducote1@home.com)
Date: 03/24/2001
Version: 1.0
Caps Lock = Switch character case
Backspace = Shift charcters left
Delete = Clear (erase character)
Page Up = Move cursor forward 10 spaces
Page Down = Move cursor backward 10 spaces
Enter = Starts/Ends naming procedure
Numeric Keypad
/ = Divide
* = Move
- = Erase
+ = Combine
SONY
MDS-JB940
