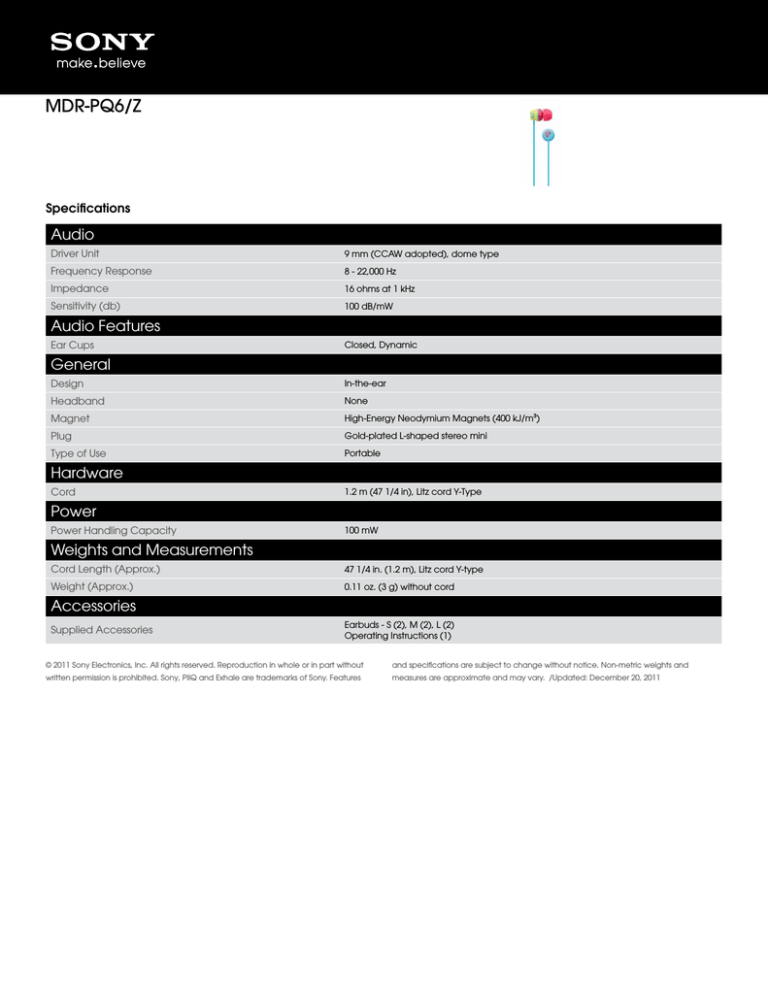

MDR-PQ6/Z
Specifications
Audio
Driver Unit
9 mm (CCAW adopted), dome type
Frequency Response
8 - 22,000 Hz
Impedance
16 ohms at 1 kHz
Sensitivity (db)
100 dB/mW
Audio Features
Ear Cups
Closed, Dynamic
General
Design
In-the-ear
Headband
None
Magnet
High-Energy Neodymium Magnets (400 kJ/m³)
Plug
Gold-plated L-shaped stereo mini
Type of Use
Portable
Hardware
Cord
1.2 m (47 1/4 in), Litz cord Y-Type
Power
Power Handling Capacity
100 mW
Weights and Measurements
Cord Length (Approx.)
47 1/4 in. (1.2 m), Litz cord Y-type
Weight (Approx.)
0.11 oz. (3 g) without cord
Accessories
Supplied Accessories
Earbuds - S (2), M (2), L (2)
Operating Instructions (1)
© 2011 Sony Electronics, Inc. All rights reserved. Reproduction in whole or in part without
and specifications are subject to change without notice. Non-metric weights and
written permission is prohibited. Sony, PIIQ and Exhale are trademarks of Sony. Features
measures are approximate and may vary. /Updated: December 20, 2011
